Description

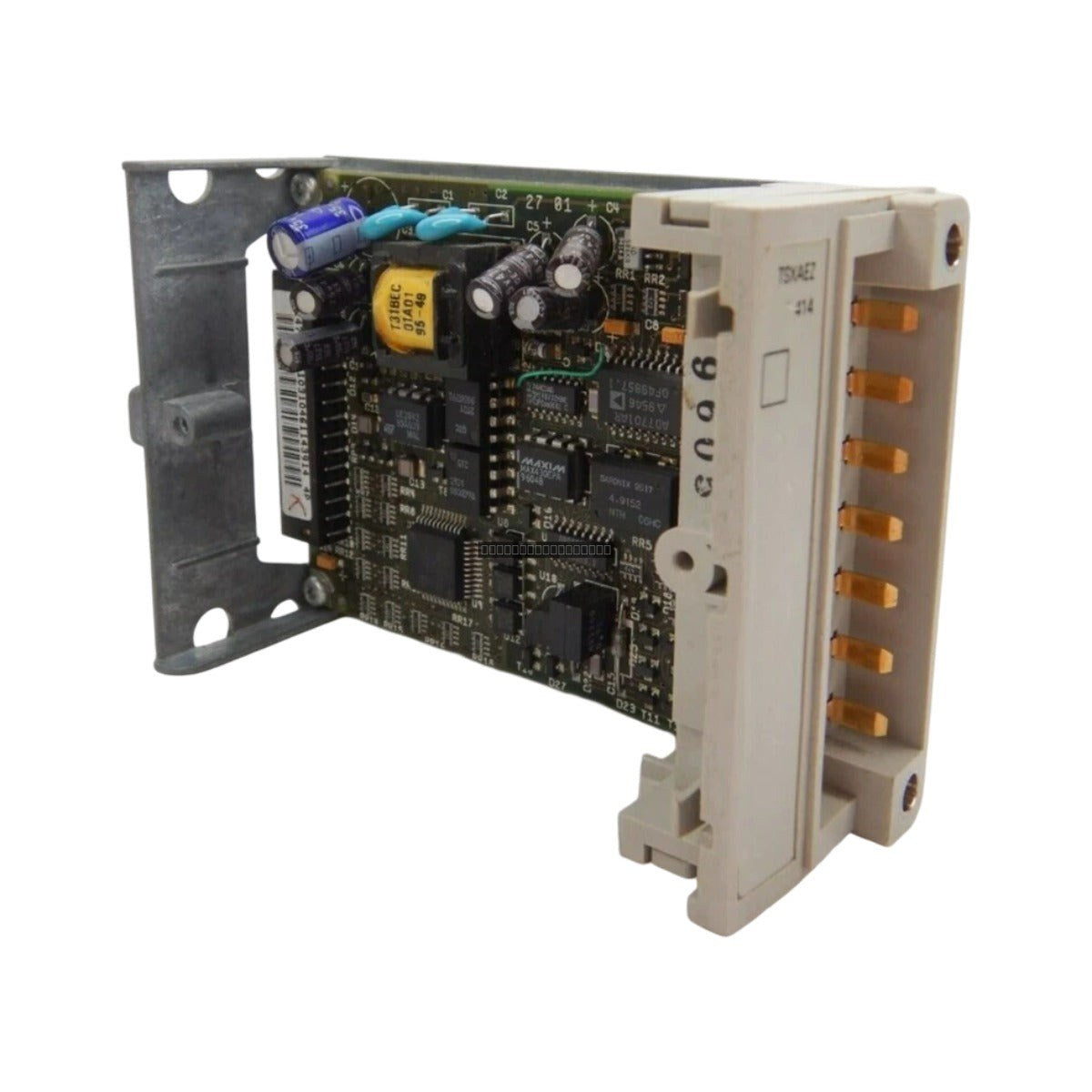

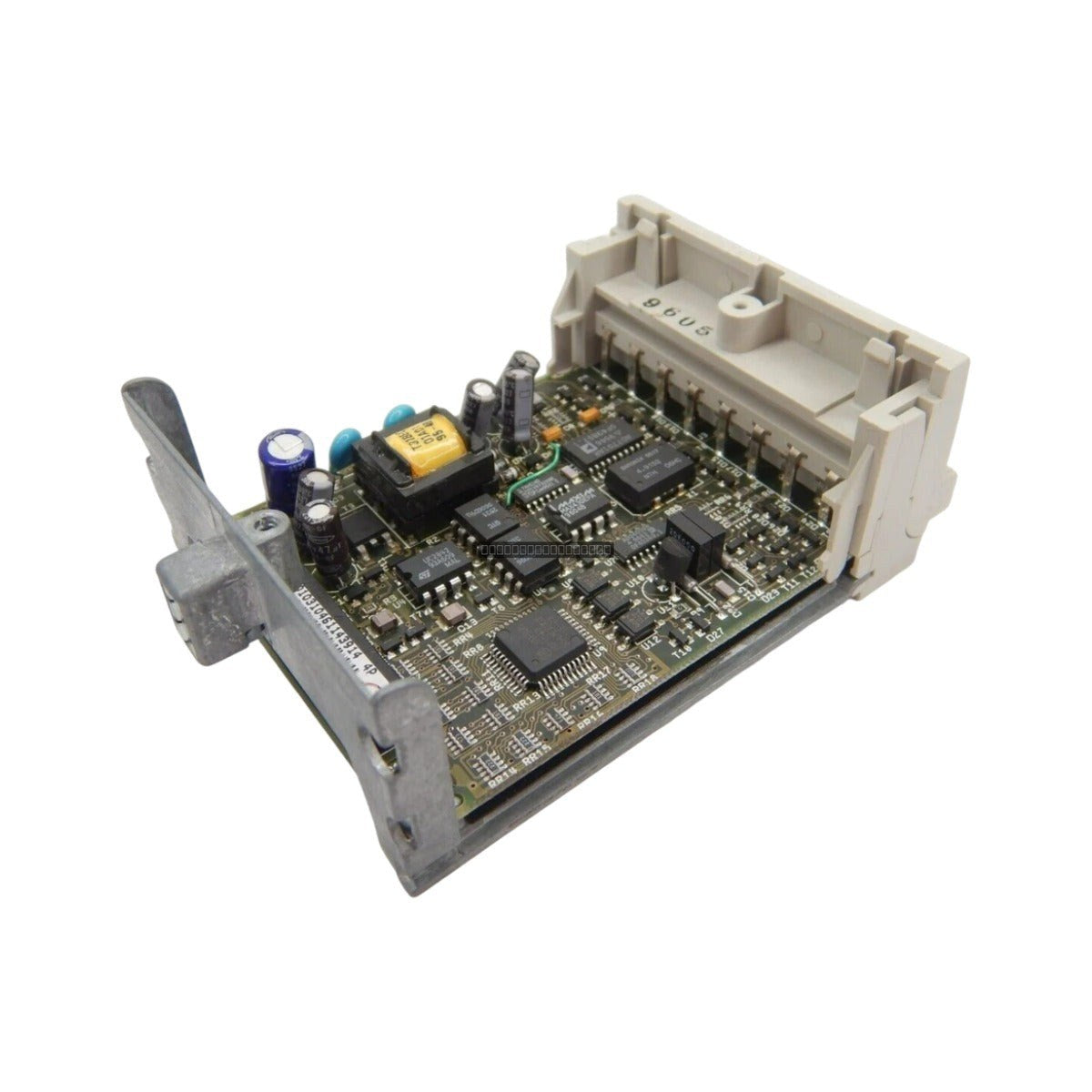

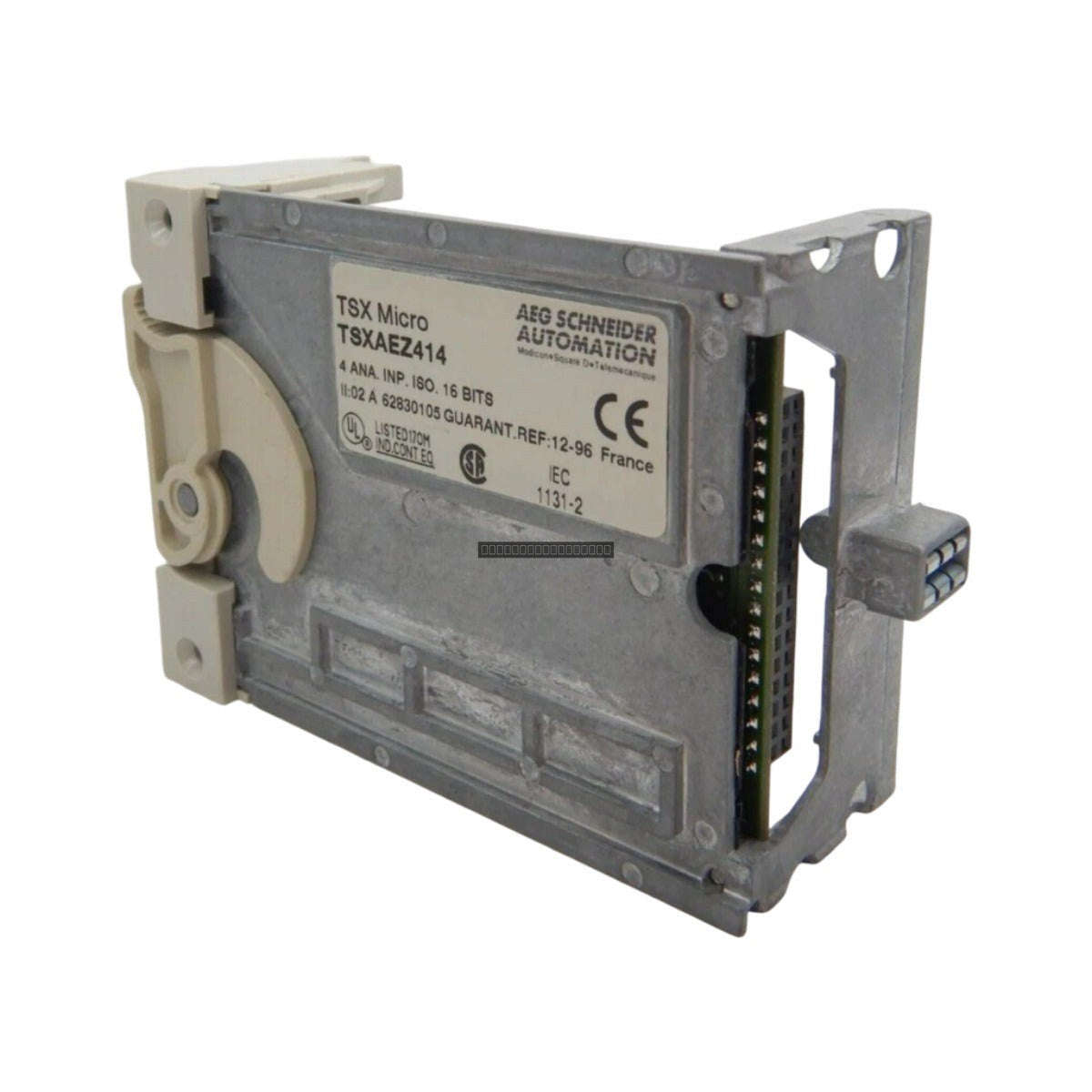

The Schneider Electric TSXAEZ414 is a high-precision analog input module designed for the Modicon TSX Micro automation platform. This module features 4 differential channels and utilizes a 16-bit analog-to-digital conversion architecture to provide reliable signal processing in demanding industrial applications. It is engineered to maintain high measurement accuracy while minimizing noise and signal variance, making it suitable for critical process control environments including water treatment, power generation, and chemical manufacturing.
Features
- 4 differential high-level analog input channels.
- 16-bit resolution for precise data acquisition.
- Robust 500 VAC electrical isolation between field instrumentation and backplane logic.
- Low input impedance of 10 Ohm to support signal integrity over extended cable runs.
- Optimized thermal stability with low drift coefficients for both voltage and current loops.
Applications
The TSXAEZ414 is intended for use in industrial automation systems requiring precise monitoring of analog signals. Common applications include loop monitoring, process variable tracking in chemical processing, discrete control in mining operations, and general instrumentation integration within the Modicon TSX Micro ecosystem.
Technical Specifications
| Model |
TSXAEZ414 |
| Brand |
Schneider Electric |
| Product Range |
Modicon TSX Micro |
| Module Type |
Analog Input Module |
| Channels |
4 High Level |
| Resolution |
16 bits |
| Acquisition Period |
520 ms |
| Input Impedance |
10 Ohm |
| Isolation Voltage |
500 VAC |
| Current Consumption |
85 mA at 5 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-25 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures between 0 and 60 deg C.
- Use shielded twisted-pair cabling for analog inputs to minimize EMI/RFI interference.
- Ensure proper grounding of the module chassis to the system common ground to maintain the integrity of the isolation barrier.
- Verify that field wiring is securely terminated to prevent intermittent signal loss or loop impedance fluctuations.
FAQ
What is the primary function of the TSXAEZ414 module?
The TSXAEZ414 is an analog input module for the Schneider Modicon TSX Micro series, used to convert high-level analog signals into 16-bit digital data for processing by the PLC.
What is the acquisition cycle time for this module?
The module features a fixed acquisition cycle of 520 ms, which balances signal filtering with the data refresh rate required for process control.
Does this module provide electrical isolation?
Yes, the module includes a 500 VAC isolation barrier that protects the internal backplane logic from field-side voltage spikes or ground loops.
