Description

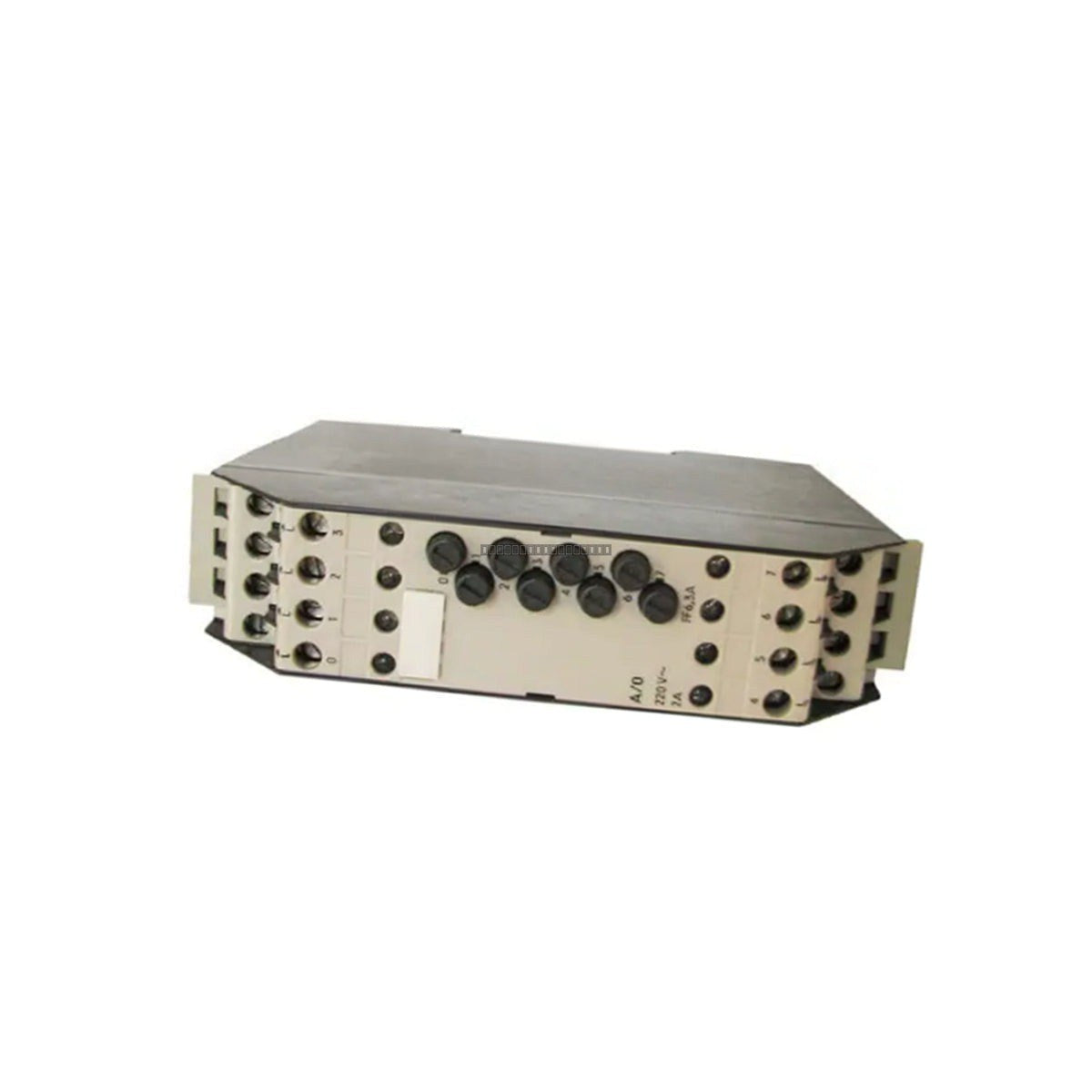

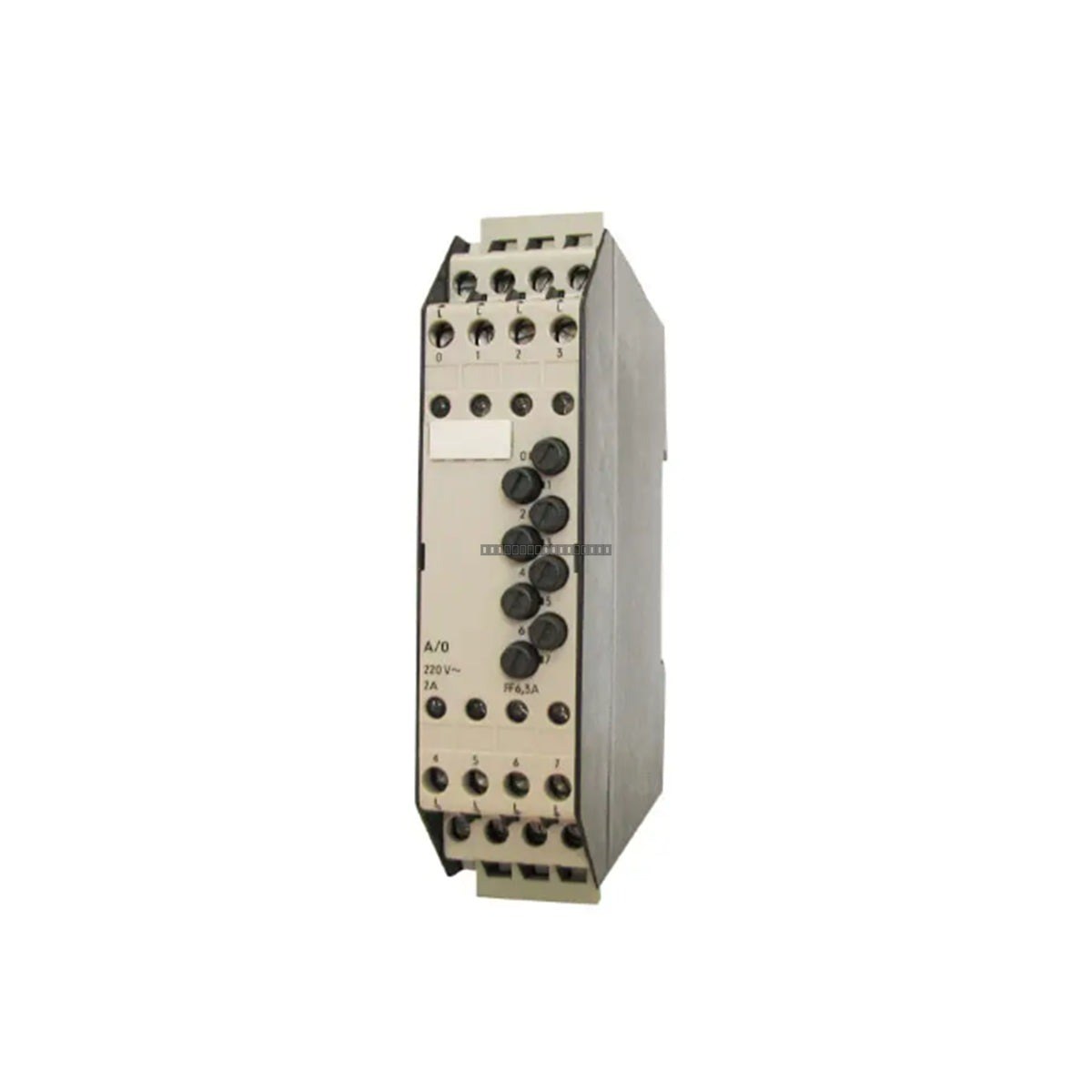

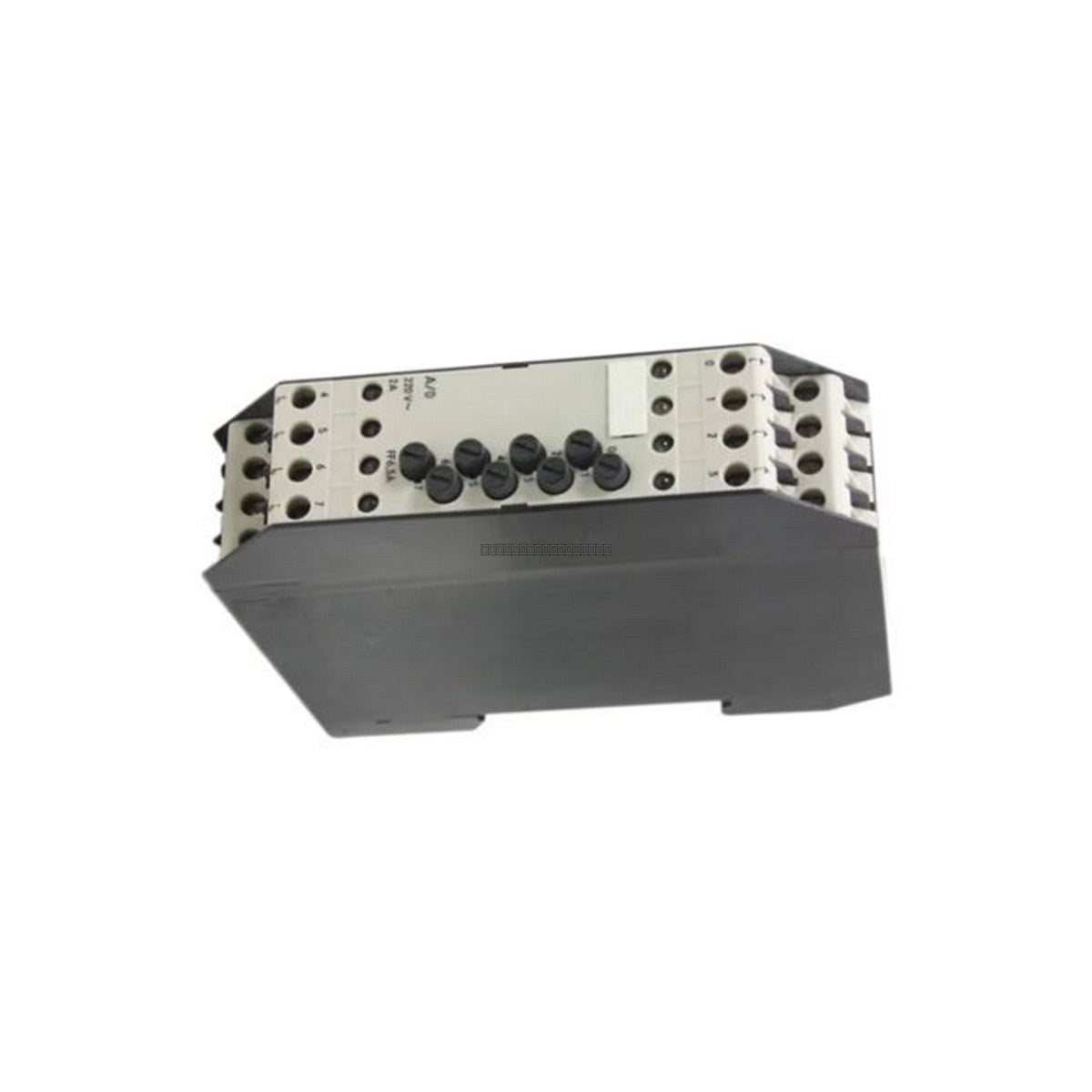

The Siemens 6ES5415-7AB21 is a specialized digital output module designed for integration within the legacy Simatic S5-110 PLC series. This module provides 8 independent output channels capable of switching 220 VAC loads, making it suitable for controlling industrial actuators, contactors, and signaling devices. Engineered for reliability in demanding environments, the module incorporates galvanic isolation to protect the central processing unit from high-voltage transients and electrical noise originating from the field side.
Features
- 8-channel digital output configuration for high-density control.
- Galvanic isolation via optocouplers to ensure safe separation between logic and load circuits.
- Integrated RC snubber networks per channel to suppress voltage spikes during inductive load switching.
- Front-mounted LED status indicators for immediate visual confirmation of output signal states.
- Robust design optimized for legacy S5-110 rack-based architectures.
Applications
This module is widely deployed in industrial automation systems requiring high-voltage AC switching, including power generation facilities, chemical processing plants, and heavy manufacturing infrastructure. It is ideal for driving solenoids, motor starters, and alarm systems where electrical isolation is critical for system stability.
Technical Specifications
| Model |
6ES5415-7AB21 |
| Series |
Simatic S5-110 |
| Output Channels |
8 |
| Voltage Rating |
220 VAC |
| Current Rating |
2 A per channel |
| Internal Power Consumption |
2.5 W |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is securely seated in the designated S5-110 rack slot to ensure proper backplane connectivity.
- Use shielded cabling for field wiring to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Adhere to proper grounding practices for the rack assembly to maintain the integrity of the galvanic isolation barrier.
- Regularly inspect the front-panel LEDs during maintenance cycles to verify correct I/O operation and identify potential loop faults.
FAQ
What is the primary function of the 6ES5415-7AB21?
This module acts as an interface between the S5-110 PLC CPU and external 220 VAC field devices, allowing the controller to switch high-voltage loads safely.
Does this module require external power for the outputs?
Yes, the module is designed to switch external 220 VAC power sources; the internal backplane provides only the control logic power.
Can this module be used for DC loads?
No, this specific model is designed for AC output switching and includes RC snubber networks specifically for AC inductive load protection.
