The Schneider TSX1712002 is a compact, brick-style programmable logic controller designed for efficient industrial automation and process control. Part of the Telemecanique legacy range, this controller provides a reliable solution for small-to-medium scale automation tasks, offering integrated digital I/O capabilities in a space-saving footprint.Features
Integrated I/O configuration: 11 digital inputs and 7 digital outputs.
Standardized voltage: Operates on 24 VDC for both input and output circuits.
Compact design: Brick-style form factor ideal for control panels with limited space.
Mounting: Designed for standard DIN rail installation, ensuring quick and secure deployment.
ApplicationsThis PLC is suitable for various industrial applications, including machine control, small-scale process automation, and discrete manufacturing systems where compact, reliable logic control is required.Technical Specifications
Manufacturer
Schneider Electric
Brand
Telemecanique
Model
TSX1712002
Category
Compact PLC
Input Voltage
24 VDC
Output Voltage
24 VDC
Digital Inputs
11
Digital Outputs
7
Mounting
DIN rail
Operating Temperature
5 degC to 55 degC
Storage Temperature
-25 degC to 70 degC
Ingress Protection
IP20
Installation Guidelines
Ensure the controller is mounted in a clean, dry environment within the specified IP20 rating.
Use standard 35mm DIN rail for mounting; ensure the module is snapped securely into place.
Verify that the power supply is disconnected before performing any wiring operations.
Maintain adequate clearance around the unit to allow for natural convection cooling.
Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
Ensure proper grounding of the control panel to maintain signal integrity and safety.
FAQWhat is the primary input/output voltage for this unit?The TSX1712002 operates on 24 VDC for both its digital inputs and outputs.Is this controller DIN rail mountable?Yes, it is designed for standard DIN rail mounting, facilitating easy integration into existing control cabinets.What is the operating temperature range?The unit is designed to operate reliably in temperatures ranging from 5 degC to 55 degC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5701-3LH11 is an 8-slot subrack expansion frame designed for the SIMATIC S5-115H programmable logic controller system. This chassis provides the necessary hardware infrastructure for scaling I/O capacity in fault-tolerant, high-availability industrial environments. By enabling localized backplane extensions, this unit supports the redundant architecture required for critical process control applications, including thermal power generation and chemical processing, ensuring consistent signal integrity and system reliability.Features
8-Slot Capacity: Provides eight dedicated slots for standard Simatic S5 modules, including digital, analog, and communication cards.
Fault-Tolerant Support: Specifically engineered to integrate with S5-115H redundant controller configurations, facilitating cross-coupling and synchronized I/O processing.
Robust Mechanical Design: Built for industrial environments with reinforced connector slots to maintain stable electrical contact under high-vibration conditions.
Passive Backplane: Utilizes a rigid, high-speed parallel backplane bus to minimize latency and ensure deterministic data transmission between modules.
Technical Specifications
Model
6ES5701-3LH11
Product Family
Simatic S5-115H
Component Type
8-Slot Expansion Frame
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Cooling Method
Natural convection
Relative Humidity
95 percent non-condensing max
Installation Guidelines
Mounting: Ensure the subrack is securely mounted within a standard industrial enclosure or cabinet, providing sufficient clearance for natural convection cooling.
Grounding: Maintain a low-impedance ground connection to the chassis to ensure electromagnetic compatibility and protection against electrical noise.
Module Insertion: Always power down the system before inserting or removing modules to prevent electrical arcing or damage to the backplane pins.
Cable Routing: Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity across the expansion bus.
FAQIs this expansion frame compatible with standard S5-115U systems?The 6ES5701-3LH11 is specifically optimized for the S5-115H fault-tolerant series. While it shares physical characteristics with other S5 components, it is intended for use in S5-115H redundant architectures.Does this unit require external power?The unit acts as a passive expansion frame; power is typically distributed through the backplane from the associated power supply module installed within the rack configuration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens SIMATIC S5 6ES5183-3UA11 is a robust, high-density hardware expansion subrack designed for large-scale industrial automation architectures. This 21-slot modular chassis provides the necessary mechanical framework and backplane communication bus to scale input, output, and intelligent peripheral modules. Engineered for reliability in demanding environments, this expansion frame facilitates deterministic data exchange across expansive automation networks, helping to minimize diagnostic overhead and system downtime.Features
21-slot modular configuration for high-density I/O expansion.
Rugged chassis design built to withstand continuous physical and electrical stress.
Optimized backplane topology for low-latency signal routing and communication.
Designed for integration into complex S5 control systems.
Passive backplane design requiring external power distribution.
ApplicationsThis expansion unit is suitable for heavy industrial applications, including chemical processing plants, rolling mills, and municipal wastewater treatment facilities where reliable, scalable I/O capacity is required.Technical Specifications
Model
6ES5183-3UA11
Brand
Siemens SIMATIC S5
Product Type
PLC Expansion Unit / Rack
Slot Configuration
21 Slots
Power Supply
None (Requires external supply)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Relative Humidity
95% non-condensing
Installation Guidelines
Ensure the rack is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
Always power down the system before inserting or removing any modules from the backplane to prevent electrical damage.
Ensure the chassis is properly grounded to the cabinet frame to mitigate electromagnetic interference (EMI).
Verify that the external power supply rails are correctly wired to the backplane before energizing the system.
Handle modules with care to avoid electrostatic discharge (ESD) damage to sensitive backplane pins.
FAQDoes this unit include a power supply?No, the 6ES5183-3UA11 is a passive expansion rack and does not include an internal power supply unit. It requires an external power distribution system to energize the backplane and the installed modules.Is this unit compatible with all SIMATIC S5 modules?This unit is designed for the SIMATIC S5 system architecture. Please verify the specific module compatibility with your existing S5 processor and backplane requirements before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Yokogawa AAI841-H03 is an analog I/O module designed for use within the Centum CS and Centum VP distributed control systems. This module facilitates the processing of analog signals, providing reliable data acquisition and control capabilities for industrial automation environments. It is engineered to meet the rigorous demands of process control, ensuring high availability and signal integrity.Features
Designed for seamless integration with Yokogawa Centum CS and Centum VP systems.
Supports analog input and output functionality for versatile process control.
Robust hardware construction suitable for continuous industrial operation.
Compatible with standard Yokogawa I/O rack mounting configurations.
ApplicationsThis module is typically utilized in process industries such as oil and gas, chemical manufacturing, power generation, and water treatment, where precise analog signal monitoring and control are required for plant-wide automation.Technical Specifications
Product Model
AAI841-H03
Spare Model
AAI841-H03 S1
Manufacturer
Yokogawa
Module Type
Analog I/O Module
Weight
0.32 kg
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the I/O rack.
Verify that the module is correctly seated in the designated slot to ensure proper backplane connection.
Handle with care to prevent electrostatic discharge (ESD) damage; use appropriate grounding straps during installation.
Ensure that all field wiring is properly terminated and shielded to minimize electromagnetic interference (EMI).
Maintain adequate ventilation around the I/O racks to prevent overheating during operation.
FAQWhat is the difference between AAI841-H03 and AAI841-H03 S1?The AAI841-H03 S1 is often designated as a spare or revision-specific version of the base model. Please consult your system's hardware documentation or the Yokogawa compatibility matrix to confirm if the S1 variant is suitable for your specific system revision and firmware requirements.Is this module compatible with both Centum CS and Centum VP?Yes, the AAI841-H03 is designed for compatibility with both the Yokogawa Centum CS and Centum VP distributed control system platforms.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Schneider Electric TSXP574823M is a high-performance standalone processor module designed for the Modicon Premium automation platform. Engineered for demanding industrial control applications, this processor provides robust execution of complex logic and high-speed data processing for large-scale automation systems.Features
Advanced 32-bit RISC processor architecture for efficient instruction execution.
Integrated memory configuration including 768 KB RAM and 256 KB Flash.
High-speed processing capability with an instruction cycle time of 0.23 microseconds.
Supports extensive I/O configurations, managing up to 512 digital and 128 analog points.
Integrated communication interfaces including Modbus RS-485 and USB for flexible connectivity.
Durable housing with integrated heat dissipation fins to ensure thermal stability in industrial environments.
ApplicationsThis processor module is suitable for complex machine control, process automation, and supervisory tasks within the Modicon Premium ecosystem, providing reliable performance in manufacturing, water treatment, and infrastructure control systems.Technical Specifications
Manufacturer
Schneider Electric
Model
TSXP574823M
Processor Type
32-bit RISC
RAM
768 KB
Flash Memory
256 KB
Processing Speed
0.23 µs per instruction
Digital I/O Capacity
512
Analog I/O Capacity
128
Communication Ports
1 x Modbus RS-485, 1 x USB
Backup Battery
3V Lithium (integrated)
Operating Temperature
0 degC to 60 degC
Weight
0.45 kg
Installation Guidelines
Ensure the PLC rack is powered down before installing or removing the processor module to prevent electrical damage.
Verify that the module is correctly seated in the designated slot and that the locking mechanism is engaged.
Maintain adequate clearance around the module to allow for proper airflow and heat dissipation.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module.
Ensure all communication cables are properly shielded and routed away from high-voltage power lines to minimize EMI interference.
FAQWhat is the primary function of the TSXP574823M?The TSXP574823M is a standalone processor module for the Modicon Premium series, responsible for executing control logic and managing I/O data for industrial automation processes.Does this module require a backup battery?Yes, the unit includes an integrated 3V lithium backup battery to maintain memory and real-time clock functions during power loss.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The GE Fanuc IC670CHS101C is a high-density I/O terminal block designed for the Field Control series. This component serves as the physical interface for field wiring, providing a secure and organized connection point for I/O modules within the control system architecture.Features
Designed for integration with the GE Field Control system series.
Supports up to 2 I/O modules per terminal block assembly.
Features 37 individual terminal points for versatile field wiring configurations.
Hot-swap compatible, allowing for maintenance and module replacement without interrupting system power.
Robust construction suitable for industrial control environments.
Technical Specifications
Product Model
IC670CHS101C
Component Type
I/O Terminal Block
Terminal Count
37
Module Capacity
2 modules per block
Wiring Gauge
14-22 AWG
Maximum Terminal Current
10 Amperes
Tariff Code
8537101190
Installation Guidelines
Ensure the system power is switched off before installing or removing the terminal block or associated I/O modules.
Verify that the terminal block is securely seated on the mounting rail to maintain proper electrical contact with the backplane.
Use appropriate wire stripping lengths for 14-22 AWG conductors to ensure a secure connection without exposing excess copper.
Maintain proper cable routing practices to minimize electromagnetic interference (EMI) and ensure adequate airflow for heat dissipation.
Handle with care to prevent damage to the connector pins during alignment and insertion.
FAQIs the IC670CHS101C hot-swappable? Yes, this terminal block is designed to be hot-swap compatible, supporting module replacement while the system is operational.How many modules can this block accommodate? This specific terminal block is designed to support up to 2 I/O modules.What is the wire size range for the terminals? The terminals are designed to accommodate wire gauges ranging from 14 to 22 AWG.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1747-L553 is a high-performance processor module from the SLC 5/05 series, designed for demanding industrial automation applications. This controller features 64K words of user memory and provides integrated Ethernet and RS-232 communication ports, enabling efficient connectivity and data exchange in mid- to large-scale control systems.Features
Integrated 10/100 Mbps Ethernet port for high-speed networking and BOOTP support.
RS-232 communication channel supporting DF1 Full-duplex, Half-duplex master/slave, Radio Modem, DH-485, and ASCII protocols.
64K words of user memory for complex program and data storage.
Typical scan time of 0.9 ms/K and fast bit execution of 0.37 microseconds.
Supports up to 8192 digital I/O points and 480 analog I/O points.
Built-in real-time clock and calendar for time-stamping and scheduling.
Applications
Industrial automation and process control systems.
Packaging and material handling machinery.
Iron, steel, and aluminum smelting/processing facilities.
Complex manufacturing and assembly line control.
Technical Specifications
Model
1747-L553
Series
SLC 500 (SLC 5/05)
User Memory
64K words
Communication Ports
Ethernet, RS-232 (Channel 0)
Max Digital I/O
8192
Max Analog I/O
480
Operating Temperature
0 degC to 60 degC
Storage Temperature
-40 degC to 85 degC
Relative Humidity
5% to 95% (non-condensing)
Installation Guidelines
Power Off: Always disconnect power from the chassis before installing or removing the processor module to prevent electrical shock or damage.
ESD Protection: Use a grounded wrist strap or similar ESD protection when handling the module to prevent damage to sensitive electronic components.
Mounting: Ensure the module is fully seated in the designated slot of the SLC 500 chassis and secured with the chassis retaining screws.
Wiring: Use shielded cables for communication connections to minimize EMI interference. Ensure proper routing away from high-voltage power lines.
Environment: Install in a clean, dry, and vibration-free enclosure rated for the intended industrial environment.
FAQWhat is the 1747-L553?It is a high-performance, single-slot processor from the SLC 5/05 series, designed for mid- to large-scale applications requiring Ethernet and RS-232 communication.What are the key differences from 5/03 or 5/04?The key difference is the native Ethernet port for faster networking, along with 64K of memory.Can I swap modules while power is on?No. Never install, remove, or wire any module while power is applied to avoid electrical hazards and potential damage to the backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

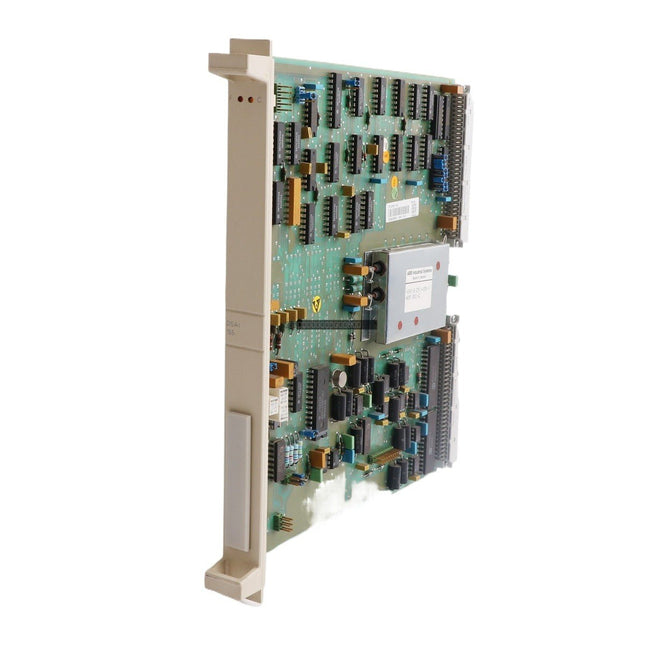

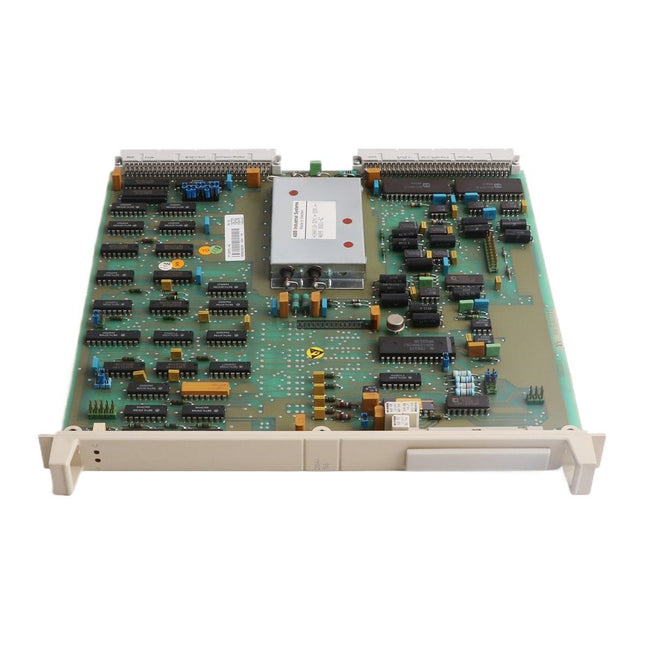

DescriptionThe ABB DSAI155 is an analog input module designed for the Advant S100 I/O system. This module is specifically engineered for thermocouple signal processing, providing reliable data acquisition for industrial control applications. Please note that this unit is designated as discontinued by the manufacturer.Features
Designed for integration with the Advant S100 I/O platform
Specialized input circuitry for thermocouple sensor interfacing
Robust design suitable for demanding industrial environments
Direct replacement or spare for legacy control systems
Technical Specifications
Product Model
DSAI155
Spare Model / Order Code
57120001-HZ
Manufacturer
ABB
Module Type
Analog Input (Thermocouple)
Weight
0.48 kg
Installation Guidelines
Ensure the control system power is fully disconnected before attempting to install or remove the module from the S100 I/O rack.
Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
Use shielded cabling for thermocouple inputs to minimize electromagnetic interference (EMI) and ensure signal integrity.
Maintain proper grounding practices for the I/O rack to protect against electrical noise and surges.
Handle the module using ESD-safe practices to prevent damage to sensitive internal electronic components.
Ensure adequate ventilation around the I/O rack to prevent overheating during continuous operation.
FAQIs the ABB DSAI155 still in production?No, the DSAI155 module has been discontinued by ABB. It is primarily available through secondary market channels for maintenance and support of legacy systems.What type of sensors does the DSAI155 support?The DSAI155 is specifically designed to interface with thermocouple sensors for temperature measurement within the Advant S100 I/O architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens Simatic S5 6ES5455-4UA12 is a high-density digital output module designed for integration within the Simatic S5-135 and S5-155 programmable logic controller series. This module provides 16 independent digital output channels, facilitating the reliable switching of field loads based on commands from the host CPU. Engineered for demanding industrial environments, it supports process continuity in applications such as chemical processing, thermal power generation, and heavy industrial automation by managing inductive and resistive loads with high stability.Features
16-Channel High-Density Design: Optimized for efficient rack space utilization while maintaining performance under full thermal load.
Galvanic Isolation: Integrated optocouplers isolate internal logic from field-side voltage spikes, protecting the PLC backplane from EMI and surge disturbances.
Diagnostic Feedback: Supports synchronized bit manipulation and provides status information regarding short-circuit and overload conditions to the central processor.
Robust Construction: Built for reliability in harsh industrial conditions, ensuring consistent switching frequencies and reduced downtime.
Technical Specifications
Model
6ES5455-4UA12
Brand
Siemens
Product Family
Simatic S5-135 / 155
Module Type
Digital Output Module
Output Points
16 Channels
Power Consumption
3.8 W (typical)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Installation Guidelines
Power Off: Ensure all power to the S5 rack is disconnected before inserting or removing the module to prevent electrical damage or bus errors.
ESD Handling: Use proper electrostatic discharge (ESD) precautions when handling the module to protect sensitive internal circuitry.
Rack Seating: Ensure the module is fully seated in the S5 rack slot and that the backplane connectors are properly aligned before securing the module.
Wiring: Route field wiring away from high-voltage cables and sources of high EMI to maintain signal integrity.
Cooling: Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
FAQWhat is the primary function of the 6ES5455-4UA12?This module acts as a digital output interface for Siemens S5-135 and S5-155 PLCs, allowing the controller to switch 16 external field loads.Is this module compatible with other S5 series?This specific model is designed for the S5-135 and S5-155 series. Please verify your specific rack and CPU compatibility before installation.Does this module provide protection against electrical surges?Yes, the module features galvanic isolation via optocouplers to protect the PLC backplane from field-side voltage spikes and EMI.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens SIMATIC S5 6ES5924-3SA12 is a central processing unit board engineered for use within the legacy SIMATIC S5-150S and 150U automation systems. This module serves as a critical controller, managing real-time logic, timing, and counting functions essential for industrial automation. Designed for durability in demanding environments, it provides reliable instruction execution and I/O management, making it a suitable replacement component for maintaining and restoring legacy control systems in sectors such as steel manufacturing, automotive assembly, and power generation.Features
Designed specifically for integration with ZG 150S and 150U subracks.
High-speed parallel bus communication for efficient interfacing with digital and analog I/O modules.
Integrated diagnostic LEDs for rapid identification of power faults, processor status, and bus errors.
Hardened multi-layer PCB construction to mitigate the effects of electromagnetic interference (EMI) and thermal stress.
Deterministic processing capabilities for complex industrial control loops.
ApplicationsThis CPU board is primarily utilized in legacy SIMATIC S5-150 series automation architectures. It is intended for use in heavy industrial environments where reliable, continuous control of manufacturing processes is required. It is commonly deployed to replace failing hardware in existing legacy installations to avoid costly system migrations.Technical Specifications
Model
6ES5924-3SA12
Brand
Siemens SIMATIC S5
Product Type
CPU Board
Compatibility
Siemens S5-150S / S5-150U Central Controllers
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Relative Humidity
95% non-condensing
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the CPU board from the subrack.
Handle the board by the edges to prevent electrostatic discharge (ESD) damage to sensitive electronic components.
Verify that the board is correctly aligned with the backplane connector before applying pressure to seat it.
Ensure the subrack environment is free from excessive dust and moisture to maintain long-term operational reliability.
Check that all diagnostic LEDs are visible after installation to facilitate future system monitoring and troubleshooting.
FAQIs the 6ES5924-3SA12 compatible with other S5 series controllers?This specific board is designed for the S5-150S and 150U series. It is not intended for use in other S5 subrack architectures.What should I do if the diagnostic LEDs indicate a fault?First, verify that the board is fully seated in the backplane. If the fault persists, check the system power supply and the status of other modules in the rack to isolate whether the issue is localized to the CPU board or a broader system error.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-DHRIO is a ControlLogix communication interface module designed to provide connectivity between ControlLogix controllers and Data Highway Plus (DH+) networks or Remote I/O (RIO) networks. This module functions as a bridge, allowing for seamless data exchange and device management across legacy and modern industrial communication architectures.Features
Dual-channel communication interface for versatile network integration.
Supports Data Highway Plus (DH+) communication protocol.
Functions as a Remote I/O (RIO) scanner for distributed control applications.
Selectable communication speeds: 57.6 Kbaud, 115.2 Kbaud, and 230.4 Kbaud.
Designed for seamless integration into the ControlLogix chassis backplane.
ApplicationsThe 1756-DHRIO is typically utilized in industrial automation environments requiring the integration of legacy DH+ networks or RIO-based field devices into a modern ControlLogix platform. It is commonly found in manufacturing, process control, and material handling systems where legacy infrastructure must be maintained alongside newer control hardware.Technical Specifications
Module Type
Communication Interface Module
Communication Channels
2
Communication Speeds
57.6 Kbaud, 115.2 Kbaud, 230.4 Kbaud
Current Draw
850 mA @ 24 VDC
Recommended Cable
Belden 89463 twinaxial (0.52 mm2 / 20 AWG)
Max Cable Length
Up to 3048 m (10,000 ft) depending on baud rate
Installation Guidelines
Ensure the ControlLogix chassis power is disconnected before installing or removing the module.
Slide the module into the designated chassis slot and secure it using the top and bottom latching mechanisms.
Use shielded twinaxial cable (e.g., Belden 89463) for all DH+ and RIO connections to minimize EMI interference.
Maintain proper grounding practices for the communication shield to prevent noise-related communication errors.
Verify that the baud rate settings on the module match the existing network configuration before commissioning.
FAQWhat is the primary function of the 1756-DHRIO module?The module acts as a communication bridge, enabling a ControlLogix controller to communicate with devices on a Data Highway Plus network or to act as a scanner for Remote I/O networks.Can this module be used for both DH+ and RIO networks?Yes, the 1756-DHRIO is designed to support both DH+ and Remote I/O communication protocols, providing flexibility for legacy system integration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB S200-IT8 is an 8-channel analog input module designed for the Advant S200 I/O system. This module is specifically engineered to interface with millivolt signals and various thermocouple types, providing precise temperature monitoring capabilities for industrial control applications. It is compatible with the SATT I/O architecture, ensuring reliable data acquisition in demanding process environments.Features
8-channel analog input configuration.
Supports multiple thermocouple types including B, C, E, J, K, L, and N.
Millivolt signal input capability.
Designed for integration within the ABB Advant S200 I/O series.
Compact module design for efficient rack space utilization.
Technical Specifications
Product Model
S200-IT8
Alternative Part Numbers
200-IT8, 490176088, S200IT8
Input Channels
8
Input Types
mV, Thermocouple (B, C, E, J, K, L, N)
Manufacturer
ABB
System Compatibility
Advant S200 / SATT
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module from the I/O rack.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
Use shielded twisted-pair cabling for thermocouple inputs to minimize electromagnetic interference (EMI) and ensure signal integrity.
Ensure proper grounding of the I/O rack and shielding to maintain measurement accuracy.
Maintain adequate ventilation around the I/O rack to prevent overheating during continuous operation.
FAQWhat thermocouple types are supported by the S200-IT8?The module supports types B, C, E, J, K, L, and N thermocouples, as well as millivolt signals.Is the S200-IT8 compatible with other S200 series modules?Yes, the S200-IT8 is designed for the Advant S200 I/O system and is intended for use in compatible S200 I/O racks.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 6ES5 376-1AA11 is a 16 KB CMOS-EPROM sub-module designed for the Siemens Simatic S5 programmable logic controller series. This non-volatile memory hardware is used to store compiled STEP 5 machine logic, system parameters, and organization blocks permanently on the host central processing unit. It is widely utilized in industrial environments, such as manufacturing plants and water treatment facilities, where stable, battery-independent program storage is required. By preventing application data loss during power failures or backup battery depletion, this module ensures immediate code re-execution upon power restoration, minimizing system downtime.Memory ArchitectureThe module utilizes a CMOS-EPROM matrix with a 16 KB storage capacity. Its architecture supports multi-bit parallel data addressing, providing stable read access speeds synchronized with the S5 CPU execution cycle. Unlike volatile RAM, this module retains its data without the need for electronic refresh pulses. Programming is performed via an external PG series programmer using high-voltage algorithms, after which the module is inserted into the designated slot on the S5 processor.Features
Non-volatile storage ensures data integrity during power loss.
16 KB capacity for complex STEP 5 logic and system blocks.
Shielded, anti-static housing protects internal components from electromagnetic interference and vibration.
Compact cartridge design for easy installation and replacement in S5 CPU assemblies.
Installation Guidelines
Ensure the S5 CPU is powered down before inserting or removing the memory module to prevent electrical damage.
Handle the module by its housing to avoid electrostatic discharge (ESD) damage to the internal pins.
Ensure the module is fully seated in the designated front slot of the S5 processor assembly.
Verify that the module is correctly keyed for the specific CPU slot to prevent misalignment.
Technical Specifications
Model
6ES5 376-1AA11
Brand
Siemens
Product Family
Simatic S5
Memory Type
CMOS-EPROM
Capacity
16 KB
Data Retention
Non-volatile
Operating Temperature
0 to 60 deg C
Storage Temperature
-20 to 70 deg C
FAQIs this module compatible with all S5 CPUs?The 6ES5 376-1AA11 is designed for specific Simatic S5 series processors that support EPROM sub-modules. Please verify your CPU manual for compatibility with 16 KB EPROM cartridges.Does this module require a battery?No, this is a non-volatile EPROM module. It does not require battery power to retain its programmed data.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The 1756-OB8EI is a high-integrity digital DC sourcing output module designed for the Allen-Bradley ControlLogix 1756 chassis platform. This module provides eight independent, galvanically isolated output channels, each equipped with integrated electronic fusing to protect against short-circuit conditions and overcurrent events. It is engineered for demanding industrial environments, including power distribution, automotive manufacturing, and water treatment, where reliable, low-latency control of field devices such as solenoids, relays, and valves is required.Features
Eight isolated DC sourcing output channels.
Electronic fusing per channel for rapid short-circuit protection.
Point-level diagnostics with +/- 1 ms timestamp accuracy.
Supports 10 to 30 VDC operating voltage range.
Compatible with 1756-TBCH and 1756-TBS6H Removable Terminal Blocks (RTB).
Designed for single-slot installation in any ControlLogix chassis.
ApplicationsThis module is suitable for critical control applications requiring channel-to-channel isolation to prevent common-tie interference. It is commonly used to drive external field loads such as pilot lamps, buzzers, and hydraulic valves while maintaining isolation between independent DC power loops.Technical Specifications
Model
1756-OB8EI
Outputs
8 Points (Isolated/Fused)
Voltage Range
10 to 30 VDC
Current per Point
2 Amps @ 60 deg C
Short-Trip Threshold
> 4.5 Amps
Isolation
250 V continuous (Channel-to-channel/Backplane)
Backplane Power
1.30 Watts
Operating Temp
0 to 60 deg C
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Use a compatible 1756-TBCH or 1756-TBS6H Removable Terminal Block for field wiring.
Maintain proper grounding practices for the chassis to ensure effective EMI protection.
Ensure adequate ventilation within the enclosure; observe derating requirements for current based on ambient temperature.
Handle with care to prevent electrostatic discharge (ESD) damage to the module backplane connectors.
FAQQ: Does the 1756-OB8EI require an external power supply?A: Yes, the module requires an external 24 VDC power source to drive the field loads connected to the output channels.Q: What is the purpose of the electronic fusing?A: The electronic fusing provides rapid, resettable protection for each channel, tripping in under 500 microseconds during an active short-circuit to prevent damage to the module and field wiring.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5921-3UA11 is a central processing unit board designed for legacy Simatic S5 programmable logic controller systems. This module serves as the core control processor, executing industrial runtime logic, managing arithmetic algorithms, and coordinating signal synchronization between local and remote I/O subracks. It is engineered for use in demanding industrial environments, including petrochemical plants, steel manufacturing, and power generation, where it maintains time-critical process loops and ensures system stability.Features
Core processing unit for Simatic S5 automation systems.
High-efficiency execution of ladder logic instruction sets.
Integrated diagnostic indicators on the front faceplate for monitoring hardware faults, cycle states, and power stability.
Optocoupled isolation barriers to protect the internal processing bus from transient voltage induction.
Direct backplane bus integration for reliable data and address allocation.
ApplicationsThis CPU board is primarily utilized in legacy factory automation networks to manage complex control tasks. It is suitable for process control, machine automation, and synchronized signal routing where reliable, long-term operation of the S5 platform is required.Technical Specifications
Model
6ES5921-3UA11
Brand
Siemens
System Series
Simatic S5
Module Type
CPU Control Board
Operating Temperature
0 to 60 deg C
Power Consumption
5.2 W
Replacement Model
6ES5921-3UA12
Installation Guidelines
Ensure the PLC system is powered down before inserting or removing the CPU board from the backplane.
Handle the module by the edges to prevent electrostatic discharge (ESD) damage to the integrated circuits.
Verify that the module is fully seated in the rack slot to ensure proper contact with the backplane bus.
Maintain adequate ventilation within the cabinet to keep the operating temperature within the specified 0 to 60 deg C range.
Check the front faceplate LEDs after installation to confirm the module has successfully initialized and is in the correct operating state.
FAQIs the 6ES5921-3UA11 compatible with all Simatic S5 racks?This module is designed for standard Simatic S5 backplane architectures. Please verify your specific rack configuration and CPU compatibility requirements before installation.Can this module be replaced by a newer version?Yes, the 6ES5921-3UA12 is recognized as a direct replacement model for the 6ES5921-3UA11.What should I do if the diagnostic LEDs indicate a fault?Refer to your specific Simatic S5 system manual to interpret the fault codes displayed on the front faceplate. Ensure power supply stability and check for proper backplane seating before troubleshooting further.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens Simatic S5 6ES5526-3LA01 is a high-performance CP 526 communications processor engineered to interface monochrome monitors with legacy Simatic S5 automation systems. This specialized module provides dedicated graphic processing and memory allocation, offloading display rendering tasks from the central processing unit to ensure efficient system performance. It is widely utilized in industrial environments such as metal processing mills, mining operations, and maritime propulsion control systems for real-time process visualization and alarm logging.Features
Dedicated graphic processing for monochrome display units.
Onboard memory support for screen text, character sets, and static background forms.
Direct Simatic S5 backplane bus interface via parallel register mapping.
High-reliability signal transmission designed to resist electromagnetic interference.
Optimized for continuous operation in demanding industrial environments.
Technical Specifications
Model
6ES5526-3LA01
Brand
Siemens
Product Range
Simatic S5
Module Type
CP 526 Communications Processor
Display Compatibility
Monochrome Monitors
Operating Temperature
0 to 55 deg C
Storage Temperature
-40 to 70 deg C
Power Consumption
5 VDC (1.8 A nominal)
Relative Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the rack is equipped with functional forced ventilation units, as this module generates significant thermal output from high-density logic components.
Always power down the S5 rack before inserting or removing the CP 526 module to prevent electrical damage to the backplane or module pins.
Handle the module by the edges; avoid touching the PCB components to prevent ESD damage.
Ensure the module is fully seated in the backplane slot and secured with the provided locking mechanisms.
Verify that all signal cables are properly shielded and routed away from high-voltage power lines to maintain signal integrity.
FAQIs this module compatible with color monitors?No, the 6ES5526-3LA01 is specifically designed for monochrome monitor interfaces only.What is the primary function of the CP 526?The CP 526 serves as a communications processor that offloads graphic rendering and display management tasks from the main S5 CPU, allowing for efficient visualization of process data and alarms.Is this part still in production?No, this module was discontinued by the manufacturer on January 10, 2004. We provide these units as tested, functional spares to support legacy system maintenance.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5712-8BC50 is a 2.5-meter interconnecting cable designed for bridging IM 316 interface modules within Siemens Simatic S5 expansion racks. This cable facilitates high-speed parallel backplane signal transmission between central racks and expansion frames, ensuring reliable communication in multi-tier S5 chassis configurations. It is engineered to maintain signal integrity and minimize latency in demanding industrial environments such as chemical processing, water treatment, and continuous manufacturing lines.Features
Designed specifically for IM 316 to IM 316 interface module connectivity.
High-grade multi-conductor shielding to protect against electromagnetic interference (EMI).
Robust multi-pin connectors with mechanical locking screws for secure, vibration-resistant coupling.
Pre-assembled construction ensures impedance matching and signal synchronization.
Passive design requiring no external power supply.
ApplicationsThis cable is essential for expanding I/O density in Siemens Simatic S5 systems. It is primarily used to connect expansion racks to the central controller rack, maintaining deterministic I/O updates and data frame integrity across distributed chassis setups.Technical Specifications
Model
6ES5712-8BC50
Brand
Siemens
Cable Length
2.5 m
Compatibility
IM 316 to IM 316
Operating Temperature
-20 to 60 deg C
Power Consumption
0.0 W (Passive)
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable to prevent electrical surges or data corruption.
Align the multi-pin connectors carefully with the IM 316 interface ports to avoid pin damage.
Tighten the mechanical locking screws securely to maintain a vibration-proof connection.
Route the cable away from high-voltage power lines and heavy EMI sources to prevent signal degradation.
Ensure the cable is not subjected to sharp bends or excessive tensile stress during installation.
FAQIs this cable compatible with other S5 interface modules?No, this cable is specifically designed for the IM 316 interface module architecture.Does this cable require external power?No, the 6ES5712-8BC50 is a passive interconnecting cable and does not consume power.Can this cable be used in high-vibration environments?Yes, the cable features robust mechanical locking screws designed to prevent accidental disconnection in industrial settings.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Emerson Fisher Provox CL6721X1-A3 is a discrete I/O module designed for integration within the Provox distributed control system environment. This module serves as a critical interface component for managing discrete signal processing, facilitating reliable communication between field devices and the control system architecture. Please note that this component has been discontinued by the manufacturer.Features
Designed for compatibility with Fisher Provox control system architectures.
Provides discrete I/O functionality for industrial process control applications.
Engineered for stable operation in demanding process environments.
Spare model identifier: 41B5215X122.
ApplicationsThis module is typically utilized in legacy process control systems where discrete signal monitoring and control are required for plant operations, including valve status monitoring, switch inputs, and discrete output signaling.Technical Specifications
Model
CL6721X1-A3
Spare Model
41B5215X122
Product Type
Discrete I/O Module
Manufacturer
Emerson
Weight
0.22 kg
Tariff Code
8538907080
Installation Guidelines
Ensure the control system power is fully disconnected before attempting to install or remove the module.
Handle the PC board with appropriate ESD (electrostatic discharge) precautions to prevent damage to sensitive electronic components.
Verify that the module is correctly seated in the designated rack slot to ensure proper backplane connectivity.
Check all terminal connections for secure contact and proper shielding to minimize electromagnetic interference (EMI).
Maintain adequate ventilation around the control rack to prevent localized overheating during operation.
FAQIs this module still in production?No, the CL6721X1-A3 has been discontinued by the manufacturer. We provide these units as refurbished or surplus stock to support legacy system maintenance.What is the spare model number for this unit?The associated spare model number for the CL6721X1-A3 is 41B5215X122.
The IC660BBD120 is a high-speed counter module within the GE Genius I/O series. This block is designed for high-performance pulse processing and motion control applications, capable of operating independently of a CPU for rapid input sensing and output response. The module consists of two primary components: the terminal base assembly (IC660TBD120) and the electronics assembly (IC660EBD120).Features
12 discrete inputs (5V DC to 30V DC) supporting frequencies up to 200 kHz.
4 output channels (4.75V DC to 5.25V DC at 200mA).
Configurable counter modes: supports 1, 2, or 4 counters of varying complexity.
Direct processing capability allows the block to sense inputs and trigger outputs without CPU intervention.
Built-in protection against power surges on outputs.
Software-configurable parameters and failed switch diagnostics.
Supports 115 VAC or 10-30 VDC block power, including backup battery operation.
Applications
Turbine Flowmeter monitoring and meter proving.
High-speed velocity measurement and motion control.
Automated material handling and logistics counting systems.
Industrial automation tasks requiring fast, stand-alone I/O processing.
Technical Specifications
Product Model
IC660BBD120
Input Channels
12
Output Channels
4
Input Frequency
Up to 200 kHz
Operating Voltage
93V to 132VAC / 10V to 30VDC
Frequency Range
47Hz to 63Hz
Operating Temperature
0 degC to 60 degC
Storage Temperature
-40 degC to 100 degC
Humidity
5% to 95% (non-condensing)
Weight
1.8 kg
Installation Guidelines
The Genius I/O block is open-type equipment and must be mounted within a protective enclosure suitable for the industrial environment.
Ensure the installation area is clean and free of airborne contaminants.
Maintain adequate airflow for cooling; leave at least 2 inches of clearance between blocks.
The block may be mounted in any orientation (upright or inverted).
Secure the block using 8-32 screws/bolts; use star washers to ensure proper ground integrity.
Always disconnect power before installing or removing the electronics assembly from the terminal base.
FAQsWhat is the IC660BBD120?It is a configurable, self-contained high-speed counter block from the GE Genius I/O series, designed to directly process rapid pulse signals.What are the main I/O specifications?It features 12 discrete inputs supporting frequencies up to 200 kHz and 4 output channels.What is the operating voltage?This module can be powered by 115VAC or 10-30VDC. It supports mixed power configurations, allowing 115VAC as the main supply and 10-30VDC as a backup.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The General Electric IC660BBS103 is a Genius Block I/O module designed for industrial control applications. This discrete output block provides eight (8) output circuits, supporting a nominal voltage of 115 VAC or 125 VDC. It is engineered for robust performance in demanding environments, featuring comprehensive diagnostic capabilities to monitor system health and operational status.Features
Eight (8) discrete output circuits.
Supports 115 VAC and 125 VDC nominal voltage ranges.
Integrated diagnostics for output monitoring, including short circuit, overload, no load, overtemperature, and loss of I/O power detection.
Internal electronic short circuit protection with defined trip times.
Designed for integration within the Genius I/O system architecture.
Technical Specifications
Model
IC660BBS103
Module Type
Discrete Output Block
Number of Circuits
8
Nominal Voltage
115 VAC / 125 VDC
Output Current (AC)
2 A RMS
Output Current (DC)
2 A Resistive / 1 A Inductive
Peak Block Output
15 A
Operating Temperature
0 to 60 degC
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the control system power is disconnected before installing or removing the block.
Mount the module in a location that allows for adequate ventilation to maintain operating temperatures within the specified 0 to 60 degC range.
Verify that all wiring connections are secure and comply with local electrical codes.
Use shielded cables where necessary to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
FAQWhat type of diagnostics does the IC660BBS103 support?The module supports output diagnostics including short circuit, overload, no load, overtemperature, and loss of I/O power.What is the maximum output current for this block?The peak block output is 15 Amps, with individual circuit ratings of 2 A RMS for AC and 2 A resistive (1 A inductive) for DC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 2301 is a high-reliability Analog Output Baseplate designed to provide the physical mounting and secure electrical interface for analog control loops within Tricon systems. This passive backplane hardware structure manages critical interface pathways, routing diagnostic and signal lines from analog modules directly to field termination assemblies. It operates reliably in demanding industrial sectors such as petroleum refining, chemical processing, power plants, and mining operations. By offering dual-redundant routing paths and supporting hot-swappable module insertion, this component prevents system dropouts, protects final control elements, and lowers unscheduled plant downtime.Bus Architecture and Routing InfrastructureThe structural PCB design incorporates independent trace routing for power distribution and signal loops to isolate critical system vectors. Dual 24 VDC power lines route separately across the chassis backplane to deliver continuous power to each assigned slot, ensuring zero control interruption if one power rail defaults. Built-in signal isolating mechanisms protect the inner Tricon logical bus from external field transients and inductive feedback from control loops. The heavy-duty structural design minimizes thermal accumulation and withstands steady vibrations typical of heavy industrial equipment enclosures.Technical Specifications
Brand
Invensys Triconex
Model
2301
Series
Tricon System
Module Type
Analog Output Baseplate
Operating Temperature
-20 to 60 deg C
Net Weight
3.15 kg
Installation Guidelines
Ensure the Tricon system is powered down before installing or removing any modules from the baseplate.
Mount the baseplate securely within the designated Tricon chassis to ensure proper alignment of the backplane connectors.
Verify that all field wiring is properly terminated and secured to the field termination assemblies before applying power.
Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the specified -20 to 60 deg C range.
Follow standard ESD (Electrostatic Discharge) mitigation procedures when handling the baseplate or associated modules.
Ensure all grounding connections are intact to protect against EMI and transient surges.
FAQWhat is the primary function of the Triconex 2301?The 2301 serves as a passive backplane that provides the physical mounting and electrical routing for analog output modules, facilitating communication between the Tricon controller and field devices.Does this baseplate support redundant power?Yes, the 2301 features dual 24 VDC power line routing to ensure continuous operation and high availability for critical control loops.Is this component hot-swappable?Yes, the baseplate is designed to support the hot-swapping of Triconex analog output modules, allowing for maintenance without interrupting the overall system process.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The General Electric IC693CHS391E is a 10-slot modular baseplate designed for the GE Fanuc Series 90-30 PLC system. This expansion baseplate provides the necessary physical mounting and electrical backplane connectivity for a CPU module and various I/O or specialty modules, facilitating scalable automation configurations.Features
Ten (10) total slots for system configuration.
Dedicated slot for one (1) CPU or specialty module (Slot 1).
Nine (9) dedicated slots for I/O or option modules (Slots 2-10).
Integrated power supply module slot.
25-pin female connector for system communication.
Supports PCI card connectivity.
Technical Specifications
Model
IC693CHS391E
Series
Series 90-30
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Option Slots
9 (Slots 2-10)
Voltage
5V DC
Current Consumption
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
Mount the baseplate securely on a flat, vibration-resistant surface within the control cabinet.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling.
Use shielded cables for I/O connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the baseplate to the cabinet ground bus to prevent electrical noise and potential damage to sensitive components.
Handle modules using ESD-safe practices to prevent damage to internal circuitry.
FAQWhat is the primary function of the IC693CHS391E?The IC693CHS391E serves as the primary mounting and communication backplane for the GE Series 90-30 PLC, allowing the CPU to interface with up to nine additional I/O or specialty modules.Can this baseplate be used for expansion?Yes, this unit is designed as a modular baseplate that supports the expansion of the Series 90-30 system architecture, provided the power supply capacity is sufficient for the total module load.
DescriptionThe ABB HESG446933R2 70AB02B-E is a digital output module designed for the ABB Procontrol P13 automation system. This contact card serves as an interface for controlling field devices, such as actuators and sensors, by converting digital control signals into reliable relay-based outputs. Originally developed for high-demand power generation environments, this module is engineered for long-term reliability in critical industrial control applications.Features
Designed for the ABB Procontrol P13 platform
Digital output contact card configuration
Supports diagnostic monitoring via compatible HMI systems
High-reliability design suitable for turbine and power plant control
ApplicationsThe Procontrol P13 platform is widely utilized in power generation and heavy industrial sectors. This module is typically deployed in:
Turbine control and DCS systems
Open-loop and closed-loop process control
Industrial power distribution and substation automation
Fossil fuel, gas turbine, and combined cycle power plants
Technical Specifications
Product Model
HESG446933R2 / 70AB02B-E
Manufacturer
ABB
Rated Load Voltage
24 V DC
Continuous Current
0.5 A per channel @ 60 degC
Total Module Current
8 A
Isolation
500 V DC channel-to-bus
Operating Temperature
-20 degC to +70 degC (rack inlet air)
Storage Temperature
-40 degC to +85 degC
Humidity
0 to 95 % RH (non-condensing)
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the module from the rack.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
Ensure the rack environment provides adequate ventilation to maintain operating temperatures within the specified range.
Verify that all field wiring is properly secured to the terminal blocks and that cabling is routed away from high-EMI (Electromagnetic Interference) sources.
Confirm that the module is fully seated in the backplane connector before applying power.
FAQWhat is the primary function of the HESG446933R2 70AB02B-E?This module acts as a digital output contact card within the Procontrol P13 system, facilitating the interface between the control system and field-level actuators or secondary control devices.What are the environmental operating limits for this module?The module is rated for operation between -20 degC and +70 degC. It is designed for use in non-condensing environments with humidity levels up to 95%.Is this module compatible with modern HMI systems?Yes, the Procontrol P13 platform supports integration with modern HMI solutions, allowing for diagnostic monitoring of the module status on desktop or mobile interfaces.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 1794-TB32S is a high-density, 32-point spring-clamp terminal base unit designed for the Allen-Bradley Flex I/O 1794 modular platform. This unit serves as the physical and electrical interface for high-density Flex I/O modules, providing a robust termination plane for field wiring. Its spring-clamp (cage clamp) design utilizes constant-force internal springs, offering superior resistance to vibration and thermal cycling compared to traditional screw terminals, which reduces maintenance requirements and prevents loose-wire faults.Features
32-point high-density spring-clamp termination for efficient field wiring.
Vibration-resistant cage clamp design eliminates the need for periodic retightening.
Integrated Flexbus backplane pass-through for seamless data and logic power distribution.
Mechanical rotatable keyswitch to prevent incorrect module insertion and protect sensitive I/O circuitry.
Supports daisy-chaining of field-side power distribution.
Compact, open-style design for DIN-rail mounting in space-constrained control cabinets.
ApplicationsThis terminal base is intended for use in industrial automation systems requiring high-density I/O configurations. It is compatible with various 32-channel Flex I/O modules, including sourcing output modules and high-density input cards, making it suitable for distributed control systems, machine control, and process automation environments.Technical Specifications
Model
1794-TB32S
Terminal Type
Spring-Clamp (Cage Clamp)
Termination Points
32
Max Voltage Rating
31.2 V AC / V DC
Max Current Rating
10 A
Wire Size Capacity
0.34 to 3.3 mm squared (22 to 12 AWG)
Operating Temperature
-20 to 70 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Mounting
DIN-Rail (Horizontal or Vertical)
Installation Guidelines
Ensure the DIN-rail is securely mounted and grounded according to local electrical standards.
Before inserting an I/O module, set the mechanical keyswitch on the base to the position corresponding to the specific I/O module type.
Always power down the Flex I/O system before installing or removing modules from the terminal base to prevent electrical arcing or damage to the backplane.
Use appropriate wire ferrules for stranded conductors to ensure a secure connection within the spring-clamp terminals.
Maintain adequate clearance around the module for heat dissipation and cable routing.
Route field wiring away from high-voltage AC lines and noise-generating equipment to minimize EMI.
FAQQ: Does the 1794-TB32S require external power?A: The terminal base itself is a passive component that routes power and data from the Flexbus backplane. Field-side power is supplied through the terminal connections as required by the specific I/O module installed.Q: Can I use this with any Flex I/O module?A: The 1794-TB32S is designed for high-density 32-point modules. Always verify compatibility with your specific I/O module catalog number before installation.
