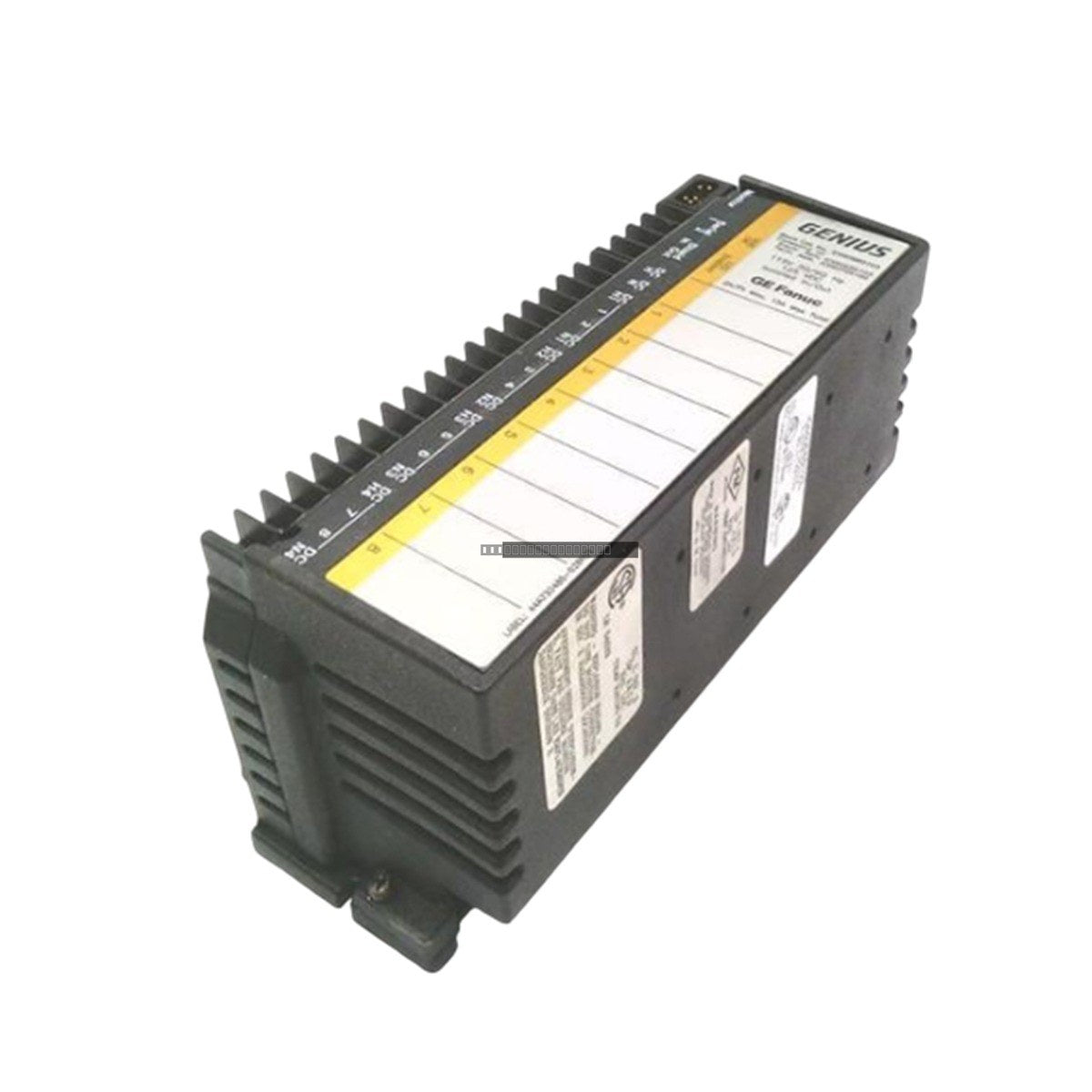

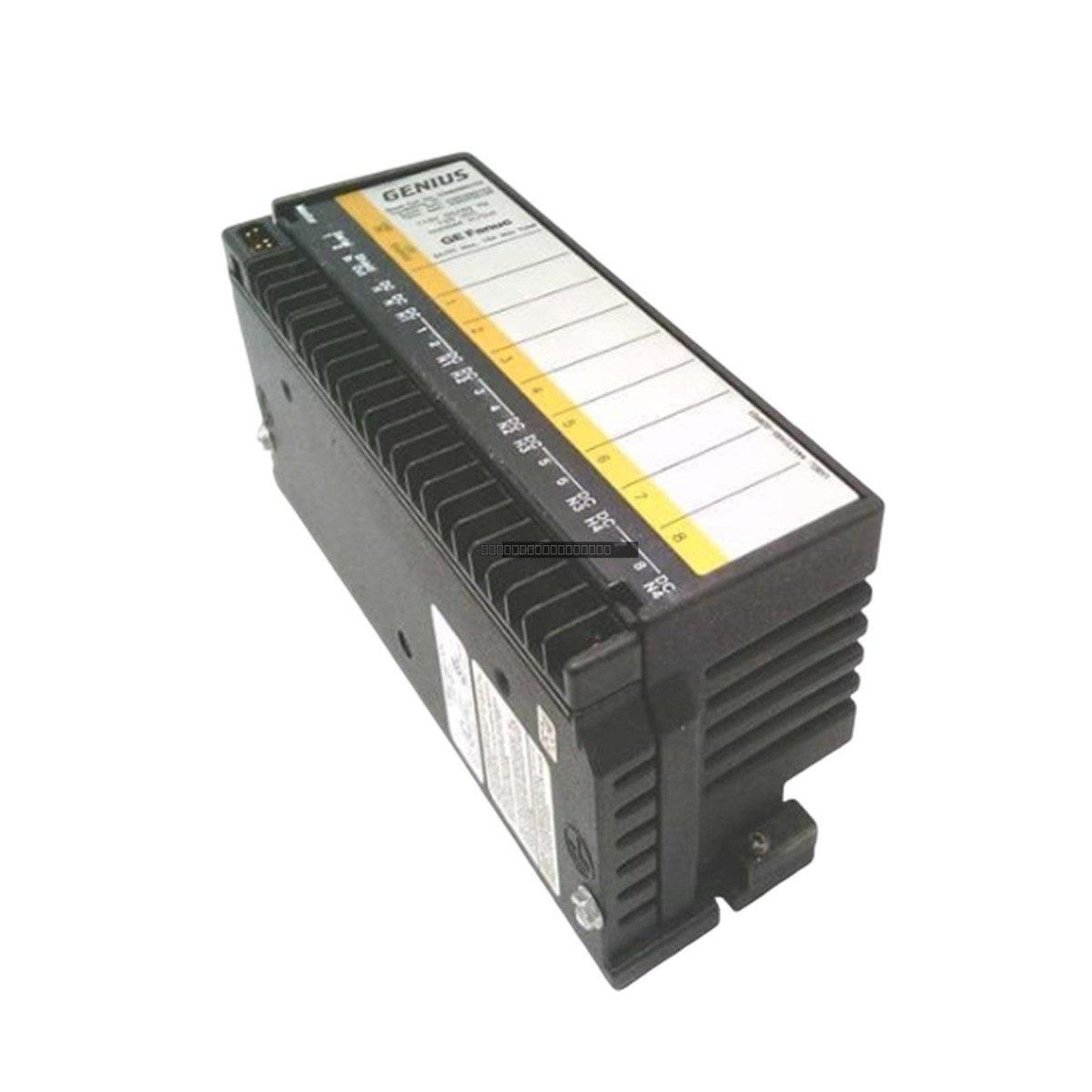

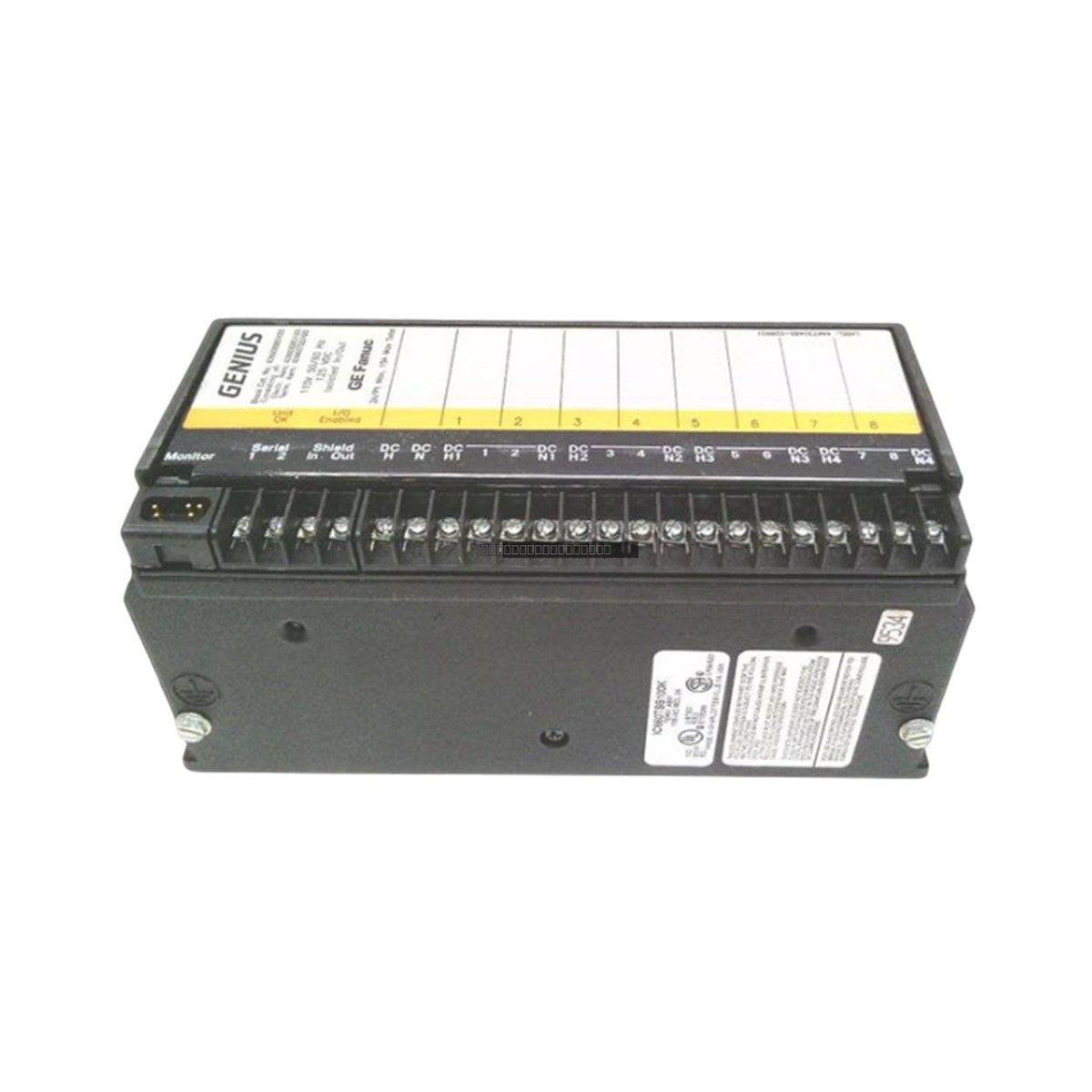

The General Electric IC660BBS103 is a Genius Block I/O module designed for industrial control applications. This discrete output block provides eight (8) output circuits, supporting a nominal voltage of 115 VAC or 125 VDC. It is engineered for robust performance in demanding environments, featuring comprehensive diagnostic capabilities to monitor system health and operational status.

Features

• Eight (8) discrete output circuits.
• Supports 115 VAC and 125 VDC nominal voltage ranges.
• Integrated diagnostics for output monitoring, including short circuit, overload, no load, overtemperature, and loss of I/O power detection.
• Internal electronic short circuit protection with defined trip times.
• Designed for integration within the Genius I/O system architecture.

Technical Specifications

Model	IC660BBS103
Module Type	Discrete Output Block
Number of Circuits	8
Nominal Voltage	115 VAC / 125 VDC
Output Current (AC)	2 A RMS
Output Current (DC)	2 A Resistive / 1 A Inductive
Peak Block Output	15 A
Operating Temperature	0 to 60 degC
Relative Humidity	5 to 95% (non-condensing)

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the block.
• Mount the module in a location that allows for adequate ventilation to maintain operating temperatures within the specified 0 to 60 degC range.
• Verify that all wiring connections are secure and comply with local electrical codes.
• Use shielded cables where necessary to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.

FAQ

What type of diagnostics does the IC660BBS103 support?

The module supports output diagnostics including short circuit, overload, no load, overtemperature, and loss of I/O power.

What is the maximum output current for this block?

The peak block output is 15 Amps, with individual circuit ratings of 2 A RMS for AC and 2 A resistive (1 A inductive) for DC.

تحديد

• rtl">


المزايا

• موثوقية عالية في البيئات الصناعية



• يدعم التشغيل المستمر، متوافق مع أنظمة PLC/DCS الرئيسية
