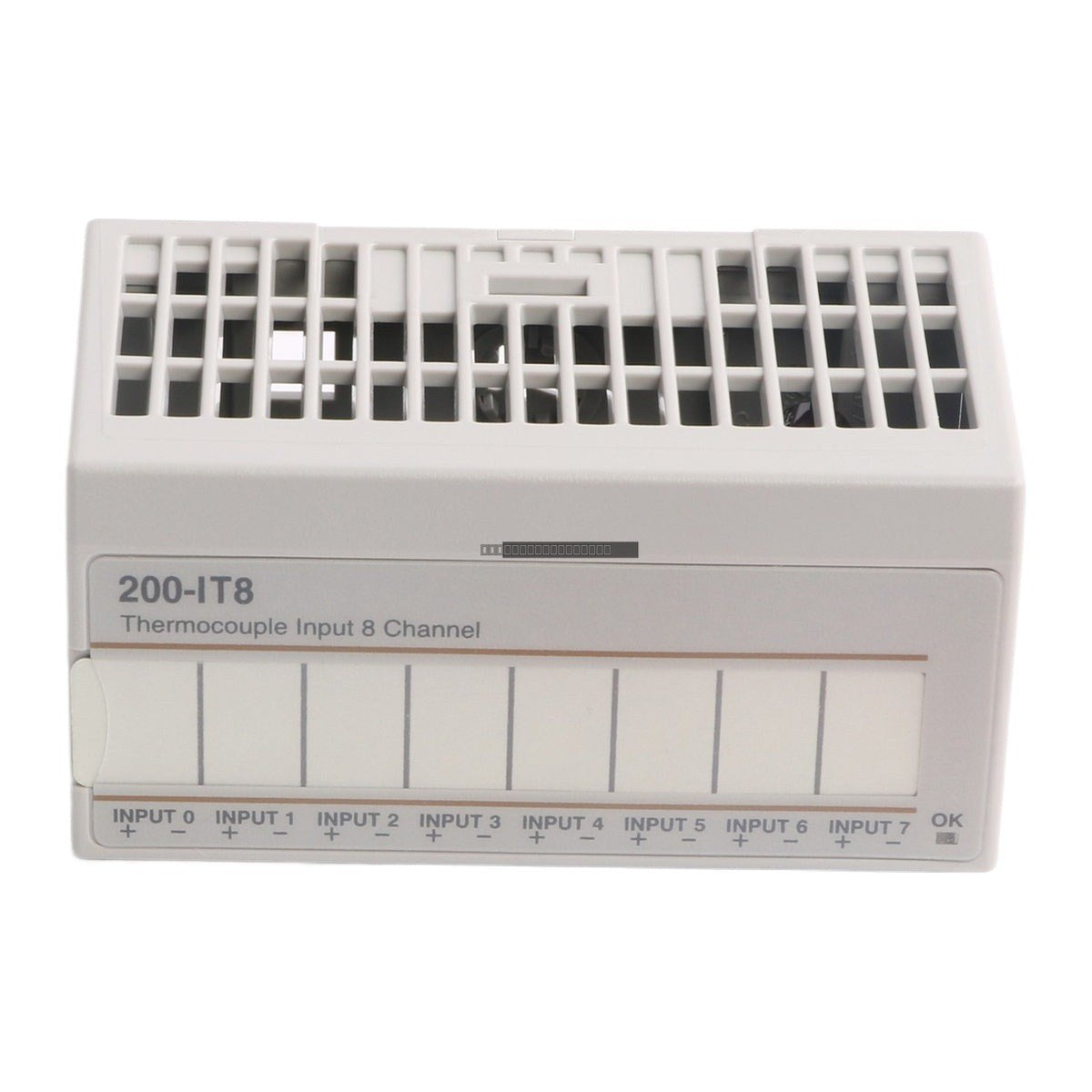

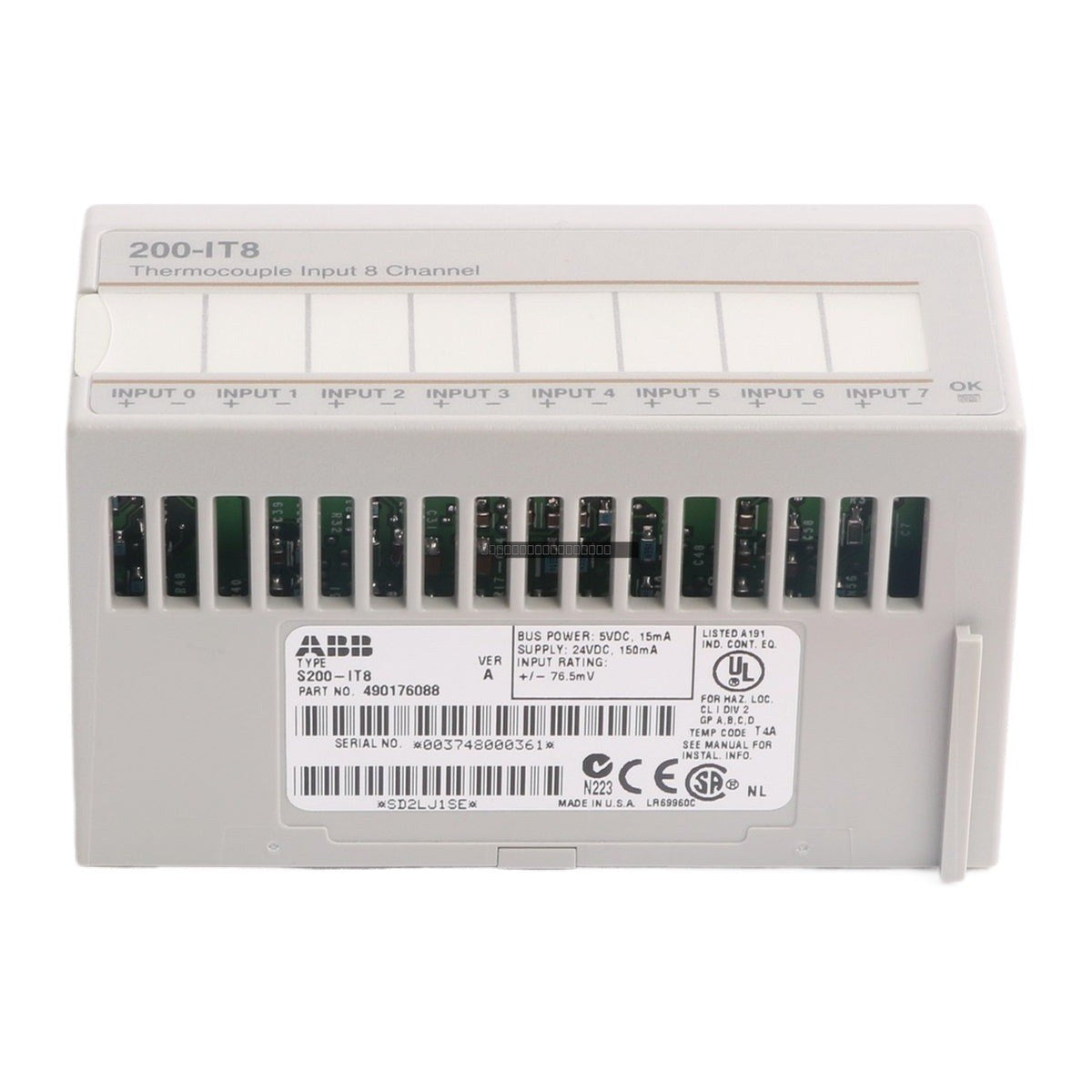

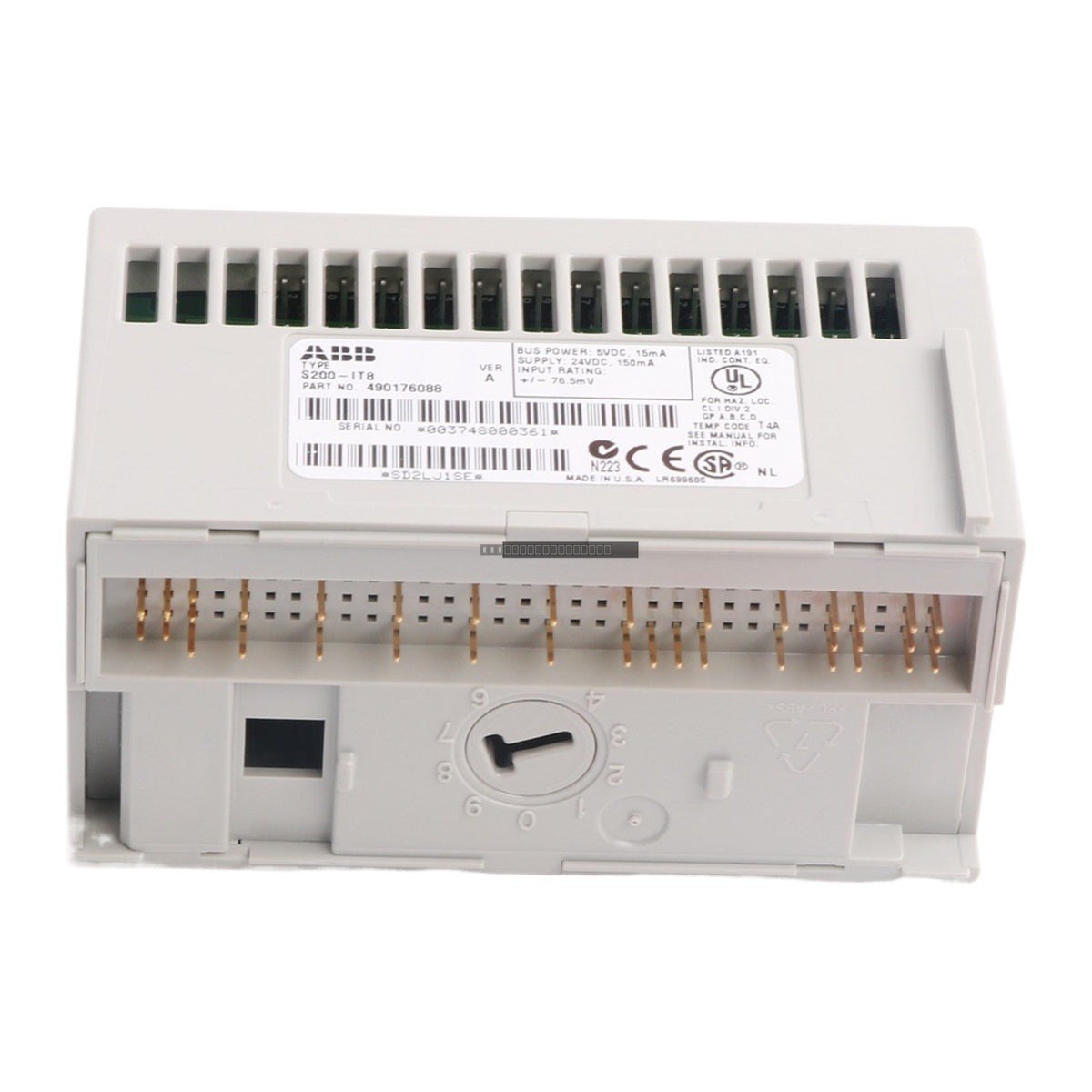

The ABB S200-IT8 is an 8-channel analog input module designed for the Advant S200 I/O system. This module is specifically engineered to interface with millivolt signals and various thermocouple types, providing precise temperature monitoring capabilities for industrial control applications. It is compatible with the SATT I/O architecture, ensuring reliable data acquisition in demanding process environments.
Features
- 8-channel analog input configuration.
- Supports multiple thermocouple types including B, C, E, J, K, L, and N.
- Millivolt signal input capability.
- Designed for integration within the ABB Advant S200 I/O series.
- Compact module design for efficient rack space utilization.
Technical Specifications
| Product Model |
S200-IT8 |
| Alternative Part Numbers |
200-IT8, 490176088, S200IT8 |
| Input Channels |
8 |
| Input Types |
mV, Thermocouple (B, C, E, J, K, L, N) |
| Manufacturer |
ABB |
| System Compatibility |
Advant S200 / SATT |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the module from the I/O rack.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
- Use shielded twisted-pair cabling for thermocouple inputs to minimize electromagnetic interference (EMI) and ensure signal integrity.
- Ensure proper grounding of the I/O rack and shielding to maintain measurement accuracy.
- Maintain adequate ventilation around the I/O rack to prevent overheating during continuous operation.
FAQ
What thermocouple types are supported by the S200-IT8?
The module supports types B, C, E, J, K, L, and N thermocouples, as well as millivolt signals.
Is the S200-IT8 compatible with other S200 series modules?
Yes, the S200-IT8 is designed for the Advant S200 I/O system and is intended for use in compatible S200 I/O racks.
