Sensors and probes provide accurate monitoring for industrial equipment. Our range covers vibration, proximity, and displacement probes from leading manufacturers. We deliver both current and discontinued models with trusted global support.

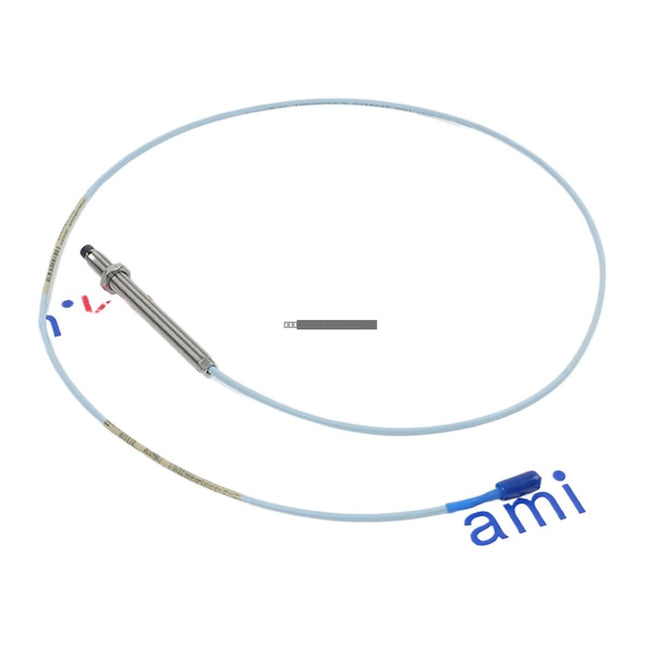

The Bently Nevada 330103-00-10-10-12-05 is a high-performance 3300 XL 8 mm proximity probe designed for non-contacting vibration and position monitoring in industrial rotating machinery. This transducer system provides an output voltage proportional to the gap between the probe tip and a conductive target, enabling precise measurement of both static position and dynamic vibration.Features
Advanced eddy current transducer technology for high-accuracy displacement monitoring.
Patented TipLoc molding for a robust bond between the probe tip and body.
CableLoc design providing 330 N (75 lbf) pull strength for enhanced cable security.
FluidLoc cable option to prevent liquid leakage through the cable interior.
Full electrical and mechanical interchangeability with other 3300 XL series components.
Compliant with API 670 standards for mechanical configuration, linear range, and accuracy.
Applications
Fluid-film bearing machines
Centrifugal and process gas compressors
Turbo expanders
High-speed electric motors and generators
Centrifugal pumps and industrial fans
Keyphasor reference and speed measurement systems
Technical Specifications
Model
330103-00-10-10-12-05
Probe Diameter
8 mm
Thread Size
M10 x 1
Unthreaded Length
0 mm
Case Length
10 mm
Total Length
1.0 meter (3.3 feet)
Connector Type
Miniature coaxial ClickLoc
Cable Type
FluidLoc
Approvals
CSA, ATEX, IECEx
Installation Guidelines
Hole Preparation: Use a 0.332-inch drill and a Q-size tap drill for the 3/8-24 UNF threads.
Mounting: Ensure thread engagement does not exceed 0.562 inches to prevent the probe tip from bottoming out against the target.
Gapping: For standard AISI 4140 steel targets, set the gap to 1.27 mm (50 mils) to achieve the center of the linear range (-9 Vdc).
Torque: Apply a maximum tightening torque of 11.3 N·m (100 in·lb) to the probe case.
Handling: Always power down the system before disconnecting or installing probes to prevent electrical damage. Use ESD-safe practices when handling the connector.
FAQWhat is the 330103-00-10-10-12-05?It is a specific configuration of the Bently Nevada 3300 XL 8 mm proximity probe used for non-contacting vibration and displacement measurement in industrial machinery.What is the ideal gap voltage for this probe?The ideal gap voltage is -9.0 VDC, corresponding to a 1.27 mm (50 mils) gap. The linear operating range is typically between -1.0 VDC and -17.0 VDC.Is this probe interchangeable with older models?Yes, the 3300 XL series is designed to be electrically and mechanically interchangeable with previous 3300 8 mm systems, though using 3300 XL probes with 3300 XL Proximitor sensors is recommended for optimal performance.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

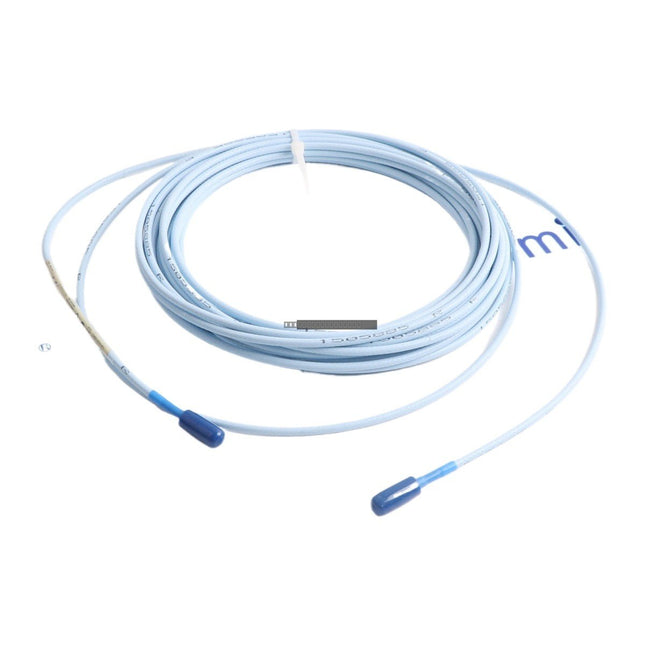

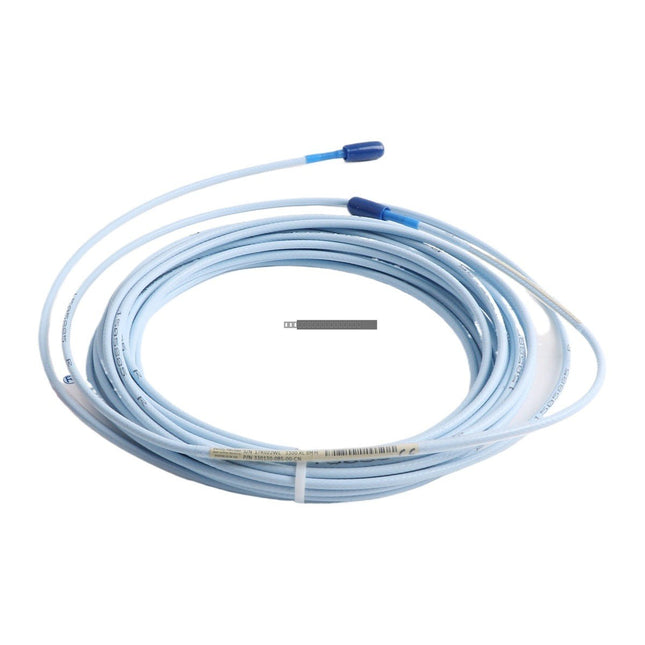

DescriptionThe Bently Nevada 330130-085-00-CN is a high-performance 3300 XL series extension cable designed for use with proximity transducer systems. This component serves as the critical link between the proximity probe and the Proximitor sensor, ensuring signal integrity in demanding industrial vibration monitoring environments. This specific model features an 8.5-meter length and is configured with standard cable protection and international agency approvals for hazardous area compliance.Features
Designed for 3300 XL Proximity Transducer Systems
Cable length of 8.5 meters (27.9 feet)
Standard cable construction for reliable signal transmission
Includes CSA, ATEX, and IECEx hazardous area approvals
Typical extension cable capacitance of 69.9 pF/m (21.3 pF/ft)
Characteristic output resistance of 50 Ohm
Technical Specifications
Product Model
330130-085-00-CN
Cable Length
8.5 meters (27.9 feet)
Cable Option
Standard
Agency Approvals
CSA, ATEX, IECEx
Output Resistance
50 Ohm
Capacitance
69.9 pF/m (21.3 pF/ft) typical
Weight
0.34 kg
Installation Guidelines
Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
Use appropriate conduit or cable trays to protect the extension cable from mechanical damage in the field.
Verify that all connector interfaces are clean and free of debris before mating.
Ensure that the cable bend radius is maintained according to Bently Nevada installation standards to prevent internal conductor damage.
Always power down the associated monitoring system before disconnecting or connecting transducer cables to avoid potential electrical surges.
FAQWhat is the primary purpose of the 330130-085-00-CN extension cable?This cable is used to extend the connection between a Bently Nevada proximity probe and the Proximitor sensor, allowing for flexible installation distances in machinery monitoring setups.Does this cable meet international safety standards?Yes, the -CN suffix indicates that this specific model is manufactured with CSA, ATEX, and IECEx approvals, making it suitable for use in certified hazardous locations.Can this cable be used with non-3300 XL systems?The 3300 XL series components are specifically engineered to work together to maintain system accuracy and calibration. It is recommended to use this cable only with compatible 3300 XL series hardware.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

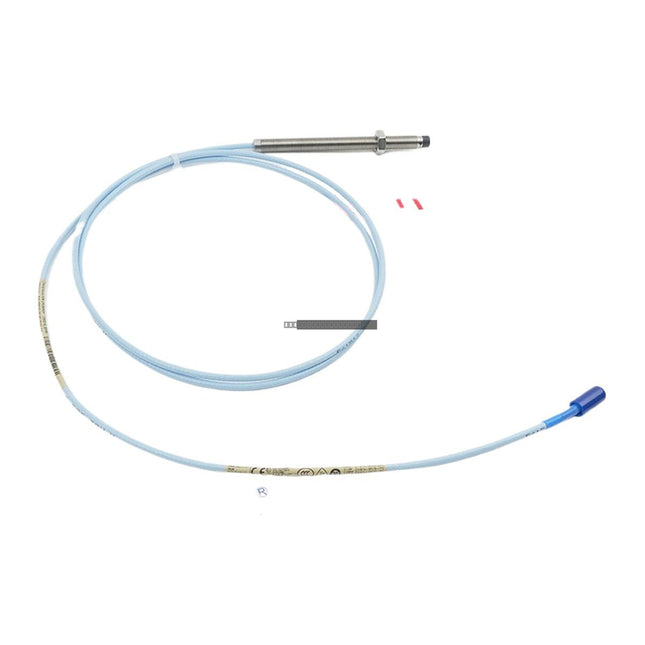

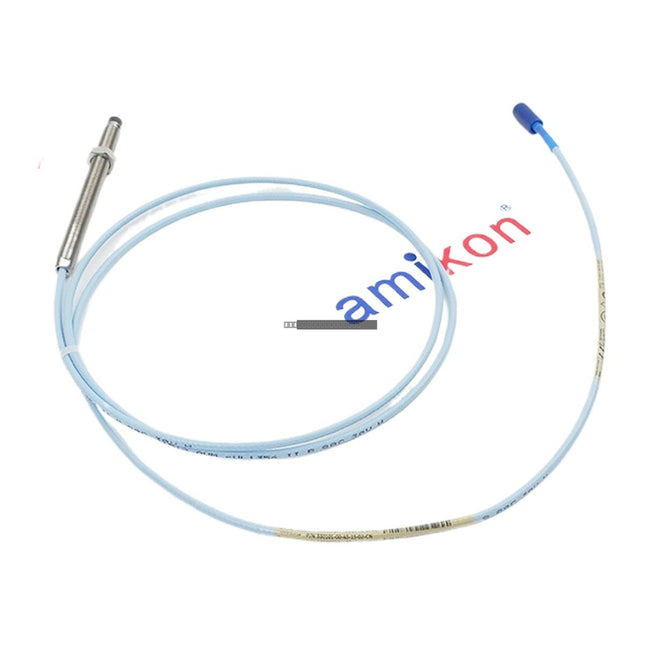

The Bently Nevada 330101-00-43-15-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for non-contact vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL transducer system, this probe utilizes eddy current technology to provide precise measurements of shaft displacement, vibration, and eccentricity.Features
Advanced eddy current proximity transducer system performance.
Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
Complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Miniature coaxial ClickLoc connector for secure and reliable signal transmission.
Designed for harsh industrial environments with robust construction.
Applications
Gas and Steam Turbines: Monitoring radial vibration and axial thrust to prevent rotor-stator contact.
Centrifugal and Axial Compressors: Ensuring shaft stability for process gas and air compressors.
Large Industrial Pumps: Monitoring boiler feed pumps and high-pressure fluid systems.
Electric Motors and Generators: Protecting large sleeve-bearing units in power generation.
Gearboxes: Monitoring shaft eccentricity and misalignment in high-speed gear systems.
Technical Specifications
Product Model
330101-00-43-15-02-CN
Probe Type
3300 XL 8 mm Proximity Probe
Thread Size
3/8-24 UNF
Unthreaded Length
0.0 in
Case Length
4.3 in
Cable Length
1.5 meter (4.9 feet)
Connector Type
Miniature coaxial ClickLoc
Agency Approvals
CSA, ATEX, IECEx
Manufacturer
Bently Nevada
Installation Guidelines
Ensure the probe is mounted in a stable, vibration-resistant bracket to maintain accurate gap measurements.
Handle the probe tip with care to avoid physical damage or contamination, which can affect eddy current performance.
Use shielded coaxial cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain the minimum permissible cable bend radius during installation to prevent damage to the internal conductors.
Always power down the associated Proximitor sensor before connecting or disconnecting the probe cable.
Verify proper grounding of the transducer system to ensure measurement integrity and safety.
FAQIs this product brand new?Yes, the Bently Nevada 330101-00-43-15-02-CN is a brand new, original, and unused component.What is the main function of this probe?It measures shaft displacement and vibration, which is critical for predictive maintenance and protecting rotating machinery from catastrophic failure.What is the operating principle?The probe utilizes the eddy current (electromagnetic induction) principle to measure the distance between the probe tip and a conductive target surface.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

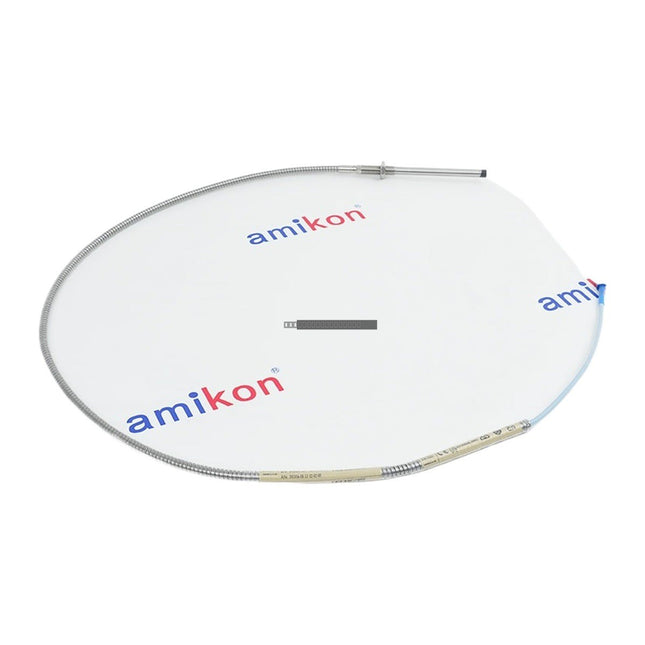

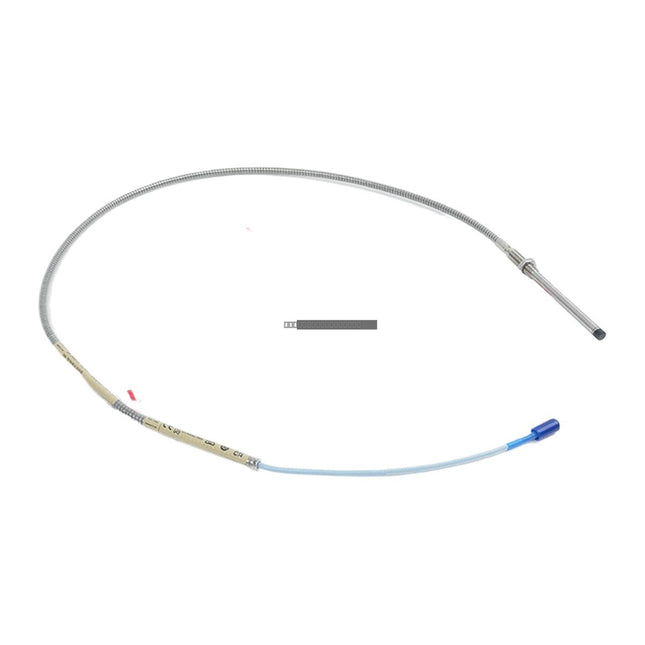

The Bently Nevada 330104-08-12-10-02-00 is a high-performance 3300 XL 8 mm proximity probe designed for eddy current transducer systems. This transducer system provides precise, non-contact measurement of shaft vibration and position in rotating machinery, such as steam turbines, gas turbines, and centrifugal compressors. The 3300 XL series is engineered for high accuracy, temperature stability, and full compatibility with API 670 standards.Features
Advanced eddy current proximity sensing technology.
Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
Standard 8 mm probe design with M10 x 1 threads.
Includes armored cable for enhanced mechanical protection in harsh industrial environments.
Equipped with a miniature coaxial ClickLoc connector.
Applications
Vibration Monitoring (Dynamic): Detects radial vibration and shaft unbalance to trigger alarms or automatic machine trips, preventing mechanical failure.
Thrust/Axial Position (Static): Monitors axial shaft movement to detect bearing wear or failure.
Industrial Sectors: Widely used in power generation (turbines), oil and gas (compressors/pumps), petrochemical (fans/agitators), and heavy industry (blowers/paper mills).
Technical Specifications
Product Model
330104-08-12-10-02-00
System Type
3300 XL 8 mm Proximity Transducer
Thread Size
M10 x 1
Unthreaded Length
80 mm
Case Length
120 mm
Cable Length
1.0 meter (3.3 feet)
Connector Type
Miniature coaxial ClickLoc
Cable Protection
Armored
Agency Approval
Not required
Installation Guidelines
Handling: Proximity probes are sensitive electronic components. Handle with care to avoid damage to the probe tip or connector pins.
Mounting: Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance. Maintain the specified gap distance from the target shaft as per the system calibration.
Wiring: Use only compatible Bently Nevada extension cables. Ensure all connections are clean and fully seated (ClickLoc connectors must be locked).
Grounding: Follow standard industrial grounding practices for instrumentation to minimize EMI/RFI interference.
Power: Always disconnect power from the Proximitor sensor before connecting or disconnecting the probe to prevent electrical damage.
FAQWhat is the typical gap voltage for this sensor?When properly installed, the Proximitor sensor output should be approximately -9 VDC to -11 VDC, operating within a linear range of -1 VDC to -17 VDC.Are 3300 XL components interchangeable with older systems?Yes, 3300 XL 8 mm components are both electrically and physically backward compatible with non-XL 3300 5 mm and 8 mm transducer system components.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB TB805 3BSE008534R1 Modulebus Extension Cable Adaptor
Configured for Modulebus extension cable connection in ABB System 800xA and S800 I/O networks, the ABB TB805 3BSE008534R1 (TB805 Modulebus extension cable adaptor) provides direct physical interface conversion through a D-sub 25 female connector for TK801 extension cables.
Hardware Specifications
Parameter
Specification
Model
TB805 3BSE008534R1
Brand
ABB
Product Type
Modulebus Extension Cable Adaptor
Origin
Not specified in provided data
Weight
0.046 kg
Dimensions
25 mm depth x 109 mm height x 22 mm width
Operating Temp
Not specified in provided data
Power Consumption
Passive component, no external power consumption
Connector Type
D-sub 25 female
Compatible Cable
TK801 Modulebus extension cable
Product Function
Modulebus outlet and extension cable interface adapter
Product Category
Module_Termination_Unit
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Backplane Bus and Industrial Network Interface
The ABB TB805 belongs to the ABB S800 I/O Modulebus accessory family and provides a physical connection point for extending Modulebus communication paths. Therefore, the adaptor maintains the required mechanical alignment between the controller-side interface and external TK801 extension cables.
The TB805 uses a passive signal routing structure without internal processing firmware. Consequently, it does not modify communication data or require configuration parameters. The component supports ABB industrial control architectures where I/O density scaling and backplane bus communication velocity management are handled by the active controller and I/O modules.
The D-sub 25 female interface provides a defined electrical connection point. Additionally, correct cable shielding and grounding practices help maintain signal integrity in industrial environments.
Frequently Asked Questions
Q: Does the TB805 require an external power supply?A: No. The TB805 is a passive Modulebus extension cable adaptor and does not require external power input.
Q: What cable connects to the TB805 interface?A: The TB805 is designed for use with the ABB TK801 Modulebus extension cable through its D-sub 25 female connector interface.
Q: Does the TB805 contain firmware or communication configuration settings?A: No. The TB805 is a hardware adaptor without firmware functions or user-configurable parameters.
Field Installation Guidelines
Install the TB805 according to ABB S800 I/O system installation procedures. Verify that the D-sub 25 connector is fully seated and mechanically secured before system operation.
Route the TK801 extension cable separately from high-voltage power wiring and high-current switching conductors. Maintain proper cable bending radius and avoid excessive mechanical stress on the connector assembly.
Connect cable shielding according to the system grounding design. Confirm that all Modulebus extension connections are correctly installed before applying power to the associated ABB control system.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB TB806 3BSE008536R1 ModuleBus Extension Cable Adaptor
Configured for ModuleBus signal extension connection in ABB S800 I/O systems, the ABB TB806 3BSE008536R1 (TB806 ModuleBus Extension Cable Adaptor) provides direct physical interface adaptation between ModuleBus segments through a D-SUB 25 male connector.
Hardware Specifications
Parameter
Specification
Model
TB806 3BSE008536R1
Brand
ABB
Product Type
ModuleBus Extension Cable Adaptor
Origin
Sweden
Weight
0.1 kg
Dimensions
12.7 x 5.1 x 5.1 cm
Operating Temp
0 to +55 deg C
Storage Temperature
-25 to +70 deg C
Humidity Range
RH 5 to 95 %
Power Consumption
Passive interface component, no external power supply required
Mechanics
S800
Connector Type
D-SUB 25 male
Tariff Code
8537101190
Hazardous Location
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine Certification
ABS, BV, DNV, LR
Pollution Degree
Degree 2, IEC 60664-1
Corrosion Protection
ISA-S71.04: G3
ABB S800 ModuleBus Interface Characteristics
The TB806 operates as a passive ModuleBus interface adapter within ABB S800 I/O configurations. Therefore, it supports physical connection extension between compatible ModuleBus components while maintaining the electrical characteristics of the communication path.
In addition, ABB S800 architecture depends on defined backplane and ModuleBus communication structures. The TB806 provides the required connector conversion function without adding firmware processing or active communication control.
Furthermore, the adaptor supports industrial installation requirements with specified hazardous location approvals and environmental protection classifications. The unit maintains compatibility with ABB ModuleBus extension arrangements where D-SUB 25 male interfaces are required.
Frequently Asked Questions
Q: Does the ABB TB806 3BSE008536R1 require an external power supply?A: No. The TB806 is a passive ModuleBus extension cable adaptor and does not require an independent power input.
Q: What connector interface does the TB806 provide?A: The TB806 provides a D-SUB 25 male connector interface for ModuleBus extension connection within ABB S800 configurations.
Q: Can the TB806 be installed in hazardous areas?A: Yes. The listed certifications include C1 Div 2 cULus, C1 Zone 2 cULus, and ATEX Zone 2 approval classifications.
Field Installation Guidelines
Install the TB806 according to ABB S800 ModuleBus system documentation and approved wiring practices.
Verify connector orientation before inserting the D-SUB interface to prevent mechanical damage.
Maintain proper cable routing and separate ModuleBus wiring from high-voltage power conductors.
Use appropriate shielding and grounding methods according to the installation environment.
Confirm environmental conditions remain within the specified operating temperature and humidity limits.
Inspect connectors for contamination, corrosion, or mechanical stress before system commissioning.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The Bently Nevada 330380-90-00 is a 3300 XL 16mm High Temperature Proximitor Sensor designed for non-contacting proximity measurements in extreme environments. As part of the 3300 XL High Temperature Proximity System (HTPS), this sensor is engineered to convert the physical distance (gap) between a probe and a target into a proportional 3.94 V/mm (100 mV/mil) voltage signal, facilitating critical machine protection and diagnostic monitoring.Features
Designed for continuous operation in extreme environments with probe tip ratings up to +350 degC (+662 degF).
4 mm (160 mils) linear measurement range suitable for hot-section machine monitoring.
Hermetically-sealed ceramic probe tip provides robust protection against moisture and contaminants.
Compatible with standard Bently Nevada monitoring and diagnostic equipment.
Integrated hardline cable assembly for reliable signal transmission through high-temperature zones.
Applications
Steam turbines and large-scale power generation equipment.
Large centrifugal compressors and gas turbine drive pump sets.
Heavy-duty rotor equipment in steel and paper mills.
Hydroelectric generating units for axial trajectory and deflection monitoring.
Mode shape analysis for turbine R&D and troubleshooting.
Technical Specifications
Model
330380-90-00
System Length
9 meters
Probe Tip Material
Ceramic
Signal Output
3.94 V/mm (100 mV/mil)
Linear Range
4 mm (160 mils)
Output Resistance
50 Ohm
Probe Case Torque
81 N.m (720 in.lb)
Operating Temp (Proximitor)
-51 degC to +100 degC
Installation Guidelines
Ensure the probe is mounted securely using the specified torque to prevent vibration-induced measurement errors.
Route hardline cables carefully to avoid exceeding minimum bend radii, especially near high-temperature zones.
Maintain proper grounding practices for the Proximitor sensor housing to minimize EMI/RFI interference.
Verify that the total system length (probe + extension cable) matches the calibration requirements of the monitoring system.
Always power down the monitoring system before connecting or disconnecting the sensor to prevent electrical damage.
FAQWhat is the primary function of the 330380-90-00?It is a proximity sensor used to measure vibration, thrust position, and differential expansion in hot areas of rotating machinery, converting gap distance into a proportional voltage signal.What is the total system length for this model?The 330380-90-00 is configured for a total system length of 9 meters.Does this sensor require armor?This specific model is provided without armor; armored versions are typically handled as custom configurations.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB TK801V003 3BSC950089R1 ModuleBus Extension Cable
Configured for ModuleBus signal extension in ABB S800 I/O systems, the ABB TK801V003 3BSC950089R1 (TK801V003 ModuleBus Extension Cable) provides direct physical connection between separated I/O module assemblies through a shielded D-SUB 25 interface.
Hardware Specifications
Parameter
Specification
Model
TK801V003 3BSC950089R1
Brand
ABB
Product Type
ModuleBus Extension Cables
Article Number
3BSC950089R1
Origin
Sweden
Weight
0.1 kg
Dimensions
15.2 x 7.6 x 12.7 cm (shipping size)
Operating Temp
-20 deg C to +70 deg C
Storage Temp
-40 deg C to +85 deg C
Power Consumption
Passive cable connection, no external power consumption
Mechanics
S800
Cable Length
0.3 m
Connector Type
D-SUB 25 male-female
Shielding
Shielded cable construction
Data Rate Support
Up to 10 Mbps
Application
ModuleBus extension between ABB S800 I/O assemblies
ABB S800 ModuleBus Communication Extension
The TK801V003 cable supports ABB industrial control architectures by extending the S800 ModuleBus physical connection. Furthermore, the shielded cable design maintains signal integrity during communication between connected I/O modules.
ABB S800 systems use ModuleBus communication for distributed I/O management. The cable enables installation flexibility by allowing I/O components connected to the same electrical ModuleBus network to be positioned on different DIN rails.
The extension cable uses a D-SUB 25 male-female interface and maintains the required electrical connection path for ModuleBus communication. Additionally, the cable construction supports ABB I/O density scaling by allowing expanded module placement within the same control configuration.
Frequently Asked Questions
Q: What is the primary function of the ABB TK801V003 cable?A: The TK801V003 extends the ABB S800 ModuleBus connection between I/O module assemblies using a shielded D-SUB 25 male-female cable interface.
Q: Does the TK801V003 require an external power supply?A: No. The TK801V003 is a passive extension cable and does not require an external power connection.
Q: Can the TK801V003 be used for separated DIN rail installations?A: Yes. The cable supports ModuleBus extension applications where ABB S800 I/O modules require physical separation between mounting locations.
Field Installation Guidelines
Install the cable according to ABB S800 system installation requirements and ModuleBus connection procedures.
Verify that the D-SUB 25 male and female connectors match the corresponding ModuleBus interfaces before installation.
Maintain proper cable routing to avoid mechanical stress, sharp bending, and interference from high-voltage power conductors.
Connect the cable shield according to the control cabinet grounding practice to maintain electromagnetic compatibility.
Confirm ModuleBus communication status after installation through the ABB system engineering tools.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB TK801V006 3BSC950089R2 ModuleBus Extension Cable
Configured for ModuleBus physical extension in S800 I/O systems, the ABB TK801V006 3BSC950089R2 (TK801V006 ModuleBus Extension Cable) provides direct electrical connection between TB805/TB845 or TB806/TB846 terminal units to extend I/O module installation across separate DIN rails.
Hardware Specifications
Parameter
Specification
Model
TK801V006 3BSC950089R2
Brand
ABB
Product Type
ModuleBus Extension Cable
Article Number
3BSC950089R2
Origin
Sweden
Weight
0.3 kg
Dimensions
17.8 x 2.5 x 17.8 cm
Operating Temp
-20 deg C to +70 deg C
Storage Temp
-40 deg C to +85 deg C
Power Consumption
Passive cable connection, no external power consumption
Mechanical Platform
S800
Cable Length
0.6 m
Connector Type
D SUB 25 male/female connection
Cable Construction
Shielded extension cable
Communication Function
ModuleBus signal extension
Data Rate Support
Up to 10 Mbps
Compatible Terminal Units
TB805/TB845 and TB806/TB846
ABB S800 ModuleBus Communication Characteristics
The TK801V006 extends the electrical ModuleBus connection while maintaining communication between S800 I/O modules installed on different DIN rails. The cable uses a shielded D SUB 25 interface to transfer ModuleBus signals between terminal units.
Furthermore, ABB S800 architecture uses a dedicated backplane-style communication structure for I/O module data exchange. The TK801V006 supports ModuleBus extension requirements without adding active electronic conversion components or external communication nodes.
The cable design supports physical separation of I/O assemblies while keeping the same ModuleBus network segment. Therefore, system designers can distribute S800 I/O modules according to cabinet layout and installation requirements.
Frequently Asked Questions
Q: What is the main function of the ABB TK801V006 cable?A: The TK801V006 extends the electrical ModuleBus connection between compatible ABB S800 terminal units, allowing I/O modules to be mounted on different DIN rails.
Q: Does the TK801V006 require an external power supply?A: No. The TK801V006 is a passive shielded extension cable and does not require independent power input.
Q: Which terminal units are compatible with the TK801V006?A: The cable is designed for use with ABB TB805/TB845 and TB806/TB846 terminal units within S800 I/O installations.
Field Installation Guidelines
Install the TK801V006 between compatible ModuleBus terminal units according to ABB S800 system configuration requirements.
Verify that the D SUB 25 male and female connectors match the corresponding terminal unit interfaces before installation.
Maintain proper cable routing to avoid mechanical stress, excessive bending, and interference from high-power electrical conductors.
Connect the cable shield according to the cabinet grounding design to maintain signal integrity.
Confirm ModuleBus communication after installation through the automation system engineering tools.
Avoid installing the extension cable near strong electromagnetic interference sources without appropriate shielding measures.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB TK850V007 3BSC950192R1 CEX-Bus Extension Cable
The ABB TK850V007 3BSC950192R1, also cataloged as the TK850V007 CEX-Bus Extension Cable, provides a 0.7 m physical connection for CEX-Bus extension within ABB control hardware. The cable uses prefabricated construction and requires a TK851 CEX-Bus terminator when installed.
Hardware Specifications
Parameter
Specification
Model
TK850V007 3BSC950192R1
Brand
ABB
Product Type
Prefabricated Cable
Function
CEX-Bus Extension Cable
CEX-Bus Requirement
TK851 CEX-Bus terminator required
Cable Length
0.7 m
Product Net Depth / Length
700 mm
Product Net Height
6 mm
Product Net Width
13 mm
Product Net Weight
0.2 kg
HS Code
854442
Customs Tariff Number
85444210
WEEE Category
Product Not in WEEE Scope
ABB CEX-Bus Extension Characteristics
TK850V007 provides the physical cable path required for CEX-Bus extension between compatible ABB control-system components. The supplied cable length is 0.7 m, while the documented physical dimensions are 700 mm x 13 mm x 6 mm.
The cable is supplied as a prefabricated assembly. Therefore, field fabrication of the cable connection is not part of the specified product configuration. Furthermore, ABB specifies the use of a TK851 CEX-Bus terminator with TK850V007.
The cable itself is a passive interconnection component. Consequently, it has no separately specified power-consumption rating.
Frequently Asked Questions
Q: What is the specified cable length of TK850V007 3BSC950192R1?A: The specified cable length is 0.7 m, corresponding to a product net length of 700 mm.
Q: Is a terminator required when using TK850V007?A: Yes. The supplied ABB data specifies that TK850V007 requires a TK851 CEX-Bus terminator.
Q: Does TK850V007 consume electrical power?A: No. TK850V007 is a passive prefabricated cable and has no separately specified power-consumption requirement.
Field Installation Guidelines
Verify the cable part number before installation: TK850V007, 3BSC950192R1.
Confirm that the connected equipment supports the ABB CEX-Bus interface.
Install the TK851 CEX-Bus terminator as specified for the TK850V007 configuration.
Route the cable without excessive bending, crushing, or mechanical tension.
Keep the cable separated from sources of strong electromagnetic interference where practical.
Do not modify the prefabricated cable assembly unless the applicable ABB installation documentation explicitly permits modification.
Verify connector seating before energizing the associated control hardware.
Maintain the specified cable routing and mechanical clearance required by the installed ABB equipment.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB TK850V007 3BSC950192R1 CEX-Bus Extension Cable
Configured for CEX-Bus signal extension, the ABB TK850V007 3BSC950192R1 (TK850V007 CEX-Bus Extension Cable) provides a direct cable connection for CEX-Bus network expansion. The assembly has a specified length of 0.7 m and supports low-voltage CEX-Bus communication within ABB control hardware.
Hardware Specifications
Parameter
Specification
Model
TK850V007 3BSC950192R1
Product Type
CEX-Bus Extension Cable
Brand
ABB
Origin
Sweden
Spare Model
3BSC950192R1
Cable Length
0.7 m
Voltage Rating
< 24 VDC
Current Rating
< 50 mA typical
Operating Temp
-25 deg C to +70 deg C
Bend Radius
Minimum 5 x cable diameter
Weight
0.3 kg
Manufacturer
ABB
CEX-Bus Communication and Cable Characteristics
The TK850V007 provides the physical cable path for CEX-Bus extension between compatible ABB control system components. Therefore, installation should preserve the specified electrical connection and mechanical routing conditions.
The cable operates below 24 VDC and has a typical current rating below 50 mA. In addition, the specified operating temperature range extends from -25 deg C to +70 deg C.
The 0.7 m cable length supports short-distance CEX-Bus extension. Furthermore, installers should maintain a minimum bend radius of 5 x the cable diameter to prevent excessive mechanical stress on the cable assembly.
This component should be applied only where the connected ABB hardware specifies TK850-series CEX-Bus cable compatibility. The supplied data does not define a separate firmware requirement, communication speed, shielding termination, or connector pinout.
Frequently Asked Questions
Q: What is the rated cable length of the ABB TK850V007?
A: The specified cable length is 0.7 m.
Q: What electrical limits are specified for the TK850V007?
A: The supplied specifications state a voltage rating below 24 VDC and a typical current rating below 50 mA.
Q: What bend radius should be maintained during installation?
A: Maintain a minimum bend radius of 5 x the cable diameter.
Field Installation Guidelines
Verify the TK850V007 part number and 3BSC950192R1 spare model against the equipment documentation before installation.
Connect the cable only to compatible CEX-Bus interfaces specified by the ABB system documentation.
Route the cable without sharp bends, crushing, twisting, or excessive tensile loading.
Maintain the minimum bend radius of 5 x the cable diameter throughout the cable route.
Keep the cable away from mechanical movement and sources of electrical interference where practical.
Do not exceed the specified voltage and current limits.
Inspect the connectors and cable jacket before energizing the connected equipment.
Do not modify the cable assembly, connector termination, or conductor arrangement unless ABB documentation explicitly permits the modification.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330106-05-30-20-02-CN is a high-performance 3300 XL 8 mm reverse mount proximity probe. Designed for critical machinery protection and condition monitoring, this sensor utilizes the eddy current principle to provide precise, non-contact measurements of shaft vibration and position. The reverse mount configuration is specifically engineered for applications where the probe must be mounted through the machine casing to observe the target surface.Features
8 mm probe tip diameter for standard 3300 XL system compatibility.
Reverse mount design suitable for space-constrained installations.
M10 x 1 threading for secure mechanical mounting.
Equipped with a Miniature ClickLoc coaxial connector for reliable signal transmission.
Agency Approvals: CSA, ATEX, and IECEx for hazardous area operation.
Integrated 2.0-meter cable length.
Applications
Gas and steam turbine vibration monitoring.
Centrifugal and reciprocating compressor shaft position analysis.
Large pump sets and motor-generator sets.
Hydroelectric power generation unit thrust bearing wear monitoring.
Rolling mill bearing and paper mill cylinder support monitoring.
Technical Specifications
Model
330106-05-30-20-02-CN
Probe Type
3300 XL 8 mm Reverse Mount
Thread Size
M10 x 1
Cable Length
2.0 meters
Connector Type
Miniature ClickLoc
Output Resistance
50 Ohm
Agency Approvals
CSA, ATEX, IECEx
Installation Guidelines
Ensure the probe is installed in a location free from excessive mechanical stress.
Use appropriate mounting brackets to maintain the required air gap between the probe tip and the target surface.
Route coaxial cables away from high-voltage lines or sources of electromagnetic interference (EMI) to prevent signal noise.
Always power down the monitoring system before connecting or disconnecting the probe cable.
Ensure the connector is fully seated and the ClickLoc mechanism is engaged to maintain environmental integrity.
Verify that the probe tip is not in contact with the target surface during operation to avoid sensor damage.
FAQsWhat is the Bently Nevada 330106-05-30-20-02-CN?It is a 3300 XL 8 mm reverse mount proximity probe used for monitoring vibration and position in rotating machinery.What is a 330106-05-30-20-02-CN Reverse Mount probe?It is designed for mounting on the surface of a machine to measure the shaft’s vibration or position, often used when there is limited space behind the machine casing.How does the 330106-05-30-20-02-CN sensor work?It operates on the eddy current principle, using a Proximitor sensor to measure the gap between the probe tip and the observed conductive surface.What is the probe case material?The probe case is constructed from high-grade stainless steel (AISI 303/304) for durability in industrial environments.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330106-05-30-05-02-CN is a high-performance 3300 XL 8 mm reverse mount proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL series, this probe is engineered to work seamlessly with the Bently Nevada Proximitor sensor system, providing reliable gap, amplitude, and position data for critical assets such as turbines, compressors, and pumps.Features
Reverse mount configuration for installation in space-constrained environments.
M10 x 1 thread design for secure mounting.
Fully interchangeable with 3300 XL 8 mm and 5 mm system components.
Equipped with a miniature ClickLoc coaxial connector for reliable signal transmission.
Includes hazardous area agency approvals (CN/NEPSI).
Applications
Oil and Gas: Monitoring pumps, compressors, and turbines in refineries and extraction facilities.
Power Generation: Integrated into 3500 series protection systems for large-scale turbine monitoring.
Petrochemical: Precision monitoring of high-speed rotating equipment.
Heavy Manufacturing: Used in rolling mills and smelters to monitor shaft vibration and position.
Technical Specifications
Model
330106-05-30-05-02-CN
Probe Type
3300 XL 8 mm Reverse Mount
Thread Size
M10 x 1
Total Length
0.5 meter (1.6 feet)
Connector Type
Miniature ClickLoc coaxial
Agency Approvals
CN (NEPSI)
Output Resistance
50 Ohm
Cable Capacitance
69.9 pF/m (21.3 pF/ft) typical
Weight
0.05 kg
Installation Guidelines
Ensure the probe is installed in a location free from excessive mechanical stress on the cable.
Use caution when handling the probe tip to prevent damage to the sensing element.
Ensure the connector is clean and free of debris before mating with the extension cable.
Maintain the minimum permissible cable bend radius to avoid signal degradation or cable damage.
Always power down the associated Proximitor sensor before connecting or disconnecting the probe.
Ensure proper grounding of the monitoring system to prevent EMI interference.
FAQWhat is the primary function of this probe?This probe measures the distance between the probe tip and the observed target (e.g., a machine shaft), providing essential data for vibration and position analysis in the 3300 XL monitoring system.What does the CN suffix indicate?The CN suffix signifies that this specific unit is certified for use in hazardous areas according to Chinese (NEPSI) standards.Is this probe compatible with older 3300 systems?Yes, 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, provided the mounting requirements are met.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330180-X1-CN is a high-performance 3300 XL Proximitor Sensor designed for use in industrial vibration monitoring systems. This sensor is a critical component of the Bently Nevada proximity transducer system, providing accurate, non-contact measurement of shaft position and vibration in rotating machinery. It is engineered to deliver precise signal conditioning for eddy current probes, ensuring reliable data acquisition for machinery protection and condition monitoring applications.Features
Standard measurement range: 0 to 500 mils.
High sensitivity: 200 mV/mil for precise signal output.
Extended range options: Capable of up to 1,000 mils.
Linearity: +/- 1% of full scale.
Robust design for harsh industrial environments with a wide operating temperature range.
Technical Specifications
Model
330180-X1-CN (MOD: 145004-141)
Sensitivity
200 mV/mil
Linearity
+/- 1% of full scale
Operating Voltage
-18 V to -24 V DC
Signal Output Range
-2 V to -18 V DC
Operating Temperature
-52 degC to +100 degC
Storage Temperature
-52 degC to +105 degC
Installation Guidelines
Ensure the Proximitor sensor is mounted in a protected, dry location, ideally within a weatherproof housing or control cabinet.
Use high-quality, shielded coaxial cabling to connect the sensor to the probe and the monitoring system to minimize EMI/RFI interference.
Verify that the power supply is stable and within the specified -18 V to -24 V DC range before connecting.
Maintain proper grounding practices to prevent ground loops, which can affect the accuracy of the proximity measurement.
Always power down the monitoring system before installing or removing the sensor module to prevent electrical damage.
FAQWhat is the primary function of the 330180-X1-CN?This module acts as a signal conditioner for eddy current probes, converting the probe's signal into a proportional voltage output used by Bently Nevada monitoring systems to track shaft vibration and position.Can this sensor be used in extreme temperatures?Yes, the unit is rated for operation between -52 degC and +100 degC, making it suitable for most industrial rotating machinery environments.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330103-00-12-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for critical machinery protection. As part of the industry-standard 3300 XL transducer system, this probe provides precise, non-contact measurement of shaft displacement, vibration, and position. The 330103 model is engineered for reliability in demanding industrial environments, ensuring compatibility with the 3300 XL Proximitor sensor series without the need for individual bench calibration.Features
Eddy Current Technology: Provides accurate, non-contact measurement of radial vibration, axial thrust, and speed.
System Interchangeability: Fully compatible with 3300 XL series components, allowing for seamless replacement of probes, extension cables, and sensors.
Robust Construction: Features an M10 x 1 thread configuration with a 120 mm case length, designed for durable mounting in industrial housings.
ClickLoc Connector: Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal transmission.
Regional Compliance: This specific -CN model includes NEPSI certification for use in China.
Applications
Steam and Gas Turbines: Monitoring radial vibration and axial thrust to ensure safe operation.
Centrifugal and Axial Compressors: Preventing shaft-to-bearing contact through precise gap measurement.
Industrial Pumps and Fans: Tracking equipment health and detecting early signs of mechanical wear.
Generators and Motors: Providing stable, continuous monitoring for large rotating electrical assets.
Gearboxes: Detecting misalignment and bearing degradation via shaft vibration analysis.
Technical Specifications
Model Number
330103-00-12-10-02-CN
Probe Diameter
8 mm
Thread Configuration
M10 x 1
Case Length
120 mm
Unthreaded Length
0 mm
Cable Length
1.0 meter (3.3 feet)
Connector Type
Miniature coaxial ClickLoc
Armor
None
Agency Approval
NEPSI (China)
Installation Guidelines
Handling: Proximity probes are precision instruments. Handle with care to avoid damaging the probe tip or the coaxial cable.
Mounting: Ensure the probe is installed in a rigid, vibration-free bracket to prevent false readings. Use the provided lock nuts to secure the probe at the required gap distance.
Wiring: Route coaxial cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
System Integration: This probe must be paired with a compatible 3300 XL Proximitor sensor. Ensure all connections are clean and tightened to the manufacturer's specified torque.
Power Down: Always disconnect power to the monitoring system before installing or removing probe components to prevent electrical damage.
FAQWhat is the difference between the -CN and -05 models?The 330103-00-12-10-02-CN and 330103-00-12-10-02-05 are physically and electrically identical. The primary difference is the regional safety certification: the -CN model is NEPSI-certified for use in China, while the -05 model carries global approvals such as CSA, ATEX, and IECEx.Does this probe include the Proximitor sensor?No, the 330103 part number refers to the probe and integrated cable only. A compatible 3300 XL Proximitor sensor is required to complete the transducer system.What is the measurement range of this probe?The 3300 XL 8 mm system typically provides a linear measurement range of 0 to 80 mils (0 to 2.0 mm), suitable for most standard vibration and position monitoring applications.
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330101-00-28-20-02-CN is an 8 mm proximity probe from the 3300 XL series. Designed for use within the 3300 XL Proximity Transducer System, this probe provides high-accuracy, non-contact measurement of shaft vibration and position in rotating machinery. It is fully compliant with API 670 standards for mechanical configuration, linear range, and temperature stability, ensuring reliable performance in demanding industrial environments.Features
8 mm probe diameter for standard eddy current sensing applications.
Miniature coaxial ClickLoc connector for secure, reliable signal transmission.
Full interchangeability with other 3300 XL system components, eliminating the need for individual component bench calibration.
Designed for high immunity to radio frequency interference (RFI) and electromagnetic interference (EMI).
Hazardous area approvals including CSA, ATEX, and IECEx.
Applications
Gas & Steam Turbines: Monitoring radial vibration and axial thrust to prevent rotor-stator contact.
Centrifugal & Axial Compressors: Ensuring precise shaft stability for process gas and refrigeration systems.
Large Industrial Pumps: Monitoring boiler feed pumps and high-pressure fluid systems.
Electric Motors & Generators: Supporting large sleeve-bearing units in power generation.
Gearboxes: Monitoring shaft eccentricity and misalignment in high-speed gear assemblies.
Technical Specifications
Model Number
330101-00-28-20-02-CN
Probe Diameter
8 mm
Thread Size
3/8-24 UNF
Unthreaded Length
0.0 in
Case Length
2.8 in
Cable Length
2.0 meters (6.6 feet)
Connector Type
Miniature coaxial ClickLoc
Agency Approvals
CSA, ATEX, IECEx
Operating Temperature
-51 degC to +177 degC
Installation Guidelines
Mounting: Thread the probe into the mounting bracket or machine housing until the tip lightly touches the target surface.
Gapping: Retract the probe to the required gap. A standard radial vibration gap is approximately 1.27 mm (50 mils), typically corresponding to a -9 Vdc output.
Locking: Once the gap is set, tighten the lock nut to a recommended torque of 68 N·m (50 ft·lb). Do not exceed 163 N·m (120 ft·lb).
Handling: Ensure the coaxial cable is routed away from high-voltage lines to minimize noise interference. Handle the probe tip with care to avoid damage to the sensing surface.
FAQWhat are the main applications for this probe?This probe is primarily used for vibration and position monitoring on fluid-film bearing machines such as turbines, pumps, and compressors to facilitate fault diagnosis and condition monitoring.How does the 3300 XL system handle electrical interference?The system is engineered with high immunity to RFI and EMI, allowing it to be installed in non-metallic housings without the requirement for additional specialized shielding.Is this probe compatible with older 3300 series components?Yes, each 3300 XL transducer system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330103-00-04-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for precise vibration and position monitoring in rotating machinery. As a core component of the Bently Nevada 3300 XL transducer system, this probe provides accurate, non-contact measurement of shaft displacement, position, and speed in industrial environments.Features
Standard 8 mm probe tip diameter for reliable sensing.
M10 x 1 thread configuration for secure mounting.
Equipped with a miniature coaxial ClickLoc connector for robust signal integrity.
Standard cable construction without armor.
Designed for hazardous area compliance with CSA, ATEX, and IECEx certifications.
Technical Specifications
Model Number
330103-00-04-10-02-CN
Probe Diameter
8 mm
Thread Size
M10 x 1
Unthreaded Length
0 mm
Case Length
40 mm
Cable Length
1.0 meter (3.3 feet)
Connector Type
Miniature coaxial ClickLoc
Approvals
CSA, ATEX, IECEx
Installation Guidelines
Ensure the probe is installed in a rigid, vibration-free mounting bracket to prevent false readings.
Maintain proper gap distance as specified by the machine monitoring system configuration.
Handle the probe tip with care; avoid physical impact or scratching of the sensing surface.
Route coaxial cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal accuracy.
Ensure that all connections are fully seated and the ClickLoc connector is properly secured.
Verify that the installation environment complies with the specific hazardous area ratings (CSA, ATEX, IECEx) indicated for this unit.
FAQWhat is the primary function of the 330103-00-04-10-02-CN probe?This probe is used to measure static and dynamic distances between the probe tip and the observed conductive surface, typically a machine shaft, to monitor vibration and axial position.Is this probe suitable for hazardous areas?Yes, this specific model (CN suffix) is manufactured with CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous locations.Can this probe be used with other Bently Nevada systems?The 3300 XL 8 mm probe is designed to be compatible with Bently Nevada 3300 XL proximity transducer systems. Always verify system compatibility before installation.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Bently Nevada 330101 3300 XL 8 mm Proximity Probe is a critical component of the 3300 XL Proximity Transducer System. Designed for non-contact vibration and position measurement in industrial rotating machinery, this probe provides highly accurate gap measurements between the probe tip and the observed target. The 3300 XL system is engineered to meet the requirements of API 670 standards for machinery protection.Features
8 mm probe tip diameter for high-resolution sensing.
3/8-24 UNF thread configuration for standard mounting.
Miniature coaxial ClickLoc connector for secure, reliable signal transmission.
Standard cable construction without protective armor.
Designed for compatibility with 3300 XL extension cables and proximity sensors.
Hazardous area approvals including CSA, ATEX, and IECEx.
Technical Specifications
Model
330101-00-00-10-02-05 MOD147773-00-12
Probe Diameter
8 mm
Thread Size
3/8-24 UNF
Cable Length
1.0 meter (3.3 feet)
Connector
Miniature coaxial ClickLoc
Armor
None
Agency Approvals
CSA, ATEX, IECEx
Installation Guidelines
Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance.
Handle the probe tip with care; damage to the tip surface can affect measurement accuracy.
When installing, ensure the probe is not over-tightened to avoid stripping the threads.
Route the coaxial cable away from high-voltage power lines or sources of electromagnetic interference (EMI) to maintain signal integrity.
Verify that the probe gap is set according to the specific machinery monitoring configuration requirements.
Ensure the ClickLoc connector is fully seated and locked to prevent intermittent signal loss.
FAQWhat is the purpose of the 3300 XL 8 mm probe?This probe is used to measure radial vibration, axial position, and speed on rotating shafts in industrial environments, providing essential data for machinery protection and condition monitoring.Is this probe compatible with older 3300 series systems?The 3300 XL system is generally backward compatible with 3300 series components, but it is recommended to verify the system compatibility and calibration requirements for your specific installation.Does this probe require special handling?Yes, the probe tip is sensitive. Avoid physical impact or exposure to harsh chemicals that could degrade the probe material. Always ensure the system is powered down before disconnecting or connecting the probe cable.
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Description
The Foxboro AD916AE is a high-performance analog input extension cable engineered for the Foxboro I/A Series distributed control system. This component is designed to facilitate reliable signal transmission between Fieldbus Modules (FBM) and termination assemblies (TA) within complex industrial control environments. By ensuring high-fidelity data transfer, the AD916AE helps maintain signal integrity for sensitive process variables, minimizing electromagnetic interference (EMI) and preventing data loss in critical applications.
Features
High-Fidelity Signal Transmission: Multi-core, shielded twisted pair (STP) construction optimized for low-level analog signal integrity.
Robust Construction: Features a flame-retardant outer jacket designed to withstand industrial chemical exposure and thermal stress.
Reliable Connectivity: High-density connectors equipped with gold-plated contacts to prevent oxidation and ensure long-term electrical conductivity.
System Compatibility: Supports redundant signal paths when utilized with compatible redundant FBM architectures.
EMC Compliance: Calibrated to meet Foxboro stringent electromagnetic compatibility standards.
Applications
The AD916AE is suitable for use in demanding industrial sectors, including:
Petrochemical refineries
Offshore oil and gas platforms
Heavy mining operations
Large-scale distributed control system (DCS) installations
Technical Specifications
Model
AD916AE
Brand
Foxboro (Schneider Electric)
Cable Type
Analog Input Extension Cable
Signal Support
4-20 mA, 0-5 VDC, 0-10 VDC
Shielding
Overall foil and braided shield (100% coverage)
Operating Temperature
-20 to +70 deg C
Storage Temperature
-40 to +85 deg C
Jacket Material
PVC
Installation Guidelines
Handling: Ensure the cable is not subjected to excessive tension or sharp bends during installation to maintain the integrity of the internal shielding.
EMI Mitigation: Route signal cables away from high-voltage power lines and high-EMI sources to prevent signal noise.
Grounding: Ensure proper termination of the cable shield at the designated grounding points on the termination assembly to maintain effective EMI protection.
Environment: Verify that the installation area remains within the specified temperature range of -20 to +70 deg C.
Power Down: Always ensure the associated I/O modules and power supplies are de-energized before connecting or disconnecting the cable from the FBM or TA.
FAQ
Q: Is this cable compatible with all Foxboro I/A Series FBMs?A: The AD916AE is designed for specific I/A Series applications. Please verify your FBM and termination assembly part numbers to ensure compatibility with this specific cable interface.
Q: Can this cable be used in outdoor environments?A: The cable features a flame-retardant jacket suitable for industrial environments; however, it should be installed within appropriate conduit or cable trays to protect it from direct environmental hazards and mechanical damage.
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Bently Nevada 330104-00-22-10-02-05 3300 XL 8 mm Proximity Probe
Configured for non-contact shaft displacement measurement in the Bently Nevada 3300 XL Proximity Transducer System, the Bently Nevada 330104-00-22-10-02-05 (330104 3300 XL 8 mm Proximity Probe) provides direct eddy-current sensing for vibration and axial position monitoring.
Hardware Specifications
Parameter
Specification
Model
330104-00-22-10-02-05
Brand
Bently Nevada
Product Type
3300 XL 8 mm Eddy Current Proximity Probe
Origin
USA
Weight
Approx. 0.16 kg
Dimensions
Case length: 220 mm; total length: 1.0 m
Operating Temp
-52 deg C to +177 deg C
Power Consumption
Supplied by compatible 3300 XL Proximitor Sensor system
Probe Diameter
8 mm
Thread Type
M10 x 1 metric thread
Armor Type
Stainless steel flexible armor
Cable Type
75 ohm triaxial FEP insulated probe cable
Connector Type
Miniature coaxial ClickLoc connector
Tip Material
Polyphenylene sulfide (PPS)
Case Material
AISI 303/304 stainless steel
Linear Range
2.0 mm (80 mils), operating range from 0.25 mm to 2.25 mm
Scale Factor
7.87 V/mm (200 mV/mil) nominal
Target Material
AISI 4140 steel
Pressure Seal
Viton O-ring between probe tip and case
Eddy-Current Measurement and Rotor Dynamics Characteristics
The 330104-00-22-10-02-05 uses an eddy-current sensing principle to convert shaft displacement into electrical signals. The probe maintains a nominal scale factor of 7.87 V/mm and operates with compatible 3300 XL Proximitor Sensors for vibration and position measurements.
The probe design supports rotor dynamics analysis by providing proportional displacement feedback from rotating shafts. Therefore, the system can evaluate radial vibration, axial position, and shaft movement behavior through continuous gap measurement.
The probe output depends on the physical gap between the probe tip and the conductive target. During installation, technicians validate the probe gap voltage to confirm the measurement position, with typical Bently Nevada systems using -10 VDC as the target reference condition for proper operating gap verification.
The armored construction reduces mechanical damage risk in industrial installations, while the ClickLoc connector provides consistent electrical connection between the probe cable and monitoring electronics.
Frequently Asked Questions
Q: What measurement signals does the Bently Nevada 330104-00-22-10-02-05 provide?A: The probe provides non-contact displacement signals used for shaft vibration, radial position, axial position, and rotor movement monitoring through a compatible 3300 XL Proximitor Sensor.
Q: Does this probe require special calibration before operation?A: No. The probe uses the standard 3300 XL 8 mm probe scaling and operates with compatible Bently Nevada Proximitor Sensors without custom bench calibration when installed with the specified target material.
Q: How should the probe gap be verified during installation?A: Technicians verify the operating gap through the Proximitor Sensor output voltage. Bently Nevada installations commonly use -10 VDC as the reference target for correct probe gap positioning.
Field Installation Guidelines
Install the probe with the M10 x 1 threaded section fully engaged according to the mechanical assembly requirements.
Maintain proper probe tip alignment with the rotating shaft surface to prevent measurement errors caused by angular offset.
Route the armored cable away from high-current power conductors to reduce electrical interference.
Connect the cable shield and grounding path according to the Bently Nevada monitoring system installation requirements.
Verify the probe gap voltage after mechanical installation before commissioning the vibration monitoring channel.
Confirm that the shaft material matches the calibration target requirements, typically AISI 4140 steel or an equivalent conductive target.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Bently Nevada 330104-00-22-10-01-05 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104-00-22-10-01-05, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated eddy-current measurement component for shaft displacement and vibration monitoring within Bently Nevada TSI monitoring systems.
Hardware Specifications
Parameter
Specification
Model
330104-00-22-10-01-05
Brand
Bently Nevada
Product Series
3300 XL 8 mm Proximity Probe
Origin
USA
Dimensions
Probe tip diameter: 8 mm; case length: 220 mm; total length: 1.0 meter
Operating Temp
Probe and cable: -51 deg C to +177 deg C
Power Consumption
Powered by Proximitor sensor system; input voltage: -17.5 VDC to -26 VDC
Measurement Principle
Eddy-current non-contact displacement measurement
Thread Type
M10 x 1 metric thread
Unthreaded Length
0 mm
Cable Protection
Flexible AISI 302 stainless steel armored cable
Connector Type
Miniature coaxial ClickLoc connector with connector protector
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 304 stainless steel
Linear Range
2.0 mm (80 mils)
Scale Factor
7.87 V/mm (200 mV/mil), +/-5% typical
Field Wiring Distance
Up to 305 meters between Proximitor sensor and monitoring system using recommended triad shielded cable
Hazardous Area Approval
CSA, ATEX, IECEx
Eddy-Current Probe Scaling and Rotor Dynamics Monitoring
The 330104-00-22-10-01-05 uses eddy-current sensing technology to convert shaft displacement into proportional electrical signals. The probe provides a scale factor of 7.87 V/mm for dynamic vibration and static position measurements.
Furthermore, the system requires gap voltage validation during commissioning to confirm the probe operating point. Bently Nevada proximity systems typically use approximately -10 VDC gap voltage targets to verify correct probe-to-shaft positioning.
The probe supports rotor dynamics analysis by measuring radial vibration, axial shaft position, speed references, and Keyphasor related signals. Therefore, engineers can evaluate shaft movement behavior through compatible TSI monitoring modules.
The armored cable construction reduces mechanical damage risks in industrial installations. Additionally, the miniature coaxial ClickLoc connector maintains signal continuity between the probe and the associated Proximitor sensor.
Frequently Asked Questions
Q: What measurement principle does the 330104-00-22-10-01-05 use?A: The probe uses eddy-current technology to measure shaft displacement without physical contact between the probe tip and rotating shaft surface.
Q: What is the required operating voltage range for this proximity probe system?A: The connected Proximitor sensor system operates with an input voltage range of -17.5 VDC to -26 VDC.
Q: What installation factors affect measurement accuracy?A: Proper probe gap adjustment, shielded cable routing, correct grounding practice, and avoidance of electromagnetic interference affect signal accuracy.
Field Installation Guidelines
Install the probe with the specified M10 x 1 metric thread engagement and verify mechanical alignment before operation.
Maintain correct probe gap adjustment according to the monitoring system commissioning procedure.
Connect the cable shield according to the TSI system grounding requirements to reduce electrical interference.
Avoid routing proximity probe cables parallel to high-current power conductors.
Inspect the armored cable and ClickLoc connector before installation to confirm mechanical integrity.
Verify the gap voltage output after installation to confirm proper probe positioning and signal operation.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Bently Nevada 330104-00-20-05-02-00 3300 XL 8 mm Proximity Probe
Configured for shaft displacement measurement in the Bently Nevada 3300 XL Proximity Transducer System, the Bently Nevada 330104-00-20-05-02-00 (330104 3300 XL 8 mm Proximity Probe) provides direct eddy-current signal conversion for vibration, position, and Keyphasor monitoring circuits.
Hardware Specifications
Parameter
Specification
Model
330104-00-20-05-02-00
Brand
Bently Nevada
Product Type
Eddy Current Proximity Sensors
Series
3300 XL 8 mm Proximity Probe
Origin
USA
Dimensions
200 mm case length, 0.5 meter probe cable length
Operating Temp
-35 deg C to +177 deg C
Power Consumption
12 mA max at -17.5 VDC to -26 VDC supply
Thread Type
M10 x 1 metric thread
Probe Construction
Armored cable configuration with AISI 304 stainless steel case
Cable Armor
Flexible AISI 302 stainless steel with FEP outer jacket
Connector Type
Miniature coaxial ClickLoc connector
Probe Tip Material
Polyphenylene sulfide (PPS)
Measurement Principle
Eddy current non-contact displacement measurement
System Linear Range
2.0 mm (80 mils)
Scale Factor
7.87 V/mm (200 mV/mil), +/-6.5 percent typical
Frequency Response
0 Hz to 10 kHz (+0, -3 dB)
Output Resistance
50 ohm from Proximitor Sensor
Target Material
AISI 4140 steel calibration target
API Compliance
API 670 compliant for 5 meter and 9 meter systems
Eddy Current Probe Scaling and Rotor Dynamics Monitoring
The 3300 XL 8 mm proximity probe uses an eddy-current measurement circuit to convert shaft motion into proportional electrical output. Therefore, the probe provides linear displacement feedback for rotor vibration analysis and axial position monitoring.
The 7.87 V/mm scale factor supports Proximitor Sensor signal conditioning, while the DC response allows static shaft position measurement and dynamic vibration detection within the same measurement loop.
Additionally, the system supports gap voltage validation procedures. Field technicians normally verify probe operating condition through gap voltage measurements, with -10 VDC commonly used as the nominal target for Bently Nevada proximity systems.
The probe design reduces measurement errors caused by mechanical movement and maintains signal integrity through armored cable protection. As a result, the device supports rotor dynamics evaluation in rotating equipment monitoring applications.
Frequently Asked Questions
Q: What measurement function does the 330104-00-20-05-02-00 provide?A: The probe measures shaft displacement through an eddy-current sensing principle and outputs proportional vibration and position signals through the compatible Proximitor Sensor.
Q: Does this model support armored cable installation?A: Yes. The 330104-00-20-05-02-00 includes an armored cable construction using flexible stainless steel armor with an FEP protective jacket.
Q: What power supply does the connected proximity system require?A: The connected Proximitor Sensor requires a -17.5 VDC to -26 VDC supply and operates with a maximum current consumption of 12 mA.
Field Installation Guidelines
Install the probe with the specified M10 x 1 metric thread engagement and maintain correct mechanical alignment with the monitored shaft surface.
Verify the probe tip clearance before equipment operation to ensure the measurement range remains within the calibrated displacement area.
Use shielded signal routing practices and separate probe cables from high-current power wiring to reduce electrical interference.
Connect cable shielding according to the monitoring system grounding design and avoid multiple unintended grounding paths.
Confirm gap voltage after installation and validate the signal output before commissioning the machinery monitoring loop.
Protect the ClickLoc connector area from mechanical stress, contamination, and excessive bending during cable routing.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Bently Nevada 330104-00-18-10-02-05 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104-00-18-10-02-05, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement and vibration monitoring within the 3300 XL Transducer System.
Hardware Specifications
Parameter
Specification
Model
330104-00-18-10-02-05
Brand
Bently Nevada
Product Type
Eddy Current Proximity Sensors
Series
3300 XL 8 mm Proximity Probe
Origin
USA
Weight
0.16 kg
Dimensions
Probe case length 180 mm; overall length configuration 1.0 m
Probe Tip Diameter
8 mm
Thread Type
M10 x 1 metric thread
Cable Type
Standard coaxial cable with flexible protective armor
Connector Type
Miniature coaxial ClickLoc connector
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 303 or 304 stainless steel
Linear Measurement Range
2.0 mm
Linearity Range
0.25 mm to 2.25 mm
System Output Scale Factor
7.87 V/mm (200 mV/mil)
Operating Temp
Probe and cable: -52 deg C to +177 deg C; connector: -52 deg C to +105 deg C
Power Consumption
Supplied by Proximitor Sensor, -17.5 VDC to -26 VDC operating supply
Hazardous Area Approval
CSA, ATEX, IECEx Class I Div 1 / Zone 0 and Zone 1 applications
Eddy-Current Measurement and Rotor Dynamics Characteristics
The 330104-00-18-10-02-05 uses an eddy-current sensing principle to convert shaft displacement into an electrical output signal. The probe operates with a defined scaling factor of 7.87 V/mm, allowing the connected Proximitor Sensor to process shaft position and vibration signals.
Furthermore, the probe supports gap voltage validation through standard Bently Nevada monitoring practices. Field technicians typically verify probe installation by checking gap voltage targets near -10 VDC to confirm correct probe-to-shaft spacing.
The 3300 XL 8 mm design supports rotor dynamics analysis by providing continuous shaft movement data. Therefore, the system can monitor radial vibration, axial position, and mechanical displacement changes in rotating equipment.
The probe construction also reduces signal interference through controlled cable design and shielded coaxial transmission. This configuration maintains measurement stability when installed near other vibration monitoring channels.
Frequently Asked Questions
Q: What measurement principle does the 330104-00-18-10-02-05 use?A: The probe uses eddy-current technology to measure the distance between the probe tip and conductive shaft surface. The Proximitor Sensor converts the electrical response into displacement data.
Q: What is the purpose of the ClickLoc coaxial connector on this probe?A: The miniature coaxial ClickLoc connector provides a mechanical connection between the probe cable and monitoring electronics while maintaining the required signal transmission characteristics.
Q: Can the probe operate in hazardous areas?A: Yes. This configuration includes CSA, ATEX, and IECEx approvals for specified hazardous area installations. The final installation must follow the applicable certification requirements.
Field Installation Guidelines
Install the probe with the specified M10 x 1 mounting thread and maintain correct probe-to-shaft clearance before system calibration.
Connect the coaxial cable using the ClickLoc connector and verify that the connector remains mechanically secured during equipment operation.
Route the probe cable away from high-current power conductors and strong electromagnetic interference sources. Maintain proper cable separation to reduce unwanted electrical noise.
Connect cable shielding according to the monitoring system grounding requirements. Avoid creating additional ground loops between the probe system and external equipment.
After mechanical installation, verify the Proximitor Sensor output and confirm gap voltage values before placing the machinery into service.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Bently Nevada 330104-00-17-05-02-00 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104-00-17-05-02-00, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within the Bently Nevada 3300 XL Transducer System.
Hardware Specifications
Parameter
Specification
Model
330104-00-17-05-02-00
Brand
Bently Nevada
Product Type
Eddy Current Proximity Sensors
Series
3300 XL 8 mm Proximity Probe
Origin
USA
Weight
0.16 kg
Dimensions
170 mm case length, 8 mm probe diameter, 0.5 m cable length
Operating Temp
-52 deg C to +177 deg C
Power Consumption
Passive probe device; powered by compatible 3300 XL Proximitor Sensor
Measurement Principle
Eddy current non-contact displacement measurement
Linear Range
2.0 mm (80 mils)
Scale Factor
7.87 V/mm (200 mV/mil) with matching 3300 XL Proximitor Sensor
Target Material
Calibrated for AISI 4140 steel
Thread Type
M10 x 1 metric thread
Probe Diameter
8 mm
Case Length
170 mm
Cable Length
0.5 m
Connector Type
Miniature coaxial ClickLoc connector
Probe Tip Material
Polyphenylene Sulfide (PPS) molded TipLoc probe tip
Agency Approval
Standard version without agency approval
Eddy Current Measurement and Rotor Dynamics Features
The 330104-00-17-05-02-00 uses an eddy-current sensing principle to convert shaft position changes into proportional electrical signals. The 3300 XL system applies a defined scaling relationship between probe displacement and output voltage, allowing the Proximitor Sensor to process radial vibration and axial position signals.
The probe operates with a calibrated gap voltage range controlled by the connected Proximitor Sensor. During installation, technicians validate the electrical gap condition and typically verify the -10 VDC target reference used in Bently Nevada proximity measurement systems.
Furthermore, the probe supports rotor dynamics analysis by providing displacement signals required for shaft vibration monitoring, phase reference measurements, and machinery protection logic.
Frequently Asked Questions
Q: Does the 330104-00-17-05-02-00 require field calibration after replacement?A: No. The 3300 XL system supports interchangeable probe, extension cable, and Proximitor Sensor combinations without bench calibration when technicians use matched system components.
Q: What type of signal does this proximity probe generate?A: The probe provides an eddy-current measurement signal that the connected Proximitor Sensor converts into a proportional voltage output for vibration and position monitoring.
Q: Can this probe measure shaft vibration and axial position simultaneously?A: The probe measures shaft displacement. System configuration determines whether the signal is applied for radial vibration, axial position, speed sensing, or Keyphasor phase measurement.
Field Installation Guidelines
Install the probe using the M10 x 1 metric thread connection and maintain correct mechanical alignment with the target shaft surface.
Keep the probe tip surface free from contamination because oil deposits or foreign material can affect eddy-current measurement accuracy.
Route the coaxial cable away from high-current power conductors to reduce electrical interference.
Connect the ClickLoc connector securely and maintain proper shielding practices according to the 3300 XL installation requirements.
Verify the probe gap voltage through the connected Proximitor Sensor before placing the machinery protection channel into service.
Confirm the target material condition because calibration characteristics depend on the specified conductive shaft material.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
