Description
Description

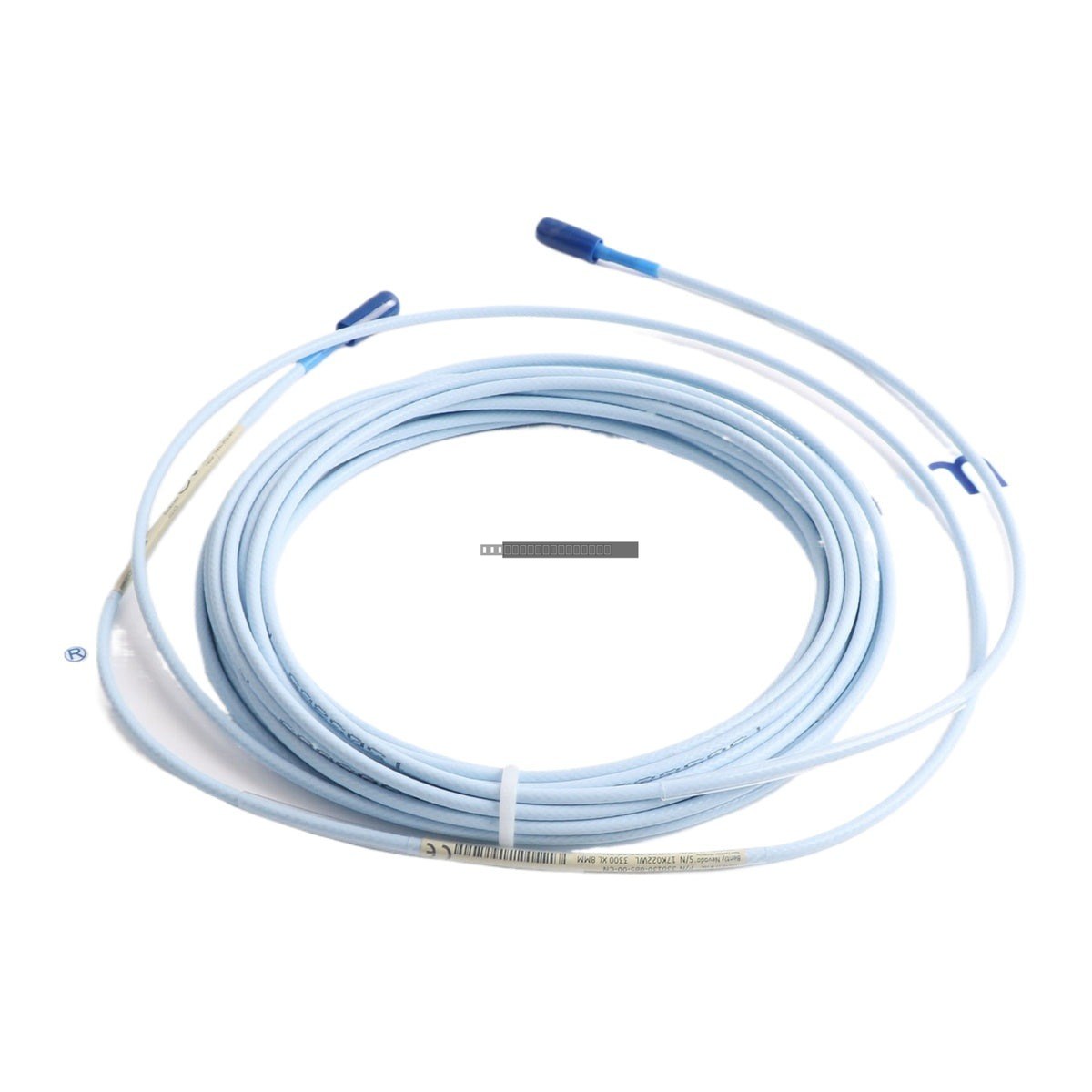

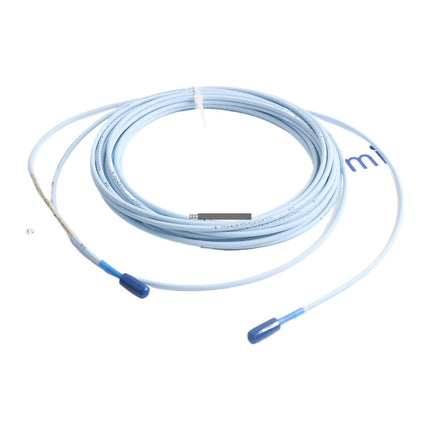

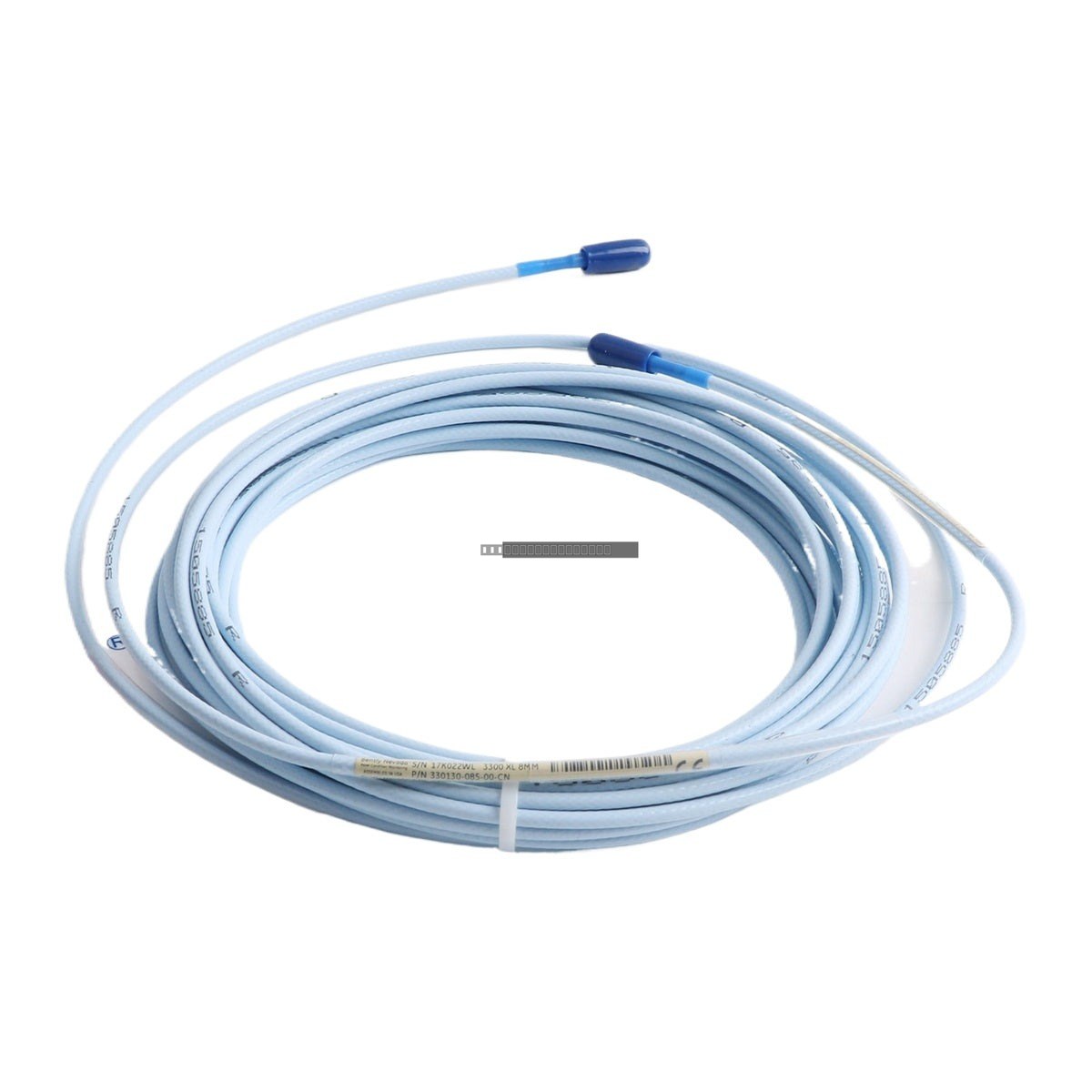

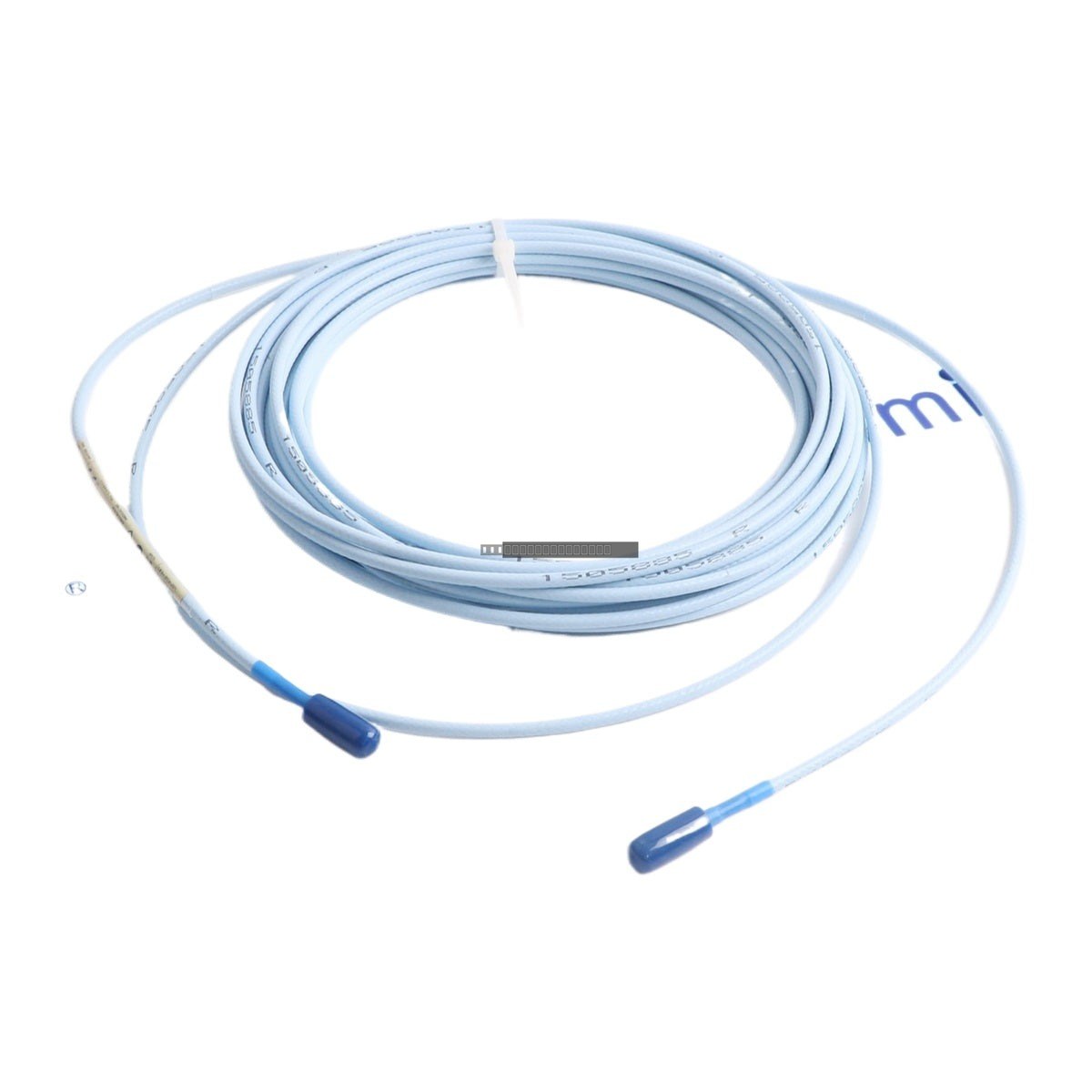

The Bently Nevada 330130-085-00-CN is a high-performance 3300 XL series extension cable designed for use with proximity transducer systems. This component serves as the critical link between the proximity probe and the Proximitor sensor, ensuring signal integrity in demanding industrial vibration monitoring environments. This specific model features an 8.5-meter length and is configured with standard cable protection and international agency approvals for hazardous area compliance.
Features
- Designed for 3300 XL Proximity Transducer Systems
- Cable length of 8.5 meters (27.9 feet)
- Standard cable construction for reliable signal transmission
- Includes CSA, ATEX, and IECEx hazardous area approvals
- Typical extension cable capacitance of 69.9 pF/m (21.3 pF/ft)
- Characteristic output resistance of 50 Ohm
Technical Specifications
| Product Model |
330130-085-00-CN |
| Cable Length |
8.5 meters (27.9 feet) |
| Cable Option |
Standard |
| Agency Approvals |
CSA, ATEX, IECEx |
| Output Resistance |
50 Ohm |
| Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
| Weight |
0.34 kg |
Installation Guidelines
- Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
- Use appropriate conduit or cable trays to protect the extension cable from mechanical damage in the field.
- Verify that all connector interfaces are clean and free of debris before mating.
- Ensure that the cable bend radius is maintained according to Bently Nevada installation standards to prevent internal conductor damage.
- Always power down the associated monitoring system before disconnecting or connecting transducer cables to avoid potential electrical surges.
FAQ
What is the primary purpose of the 330130-085-00-CN extension cable?
This cable is used to extend the connection between a Bently Nevada proximity probe and the Proximitor sensor, allowing for flexible installation distances in machinery monitoring setups.
Does this cable meet international safety standards?
Yes, the -CN suffix indicates that this specific model is manufactured with CSA, ATEX, and IECEx approvals, making it suitable for use in certified hazardous locations.
Can this cable be used with non-3300 XL systems?
The 3300 XL series components are specifically engineered to work together to maintain system accuracy and calibration. It is recommended to use this cable only with compatible 3300 XL series hardware.
