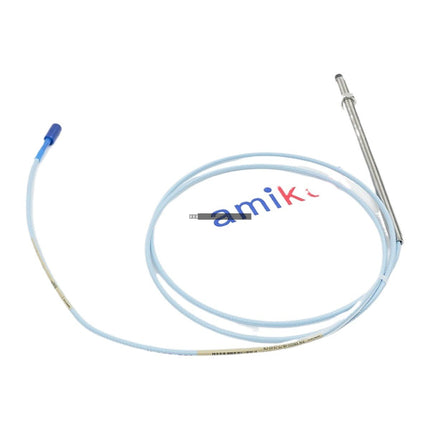

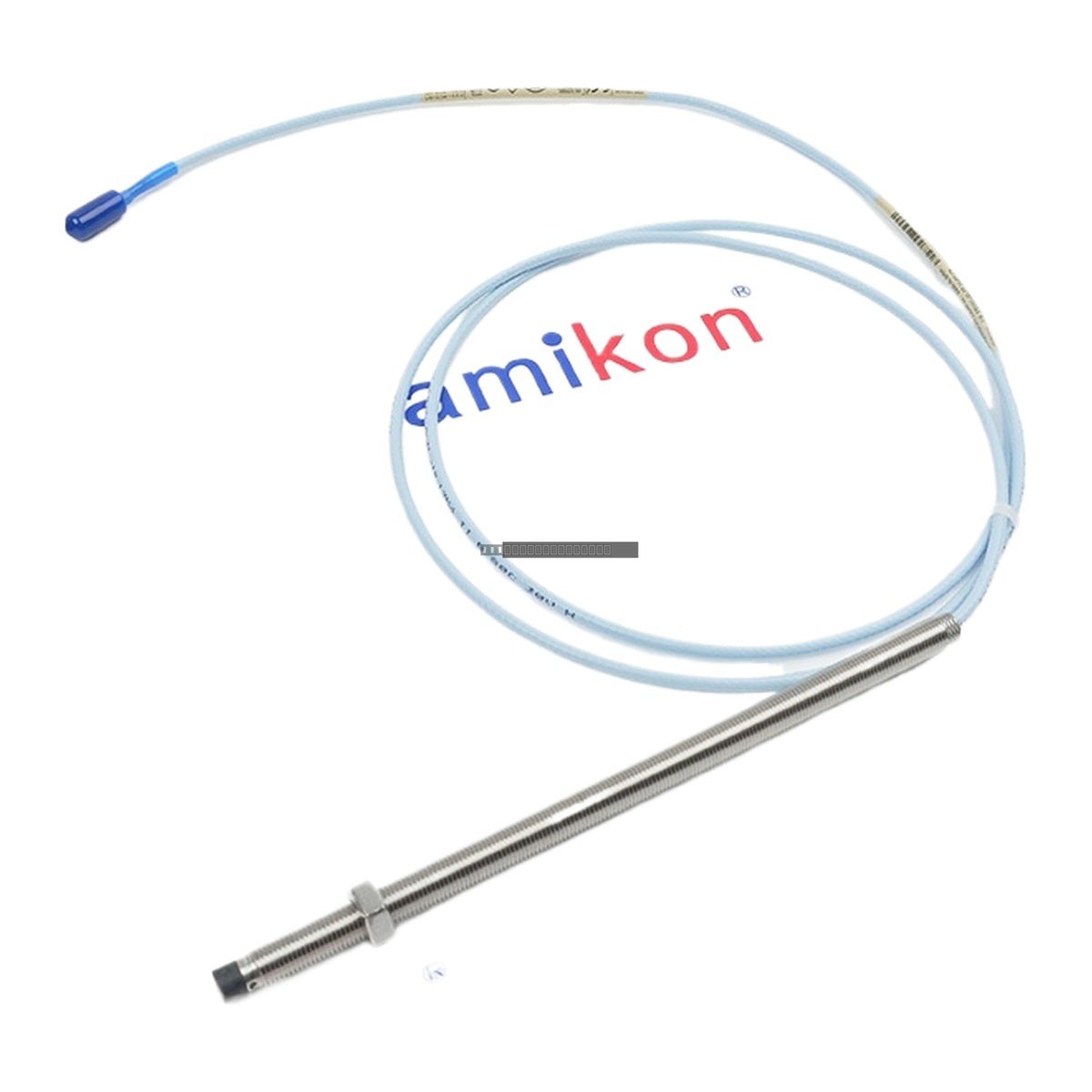

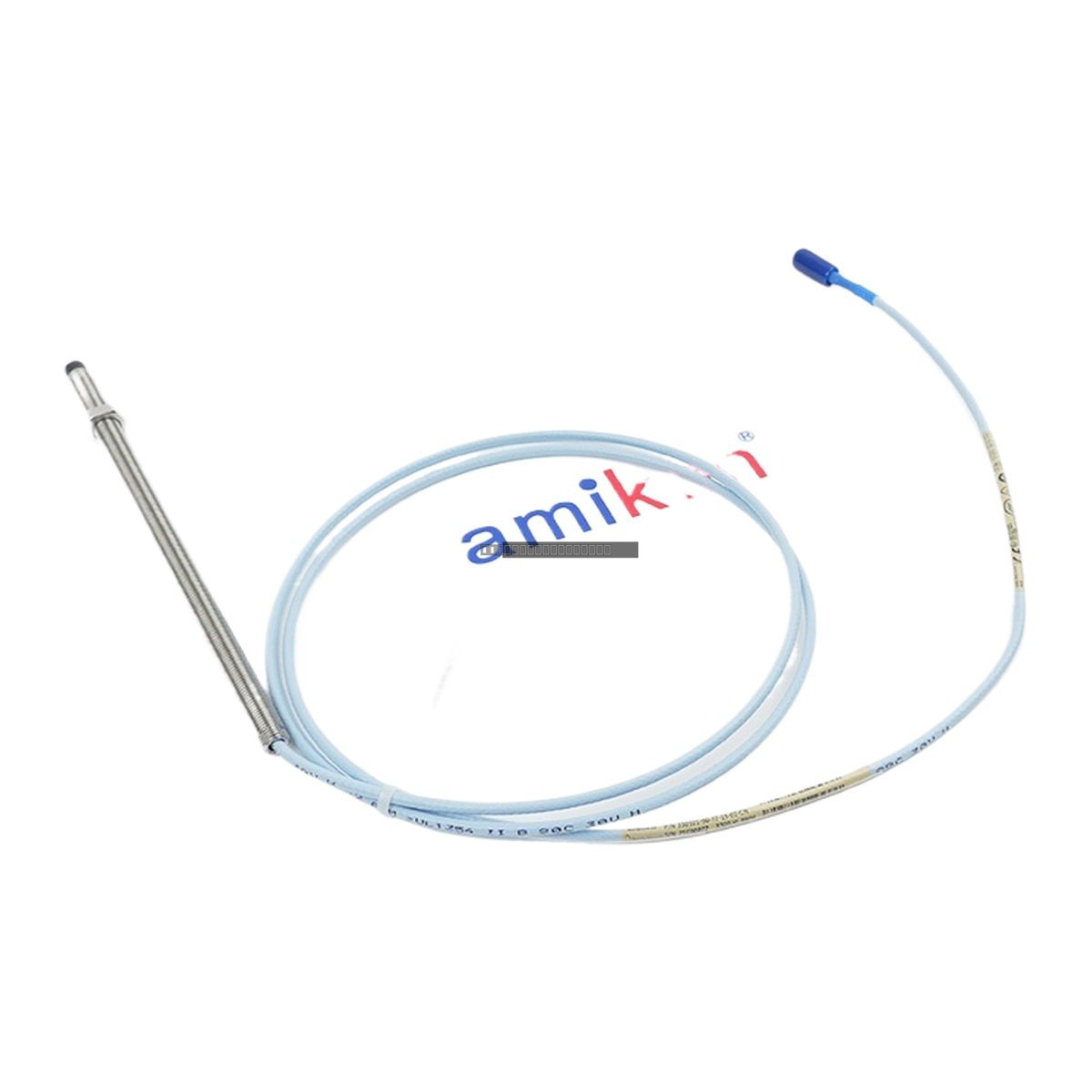

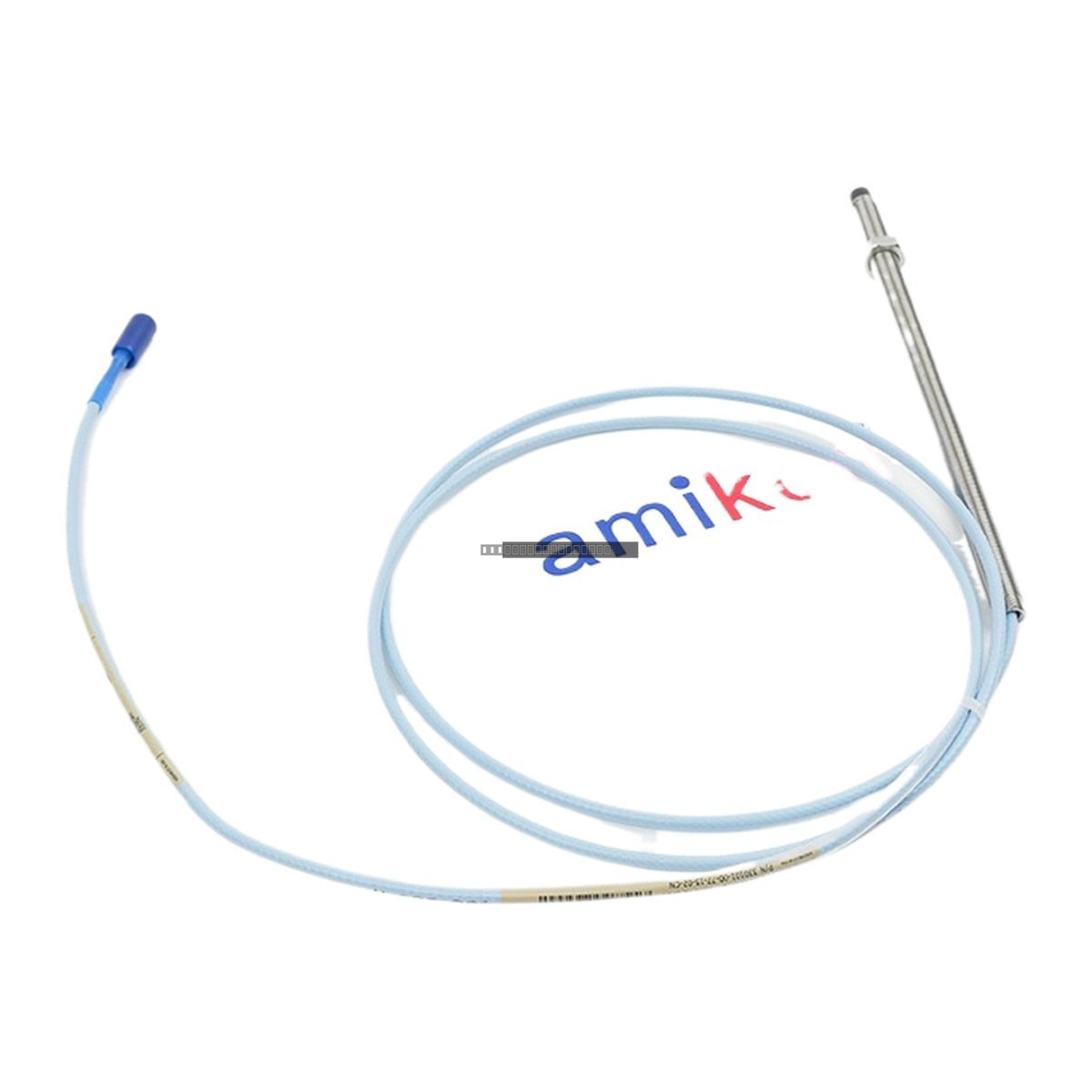

The Bently Nevada 330101-00-77-15-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for use within the Bently Nevada 3300 XL Proximity Transducer System. This eddy current transducer system is engineered to provide precise, non-contact measurements of vibration and position in rotating machinery. The 3300 XL series is fully compliant with the American Petroleum Institute (API) 670 standard, ensuring reliability in demanding industrial environments.
Features
- 8 mm probe tip diameter for high-resolution measurement.
- Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component calibration.
- Miniature coaxial ClickLoc connector for secure and reliable signal transmission.
- Designed for harsh environments with CSA, ATEX, and IECEx agency approvals.
- Standard cable configuration without armor.
Applications
-
Power Generation: Monitoring large steam and gas turbines, generators, and exciter units.
-
Oil & Gas: Vibration and position monitoring for centrifugal and axial compressors, process gas pumps, and expanders.
-
Water & Wastewater: Deployment on large-scale pumps, fans, and blowers.
-
General Industry: Critical monitoring for large motors and high-load gearboxes.
Technical Specifications
| Model |
330101-00-77-15-02-CN |
| Probe Diameter |
8 mm |
| Thread Size |
3/8-24 UNF |
| Unthreaded Length |
0.0 in |
| Case Length |
7.7 in |
| Cable Length |
1.5 meters (4.9 feet) |
| Connector Type |
Miniature coaxial ClickLoc |
| Agency Approvals |
CSA, ATEX, IECEx |
Installation Guidelines
-
Mounting: Install the probe in a rigid bracket or housing that allows for precise adjustment. Use a sliding bracket for applications involving significant differential thermal expansion.
-
Gapping: The ideal gap between the probe tip and the target (AISI 4140 steel) is 1.27 mm (50 mils).
-
Calibration: When gapped correctly, the system should yield an initial output of approximately -9 V DC.
-
Linear Range: The system operates linearly between 0.25 mm and 2.3 mm (10 to 90 mils).
-
Handling: Ensure the probe tip is protected from mechanical impact during installation. Avoid sharp bends in the coaxial cable to maintain signal integrity.
FAQs
What is the 330101-00-77-15-02-CN?
It is a specific configuration of the 3300 XL 8 mm Proximity Probe used to monitor vibration and position in critical rotating machinery.
How does the probe measure vibration?
The probe utilizes the eddy current principle to measure the gap between the probe tip and a conductive shaft, converting this distance into a proportional voltage signal for both static and dynamic analysis.
Is this probe interchangeable with older systems?
Yes, 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, provided the mounting space and cable bend radius requirements are met.
