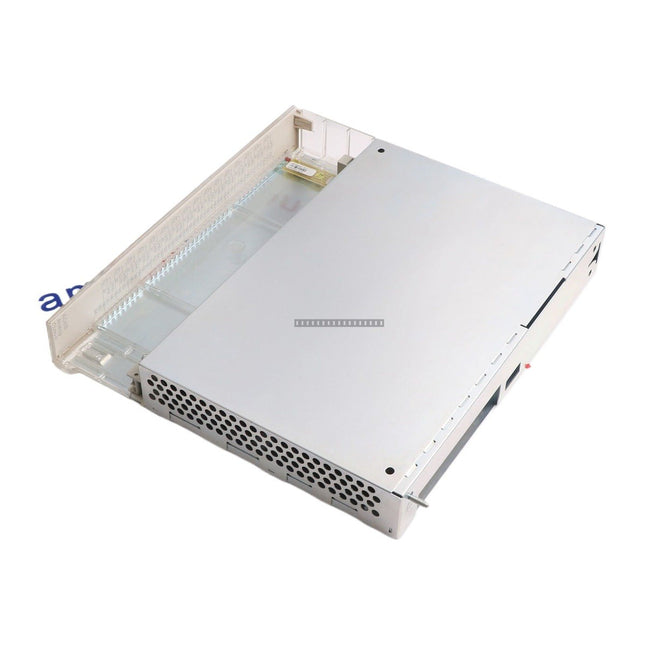

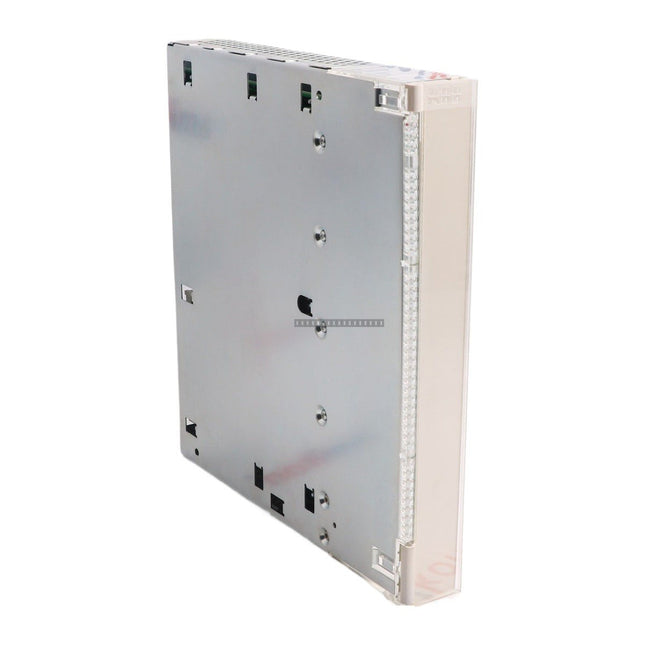

DescriptionThe ABB AO610 (3BHT300008R1) is a high-density analog output module designed for use within the ABB Advant Controller 110 and 160 systems. This module provides 16 channels of analog output, enabling precise control of field devices such as actuators, valves, and positioners in industrial automation environments. It serves as a critical interface between the controller's digital processing core and the analog field instrumentation.Features
16-channel analog output capacity for high-density control applications.
Designed for seamless integration with Advant Controller 110 and 160 series hardware.
Robust industrial design suitable for demanding process control environments.
Reliable signal conversion for precise process variable regulation.
ApplicationsThe AO610 module is typically deployed in process industries requiring centralized control of multiple analog loops, including power generation, water treatment, and chemical processing facilities where the Advant Controller platform is utilized for distributed control.Technical Specifications
Product Model
AO610
Order Code / Spare Model
3BHT300008R1
Manufacturer
ABB
Function
Analog Output Module
Channel Count
16 Channels
Weight
1.16 kg
Installation Guidelines
Ensure the controller rack is powered down before inserting or removing the AO610 module to prevent electrical damage.
Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
Use shielded twisted-pair cabling for analog output signals to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the control cabinet to protect against ground loops and noise.
Ensure adequate ventilation around the controller rack to prevent overheating during continuous operation.
Handle the module using ESD-safe procedures to prevent damage to sensitive internal components.
FAQWhat is the primary function of the AO610 module?The AO610 is an analog output module used in ABB Advant Controller systems to convert digital control signals into analog outputs for field devices like valves and actuators.Is the AO610 compatible with all Advant Controller systems?The AO610 is specifically designed for the Advant Controller 110 and 160 series. Please verify your system hardware revision before installation.What should I do if the module is not recognized by the controller?Check that the module is firmly seated in the rack, verify that the module address is correctly configured, and ensure that the system power supply is stable.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe ABB DSQC509 (3HAC5687-1/05) is a specialized Panel Board Unit designed for integration within ABB Advant OCS and Advant-800xA control systems. This connection unit serves as a critical interface component for PLC panel configurations, facilitating reliable signal distribution and relay switching within industrial automation environments.Features
Integrated dual relay configuration for robust switching operations.
Equipped with five dedicated input ports for versatile signal handling.
Features dual 2-row connectors to ensure secure and stable wiring connections.
Designed for high-reliability performance in demanding industrial control panels.
Technical Specifications
Product Model
DSQC509 / 3HAC5687-1/05
Supply Voltage
220 V AC +/- 10%
Internal DC Bus
24 V DC, 5 A
Power Consumption
<= 25 VA
Isolation
2 kV AC
Operating Temperature
-20 degC to +70 degC
Storage Temperature
-25 degC to +85 degC
Humidity
< 95% RH, non-condensing
Installation Guidelines
Ensure the control panel is fully de-energized before installing or removing the DSQC509 unit.
Mount the unit in a clean, dry environment, ensuring adequate ventilation to maintain operating temperatures within the specified range.
Use appropriate shielded cabling for all input connections to minimize EMI interference.
Verify that all dual 2-row connectors are firmly seated and locked to prevent intermittent signal loss.
Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.
Ensure proper grounding of the panel chassis to maintain system isolation integrity.
FAQWhat is the primary function of the DSQC509?The DSQC509 acts as a connection and interface unit within ABB PLC panels, managing relay-based switching and signal routing between field devices and the control system.Is this unit compatible with Advant-800xA systems?Yes, the DSQC509 is designed for use within the ABB Advant OCS and Advant-800xA product families.What are the power requirements for this module?The unit operates on a 220 V AC supply with a power consumption of less than 25 VA and provides an internal 24 V DC bus at 5 A.
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

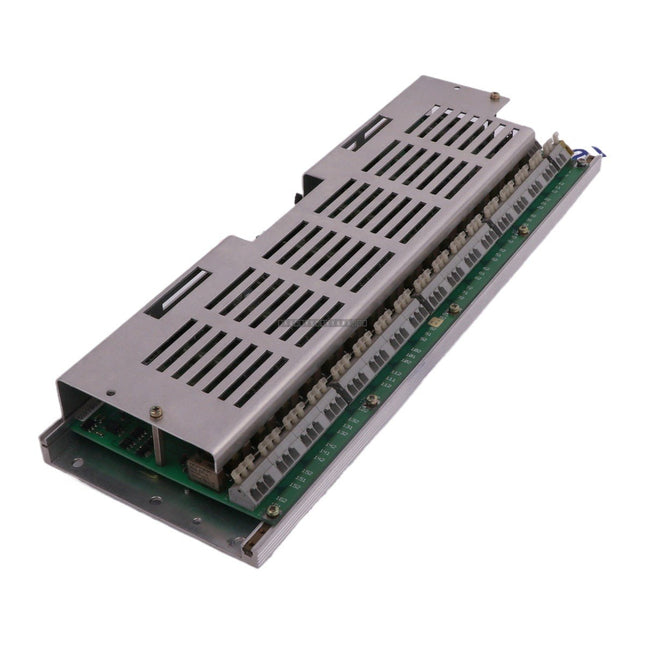

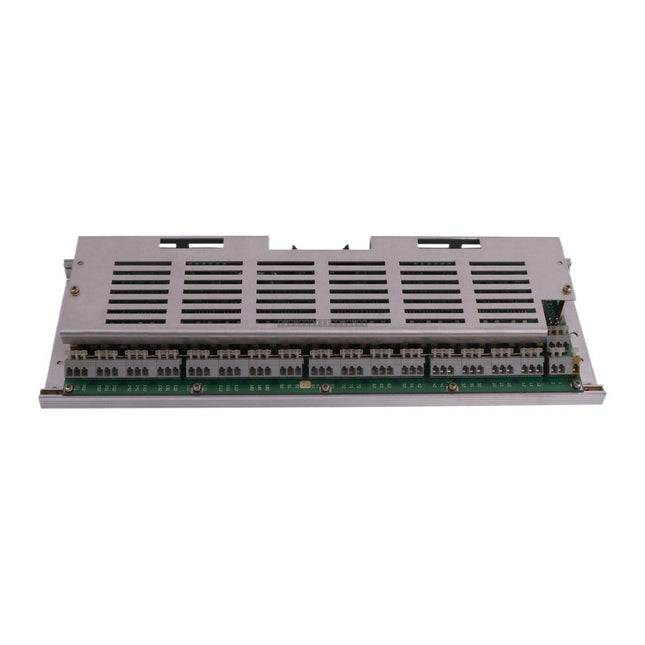

DescriptionThe ABB HIEE300910R0001 is a high-reliability Binary Input Module designed for use within ABB UNITROL excitation systems. This module serves as a critical interface component, facilitating the conversion of external digital signals into processed data for the excitation control system. It is engineered to ensure precise monitoring and control of generator excitation parameters, contributing to the overall stability and performance of power generation equipment.Features
Designed specifically for integration with ABB UNITROL excitation control platforms.
Reliable processing of binary input signals for system monitoring and protection.
Robust industrial construction suitable for demanding power plant environments.
Compatible with spare model reference UFC092BE01.
ApplicationsThis module is primarily utilized in power generation facilities, specifically within the excitation control cabinets of synchronous generators. It is essential for monitoring status signals from auxiliary equipment, protection relays, and control switches, ensuring the excitation system responds accurately to operational requirements.Technical Specifications
Product Model
HIEE300910R0001
Spare Model Reference
UFC092BE01
Module Type
Binary Input Module
Manufacturer
ABB
Weight
1.05 kg
Installation Guidelines
Ensure the excitation system is fully powered down before attempting to install or remove the module.
Handle the module using standard ESD (Electrostatic Discharge) safety precautions to prevent damage to internal circuitry.
Verify that the module is correctly seated in the designated rack slot and that all locking mechanisms are engaged.
Ensure all signal wiring is properly terminated and routed away from high-voltage power cables to minimize electromagnetic interference (EMI).
Verify that input signal voltage levels match the module specifications before applying power.
FAQWhat is the primary function of the HIEE300910R0001?This module functions as a binary input interface for ABB UNITROL excitation systems, allowing the controller to receive and process digital status signals from the field.Is this module compatible with other ABB systems?The HIEE300910R0001 is specifically designed for the UNITROL excitation series. Please verify your system documentation or the spare model reference (UFC092BE01) to confirm compatibility with your specific excitation controller version.
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

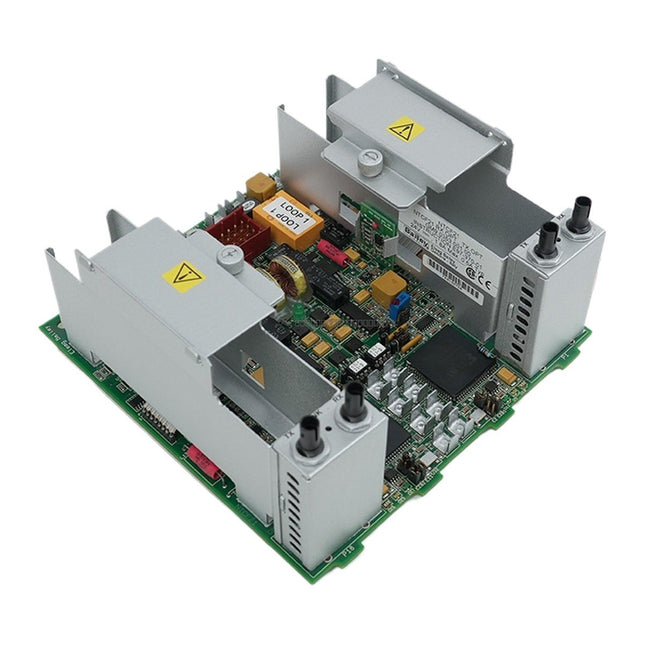

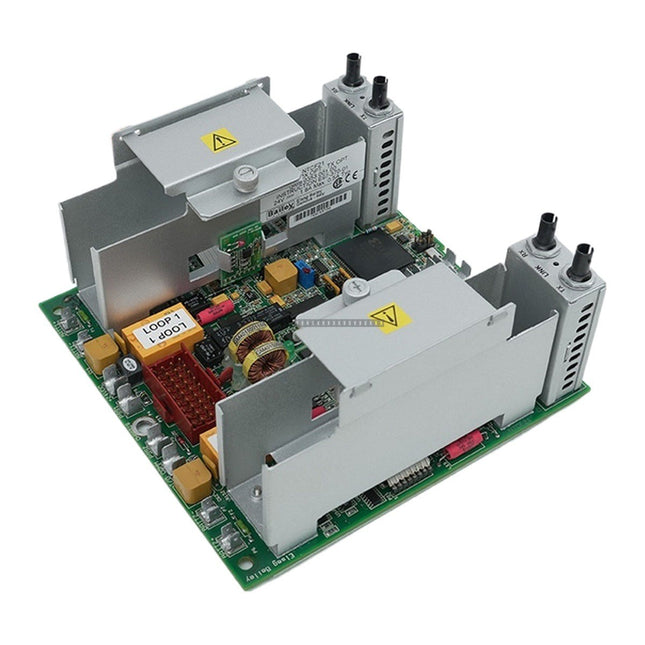

DescriptionThe ABB Bailey Infi 90 NTCF21 is a fiber-to-fiber termination unit designed to interface PCU communication modules (such as the NIS or NPM) with fiber optic media. This unit is a critical component for long-distance communication within the INFI-Net control network, enabling reliable data transmission across fiber optic infrastructure. The NTCF21 supports direct connection of 62.5-micron fiber optic cables for both transmit (TX) and receive (RX) functions.Features
Designed for Bailey Infi 90 control systems.
Fiber-to-fiber communication interface for long-distance network extension.
Supports 62.5-micron multi-mode fiber optic cabling.
Compatible with PCU communication nodes (NIS/NPM).
Provides robust data transmission in industrial environments.
Applications
Power Generation: Linking area controllers and remote I/O in coal, gas, and renewable energy plants.
Water & Wastewater: Supporting SCADA networks for monitoring distributed transmission and distribution assets.
Oil, Gas & Petrochemical: Providing reliable communication for flow computers and control racks.
Manufacturing: Synchronized block control for chemical, pulp, paper, and pharmaceutical processing.
Mining & Metals: Rugged communication solutions for high-vibration and high-EMI environments.
Technical Specifications
Product Model
NTCF21
Manufacturer
ABB
Fiber Type
Multi-mode (62.5 micron)
Data Rate
Up to 10 Mbps
Power Supply
+5 V DC
Power Consumption
2-3 W (Typical)
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Installation Guidelines
Ensure the unit is mounted in a clean, dry environment protected from excessive dust and moisture.
Verify that fiber optic connectors are clean before insertion to prevent signal attenuation.
Maintain the minimum bend radius for all fiber optic cables to avoid signal loss or physical damage.
Secure the unit using the designated mounting screws to ensure proper grounding and EMC compliance.
Power down the system before installing or removing the module from the communication bus.
Route fiber optic cables away from high-voltage power lines to minimize potential interference.
FAQsWhat is the ABB NTCF21?The NTCF21 is a fiber optic termination unit used in Bailey INFI 90 systems to interface PCU communication modules with fiber optic media for long-distance communication.What is the purpose of the NTCF21?It acts as a terminal unit to facilitate the connection between the PCU communication module (NPM/NIS) and fiber optic cables within the control network.Is this unit a replacement for older models?Yes, the NTCF family (including NTCF21, NTCF22, and NTCF23) serves as an improved replacement for the legacy NTCF0X and NTCF1X termination unit families.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe ABB 07KT97 is a high-performance basic unit for the Advant Controller 31 (AC31) series. This programmable logic controller (PLC) module is engineered for robust industrial automation and process control applications. It serves as a central processing unit capable of managing complex control tasks, logic execution, and communication within the Advant Controller 31 architecture.Features
Centralized control processing for AC31 series systems.
Designed for high reliability in demanding industrial environments.
Integrated communication capabilities for seamless system integration.
Compact modular design for efficient panel space utilization.
Supports standard AC31 programming and configuration protocols.
ApplicationsThe 07KT97 is widely utilized in industrial automation systems, including manufacturing process control, machine automation, and building management systems. It is commonly deployed in environments requiring precise, real-time logic execution and reliable I/O management.Technical Specifications
Product Model
07KT97
Spare Model / Order Code
GJR5253000R0100
Manufacturer
ABB
Product Series
Advant Controller 31 (AC31)
Weight
0.8 kg
Installation Guidelines
Ensure the controller is mounted in a clean, dry, and vibration-free environment within an industrial enclosure.
Verify that the power supply matches the rated voltage requirements before connection.
Always power down the system before inserting or removing the module to prevent electrical damage.
Ensure proper grounding of the module chassis to minimize electromagnetic interference (EMI).
Maintain adequate clearance around the unit to allow for natural convection cooling and prevent overheating.
Use shielded cables for communication lines to maintain signal integrity in high-noise industrial areas.
FAQWhat is the primary function of the ABB 07KT97?The 07KT97 is a basic unit for the Advant Controller 31 series, functioning as the central processor for logic and control tasks within the AC31 automation ecosystem.Is the 07KT97 compatible with other AC31 modules?Yes, the 07KT97 is designed to integrate with the standard Advant Controller 31 series I/O and communication modules, provided they are compatible with the specific system configuration.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe MVI46-DFNT functions as a high-speed EtherNet/IP Client/Server communication interface specifically designed for the Allen-Bradley SLC 500 platform. This module enables SLC processors to interface seamlessly with modern Ethernet-based controllers, HMI systems, and SCADA software without requiring complex ladder logic for protocol encapsulation. In heavy industrial environments such as automotive assembly, wastewater treatment, and food processing, the MVI46-DFNT serves as a critical bridge for migrating legacy hardware to standardized network architectures. By facilitating real-time data exchange and remote diagnostics, it minimizes operational latency and provides a cost-effective path to modernizing control systems.Features
Dual-Protocol Capability: Operates simultaneously as both an EtherNet/IP Client and Server, allowing the SLC 500 to initiate commands and respond to upstream data requests.
Client Specifications: Supports up to 100 user-defined commands for data transfer with network devices using DF1 over Ethernet encapsulation or PCCC commands.
Server Functionality: Allows remote devices to read from and write to the SLC processor's data files, acting as a native Ethernet-connected node.
Backplane Integration: Utilizes a single-slot backplane interface to exchange data with the SLC 500 processor via M0 and M1 files.
Physical Interface: Equipped with a standard 10/100 Base-T RJ45 port with automatic link negotiation for stable connectivity in industrial environments.
ApplicationsThe MVI46-DFNT is ideal for system integrators and plant engineers looking to integrate legacy SLC 500 controllers into modern Ethernet/IP networks. Common applications include data acquisition for SCADA systems, HMI connectivity, and peer-to-peer communication between disparate automation controllers in manufacturing and process control facilities.Technical Specifications
Model
MVI46-DFNT
Brand
ProSoft Technology
Compatibility
Allen-Bradley SLC 5/02, 5/03, 5/04, 5/05 Chassis
Backplane Current Draw
800 mA at 5 VDC
Ethernet Port
1 x RJ45 Connector
Communication Rate
10/100 Mbps (Auto-sensing)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5% to 95% (Non-condensing)
Installation Guidelines
Slot Placement: The module is designed for installation in any available slot of an Allen-Bradley SLC 500 chassis. Ensure the chassis is powered down before inserting or removing the module.
ESD Precautions: Always use a grounded wrist strap or similar ESD protection when handling the module to prevent damage to internal circuitry.
Wiring: Use shielded Category 5 or higher Ethernet cabling for the RJ45 port. Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
Configuration: The module requires initial configuration via the serial port or Ethernet port using ProSoft Configuration Builder (PCB) software to define the communication parameters and command list.
FAQDoes the MVI46-DFNT require special ladder logic?No, the module is designed to minimize ladder logic requirements. It uses M0 and M1 file transfers for data exchange, keeping the processor overhead low.Can this module communicate with non-Allen-Bradley devices?Yes, as an EtherNet/IP Client/Server, it can communicate with any device that supports the EtherNet/IP protocol, including third-party PLCs, HMIs, and industrial sensors.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe ProSoft MVI69E-MBS is an Enhanced Modbus Serial Communication Module designed specifically for integration with Rockwell Automation CompactLogix programmable automation controllers. This module enables seamless data exchange between the CompactLogix backplane and Modbus serial devices, supporting both Modbus RTU and ASCII protocols. It serves as a high-performance interface for connecting field devices such as drives, sensors, and power monitors to the control system.Features
Compatible with Rockwell Automation CompactLogix platforms.
Supports Modbus Master and Slave configurations.
Configurable via ProSoft Configuration Builder software.
Supports up to 250 commands per master port.
Selectable baud rates ranging from 110 to 115 kBaud.
Configurable stop bits (1 or 2) and parity settings.
Flexible I/O data sizing: 60, 120, or 240 16-bit integers.
ApplicationsThis module is widely used in industrial automation environments requiring serial communication integration, including:
Oil and gas pipeline monitoring and control.
Water and wastewater treatment plant instrumentation.
Power distribution and substation automation.
Manufacturing process control involving legacy serial equipment.
Technical Specifications
Parameter
Specification
Product Model
MVI69E-MBS
Platform Compatibility
CompactLogix
Current Load
500 mA at 5 VDC
Baud Rate
110 to 115 kBaud
Commands per Master Port
250
I/O Size
60/120/240 16-bit integers
Stop Bits
1 or 2
Installation Guidelines
Ensure the CompactLogix rack is powered down before inserting or removing the MVI69E-MBS module.
Slide the module into the appropriate slot on the backplane and secure it using the integrated locking mechanism.
Use shielded twisted-pair cabling for all serial connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the serial cable shield at one end to prevent ground loops.
Configure the module using the ProSoft Configuration Builder via the dedicated configuration port before full system deployment.
Verify that the module status LEDs indicate normal operation after power-up.
FAQWhat software is required to configure the MVI69E-MBS?The module is configured using the ProSoft Configuration Builder software, which provides a user-friendly interface for setting up communication parameters and mapping data.Can this module act as both a Master and a Slave?Yes, the MVI69E-MBS is designed to support both Modbus Master and Slave functionality, allowing it to act as a bridge between different serial devices and the CompactLogix controller.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe ABB 07EB62R1 is a Fast Binary Input Module designed for the Procontic T200 automation system. This module is engineered to handle high-speed digital signal acquisition, providing reliable interface capabilities between field devices and the T200 controller. It serves as a critical component for monitoring binary states in industrial processes where rapid response times are required.Features
Designed specifically for the ABB Procontic T200 series architecture.
Optimized for fast binary input processing to ensure minimal latency in signal detection.
Robust industrial design suitable for standard control cabinet mounting.
Compatible with legacy T200 system configurations.
Technical Specifications
Product Model
07EB62R1
Spare Model / Order Code
GJV3074342R1
Module Type
Fast Binary Input Module
Manufacturer
ABB
Weight
0.4 kg
Installation Guidelines
Ensure the Procontic T200 rack is powered down before inserting or removing the 07EB62R1 module to prevent electrical damage.
Verify that the module is properly seated in the designated slot to ensure reliable backplane communication.
Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain proper ventilation within the control cabinet to prevent thermal accumulation around the module.
Handle with standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
FAQWhat is the primary function of the 07EB62R1?The 07EB62R1 is a fast binary input module used in the ABB Procontic T200 system to capture and process high-speed digital input signals from field sensors or switches.Is this module compatible with other ABB systems?This module is specifically engineered for the Procontic T200 series. It is not intended for use in other ABB PLC families like the AC 800M or S800 I/O systems unless explicitly stated in the system documentation.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe ABB 07EA63R1 is an analog input module designed for the Procontic T200 automation system. This module facilitates the conversion of analog field signals into digital data for processing by the T200 controller, supporting precise monitoring and control of industrial processes. It is a critical component for applications requiring high-fidelity signal acquisition from sensors and transmitters.Features
Designed specifically for the ABB Procontic T200 series architecture.
Provides reliable analog signal processing for industrial automation tasks.
Compatible with system spare part reference GJV3074353R1.
Robust construction suitable for standard industrial control cabinet environments.
ApplicationsThe 07EA63R1 module is primarily utilized in industrial control systems where analog data acquisition is required, such as temperature monitoring, pressure sensing, and flow control loops within the Procontic T200 ecosystem.Technical Specifications
Product Model
07EA63R1
Spare Model
GJV3074353R1
Module Type
Analog Input Module
Manufacturer
ABB
System Series
Procontic T200
Installation Guidelines
Ensure the Procontic T200 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated backplane slot to ensure proper bus communication.
Use shielded cabling for analog signal inputs to minimize electromagnetic interference (EMI) and signal noise.
Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
Handle with standard ESD precautions to protect sensitive internal electronic components.
FAQIs the 07EA63R1 compatible with other ABB systems?The 07EA63R1 is specifically designed for the Procontic T200 series. Please verify your system documentation before attempting integration with other ABB product lines.What is the spare part number for this module?The associated spare part reference for this module is GJV3074353R1.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe ABB 07KT98 (GJR5253100R0220) is a high-performance basic unit from the Advant Controller 31 series. Designed for robust industrial automation, this controller integrates processing, digital and analog I/O, and communication capabilities into a single, compact module. It is engineered to handle complex control tasks, providing reliable execution for user programs and data management in demanding environments.Features
Integrated memory architecture with 480 kB user program memory and 256 kB user data memory.
Versatile I/O configuration including 24 digital inputs, 16 digital outputs, and 8 configurable digital I/Os.
High-precision analog processing with 8 analog inputs (supporting voltage, current, and PT100 sensors) and 4 analog outputs.
Dual hardware counters capable of frequencies up to 50 kHz.
Comprehensive communication support including RS-232, RS-485, and Ethernet TCP/IP.
Fieldbus compatibility for seamless integration with Modbus and Profibus networks.
Technical Specifications
Model
07KT98 (GJR5253100R0220)
User Program Memory
480 kB
User Data Memory
256 kB
Digital Inputs
24 x 24V DC
Digital Outputs
16 x 24V DC
Analog Inputs
8 channels (Voltage, Current, PT100)
Analog Outputs
4 channels (-10 to +10V, 0 to 20mA)
Communication
RS-232, RS-485, Ethernet TCP/IP
Power Supply
24V DC
Operating Temperature
0 degC to +55 degC
Storage Temperature
-25 degC to +75 degC
Installation Guidelines
Ensure the controller is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures below 55 degC.
The unit supports standard DIN-rail or panel mounting; ensure secure fastening to prevent vibration-induced connection issues.
Always disconnect power before installing or removing the module to prevent electrical damage.
Use shielded cables for communication and analog signals to minimize EMI interference.
Verify that all grounding connections are secure to maintain signal integrity and safety compliance.
Handle with care to avoid electrostatic discharge (ESD) damage to internal components.
FAQWhat programming software is required for the 07KT98?The 07KT98 Advant Controller 31 is programmed using the AC1131 software environment.Does this unit support fieldbus communication?Yes, the unit provides native support for Modbus and Profibus fieldbus protocols, allowing for flexible integration into existing automation networks.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE DS200TCTLG1ABB Mark V Speedtronic Trip Terminal Board
The GE DS200TCTLG1ABB, also cataloged as the DS200TCTL Trip Terminal Board, operates as a dedicated hardware component for emergency turbine shutdown execution within GE Mark V Speedtronic control systems. It acts as the final hardware-based physical interface between control processors and main trip solenoids.
Hardware Specifications
Parameter
Specification
Model
DS200TCTLG1ABB
Brand
GE
Origin
USA
Weight
1.35 kg
Operating Temp
0 deg C to 60 deg C
Power Consumption
Passive board topology (relay loop load driven via 125 VDC nominal)
System Series
Mark V Speedtronic
Board Type
Trip Terminal Board (TCTL)
Solenoid Drive Voltage
125 VDC nominal
Ribbons/Headers
Multiple 50-pin ribbon headers (interfacing TCEA / TCQA)
Voting Architecture
Hardware-based 2-out-of-3 (2oo3) trip voting
Backplane Bus Communication Velocity and Firmware Compatibility
The DS200TCTLG1ABB operates within the deterministic backplane network structure of the Mark V turbine control architecture. Passive signal routing across its heavy-duty trace array minimizes signal propagation delay, keeping command execution latencies below 10 ms from processor output command to relay drop-out. The board supports backplane communication velocity through direct hardware-driven ribbon paths to TCEA and TCQA core processing units. Firmware compatibility across various Mark V system revisions (including Speedtronic PROM sets) is maintained via passive signal passing, eliminating software layer dependencies and firmware flash version mismatches during replacement procedures.
Frequently Asked Questions
Q: What is the hardware voting architecture used on the DS200TCTLG1ABB?
A: The board features integrated 2-out-of-3 (2oo3) hardware relay voting. All three processing channels (, , ) must validate or agree on a trip condition to de-energize the trip solenoid loop, preventing single-channel faults from causing nuisance turbine trips.
Q: Are trip solenoids driven directly from this terminal board?
A: Yes. The board incorporates high-integrity trip relays and suppression circuits designed to directly drive and break high-inductance 125 VDC trip solenoid circuits without damaging upstream control electronics.
Field Installation Guidelines
Ensure complete system de-energization and de-couple 125 VDC trip supply voltage before touching terminal connections or replacing hardware.
Maintain clean ribbon cable routing between the board headers and upstream TCEA/TCQA cards. Check pin-1 orientation alignment on all 50-pin ribbon connectors prior to seating.
Ensure proper grounding of all cable shielding to prevent induced electrical noise on solenoid trip circuits. Secure terminal wiring to rated torque specifications.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE DS200DCPAG1ABB Mark V Digital Control Processor Card
The General Electric DS200DCPAG1ABB, also cataloged as the DS200DCPA Digital Control Processor Card, operates as a dedicated hardware component for turbine control logic execution and communication management within GE Mark V Speedtronic systems.
Suffix Breakdown & Model Matrix
DS200: Standard Mark V system printed circuit board layout and form factor.
DCPA: Digital Control Processor Board functional platform abbreviation.
G1: Group 1 base board electronic design revision and assembly layout.
ABB: Revision level designation indicating specific hardware component artwork updates and firmware compatibility patches.
Hardware Specifications
Parameter
Specification
Model
DS200DCPAG1ABB
Brand
General Electric (GE)
Origin
USA
Weight
0.9 kg
Dimensions
233 mm x 160 mm x 25 mm
Operating Temp
-30 to +65 deg C
Power Consumption
System backplane powered
Processor Type
Digital Control Processor
Redundancy Modes
Simplex, Dual, Triple Modular Redundancy (TMR)
Component Density
17 integrated circuits, 24 resistor network arrays
Onboard Diagnostics
Diagnostic status LEDs and watchdog timing monitor
Isolation Rating
2500 Vrms
Backplane Bus & Deterministic Processing
The GE DS200DCPAG1ABB interacts directly with the Mark V core backplane bus to ensure deterministic execution of turbine protection and control algorithms. Designed for tight synchronization, the onboard digital processor executes control logic loops across Simplex, Dual, and TMR architectures. In TMR configurations, the board executes voting algorithms to maintain high system availability and zero-downtime fault tolerance, preventing inadvertent turbine trips caused by single-point hardware faults.
Frequently Asked Questions
Q: How does the DS200DCPAG1ABB handle power allocation during system hot-swapping?
A: The DS200DCPAG1ABB is not designed for unpowered hot-swapping. Power to the rack location must be isolated prior to board insertion or removal to prevent electrical transients across the multi-pin backplane connectors.
Q: What onboard hardware mechanisms monitor processor execution health?
A: The module incorporates an integrated hardware watchdog timer circuit coupled with front-facing diagnostic status LEDs. If the control loop execution halts or exceeds its cycle window, the watchdog circuit forces the processor state into a defined fault output.
Field Installation Guidelines
Power down the Mark V rack section and discharge all static potential by attaching a grounded ESD wrist strap prior to touching the board edge.
Inspect the multi-pin vertical pin connectors on the board and the corresponding backplane slot for bent pins or debris.
Align the board edges with the card guide rails inside the Mark V panel enclosure.
Slide the module firmly into the slot until the multi-pin connectors fully seat into the backplane receptacle.
Secure all retaining screws on the front faceplate to ensure ground continuity and mechanical stability under operational vibration.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE DS200EXPSG1ABB Mark V Exciter Power Supply Board
Configured for regulated DC power conversion in GE Mark V Speedtronic excitation control systems, the GE DS200EXPSG1ABB (DS200EXPSG1 Power Supply Board) provides direct electrical execution for exciter control circuits. The board supplies regulated DC outputs, monitors protection states, and communicates through the Mark V backplane interface.
Suffix Breakdown & Model Matrix
The DS200EXPSG1ABB ordering code identifies a GE Mark V EX2000 series Exciter Power Supply Board with specific revision identifiers.
Model Element
Specification
Base Model
DS200EXPSG1
Series
EX2000
Functional Board Type
Exciter Power Supply Board
Revision Identifier
ABB
Platform
GE Mark V Speedtronic
Configuration Type
Mark V plug-in power supply assembly
Hardware Specifications
Parameter
Specification
Model
DS200EXPSG1ABB
Brand
GE (General Electric)
Origin
United States
Product Type
Power Supply Board
System Compatibility
GE Mark V Speedtronic
Series
EX2000
Input Voltage
24 VDC or 115/230 VAC depending on configuration
Output Voltage
+5 VDC, +15 VDC, -15 VDC regulated outputs
Output Current
Up to 5 A combined
Protection
Over-voltage, over-current, thermal shutdown
Communication
Mark V backplane bus interface
Indicators
Diagnostic LEDs: Power, Fault, Status
Form Factor
Standard Mark V board size
Mounting
Plug-in rack assembly
Operating Temp
0 deg C to 60 deg C
Power Consumption
Not specified
GE EX2000 Power Conversion and Control Bus Interface
The DS200EXPSG1ABB operates as an EX2000 series power supply module within the GE Mark V control architecture. The board converts incoming power sources into regulated DC rails used by exciter control electronics and related protection circuits.
The GE industrial control platform uses structured backplane communication for board coordination. The DS200EXPSG1ABB supports power distribution requirements for excitation control assemblies while maintaining electrical protection through over-voltage, over-current, and thermal shutdown monitoring functions.
Frequently Asked Questions
Q: What DC outputs are provided by the DS200EXPSG1ABB?A: The board provides regulated +5 VDC, +15 VDC, and -15 VDC outputs for exciter control electronics.
Q: What protection functions are integrated into the DS200EXPSG1ABB?A: The board includes over-voltage protection, over-current protection, and thermal shutdown monitoring.
Q: How is the DS200EXPSG1ABB installed in a Mark V system?A: The board is installed as a plug-in rack assembly within the GE Mark V Speedtronic control cabinet.
Field Installation Guidelines
Install the DS200EXPSG1ABB in the designated Mark V rack position with correct connector alignment. Verify input power wiring, polarity, and grounding connections before energizing the system.
Route power wiring separately from low-level control and communication cables. Apply cable shielding and grounding methods according to site electrical practices to reduce electromagnetic interference.
Before replacement, record existing board identification, wiring references, and system configuration information. After installation, verify Power, Fault, and Status LED indications and confirm proper communication with connected Mark V modules.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE DS200TBQCG1ABB Terminal Board Assembly
The GE DS200TBQCG1ABB, also cataloged as the DS200TBQC Terminal Board Assembly, operates as a dedicated hardware component for analog and digital field signal termination within the GE Mark V LM turbine control system. It provides physical wiring interfaces for I/O signals, actuator circuits, and sensor connections.
Hardware Specifications
Parameter
Specification
Model
DS200TBQCG1ABB
Brand
GE General Electric
Origin
United States
Product Type
Analog Input Milliamp I/O Termination Module
Series
Mark V LM
Functional Acronym
TBQC
Number of Channels
12
Signal Types Supported
Analog input signals, digital signals, trip circuit signals
Analog Output Current
0-20 mA
Common Mode Voltage Range
+5 VDC
Maximum Lead Resistance
15 ohm
Terminal Type
Multi-level screw terminals
Isolation Rating
2500 Vrms
Weight
0.8 kg
Operating Temp
-30 to +55 deg C
Power Consumption
Passive termination board, no onboard processing
Frequency
50 or 60 Hz
Deterministic I/O Interface and Signal Conditioning
The DS200TBQCG1ABB is a passive termination assembly within the GE Mark V LM control platform. It provides structured field wiring connections for analog milliamp signals, digital inputs, and turbine auxiliary circuits. The board transfers field signals to controller and I/O processing modules without executing application logic.
The terminal module supports analog signal interface functions including:
12-channel analog termination capability
0-20 mA signal routing
Field device connection through screw terminals
Signal transfer between external instruments and Mark V controller electronics
Compatibility with connected processor and I/O modules
Industrial Control Network and I/O Density Scaling
As a GE industrial control component, the TBQC module operates as part of the Mark V LM I/O architecture. The module supports I/O density scaling through organized termination of multiple field channels while maintaining defined wiring separation between signal groups.
The terminal interface does not provide Ethernet, VMEbus, or independent communication processing. Data acquisition and control execution are performed by connected Mark V controller modules. Proper firmware and I/O configuration compatibility are required at the controller level for correct channel operation.
Frequently Asked Questions
Q: Does the DS200TBQCG1ABB contain a processor or configurable firmware?A: No. The DS200TBQCG1ABB is a passive terminal board. Processing functions are performed by connected Mark V controller and I/O modules.
Q: What type of signals can be connected through the TBQC module?A: The module supports analog milliamp signals, digital field connections, and turbine control related wiring interfaces according to the Mark V LM configuration.
Q: Does the terminal board require independent power input?A: No. The board functions as a passive signal termination interface and does not contain independent power conversion circuitry.
Field Installation Guidelines
Install the DS200TBQCG1ABB in the designated Mark V LM rack position and verify correct mechanical seating before connecting field wiring.
Route analog signal cables separately from high-current power conductors and trip circuit wiring to reduce electromagnetic interference. Maintain proper cable identification and terminal labeling during installation.
Connect cable shields according to the system grounding design. Check screw terminal tightness and inspect wiring condition during commissioning and maintenance activities.
Verify channel assignments, controller configuration, and connected I/O module compatibility before applying field signals.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE DS200CPCAG1ABB Contactor Pilot Card
Configured for contactor pilot control, processor execution, and communication functions in the GE Mark V turbine control system, the GE DS200CPCAG1ABB (DS200CPCAG1ABB Contactor Pilot Card) provides direct physical/electrical execution for turbine control logic and connected contactor circuits.
Hardware Specifications
Parameter
Specification
Model
DS200CPCAG1ABB
Brand
GE
Origin
United States of America
Product Type
Contactor Pilot Card
Functional Acronym
CPCA
System Series
Mark V Speedtronic
Processor
Motorola 68020, 32-bit CPU
Clock Speed
20 MHz
Memory
2 MB DRAM, 512 KB SRAM, 1 MB EPROM
Non-Volatile Storage
EEPROM for configuration data
Communication Interfaces
VMEbus, RS-232, Ethernet 10 Mbps
Operating Voltage
+5 VDC, +/-15 VDC from backplane
Isolation Rating
2500 Vrms
Operating Temp
-30 to +65 deg C
Storage Temperature
-40 to +85 deg C
Humidity Range
5% to 95% RH, non-condensing
Dimensions
233 mm x 160 mm x 25 mm
Weight
0.9 kg
Response Time
Less than 10 ms control loop execution
PCB Coating
Normal Coating
Functional Revision 1
A
Functional Revision 2
B
Artwork Revision
B
Mounting Type
Single-slot VME rack mount
Firmware Compatibility and Mark V Control Processing
The DS200CPCAG1ABB operates within the GE Mark V control architecture as a CPCA board responsible for contactor pilot functions and control signal processing. The module manages processor execution, memory operations, and communication paths between the controller rack and connected turbine control hardware.
Firmware flash compatibility is required for proper board initialization. The installed firmware revision must match the Mark V hardware configuration to maintain correct execution of control routines and diagnostic functions.
Frequently Asked Questions
Q: What is the functional role of the DS200CPCAG1ABB in the Mark V system?A: The DS200CPCAG1ABB functions as a Contactor Pilot Card, providing control processing and interface functions for contactor-related circuits within the Mark V turbine control system.
Q: What communication interfaces are supported by the CPCA board?A: The board supports VMEbus, RS-232, and Ethernet 10 Mbps communication interfaces for system data exchange and diagnostics.
Q: What backplane power requirements apply to this card?A: The DS200CPCAG1ABB receives operating power from the Mark V rack backplane through +5 VDC and +/-15 VDC supply rails.
Field Installation Guidelines
Install the DS200CPCAG1ABB in the designated GE Mark V VME rack slot and verify that the card connector is fully engaged before system power application.
Confirm PCB revision information and hardware configuration settings before replacement or commissioning. Route communication cables separately from high-current switching conductors to reduce electromagnetic interference.
Maintain proper chassis grounding and shield termination for connected wiring. After installation, verify processor status indicators, communication activity, and watchdog diagnostics through the Mark V control interface.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200EACFG3ABB Exciter AC Feedback Board
The GE IS200EACFG3ABB, also cataloged as the IS200EACF Exciter AC Feedback Board, operates as a dedicated hardware component for generator field AC feedback signal conditioning within the GE EX2100 Excitation Control System. It performs signal filtering, scaling, isolation, and data transmission for exciter regulation feedback loops.
Hardware Specifications
Parameter
Specification
Model
IS200EACFG3ABB
Brand
GE General Electric
Origin
United States of America (USA)
Product Type
Exciter AC Feedback Board
System Series
EX2100 Excitation Control System
Function
Generator field AC feedback measurement, conditioning, and controller transmission
Inputs
Generator field AC feedback signals
Signal Conditioning
Filtering, scaling, and isolation
Resolution
16-bit ADC
Communication
Fiber-optic link to controller
Isolation
2500 Vrms channel-to-ground
Power Supply
5 VDC logic, 24 VDC field supply
Weight
0.9 kg
Dimensions
160 mm x 100 mm x 20 mm
Operating Temp
-30 to +65 deg C
Power Consumption
Not specified
EX2100 Excitation Signal Processing Characteristics
The IS200EACFG3ABB processes generator field AC feedback signals through analog conditioning circuits before transferring measurement data to the EX2100 controller. The board supports filtering and scaling functions required for closed-loop exciter regulation.
The GE EX2100 platform uses deterministic control communication paths, and this board provides fiber-optic data transfer to reduce electrical noise coupling between field measurement circuits and controller hardware. The conformal-coated PCB design supports installation in industrial control environments where moisture and contamination control are required.
The feedback measurement path maintains channel isolation with 2500 Vrms channel-to-ground separation, reducing interference between field-side signals and control-side electronics.
Frequently Asked Questions
Q: What type of signal does the IS200EACFG3ABB process?A: The board processes generator field AC feedback signals, applying filtering, scaling, and isolation before transmitting data to the EX2100 controller.
Q: What communication interface is used between the board and controller?A: The board uses a fiber-optic communication link for data transmission within the EX2100 excitation control architecture.
Q: Does the board require specific rack installation orientation?A: The board is installed in the EX2100 exciter rack and must be aligned with the designated backplane connectors.
Field Installation Guidelines
Install the IS200EACFG3ABB in the specified EX2100 rack position and verify mechanical alignment before securing the module.
Connect generator field AC feedback wiring according to the system terminal assignment documentation. Maintain separation between signal wiring and high-current power conductors to reduce electromagnetic interference.
Fiber-optic connections should be inspected for correct routing, connector cleanliness, and secure engagement. Apply proper grounding practices for rack assemblies and cable shields according to the EX2100 installation documentation.
Verify signal scaling, feedback channel configuration, and communication status through ToolboxST software before placing the excitation system into operation.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200EACFG2ABB Exciter AC Feedback Board
Configured for generator field AC feedback measurement in the GE EX2100 Excitation Control System, the GE IS200EACFG2ABB (IS200EACF Exciter AC Feedback Board) provides direct physical/electrical signal conditioning and isolated data transmission for exciter regulation control loops.
Hardware Specifications
Parameter
Specification
Model
IS200EACFG2ABB
Brand
GE General Electric
Origin
United States of America (USA)
Product Type
Exciter AC Feedback Board
System Series
GE EX2100 Excitation Control System
Function
Generator field AC feedback measurement and signal conditioning
Inputs
Generator field AC feedback signals
Signal Conditioning
Filtering, scaling, and isolation
Resolution
16-bit ADC
Isolation
2500 Vrms channel-to-ground
Communication
Fiber-optic link to controller
Power Supply
5 VDC logic, 24 VDC field supply
PCB Treatment
Conformal coating
Weight
0.9 kg
Dimensions
160 mm x 100 mm x 20 mm
Operating Temp
-30 to +65 deg C
GE EX2100 Feedback Signal Processing Characteristics
The IS200EACFG2ABB performs AC feedback acquisition from generator field circuits and applies signal filtering, scaling, and electrical isolation before transferring processed data to the EX2100 controller. The board supports closed-loop exciter regulation functions through measured feedback values.
The EX2100 architecture uses deterministic controller communication paths. The fiber-optic communication interface on this board provides isolated signal transfer between feedback measurement circuits and controller electronics, reducing electromagnetic interference coupling.
The conformal-coated PCB construction supports operation in industrial control environments where exposure to dust, moisture, and oil mist requires additional board-level protection. The 2500 Vrms channel-to-ground isolation rating separates field-side measurement circuits from control-side electronics.
Firmware and Industrial Control Interface Compatibility
The IS200EACFG2ABB operates as part of the GE EX2100 excitation platform and exchanges processed feedback data through the system communication interface. Hardware configuration and channel scaling parameters are managed through GE control configuration tools.
The board revision G2ABB identifies the hardware revision level and conformal coating configuration used within the EX2100 control assembly.
Frequently Asked Questions
Q: What signal type does the IS200EACFG2ABB measure?A: The board measures generator field AC feedback signals and performs filtering, scaling, and isolation before controller transmission.
Q: What isolation method is provided on this board?A: The board provides 2500 Vrms channel-to-ground isolation between feedback signal circuits and the control-side electronics.
Q: How is data transferred from the board to the EX2100 controller?A: The board uses a fiber-optic communication link for isolated data transfer within the EX2100 excitation control system.
Field Installation Guidelines
Install the IS200EACFG2ABB in the designated EX2100 exciter rack position and verify correct alignment with the backplane connectors before fastening the board.
Connect generator field AC feedback wiring according to the EX2100 terminal documentation. Maintain separation between feedback signal cables and high-current conductors to reduce electrical noise coupling.
Inspect fiber-optic connectors for cleanliness, correct orientation, and secure connection before system startup. Apply appropriate grounding and cable shielding practices for the rack assembly.
After installation, verify feedback channel configuration, scaling parameters, and communication status through the applicable GE configuration software before enabling excitation control.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200JPDEG1ABB JPDE Power Distribution & Excitation Module
Configured for regulated DC power distribution and excitation circuit interfacing in the GE Mark VI/VIe Speedtronic control system, the GE IS200JPDEG1ABB (IS200JPDEG1ABB JPDE Power Distribution & Excitation Module) provides direct electrical power routing, isolation, and diagnostic feedback between controller hardware and excitation-related circuits.
Hardware Specifications
Parameter
Specification
Model
IS200JPDEG1ABB
Brand
GE
Origin
United States
Weight
0.5 kg
Operating Temp
-30 to +65 deg C
Power Consumption
Not specified in available technical data
Series
Mark VI / Mark VIe Speedtronic Control System
Product Type
JPDE Power Distribution & Excitation Modules
System Role
Regulated DC power distribution and excitation interface
Input Voltage
28 VDC nominal, operating range 18-32 VDC
Output Channels
Multiple regulated DC outputs for excitation circuits and I/O packs
Isolation
Optical/electrical isolation between channels and ground
Diagnostics
Voltage, current, and fault monitoring functions
Connectors
Backplane connectors for rack integration and barrier strips for field wiring
Mounting
Standard Mark VIe rack slot
Compliance
IEC/UL industrial standards
Industrial Control and Power Interface Characteristics
The IS200JPDEG1ABB operates as a GE Mark VI/VIe industrial control interface module for power distribution and excitation-related signal management. The module distributes regulated DC power to connected I/O packs and excitation circuits while monitoring electrical conditions through integrated diagnostic functions.
The module supports GE control architecture requirements including backplane communication coordination, I/O density scaling, and firmware compatibility between Mark VI/VIe controller components. Electrical isolation between distribution channels and ground reduces interference coupling between control circuits and external field connections.
The JPDE module provides monitored power paths for excitation assemblies, allowing controller logic to supervise voltage and current conditions through system diagnostics.
Frequently Asked Questions
Q: What is the primary function of the IS200JPDEG1ABB module?A: The module distributes regulated DC power and provides excitation circuit interfacing within the GE Mark VI/VIe control architecture.
Q: Does the module provide isolation between power distribution channels?A: Yes. The module uses optical/electrical isolation between channels and ground for circuit separation.
Q: What diagnostic functions are available on the JPDE module?A: The module provides monitoring of voltage, current, and fault conditions through integrated diagnostic feedback.
Field Installation Guidelines
Install the IS200JPDEG1ABB module in the assigned Mark VI/VIe rack slot according to the system hardware configuration.
Verify backplane connector engagement before applying power. Field wiring should be routed separately from high-current conductors to minimize electromagnetic interference. Confirm terminal connections and cable shielding according to the excitation control cabinet grounding design.
Maintain proper grounding of rack assemblies and verify power polarity before energizing the module. After installation, check controller diagnostics and module status indicators to confirm communication and power distribution operation.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200ERIOH1ABB Exciter Regulator I/O Board
The GE IS200ERIOH1ABB, also cataloged as the IS200ERIO Exciter Regulator I/O Board, operates as a dedicated hardware component for exciter feedback signal conditioning and regulator interface execution within GE Mark VI Speedtronic turbine control platforms. The board processes generator field voltage, current feedback, and digital status signals between field circuits and control modules.
Hardware Specifications
Parameter
Specification
Model
IS200ERIOH1ABB
Brand
GE
Origin
United States
Series
Mark VI Speedtronic
Module Type
Exciter Regulator I/O Board
Input Signals
Generator field voltage, exciter current, regulator feedback
Output Signals
Conditioned analog signals to exciter control module
Voltage Sensing Range
Up to 500 VDC
Current Sensing Range
Up to 10 ADC
Digital I/O
Status signals, fault inputs, trip outputs
Connectors
Ribbon connectors to control rack; screw terminals for field wiring
Protection Functions
Surge suppression, overvoltage protection, current limiting
Mounting
Panel mount or DIN-rail mount
Weight
0.6 kg
Dimensions
200 mm x 150 mm x 35 mm
Operating Temp
-30 to +65 deg C
Humidity
Up to 95% RH non-condensing
Industrial Control I/O Scaling and Backplane Communication
The IS200ERIOH1ABB functions as an interface board within the GE Mark VI Speedtronic control architecture. It performs signal termination, conditioning, and transfer between exciter regulator circuits and the turbine controller.
The board supports industrial control I/O density scaling by combining analog feedback channels and digital status interfaces on a single regulator interface assembly. Field signals are converted and conditioned before transmission through the control rack interface, maintaining separation between external wiring and controller electronics.
Protection circuits integrated into the board provide signal handling functions including surge suppression, overvoltage limitation, and current limiting for connected excitation circuits.
Frequently Asked Questions
Q: What type of signals are connected to the IS200ERIOH1ABB?A: The board interfaces with generator field voltage, exciter current feedback, regulator feedback signals, digital status inputs, fault inputs, and trip output signals.
Q: Does the IS200ERIOH1ABB directly control exciter power output?A: No. The board provides signal interface and conditioning functions between the exciter regulator and the Mark VI control system. Power regulation is performed by associated excitation control hardware.
Q: What installation environment is specified for the IS200ERIOH1ABB?A: The module is specified for operation from -30 to +65 deg C with humidity tolerance up to 95% non-condensing.
Field Installation Guidelines
Install the IS200ERIOH1ABB according to GE Mark VI control cabinet documentation and verify all terminal assignments before applying excitation system power.
Route field voltage and current feedback wiring separately from high-power conductors to minimize electrical interference. Use appropriate shielding practices for low-level feedback circuits and terminate shields according to the cabinet grounding design.
Check ribbon cable connections, terminal blocks, and mounting hardware for proper mechanical engagement before commissioning. Verify field wiring polarity and insulation condition during installation and maintenance activities.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200ICIAH1ABB Intelligent Control I/O Analog Board
Configured for analog signal acquisition and actuator output processing in GE Mark VI Speedtronic turbine control platforms, the GE IS200ICIAH1ABB (IS200ICIAH1 Intelligent Control I/O Analog Board) provides direct physical/electrical execution for thermocouple, RTD, voltage, and current signal interfacing through isolated analog I/O channels.
Hardware Specifications
Parameter
Specification
Model
IS200ICIAH1ABB
Brand
GE
Origin
United States
Weight
0.45 kg
Dimensions
26.9 x 15.2 x 2.8 cm
Operating Temp
-20 deg C to +60 deg C
Power Consumption
Approximately 6.8 W
Series
Mark VI Speedtronic Turbine Control System
Hardware Type
Intelligent Control I/O Analog Board (ICIA)
Analog Inputs
6 channels, 0-10 V or 4-20 mA; Type J, K, T thermocouple support with CJC
Analog Outputs
4 channels, 0-10 V or 4-20 mA
Digital Interface
VME backplane communication
Isolation
Optical isolation; 2500 V AC channel-to-channel isolation
Protection
Overvoltage clamping up to 36 VDC; conformal PCB coating
Power Supply Input
5 VDC and 24 VDC from VME backplane
Humidity Range
5-95% non-condensing
Resolution
16-bit analog acquisition
GE Mark VI Analog I/O Signal Processing Characteristics
The IS200ICIAH1ABB integrates analog input conditioning and output control functions within the GE Mark VI control architecture. The board supports thermocouple, RTD, voltage, and current signal acquisition with cold junction compensation (CJC) for temperature measurement channels.
The module provides isolated analog circuits for field signal separation and noise reduction. The optical isolation design separates field wiring circuits from logic-side processing, while the VME backplane interface provides communication between the I/O board and controller hardware.
The ICIA board supports I/O density scaling within Mark VI rack configurations, allowing multiple analog measurement and actuator control channels to be managed through the turbine control network. Firmware flash compatibility and hardware revision matching are required during controller configuration.
Frequently Asked Questions
Q: What analog signal types are supported by the IS200ICIAH1ABB?A: The board supports 0-10 V, 4-20 mA, and Type J, K, T thermocouple inputs with cold junction compensation.
Q: How is field signal isolation implemented on this board?A: The module uses optical isolation between field circuits and logic circuits, with 2500 V AC channel-to-channel isolation.
Q: What backplane connection is used for Mark VI system integration?A: The IS200ICIAH1ABB connects through the VME backplane interface within the GE Mark VI rack assembly.
Field Installation Guidelines
Install the IS200ICIAH1ABB in the designated GE Mark VI VME rack position and verify connector alignment before insertion. Confirm that the backplane power supply connections match the controller cabinet wiring documentation.
Terminate analog input and output wiring according to the GE field wiring diagrams. Use shielded cables for low-level analog signals where required, and connect cable shields following the cabinet grounding scheme to reduce electromagnetic interference.
Separate thermocouple, RTD, and analog current/voltage signal cables from high-current power wiring and switching circuits. Avoid routing sensitive measurement cables parallel to sources of electrical noise.
Inspect the conformal coating and PCB surface before installation. Avoid contact damage to coated areas during handling, connector engagement, and maintenance operations.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200ERDDH1ABB EX2100 Exciter Regulator Dynamics Discharge Board
The GE IS200ERDDH1ABB, also cataloged as the IS200ERDDH Exciter Regulator Dynamics Discharge Board, operates as a dedicated hardware component for dynamic discharge circuit control within the GE EX2100 excitation control system.
Hardware Specifications
Parameter
Specification
Model
IS200ERDDH1ABB
Brand
GE
Origin
United States
Weight
2 lbs
Operating Temp
-30 deg C to +65 deg C
Power Consumption
Not specified; powered by 28 VDC nominal supply
System Compatibility
GE EX2100 excitation control system
Product Type
Exciter Regulator Dynamics Discharge Board
Input Signals
Control signals from regulator boards through fiber-optic or electrical interfaces
Output Signals
Discharge control signals to exciter bridge circuits
Power Supply
28 VDC nominal
Protection Functions
Overvoltage suppression, dynamic discharge path monitoring, fault isolation
Status Indication
LED indicators for discharge circuit health and fault conditions
PCB Protection
Conformal coating for dust, moisture, and chemical resistance
Humidity Range
5-95% non-condensing
Certifications
CE, UL, IEC 61010, ATEX Zone 2
GE EX2100 Excitation Control and Discharge Circuit Characteristics
The IS200ERDDH1ABB provides dynamic discharge control within the EX2100 excitation architecture by managing energy dissipation paths associated with exciter regulator operation. The board receives control signals from regulator assemblies and provides discharge commands to exciter bridge circuits during shutdown or fault conditions.
GE EX2100 systems use coordinated control hardware for generator field regulation and protection. The ERDD board supports firmware flash compatibility within the EX2100 control platform, allowing hardware configuration alignment with supported regulator control assemblies.
The board design includes fault isolation and overvoltage suppression functions to control transient electrical conditions. The discharge circuit interface maintains controlled energy transfer between excitation components during abnormal operating states.
Frequently Asked Questions
Q: What function does the IS200ERDDH1ABB perform in the EX2100 system?A: The board controls dynamic discharge paths for exciter regulator circuits and manages energy dissipation during shutdown and fault sequences.
Q: What power supply voltage is required for the IS200ERDDH1ABB?A: The board operates from a 28 VDC nominal supply.
Q: Does the board provide protection monitoring functions?A: Yes. The board includes discharge path monitoring, overvoltage suppression, fault isolation, and LED status indication functions.
Field Installation Guidelines
Install the IS200ERDDH1ABB according to GE EX2100 excitation cabinet hardware procedures. Confirm board orientation, connector seating, and terminal assignments before applying control power.
Use proper grounding practices for excitation system wiring. Keep discharge circuit conductors separated from low-level signal wiring to reduce electromagnetic coupling. Maintain cable shielding and grounding according to the excitation control cabinet design requirements.
Before system startup, verify LED indicators, regulator communication status, and discharge circuit feedback signals. Confirm that all connected exciter bridge components respond correctly during controlled excitation shutdown testing.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200ICBDH1ABB Mark VI Control Base Card
The GE IS200ICBDH1ABB, also cataloged as the IS200ICBDH1ABB Control Base Card, operates as a dedicated hardware component for analog signal conditioning and field I/O interface processing within GE Mark VI Speedtronic turbine control systems. The card handles sensor acquisition, actuator feedback, and control signal distribution through rack and field wiring interfaces.
Hardware Specifications
Parameter
Specification
Model
IS200ICBDH1ABB
Brand
GE
Origin
United States of America
Weight
0.5 kg
Operating Temp
-30 deg C to +65 deg C
Power Consumption
Not specified
Product Type
Control Base Card
System Platform
Mark VI Speedtronic Gas/Steam Turbine Control System
Signal Types
LVDT inputs, servo valve outputs, thermocouples, 4-20 mA signals, vibration inputs, generator line signals
Connectors
JB, JF, JG field wiring connectors and backplane interface
Stab-on Connectors
CHAS 1, CHAS2, CCOM 2, CCOM1
Ethernet Interfaces
J12A, J12B, J11A, J11B
Jumper Configuration
Current range and circuit selection adjustment, up to 200 mA
Isolation
Channel-to-channel and channel-to-ground isolation
PCB Protection
Conformal coating for dust, moisture, and chemical resistance
Diagnostic Ports
RS-232, Ethernet, and auxiliary connectors
Profinet / EtherNet-IP Deterministic Networks and I/O Interface Architecture
The IS200ICBDH1ABB provides analog signal processing and field interface functions within the Mark VI control rack architecture. The card receives signals from turbine field devices including LVDT position sensors, thermocouples, vibration monitoring devices, and current loop transmitters, then performs signal conditioning and distribution toward the control processor.
The GE Mark VI platform uses deterministic communication paths between control modules and I/O hardware. The Control Base Card supports I/O density scaling through multiple field channels and configurable hardware interfaces. Ethernet diagnostic connections through J12A, J12B, J11A, and J11B provide communication access for system monitoring and maintenance functions.
Configurable jumpers allow adjustment of current ranges and circuit selection parameters. Channel isolation design separates field signal paths to reduce electrical interference between measurement channels and improve signal integrity in turbine control applications.
Frequently Asked Questions
Q: What field signals can the IS200ICBDH1ABB process?A: The card supports multiple turbine control signal types including LVDT feedback, thermocouple inputs, 4-20 mA signals, vibration inputs, and servo valve output interfaces.
Q: What communication interfaces are available on the IS200ICBDH1ABB?A: The card includes RS-232, Ethernet diagnostic ports, auxiliary connectors, and dedicated Ethernet jacks identified as J12A, J12B, J11A, and J11B.
Q: Does the IS200ICBDH1ABB provide electrical isolation between signal channels?A: Yes. The card provides channel-to-channel and channel-to-ground isolation to separate field signal circuits and reduce noise coupling.
Field Installation Guidelines
Install the IS200ICBDH1ABB in the designated Mark VI rack slot according to the turbine control cabinet hardware configuration.
Verify all field wiring connections at JB, JF, and JG connectors before system power application. Confirm sensor polarity, signal type compatibility, and jumper configuration settings according to the application wiring documentation.
Route analog signal cables separately from high-current switching conductors and power cables. Apply proper shield termination and grounding practices for thermocouple, vibration, and low-level analog signal wiring.
Inspect Ethernet and auxiliary diagnostic connections before commissioning. Ensure the PCB surface remains protected from conductive contamination, excessive moisture, and installation debris.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE IS200ECTBG1ABB Exciter Contact Terminal Board
The GE IS200ECTBG1ABB, also cataloged as the IS200ECTB Exciter Contact Terminal Board, operates as a dedicated hardware component for contact signal interfacing and relay control execution within GE Mark VI IS200 EX2100 excitation control systems. The board manages external dry contact inputs and relay driver outputs through terminal connections.
Hardware Specifications
Parameter
Specification
Model
IS200ECTBG1ABB
Brand
General Electric (GE)
Origin
United States of America (USA)
Product Type
Exciter Contact Terminal Boards
Series
Mark VI IS200 / EX2100 Excitation Control System
Functional Acronym
ECTB
Board Type
Exciter Contact Terminal Board
Weight
1 lbs
Operating Temp
-30 to +65 deg C
Power Consumption
Not specified
Mounting
Rack-mounted exciter cabinet installation
Input Signals
Multiple dry contact inputs
Output Signals
Relay driver outputs for trip and control functions
Signal Voltage
24 VDC nominal contact input circuits
Protection Features
Surge suppression and signal isolation
PCB Protection
Conformal coating
Profinet / EtherNet-IP Deterministic Control Interfaces
The IS200ECTBG1ABB operates as a terminal interface layer between external field contact circuits and GE excitation control modules. The board transfers discrete status information to the EMIO interface and provides relay driver paths for excitation trip and auxiliary control functions.
Within the Mark VI IS200 architecture, the ECTB supports I/O density scaling through multiple contact channels and maintains separated signal paths between field wiring and controller electronics. The terminal board design supports redundant system configurations and coordinated communication with DSPX and related excitation control boards.
Frequently Asked Questions
Q: What type of field signals can be connected to the IS200ECTBG1ABB?A: The board accepts external dry contact input signals and provides relay driver outputs for excitation trip and control functions.
Q: What is the nominal contact input voltage level for this terminal board?A: The specified contact input circuit voltage is 24 VDC nominal.
Q: How is the IS200ECTBG1ABB protected for cabinet installation?A: The board uses conformal coating for protection against dust, moisture, and chemical exposure within industrial control cabinets.
Field Installation Guidelines
Install the IS200ECTBG1ABB in the designated EX2100 exciter cabinet rack location and verify correct connector alignment before operation. Confirm terminal wiring matches the excitation system drawings and signal identification labels.
Route dry contact wiring separately from high-voltage switching conductors to reduce electrical interference. Use shielded wiring practices where required by the system design and connect cable shields according to the cabinet grounding scheme.
Before replacing or servicing the board, isolate control power and verify that external relay circuits are de-energized. After installation, inspect LED indicators and verify contact input/output status through the Mark VI control interface.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
Overview
The ABB IPSYS01 is a high-reliability power system module developed for ABB INFI 90 and Harmony Rack I/O architectures. The module supplies regulated operating power to rack-based control systems and supports stable performance for processors, communication interfaces, and distributed I/O assemblies.
Designed for continuous industrial operation, the module accepts a wide AC/DC input range and provides controlled power distribution through the system backplane. Integrated load-sharing capability allows multiple units to operate in parallel for improved redundancy and power stability in critical process applications.
The IPSYS01 is commonly installed in power generation facilities, refinery control systems, and large-scale industrial automation cabinets where uninterrupted control-system power is required.
Key Features
Regulated power delivery for ABB Harmony and INFI 90 systems
Supports both AC and DC input sources
Parallel load-sharing operation for redundant configurations
Wide operating voltage range for industrial installations
Fast power-loss recovery and hold-up capability
Designed for continuous rack-based operation
Built-in thermal management and protection functions
Compatible with Harmony Rack I/O infrastructures
Industrial-grade construction for demanding environments
Technical Specifications
Specification
Details
Model
IPSYS01
Product Type
Harmony Rack I/O Power System Module
Manufacturer
ABB
System Compatibility
ABB INFI 90 / Harmony Rack
Input Voltage Range
102 to 264 VAC
DC Input Range
102 to 144 VDC
Frequency
50/60 Hz
Input Current at 120 VAC
4.3 A
Input Current at 240 VAC
2.0 A
Input Current at 125 VDC
4.3 A
Output Regulation
±0.5% Nominal Voltage
Load Regulation
Stable from 0% to 100% Load
Hold-Up Time
20 ms after Power Loss
Heat Dissipation
Approximately 175 W
Load Sharing Accuracy
Within 5% Between Modules
Cooling Method
Forced-Air Rack Cooling
Mounting Style
Harmony Rack Slot Installation
Dimensions
44.45 × 4.83 × 21.84 cm
Weight
2.55 kg
System Functionality
The IPSYS01 module distributes regulated electrical power across the Harmony rack backplane while maintaining voltage stability during fluctuating load conditions. The module supports redundant installations where multiple power units share the connected system load evenly to improve operational availability.
Integrated regulation circuitry and short-duration hold-up capability help maintain stable system operation during transient power interruptions. This functionality is particularly important in process industries where controller downtime can impact plant safety and production continuity.
Application Areas
Typical deployment environments include:
ABB Harmony Rack I/O systems
INFI 90 distributed control systems
Power plant automation cabinets
Process control and refinery systems
Industrial communication racks
Redundant control-system power architectures
High-availability automation platforms
FAQ
What is the primary purpose of the IPSYS01 module?
The IPSYS01 provides regulated system power for ABB INFI 90 and Harmony Rack control platforms.
Does the module support redundant operation?
Yes. The module supports parallel load sharing between installed units for improved system reliability.
Which input voltages are supported?
The module accepts 102–264 VAC and 102–144 VDC input ranges.
Is the IPSYS01 suitable for continuous industrial operation?
Yes. The module is designed for long-term 24/7 operation in industrial automation and process-control environments.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
