Description

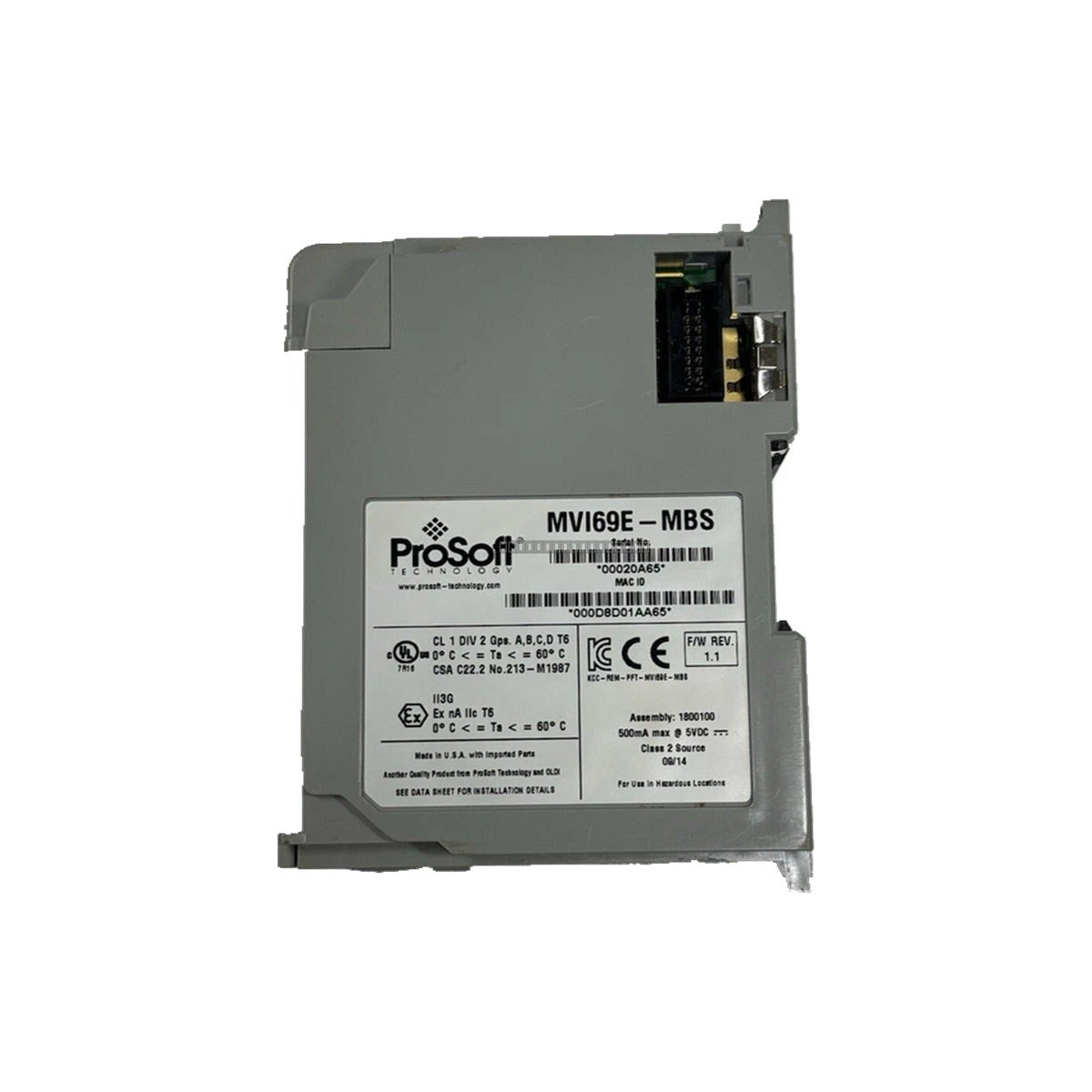

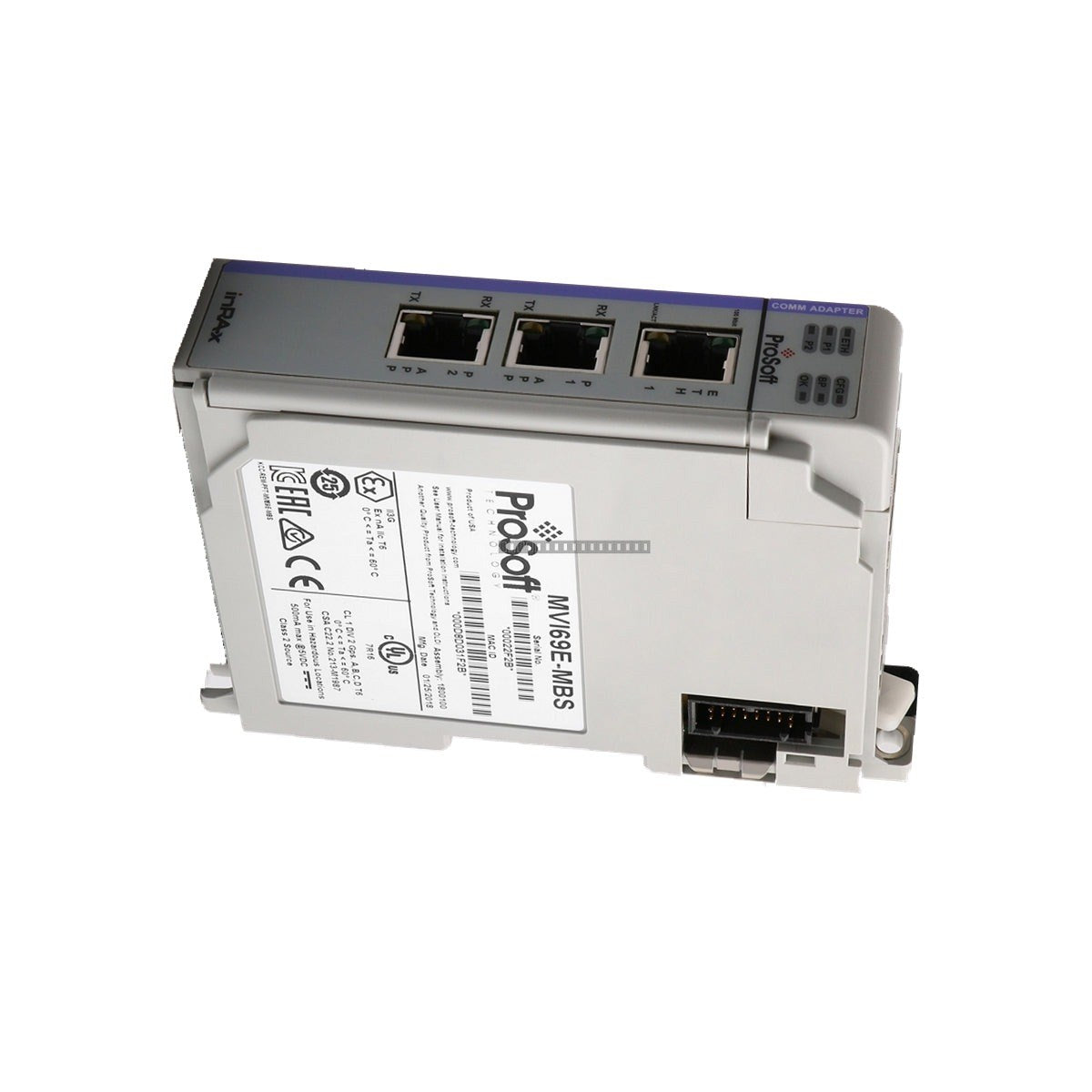

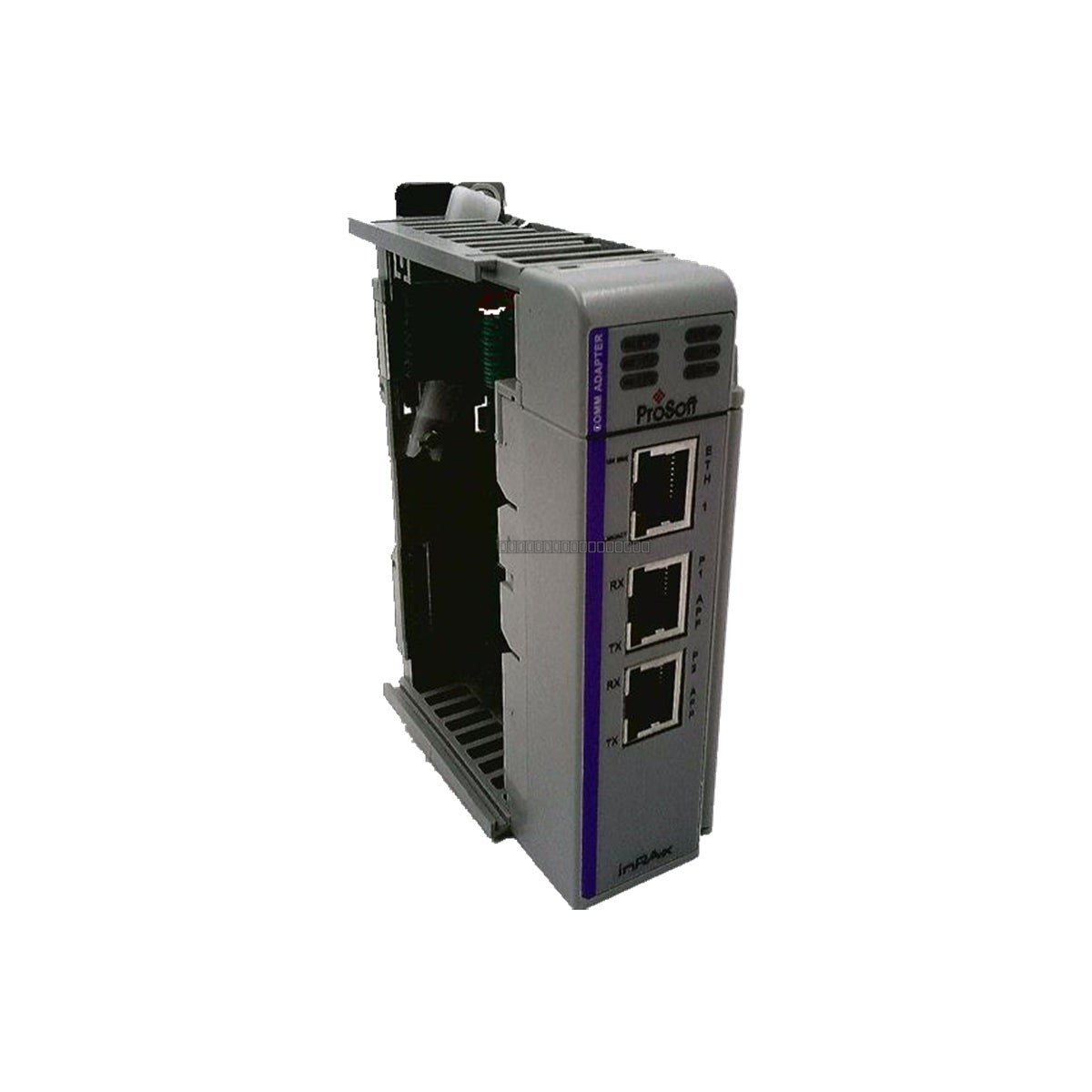

The ProSoft MVI69E-MBS is an Enhanced Modbus Serial Communication Module designed specifically for integration with Rockwell Automation CompactLogix programmable automation controllers. This module enables seamless data exchange between the CompactLogix backplane and Modbus serial devices, supporting both Modbus RTU and ASCII protocols. It serves as a high-performance interface for connecting field devices such as drives, sensors, and power monitors to the control system.
Features
- Compatible with Rockwell Automation CompactLogix platforms.
- Supports Modbus Master and Slave configurations.
- Configurable via ProSoft Configuration Builder software.
- Supports up to 250 commands per master port.
- Selectable baud rates ranging from 110 to 115 kBaud.
- Configurable stop bits (1 or 2) and parity settings.
- Flexible I/O data sizing: 60, 120, or 240 16-bit integers.
Applications
This module is widely used in industrial automation environments requiring serial communication integration, including:
- Oil and gas pipeline monitoring and control.
- Water and wastewater treatment plant instrumentation.
- Power distribution and substation automation.
- Manufacturing process control involving legacy serial equipment.
Technical Specifications
| Parameter |
Specification |
| Product Model |
MVI69E-MBS |
| Platform Compatibility |
CompactLogix |
| Current Load |
500 mA at 5 VDC |
| Baud Rate |
110 to 115 kBaud |
| Commands per Master Port |
250 |
| I/O Size |
60/120/240 16-bit integers |
| Stop Bits |
1 or 2 |
Installation Guidelines
- Ensure the CompactLogix rack is powered down before inserting or removing the MVI69E-MBS module.
- Slide the module into the appropriate slot on the backplane and secure it using the integrated locking mechanism.
- Use shielded twisted-pair cabling for all serial connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the serial cable shield at one end to prevent ground loops.
- Configure the module using the ProSoft Configuration Builder via the dedicated configuration port before full system deployment.
- Verify that the module status LEDs indicate normal operation after power-up.
FAQ
What software is required to configure the MVI69E-MBS?
The module is configured using the ProSoft Configuration Builder software, which provides a user-friendly interface for setting up communication parameters and mapping data.
Can this module act as both a Master and a Slave?
Yes, the MVI69E-MBS is designed to support both Modbus Master and Slave functionality, allowing it to act as a bridge between different serial devices and the CompactLogix controller.
