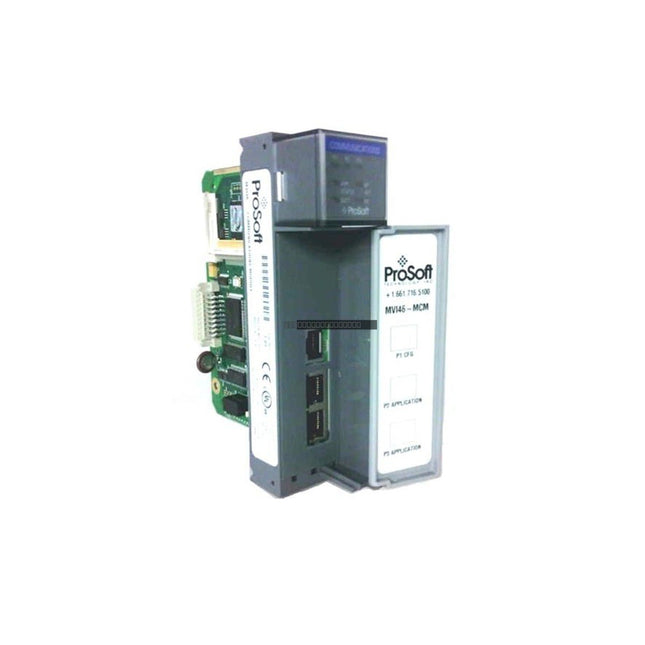

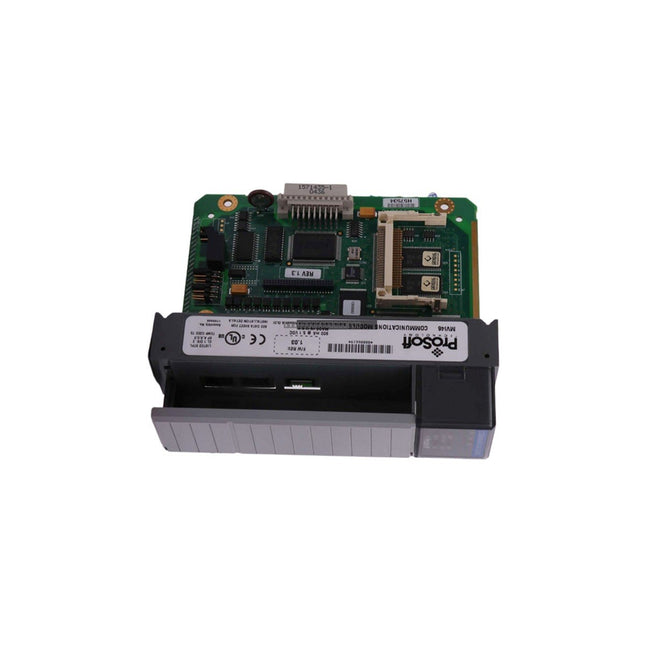

DescriptionThe ProSoft MVI46-MCM is a high-performance communication module designed to allow Rockwell Automation SLC 500 processors to interface seamlessly with Modbus protocol-compatible devices. Acting as an input/output module between the Modbus network and the Allen-Bradley backplane, it facilitates asynchronous data exchange. The module features a 5000-word register space for efficient data transfer, supporting both Master and Slave configurations across its communication ports.Features Dual-port interface supporting RS-232, RS-422, or RS-485 physical layers. Configurable as a Modbus Master or Slave device. Supports up to 100 commands per port in Master mode. Optimized polling characteristics to manage communication with problematic slave nodes. Direct ladder logic control for command execution. Single-slot module design for Allen-Bradley 1746 chassis. Applications SCADA system integration and data concentration. Pulp and paper mill process control and motor drive management. Mining and heavy material handling, including conveyor and crushing equipment. Burner and boiler management systems. Food and beverage processing, including weigh scales and temperature controllers. Automotive manufacturing, including robotic welding and CNC station monitoring. Technical Specifications Product Model MVI46-MCM Manufacturer ProSoft Technology Backplane Current Load 800 mA at 5.1 VDC Operating Temperature 0 to 60 degC (32 to 140 degF) Storage Temperature -40 to 85 degC (-40 to 185 degF) Relative Humidity 5 to 95% (non-condensing) Vibration 5 g from 10-150 Hz Module Width Single slot Compatible Rack Allen-Bradley 1746 chassis Installation Guidelines Ensure the SLC 500 processor is powered down before inserting or removing the module from the chassis. The module must be installed in a local or extended I/O rack (0-3) of the SLC 500 system; it does not support remote I/O rack installation. Use appropriate shielded cabling for RS-422/485 connections to minimize EMI interference. Ensure proper grounding of the chassis to maintain signal integrity. Follow standard ESD precautions when handling the module to prevent damage to internal circuitry. FAQsWhat is the MVI46-MCM?The ProSoft Technology MVI46-MCM is a Modbus Communication Module for Allen-Bradley SLC 500 systems, supporting Master or Slave protocols on two configurable serial ports.Can the MVI46-MCM be placed in a remote rack?No, it must reside in the local or extended I/O rack (0-3) of the SLC 500 system.What is the difference between MVI46-MCM and 3150-MCM?The MVI46-MCM is a faster, modern module supporting up to 115.2 kbps and 100 commands per port, whereas the 3150-MCM is a legacy version with lower performance specifications.

Read more less

DescriptionThe ProSoft MVI56-MCM is a high-performance Modbus Master/Slave communication module specifically designed for the Rockwell Automation ControlLogix platform. This module provides seamless integration for serial devices into the ControlLogix backplane, enabling reliable communication via RS-232, RS-485, or RS-422 interfaces. It serves as a bridge for legacy equipment and specialized industrial sensors, supporting both Modbus RTU and ASCII protocols.Features Dual serial ports independently configurable as Modbus Master or Slave. Supports RS-232, RS-485, and RS-422 physical interfaces. User-controlled 5,000-word database for efficient data exchange between the processor and the network. Includes specialized support for Enron and Daniel floating-point implementations. Optical isolation from the backplane (rated at 500 V) for enhanced signal integrity and safety. Real-time status indicators for module health, backplane transfer, and serial communication activity. Applications Oil & Gas: Remote monitoring and control for pipelines and offshore platforms. Water and Wastewater: Integration of remote stations into SCADA systems. Food Processing: Connecting specialized processing equipment to the main PLC network. Pulp and Paper: Interfacing legacy machinery with modern automation controllers. Mining: Coordinating large-scale industrial equipment on a unified network. Technical Specifications Product Model MVI56-MCM Backplane Current Load 800 mA @ 5 VDC / 3 mA @ 24 VDC Operating Temperature 0 to 60 degC (32 to 140 degF) Storage Temperature -40 to 85 degC (-40 to 185 degF) Data Format 7-8 data bits, 1-2 stop bits, parity (none, odd, even) Isolation 500 V optical isolation Protocol Support Modbus RTU (binary) and ASCII Weight 0.25 kg Installation Guidelines Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage. Seat the module firmly into the designated slot on the ControlLogix backplane and secure the top and bottom retaining screws. Use shielded communication cables for serial connections to minimize EMI interference in industrial environments. Ensure proper grounding of the serial cable shields at the appropriate termination points. The module is configured using standard ladder logic within the Studio 5000 / RSLogix 5000 environment. Maintain adequate ventilation around the chassis to ensure operation within the specified 0 to 60 degC range. FAQsWhat is the difference between MVI56-MCM and MVI56-MCMR?The MCM version uses a larger I/O image (250 input/248 output words) and is typically preferred for local chassis use. The MCMR version uses a smaller I/O image (42 input/42 output words), making it better suited for remote racks over ControlNet to reduce bandwidth consumption.How do I handle more than 100 commands per port?While each port's standard command list supports up to 100 entries, you can utilize Event Command control blocks to trigger additional Modbus commands directly from your PLC ladder logic.

Read more less

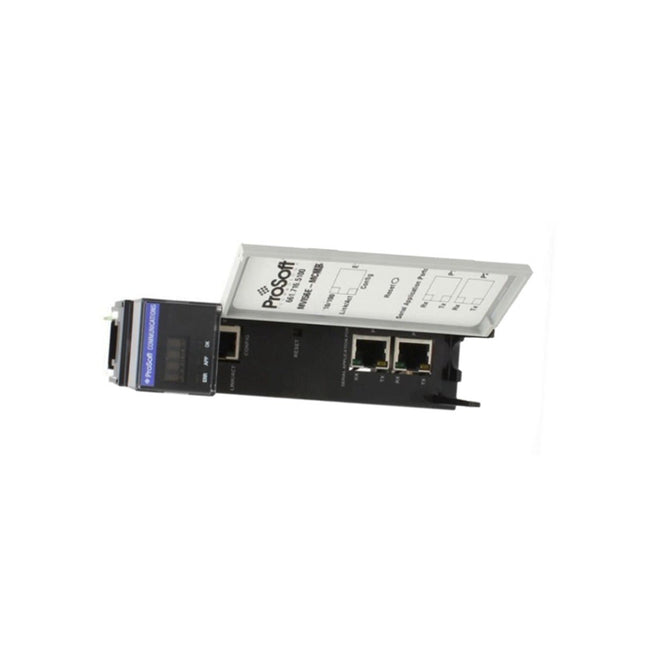

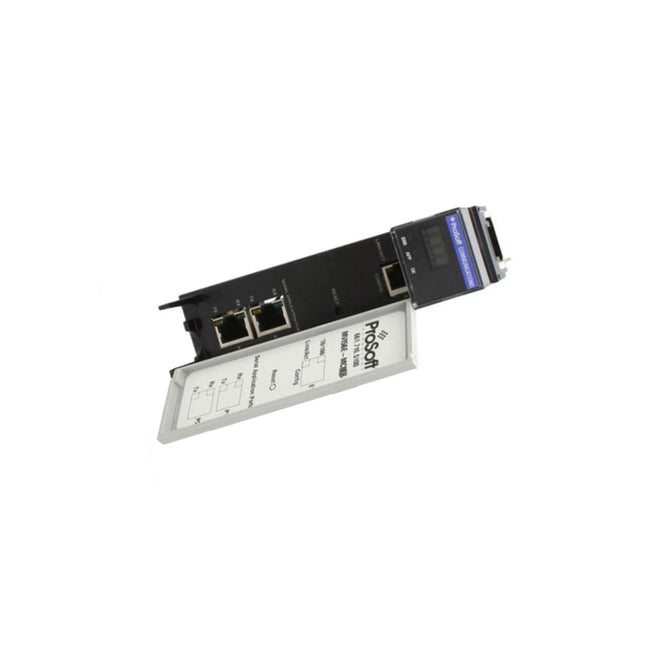

DescriptionThe ProSoft MVI56-MCMR is a specialized Modbus Master/Slave communication module designed for the Rockwell Automation ControlLogix platform. It is specifically optimized for remote chassis applications, such as those utilizing ControlNet, where bandwidth optimization is critical. By utilizing a reduced 42-word Input/Output image, the MVI56-MCMR minimizes bandwidth impact compared to standard modules, making it an ideal choice for complex, distributed control systems.Features Optimized for Remote Racks: Designed for ControlNet and remote chassis environments to reduce bandwidth consumption. Dual Serial Ports: Features two configurable serial ports supporting RS-232, RS-422, and RS-485 physical standards. Flexible Baud Rates: Supports communication speeds ranging from 110 baud up to 115,200 baud. Configuration: Configured via ProSoft Configuration Builder (PCB) with integration into RSLogix 5000 using Add-On Instructions (AOI). Visual Diagnostics: Integrated LED indicators provide real-time status updates for communication and module health. Applications Oil and Gas: Data acquisition for pipelines and offshore platform monitoring. Water and Wastewater: Managing data exchange between control systems and remote monitoring stations. Food Processing: Integration of automated production line equipment. Mining, Pulp, and Paper: Connecting legacy serial equipment to modern ControlLogix architectures. Technical Specifications Model MVI56-MCMR Backplane Current (5 VDC) 800 mA Backplane Current (24 VDC) 3 mA Operating Temperature 0 to 60 degC Slot Requirements 1 Slot Communication Standards RS-232, RS-485, RS-422 Baud Rate 110 to 115,200 bps I/O Mapping 42-word reduced image Installation Guidelines Power Off: Always remove power from the ControlLogix chassis before inserting or removing the module to prevent electrical damage. Slot Placement: The module occupies one slot in the ControlLogix rack. Ensure it is seated firmly and the locking tab is engaged. Jumper Configuration: Physical serial standards (RS-232/422/485) are selected via jumpers located at the bottom of the module. Ensure these are set correctly before installation. Wiring: Use a minimum phase wire size of 1.3 mm squared. Ensure proper shielding for serial cables to minimize EMI in industrial environments. Grounding: Follow standard industrial grounding practices for the chassis to ensure signal integrity. FAQWhat is the primary difference between MVI56-MCM and MVI56-MCMR?The MVI56-MCMR is optimized for remote chassis applications by using a reduced 42-word I/O image to save bandwidth, whereas the MVI56-MCM uses a larger 250-word image. Additionally, the MCMR does not support the Modbus Pass-Thru feature.How is the module configured?The MVI56-MCMR is configured using an offline file created in ProSoft Configuration Builder (PCB) and integrated into the processor using Add-On Instructions (AOI) within RSLogix 5000.Can I prevent data loss during a power cycle?Yes, you can use the Initialize Input Image parameter to cache values from the processor so they are not reset to zero during a module reset or power loss.

Read more less

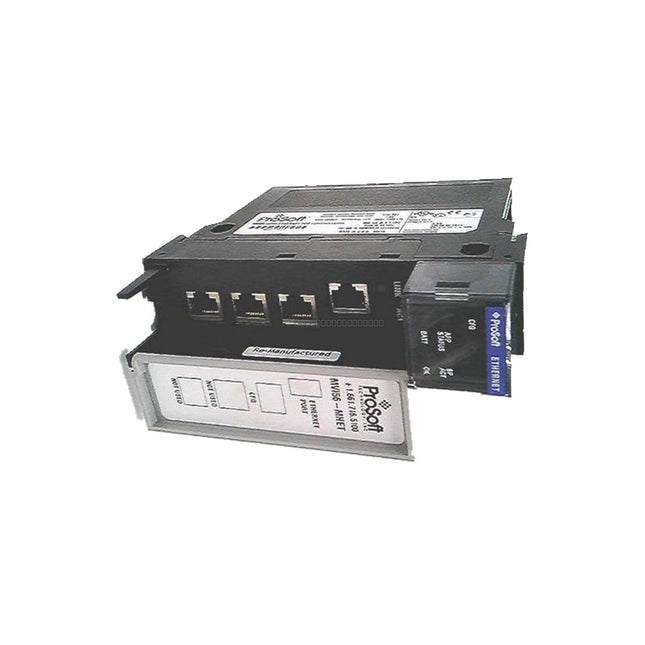

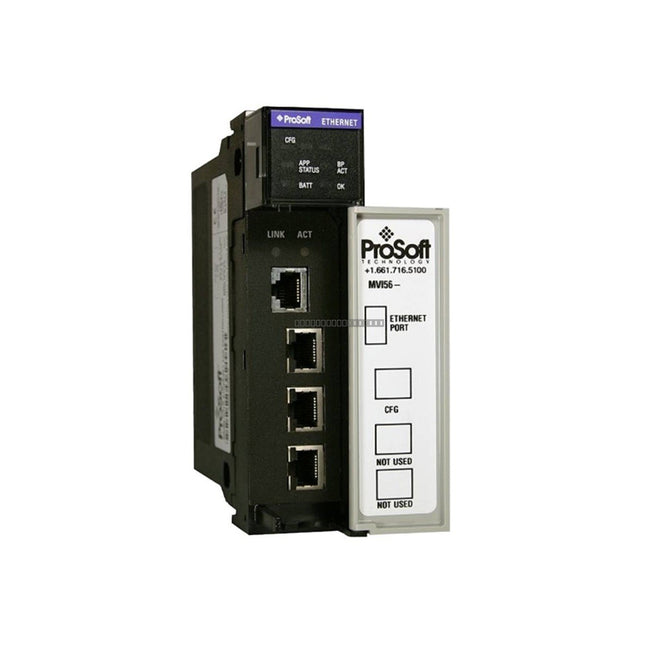

DescriptionThe ProSoft MVI56-MNET is a high-performance network interface module designed specifically for Rockwell Automation ControlLogix processors. This module enables seamless integration between ControlLogix systems and Modbus TCP/IP-compatible devices, acting as a bridge to facilitate data exchange in industrial automation environments. It supports both Client and Server modes, providing flexibility for various network architectures.Features Designed for seamless integration with Allen-Bradley ControlLogix backplanes. Supports Modbus TCP/IP protocol for robust industrial communication. Configurable as a Modbus TCP/IP Client or Server. Includes one RJ45 Ethernet port for network communication and one RJ45 serial port for local configuration. Facilitates data transfer between ControlLogix processors and third-party Modbus devices. ApplicationsThe MVI56-MNET is widely utilized in industrial control systems where Allen-Bradley PLCs must communicate with external Modbus-enabled hardware, such as variable frequency drives (VFDs), power meters, remote I/O, or other third-party controllers. It is commonly found in oil and gas, water/wastewater, and manufacturing process control applications.Technical Specifications Product Model MVI56-MNET Manufacturer ProSoft Protocol Modbus TCP/IP Compatibility Allen-Bradley ControlLogix Ethernet Port 1 x RJ45 (Modbus) Configuration Port 1 x RJ45 (Serial) Tariff Code 8537101190 Installation Guidelines Ensure the ControlLogix rack is powered down before inserting or removing the MVI56-MNET module. Slide the module into an available slot in the ControlLogix chassis and secure it using the top and bottom locking tabs. Use shielded twisted-pair Ethernet cabling for the Modbus TCP/IP connection to minimize electromagnetic interference (EMI). Connect the configuration cable to the serial port for initial setup and parameter configuration via ProSoft Configuration Builder. Verify that the module status LEDs indicate successful backplane communication and network link activity after power-up. FAQDoes the MVI56-MNET require external power?No, the module is powered directly through the ControlLogix backplane once properly seated in the chassis.Can this module act as both a Client and a Server?Yes, the MVI56-MNET is capable of operating as a Modbus TCP/IP Client, Server, or both simultaneously, depending on the configuration.

Read more less

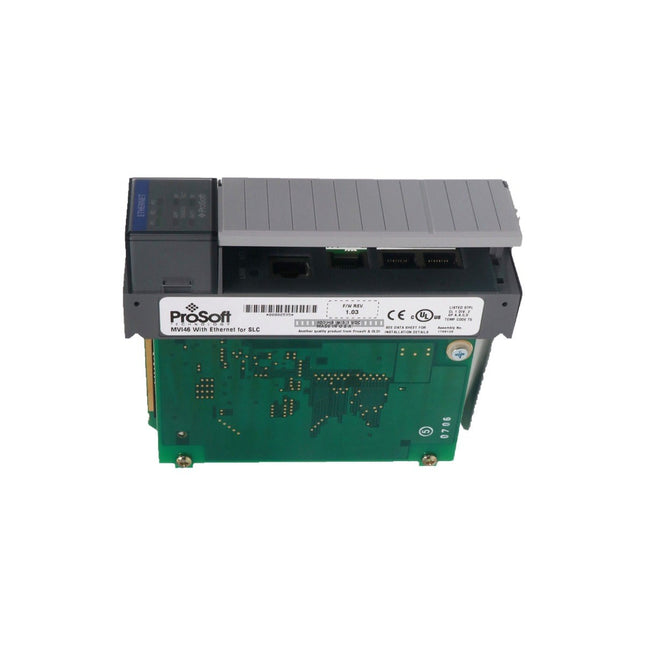

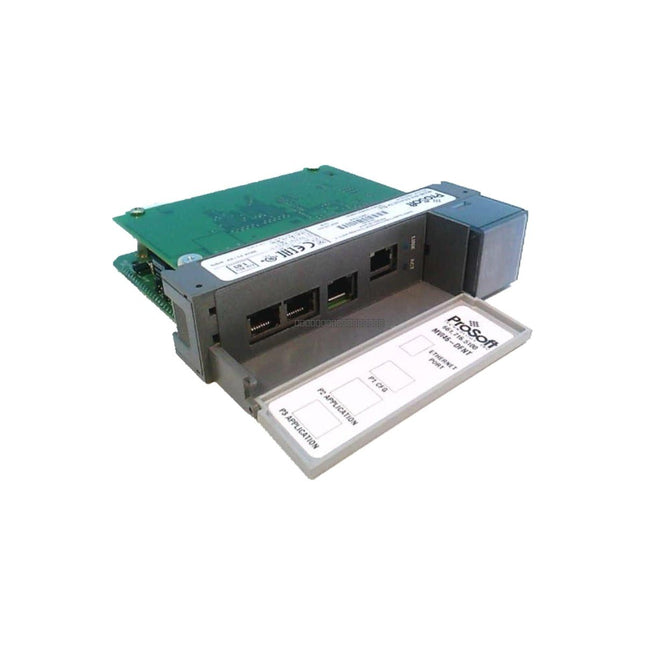

DescriptionThe MVI46-DFNT functions as a high-speed EtherNet/IP Client/Server communication interface specifically designed for the Allen-Bradley SLC 500 platform. This module enables SLC processors to interface seamlessly with modern Ethernet-based controllers, HMI systems, and SCADA software without requiring complex ladder logic for protocol encapsulation. In heavy industrial environments such as automotive assembly, wastewater treatment, and food processing, the MVI46-DFNT serves as a critical bridge for migrating legacy hardware to standardized network architectures. By facilitating real-time data exchange and remote diagnostics, it minimizes operational latency and provides a cost-effective path to modernizing control systems.Features Dual-Protocol Capability: Operates simultaneously as both an EtherNet/IP Client and Server, allowing the SLC 500 to initiate commands and respond to upstream data requests. Client Specifications: Supports up to 100 user-defined commands for data transfer with network devices using DF1 over Ethernet encapsulation or PCCC commands. Server Functionality: Allows remote devices to read from and write to the SLC processor's data files, acting as a native Ethernet-connected node. Backplane Integration: Utilizes a single-slot backplane interface to exchange data with the SLC 500 processor via M0 and M1 files. Physical Interface: Equipped with a standard 10/100 Base-T RJ45 port with automatic link negotiation for stable connectivity in industrial environments. ApplicationsThe MVI46-DFNT is ideal for system integrators and plant engineers looking to integrate legacy SLC 500 controllers into modern Ethernet/IP networks. Common applications include data acquisition for SCADA systems, HMI connectivity, and peer-to-peer communication between disparate automation controllers in manufacturing and process control facilities.Technical Specifications Model MVI46-DFNT Brand ProSoft Technology Compatibility Allen-Bradley SLC 5/02, 5/03, 5/04, 5/05 Chassis Backplane Current Draw 800 mA at 5 VDC Ethernet Port 1 x RJ45 Connector Communication Rate 10/100 Mbps (Auto-sensing) Operating Temperature 0 to 60 deg C Storage Temperature -40 to 85 deg C Relative Humidity 5% to 95% (Non-condensing) Installation Guidelines Slot Placement: The module is designed for installation in any available slot of an Allen-Bradley SLC 500 chassis. Ensure the chassis is powered down before inserting or removing the module. ESD Precautions: Always use a grounded wrist strap or similar ESD protection when handling the module to prevent damage to internal circuitry. Wiring: Use shielded Category 5 or higher Ethernet cabling for the RJ45 port. Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI). Configuration: The module requires initial configuration via the serial port or Ethernet port using ProSoft Configuration Builder (PCB) software to define the communication parameters and command list. FAQDoes the MVI46-DFNT require special ladder logic?No, the module is designed to minimize ladder logic requirements. It uses M0 and M1 file transfers for data exchange, keeping the processor overhead low.Can this module communicate with non-Allen-Bradley devices?Yes, as an EtherNet/IP Client/Server, it can communicate with any device that supports the EtherNet/IP protocol, including third-party PLCs, HMIs, and industrial sensors.

Read more less

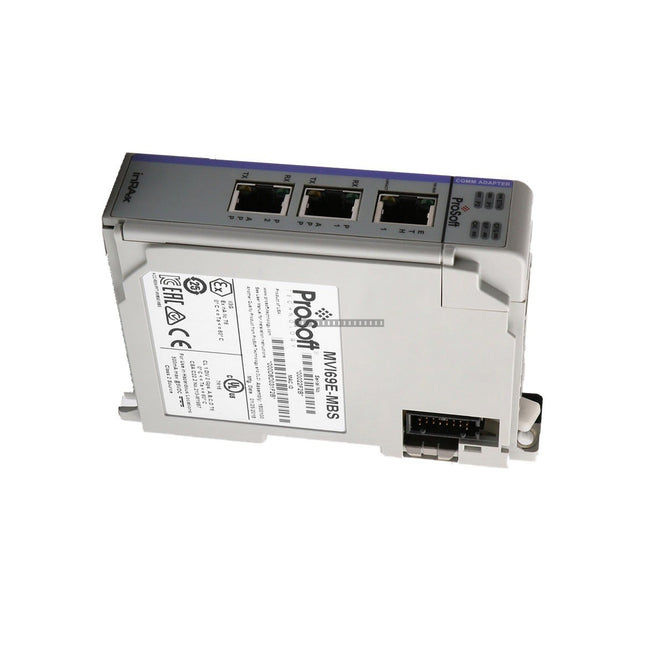

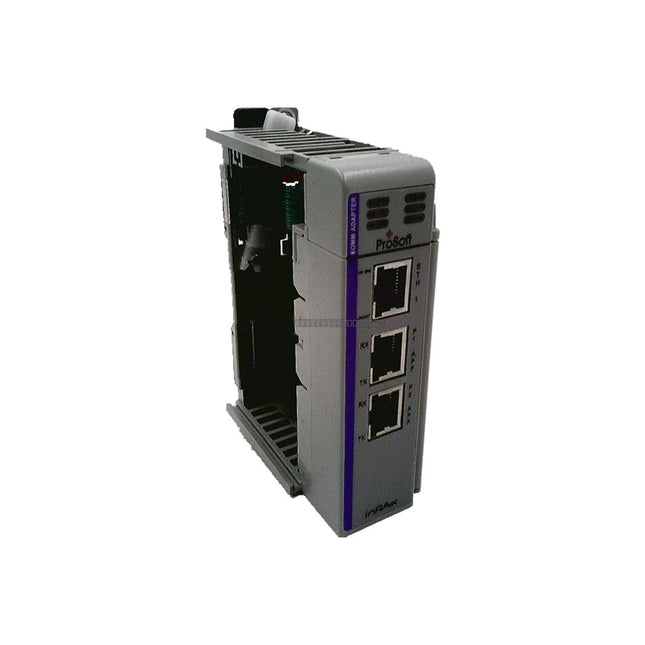

DescriptionThe ProSoft MVI69E-MBS is an Enhanced Modbus Serial Communication Module designed specifically for integration with Rockwell Automation CompactLogix programmable automation controllers. This module enables seamless data exchange between the CompactLogix backplane and Modbus serial devices, supporting both Modbus RTU and ASCII protocols. It serves as a high-performance interface for connecting field devices such as drives, sensors, and power monitors to the control system.Features Compatible with Rockwell Automation CompactLogix platforms. Supports Modbus Master and Slave configurations. Configurable via ProSoft Configuration Builder software. Supports up to 250 commands per master port. Selectable baud rates ranging from 110 to 115 kBaud. Configurable stop bits (1 or 2) and parity settings. Flexible I/O data sizing: 60, 120, or 240 16-bit integers. ApplicationsThis module is widely used in industrial automation environments requiring serial communication integration, including: Oil and gas pipeline monitoring and control. Water and wastewater treatment plant instrumentation. Power distribution and substation automation. Manufacturing process control involving legacy serial equipment. Technical Specifications Parameter Specification Product Model MVI69E-MBS Platform Compatibility CompactLogix Current Load 500 mA at 5 VDC Baud Rate 110 to 115 kBaud Commands per Master Port 250 I/O Size 60/120/240 16-bit integers Stop Bits 1 or 2 Installation Guidelines Ensure the CompactLogix rack is powered down before inserting or removing the MVI69E-MBS module. Slide the module into the appropriate slot on the backplane and secure it using the integrated locking mechanism. Use shielded twisted-pair cabling for all serial connections to minimize electromagnetic interference (EMI). Ensure proper grounding of the serial cable shield at one end to prevent ground loops. Configure the module using the ProSoft Configuration Builder via the dedicated configuration port before full system deployment. Verify that the module status LEDs indicate normal operation after power-up. FAQWhat software is required to configure the MVI69E-MBS?The module is configured using the ProSoft Configuration Builder software, which provides a user-friendly interface for setting up communication parameters and mapping data.Can this module act as both a Master and a Slave?Yes, the MVI69E-MBS is designed to support both Modbus Master and Slave functionality, allowing it to act as a bridge between different serial devices and the CompactLogix controller.

Read more less

Overview The MVI56-DFCM PLC Module from ProSoft enables seamless integration of Modbus RTU/ASCII devices into Allen-Bradley ControlLogix systems. It supports up to 32 devices, each configurable as master or slave, enhancing compatibility across industrial networks. Technical Specifications Specification Detail Model Number MVI56-DFCM Series ControlLogix Manufacturer ProSoft Module Type PLC Module Dimensions 3.5 x 14 x 14.5 cm Weight 0.45 kg System PLC HS Code 8537101190 Origin USA Condition Brand New Lead Time In Stock Discontinued Active MOQ 1 Communication Ethernet router Key Features Supports up to 32 Modbus RTU/ASCII devices. Each device configurable as master or slave. Maps Modbus data into ControlLogix memory. Includes diagnostics for network health monitoring. Compact design fits standard ControlLogix chassis.

Read more less

Product Overview The ProSoft MVI46-GSC Rockwell Automation Communication Module enables seamless data exchange between Allen-Bradley PLCs and GE 90-30/90-70 controllers. Designed for the ControlLogix platform, it supports both serial and Ethernet communication for flexible integration across industrial networks. Its compact 3.5 × 14 × 14.5 cm housing and lightweight 0.26 kg build simplify installation in control panels. The module supports multiple data types including discrete, analog, and control signals, ensuring compatibility with a wide range of devices. Technical Specifications Specification Detail Model Number MVI46-GSC Manufacturer ProSoft Product Range ControlLogix Series Module Type Communication Module System PLC Communication Interface Serial and Ethernet Router Dimensions (L×W×H) 3.5 × 14 × 14.5 cm Weight 0.26 kg HS Code 8537101190 Minimum Order Quantity 1 Product Origin USA Availability In Stock Condition Brand New Discontinued Status Active Key Features Supports integration of up to 32 GE 90-30/90-70 controllers. Enables real-time data exchange for process control and monitoring. Compatible with discrete, analog, and control data formats. Configurable via Rockwell Studio 5000 software for easy setup. Built-in diagnostics help monitor network health and reduce downtime.

Read more less

Overview The MVI56-DFCMR Communication Module from ProSoft enables seamless data exchange between Modbus RTU/ASCII networks and Allen-Bradley ControlLogix PLC systems. It supports up to 32 Modbus devices, each configurable as master or slave, offering flexible network architecture for industrial automation. Technical Specifications Specification Detail Model Number MVI56-DFCMR Series ControlLogix Manufacturer ProSoft Module Type Ethernet ControlNet Communication Dimensions 3.5 x 14 x 14.5 cm Weight 0.22 kg System PLC HS Code 8537101190 Origin USA Condition Brand New Lead Time In Stock Discontinued Active MOQ 1 Communication Ethernet router Key Features Supports up to 32 Modbus RTU/ASCII devices. Configurable as master or slave for flexible setups. Maps Modbus data directly into ControlLogix memory. Includes diagnostics for real-time network monitoring. Compact design fits standard ControlLogix chassis.

Read more less

Overview The MVI56-ADMNET Modbus TCP/IP Communication Module from ProSoft enables seamless integration of Modbus-enabled devices into Allen-Bradley ControlLogix PLC systems. It acts as a protocol gateway, facilitating reliable data exchange between Modbus TCP/IP networks and ControlLogix architecture. Technical Specifications Specification Detail Model Number MVI56-ADMNET Series ControlLogix Manufacturer ProSoft Module Type Downloadable Files Dimensions 3.5 x 14 x 14.5 cm Weight 0.28 kg System PLC HS Code 8537101190 Origin USA Condition Brand New Lead Time In Stock Discontinued Active MOQ 1 Communication Ethernet router Key Features Bridges Modbus TCP/IP devices with ControlLogix PLCs. Supports multiple Modbus-enabled components simultaneously. Includes diagnostics for real-time network monitoring. Configurable via Rockwell Studio 5000 software. Compact and lightweight for easy installation.

Read more less

Overview The MVI46-MBP Modbus Plus Communication Module from ProSoft enables seamless integration of Modbus RTU and ASCII devices into Allen-Bradley ControlLogix PLC systems. It supports up to 32 slave devices and offers both master and slave functionality, ensuring flexible communication across industrial networks. Technical Specifications Specification Detail Model Number MVI46-MBP Series ControlLogix Manufacturer ProSoft Module Type Modbus Plus Communication Module Dimensions 3.5 x 14 x 14.5 cm Weight 0.26 kg System PLC HS Code 8537101190 Origin USA Condition Brand New Lead Time In Stock Discontinued Active MOQ 1 Communication Ethernet router Key Features Supports up to 32 Modbus RTU/ASCII slave devices. Offers master and slave communication modes. Simplifies setup with Studio 5000 configuration tools. Includes diagnostics for network health and troubleshooting. Compact and lightweight for easy installation in PLC systems.

Read more less

Description The ProSoft 5601-RIO-MCM is a powerful communication converter designed to interface Rockwell Automation’s Remote I/O (RIO) networks with Modbus-compatible devices. It enables legacy PLCs and distributed I/O systems to communicate with Modbus RTU/ASCII equipment, supporting industrial modernization without replacing existing infrastructure. Specifications Model Number: 5601-RIO-MCM Function: RIO to Modbus RTU/ASCII communication converter Protocols Supported: Rockwell Remote I/O (RIO) Modbus RTU (Master/Slave) Modbus ASCII Serial Ports: 2 x RS-232/RS-485 configurable ports RIO Interface: Compatible with Rockwell PLC-5, SLC, and other RIO-based controllers Baud Rates: Up to 115.2 kbps Power Supply: 12–24 VDC Mounting: DIN rail or panel-mounted Configuration: Via ProSoft Configuration Builder (PCB) software Diagnostics: LED indicators and onboard diagnostics Operating Temperature: 0°C to 60°C Country of Origin: USA
