Description

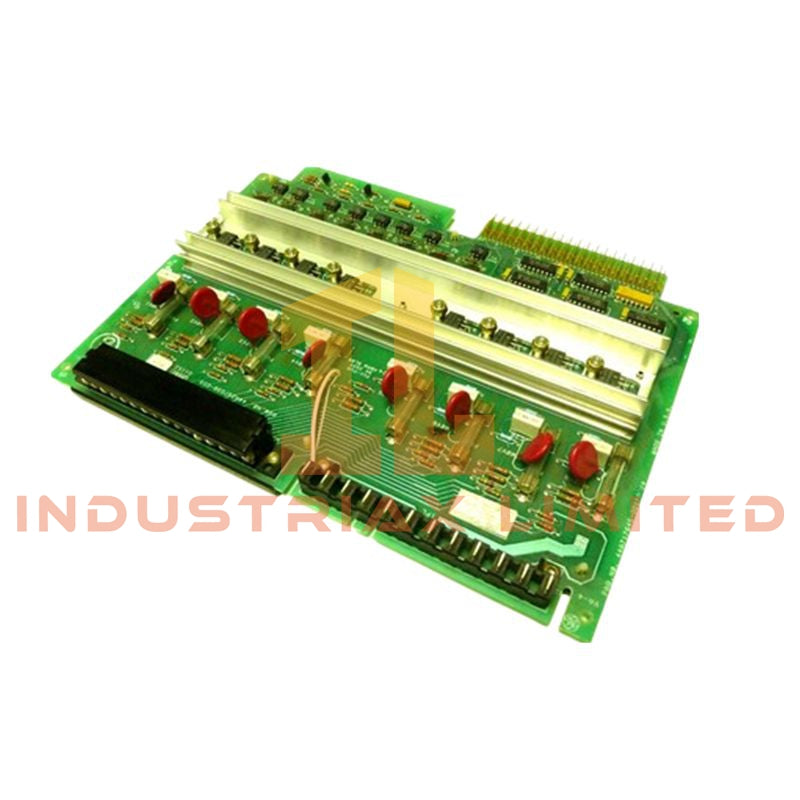

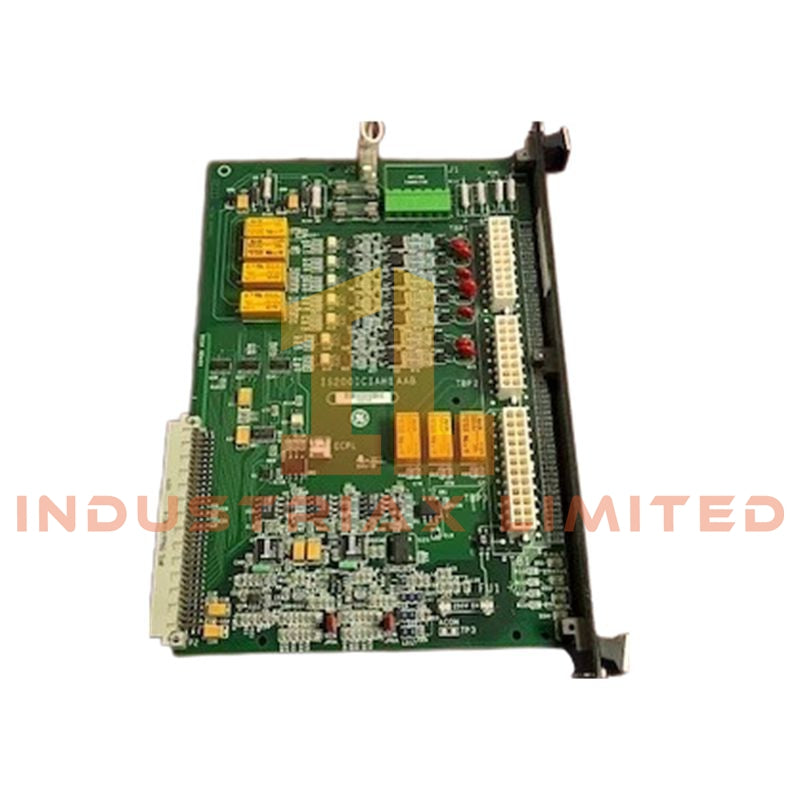

GE IS200ICIAH1ABB Intelligent Control I/O Analog Board

Configured for analog signal acquisition and actuator output processing in GE Mark VI Speedtronic turbine control platforms, the GE IS200ICIAH1ABB (IS200ICIAH1 Intelligent Control I/O Analog Board) provides direct physical/electrical execution for thermocouple, RTD, voltage, and current signal interfacing through isolated analog I/O channels.

Hardware Specifications

Parameter	Specification
Model	IS200ICIAH1ABB
Brand	GE
Origin	United States
Weight	0.45 kg
Dimensions	26.9 x 15.2 x 2.8 cm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	Approximately 6.8 W
Series	Mark VI Speedtronic Turbine Control System
Hardware Type	Intelligent Control I/O Analog Board (ICIA)
Analog Inputs	6 channels, 0-10 V or 4-20 mA; Type J, K, T thermocouple support with CJC
Analog Outputs	4 channels, 0-10 V or 4-20 mA
Digital Interface	VME backplane communication
Isolation	Optical isolation; 2500 V AC channel-to-channel isolation
Protection	Overvoltage clamping up to 36 VDC; conformal PCB coating
Power Supply Input	5 VDC and 24 VDC from VME backplane
Humidity Range	5-95% non-condensing
Resolution	16-bit analog acquisition

GE Mark VI Analog I/O Signal Processing Characteristics

The IS200ICIAH1ABB integrates analog input conditioning and output control functions within the GE Mark VI control architecture. The board supports thermocouple, RTD, voltage, and current signal acquisition with cold junction compensation (CJC) for temperature measurement channels.

The module provides isolated analog circuits for field signal separation and noise reduction. The optical isolation design separates field wiring circuits from logic-side processing, while the VME backplane interface provides communication between the I/O board and controller hardware.

The ICIA board supports I/O density scaling within Mark VI rack configurations, allowing multiple analog measurement and actuator control channels to be managed through the turbine control network. Firmware flash compatibility and hardware revision matching are required during controller configuration.

Frequently Asked Questions

Q: What analog signal types are supported by the IS200ICIAH1ABB?
A: The board supports 0-10 V, 4-20 mA, and Type J, K, T thermocouple inputs with cold junction compensation.

Q: How is field signal isolation implemented on this board?
A: The module uses optical isolation between field circuits and logic circuits, with 2500 V AC channel-to-channel isolation.

Q: What backplane connection is used for Mark VI system integration?
A: The IS200ICIAH1ABB connects through the VME backplane interface within the GE Mark VI rack assembly.

Field Installation Guidelines

Install the IS200ICIAH1ABB in the designated GE Mark VI VME rack position and verify connector alignment before insertion. Confirm that the backplane power supply connections match the controller cabinet wiring documentation.

Terminate analog input and output wiring according to the GE field wiring diagrams. Use shielded cables for low-level analog signals where required, and connect cable shields following the cabinet grounding scheme to reduce electromagnetic interference.

Separate thermocouple, RTD, and analog current/voltage signal cables from high-current power wiring and switching circuits. Avoid routing sensitive measurement cables parallel to sources of electrical noise.

Inspect the conformal coating and PCB surface before installation. Avoid contact damage to coated areas during handling, connector engagement, and maintenance operations.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
