توفر المستشعرات والمجسات مراقبة دقيقة للمعدات الصناعية. تغطي مجموعتنا مجسات الاهتزاز والقرب والإزاحة من كبرى الشركات المصنعة. نوفر الموديلات الحالية والمتوقفة عن الإنتاج، مع دعم عالمي موثوق.
أجهزة الاستشعار والمجسات
-
Honeywell MU-NKD020 | Honeywell | Control Network Extension Cable
Honeywell MU-NKD020 Control Network Extension Cable Configured for signal and power extension between control modules in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-NKD020 (MU-NKD020 Control Network Extension Cable) provides direct physical connection through pre-terminated industrial cable assemblies. Hardware Specifications Parameter Specification Model MU-NKD020 Brand Honeywell Part Number 51195153-020 Origin USA Component Type Control Network / I/O Extension Cable System Compatibility Honeywell TDC 3000 / Experion PKS platforms Cable Length 20 feet (approx. 6.1 meters) Power Consumption Passive cable assembly; no external power consumption Shielding Industrial EMI/RFI shielded cable construction Conductor Material Tinned copper conductors Connector Type Factory-installed multi-pin industrial connectors Application I/O processor, FTA, and network extension interconnection DCS Signal Integrity and Field Connection Characteristics The Honeywell MU-NKD020 uses a shielded cable construction to maintain electrical signal quality between distributed control system hardware assemblies. The cable provides a physical transmission path for control and I/O connections while limiting external electromagnetic interference from nearby industrial equipment. Furthermore, Honeywell DCS cable assemblies support stable field signal routing requirements in systems containing analog and digital process interfaces. The cable design complements Honeywell process control architectures that may include 4-20 mA HART loop devices, FOUNDATION Fieldbus segments, or Profibus PA field networks through associated interface hardware. The factory-terminated connector configuration reduces wiring errors during cabinet installation. In addition, the cable shielding layer requires proper grounding practices to minimize noise coupling between control circuits and power equipment. Frequently Asked Questions Q: Does the MU-NKD020 cable require an external power supply?A: No. The MU-NKD020 is a passive cable assembly and does not contain active electronic circuits or require external power input. Q: Can the MU-NKD020 be installed with standard field wiring practices?A: The cable should follow industrial installation practices, including separation from high-voltage power cables and correct shield termination according to system cabinet requirements. Q: Is the MU-NKD020 compatible with Honeywell TDC 3000 and Experion PKS hardware?A: The MU-NKD020 is specified for Honeywell TDC 3000 and Experion PKS control system environments as an extension cable assembly for compatible hardware connections. Field Installation Guidelines Verify the cable part number and connector configuration before installation into the control cabinet. Route the MU-NKD020 away from high-current power conductors, variable frequency drive cables, and sources of electromagnetic noise. Maintain proper cable bend radius to prevent mechanical stress on connectors and cable jackets. Connect cable shields according to the grounding method defined for the Honeywell control system cabinet. Inspect connector pins and locking mechanisms before operation to prevent intermittent communication faults. Confirm correct module and FTA termination points before system startup and signal verification.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330104-00-08-90-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-00-08-90-02-05 3300 XL 8 mm Proximity Probe The Bently Nevada 330104-00-08-90-02-05, also cataloged as the 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement and rotor position monitoring within the Bently Nevada 3300 XL Machinery Protection System. Hardware Specifications Parameter Specification Model 330104-00-08-90-02-05 Brand Bently Nevada Product Type 3300 XL 8 mm Proximity Probe Origin USA Weight 0.12 kg Dimensions Estimated shipping size: 32 x 30 x 2 cm Power Consumption Supplied through compatible Proximitor Sensor system Probe Diameter 8 mm Thread Type M10 x 1 Armor Option Armored probe design Minimum Unthreaded Length 0 mm Overall Case Length 80 mm Total Length 9.0 meters (29.5 feet) Cable Type Miniature coaxial ClickLoc connector standard cable Connector Option ClickLoc miniature coaxial connector Agency Approvals CSA, ATEX, IECEx Tariff Code 8537101190 Eddy-Current Probe Scaling and Rotor Dynamics Measurement The 330104-00-08-90-02-05 uses the Bently Nevada 3300 XL 8 mm probe configuration for non-contact displacement measurement. Therefore, the probe generates proportional eddy-current signals that correspond to shaft position changes relative to the probe tip. The probe system requires correct scaling between probe output voltage and mechanical displacement. Additionally, technicians validate gap voltage conditions during installation to maintain measurement accuracy, with typical Bently Nevada systems using -10 VDC target gap voltage references. The armored cable construction provides mechanical protection for installations where routing conditions require additional cable shielding. Furthermore, the miniature coaxial ClickLoc connector maintains signal continuity between the probe and compatible Proximitor Sensor modules. The probe supports rotor dynamics analysis by providing shaft vibration and position data required by Bently Nevada machinery monitoring platforms. Moreover, the probe design incorporates signal conditioning characteristics that support cross-talk suppression in multi-channel monitoring installations. Frequently Asked Questions Q: What measurement technology does the Bently Nevada 330104-00-08-90-02-05 use?A: The probe uses eddy-current technology to measure shaft displacement without physical contact between the probe tip and the rotating surface. Q: What is the function of the -10 VDC gap voltage reference during installation?A: The gap voltage reference verifies the probe installation position and confirms that the probe operates within the specified linear measurement range. Q: Can the 330104-00-08-90-02-05 operate directly without a Proximitor Sensor?A: No. The proximity probe requires a compatible Bently Nevada Proximitor Sensor to provide excitation, signal conversion, and output conditioning. Field Installation Guidelines Install the 330104-00-08-90-02-05 probe using the specified M10 x 1 threaded mounting interface. Ensure that the probe tip faces the monitored shaft surface with correct mechanical alignment. Route the miniature coaxial cable away from high-current conductors, switching power sources, and strong electromagnetic interference areas. Maintain proper cable support to prevent mechanical stress on the connector and armored section. Connect the probe system according to the applicable Bently Nevada 3300 XL installation documentation. Verify the probe gap voltage before commissioning and confirm signal stability during shaft rotation. For multi-probe installations, separate parallel signal paths where possible to reduce electromagnetic coupling effects. Ensure that cable shielding and grounding follow the machinery monitoring system installation requirements.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe The Bently Nevada 330101-00-20-10-02-CN, also cataloged as the 330101 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within the 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model 330101-00-20-10-02-CN Brand Bently Nevada Product Type 3300 XL 8 mm Proximity Probe Origin USA Weight 0.05 kg Dimensions Estimated shipping size: 1.6 x 1.3 x 112 cm Power Consumption Passive probe element, powered by compatible Proximitor Sensor Thread Type 3/8-24 UNF thread Probe Construction Armored design Unthreaded Length 0.0 in Overall Case Length 2.0 in Total Length 1.0 meter (3.3 feet) Connector Type Miniature coaxial ClickLoc connector standard cable Cable Option Standard cable with miniature coaxial ClickLoc connector Agency Approval CSA, ATEX, IECEx approvals System Compatibility 3300 XL 8 mm Proximity Transducer System Eddy-Current Probe Scaling and Rotor Dynamics Characteristics The Bently Nevada 3300 XL 8 mm Proximity Probe uses eddy-current measurement technology to convert shaft displacement into proportional electrical signals through a compatible Proximitor Sensor. The probe maintains interchangeable mechanical dimensions across 3300 XL 8 mm system components, allowing replacement without individual probe, extension cable, and sensor matching procedures. Additionally, the probe supports rotor dynamics monitoring by providing consistent gap measurement performance for vibration and position analysis. The system uses gap voltage validation with typical -10 VDC target conditions to verify probe operating range and mechanical installation alignment. The probe design incorporates signal stability characteristics required for rotating equipment monitoring. Furthermore, the 3300 XL 8 mm configuration supports API 670 mechanical installation requirements for probe configuration, linear range, accuracy, and temperature stability. Frequently Asked Questions Q: Can the 330101-00-20-10-02-CN probe operate independently without a Proximitor Sensor?A: No. The probe functions as part of the 3300 XL Proximity Transducer System and requires a compatible Proximitor Sensor for signal conditioning and output. Q: What connector configuration does this model use?A: This model uses a miniature coaxial ClickLoc connector with a standard cable configuration. Q: Does the probe require individual calibration with the extension cable and sensor?A: No. The 3300 XL 8 mm system design supports interchangeable probes, extension cables, and Proximitor Sensors within the specified system configuration. Field Installation Guidelines Install the probe using the specified 3/8-24 UNF threaded mounting interface and maintain correct mechanical alignment with the monitored shaft surface. Verify probe gap voltage after installation to confirm the probe operates within the intended measurement range. A typical validation reference uses a -10 VDC gap voltage target. Route the coaxial cable away from high-current power conductors and strong electromagnetic interference sources. Maintain proper cable shielding and grounding practices according to the 3300 XL system installation requirements. Confirm connector engagement at the ClickLoc interface before commissioning the monitoring channel. Inspect the armored section during installation to prevent excessive bending radius stress or mechanical damage.
$200.00 $100.00
-
Bently Nevada 330102-00-40-10-01-05 3300 XL 8 mm Proximity Probe Bently Nevada
Bently Nevada 330102-00-40-10-01-05 3300 XL 8 mm Proximity Probe Configured for shaft displacement measurement in the Bently Nevada 3300 XL Proximity Transducer System, the Bently Nevada 330102-00-40-10-01-05 (330102 3300 XL 8 mm Proximity Probe) provides direct eddy-current sensing output for machinery vibration and position monitoring circuits. Hardware Specifications Parameter Specification Model 330102-00-40-10-01-05 Brand Bently Nevada Product Type 3300 XL 8 mm Proximity Probe Origin USA Weight 0.15 kg Dimensions Estimated shipping size: 1.5 x 1.3 x 117 cm Operating Temp Not specified in provided data Power Consumption Passive eddy-current probe, powered by compatible proximity transducer system Probe Thread 3/8-24 UNF thread Probe Construction Armored probe design Unthreaded Length 0.0 in Overall Case Length 4.0 in Total Length 1.0 meter (3.3 feet) Cable Type Standard cable with miniature coaxial ClickLoc connector and connector protector Agency Approvals CSA, ATEX, IECEx Tariff Code 8537101190 Shipment Location Xiamen, China Eddy-Current Probe Scaling and Gap Voltage Validation The 330102-00-40-10-01-05 uses Bently Nevada 3300 XL eddy-current measurement technology to convert shaft surface movement into electrical displacement signals. The probe operates with compatible proximity sensor electronics that maintain calibrated probe scaling for accurate vibration and position measurement. Furthermore, the system uses gap voltage validation methods during installation. Technicians typically verify probe gap voltage conditions against the -10 VDC target range to confirm correct mechanical positioning between the probe tip and the rotating target surface. The armored construction reduces mechanical damage risks during field installation. In addition, the miniature coaxial ClickLoc connector maintains signal integrity between the probe and extension cable assembly. Frequently Asked Questions Q: What measurement principle does the 330102-00-40-10-01-05 use?A: The probe uses eddy-current sensing technology to measure shaft displacement without physical contact with the rotating target. Q: What connector configuration does this probe include?A: This model includes a miniature coaxial ClickLoc connector with a connector protector and standard cable configuration. Q: Can this probe operate as a standalone measurement device?A: No. The probe requires a compatible Bently Nevada proximity transducer interface to provide power excitation and process the displacement signal. Field Installation Guidelines Install the probe using the specified 3/8-24 UNF threaded mounting interface and verify mechanical alignment before operation. Confirm the probe tip faces the target surface with correct clearance according to the associated Bently Nevada transducer system installation procedure. Check gap voltage during commissioning to verify proper probe positioning and signal response. Route the coaxial cable away from high-current power conductors to minimize electrical interference. Maintain connector cleanliness and ensure the ClickLoc connector is fully secured before system startup. Connect cable shielding according to the machinery monitoring system grounding requirements.
$200.00 $100.00
-
Bently Nevada 330171-12-41-10-02-05 3300 5mm Proximity Probe Bently Nevada
Bently Nevada 330171-12-41-10-02-05 3300 5mm Proximity Probe The Bently Nevada 330171-12-41-10-02-05, also cataloged as the 330171 3300 5mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement within the 3300 Proximity Transducer System. The probe converts shaft position changes into proportional electrical signals through a compatible 3300 XL Proximitor Sensor and extension cable assembly. Hardware Specifications Parameter Specification Model 330171-12-41-10-02-05 Brand Bently Nevada Product Type 3300 5mm Proximity Probe Origin USA Weight 0.16 kg Dimensions Estimated shipping size: 18 x 18 x 1.5 cm Operating Temp Wide temperature range operation supported by 3300 XL Proximity Transducer System design Power Consumption Passive probe element; powered through connected Proximitor Sensor system Probe Thread Type 1/4-28 UNF thread Armor Option Without armor Unthreaded Length Option 1.2 in Overall Case Length Option 4.1 in Total Length Option 1.0 metre (3.3 feet) Connector Option Miniature coaxial ClickLoc connector standard cable Agency Approval Option Multiple Approvals Measurement Principle Eddy-current non-contact displacement measurement Signal Output Voltage proportional to distance between probe tip and conductive target surface Measurement Application Shaft vibration, shaft position, Keyphasor measurement, speed measurement Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 330171 series probe uses eddy-current sensing technology to measure conductive target displacement without mechanical contact. The connected Proximitor Sensor scales the probe signal according to the probe tip-to-target gap distance. The system supports rotor dynamics analysis by providing vibration and position data from fluid-film bearing machines. In addition, the probe output maintains signal stability across temperature variations through matched electrical characteristics with compatible 3300 XL extension cables and Proximitor Sensors. The installation process requires gap voltage validation to confirm the operating range. Bently Nevada proximity systems commonly use approximately -10 VDC gap voltage targets for proper probe positioning and signal calibration. Frequently Asked Questions Q: What measurement signals can the 330171-12-41-10-02-05 provide?A: The probe provides displacement-related signals through a connected Proximitor Sensor. The system measures both static shaft position and dynamic vibration signals. Q: Can the 330171-12-41-10-02-05 operate without a Proximitor Sensor?A: No. The probe requires a compatible Proximitor Sensor and extension cable to convert eddy-current measurements into usable voltage output signals. Q: What cable connection does this probe use?A: This configuration uses a miniature coaxial ClickLoc connector with a standard cable assembly. Field Installation Guidelines Install the 1/4-28 UNF threaded probe with correct mechanical engagement to maintain probe alignment with the monitored shaft surface. Maintain proper probe tip clearance from the conductive target area before system calibration. Route the coaxial cable away from high-current conductors and electromagnetic interference sources. Connect cable shielding according to the monitoring system grounding requirements to reduce electrical noise. Verify the probe gap voltage after installation before placing the machinery monitoring channel into service. Avoid mechanical damage to the probe tip, connector interface, and cable jacket during installation. Confirm compatibility between the probe, extension cable, and Proximitor Sensor before commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330190-085-00-05 3300 XL ETR Extension Cable
Bently Nevada 330190-085-00-05 3300 XL ETR Extension Cable Configured for high-temperature signal transmission in the 3300 XL 8 mm Proximity Transducer System, the Bently Nevada 330190-085-00-05 (330190 3300 XL ETR Extension Cable) provides direct electrical connection between the proximity probe and Proximitor Sensor. Hardware Specifications Parameter Specification Model 330190-085-00-05 Brand Bently Nevada Product Type 3300 XL Extended Temperature Range (ETR) Extension Cable Origin USA Weight 0.25 kg Dimensions 20 x 20 x 2.5 cm estimated shipping size Cable Length 8.5 meters (27.9 feet) Cable Type Standard cable Cable Impedance 75 Ohm triaxial cable Operating Temp Extension cable rated up to 260 deg C (500 deg F) Power Consumption Passive cable component, no external power consumption System Compatibility 3300 XL 8 mm Proximity Transducer System Probe Compatibility Standard and Extended Temperature Range (ETR) probes Agency Approvals CSA, ATEX, IECEx Tariff Code 8537101190 Shipment Location Xiamen, China Eddy-Current Signal Transmission and Rotor Dynamics Monitoring The 330190-085-00-05 maintains the electrical signal path between the 3300 XL 8 mm probe and the 3300 XL Proximitor Sensor. Therefore, the system converts probe gap distance into proportional output voltage for shaft position and vibration measurements. The ETR extension cable supports applications where cable exposure exceeds the standard 177 deg C temperature specification. In addition, the cable construction allows operation with ETR probes rated up to 218 deg C and cable temperature exposure up to 260 deg C. The 3300 XL system uses eddy-current measurement technology to monitor conductive shaft targets. Furthermore, the transducer chain supports rotor dynamics analysis, radial vibration monitoring, axial position measurement, and Keyphasor reference signals. The system requires proper eddy-current probe scaling and gap voltage validation during commissioning. The standard operating target for probe gap voltage validation is typically -10 VDC, which confirms the probe operating range and signal conditioning accuracy. Frequently Asked Questions Q: Can the 330190-085-00-05 operate with standard 3300 XL Proximitor Sensors?A: Yes. The ETR extension cable uses the standard 3300 XL signal interface and operates with compatible 3300 XL Proximitor Sensors. Q: What temperature limitation applies to the 330190-085-00-05 cable?A: The extension cable supports temperatures up to 260 deg C (500 deg F). The total system accuracy is limited by the ETR component specifications when ETR components are installed. Q: Can this cable replace existing 3300 series extension cables?A: The cable is interchangeable within compatible 3300 XL 8 mm systems and supports upgrades or replacements in existing installations when system configuration requirements are met. Field Installation Guidelines Install the extension cable according to the 3300 XL Proximity Transducer System wiring requirements. Maintain separation between the transducer cable and high-current power conductors to reduce electrical interference. Connect cable shielding according to the system grounding specification to minimize signal noise. Avoid sharp bending, mechanical stress, and excessive pulling force during cable routing. Verify probe, extension cable, and Proximitor Sensor compatibility before commissioning. Perform gap voltage validation after installation to confirm correct probe positioning and signal operation.
$200.00 $100.00
-
Bently Nevada 330130-040-12-CN 3300 XL Extension Cable | Bently Nevada
Bently Nevada 330130-040-12-CN 3300 XL Extension Cable The Bently Nevada 330130-040-12-CN, also cataloged as the 330130 3300 XL Extension Cable, operates as a dedicated hardware component for eddy-current probe signal extension within the Bently Nevada 3300 XL Proximity Transducer System. Hardware Specifications Parameter Specification Model 330130-040-12-CN Brand Bently Nevada Product Type 3300 XL Extension Cable Origin USA Weight 0.034 kg Dimensions Not specified Operating Temp -51 deg C to +177 deg C (-60 deg F to +351 deg F) Power Consumption Passive cable component, no external power consumption Cable Length 4.0 meters (13.1 feet) Cable Construction 75 ohm triaxial, FEP insulated cable Cable Option FluidLoc cable with connector protectors Connector Protection Integrated connector protectors Probe Cable Compatibility Supports 0.5 m, 1 m, 1.5 m, 2 m, 5 m, and 9 m total probe length configurations Agency Approval CN approval option for country-specific requirements Eddy-Current Signal Extension and Rotor Dynamics Interface The 330130-040-12-CN extension cable transfers eddy-current probe signals between the proximity probe and the Proximitor sensor module in the 3300 XL transducer chain. The 75 ohm triaxial FEP insulated construction maintains signal characteristics for shaft displacement and vibration measurement circuits. Furthermore, the cable design supports Bently Nevada eddy-current probe scaling requirements by maintaining stable impedance characteristics across the measurement path. Proper cable selection helps preserve gap voltage validation performance, including typical -10 VDC target gap reference conditions used during proximity system calibration. The FluidLoc cable option provides additional protection against fluid migration along the cable structure. Additionally, the connector protector design reduces mechanical stress at connection points during field installation. Frequently Asked Questions Q: Does the 330130-040-12-CN cable require external power supply?A: No. The 330130-040-12-CN is a passive extension cable and does not consume electrical power. It transfers the proximity probe signal between connected Bently Nevada transducer components. Q: What cable construction does the 330130-040-12-CN use?A: The cable uses a 75 ohm triaxial FEP insulated construction designed for eddy-current proximity measurement signal transmission. Q: Can the 330130-040-12-CN be installed with different probe length configurations?A: Yes. The cable supports 3300 XL probe system configurations using total probe lengths of 0.5 m, 1 m, 1.5 m, 2 m, 5 m, or 9 m according to system configuration requirements. Field Installation Guidelines Install the 330130-040-12-CN cable according to the Bently Nevada 3300 XL proximity system wiring requirements. Route the extension cable away from high-current power cables and strong electromagnetic interference sources. Maintain proper cable bending practices to prevent damage to the triaxial shielding structure. Verify connector cleanliness before mating the cable with the probe and Proximitor sensor. Confirm shield continuity and grounding practices follow the installed monitoring system requirements. Avoid unnecessary cable loops near rotating equipment to reduce mechanical stress and signal disturbance. Verify gap voltage readings after installation to confirm correct proximity probe operating conditions.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330190-045-00-00 3300 XL Extension Cable
Bently Nevada 330190-045-00-00 3300 XL Extension Cable The Bently Nevada 330190-045-00-00, also cataloged as the 330190 Extension Cable, operates as a dedicated hardware component for proximity signal transmission within the Bently Nevada 3300 XL Transducer System. Hardware Specifications Parameter Specification Model 330190-045-00-00 Brand Bently Nevada Product Type 3300 XL Extension Cable Origin USA Weight 0.26 kg Dimensions 20 x 20 x 2 cm estimated shipping size Cable Length 4.5 meters (14.8 feet) Cable Type Standard cable Cable Construction 75 Ohm triaxial cable, fluoroethylenepropylene (FEP) insulated Output Resistance 50 Ohm Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical Operating Temp Not specified in supplied data Power Consumption Passive cable component, no external power consumption Eddy-Current Signal Transmission and Rotor Monitoring Characteristics The 330190-045-00-00 extension cable maintains the electrical connection between Bently Nevada proximity probes and monitoring instrumentation. Therefore, it supports eddy-current probe scaling by preserving signal characteristics required for shaft displacement and vibration measurement. The cable construction uses a 75 Ohm triaxial design with FEP insulation. Additionally, the controlled capacitance value supports stable high-frequency signal transmission across the 3300 XL proximity measurement chain. For rotor dynamics applications, the extension cable provides a controlled impedance path between the probe and signal conditioner. The installation arrangement helps maintain accurate gap voltage validation, including typical Bently Nevada proximity system requirements around -10 VDC target gap conditions. The triaxial shielding structure reduces electrical interference and supports cross-talk suppression between adjacent monitoring channels. As a result, the cable maintains signal integrity in machinery monitoring installations where multiple proximity channels operate together. Frequently Asked Questions Q: What function does the Bently Nevada 330190-045-00-00 provide in the 3300 XL system?A: The cable extends the electrical connection between a 3300 XL proximity probe and the associated monitoring module while maintaining specified impedance and capacitance characteristics. Q: Is the 330190-045-00-00 cable an active electronic module?A: No. The unit is a passive extension cable and does not require external power or firmware configuration. Q: What cable construction does this model use?A: The model uses a 75 Ohm triaxial cable design with FEP insulation and a typical capacitance of 69.9 pF/m. Field Installation Guidelines Install the 330190-045-00-00 cable according to the Bently Nevada 3300 XL system wiring requirements. Route the cable away from high-current power conductors, variable frequency drive outputs, and strong electromagnetic interference sources. Maintain proper separation between multiple proximity signal cables to reduce possible signal coupling. Connect shielding according to the monitoring system grounding practice and avoid creating unwanted ground loops. Verify cable connectors, probe connections, and monitor terminals before system commissioning. Confirm the proximity system gap voltage after installation to validate correct probe positioning and signal chain operation. Avoid excessive bending, mechanical stress, or damage to the FEP insulated cable surface.
$200.00 $100.00
-
Bently Nevada 330171-00-20-10-02-00 Bently Nevada 3300 5 mm Proximity Probe
Bently Nevada 330171-00-20-10-02-00 3300 5 mm Proximity Probe The Bently Nevada 330171-00-20-10-02-00, also cataloged as the 330171 3300 5 mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement and vibration monitoring within the 3300 Transducer System. Hardware Specifications Parameter Specification Model 330171-00-20-10-02-00 Brand Bently Nevada Product Type 3300 5 mm Proximity Probe Origin USA Dimensions Overall case length: 2.0 in; unthreaded length: 0.0 in Operating Temp -35 deg C to +177 deg C Power Consumption Passive probe element; powered by compatible Proximitor sensor Measurement Technology Eddy-current non-contact displacement sensing Thread Type 1/4-28 UNF Cable Length 1.0 meter (3.3 feet) Cable Type 75 ohm triaxial FEP insulated standard cable without armor Connector Type Miniature coaxial ClickLoc connector Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 303 or 304 stainless steel Linear Range 2.0 mm (80 mils) Linear Range Position Approximately 0.25 mm to 2.3 mm from target surface Recommended Gap Setting 1.27 mm (50 mils) Incremental Scale Factor 7.87 V/mm (200 mV/mil) +/-6.5% typical Deviation from Best Fit Straight Line Less than +/-0.038 mm (+/-1.5 mil) typical Frequency Response 0 to 6.5 kHz (+0, -3 dB) Case Torque 5.1 N m recommended; 7.3 N m maximum Connector Configuration Miniature coaxial ClickLoc connector, gold-plated brass/beryllium copper Eddy-Current Measurement and Rotor Dynamics Characteristics The 330171-00-20-10-02-00 probe uses eddy-current sensing principles to convert shaft displacement into electrical signals for machinery protection systems. The probe operates with a matched Proximitor sensor and extension cable configuration, which maintains system calibration without individual component adjustment. Additionally, the probe provides stable eddy-current probe scaling through a defined incremental scale factor of 7.87 V/mm. Therefore, vibration amplitude, radial shaft movement, and axial position measurements can be processed by compatible 3300 monitoring modules. The probe supports rotor dynamics analysis by providing displacement signals required for vibration phase, shaft position, and mechanical movement evaluation. Moreover, proper gap voltage validation remains necessary during commissioning, with Bently Nevada systems typically using -10 VDC target gap voltage for compatible proximity measurement circuits. The probe design also minimizes signal interference through controlled cable construction and shielded triaxial wiring. Consequently, the measurement circuit maintains signal integrity in machinery monitoring installations. Frequently Asked Questions Q: Does the 330171-00-20-10-02-00 require individual calibration with the Proximitor sensor?A: No. The 3300 5 mm transducer system uses interchangeable probe, cable, and Proximitor sensor components without individual calibration matching. Q: What target material is used for the specified scale factor performance?A: The stated incremental scale factor applies to a standard AISI 4140 steel target material. Q: What installation parameter affects displacement measurement accuracy?A: Correct probe gap adjustment and gap voltage verification directly affect measurement accuracy. The compatible system normally validates the operating gap near -10 VDC. Field Installation Guidelines Install the probe with the specified 1/4-28 UNF mounting thread and maintain proper mechanical alignment with the monitored shaft surface. Verify the probe tip position before operation and adjust the installation gap according to the connected Proximitor sensor requirements. During commissioning, check the gap voltage output to confirm the probe operates inside the linear measurement range. Route the 75 ohm triaxial cable away from high-current power conductors and variable frequency drive output cables to reduce electrical interference. Maintain proper connector protection because exposed ClickLoc connectors require suitable environmental protection. Ensure the probe case contacts the machine mounting structure correctly when grounding requirements apply. Confirm cable routing, connector locking, and mechanical clearance before placing the machinery protection channel into service.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330130-030-00-05 3300 XL Standard Extension Cable
Bently Nevada 330130-030-00-05 3300 XL Standard Extension Cable Configured for signal transmission between proximity probes and proximity sensors in the 3300 XL Proximity Transducer System, the Bently Nevada 330130-030-00-05 (330130 Standard Extension Cable) provides direct electrical connection through a fixed-length extension cable assembly. Hardware Specifications Parameter Specification Model 330130-030-00-05 Brand Bently Nevada Product Type 3300 XL Standard Extension Cable Origin USA Weight 0.22 kg Dimensions 20.4 x 22.2 x 3.5 cm (estimated shipping size) Cable Length 3.0 meters Cable Configuration Standard cable Connector Protection Standard cable option Agency Approvals CSA, ATEX, IECEx Power Consumption Passive cable component, no external power consumption Eddy-Current Signal Transmission and Rotor Monitoring Interface The Bently Nevada 330130-030-00-05 extension cable transfers eddy-current proximity probe signals within the 3300 XL Proximity Transducer System. It maintains the electrical connection between the probe and compatible signal conditioning electronics while preserving measurement signal integrity. The cable assembly supports machinery monitoring applications where probe extension distance requires a dedicated interconnection component. Therefore, proper cable routing, shielding, and connector protection directly affect vibration and shaft position measurement quality. The 3300 XL system uses calibrated probe, extension cable, and proximity sensor combinations. Consequently, technicians must verify cable compatibility during installation to maintain correct probe scaling characteristics and gap voltage validation requirements. Bently Nevada monitoring systems typically validate probe operating conditions around the -10 VDC gap voltage target range. Frequently Asked Questions Q: Is the 330130-030-00-05 extension cable an active electronic module?A: No. The 330130-030-00-05 is a passive extension cable assembly. It does not contain signal processing circuits or require external power. Q: Can this cable be installed with any Bently Nevada proximity probe?A: No. The cable must match the compatible 3300 XL probe and proximity sensor configuration to maintain correct electrical characteristics and calibration. Q: What installation practice is required for signal protection?A: Installers should maintain proper cable separation from high-current conductors and apply correct shield grounding practices according to the monitoring system installation requirements. Field Installation Guidelines Verify the cable part number before installation and confirm compatibility with the connected 3300 XL probe and proximity sensor. Route the extension cable away from high-voltage and high-current power lines to reduce electromagnetic interference. Avoid sharp bending, mechanical stress, or excessive pulling force on the cable assembly. Maintain proper connector protection during installation to prevent contamination or physical damage. Confirm the complete probe-cable-driver combination before commissioning the vibration or shaft position monitoring channel. Check signal stability and gap voltage readings after installation to verify correct eddy-current measurement operation.
$200.00 $100.00
-
Bently Nevada 330910-00-03-10-02-00 Bently Nevada 3300 NSv Proximity Probe
Bently Nevada 330910-00-03-10-02-00 3300 NSv Proximity Probe The Bently Nevada 330910-00-03-10-02-00, also cataloged as the 330910 3300 NSv Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada TSI monitoring systems. The probe uses eddy-current sensing technology to provide proportional vibration and position signals from rotating machinery targets. Hardware Specifications Parameter Specification Model 330910-00-03-10-02-00 Brand Bently Nevada Product Series 3300 NSv Proximity Probes Product Type Eddy-Current Proximity Probe Origin USA Weight 0.15 kg Dimensions Estimated shipping size: 68.3 x 1.7 x 2 cm Thread Type M10 x 1 Armor Configuration With armor Unthreaded Length 0 mm Overall Case Length 30 mm Total Length 1.0 meter (39 in) Connector Type Miniature coaxial ClickLoc connector Cable Type Standard cable Measurement Principle Eddy-current non-contact displacement measurement Power Consumption Supplied through compatible Bently Nevada proximity system electronics Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 330910-00-03-10-02-00 probe converts shaft displacement changes into proportional electrical signals through eddy-current field variation. Therefore, the connected monitoring channel can process radial vibration, axial position, or rotational displacement data through compatible Bently Nevada signal conditioning modules. The 3300 NSv design applies probe scaling characteristics for compact machinery applications where installation clearance limits standard probe installation. In addition, the sensor geometry supports rotor dynamics evaluation by maintaining stable measurement performance near rotating conductive targets. The probe system requires correct gap voltage adjustment during commissioning. Field technicians typically verify the probe operating gap using the Bently Nevada monitor input signal, with standard setup procedures referencing a -10 VDC target gap voltage for proper measurement range validation. Frequently Asked Questions Q: What measurement technology does the 330910-00-03-10-02-00 use?A: The probe uses eddy-current technology to measure shaft displacement without physical contact between the probe tip and the rotating target. Q: What connector configuration does this probe provide?A: This model uses a miniature coaxial ClickLoc connector with a standard cable configuration. Q: Does the probe require agency approval certification?A: The provided configuration specifies that no agency approval option is included. Field Installation Guidelines Install the M10 x 1 threaded probe body with correct mechanical alignment to the target surface. Maintain proper probe gap adjustment before connecting the monitoring channel. Route the coaxial cable away from high-current power conductors to reduce electromagnetic interference. Connect the cable shield according to the installed Bently Nevada monitoring system grounding practice. Verify signal polarity, gap voltage, and channel scaling after mechanical installation. Avoid excessive bending or mechanical stress on the miniature coaxial ClickLoc connector area.
$200.00 $100.00
-
Bently Nevada 330910-00-07-10-02-00 3300 NSv Proximity Probe Bently Nevada
Bently Nevada 330910-00-07-10-02-00 3300 NSv Proximity Probe The Bently Nevada 330910-00-07-10-02-00, also cataloged as the 330910 3300 NSv Proximity Probe, operates as a dedicated hardware component for eddy-current shaft displacement measurement within Bently Nevada 3300 XL NSv Proximity Transducer Systems. Hardware Specifications Parameter Specification Model 330910-00-07-10-02-00 Brand Bently Nevada Product Series 3300 NSv Proximity Probe / 3300 XL NSv Proximity Transducer Series Origin USA Dimensions 70 mm case length, M10 x 1 metric thread, 1.0 m integral cable Operating Temp -51 deg C to +177 deg C Power Consumption Passive probe device; power supplied by matching 3300 XL NSv Proximitor Sensor Measurement Type Eddy-current non-contact displacement measurement Target Application Small shaft radial vibration and axial position monitoring Target Size Capability Shafts smaller than 51 mm or flat axial targets smaller than 15 mm Incremental Scale Factor 7.87 V/mm (200 mV/mil) typical with matching Proximitor Sensor Linear Operating Range Approximately 1.5 mm (60 mils) Frequency Response 0 Hz to 10 kHz (+0, -3 dB typical) Calibration Target Material AISI 4140 steel Probe Thread M10 x 1 metric thread Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 304 stainless steel Cable Type 1.0 m integral fluid-resistant cable with miniature ClickLoc connector Cable Resistance 4.2 +/- 0.5 ohm DC resistance between center conductor and outer shield Maximum Mounting Torque 33.9 N m (300 in lb) Recommended Installation Torque 5.1 N m (45 in lb) Humidity Limit 100% condensing, sealed probe construction Eddy-Current Probe Scaling and Gap Voltage Validation The 330910-00-07-10-02-00 uses eddy-current sensing technology to convert shaft surface displacement into proportional electrical output through a matched 3300 XL NSv Proximitor Sensor. The system provides a nominal scale factor of 7.87 V/mm for vibration and position monitoring. During installation, technicians validate the probe gap voltage to maintain the correct operating point. The monitoring loop typically references the -10 VDC gap voltage target used by Bently Nevada proximity measurement systems. Therefore, correct probe positioning directly affects displacement accuracy and rotor dynamics analysis. The probe design also supports small-target rotor applications where standard probe diameters cannot achieve required mechanical clearance. In addition, the narrow side-view configuration reduces installation restrictions around compact rotating assemblies. Frequently Asked Questions Q: Can the 330910-00-07-10-02-00 operate as a standalone sensor?A: No. The probe requires a compatible 3300 XL NSv Proximitor Sensor and appropriate extension cable to complete the eddy-current measurement circuit. Q: What target materials are used for standard calibration?A: The probe is calibrated for AISI 4140 steel targets. Different target materials may require calibration verification. Q: What installation condition affects measurement accuracy most?A: Probe gap setting, mounting stability, cable routing, and correct shield connection directly influence displacement signal quality. Field Installation Guidelines Install the probe with the M10 x 1 metric threaded body according to the mechanical mounting drawing. Set the probe gap within the specified linear operating region before commissioning the monitoring channel. Verify the gap voltage at the connected Proximitor Sensor before operating the machinery. Maintain cable separation from high-current power conductors to reduce electrical interference. Connect cable shielding according to the monitoring system grounding practice. Avoid excessive bending stress near the probe cable termination and ClickLoc connector area. Confirm the probe tip alignment with the shaft or axial target surface before final tightening. Use the recommended mounting torque to prevent mechanical damage while maintaining sensor
$200.00 $100.00
-
Bently Nevada 330901-00-16-05-02-CN 3300 NSv Proximity Probe Bently Nevada
Bently Nevada 330901-00-16-05-02-CN 3300 NSv Proximity Probe The Bently Nevada 330901-00-16-05-02-CN, also cataloged as the 330901 3300 NSv Proximity Probe, operates as a dedicated eddy-current measurement component for shaft displacement monitoring within the 3300 NSv Proximity Transducer System. Hardware Specifications Parameter Specification Model 330901-00-16-05-02-CN Brand Bently Nevada Product Series 3300 NSv Proximity Probe Origin USA Weight 0.14 kg Dimensions 1/4-28 UNF threaded probe, 1.6 inch overall case length, 0.5 meter integrated cable Operating Temp -52 deg C to +177 deg C Power Consumption Supplied by 3300 XL NSv Proximitor Sensor, -17.5 VDC to -26 VDC system supply Measurement Principle Eddy-current non-contact displacement measurement Linear Range 1.5 mm (60 mils) Average Scale Factor 7.87 V/mm (200 mV/mil) nominal Frequency Response 0 to 10 kHz Output Resistance 50 Ohm Thread Type 1/4-28 UNF unarmored design Probe Tip Material Polyphenylene Sulfide (PPS) Probe Case Material AISI 304 Stainless Steel Cable Type 75 Ohm coaxial cable with FEP insulation Connector Type Miniature gold-plated brass ClickLoc coaxial connector Maximum Thread Torque 7.3 N m maximum Eddy-Current Scaling and Rotor Dynamics Monitoring The 330901 series probe provides calibrated eddy-current displacement output through the 3300 XL NSv Proximitor Sensor. The system maintains a nominal scale factor of 7.87 V/mm, which allows the monitoring system to convert probe voltage variation into shaft position data. Furthermore, the probe supports rotor dynamics analysis by measuring shaft movement without physical contact. The narrow side-view construction reduces installation interference and supports applications where standard radial probes cannot achieve required clearance. The NSv system requires matched probe, extension cable, and Proximitor Sensor combinations. This configuration maintains gap voltage validation, signal linearity, and measurement accuracy during machinery operation. Proper installation normally verifies the operating gap voltage near the -10 VDC target condition. Frequently Asked Questions Q: Can the 330901-00-16-05-02-CN probe operate with standard 3300 XL 8 mm Proximitor Sensors?A: No. The 330901 NSv probe requires a compatible 3300 XL NSv Proximitor Sensor and NSv extension cable configuration. Standard 3300 XL 8 mm components are not interchangeable. Q: What type of connector and cable assembly does this probe use?A: This model uses a miniature ClickLoc coaxial connector with a 0.5 meter FEP insulated coaxial cable. Q: How does the probe measure shaft displacement?A: The probe generates an eddy-current field at the probe tip. Changes in the distance between the probe and conductive shaft surface modify the electrical output signal, which the Proximitor Sensor converts into displacement data. Field Installation Guidelines Install the probe with the correct 1/4-28 UNF mounting hardware and maintain the specified mechanical clearance between the probe tip and the target surface. Route the coaxial cable away from high-current conductors, ignition sources, and strong electromagnetic interference areas. Avoid sharp cable bends that may affect cable insulation or signal stability. Connect the ClickLoc connector securely and verify that the probe, extension cable, and Proximitor Sensor form a matched calibrated system. During commissioning, measure the probe gap voltage and confirm the operating condition near the required -10 VDC target range. Check signal stability while rotating equipment operates under normal conditions.
$200.00 $100.00
-
Bently Nevada 330901-00-32-05-02-CN 3300 NSv Proximity Probe Bently Nevada
Bently Nevada 330901-00-32-05-02-CN 3300 NSv Proximity Probe The Bently Nevada 330901-00-32-05-02-CN, also cataloged as the 330901 3300 NSv Proximity Probe, operates as a dedicated eddy-current measurement component for shaft displacement and vibration monitoring within Bently Nevada proximity monitoring systems. It provides non-contact gap measurement through a 5 mm probe tip, integrated 0.5 m cable, and ClickLoc coaxial connection. Hardware Specifications Parameter Specification Model 330901-00-32-05-02-CN Brand Bently Nevada Product Series 3300 NSv Proximity Probe Product Type Eddy-Current Proximity Sensors Origin USA Dimensions 3.2 inch overall case length, 5 mm tip diameter Operating Temp -51 deg C to +177 deg C Power Consumption Supplied by 3300 XL NSv Proximitor sensor Probe Thread Type 1/4-28 UNF-2A Unthreaded Length 0.0 inch Integral Cable Length 0.5 m Connector Type Miniature ClickLoc coaxial connector Linear Range 1.5 mm (60 mils) Average Scale Factor 7.87 V/mm (200 mV/mil) Recommended Gap Setting 1.0 mm (40 mils) Frequency Response 0 to 10 kHz (+/-3 dB) Output Impedance 50 ohm Probe DC Resistance 4.0 ohm +/- 0.5 ohm Housing Material AISI 303 or 304 Stainless Steel Tip Material Polyphenylene Sulfide (PPS) Cable Construction 75 ohm coaxial cable with FEP insulation Hazardous Area Approval NEPSI China Ex approval Eddy-Current Probe Scaling and Rotor Dynamics Measurement The 330901-00-32-05-02-CN uses eddy-current probe scaling characteristics to convert shaft displacement into proportional electrical signals. The probe operates with a 3300 XL NSv Proximitor and maintains a 7.87 V/mm average scale factor across its measurement range. Furthermore, the system supports rotor dynamics analysis by measuring dynamic radial vibration and static shaft position. The 1.5 mm linear range allows monitoring of mechanical movement through a stable electromagnetic sensing field. The probe requires gap voltage validation during installation. Field technicians typically verify the operating gap near the -10 VDC target range at the Proximitor output to confirm correct probe positioning and signal conditioning. The narrow side-view construction also reduces installation limitations in restricted mechanical locations while maintaining signal performance for small shaft targets. Frequently Asked Questions Q: What Proximitor module is required for the 330901-00-32-05-02-CN probe?A: The probe operates with a compatible 3300 XL NSv Proximitor sensor that provides excitation power and converts the eddy-current signal into vibration and position outputs. Q: Can this probe measure both vibration and shaft position?A: Yes. The probe measures dynamic shaft displacement for vibration monitoring and static displacement for position measurement when configured with the appropriate monitoring system. Q: What installation factors affect measurement accuracy?A: Correct probe gap adjustment, proper thread engagement, cable routing, and shield grounding practices directly affect measurement stability and signal quality. Field Installation Guidelines Install the probe using the specified 1/4-28 UNF mounting thread and maintain proper mechanical alignment with the monitored shaft surface. Adjust the probe gap according to the 3300 XL NSv system requirements and verify the gap voltage output before commissioning. Protect the ClickLoc coaxial connector from contamination, moisture, and mechanical stress during installation. Route the integral cable away from high-current conductors and strong electromagnetic interference sources. Connect cable shielding according to the monitoring system grounding design to reduce electrical noise. Avoid excessive bending or pulling force on the integral cable because mechanical stress can affect probe signal integrity. Confirm hazardous area installation requirements when applying the CN NEPSI approval option.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330903-02-16-05-02-00 3300 NSv Proximity Probe
Bently Nevada 330903-02-16-05-02-00 3300 NSv Proximity Probe The Bently Nevada 330903-02-16-05-02-00, also cataloged as the 330903 3300 NSv Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement within the 3300 NSv Proximity Transducer System. The probe provides non-contact shaft position and vibration signals through a miniature coaxial connection. Hardware Specifications Parameter Specification Model 330903-02-16-05-02-00 Brand Bently Nevada Product Series 3300 NSv Proximity Probe Product Type Eddy-Current Proximity Sensor Origin USA Weight 0.14 kg Dimensions M8x1 thread, 160 mm case length, 0.5 meter total cable length Operating Temp -52 deg C to +177 deg C Power Consumption Supplied by external Proximitor Sensor, no independent power input Thread Type M8x1 metric, unarmored design Unthreaded Length 20 mm Linear Range 0 to 1.5 mm (0 to 60 mils) Incremental Scale Factor 7.87 V/mm (200 mV/mil) nominal Recommended Gap Setting 1.0 mm (40 mils) Frequency Response 0 to 10 kHz (+0, -3 dB typical) Deviation From Straight Line Less than +/-0.06 mm (+/-2.3 mils) Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 304 Stainless Steel Connector Type Miniature coaxial ClickLoc gold-plated connector Maximum Torque 0.56 N m Eddy-Current Probe Scaling and Rotor Dynamics Measurement The 3300 NSv proximity probe uses eddy-current sensing technology to convert shaft displacement into proportional electrical output. The probe maintains a nominal incremental scale factor of 7.87 V/mm, which allows the connected Proximitor Sensor to process dynamic vibration and axial position signals. Additionally, the M8x1 compact mechanical structure supports installations where probe clearance is restricted. The sensor geometry minimizes installation interference near small-diameter rotating shafts while maintaining signal response characteristics required for rotor dynamics analysis. The system applies gap voltage validation through the Proximitor Sensor interface. During commissioning, technicians normally verify the probe gap voltage near the -10 VDC target condition to confirm correct operating range and probe-to-target positioning. Frequently Asked Questions Q: What type of signal does the 330903-02-16-05-02-00 generate?A: The probe generates an eddy-current displacement signal that requires connection to a compatible Bently Nevada Proximitor Sensor for signal conditioning and output conversion. Q: Can the probe operate without a Proximitor Sensor module?A: No. The probe is a passive sensing element and requires an external Proximitor Sensor to provide excitation, linearization, and vibration monitoring outputs. Q: What installation factors affect measurement accuracy?A: Probe gap setting, shaft target material, mechanical alignment, cable routing, and connector protection directly influence measurement stability and signal quality. Field Installation Guidelines Install the probe with the M8x1 thread engagement aligned to the machine mounting point. Avoid mechanical stress on the probe body during tightening. Set the probe gap according to the connected Proximitor Sensor calibration requirements. Verify the gap voltage before commissioning. Protect the miniature coaxial ClickLoc connector from contamination, moisture, and mechanical impact. Route the probe cable separately from high-current power conductors to reduce electrical interference. Connect cable shielding according to the monitoring system grounding practice. Avoid multiple grounding points that may introduce signal noise. Confirm the probe tip clearance and target surface condition before starting rotating equipment.
$200.00 $100.00
-
Bently Nevada 330904-02-20-05-01-00 3300 NSv Proximity Probe Bently Nevada
Bently Nevada 330904-02-20-05-01-00 3300 NSv Proximity Probe The Bently Nevada 330904-02-20-05-01-00, also cataloged as the 330904 Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within the 3300 NSv Proximity Transducer System. The probe uses eddy-current sensing technology to provide non-contact radial vibration, axial position, and speed measurement signals. Hardware Specifications Parameter Specification Model 330904-02-20-05-01-00 Brand Bently Nevada Product Type 3300 NSv Proximity Probe System Compatibility 3300 NSv Proximity Transducer System Origin USA Dimensions M8 x 1 thread, 20 mm unthreaded length, 200 mm case length, 0.5 m cable length Operating Temp -52 deg C to +177 deg C Storage Temp -52 deg C to +177 deg C Power Consumption Passive probe element; excitation supplied by Proximitor sensor Measurement Range 0.25 mm to 1.75 mm (10 mils to 70 mils) Average Scale Factor 7.87 V/mm (200 mV/mil), +/-20% Output Signal Range Approximately -1 VDC to -13 VDC Frequency Response 0 Hz to 10 kHz typical Probe Thread Type M8 x 1 metric thread Probe Tip Material PPS polymer Probe Case Material AISI 304 stainless steel Cable Type 75 ohm coaxial cable, FEP insulated, stainless steel armor Connector Type Miniature coaxial ClickLoc gold-plated brass connector Recommended Gap Setting 1.0 mm (40 mils) Center Conductor Resistance 4.0 +/- 0.5 ohm for 0.5 m cable Installation Torque 5.1 N m maximum for probe case; 0.56 N m maximum for tip Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 330904 probe applies eddy-current measurement principles to convert shaft displacement into proportional electrical signals. Therefore, the Proximitor interface can evaluate rotor movement using the defined scale factor of 200 mV/mil. The probe supports rotor dynamics analysis by providing displacement data required for vibration waveform, shaft position, and machine condition monitoring. The probe operates with a recommended gap voltage adjustment near -10 VDC when connected to compatible Bently Nevada Proximitor modules. This gap voltage validation process confirms probe positioning, signal linearity, and measurement range before machine operation. The miniature probe construction reduces installation limitations in restricted mounting areas. In addition, the armored cable design improves mechanical protection against external installation conditions while maintaining signal transmission characteristics. Frequently Asked Questions Q: What measurement signals does the Bently Nevada 330904-02-20-05-01-00 provide?A: The probe provides non-contact displacement signals for radial vibration, axial position, and speed measurement applications through an eddy-current sensing circuit. Q: Does the probe require an external power supply connection?A: No. The probe operates as part of the 3300 NSv Proximity Transducer System and receives excitation from the connected Proximitor module. Q: What installation factors affect measurement accuracy?A: Correct probe gap adjustment, proper thread installation, cable routing, and shielding practices affect signal stability and measurement accuracy. Field Installation Guidelines Install the probe with the specified M8 x 1 mounting thread and maintain mechanical alignment between the probe tip and the monitored shaft surface. Set the initial probe gap near 1.0 mm before system calibration. Verify the Proximitor gap voltage output and confirm the operating point remains within the linear measurement range. Route the armored coaxial cable away from high-current power conductors and strong electromagnetic interference sources. Avoid sharp cable bends below the specified minimum bend radius. Connect the ClickLoc connector securely and verify that the connector protector remains installed where required. Use proper shield grounding practices according to the monitoring system installation manual. After installation, perform gap voltage validation and signal verification before placing the rotating equipment into service.
$200.00 $100.00
-
Bently Nevada 330905-00-15-05-02-00 | 3300 XL NSv Proximity Probe Bently Nevada
Bently Nevada 330905-00-15-05-02-00 3300 XL NSv Proximity Probe The Bently Nevada 330905-00-15-05-02-00, also cataloged as the 330905 3300 XL NSv Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada proximity monitoring systems. Hardware Specifications Parameter Specification Model 330905-00-15-05-02-00 Brand Bently Nevada Product Series 3300 XL NSv Proximity Transducer System Product Type Eddy-current Proximity Probe Origin USA Weight 0.14 kg Dimensions Estimated shipping size: 109 x 2 x 1.5 cm Thread Size M10 x 1 Unthreaded Length 0 mm Overall Case Length 150 mm Total Length 0.5 meter (20 inches) Connector Type Miniature coaxial ClickLoc connector Cable Type Standard coaxial cable Armor Configuration Without Armor Probe Tip Material Polyphenylene sulfide (PPS) Case Material AISI 303 or 304 stainless steel Cable Construction 75 ohm triaxial FEP insulated cable Linear Range 1.5 mm (60 mils) Scale Factor 7.87 V/mm (200 mV/mil) average with NSv Proximitor Sensor Frequency Response 0 to 10 kHz, typically +0, -3 dB down to 2 Hz depending on field wiring Operating Temp -52 deg C to +177 deg C Storage Temp -52 deg C to +177 deg C Relative Humidity 100% condensing, non-submerged when properly sealed Power Consumption Supplied by compatible NSv Proximitor Sensor Eddy-Current Measurement and Rotor Dynamics Characteristics The 330905-00-15-05-02-00 uses eddy-current probe scaling to convert shaft displacement into proportional electrical output signals. When paired with an NSv Proximitor Sensor, the probe provides a 7.87 V/mm scale factor for radial vibration, radial position, and axial position measurements. In addition, the NSv probe design reduces signal distortion caused by limited installation clearance. Therefore, it supports rotor dynamics analysis on small-diameter shafts where conventional probe geometries may experience mechanical interference or cross-talk effects. The probe system requires gap voltage validation during installation. Field adjustment normally targets the Bently Nevada standard -10 VDC gap voltage condition to establish the correct operating position between the probe tip and the monitored shaft surface. Frequently Asked Questions Q: What measurement signals does the Bently Nevada 330905-00-15-05-02-00 provide?A: The probe measures shaft displacement using eddy-current sensing and provides proportional vibration, radial position, or axial position signals through a compatible NSv Proximitor Sensor. Q: Can the probe operate in confined installation locations?A: Yes. The 3300 XL NSv design supports installations with limited radial clearance, small targets, and small shaft diameters where standard probe arrangements may not fit. Q: What installation verification is required after mounting the probe?A: The installed probe gap should be checked through gap voltage measurement. The field setup should verify the correct electrical operating position before machinery monitoring begins. Field Installation Guidelines Install the M10 x 1 threaded probe body with correct mechanical alignment to the monitored shaft target. Maintain the specified probe gap position and verify gap voltage before connecting the monitoring channel. Route the triaxial cable away from high-current power conductors to reduce electromagnetic interference. Use proper cable support and avoid excessive bending near the ClickLoc connector area. Ensure the probe case and cable sealing arrangement prevents moisture ingress in condensing environments. Connect the probe only with a compatible Bently Nevada NSv Proximitor Sensor to maintain the specified scaling characteristics.
$200.00 $100.00
-
Bently Nevada 330910-03-20-05-11-00 3300 NSv Proximity Probe | Bently Nevada
Bently Nevada 330910-03-20-05-11-00 3300 NSv Proximity Probe The Bently Nevada 330910-03-20-05-11-00, also cataloged as the 330910 3300 NSv Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada TSI monitoring systems. It provides eddy-current sensing through an M10 x 1 threaded probe body with a 0.5 meter cable assembly. Hardware Specifications Parameter Specification Model 330910-03-20-05-11-00 Brand Bently Nevada Product Series 3300 NSv Proximity Probe Product Type Eddy-current Proximity Probe Origin USA Weight 0.14 kg Dimensions Estimated shipping size: 109 x 2 x 1.5 cm Thread Type M10 x 1 thread Armor Option Armored probe construction Unthreaded Length 30 mm Overall Case Length 200 mm Total Length 0.5 meter (20 in) Connector Type Miniature coaxial ClickLoc connector with connector protector Cable Type FluidLoc cable Power Consumption Supplied by compatible Proximitor sensor interface; probe passive sensing element Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 3300 NSv Proximity Probe uses eddy-current measurement technology to detect shaft displacement through electromagnetic field variation between the probe tip and the rotating target surface. The probe output supports vibration and position monitoring functions when connected to a compatible Bently Nevada Proximitor system. The probe geometry maintains measurement consistency for small installation spaces. In addition, the M10 x 1 threaded design allows mechanical integration into applications requiring compact probe mounting. The FluidLoc cable construction reduces fluid migration through the cable assembly during field operation. For TSI applications, the probe signal path supports rotor dynamics analysis by providing displacement data used for vibration evaluation, axial position monitoring, and machine protection logic. Furthermore, proper gap voltage validation, typically targeting -10 VDC in Bently Nevada eddy-current systems, confirms correct probe installation and measurement range. Frequently Asked Questions Q: What type of measurement signal does the 330910-03-20-05-11-00 provide?A: The probe provides eddy-current displacement sensing output. The electrical signal requires processing through a compatible Bently Nevada Proximitor interface. Q: Does this probe include an integrated signal conditioner?A: No. The 330910 series probe functions as the sensing element only. Signal conditioning is performed by the associated Proximitor electronics. Q: What installation factors affect measurement accuracy?A: Probe gap setting, target surface condition, mechanical alignment, cable routing, and correct shielding practices affect measurement performance. Field Installation Guidelines Install the probe with the specified M10 x 1 mounting interface and maintain proper mechanical alignment with the monitored shaft surface. Route the FluidLoc cable away from high-current power cables and strong electromagnetic interference sources. Maintain cable protection during installation to prevent mechanical damage and excessive bending. Connect the miniature coaxial ClickLoc connector securely with the connector protector installed where required. Verify probe gap voltage after installation to confirm correct operating position before commissioning the monitoring channel. Use proper grounding and shielding practices according to the connected Bently Nevada monitoring system installation requirements. Avoid modifying the probe cable length or connector assembly because changes can affect calibration characteristics.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330910-06-25-05-11-00 3300 NSv Proximity Probe
Bently Nevada 330910-06-25-05-11-00 3300 NSv Proximity Probe The Bently Nevada 330910-06-25-05-11-00, also cataloged as the 330910 3300 NSv Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada TSI monitoring systems. Hardware Specifications Parameter Specification Model 330910-06-25-05-11-00 Brand Bently Nevada Product Type 3300 NSv Proximity Probe Origin USA Weight 0.14 kg Dimensions 109 x 2 x 1.5 cm estimated shipping size Probe Type Eddy-current proximity probe Thread Type M10 x 1 thread Probe Construction Armored probe design Minimum Unthreaded Length 60 mm Maximum Length 250 mm Probe Length Configuration 0.5 meter (20 in) Connector Type Miniature coaxial ClickLoc connector with connector protector Cable Type FluidLoc cable Power Consumption Supplied by compatible Bently Nevada Proximitor interface Operating Temp Not specified in provided data Tariff Code 8537101190 Eddy-Current Measurement and Rotor Dynamics Interface The 330910 series probe uses eddy-current sensing technology to convert shaft displacement into an electrical output signal. Therefore, the probe supports vibration, radial position, and axial position monitoring when paired with a compatible Proximitor module. The probe design maintains measurement stability through controlled probe tip geometry and calibrated scaling characteristics. In addition, Bently Nevada systems apply gap voltage validation methods with typical -10 VDC target settings to verify correct probe installation and signal operating range. The miniature coaxial ClickLoc connector reduces connection errors during field installation. Furthermore, the FluidLoc cable construction limits fluid migration through the cable assembly, supporting continuous signal transmission in industrial rotating equipment environments. Frequently Asked Questions Q: What measurement technology does the 330910-06-25-05-11-00 use?A: The probe uses eddy-current measurement technology to detect shaft displacement without physical contact. Q: What connector configuration is included with this model?A: This model includes a miniature coaxial ClickLoc connector with connector protector and a FluidLoc cable. Q: Can this probe operate as a standalone monitoring device?A: No. The probe requires connection to a compatible Bently Nevada Proximitor interface to process the eddy-current signal. Field Installation Guidelines Install the probe with the specified M10 x 1 threaded mounting interface and maintain mechanical alignment with the monitored shaft surface. Route the FluidLoc cable away from high-current power conductors and sources of electromagnetic interference. Use proper cable support to prevent excessive mechanical stress at the connector area. Verify probe gap voltage after installation through the connected Proximitor system. Confirm that the signal output remains within the expected operating range before placing the rotating equipment into service. Maintain proper shielding and grounding practices according to the monitoring system installation requirements. Avoid sharp cable bends and protect the miniature coaxial ClickLoc connector from mechanical impact during commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330103-00-05-90-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-05-90-02-00 3300 XL 8 mm Proximity Probe The Bently Nevada 330103-00-05-90-02-00, also cataloged as the 330103 3300 XL 8 mm Proximity Probe, provides direct eddy-current displacement measurement for shaft position monitoring within Bently Nevada 3300 monitoring systems. Hardware Specifications Parameter Specification Model 330103-00-05-90-02-00 Brand Bently Nevada Product Type 3300 XL 8 mm Proximity Probe Origin USA Weight 0.15 kg Dimensions Estimated shipping size: 1.8 x 1.6 x 113 cm Probe Diameter 8 mm Thread Type M10 x 1 thread Armor Option Without armor Unthreaded Length 0 mm Case Length 50 mm Total Length 9.0 meters (29.5 feet) Connector Type Miniature coaxial ClickLoc connector standard cable Cable Type Standard coaxial extension cable assembly Eddy-Current Measurement and Rotor Dynamics Characteristics The Bently Nevada 330103-00-05-90-02-00 uses eddy-current probe scaling technology to convert shaft displacement into proportional electrical signals. The probe assembly works with compatible drivers to measure relative shaft vibration, radial position, and mechanical movement. Furthermore, the probe design supports gap voltage validation procedures. During commissioning, technicians typically verify the probe operating point against standard gap voltage targets, including the commonly applied -10 VDC reference condition for Bently Nevada proximity measurement systems. The 9.0 meter cable configuration maintains signal transmission between the probe tip and monitoring electronics. Therefore, correct cable routing and shielding practices help reduce signal interference and maintain accurate rotor dynamics analysis. Frequently Asked Questions Q: What measurement principle does the 330103-00-05-90-02-00 use?A: The probe uses eddy-current sensing technology to detect changes in the distance between the probe tip and the conductive shaft surface. Q: Does the 330103-00-05-90-02-00 include an armored probe housing?A: No. This configuration specifies a probe without armor and includes a 0 mm unthreaded length with a 50 mm case length. Q: What cable configuration is supplied with this model?A: This model includes a 9.0 meter total length configuration with a miniature coaxial ClickLoc connector standard cable. Field Installation Guidelines Install the probe with the specified M10 x 1 thread interface and maintain proper mechanical alignment with the monitored shaft surface. Route the coaxial cable away from high-current power conductors to reduce electromagnetic interference. Connect the cable shield according to the monitoring system grounding requirements and avoid improper shield termination. Verify probe gap voltage during commissioning to confirm correct mechanical positioning and signal conditioning. Protect the cable connector area from excessive mechanical stress, vibration, and sharp bending during installation. Confirm compatibility between the probe, extension cable, and proximity signal conditioner before system startup.
$200.00 $100.00
-
Bently Nevada 330905-00-10-05-02-CN | Bently Nevada 3300 NSv Proximity Probe
Bently Nevada 330905-00-10-05-02-CN 3300 NSv Proximity Probe The Bently Nevada 330905-00-10-05-02-CN, also cataloged as the 330905 3300 NSv Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada 3300 NSv machinery monitoring systems. Hardware Specifications Parameter Specification Model 330905-00-10-05-02-CN Brand Bently Nevada Product Series 3300 NSv Proximity Transducer System Product Type 5 mm Non-contact Proximity Probe Origin USA Dimensions 5 mm probe tip diameter; 1.0 inch case length; 0.5 meter cable length Thread Type M10 x 1 metric thread Unthreaded Length 0 mm Probe Tip Material Polyphenylene sulfide (PPS) Probe Case Material AISI 303 / 304 stainless steel Cable Construction 75 Ohm triaxial FEP insulated cable Connector Type Miniature coaxial ClickLoc connector Operating Temp -51 deg C to +177 deg C Power Consumption Supplied through compatible Bently Nevada Proximitor sensor interface Measurement Principle Eddy-current displacement sensing Linear Range 0.25 mm to 2.0 mm Average Scale Factor 7.87 V/mm (200 mV/mil), +/-5% typical Frequency Response 0 Hz to 10 kHz, +/-3 dB Output Signal Analog DC voltage proportional to probe gap Environmental Protection IP67 rated Target Application Small shaft diameters below 51 mm or small flat targets below 15 mm Compliance Designed for API 670 machinery protection applications Eddy-Current Probe Scaling and Gap Voltage Validation The 3300 NSv probe uses an eddy-current sensing circuit to convert shaft displacement into an analog voltage output. The probe maintains a defined relationship between physical gap distance and output voltage through the calibrated scale factor. The installation process requires gap voltage validation through the connected Proximitor interface. Technicians typically verify the probe operating point near the standard -10 VDC target position to confirm correct measurement range and signal stability. The narrow side-view construction reduces metallic interference from surrounding installation structures. Therefore, the probe can operate in restricted mounting locations where conventional 8 mm proximity probes may experience side-wall effects. Frequently Asked Questions Q: What type of machinery is the 330905-00-10-05-02-CN designed for?A: The probe is designed for compact rotating equipment requiring non-contact shaft displacement measurement, including small compressors, pumps, motors, and machines with limited installation clearance. Q: Does the probe require a separate signal conditioning device?A: Yes. The probe operates as part of the Bently Nevada 3300 NSv Proximity Transducer System and requires a compatible Proximitor sensor interface to provide excitation and signal conversion. Q: What installation factor affects measurement accuracy?A: Correct probe gap adjustment, proper target material conditions, and controlled cable routing affect eddy-current measurement accuracy. Shielding and grounding practices must follow the system installation requirements. Field Installation Guidelines Install the 330905-00-10-05-02-CN probe using the specified M10 x 1 mounting thread and maintain mechanical clearance around the probe tip to avoid unwanted metallic interference. Route the 75 Ohm triaxial cable away from high-current power conductors, variable frequency drive cables, and strong electromagnetic noise sources. Avoid sharp cable bends that may affect cable integrity. Connect the ClickLoc coaxial connector using proper hand tightening procedures. Verify the probe gap voltage after installation and confirm that the operating point remains within the calibrated measurement range. Use appropriate grounding methods for the monitoring system. The cable shield termination must follow Bently Nevada installation practices to minimize electrical noise and signal distortion.
$200.00 $100.00
-
Bently Nevada Bently Nevada 330901-00-41-05-02-CN 3300 NSv Proximity Probe
Bently Nevada 330901-00-41-05-02-CN 3300 NSv Proximity Probe The Bently Nevada 330901-00-41-05-02-CN, also cataloged as the 330901 3300 NSv Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within the 3300 NSv Proximity Transducer System. Hardware Specifications Parameter Specification Model 330901-00-41-05-02-CN Brand Bently Nevada Origin USA Product Type 3300 NSv Proximity Probe Transducer System 3300 NSv Proximity Transducer System Sensing Method Non-contact eddy current measurement Scale Factor 7.87 V/mm (200 mV/mil) with matching 3300 NSv Proximitor Sensor Thread Type 1/4-28 UNF Unthreaded Length 0.0 in Overall Case Length 4.1 in Probe Cable Length 0.5 m (20 in) Connector Type Miniature coaxial ClickLoc connector Construction Material Stainless steel body with PPS probe tip Weight Approx. 350 g Dimensions 4.1 in case length, 0.5 m cable length Operating Temp -51 deg C to +177 deg C Power Consumption Supplied through compatible 3300 NSv Proximitor Sensor Target Application Shafts smaller than 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in) Hazardous Area Certification -CN configuration with applicable China hazardous area approvals Eddy-Current Measurement and Rotor Dynamics Characteristics The 330901-00-41-05-02-CN uses an eddy-current sensing principle to convert shaft displacement into an electrical signal. The 3300 NSv probe geometry directs the electromagnetic field toward the target surface and reduces side-view interference from surrounding metallic structures. Furthermore, the probe supports rotor dynamics monitoring by providing stable vibration and axial position signals for machinery protection systems. The narrow side view design allows installation in restricted mechanical clearances where standard proximity probes may experience target distortion or signal interference. The matched Proximitor Sensor applies eddy-current probe scaling at 7.87 V/mm (200 mV/mil). In addition, the system supports gap voltage validation procedures using the typical -10 VDC target reference for correct probe-to-target positioning. Frequently Asked Questions Q: What type of target does the 330901-00-41-05-02-CN measure?A: The probe measures conductive shaft or target displacement through non-contact eddy-current technology. It is optimized for small diameter shafts and limited installation spaces. Q: Can the 330901-00-41-05-02-CN operate without a Proximitor Sensor?A: No. The probe requires a compatible 3300 NSv Proximitor Sensor to provide excitation, signal conditioning, and displacement output conversion. Q: What installation factors affect measurement accuracy?A: Proper probe gap setting, correct target material, cable routing, and avoidance of metallic interference near the sensing tip affect signal stability. Field Installation Guidelines Install the probe with the sensing tip aligned directly toward the measured shaft or target surface. Maintain the specified mechanical clearance to prevent side metal influence on the eddy-current field. Connect the ClickLoc miniature coaxial connector securely and route the cable away from high-current power conductors to reduce electrical interference. Use proper cable shielding and grounding practices according to the machinery monitoring system installation requirements. Before commissioning, verify the probe gap voltage and confirm the output signal from the connected Proximitor Sensor. Check the probe mounting thread engagement and ensure that mechanical vibration does not introduce movement at the probe mounting point.
$200.00 $100.00
-

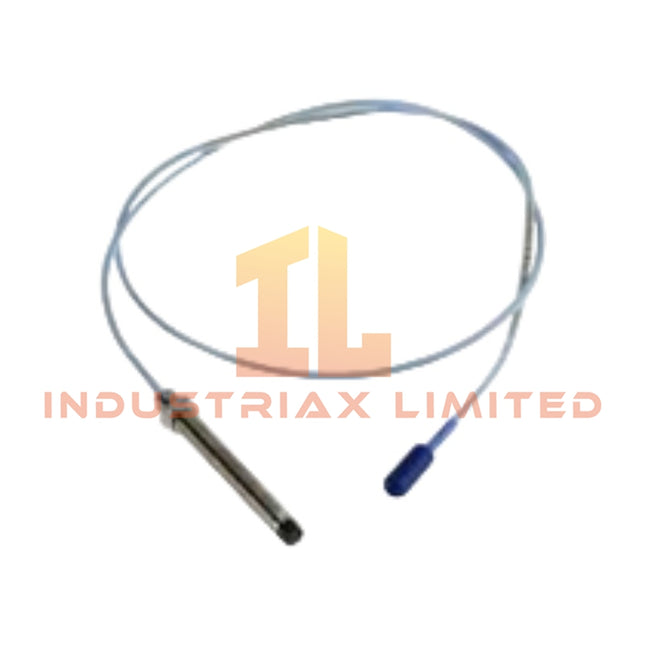

Bently Nevada 330104-00-05-05-01-00 | 3300 XL 8 mm Proximity Probe | Bently Nevada
Bently Nevada 330104-00-05-05-01-00 3300 XL 8 mm Proximity Probe The Bently Nevada 330104-00-05-05-01-00, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated eddy-current sensing component for shaft displacement measurement within Bently Nevada TSI monitoring systems. Hardware Specifications Parameter Specification Model 330104-00-05-05-01-00 Brand Bently Nevada Product Type 3300 XL 8 mm Proximity Probe Origin USA Weight 0.15 kg Dimensions Estimated shipping size: 1.8 x 1.6 x 121 cm Power Consumption Supplied by compatible proximity transducer system, not specified in provided data Probe Type Eddy-current displacement probe Thread Type M10 x 1 thread Armor Option Armored probe design Unthreaded Length 0 mm Overall Case Length 50 mm Total Length 0.5 meter (1.6 feet) Connector Type Miniature coaxial ClickLoc connector with connector protector Cable Type Standard cable Tariff Code 8537101190 Eddy-Current Measurement and Rotor Dynamics The Bently Nevada 3300 XL 8 mm Proximity Probe uses eddy-current measurement technology to convert shaft surface movement into electrical displacement signals. Therefore, the probe provides dynamic and static shaft position information for machinery monitoring applications. The probe design supports Bently Nevada proximity measurement systems by maintaining consistent probe scaling characteristics. Additionally, the system configuration allows engineers to validate gap voltage conditions, including the commonly applied -10 VDC target range for correct probe positioning. The 330104-00-05-05-01-00 model includes a 0.5 meter standard cable assembly and miniature coaxial ClickLoc connector. Furthermore, the connector protector improves mechanical protection at the probe connection point during field installation. Frequently Asked Questions Q: What measurement technology does the 330104-00-05-05-01-00 probe use?A: The probe uses eddy-current sensing technology to measure shaft displacement without physical contact between the probe tip and rotating shaft surface. Q: What is the thread specification of this proximity probe?A: The probe uses an M10 x 1 thread configuration with a 50 mm overall case length and 0 mm unthreaded length option. Q: Does this model include agency approval certification?A: No. The 330104-00-05-05-01-00 configuration does not include an agency approval option. Field Installation Guidelines Install the probe with correct mechanical alignment to maintain accurate shaft displacement measurement. Ensure the M10 x 1 threaded section engages properly with the mounting bracket or probe holder. Route the standard cable away from high-current conductors and strong electromagnetic interference sources. Use proper cable support to prevent excessive mechanical stress on the miniature coaxial ClickLoc connector. Connect the probe to the compatible Bently Nevada monitoring interface and verify the gap voltage before commissioning. The installation team should confirm probe clearance, signal polarity, and shielding continuity according to the applicable machinery monitoring system requirements.
$200.00 $100.00
-

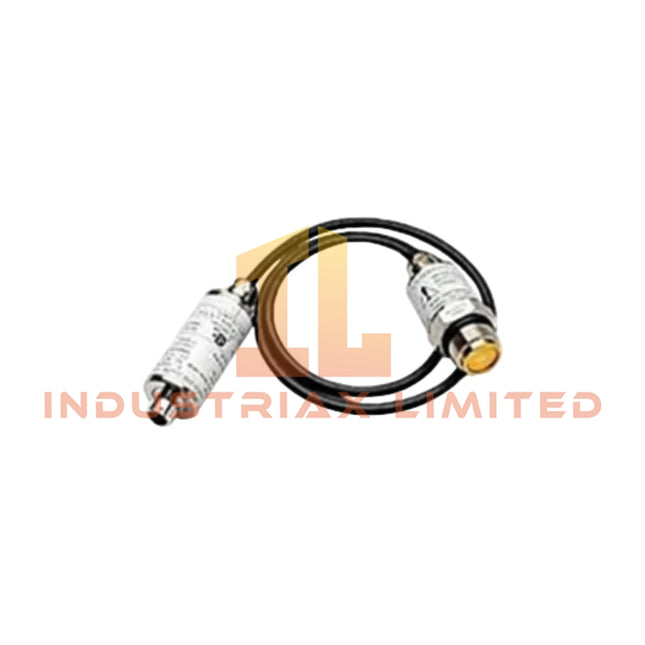

Bently Nevada 165844-14 3300 XL 8mm Proximity Probe | Bently Nevada
Bently Nevada 165844-14 3300 XL 8mm Proximity Probe The Bently Nevada 165844-14, also cataloged as the 165844-14 Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within the 3300 XL 8 mm Proximity Transducer System. Hardware Specifications Parameter Specification Model 165844-14 Brand Bently Nevada (Baker Hughes) Product Type Eddy Current Proximity Sensors Series 3300 XL 8 mm Proximity Transducer System Operating Principle Eddy current sensing technology Scale Factor / Sensitivity 7.87 V/mm (200 mV/mil) Frequency Response 0 to 10 kHz Integrated Cable Length 1.4 m Tip Material Polyphenylene Sulfide (PPS) Output Interface Analog voltage proportional to probe gap System Compatibility 3300 XL Proximitor sensors with matching extension cables Origin USA Weight Approximately 0.3 kg to 0.8 kg depending on mounting assembly Operating Temp -35 deg C to +85 deg C Power Consumption Passive probe element; powered through connected Proximitor sensor Eddy Current Probe Scaling and Rotor Dynamics Monitoring The 165844-14 uses eddy current probe scaling to convert shaft displacement changes into proportional electrical signals. Moreover, the probe maintains a nominal sensitivity of 200 mV/mil for compatibility with the 3300 XL monitoring architecture. The sensor detects dynamic shaft movement without mechanical contact. Therefore, it supports rotor dynamics analysis by providing continuous displacement information for vibration monitoring, axial position measurement, and mechanical clearance evaluation. In addition, the probe design incorporates signal conditioning characteristics that support cross-talk suppression when installed with adjacent proximity measurement channels. The PPS probe tip material maintains electrical stability under exposure to industrial lubricants and operating environments. Frequently Asked Questions Q: Does the 165844-14 require direct electrical power at the probe tip?A: No. The proximity probe receives excitation through the connected 3300 XL Proximitor sensor. The probe itself functions as a passive eddy current sensing element. Q: What type of measurement signal does the 165844-14 provide?A: The probe provides a voltage output proportional to the physical gap between the probe tip and the rotating shaft target surface through the connected signal conditioning module. Q: Can the 165844-14 measure shaft vibration without physical contact?A: Yes. The probe measures shaft displacement through an electromagnetic eddy current field and maintains a non-contact sensing distance during operation. Field Installation Guidelines Install the 165844-14 with the probe tip aligned toward the conductive shaft target surface according to the 3300 XL system installation requirements. Maintain proper cable routing practices to reduce electromagnetic interference. Furthermore, separate probe cables from high-current power conductors and use appropriate grounding methods at the monitoring system side. Verify the probe gap voltage during commissioning to confirm correct mechanical positioning. For Bently Nevada proximity systems, technicians commonly validate the operating gap near the -10 VDC target value when configuring the Proximitor measurement loop. Inspect the integrated cable and connector interface before installation. Avoid sharp bending, excessive mechanical stress, or contact with moving machine components.
$200.00 $100.00
لقد شاهدت 24 من أصل 565 منتجًا
