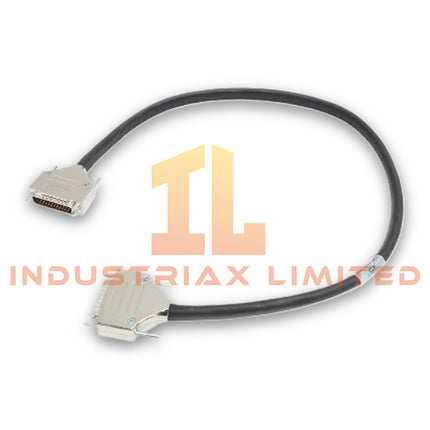

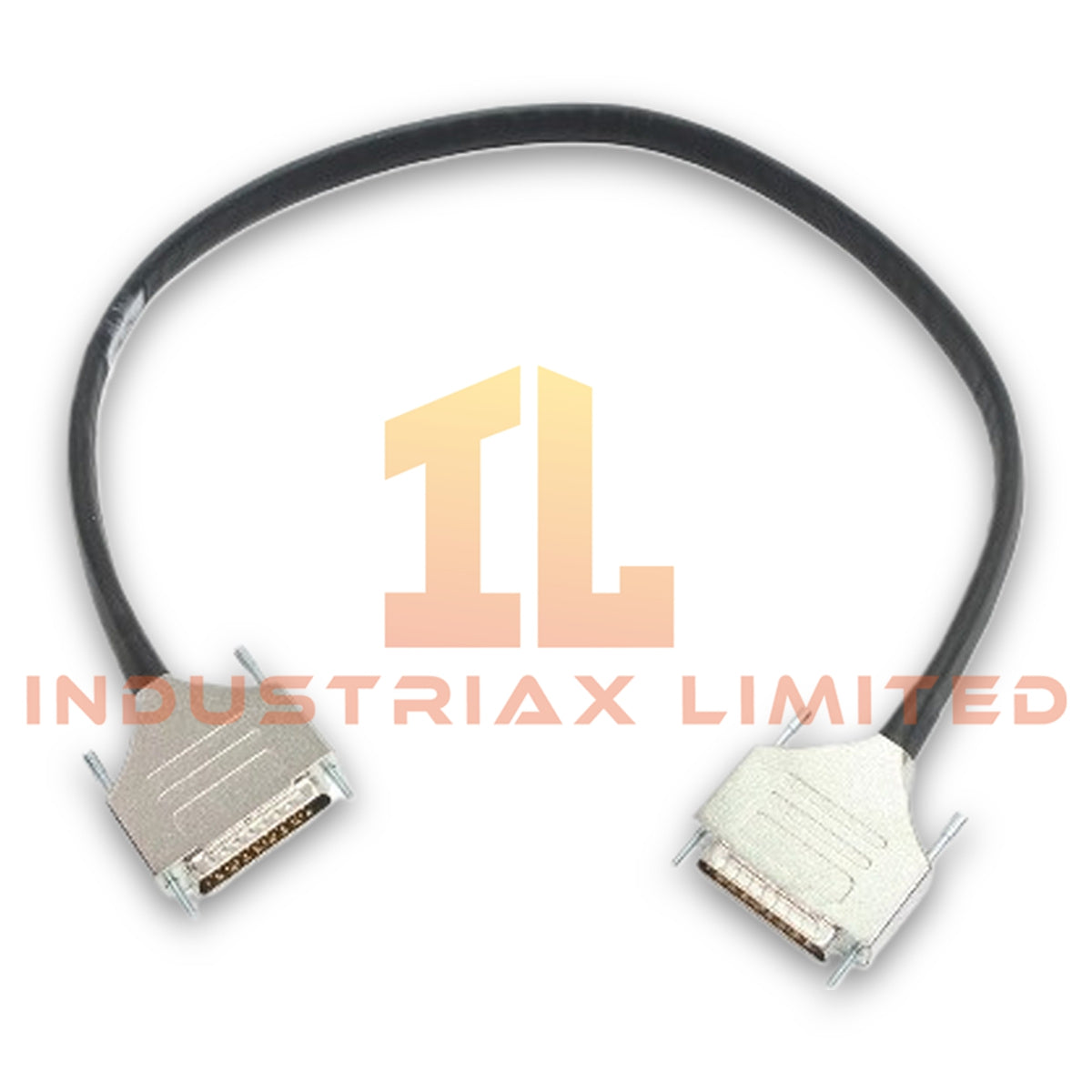

ABB TK850V007 3BSC950192R1 CEX-Bus Extension Cable

The ABB TK850V007 3BSC950192R1, also cataloged as the TK850V007 CEX-Bus Extension Cable, provides a 0.7 m physical connection for CEX-Bus extension within ABB control hardware. The cable uses prefabricated construction and requires a TK851 CEX-Bus terminator when installed.

Hardware Specifications

Parameter	Specification
Model	TK850V007 3BSC950192R1
Brand	ABB
Product Type	Prefabricated Cable
Function	CEX-Bus Extension Cable
CEX-Bus Requirement	TK851 CEX-Bus terminator required
Cable Length	0.7 m
Product Net Depth / Length	700 mm
Product Net Height	6 mm
Product Net Width	13 mm
Product Net Weight	0.2 kg
HS Code	854442
Customs Tariff Number	85444210
WEEE Category	Product Not in WEEE Scope

ABB CEX-Bus Extension Characteristics

TK850V007 provides the physical cable path required for CEX-Bus extension between compatible ABB control-system components. The supplied cable length is 0.7 m, while the documented physical dimensions are 700 mm x 13 mm x 6 mm.

The cable is supplied as a prefabricated assembly. Therefore, field fabrication of the cable connection is not part of the specified product configuration. Furthermore, ABB specifies the use of a TK851 CEX-Bus terminator with TK850V007.

The cable itself is a passive interconnection component. Consequently, it has no separately specified power-consumption rating.

Frequently Asked Questions

Q: What is the specified cable length of TK850V007 3BSC950192R1?
A: The specified cable length is 0.7 m, corresponding to a product net length of 700 mm.

Q: Is a terminator required when using TK850V007?
A: Yes. The supplied ABB data specifies that TK850V007 requires a TK851 CEX-Bus terminator.

Q: Does TK850V007 consume electrical power?
A: No. TK850V007 is a passive prefabricated cable and has no separately specified power-consumption requirement.

Field Installation Guidelines

• Verify the cable part number before installation: TK850V007, 3BSC950192R1.
• Confirm that the connected equipment supports the ABB CEX-Bus interface.
• Install the TK851 CEX-Bus terminator as specified for the TK850V007 configuration.
• Route the cable without excessive bending, crushing, or mechanical tension.
• Keep the cable separated from sources of strong electromagnetic interference where practical.
• Do not modify the prefabricated cable assembly unless the applicable ABB installation documentation explicitly permits modification.
• Verify connector seating before energizing the associated control hardware.
• Maintain the specified cable routing and mechanical clearance required by the installed ABB equipment.
