Description

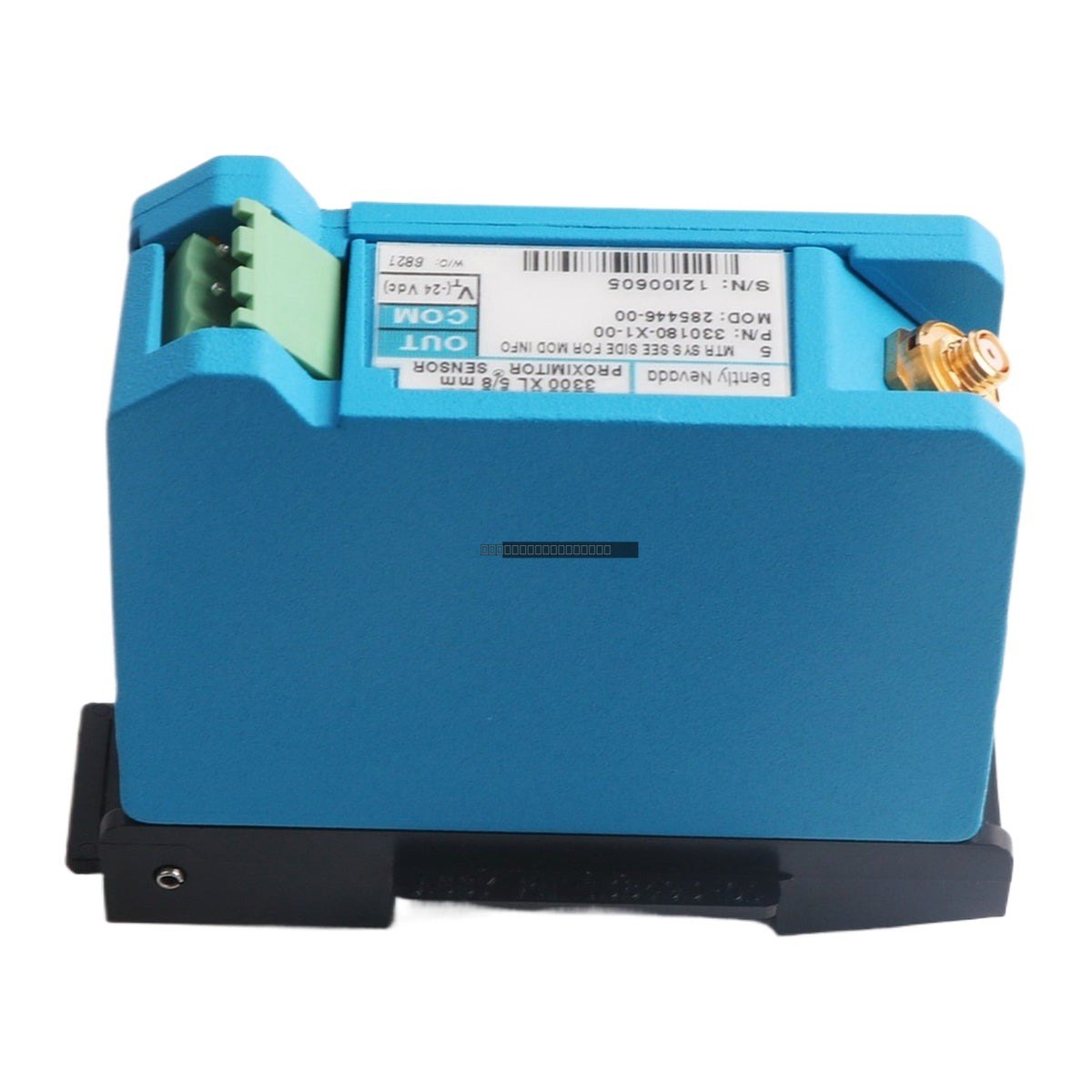

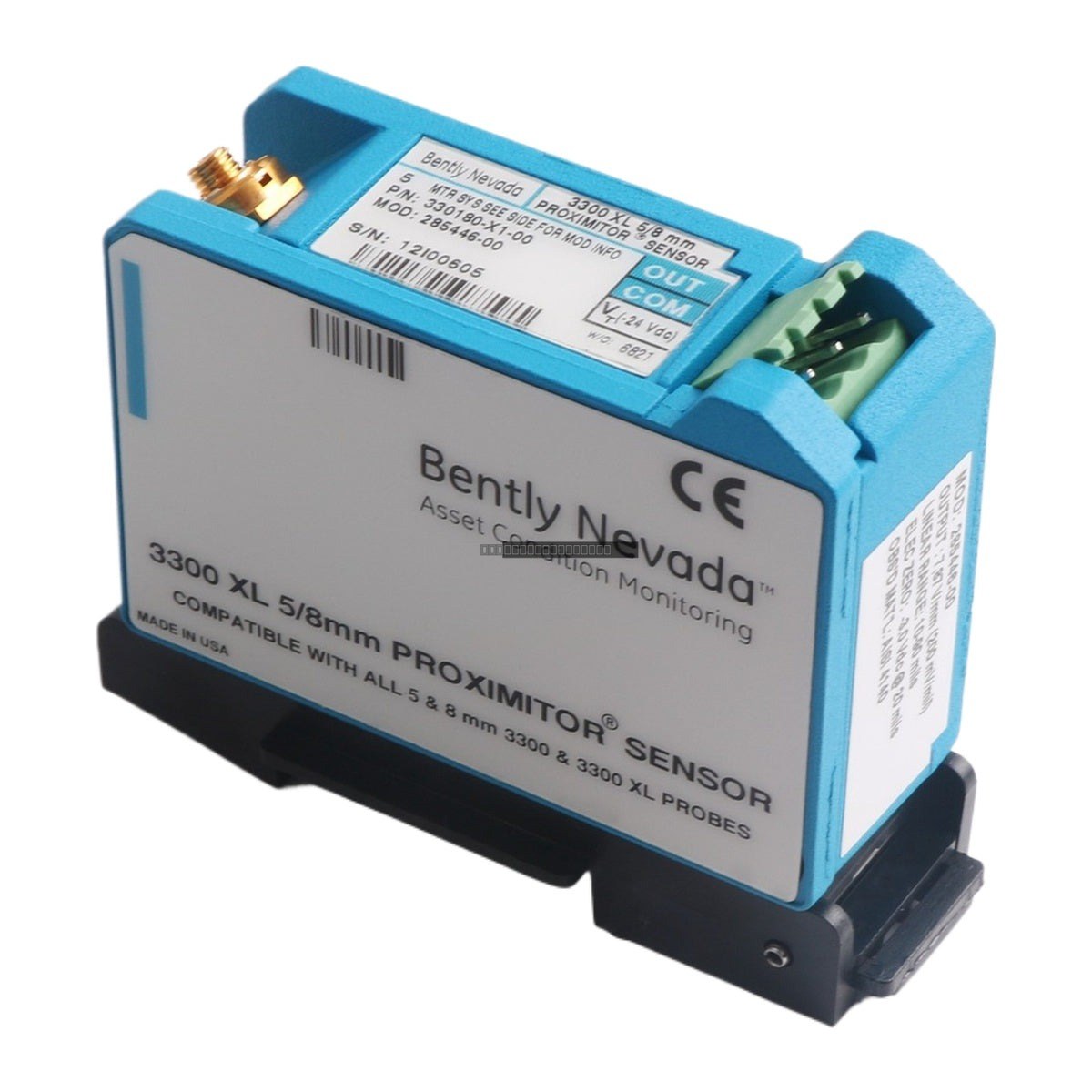

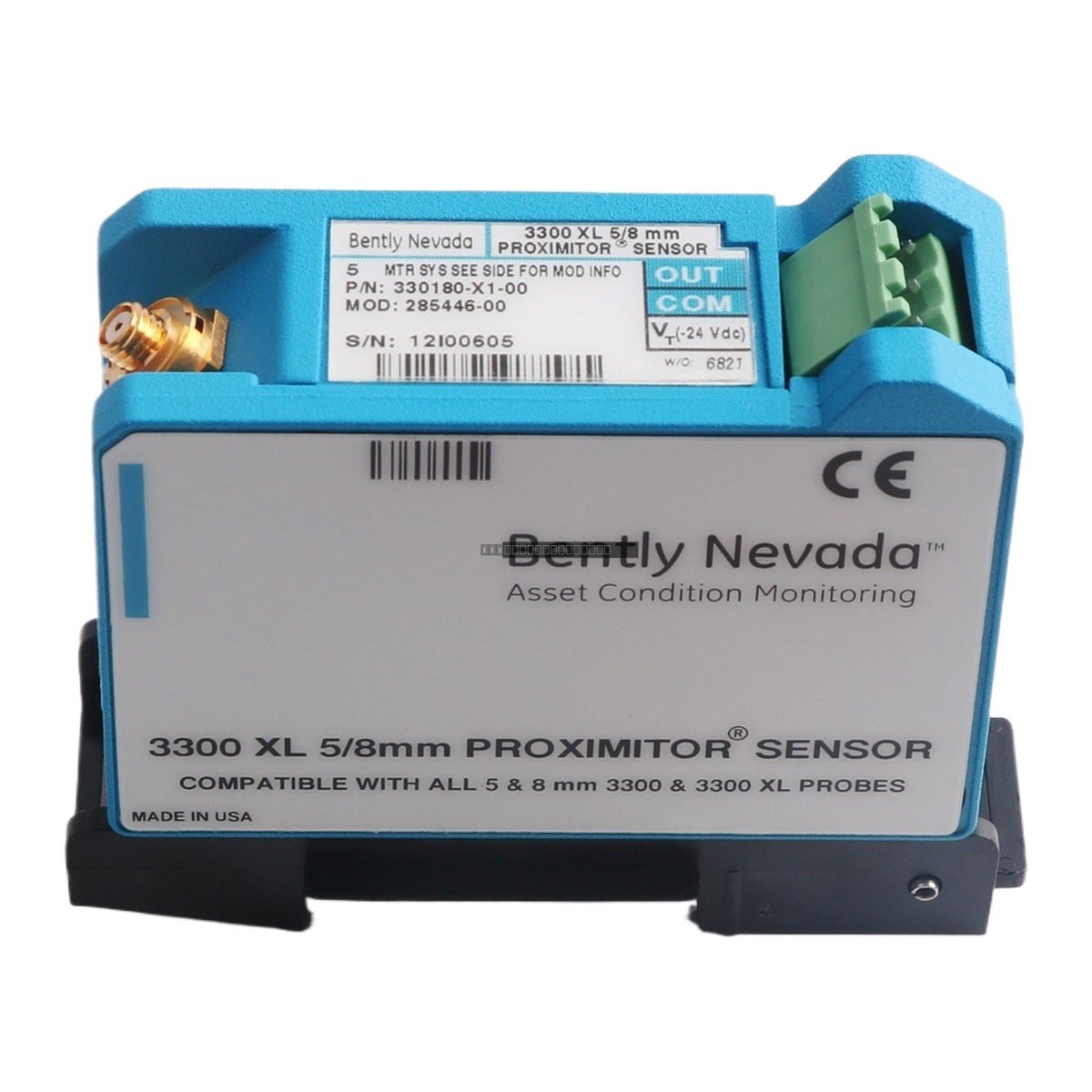

The Bently Nevada 330180-X1-00 (MOD: 145004-81) is a Proximitor sensor designed for use within the 3300 XL proximity transducer system. This sensor is engineered to provide precise, non-contact measurement of shaft position and vibration in rotating machinery. It serves as a critical component in condition monitoring, converting the gap between the probe tip and the observed surface into a proportional voltage signal for analysis by monitoring systems.

Features

• Compatible with 3300 XL series proximity transducer systems.
• Designed for DIN-rail mounting configurations.
• Provides high-accuracy signal conditioning for vibration and position monitoring.
• Robust construction suitable for industrial environments.

Technical Specifications

Product Model	330180-X1-00 MOD:145004-81
Device Type	Proximitor Sensor
Manufacturer	Bently Nevada
Weight	0.22 kg
Tariff Code	8537101190

Installation Guidelines

• Ensure the Proximitor sensor is installed in a protected, dry environment, typically within an instrumentation cabinet.
• Use appropriate DIN-rail mounting hardware to secure the module.
• Maintain proper shielding for all signal cables to minimize EMI/RFI interference.
• Verify that the system length (probe, extension cable, and sensor) matches the calibrated configuration (e.g., 5.0m or 9.0m) to ensure measurement accuracy.
• Always power down the monitoring system before connecting or disconnecting the sensor to prevent electrical damage.

FAQ

What is the primary function of the 330180 Proximitor sensor?

The Proximitor sensor is the signal conditioning unit of the proximity transducer system. It receives an RF signal from the probe, processes it, and outputs a voltage signal proportional to the distance between the probe tip and the target surface.

Is this sensor compatible with all Bently Nevada systems?

This model is specifically part of the 3300 XL series. It is recommended to verify compatibility with your existing probe and extension cable lengths before installation.
