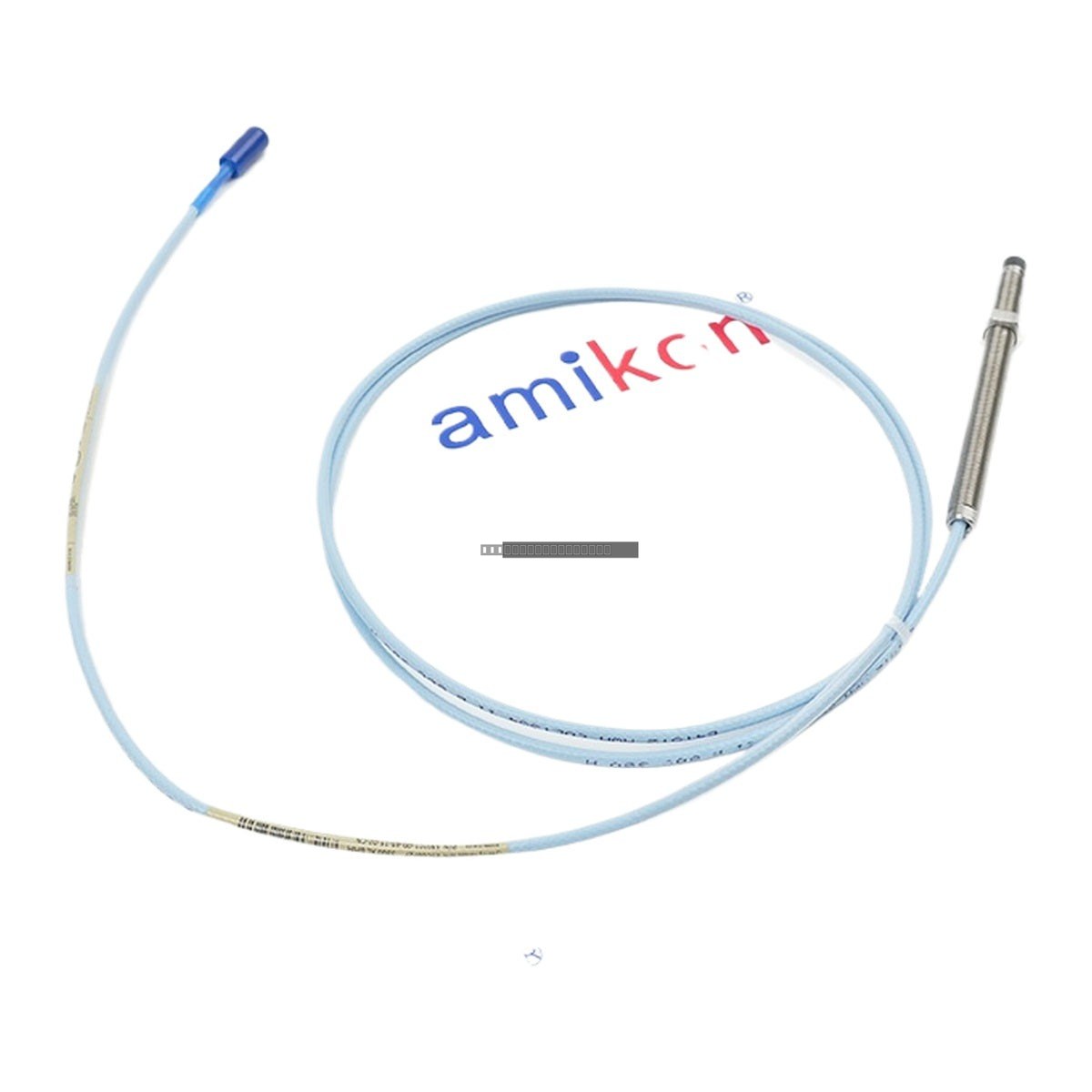

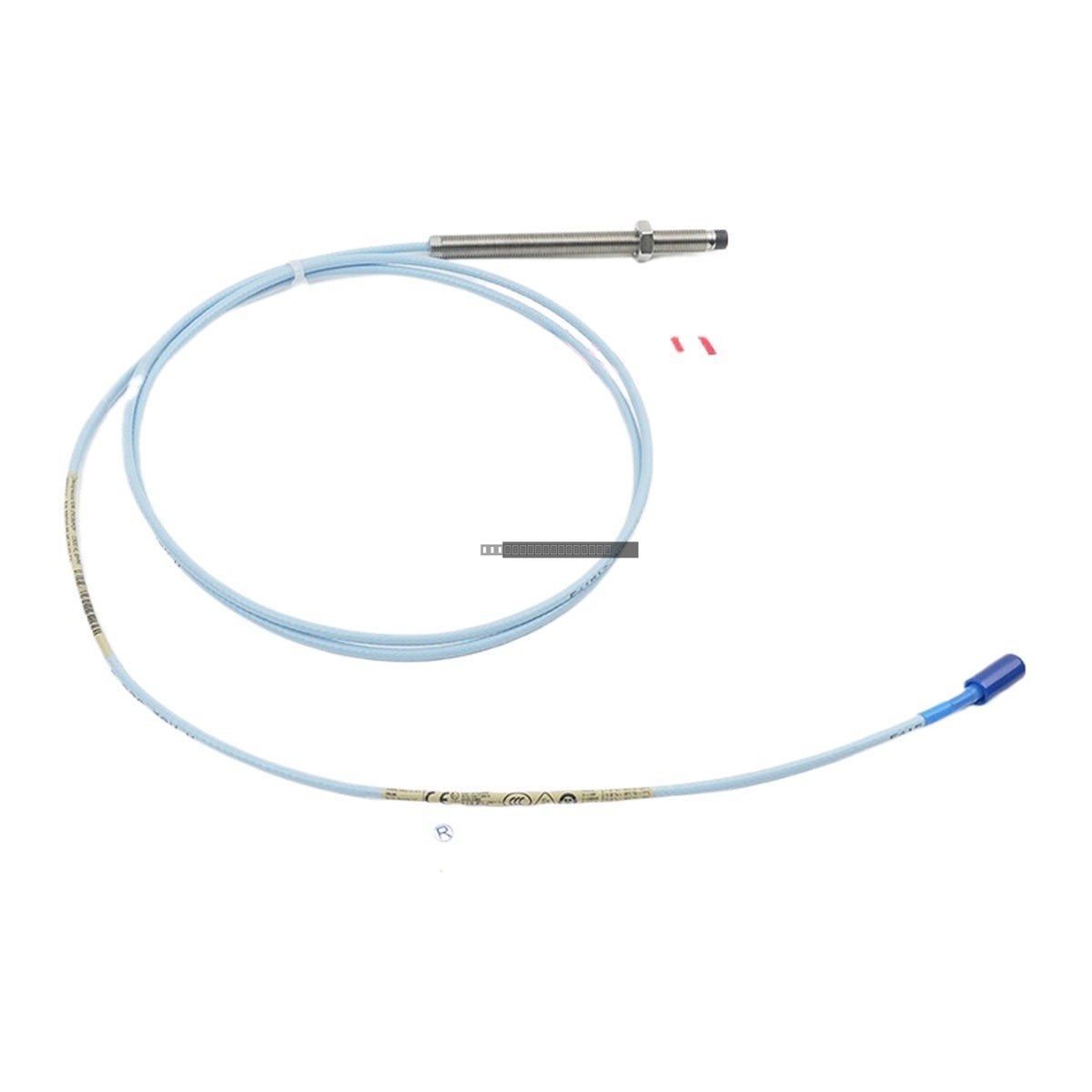

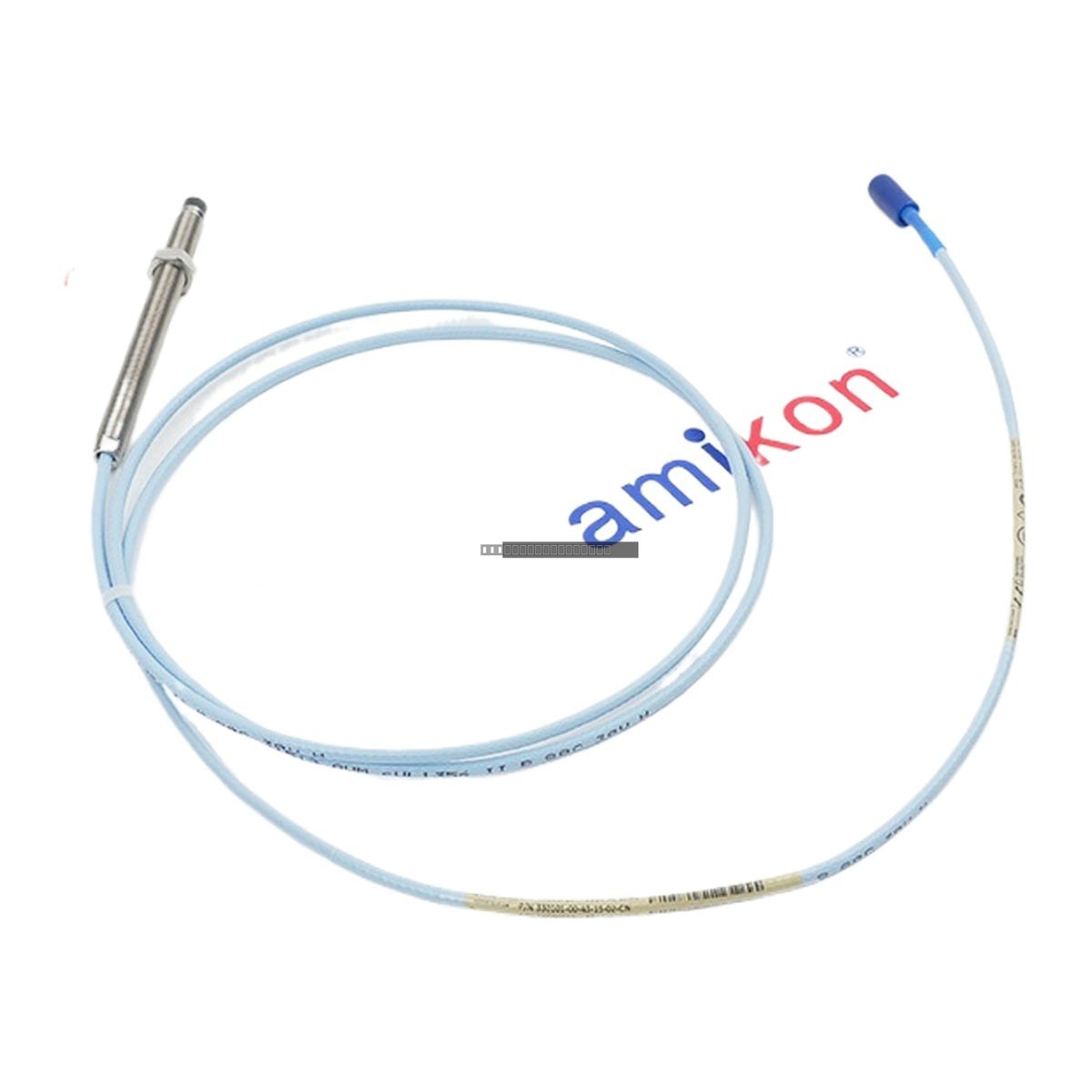

The Bently Nevada 330101-00-43-15-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for non-contact vibration and position monitoring in industrial rotating machinery. As part of the 3300 XL transducer system, this probe utilizes eddy current technology to provide precise measurements of shaft displacement, vibration, and eccentricity.
Features
- Advanced eddy current proximity transducer system performance.
- Complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
- Complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
- Miniature coaxial ClickLoc connector for secure and reliable signal transmission.
- Designed for harsh industrial environments with robust construction.
Applications
- Gas and Steam Turbines: Monitoring radial vibration and axial thrust to prevent rotor-stator contact.
- Centrifugal and Axial Compressors: Ensuring shaft stability for process gas and air compressors.
- Large Industrial Pumps: Monitoring boiler feed pumps and high-pressure fluid systems.
- Electric Motors and Generators: Protecting large sleeve-bearing units in power generation.
- Gearboxes: Monitoring shaft eccentricity and misalignment in high-speed gear systems.
Technical Specifications
| Product Model |
330101-00-43-15-02-CN |
| Probe Type |
3300 XL 8 mm Proximity Probe |
| Thread Size |
3/8-24 UNF |
| Unthreaded Length |
0.0 in |
| Case Length |
4.3 in |
| Cable Length |
1.5 meter (4.9 feet) |
| Connector Type |
Miniature coaxial ClickLoc |
| Agency Approvals |
CSA, ATEX, IECEx |
| Manufacturer |
Bently Nevada |
Installation Guidelines
- Ensure the probe is mounted in a stable, vibration-resistant bracket to maintain accurate gap measurements.
- Handle the probe tip with care to avoid physical damage or contamination, which can affect eddy current performance.
- Use shielded coaxial cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain the minimum permissible cable bend radius during installation to prevent damage to the internal conductors.
- Always power down the associated Proximitor sensor before connecting or disconnecting the probe cable.
- Verify proper grounding of the transducer system to ensure measurement integrity and safety.
FAQ
Is this product brand new?
Yes, the Bently Nevada 330101-00-43-15-02-CN is a brand new, original, and unused component.
What is the main function of this probe?
It measures shaft displacement and vibration, which is critical for predictive maintenance and protecting rotating machinery from catastrophic failure.
What is the operating principle?
The probe utilizes the eddy current (electromagnetic induction) principle to measure the distance between the probe tip and a conductive target surface.
