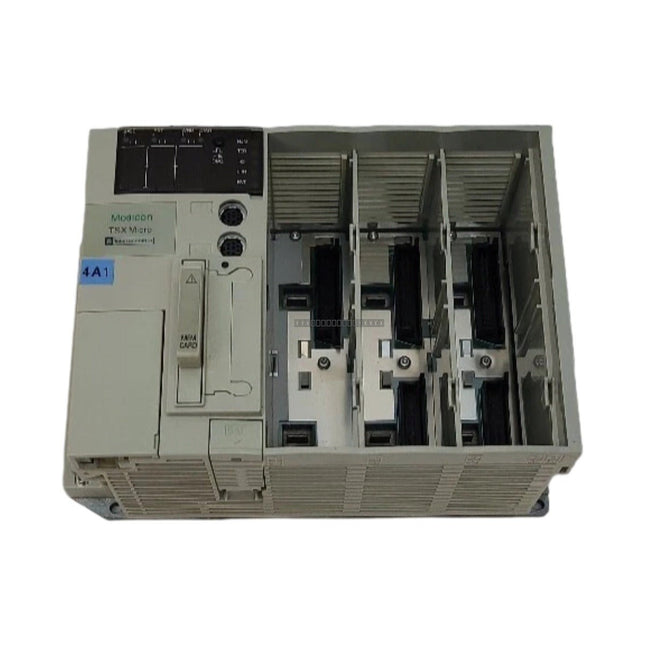

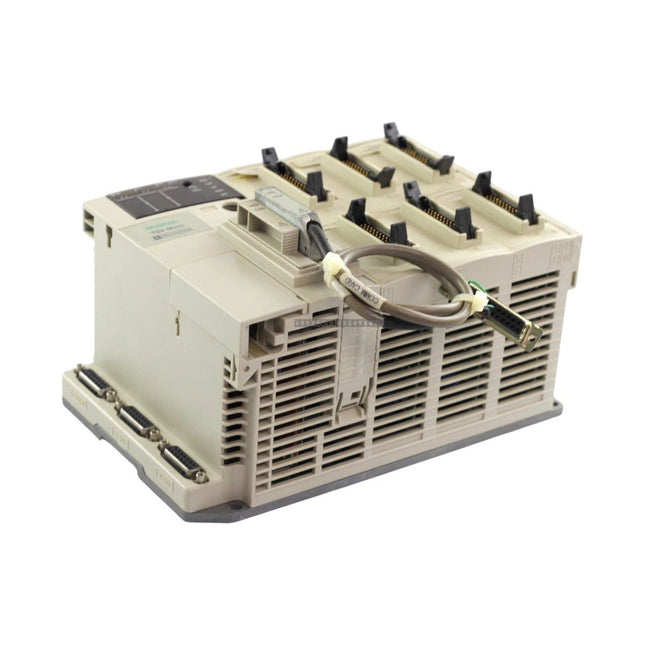

DescriptionThe Schneider Electric TSX3722100 functions as a centralized programmable logic controller (PLC) platform designed for the Modicon TSX Micro automation series. This hardware module coordinates real-time sequential control, machine monitoring, and process regulation across diverse manufacturing sectors, including automated packaging facilities, municipal water treatment plants, and raw material handling systems. The compact processing unit integrates memory execution blocks, communication ports, and flexible I/O extension slots within a single footprint. By delivering rapid instruction execution cycles and continuous internal diagnostics, this primary controller reduces physical component dependencies, prevents hardware failures, and ensures minimal plant downtime during high-throughput operational runs.Features
Integrated processing unit for real-time sequential control and process regulation.
Supports PCMCIA memory expansion cards for application backups and data logging.
Native support for Uni-Telway, Modbus RTU, and Character Mode protocols.
Dual terminal ports (TER and AUX) for HMI and supervisory network connectivity.
Non-volatile system flash memory for data retention during power loss.
Two dedicated slots for discrete and analog I/O expansion modules.
ApplicationsThis PLC base unit is suitable for a wide range of industrial automation tasks, including:
Automated packaging and assembly lines.
Municipal water and wastewater treatment control.
Raw material handling and conveyor systems.
Small-to-medium scale machine process regulation.
Technical Specifications
Brand
Schneider Electric
Model
TSX3722100
Series
Modicon TSX Micro
Supply Voltage
24 VDC
Power Consumption
32 W (max)
Internal RAM
20 kWords
Memory Expansion
Up to 128 kWords (PCMCIA)
Expansion Slots
2 slots
Operating Temperature
0 to 60 deg C
Storage Temperature
-25 to 70 deg C
Humidity
10 to 95 percent (non-condensing)
Protection Rating
IP20
Installation Guidelines
Ensure the unit is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
Verify power supply polarity before connecting the 24 VDC input to prevent internal circuit damage.
Always power down the system before inserting or removing PCMCIA memory cards or I/O expansion modules.
Maintain proper grounding practices to mitigate electromagnetic interference (EMI) in industrial environments.
Route communication cables away from high-voltage power lines to ensure signal integrity.
FAQWhat communication protocols does the TSX3722100 support?The unit natively supports Uni-Telway, Modbus RTU, and Character Mode protocols via its integrated TER and AUX ports.Can I expand the memory of this PLC?Yes, the unit features a PCMCIA slot that supports memory expansion cards up to 128 kWords for extended data logging and application storage.What is the power requirement for this module?This base unit operates on a 24 VDC supply and has a maximum power consumption of 32 W.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

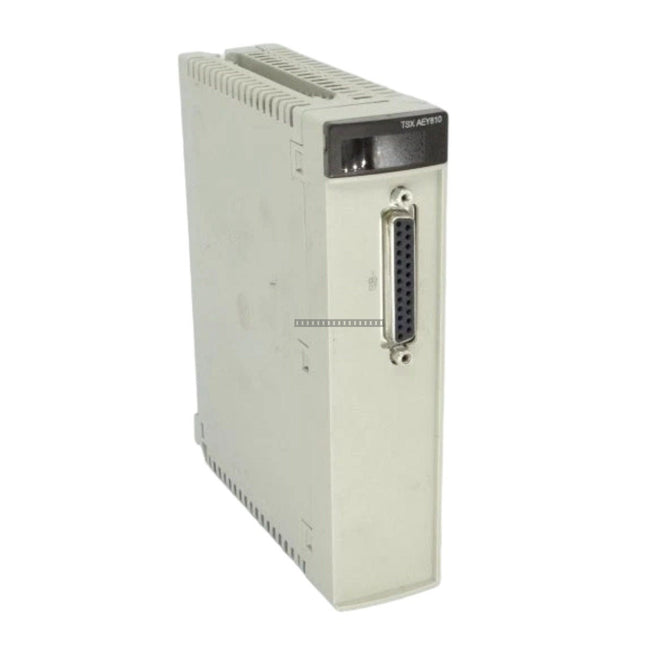

DescriptionThe Schneider Electric TSXAEY810 is an analog input module designed for the Modicon Premium automation platform. This module provides 8 isolated low-level analog inputs, offering high-precision signal acquisition with 16-bit resolution. It is engineered for demanding industrial environments where signal isolation and accurate data conversion are critical for process control and monitoring.Features
8 low-level isolated analog input channels
16-bit analog-to-digital conversion resolution
Channel-to-channel isolation rated at +/- 200 V
Nominal read cycle time of 29.7 ms
Optimized for integration within the Modicon Premium PLC architecture
Technical Specifications
Product Model
TSXAEY810
Input Channels
8 (Low Level, Isolated)
Resolution
16 bits
Current Consumption
475 mA at 5 V DC
Isolation
+/- 200 V between channels
Common Mode
+/- 200 V
Nominal Read Cycle Time
29.7 ms
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module.
Handle the module by its housing to prevent electrostatic discharge (ESD) damage to internal components.
Verify that the module is fully seated in the rack slot and the locking mechanism is engaged.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the Modicon Premium rack system to maintain signal integrity and safety.
Maintain adequate ventilation around the rack to prevent overheating during operation.
FAQWhat is the primary function of the TSXAEY810?The TSXAEY810 is an analog input module used to interface low-level analog signals with the Modicon Premium PLC system, converting them into digital data for processing.Does this module require external power?The module consumes 475 mA at 5 V DC, which is typically supplied directly through the Modicon Premium backplane once installed in the rack.What is the isolation rating for this module?The TSXAEY810 features an isolation rating of +/- 200 V between channels, providing protection against common-mode noise and potential ground loops in industrial instrumentation loops.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

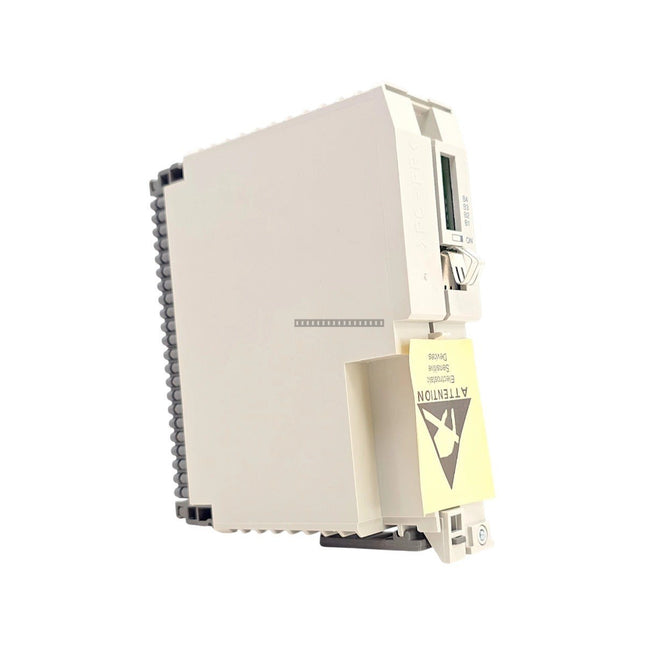

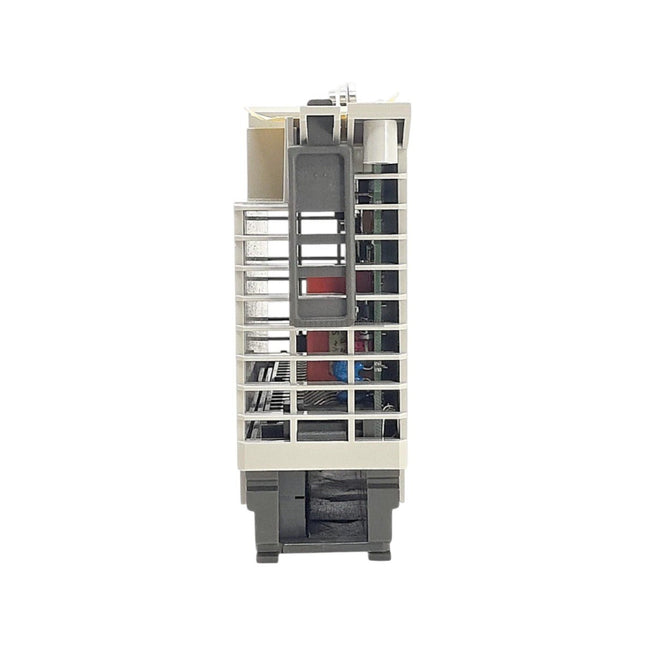

DescriptionThe ZAE 201 is a high-speed counter module designed for the legacy AEG Schneider Electric Modicon A120 automation platform. This module is engineered to process high-frequency pulse trains, rotary encoder signals, and flow meter inputs that exceed the scanning capabilities of standard digital I/O modules. By performing high-speed count accumulation and hardware gating locally, the ZAE 201 offloads the central CPU, reduces calculation jitter, and ensures system bus integrity through robust optocoupler isolation.Features
Dual independent high-speed counting channels supporting up to 50 kHz frequency.
Supports single-phase counting and dual-phase quadrature decoding (A/B phases) with Z-pulse marker capability.
Integrated auxiliary discrete inputs for remote gate control (start/stop) and hardware reset triggers.
Onboard diagnostic LED panel providing real-time status for bus communication (RUN), internal hardware health (ERR), and individual channel activity.
Galvanic isolation between field terminals and internal logic to protect against electrical noise and surges.
ApplicationsThe ZAE 201 is suitable for specialized positioning and velocity tracking loops in demanding industrial environments, including:
Mineral processing and mining operations.
Turbine monitoring and control in power generation plants.
Fluid metering and flow control systems in petroleum refining.
Precision motion control and rotary encoder integration.
Technical Specifications
Model
ZAE 201
Channels
2 Independent
Max Frequency
50 kHz
Resolution
16-bit binary (expandable to 24-bit)
Input Voltage
24 V DC (19.2 to 30 V DC range)
Input Logic
Sink (Positive Logic)
Current Consumption
150 mA at 5 V DC
Power Consumption
5.5 W max
Operating Temp
0 to 60 deg C
Protection
IP20
Installation Guidelines
Ensure the Modicon A120 rack is powered down before inserting or removing the module to prevent electrical damage or bus errors.
Mount the module in a clean, dry environment within the specified temperature range to ensure long-term reliability.
Use shielded twisted-pair cabling for high-speed encoder and pulse signals to minimize EMI interference.
Maintain proper grounding practices for the rack assembly to ensure the effectiveness of the galvanic isolation.
Verify that input signal levels comply with the 24 V DC nominal requirements; ensure signal state 1 is above 15 V DC and state 0 is below 5 V DC.
FAQIs the ZAE 201 compatible with modern Modicon platforms?The ZAE 201 is specifically designed for the legacy Modicon A120 series. It is not natively compatible with newer Modicon M340 or M580 platforms without specialized gateway hardware.Does this module require external power for the inputs?Yes, the field inputs require a nominal 24 V DC supply within the 19.2 to 30 V DC range to function correctly as per the sink logic configuration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 2481 is a high-integrity Analog Output Baseplate designed to provide the mechanical and electrical interface for critical analog control loops within the Tricon safety system platform. This passive infrastructure unit facilitates secure mounting, field wiring termination, and high-speed backplane bus routing for fault-tolerant analog output modules. It is engineered for demanding industrial environments, including oil and gas refining, thermal power generation, chemical processing, and mining, ensuring robust, cross-talk-free signal pathways and supporting hot-swappable module replacement without disrupting field loops.Features
Supports hot-swappable module replacement to minimize unplanned facility downtime.
Heavy-duty multi-layered PCB construction designed to withstand continuous vibration and thermal expansion.
Dedicated trace isolation and grounding paths to decouple transient external surges from the core system logic bus.
Distributes redundant logic signal lanes and parallel dual DC power rails to installed card interfaces.
Provides secure, reliable field termination for analog control elements such as control valves.
ApplicationsThe 2481 baseplate is utilized in safety-critical Triconex systems where continuous process execution is required. Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops in hazardous industrial environments.Technical Specifications
Brand
Invensys Triconex
Model
2481
Module Type
Analog Output Baseplate
Operating Temperature
-20 to 60 deg C
Installation Guidelines
Ensure the chassis is securely mounted to the system cabinet backplane to maintain structural integrity under vibration.
Verify that all field wiring is properly terminated to the designated blocks before module insertion.
Follow standard ESD (Electrostatic Discharge) precautions when handling the baseplate or installing modules.
Ensure the system power is managed according to Triconex safety protocols during installation or maintenance.
Maintain proper clearance around the baseplate to allow for adequate ventilation and thermal dissipation.
Route signal cabling away from high-EMI sources to prevent interference with analog output loops.
FAQIs the Triconex 2481 hot-swappable?Yes, the 2481 baseplate is designed to support the hot-swapping of analog output modules, allowing for maintenance and module replacement without interrupting the current or voltage loops to final control elements.What is the primary function of this baseplate?The 2481 serves as the mechanical and electrical interface for Triconex analog output modules, providing the necessary backplane bus routing and field wiring termination points for critical control loops.

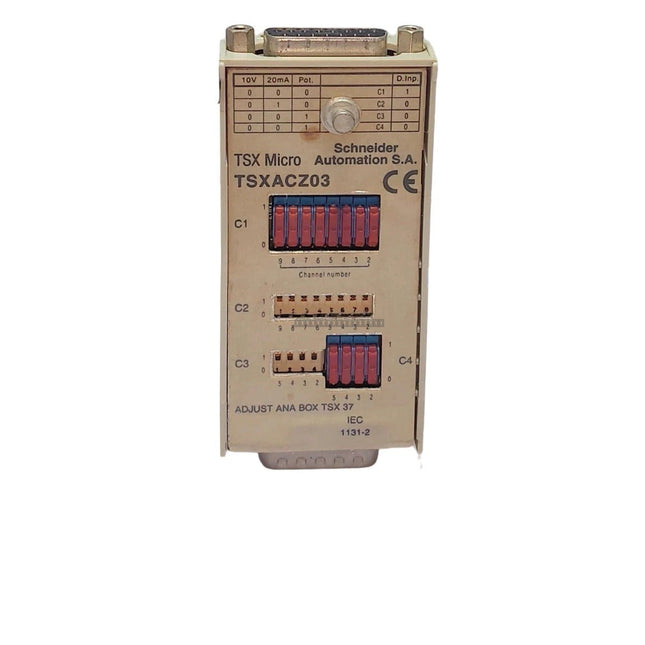

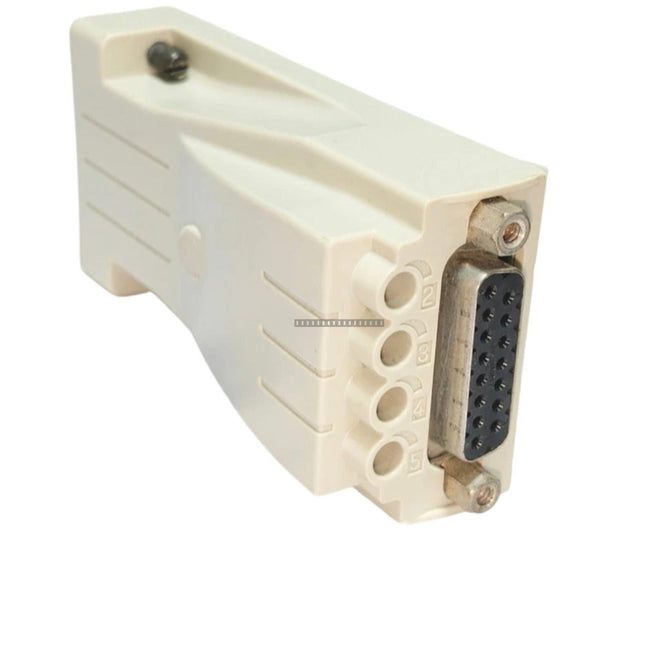

DescriptionThe Schneider Electric TSXACZ03 is an 8-channel analog input module designed for the Modicon Premium automation platform. This module is engineered to provide precise signal acquisition by converting field sensor signals into digital values for processing within the PLC system. It is built for reliable performance in demanding industrial environments.Features
8-channel analog input capability for high-density signal monitoring.
Supports 4-20 mA current loop inputs.
12-bit resolution for accurate data conversion.
Integrated 500V isolation between channels and the system bus.
Durable housing with standard backplane connectivity for Modicon Premium racks.
Technical Specifications
Manufacturer
Schneider Electric
Model
TSXACZ03
Product Line
Modicon Premium
Number of Inputs
8 channels
Input Type
4-20 mA Current
Resolution
12 bits
Conversion Time
5 ms per channel
Accuracy
+/- 0.5% of full scale
Input Impedance
250 Ohm
Isolation
500V (channel to bus)
Power Consumption
150 mA (from backplane)
Operating Temperature
0 degC to 60 degC
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module.
Verify that the module is correctly seated in the Modicon Premium backplane slot.
Use shielded twisted-pair cabling for analog signals to minimize EMI interference.
Ensure proper grounding of the cable shields at the signal source or the cabinet entry point.
Maintain adequate clearance around the module to allow for proper ventilation and cooling.
Handle the module using ESD-safe practices to prevent damage to internal circuitry.
FAQWhat type of signals does the TSXACZ03 accept?The TSXACZ03 is specifically designed for 4-20 mA current loop signals.Is this module isolated?Yes, the module features 500V isolation between the input channels and the backplane bus.What is the conversion speed of this module?The conversion time for the TSXACZ03 is 5 ms per channel.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

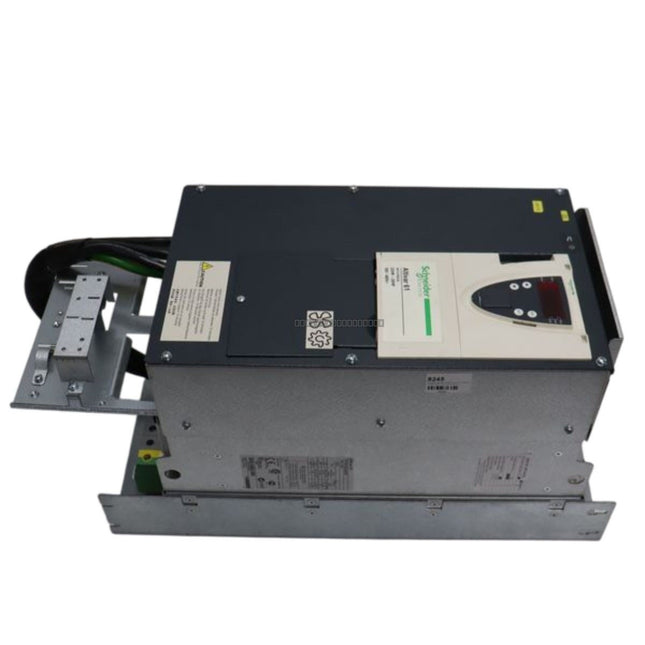

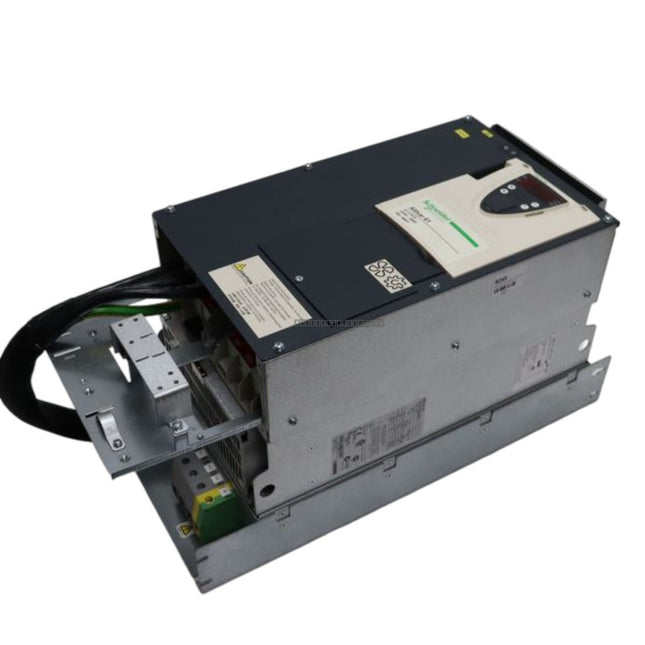

DescriptionThe Schneider Electric ATV61HD22N4Z is a high-performance variable speed drive from the Altivar 61 series, engineered for precise motor control in industrial pumping and ventilation applications. Designed for 22 kW (30 HP) motors, this drive operates on a 3-phase 380-480V supply, providing robust speed regulation and energy efficiency for demanding HVAC and fluid management systems.Features
Optimized for pumping and ventilation machine control.
Supports 22 kW (30 HP) motor power ratings.
Integrated EMC filter for electromagnetic compatibility.
IP20 ingress protection rating for cabinet mounting.
Reliable operation within 380-480V 3-phase power networks.
ApplicationsThis drive is specifically designed for industrial processes requiring variable speed control, including centrifugal pumps, fans, compressors, and HVAC ventilation systems. Its control algorithms are tuned to enhance the efficiency of fluid and air handling equipment.Technical Specifications
Product Model
ATV61HD22N4Z
Range of Product
Altivar 61
Motor Power (kW)
22 kW
Motor Power (HP)
30 HP
Supply Voltage
380...480V (-15% to +10%)
Phases
3-phase
Ingress Protection
IP20
Application
Pumping and Ventilation
Installation Guidelines
Ensure the drive is mounted vertically in a clean, dry, and well-ventilated enclosure to maintain the IP20 rating.
Maintain adequate clearance around the unit for heat dissipation as specified in the installation manual.
Use shielded cables for motor connections to minimize EMI and ensure proper grounding of the drive chassis.
Verify that the incoming power supply voltage matches the drive's input range (380-480V) before energizing.
Always disconnect power and wait for the DC bus capacitors to discharge before performing any wiring or maintenance.
FAQIs the graphic terminal included with this model?No, the ATV61HD22N4Z is supplied without the graphic display terminal.What is the primary application for this drive?This unit is specifically optimized for pumping and ventilation machine applications, offering specialized control features for these types of loads.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

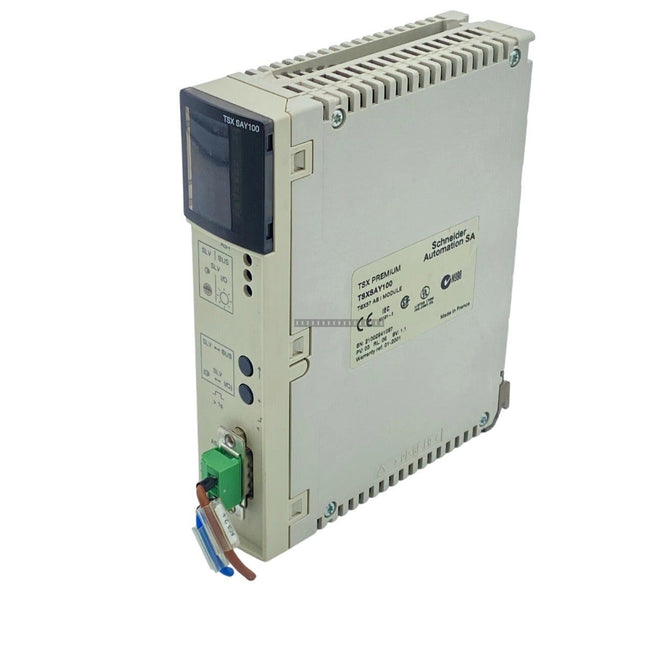

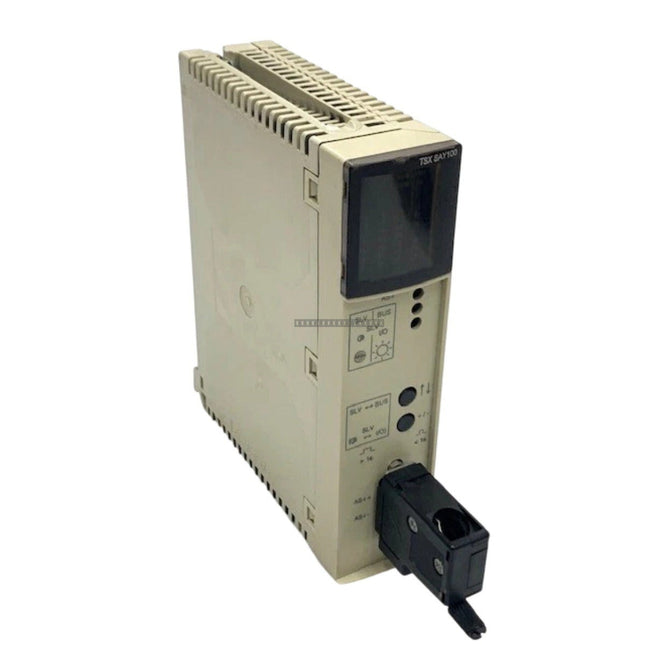

DescriptionThe Schneider TSXSAY100 is a high-performance BUS Coupler Module belonging to the Modicon TSX series. This module is engineered to facilitate reliable communication between industrial control systems and various field devices. It acts as a critical interface component, ensuring seamless data exchange and synchronization across complex automation architectures.Features
Reliable Data Transfer: Provides stable and consistent communication for demanding industrial integration tasks.
Protocol Versatility: Supports multiple industrial protocols, including Profibus DP, Modbus, and CANopen, for broad system compatibility.
High-Speed Communication: Optimized for fast data transfer rates to support real-time, low-latency control applications.
Compact Form Factor: Designed for space-efficient installation within standard control cabinets and system racks.
Rugged Construction: Built to operate reliably in harsh industrial environments with a wide operating temperature range.
Technical Specifications
Manufacturer
Schneider Electric
Model
TSXSAY100
Product Series
Modicon TSX
Number of Ports
1
Supported Protocols
Profibus DP, Modbus, CANopen
Interface Type
Ethernet, RS232, RS485
Power Supply
24V DC
Operating Temperature
-10 degC to 60 degC
Storage Temperature
-40 degC to 85 degC
Mounting Type
DIN Rail Mount
Weight
0.4 kg
Installation Guidelines
Mounting: Designed for standard DIN rail mounting. Ensure the module is securely snapped into place to prevent vibration-related disconnections.
Power Supply: Verify that the input power is a stable 24V DC source before connecting. Ensure correct polarity to avoid damage to internal circuitry.
Grounding: Follow standard industrial grounding practices for the DIN rail and the cabinet to minimize EMI interference.
Handling: Observe ESD (Electrostatic Discharge) precautions when handling the module. Avoid touching the connector pins or internal components.
Environment: Ensure adequate ventilation around the module to maintain operating temperatures within the specified -10 degC to 60 degC range.
FAQWhat is the primary function of the TSXSAY100?The TSXSAY100 serves as a BUS coupler module within the Modicon TSX series, enabling communication between the controller and various field devices using protocols like Modbus, Profibus DP, or CANopen.Can this module be used in high-temperature environments?The module is rated for an operating temperature range of -10 degC to 60 degC. Please ensure your cabinet cooling systems maintain the ambient temperature within these limits for optimal performance.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

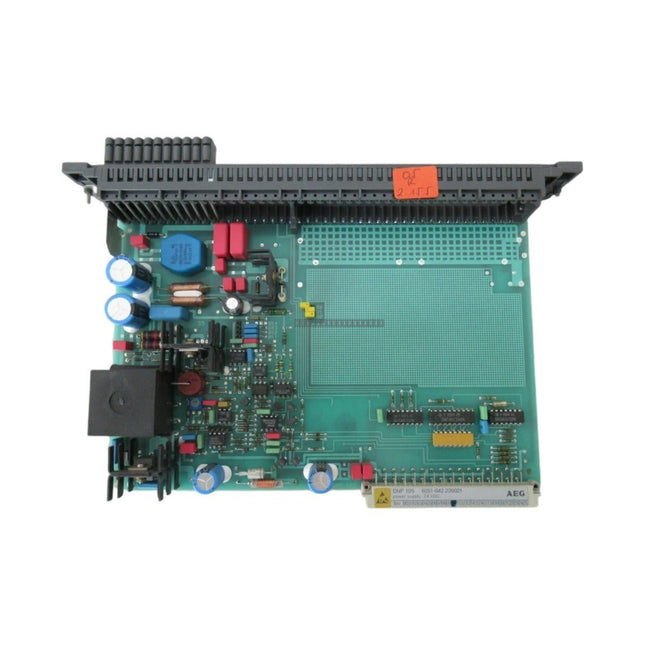

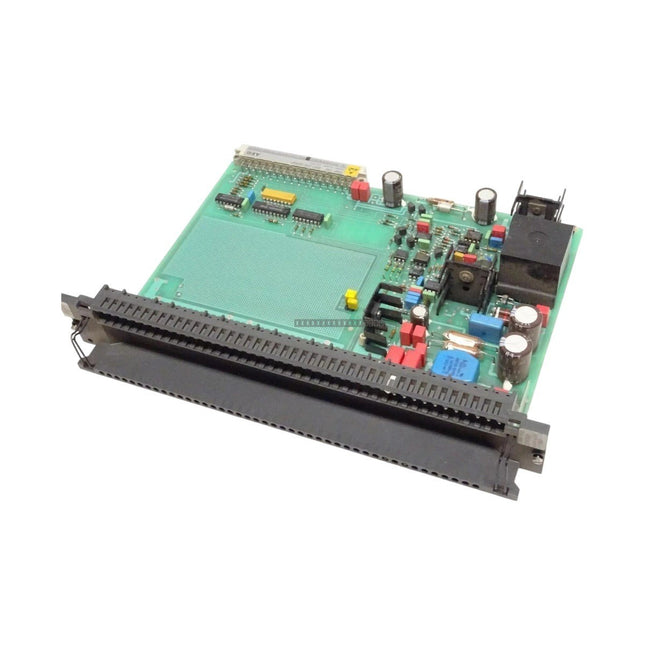

DescriptionThe Schneider Electric DNP 105 (DNP105) is a specialized communication interface module within the Modicon industrial automation ecosystem. Engineered for reliable protocol conversion and data transmission, this module facilitates the integration of distributed field devices with centralized control networks. It is widely utilized in critical infrastructure sectors, including electrical substations, water treatment facilities, and oil and gas distribution networks, where it ensures deterministic telemetry and command execution under strict timing constraints.Features
Protocol Versatility: Supports dual compatibility for DNP3 and Modbus RTU protocols.
Robust Isolation: Features optical isolation on communication ports to protect internal control circuitry from high-voltage surges and electromagnetic interference (EMI).
Diagnostic Indicators: Front-panel LEDs provide real-time status monitoring for power, transmit (TX), receive (RX), and fault conditions.
Flexible Topology: Supports both point-to-point and multi-drop network configurations via RS232/RS485 interfaces.
Configurability: Compatible with standard programming software for adjusting timing parameters, deadband settings, and event log buffering.
ApplicationsThe DNP 105 is designed for high-availability industrial environments requiring stable links between control rooms and field instrumentation. Typical applications include remote terminal unit (RTU) integration, SCADA system data acquisition, and protocol bridging in legacy-to-modern automation upgrades.Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
DNP 105
Product Series
Modicon
Communication Ports
Isolated RS232 / RS485
Protocol Support
DNP3 / Modbus RTU
Isolation Voltage
500 VDC port-to-ground
Input Voltage
24 VDC nominal
Power Consumption
4.5 W maximum
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent non-condensing
Enclosure Rating
IP20
Installation Guidelines
ESD Protection: Always use an anti-static wrist strap or follow proper ESD grounding procedures when handling the module to prevent damage to sensitive internal components.
Power Requirements: Ensure the 24 VDC power supply is stable and within the specified nominal range before connection. Always disconnect power before inserting or removing the module from the rack.
Wiring: Use shielded communication cables for RS485 connections to minimize noise interference. Ensure proper termination resistors are used in multi-drop configurations.
Environment: Install in a clean, dry, and well-ventilated enclosure rated for IP20 or better. Maintain adequate clearance around the module to prevent overheating.
FAQIs the DNP 105 module hot-swappable?It is recommended to power down the system before installing or removing the module to prevent electrical arcing or potential damage to the backplane connectors.What does the IP20 rating signify?The IP20 rating indicates that the module is protected against solid objects greater than 12.5 mm, but it is not protected against liquids. It should be installed in an appropriate control cabinet.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 140ESI06210 is a high-performance ASCII serial interface module developed by Schneider Electric for the Modicon Quantum automation platform. Equipped with two independent RS-232C serial ports, this communications processor handles bidirectional point-to-point data exchange between the Quantum controller and generic asynchronous ASCII field devices. It natively handles protocols for barcode readers, weigh scales, printers, sensors, and legacy instrumentation, eliminating the need for complex external protocol converters. By offloading custom serial parsing workloads directly from the central processing unit, it prevents communication bottlenecks and improves system efficiency.Features
Two independent RS-232C serial channels for flexible device integration.
Supports configurable baud rates from 50 bps to 19200 bps.
Hardware (RTS/CTS) and software (XON/XOFF) flow control options.
Galvanic isolation between ports and the system backplane to protect against surges and ground loops.
Dedicated onboard processor for character string management and framing validation.
Front-panel LED indicators for real-time diagnostic monitoring of transmit/receive activity and module health.
ApplicationsThis module is designed for demanding industrial applications requiring integration of legacy or specialized serial devices into a Modicon Quantum control system. Typical environments include oil and gas refining, automated warehousing, power generation, and mineral processing facilities where reliable, deterministic data routing is required.Technical Specifications
Model
140ESI06210
Brand
Schneider Electric
Range
Modicon Quantum
Ports
2 x RS-232C (RJ45)
Baud Rate
50 to 19200 bps
Buffer Memory
256 bytes per port
Bus Current
400 mA
Power Dissipation
2.0 W
Isolation
500 VDC
Operating Temp
0 to 60 deg C
Storage Temp
-40 to 85 deg C
Humidity
95% non-condensing
Installation Guidelines
Ensure the Quantum rack is powered down before inserting or removing the module to prevent electrical damage.
The module must be seated firmly in the backplane slot and secured using the integrated locking mechanism.
Use shielded serial cables to minimize EMI interference, especially in high-noise industrial environments.
Maintain proper ventilation within the cabinet to stay within the 0 to 60 deg C operating temperature range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
Compliance and CertificationsThe 140ESI06210 is designed to meet rigorous industrial standards, including CE, UL, CSA, FM Class 1 Division 2, and ABS certifications, ensuring suitability for hazardous and marine environments.FAQDoes this module support RS-485 communication?No, the 140ESI06210 is specifically designed for RS-232C serial communication via RJ45 interfaces.Can I use this module to connect to a printer?Yes, this module is ideal for interfacing with ASCII-based devices such as printers, barcode scanners, and weigh scales.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider PCA984131 CPU Module is a high-performance processing unit designed for industrial automation applications. Engineered for integration within the RMS-TSG-TZ-C series 185 Base Compact PLC systems, this module provides the computational power required for complex logic operations while maintaining rapid cycle times. It serves as the central controller for managing field devices, sensors, and actuators in demanding industrial environments.Features
4K Words memory capacity for executing complex PLC programs with minimal latency.
Optimized for the 185 Base Compact system architecture, ensuring seamless compatibility and efficient panel space utilization.
High-speed processing capability with a 1 ms typical cycle time.
Robust design suitable for operation in standard industrial temperature ranges.
Integrated communication interface for standard 185 Base Compact I/O bus connectivity.
ApplicationsThis CPU module is primarily utilized in industrial control systems requiring compact, reliable, and high-speed logic processing. It is frequently deployed in manufacturing automation, process control, and machine-level monitoring systems that rely on the 185 Base Compact PLC platform.Technical Specifications
Manufacturer
Schneider Electric
Model
PCA984131
Series
RMS-TSG-TZ-C / 185 Base Compact
Category
CPU Module
Memory
4K Words
Processing Type
16-bit PLC CPU
I/O Interface
Standard 185 Base Compact I/O bus
Power Supply
24 VDC
Cycle Time
1 ms typical
Operating Temperature
0 degC to 60 degC
Installation Guidelines
Ensure the PLC system is powered down before inserting or removing the CPU module to prevent electrical damage.
Verify that the module is correctly seated in the 185 Base Compact rack to ensure proper bus connection.
Maintain adequate clearance around the module to facilitate airflow and cooling within the control panel.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
Route signal and power cables separately to minimize EMI (Electromagnetic Interference) impact on processing performance.
FAQWhat is the primary function of the PCA984131?The PCA984131 acts as the central processing unit for the 185 Base Compact PLC system, executing logic programs and managing I/O communications.Is this module compatible with other PLC series?No, this module is specifically designed for the RMS-TSG-TZ-C / 185 Base Compact series and is not intended for use in other PLC architectures.What is the required power supply for this module?The module operates on a 24 VDC power supply.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric ASBDAU208 is a high-performance analog output module designed for industrial automation control systems. This module provides eight isolated analog output channels, enabling precise voltage control for a variety of industrial actuators and field devices. Engineered for reliability, the ASBDAU208 features robust signal isolation technology to protect sensitive control infrastructure from electrical noise and interference.Features
Eight independent analog output channels.
Signal range: 0 to 10V.
11-bit resolution for high-precision signal representation.
Integrated signal isolation for enhanced system protection.
Compact, space-saving form factor suitable for high-density cabinet installations.
Lightweight design for simplified handling and maintenance.
ApplicationsThe ASBDAU208 is typically utilized in PLC-based automation systems where precise analog control is required for proportional valves, variable speed drives, or other voltage-controlled instrumentation. It is suitable for process control, manufacturing automation, and critical infrastructure monitoring.Technical Specifications
Manufacturer
Schneider Electric
Model
ASBDAU208
Type
Analog Output Module
Number of Channels
8
Output Signal Range
0 to 10V
Resolution
11 Bits
Isolation
Signal Isolated
Weight
0.2 kg
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the rack.
Mount the module in a clean, dry environment, ensuring adequate ventilation to prevent overheating.
Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the control cabinet backplane for optimal noise immunity.
Verify that all terminal connections are secure and that wire gauges are appropriate for the terminal block specifications.
FAQWhat is the primary function of the ASBDAU208?The ASBDAU208 is an analog output module that converts digital data from the controller into precise 0-10V analog signals to drive external actuators.Does this module require external power for the outputs?Please refer to the specific system documentation for your controller rack, as power requirements for the output loop are typically provided via the backplane or external field power supplies depending on the specific configuration.Is the ASBDAU208 suitable for noisy industrial environments?Yes, the module features integrated signal isolation, which is designed to protect the control system and maintain signal integrity in environments prone to electrical noise.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Schneider Electric 140DAI54000C Modicon Quantum Discrete Input ModuleThe Schneider Electric 140DAI54000C is a high-performance discrete input module designed for the Modicon Quantum automation platform. This module is engineered to execute direct physical electrical voltage sensing and digital state translation, making it suitable for demanding process infrastructure environments such as petrochemical refining, heavy mineral mining, and thermal power plant substations. The unit features conformal coating to protect against corrosive atmospheres and airborne contaminants, while providing robust optical isolation to safeguard central processing sub-systems from high-voltage AC surges.Features
16-channel discrete input sensing for 115 VAC signals.
Organized into 4 independent isolated groups of 4 channels each for flexible wiring configurations.
Integrated optocoupler-based galvanic isolation between field-side terminations and internal logic.
Conformal coating for enhanced durability in harsh industrial environments.
Built-in line-frequency filtration to reject electromagnetic noise and contact bounce.
Supports hot-swapping within the Modicon Quantum backplane for maintenance without system downtime.
ApplicationsThis module is designed for industrial applications requiring reliable AC signal monitoring, including:
Monitoring of AC-powered limit switches, proximity sensors, and auxiliary contacts.
Integration into distributed control systems (DCS) or PLC-based automation architectures.
Substation grid monitoring and control.
Process automation in environments with high levels of electromagnetic interference.
Technical Specifications
Model
140DAI54000C
Brand
Schneider Electric
Input Voltage Nominal
115 VAC
Input Voltage Range
85 to 132 VAC
Number of Channels
16 (4 groups of 4)
Network Frequency
47 to 63 Hz
Power Consumption
180 mA max at +5 VDC
Dielectric Isolation
1780 V AC (1 minute)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Field Wiring: Route 115 VAC signal lines through dedicated, shielded wire trays. Maintain physical separation between AC input conductors and low-voltage DC communication or analog signal paths to prevent inductive cross-talk.
ESD Handling: Always utilize an electrostatic discharge (ESD) wrist strap when handling the module to protect the conformal coating and sensitive surface-mounted components.
Module Seating: Ensure the 40-pin removable terminal block is securely engaged into the front housing, verifying that the mechanical locking latch is fully seated to maintain contact integrity under vibration.
Safety: While the module supports hot-swapping, ensure all local site safety protocols regarding electrical maintenance are followed before performing any wiring changes.
FAQQ: Does the 140DAI54000C input module permit hot-swap procedures inside an active Modicon Quantum backplane?A: Yes. The Modicon Quantum chassis topology supports live hot-swap functionality, allowing removal and insertion of the 140DAI54000C card under active power without interrupting ongoing logic processing or affecting adjacent I/O modules.Q: How are the 16 input channels electrically grouped on the front termination block?A: The 16 input points are split into 4 independent isolated groups containing 4 channels each. Each group features its own isolated return terminal, allowing the module to reference different AC voltage sources or phases across a single module interface.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric XBT F024110 is an operator interface panel designed for industrial automation environments. This terminal serves as a human-machine interface (HMI), allowing operators to monitor system processes, adjust parameters, and interact with connected programmable logic controllers (PLCs) or other control equipment. It is engineered for reliability in demanding industrial settings, providing clear visual feedback and input capabilities for machine control and data acquisition.Features
Robust design suitable for industrial panel mounting.
Clear interface for real-time process monitoring and control.
Compatible with Schneider Electric automation ecosystems.
Reliable communication for efficient operator-to-machine interaction.
ApplicationsThis operator interface panel is typically utilized in manufacturing, process control, and infrastructure automation. It is commonly deployed in applications such as machine tool control, assembly line monitoring, and general industrial automation systems where local operator intervention is required.Technical Specifications
Product Model
XBT F024110
Manufacturer
Schneider Electric
Product Type
Operator Interface Panel
Weight
2.7 kg
Installation Guidelines
Ensure the panel cutout dimensions are verified against the official installation manual before mounting.
Mount the unit in a clean, dry environment protected from excessive dust, moisture, and vibration.
Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
Use shielded communication cables to minimize electromagnetic interference (EMI) from high-voltage equipment.
Always disconnect power before performing any wiring or maintenance on the interface panel.
Ensure the unit is properly grounded according to local electrical codes to prevent electrical noise and potential damage.
FAQWhat is the primary function of the XBT F024110?The XBT F024110 acts as an HMI (Human-Machine Interface), enabling operators to communicate with, monitor, and control industrial automation equipment.Is this unit suitable for harsh environments?While designed for industrial use, it should be installed within an appropriate enclosure (such as an IP-rated cabinet) if the environment contains high levels of dust, moisture, or corrosive gases.What should I do if the screen becomes unresponsive?First, verify the power supply connections and ensure the unit is receiving the correct voltage. If the issue persists, check the communication cables for damage or loose connections before contacting technical support.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric AS-B863-032 (ASB863032) is a high-density discrete input module designed for the Modicon 800 series I/O platform. This industrial-grade module provides 32 independent input channels, enabling the reliable interface of external binary signals into the central control system. It is widely utilized in demanding environments such as thermal power plants, petroleum refineries, and mining operations to ensure continuous, accurate monitoring of field contacts. The module incorporates advanced optoelectronic isolation to protect low-voltage backplane logic from electrical noise and voltage transients, ensuring deterministic signal processing and enhanced system safety.Features
32-channel discrete input capacity for high-density I/O requirements.
Integrated optoelectronic isolation (1500 VAC channel-to-bus) for superior noise immunity.
Compatible with 24 VDC nominal field circuits.
Supports both sink and source input configurations.
Front-accessible terminal block for efficient wiring and maintenance.
Hot-swappable design allows for module replacement without requiring a full controller restart.
ApplicationsThis module is engineered for critical industrial automation tasks, including:
Status monitoring of field-mounted sensors and switches.
Interfacing binary signals in large-scale process control systems.
Safety-critical signal acquisition in power generation and petrochemical facilities.
High-speed logic state capture for deterministic PLC processing.
Technical Specifications
Parameter
Specification
Model
AS-B863-032
Product Series
Modicon 800
Input Channels
32
Nominal Voltage
24 VDC
Input Type
Sink / Source
Isolation
1500 VAC (Channel-to-Bus)
Power Consumption
1.8 W (from backplane)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the PLC chassis is powered down before inserting or removing the module to prevent electrical damage.
Verify correct seating of the module in the Modicon 800 backplane slot to ensure proper bus communication.
Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise industrial environments.
Ensure proper grounding of the module chassis to the system common ground to maintain isolation integrity.
Maintain adequate ventilation clearance around the module to ensure operation within the specified 0 to 60 deg C temperature range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.
FAQIs this module hot-swappable?Yes, the ASB863032 is designed for hot-swapping within the Modicon 800 series backplane, allowing for maintenance and replacement without shutting down the entire controller rack.What is the isolation rating of this module?The module provides 1500 VAC isolation between the field input channels and the internal bus logic, protecting the processor from external electrical transients.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric ATV212HD37N4 is a high-performance variable speed drive from the Altivar 212 series, specifically engineered for HVAC applications. This drive is designed to control asynchronous motors with a power rating of 37 kW (50 hp), providing energy-efficient speed regulation for pumps and fans in building management systems.Features
Optimized for HVAC pump and fan control applications.
Supports 3-phase power supply with a voltage range of 323 to 528 V.
Integrated EMC filter for electromagnetic compatibility.
Compact IP21 rated enclosure suitable for standard cabinet mounting.
Reliable speed control for asynchronous motors up to 37 kW.
ApplicationsThe ATV212 series is widely utilized in commercial and industrial HVAC systems, including:
Centrifugal pumps and circulation systems.
Supply and exhaust fans.
Cooling tower fan control.
Building automation systems requiring energy-efficient motor speed management.
Technical Specifications
Product Model
ATV212HD37N4
Product Range
Altivar 212
Motor Power (kW)
37 kW
Motor Power (hp)
50 hp
Supply Voltage Limits
323 to 528 V
Network Phases
3-phase
Supply Frequency
50/60 Hz
IP Rating
IP21
Application
Pumps and fans
Installation Guidelines
Ensure the drive is installed in a clean, dry, and well-ventilated environment to maintain operating temperature limits.
Maintain adequate clearance around the drive for proper airflow and cooling.
Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the drive chassis to a common earth point to prevent ground loops and noise.
Always disconnect power and wait for the internal capacitors to discharge before performing any wiring or maintenance.
Verify that the supply voltage matches the drive's input specifications before applying power.
FAQWhat is the primary application for the ATV212HD37N4?This drive is specifically designed for HVAC applications, such as controlling the speed of pumps and fans to optimize energy consumption in building management systems.Does this drive include an EMC filter?Yes, the ATV212HD37N4 comes with an integrated EMC filter to ensure compliance with electromagnetic compatibility standards in industrial and commercial environments.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric Modicon 984 PCE984385 is a high-reliability, compact programmable logic controller (PLC) engineered for the Modicon 984 control platform. This processing unit is designed to execute complex ladder logic, mathematical functions, and data processing tasks at high speeds, ensuring precise machine control in demanding industrial environments. Its robust architecture is built to withstand thermal stress and electromagnetic interference, helping to minimize unexpected downtime in critical automation systems.Features
Integrated memory and fixed communication ports for streamlined system architecture.
Dual built-in Modbus RS-232C ports for direct connection to programming terminals and operator interfaces.
Battery-backed RAM for reliable program and register data retention during power loss.
Deterministic processing with support for remote I/O networks and continuous CRC error checking.
Comprehensive diagnostic LED indicators for system status monitoring, including Ready, Run, and Battery Low faults.
ApplicationsThe PCE984385 is suitable for a wide range of mid-to-high availability industrial applications, including:
Petro-chemical refining processes
Municipal water and wastewater distribution systems
Paper and pulp mill automation
Heavy mining infrastructure and material handling
Technical Specifications
Model
PC-E984-385
Platform
Modicon 984
Logic Memory
16K words
Register Memory
10K words
Execution Speed
0.7 ms per kiloword
Communication
2 x Modbus RS-232C (9-pin D-shell)
Power Supply
24 VDC (19.2 to 30 VDC range)
Power Consumption
15 W max
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 80 deg C
Humidity
95% non-condensing
Installation Guidelines
Ensure the controller is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
Always power down the system before inserting or removing the module to prevent electrical damage.
Use shielded communication cables for RS-232C ports and route them away from high-voltage or high-EMI power lines.
Verify that the frame ground connection is secure to ensure proper isolation resistance and noise immunity.
Monitor the low battery indicator on the front panel and replace the battery periodically to prevent loss of user logic and register data.
Compliance and CertificationsThis unit is designed to meet international industrial standards, including CE, UL, CSA, and FM Class 1 Division 2 requirements.FAQWhat is the primary function of the PCE984385?The PCE984385 acts as the central processing unit for the Modicon 984 platform, managing logic execution, data register handling, and communication with remote I/O and peripheral devices.How is the user program protected during a power outage?The controller utilizes battery-backed RAM. A low-battery LED indicator is provided on the front of the module to alert operators when the battery requires replacement to ensure continued data retention.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Modicon 416NHM30032 is a high-performance PCI bus interface card engineered to provide robust Modbus Plus (MB+) network connectivity for industrial computer systems. By enabling PCs and industrial workstations to act as active nodes on a Modbus Plus network, this adapter facilitates seamless, high-speed data exchange with PLCs and other automation hardware. It is a critical component for SCADA systems, HMI applications, and industrial data logging in demanding environments such as power plants, refineries, and manufacturing facilities.Features
32-bit PCI Architecture: Ensures full compatibility with standard industrial PC backplanes and supports Plug-and-Play (PnP) configuration.
Modbus Plus Connectivity: Supports standard token-pass bus arbitration at a transmission rate of 1 Mbit/s.
Efficient Data Handling: Features onboard dual-ported RAM to minimize CPU overhead during high-traffic network operations.
Diagnostic Monitoring: Includes integrated status LEDs on the mounting bracket for real-time visual indication of network node activity and physical layer fault detection.
Automated Resource Allocation: Automatically manages IRQ and I/O address assignments to prevent system resource conflicts.
ApplicationsThis network adapter is designed for integration into industrial control rooms where reliable communication between supervisory systems and field controllers is required. It is commonly used in legacy Modbus Plus network upgrades, SCADA data acquisition, and HMI-to-PLC communication interfaces.Technical Specifications
Model
416NHM30032
Brand
Schneider Electric
Series
Modicon Modbus Plus
Bus Architecture
32-bit PCI (Plug and Play)
Protocol
Modbus Plus (MB+)
Data Rate
1 Mbit/s
Connector
9-pin D-shell (Female)
Power Input
5 VDC (via PCI bus)
Power Consumption
2.5 W (typical)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95 percent non-condensing
Installation Guidelines
ESD Protection: Always handle the card by its edges and use a grounded wrist strap to prevent electrostatic discharge damage to sensitive components.
Power Down: Ensure the host computer is completely powered down and disconnected from the AC supply before inserting or removing the PCI card.
Seating: Ensure the card is fully seated in the PCI slot and the mounting bracket is securely fastened to the chassis to prevent vibration-related intermittent connections.
Cable Routing: Use shielded Modbus Plus cabling and keep communication lines routed away from high-voltage power cables and high-EMI sources to maintain signal integrity.
Driver/BIOS: Ensure the host system BIOS supports PCI PnP and that the appropriate Modbus Plus driver software is installed for the operating system in use.
FAQDoes this card require external power?No, the 416NHM30032 draws its required 5 VDC power directly from the host computer's PCI bus.Is this card compatible with all PCI slots?The card is designed for standard 32-bit PCI slots. Ensure your industrial PC backplane supports the 32-bit PCI standard before installation.What type of cable is used for the network port?The network port is a 9-pin D-shell (female) connector, typically used with standard Modbus Plus shielded twisted-pair cabling.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 4000093-320 cable assembly is a high-integrity interconnection component designed for use within Triple Modular Redundancy (TMR) safety-instrumented systems. This heavy-duty interface cable is engineered to facilitate reliable, deterministic bus communications between I/O chassis, termination panels, and main processor modules. It is specifically built for demanding industrial environments, such as petroleum refining, petrochemical processing, and power generation, where signal integrity is critical for safety and operational continuity.Features
High-Integrity Shielding: Incorporates individual foil shielding for internal data pairs combined with an overall braided shield to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI).
Robust Construction: Features a flame-retardant, abrasion-resistant industrial jacket designed to withstand moisture and chemical exposure.
Secure Connectivity: Equipped with high-precision molded connectors featuring physical locking mechanisms to ensure low contact resistance and consistent ground continuity.
Vibration Resistance: Designed to maintain signal stability and prevent intermittent failures in high-vibration industrial settings.
ApplicationsThis cable assembly is intended for use in critical safety applications, including:
TMR safety-instrumented system (SIS) communication links.
Interconnection between I/O chassis and termination assemblies.
Data transmission in high-EMI industrial environments.
Critical process control loops requiring high signal fidelity.
Technical Specifications
Model
4000093-320
Brand
Triconex
Wire Configuration
Multi-conductor shielded pairs
Nominal Impedance
100 Ohms
Voltage Rating
600 V
Insulation Resistance
100 MOhms minimum
Operating Temperature
-40 to +85 deg C
Installation Guidelines
Power Down: Always ensure the associated chassis and power supplies are de-energized before connecting or disconnecting the cable assembly.
Cable Routing: Route cables away from high-voltage power lines and sources of high-frequency electrical noise to maintain signal integrity.
Grounding: Ensure the connector locking mechanisms are fully engaged to maintain proper ground continuity across the shield.
Handling: Avoid sharp bends or excessive tension during installation to prevent damage to the internal conductors and shielding layers.
Environment: Verify that the installation area remains within the specified operating temperature range of -40 to +85 deg C.
FAQWhat is the primary function of the 4000093-320 cable?This cable is used to provide secure, shielded data communication within Triconex TMR safety systems, ensuring reliable signal transmission between system components.Is this cable suitable for hazardous environments?Yes, the cable features a flame-retardant and chemical-resistant jacket, making it suitable for use in demanding industrial sectors like petrochemical and power generation facilities.
DescriptionThe Triconex 7400165-380 terminal board serves as a high-integrity connection interface designed for use within Triconex safety-instrumented systems. It provides a robust and reliable termination point for field wiring, ensuring stable signal distribution between field devices and I/O modules. By maintaining signal integrity and minimizing potential points of failure, this terminal board supports the high availability and fault-tolerant requirements of critical industrial safety loops in sectors such as oil and gas, petrochemicals, and power generation.Features
High-density modular architecture designed for continuous operation in demanding industrial environments.
Equipped with 121 dedicated screw terminals for secure and organized field wiring.
Engineered with optimized trace separation to mitigate cross-channel interference and maintain signal purity.
Modular design facilitates efficient installation and streamlined maintenance cycles.
Compatible with standard Triconex I/O module configurations.
ApplicationsThis terminal board is primarily utilized in Safety Instrumented Systems (SIS) where high reliability and fault tolerance are mandatory. Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops in hazardous or high-stakes industrial facilities.Technical Specifications
Model
7400165-380
Brand
Triconex
Connection Type
Screw Terminals
Number of Terminals
121
Voltage Rating
30 VDC
Maximum Current Capacity
10 A
Operating Temperature
-20 to +70 deg C
Installation Guidelines
Ensure the system is powered down before installing or removing the terminal board to prevent electrical damage or accidental system trips.
Mount the board in a clean, dry, and vibration-dampened enclosure to ensure long-term reliability.
Use appropriate wire ferrules for screw terminal connections to ensure a secure, low-resistance contact.
Maintain proper cable routing practices, keeping signal wiring separated from high-voltage or high-EMI power lines to prevent noise induction.
Ensure all field wiring is properly labeled and documented to facilitate future troubleshooting and maintenance.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board components.
FAQWhat is the primary function of the 7400165-380?The 7400165-380 is a terminal board that acts as an interface between field instrumentation and Triconex I/O modules, providing secure termination points for safety-critical signal loops.Can this board be used in high-temperature environments?Yes, the board is rated for operation within an ambient temperature range of -20 to +70 deg C, making it suitable for most industrial control room and field cabinet environments.Does this board require special tools for installation?Installation requires standard industrial hand tools, such as a precision screwdriver for the screw terminals and appropriate mounting hardware for the enclosure rail or backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Altivar 61 ATV61HD37N4 is a high-performance variable speed drive (VSD) designed for three-phase asynchronous motors. Engineered for industrial fluid management, this drive is widely utilized in HVAC, pumping, and ventilation applications across sectors such as oil and gas, power generation, and mining. It features advanced motor control algorithms to optimize energy efficiency while reducing mechanical stress on drive trains, thereby extending the lifespan of connected equipment.Features
Supports motor power ratings of 37 kW (50 hp) for normal duty and 30 kW (40 hp) for heavy duty.
Integrated Class A EMC filters for conducted and radiated interference suppression.
Supports multiple control profiles including V/f (2-point, 5-point, or quadratic) and flux vector control.
Built-in Modbus and CANopen communication protocols with expansion capabilities for Profibus DP, DeviceNet, and Ethernet/IP.
Comprehensive protection suite including thermal monitoring, surge suppression, and phase-to-phase short circuit protection.
Modular architecture allowing for easy integration of I/O expansion cards.
ApplicationsThe ATV61HD37N4 is specifically optimized for applications requiring precise torque control and energy management, including centrifugal pumps, industrial fans, compressors, and HVAC air handling units.Technical Specifications
Model
ATV61HD37N4
Input Voltage
380 to 480 VAC (3-Phase)
Network Frequency
50/60 Hz
Continuous Output Current
74 A at 380 V
Transient Current
81.4 A for 60 s
Output Frequency
0.1 to 500 Hz
Operating Temperature
-10 to +50 deg C (up to 60 deg C with derating)
Storage Temperature
-25 to +70 deg C
Protection Rating
IP 20
Installation Guidelines
Ensure adequate ventilation; the drive utilizes forced convection cooling and requires clearance for airflow.
Mount the drive vertically on a flat, vibration-free surface.
Use shielded cables for motor connections to comply with EMC requirements and minimize noise.
Verify that the line voltage matches the drive input rating (380-480 VAC) before applying power.
Always disconnect power and wait for the internal capacitors to discharge (refer to the status LED) before performing maintenance or wiring changes.
Ensure proper grounding of the drive chassis to the main plant earth bus to prevent electrical hazards.
Compliance and CertificationsThe ATV61HD37N4 meets international standards including CE, UL, CSA, C-Tick, GOST, and NOM.FAQCan this drive be used with Profibus? Yes, the ATV61HD37N4 supports optional communication modules, including Profibus DP, to integrate into existing industrial networks.What is the maximum operating temperature? The drive operates between -10 and +50 deg C. Operation up to +60 deg C is possible with appropriate power derating.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric TSXDSZ32R5 is a relay output module designed for the Modicon TSX Micro PLC platform. This module provides 32 relay outputs, facilitating the interface between the PLC and external field devices. It is engineered to handle a wide range of switching voltages from 24 VAC to 240 VAC, making it suitable for diverse industrial control applications requiring isolated output switching.Features
32-point relay output configuration.
Supports switching voltages from 24 VAC to 240 VAC.
Compact design for integration into TSX Micro rack systems.
Robust isolation voltage of 1500 V for 1 second.
Low power dissipation of 3.5 W during operation.
Fast response time of less than 10 ms.
Technical Specifications
Product Model
TSXDSZ32R5
Module Type
Relay Output Module
Voltage Range
24 - 240 VAC
Output Current
1 A
Current Consumption
175 mA
Power Dissipation
3.5 W
Isolation Voltage
1500 V (1 s)
Insulation Resistance
>= 10 MOhm
Response Time
< 10 ms
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
Mount the module securely in the designated TSX Micro rack slot, ensuring the connector pins are properly aligned.
Use appropriate wire gauges for the relay output terminals and ensure all connections are tightened to the specified torque.
Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to prevent signal noise.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQIs the TSXDSZ32R5 still in production?No, this model was officially discontinued by the manufacturer in 2020. It is now primarily available through surplus or secondary market channels.What is the primary function of this module?The TSXDSZ32R5 serves as a relay output interface for the Modicon TSX Micro PLC, allowing the controller to switch external AC loads up to 240 VAC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 9662-810 is a specialized Field Termination Panel (FTP) engineered for high-integrity signal conditioning within the Triconex safety system architecture. This module serves as a robust interface between field-side communication devices and the main controller rack, ensuring stable data transmission in demanding industrial environments such as petrochemical refineries, offshore platforms, and power generation facilities. By providing a centralized, ruggedized termination point, the 9662-810 supports the Triple Modular Redundancy (TMR) bus, effectively isolating communication paths from electromagnetic interference and reducing the potential for wiring-related faults.Features
Designed for seamless integration with Triconex safety systems and TMR bus architectures.
Passive backplane design to maximize Mean Time Between Failures (MTBF).
Vibration-resistant screw-down terminals to ensure consistent electrical contact in high-vibration environments.
Integrated shielding to maintain signal integrity over long-distance communication loops.
Compact, high-density footprint suitable for standard 19-inch rack mounting or field enclosure integration.
ApplicationsThe 9662-810 is primarily utilized in safety-critical control systems where reliable serial communication is required. Typical applications include the connection of serial devices using RS-232, RS-485, or Modbus protocols to the Triconex controller, facilitating communication for distributed I/O, HMI interfaces, and third-party monitoring equipment.Technical Specifications
Model
9662-810
Brand
Triconex
Interface Type
Communication Field Termination
Protocol Support
RS-232 / RS-485 / Modbus (Serial)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system is powered down before installing or removing the termination panel to prevent electrical damage.
Mount the unit in a clean, dry, and well-ventilated enclosure to maintain the specified operating temperature range.
Use shielded cabling for all field connections to minimize EMI/RFI interference, ensuring the shield is properly grounded at the designated termination point.
Verify that all screw-down terminals are tightened to the appropriate torque to prevent loose connections caused by industrial vibration.
Maintain proper clearance around the module to allow for adequate airflow and ease of maintenance access.
FAQWhat is the primary function of the 9662-810?The 9662-810 acts as a field termination interface that bridges field-side serial communication devices to the Triconex controller, providing signal conditioning and protection for the TMR bus.Is this panel compatible with Modbus protocols?Yes, the 9662-810 supports RS-232, RS-485, and Modbus serial communication protocols, depending on the configuration of the host module it is connected to.Does this module require external power?As a passive field termination panel, it is designed to facilitate signal routing and does not typically require active power for its own operation, though it should be installed according to the specific wiring diagrams of the Triconex system loop.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 300012-220 is a high-density External Termination Panel (ETP) designed for seamless integration with the 2750-2 series modules. This component acts as the primary interface between field instrumentation wiring and the Safety Instrumented System (SIS) rack. Engineered for high-reliability environments, including gas processing facilities and power generation plants, the 300012-220 ensures signal integrity and simplifies complex wiring architectures within the control cabinet.Features
Designed for use with Triconex 2750-2 modules.
Supports Triple Modular Redundant (TMR) safety path architecture.
Integrated protection against electrical transients and signal noise.
Robust screw-type terminal blocks for secure field wiring connections.
Optimized layout to facilitate rapid maintenance and loop troubleshooting.
ApplicationsThis termination panel is widely utilized in critical safety applications, including emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems. It is suitable for deployment in offshore platforms, petrochemical refineries, and thermal power plants where high-integrity signal transmission is required.Technical Specifications
Model
300012-220
Compatibility
Triconex 2750-2 Modules
Connection Type
Screw-type terminal blocks
Operating Temperature
0 to 60 deg C
Weight
0.8 kg
Installation Guidelines
Ensure the system power is fully disconnected before installing or removing the termination panel.
Mount the panel securely within the cabinet to ensure proper grounding and vibration resistance.
Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
Verify all screw terminal connections are tightened to the recommended torque to prevent intermittent signal loss.
Maintain adequate spacing around the panel to ensure proper airflow and cooling within the cabinet.
FAQWhat is the primary function of the 300012-220?The 300012-220 serves as an External Termination Panel (ETP) that bridges field-side wiring to the Triconex 2750-2 controller, ensuring organized and reliable signal termination for safety-critical loops.Is this panel compatible with other Triconex modules?The 300012-220 is specifically engineered for the 2750-2 series. Please consult your system documentation or hardware manual before attempting to use this panel with different module types.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 4000094-310 is a high-reliability External Output Cable Assembly engineered specifically for integration within Triconex Triple Modular Redundancy (TMR) safety systems. This cable assembly provides a secure, low-impedance interface between output modules and external termination panels. Designed for mission-critical applications in oil and gas, chemical processing, and power generation, it ensures signal integrity and maintains the functional safety of SIL 3 rated control loops.Features
Optimized for TMR architecture, maintaining independent paths for redundant signals.
Ruggedized multi-conductor design for high-density signal transmission.
Precision-molded connector heads with mechanical locking to prevent disconnection from vibration.
Flame-retardant jacket material suitable for harsh industrial environments.
Color-coded internal wiring aligned with standard Triconex termination schemes.
ApplicationsThis cable assembly is utilized in safety-critical industrial control systems where high availability and signal reliability are required. It is commonly deployed in emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas monitoring loops where the Triconex TMR platform is installed.Technical Specifications
Model
4000094-310
Brand
Triconex
Module Type
External Output Cable Assembly
Cable Length
33.0 cm
Connector Type
Multi-pin high-density industrial connector
Jacket Material
Flame-retardant PVC / Low smoke zero halogen
Operating Temperature
-20 to +70 deg C
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or signal faults.
Inspect connector pins for debris or damage prior to insertion; ensure the mechanical locking mechanism is fully engaged.
Route cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Avoid sharp bends or tension on the cable assembly during installation to prevent internal conductor fatigue.
Use appropriate cable management (e.g., cable ties or trays) to secure the assembly and reduce mechanical stress on the connectors.
FAQIs this cable compatible with all Triconex systems?The 4000094-310 is designed for specific Triconex TMR output module configurations. Please verify your system documentation or the specific output module part number to ensure compatibility with this cable assembly.What is the primary function of this cable?It acts as the physical link between the output module backplane and the field termination assembly, ensuring that redundant safety signals are transmitted reliably without interference.
