Description

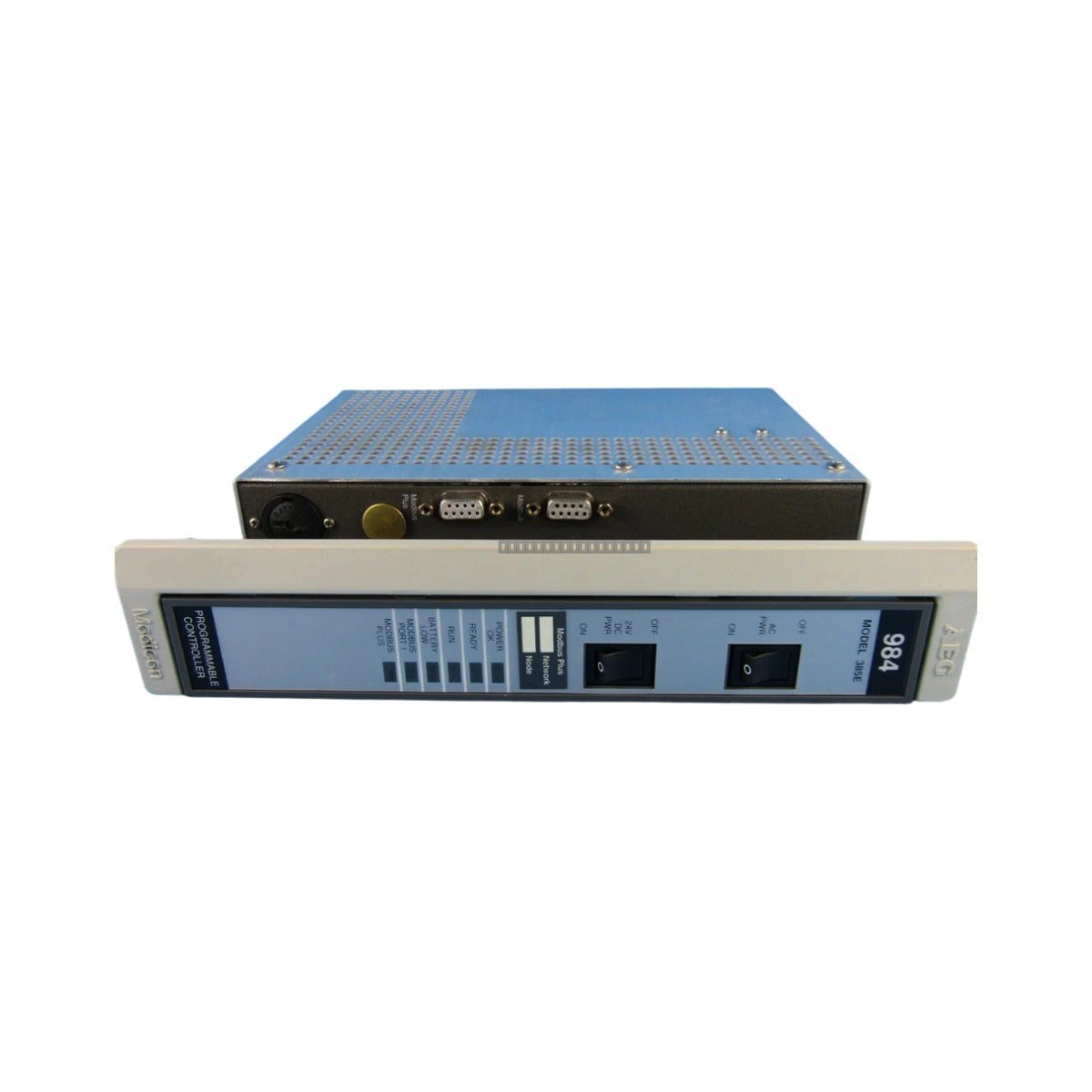

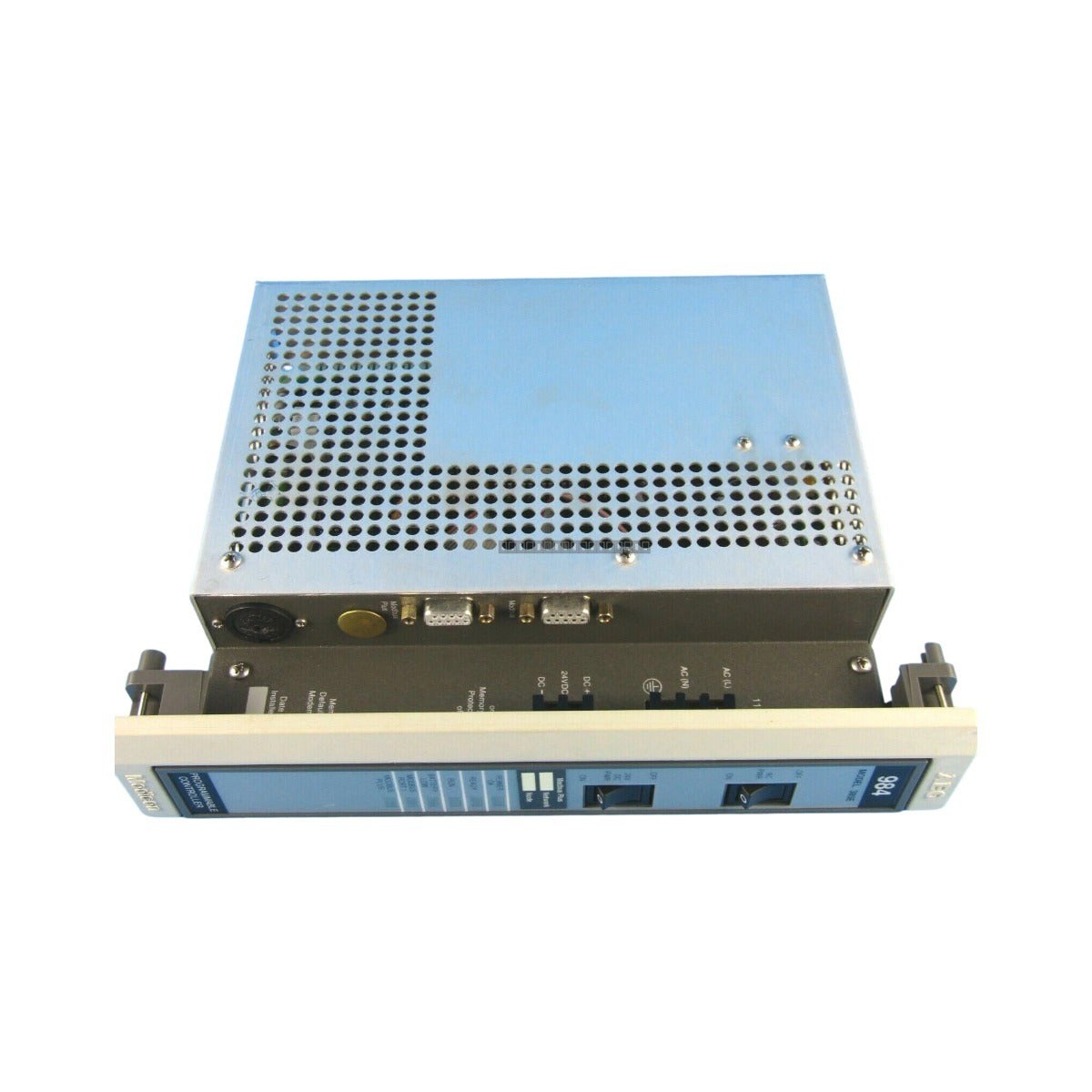

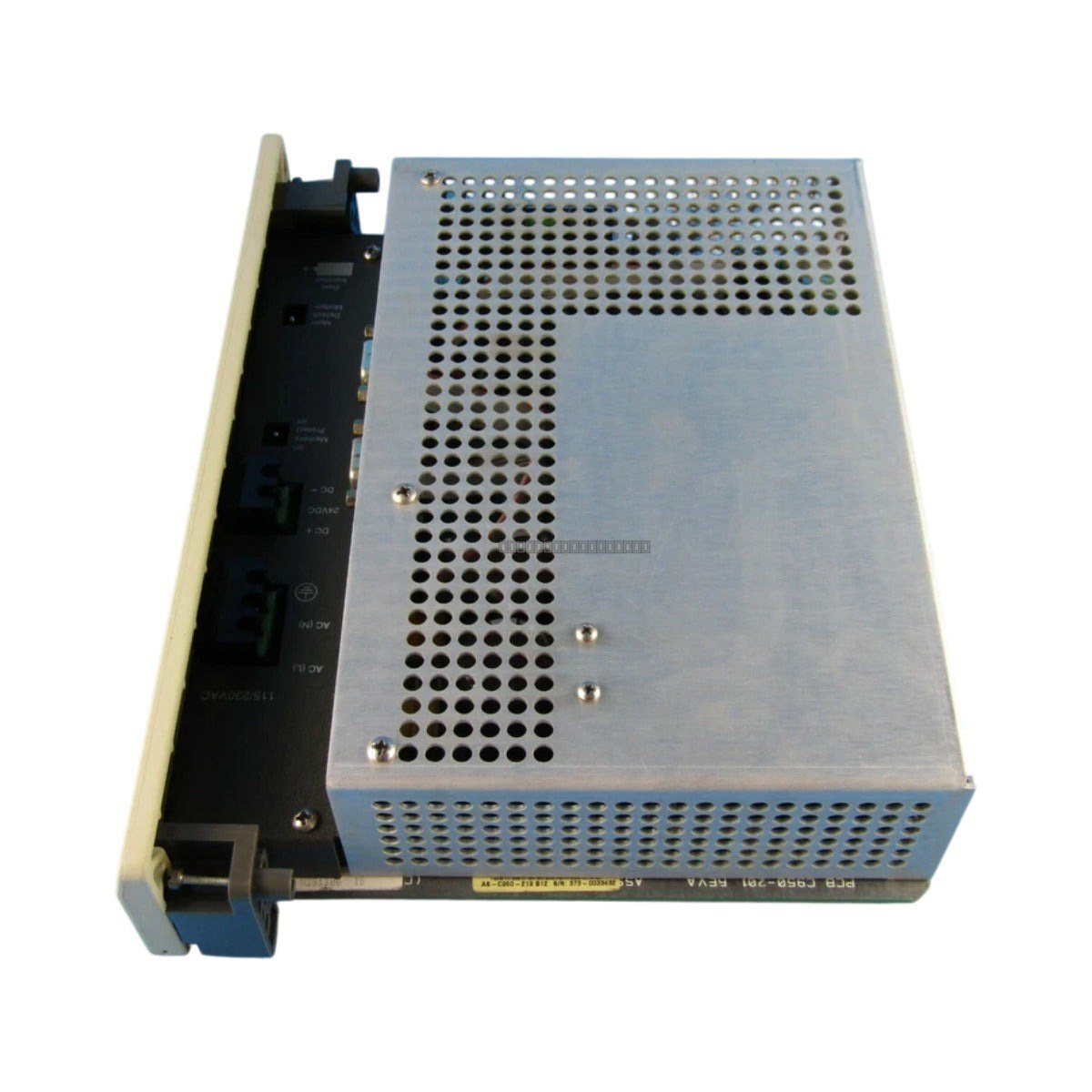

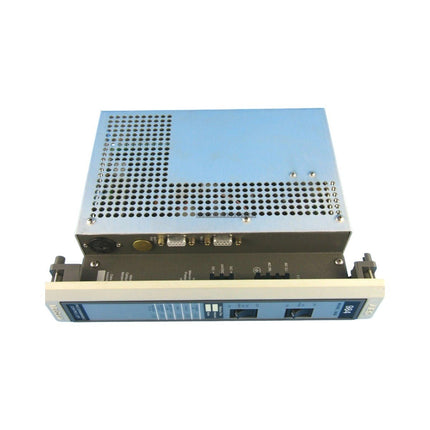

The Schneider Electric Modicon 984 PCE984385 is a high-reliability, compact programmable logic controller (PLC) engineered for the Modicon 984 control platform. This processing unit is designed to execute complex ladder logic, mathematical functions, and data processing tasks at high speeds, ensuring precise machine control in demanding industrial environments. Its robust architecture is built to withstand thermal stress and electromagnetic interference, helping to minimize unexpected downtime in critical automation systems.
Features
- Integrated memory and fixed communication ports for streamlined system architecture.
- Dual built-in Modbus RS-232C ports for direct connection to programming terminals and operator interfaces.
- Battery-backed RAM for reliable program and register data retention during power loss.
- Deterministic processing with support for remote I/O networks and continuous CRC error checking.
- Comprehensive diagnostic LED indicators for system status monitoring, including Ready, Run, and Battery Low faults.
Applications
The PCE984385 is suitable for a wide range of mid-to-high availability industrial applications, including:
- Petro-chemical refining processes
- Municipal water and wastewater distribution systems
- Paper and pulp mill automation
- Heavy mining infrastructure and material handling
Technical Specifications
| Model |
PC-E984-385 |
| Platform |
Modicon 984 |
| Logic Memory |
16K words |
| Register Memory |
10K words |
| Execution Speed |
0.7 ms per kiloword |
| Communication |
2 x Modbus RS-232C (9-pin D-shell) |
| Power Supply |
24 VDC (19.2 to 30 VDC range) |
| Power Consumption |
15 W max |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 80 deg C |
| Humidity |
95% non-condensing |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
- Always power down the system before inserting or removing the module to prevent electrical damage.
- Use shielded communication cables for RS-232C ports and route them away from high-voltage or high-EMI power lines.
- Verify that the frame ground connection is secure to ensure proper isolation resistance and noise immunity.
- Monitor the low battery indicator on the front panel and replace the battery periodically to prevent loss of user logic and register data.
Compliance and Certifications
This unit is designed to meet international industrial standards, including CE, UL, CSA, and FM Class 1 Division 2 requirements.
FAQ
What is the primary function of the PCE984385?
The PCE984385 acts as the central processing unit for the Modicon 984 platform, managing logic execution, data register handling, and communication with remote I/O and peripheral devices.
How is the user program protected during a power outage?
The controller utilizes battery-backed RAM. A low-battery LED indicator is provided on the front of the module to alert operators when the battery requires replacement to ensure continued data retention.
