Description

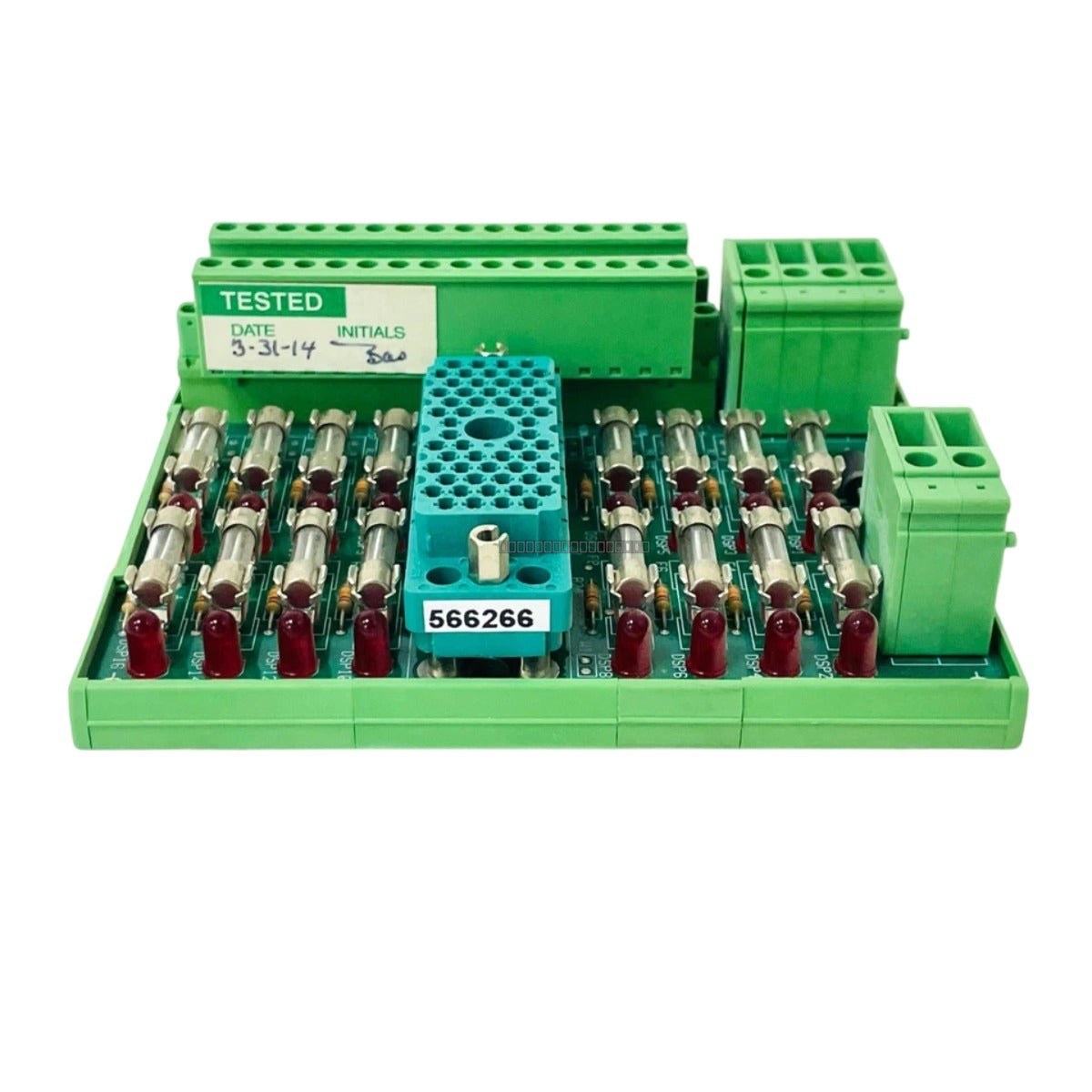

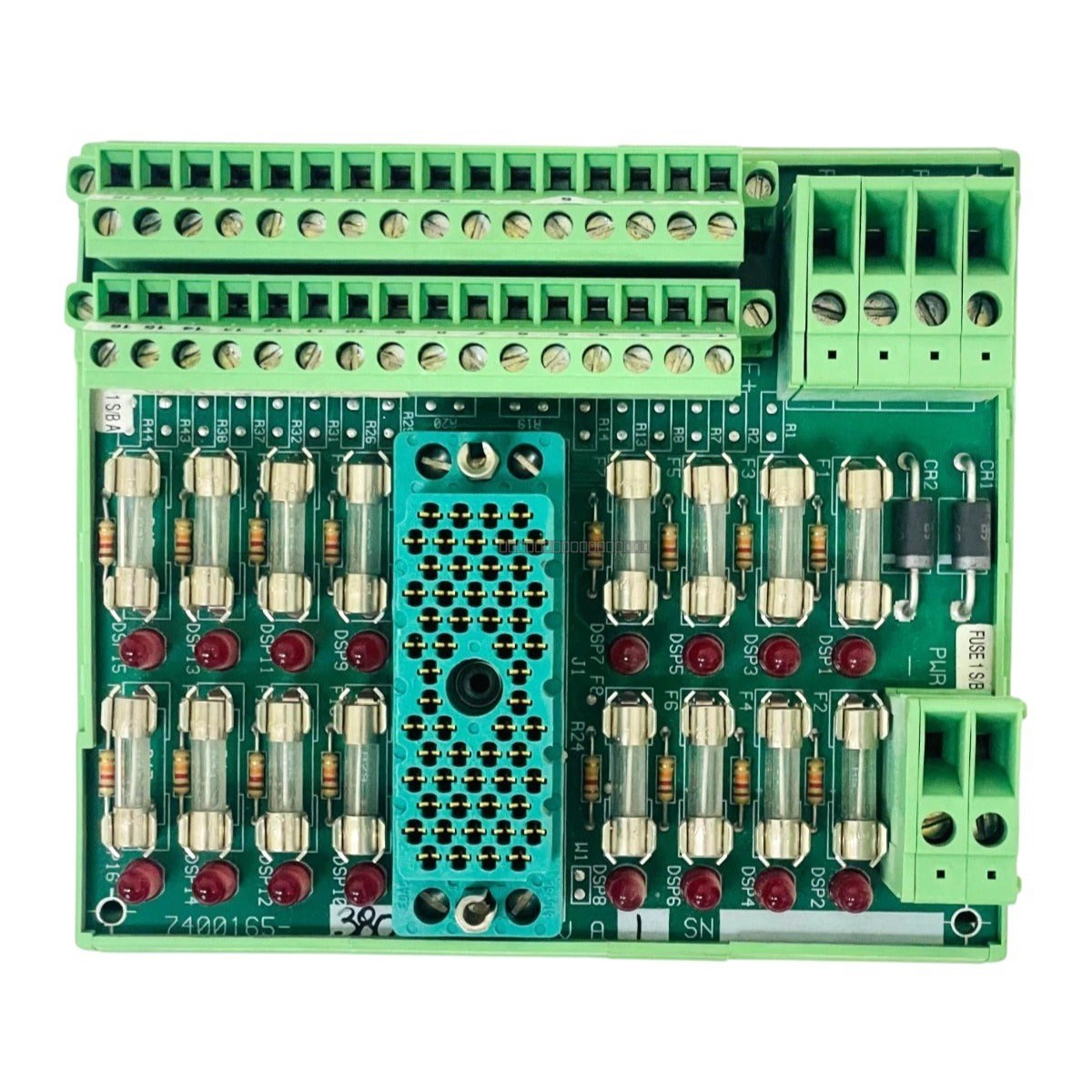

The Triconex 7400165-380 terminal board serves as a high-integrity connection interface designed for use within Triconex safety-instrumented systems. It provides a robust and reliable termination point for field wiring, ensuring stable signal distribution between field devices and I/O modules. By maintaining signal integrity and minimizing potential points of failure, this terminal board supports the high availability and fault-tolerant requirements of critical industrial safety loops in sectors such as oil and gas, petrochemicals, and power generation.
Features
- High-density modular architecture designed for continuous operation in demanding industrial environments.
- Equipped with 121 dedicated screw terminals for secure and organized field wiring.
- Engineered with optimized trace separation to mitigate cross-channel interference and maintain signal purity.
- Modular design facilitates efficient installation and streamlined maintenance cycles.
- Compatible with standard Triconex I/O module configurations.
Applications
This terminal board is primarily utilized in Safety Instrumented Systems (SIS) where high reliability and fault tolerance are mandatory. Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops in hazardous or high-stakes industrial facilities.
Technical Specifications
| Model |
7400165-380 |
| Brand |
Triconex |
| Connection Type |
Screw Terminals |
| Number of Terminals |
121 |
| Voltage Rating |
30 VDC |
| Maximum Current Capacity |
10 A |
| Operating Temperature |
-20 to +70 deg C |
Installation Guidelines
- Ensure the system is powered down before installing or removing the terminal board to prevent electrical damage or accidental system trips.
- Mount the board in a clean, dry, and vibration-dampened enclosure to ensure long-term reliability.
- Use appropriate wire ferrules for screw terminal connections to ensure a secure, low-resistance contact.
- Maintain proper cable routing practices, keeping signal wiring separated from high-voltage or high-EMI power lines to prevent noise induction.
- Ensure all field wiring is properly labeled and documented to facilitate future troubleshooting and maintenance.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board components.
FAQ
What is the primary function of the 7400165-380?
The 7400165-380 is a terminal board that acts as an interface between field instrumentation and Triconex I/O modules, providing secure termination points for safety-critical signal loops.
Can this board be used in high-temperature environments?
Yes, the board is rated for operation within an ambient temperature range of -20 to +70 deg C, making it suitable for most industrial control room and field cabinet environments.
Does this board require special tools for installation?
Installation requires standard industrial hand tools, such as a precision screwdriver for the screw terminals and appropriate mounting hardware for the enclosure rail or backplane.
