Description

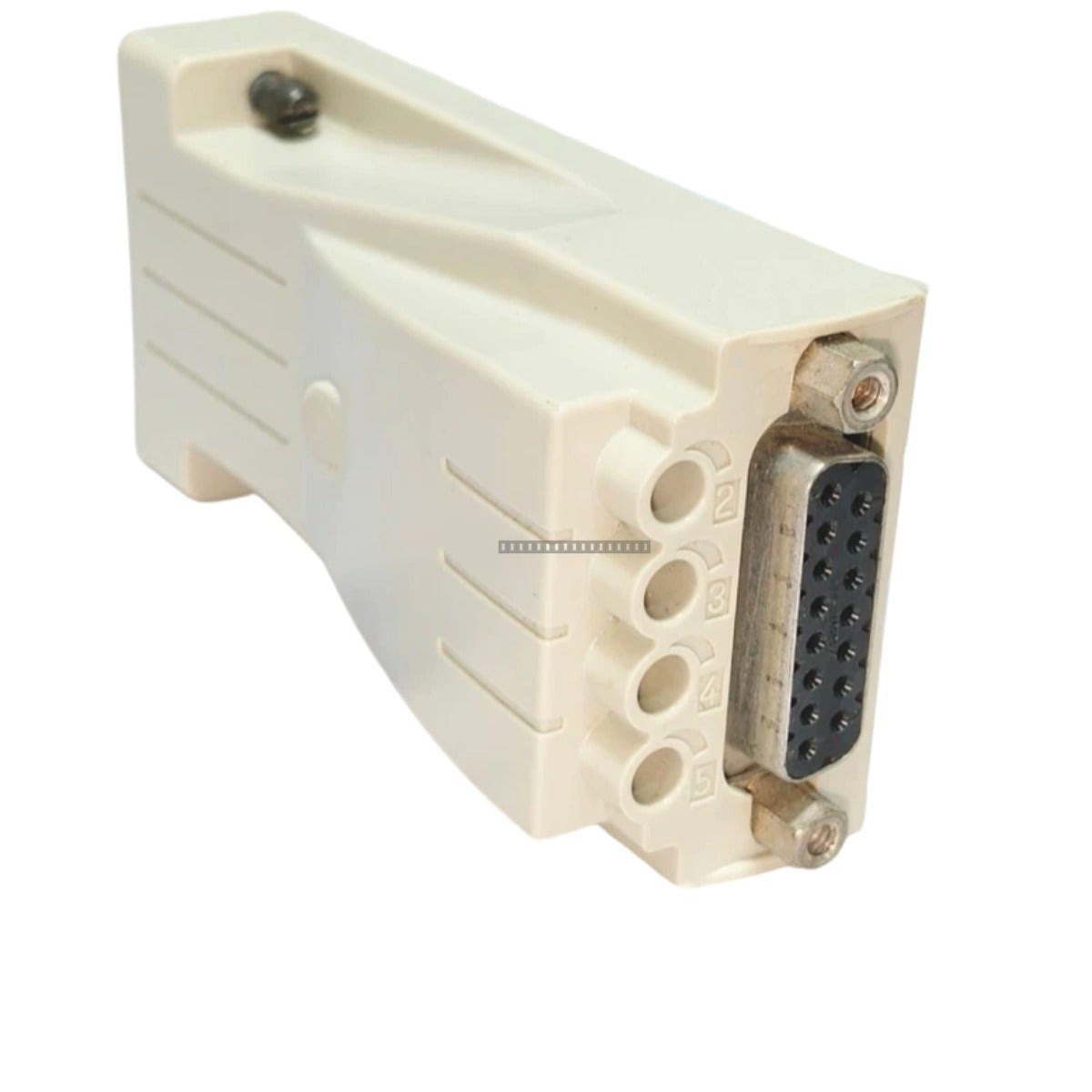

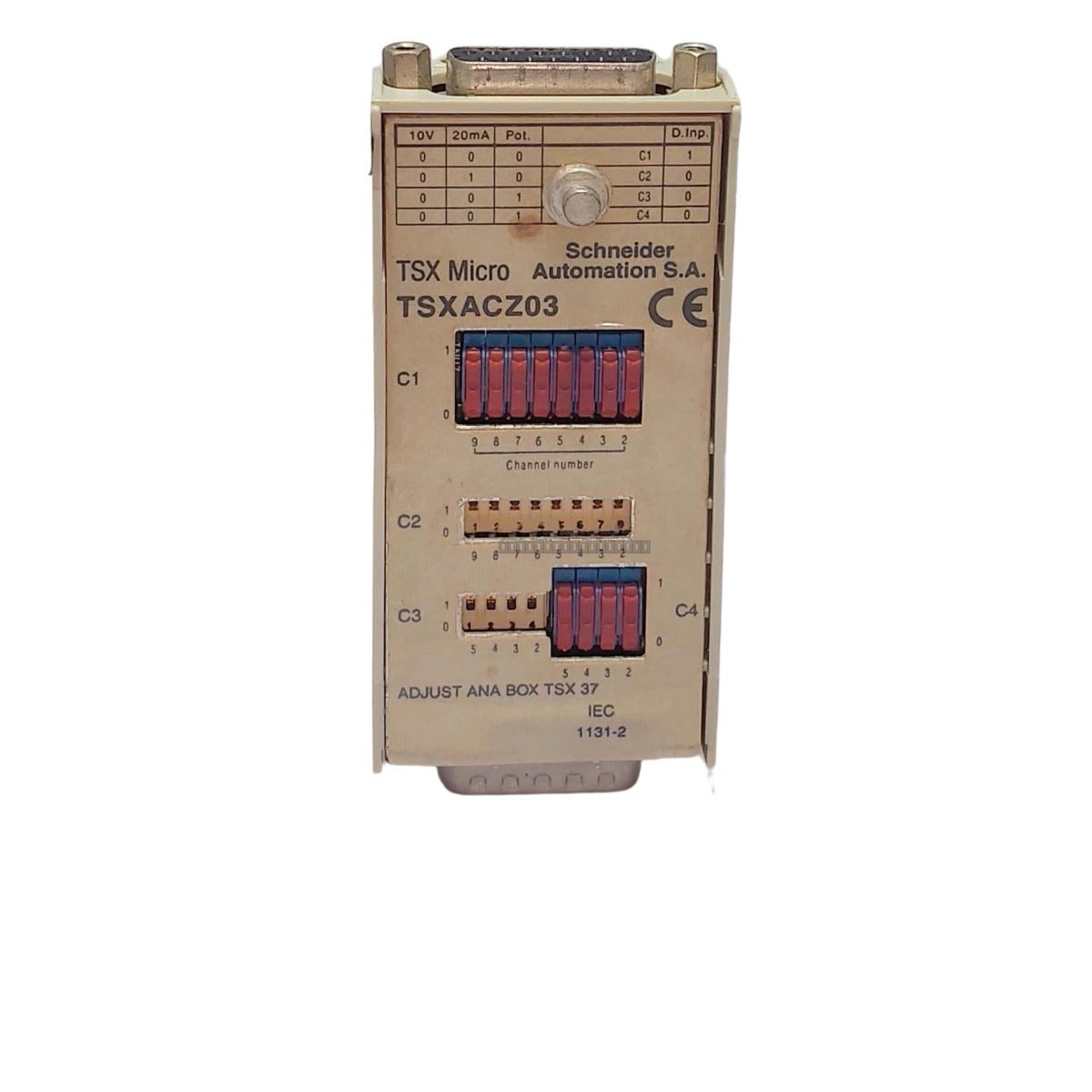

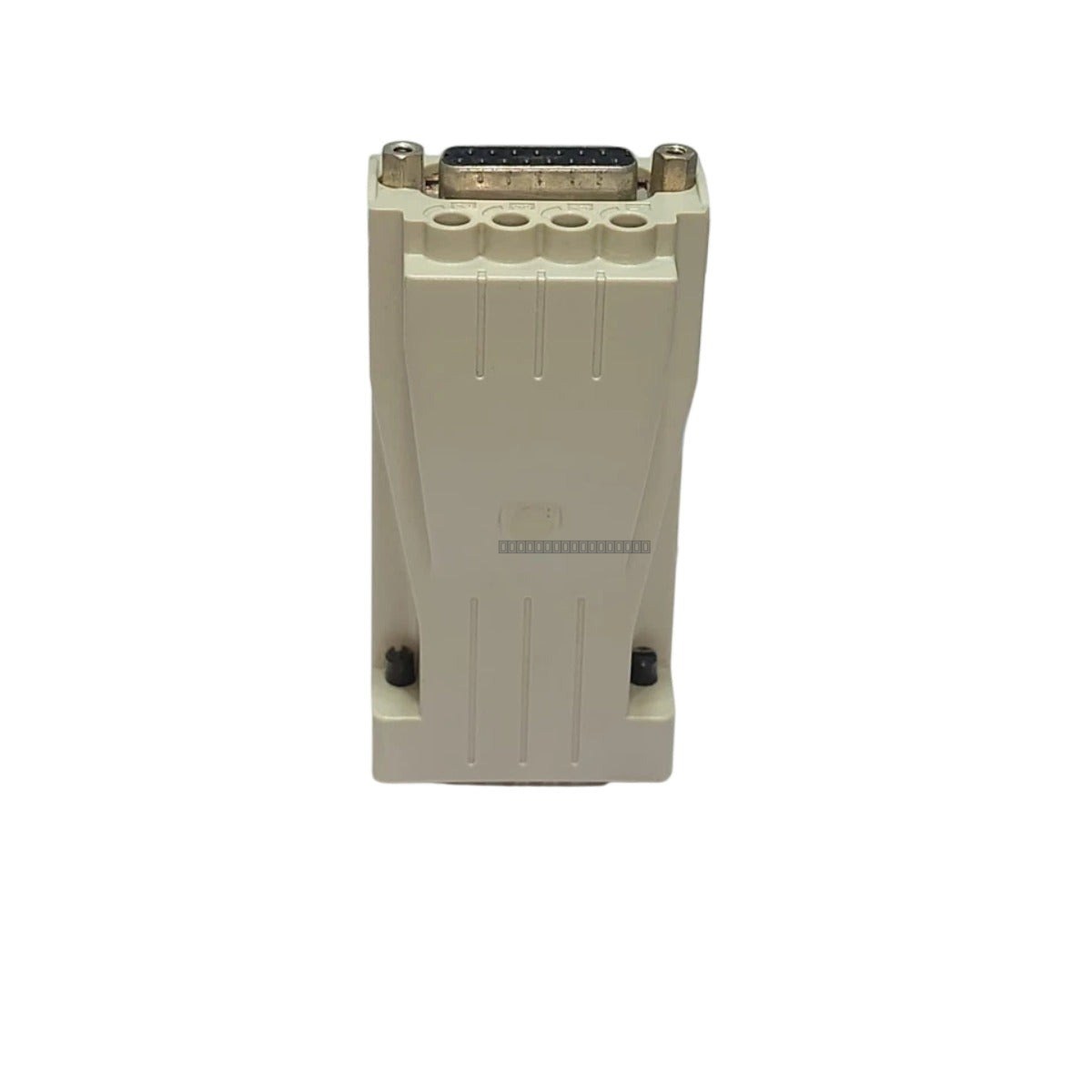

The Schneider Electric TSXACZ03 is an 8-channel analog input module designed for the Modicon Premium automation platform. This module is engineered to provide precise signal acquisition by converting field sensor signals into digital values for processing within the PLC system. It is built for reliable performance in demanding industrial environments.

Features

• 8-channel analog input capability for high-density signal monitoring.
• Supports 4-20 mA current loop inputs.
• 12-bit resolution for accurate data conversion.
• Integrated 500V isolation between channels and the system bus.
• Durable housing with standard backplane connectivity for Modicon Premium racks.

Technical Specifications

Manufacturer	Schneider Electric
Model	TSXACZ03
Product Line	Modicon Premium
Number of Inputs	8 channels
Input Type	4-20 mA Current
Resolution	12 bits
Conversion Time	5 ms per channel
Accuracy	+/- 0.5% of full scale
Input Impedance	250 Ohm
Isolation	500V (channel to bus)
Power Consumption	150 mA (from backplane)
Operating Temperature	0 degC to 60 degC

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module.
• Verify that the module is correctly seated in the Modicon Premium backplane slot.
• Use shielded twisted-pair cabling for analog signals to minimize EMI interference.
• Ensure proper grounding of the cable shields at the signal source or the cabinet entry point.
• Maintain adequate clearance around the module to allow for proper ventilation and cooling.
• Handle the module using ESD-safe practices to prevent damage to internal circuitry.

FAQ

What type of signals does the TSXACZ03 accept?

The TSXACZ03 is specifically designed for 4-20 mA current loop signals.

Is this module isolated?

Yes, the module features 500V isolation between the input channels and the backplane bus.

What is the conversion speed of this module?

The conversion time for the TSXACZ03 is 5 ms per channel.
