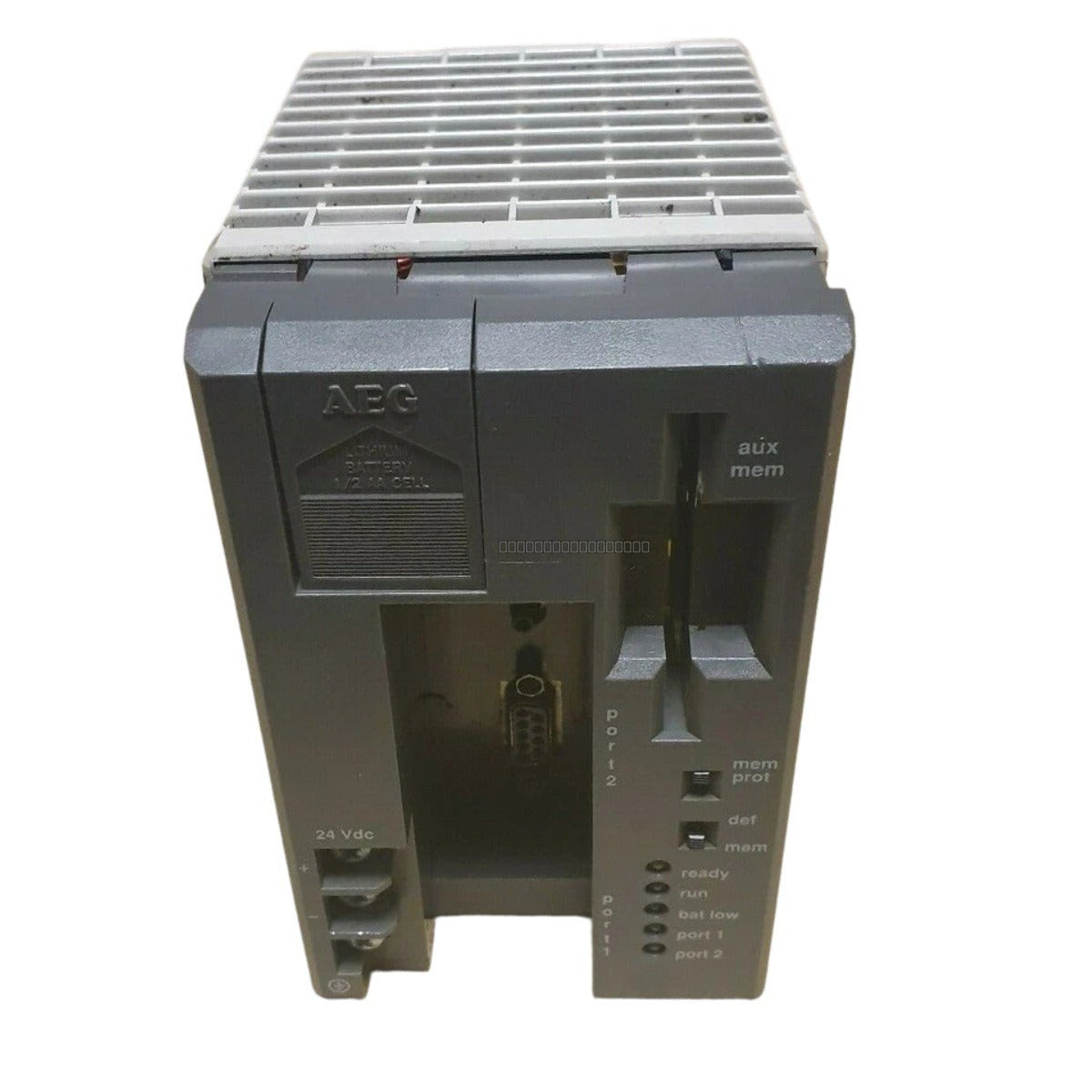

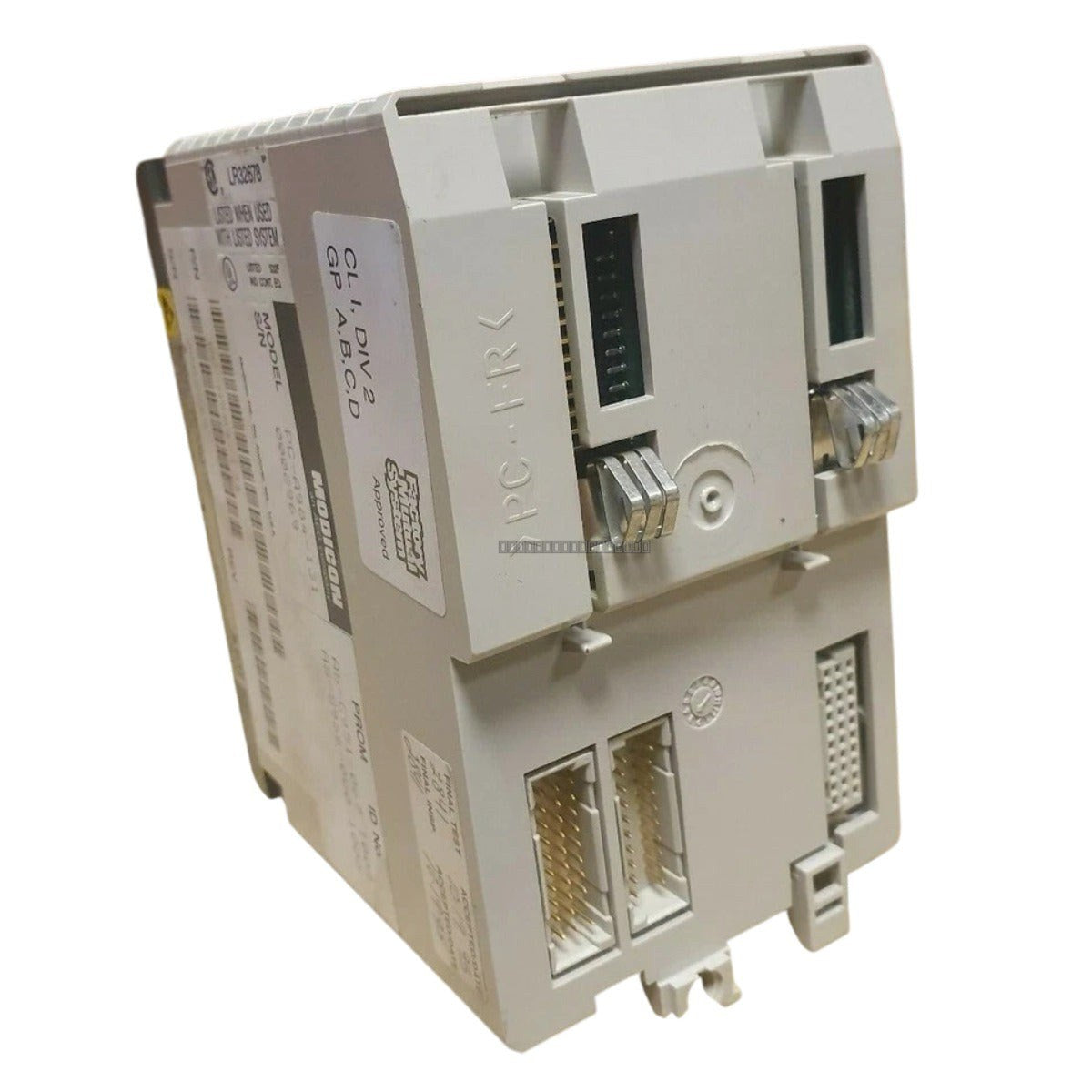

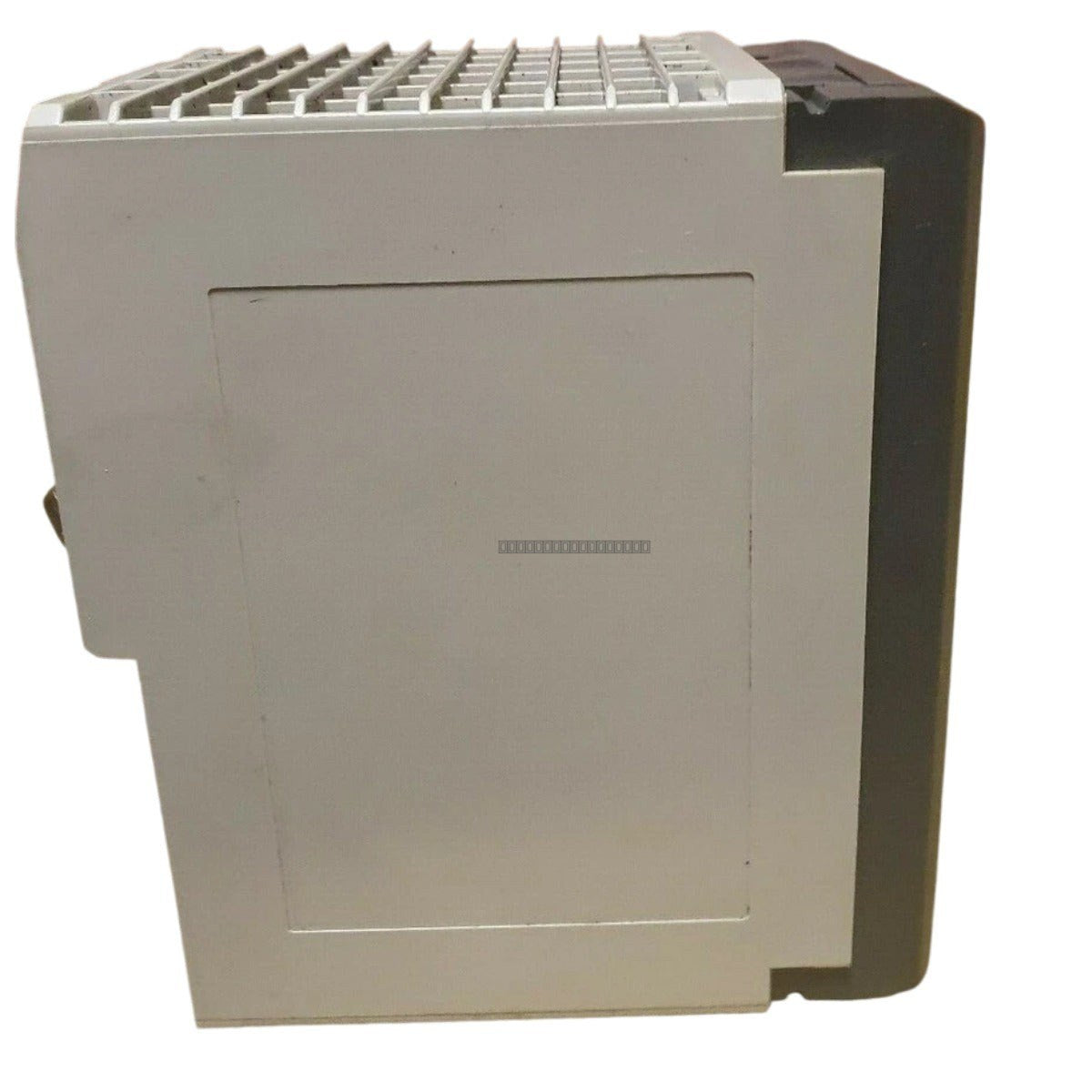

The Schneider PCA984131 CPU Module is a high-performance processing unit designed for industrial automation applications. Engineered for integration within the RMS-TSG-TZ-C series 185 Base Compact PLC systems, this module provides the computational power required for complex logic operations while maintaining rapid cycle times. It serves as the central controller for managing field devices, sensors, and actuators in demanding industrial environments.
Features
- 4K Words memory capacity for executing complex PLC programs with minimal latency.
- Optimized for the 185 Base Compact system architecture, ensuring seamless compatibility and efficient panel space utilization.
- High-speed processing capability with a 1 ms typical cycle time.
- Robust design suitable for operation in standard industrial temperature ranges.
- Integrated communication interface for standard 185 Base Compact I/O bus connectivity.
Applications
This CPU module is primarily utilized in industrial control systems requiring compact, reliable, and high-speed logic processing. It is frequently deployed in manufacturing automation, process control, and machine-level monitoring systems that rely on the 185 Base Compact PLC platform.
Technical Specifications
| Manufacturer |
Schneider Electric |
| Model |
PCA984131 |
| Series |
RMS-TSG-TZ-C / 185 Base Compact |
| Category |
CPU Module |
| Memory |
4K Words |
| Processing Type |
16-bit PLC CPU |
| I/O Interface |
Standard 185 Base Compact I/O bus |
| Power Supply |
24 VDC |
| Cycle Time |
1 ms typical |
| Operating Temperature |
0 degC to 60 degC |
Installation Guidelines
- Ensure the PLC system is powered down before inserting or removing the CPU module to prevent electrical damage.
- Verify that the module is correctly seated in the 185 Base Compact rack to ensure proper bus connection.
- Maintain adequate clearance around the module to facilitate airflow and cooling within the control panel.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
- Route signal and power cables separately to minimize EMI (Electromagnetic Interference) impact on processing performance.
FAQ
What is the primary function of the PCA984131?
The PCA984131 acts as the central processing unit for the 185 Base Compact PLC system, executing logic programs and managing I/O communications.
Is this module compatible with other PLC series?
No, this module is specifically designed for the RMS-TSG-TZ-C / 185 Base Compact series and is not intended for use in other PLC architectures.
What is the required power supply for this module?
The module operates on a 24 VDC power supply.
