Description

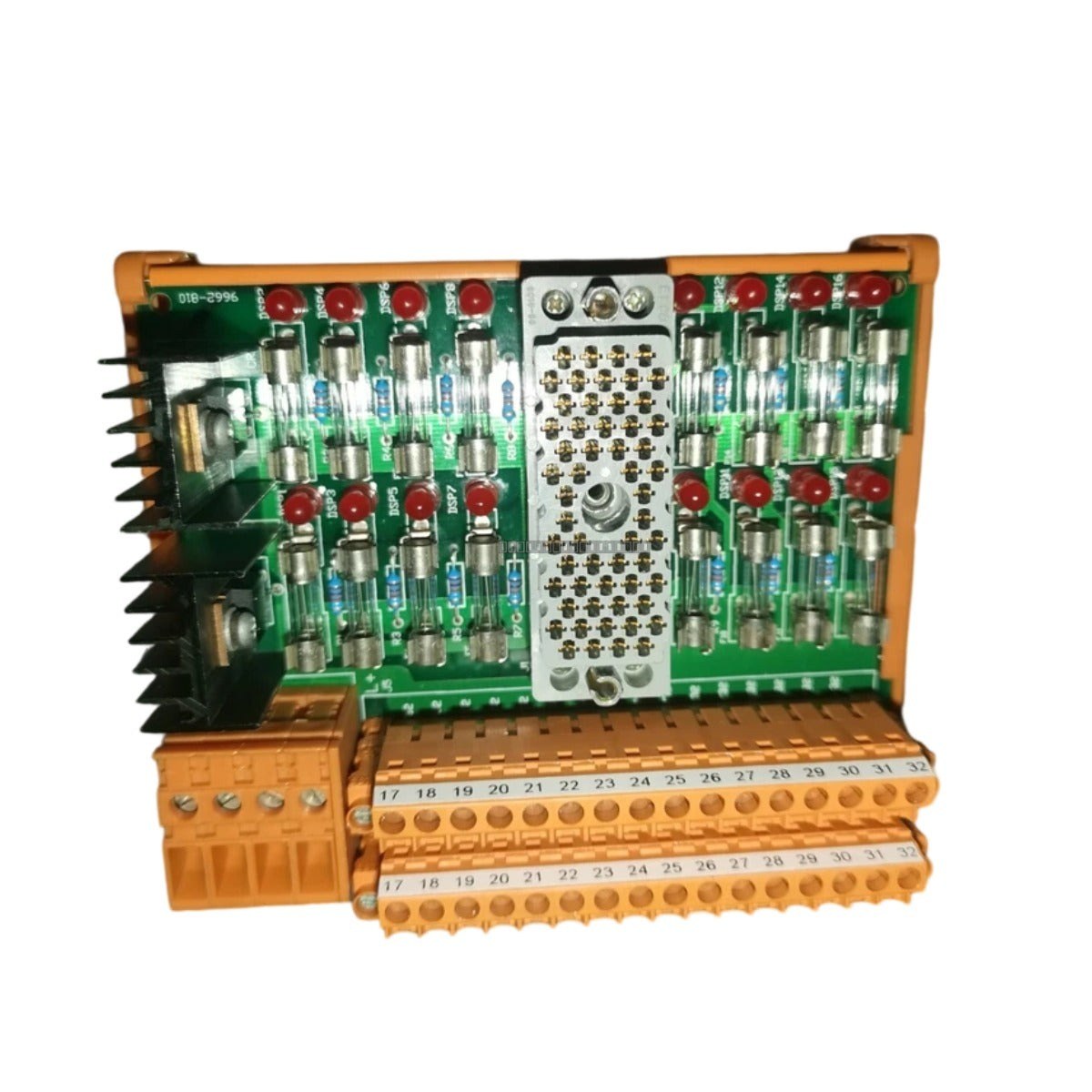

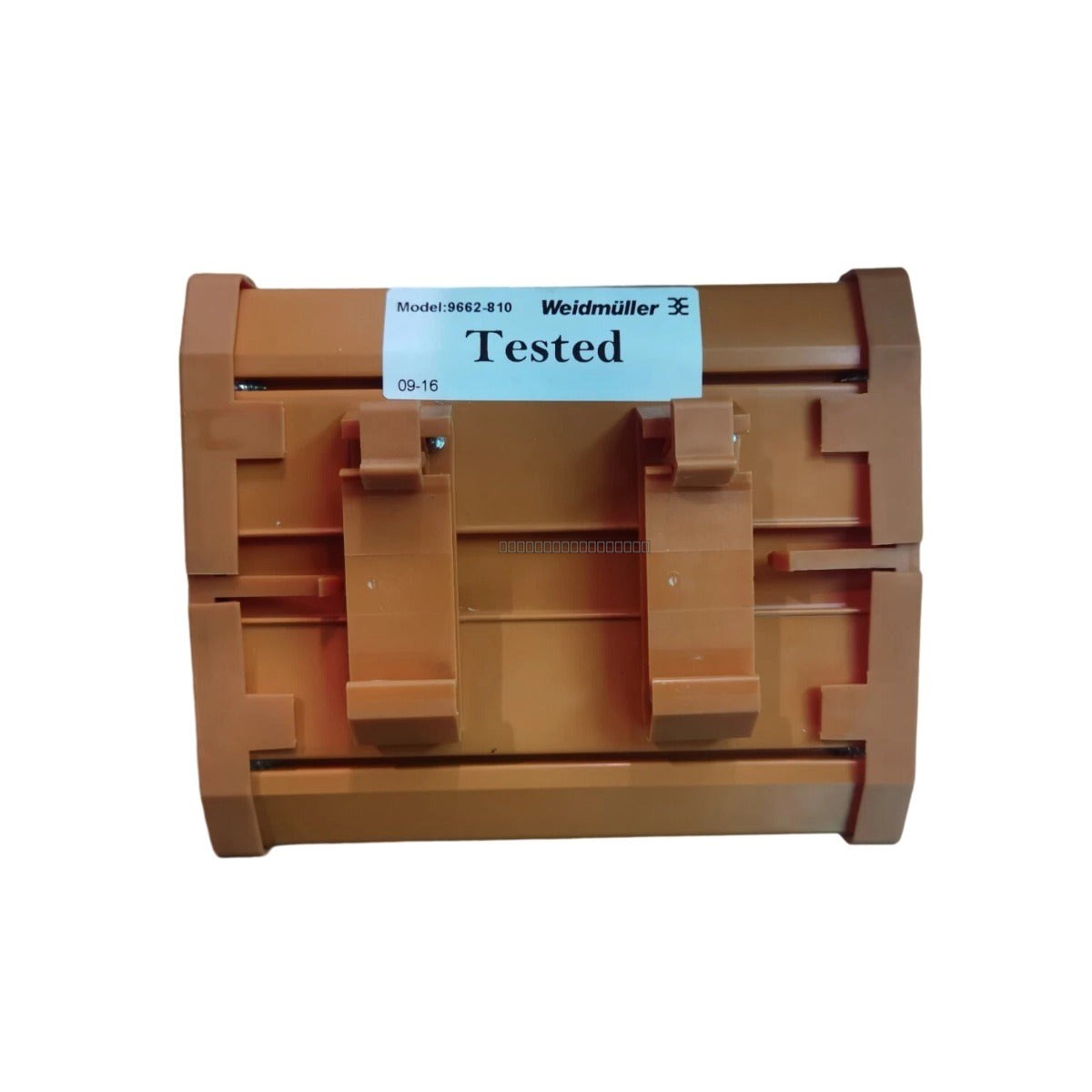

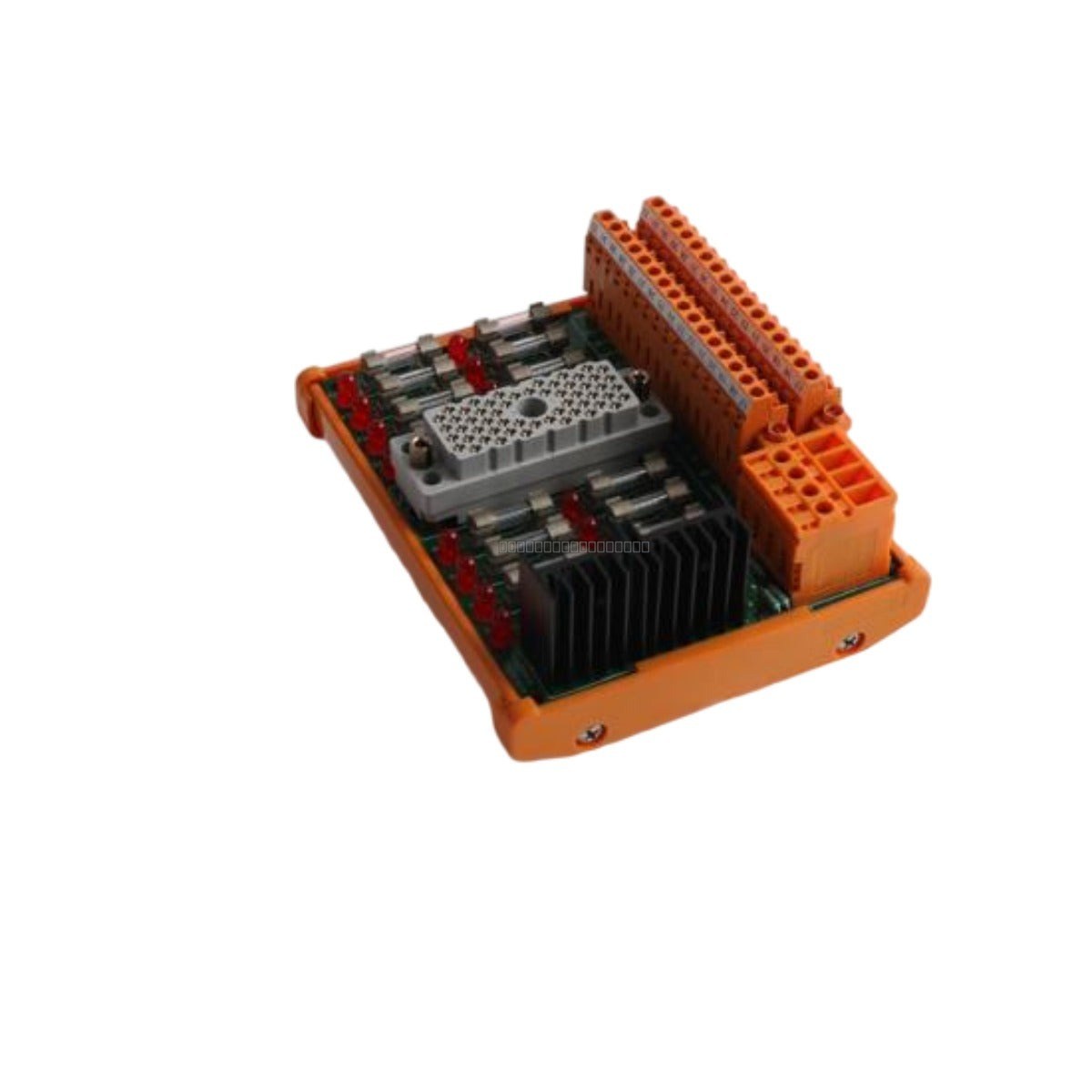

The Triconex 9662-810 is a specialized Field Termination Panel (FTP) engineered for high-integrity signal conditioning within the Triconex safety system architecture. This module serves as a robust interface between field-side communication devices and the main controller rack, ensuring stable data transmission in demanding industrial environments such as petrochemical refineries, offshore platforms, and power generation facilities. By providing a centralized, ruggedized termination point, the 9662-810 supports the Triple Modular Redundancy (TMR) bus, effectively isolating communication paths from electromagnetic interference and reducing the potential for wiring-related faults.
Features
- Designed for seamless integration with Triconex safety systems and TMR bus architectures.
- Passive backplane design to maximize Mean Time Between Failures (MTBF).
- Vibration-resistant screw-down terminals to ensure consistent electrical contact in high-vibration environments.
- Integrated shielding to maintain signal integrity over long-distance communication loops.
- Compact, high-density footprint suitable for standard 19-inch rack mounting or field enclosure integration.
Applications
The 9662-810 is primarily utilized in safety-critical control systems where reliable serial communication is required. Typical applications include the connection of serial devices using RS-232, RS-485, or Modbus protocols to the Triconex controller, facilitating communication for distributed I/O, HMI interfaces, and third-party monitoring equipment.
Technical Specifications
| Model |
9662-810 |
| Brand |
Triconex |
| Interface Type |
Communication Field Termination |
| Protocol Support |
RS-232 / RS-485 / Modbus (Serial) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the system is powered down before installing or removing the termination panel to prevent electrical damage.
- Mount the unit in a clean, dry, and well-ventilated enclosure to maintain the specified operating temperature range.
- Use shielded cabling for all field connections to minimize EMI/RFI interference, ensuring the shield is properly grounded at the designated termination point.
- Verify that all screw-down terminals are tightened to the appropriate torque to prevent loose connections caused by industrial vibration.
- Maintain proper clearance around the module to allow for adequate airflow and ease of maintenance access.
FAQ
What is the primary function of the 9662-810?
The 9662-810 acts as a field termination interface that bridges field-side serial communication devices to the Triconex controller, providing signal conditioning and protection for the TMR bus.
Is this panel compatible with Modbus protocols?
Yes, the 9662-810 supports RS-232, RS-485, and Modbus serial communication protocols, depending on the configuration of the host module it is connected to.
Does this module require external power?
As a passive field termination panel, it is designed to facilitate signal routing and does not typically require active power for its own operation, though it should be installed according to the specific wiring diagrams of the Triconex system loop.
