HMI panels and displays provide operators with clear system data and controls. They improve visibility, monitoring, and process efficiency in industrial automation. Our inventory includes models from ABB, Siemens, Allen-Bradley, and other leading brands, available for both current and legacy systems.
HMI Panels & Displays
-
Bently Nevada Bently Nevada 3500/94 VGA Display Module Cable Assembly
Bently Nevada 3500/94 VGA Display Module Cable Assembly Configured for signal transmission and rack-to-display interfacing in the 3500 Machinery Protection System, the Bently Nevada 3500/94 161264-01 (3500/94 VGA Display Module Cable) provides direct physical/electrical execution of video output routing, communication linking, and shielded signal continuity between rack-resident display electronics and external operator visualization devices. Hardware Specifications Parameter Specification Model 3500/94 161264-01 Brand Bently Nevada Weight 0.3 kg Operating Temp -20 deg C to +65 deg C Power Consumption 0 W (passive cable assembly) Cable Type VGA shielded industrial cable Length Options 3 m / 5 m / 10 m Connectors VGA 15-pin + rack interface connector Eddy Current Signal Integrity and EMI Suppression Path The cable assembly maintains controlled impedance pathways for VGA video transmission between rack display electronics and external monitoring terminals. Shielding layers are implemented as continuous EMI/RFI barriers to reduce electromagnetic coupling from adjacent backplane power conductors and high-frequency monitoring channels. In environments with high-density vibration monitoring modules, the cable shielding geometry reduces induced noise currents that may otherwise propagate into display synchronization lines. This maintains stable raster timing and prevents signal distortion under variable electromagnetic field conditions generated by rotating machinery instrumentation systems. Frequently Asked Questions (FAQ) Q: Does the cable carry power for the 3500/94 module?A: No. The cable is used for signal transmission only. Power distribution is handled internally via the 3500 backplane architecture. Q: Can non-shielded VGA cables be substituted?A: No. Non-shielded cables introduce susceptibility to EMI coupling and may result in degraded display synchronization and signal instability. Q: Does cable length affect signal integrity in all configurations?A: Yes. Increasing cable length increases attenuation and susceptibility to external electromagnetic interference, especially in high-noise cabinet environments. Field Installation Guidelines Route VGA cable separately from high-current backplane and power distribution wiring Maintain minimum bend radius to avoid conductor deformation and impedance variation Ensure continuous shield termination at both rack and display end grounding points Avoid cable routing near high-frequency switching modules or relay outputs Secure cable mechanically to prevent vibration-induced connector loosening Verify connector seating alignment before energizing display interface system
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/94-06-00-00 VGA Display Module
Bently Nevada 3500/94-06-00-00 VGA Display Module The Bently Nevada 3500/94-06-00-00, also cataloged as the 3500/94 VGA Display Module, operates as a dedicated hardware component for local visualization of rack-level machinery parameters within the 3500 Machinery Protection System. Installed in the 3500/05 System Rack front-access position, the module renders real-time process values, alarm states, and configuration datasets directly from backplane-acquired monitoring data. Display output is generated through a VGA interface with fixed graphical resolution and menu-driven navigation logic. Cross-talk suppression is implemented at the display refresh layer to maintain data coherence when multiple monitoring modules update simultaneously, ensuring consistent rendering of vibration, speed, and temperature channels without frame contention artifacts. Hardware Specifications Parameter Specification Model 3500/94-06-00-00 Brand Bently Nevada Origin USA Operating Temp -20 deg C to +65 deg C Display Type VGA graphical display Resolution 640 x 480 pixels Data Inputs Real-time values, alarms, configuration data Rack Compatibility 3500/05 System Rack User Interface Front-panel navigation buttons VGA Visualization and Rack-Level Human Machine Interface Layer The 3500/94 module operates as a local HMI layer directly coupled to the 3500 backplane data bus. Display rendering is synchronized with module-level diagnostic registers, allowing live visualization of vibration amplitude, speed trends, and alarm bit states. The VGA output subsystem decouples graphical refresh cycles from monitoring scan cycles, ensuring that transient signal acquisition remains unaffected during display updates. Menu navigation logic interfaces with configuration memory blocks without altering protection execution states. Frequently Asked Questions (FAQ) Q: Does the 3500/94 module affect monitoring or protection scan timing?A: No. The display module operates independently of the monitoring scan engine and does not modify backplane acquisition timing or protection logic execution. Q: Can the module operate without System 1 software?A: Yes. Local visualization functions are independent of System 1. However, advanced diagnostics and historical trending require external software integration. Q: What happens if the display module fails during operation?A: Failure of the display module does not interrupt rack monitoring or protection functions. Only local visualization is affected. Field Installation Guidelines Install only in designated front-access slot of the 3500/05 rack Ensure backplane connector alignment prior to insertion to avoid pin damage Maintain separation between VGA signal routing and power conductors inside cabinet Verify rack firmware compatibility before enabling display communication functions Use shielded grounding practices for VGA cable to reduce electromagnetic coupling in high-noise environments
$200.00 $100.00
-
Bently Nevada Bently Nevada 80074-02 Internal Termination Panel
Bently Nevada 80074-02 Internal Termination Panel Configured for external transducer signal termination in the 3500 Series Machinery Protection System, the Bently Nevada 80074-02 (80074-02 Internal Termination Panel) provides direct physical/electrical execution of field wiring interface functions for Proximitor and seismic monitor input channels. The module establishes fixed termination points between external sensor cabling and 3500 monitor backplane I/O routing without requiring external termination assemblies. Suffix Breakdown & Model Matrix The 80074-02 designation does not publish a formal breakdown of functional suffix segmentation. The “-02” identifier is used as a configuration variant code within the 80074 internal termination panel family, typically indicating terminal block arrangement and mechanical interface revision level as defined by system rack integration requirements. Hardware Specifications Parameter Specification Model 80074-02 Brand Bently Nevada Origin USA Operating Temp -30 deg C to +65 deg C Power Consumption Passive component (no electrical load) System Compatibility Bently Nevada 3500 Series Machinery Protection System Supported Monitor Modules 3500/40M, 3500/42M Termination Type Internal rack-mounted terminal interface Wiring Method Screw-clamp terminals Wire Range 24 to 16 AWG (0.2 to 1.5 mm^2) typical Channel Capacity Up to 4 channels per associated monitor slot Eddy-Current Signal Termination & Cross-Talk Suppression Characteristics (Bently Nevada Specific Behavior) The 80074-02 termination structure is designed to preserve integrity of eddy-current transducer scaling paths used in proximity probe systems. Signal routing maintains defined impedance continuity between probe driver outputs and monitor input conditioning stages, supporting stable gap voltage representation typically centered around -10 VDC operating region in calibrated proximity measurement loops. Cross-channel coupling is minimized through physical separation of terminal paths and controlled return routing geometry. This reduces measurement interference in multi-channel rotor dynamic monitoring where phase-referenced vibration and axial displacement signals coexist on adjacent termination points. The termination interface does not perform signal conditioning; it preserves raw transducer output fidelity for downstream processing in 3500 series monitor modules. Rotor dynamic measurement integrity depends on consistent termination impedance behavior across all connected channels, particularly in applications involving shaft vibration vector reconstruction and slow-roll validation sequences. Frequently Asked Questions (FAQ) Q: Does the 80074-02 perform signal conditioning for proximity probes?A: No. It functions as a passive termination interface only. Signal conditioning is executed within 3500 monitor modules such as 3500/40M or 3500/42M. Q: Can the panel support hot-swap replacement under energized system conditions?A: The termination panel itself is passive; however, insertion or removal affects field wiring continuity. System-level hot-swap behavior depends on rack configuration and associated monitor module design. Q: Is channel isolation implemented within the termination panel?A: Channel isolation is not actively implemented. Electrical separation is achieved through physical terminal spacing and backplane routing architecture, while isolation functions are handled at the monitor module level. Field Installation Guidelines Install only within compatible 3500 series rack assemblies using designated backplane mounting positions Maintain segregation between proximity probe signal wiring and high-noise power conductors Use shielded cabling with single-point grounding at system designated ground reference Ensure terminal torque is consistent across all screw-clamp connections to avoid micro-intermittent contact resistance Verify continuity from field sensor lead to monitor input channel prior to system energization Avoid routing sharp bends in proximity probe extension cables near termination interface to prevent impedance discontinuities
$200.00 $100.00
-
Bently Nevada 87971-01 | Bently Nevada | Dual Vibration Monitor Operator
Bently Nevada 87971-01 3300/16 Dual Vibration Monitor Operator/Main Circuit Board Assembly Configured for signal processing and control execution in the Bently Nevada 3300 Machinery Protection System, the Bently Nevada 87971-01 (87971-01 circuit board assembly) provides direct electrical execution within 3300/16 Dual Vibration Monitor module architecture. The assembly functions as the operator and main processing interface for two-channel proximity probe vibration measurement. It conditions eddy-current transducer inputs, performs internal scaling referenced to probe gap voltage characteristics, and supports signal routing for alarm relay logic and analog output transmission within the rack-based monitoring system. Channel processing is aligned with rotor dynamics measurement paths and includes internal validation of probe gap voltage stability and cross-channel signal integrity control. Suffix Breakdown & Model Matrix The part number 87971-01 is treated as a fixed configuration identifier within the 3300/16 module assembly structure. No manufacturer-published suffix segmentation or functional sub-code breakdown is defined for this ordering number. Hardware Specifications Parameter Specification Model 87971-01 Brand Bently Nevada Origin USA Operating Temp -20 deg C to +70 deg C Power Consumption Powered via 3300 system rack backplane (nominal DC supply from rack bus) Measurement Function Dual-channel radial vibration / shaft displacement processing Input Compatibility 3300 / 3300 XL 8 mm proximity probes, 7200 series proximity systems Output Interfaces 4-20 mA proportional outputs, alarm relay contacts Signal Processing Eddy-current probe scaling, gap voltage validation, channel conditioning Bently Nevada TSI Signal Conditioning Characteristics The 87971-01 assembly implements eddy-current probe signal scaling aligned with proximity transducer calibration curves (typical 200 mV/mil systems). Gap voltage validation is performed to ensure probe linear operating region stability, typically referenced against negative DC bias regions used in proximity measurement chains. Cross-talk suppression is implemented at channel separation level to prevent electrical interference between dual measurement paths. Signal conditioning logic is aligned with rotor dynamic displacement tracking, enabling separation of vibration amplitude and DC gap components for machinery protection processing. Frequently Asked Questions (FAQ) Q: Does the 87971-01 support hot-swap replacement within an energized 3300 rack?A: The module is rack-inserted and backplane powered. Hot-swap behavior depends on rack configuration and system interlock state. Signal interruption is expected during insertion or removal. Q: How is channel isolation handled between the two vibration inputs?A: Channel separation is implemented through internal signal conditioning circuitry. Isolation is designed to minimize cross-channel coupling during simultaneous proximity probe operation. Q: What is the effect of backplane power fluctuation on measurement accuracy?A: Measurement stability is dependent on regulated backplane DC supply. Voltage deviation outside rack specification may affect scaling accuracy and alarm threshold consistency. Field Installation Guidelines The assembly shall be installed only in compatible 3300 series rack slots with verified backplane alignment. Ensure all proximity probe cabling is terminated with proper coaxial shielding and grounded at a single point to avoid ground loop formation. Maintain separation between signal wiring and high-power conductors to reduce electromagnetic coupling. Probe extension cables shall follow manufacturer-specified routing limits to preserve eddy-current signal integrity. Connector seating must be fully engaged to ensure stable backplane communication. Do not apply mechanical stress to the board edge during insertion. Verify channel configuration settings prior to system commissioning to ensure correct scaling of vibration inputs.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/94M VGA Display Monitor
Bently Nevada 3500/94M VGA Display Monitor The Bently Nevada 3500/94M, also cataloged as the 3500/94M VGA Display Module, serves as the primary rack-mounted HMI display unit utilized to execute real-time machinery data visualization across Bently Nevada 3500 Series platforms. It receives backplane-transmitted process variables, alarm states, and module diagnostics, rendering them via VGA interface and local display logic for operator-level interaction. Suffix Breakdown & Model Matrix 3500/94M: VGA display module variant for 3500 rack systems 3500/94: Base display monitor family designationNo further structured suffix segmentation is defined in the provided data. Hardware Specifications Parameter Specification Model 3500/94M Brand Bently Nevada Origin USA Weight 1.5 kg Dimensions 241 mm × 192 mm × 61 mm Operating Temp -20 deg C to +65 deg C Power Consumption 4.6 W max Display Resolution 640 × 480 VGA Display Type TFT LCD Communication Interface 3500 rack backplane bus, RS232, VGA I/O Mounting 3500 series rack slot compatible Bently Nevada Rack Visualization and Data Presentation Architecture The 3500/94M integrates into the 3500 rack communication architecture, where monitored vibration and process variables are distributed via internal backplane routing. Display rendering is synchronized with module-level diagnostics, including alarm state transitions and channel status updates. The system supports rotor dynamics visualization logic indirectly by presenting 1X vibration and proximity gap values derived from upstream monitoring modules. Alarm event propagation is mapped into structured display pages, enabling deterministic operator interpretation of machinery state transitions. Communication integrity is indicated through TX/RX and OK LED signaling tied to rack-level synchronization cycles. Frequently Asked Questions (FAQ) Q: Does the 3500/94M support hot-swap replacement within a powered rack?A: The module supports rack insertion under controlled maintenance procedures. Backplane synchronization is re-established after reseat without altering configuration data. Q: How is display data synchronized with 3500 monitoring modules?A: Data is transferred via the 3500 rack backplane bus, using internal communication frames for alarm, status, and channel values. Q: Can external displays be connected simultaneously with the onboard screen?A: Yes, VGA output supports external monitor duplication without affecting internal display rendering. Field Installation Guidelines Install module only in a compatible 3500 rack slot with backplane alignment verified. Ensure rack power is isolated before insertion or removal. Maintain shield continuity for communication cabling to reduce signal noise coupling. Verify RS232 and VGA routing separation from high-power conductors. Confirm TX/RX and OK LED status after initialization before commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 136386-01 Blank Filler Panel
Bently Nevada 136386-01 Blank Filler Panel The Bently Nevada 136386-01, also cataloged as the 136386-01 Blank Filler Panel, operates as a passive mechanical rack element for slot occupancy within Bently Nevada 3500 series chassis architectures.Configured for unused module bay sealing in 3500 rack assemblies, the Bently Nevada 136386-01 (136386-01 filler panel) provides physical slot coverage and airflow continuity without electrical participation in the monitoring backplane. Hardware Specifications Parameter Specification Model 136386-01 Brand Bently Nevada Weight 0.2 kg Dimensions 140 mm × 80 mm × 30 mm Operating Temp –40 deg C to +70 deg C Power Consumption None (passive component) Function Non-functional rack slot filler Material Aluminum alloy, conformal coated Environmental Rating Rack-level dust and airflow protection Storage Temperature –40 deg C to +85 deg C Rack Airflow Integrity and Cross-Slot Mechanical Stabilization Behavior The filler panel maintains chassis airflow channel uniformity by sealing unused slot apertures in the 3500 rack backplane structure.This mechanical sealing reduces localized turbulence within the rack ventilation path, preserving designed cooling flow distribution across active monitoring modules. The aluminum alloy structure provides uniform mechanical load distribution across the rack frame, preventing structural imbalance caused by partially populated module bays.Conformal coating ensures surface isolation from airborne particulates and moisture accumulation, maintaining consistent rack environmental impedance over long operational cycles. No electrical interface is present; the component does not participate in backplane communication, signal routing, or grounding reference paths. Frequently Asked Questions (FAQ) Q: Does the 136386-01 connect to the 3500 backplane electrically?A: No. The module is mechanically passive and has no electrical or data interface with the backplane. Q: Can the filler panel be omitted in partially populated racks?A: It is not recommended. Missing panels may alter airflow distribution and reduce thermal stability across installed modules. Q: Does the coating affect rack grounding continuity?A: No. The filler panel does not participate in grounding paths and serves only as a mechanical cover element. Field Installation Guidelines Insert the filler panel into any unused 3500 rack slot until full mechanical engagement is achieved. Ensure alignment with adjacent module guides to maintain uniform front-panel surface continuity. Do not leave open slots exposed during operation, as airflow imbalance and dust ingress may occur within the rack enclosure. Maintain consistent distribution of filler panels across partially populated racks. Avoid forcing insertion; improper alignment may damage rack guide rails or adjacent module housings. Confirm that adjacent modules are fully seated before installation. Routine inspection is recommended to ensure filler panels remain secured and flush with the rack front plane.
$200.00 $100.00
-
Bently Nevada Bently Nevada 149356-01 3500/94 Display Router Box
Bently Nevada 149356-01 3500/94 Display Router Box Configured for display data routing and multi-interface visualization in 3500 Series machinery protection system, the Bently Nevada 149356-01 (3500/94 Display Router Box) provides direct physical/electrical execution of buffered signal distribution and rack-based display management across LCD, LED, and VGA output nodes. Suffix Breakdown & Model Matrix Base assembly: 3500/94 Display Router Box Ordering code: 149356-01 Suffix “-01” denotes manufacturing and configuration revision levelNo functional segmentation or field-configurable suffix logic is defined for this model. Hardware Specifications Parameter Specification Model 149356-01 / 3500/94 Brand Bently Nevada Origin USA Weight 0.73 kg Dimensions 241.3 × 24.4 × 241.8 mm Operating Temp –30 deg C to +65 deg C Power Consumption ~3.2 W (via rack backplane) Input Signal Type 3500 system display/status data Output Interfaces LCD, LED, VGA routed outputs Communication Interface 3500 internal rack bus, RS-485 Modbus support Input Impedance ≥21.8 kΩ Channels Multi-channel routing architecture Storage Temperature –40 deg C to +85 deg C Humidity Up to 95% non-condensing Display Bus Routing Integrity and Signal Distribution Behavior The module processes display frames through internal rack backplane buffering, converting machine condition datasets into structured visualization packets. RS-485 Modbus paths support auxiliary supervisory access without disrupting primary rack communication flow. Cross-talk suppression is implemented through controlled impedance routing on VGA and internal display lines. Signal integrity is maintained by separating high-frequency visualization traffic from vibration acquisition channels. In 3500 system architecture, display synchronization depends on stable rack timing alignment. Any mismatch in buffer latency may introduce transient display desynchronization across multiple visualization endpoints. Frequently Asked Questions (FAQ) Q: Can the 149356-01 be hot-swapped in an active 3500 rack?A: Yes. The module supports hot-swap within defined rack insertion procedures, provided system synchronization state is maintained. Q: Does the module process vibration data directly?A: No. It only routes pre-processed 3500 system data to display interfaces. Q: What happens if RS-485 Modbus is disconnected?A: Display routing continues via internal rack bus. External monitoring access is affected only. Field Installation Guidelines Install the module only in a compatible 3500 Series rack slot with confirmed backplane seating alignment. Ensure connector engagement is fully seated to maintain rack bus continuity. Route RS-485 and VGA cabling separately from high-energy switching lines to avoid induced noise coupling. Maintain shield continuity and terminate grounding at designated rack earth reference. Verify firmware and rack configuration consistency before energizing the system. Confirm display output synchronization across all connected visualization terminals after installation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 80098-01 3300 Series Single-Slot Blank Filler Panel
Bently Nevada 80098-01 3300 Series Single-Slot Blank Filler Panel Configured for slot occupancy management in the Bently Nevada 3300 Monitoring System rack mainframe, the Bently Nevada 80098-01 (80098-01 Single-Slot Blank Filler Panel) provides direct physical backplane interface blanking within unused chassis positions. The component operates as a passive rack element within the 3300/05 mainframe architecture, maintaining continuous front-panel sealing and mechanical alignment across adjacent monitoring modules. Its conductive polymer structure contributes to chassis-level electrostatic equalization and controlled airflow routing across populated slots. Suffix Breakdown & Model Matrix The 80098-01 designation is a fixed single-part ordering identifier. No functional suffix segmentation or configuration matrix is defined for this model. Hardware Specifications Parameter Specification Model 80098-01 Brand Bently Nevada Origin USA Weight 0.6kg Dimensions Single-slot 3300 rack form factor Operating Temp Not specified (inherits rack environment limits) Power Consumption Passive component, no electrical load Product Type Single-Slot Blank Filler Panel Compatibility Bently Nevada 3300/05 Monitoring System Rack Material Conductive anti-static molded polymer Installation Snap-in mechanical retention Bently Nevada 3300 Rack Slot Integrity and Cross-Talk Control Behavior Within Bently Nevada 3300 series chassis architecture, empty slot exposure can alter backplane impedance distribution and local electromagnetic coupling paths between adjacent monitoring modules. The 80098-01 filler panel enforces controlled slot termination geometry, reducing localized airflow bypass and stabilizing backplane field uniformity. From a TSI (Turbo Supervisory Instrumentation) perspective, rack-level slot discontinuities can introduce marginal variation in eddy-current probe signal routing integrity and gap voltage reference stability across densely populated vibration monitoring configurations. The filler panel contributes to mechanical shielding continuity that supports consistent signal isolation conditions across adjacent measurement channels, particularly in high-channel-density rotor monitoring racks. Frequently Asked Questions (FAQ) Q: Does the 80098-01 interact electrically with the 3300 backplane bus?A: No active electrical interfacing is present. The module functions as a passive mechanical and conductive slot terminator without backplane signal participation. Q: Can the filler panel be inserted or removed while the rack is energized?A: It is mechanically compatible with snap-in retention; however, installation practice should follow system-level guidance for module insertion to avoid unintended contact with adjacent backplane pins. Q: Does the component affect rack power distribution or module current loading?A: It introduces no electrical load and does not participate in rack power distribution or channel current consumption. Field Installation Guidelines Install the 80098-01 into any unused single-slot position of the Bently Nevada 3300/05 rack frame. Align the panel with the guide rails and apply uniform pressure until the snap-in latch engages fully with the chassis retention point. Ensure adjacent modules are fully seated before insertion to prevent mechanical interference with backplane connectors. Maintain consistent slot population strategy across the rack to preserve airflow routing uniformity and minimize localized thermal gradients.
$200.00 $100.00
-
Bently Nevada Bently Nevada 80098-01 Single-Slot Blank Filler Panel
Bently Nevada 80098-01 Single-Slot Blank Filler Panel Configured for airflow path management and backplane slot sealing in Bently Nevada 3300 Monitoring System rack assemblies, the Bently Nevada 80098-01 (80098-01 Single-Slot Blank Filler Panel) provides direct physical execution within 3300/05 mainframe slot architecture. The component is a passive rack-level mechanical insert designed to occupy one unused module position and maintain enclosure continuity. Suffix Breakdown & Model Matrix The part number 80098-01 is treated as a single fixed configuration identifier for a single-slot blank filler panel within the Bently Nevada 3300 rack ecosystem. No officially defined functional suffix segmentation or option matrix is specified for this model. Hardware Specifications Parameter Specification Model 80098-01 Brand Bently Nevada Origin USA Weight 0.25kg Dimensions Single-slot rack width (3300 series compatible) Operating Temp Not specified (rack-dependent environment) Power Consumption Passive component (0 W) Product Type Single-Slot Blank Filler Panel Compatibility Bently Nevada 3300/05 rack mainframe Installation Type Front-insert mechanical snap-fit Bently Nevada 3300 Rack Slot Integrity and TSI Mechanical Interface Behavior In 3300 series monitoring racks, unused slot management directly affects backplane airflow routing and electromagnetic environment stability. The 80098-01 filler panel provides physical sealing of unused positions to preserve designed convection paths across active monitoring modules. From a TSI (Turbomachinery Supervisory Instrumentation) system perspective, rack-level slot continuity influences adjacent module thermal gradients and reduces localized turbulence that may otherwise affect proximity probe conditioning modules and vibration signal processing cards. Although mechanically passive, the filler element contributes to maintaining consistent enclosure impedance characteristics across the rack faceplate assembly. In systems utilizing eddy-current proximity probes, maintaining stable rack thermal distribution supports consistent gap voltage interpretation (typically referenced around negative DC bias domains such as -10 VDC scaling structures in probe driver modules). The filler panel indirectly assists in minimizing environmental drift factors that can contribute to signal baseline instability or inter-slot cross-talk propagation within densely populated 3300 chassis configurations. Frequently Asked Questions (FAQ) Q: Does the 80098-01 interact electrically with the 3300 backplane?A: No. The unit is a passive mechanical insert with no electrical contacts or backplane coupling. Q: Can the filler panel be hot-inserted while the rack is energized?A: It is mechanically possible in many rack configurations, but standard practice is to avoid insertion during active module handling to prevent accidental backplane disturbance. Q: Does slot filling affect module power distribution on the rack backplane?A: No direct electrical load change occurs, but improved airflow distribution can indirectly stabilize thermal loading across adjacent powered modules. Field Installation Guidelines Install the 80098-01 into any unused single-slot position of a Bently Nevada 3300/05 rack by aligning the panel guide rails with the chassis slot tracks. Apply uniform forward pressure until the retention latch engages the backplane frame. Verify that adjacent module faceplates remain flush to ensure continuous EMI shielding integrity across the rack front plane. Avoid partial seating, as incomplete insertion may disrupt designed airflow channeling and reduce rack-level thermal balance consistency.
$200.00 $100.00
-

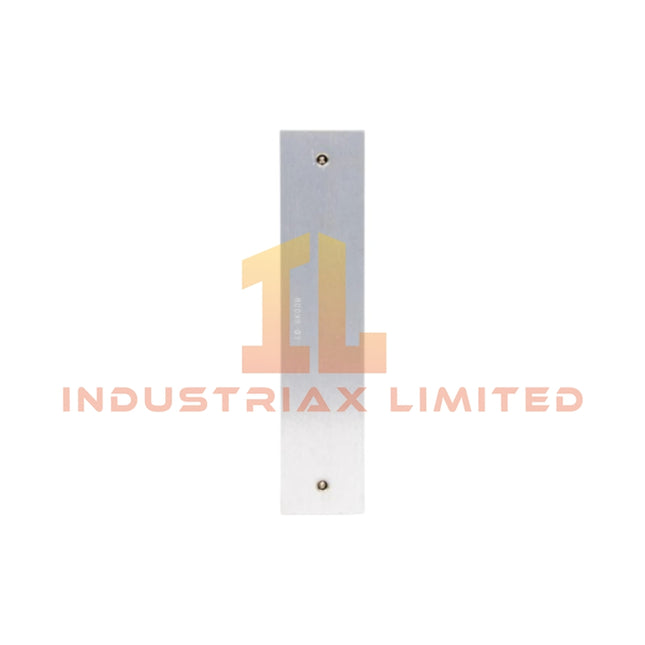

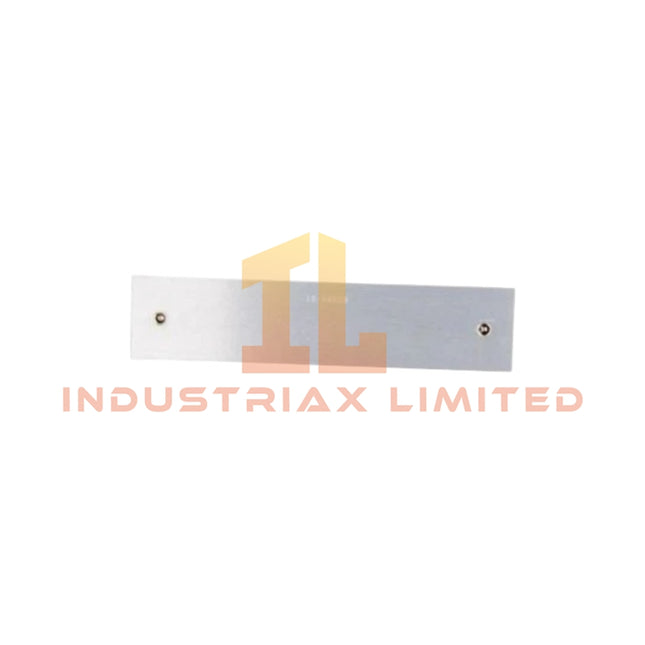

Bently Nevada Bently Nevada 80097-01D Blank Filler Panel
Bently Nevada 80097-01D Blank Filler Panel The Bently Nevada 80097-01D, also cataloged as the 80097-01D Blank Filler Panel, serves as a dedicated hardware component for physical slot sealing within Bently Nevada 3300 Series Monitoring Racks. Configured for mechanical enclosure of unused chassis positions in 3300 rack assemblies, the Bently Nevada 80097-01D (80097-01D Blank Filler Panel) provides direct physical implementation of slot isolation and backplane exposure prevention. Suffix Breakdown & Model Matrix No validated manufacturer-defined suffix segmentation is provided for the 80097-01D ordering code. The designation is treated as a single-part identifier for a passive rack accessory without functional sub-modules or revision-based electrical variants. Hardware Specifications Parameter Specification Model 80097-01D Brand Bently Nevada Origin United States (manufacturer base: Baker Hughes Bently Nevada) Weight 150 g to 250 g Dimensions Approx. 2 in width x 8.16 in height Operating Temp Not specified (rack environment dependent, deg C) Power Consumption 0 W (passive mechanical component) Component Type Blank filler panel / slot cover plate System Compatibility 3300 Series Monitoring Rack TSI Rack Integrity and Signal Containment Behavior Within Bently Nevada 3300 Series architectures, unused slot coverage is treated as part of the mechanical integrity envelope supporting transducer signal stability. Rack-level EMI containment practices align with eddy-current probe signal integrity principles, including mitigation of cross-talk paths between adjacent module backplanes and maintenance of controlled impedance environments. The filler panel contributes to physical shielding continuity across populated and unpopulated chassis positions, supporting stable gap voltage referencing conditions across installed monitoring modules. Frequently Asked Questions (FAQ) Q: Does the 80097-01D interface electrically with the 3300 backplane?A: No. The unit is a passive mechanical cover and does not connect to backplane signal or power rails. Q: Can the filler panel affect module hot-swap operations in adjacent slots?A: No. It has no electrical participation in hot-swap logic. It only occupies mechanical slot volume and does not interact with insertion detection circuits. Q: Does removal of the panel impact system electrical loading or backplane current distribution?A: No. Backplane electrical load is determined solely by active modules. The filler panel introduces zero electrical consumption. Field Installation Guidelines Install the 80097-01D into unused 3300 Series rack slots using standard front-panel retention screws aligned with chassis guide rails. Ensure full seating against the rack face to maintain continuous EMI shielding across adjacent modules. Do not force installation against misaligned guide channels, as mechanical deformation may affect rack airflow sealing geometry. Maintain consistent torque application on mounting fasteners consistent with rack manufacturer assembly practice. No electrical isolation or grounding wire termination is required for this component.
$200.00 $100.00
-

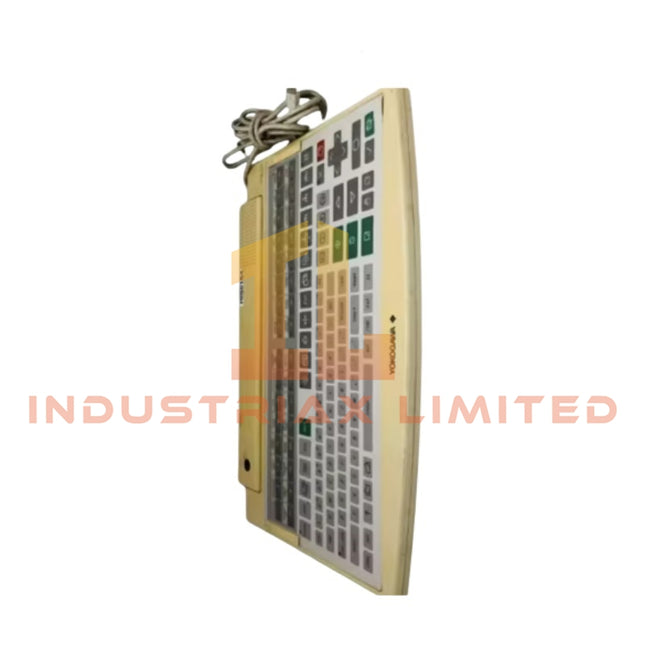

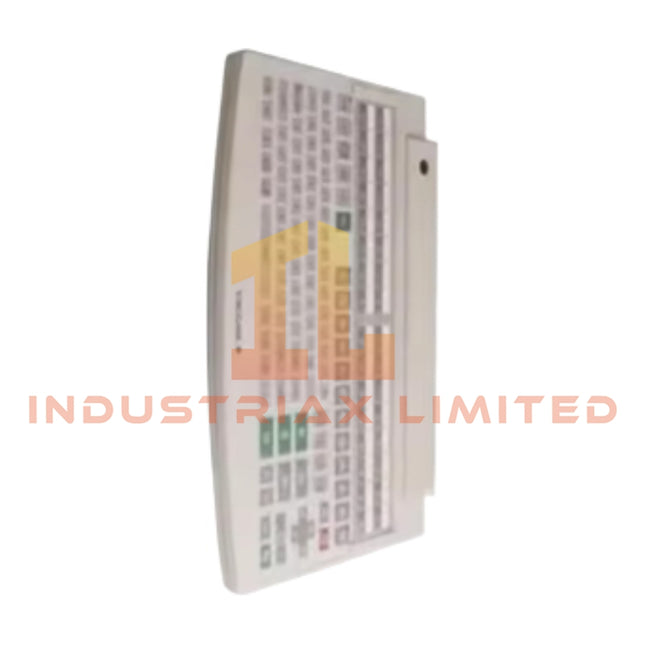

Yokogawa Industrial Operator Keyboard | Yokogawa AIP826-2S2
Yokogawa AIP826-2S2 Industrial Operator Keyboard The Yokogawa AIP826-2S2, also cataloged as the AIP826-2 Industrial Operator Keyboard, operates as a dedicated hardware component for tactile process control input within CENTUM VP and CENTUM CS 3000 Distributed Control Systems. It provides physical key execution for operator commands, alarms, and system navigation. Hardware Specifications Parameter Specification ModelBrand Yokogawa Origin Japan Weight 2.0–2.5 kg (depending on mounting housing) Dimensions Compact, fits standard HIS desktop or console flush mount OperatingTemp 0 to 50 degC (Operating), -20 to 60 degC (Storage/Transport) PowerConsumption 5 V DC ±5%, max 500 mA via USB KeyLayout 105 keys: alphanumeric, operation control, window control, user-programmable Interface USB 1.1 / 2.0 compatible DustResistance Industrial control room environment tolerant WithstandingVoltage 500 V AC for 1 minute between host ground and frame ground Process Control DCS Features The keyboard maintains channel-to-channel isolation between function keys to prevent signal interference during simultaneous operations. It supports 4-20 mA HART loop protocol integration via the host DCS for tactile input validation and process command acknowledgment. Cold junction compensation (CJc) is implemented for any temperature-dependent key circuitry to maintain signal stability over the operating range. Frequently Asked Questions Q: Does the AIP826-2S2 support hot-swap operation?A: No. The keyboard must be connected before DCS startup; USB insertion under powered operation may not be recognized or could generate transient signals. Q: Can the key layout be customized for different process functions?A: Yes. User-programmable keys can be mapped through the host HIS configuration software, but the physical layout cannot be modified. Q: What is the maximum current drawn through the USB interface?A: The maximum current consumption is 500 mA supplied via the USB port; ensure the host provides sufficient power for stable operation. Field Installation Guidelines Mount the keyboard on a flat HIS console surface using the supplied brackets or desktop mount. Ensure proper grounding of the frame to avoid ground loop currents. Route USB cables separately from high-current or high-frequency lines to prevent electromagnetic interference. Avoid exposure to direct water jets or chemical cleaning agents. Maintain ambient temperature and humidity within specified operating limits. For multi-key operations, verify channel-to-channel isolation integrity before commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 147663-01 VGA Display I/O Module
Bently Nevada 147663-01 VGA Display I/O Module Configured for real-time visualization of vibration, position, gap, and machinery condition data in the 3500/94 Machinery Protection System, the Bently Nevada 147663-01 (147663 VGA Display I/O Module) provides direct physical and graphical interface functionality. The module supports local touch-screen operation, remote VGA monitor connectivity up to 10 m, configurable machine monitoring screens, and API-670 compatible display formatting within 3500 rack installations. Suffix Breakdown & Model Matrix The supplied documentation identifies 147663-01 as a complete ordering model. No official suffix matrix or option breakdown is provided in the available data; therefore, no further suffix interpretation is included. Hardware Specifications Parameter Specification Model 147663-01 Brand Bently Nevada Series 3500/94 Product Type VGA Display I/O Module Origin USA Display Type Color VGA with touch-screen interface Custom Screens Up to 9 configurable display screens Supported Data Vibration, gap, position, machine train and system data Resolution Up to 1920 x 1080 @ 60 Hz Indicators OK LED, Bypass LED Remote Display Distance Up to 10 m (33 ft) Configuration Method 3500 Rack Configuration Software Compliance API-670 compatible display format Power Supply 5 VDC input (version dependent) Operating Temp -20 deg C to +70 deg C Environmental Protection IP54 MTBF Approximately 50,000 hours Dimensions 241.3 x 24.4 x 99.1 mm Weight 0.34 kg Core Function Real-time machinery monitoring display interface Eddy-Current Probe Data Visualization and Gap Validation Within 3500 Series machinery protection systems, the 147663-01 display interface presents dynamic information generated by vibration monitors, position monitors, and proximity probe channels. Operators can review shaft vibration amplitudes, phase information, machine train status, and probe gap conditions from configurable display pages. For installations utilizing eddy-current proximity probes, displayed gap values are commonly verified against commissioning targets established by the associated monitor channels. Proper gap voltage validation assists maintenance personnel in confirming probe positioning and signal integrity before machinery startup. The display module itself performs visualization functions and depends on the corresponding 3500 monitoring modules for signal acquisition and processing. Frequently Asked Questions Q: Does the 147663-01 directly acquire vibration signals from proximity probes?A: No. The module functions as a display and operator interface. Signal acquisition and processing are performed by the corresponding 3500 monitoring modules installed within the rack. Q: Can a remote monitor be connected to the module?A: Yes. The module supports remote VGA monitor connections with a specified distance of up to 10 m using appropriate cabling practices. Q: Is the module hot-swappable while the rack is energized?A: Hot-swap capability is not explicitly specified in the provided documentation. Installation, removal, or replacement should follow approved 3500 system maintenance procedures and site safety requirements. Field Installation Guidelines Install the module only in designated 3500/94 rack positions specified by the system documentation. Verify rack power status and maintenance procedures before insertion or removal. Route VGA and communication cabling separately from high-energy power conductors to reduce electromagnetic interference. Maintain proper shield grounding practices according to plant instrumentation standards. Confirm all module seating and backplane engagement before system energization. Validate display operation, alarm visibility, and machine data presentation following configuration download. When remote displays are used, ensure cable length does not exceed the specified maximum distance and avoid excessive bending or mechanical stress on connectors.
$200.00 $100.00
-
Yokogawa Yokogawa DP97-B | Display Processor Card
Yokogawa DP97-B Display Processor Card The Yokogawa DP97-B, also cataloged as the DP97-B Display Processor Card, operates as a dedicated hardware component for real-time measurement data processing within operator station networks. It executes continuous analog and digital signal handling for monitoring thickness and coat weight profiles. Suffix Breakdown & Model Matrix This model is fixed as DP97-B. No further suffix decomposition is defined or documented. The module functions as a standalone display processor card for system integration via standard backplane edge connectors. Hardware Specifications Parameter Specification ModelBrand Yokogawa DP97-B Origin Japan Weight 0.5 kg Dimensions 96 mm (H) x 96 mm (W) x 100 mm (D) OperatingTemp 0 degC to 50 degC StorageTemp -20 degC to 70 degC Humidity 20% to 90% RH (non-condensing) PowerConsumption 100-240 VAC, 50/60 Hz Accuracy ±0.1% of span for measurement/control RedundancySupport Backup configurations supported Interface 4 x coaxial connectors (KB / R / G / B) Process Control Features The DP97-B implements channel-to-channel isolation to mitigate cross-interference within 4-20 mA HART loops and supports cold junction compensation (CJc) for thermocouple signal accuracy. It integrates directly with FOUNDATION Fieldbus and Profibus PA networks, ensuring electrical signal separation between analog input channels and display output circuits. Frequently Asked Questions Q: Does the DP97-B support hot-swap replacement in live systems?A: The module is not designed for hot-swap operation; power must be removed prior to insertion or removal to avoid signal disruption. Q: What is the typical backplane load for the DP97-B?A: The board draws power from the system backplane or designated power rail; nominal load does not exceed standard edge connector limits for 96 mm x 96 mm cards. Q: Can firmware be updated on the DP97-B?A: Firmware updates are possible only via the host operator station interface; the card does not support independent flash operations. Field Installation Guidelines Ensure module orientation matches system backplane markings to prevent misalignment of pin-type edge connectors. Connect coaxial lines (KB / R / G / B) using shielded cables with grounded shields to minimize electromagnetic interference. Avoid routing analog and digital cabling in parallel over distances exceeding 2 meters without separation or additional shielding. Verify ambient enclosure temperature remains within 0-50 degC and relative humidity stays below 90% RH. Maintain a minimum 5 mm spacing from adjacent modules to allow airflow for thermal dissipation. Confirm power supply polarity and voltage levels before initial energization; the board does not include reverse-voltage protection.
$200.00 $100.00
-
EMERSON Emerson 1P00028G01 Local I/O Transition Panel Industrial Node
Product Description OverviewThe Emerson Local I/O Transition Panel (1P00028G01) functions as a remote node for industrial automation systems, enabling seamless communication between multiple I/O modules. This compact unit is engineered for high reliability in diverse automation environments. Key Features and Specifications Manufacturer: Emerson Model / Part Number: 1P00028G01 Product Type: Local I/O Transition Panel / Remote Node Dimensions: 4.8 x 1.0 x 2.8 inches (12.1 x 2.5 x 7.0 cm) Weight: 45 g Origin: USA Connectivity: Supports multiple I/O modules for remote control and monitoring Power Requirements: Compatible with standard industrial control voltages Mounting: Panel mountable, designed for compact integration Environmental Ratings: Operates reliably under industrial temperature and humidity ranges ApplicationsIdeal for use in manufacturing plants, process control systems, and automated production lines where robust, modular I/O networking is required. FAQQ: Can this panel connect multiple I/O modules simultaneously?A: Yes, it acts as a hub, allowing multiple modules to communicate through a single transition panel. Q: Is this panel compatible with other Emerson automation systems?A: Yes, it is fully compatible with Emerson’s modular I/O systems and remote node setups. Similar Models Comparison 1P00027G01: Smaller form factor, fewer I/O ports 1P00029G01: Extended connectivity and additional mounting options
$200.00 $100.00
-
EMERSON EMERSON SE4601T07 Display Panel Module | Industrial Operator Interface
Product Description Overview The SE4601T07 from EMERSON is a display panel module designed for industrial control systems, providing operators with real-time system monitoring and visualization. Its compact form factor allows easy integration into control panels while supporting advanced network communication for seamless operation across multiple Logix processors. Key Features Real-time operator interface for system monitoring and control Integrated diagnostic LEDs to indicate module status, I/O activity, and network health Compact panel-mount design for efficient use of space Supports both EtherNet/IP and ControlNet communications Enables tag sharing across compatible Logix controllers Technical Specifications Specification Details Model / Part Number SE4601T07 Display Type Graphic LCD with backlight Dimensions 20 mm × 20 mm Weight 1 kg Operating Voltage 24 VDC nominal Communication Protocols EtherNet/IP, ControlNet Diagnostic LEDs Communication status, module health, I/O activity Operating Temperature 0°C to 60°C Storage Temperature -20°C to 85°C Relative Humidity 5% to 95%, non-condensing Applications Ideal for manufacturing plants, process control systems, and industrial automation environments requiring compact operator interfaces with reliable diagnostics and network integration. FAQ Q: Is this display module compatible with multiple Logix processors?A: Yes, the SE4601T07 supports tag sharing across Logix controllers for synchronized monitoring. Q: Can it operate in extreme environmental conditions?A: The unit is designed for industrial environments, operating between 0°C and 60°C with 5–95% non-condensing humidity. Q: Which network protocols are supported?A: This display panel supports both EtherNet/IP and ControlNet communications for flexible integration.
$200.00 $100.00
-

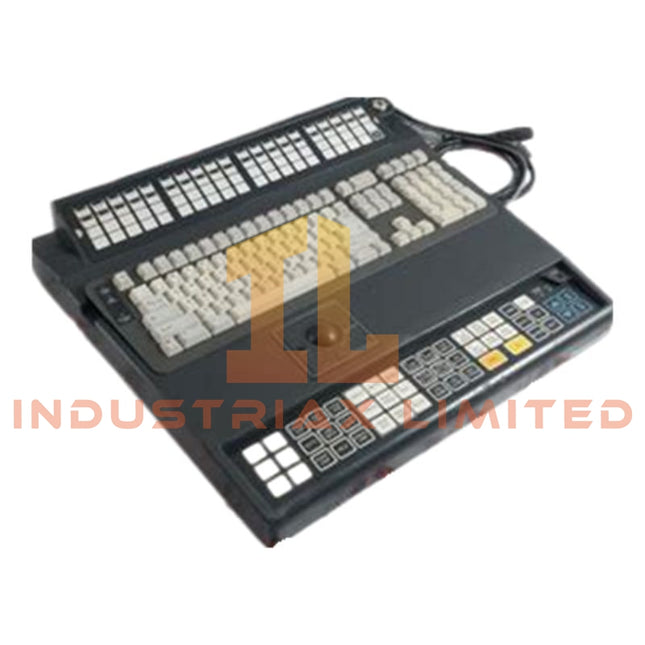

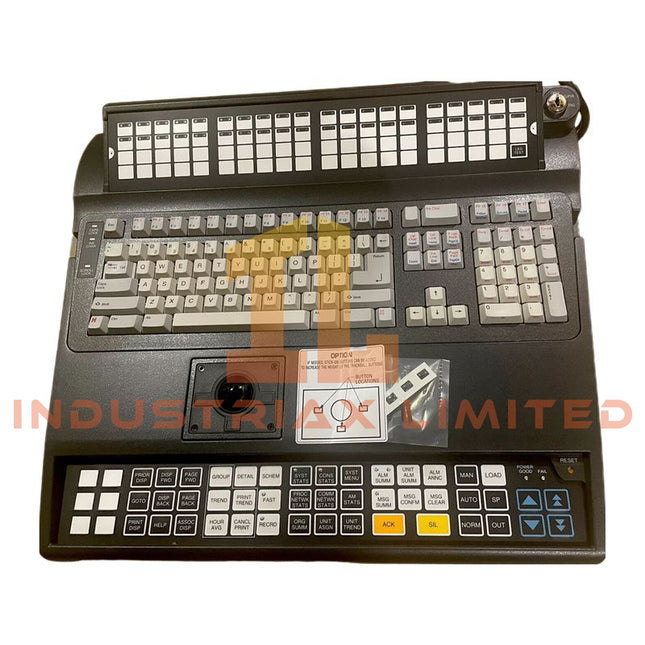

Honeywell Honeywell AID-3 51191590-200/D1 Operator Keyboard
Product Overview Honeywell AID‑3 51191590‑200/D1 is an industrial-grade operator keyboard and interface module designed for Honeywell TDC 3000 and TPS process control systems. It delivers a robust and responsive front-end for operators, combining tactile key feedback with durable construction. Optimized for continuous control room operations, this module ensures reliable input and streamlined workflow for complex process control environments. Technical Specifications Feature Specification Dimensions 580 × 450 × 240 mm Weight 2.5 kg Construction Rugged industrial-grade materials suitable for control room environments Interface Compatible with Honeywell TPS and TDC process control systems Key Layout Tactile keys designed for operator command input and efficient navigation Certifications CE, TUV, UL508, CSA Operating Environment Continuous use in industrial control rooms Key Features Reliable Operator Input High-durability keys with tactile feedback provide consistent and accurate response for process control operations. Optimized Workflow Compact and well-organized layout enables efficient menu navigation and quick command execution. System Integration Seamlessly connects to Honeywell TDC 3000 and TPS systems for operator interface and control. Industrial Durability Designed to withstand continuous operation in demanding control room environments. Certifications and Compliance Meets CE, UL, TUV, and CSA standards for safety and reliability in industrial applications. Applications Operator interface for TDC 3000 and TPS process control systems Input panel for control room operations requiring high durability Centralized command and monitoring in industrial process control Replacement or upgrade for Honeywell operator stations FAQ Is the AID‑3 51191590‑200/D1 compatible with other PLCs or DCS systems? No, it is designed exclusively for Honeywell TDC 3000 and TPS platforms. Can it withstand continuous operation? Yes, it is built with industrial-grade materials suitable for 24/7 use in control rooms. What is the physical size of the module? It measures 580 × 450 × 240 mm and weighs 2.5 kg; proper mounting space is required. What certifications does it have? It is certified to CE, UL508, TUV, and CSA standards.
$200.00 $100.00
-
Honeywell Honeywell TP-DIKBTA-100 51196694-300 Digital Input Termination Panel
Product Description The Honeywell TP-DIKBTA-100 (51196694-300) is a termination panel specifically designed for Series-C digital input modules within the Experion PKS system. It provides a secure interface between field wiring and DI modules, ensuring organized, reliable, and robust connections. Compact yet durable, this panel supports high-density wiring while simplifying installation and maintenance in industrial control environments. Technical Specifications Specification Details Supported Module Series-C Digital Input (DI) modules Channels Supports 32 digital input channels via connected module Input Voltage Range 24 VDC typical Connection Type Screw-type or compression terminals (version-dependent) Isolation Channel-to-channel and channel-to-bus isolation supported Diagnostics Supports module-level short/open detection Operating Temperature -40°C to +70°C Storage Temperature -40°C to +85°C Relative Humidity 5% to 95% non-condensing Mounting Style Panel or chassis mounting Dimensions Compact design for cabinet installation Certifications CE, CSA, UL, ATEX compliant Key Features & Advantages Secure Wiring Termination: Ensures reliable connections for digital input signals. High Channel Density: Supports up to 32 DI channels per connected module. Industrial-Grade Durability: Robust construction suitable for harsh environments. Seamless Integration: Fully compatible with Experion PKS Series-C DI modules. Simplified Maintenance: Organized wiring layout reduces troubleshooting and commissioning time. Applications Distributed control systems in refining, petrochemicals, and power generation Chemical process plants and manufacturing operations Any industrial environment requiring high-density digital input wiring Control systems where reliable DI termination is critical FAQ Q: Can TP-DIKBTA-100 be used without a connected DI module?A: No, the panel requires a compatible Series-C DI module to process input signals. Q: How many channels does the panel support?A: Up to 32 digital input channels per connected DI module. Q: Is it compatible with non-Honeywell systems?A: It is specifically designed for Honeywell Experion PKS Series-C; functionality may be limited outside this ecosystem. Q: Are there similar termination panels in the Series-C family?A: Yes, other TP assemblies like TP-DIKBTA-101 or TP-DIKBTA-102 support different DI module configurations or higher channel counts.
$200.00 $100.00
-

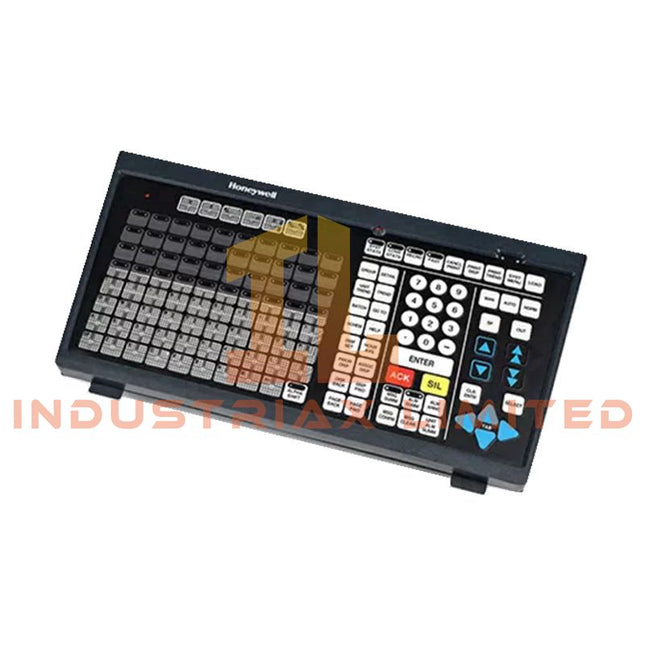

Honeywell Honeywell 51403883-100 Industrial Operator Keyboard
Product Description The Honeywell 51403883-100 industrial operator keyboard is a dedicated human–machine interface device engineered for use within Honeywell distributed control systems, particularly Experion PKS and legacy TDC 3000 platforms. Designed for continuous control room operation, this keyboard combines sealed construction, illuminated keys, and integrated cursor navigation to support precise operator interaction with process control applications. The device is intended for installation in industrial consoles or control desks where reliability and ergonomic operation are critical. Its rugged housing protects internal components from contamination while maintaining responsive tactile feedback suitable for long-duration operator sessions. Key Functional Characteristics • Provides a reliable input interface for Honeywell operator workstations and engineering consoles• Integrated pointing device (trackball or touchpad depending on revision) for graphical navigation• Backlit key set improves readability in dim control rooms or night-shift environments• Sealed enclosure design reduces the risk of dust or liquid ingress in industrial settings• Programmable or configurable function keys allow customization for plant operations• Optimized layout for process monitoring, alarm acknowledgement, and control commands Technical Specifications Specification Details Model Honeywell 51403883-100 Device Type Industrial Operator Interface Keyboard Supported Systems Honeywell Experion PKS, Honeywell TDC 3000 Interface Industrial console interface (system dependent) Integrated Pointing Device Trackball or touchpad Key Illumination Backlit keys Enclosure Sealed industrial construction Mounting Style Console or panel integration Dimensions 260 × 140 × 38 mm Weight 0.7 kg Typical Application Environments The 51403883-100 keyboard is used in operator stations within distributed control systems where precise command entry and reliable navigation are required. Common deployment scenarios include: • Process plant control rooms• Power generation monitoring stations• Oil & gas refinery operations• Chemical processing facilities• Manufacturing automation control desks Compatibility This operator keyboard integrates with several Honeywell control platforms, including: • Experion PKS operator stations• Honeywell TDC 3000 distributed control systems• Legacy Honeywell console interfaces requiring industrial operator keyboards Integration may depend on workstation configuration and interface hardware. FAQ Q: Is the Honeywell 51403883-100 still supported in modern systems?A: Yes. The keyboard remains compatible with many Experion PKS operator stations and is commonly used in maintained TDC 3000 installations, although newer HMI hardware is gradually replacing legacy console devices. Q: Are refurbished units reliable for industrial operation?A: Many units on the market are professionally refurbished and tested. Buyers should confirm inspection procedures, warranty coverage, and functional verification. Q: Does the keyboard support standard PC connections?A: This device is typically designed for Honeywell operator consoles and may require specific interface hardware depending on system configuration.
$200.00 $100.00
-
Honeywell Honeywell 51403578-100 Operator Keyboard Interface Module
Overview The Honeywell 51403578-100 operator keyboard interface is a dedicated human–machine interaction component engineered for integration with the TDC 3000 Distributed Control System. This module allows plant operators to issue control commands, modify process parameters, and navigate system functions directly from the control workstation. Designed for continuous industrial operation, the keyboard interface combines a compact form factor with rugged internal electronics, ensuring dependable performance in process control environments such as petrochemical plants, refineries, and power facilities. In many system upgrades or lifecycle replacements, the 51403578-100 unit has been superseded by 51402497-200, which provides equivalent functionality for compatible operator stations. Key Functional Characteristics Reliable Operator Input InterfaceProvides direct manual input capability for TDC 3000 operator stations, enabling command entry, system navigation, and process interaction. Industrial Control Room DesignConstructed for long-term use in industrial control consoles where consistent operator access and reliability are essential. Compact Panel IntegrationSmall physical dimensions allow easy installation within operator desks, control panels, or dedicated console interfaces. System CompatibilityFully designed for use with Honeywell TDC 3000 workstation environments and associated operator interface subsystems. Lifecycle Replacement PathSystems originally equipped with this keyboard interface may be upgraded or replaced with 51402497-200, depending on system revision. Technical Specifications Parameter Specification Manufacturer Honeywell Model 51403578-100 Product Type Operator Keyboard Interface System Platform TDC 3000 Distributed Control System Electrical Interface USB / Operator station interface Supply Voltage 5 VDC Operating Temperature 0 °C to 50 °C Storage Temperature −20 °C to 70 °C Physical Dimensions 15.2 × 12 × 8.2 cm Weight 0.7 kg Certifications CE, TÜV, UL508, CSA Mounting Control console or panel integration Country of Manufacture United States Lifecycle Status Legacy product (replacement available) Typical Application Areas Process control operator workstationsRefinery and petrochemical plant control roomsChemical production automation systemsPower generation control panelsLegacy Honeywell TDC 3000 operator consoles FAQ What is the function of the 51403578-100 module?It provides an operator keyboard interface used in TDC 3000 control stations for manual command input and system navigation. Is the module still manufactured?This model is considered part of the legacy TDC 3000 hardware range. Availability is typically limited to surplus or refurbished units. Can it be replaced by another Honeywell module?Yes. In many installations, the 51402497-200 serves as a functional replacement depending on system configuration. Is the keyboard designed for harsh industrial environments?The unit is intended for control room environments rather than field deployment, with an operating range of 0–50 °C.
$200.00 $100.00
-

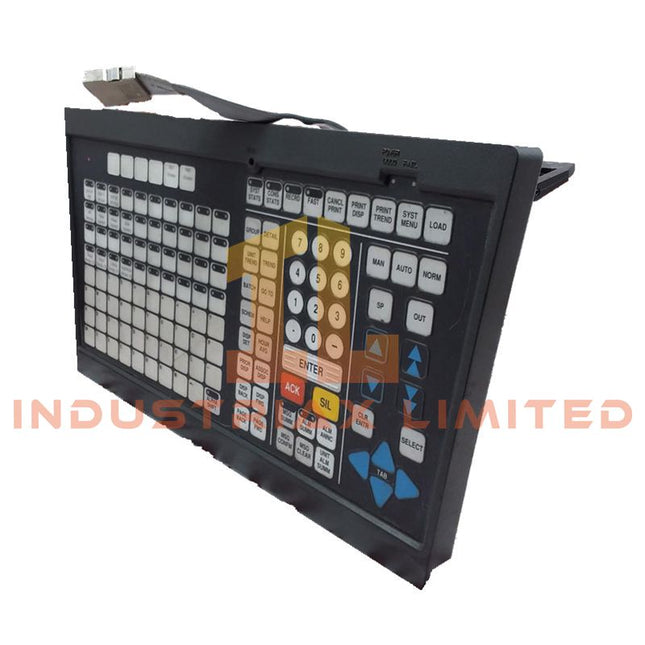

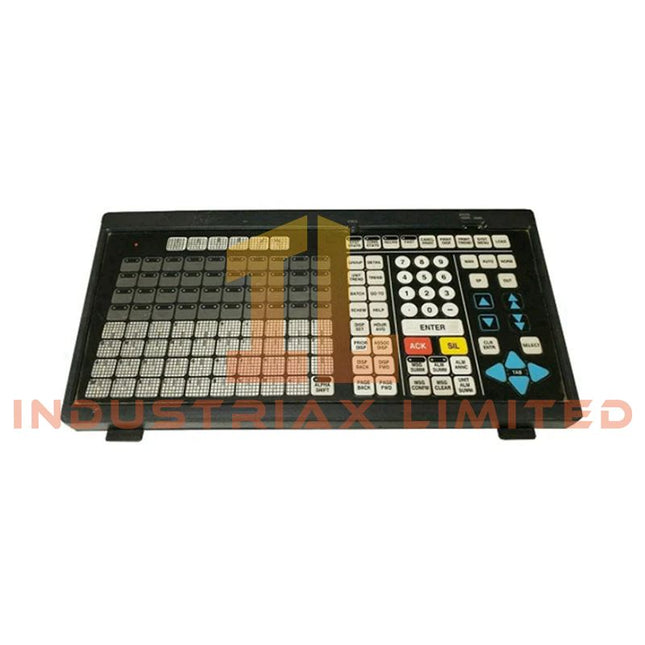

Honeywell Honeywell 51403165-400 Operator Keyboard Assembly
Overview The 51403165-400 Operator Keyboard Assembly is an industrial operator input device engineered for Honeywell’s TDC 3000 Distributed Control System (DCS). Designed specifically for Z-station operator consoles, this keyboard provides a dedicated human-machine interface for process monitoring and control operations within Honeywell control environments. Unlike standard PC keyboards, the 51403165-400 integrates through a proprietary communication interface developed for TDC-series operator stations. The device is designed to operate reliably in continuous industrial environments such as refinery control rooms, power generation facilities, and chemical processing plants. Its rugged construction, long mechanical key life, and integrated backlighting allow operators to perform real-time control tasks efficiently even during extended shifts and in low-light conditions typical of process control rooms. Key Technical Specifications Specification Details Model 51403165-400 Product Type Operator Keyboard Assembly Manufacturer Honeywell Compatible Systems Honeywell TDC 3000 / TDC 2000 Operator Stations Typical Installation Z-Station Operator Console Keyboard Layout Full Industrial Layout Number of Keys 104 Keys Key Material Industrial ABS Keycaps Key Life Approx. 5 Million Keystrokes Backlighting Integrated Keyboard Backlight Interface Proprietary Honeywell TDC Interface Dimensions 444.5 × 266.7 × 38.1 mm Weight 9.0 lbs Operating Temperature 0°C to 50°C Storage Temperature -20°C to 70°C Mounting Console-Integrated Installation Functional Characteristics Industrial Operator Interface The 51403165-400 serves as the primary input device for Honeywell operator stations, enabling manual interaction with process graphics, alarms, and system control functions within the TDC environment. Proprietary Control System Connectivity The keyboard connects directly to Honeywell console electronics through a dedicated interface designed for TDC architecture. This ensures reliable communication with system processors and eliminates compatibility issues common with generic peripherals. Durable Control Room Construction Built with industrial-grade ABS keycaps and reinforced internal components, the keyboard is intended for continuous use in mission-critical control environments where operator interfaces must remain dependable for years. Backlit Key Design Integrated illumination improves key visibility in dimly lit control rooms and supports safe operation during night shifts or emergency plant conditions. Typical Applications The 51403165-400 keyboard assembly is commonly installed in Honeywell operator consoles across several industrial sectors including: Petrochemical processing facilitiesOil and gas refineriesThermal and nuclear power generation plantsChemical manufacturing operationsLarge-scale industrial process control centers Within these environments, the keyboard provides direct operator access to alarm acknowledgement, process navigation, and system control functions. Compatibility Notes The 51403165-400 is designed exclusively for Honeywell TDC-series operator stations and is not compatible with standard computer interfaces such as USB or PS/2. Installation typically occurs within Z-station console assemblies used in TDC 2000 and TDC 3000 control rooms. When replacing existing hardware, users should confirm console revision and interface compatibility with the installed Honeywell workstation. Maintenance and Replacement Due to the modular design of Honeywell console hardware, the 51403165-400 keyboard assembly can typically be replaced during scheduled maintenance without major system downtime. Regular inspection of connectors and console mounting hardware is recommended to maintain reliable operation. FAQ Is the 51403165-400 compatible with standard computers?No. The keyboard uses a proprietary Honeywell interface designed specifically for TDC control system consoles. Where is this keyboard normally installed?It is integrated into Honeywell Z-station operator consoles used in TDC 2000 and TDC 3000 control systems. What is the expected service life of the keys?The keyboard is rated for approximately 5 million keystrokes per key, suitable for continuous industrial operation. Can this keyboard be hot-swapped?In many console configurations, the keyboard assembly can be replaced during maintenance without full system shutdown, though procedures depend on the installed workstation hardware.
$200.00 $100.00
-
Honeywell Honeywell 51402497-200 Operator Keyboard Module
Product Description The Honeywell 51402497-200 operator keyboard module is engineered for use with Honeywell’s TDC 3000 distributed control systems. Designed for industrial operator stations and control room consoles, this rugged keyboard provides reliable human–machine interface input in demanding process environments. Built with a sealed membrane layout and reinforced enclosure, the 51402497-200 offers resistance to dust, liquids, and mechanical wear while maintaining responsive tactile input. The keyboard integrates directly with operator workstations through multiple communication interfaces, enabling stable operation in refinery, petrochemical, power generation, and other process control applications. The module includes integrated alert functionality and adjustable illumination, allowing operators to work efficiently in low-light control rooms while maintaining clear alarm awareness. Technical Specifications Parameter Specification Model 51402497-200 Manufacturer Honeywell Product Type Operator Console Keyboard System Compatibility Honeywell TDC 3000 Operator Station Keyboard Layout 80-key QWERTY industrial membrane Key Lifetime >20 million actuations Interface Options USB, Ethernet, 9-pin serial connector, PS/2 keyboard interface Backlight Adjustable LED illumination Scan Rate Up to 50 Hz Environmental Protection IP65 front-panel protection Operating Temperature −20°C to +60°C Construction Industrial sealed membrane keyboard Dimensions 230 × 400 × 40 mm Weight 1.55 kg Key Functional Characteristics Robust industrial construction ensures stable performance in harsh plant environments where dust, vibration, and temperature fluctuations are common. Extended key life exceeding twenty million keystrokes supports continuous 24/7 operation typical of control room environments. Integrated audible alarm hardware assists operators by providing clear alerts during system events or abnormal process conditions. Multiple communication interfaces simplify integration with legacy and upgraded operator stations. Backlit keys improve visibility and operator efficiency in low-light or night-shift control rooms. Typical Application Scenarios The Honeywell 51402497-200 keyboard module is typically deployed in the following environments: • Control room operator stations in distributed control systems• Refinery and petrochemical process monitoring consoles• Power generation plant control panels• Chemical production and batch processing facilities• Industrial supervisory control workstations Its compatibility with Honeywell operator platforms allows seamless integration into legacy and upgraded TDC 3000 systems. FAQ What system is the 51402497-200 keyboard designed for?The keyboard is designed specifically for Honeywell TDC 3000 operator stations and control consoles. Is the keyboard suitable for harsh industrial environments?Yes. The sealed membrane design and IP65 front protection provide resistance against dust, moisture, and industrial contaminants. Does the keyboard include alarm functionality?Yes. The module integrates an audible alarm/beeper component used for operator notifications and system alerts. Can the keyboard connect using different interface types?The module supports multiple connection options including USB, Ethernet, PS/2, and a 9-pin serial interface, depending on system configuration.
$200.00 $100.00
-
Honeywell Honeywell 51402089-100 Enhanced Peripheral Display Generator
Product Description The 51402089-100 Enhanced Peripheral Display Generator (EPDG2) interface board is designed for operator workstation nodes used in the Honeywell TDC 3000 distributed control architecture. This board acts as the hardware interface responsible for generating video output and managing multiple operator peripherals including keyboards, pointing devices, and printers. Installed within Universal Station nodes, 51402089-100 integrates display signal generation with peripheral communication, enabling reliable interaction between the operator console and the control system. Compared with earlier EPDG hardware generations, EPDG2 improves peripheral compatibility and provides extended support for CE-compliant I/O paddle boards. The module is engineered for continuous operation in industrial control environments and supports various legacy operator interface devices used in TDC 3000 console furniture. Technical Specifications Parameter Specification Manufacturer Honeywell Model 51402089-100 Product Type Enhanced Peripheral Display Generator (EPDG2) System Platform Honeywell TDC 3000 Universal Station Primary Function Video signal generation and peripheral communication Input Voltage 24 VDC Maximum Output Current 5 A Communication Interfaces RS-485, Modbus RTU Peripheral Support Keyboard, mouse, trackball, touchscreen, printer Storage Device Support SCSI interface for Bernoulli and Zip drives Operating Temperature −20 °C to +70 °C Storage Temperature −40 °C to +85 °C Relative Humidity 0–95% non-condensing Weight 1.2 kg Compliance UL, CE, FCC Manufacturing Standards ISO 9001, ISO 14001 System Integration The 51402089-100 board operates in conjunction with dedicated I/O paddle boards mounted on the rear transition assembly. Selection depends on regulatory compliance requirements. Compatible paddle board options include: EPDGP (Non-CE) – 51404584-100 EPDGC-1 (CE compliant) – 51402447-100 EPDGC-2 (CE compliant) – 51402447-200 These transition boards provide the external connections for display signals, keyboard interface, pointing devices, and printer ports. Key Functional Capabilities Display Signal GenerationThe module produces video signals used by Universal Station operator displays, supporting stable graphical interface output within TDC 3000 consoles. Peripheral Device ManagementIntegrated controllers manage communication with keyboards, trackballs, mice, and touchscreen devices used by plant operators. Legacy Storage InterfaceSCSI support allows connection of removable storage devices such as Bernoulli and Zip drives historically used in Honeywell operator stations. Printer ConnectivityDedicated interface support enables report and alarm printing directly from operator stations. Improved Hardware CompatibilityAs a second-generation EPDG design, it offers broader compatibility with later-revision Universal Station hardware and CE-certified I/O boards. Typical Applications Process control operator consoles in Honeywell TDC 3000 systemsRefurbishment or maintenance of Universal Station workstationsReplacement of first-generation EPDG display interface boardsLegacy system upgrades requiring CE-compliant interface support FAQ Q: Which systems use the 51402089-100 interface board?It is designed specifically for Universal Station nodes in Honeywell TDC 3000 distributed control systems. Q: Can this board replace the earlier EPDG module?Yes. In most Universal Station configurations, EPDG2 serves as a functional upgrade for earlier EPDG hardware, provided the correct paddle board is installed. Q: Is this board compatible with Honeywell Experion systems?No. The module was designed for the TDC 3000 platform and is not intended for modern Experion PKS architectures.
$200.00 $100.00
-

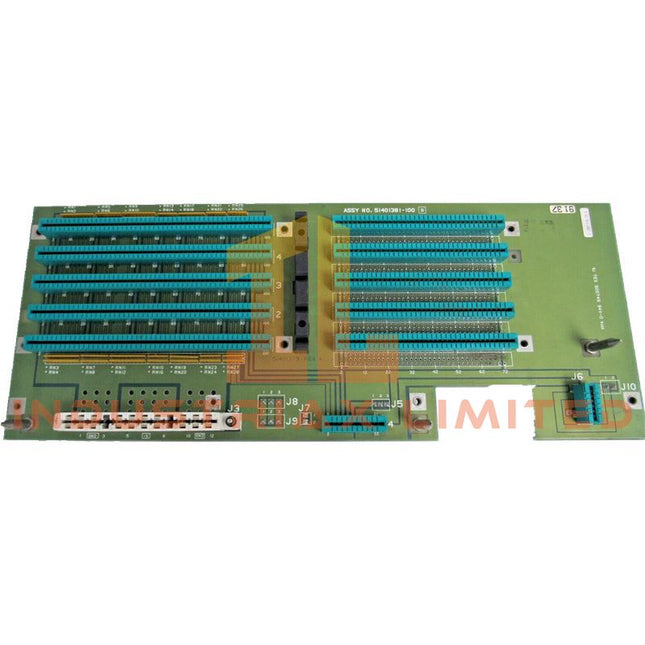

Honeywell Honeywell 51401381-100 5-Slot Backpanel Interface Card
Overview The Honeywell 51401381-100 is a high-reliability 5-slot backpanel designed for the TDC 3000X Distributed Control System (DCS). It functions as a central mounting and connectivity platform, supporting critical modules such as application processors, history modules, universal stations, and gateway interfaces. Built for industrial environments, this interface card ensures stable communication and robust performance across a wide range of process automation applications. Technical Specifications Feature Specification Module Slots 5 (compatible with processors, history modules, universal stations, gateways) Dimensions 12.7 × 10.2 × 2.5 cm Weight 0.72 kg Operating Temperature -40 °C to +85 °C Material Industrial-grade PCB with reinforced protective housing Certifications CE, RoHS Protection Vibration-resistant, EMI-shielded Key Features Central hub for connecting multiple Honeywell DCS modules Rugged construction with vibration and EMI resistance Compact footprint suitable for tight control cabinet layouts Wide operating temperature range for harsh industrial environments Ensures reliable inter-module communication and signal integrity Applications Oil & Gas: Integration of control and gateway modules for pipeline and refinery operations Chemical & Petrochemical: Supports complex control and monitoring modules Power Generation: Mounting and communication for turbine or grid control modules Pharmaceutical & Food Processing: Reliable operation in regulated production environments Manufacturing: Backbone interface for automation modules in Honeywell DCS systems Frequently Asked Questions Q: Is the 51401381-100 compatible with previous TDC 3000 versions?A: This backpanel is designed specifically for the TDC 3000X series. Compatibility with older TDC 3000 versions should be verified before installation. Q: What environments is it suitable for?A: Industrial-grade design supports -40 °C to +85 °C, with resistance to vibration and electromagnetic interference. Proper enclosure is recommended for dust or moisture protection。
$200.00 $100.00
-
Honeywell Honeywell 51400990-100 Operator Keyboard
Overview The Honeywell 51400990-100 Operator Keyboard is a precision input interface engineered for the TDC 3000 Distributed Control System (DCS). Designed for industrial control rooms, it provides operators with efficient, reliable access to process data, system navigation, and alarm management. Built for durability, this keyboard ensures long-term performance in demanding industrial environments. Technical Specifications Feature Specification Key Layout Standard QWERTY with extended function keys Dedicated Function Keys Alarm acknowledgment, process control shortcuts, navigation controls Interface RS-232 or RS-485 (configurable per system setup) Power Supply 5 VDC supplied via console backplane Operating Temperature 0 °C to 50 °C Storage Temperature -20 °C to 70 °C Humidity 10–90% non-condensing Dimensions 45 × 18 × 5 cm Weight 9 lbs Construction Industrial-grade chassis with ergonomic design for prolonged use Compatibility Honeywell TDC 3000 operator consoles and DCS systems Key Features Ergonomically contoured for operator comfort during extended shifts Quick-access control keys for critical process functions and alarm monitoring Robust design tolerates industrial environmental conditions Direct serial communication with Honeywell DCS controllers Simple integration with existing TDC 3000 operator workstations Applications Oil & Gas: Control room monitoring for pipelines and refining processes Chemical & Petrochemical: Plant operation, alarm acknowledgment, process control Power Generation: Turbine management, grid control stations Pharmaceutical & Food Processing: High-precision monitoring for regulated processes Manufacturing: Automation control and operator workstation input FAQ Q: Is the keyboard compatible with modern Honeywell DCS models?A: The 51400990-100 is designed specifically for TDC 3000 systems. Compatibility with newer DCS series requires interface validation. Q: Can the keyboard be powered externally?A: Power is supplied directly from the TDC 3000 console backplane; no external adapter is required. Q: Are replacement keys or function caps available?A: Yes, replacement components can be sourced through Honeywell parts distributors. Q: How durable is the keyboard for industrial use?A: Designed with industrial-grade materials, it tolerates prolonged operation, temperature variations, and high-use environments.
$200.00 $100.00
