Description
Product Overview

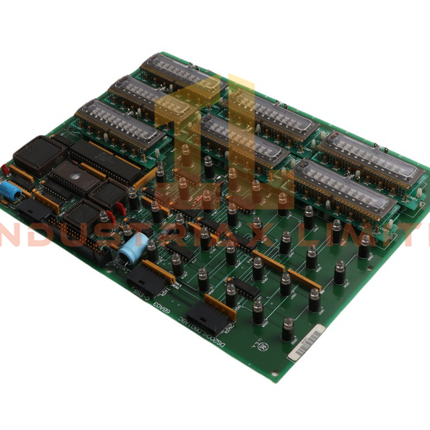

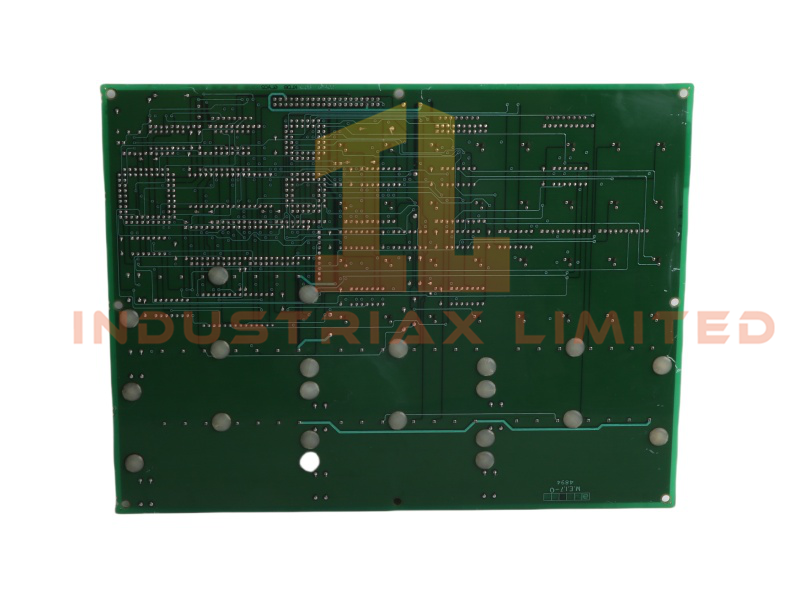

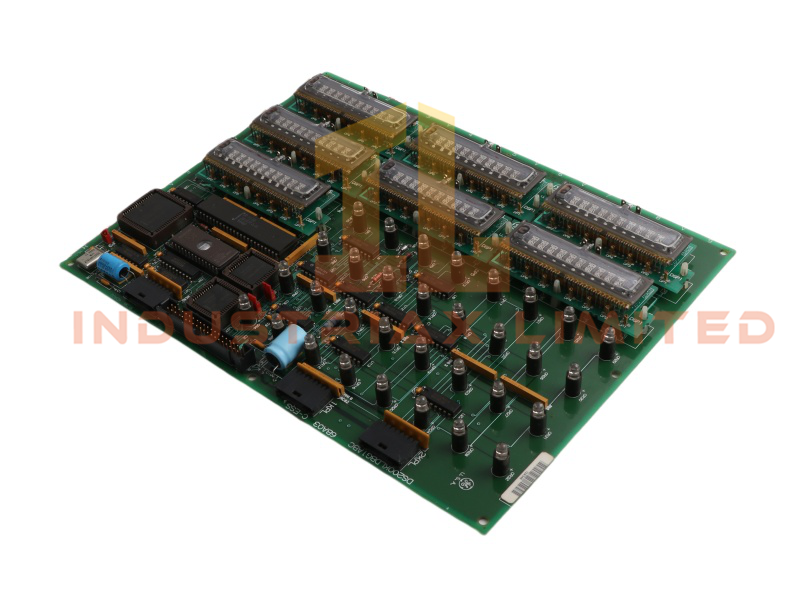

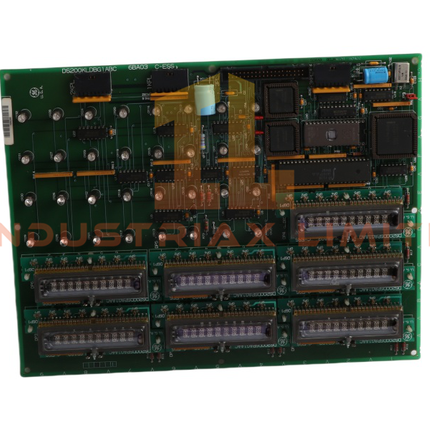

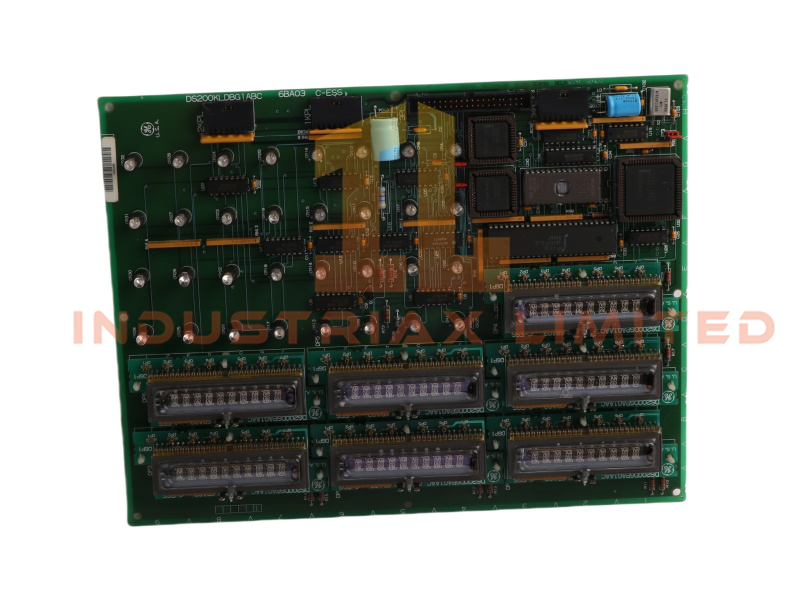

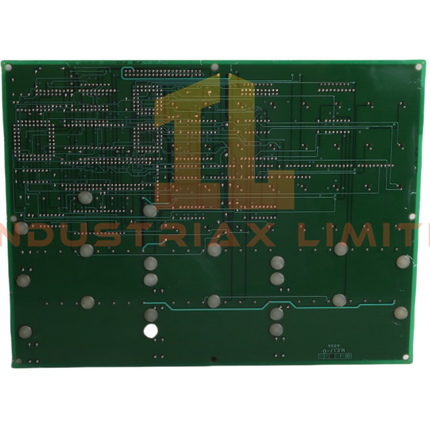

The DS200KLDBG1ABC Display Keypad Board from GE’s Mark V series enhances EX2000 excitation systems with intuitive control and real-time data feedback. It features a built-in LCD screen, seven LED sixteen-segment displays, and a responsive keypad interface. This module supports high-voltage trip solenoids and integrates seamlessly into turbine control cabinets.
Designed for flexibility, the DS200KLDBG1ABC includes 24 input channels and 12 relay outputs, allowing precise control of external devices. Its compact form factor and pre-drilled mounting holes simplify installation using screws or standoffs. The board’s robust construction ensures reliable performance in demanding industrial environments.
Technical Specifications
| Specification |
Details |
| Model Number |
DS200KLDBG1ABC |
| Module Type |
Display Keypad Board |
| Product Series |
Mark V |
| Manufacturer |
GE Fanuc |
| Dimensions |
25.5 × 10.2 × 3.1 cm |
| Weight |
0.38 kg |
| Input Channels |
24 |
| Relay Outputs |
12 |
| Display Type |
LCD + 7 LED segment displays |
| Segment Format |
Sixteen-segment LED |
| Trip Solenoid Rating |
125 VDC |
| Mounting Method |
Screws or standoffs |
| Software Configuration |
EEPROM jumpers |
| Communication Service |
Ethernet router |
| Compliance |
CE, UL/CUL 508 |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| System Compatibility |
DCS |
| Discontinued Status |
Active |
| Minimum Order Quantity |
1 |
| Lead Time |
In Stock |
Features & Benefits
-
The DS200KLDBG1ABC board supports 24 inputs and 12 relay outputs for external control.
-
Its LCD and LED displays show voltage, current, and system parameters in real time.
-
EEPROM jumpers allow software customization for control logic and excitation limits.
-
Pre-drilled holes simplify installation and ensure secure placement in turbine cabinets.
-
The board handles 125 VDC trip solenoids, suitable for high-voltage environments.
