The GE Mark VIe series provides advanced control for turbines and critical machinery. These systems offer precise regulation, high reliability, and easy integration with industrial automation solutions, helping to maintain stable operations and protect assets.
GE Mark VIe
-
General Electric GE IS200REBFH1ABA Mark VIe Controller PCB Module
GE IS200REBFH1ABA Mark VIe Controller PCB Module Configured for safety control execution in GE Mark VIe turbine control system networks, the GE IS200REBFH1ABA (IS200REBFH1ABA Controller PCB Module) provides direct physical/electrical execution for real-time signal processing, redundant controller operation, and analog/digital I/O handling. Suffix Breakdown & Model Matrix The IS200REBFH1ABA is identified as a Mark VIe controller PCB module. The available ordering designation is provided as a complete hardware catalog number. No separate user-selectable suffix matrix information is specified in the supplied data. Model Identifier Description IS200REBFH1ABA Mark VIe Controller PCB Module Hardware Specifications Parameter Specification Model IS200REBFH1ABA Brand GE Origin United States Weight 0.35 kg Dimensions 215 mm x 125 mm x 40 mm Operating Temp -40 deg C to +85 deg C Power Consumption Not specified Processor AMD G-Series dual-core processor, 1.6 GHz Memory 2 GB DDR3-1066 SDRAM Storage 128 GB Flash Operating System QNX Neutrino RTOS Input Voltage 24 VDC Signal Support Analog and digital input/output processing Safety Compliance SIL2 / SIL3, IEC 61508 Redundancy Modes Simplex, Duplex, Triple Modular Redundancy (TMR) Humidity Rating Up to 95% non-condensing Mounting Type Control cabinet PCB installation Firmware Flash Compatibility and Redundant Control Execution The IS200REBFH1ABA uses flash storage and QNX Neutrino RTOS for deterministic execution of control applications within the Mark VIe platform. The controller hardware supports firmware flash compatibility management for system configuration updates and application execution requirements. The module supports simplex, duplex, and triple modular redundancy configurations. Redundant operation uses controller coordination logic to maintain synchronized processing states and execute safety-related control functions. Analog and digital signal handling is integrated through the Mark VIe control architecture. Frequently Asked Questions (FAQ) Q: What redundancy configurations are supported by the IS200REBFH1ABA?A: The module supports simplex, duplex, and Triple Modular Redundancy (TMR) configurations according to Mark VIe system architecture requirements. Q: What operating system is installed on the IS200REBFH1ABA?A: The module operates with QNX Neutrino RTOS for real-time control application execution. Q: What supply voltage is required for the controller PCB module?A: The specified input voltage is 24 VDC for controller operation. Field Installation Guidelines Install the IS200REBFH1ABA in the designated GE Mark VIe control cabinet location and verify mechanical mounting alignment before connection to the system interface. Before energization, confirm the 24 VDC supply wiring polarity and inspect all connector interfaces for proper engagement. Use separated routing for low-level signal wiring and high-current power conductors to reduce electromagnetic interference. For redundant configurations, verify controller addressing, synchronization settings, and firmware compatibility between associated modules. Maintain proper cabinet grounding practices, including correct connection of cable shields according to GE installation procedures. Avoid installation locations exposed to conductive contamination, excessive vibration, or moisture outside the specified environmental limits.
$200.00 $100.00
-
General Electric IS210MACCH2AFG GE Speedtronic Controller Module
GE IS210MACCH2AFG Multi-Application Converter Controller Module The GE IS210MACCH2AFG, also cataloged as the IS210MACCH2AFG Multi-Application Converter Controller Module, operates as a dedicated hardware component for real-time turbine signal processing and closed-loop control within GE Speedtronic Mark VI/Mark VIe control platforms. Hardware Specifications Parameter Specification Model IS210MACCH2AFG Brand GE Origin United States Weight 0.59 kg Dimensions 283 mm x 182 mm x 52 mm Operating Temp -40 deg C to +70 deg C Power Consumption Max. 12 W Processor 32-bit High-Speed RISC CPU Memory 16 MB Flash / 8 MB SRAM Supply Voltage 24 VDC (18-30 VDC) Analog Input 16-channel isolated AI, 4-20 mA / 0-10 V Analog Output 8-channel AO Digital Input 32-channel isolated DI Digital Output 16-channel relay DO Communication Ports 2 x 10/100 Base-T Ethernet RJ45, 2 x RS-485 Supported Protocols Modbus TCP/RTU, Profibus DP, GE Ethernet Global Data (EGD) Isolation Voltage 1500 VAC channel-to-channel and channel-to-ground Mounting Type Standard 6U rack-mount Certifications CE, UL 508, ATEX Category 3 Profinet / EtherNet/IP Deterministic Network and I/O Processing The IS210MACCH2AFG integrates a 32-bit RISC processor for execution of turbine control algorithms, signal conversion, and communication handling. The module processes isolated analog and digital channels while maintaining electrical separation between field wiring and controller circuits. Dual Ethernet ports and RS-485 interfaces provide communication paths for Mark VI/Mark VIe system integration using Ethernet Global Data, Modbus, and Profibus protocols. The module architecture supports industrial control requirements through high I/O density scaling, allowing analog acquisition, relay output execution, and serial communication functions within a single rack-mounted controller assembly. Firmware flash memory supports application software storage and compatibility management for Speedtronic control configurations. Frequently Asked Questions (FAQ) Q: What type of field signals can the IS210MACCH2AFG process?A: The module supports isolated analog inputs including 4-20 mA and 0-10 V signals, isolated digital inputs, analog outputs, and relay digital outputs for turbine control interfaces. Q: What communication interfaces are available on the IS210MACCH2AFG?A: The module provides two 10/100 Base-T Ethernet RJ45 ports and two RS-485 ports supporting Modbus TCP/RTU, Profibus DP, and GE Ethernet Global Data communication. Q: What installation limitation applies to this module?A: The module must be installed in a compatible GE Speedtronic Mark VI/Mark VIe rack environment with correct backplane connection and firmware compatibility. Field Installation Guidelines Install the IS210MACCH2AFG in the designated GE Speedtronic Mark VI/Mark VIe rack position and verify mechanical alignment before inserting the module into the backplane interface. Use shielded signal cables for analog field connections and terminate cable shields according to the grounding practices defined for the control cabinet. Separate low-level analog signal wiring from high-current power cables and switching circuits to reduce electrical interference. Verify 24 VDC supply polarity before energizing the module. Confirm Ethernet and RS-485 wiring termination, communication addressing, and protocol configuration before placing the controller into operational service. Avoid exposing the module to contamination, excessive vibration, or moisture beyond the specified environmental limits. Firmware compatibility should be checked before replacement or system modification.
$200.00 $100.00
-
General Electric GE IS210MACCH1AEF Multiple Application Converter Control Module
GE IS210MACCH1AEF Multiple Application Converter Control Module The GE IS210MACCH1AEF, also cataloged as the IS210MACCH1AEF Multiple Application Converter Control Module, operates as a dedicated hardware component for converter control execution and communication processing within GE Mark VIe Speedtronic Control System platforms. Hardware Specifications Parameter Specification Model IS210MACCH1AEF Brand GE (General Electric) Origin United States Weight 0.24 kg Dimensions 100 x 100 x 25 mm Operating Temp -40 to +70 deg C Power Consumption Not specified; 24 VDC nominal input Series Mark VIe Speedtronic Control System Product Type Converter Control Modules Processor 32-bit microcontroller optimized for converter control Input Voltage 24 VDC nominal Communication Interfaces RS485, Ethernet IONet Storage Temperature -40 to +85 deg C Protection Conformal coating and surge suppression Compliance CE, UL, RoHS Application Wind turbine converter and pitch control systems Deterministic Networks and Firmware Flash Compatibility The IS210MACCH1AEF provides converter control processing functions within GE Mark VIe wind turbine control architectures. The module executes converter-related control tasks, manages communication with connected subsystems, and exchanges operational data through RS485 and Ethernet IONet interfaces. Firmware flash compatibility with the installed ControlST software environment is required for correct module operation. The 32-bit microcontroller architecture supports converter control algorithms, runtime data processing, and communication management within the distributed control system. The Ethernet IONet interface provides deterministic communication between the MACC module and Mark VIe system components. The compact hardware design supports integration into turbine control assemblies where converter and pitch control functions require localized processing. Frequently Asked Questions Q: What communication interfaces are available on the IS210MACCH1AEF?A: The module provides RS485 and Ethernet IONet communication interfaces for integration with Mark VIe control system components. Q: What input power supply does the module require?A: The IS210MACCH1AEF operates with a 24 VDC nominal input supply. Q: What type of processing hardware is used for converter control functions?A: The module uses a 32-bit microcontroller optimized for converter control operations. Field Installation Guidelines Install the IS210MACCH1AEF according to GE Mark VIe cabinet and turbine control hardware procedures. Verify mounting alignment, connector engagement, and power polarity before system energization. Use ESD protection when handling the circuit board. Maintain clean connector contacts and inspect communication interfaces for mechanical damage or contamination. Route RS485 and Ethernet communication cables separately from high-current converter wiring to reduce electromagnetic interference. Apply shielding and grounding practices according to the turbine control cabinet design. Before commissioning, confirm firmware compatibility with the ControlST environment and verify converter communication paths through the Mark VIe diagnostic tools.
$200.00 $100.00
-
General Electric GE IS210BPPH2BLD Backplane Power Supply Board
GE IS210BPPH2BLD Backplane Power Supply Board The GE IS210BPPH2BLD, also cataloged as the IS210BPPH2BLD Backplane Power Supply Board, operates as a dedicated hardware component for regulated DC power distribution and voltage rail management within GE Mark VIe Speedtronic Control System platforms. Hardware Specifications Parameter Specification Model IS210BPPH2BLD Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -40 to +70 deg C Power Consumption Approx. 25 W Series Mark VIe Speedtronic Control System Product Type Backplane Power Supply Boards Input Voltage 24 VDC nominal, 18-32 VDC range Output Voltages +5 VDC, +15 VDC, -15 VDC Current Capacity Up to 20 A depending on voltage rail Form Factor VME-style backplane PCB Connectors Edge connectors for backplane distribution Protection Functions Overvoltage, overcurrent, thermal shutdown Storage Temperature -40 to +85 deg C Humidity 5% to 95% RH, non-condensing Compliance CE, UL, RoHS Backplane Power Distribution and Firmware Flash Compatibility The IS210BPPH2BLD provides regulated DC power conversion and distribution within GE Mark VIe control cabinets. The board converts incoming 24 VDC supply power into multiple regulated voltage rails including +5 VDC, +15 VDC, and -15 VDC for controller modules, I/O packs, and communication hardware installed on the backplane. The board supports industrial control architectures requiring stable backplane bus communication operation by maintaining power availability for connected modules. Voltage monitoring feedback functions provide status information to the controller for power condition evaluation. The VME-style PCB form factor enables direct integration into Mark VIe hardware assemblies. Protection circuits including overvoltage, overcurrent, and thermal shutdown functions monitor abnormal electrical conditions during system operation. Frequently Asked Questions Q: What voltage rails are generated by the IS210BPPH2BLD?A: The board provides regulated +5 VDC, +15 VDC, and -15 VDC output rails for Mark VIe control system modules. Q: What input power source does the backplane power supply board require?A: The IS210BPPH2BLD accepts a 24 VDC nominal input supply with an operating range of 18-32 VDC. Q: How is the board connected to the Mark VIe system?A: The module uses VME-style edge connectors for backplane power distribution and module integration. Field Installation Guidelines Install the IS210BPPH2BLD according to GE Mark VIe cabinet hardware procedures. Verify that the incoming DC supply is isolated before inserting or removing the board from the backplane assembly. Use ESD protection during handling and inspect edge connectors for contamination, oxidation, or mechanical damage. Confirm correct board orientation and connector engagement before applying system power. Route DC power wiring separately from high-noise switching circuits where applicable. Apply cabinet grounding and shielding practices according to the Mark VIe installation design to reduce electrical interference. After installation, verify output voltage rails, fault monitoring signals, and backplane-connected module operation before returning the control system to service.
$200.00 $100.00
-
General Electric GE IS210AEAAH1BJE Application Control Layer Module
GE IS210AEAAH1BJE Application Control Layer Module The GE IS210AEAAH1BJE, also cataloged as the IS210AEAAH1BJE Application Control Layer Module, operates as a dedicated hardware component for turbine control logic execution and actuator signal processing within GE Mark VIe Speedtronic Control System platforms. Hardware Specifications Parameter Specification Model IS210AEAAH1BJE Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -40 to +70 deg C Power Consumption Not specified; 28 VDC nominal supply Series Mark VIe Speedtronic Control System Product Type Application Control Modules Processor 32-bit microprocessor Memory Flash memory for firmware and RAM for runtime data I/O Support Analog and discrete input/output processing Communication Interfaces Ethernet IONet, CAN bus Form Factor VME-style plug-in PCB Storage Temperature -40 to +85 deg C Humidity 5% to 95% RH, non-condensing Protection Conformal coating and surge suppression Compliance CE, UL, RoHS Industrial Control Network and Firmware Flash Compatibility The IS210AEAAH1BJE provides application-level processing functions within the GE Mark VIe distributed turbine control architecture. The module executes control algorithms, processes actuator commands, and exchanges operational data with connected I/O packs through Ethernet IONet and CAN bus communication interfaces. Firmware flash compatibility is required between the module and the installed GE ControlST software environment to maintain correct application execution. The 32-bit processor architecture and onboard memory resources support runtime data handling and control logic processing for Mark VIe applications. The module supports deterministic network communication structures used by GE turbine control systems, allowing coordinated signal exchange between application control layers, I/O interfaces, and system controllers. Frequently Asked Questions Q: What communication interfaces are available on the IS210AEAAH1BJE?A: The module provides Ethernet IONet and CAN bus communication interfaces for integration within GE Mark VIe control architectures. Q: What type of processing hardware is used in this application control module?A: The IS210AEAAH1BJE uses a 32-bit microprocessor with flash memory for firmware storage and RAM for runtime data processing. Q: What installation factors affect module operation?A: Correct grounding, firmware compatibility, connector seating, and protection from electromagnetic interference are required for proper operation. Field Installation Guidelines Install the IS210AEAAH1BJE using GE Mark VIe cabinet installation procedures. Verify the VME-style connector alignment and ensure the PCB is fully seated before applying system power. Use ESD protection when handling the module. Maintain clean connector surfaces and inspect the backplane interface for contamination or mechanical damage. Route communication and control wiring separately from high-current conductors to minimize electromagnetic interference. Apply cabinet grounding and shielding practices according to the Mark VIe system design requirements. Before commissioning, verify firmware compatibility with the installed ControlST software version and confirm Ethernet IONet and CAN bus communication paths.
$200.00 $100.00
-
General Electric GE IS220PAICH1BG Analog Input I/O Pack
GE IS220PAICH1BG Analog Input I/O Pack Configured for analog signal acquisition and Ethernet data transmission in GE Mark VIe Speedtronic Control System networks, the GE IS220PAICH1BG (IS220PAICH1BG Analog Input I/O Pack) provides direct physical/electrical execution for field signal conversion and controller communication. Hardware Specifications Parameter Specification Model IS220PAICH1BG Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -40 to +70 deg C Power Consumption Not specified; 28 VDC nominal supply Series Mark VIe Speedtronic Control System Product Type Analog Input I/O Packs Analog Input Channels 32 channels, differential or single-ended Signal Types +/-5 VDC, +/-10 VDC, 4-20 mA ADC Resolution 16-bit Sampling Rate 250 Hz per channel Isolation Channel-to-channel and channel-to-ground isolation Communication Interface Ethernet IONet protocol Storage Temperature -40 to +85 deg C Humidity 5% to 95% RH, non-condensing Protection Conformal coating and surge suppression Compliance CE, UL, RoHS Industrial Ethernet and I/O Density Scaling The IS220PAICH1BG provides high-density analog acquisition within GE Mark VIe control architectures. The module converts field voltage and current signals into digital values using a 16-bit ADC and transfers processed data through the Ethernet IONet communication interface. The module supports I/O density scaling through 32 configurable analog input channels, allowing multiple process variables to be collected within a single I/O pack. Channel-to-channel and channel-to-ground isolation separate measurement circuits and reduce signal interaction between connected field devices. The Ethernet IONet interface provides deterministic communication between the analog input pack and Mark VIe controllers. The module operates with GE control system firmware structures designed for Mark VIe I/O processing and diagnostic functions. Frequently Asked Questions Q: What analog signals can the IS220PAICH1BG accept?A: The module supports voltage inputs of +/-5 VDC and +/-10 VDC, as well as 4-20 mA current signals. Q: How many analog input channels are available on this I/O pack?A: The IS220PAICH1BG provides 32 analog input channels configured for differential or single-ended signal measurement. Q: What communication interface connects the I/O pack to the controller?A: The module communicates with the Mark VIe controller through the Ethernet IONet protocol. Field Installation Guidelines Install the IS220PAICH1BG according to GE Mark VIe cabinet installation procedures. Verify connector engagement and mounting alignment before applying field power. Route analog signal cables separately from high-current switching conductors to reduce electromagnetic interference. Use shielded instrumentation cables where required by the control system design and connect cable shields according to cabinet grounding practices. Confirm field transmitter polarity, input signal type configuration, and IONet communication connections during commissioning. Inspect terminal connections and grounding paths before placing the analog input channels into service.
$200.00 $100.00
-
General Electric GE IS200EBRGH2AEB Exciter Bridge Board
GE IS200EBRGH2AEB Exciter Bridge Board The GE IS200EBRGH2AEB, also cataloged as the IS200EBRGH2AEB Exciter Bridge Board, operates as a dedicated hardware component for gate drive signal distribution and bridge feedback execution within GE EX2100e excitation control system platforms. Hardware Specifications Parameter Specification Model IS200EBRGH2AEB Brand GE (General Electric) Origin United States Weight 0.5 kg Dimensions 33 x 17 cm PCB size Operating Temp -40 to +70 deg C Power Consumption Not specified; input voltage 24 VDC nominal Series EX2100e Excitation Control System Product Type Exciter Bridge Boards Gate Drive Channels 6 channels for 6-pulse bridge configuration Supported Devices IGBTs / SCRs in exciter bridge Isolation Optical isolation per gate drive channel Feedback Signals Bridge health monitoring and fault detection Communication Interface EX2100e controller backplane interface Humidity Range 5% to 95% RH, non-condensing Storage Temperature -40 to +85 deg C Protection Features Conformal coating and surge suppression Compliance CE, UL, RoHS Industrial Control and Gate Drive Signal Management The IS200EBRGH2AEB integrates with GE EX2100e excitation control systems to provide six-channel gate drive outputs for exciter bridge semiconductor devices. The board processes controller commands through the backplane interface and transfers isolated drive signals to IGBT or SCR switching elements. The module applies optical isolation between control circuits and bridge power sections to reduce electrical interference during switching operation. Firmware flash compatibility within GE EX2100e system architectures supports controlled communication between excitation controller hardware and bridge monitoring functions. The board provides bridge health feedback signals, allowing the excitation controller to monitor semiconductor switching conditions and fault states within the exciter bridge circuit. Frequently Asked Questions Q: What semiconductor devices can the IS200EBRGH2AEB control?A: The board provides gate drive signals for IGBT and SCR devices used in EX2100e exciter bridge configurations. Q: How are the gate drive channels electrically isolated?A: Each gate drive channel uses optical isolation to separate the controller-side circuitry from bridge power switching circuits. Q: What communication method connects the board to the excitation controller?A: The IS200EBRGH2AEB communicates with the EX2100e controller through the system backplane interface. Field Installation Guidelines Install the IS200EBRGH2AEB according to GE EX2100e excitation system hardware procedures. Verify connector alignment and board seating before applying power to prevent contact damage. Use appropriate ESD protection when handling the circuit board. Maintain clean connection surfaces and inspect mating connectors for contamination or mechanical wear. Route signal wiring separately from high-current excitation conductors where applicable. Ensure grounding and shielding practices follow the excitation cabinet design requirements to reduce switching noise coupling into control circuits. Confirm gate drive connections, bridge feedback wiring, and controller communication paths during commissioning before enabling generator excitation operation.
$200.00 $100.00
-
General Electric IS420ESWBH3AE GE Mark VIe Ethernet Switch
GE IS420ESWBH3AE Ethernet IONet Switch Module The GE IS420ESWBH3AE, also cataloged as the IS420ESWBH3AE 16-Port Ethernet IONet Switch Module, operates as a dedicated communication hardware component for deterministic Ethernet data exchange within GE Mark VIe and Mark VIeS turbine control system networks. Hardware Specifications Parameter Specification Model IS420ESWBH3AE Brand GE (General Electric) Origin United States Weight 2 lbs Dimensions 138 x 86 x 56 mm Operating Temp -30 to +65 deg C Power Consumption Not specified; power requirement 18-32 VDC Series Mark VIe / Mark VIeS Product Type 16-Port 10/100Base-TX Ethernet IONet Switch Ethernet Ports 16 x 10/100Base-TX RJ45 copper ports Uplink Interface 100 Mbps FX fiber uplink Supported Protocols IEEE 802.3, 802.3u, 802.3x; TCP/IP, UDP, ARP, ICMP Memory 256 MB DDR SDRAM Operating System QNX Neutrino Mounting DIN rail or panel mount Relative Humidity 5% to 95%, non-condensing Power Supply 18-32 VDC redundant inputs supported Software Compatibility ControlST V04.03.18C Industrial Ethernet Communication and IONet Integration The IS420ESWBH3AE provides Ethernet switching functions for Mark VIe control architectures, supporting communication paths between GE controllers, I/O packs, and supervisory interfaces. The module uses Ethernet auto-negotiation for full and half duplex operation and provides LED status indication for link, activity, duplex, and speed monitoring. The switch supports GE IONet communication structures with 10/100Base-TX copper interfaces and a 100 Mbps fiber uplink connection. The QNX Neutrino operating environment and 256 MB DDR SDRAM support internal communication management and diagnostic functions. Frequently Asked Questions Q: Does the IS420ESWBH3AE support redundant power inputs?A: Yes. The module accepts 18-32 VDC power input and supports redundant power connections for Mark VIe system network installations. Q: What mounting methods are supported for this Ethernet switch module?A: The IS420ESWBH3AE supports DIN rail mounting and panel mounting configurations. Q: Which communication interfaces are available on the module?A: The module provides 16 x 10/100Base-TX RJ45 copper Ethernet ports and one 100 Mbps FX fiber uplink interface. Field Installation Guidelines Install the IS420ESWBH3AE on a suitable DIN rail or panel surface with sufficient clearance for cable routing and airflow. Connect Ethernet cables using industrial wiring practices, maintaining separation between communication cables and high-voltage power conductors. For copper Ethernet connections, use shielded industrial Ethernet cabling where required by the control system design. Bond cable shields according to site grounding standards to reduce electromagnetic interference. Verify redundant DC power wiring polarity before energizing the module. Confirm IONet addressing, network topology, and controller communication parameters during commissioning using the applicable GE Mark VIe engineering tools.
$200.00 $100.00
-

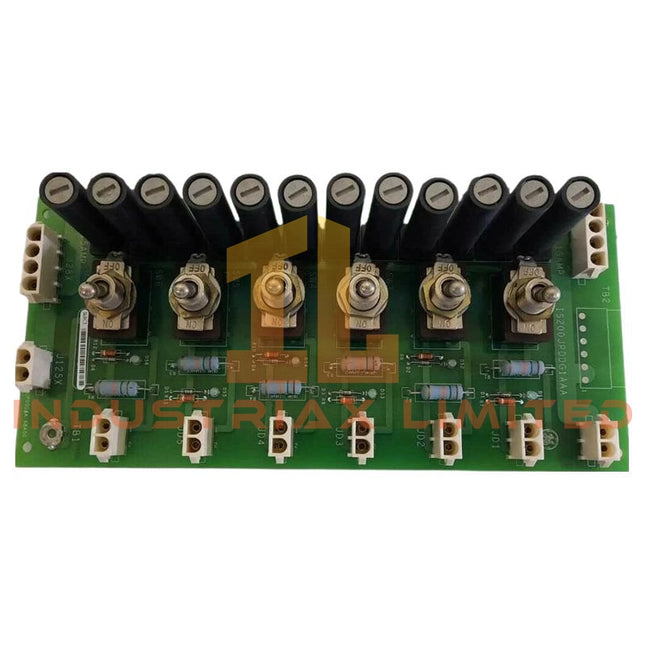

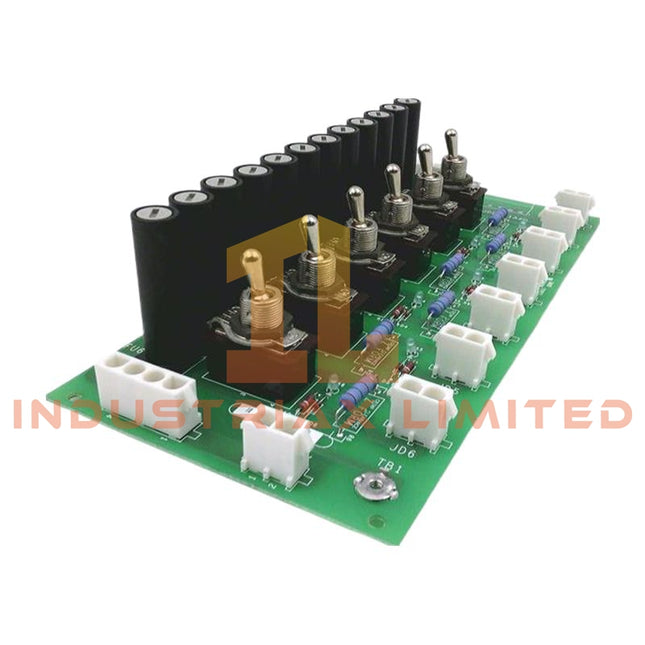

General Electric GE IS200JPDEG1AAA Mark VIe DC Battery Power Distribution Board
GE IS200JPDEG1AAA Mark VIe DC Battery Power Distribution Board The GE IS200JPDEG1AAA, also cataloged as the IS200JPDEG1AAA DC Battery Power Distribution Board, operates as a dedicated hardware component for DC power distribution, voltage feedback, and fault monitoring within the GE Mark VIe Speedtronic Turbine Control System. Hardware Specifications Parameter Specification Model IS200JPDEG1AAA Brand GE (General Electric) Origin United States Weight 1.0 kg Operating Temp 0 deg C to +60 deg C Product Type DC Battery Power Distribution Boards Series Mark VIe Speedtronic Turbine Control System Voltage Range 18-32 VDC nominal 24 VDC or 48 VDC Distribution Channels 24 channels Input Isolation 1500 VAC Voltage Rejection 60 V RMS Power Sources Dual power supply input support Feedback Interface PPDA I/O pack voltage feedback Bus Type Floating DC bus centered on earth through resistors Mounting DIN-rail mounting, vertical installation Technology Surface-mount PCB Firmware Flash Compatibility and DC Power Distribution Control The IS200JPDEG1AAA distributes DC power from battery supplies or rectifier sources to Mark VIe terminal boards and system loads. The board provides multiple distribution channels with input isolation and voltage feedback functions through the PPDA I/O pack interface. The module integrates with Mark VIe deterministic control architectures through configured power monitoring functions. Firmware flash compatibility within the system platform allows the controller to identify power distribution status and maintain configured diagnostic parameters. Frequently Asked Questions Q: How many DC distribution channels are available on the IS200JPDEG1AAA?A: The board provides 24 DC power distribution channels for connected Mark VIe system loads. Q: What isolation level is provided by the IS200JPDEG1AAA input circuits?A: The board provides 1500 VAC input isolation between power circuits and connected system interfaces. Q: How does the board provide voltage feedback information?A: Voltage feedback is provided through the PPDA I/O pack interface for Mark VIe system monitoring functions. Field Installation Guidelines Install the IS200JPDEG1AAA on the designated DIN rail mounting location with the board installed in the specified vertical orientation. Verify DC power input polarity and terminal connections before energizing the distribution circuit. Maintain separation between DC power wiring and sensitive communication or signal cables. Ensure protective grounding and cabinet bonding connections follow the Mark VIe installation design. Before commissioning, verify all connected power distribution channels, supply source configuration, and PPDA feedback wiring. Confirm voltage status and fault monitoring indications before enabling connected control hardware.
$200.00 $100.00
-
General Electric GE IS200TSVOH1BBB Mark VI Servo Terminal Board
GE IS200TSVOH1BBB Mark VI Servo Terminal Board Configured for servo valve actuator signal processing in the GE Mark VI Speedtronic Control System, the GE IS200TSVOH1BBB (IS200TSVOH1BBB Servo Terminal Board) provides direct physical and electrical execution for hydraulic position control interfaces and feedback signal conditioning. Hardware Specifications Parameter Specification Model IS200TSVOH1BBB Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -30 deg C to +65 deg C Power Consumption Not specified Product Type Servo Terminal Boards Series Mark VI Speedtronic Control System Servo Channels 2 independent servo valve channels Input Signals +/-10 VDC command signals Feedback Signals LVDT (Linear Variable Differential Transformer) inputs Power Supply 24 VDC nominal Isolation Optical/electrical isolation per channel Connectors Screw-type terminal blocks Communication Interface Mark VI backplane interface Technology Surface mount Feedback Signal Span 0.3532 to 4.054 V Protection Conformal coating, surge suppression Humidity Range 5-95% RH, non-condensing Firmware Flash Compatibility and Servo Signal Processing The IS200TSVOH1BBB provides the interface between Mark VI controller hardware and hydraulic servo valve actuator circuits. The board processes +/-10 VDC command signals and receives LVDT position feedback signals for closed-loop actuator positioning. The surface mount design integrates signal conditioning and isolation circuits for servo channels. Firmware flash compatibility with the Mark VI control platform supports configured servo control functions and communication parameters through the controller architecture. Frequently Asked Questions Q: How many servo valve channels are available on the IS200TSVOH1BBB?A: The board provides two independent servo valve channels for actuator command and feedback processing. Q: What type of position feedback is supported by this servo terminal board?A: The IS200TSVOH1BBB supports LVDT feedback inputs for hydraulic actuator position measurement. Q: How does the board connect to the Mark VI controller?A: The board communicates through the Mark VI backplane interface for control data exchange and signal processing. Field Installation Guidelines Install the IS200TSVOH1BBB in the designated Mark VI cabinet terminal board location and verify correct mechanical mounting before connecting field wiring. Confirm cabinet grounding continuity and connector engagement before system startup. Route servo command, LVDT feedback, and power wiring separately from high-current switching conductors. Use appropriate shielded cable practices for feedback circuits and terminate shields according to the turbine control cabinet grounding scheme. Before commissioning, verify servo channel assignments, actuator wiring polarity, and feedback signal scaling. Confirm controller configuration compatibility before enabling hydraulic servo control functions.
$200.00 $100.00
-
General Electric GE IS200TBCIH1BBC Mark VI Contact Input Terminal Board
GE IS200TBCIH1BBC Mark VI Contact Input Terminal Board The GE IS200TBCIH1BBC, also cataloged as the IS200TBCIH1BBC Contact Input Terminal Board, operates as a dedicated hardware component for field contact signal acquisition and electrical isolation within the GE Mark VI Speedtronic Turbine Control System. Hardware Specifications Parameter Specification Model IS200TBCIH1BBC Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -30 deg C to +65 deg C Power Consumption Not specified Product Type Contact Input Terminal Boards Series Mark VI Speedtronic Turbine Control System Input Channels 24 contact inputs Input Voltage Range 24 VDC nominal, 18-32 VDC range Isolation Optical isolation per channel Filtering Debounce filtering for mechanical contacts Connector Type Screw-type terminal block Communication Interface Mark VI backplane interface Protection Conformal coating, surge suppression Humidity Range 5-95% RH, non-condensing Compliance CE, UL, RoHS Profinet / Ethernet Deterministic Network Integration The IS200TBCIH1BBC provides field-level contact signal termination and conditioning for the Mark VI control architecture. The terminal board receives discrete signals from external devices such as switches, relays, and status contacts, then transfers conditioned input states through the Mark VI backplane interface. The board uses optical isolation between field contact circuits and controller-side electronics to reduce electrical interference. The input processing design includes debounce filtering for mechanical contact signals, supporting stable digital state detection within configured industrial control sequences. Frequently Asked Questions Q: How many contact inputs are available on the IS200TBCIH1BBC?A: The terminal board provides 24 contact input channels for connection of field switches, relays, and discrete status signals. Q: What type of electrical isolation is used on this terminal board?A: The IS200TBCIH1BBC uses optical isolation on individual input channels to separate field circuits from controller electronics. Q: What field wiring connection method is used?A: The board uses screw-type terminal blocks for field contact signal termination. Field Installation Guidelines Install the IS200TBCIH1BBC according to the Mark VI cabinet terminal board layout and verify correct terminal block seating before connecting field wiring. Confirm that the board grounding and cabinet bonding paths are properly maintained. Route contact input wiring separately from high-voltage power cables and high-current switching circuits. Use shielded wiring practices where required by the installation environment and connect shields according to the control cabinet grounding design. Before commissioning, verify each contact input channel assignment, field device polarity, and signal state indication. Confirm backplane connection integrity before enabling controller monitoring functions.
$200.00 $100.00
-

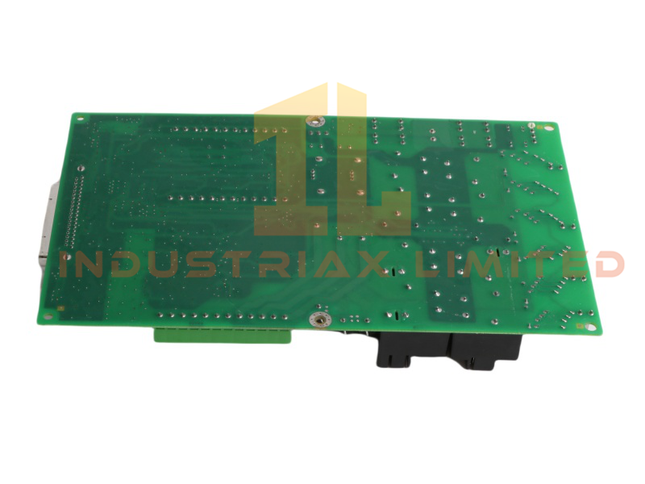

General Electric GE IS200AEBEG1A Mark VI Analog & Ethernet Board
GE IS200AEBEG1A Mark VI Analog & Ethernet Board The GE IS200AEBEG1A, also cataloged as the IS200AEBEG1A Analog & Ethernet Board, operates as a dedicated hardware component for analog signal acquisition and Ethernet communication execution within the GE Mark VI Speedtronic Turbine Control System. Hardware Specifications Parameter Specification Model IS200AEBEG1A Brand GE (General Electric) Origin United States Weight 0.90 kg Dimensions 100 x 60 x 20 mm Operating Temp -40 deg C to +85 deg C Power Consumption Approximately 50 mA at 24 VDC Product Type Analog & Ethernet Boards Series Mark VI Speedtronic Turbine Control System Form Factor VME-style plug-in PCB Analog Inputs 8 differential channels, 4-20 mA input support Analog Outputs Configurable output channels Resolution 16-bit ADC Update Time Approximately 1 ms Operating Voltage 24 VDC via Mark VI backplane Communication Interface Ethernet IONet protocol, Mark VI backplane Diagnostics Module diagnostics and LED fault indicators Humidity Range 5-95% RH, non-condensing Profinet / Ethernet Deterministic Network Integration The IS200AEBEG1A provides analog signal conditioning and Ethernet-based communication within the Mark VI control architecture. The board converts field instrumentation signals, including 4-20 mA transmitter inputs, into processed data for controller applications through the Mark VI backplane. The module supports GE IONet communication paths for deterministic data exchange between field interface hardware and control processors. Firmware flash compatibility and configured hardware addressing allow integration with approved Mark VI application software environments. Frequently Asked Questions Q: What analog signals can the IS200AEBEG1A process?A: The board supports analog acquisition functions including 4-20 mA differential input channels and signal conditioning for compatible field instrumentation. Q: How does the IS200AEBEG1A communicate with the Mark VI controller?A: The board communicates through Ethernet IONet protocol and the Mark VI backplane interface for controller data exchange. Q: What power source is required for the IS200AEBEG1A?A: The module receives operating power through the Mark VI backplane with a nominal 24 VDC supply arrangement. Field Installation Guidelines Install the IS200AEBEG1A into the assigned Mark VI VME-style rack position and confirm correct mechanical alignment with the backplane connector. Verify cabinet grounding continuity before applying system power. Route analog field wiring separately from high-voltage and high-current conductors. Use shielded cable practices for sensitive analog channels and terminate shields according to the turbine control cabinet grounding scheme. Before board replacement or firmware loading, verify the installed hardware revision, I/O configuration, and compatible Mark VI application parameters. Confirm analog channel assignments and Ethernet network addressing before returning the control system to service.
$200.00 $100.00
-
General Electric IS200AEPAH1BHC GE Mark VI Pitch Axis PCB
GE IS200AEPAH1BHC Mark VI AEPA Pitch Axis PCB The GE IS200AEPAH1BHC, also cataloged as the IS200AEPAH1BHC Pitch Axis PCB, operates as a dedicated hardware component for blade pitch actuator signal processing and encoder feedback execution within the GE Mark VI wind turbine control system. Hardware Specifications Parameter Specification Model IS200AEPAH1BHC Brand GE (General Electric) Origin United States Weight 1 lbs Dimensions 110 x 66.8 x 50 mm Operating Temp -40 deg C to +70 deg C Power Consumption Max 4 W Product Type Pitch Axis Control Boards Series Mark VI / Mark VIe Speedtronic Control Systems Input Channels 16 differential or single-ended inputs Output Channels 8 single-ended outputs Analog I/O 8 analog inputs, 1 analog output Encoder Inputs 1 incremental encoder input, 1 absolute encoder input Discrete I/O 20 inputs, 1 output Relay Outputs 8 onboard relays, 12 general relays Brake Control 1 dedicated brake control output Sampling Rate 200 kHz Resolution 12-bit Communication Interfaces CAN Bus, 2 x RS-485 Operating Voltage 5 VDC Protection Conformal coating, 6 MOV surge protection components Deterministic I/O Processing and Firmware Compatibility The IS200AEPAH1BHC integrates pitch axis signal acquisition and actuator control functions within the Mark VI wind turbine control architecture. The board processes encoder feedback, analog measurement channels, discrete signals, and relay outputs through configured I/O paths. The PCB supports industrial control network communication through CAN Bus and RS-485 interfaces. Firmware flash compatibility with the Mark VI control platform allows approved control logic and configuration files to be maintained within the controller architecture. Frequently Asked Questions Q: What feedback signals can the IS200AEPAH1BHC process?A: The board supports incremental and absolute encoder inputs together with analog, discrete, and relay signal interfaces for pitch axis control. Q: What communication interfaces are available on the AEPA board?A: The IS200AEPAH1BHC provides CAN Bus and two RS-485 communication interfaces for control system data exchange. Q: How does the board handle transient voltage protection?A: The board includes six MOV components for surge protection against electrical transient events within the specified operating environment. Field Installation Guidelines Install the IS200AEPAH1BHC in the designated Mark VI control cabinet position and verify correct seating of all board connectors before applying power. Confirm that the PCB grounding path is continuous with the cabinet chassis grounding system. Route encoder, analog, and communication cables separately from high-current actuator wiring to reduce electrical interference. Use shielded cable practices for CAN Bus, RS-485, and encoder signal connections according to the turbine control cabinet design. Before replacing the board, verify the installed hardware configuration, connected I/O assignments, and compatible firmware revision. Confirm relay outputs, brake control wiring, and feedback channels before returning the pitch control system to operation.
$200.00 $100.00
-
General Electric GE IS420UCECH1B-A Mark VIe Port Expansion Controller Module
GE IS420UCECH1B-A Mark VIe Port Expansion Controller Module Configured for distributed control communication in the GE Mark VIe control system, the GE IS420UCECH1B-A (IS420UCECH1B-A Port Expansion Controller Module) provides direct physical and data communication execution through expanded Ethernet-based I/O connectivity and controller processing functions. Hardware Specifications Parameter Specification Model IS420UCECH1B-A Brand GE (General Electric) Origin United States Weight 0.36 kg Dimensions 8.2 cm x 12.2 cm x 6 cm Operating Temp -40 deg C to +70 deg C Power Consumption Max 42 W Product Type Port Expansion Controller Modules Series Mark VIe / Mark VIeS Control Systems Processor AMD G-Series dual-core 1.6 GHz Memory 2 GB DDR3 SDRAM, 128 GB flash storage Operating System QNX Neutrino RTOS Expansion Ports 7 RJ-45 expansion I/O ports Communication Interfaces PROFINET, High-Speed Serial Link, Ethernet Redundancy Support Simplex, duplex, and Triple Modular Redundancy (TMR) configurations Safety Certification IEC 61508 SIL 2/3, CE, UL, CSA, RoHS Deterministic Network Communication and I/O Expansion The IS420UCECH1B-A integrates a UCSC controller with a seven-port expansion interface for Mark VIe distributed control architectures. The module manages high-speed data exchange between controller resources and connected I/O devices through Ethernet-based communication paths. PROFINET and High-Speed Serial Link interfaces support deterministic industrial networks with configured redundancy structures. Firmware flash compatibility is maintained through the controller storage architecture, allowing approved QNX-based control applications and system configuration files to be loaded according to Mark VIe engineering procedures. Frequently Asked Questions Q: What communication functions are provided by the IS420UCECH1B-A?A: The module provides Ethernet, PROFINET, and High-Speed Serial Link communication interfaces with seven RJ-45 expansion I/O ports for controller network expansion. Q: Does the IS420UCECH1B-A support redundant control configurations?A: Yes. The module supports simplex, duplex, and Triple Modular Redundancy (TMR) configurations within compatible Mark VIe control architectures. Q: What operating environment is supported by this controller module?A: The module operates with QNX Neutrino RTOS and supports an operating temperature range from -40 deg C to +70 deg C. Field Installation Guidelines Install the IS420UCECH1B-A according to the Mark VIe cabinet mechanical layout and verify correct connector engagement before applying power. Ensure the module mounting interface maintains proper grounding continuity with the control cabinet chassis. Route Ethernet and serial communication cables separately from high-voltage switching conductors. Use shielded industrial communication cables where required and terminate cable shields according to the cabinet grounding design to reduce electromagnetic interference. Before firmware loading or controller replacement, verify application compatibility, network addressing, and redundancy configuration parameters. Confirm that all connected I/O communication paths are correctly identified before system startup.
$200.00 $100.00
-
General Electric IS415UCVHH1A GE Mark VIe Controller Board
GE IS415UCVHH1A Mark VIe VME Controller Board The GE IS415UCVHH1A, also cataloged as the IS415UCVHH1A Controller Board, operates as a dedicated hardware component for real-time turbine control logic execution and I/O communication within the GE Mark VIe Speedtronic Control System. The VME-based board provides processor resources, Ethernet communication, and backplane data exchange for simplex, dual, and TMR control configurations. Hardware Specifications Parameter Specification Model IS415UCVHH1A Brand GE (General Electric) Origin United States Weight 2.00 lbs Dimensions 6U VME form factor Operating Temp 0 deg C to +70 deg C Power Consumption Not specified Product Type VME Controller Board Series Mark VIe Speedtronic Control System Processor Intel Ultra Low Voltage Celeron 650 MHz Memory 128 MB SDRAM, 128 MB Compact Flash Communication Interfaces 2 x Ethernet 10/100 Mbps, 2 x RS-232C, USB 2.0 Bus System VMEbus backplane Configuration Support Simplex, dual, and Triple Modular Redundant (TMR) architectures Power Supply Input 200-250 VAC variants supported; 24 VDC nominal variants available Operating System QNX Channels 6 Deterministic VME Control and Ethernet Communication The IS415UCVHH1A uses a VMEbus backplane interface for controller-to-I/O module data exchange within the Mark VIe platform. The embedded Intel Celeron processor executes turbine control application tasks under the QNX operating environment. Ethernet ports support 10/100 Mbps communication for controller networking, engineering access, and external system interfaces. The board design supports deterministic industrial control networks with configured redundancy architectures. Frequently Asked Questions Q: What communication interfaces are available on the IS415UCVHH1A controller board?A: The board provides two Ethernet 10/100 Mbps ports, two RS-232C serial interfaces, and one USB 2.0 interface for system communication and maintenance functions. Q: Does the IS415UCVHH1A support redundant control configurations?A: Yes. The controller supports simplex, dual, and Triple Modular Redundant (TMR) configurations within the Mark VIe control architecture. Q: What backplane interface is used by this controller board?A: The IS415UCVHH1A uses a 6U VMEbus backplane connection for communication with compatible Mark VIe system modules. Field Installation Guidelines Install the IS415UCVHH1A in the designated 6U VME rack slot and verify correct mechanical engagement with the backplane connector before system energization. Confirm rack grounding continuity and maintain proper separation between communication wiring and high-voltage power conductors. Ethernet and serial communication cables should use industrial shielding practices where required, with shield termination following the control cabinet grounding design. Avoid routing signal cables parallel to high-current switching conductors to reduce electromagnetic interference. Before replacement or maintenance, verify the controller configuration state, backup application data, and approved system shutdown or hot-swap procedures. Confirm firmware and QNX software compatibility before loading controller application files.
$200.00 $100.00
-
General Electric GE IS215AEPCH1EB AEPC Application Control Module
GE IS215AEPCH1EB AEPC Application Control Module Configured for high-density signal acquisition and actuator control in GE Mark VIe and EX2100e Control Systems, the GE IS215AEPCH1EB (IS215AEPCH1EB AEPC Application Control Module) provides direct physical and electrical execution for digital and analog I/O processing. Hardware Specifications Parameter Specification Model IS215AEPCH1EB Brand GE Origin United States Weight 2.3 kg Dimensions 216 x 152 x 152 mm Operating Temp -30 to +65 deg C Form Factor 6U VMEbus single slot Digital I/O 32 digital inputs, 32 digital outputs Analog I/O 16 analog inputs, 8 analog outputs Memory Non-volatile flash memory Communication Ports ISBus port, Ethernet port Humidity 5-95% RH, non-condensing System Compatibility Mark VIe and EX2100e Control Systems Profinet / EtherNet-IP Deterministic Network and I/O Density Scaling The IS215AEPCH1EB is designed for GE Speedtronic Mark VIe and EX2100e architectures, providing high-density I/O processing through microprocessor-based execution. The module handles digital input acquisition, digital output command processing, analog signal measurement, and actuator interface functions. The integrated ISBus and Ethernet communication interfaces support system-level data exchange between control modules. I/O density scaling allows the module to manage multiple signal channels within a single 6U VMEbus form factor while maintaining configured application execution. Flash memory storage provides non-volatile retention of configuration parameters and application data. Firmware compatibility must be verified with the installed Mark VIe control environment before deployment. Frequently Asked Questions Q: What type of signals can the IS215AEPCH1EB process? A: The module supports 32 digital inputs, 32 digital outputs, 16 analog inputs, and 8 analog outputs for control and monitoring applications. Q: What communication interfaces are available on the IS215AEPCH1EB? A: The module provides ISBus and Ethernet communication interfaces for integration with GE Mark VIe and EX2100e control system networks. Q: Is the IS215AEPCH1EB installed as a standard VME module? A: Yes. The module uses a 6U VMEbus single-slot form factor and requires installation in a compatible GE control rack assembly. Field Installation Guidelines Install the IS215AEPCH1EB in the designated 6U VMEbus slot according to the GE Mark VIe or EX2100e rack configuration. Confirm connector alignment and mechanical retention before energizing the rack. Separate analog signal wiring from high-current switching conductors to reduce electrical noise coupling. Use shielded cables for sensitive analog channels and terminate cable shields according to the system grounding design. Verify Ethernet and ISBus connections before commissioning. Confirm firmware compatibility, I/O configuration parameters, and channel assignments before placing the module into operational service.
$200.00 $100.00
-

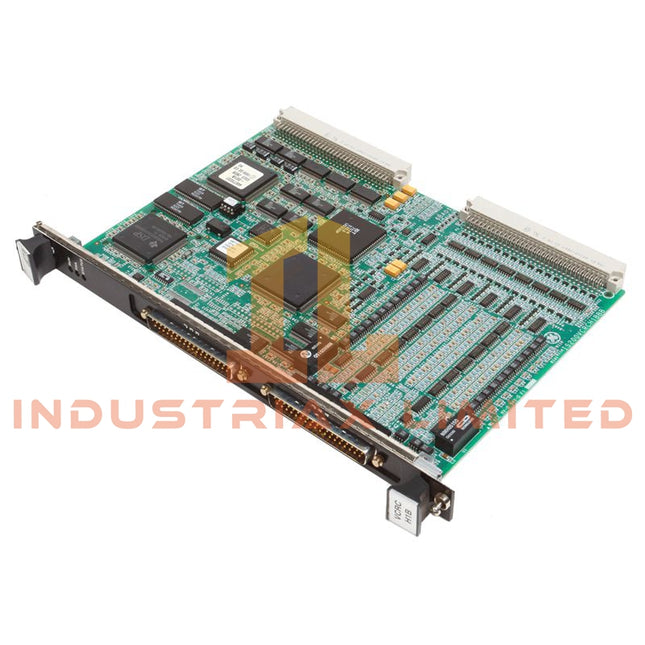

General Electric IS215AEPCH1BB GE Application Control Module
GE IS215AEPCH1BB AEPC Application Control Module The GE IS215AEPCH1BB, also cataloged as the IS215AEPCH1BB AEPC Application Control Module, operates as a dedicated hardware component for closed-loop pitch positioning and electrical control execution within GE Mark VIe Wind Turbine Control and EX2100e Excitation Systems. Hardware Specifications Parameter Specification Model IS215AEPCH1BB Brand GE Origin United States Weight 2.3 kg Dimensions 216 x 152 x 152 mm Operating Temp -40 to +85 deg C Power Consumption 8 W maximum Form Factor 6U VMEbus single slot Input Voltage 24 VDC Output Voltage 24 VDC Current Capacity 20 A input/output System Compatibility Mark VIe Wind Turbine Control and EX2100e Excitation Systems Processor Type Microprocessor-based application control module Environmental Protection Conformal coated PCB for dust, moisture, and corrosion resistance Humidity Range 5-95% RH, non-condensing EtherNet/IP Deterministic Control and I/O Execution The IS215AEPCH1BB integrates into the GE Mark VIe control architecture through processor-based application execution and deterministic control routines. The module performs closed-loop pitch positioning functions by processing blade angle feedback signals and generating control outputs for compatible pitch drive systems. The module supports firmware-controlled application logic and requires ControlST v4.5 or newer compatibility for proper execution. Firmware revision matching is required to maintain application behavior and pitch command processing. Frequently Asked Questions Q: What system platforms are compatible with the GE IS215AEPCH1BB? A: The IS215AEPCH1BB is designed for GE Mark VIe Wind Turbine Control and EX2100e Excitation Systems. It is configured for application control tasks including pitch positioning and electrical protection functions. Q: What power input characteristics are required for this module? A: The module operates from a 24 VDC supply and supports a 20 A input/output current capacity. The maximum power consumption is specified as 8 W. Q: Does the IS215AEPCH1BB support all pitch drive communication protocols? A: The module is specified for CANopen-based pitch drive communication. Compatibility verification is required before integration with alternative drive communication interfaces. Field Installation Guidelines Install the IS215AEPCH1BB in the designated 6U VMEbus slot within the Mark VIe or EX2100e rack assembly. Verify rack grounding, connector engagement, and jumper configuration before applying power. Use shielded control wiring where required by the turbine control design. Connect cable shields according to site grounding practices to reduce electrical noise coupling into pitch feedback and command circuits. Route signal cables separately from high-current power conductors to minimize electromagnetic interference. Confirm firmware compatibility with the installed ControlST environment before commissioning. Perform functional checks of pitch feedback signals, drive communication, and protection logic after installation.
$200.00 $100.00
-

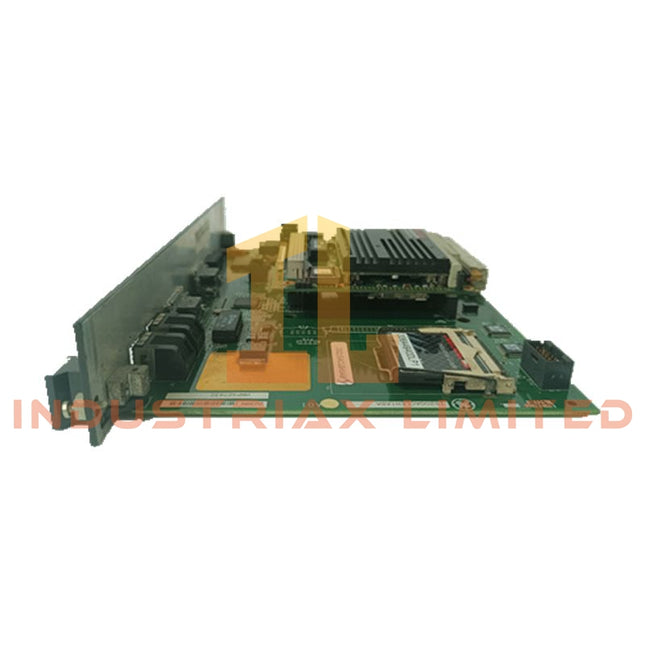

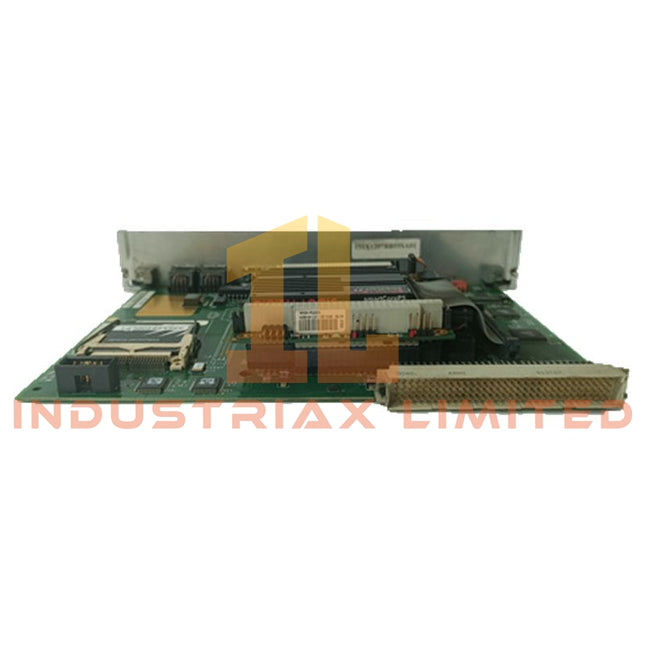

General Electric GE IS215AEPAH1CA Mark VI Exciter Power Amplifier Board
GE IS215AEPAH1CA Mark VI Exciter Power Amplifier Board The GE IS215AEPAH1CA, also cataloged as the IS215AEPAH1CA Exciter Power Amplifier Board, operates as a dedicated hardware component for generator field excitation current control within GE Mark VI excitation control platforms. The board converts regulator commands into high-current DC field drive signals with electrical isolation between control and power circuits. Hardware Specifications Parameter Specification Model IS215AEPAH1CA Brand GE Origin United States Weight 0.5kg Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Exciter Power Amplifier Boards Series Mark VI Excitation System Function Excitation power amplification for synchronous generators Input Control Regulator signals from DSPX/EXTB boards Output Current Up to 50 A continuous excitation current Field Voltage Range 0-300 VDC Isolation 2500 Vrms between control and power circuits Cooling Method Forced-air cooling with integrated heat sink Protection Functions Overcurrent, overvoltage, thermal shutdown, field ground detection Connectors P1/P2 backplane connectors Compliance UL, CE, IEC 60034 excitation standards Industrial Control and Excitation System Features The IS215AEPAH1CA performs power amplification within the GE Mark VI excitation architecture. The board receives regulator control signals and provides amplified current output for synchronous generator field excitation circuits. The module follows GE industrial control hardware design practices including deterministic backplane communication compatibility, I/O density scaling, and firmware flash compatibility within supported Mark VI system configurations. The P1/P2 backplane interface provides control and feedback signal exchange with connected excitation modules. The excitation power stage incorporates protection functions for abnormal electrical conditions. The isolation structure separates low-level controller signals from high-current field circuits, while thermal management hardware supports continuous excitation operation under specified environmental conditions. Frequently Asked Questions Q: What is the primary function of the IS215AEPAH1CA board?A: The board amplifies regulator control signals and provides DC excitation current output for synchronous generator field control. Q: What isolation capability is provided between control and power circuits?A: The board provides 2500 Vrms isolation between control-side and power-side circuits. Q: Which interface connectors are used for system integration?A: The board uses P1/P2 backplane connectors for control and feedback signal connections within the Mark VI cabinet. Field Installation Guidelines Install the IS215AEPAH1CA in the designated Mark VI excitation cabinet position and verify mechanical alignment before inserting the board into the backplane interface. Check P1/P2 connector seating and confirm that field output wiring matches the generator excitation system documentation. Route high-current excitation conductors separately from low-level control and feedback wiring. Maintain proper grounding and shielding practices for control signal cables. Verify cooling airflow paths, heat sink clearance, and protection circuit status before energizing the excitation system.
$200.00 $100.00
-

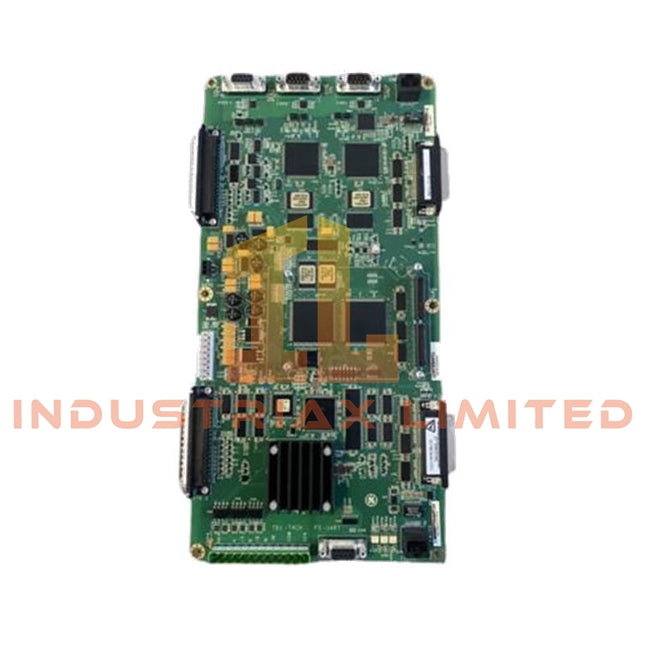

General Electric GE IS210MACCH1AKH Mark VIe Main Control and Communication Hub Board
GE IS210MACCH1AKH Mark VIe Main Control and Communication Hub Board The GE IS210MACCH1AKH, also cataloged as the IS210MACCH1AKH Main Control and Communication Hub Board, operates as a dedicated hardware component for turbine control execution and Ethernet network coordination within GE Mark VIe control platforms. The board processes control logic, manages IONet communication paths, and supports redundant controller configurations. Suffix Breakdown & Model Matrix The IS210MACCH1AKH is identified as a complete GE Mark VIe MACC cabinet hub board ordering code. No separate manufacturer-published suffix breakdown is provided for this exact catalog number. The complete model designation should be maintained when referencing hardware compatibility and system configuration. Model Reference Description IS210MACCH1AKH Mark VIe MACC Main Control and Communication Hub Board Product Family GE Mark VIe Distributed Control System Functional Category Main Control / Communication Interface Hardware Hardware Specifications Parameter Specification Model IS210MACCH1AKH Brand GE Origin United States Weight 0.65 kg Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Main Control and Communication Hub Boards Series Mark VIe Processor 32-bit RISC embedded CPU Memory 512 MB RAM, 2 GB Flash storage Ethernet Interface Dual 10/100 Ethernet RJ45 Fiber Interface Optional fiber SFP ports for IONet Network Configuration Simplex, Dual, and TMR R/S/T paths Power Input Dual 24-28 VDC redundant feeds Power Protection Auctioneering diode configuration Humidity Range 5% to 95% non-condensing Safety Compliance IEC 61508 SIL 2, UL, CE Coating G3 conformal coating Industrial Control and Mark VIe Network Communication Features The IS210MACCH1AKH provides centralized processing and communication functions within the GE Mark VIe control architecture. The board manages controller execution tasks, Ethernet data routing, and communication exchange between UDH and IONet network structures. The module follows GE industrial control hardware practices including deterministic Ethernet network communication and firmware flash compatibility within supported Mark VIe configurations. The communication architecture supports simplex, dual, and Triple Modular Redundant (TMR) paths for controller availability management. The board integrates I/O density scaling functions by combining processing, network interface, and redundancy management resources on a single control assembly. The embedded processor and memory resources execute turbine control applications while maintaining communication synchronization with connected Mark VIe components. Frequently Asked Questions Q: What network interfaces are available on the IS210MACCH1AKH?A: The board provides dual 10/100 Ethernet RJ45 interfaces and optional fiber SFP ports for IONet communication. Q: What redundancy configurations are supported by the IS210MACCH1AKH?A: The board supports simplex, dual, and Triple Modular Redundant (TMR) R/S/T communication paths within compatible Mark VIe systems. Q: What power input arrangement is used by the IS210MACCH1AKH?A: The board accepts dual 24-28 VDC redundant power feeds with auctioneering diode protection. Field Installation Guidelines Install the IS210MACCH1AKH in the designated Mark VIe cabinet slot and verify board seating before applying power. Confirm all Ethernet, fiber, and power connections follow the system wiring documentation. Maintain separation between communication cables and high-current power conductors to reduce electromagnetic interference. Apply appropriate shielding and grounding methods for Ethernet and field interface wiring. Verify redundant power sources, network topology, and controller configuration before system startup. Confirm LED diagnostic indicators and communication status during commissioning.
$200.00 $100.00
-

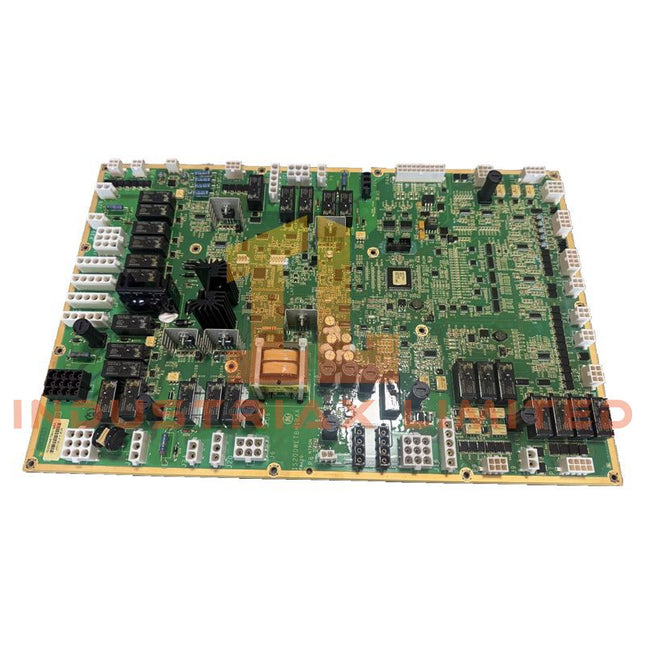

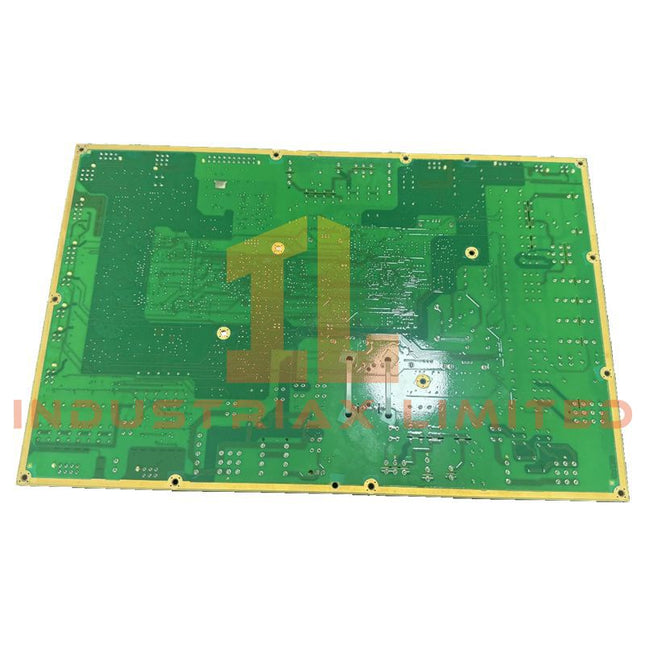

General Electric IS200WETBH1BBA GE Mark VI Datasheet & Technical Manual
GE IS200WETBH1BBA Mark VI Signal Conditioning Interface Board Configured for analog signal conditioning and interface routing in Mark VI turbine control systems, the GE IS200WETBH1BBA (IS200WETBH1BBA Signal Conditioning Interface Board) provides direct electrical execution for feedback signal conversion, isolation, and communication between CABP and BICH interface modules. Hardware Specifications Parameter Specification Model IS200WETBH1BBA Brand GE Origin United States Weight 0.5kg Product Type Signal Conditioning Interface Boards Series Mark VI Analog Conversion 16-bit A/D conversion Measurement Accuracy 0.1% Isolation 2500 Vrms channel isolation Interface Connection CABP to BICH module interface Signal Conditioning Programmable current source with 1000 levels Connector Type P1/P2/P3 graded connectors Protection Components Metal film resistors, varistors, electrolytic capacitors Calibration Method Real-time calibration via GE CIMPLICITY software Industrial Control and Mark VI Signal Interface Features The IS200WETBH1BBA performs signal conditioning and interface conversion functions within the GE Mark VI turbine control architecture. The board processes analog feedback signals through 16-bit A/D conversion and provides electrical isolation between control logic circuits and field interface signals. The module follows GE industrial control hardware design practices including backplane bus communication compatibility, I/O density scaling, and firmware flash compatibility within supported Mark VI system configurations. The CABP and BICH interface connection provides signal routing between controller backplane resources and gate drive related interface hardware. The board incorporates EMI protection components and galvanic isolation methods for operation in high electrical noise environments. Signal conditioning functions include programmable current source adjustment and software-based calibration support through compatible GE control software tools. Frequently Asked Questions Q: What type of signal conversion is provided by the IS200WETBH1BBA?A: The board provides 16-bit analog-to-digital conversion for processed feedback signals. Q: What isolation capability is specified for the IS200WETBH1BBA?A: The board provides up to 2500 Vrms isolation between supported signal channels. Q: Which Mark VI interfaces are connected through this board?A: The board provides interface routing between the CABP control backplane and BICH interface modules. Field Installation Guidelines Install the IS200WETBH1BBA in the designated Mark VI rack position and verify connector alignment before applying power. Ensure P1, P2, and P3 connectors are installed according to the system wiring documentation. Route analog signal cables separately from high-current switching conductors to reduce electromagnetic interference. Maintain proper shielding and grounding practices for feedback signal wiring. Verify board compatibility with the installed Mark VI hardware configuration before commissioning. Check connector seating, signal polarity, and calibration status during system startup procedures.
$200.00 $100.00
-
General Electric GE IS200WETBH1ABA Mark VIe Wet Relay Terminal Board
GE IS200WETBH1ABA Mark VIe Wet Relay Terminal Board Configured for isolated relay switching in Mark VIe turbine control systems, the GE IS200WETBH1ABA (IS200WETBH1ABA Wet Relay Terminal Board) provides direct electrical execution for trip circuits and auxiliary equipment interfaces. The board converts 24 VDC coil drive signals into isolated Form C relay outputs with 16 independent channels rated for high-voltage AC/DC switching. Hardware Specifications Parameter Specification Model IS200WETBH1ABA Brand GE Origin United States Weight 1.2 kg Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Wet Relay Terminal Board Series Mark VIe Relay Channels 16 independent outputs Relay Type Electromechanical Form C (SPDT) Contact Rating 5 A @ 250 V AC / 5 A @ 30 V DC resistive load Input Voltage 24 VDC coil drive from backplane Isolation Voltage 2500 V RMS between coil and contacts Connector Type Euro-style terminal blocks, 3-tier Protection Flyback diodes on coil inputs Indicators Per-channel LED status indicators Compliance CE, UL, CSA Industrial Control and Mark VIe Relay Isolation Features The IS200WETBH1ABA operates as a relay interface component within the GE Mark VIe control architecture. The wet relay design separates low-voltage controller logic from externally powered switching circuits, allowing field devices and auxiliary equipment to be controlled through isolated relay contacts. The module follows GE industrial control hardware design practices including I/O density scaling and firmware flash compatibility within supported Mark VIe system configurations. Relay channel separation supports individual circuit handling for shutdown, trip, and auxiliary control functions. The board provides electrical isolation between coil input circuits and relay contact outputs. The isolation structure supports protection against signal interference between controller-side logic and external field wiring. Frequently Asked Questions Q: How many relay output channels are available on the IS200WETBH1ABA?A: The board provides 16 independent electromechanical relay output channels. Q: What type of electrical isolation is provided between control signals and relay contacts?A: The board provides 2500 V RMS isolation between relay coil circuits and contact circuits. Q: What input signal drives the relay coils on this terminal board?A: The relay coils are driven by 24 VDC signals supplied from the Mark VIe backplane interface. Field Installation Guidelines Install the IS200WETBH1ABA in the designated Mark VIe terminal board location and verify mechanical mounting alignment before connecting field wiring. Separate relay output wiring from low-level signal wiring where practical to reduce electromagnetic interference. Maintain proper cable routing practices and apply shield grounding methods according to the turbine control system installation requirements. Verify relay contact ratings against connected field loads before energizing circuits. Confirm terminal block assignments, coil input polarity, and external power connections during commissioning procedures.
$200.00 $100.00
-
General Electric IS200BPPBH2BJD GE SmartPack 200 Datasheet & Technical Manual
GE IS200BPPBH2BJD SmartPack 200 Motor Starter Module The GE IS200BPPBH2BJD, also cataloged as the IS200BPPBH2B Motor Starter Module, operates as a dedicated hardware component for three-phase motor control and protection within SmartPack 200 control platforms. The module executes AC motor switching, monitoring, and protective functions with 460 V AC operation, 22 A current handling, and RS-485 communication capability. Hardware Specifications Parameter Specification Model IS200BPPBH2BJD Brand GE Origin United States Weight 0.35 kg Dimensions 115 x 70 x 45 mm Operating Temp -20 to +55 deg C Power Consumption Not specified Product Type Motor Starter Module Series SmartPack 200 Voltage Rating 460 V AC Current Rating 22 A Rated Power 10 kW Motor Type Three-phase asynchronous motor Communication Interface RS-485 Protection Functions Short circuit, overload, phase loss, overspeed, ground fault Humidity Range 5% to 95% non-condensing Protection Level IP20 Industrial Control and SmartPack Motor Protection Features The IS200BPPBH2BJD integrates motor control and protective monitoring functions for three-phase AC motor applications. The module processes electrical operating conditions and provides protection responses for overload, short circuit, phase loss, overspeed, and ground fault conditions. The SmartPack 200 series architecture supports industrial communication through the RS-485 interface, allowing data exchange with supervisory control systems. The communication path is configured for status monitoring, control commands, and operational diagnostics. The module uses industrial control hardware design principles including I/O density scaling and firmware flash compatibility within supported SmartPack 200 configurations. Installation requires verification of controller compatibility, communication parameters, and motor electrical ratings before commissioning. Frequently Asked Questions Q: What motor electrical parameters are supported by the IS200BPPBH2BJD?A: The module supports three-phase asynchronous motor control with a rated voltage of 460 V AC and a current rating of 22 A. Q: What communication interface is available on the IS200BPPBH2BJD?A: The module provides an RS-485 communication interface for connection with industrial monitoring or supervisory systems. Q: What protection functions are integrated into this motor starter module?A: The module provides protection functions including overload, short circuit, phase loss, overspeed, and ground fault monitoring. Field Installation Guidelines Install the IS200BPPBH2BJD in an enclosure that maintains the specified environmental conditions and provides appropriate mechanical protection. Verify terminal wiring, motor phase connections, and control circuit isolation before energizing the system. Route RS-485 communication cables separately from high-current motor power conductors to reduce electromagnetic interference. Apply proper cable shielding and connect shield layers according to the grounding practice defined by the control system design. Confirm that the module mounting arrangement maintains adequate ventilation clearance and that all protective earth connections are properly installed before operational testing.
$200.00 $100.00
-
General Electric GE IS200AEPCH1CCB AE Power Conversion Board
GE IS200AEPCH1CCB AE Power Conversion Board Configured for regulated DC power conversion and AE module supply conditioning in GE Mark VI turbine control systems, the GE IS200AEPCH1CCB (IS200AEPCH1CCB AE Power Conversion Board) provides direct power conversion, isolation, and signal conditioning execution for VME-based control hardware. Hardware Specifications Parameter Specification Model IS200AEPCH1CCB Brand GE Origin United States Product Type AE Power Conversion Board Series Mark VI Speedtronic Turbine Control System Input Voltage 24 VDC nominal, 18-32 VDC range Output Voltage +5 VDC and +/-15 VDC regulated outputs Output Current Up to 3 A continuous Efficiency >85% Isolation 1500 V AC input to output isolation Protection Overvoltage protection, overcurrent protection, thermal shutdown Operating Temp -40 to +70 deg C Storage Temperature -40 to +85 deg C Weight 0.45 kg Dimensions 26 x 15 x 3 cm Mounting VME rack integration with backplane connectors GE Mark VI Power Conversion and Control Interface The IS200AEPCH1CCB AE Power Conversion Board provides regulated power distribution for AE series I/O modules within the Mark VI architecture. The board interfaces through VME rack backplane connections and supplies DC rails required by acquisition, excitation, and signal processing circuits. The module incorporates industrial control features associated with GE turbine platforms, including backplane bus communication interfaces, firmware compatibility with Mark VI hardware configurations, and support for AE I/O density expansion through compatible module combinations. The power conversion stage uses electrical isolation between input and output circuits to reduce interference transfer between field power sources and control electronics. Conformal coating supports operation in environments with humidity, dust, and airborne contaminants. Frequently Asked Questions Q: What voltage outputs are provided by the IS200AEPCH1CCB?A: The board provides regulated +5 VDC and +/-15 VDC outputs for AE I/O module power requirements. Q: How is the IS200AEPCH1CCB installed in a Mark VI system?A: The board is installed in a VME rack and connected through the system backplane connectors. Q: Does the board provide electrical isolation?A: Yes. The module provides 1500 V AC isolation between input and output circuits to separate supply and control domains. Field Installation Guidelines Install the IS200AEPCH1CCB in the designated GE Mark VI VME rack position and verify backplane connector alignment before insertion. Confirm DC supply polarity and voltage range before energizing the module. Route power wiring separately from high-current switching cables and actuator wiring to reduce electrical noise coupling. Maintain proper cabinet grounding and connect shielding layers according to the system grounding design. Inspect conformal-coated surfaces and connectors before installation to ensure no contamination or mechanical damage is present.
$200.00 $100.00
-
General Electric GE IS200AEPCH1BAA AE Power Conversion Board
GE IS200AEPCH1BAA AE Power Conversion Board Configured for regulated power conversion and signal conditioning in the GE Mark VI Speedtronic Turbine Control System, the GE IS200AEPCH1BAA (IS200AEPC AE Power Conversion Board) provides direct physical/electrical execution for AE I/O module power supply distribution, voltage regulation, and isolated signal interface functions. Hardware Specifications Parameter Specification Model IS200AEPCH1BAA Brand GE Origin United States Weight 0.45 kg Dimensions 26 x 15 x 3 cm Operating Temp -40 to +70 deg C Power Consumption Output capacity up to 3 A continuous Series Mark VI Speedtronic Turbine Control System Module Type AE Power Conversion Board (AEPC) Input Voltage 24 VDC nominal, 18 to 32 VDC range Output Voltage +5 VDC and +/-15 VDC regulated Efficiency >85% Isolation 1500 V AC input-to-output isolation Protection Overvoltage, overcurrent, thermal shutdown Mounting Interface VME rack integration with backplane connectors Environmental Protection Conformal coating for humidity, dust, and corrosive atmosphere resistance Industrial Control Power Conversion Characteristics The IS200AEPCH1BAA provides DC power conversion within the GE Mark VI AE control architecture. The board converts incoming 24 VDC supply power into regulated voltage rails required by AE I/O modules and associated acquisition and excitation circuits. The module supports industrial control backplane integration and provides electrical isolation between input and output circuits. Its power conversion design includes protection functions for overcurrent, overvoltage, and thermal conditions. The board interfaces with AE series modules including AEPA, AEPB, and AEAA assemblies. The conformal-coated PCB structure supports operation in control cabinets where humidity, dust, and corrosive environmental conditions require additional circuit protection. Frequently Asked Questions Q: What input voltage range is supported by the IS200AEPCH1BAA?A: The board accepts a 24 VDC nominal input supply with an operating range of 18 to 32 VDC. Q: What output voltage rails are provided by the AEPC board?A: The module provides regulated +5 VDC and +/-15 VDC outputs for AE I/O and control electronics. Q: How does the board protect connected circuits during abnormal conditions?A: The module includes overvoltage protection, overcurrent protection, and thermal shutdown functions. Field Installation Guidelines Install the IS200AEPCH1BAA in the designated GE Mark VI VME rack position and verify backplane connector alignment before applying system power. Confirm DC input polarity and supply voltage before connection. Route power wiring separately from high-current actuator circuits and switching conductors to reduce electromagnetic interference. Maintain proper cabinet grounding and follow GE control system shielding practices for connected wiring. Inspect the board surface, connectors, and backplane contacts before installation. Ensure rack ventilation and environmental conditions remain within the specified operating limits during system operation.
$200.00 $100.00
