Description

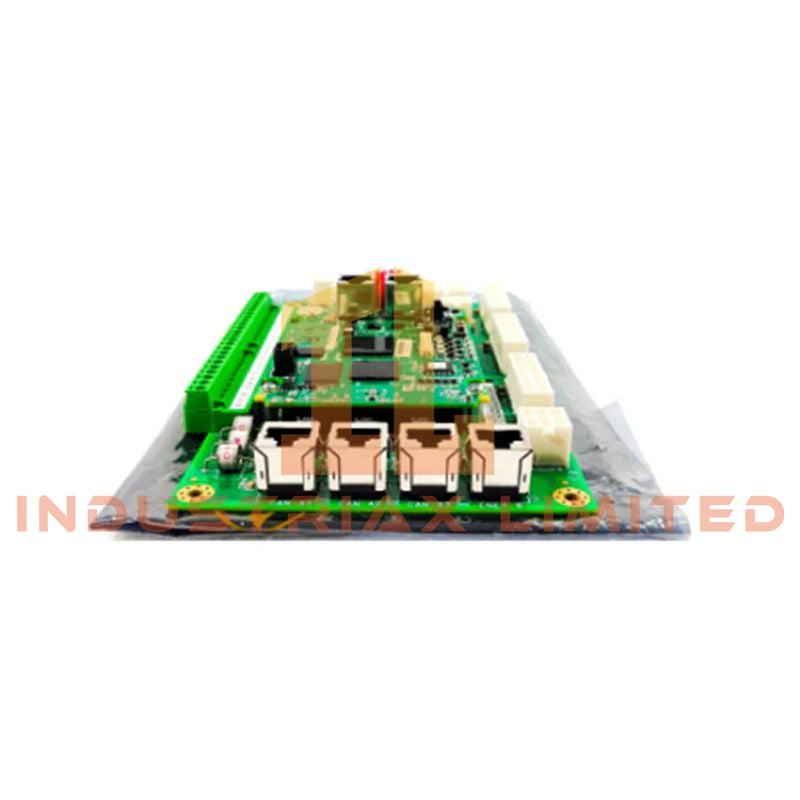

GE IS200AEPCH1CCB AE Power Conversion Board

Configured for regulated DC power conversion and AE module supply conditioning in GE Mark VI turbine control systems, the GE IS200AEPCH1CCB (IS200AEPCH1CCB AE Power Conversion Board) provides direct power conversion, isolation, and signal conditioning execution for VME-based control hardware.

Hardware Specifications

Parameter	Specification
Model	IS200AEPCH1CCB
Brand	GE
Origin	United States
Product Type	AE Power Conversion Board
Series	Mark VI Speedtronic Turbine Control System
Input Voltage	24 VDC nominal, 18-32 VDC range
Output Voltage	+5 VDC and +/-15 VDC regulated outputs
Output Current	Up to 3 A continuous
Efficiency	>85%
Isolation	1500 V AC input to output isolation
Protection	Overvoltage protection, overcurrent protection, thermal shutdown
Operating Temp	-40 to +70 deg C
Storage Temperature	-40 to +85 deg C
Weight	0.45 kg
Dimensions	26 x 15 x 3 cm
Mounting	VME rack integration with backplane connectors

GE Mark VI Power Conversion and Control Interface

The IS200AEPCH1CCB AE Power Conversion Board provides regulated power distribution for AE series I/O modules within the Mark VI architecture. The board interfaces through VME rack backplane connections and supplies DC rails required by acquisition, excitation, and signal processing circuits.

The module incorporates industrial control features associated with GE turbine platforms, including backplane bus communication interfaces, firmware compatibility with Mark VI hardware configurations, and support for AE I/O density expansion through compatible module combinations.

The power conversion stage uses electrical isolation between input and output circuits to reduce interference transfer between field power sources and control electronics. Conformal coating supports operation in environments with humidity, dust, and airborne contaminants.

Frequently Asked Questions

Q: What voltage outputs are provided by the IS200AEPCH1CCB?
A: The board provides regulated +5 VDC and +/-15 VDC outputs for AE I/O module power requirements.

Q: How is the IS200AEPCH1CCB installed in a Mark VI system?
A: The board is installed in a VME rack and connected through the system backplane connectors.

Q: Does the board provide electrical isolation?
A: Yes. The module provides 1500 V AC isolation between input and output circuits to separate supply and control domains.

Field Installation Guidelines

Install the IS200AEPCH1CCB in the designated GE Mark VI VME rack position and verify backplane connector alignment before insertion. Confirm DC supply polarity and voltage range before energizing the module.

Route power wiring separately from high-current switching cables and actuator wiring to reduce electrical noise coupling. Maintain proper cabinet grounding and connect shielding layers according to the system grounding design. Inspect conformal-coated surfaces and connectors before installation to ensure no contamination or mechanical damage is present.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
