Bently Nevada Bently Nevada | 1034549-40 Galvanic Isolator Modules
Bently Nevada 1034549-40 Dual Galvanic Isolator Configured for intrinsic safety signal separation in FieldMonitor systems, the Bently Nevada 1034549-40 (1034549 Dual Galvanic Isolator) provides direct electrical isolation for vibration and position transducer circuits. The module separates field signals and monitoring electronics through galvanic isolation paths within Bently Nevada FieldMonitor platforms. Hardware Specifications Parameter Specification Model 1034549-40 Brand Bently Nevada Product Type Dual Galvanic Isolator Module Origin USA Weight Approx. 1.0 kg to 1.5 kg Operating Temp -20 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Operating Humidity 5% to 95% RH, non-condensing Power Consumption Supplied from +19 VDC to +33 VDC input range Signal Types Static position and dynamic vibration signals Isolation Function Dual-channel galvanic isolation for field transducer circuits Compatible Systems FieldMonitor solutions, 170190 Isolator, 1701/06 Isolator Terminal Base Installation Type Rack-mounted or modular plug-in configuration Safety Compliance Designed for hazardous area applications with ATEX and IECEx requirements Eddy-Current Signal Isolation and Rotor Monitoring Characteristics The Bently Nevada 1034549-40 supports mechanical monitoring circuits that require isolated transmission between field transducers and monitoring equipment. Moreover, the module maintains signal separation for eddy-current probe based measurements where displacement and vibration data require stable electrical reference control. The isolator architecture supports gap voltage validation practices used in Bently Nevada proximity measurement systems. Therefore, engineers can maintain correct probe operating conditions, including the standard -10 VDC target gap voltage reference used for eddy-current probe installations. In addition, the module reduces signal interference between monitoring channels through galvanic separation. This function helps limit cross-talk effects in rotor dynamics applications where multiple vibration and position measurements operate within the same protection system. Frequently Asked Questions Q: Does the 1034549-40 provide direct galvanic separation between field devices and monitoring electronics?A: Yes. The module provides electrical isolation between connected field transducer circuits and the monitoring system interface. Q: What type of signals can the 1034549-40 isolate?A: The module supports both static position signals and dynamic vibration signals from compatible Bently Nevada transducer systems. Q: Can the 1034549-40 replace external safety barriers in hazardous area installations?A: The module is designed as part of the FieldMonitor hazardous area solution and provides galvanic isolation functions. Installation requirements must follow the applicable system certification and site safety standards. Field Installation Guidelines Install the 1034549-40 according to the FieldMonitor system wiring documentation and approved terminal assignments. Separate low-level vibration signal wiring from high-voltage power cables to reduce electrical interference. Connect cable shields according to the system grounding design and avoid creating additional ground loops. Verify transducer polarity, signal routing, and isolation paths before system energization. Confirm hazardous area certification requirements before connecting field devices in classified locations. Inspect terminal connections and module seating during commissioning to ensure correct mechanical installation.
$200.00 $100.00
-
Bently Nevada 1034549-21 FieldMonitor Seismic Input Monitor | Bently Nevada
Bently Nevada 1034549-21 FieldMonitor Seismic Input Monitor The Bently Nevada 1034549-21, also cataloged as the 1701/25 FieldMonitor Seismic Input Monitor, operates as a dedicated hardware component for seismic signal acquisition and vibration evaluation within the FieldMonitor monitoring system. Hardware Specifications Parameter Specification Model 1034549-21 Brand Bently Nevada Origin USA Product Type FieldMonitor Seismic Input Monitor Module System Series 1701/25 FieldMonitor Module Function Two-channel seismic vibration monitoring Input Channels 2 independent seismic input channels Supported Sensors Velocity transducers and acceleration sensors Measurement Type Absolute casing and structural vibration monitoring Direct Velocity Bandwidth 3 Hz to 5,500 Hz Direct RMS / Integrated Bandwidth 10 Hz to 5,500 Hz Signal Filtering Programmable high-pass and low-pass filtering, 4th order (-80 dB/decade) Alarm Configuration Alarm 1 Alert and Alarm 2 Danger based on proportional vibration values Alarm Time Delay Configurable range from 0.15 s to 20.0 s Diagnostics Internal self-test functions for sensor and signal loop verification Dimensions Approx. 15.2 cm x 10.2 cm x 2.5 cm Weight Approx. 0.1 kg to 0.3 kg Compliance CE certification and API 670 machinery protection design alignment Eddy-Current and Rotor Dynamics Signal Processing The Bently Nevada 1034549-21 processes vibration-related signals from seismic sensors and converts field measurements into monitored vibration values. In addition, the module applies signal conditioning functions to maintain measurement stability across configured frequency ranges. The FieldMonitor architecture supports machinery condition evaluation by analyzing casing vibration behavior. Moreover, Bently Nevada monitoring systems commonly apply rotor dynamics principles, vibration amplitude tracking, and signal integrity verification for rotating equipment protection. The module design focuses on accurate seismic input handling, alarm threshold evaluation, and continuous vibration data processing. Furthermore, the signal path minimizes unwanted interference through controlled filtering and channel processing methods. Frequently Asked Questions Q: How many vibration measurement channels does the Bently Nevada 1034549-21 support?A: The module provides two independent seismic input channels for vibration monitoring applications. Q: What sensor types can connect to the 1034549-21 module?A: The module accepts seismic transducer inputs, including velocity sensors and acceleration sensors used for casing or structural vibration measurement. Q: Does the module support configurable vibration alarm functions?A: Yes. The module provides Alarm 1 Alert and Alarm 2 Danger settings based on proportional vibration values with configurable time delays. Field Installation Guidelines Install the module inside the designated FieldMonitor hardware enclosure according to the system installation documentation. Connect seismic sensor wiring using proper shielded industrial instrumentation cables to reduce electromagnetic interference. Maintain separation between vibration signal cables and high-current power conductors to prevent signal coupling. Verify sensor polarity, signal continuity, and grounding conditions before system commissioning. Confirm vibration alarm settings and filtering parameters after completing field wiring checks. Follow applicable machinery protection practices when integrating the module into rotating equipment monitoring systems.
$200.00 $100.00
-
Bently Nevada Bently Nevada 177896-05 3701/40 Processor Module
Bently Nevada 177896-05 3701/40 Processor Module The Bently Nevada 177896-05, also cataloged as the 177896-05 Processor Module, operates as a dedicated hardware component for signal processing, protection logic execution, and Ethernet data communication within the ADAPT 3701/40 Machinery Dynamics Monitor platform. Hardware Specifications Parameter Specification Model 177896-05 Brand Bently Nevada Product Type Processor Module System Platform ADAPT 3701/40 Machinery Dynamics Monitor Origin USA Dimensions Compact modular form factor; exact dimensions not specified Power Consumption Powered through single or dual-redundant +24 VDC external supply via terminal base Processor Function Central processing unit for data acquisition, DSP, alarm evaluation, and protection logic A/D Conversion 24-bit resolution Dynamic Range 110 dB Signal Bandwidth Up to 40 kHz Sampling Mode Synchronized parallel sampling across all input channels Spectral Analysis Configurable synchronous and asynchronous spectrums up to 3200 lines Ethernet Interface 2 x 10Base-T/100Base-TX auto-sensing RJ45 ports Communication Protocols Modbus TCP, Ethernet Global Data (EGD) Discrete Inputs 6 dry contact inputs per terminal base Configuration Protection Hardware configuration lock switch for Run Mode protection Software Configuration Bently Nevada Monitor Configuration (BNMC) software Compliance CE, North America General Safety, RoHS Eddy-Current Measurement and Rotor Dynamics Processing The 177896-05 Processor Module processes vibration and position signals from Bently Nevada input modules, including eddy-current proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and Keyphasor speed inputs. Furthermore, the processor executes digital signal processing algorithms for rotor dynamics evaluation, including synchronous and asynchronous spectral analysis. The module supports eddy-current probe scaling functions by processing calibrated displacement signals and maintaining measurement accuracy through sensor input conditioning. In addition, the system evaluates gap voltage conditions, including the typical -10 VDC target range used for proximity probe operation verification. Therefore, the processor provides direct monitoring of shaft displacement, vibration behavior, and machine dynamic response. Frequently Asked Questions Q: Does the 177896-05 support redundant processor operation?A: Yes. When installed in a Duplex terminal base, two identical 177896-05 Processor Modules can operate in a redundant configuration. The system uses dual processors to maintain monitoring availability if one processor module becomes unavailable. Q: What communication interfaces are available on the processor module?A: The module provides two auto-sensing Ethernet ports with 10Base-T and 100Base-TX support. It communicates through Modbus TCP and Ethernet Global Data (EGD) protocols. Q: Which sensor signals can the processor module analyze?A: The processor accepts processed signals from compatible ADAPT 3701/40 input boards, including proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and magnetic speed pickup signals. Field Installation Guidelines Install the 177896-05 Processor Module in the designated ADAPT 3701/40 terminal base slot according to the system hardware configuration requirements. Verify that the terminal base provides the required +24 VDC supply connection before module insertion. Maintain proper cable separation between Ethernet communication wiring and high-current power conductors to reduce electrical interference. Use shielded sensor wiring where required and connect cable shields according to plant grounding standards. Before commissioning, confirm that the proximity probe input scaling, gap voltage status, channel configuration, and alarm parameters match the installed field sensors. Keep the hardware configuration lock in the required operating position after completing commissioning changes. Use BNMC software to verify module communication status, input channel operation, alarm logic settings, and network communication parameters before placing the monitoring system into service.
$200.00 $100.00
-
Bently Nevada Prox Accel Seismic (PAS) Module | 177988-01 | Bently Nevada
Bently Nevada 177988-01 Prox/Accel/Seismic Input/Output Module The Bently Nevada 177988-01, also cataloged as the 177988-01 Prox/Accel/Seismic Input/Output Module, operates as a dedicated hardware component for vibration signal acquisition and conditioning within the Bently Nevada ADAPT 3701/40 Machinery Dynamics Monitor platform. Hardware Specifications Parameter Specification Model 177988-01 Brand Bently Nevada Product Type Prox/Accel/Seismic Input/Output Module System Compatibility ADAPT 3701/40 and 3701/44 Machinery Dynamics Monitor Systems Origin USA Weight Approximately 2.0 kg to 4.5 kg depending on enclosure configuration Operating Temp -30 deg C to +65 deg C Power Consumption Not specified in available technical documentation Sensor Inputs Proximity probes, accelerometers, seismic transducers, IEPE sensors, dynamic pressure sensors Channel Configuration 6 vibration input channels and 1 Keyphasor / speed input Signal Conditioning Integrated filtering, analog-to-digital conversion, and sensor excitation functions Signal Processing Real-time DSP processing for vibration, position, and dynamic monitoring signals Environmental Protection G3 conformal coating for moisture and chemical resistance Mounting Type ADAPT system baseplate compatible field installation Hazardous Area Compatibility CSA, ATEX, and IECEx compliant configurations Rotor Dynamics Signal Processing and Gap Voltage Validation The Bently Nevada 177988-01 module processes vibration signals from eddy-current proximity probes, accelerometers, and seismic sensors through dedicated conditioning circuits. The module supports shaft-relative measurement functions by applying probe scaling characteristics and maintaining signal accuracy during displacement monitoring. Furthermore, the module supports gap voltage validation procedures for eddy-current probe systems. Technicians typically verify probe operating conditions against the -10 VDC gap voltage target used in Bently Nevada proximity measurement systems. Therefore, the module maintains accurate shaft position and vibration data for rotor dynamics evaluation. The internal DSP functions analyze radial vibration, thrust position, casing vibration, and related machine behavior parameters. Additionally, the signal architecture reduces measurement interference through controlled signal conditioning and channel processing. Frequently Asked Questions Q: What sensor types can the Bently Nevada 177988-01 interface with?A: The module supports proximity probes, accelerometers, seismic velocity transducers, IEPE sensors, and dynamic pressure sensors through configured input channels. Q: Does the 177988-01 module perform vibration signal conversion internally?A: Yes. The module integrates signal conditioning circuits, filtering functions, and analog-to-digital conversion for processed machinery monitoring data. Q: Is the 177988-01 designed for hazardous area installations?A: The module supports ADAPT system installations with applicable CSA, ATEX, and IECEx certified configurations when used within approved system assemblies. Field Installation Guidelines Install the 177988-01 module on the designated ADAPT system baseplate according to the equipment mounting procedure. Connect proximity probe cables using proper shield termination methods to reduce electromagnetic interference. Separate vibration signal wiring from high-voltage power cables and switching circuits. Verify sensor wiring polarity before applying system power. Confirm eddy-current probe gap voltage readings before commissioning vibration channels. Use approved grounding practices for cable shields and enclosure connections. Check channel configuration settings before integrating measurement data into monitoring software.
$200.00 $100.00
-
Bently Nevada 105M6001-01 Positive Input I/O Module | Bently Nevada
Bently Nevada 105M6001-01 Positive Input I/O Module The Bently Nevada 105M6001-01, also cataloged as the 105M6001-01 Positive Input I/O Module, operates as a dedicated hardware component for positive sensor signal acquisition within Bently Nevada 3500 monitoring platforms. Hardware Specifications Parameter Specification Model 105M6001-01 Brand Bently Nevada (Baker Hughes) Origin USA Product Type Positive Input I/O Module System Compatibility Bently Nevada 3500 Monitoring System and related ADAPT 3701 platforms Primary Function Positive-powered sensor signal interface and input processing Supported Sensors Proximity probes, seismic transducers, air gap sensors Signal Processing Multimode input signal conditioning Termination Type Internal and external termination support Mounting Method Rack installation within 3500 system chassis Power Supply Supplied through 3500 rack backplane Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 0% to 95% non-condensing Vibration Resistance 5 g at 57 Hz to 500 Hz, IEC 60068-2-6 Mechanical Shock 15 g, 11 ms, IEC 60068-2-27 Operating Altitude Less than 2,000 m Pollution Degree Category 2 Power Consumption Supplied by rack backplane, value not specified Rotor Dynamics and Signal Integrity Features The Bently Nevada 105M6001-01 supports machinery condition monitoring applications where accurate sensor signal conversion is required. Therefore, the module processes input signals from positive-powered monitoring devices before transferring conditioned data through the 3500 system architecture. For eddy-current probe applications, the module maintains compatibility with Bently Nevada signal measurement principles, including probe scaling and gap voltage validation methods. The typical eddy-current monitoring configuration uses gap voltage targets around -10 VDC for correct probe operating range verification. Furthermore, the module supports rotor dynamics monitoring functions by maintaining signal quality between field sensors and the monitoring rack. The input design helps reduce measurement errors caused by signal interference and supports cross-talk suppression requirements in multi-channel machinery monitoring installations. Frequently Asked Questions Q: Can the 105M6001-01 be installed outside a Bently Nevada 3500 rack system?A: No. The module is designed as a rack-mounted I/O component and receives operating power through the 3500 system backplane. Q: Does the 105M6001-01 provide direct sensor signal processing for proximity probes?A: Yes. The module supports positive-powered sensor interfaces, including proximity probes and other compatible machinery monitoring sensors. Q: Does the module require separate field power wiring?A: The module receives internal operating power from the rack system. Field wiring requirements depend on the connected sensor configuration and termination arrangement. Field Installation Guidelines Install the 105M6001-01 module only in the designated Bently Nevada rack slot configuration. Before installation, verify that the rack backplane connection and terminal assignments match the approved system drawings. Use shielded instrumentation cables for sensor connections. Connect cable shields according to the site grounding standard to minimize electromagnetic interference. Keep sensor wiring separated from high-voltage power cables and switching circuits. Verify sensor polarity, signal reference points, and termination wiring before applying system power. For eddy-current probe installations, confirm probe gap voltage values and scaling parameters during commissioning. Ensure that the module seating mechanism fully engages with the chassis connector before operation. Perform channel validation through the monitoring software after installation to confirm correct input acquisition.
$200.00 $100.00
-

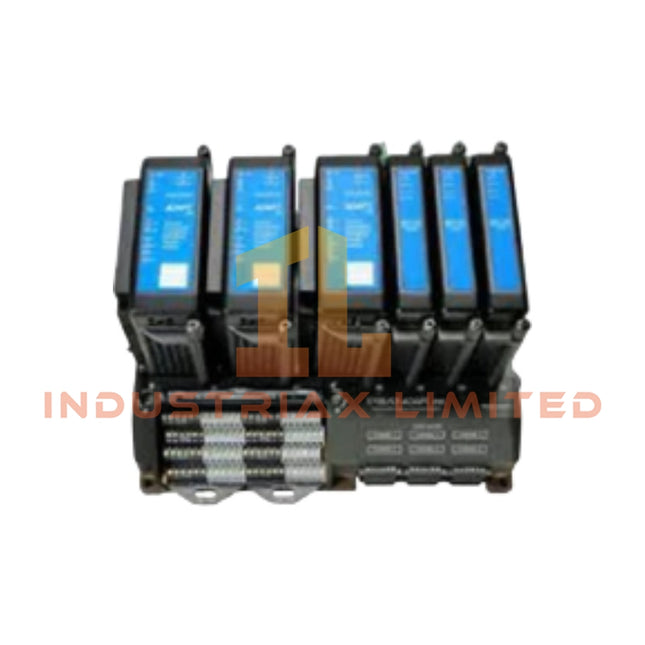

Bently Nevada Bently Nevada 177989-01 Prox Accel Velom (PAV) Input/Output Module

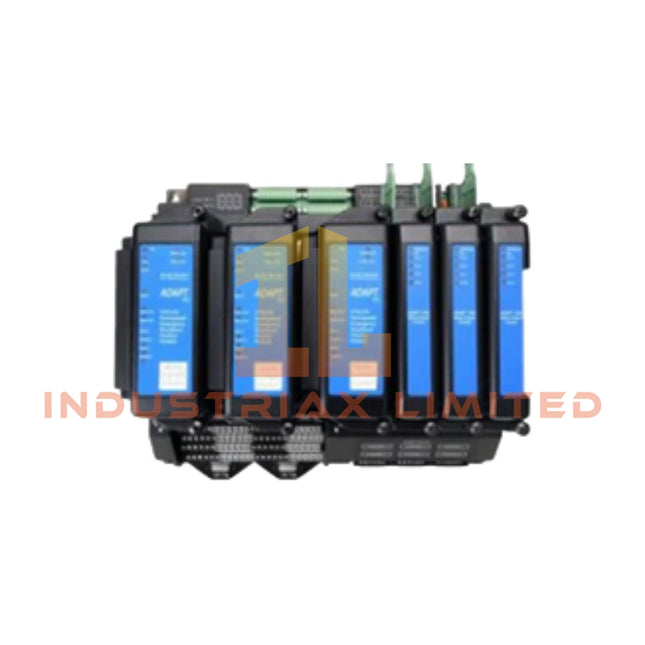

Bently Nevada 177989-01 Prox Accel Velom (PAV) Input/Output Module The Bently Nevada 177989-01, also cataloged as the 177989-01 Prox Accel Velom (PAV) Input/Output Module, operates as a dedicated hardware component for multi-sensor vibration signal acquisition within ADAPT 3701/40 and ADAPT 3701/44 monitoring platforms. The module processes proximity, acceleration, velocity, and dynamic pressure inputs through configurable measurement channels. Hardware Specifications Parameter Specification Model 177989-01 Brand Bently Nevada Product Type Prox Accel Velom (PAV) Input/Output Module System Compatibility ADAPT 3701/40 Machinery Dynamics Monitor, ADAPT 3701/44 Aeroderivative Monitor Channel Configuration 7 channels total: 6 configurable measurement channels and 1 dedicated speed/Keyphasor channel Measurement Inputs Proximity probes, accelerometers, Velomitor velocity sensors, dynamic pressure sensors Sensor Power Supply -24 VDC sensor excitation for supported transducers Speed Input Magnetic pickup (MPU) speed and Proximitor speed input support Power Supply External +24 VDC supplied through ADAPT terminal baseplate Power Consumption Powered through ADAPT baseplate; exact consumption depends on connected sensors and configuration Mounting Type Direct installation on ADAPT terminal baseplate Dimensions 263 mm x 58 mm x 28 mm Weight Approximately 0.3 kg to 0.4 kg Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 0% to 95% RH, non-condensing Environmental Protection ISA S71.04 G3 conformal coating Certifications ATEX, IECEx, CSA Class I Division 2 / Zone 2, CE Rotor Dynamics Signal Processing and TSI Measurement Features The 177989-01 module provides configurable vibration acquisition paths for machinery protection applications. It accepts shaft-relative vibration signals from proximity probes and casing vibration signals from accelerometers or Velomitor sensors. Therefore, the module supports combined measurement architectures that require both rotor displacement and casing response evaluation. The module supports TSI-related measurement functions including phase reference processing, synchronous vibration analysis, and speed event detection. In addition, Bently Nevada monitoring architectures apply eddy-current probe scaling methods and gap voltage validation practices, where -10 VDC targets are commonly used as reference points for proximity probe operating conditions. The six PAV channels can be configured for acceleration, velocity, radial vibration, thrust position, dynamic pressure, or Proximitor speed measurements. Furthermore, the dedicated speed channel supports Keyphasor input functions for phase-based rotor dynamics analysis. Frequently Asked Questions Q: What sensor types can the Bently Nevada 177989-01 accept?A: The module accepts proximity probes, 3-wire accelerometers, 2-wire Velomitor velocity sensors, and compatible dynamic pressure sensors through configurable PAV channels. Q: Does the 177989-01 provide Keyphasor speed measurement capability?A: Yes. Channel 7 operates as a dedicated speed input channel and supports magnetic pickup and Proximitor speed configurations for phase reference applications. Q: How is the module installed in an ADAPT system?A: The module installs directly into the ADAPT terminal baseplate, which provides mechanical mounting and power distribution connections. Field Installation Guidelines Install the module only on the specified ADAPT terminal baseplate and verify mechanical locking before system operation. Route vibration sensor cables separately from high-current power wiring to reduce electrical interference. Connect cable shields according to site grounding practices and avoid multiple grounding points that may create ground loops. Verify proximity probe wiring polarity and gap voltage before enabling machinery monitoring functions. Confirm sensor excitation requirements before connecting accelerometers, Velomitors, or dynamic pressure transducers. Maintain proper separation between signal cables and electromagnetic noise sources such as motors, variable frequency drives, and switching power supplies.
$200.00 $100.00
-
Bently Nevada Bently Nevada 2155/40 TDISecure Communication Processor

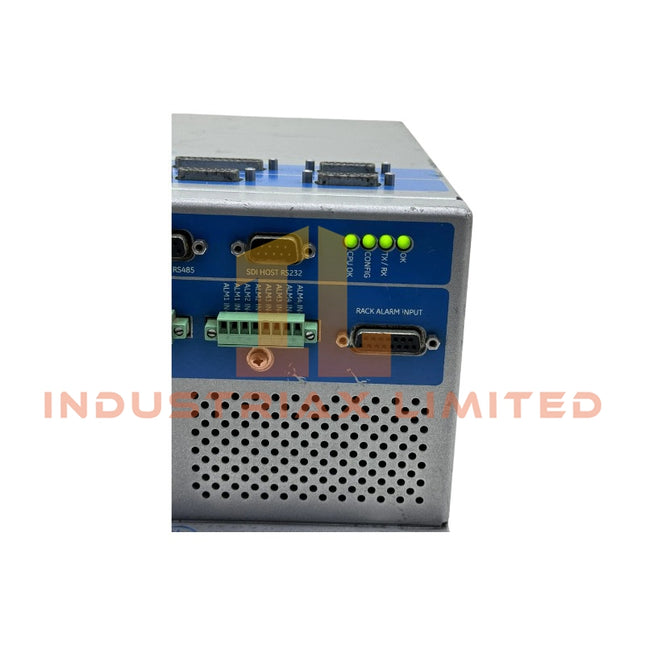

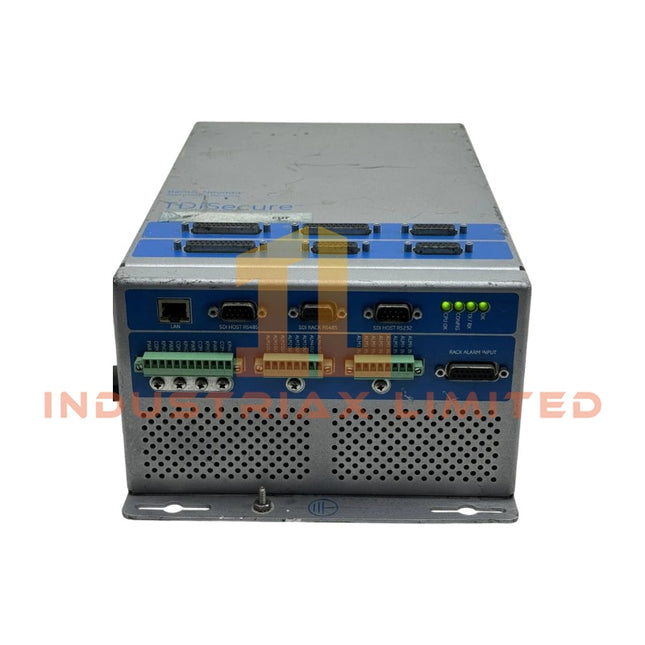

Bently Nevada 2155/40 TDISecure Communication Processor Configured for secure machinery data acquisition in Bently Nevada monitoring networks, the Bently Nevada 2155/40 (2155/40 TDISecure Communication Processor) provides direct physical and electrical execution for synchronized vibration, process, and discrete signal communication. Hardware Specifications Parameter Specification Model Bently Nevada 2155/40 TDISecure Communication Processor Brand Bently Nevada Origin USA Product Type TDISecure Communication Processor Weight AC Version: 4.2 kg; DC Version: 3.9 kg Dimensions 384 mm x 216 mm x 136 mm Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity Maximum 95%, non-condensing Power Consumption AC Version: 100-240 VAC, 50/60 Hz, 50 W; DC Version: 20-36 VDC, 35 W Power Variants 2155/40-01 AC input; 2155/40-02 DC input Dynamic Analog Inputs 24 differential channels Dynamic Signal Range DC to 30 kHz frequency range; -25 V to +25 V input range Dynamic Input Accuracy +/-1% of full scale Process Inputs 24 configurable voltage or current channels Process Signal Range 4-20 mA, 0-10 V, 1-5 V, 2-10 V Process Input Accuracy +/-0.32% full scale voltage; +/-0.64% full scale current at 25 deg C Discrete Inputs 24 channels, configurable alarm or OK inputs Keyphasor Inputs 4 channels, phase and speed tracking up to 20 kHz Communication Interfaces Dual Ethernet RJ45 ports and Modbus RS485 Software Integration Bently Nevada System 1 software platform Rotor Dynamics Data Processing and TSI Signal Management The Bently Nevada 2155/40 TDISecure Communication Processor processes synchronized machinery protection data from vibration and Keyphasor measurement channels. It supports rotor dynamics analysis by maintaining high-speed signal acquisition without multiplexing delays. The processor maintains eddy-current probe scaling compatibility for shaft vibration and position measurements. Furthermore, it supports gap voltage validation procedures using typical -10 VDC target references for proximity probe systems. The hardware architecture reduces signal cross-talk through differential input design and controlled channel processing. Therefore, the module maintains measurement consistency when multiple dynamic channels operate simultaneously. Frequently Asked Questions Q: Does the Bently Nevada 2155/40 support direct integration with System 1 software?A: Yes. The processor communicates with Bently Nevada System 1 software for transient and steady-state machinery condition data analysis. Q: How many Keyphasor channels are available on the 2155/40?A: The processor provides four Keyphasor input channels for phase reference and speed tracking applications. Q: What communication interfaces are available for plant integration?A: The 2155/40 provides dual Ethernet RJ45 interfaces and Modbus RS485 communication for industrial network connections. Field Installation Guidelines Install the 2155/40 processor in a suitable industrial rack or panel enclosure with adequate mechanical support. Connect power wiring according to the selected AC or DC input variant. Use shielded cables for dynamic vibration and proximity probe signal connections. Connect cable shields according to the machinery monitoring system grounding practice to reduce electrical interference. Route signal cables separately from high-voltage power conductors and switching equipment. Verify probe wiring polarity, channel configuration, and signal scaling before commissioning. Confirm Ethernet and Modbus communication parameters before connecting the processor to the plant monitoring network. Perform input verification using configured vibration, process, and Keyphasor signals.
$200.00 $100.00
-
Bently Nevada 3300/16-02-01-01-00-00-02 Bently Nevada XY/Gap Dual Vibration Monitor
Bently Nevada 3300/16-02-01-01-00-00-02 XY/Gap Dual Vibration Monitor The Bently Nevada 3300/16-02-01-01-00-00-02, also cataloged as the 3300/16 XY/Gap Dual Vibration Monitor, operates as a dedicated hardware component for radial vibration and shaft gap measurement within the Bently Nevada 3300 Machinery Monitoring System. Hardware Specifications Parameter Specification Model 3300/16-02-01-01-00-00-02 Brand Bently Nevada Product Type XY/Gap Dual Vibration Monitor System Platform Bently Nevada 3300 Machinery Monitoring System Origin USA Weight Approx. 1.0 kg Dimensions 1 rack slot module format Operating Temp 0 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity Up to 95%, non-condensing Power Consumption System rack supplied power; specific consumption depends on rack configuration Signal Input One or two proximity probe systems Input Impedance 10 kOhm Full Scale Range 0 to 5 mils peak-to-peak Transducer Input 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensors Transducer Sensitivity 200 mV/mil or 8 V/mm Frequency Response 4 to 4,000 Hz or 1 to 600 Hz low-speed mode Recorder Output +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC Output Load Current output: 0 to 600 Ohm; voltage output: minimum 10 kOhm Accuracy Within +/-0.33% of full scale typical; +/-1% maximum Trip Multiply Function 3X alarm limit multiplication during startup Alarm Relay Epoxy-sealed relay configuration Safety Barrier No internal safety barriers Agency Approval Standard configuration without agency approval Display Type Non-multiplexing vertical LCD bargraph Rack Position One rack slot, excluding power supply and system monitor reserved slots Eddy-Current Probe Scaling and Rotor Dynamics Monitoring The 3300/16 monitor processes eddy-current proximity probe signals for radial shaft vibration and average shaft position measurement. It applies probe scaling parameters based on compatible Bently Nevada transducer systems, including 3300 8 mm and 3300 XL 8 mm probes. The monitor evaluates dynamic vibration signals and gap voltage feedback from rotating equipment. In addition, the system architecture supports rotor dynamics analysis by providing buffered raw vibration outputs for external diagnostic instruments. The proximity input circuit validates probe operating conditions through gap voltage behavior. Standard Bently Nevada monitoring practices use negative gap voltage targets, typically near -10 VDC, to confirm correct probe installation and shaft position measurement range. The monitor also reduces measurement interference through signal conditioning functions designed for vibration channel separation and cross-talk suppression between monitoring inputs. Frequently Asked Questions Q: What type of transducer systems can the 3300/16-02-01-01-00-00-02 accept?A: The monitor accepts Bently Nevada 3300 8 mm, 3300 XL 8 mm, and 7200 series 5 mm or 8 mm proximity probe systems with 200 mV/mil sensitivity. Q: How does the 3X Trip Multiply function operate?A: The 3X Trip Multiply function increases programmed alarm thresholds by three times during machine startup conditions to prevent unnecessary trips during acceleration. Q: Does this module provide internal safety barriers?A: No. The 3300/16-02-01-01-00-00-02 configuration does not include internal safety barriers and requires external protection when hazardous area installation requires isolation. Field Installation Guidelines Install the 3300/16 module in an available Bently Nevada 3300 rack position according to the rack configuration requirements. The power supply and system monitor positions must remain reserved. Connect proximity probe wiring using shielded cables and maintain proper cable routing separation from high-current power conductors. Ground cable shields according to the monitoring system installation manual to reduce electrical noise. Verify the probe gap voltage before commissioning. Confirm that the proximity probe operates within the specified measurement range and that the vibration channel polarity matches the installed transducer configuration. Use the front-panel buffered outputs for diagnostic connections only. Avoid excessive cable loading on buffered signal outputs because additional loading can affect signal quality. Confirm alarm relay wiring, bypass status, and Trip Multiply operation before placing the machine protection system into service.
$200.00 $100.00
-

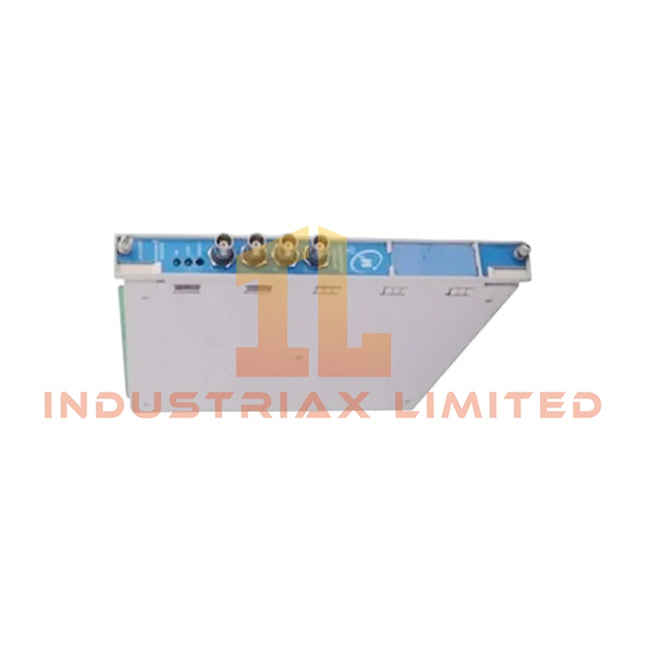

Bently Nevada 1720045 General Purpose Equipment Monitor | Bently Nevada
Bently Nevada 1720045 General Purpose Equipment Monitor The Bently Nevada 1720045, also cataloged as the 1720045 General Purpose Equipment Monitor, operates as a dedicated hardware component for vibration and temperature signal acquisition within Bently Nevada machinery monitoring platforms. Hardware Specifications Parameter Specification Model 1720045 Brand Bently Nevada Product Type General Purpose Equipment Monitor Origin USA Weight Approx. 1.2 kg Dimensions 133 mm x 133 mm x 178 mm Operating Temp -20 deg C to +70 deg C Power Consumption 7.2 W typical Power Supply 18 VDC to 36 VDC Vibration Inputs 4 channels, configurable for acceleration, velocity, or displacement Temperature Inputs 4 channels, supports RTD and thermocouple sensors Frequency Response 5 Hz to 10 kHz Analog Outputs 4-20 mA per channel Relay Outputs 4 SPDT relays, 5 A at 250 VAC Measurement Accuracy +/- 1% of full scale Channel Update Rate 100 ms per channel Mounting Type DIN rail mount or panel mount Storage Temperature -40 deg C to +85 deg C Relative Humidity 0% to 95% non-condensing Ingress Protection IP20 Machinery Monitoring and TSI Signal Processing The Bently Nevada 1720045 processes dynamic vibration and temperature signals for continuous equipment condition evaluation. The monitor accepts industrial sensor inputs and converts measured values into analog output signals and relay alarm states. Furthermore, the module supports Bently Nevada machinery monitoring methods including eddy-current probe scaling, gap voltage validation, and rotor dynamics evaluation. The vibration measurement path maintains sensor signal integrity by applying input conditioning and cross-talk suppression techniques during multi-channel acquisition. The vibration channels can evaluate displacement, velocity, or acceleration signals according to the installed sensor configuration. In addition, temperature channels support RTD and thermocouple measurement circuits for thermal condition tracking. Frequently Asked Questions Q: What sensor types can connect to the Bently Nevada 1720045 vibration inputs?A: The monitor supports industrial vibration sensors configured for acceleration, velocity, or displacement measurement. Sensor scaling must match the selected input configuration. Q: Does the 1720045 provide direct relay alarm outputs?A: Yes. The unit provides four SPDT relay outputs for equipment protection alarms and status indication. Q: Can the monitor validate eddy-current probe operating conditions?A: The monitor supports machinery monitoring functions associated with eddy-current probe systems, including signal scaling and gap voltage evaluation when compatible probes are installed. Field Installation Guidelines Install the Bently Nevada 1720045 in a protected control panel or equipment monitoring enclosure with appropriate DIN rail or panel mounting hardware. Connect vibration sensor wiring using shielded industrial instrumentation cables. Terminate cable shields according to site grounding practices to reduce electromagnetic interference and signal noise. Separate vibration signal cables from high-voltage power conductors and switching circuits. Maintain proper cable routing to prevent induced electrical interference. Verify sensor polarity, input configuration, and measurement range before commissioning. For eddy-current probe applications, confirm probe supply wiring and gap voltage conditions before enabling machinery monitoring functions. Ensure the DC power supply wiring follows industrial control cabinet standards. Check relay output wiring ratings before connecting external alarm or shutdown circuits.
$200.00 $100.00
-
Bently Nevada Bently Nevada | 1720025 | Fuse
Bently Nevada 1720025 Fuse The Bently Nevada 1720025, also cataloged as the 1720025 Fuse, operates as a dedicated circuit protection component for overcurrent interruption within Bently Nevada 3500 Series machinery protection system power input circuits. Hardware Specifications Parameter Specification Model 1720025 Brand Bently Nevada Product Type Replacement Fuse Origin USA Compatible System Bently Nevada 3500 Series Machinery Protection System Application 3500/15 Power Supply Module AC Power Input Module protection Fuse Type Type 313 time-delay slow-blow fuse Current Rating 6.25 A Voltage Rating 250 V Fuse Construction Cartridge fuse, glass or ceramic body depending on production batch Dimensions 6.3 mm x 32 mm cartridge format Power Consumption Passive protection component, no continuous power consumption Approvals UL recognized and CSA certified when installed within approved module assemblies Eddy-Current Protection Circuit Compatibility The Bently Nevada 1720025 fuse supports electrical protection functions within the 3500 Series power distribution path. Therefore, it limits fault current exposure to sensitive monitoring electronics by interrupting abnormal current conditions. The Bently Nevada 3500 platform uses dedicated power conditioning and monitoring circuits to maintain machinery protection functions. Additionally, correct fuse selection maintains the intended electrical coordination between the AC input path and the power supply assembly. Frequently Asked Questions Q: What function does the Bently Nevada 1720025 fuse perform in a 3500 Series rack?A: The 1720025 provides overcurrent protection for the power input circuit associated with the 3500/15 Power Supply Module AC input assembly. Q: Can the 1720025 fuse be replaced while the 3500 rack remains energized?A: No. The rack power should be removed before fuse replacement to prevent electrical shock and avoid damage to the power supply circuitry. Q: Is the 1720025 fuse related to vibration signal measurement circuits?A: The fuse does not process vibration signals. Instead, it protects the electrical supply path that powers Bently Nevada monitoring modules. Field Installation Guidelines Verify that the 3500 rack power source is disconnected before removing the fuse. Confirm the replacement fuse rating matches the specified 6.25 A and 250 V electrical characteristics. Install the fuse according to the original Power Input Module assembly orientation. Inspect fuse holders and contact surfaces for oxidation, mechanical damage, or overheating marks. Maintain proper cable routing around the power supply section to reduce electrical interference. After installation, restore power and verify normal operation of the 3500 Series power supply status indicators.
$200.00 $100.00
-
Bently Nevada Intrinsic Safety Barrier Modules | Bently Nevada 88984-02

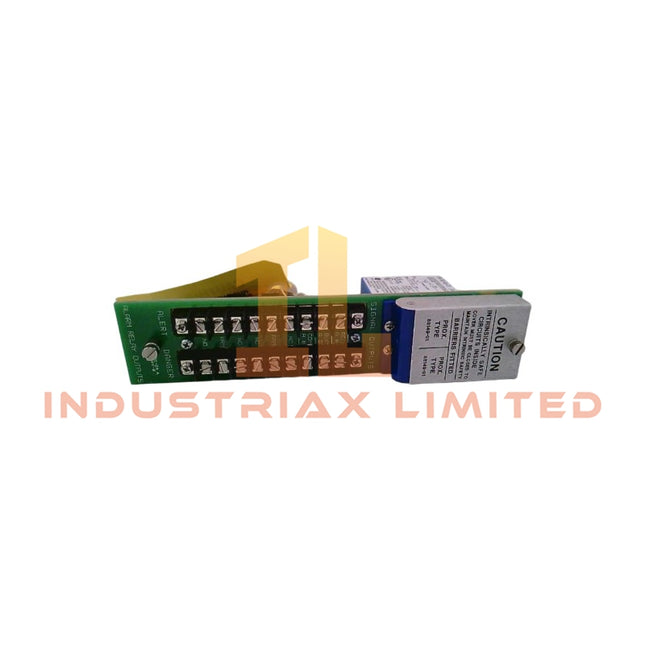

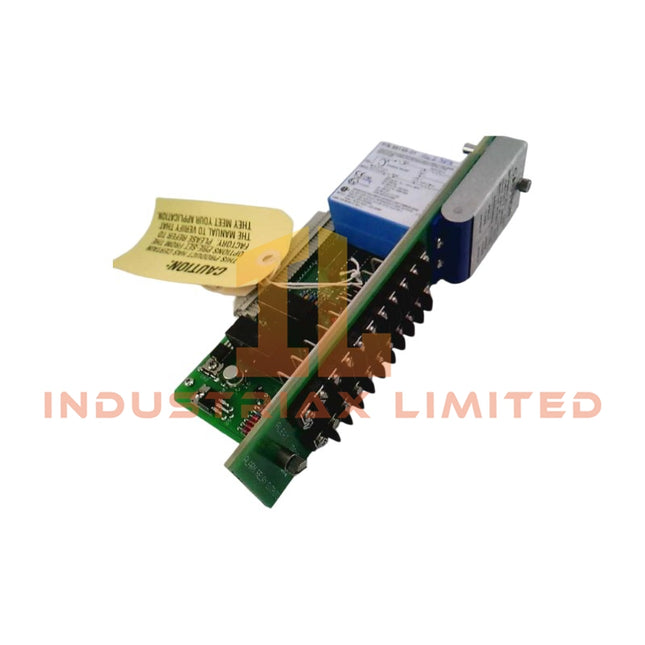

Bently Nevada 88984-02 Dual Epoxy Internal Intrinsic Safety Barrier Module The Bently Nevada 88984-02, also cataloged as the 88984-02 Dual Epoxy Internal Intrinsic Safety Barrier Module, operates as a dedicated hardware component for intrinsic safety signal conditioning within Bently Nevada 3300 and 3500 Series machinery monitoring systems. Hardware Specifications Parameter Specification Model 88984-02 Brand Bently Nevada Product Type Dual Epoxy Internal Intrinsic Safety Barrier Module System Compatibility Bently Nevada 3300 and 3500 Series Monitoring Systems Origin USA Weight Approximately 1.0 kg to 2.0 kg depending on packaging Dimensions Not specified in available technical data Operating Temp 0 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity Up to 95%, non-condensing Power Consumption 2 W nominal Construction Dual-channel epoxy encapsulated housing Safety Function Intrinsic safety barrier for hazardous area transducer circuits Certifications Designed for ATEX, IECEx, and CSA hazardous area requirements Output Impedance 100 ohm voltage output Minimum Voltage Load Resistance 10 kohm Current Output Compliance 0 to +12 VDC across load Current Output Load Resistance 0 to 600 ohm for +4 to +20 mA option Accuracy Within +/-0.33% typical, +/-1% maximum at +25 deg C Eddy-Current Probe Signal Scaling and Hazardous Area Isolation The 88984-02 module processes transducer signal paths from Bently Nevada proximity measurement circuits by applying intrinsic safety energy limitation. Therefore, the barrier restricts voltage and current transfer during abnormal electrical conditions while maintaining measurement signal continuity. In addition, the module supports Bently Nevada eddy-current probe scaling requirements by maintaining controlled electrical characteristics between field transducers and monitoring system inputs. The barrier design preserves proximity probe signal behavior required for vibration, displacement, and rotor dynamics analysis. The epoxy encapsulated dual-channel structure reduces the influence of moisture ingress, industrial vibration, and environmental contamination. Furthermore, the internal barrier architecture supports signal separation and cross-talk suppression between independent measurement channels. Frequently Asked Questions Q: Is the Bently Nevada 88984-02 compatible with both 3300 and 3500 monitoring platforms?A: Yes. The module is designed for use with Bently Nevada 3300 and 3500 Series machinery protection systems where intrinsic safety separation is required. Q: What type of field signals can connect through the 88984-02 barrier?A: The module supports transducer signal circuits including proximity probe and other machinery monitoring sensor connections requiring hazardous area isolation. Q: Does the module require external power input?A: The available technical data specifies approximately 2 W power consumption. Installation requirements should follow the system hardware configuration and application documentation. Field Installation Guidelines Install the module according to the approved Bently Nevada system configuration and hazardous area wiring requirements. Maintain separation between intrinsic safety field wiring and non-intrinsically safe circuits. Connect cable shields according to the monitoring system grounding practice to reduce electrical interference. Route transducer cables away from high-current power conductors and sources of electromagnetic noise. Verify field wiring polarity and terminal identification before energizing the monitoring rack. Inspect epoxy encapsulation and housing condition before installation to confirm the module has no mechanical damage. Confirm the connected transducer type and signal range match the configured machinery monitoring channel.
$200.00 $100.00
-

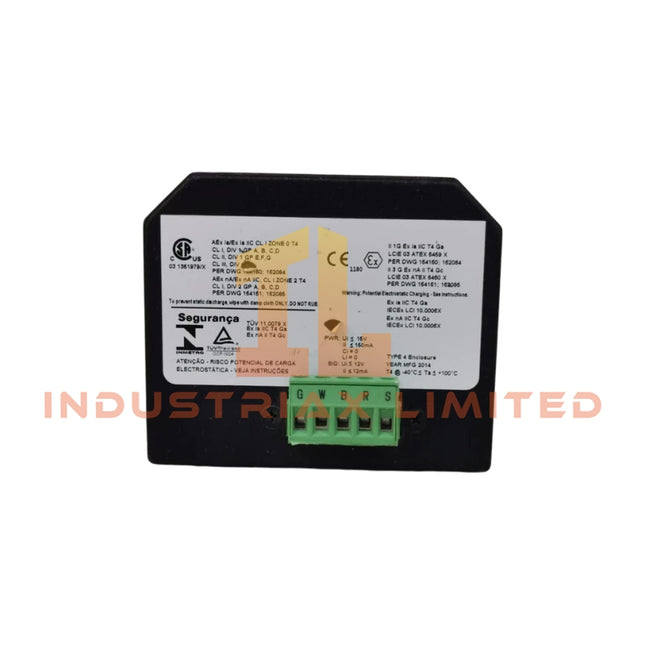

Bently Nevada Bently Nevada 200200-03-03-05 Temperature Interface Modules

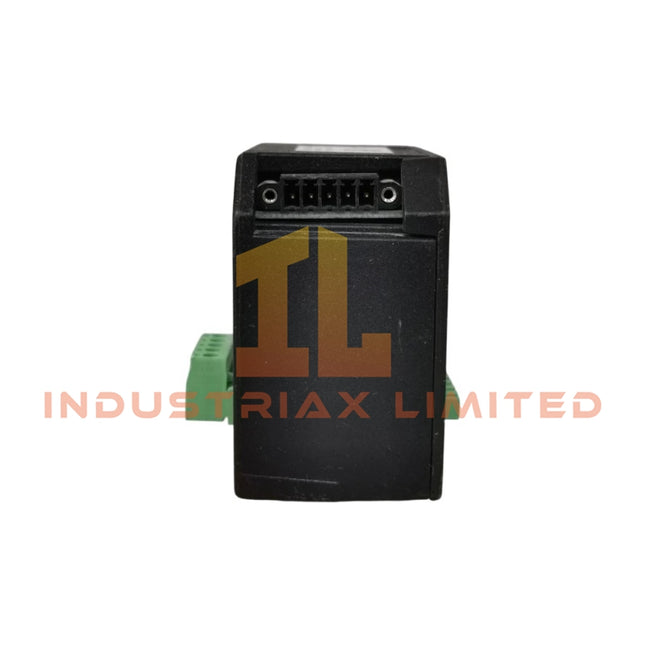

Bently Nevada 200200-03-03-05 Trendmaster proTIM-R Temperature Interface Module The Bently Nevada 200200-03-03-05, also cataloged as the 200200 proTIM-R Temperature Interface Module, operates as a dedicated hardware component for dual-channel RTD temperature signal acquisition within the Trendmaster distributed condition monitoring system. Hardware Specifications Parameter Specification Model 200200-03-03-05 Brand Bently Nevada Product Series Trendmaster 200 Series proTIM-R Module Type Processor Transducer Interface Module Origin United States Weight Approx. 0.77 lbs (349 grams) Dimensions Approx. 11.6 cm x 2.5 cm x 2.0 cm Input Channels 2 independent temperature input channels Sensor Input Type 2-wire or 3-wire Platinum RTD (Pt100 typical) Mounting Method 35 mm DIN rail mounting Signal Processing Analog signal conditioning and digital conversion Electrical Isolation Isolated temperature input channels System Interface Trendmaster data highway communication Rotor Temperature Signal Processing and Mechanical Monitoring Features The Bently Nevada 200200-03-03-05 processes RTD temperature signals through dedicated input conditioning circuits before transferring measurement data to the Trendmaster monitoring network. Moreover, the isolated channel design reduces ground loop influence during temperature measurement in distributed machinery monitoring installations. This proTIM-R module supports thermal condition measurement for rotating equipment components through Platinum RTD inputs. In addition, the module architecture follows Bently Nevada monitoring practices that maintain measurement integrity for machinery diagnostics, including sensor signal scaling and verification methods used in condition monitoring systems. The module operates within the Trendmaster platform where temperature data contributes to machinery protection analysis. Furthermore, the hardware design supports separation between field sensor wiring and system communication paths to reduce signal interference. Frequently Asked Questions Q: What type of sensors can the Bently Nevada 200200-03-03-05 accept?A: The module accepts 2-wire or 3-wire Platinum RTD temperature sensors, typically configured with Pt100 resistance elements. Q: Does the 200200-03-03-05 provide isolated temperature inputs?A: Yes. The module provides isolated temperature input channels to reduce electrical interference and ground loop effects between field devices. Q: Can this module be installed on a standard industrial DIN rail?A: Yes. The module uses a 35 mm DIN rail mounting configuration for installation inside industrial control cabinets. Field Installation Guidelines Install the 200200-03-03-05 module on a properly secured 35 mm DIN rail inside an enclosure that meets the environmental requirements of the installation location. Connect RTD sensor wiring according to the selected 2-wire or 3-wire configuration. Use shielded instrumentation cable where required, and terminate cable shields according to the plant grounding standard to minimize electrical noise. Separate RTD signal cables from high-voltage power conductors, motor cables, and switching circuits. Additionally, verify terminal connections before system startup to prevent incorrect temperature readings caused by wiring errors. Confirm communication wiring between the proTIM-R module and the Trendmaster network before commissioning. Therefore, perform signal verification using the system configuration software to validate channel assignment and temperature measurement response.
$200.00 $100.00
-

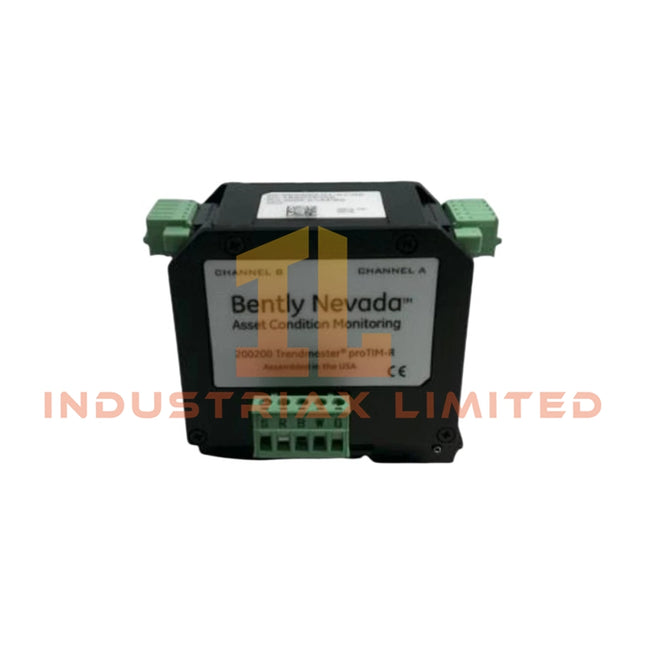

Bently Nevada 200200-02-02-CN Bently Nevada ProTIM-R DIN Rail Mount Module

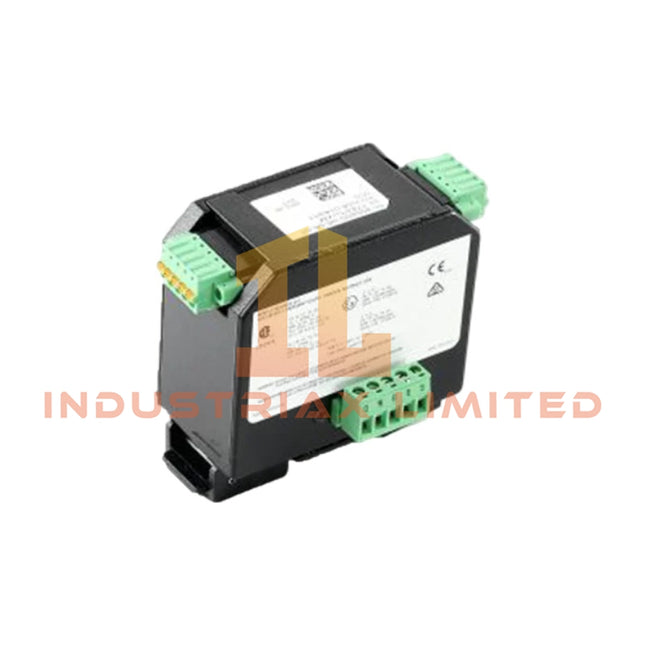

Bently Nevada 200200-02-02-CN ProTIM-R DIN Rail Mount Module Configured for dual thermocouple signal conditioning in the Trendmaster Pro online condition monitoring system, the Bently Nevada 200200-02-02-CN (200200 ProTIM-R DIN Rail Mount Module) provides direct physical and electrical execution for temperature measurement channels. Hardware Specifications Parameter Specification Model 200200-02-02-CN Brand Bently Nevada Origin United States Operating Temp -25 deg C to +85 deg C Power Consumption Not specified Product Type Processor Transducer Interface Module (ProTIM-R) System Platform Trendmaster Pro Online Condition Monitoring System Mounting Type DIN Rail Mount Number of Channels 2 independent configurable channels Channel AA Input K-Type Thermocouple via 200125 temperature transducer Channel BB Input K-Type Thermocouple via 200125 temperature transducer Process Voltage Input Range +1 VDC to +5 VDC Process Current Input Range +4 mA to +20 mA Temperature Measurement Range -18 deg C to +204 deg C Temperature Accuracy +/-8 deg C including ProTIM-R, thermocouple, and lead wire error Temperature Resolution 0.07 deg C Maximum Lead Wire Length 6 meters Maximum Temperature Ramp Rate +/-0.5 deg C/min OK Operating Range -31 deg C to +213 deg C Storage Temperature -40 deg C to +100 deg C Humidity Rating 100% condensing on exposed surfaces Hazardous Area Approval NEPSI and ATEX/IECEx option Eddy-Current Signal Scaling and Temperature Channel Processing The ProTIM-R module processes field transducer signals through dedicated input conditioning circuits. Moreover, the dual-channel architecture allows independent measurement handling for two temperature inputs connected through 200125 temperature transducers. For Bently Nevada monitoring systems, signal integrity depends on correct sensor scaling and electrical validation. Therefore, installation procedures must maintain proper signal reference conditions and minimize interference from external wiring sources. The module supports isolated temperature inputs to reduce ground loop effects during distributed machinery monitoring applications. Frequently Asked Questions Q: What input devices are supported by the 200200-02-02-CN module?A: The module supports dual K-Type thermocouple inputs through 200125 temperature transducers. It processes two independent temperature measurement channels. Q: Does the ProTIM-R module provide electrical isolation for temperature inputs?A: Yes. The temperature input channels include electrical isolation to reduce ground loop interference between field devices and monitoring equipment. Q: What environmental limits apply to the thermocouple ProTIM-R variant?A: The operating temperature range is -25 deg C to +85 deg C, while storage temperature ranges from -40 deg C to +100 deg C. Field Installation Guidelines Install the 200200-02-02-CN module on a compatible DIN rail and verify mechanical engagement before connecting field wiring. Ensure thermocouple wiring follows correct polarity and maintains separation from high-voltage power conductors. Moreover, apply suitable contact protection methods, including DC4 grease on connector contacts where specified, to reduce corrosion risks in exposed environments. Use proper cable routing practices to limit electromagnetic interference and avoid parallel runs with high-current cables. Verify channel configuration before commissioning. Confirm thermocouple signal response, wiring continuity, and monitoring system communication status before placing the module into operational service.
$200.00 $100.00
-
Bently Nevada Bently Nevada 185310-01 Wireless Sensor Interface Module
Bently Nevada 185310-01 Wireless Sensor Interface Module Configured for wireless sensor network data routing in the Bently Nevada Wireless Sensor Interface Module network, the Bently Nevada 185310-01 (185310 Wireless Sensor Interface Module / Repeater) provides direct physical and electrical execution for ISA100.11a communication and wireless data transmission functions. Hardware Specifications Parameter Specification Model 185310-01 Brand Bently Nevada Product Type Wireless Sensor Interface Module / Repeater Origin USA Weight Approximately 500 g Operating Temp -20 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Humidity Up to 95% RH, non-condensing Power Supply Input 24 VDC external supply Power Consumption <= 2.5 W Wireless Protocol ISA100.11a, IEC 62734 compliant Frequency Band 2.4 GHz ISM Transmit Power Up to +20 dBm Receiver Sensitivity Typically -100 dBm Antenna Interface RP-SMA external antenna connector Enclosure Rating IP30 standard Wireless Network Communication and Mechanical Monitoring Interface The Bently Nevada 185310-01 operates as a wireless routing and repeating node within condition monitoring networks. It transfers sensor measurement data through ISA100.11a communication channels and maintains wireless connectivity between field sensors and centralized monitoring platforms. Moreover, the module supports industrial wireless topology expansion by forwarding sensor data around physical obstructions. The device maintains signal communication paths in areas where direct wireless transmission may be restricted by machinery structures or installation layouts. For Bently Nevada machinery monitoring applications, wireless data handling must maintain measurement integrity for parameters such as vibration and temperature. Therefore, the module design supports continuous transmission of dynamic condition monitoring information to systems such as Bently Nevada System 1. The module also applies industrial signal management methods related to machinery monitoring networks. These include wireless path optimization, communication stability control, and electromagnetic environment adaptation for rotating equipment monitoring applications. Eddy-Current Monitoring Network Data Integration Bently Nevada systems commonly use eddy-current probe technology for shaft displacement and vibration measurement. The 185310-01 does not directly perform probe signal conditioning, but it supports wireless communication paths that transfer condition monitoring data generated by compatible wireless sensors. Furthermore, Bently Nevada monitoring architectures apply gap voltage validation principles, including typical -10 VDC gap voltage targets for eddy-current probe systems. The wireless interface module maintains the communication layer required for transmitting processed machinery health information. The module supports monitoring networks where rotor dynamics information, vibration trends, and machine operating conditions require continuous data availability. In addition, wireless routing functions help reduce communication interruptions caused by structural interference near rotating machinery. Frequently Asked Questions Q: Does the 185310-01 directly connect to Bently Nevada proximity probes?A: No. The 185310-01 functions as a Wireless Sensor Interface Module and repeater. It communicates with compatible wireless sensor networks and does not directly replace eddy-current probe signal conditioners. Q: What power supply does the 185310-01 require?A: The module requires an external 24 VDC power supply input and operates with a power consumption of <= 2.5 W according to the provided specifications. Q: Which wireless protocol does the 185310-01 use?A: The module uses ISA100.11a wireless communication technology compliant with IEC 62734 requirements and operates in the 2.4 GHz ISM frequency band. Field Installation Guidelines Install the 185310-01 in a location that provides sufficient wireless signal coverage between field sensors and the monitoring network infrastructure. Use the recommended RP-SMA antenna connection method and maintain proper antenna positioning according to site wireless installation requirements. Route power wiring separately from high-current motor cables and switching power conductors to reduce electrical interference. Connect cable shields according to site grounding standards to minimize electromagnetic noise coupling. Verify wireless communication paths after installation and confirm stable data transmission before placing the monitoring network into service. Avoid mounting locations with excessive mechanical impact, direct heat sources, or environments outside the specified operating temperature range.
$200.00 $100.00
-

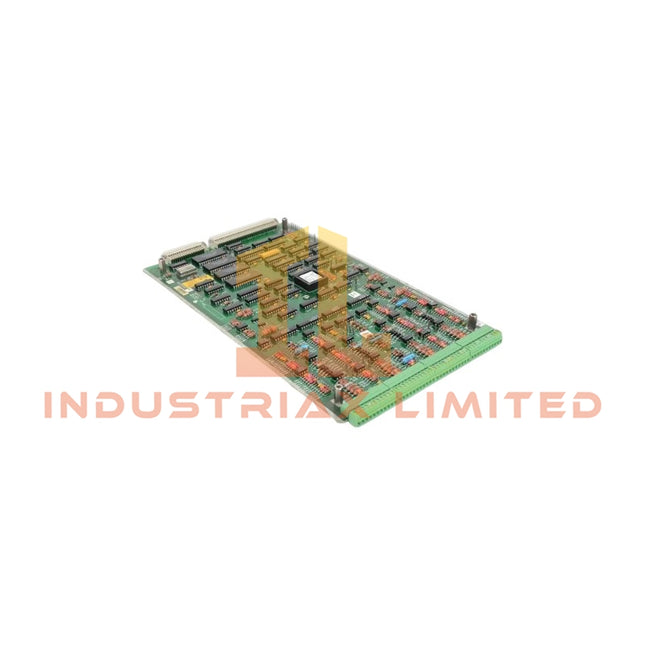

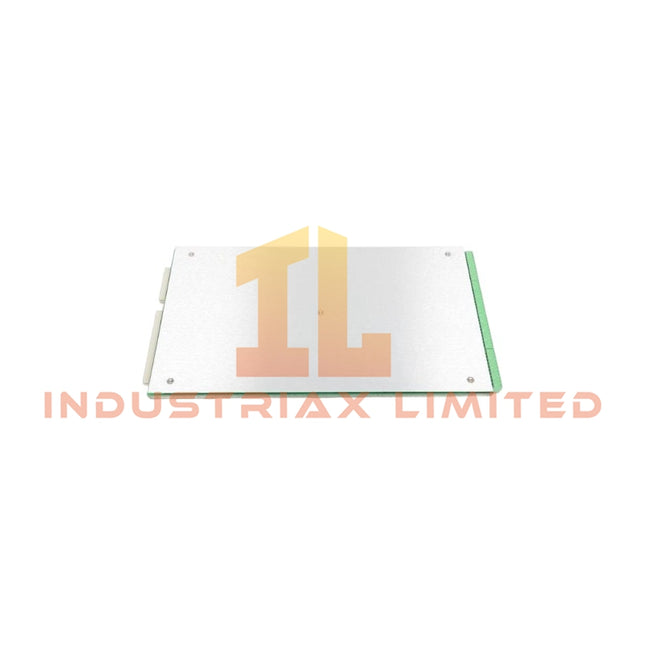

Bently Nevada 103928-02 Keyphasor (KPH) Input Board Bently Nevada
Bently Nevada 103928-02 Keyphasor (KPH) Input Board The Bently Nevada 103928-02, also cataloged as the 103928-02 Keyphasor Input Board, operates as a dedicated hardware component for phase reference signal acquisition within the TDXnet Transient Data Interface system. Hardware Specifications Parameter Specification Model 103928-02 Brand Bently Nevada Product Type Keyphasor (KPH) Input Board / PWA System Platform TDXnet Transient Data Interface Signal Input Type Keyphasor phase reference signals from proximity probes or magnetic pickups Signal Processing Analog signal acquisition and digital conversion Supported Data Static data, orbit data, spectrum data, transient startup and shutdown data Communication Interface Ethernet link to Data Manager through TDXnet architecture Data Buffer Two independent startup/shutdown buffers Origin USA Eddy-Current Probe Scaling and Rotor Dynamics Processing The 103928-02 receives Keyphasor timing pulses from eddy-current probes or compatible speed reference sensors. Therefore, the board provides phase synchronization data for shaft position analysis, orbit calculation, and transient machinery evaluation. The module supports precise reference timing within the TDXnet data acquisition path. Moreover, it allows the monitoring system to correlate vibration signals with shaft rotational position during normal operation, startup, and shutdown conditions. The Keyphasor input architecture applies signal conditioning methods for stable phase measurement. In addition, the system supports rotor dynamics analysis by maintaining accurate timing relationships between vibration channels and shaft reference events. Frequently Asked Questions Q: What type of field signals does the 103928-02 Keyphasor Input Board process?A: The board processes Keyphasor phase reference signals generated by compatible proximity probes or magnetic pickup devices. It converts the input signals for TDXnet transient monitoring functions. Q: Does the 103928-02 provide direct Ethernet communication?A: The board operates as an internal TDXnet hardware component. Ethernet communication occurs through the TDXnet interface architecture and Data Manager connection. Q: Can the module support startup and shutdown data collection?A: Yes. The module operates within the TDXnet system that provides two independent startup/shutdown data buffers for transient event recording. Field Installation Guidelines Install the 103928-02 board only in compatible Bently Nevada TDXnet hardware configurations. Verify connector alignment and seating before system power application. Route Keyphasor signal wiring separately from high-current power cables to reduce electrical interference. Maintain proper shield termination practices for field sensor cables according to site grounding standards. Confirm probe wiring polarity and signal continuity before commissioning. Verify Keyphasor signal amplitude and phase reference behavior during system startup testing.
$200.00 $100.00
-
Bently Nevada 105375-01 LED Indicator Board | Bently Nevada
Bently Nevada 105375-01 LED Indicator Board The Bently Nevada 105375-01, also cataloged as the 105375-01 LED Indicator Board, operates as a dedicated hardware component for local status visualization and diagnostic indication within Bently Nevada 3500 Series and TDXnet Transient Data Interface platforms. Hardware Specifications Parameter Specification Model 105375-01 Brand Bently Nevada (Baker Hughes) Product Type LED Indicator Board / Printed Wiring Assembly (PWA) System Compatibility Bently Nevada 3500 Series / TDXnet Transient Data Interface Origin United States (USA) Weight Approx. 0.3 kg to 0.55 kg Dimensions Approx. 178 x 140 mm Operating Temp 0 deg C to 60 deg C Storage Temperature -40 deg C to 85 deg C Power Consumption Ultra-low power consumption from rack backplane supply Operating Voltage 24 VDC typical backplane power input Mounting Type Direct rack or chassis slot installation Protection Rating IP20 for enclosed industrial chassis applications Diagnostic Function Local LED indication for module status, alarms, and system conditions Rotor Dynamics and TSI Diagnostic Indication Features The Bently Nevada 105375-01 LED Indicator Board supports local diagnostic visibility for machinery monitoring architectures connected through 3500 Series and TDXnet platforms. Moreover, it provides direct visual feedback of system conditions without requiring network communication access. The board operates as a local indication interface for monitoring module states, communication conditions, and alarm outputs generated by the machinery protection system. Therefore, maintenance personnel can verify rack-level operating conditions during troubleshooting activities. In addition, Bently Nevada monitoring platforms use signal processing methods associated with rotor dynamics analysis, including vibration amplitude evaluation, phase relationship monitoring, and machinery condition assessment. The LED indicator hardware supports these systems by displaying operational states associated with processed mechanical measurements. The board architecture supports diagnostic environments where eddy-current probe scaling, gap voltage validation, and signal integrity monitoring are performed by compatible monitoring modules. Furthermore, proper indication logic helps operators identify abnormal conditions related to vibration channels, sensor circuits, or system communication paths. Frequently Asked Questions Q: What is the primary function of the Bently Nevada 105375-01?A: The 105375-01 provides local LED status indication for Bently Nevada machinery monitoring systems. It displays operational states, alarm conditions, and diagnostic information from compatible rack-based modules. Q: Does the 105375-01 process vibration measurement signals directly?A: No. The LED Indicator Board does not perform vibration signal acquisition or analysis. It provides visual indication of status information generated by connected monitoring modules. Q: Can the 105375-01 operate independently outside a Bently Nevada rack system?A: No. The board requires installation within a compatible Bently Nevada chassis environment where it receives power and status signals through the internal rack interface. Field Installation Guidelines Install the 105375-01 only in a compatible Bently Nevada rack or chassis position specified by the system configuration. Verify that the chassis power supply is disconnected before inserting or removing the board. Confirm that the backplane connector is clean and properly aligned before installation. Maintain proper grounding practices for the rack assembly to reduce electrical noise interference. Route signal and communication wiring away from high-current power cables to minimize electromagnetic coupling. Inspect LED operation after installation to confirm correct module status indication. Follow the applicable Bently Nevada system manual for rack configuration, module placement, and maintenance procedures.
$200.00 $100.00
-
Bently Nevada Bently Nevada 105401-02 TDXnet Sampler Backplane Board
Bently Nevada 105401-02 TDXnet Sampler Backplane Board The Bently Nevada 105401-02, also cataloged as the 105401-02 Sampler Backplane Board, operates as a dedicated hardware component for transient data acquisition and signal interface execution within the TDXnet Transient Data Interface system. Hardware Specifications Parameter Specification Model 105401-02 Brand Bently Nevada Product Type Sampler Backplane Board Series TDXnet Transient Data Interface Origin USA Weight Approx. 0.4 kg Power Consumption Backplane dependent, not specified Data Collection Method Parallel multi-channel data sampling Supported Data Types Static data, orbit data, spectrum data, startup/shutdown transient data Communication Interface Ethernet or serial communication link System Function Interface between machinery protection systems and online machinery management software Rotor Dynamics Data Acquisition and Signal Processing The Bently Nevada 105401-02 Sampler Backplane Board manages data exchange between connected machinery monitoring channels and the TDXnet Transient Data Interface architecture. Moreover, it collects steady-state and transient operating information in parallel to support vibration analysis functions. The board processes high-resolution static, orbit, and spectrum data from compatible monitoring channels. In addition, the hardware supports startup and shutdown data buffering through two independent transient collection buffers, allowing separate capture of machine acceleration and deceleration events. For machinery protection applications, the module supports eddy-current probe scaling data handling and gap voltage validation processes. Therefore, the TDXnet interface can maintain accurate proximity measurement data interpretation for rotor displacement monitoring. The architecture also applies signal management techniques to reduce cross-talk effects between vibration measurement channels. Frequently Asked Questions Q: Does the 105401-02 provide direct Ethernet communication capability?A: The 105401-02 operates as part of the TDXnet Transient Data Interface system, which supports Ethernet or serial data transmission paths for communication with compatible machinery management software. Q: What type of vibration data can the 105401-02 process?A: The board supports static values, orbit plots, spectrum information, and transient startup/shutdown data collected from connected monitoring channels. Q: Does the module store startup and shutdown transient records independently?A: Yes. The TDXnet architecture provides two independent startup/shutdown buffers for separate transient event data collection. Field Installation Guidelines Install the 105401-02 Sampler Backplane Board inside the designated TDXnet system chassis according to the equipment hardware configuration requirements. Verify that all backplane connections are fully seated before system power application. Additionally, maintain proper cable routing separation between vibration signal wiring and high-current power conductors to minimize electrical interference. Connect communication cables using the specified Ethernet or serial interface requirements. Furthermore, ensure cable shielding and grounding practices follow the machinery monitoring system installation standards. Before commissioning, confirm channel assignments, sensor input configuration, and data communication status through the compatible Bently Nevada monitoring software.
$200.00 $100.00
-
Bently Nevada Bently Nevada Coiled Interconnect Cable | 80705-01
Bently Nevada 80705-01 Coiled Interconnect Cable The Bently Nevada 80705-01, also cataloged as the 80705-01 Coiled Interconnect Cable, operates as a dedicated hardware component for dynamic vibration signal transmission between field sensors and BNC-equipped diagnostic instruments in Bently Nevada vibration monitoring systems. Hardware Specifications Parameter Specification Model 80705-01 Brand Bently Nevada Origin USA Product Type Coiled 2-Conductor Interconnect Cable Connector A Industrial 2-Pin Sensor Socket Connector B BNC Male Connector Cable Configuration Shielded 2-conductor coiled cable assembly Signal Type Dynamic analog vibration signals Supported Measurements Acceleration, velocity, displacement Retracted Length 0.5 m Extended Length Up to 2.0 m Cable Jacket Material Polyurethane (PU) Environmental Resistance Oil, chemical, moisture, and abrasion resistance Weight Approximately 300 g Power Consumption Passive cable assembly; no external power consumption Rotor Dynamics Signal Transmission and Vibration Interface Characteristics The Bently Nevada 80705-01 cable assembly provides a shielded signal path for vibration measurement circuits connected to portable analyzers and monitoring equipment. Moreover, the cable construction maintains electrical shielding between the sensor output and external interference sources in high-vibration machinery areas. The assembly supports vibration transducer connections commonly used in machinery condition monitoring applications. In addition, the coiled polyurethane jacket reduces mechanical strain during portable measurement operations and maintains cable flexibility during repeated deployment. For Bently Nevada vibration systems, signal integrity depends on proper sensor matching, cable shielding, and connection quality. Therefore, technicians should maintain correct sensor polarity and connector engagement when installing the 80705-01 assembly with vibration measurement equipment. Frequently Asked Questions Q: Does the Bently Nevada 80705-01 cable require external power during operation?A: No. The 80705-01 is a passive interconnect cable assembly and does not consume electrical power. It transfers analog vibration signals between connected sensor devices and monitoring instruments. Q: What type of sensors can connect to the 80705-01 cable?A: The cable uses a 2-pin sensor interface designed for compatible vibration sensors, including moving-coil velocity transducers and related vibration measurement devices. Q: How should the cable shield be handled during installation?A: The shield connection should follow the grounding requirements of the connected monitoring system. Technicians should avoid improper grounding paths that may introduce electrical noise into vibration signals. Field Installation Guidelines Verify that the sensor connector type matches the 2-pin socket interface before installation. Ensure the BNC connector is fully seated on the diagnostic instrument input to prevent intermittent signal transmission. Route the coiled cable away from rotating shafts, coupling guards, and high-temperature surfaces. Maintain proper cable separation from high-current power wiring to reduce electromagnetic interference. Inspect the polyurethane jacket and connectors before field use to confirm there is no physical damage. Avoid excessive stretching of the coiled section beyond its intended extension range.
$200.00 $100.00
-
Bently Nevada 165844-14 3300 XL 8mm Proximity Probe | Bently Nevada
Bently Nevada 165844-14 3300 XL 8mm Proximity Probe The Bently Nevada 165844-14, also cataloged as the 165844-14 Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within the 3300 XL 8 mm Proximity Transducer System. Hardware Specifications Parameter Specification Model 165844-14 Brand Bently Nevada (Baker Hughes) Product Type Eddy Current Proximity Sensors Series 3300 XL 8 mm Proximity Transducer System Operating Principle Eddy current sensing technology Scale Factor / Sensitivity 7.87 V/mm (200 mV/mil) Frequency Response 0 to 10 kHz Integrated Cable Length 1.4 m Tip Material Polyphenylene Sulfide (PPS) Output Interface Analog voltage proportional to probe gap System Compatibility 3300 XL Proximitor sensors with matching extension cables Origin USA Weight Approximately 0.3 kg to 0.8 kg depending on mounting assembly Operating Temp -35 deg C to +85 deg C Power Consumption Passive probe element; powered through connected Proximitor sensor Eddy Current Probe Scaling and Rotor Dynamics Monitoring The 165844-14 uses eddy current probe scaling to convert shaft displacement changes into proportional electrical signals. Moreover, the probe maintains a nominal sensitivity of 200 mV/mil for compatibility with the 3300 XL monitoring architecture. The sensor detects dynamic shaft movement without mechanical contact. Therefore, it supports rotor dynamics analysis by providing continuous displacement information for vibration monitoring, axial position measurement, and mechanical clearance evaluation. In addition, the probe design incorporates signal conditioning characteristics that support cross-talk suppression when installed with adjacent proximity measurement channels. The PPS probe tip material maintains electrical stability under exposure to industrial lubricants and operating environments. Frequently Asked Questions Q: Does the 165844-14 require direct electrical power at the probe tip?A: No. The proximity probe receives excitation through the connected 3300 XL Proximitor sensor. The probe itself functions as a passive eddy current sensing element. Q: What type of measurement signal does the 165844-14 provide?A: The probe provides a voltage output proportional to the physical gap between the probe tip and the rotating shaft target surface through the connected signal conditioning module. Q: Can the 165844-14 measure shaft vibration without physical contact?A: Yes. The probe measures shaft displacement through an electromagnetic eddy current field and maintains a non-contact sensing distance during operation. Field Installation Guidelines Install the 165844-14 with the probe tip aligned toward the conductive shaft target surface according to the 3300 XL system installation requirements. Maintain proper cable routing practices to reduce electromagnetic interference. Furthermore, separate probe cables from high-current power conductors and use appropriate grounding methods at the monitoring system side. Verify the probe gap voltage during commissioning to confirm correct mechanical positioning. For Bently Nevada proximity systems, technicians commonly validate the operating gap near the -10 VDC target value when configuring the Proximitor measurement loop. Inspect the integrated cable and connector interface before installation. Avoid sharp bending, excessive mechanical stress, or contact with moving machine components.
$200.00 $100.00
-

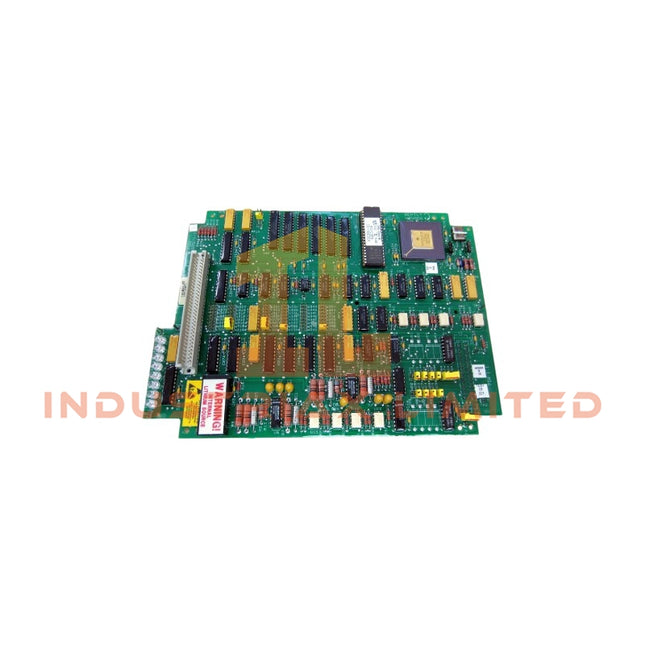

Bently Nevada Bently Nevada 87870-01 Serial Data Interface Module

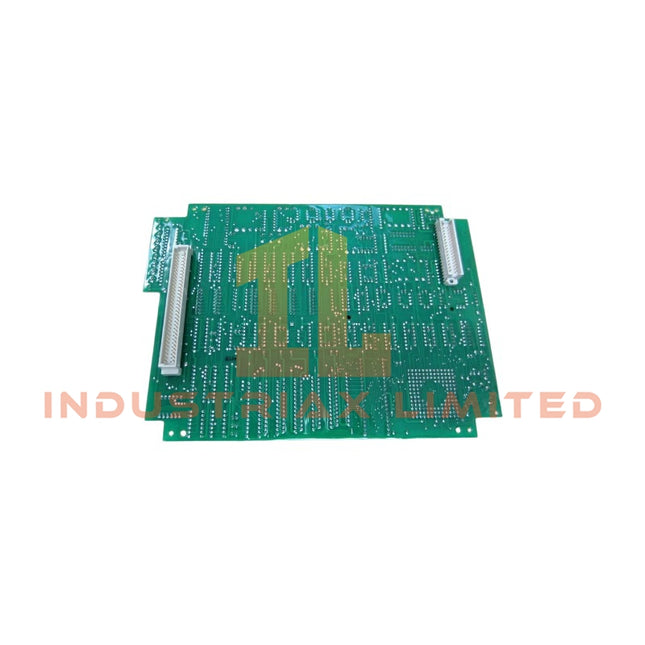

Bently Nevada 87870-01 Serial Data Interface Module The Bently Nevada 87870-01, also cataloged as the 87870-01 Serial Data Interface Module, operates as a dedicated hardware component for serial data transfer and display communication within Bently Nevada 3300/3500 monitoring system platforms. Hardware Specifications Parameter Specification Model 87870-01 / PWA 87870-01 Brand Bently Nevada (Baker Hughes) Origin USA Product Type Serial Data Interface Module / Circuit Board Application System Bently Nevada 3300/03 System Monitor and 3500 series display link Weight 0.15 kg to 0.32 kg Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity Up to 95% non-condensing Power Consumption Supplied from system rack/backplane Backplane Interface 32-pin and 64-pin connectors Communication Interface Serial output, RS-232C compatible layout Baud Rate 300 to 19,200 baud Data Format 8 data bits, 1 stop bit, no parity Diagnostic Indicators 8 clear/white LEDs Isolation Voltage 500 V DC output to ground isolation PCB Construction Multilayer PCB with EMI/RFI shielding design Eddy-Current Signal Processing and Machinery Monitoring Interface The Bently Nevada 87870-01 processes serial communication signals between monitoring hardware and external display or computer interfaces. Moreover, the board supports machinery condition data transfer associated with vibration monitoring, thrust position monitoring, and alarm status communication. The module operates within Bently Nevada machinery protection architectures where eddy-current probe scaling and gap voltage validation functions define accurate displacement measurement behavior. Therefore, proper signal conditioning and stable backplane communication help maintain measurement consistency between monitoring channels and supervisory interfaces. The board design also supports rotor dynamics monitoring applications by maintaining controlled signal paths and reducing interference effects. In addition, the multilayer PCB structure provides cross-talk suppression characteristics required for high-density machinery monitoring environments. Frequently Asked Questions Q: Does the 87870-01 module require an external power supply?A: No. The module receives operating power directly from the monitoring system rack/backplane interface. Q: What serial communication parameters does the 87870-01 support?A: The module supports serial communication with baud rates from 300 to 19,200 baud using 8 data bits, 1 stop bit, and no parity format. Q: Does the 87870-01 provide electrical isolation for signal protection?A: Yes. The module provides 500 V DC isolation from outputs to ground to reduce electrical noise coupling. Field Installation Guidelines Install the 87870-01 only in compatible Bently Nevada monitoring racks and verify backplane connector alignment before insertion. Inspect the 32-pin and 64-pin connectors for contamination, oxidation, or mechanical damage before installation. Use proper grounding practices for rack assemblies to maintain signal reference stability. Maintain separated routing between serial communication wiring and high-current power cables to reduce electromagnetic interference. Verify diagnostic LED status after installation to confirm board communication and system operation. Follow the applicable Bently Nevada system manual for rack configuration, module addressing, and maintenance procedures.
$200.00 $100.00
-
Bently Nevada Bently Nevada 185410-01 Wireless Sensor Interface Module

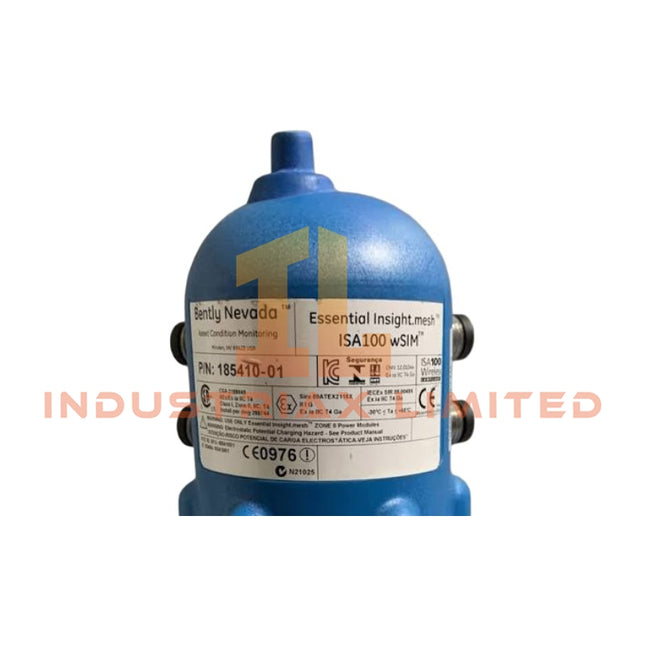

Bently Nevada 185410-01 Wireless Sensor Interface Module Configured for wireless vibration and temperature data acquisition in the Essential Insight.mesh Wireless System, the Bently Nevada 185410-01 (185410-01 Wireless Sensor Interface Module) provides direct physical and data communication execution for ISA100.11a sensor networks. Hardware Specifications Parameter Specification Model 185410-01 Brand Bently Nevada Product Type Wireless Sensor Interface Module (wSIM) System Platform Essential Insight.mesh Wireless System Wireless Protocol ISA100.11a compatible Network Architecture Self-forming and self-healing mesh network Origin United States (US) Weight Approximately 0.8 kg Dimensions Approximately 16 cm x 16 cm x 12 cm Operating Temp Not specified in available technical data Power Consumption Battery powered; field-replaceable Zone 0 Battery Power Module Battery Service Life Up to 3 years under standard configurations Channel Quantity 4 independent simultaneous-sampling channels Supported Sensors Bently Nevada 200150, 200155, 200157 accelerometers; 200125 K-type thermocouple; J, T, and E-type thermocouples Measurement Functions Acceleration, Velocity, Acceleration Enveloping, Temperature Static Data Rate Configurable from once per minute to once per day Dynamic Resolution Up to 3,200 lines Frequency Range 0 Hz to 100 Hz up to 0 Hz to 10,000 Hz Maximum Wireless Range Up to 200 m clear line-of-sight Hazardous Area Rating Zone 0 compatible design HS Code 85389091 Rotor Dynamics and Wireless Vibration Data Processing The Bently Nevada 185410-01 collects dynamic vibration signals through four configurable acquisition channels and transfers processed condition monitoring data through the ISA100.11a wireless mesh network. Moreover, the module supports vibration parameters including acceleration, velocity, and acceleration enveloping for machinery trend analysis. The device operates as a scanning platform rather than a machinery protection shutdown module. Therefore, it performs condition monitoring data collection and waveform transmission without executing automatic trip functions. The wireless interface architecture maintains mesh communication paths between sensor nodes and System 1 DAQ infrastructure. In addition, the module supports asynchronous waveform acquisition, spectrum analysis, and Data-on-Demand functions for vibration diagnostics. For Bently Nevada monitoring systems, measurement accuracy depends on correct sensor configuration, signal scaling, and mechanical installation conditions. Furthermore, vibration channel setup must maintain proper signal routing to avoid measurement interference and cross-talk effects between connected sensing elements. Frequently Asked Questions Q: How many measurement channels are available on the Bently Nevada 185410-01?A: The module provides four independent simultaneous-sampling channels, and each channel can be configured separately for supported vibration or temperature sensors. Q: Can the 185410-01 perform automatic machinery shutdown protection?A: No. The module functions as a condition monitoring scanning device and transfers diagnostic data to System 1 software. It does not provide direct machinery trip logic. Q: Which sensor types can connect to the 185410-01?A: The module supports Bently Nevada 200150, 200155, and 200157 accelerometers, along with K-type 200125 thermocouples and standard J, T, and E-type thermocouples. Field Installation Guidelines Install the Bently Nevada 185410-01 on a rigid machine structure location that represents the measured vibration source. Ensure the mounting surface remains clean, flat, and free from loose mechanical contact. Route sensor wiring separately from high-voltage power cables and strong electromagnetic interference sources. Use proper cable shielding and grounding practices according to plant electrical standards. Verify wireless network placement before final commissioning. Maintain clear communication paths between wireless nodes whenever possible to improve mesh network performance. Confirm sensor type configuration, measurement range settings, and acquisition parameters before collecting baseline vibration data. Check mechanical mounting integrity and verify that all connected sensors operate within their specified installation requirements.
$200.00 $100.00
-

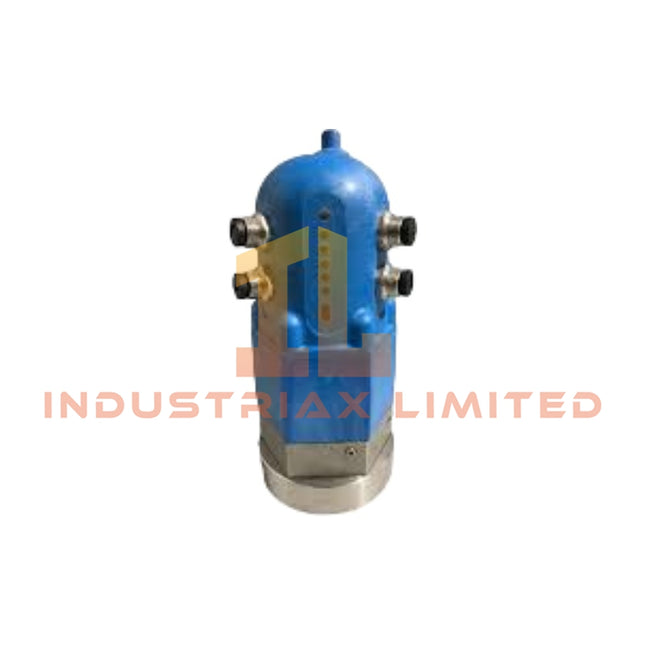

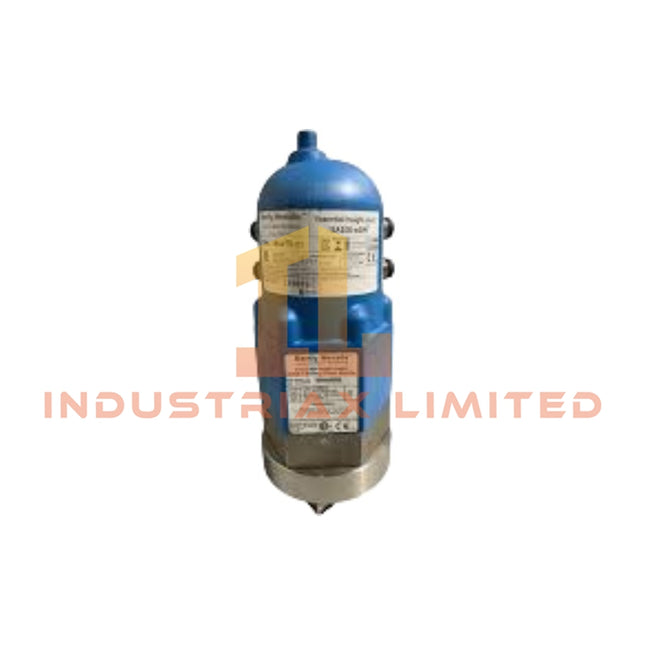

Bently Nevada Bently Nevada 185450-01 Essential Insight.mesh ISA100 Repeater
Bently Nevada 185450-01 Essential Insight.mesh ISA100 Repeater Configured for wireless data routing in the Essential Insight.mesh Wireless System, the Bently Nevada 185450-01 (185450-01 ISA100 Repeater) provides direct network communication execution for extending mesh transmission paths between wireless sensor interface modules and manager gateways. Hardware Specifications Parameter Specification Model Bently Nevada 185450-01 Brand Bently Nevada Product Type ISA100 Wireless Repeater System Platform Essential Insight.mesh Wireless System Communication Protocol ISA100.11a compatible Network Structure Auto-forming, self-healing wireless mesh network Data Security 128-bit encryption with dynamically updated multiple encryption keys Maximum Wireless Range Up to 200 m unobstructed line-of-sight between devices Installation Height Reference Approximately 3 m above ground level for specified range conditions Origin United States (USA) Weight Approximately 0.5 kg to 0.8 kg Dimensions Approximately 16 cm x 16 cm x 12 cm Operating Temp Performance may reduce outside approximately -20 deg C to 60 deg C operating conditions Storage Temperature -40 deg C to 85 deg C Vibration Resistance 5 g peak along any axis Relative Humidity 100% RH condensing with suitable weatherproof installation Power Consumption Not specified in available technical documentation Software Compatibility System 1 classic software version 6.90 or later Supported Devices Manager Gateways and wireless Sensor Interface Modules (wSIM) Measurement Data Routing Acceleration, velocity, acceleration enveloping, and temperature measurement data Wireless Mesh Network Routing and Machinery Monitoring Integration The 185450-01 operates as an ISA100 wireless routing node inside the Essential Insight.mesh network. It receives wireless packets from connected sensor interface modules and forwards measurement data toward the manager gateway through available mesh paths. Moreover, the repeater automatically participates in network formation and path adjustment functions. The self-healing topology allows communication routes to change when physical obstructions or signal path variations occur. The module transfers vibration and temperature measurement data generated by compatible Bently Nevada wireless monitoring devices. It supports data streams associated with accelerometers and thermocouple inputs, including acceleration, velocity, acceleration enveloping, and temperature values. Eddy-Current Signal Network Scaling and Rotor Monitoring Compatibility Bently Nevada machinery monitoring systems use signal conditioning principles associated with rotor dynamics analysis, vibration measurement scaling, and shaft behavior evaluation. The 185450-01 does not directly process eddy-current probe signals; however, it transfers wireless measurement data generated by compatible monitoring devices within the Essential Insight.mesh architecture. Furthermore, the wireless infrastructure supports condition monitoring workflows where vibration data evaluation requires accurate signal transmission between field sensors and System 1 analysis software. The network design maintains measurement data integrity through encrypted communication and managed wireless routing. Frequently Asked Questions Q: Does the Bently Nevada 185450-01 provide machinery protection trip functions?A: No. The 185450-01 operates as a wireless communication repeater for condition monitoring data transmission. It does not execute machinery shutdown, trip logic, or safety protection functions. Q: Which software platform receives data routed through the 185450-01?A: The repeater operates with Essential Insight.mesh components connected to System 1 classic software version 6.90 or later for data collection and diagnostic analysis. Q: Can the 185450-01 operate without wireless sensor interface modules?A: No. The repeater functions as part of the Essential Insight.mesh network and requires compatible wireless devices, including manager gateways and wSIM modules, for complete communication operation. Field Installation Guidelines Install the 185450-01 in a location that maintains sufficient wireless communication paths between field sensors and the manager gateway. Avoid placing the repeater behind large metallic structures or within enclosed areas that can reduce radio signal propagation. Use the approved weatherproof housing and industrial cable sealing methods when installing the device in outdoor or high-humidity environments. Verify mechanical mounting stability and maintain proper grounding practices according to site electrical standards. Route wireless and power-related wiring away from high-current conductors, variable frequency drive output cables, and strong electromagnetic interference sources. Confirm network communication status after installation and verify that connected wireless sensor devices report valid measurement data.
$200.00 $100.00
-
Bently Nevada Bently Nevada 100A1000 High Sensitivity Piezoelectric Accelerometer
Bently Nevada 100A1000 High Sensitivity Piezoelectric Accelerometer The Bently Nevada 100A1000-01, also cataloged as the 100A1000 High Sensitivity Piezoelectric Accelerometer, operates as a dedicated hardware component for casing vibration measurement within Bently Nevada machinery monitoring systems. Hardware Specifications Parameter Specification Model 100A1000 / 100A1000-01 Brand Bently Nevada Product Type Piezoelectric Accelerometers Origin USA Sensor Type High Sensitivity Piezoelectric Accelerometer Measurement Function Dynamic casing vibration acceleration measurement Signal Output Acceleration proportional analog vibration signal Sensitivity High output sensitivity for low amplitude and high frequency vibration detection Frequency Response Optimized for bearing, gear mesh, and structural vibration analysis Mounting Type Threaded stud mount or fixed base mounting Enclosure Material Corrosion-resistant industrial housing Weight Approximately 1200 g depending on assembly configuration Dimensions Not specified in available technical documentation Operating Temp -20 deg C to +60 deg C Power Consumption Passive piezoelectric sensor, external signal conditioning required Cable Connection Integral cable or industrial multi-pin connection options Rotor Dynamics and Vibration Signal Characteristics The Bently Nevada 100A1000 uses piezoelectric sensing technology to convert mechanical casing vibration into an electrical acceleration signal. Therefore, the sensor captures high-frequency vibration components generated by rolling-element bearing defects, gear mesh irregularities, and mechanical looseness conditions. In addition, the sensor output can be processed through Bently Nevada monitoring platforms for vibration trend analysis and machine condition evaluation. The measurement path focuses on casing acceleration behavior rather than shaft displacement, making it suitable for applications where high-frequency mechanical events require detection. The installation environment requires controlled mechanical coupling between the accelerometer base and the monitored structure. Moreover, proper mounting surface preparation reduces measurement errors caused by poor contact conditions or external mechanical interference. Frequently Asked Questions Q: Does the Bently Nevada 100A1000 require external signal conditioning before connection to a monitoring system?A: Yes. The piezoelectric accelerometer generates an acceleration signal that normally requires compatible signal conditioning hardware before connection to monitoring or acquisition equipment. Q: Can the 100A1000 directly measure shaft displacement like an eddy-current proximity probe?A: No. The 100A1000 measures casing acceleration vibration and does not provide shaft relative displacement measurement. Q: What installation factors affect vibration measurement accuracy?A: Mounting surface condition, mechanical coupling quality, cable routing, and electrical noise control directly influence measured vibration signal quality. Field Installation Guidelines Install the Bently Nevada 100A1000 on a clean, flat machine casing surface with sufficient mechanical contact between the sensor base and the mounting location. Use appropriate threaded mounting hardware and maintain firm mechanical fastening to prevent false vibration signals caused by sensor movement. Additionally, route the sensor cable away from high-current power lines and electromagnetic interference sources. For shielded cable installations, connect the shield according to the monitoring system grounding design. Avoid unnecessary cable loops and protect the cable from excessive bending, vibration fatigue, and mechanical damage. Before commissioning, verify the sensor signal path through the connected monitoring hardware and confirm that vibration readings correspond with actual machine operating conditions.
$200.00 $100.00
-
Bently Nevada Bently Nevada 350500-00-00-00-01-01 Dynamic Pressure Charge Amplifier
Bently Nevada 350500-00-00-00-01-01 Dynamic Pressure Charge Amplifier Configured for dynamic pressure signal conditioning in Bently Nevada machinery monitoring platforms, the Bently Nevada 350500-00-00-00-01-01 (350500 Dynamic Pressure Charge Amplifier) provides direct physical signal conversion from piezoelectric pressure sensor charge output to low-impedance voltage transmission. Hardware Specifications Parameter Specification Model 350500-00-00-00-01-01 Brand Bently Nevada Origin USA Dimensions DIN rail mounting enclosure; exact dimensions not specified Operating Temp Industrial installation environment; calibration reference at 23 deg C +/- 2 deg C Power Consumption Powered by -24 VDC supply; exact consumption not specified Product Type Dynamic Pressure Charge Amplifier Input Signal High-impedance piezoelectric sensor charge signal Input Sensitivity 16 pC/psi (232 pC/bar) Output Signal Low-impedance voltage output Output Sensitivity 100 mV/psi (1.45 V/bar) Power Input -24 VDC Mounting Method 35 mm DIN rail mounting Hazardous Area Rating CSA/NRTL/C Class I Division 2 Groups A, B, C, D; ATEX/IECEx Zone 2 when installed in approved enclosure Signal Interface Compatible with Bently Nevada dynamic pressure monitoring systems Eddy Current and Rotor Dynamics Signal Integration The 350500 Dynamic Pressure Charge Amplifier processes piezoelectric sensor charge signals before connection to vibration and combustion monitoring systems. Moreover, the module applies charge-to-voltage conversion to maintain signal integrity when sensor outputs require extended field transmission distances. The device operates within Bently Nevada machinery monitoring architectures where signal scaling and measurement validation are required. In addition, the signal conditioning approach supports integration with systems such as the Bently Nevada 3500/64 Dynamic Pressure Monitor and Orbit 60 platforms. The module design follows Bently Nevada mechanical monitoring principles, including controlled signal scaling and interference reduction practices used in rotating equipment applications. Therefore, the charge amplifier helps maintain accurate dynamic pressure measurement data for rotor-related analysis and combustion pressure monitoring. Frequently Asked Questions Q: What type of sensor signal does the Bently Nevada 350500-00-00-00-01-01 accept?A: The module accepts high-impedance charge output signals from piezoelectric dynamic pressure sensors and converts them into low-impedance voltage signals. Q: Can the 350500-00-00-00-01-01 connect directly to standard vibration probes?A: No. The unit is designed for dynamic pressure charge sensors and is not an eddy-current proximity probe interface. Q: What installation consideration applies to hazardous area operation?A: Hazardous area installations require compliance with the applicable CSA, ATEX, or IECEx enclosure and installation requirements. Field Installation Guidelines Install the module on a standard 35 mm DIN rail inside an approved control cabinet or junction enclosure. Use shielded signal wiring between the piezoelectric pressure sensor and the charge amplifier input. Connect cable shields according to site grounding practices to reduce electromagnetic interference. Separate dynamic pressure signal cables from high-current power wiring and switching circuits. Verify the -24 VDC supply polarity before energizing the module. Confirm sensor sensitivity settings match the configured 16 pC/psi input scaling before commissioning. Inspect connector seating and cable routing before performing signal validation tests.
$200.00 $100.00
