Description

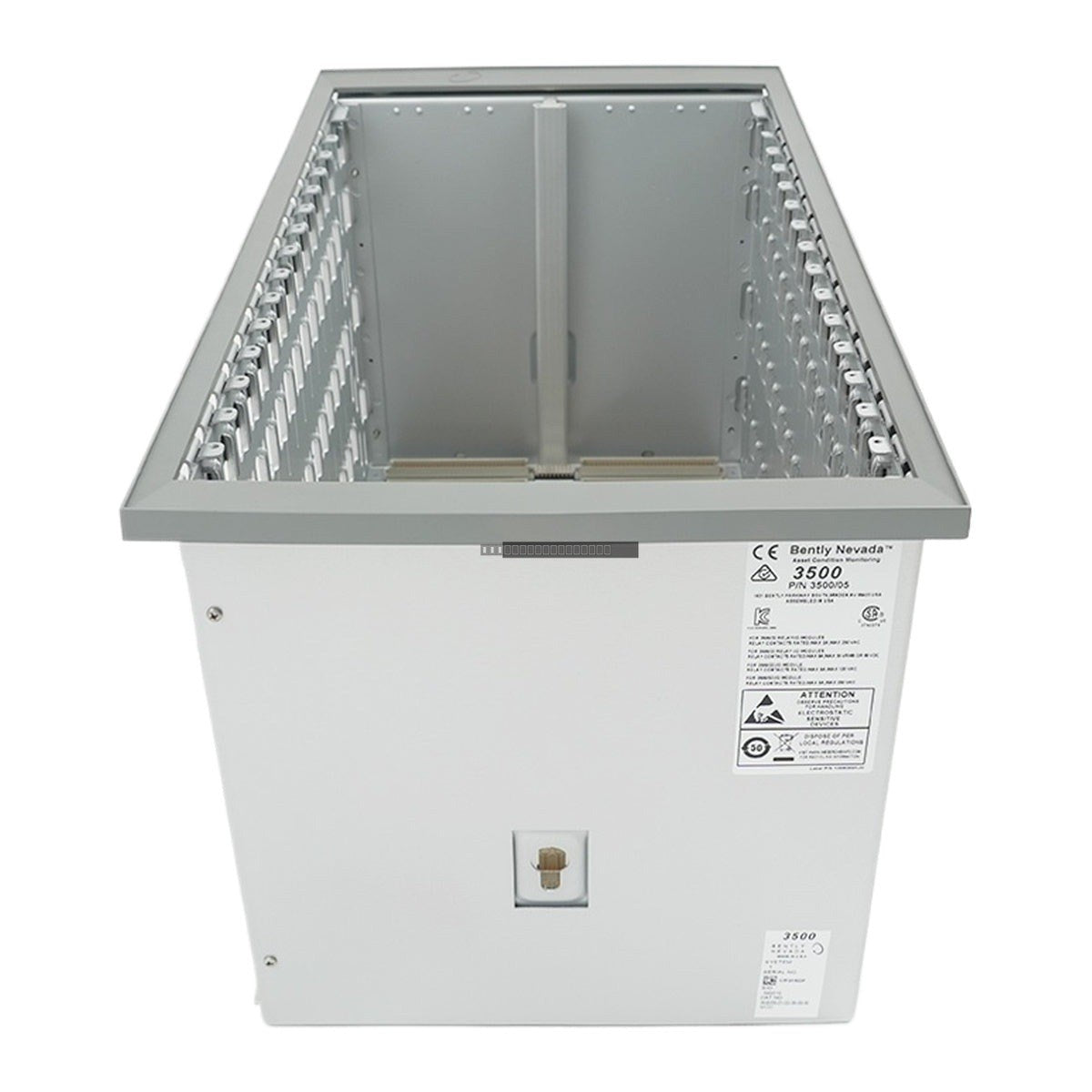

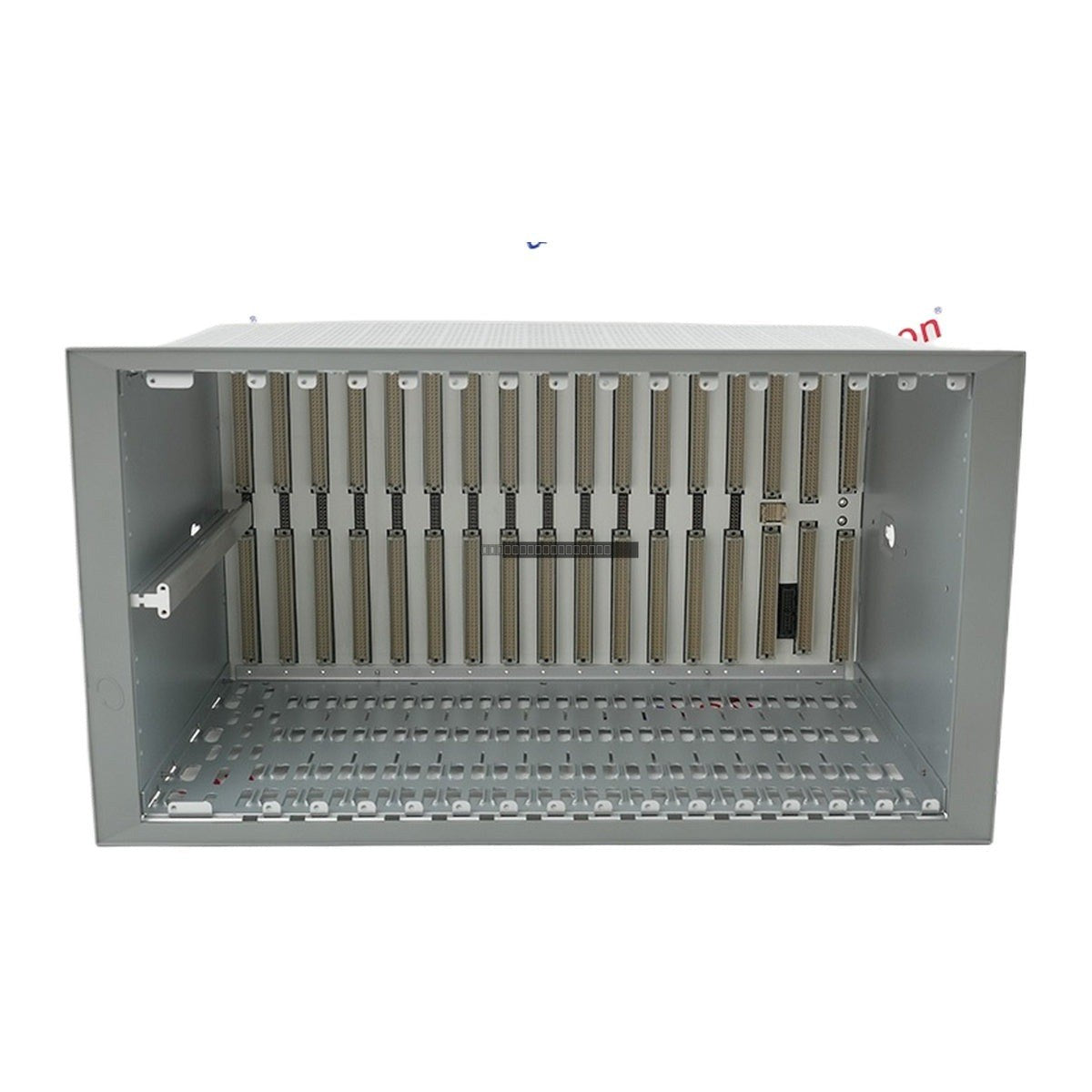

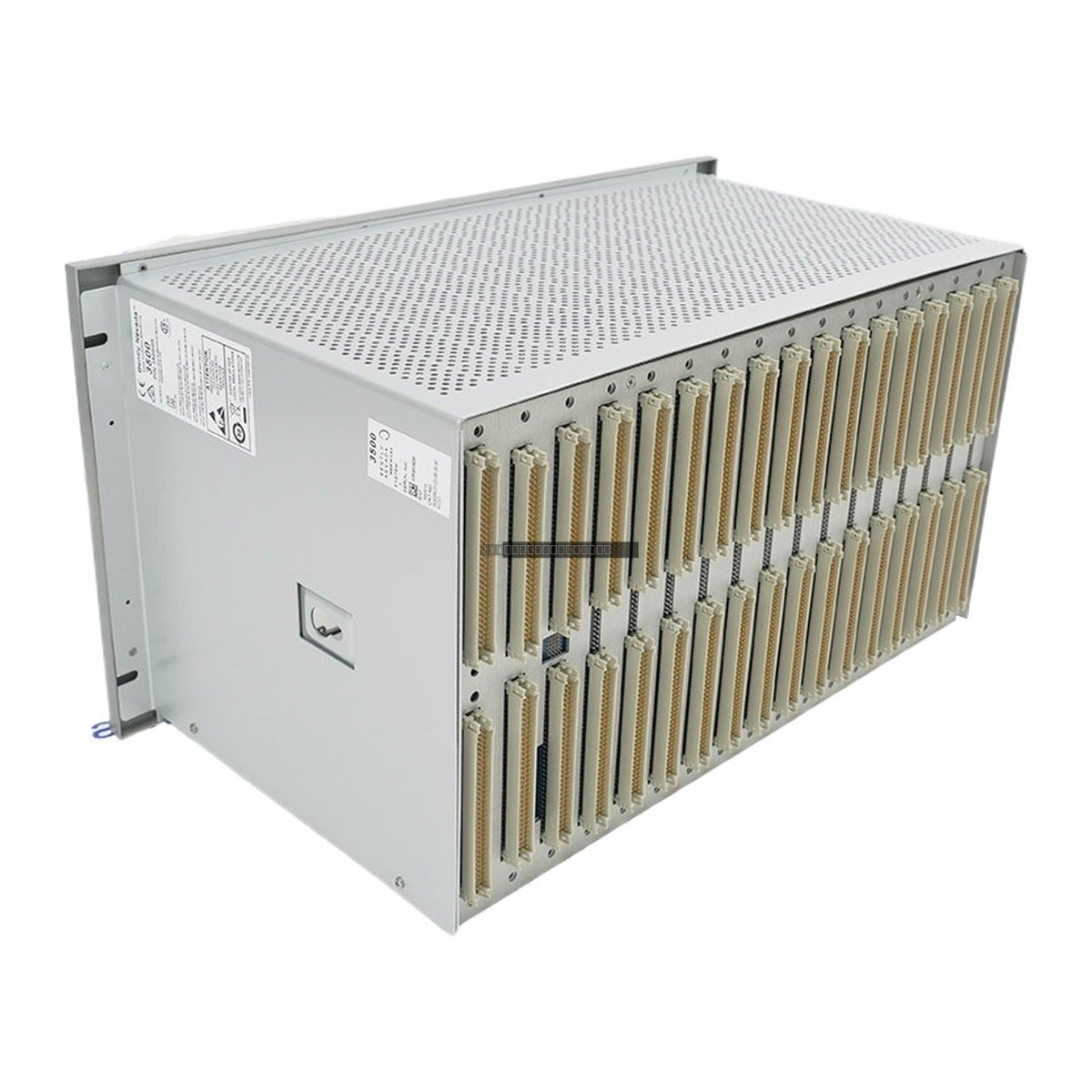

The Bently Nevada 3500/05-01-02-00-00-00 is a full-size 19-inch system rack designed for the 3500 Machinery Protection System. It serves as the central platform for housing monitor modules, power supplies, communication modules, and the Rack Interface Module (RIM). The rack provides the essential backplane infrastructure for power distribution and high-speed data communication across the entire monitoring system.
Features
- 19-inch EIA rack format with 14 available module slots.
- Provides dedicated slots for power supplies and Rack Interface Module (RIM) on the far-left side.
- Supports integration of monitor modules, relay modules, Keyphasor modules, and communication gateways.
- Backplane design facilitates real-time data sharing via the proprietary TDI bus.
- Robust construction suitable for industrial control rooms and equipment monitoring cabinets.
Applications
- Oil & Gas: Production, refining, and pipeline monitoring.
- Power Generation: Nuclear, fossil fuel, and renewable energy plants.
- Chemical Processing: Monitoring large-scale reactors and processing machinery.
- Manufacturing: Pulp and paper, steel, and cement production.
Technical Specifications
| Model |
3500/05-01-02-00-00-00 |
| Rack Size |
19-inch (Full-Size) |
| Module Slots |
14 (plus 3 reserved for power/RIM) |
| Mounting |
Rack Mount (19-inch EIA) |
| Operating Temperature |
-20 degC to +65 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5% to 95% (non-condensing) |
Installation Guidelines
- Ensure the rack is mounted in a stable, vibration-dampened environment suitable for sensitive electronic instrumentation.
- The power supplies and Rack Interface Module must occupy the three leftmost slots.
- Use a grounded wrist strap when handling modules or touching internal backplane components to prevent ESD damage.
- Ensure adequate ventilation around the rack to maintain operating temperatures within the specified range.
- Verify all rear-panel wiring connections are secure before applying system power.
- Store and transport modules in electrically conductive bags or foil to prevent static accumulation.
FAQ
What is the function of the 3500/05 rack?
It acts as the physical housing and communication backplane for the 3500 series, allowing modules to share data and receive regulated DC power.
What is the power distribution capability?
The rack is designed to house one or two 3500 rack power supplies, which convert line power and distribute it to all installed modules.
What are the mounting options?
This specific model is configured for 19-inch EIA rack mounting. Other configurations include panel mount and bulkhead mount formats.
