DescriptionThe Foxboro FBM204 (P0914FB) is a high-performance combined analog input and output interface module designed for the I/A Series Distributed Control System (DCS). This module provides four 0 to 20 mA analog input channels and four 0 to 20 mA analog output channels within a single compact footprint. By integrating both input and output functions, the FBM204 optimizes cabinet space and reduces hardware complexity in demanding industrial environments such as chemical processing, water treatment, and pharmaceutical manufacturing. It features high-speed signal processing and galvanic isolation to maintain process variable accuracy and system stability.Features
4-channel analog input (0 to 20 mA) and 4-channel analog output (0 to 20 mA).
Galvanic isolation between channel groups, internal logic, and the Fieldbus to mitigate ground loops and common-mode noise.
Supports redundant Fieldbus communication paths for high availability.
Configurable fail-safe states for output channels (hold last value or predefined safe state).
Comprehensive self-diagnostics for ADC/DAC integrity and power supply monitoring.
ApplicationsThe FBM204 is ideal for precision PID control loops where reliable signal conversion is required. Typical applications include driving field actuators and valves, monitoring process transmitters, and managing complex control loops in distributed control architectures.Technical Specifications
Model
FBM204 (P0914FB)
Input Channels
4 (0 to 20 mA DC)
Output Channels
4 (0 to 20 mA DC)
Input Impedance
250 Ohms (nominal)
Output Load
750 Ohms (maximum)
Accuracy
+/- 0.03% of span
Resolution
15-bit (Input), 13-bit (Output)
Power Consumption
4 Watts (max)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to +70 deg C
Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the baseplate.
The module is designed for mounting on standard I/A Series baseplates; ensure proper seating to maintain electrical connection.
Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI interference.
Maintain proper grounding practices for the cabinet and signal shields to prevent ground loops.
Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.
Handle with ESD-safe precautions to prevent damage to internal sensitive electronic components.
FAQWhat is the primary function of the FBM204?The FBM204 is a combined I/O module that provides 4 analog inputs and 4 analog outputs, allowing for efficient integration of field devices into the Foxboro I/A Series DCS.Does this module support redundant communication?Yes, the FBM204 supports redundant communication paths via the 2 Mbps Fieldbus when installed on a compatible redundant baseplate.What happens if communication is lost?The module can be configured to either hold the last known output value or transition to a predefined safe state upon loss of communication.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MC-GAIH84 is a high-reliability Field Termination Assembly (FTA) engineered for the secure and efficient termination of analog field signals within Honeywell distributed control systems. This assembly serves as a critical interface layer, facilitating the connection between field instrumentation and the control system input modules. By providing a robust physical termination point, it ensures signal integrity and simplifies maintenance procedures in demanding industrial environments.Features
Designed for stable 4-20 mA analog signal acquisition.
Supports integration with High Level Analog Input (HLAI) systems.
Robust terminal interface designed for secure wiring in vibration-prone environments.
Facilitates organized signal routing between field devices and the control cabinet.
Engineered for high-availability process control applications.
ApplicationsThis termination assembly is widely utilized in large-scale industrial process control environments, including:
Oil and gas refining facilities.
Power generation plants.
Chemical and petrochemical processing units.
Water and wastewater treatment infrastructure.
Technical Specifications
Model
MC-GAIH84
Brand
Honeywell
Product Type
Field Termination Assembly
Signal Compatibility
4-20 mA Analog
Connection Type
Crimp Terminal
Installation Guidelines
Ensure the control system is powered down before installing or removing the assembly to prevent electrical damage.
Mount the FTA securely within the designated control cabinet, ensuring adequate clearance for cable routing and heat dissipation.
Use appropriate wire gauges and crimping tools to ensure mechanical stability at the terminal connections.
Follow standard industrial grounding practices to minimize EMI/RFI interference.
Maintain proper cable separation between signal lines and high-voltage power lines to preserve signal integrity.
FAQWhat is the primary function of the MC-GAIH84?The MC-GAIH84 acts as a Field Termination Assembly, providing a structured and reliable physical interface for connecting field-based analog instrumentation to the Honeywell control system input modules.Is this module suitable for high-vibration environments?Yes, the assembly is designed with robust terminal connections intended to maintain mechanical and electrical stability in industrial settings where vibration is present.What type of signals does this FTA support?It is specifically designed for 4-20 mA analog signal loops, commonly used for process variables such as pressure, temperature, and flow measurement.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746SC-IA8I is a high-performance isolated digital input module designed for use with the SLC 500 programmable logic controller platform. Manufactured by Spectrum Controls, this module provides eight individually isolated 100/120V AC/DC digital inputs, ensuring robust signal integrity and protection against ground loops in complex industrial control environments. It is engineered to integrate seamlessly into existing SLC 500 chassis configurations.Features
8 individually isolated input points, providing 1 point per common for maximum flexibility.
Compatible with 100/120V AC/DC signal levels.
Designed specifically for the Allen-Bradley SLC 500 system architecture.
High-density I/O design to optimize rack space.
Robust isolation to mitigate electrical noise and interference.
ApplicationsThis module is ideal for industrial automation applications where electrical isolation between input channels is required to prevent cross-talk or ground-related faults. Common use cases include monitoring AC/DC sensors, limit switches, and push-button signals in manufacturing lines, power distribution panels, and process control systems.Technical Specifications
Model
1746SC-IA8I
Input Type
Isolated Digital Input
Number of Inputs
8
Voltage Rating
100/120V AC/DC
Nominal Input Current
16 mA @ 120V AC
Max Off-state Current
4 mA @ 20V AC
Max Power Dissipation
4 W
Manufacturer
Allen-Bradley / Spectrum Controls
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
Seat the module firmly into the designated slot in the SLC 500 chassis and secure it using the integrated locking mechanism.
Ensure that field wiring is properly shielded and routed away from high-voltage AC lines to minimize EMI.
Verify that the common connections for each isolated input are correctly wired according to the specific application requirements.
FAQIs the 1746SC-IA8I compatible with standard SLC 500 racks?Yes, this module is designed to be fully compatible with the standard Allen-Bradley SLC 500 chassis backplane.Does this module require external power for the inputs?The module receives its backplane power from the SLC 500 chassis, but the input signals themselves must be powered by an external 100/120V AC/DC source.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6GK7343-1EX30-0XE0 is a high-performance communications processor designed for the SIMATIC S7-300 PLC system. This CP 343-1 module facilitates seamless integration of S7-300 controllers into Industrial Ethernet networks, supporting both ISO and TCP/IP protocols. It serves as a robust gateway for data exchange, supporting PROFINET IO controller or device functionality, and features an integrated 2-port switch (ERTEC 200) for efficient network topology management.Features
Integrated 2-port switch (ERTEC 200) for direct connection to Industrial Ethernet.
Supports PROFINET IO controller and PROFINET IO device roles.
Communication protocols: S7 communication, Fetch/Write, SEND/RECEIVE via RFC1006, multicast, and DHCP.
Dual RJ45 ports for 10/100 Mbit/s LAN connectivity.
Supports NTC-CPU synchronization with or without diagnostics.
Remote initialization via LAN.
ApplicationsThe CP 343-1 is widely utilized in industrial automation environments requiring reliable Ethernet connectivity for S7-300 PLCs. It is ideal for distributed I/O systems, plant-wide data monitoring, and integration with SCADA or HMI systems via standard Ethernet protocols.Technical Specifications
Model
6GK7343-1EX30-0XE0
Interface Speed
10/100 Mbit/s
Supply Voltage (External)
24 V DC
Backplane Supply
5 V DC
Power Connection
2-pole pluggable terminal block
Voltage Tolerance
+20% / -15%
Weight
0.24 kg
Installation Guidelines
Ensure the S7-300 CPU is powered down before installing or removing the communications processor.
Mount the module onto the S7-300 mounting rail and secure it using the integrated locking mechanism.
Use shielded twisted-pair cables (Cat5 or higher) for Ethernet connections to minimize EMI interference.
Ensure the 24 V DC external power supply is connected to the dedicated terminal block on the front of the module.
Maintain proper ventilation around the module to prevent overheating during continuous operation.
Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.
FAQWhat is the primary function of the 6GK7343-1EX30-0XE0?This module acts as a communications processor that allows a Siemens S7-300 PLC to communicate over Industrial Ethernet using TCP/IP or ISO protocols, and it functions as a PROFINET IO controller or device.Does this module require an external power supply?Yes, the module requires a 24 V DC external power supply connected via the 2-pole pluggable terminal block, in addition to the 5 V DC provided by the backplane bus.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-IB32 is a high-density 32-point DC digital input module designed for the SLC 500 programmable logic controller system. This module provides reliable signal acquisition for industrial control applications, featuring a sink-load configuration and a robust design suitable for standard 24VDC control environments. It is engineered to integrate seamlessly into the SLC 500 chassis, offering efficient I/O expansion for complex automation tasks.Features
32-point digital DC input capacity for high-density I/O requirements.
Sink-load input configuration with 8 points per common.
Wide operating voltage range: 15-30 VDC at 50 degC and 15-26.4 VDC at 60 degC.
Low backplane power consumption of 50 mA at 5 V.
Designed for direct compatibility with the Allen-Bradley SLC 500 controller series.
ApplicationsThe 1746-IB32 module is widely utilized in industrial automation systems where high-density digital input monitoring is required. Typical applications include machine control, process monitoring, and integration with sensors, limit switches, and other 24VDC signaling devices within manufacturing plants and distributed control systems.Technical Specifications
Product Model
1746-IB32
Input Type
Digital DC Input
Number of Inputs
32
Points per Common
8
Input Voltage Range
15-30 VDC (at 50 degC) / 15-26.4 VDC (at 60 degC)
Backplane Current
50 mA at 5 V
Load Type
Sink
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into the designated slot in the SLC 500 chassis, ensuring proper alignment with the backplane connector.
Secure the module using the integrated locking tabs or mounting screws to ensure a stable connection and proper grounding.
Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate ventilation around the chassis to ensure operation within the specified temperature ranges (up to 60 degC).
Handle with care using ESD-safe practices to prevent damage to internal electronic components.
FAQWhat is the input voltage for the 1746-IB32?The module operates with a DC input voltage range of 15-30 VDC at 50 degC, or 15-26.4 VDC at 60 degC.How many points does this module support?The 1746-IB32 supports 32 digital inputs, organized into 8 points per common.Is this module compatible with all SLC 500 systems?The 1746-IB32 is designed for the SLC 500 platform. Please verify your specific chassis and power supply capacity to ensure compatibility with the module's backplane current draw of 50 mA.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 1746SC-IN04VI is a high-precision, four-channel analog output module engineered by Spectrum Controls for the Allen-Bradley SLC 500 platform. The 'VI' designation signifies its versatile dual-mode capability, allowing each of the four channels to be independently configured for either voltage or current output. This module is designed for industrial applications requiring high resolution and robust electrical isolation to maintain signal integrity across diverse field devices.Features
Four independently configurable analog output channels.
Individual channel-to-channel isolation (500V AC continuous).
16-bit resolution for high-precision control.
Supports multiple current ranges: 0-20 mA, 4-20 mA, and 0-21 mA.
Supports multiple voltage ranges: +/- 10V, 0-10V, 0-5V, and 1-5V DC.
Fast 1 ms step response time to 95% of full scale.
Designed specifically for the Allen-Bradley SLC 500 I/O chassis.
ApplicationsThis module is ideal for process control environments where ground loops and electrical noise are common. Typical applications include controlling variable frequency drives (VFDs), actuators, proportional valves, and other field devices that require isolated, high-accuracy analog signals.Technical Specifications
Model
1746SC-IN04VI
Manufacturer
Spectrum Controls
Product Line
SLC 500
Channels
4 (Independently Configurable)
Resolution
16-bit
Current Ranges
0-20 mA, 4-20 mA, 0-21 mA
Voltage Ranges
+/- 10V, 0-10V, 0-5V, 1-5V DC
Step Response
1 ms (to 95% of full scale)
Accuracy (Current)
0.08% of full scale @ 25 degC
Accuracy (Voltage)
0.10% of full scale @ 25 degC
Backplane Current
120 mA @ 5V DC / 250 mA @ 24V DC
Thermal Dissipation
5 Watts (Maximum)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Verify that the module is fully seated in the chassis slot and secured with the provided screws.
Use shielded twisted-pair cabling for all analog signals to minimize EMI interference.
Maintain proper grounding practices to ensure the effectiveness of the 500V channel-to-channel isolation.
Ensure adequate ventilation around the chassis to prevent exceeding the 5W thermal dissipation limit.
FAQCan I mix voltage and current signals on the same module? Yes, the 1746SC-IN04VI allows each of the four channels to be independently configured for either voltage or current output.Does this module provide isolation between channels? Yes, the module features individual channel-to-channel isolation, which prevents ground loops and signal crosstalk between connected devices.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MC-TAIH12 is a high-level analog input Field Termination Assembly (FTA) engineered for reliable signal acquisition in industrial control environments. This module serves as a critical interface between field instrumentation and Honeywell control system I/O modules. It is specifically designed to support 16 channels of analog input, facilitating the integration of process variables into control architectures used in power generation, oil and gas, and chemical processing facilities.Features
High Channel Density: Provides 16 discrete analog input channels for efficient field signal termination.
Redundancy Support: Engineered for redundant input configurations, enhancing system availability and minimizing the risk of single-point failures.
Robust Connectivity: Utilizes compression terminal blocks to ensure secure, vibration-resistant connections in demanding industrial settings.
Passive Architecture: Operates as a passive termination assembly, requiring no internal power supply for signal routing.
Signal Integrity: Designed to maintain consistent impedance and noise resistance, ensuring stable signal transmission even in environments with high electrical interference.
ApplicationsThe MC-TAIH12 is widely deployed in process automation systems where continuous, high-integrity monitoring is required. Typical applications include:
Oil and gas refineries and offshore platforms.
Power plant control and monitoring systems.
Chemical and petrochemical processing plants.
Safety-critical industrial automation loops.
Technical Specifications
Model
MC-TAIH12
Brand
Honeywell
Module Type
High Level Analog Input FTA
Input Channels
16
Signal Type
High Level Analog
Redundancy
Supported (Dual-channel redundant configuration)
Terminal Type
Compression Terminals
Power Consumption
Passive (No internal power required)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Environment: Ensure the installation area is free from excessive dust, moisture, and corrosive gases. Maintain the operating temperature within the specified 0 to 60 deg C range.
Wiring: Use appropriate shielded cabling to minimize EMI/RFI interference. Ensure all wires are firmly seated in the compression terminals to prevent intermittent signals due to vibration.
Grounding: Follow standard industrial grounding practices for signal shields to ensure noise immunity.
Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent component damage.
Maintenance: Periodically inspect terminal connections for tightness, especially in high-vibration environments.
FAQIs the MC-TAIH12 an active signal processing module?No, the MC-TAIH12 is a passive Field Termination Assembly (FTA). Its primary function is to provide a physical interface and signal routing between field devices and the control system I/O, rather than performing active signal processing or conversion.Does this module require an external power supply?As a passive termination assembly, the MC-TAIH12 does not require its own internal power supply to function; it relies on the power provided by the connected control system I/O modules and field instrumentation loops.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM231 is a high-performance Field Device System Integrator module engineered for the I/A Series distributed control system. It serves as a critical communication bridge, providing four independent serial ports to facilitate seamless data exchange between the primary DCS and third-party field devices. By supporting protocols such as Modbus and Allen-Bradley DF1, the FBM231 enables centralized monitoring and control of peripheral assets in demanding industrial environments, including oil refineries, chemical processing plants, and power generation facilities.Features
Four independent asynchronous serial ports supporting RS-232, RS-422, and RS-485 physical standards.
Dedicated on-board processor for protocol stack execution, reducing load on the main control processor.
Supports redundant pair configurations for high-availability and fault-tolerant operation.
Hot-swappable design allows for maintenance without interrupting the primary control loop.
Continuous internal self-diagnostics to monitor link integrity and hardware health.
Supports baud rates up to 38.4 kbps per port.
ApplicationsThe FBM231 is typically deployed in process automation environments where integration of non-native serial devices is required. It is commonly used for interfacing with PLCs, smart transmitters, analyzers, and variable frequency drives (VFDs) that communicate via serial protocols, ensuring unified data visibility across the I/A Series architecture.Technical Specifications
Model
FBM231
Manufacturer
Foxboro (Schneider Electric)
Module Type
Field Device System Integrator
Serial Ports
4
Supported Standards
RS-232, RS-422, RS-485
Max Baud Rate
38.4 kbps per port
Power Consumption
4 W (Max)
Operating Temperature
-20 to +70 deg C
Storage Temperature
-40 to +85 deg C
Relative Humidity
5 to 95% (Noncondensing)
Isolation
600 VAC (port-to-ground/bus)
Redundancy
Supported (Redundant Pair)
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the baseplate.
The module supports hot-swapping; however, verify that the baseplate and power supply are rated for the intended configuration.
Use shielded communication cables to minimize EMI/RFI interference, especially when operating in RS-485 or RS-422 modes.
Ensure proper grounding of the module chassis to the system ground bus to maintain signal integrity and safety isolation.
Maintain adequate ventilation in the cabinet to ensure the module operates within its specified temperature range.
FAQQ: Can the FBM231 be used in a redundant configuration?A: Yes, the FBM231 supports redundant pair configurations. If the primary module fails, the secondary module automatically assumes control of the serial ports to maintain uninterrupted communication.Q: What protocols are supported by the FBM231?A: The module supports standard asynchronous serial protocols including Modbus and Allen-Bradley DF1. It is designed to handle customized drivers for various third-party field devices.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro IPM2-P0904HA is a high-performance Industrial Power Module designed for the I/A Series distributed control system. It provides reliable, regulated DC power to system enclosures, fieldbus modules, and associated control hardware. Engineered for mission-critical applications such as oil refineries, petrochemical plants, and power generation facilities, this module ensures stable power delivery even under fluctuating input conditions, thereby maintaining process continuity and reducing unscheduled downtime.Features
Redundant Power Architecture: Supports load-sharing configurations with internal diode-ORing logic to prevent single-module failures from impacting the system bus.
Hot-Swappable Design: Allows for replacement of the unit without interrupting the process control loop, facilitating easier maintenance.
Integrated Diagnostics: Provides real-time status feedback to the system controller regarding output voltage and internal temperature.
Advanced Protection: Features built-in over-voltage and short-circuit protection to safeguard sensitive downstream I/O components.
Flexible Input: Compatible with a wide range of AC and DC input voltages.
ApplicationsThe IPM2-P0904HA is primarily utilized in Foxboro I/A Series control cabinets to power I/O racks, communication modules, and field instrumentation. It is suitable for any industrial environment requiring high-availability power distribution where system uptime is critical.Technical Specifications
Model
IPM2-P0904HA
Brand
Foxboro (Schneider Electric)
Module Type
Industrial Power Module 2 (IPM2)
Input Voltage
85-265 VAC or 120-370 VDC
Output Voltage
24 VDC
Output Current
18.8 A (nominal)
Power Consumption
530 W (at full load)
Operating Temp
0 to 60 deg C
Storage Temp
-40 to +85 deg C
Humidity
5 to 95% (Noncondensing)
Cooling
Natural convection or internal fan-assisted
Protection Rating
IP 20
Installation Guidelines
Mounting: Ensure the module is securely seated in the designated I/A Series power supply slot within the enclosure.
Cooling: Maintain adequate clearance around the module to facilitate airflow; ensure vents are not obstructed.
Grounding: Follow standard industrial grounding practices to ensure chassis ground is connected to the cabinet common.
Handling: Use ESD-safe handling procedures when installing or removing the module to prevent damage to internal electronics.
Power Status: While the module is hot-swappable, ensure proper verification of the redundant bus status before extraction in a live system.
FAQIs the IPM2-P0904HA compatible with all I/A Series enclosures?This module is designed specifically for the I/A Series power architecture. Please verify your specific enclosure model and power bus requirements against the module's technical specifications before installation.Does this module require external cooling?The module is designed for natural convection or internal fan-assisted cooling. Ensure that the cabinet environment is maintained within the specified operating temperature range of 0 to 60 deg C.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro P0917MF is a high-performance Discrete Input Module engineered for the I/A Series 200 system. This module provides 16 contact sense discrete input channels, facilitating reliable data acquisition in mission-critical industrial environments such as oil refineries, power generation, and chemical processing. The P0917MF is specifically designed to support system migration strategies, including Flex.Connect solutions that allow for integration with DeltaV architectures while maintaining existing field wiring investments.Features
Channel Density: 16 discrete input channels configured for contact sense operation.
Migration Versatility: Supports direct connection from Foxboro I/A Series 200 termination assemblies to modern I/O architectures without requiring signal conditioning.
System Integration: Compatible with DeltaV CHARM terminal blocks, specifically supporting Low-Side Sense (SE4301T02) types.
Reliability: Designed for redundant control environments to ensure continuous process monitoring and high operational availability.
ApplicationsThis module is intended for use in large-scale industrial control systems where high-density, reliable discrete signal monitoring is required. It is frequently utilized in legacy system upgrades and migrations to modernize control infrastructure while minimizing process downtime and installation complexity.Technical Specifications
Model
P0917MF
Module Type
Discrete Input Module
Input Channels
16
Input Type
Contact Sense / Low-Side Sense
Compatible Termination
FBM207c
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Power Consumption
2.5 Watts (typical)
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Handling: Ensure proper ESD (Electrostatic Discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
Mounting: Ensure the module is securely seated in the designated I/A Series 200 rack slot. Verify that the backplane connection is fully engaged.
Power: Always disconnect power from the I/O rack before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
Wiring: Ensure all field wiring is properly terminated at the compatible termination assembly (e.g., FBM207c). Use shielded cabling where required to minimize EMI in high-noise industrial environments.
Environment: Maintain the module within the specified operating temperature and humidity ranges to ensure long-term reliability.
FAQWhat is the primary function of the P0917MF?The P0917MF is a 16-channel discrete input module used to convert physical contact states from field devices into digital signals for the Foxboro I/A Series control processor.Is this module compatible with DeltaV systems?Yes, the P0917MF supports Flex.Connect wiring solutions, allowing it to interface with DeltaV CHARM terminal blocks (specifically Low-Side Sense types) during system migration projects.Does this module support redundancy?Yes, the P0917MF is designed to operate within redundant control configurations to maintain system availability during component failure.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-NR4 is a 4-point resistance input module designed for the SLC 500 programmable logic controller system. This analog input module is specifically engineered to interface with RTD (Resistance Temperature Detector) sensors and resistive devices, providing high-precision temperature or resistance monitoring in industrial automation environments. It allows for the integration of various resistance-based sensors directly into the SLC 500 rack, facilitating reliable data acquisition for process control applications.Features
4-channel analog input for RTD and resistance monitoring.
Compatible with the Allen-Bradley SLC 500 chassis-based system.
Configurable bandwidth settings ranging from 2.62 Hz to 65.5 Hz to suit specific noise filtering requirements.
Designed for installation in any I/O slot of the SLC 500 chassis (excluding slot 0).
Low power consumption profile for efficient rack operation.
ApplicationsThis module is widely utilized in industrial process control systems requiring temperature monitoring, such as HVAC systems, chemical processing, food and beverage manufacturing, and machinery thermal management. It is suitable for applications where precise resistance-to-digital conversion is required for PLC logic processing.Technical Specifications
Product Model
1746-NR4
Module Type
4-Point Resistance/RTD Input
Backplane Current
50 mA @ 5V DC; 50 mA @ 24V DC
Power Consumption
1.5 W max (0.3 W @ 5V, 1.2 W @ 24V)
Bandwidth
2.62 - 65.5 Hz
Chassis Location
Any slot except Slot 0
Installation Guidelines
Ensure the PLC chassis power is disconnected before installing or removing the module.
The module can be installed in any available slot in the SLC 500 chassis except for the processor slot (Slot 0).
Use shielded twisted-pair cabling for sensor inputs to minimize electromagnetic interference (EMI) in industrial environments.
Ensure proper grounding of the chassis and cable shields to maintain signal integrity.
Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
FAQIs the 1746-NR4 still in production?No, the Allen-Bradley 1746-NR4 was discontinued by the manufacturer on December 30, 2015. We provide refurbished or surplus units to support legacy systems.Can this module be installed in Slot 0?No, the 1746-NR4 must be installed in any I/O slot other than Slot 0, which is reserved for the SLC 500 processor.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 353A4FNCNB4 is a high-performance Moore 353 Process Automation Controller designed for demanding industrial control applications. This unit serves as a versatile controller capable of handling complex control loops, logic, and data acquisition tasks in process industries. It features an integrated A/D display and is engineered for reliable operation in environments requiring precise process regulation.Features
Integrated A/D display for real-time process monitoring and configuration.
Designed for standard industrial power inputs of 120/240VAC.
Robust construction suitable for panel-mount industrial environments.
Advanced process control capabilities for loop and logic management.
ApplicationsThe Moore 353 series is widely utilized in oil and gas, chemical processing, water treatment, and power generation industries. It is typically deployed for PID control, sequence control, and as a standalone controller or part of a larger distributed control system (DCS) architecture.Technical Specifications
Model
353A4FNCNB4
Manufacturer
Siemens
Input Voltage
120/240VAC
Power Consumption
25W
Frequency Range
47-63Hz
Weight
1.4 kg
Installation Guidelines
Ensure the controller is installed in a clean, dry, and vibration-free environment.
Verify that the supply voltage matches the 120/240VAC specification before powering the unit.
Maintain proper clearance around the unit to ensure adequate ventilation and cooling.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent internal component damage.
Ensure all wiring is securely terminated and shielded where necessary to prevent EMI interference.
Always disconnect power before performing any maintenance, wiring, or module removal/insertion.
FAQWhat is the primary function of the Siemens 353A4FNCNB4?The 353A4FNCNB4 is a process automation controller used to manage and regulate industrial process loops, providing both control logic and local display capabilities.What power supply is required for this controller?This model is designed to operate on a standard 120/240VAC power supply at a frequency range of 47-63Hz.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell CC-PFB401 (51405044-175) is a Fieldbus Interface Module designed for integration within industrial control systems. This module provides a reliable interface for Foundation Fieldbus communication, enabling the connection of field devices to the control network. As a critical component in process automation, it facilitates data exchange and device management across four distinct links.Features
Supports 4-link Fieldbus connectivity for multi-device integration.
Designed for standard 24 VDC industrial power supply environments.
Current consumption rating of 210 mA.
Engineered for robust performance in demanding process control applications.
Compatible with Honeywell Experion PKS and related control system architectures.
Technical Specifications
Product Model
CC-PFB401
Part Number
51405044-175
Manufacturer
Honeywell
Module Type
Fieldbus Interface Module
Number of Links
4
Supply Voltage
24 VDC
Current Consumption
210 mA
Tariff Code
8537101190
Installation Guidelines
Ensure the control system power is disconnected before installing or removing the module to prevent electrical damage.
Mount the module in a clean, dry environment within an appropriately rated industrial enclosure.
Verify that the backplane or rack slot is clear of debris before seating the module.
Use shielded cabling for all Fieldbus connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connectors.
FAQIs the CC-PFB401 still in production?No, the Honeywell CC-PFB401 has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.What is the primary function of this module?The CC-PFB401 serves as a Fieldbus Interface Module, allowing the host controller to communicate with field-level instruments and devices over a Foundation Fieldbus network.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell 8C-TAIDB1 (51307133-175) is an Analog Input IOTA (Input/Output Termination Assembly) module designed for the Experion LX control system. This module provides high-density analog signal processing with support for both single-ended and differential input configurations. It is engineered to support HART-capable multivariable instruments, allowing for efficient data collection and integration within industrial control loops.Features
16-channel analog input capacity for high-density monitoring.
Supports voltage (0-5V, 1-5V, 0.4-2V) and current (4-20mA) input ranges.
HART-capable for advanced diagnostics and multivariable instrument communication.
Integrated self-diagnostics for enhanced system reliability.
Optional redundancy support to ensure high availability in critical control applications.
Fast loop scan performance for real-time process control.
ApplicationsThe 8C-TAIDB1 module is utilized in process automation environments requiring precise analog signal acquisition, including oil and gas, chemical processing, and power generation facilities. It is specifically intended for use within the Honeywell Experion LX architecture to interface field instrumentation with the control network.Technical Specifications
Parameter
Specification
Model
8C-TAIDB1 (51307133-175)
Input Channels
16
Input Types
Voltage, Current
Input Range
0-5V, 1-5V, 0.4-2V, 4-20mA
Resolution
16 bits
Voltage Rating
24 VDC
Current Rating
310 mA
Common Mode Rejection
70 dB (DC to 60 Hz)
Normal Mode Rejection
19 dB (at 60 Hz)
Input Impedance (Voltage)
> 10 M Ohm (powered)
Max Normal Mode Input
+/- 30 Volts
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the I/O rack.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the IOTA is securely mounted and that all field wiring is terminated according to the specific loop requirements.
Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Ensure proper grounding of the module chassis to the system common ground to minimize noise and common-mode interference.
FAQDoes this module support HART communication?Yes, the 8C-TAIDB1 is HART-capable, allowing it to communicate with smart field instruments for configuration and diagnostic data.Can this module be used in redundant configurations?Yes, the module supports optional redundancy, which can be implemented depending on the specific requirements of the Experion LX control cabinet configuration.What is the input impedance for voltage measurements?The input impedance for voltage inputs is greater than 10 M Ohm when the module is powered.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

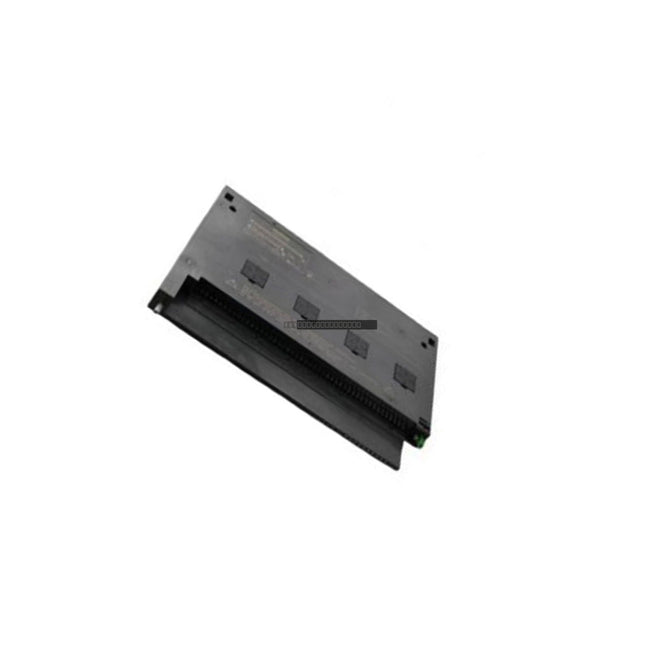

DescriptionThe Siemens 7UT5131-5CB01-1BA0/KL is a high-performance numerical differential protection relay designed for the reliable monitoring and protection of electrical power systems. This unit is specifically engineered for panel surface mounting, providing robust protection for transformers, generators, and motors by detecting internal faults through differential current analysis.Features
Numerical differential protection logic for fast and selective fault clearing.
Supports flexible rated currents of 1A or 5A.
Wide frequency compatibility including 50 Hz, 60 Hz, and 16-2/3 Hz.
Integrated programmable trip relays for versatile control schemes.
Designed for panel surface mounting in industrial switchgear environments.
Technical Specifications
Product Model
7UT5131-5CB01-1BA0/KL
Manufacturer
Siemens
Rated Current
1 A or 5 A
Rated Frequency
50 Hz, 60 Hz, or 16-2/3 Hz
Thermal Rating (rms)
15 A continuous
Rated Supply Voltage
24/48 Vdc
Permissible Voltage Range
19 to 56 Vdc
Programmable Trip Relays
2 dual-ganged Form A (N.O.)
Switching Voltage
250 V
Permissible Current
5 A continuous, 30 A for 0.5 s
Installation Guidelines
Ensure the device is mounted on a clean, vibration-free panel surface.
Verify that the supply voltage matches the 24/48 Vdc rating before connection.
Use appropriate shielded cabling for current transformer (CT) inputs to minimize EMI interference.
Ensure proper grounding of the relay chassis to the panel earth bus to maintain electromagnetic compatibility.
Always isolate power sources before performing any wiring or maintenance on the relay terminals.
Follow standard ESD (Electrostatic Discharge) precautions during handling and installation.
FAQWhat is the primary application of the 7UT5131 relay?This relay is primarily used for differential protection of transformers, generators, and motors, ensuring rapid isolation of faulted equipment within power distribution networks.Can this relay be used in 60 Hz systems?Yes, the 7UT5131-5CB01-1BA0/KL is compatible with 50 Hz, 60 Hz, and 16-2/3 Hz system frequencies.What is the mounting style for this model?This specific order code is configured for panel surface mounting.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe DS200TCRAG1ABC is a high-performance control and protection board engineered for the GE Mark V Speedtronic turbine control system. This module functions as a critical processing unit for safety-sensitive operations within power generation and heavy industrial drive environments. By utilizing a triple-microprocessor architecture with shared RAM, the module facilitates complex control logic, multitasking, and parallel processing. It is specifically designed to monitor turbine speed and temperature parameters, providing redundant protection layers to safeguard equipment. The module supports advanced diagnostic functions, including electrical overspeed and mechanical piston release testing, to ensure maximum system availability.Features
Triple-Microprocessor Architecture: Delivers deterministic response times required for emergency trip sequences and high-speed control loops.
Integrated Diagnostics: Features an onboard 10-LED array for encoded fault status reporting, enabling rapid field troubleshooting.
Configurable I/O: Jumper-selectable settings allow for precise servo valve integration, supporting coil currents from 10 to 120 mA and resistance ranges from 22 to 1000 Ohms.
Communication Protocols: Supports versatile data exchange via RS485 and Ethernet interfaces, including compatibility with Modbus TCP/IP and SRTP protocols for SCADA integration.
ApplicationsThis module is primarily utilized in power plant turbine control systems, refinery drive control, and critical safety-instrumented systems where high-speed processing and redundant protection are required.Technical Specifications
Model
DS200TCRAG1ABC
Brand
GE Fanuc (General Electric)
Series
Mark V Speedtronic
Processor Type
Triple Microprocessor
Interface Ports
RS485, Ethernet
Supported Protocols
Modbus TCP/IP, SRTP
Coil Current Range
10 to 120 mA (Jumper Configurable)
Resistance Range
22 to 1000 Ohms
Diagnostics
10-LED fault code display
Operating Temperature
0 to 60 deg C
Installation Guidelines
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
Power Down: Ensure the turbine control system is powered down and locked out before inserting or removing the module from the rack.
Jumper Configuration: Verify all jumper settings for coil current and resistance match the specific application requirements before final installation.
Environment: Ensure the control cabinet provides adequate ventilation and is free from excessive dust, moisture, or corrosive gases to maintain the specified operating temperature range.
Cable Routing: Keep communication cables (Ethernet/RS485) separated from high-voltage power lines to minimize EMI interference.
FAQWhat is the primary function of the DS200TCRAG1ABC?It acts as a central processing and protection module for the GE Mark V Speedtronic system, managing turbine speed, temperature monitoring, and emergency trip sequences.How do I troubleshoot faults on this module?The module includes 10 onboard LEDs that display encoded fault codes. Refer to your specific Mark V system documentation to interpret these codes for rapid field diagnosis.Is the module configurable for different servo valves?Yes, the module features jumper-selectable settings that allow you to adjust coil current (10-120 mA) and resistance (22-1000 Ohms) to suit various servo valve requirements.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Woodward 5464-013 is a specialized semi-insulated input driver module designed for the NetCon 5000 control system architecture. This module serves as a critical interface component, providing precise signal conditioning between field sensors and the central processing unit. Engineered for demanding industrial environments, it is primarily utilized in power generation plants and turbine control systems where high-speed, deterministic data acquisition is required to maintain operational stability.Features
System Compatibility: Specifically engineered for the Woodward NetCon 5000 series control platform.
Signal Conditioning: Semi-insulated design provides a balance between high-speed signal processing and circuit protection.
Diagnostic Capability: Features an integrated red LED fault indicator for rapid visual status monitoring and troubleshooting.
Robust Construction: High-grade PC board design built to withstand thermal stress in enclosed control cabinets.
Deterministic Performance: Interfaces directly with the NetCon 5000 backplane to support time-critical control loops.
ApplicationsThe 5464-013 input driver is widely used in energy and manufacturing sectors, including:
Industrial turbine control systems.
Power generation plant automation.
Legacy control system upgrades and maintenance.
High-EMI environments requiring reliable signal isolation.
Technical Specifications
Model
5464-013
Brand
Woodward
Series
NetCon 5000
Module Type
Semi-Insulated Input Driver
Operating Temperature
-20 to 65 deg C
Power Consumption
4.0 W typical
Fault Indication
Integrated Red LED
Mounting Type
Panel Mount / Rack Add-On
Installation Guidelines
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
Power Status: Ensure the control system backplane is powered down before inserting or removing the module.
Mounting: Ensure the module is securely seated in the designated rack slot to maintain proper electrical contact with the backplane.
Wiring: Use shielded cables for field inputs to minimize electromagnetic interference (EMI) in noisy industrial environments.
Ventilation: Ensure adequate airflow within the control cabinet to maintain operating temperatures within the specified -20 to 65 deg C range.
FAQWhat is the primary function of the 5464-013?The 5464-013 acts as an input driver module that conditions signals from field sensors for use by the Woodward NetCon 5000 central processor.How do I troubleshoot a fault on this module?The module features an integrated red LED fault indicator. If the LED is illuminated, it provides immediate visual confirmation of an internal circuit failure or an input signal deviation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MC-TSTX13 is a high-density Smart Transmitter Interface Field Termination Assembly (FTA) engineered for integration within Honeywell distributed control systems. This module serves as a critical interface layer, providing signal termination, conditioning, and routing for up to 16 analog input channels from smart field transmitters. Designed for mission-critical process environments, the MC-TSTX13 ensures signal integrity and reliable data acquisition between field instrumentation and control processors.Features
Supports 16 individual input channels for smart transmitter connectivity.
Redundant input path configuration to enhance system availability and fault tolerance.
Integrated signal conditioning to minimize noise and eliminate ground loop interference.
Optimized for seamless integration with Honeywell control system I/O architectures.
Robust construction designed for industrial process control environments.
ApplicationsThe MC-TSTX13 is widely utilized in large-scale industrial automation, including oil and gas refining, chemical processing, and power generation facilities. It is specifically suited for applications requiring high-density analog signal processing where system uptime and signal stability are paramount.Technical Specifications
Model
MC-TSTX13
Brand
Honeywell
Module Type
Smart Transmitter Interface FTA
Input Channels
16
Signal Type
Smart transmitter analog input
Redundancy
Supported (dual input path)
Operating Temperature
0 to 60 deg C
Certifications
CE Mark
Installation Guidelines
Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
Mount the module in a clean, dry, and vibration-free environment within a standard control cabinet.
Use appropriate shielded cabling for all field instrument connections to maintain signal integrity and reduce EMI.
Ensure proper grounding of the FTA chassis to the cabinet ground bus to minimize noise and potential ground loops.
Verify that all terminal connections are secure and properly labeled according to the system wiring diagram.
FAQDoes the MC-TSTX13 support redundant configurations?Yes, the module is designed to support redundant input path configurations, allowing for improved reliability and uninterrupted signal processing in critical control loops.What is the primary function of this FTA?The MC-TSTX13 acts as a termination and conditioning interface, bridging the gap between field-mounted smart transmitters and the main control system I/O modules.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 161216-02 Ethernet 100BASE-FX I/O Module is a specialized communication interface designed for the 3500 Machinery Protection System. This module facilitates high-speed, fiber-optic Ethernet connectivity, allowing the 3500 rack to communicate reliably with external control systems, including DCS, PLC, and SCADA platforms. By utilizing the 100BASE-FX protocol, the module provides robust, noise-immune data transmission, which is essential for maintaining system integrity in electrically noisy industrial environments such as refineries and power generation facilities.Features
Provides fiber-optic 100BASE-FX Ethernet connectivity for the 3500 series rack.
Ensures high immunity to electromagnetic interference (EMI) due to fiber-optic transmission.
Supports real-time data exchange for vibration, alarm, and system health monitoring.
Designed for integration into standard 3500 series rack backplanes.
Supports redundant communication paths for increased system availability.
ApplicationsThis module is intended for use in critical machinery protection and condition monitoring applications where long-distance or noise-resistant communication is required. It is commonly deployed in oil and gas, petrochemical, and power generation plants to bridge the gap between Bently Nevada monitoring racks and plant-wide control networks.Technical Specifications
Model
161216-02
Brand
Bently Nevada
Series
3500
Communication Protocol
Ethernet 100BASE-FX
Operating Temperature
-40 to +85 deg C
Power Consumption
24 VDC nominal
Mounting
3500 Rack-mounted
Installation Guidelines
Ensure the 3500 rack power is disconnected before inserting or removing the module.
Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
Slide the module into the designated rack slot, ensuring the backplane connector is properly aligned and fully seated.
Secure the module using the integrated front-panel fasteners to ensure proper grounding and mechanical stability.
Use appropriate fiber-optic cabling and ensure connectors are clean and free of debris before installation.
Route fiber-optic cables away from high-heat sources and avoid sharp bends that could compromise signal integrity.
FAQIs this module compatible with all 3500 series racks?The 161216-02 is designed for the 3500 series architecture. Please verify your specific rack configuration and firmware requirements to ensure compatibility with your existing system setup.Does this module require external power?No, the module receives its nominal 24 VDC power directly from the 3500 rack backplane supply.Can this module be used in redundant configurations?Yes, the 161216-02 supports redundant communication paths, allowing for high-availability setups in critical monitoring applications.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe GE Fanuc IC670ALG330 is an 8-point analog current-source output module designed for the Field Control series. This module provides high-precision current output signals for industrial control applications, featuring 16-bit conversion resolution and a nominal output range of 0-20 mA. It is engineered to interface seamlessly with Field Control Bus Interface Units (BIUs), providing reliable analog control for actuators, valves, and other current-driven field devices.Features
8-channel analog current output configuration.
16-bit conversion resolution with 14-bit magnitude data size.
Supports a nominal output range of 0-20 mA, with a total range of 0.0-20.48 mA.
High-speed update time of 1.5 ms typical.
Integrated open-wire detection with a configurable threshold.
Galvanic isolation rated at 1500 VAC for 1 minute.
Technical Specifications
Model
IC670ALG330
Channels
8
Signal Type
Analog Current (0-20 mA)
Resolution
16 bits (0.3125 uA per count)
Supply Voltage
18-30 VDC (24 VDC nominal)
Current Draw (BIU)
85 mA
Current Draw (External)
250 mA (at 20 mA per channel)
Isolation
1500 VAC (1 min) / 250 VAC (continuous)
Load Inductance
0.5 H maximum
Load Capacitance
2000 pF maximum
Installation Guidelines
Ensure the Field Control BIU is powered down before inserting or removing the module to prevent electrical damage.
Mount the module securely on the designated Field Control carrier or DIN-rail system.
Use shielded twisted-pair cabling for analog signal lines to minimize EMI interference.
Ensure proper grounding of the cable shields at the control cabinet entry point.
Verify that the external 24 VDC power supply is within the 18-30 VDC range and meets the ripple requirements (10% maximum).
Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
FAQWhat is the primary function of the IC670ALG330?This module acts as an 8-channel analog output interface, converting digital data from the controller into precise 0-20 mA current signals to drive field instrumentation.Does this module require external power?Yes, the module requires an external 24 VDC power supply, drawing up to 250 mA when all channels are active at full load.What is the resolution of the analog output?The module features a 16-bit conversion resolution, providing a step size of 0.3125 uA per count.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Woodward 5417-028 is a precision-engineered cable assembly designed for high-reliability signal transmission within industrial control systems. This component provides critical connectivity for MicroNet and 723plus control platforms, ensuring seamless data flow between modules and field devices. Optimized for harsh environments such as power generation and oil refineries, it utilizes high-grade shielding to eliminate electromagnetic interference, which is vital for maintaining system uptime and preventing control logic failures in mission-critical applications.Features
Designed for seamless integration with Woodward MicroNet and 723plus control platforms.
Industrial-grade connectors featuring gold-plated contacts for low contact resistance and long-term durability.
High-grade EMI/RFI shielding to ensure signal integrity in electrically noisy environments.
Rugged outer jacket resistant to oil, heat, and mechanical stress.
Supports high-speed serial or I/O data links within Woodward chassis architectures.
ApplicationsThis cable assembly is primarily used in industrial automation environments, including power generation, turbine control, and oil and gas processing facilities where reliable signal transmission between control modules and field instrumentation is required.Technical Specifications
Model
5417-028
Brand
Woodward
Component Type
Cable Assembly
Shielding
Industrial Grade EMI/RFI
Operating Temperature
-40 to +85 deg C
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical surges or damage to module ports.
Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Ensure connectors are fully seated and locked to prevent intermittent connections due to vibration.
Avoid sharp bends or excessive mechanical tension on the cable during installation to maintain the integrity of the internal shielding and conductors.
Inspect the gold-plated contacts for debris or oxidation before installation to ensure optimal conductivity.
FAQWhat control systems is the 5417-028 compatible with?The 5417-028 is specifically designed for use with Woodward MicroNet and 723plus control platforms.Is this cable suitable for high-temperature environments?Yes, this cable assembly is rated for an operating temperature range of -40 to +85 deg C, making it suitable for most industrial control cabinet environments.Does this cable require special grounding?The cable features integrated shielding designed to provide noise immunity. Ensure that the associated chassis or module grounding points are properly connected to the system earth to maximize the effectiveness of the EMI/RFI shielding.
DescriptionThe EP204-I00-EN00 is a compact and versatile digital servo drive belonging to the Emerson Epsilon EP series. This drive provides high-performance motion control for a wide range of industrial automation applications, including precision packaging, textile manufacturing, and material handling systems. By integrating advanced power electronics with a robust control interface, the EP204-I00-EN00 delivers smooth torque delivery and accurate positioning. Its design emphasizes reliability in heavy-duty cycles, significantly reducing mechanical stress and system downtime. The "I00" designation indicates a base indexing model that supports standard motion profiles and digital I/O synchronization, making it a critical component for distributed motion architectures where localized intelligence and rapid response times are required.Features
Indexing capability for programmable motion steps and homing sequences.
Compact frame size optimized for medium-inertia motor applications.
Integrated RS485 communication interface for commissioning and basic control.
Supports standard motion profiles and digital I/O synchronization.
Designed for high-reliability operation in demanding industrial environments.
ApplicationsThe Epsilon EP series is widely utilized in applications requiring precise motion control, including:
Automated packaging machinery
Textile manufacturing equipment
Material handling and conveyor systems
Rotary indexing tables
General-purpose factory automation
Technical Specifications
Model
EP204-I00-EN00
Brand
Emerson / Control Techniques
Output Current (Continuous)
4.0 Amps
Output Current (Peak)
8.0 Amps
Input Voltage
115 / 230 VAC (Single Phase)
Input Frequency
45 to 65 Hz
Communication
RS485
Operating Temperature
0 to 50 deg C
Storage Temperature
-25 to 70 deg C
Humidity
5 to 95 percent (Non-condensing)
Protection Rating
IP 20
Installation Guidelines
Ensure the drive is mounted vertically in a clean, dry environment to allow for proper airflow and cooling.
Maintain adequate clearance around the unit to prevent overheating.
Always disconnect power before installing, removing, or wiring the drive.
Use shielded cables for motor and feedback connections to minimize electromagnetic interference (EMI).
Ensure a solid earth ground connection to the drive chassis to comply with safety and noise immunity standards.
Verify that the input voltage matches the drive specifications before applying power.
FAQWhat does the I00 suffix indicate?The I00 suffix identifies the base indexing model, which allows for the programming of multiple motion steps and home sequences directly within the drive without requiring complex external PLC logic for every move.Is this drive compatible with standard Emerson software?Yes, the EN suffix indicates English language documentation and firmware standards, ensuring full compatibility with standard Emerson/Control Techniques motion configuration software tools.
DescriptionThe Woodward 5462-758B is a high-density discrete output module designed for industrial control applications. This module provides 28 isolated discrete output channels, facilitating reliable signal distribution within Woodward control systems. Each channel features integrated LED status indication, allowing for rapid visual diagnostics and troubleshooting during system operation.Features
28 isolated discrete output channels for robust signal management.
Integrated LED status indicators for each channel to simplify maintenance and monitoring.
Designed for 24 V dc rack supply operation.
High isolation rating of 500 V dc (channel-to-bus) to protect internal control circuitry.
Compact modular design suitable for standard industrial control racks.
Technical Specifications
Model
5462-758B
Output Channels
28 x isolated discrete
Rack Supply
24 V dc
Module Consumption
0.3 A @ 24 V
Isolation
500 V dc (channel-to-bus)
Operating Temperature
0 to +60 degC
Storage Temperature
-40 to +85 degC
Humidity
5-95% RH, non-condensing
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the rack.
Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
Ensure proper seating in the rack backplane to maintain reliable electrical connectivity.
Route output wiring away from high-voltage AC lines or high-EMI sources to prevent signal interference.
Verify that the 24 V dc power supply is stable and within the specified operating range before energizing the system.
FAQWhat does the LED indication on the 5462-758B signify?The LEDs provide a visual status of the discrete output channels, indicating whether a specific channel is currently active or inactive, which assists in real-time system monitoring.Is this module suitable for high-humidity environments?The module is rated for 5-95% relative humidity (non-condensing). It should be installed in an environment that prevents moisture condensation on the circuit board.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5928-3UA11, also known as the CPU 928A, is a high-performance processor module designed for the SIMATIC S5 automation system. Specifically engineered for use within the S5-135U and S5-155U programmable logic controller (PLC) families, this module serves as the central processing unit responsible for executing user programs, managing I/O data, and coordinating communication across the backplane bus. As a legacy component, this unit is essential for maintaining and extending the operational life of existing S5-based industrial control systems.Features
Central processing unit for SIMATIC S5-135U and S5-155U systems.
High-speed instruction processing for complex automation tasks.
Integrated interface for system-wide data exchange and peripheral management.
Robust design suitable for demanding industrial environments.
Direct replacement or spare for legacy S5-155U/135U rack configurations.
ApplicationsThe CPU 928A is primarily utilized in large-scale industrial automation applications where the SIMATIC S5-135U or 155U platforms are deployed. Typical environments include heavy manufacturing, power generation facilities, chemical processing plants, and legacy material handling systems that require high-reliability control logic.Technical Specifications
Product Model
6ES5928-3UA11
Series
SIMATIC S5
Module Type
CPU 928A Processor
Compatibility
S5-135U / S5-155U
Manufacturer
Siemens
Tariff Code
8537109060
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the CPU module to prevent electrical damage.
Handle the module by the edges; avoid touching the backplane connector pins to prevent ESD (Electrostatic Discharge) damage.
Ensure the module is firmly seated in the designated CPU slot of the S5 rack and secured using the integrated locking mechanisms.
Verify that the rack ventilation is unobstructed to maintain optimal operating temperatures.
Ensure all firmware and memory submodules are correctly configured for the specific application before powering up the system.
FAQIs this module still supported by the manufacturer?No, the 6ES5928-3UA11 has been discontinued by Siemens. It is typically sourced as a spare part for the maintenance of legacy SIMATIC S5 systems.What systems is this CPU compatible with?This module is specifically designed for the SIMATIC S5-135U and S5-155U programmable controller series.
