Description

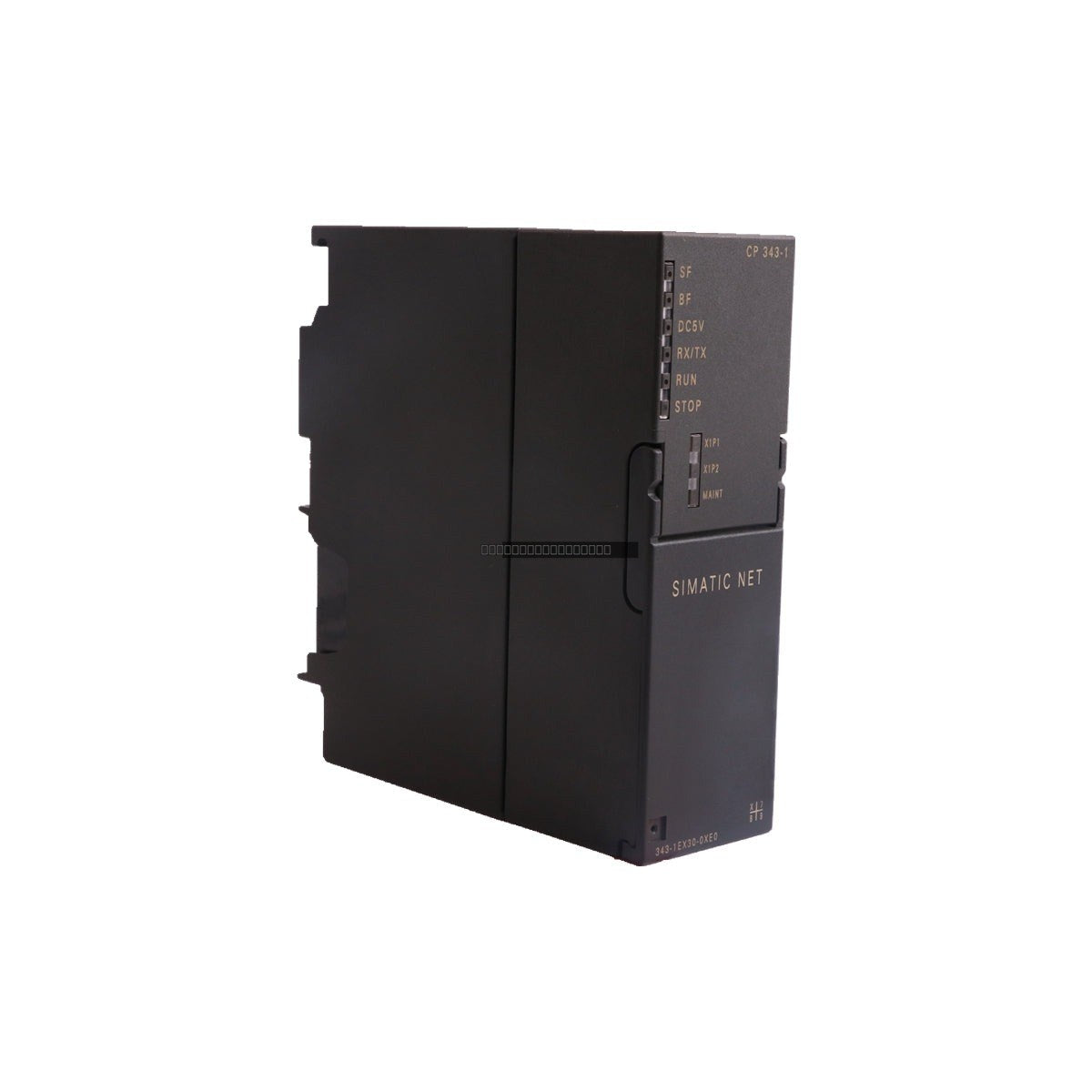

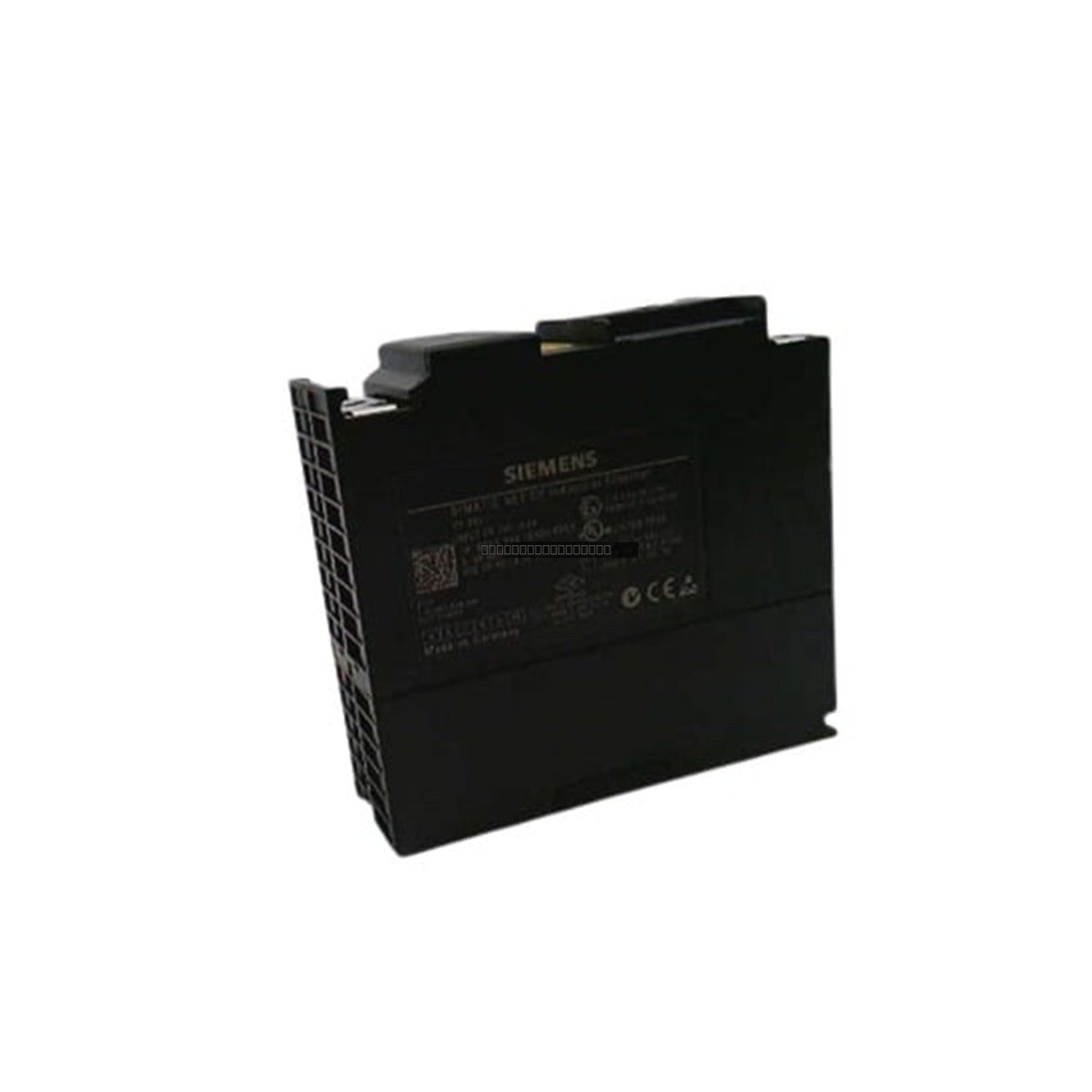

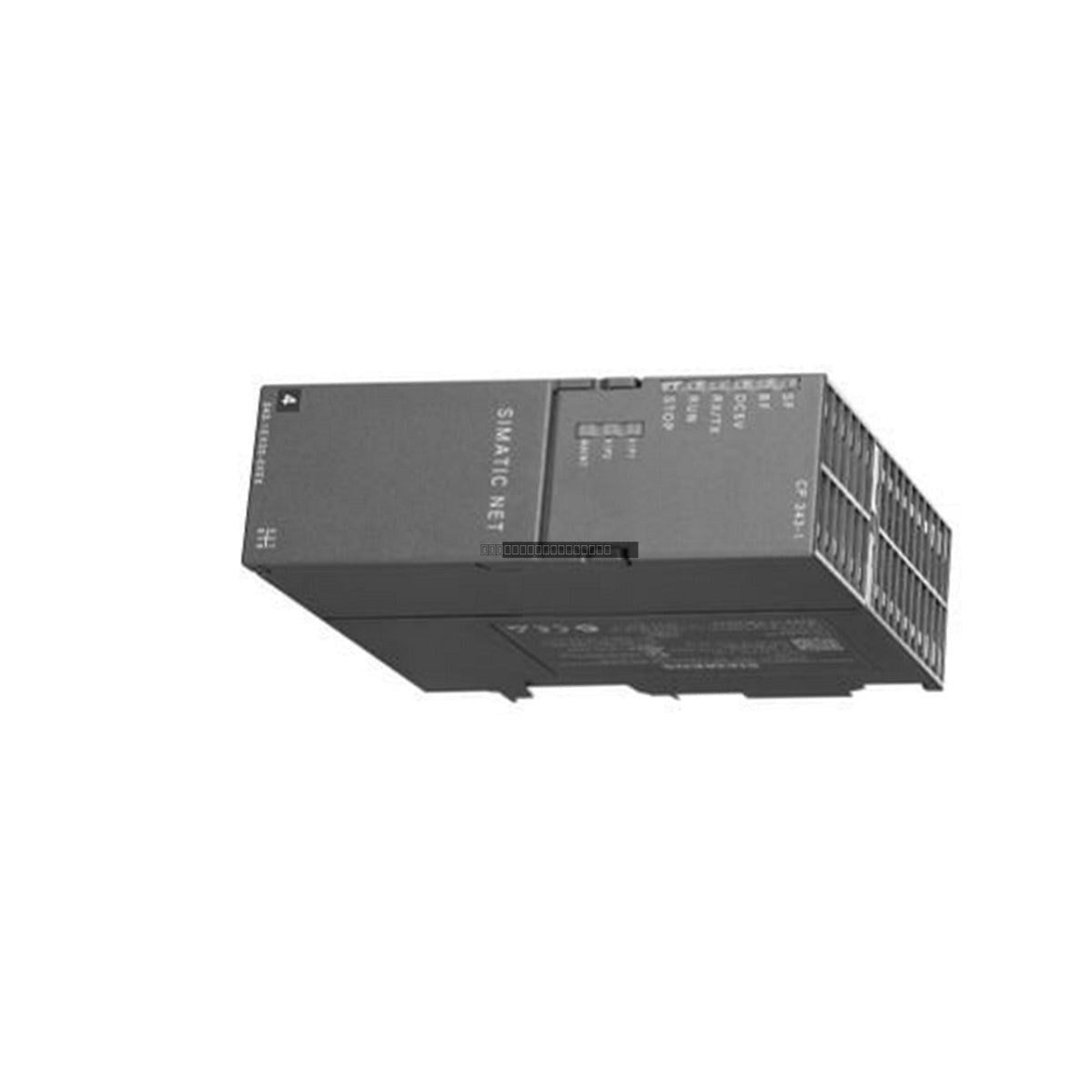

The Siemens 6GK7343-1EX30-0XE0 is a high-performance communications processor designed for the SIMATIC S7-300 PLC system. This CP 343-1 module facilitates seamless integration of S7-300 controllers into Industrial Ethernet networks, supporting both ISO and TCP/IP protocols. It serves as a robust gateway for data exchange, supporting PROFINET IO controller or device functionality, and features an integrated 2-port switch (ERTEC 200) for efficient network topology management.
Features
- Integrated 2-port switch (ERTEC 200) for direct connection to Industrial Ethernet.
- Supports PROFINET IO controller and PROFINET IO device roles.
- Communication protocols: S7 communication, Fetch/Write, SEND/RECEIVE via RFC1006, multicast, and DHCP.
- Dual RJ45 ports for 10/100 Mbit/s LAN connectivity.
- Supports NTC-CPU synchronization with or without diagnostics.
- Remote initialization via LAN.
Applications
The CP 343-1 is widely utilized in industrial automation environments requiring reliable Ethernet connectivity for S7-300 PLCs. It is ideal for distributed I/O systems, plant-wide data monitoring, and integration with SCADA or HMI systems via standard Ethernet protocols.
Technical Specifications
| Model |
6GK7343-1EX30-0XE0 |
| Interface Speed |
10/100 Mbit/s |
| Supply Voltage (External) |
24 V DC |
| Backplane Supply |
5 V DC |
| Power Connection |
2-pole pluggable terminal block |
| Voltage Tolerance |
+20% / -15% |
| Weight |
0.24 kg |
Installation Guidelines
- Ensure the S7-300 CPU is powered down before installing or removing the communications processor.
- Mount the module onto the S7-300 mounting rail and secure it using the integrated locking mechanism.
- Use shielded twisted-pair cables (Cat5 or higher) for Ethernet connections to minimize EMI interference.
- Ensure the 24 V DC external power supply is connected to the dedicated terminal block on the front of the module.
- Maintain proper ventilation around the module to prevent overheating during continuous operation.
- Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.
FAQ
What is the primary function of the 6GK7343-1EX30-0XE0?
This module acts as a communications processor that allows a Siemens S7-300 PLC to communicate over Industrial Ethernet using TCP/IP or ISO protocols, and it functions as a PROFINET IO controller or device.
Does this module require an external power supply?
Yes, the module requires a 24 V DC external power supply connected via the 2-pole pluggable terminal block, in addition to the 5 V DC provided by the backplane bus.
