Description

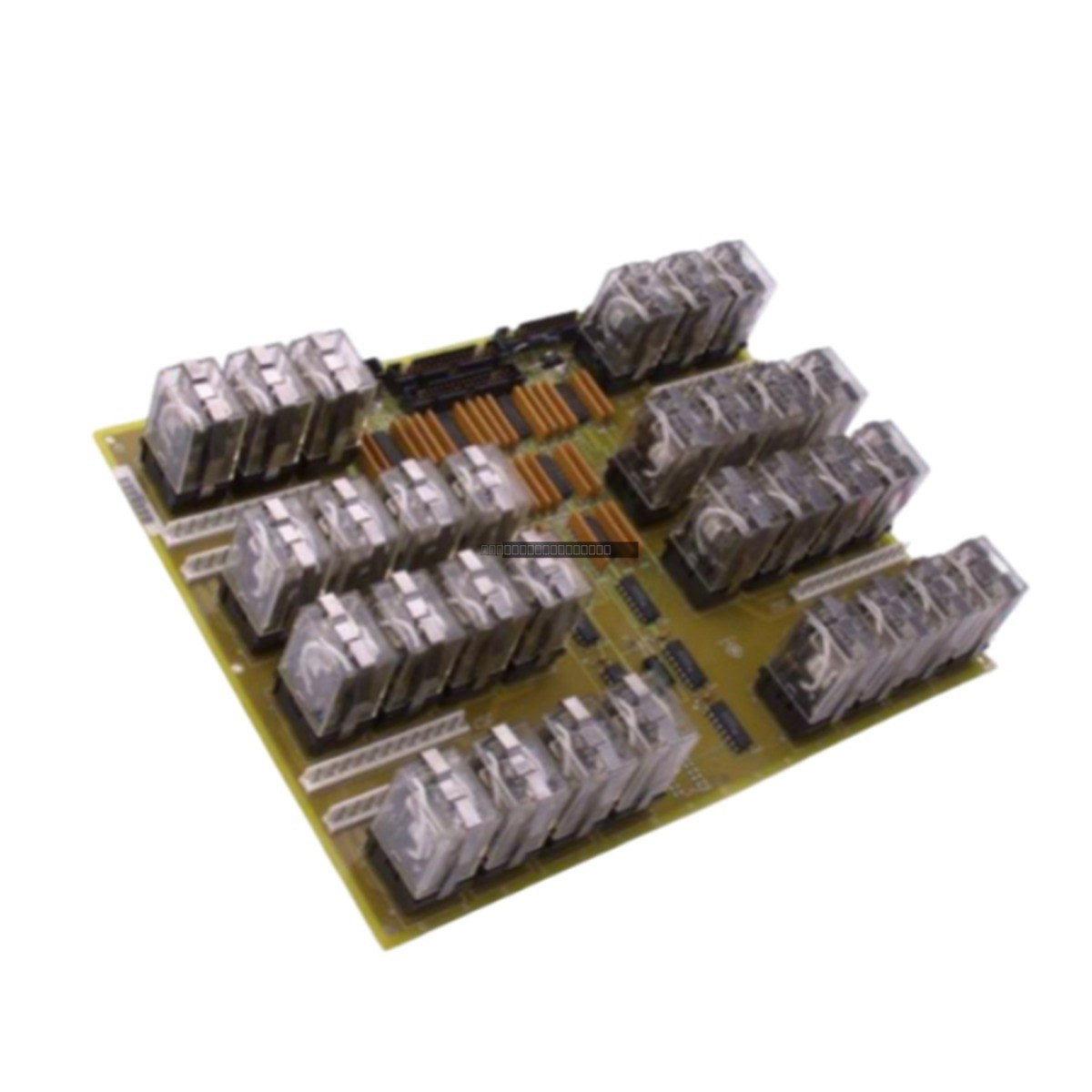

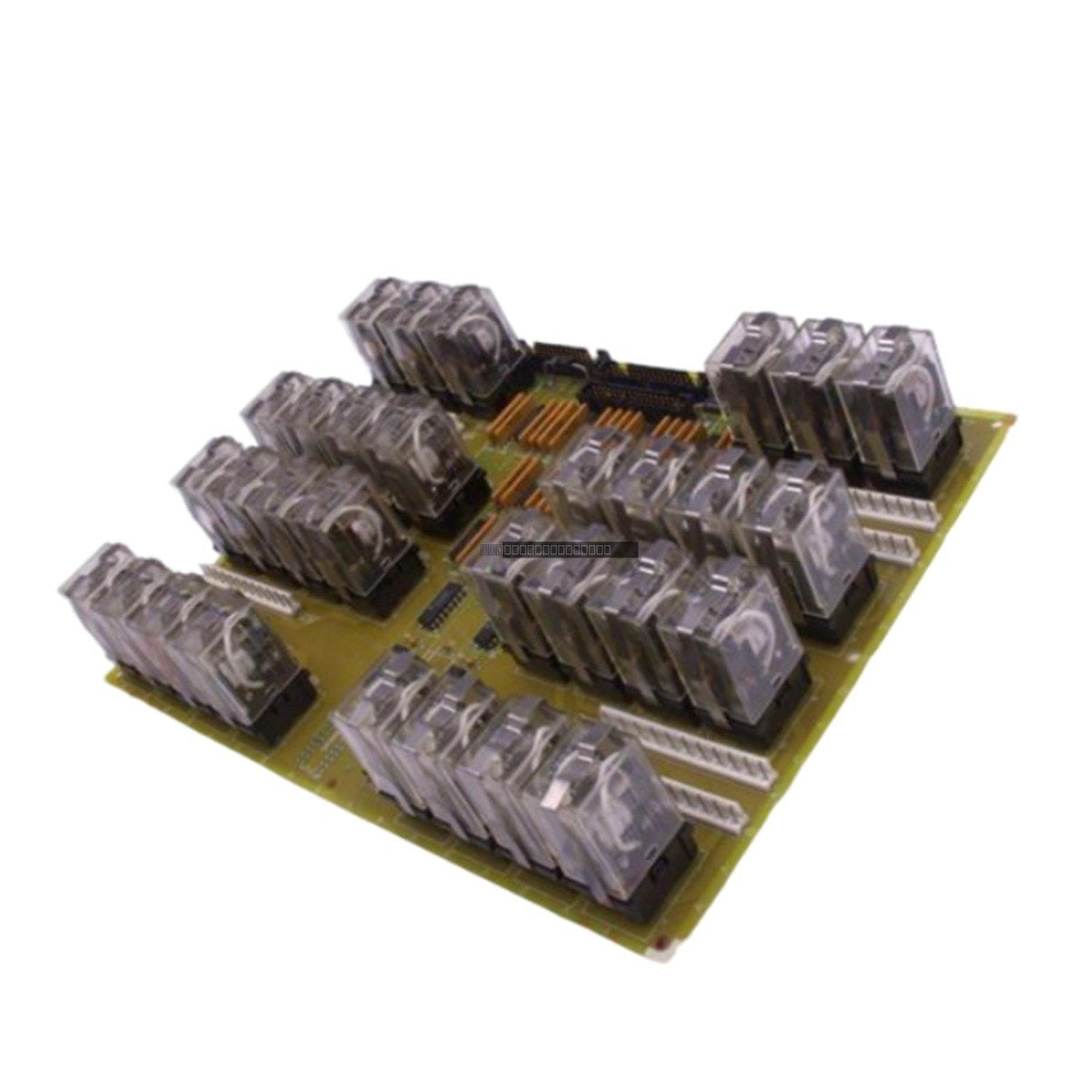

The DS200TCRAG1ABC is a high-performance control and protection board engineered for the GE Mark V Speedtronic turbine control system. This module functions as a critical processing unit for safety-sensitive operations within power generation and heavy industrial drive environments. By utilizing a triple-microprocessor architecture with shared RAM, the module facilitates complex control logic, multitasking, and parallel processing. It is specifically designed to monitor turbine speed and temperature parameters, providing redundant protection layers to safeguard equipment. The module supports advanced diagnostic functions, including electrical overspeed and mechanical piston release testing, to ensure maximum system availability.
Features
-
Triple-Microprocessor Architecture: Delivers deterministic response times required for emergency trip sequences and high-speed control loops.
-
Integrated Diagnostics: Features an onboard 10-LED array for encoded fault status reporting, enabling rapid field troubleshooting.
-
Configurable I/O: Jumper-selectable settings allow for precise servo valve integration, supporting coil currents from 10 to 120 mA and resistance ranges from 22 to 1000 Ohms.
-
Communication Protocols: Supports versatile data exchange via RS485 and Ethernet interfaces, including compatibility with Modbus TCP/IP and SRTP protocols for SCADA integration.
Applications
This module is primarily utilized in power plant turbine control systems, refinery drive control, and critical safety-instrumented systems where high-speed processing and redundant protection are required.
Technical Specifications
| Model |
DS200TCRAG1ABC |
| Brand |
GE Fanuc (General Electric) |
| Series |
Mark V Speedtronic |
| Processor Type |
Triple Microprocessor |
| Interface Ports |
RS485, Ethernet |
| Supported Protocols |
Modbus TCP/IP, SRTP |
| Coil Current Range |
10 to 120 mA (Jumper Configurable) |
| Resistance Range |
22 to 1000 Ohms |
| Diagnostics |
10-LED fault code display |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
-
Power Down: Ensure the turbine control system is powered down and locked out before inserting or removing the module from the rack.
-
Jumper Configuration: Verify all jumper settings for coil current and resistance match the specific application requirements before final installation.
-
Environment: Ensure the control cabinet provides adequate ventilation and is free from excessive dust, moisture, or corrosive gases to maintain the specified operating temperature range.
-
Cable Routing: Keep communication cables (Ethernet/RS485) separated from high-voltage power lines to minimize EMI interference.
FAQ
What is the primary function of the DS200TCRAG1ABC?
It acts as a central processing and protection module for the GE Mark V Speedtronic system, managing turbine speed, temperature monitoring, and emergency trip sequences.
How do I troubleshoot faults on this module?
The module includes 10 onboard LEDs that display encoded fault codes. Refer to your specific Mark V system documentation to interpret these codes for rapid field diagnosis.
Is the module configurable for different servo valves?
Yes, the module features jumper-selectable settings that allow you to adjust coil current (10-120 mA) and resistance (22-1000 Ohms) to suit various servo valve requirements.
