Description

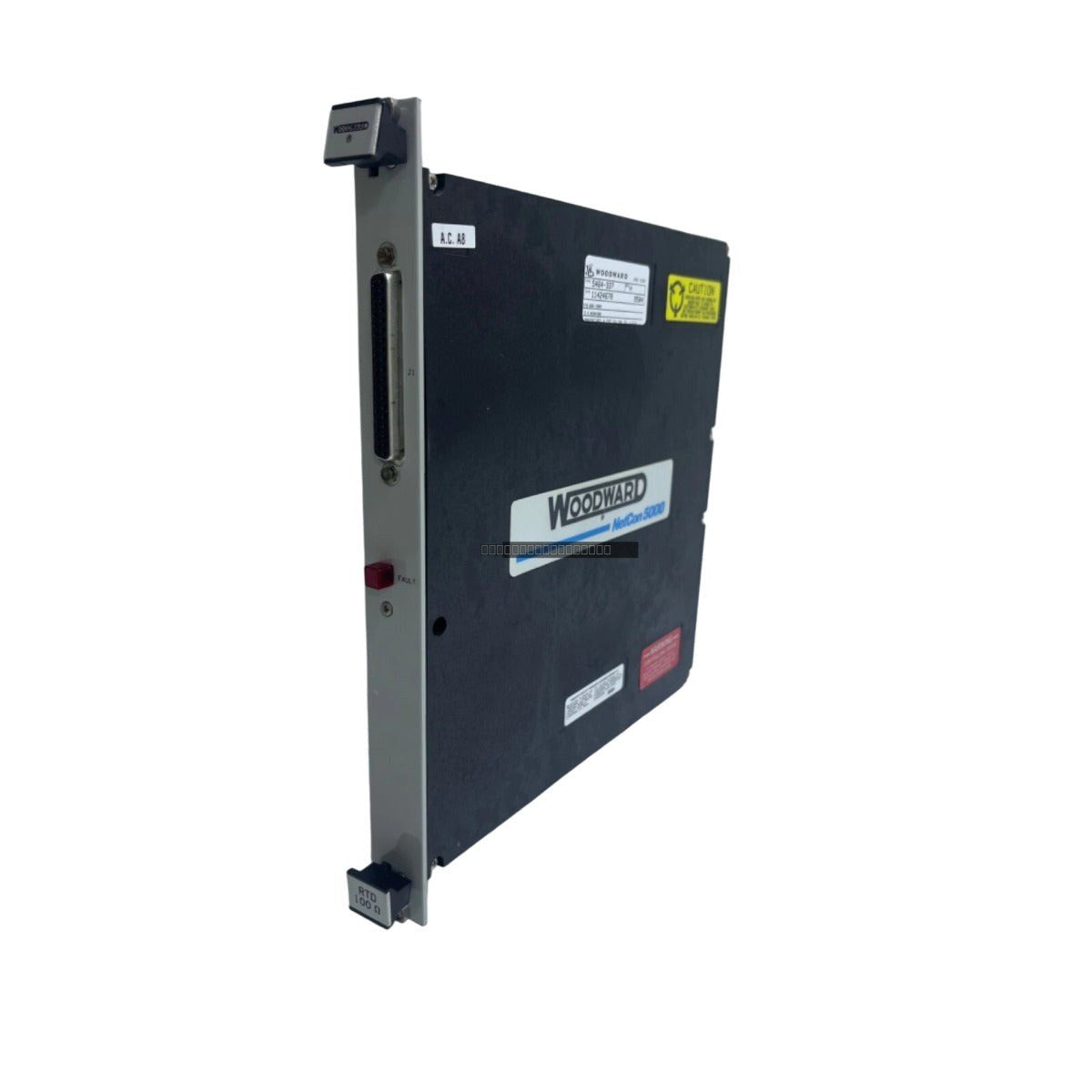

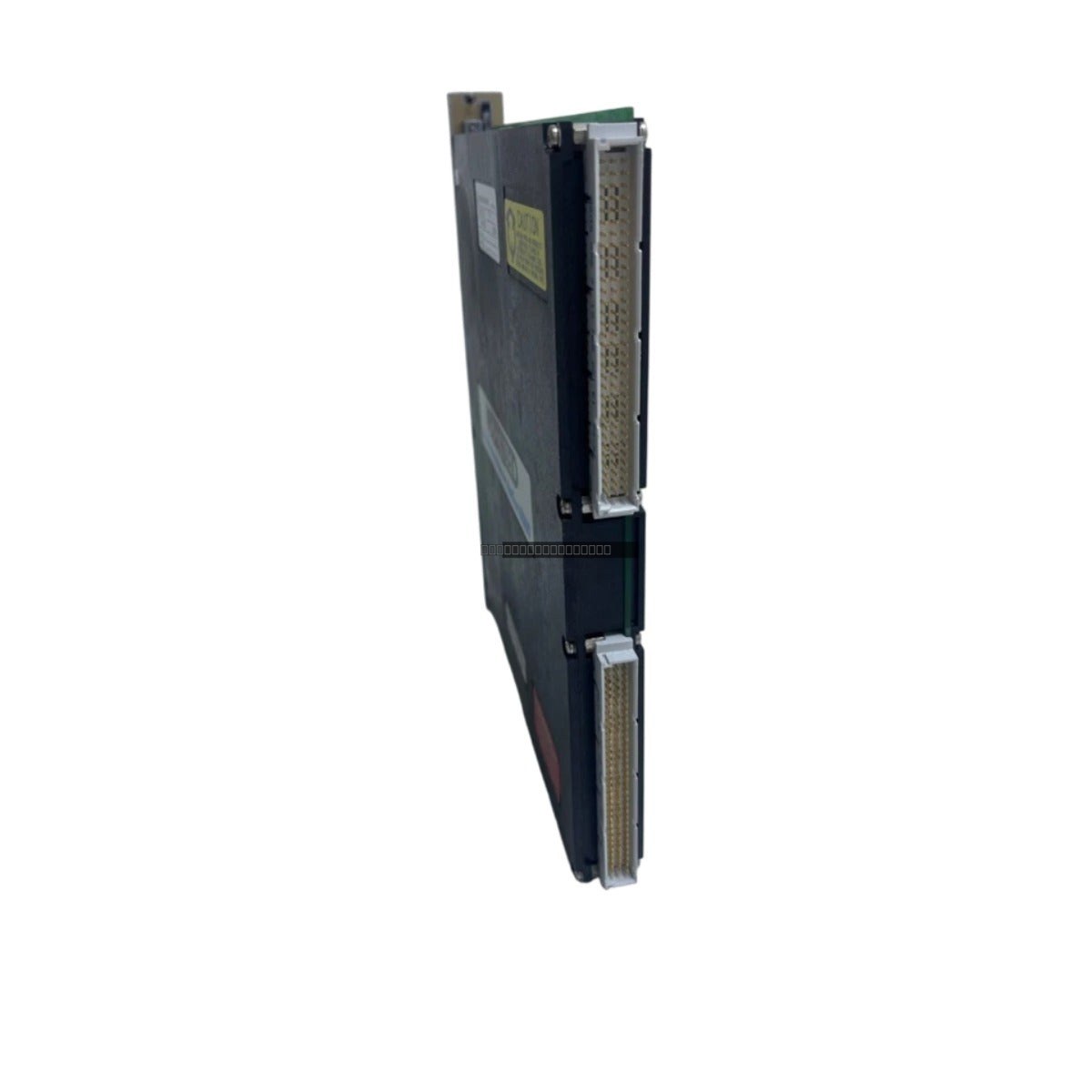

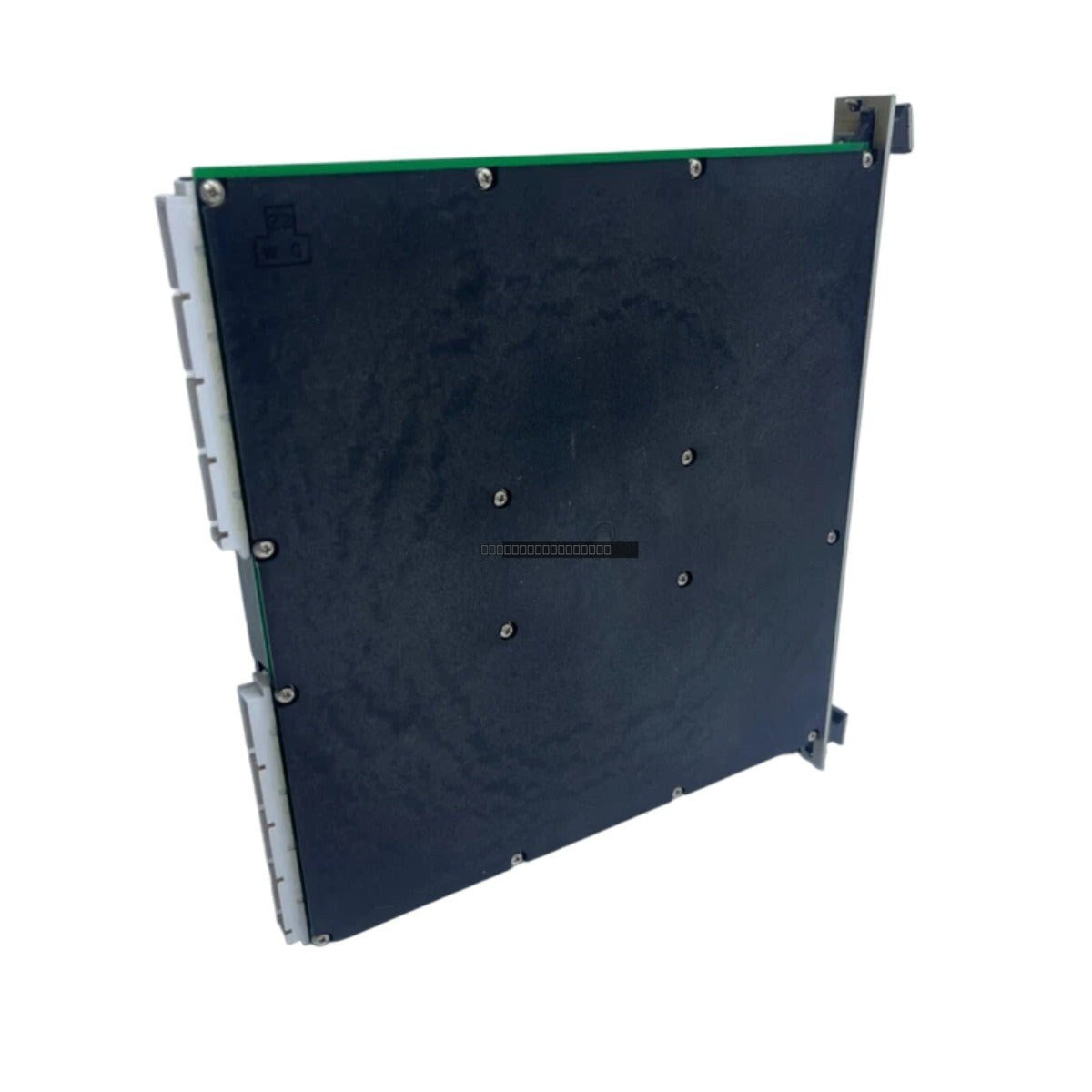

The Woodward 5464-013 is a specialized semi-insulated input driver module designed for the NetCon 5000 control system architecture. This module serves as a critical interface component, providing precise signal conditioning between field sensors and the central processing unit. Engineered for demanding industrial environments, it is primarily utilized in power generation plants and turbine control systems where high-speed, deterministic data acquisition is required to maintain operational stability.
Features
-
System Compatibility: Specifically engineered for the Woodward NetCon 5000 series control platform.
-
Signal Conditioning: Semi-insulated design provides a balance between high-speed signal processing and circuit protection.
-
Diagnostic Capability: Features an integrated red LED fault indicator for rapid visual status monitoring and troubleshooting.
-
Robust Construction: High-grade PC board design built to withstand thermal stress in enclosed control cabinets.
-
Deterministic Performance: Interfaces directly with the NetCon 5000 backplane to support time-critical control loops.
Applications
The 5464-013 input driver is widely used in energy and manufacturing sectors, including:
- Industrial turbine control systems.
- Power generation plant automation.
- Legacy control system upgrades and maintenance.
- High-EMI environments requiring reliable signal isolation.
Technical Specifications
| Model |
5464-013 |
| Brand |
Woodward |
| Series |
NetCon 5000 |
| Module Type |
Semi-Insulated Input Driver |
| Operating Temperature |
-20 to 65 deg C |
| Power Consumption |
4.0 W typical |
| Fault Indication |
Integrated Red LED |
| Mounting Type |
Panel Mount / Rack Add-On |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
-
Power Status: Ensure the control system backplane is powered down before inserting or removing the module.
-
Mounting: Ensure the module is securely seated in the designated rack slot to maintain proper electrical contact with the backplane.
-
Wiring: Use shielded cables for field inputs to minimize electromagnetic interference (EMI) in noisy industrial environments.
-
Ventilation: Ensure adequate airflow within the control cabinet to maintain operating temperatures within the specified -20 to 65 deg C range.
FAQ
What is the primary function of the 5464-013?
The 5464-013 acts as an input driver module that conditions signals from field sensors for use by the Woodward NetCon 5000 central processor.
How do I troubleshoot a fault on this module?
The module features an integrated red LED fault indicator. If the LED is illuminated, it provides immediate visual confirmation of an internal circuit failure or an input signal deviation.
