Description

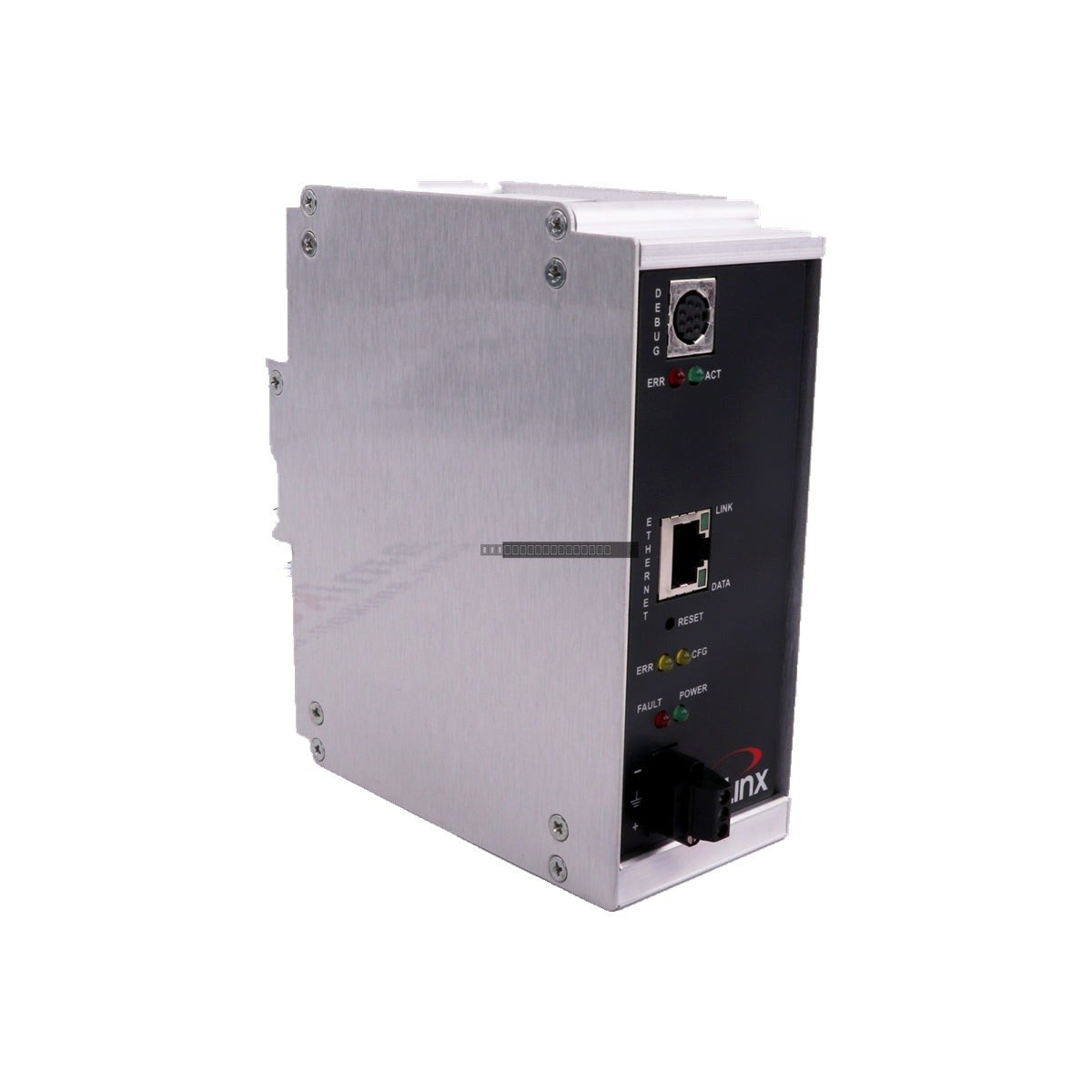

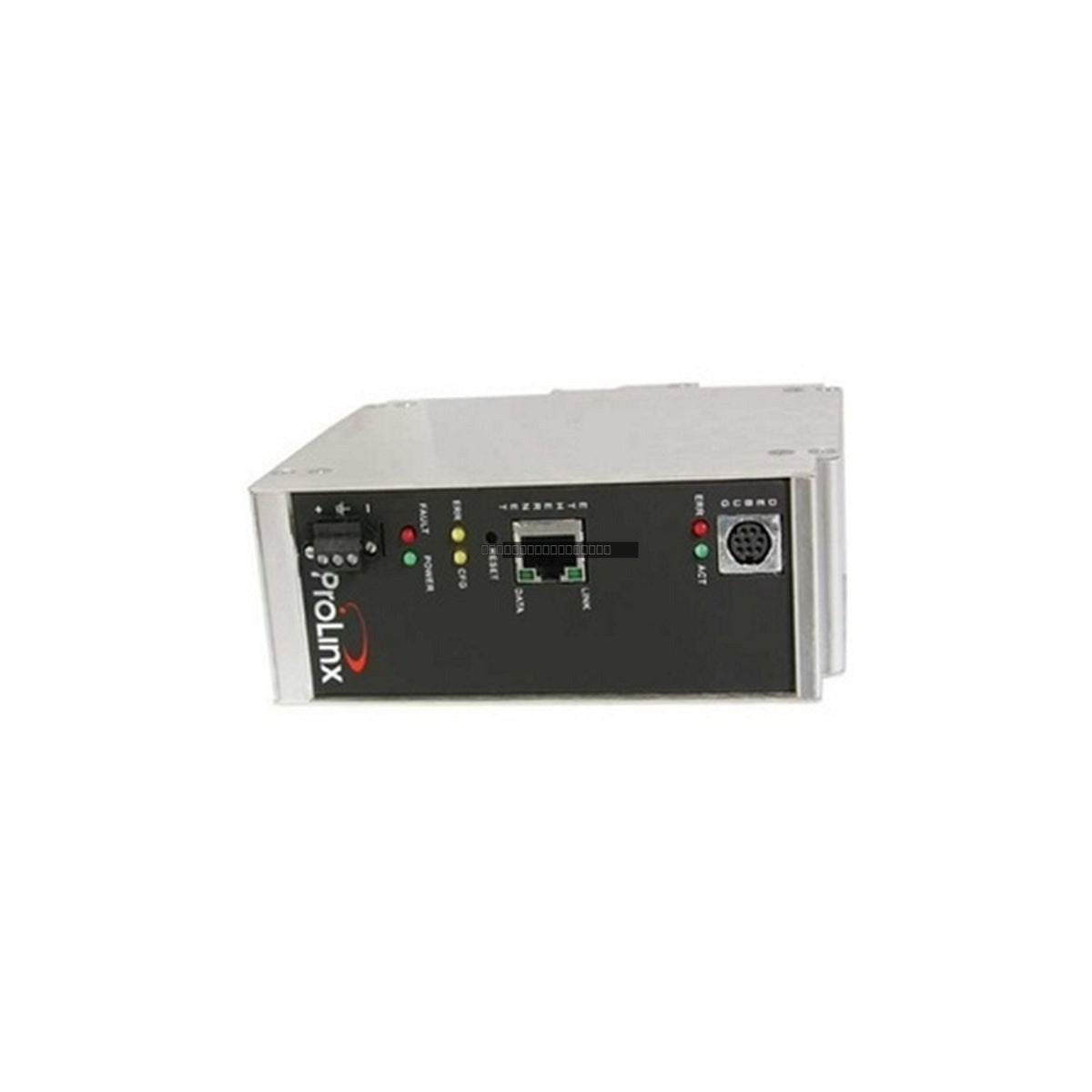

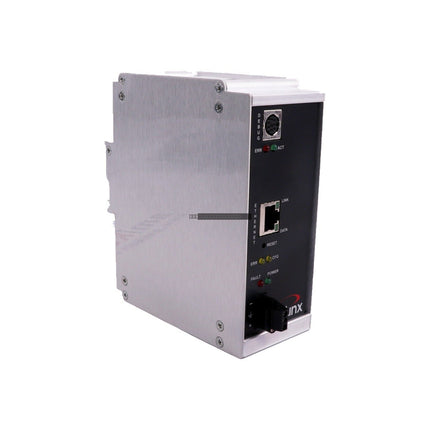

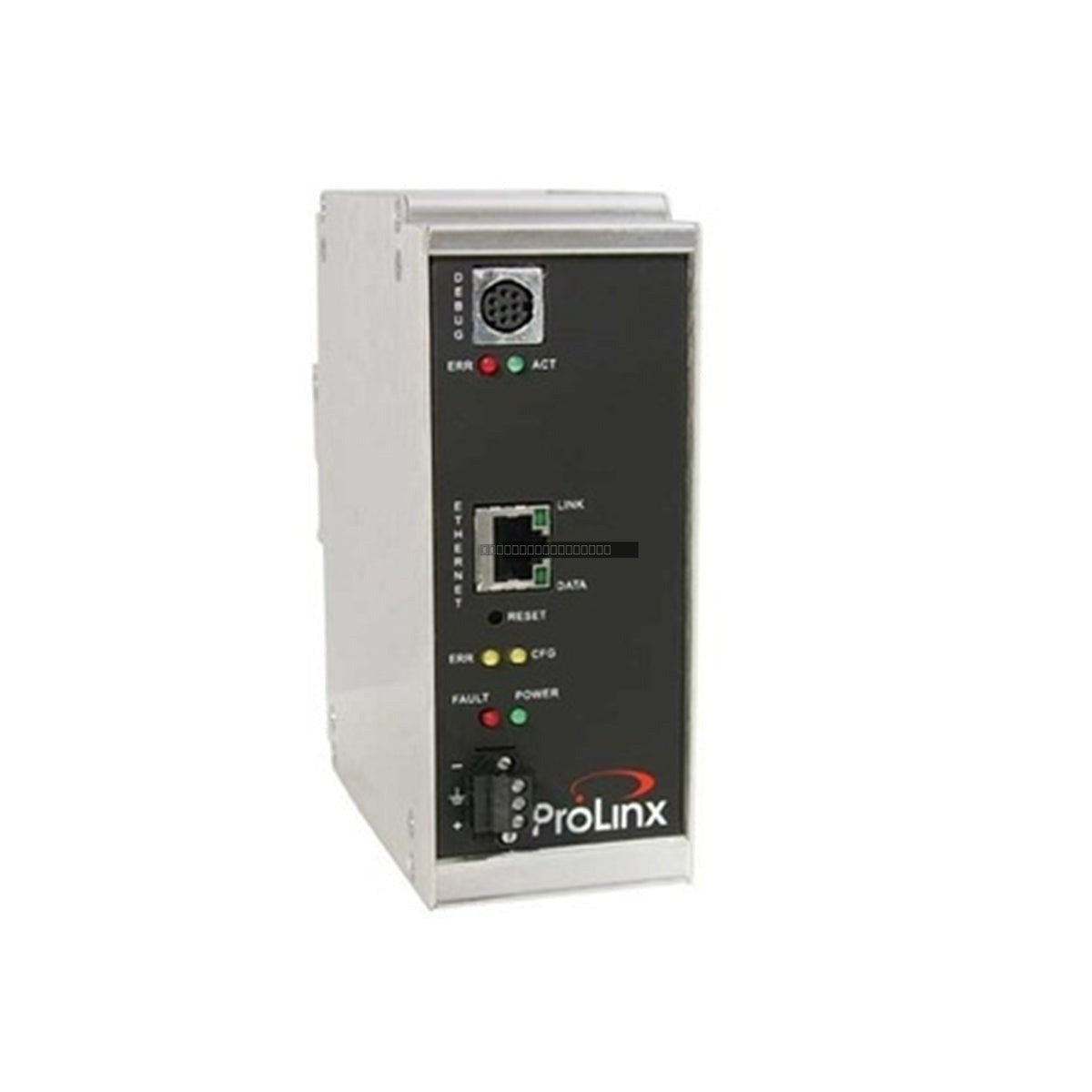

The ProSoft 5201-DFNT-EGD is a specialized communications gateway designed to facilitate seamless data exchange between EtherNet/IP-enabled devices and GE Ethernet Global Data (EGD) networks. This module acts as a protocol converter, allowing for robust interoperability in industrial automation environments where disparate network architectures must communicate reliably.
Features
- Protocol translation between EtherNet/IP and GE Ethernet Global Data (EGD).
- Enables data sharing between Rockwell Automation platforms and GE Fanuc control systems.
- Industrial-grade hardware designed for reliable operation in harsh environments.
- Facilitates integration of legacy GE controllers into modern EtherNet/IP architectures.
- Streamlines data mapping and communication configuration via standard industrial networking protocols.
Applications
This gateway is primarily deployed in manufacturing and process control facilities where legacy GE PLC systems need to interface with newer EtherNet/IP-based controllers. It is commonly used in automotive assembly, food and beverage processing, and water treatment plants to bridge communication gaps between different OEM control hardware.
Technical Specifications
| Model |
5201-DFNT-EGD |
| Manufacturer |
ProSoft |
| Primary Function |
EtherNet/IP to EGD Gateway |
| Communication Ports |
Ethernet |
| Weight |
0.4 kg |
Installation Guidelines
- Ensure the device is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
- Use shielded twisted-pair cabling for all Ethernet connections to minimize electromagnetic interference (EMI).
- Verify that the power supply voltage matches the module requirements before applying power.
- Always disconnect power before installing or removing the module from the DIN rail or backplane.
- Ensure proper grounding practices are followed to protect sensitive electronic components from static discharge and electrical noise.
FAQ
What does the 5201-DFNT-EGD gateway do?
It functions as a protocol bridge, allowing EtherNet/IP devices to read from and write to GE Ethernet Global Data (EGD) networks, enabling cross-platform communication.
Is this module suitable for high-vibration environments?
ProSoft gateways are built for industrial use; however, they should be mounted securely in an enclosure that meets vibration and shock specifications for the specific facility installation.
