PLC systems and modules deliver flexible automation for industries worldwide. Our inventory includes controllers, input/output modules, and communication units from Allen-Bradley, Siemens, GE, and other leading brands.
PLC Systems & Modules
-
Schneider Electric Schneider Electric TSXDEY32D2 Modicon Premium Discrete Input Module
Schneider Electric TSXDEY32D2 Modicon Premium Discrete Input Module The Schneider Electric TSXDEY32D2, also cataloged as the TSXDEY32D2 Discrete Input Module, operates as a dedicated hardware component for 24 VDC digital signal acquisition within the Modicon Premium Automation Platform. It provides 32 isolated current-sink input channels for direct field signal interfacing through the PLC backplane. Hardware Specifications Parameter Specification Model TSXDEY32D2 Brand Schneider Electric Product Series Modicon Premium Automation Platform Product Type Discrete Input Module Input Channels 32 isolated current-sink digital inputs Input Voltage 24 VDC positive Sensor Supply Voltage 19 to 30 VDC Input Current 3.5 mA per channel Logic State 1 Voltage >= 11 V Logic State 1 Current >= 3 mA Logic State 0 Voltage <= 5 V Logic State 0 Current <= 1.5 mA Input Impedance 6300 Ohm at logic state 1 Response Time 4 ms, <= 7 ms Insulation Resistance < 10 MOhm at 500 VDC Power Dissipation 1 W + 0.1 W x active channels Electrical Connection HE-10 connector Backplane Current Consumption 135 mA at 5 VDC; 160 mA at 24 VDC Module Format Standard Protection Rating IP20 Pollution Degree 2 Operating Temp 0 to 60 degC Storage Temp -25 to 70 degC Operating Humidity 10% to 95%, non-condensing Storage Humidity 5% to 95%, non-condensing Operating Altitude 0 to 2000 m Protective Treatment TC Certifications CE, ABS, GL, BV, RINA, RMRS, DNV, LR Weight 0.3 kg Origin France PLC Backplane Communication Characteristics The TSXDEY32D2 exchanges discrete input data with the Modicon Premium backplane through the platform's internal bus architecture. Input status is cyclically transferred to the processor without requiring external communication configuration. Backplane current loading should be included during rack power budget calculations, particularly when multiple high-density I/O modules are installed in the same chassis. Frequently Asked Questions Q: Does the TSXDEY32D2 support hot replacement while the PLC remains energized? A: The supplied technical data does not specify hot-swap capability. Module replacement should follow the maintenance procedure defined for the installed Modicon Premium system. Q: What type of field devices can be connected to the inputs? A: The module is designed for 24 VDC positive current-sink digital signals conforming to EN/IEC 61131-2 Type 1 input characteristics. Q: How is module power consumption determined? A: Internal power dissipation is specified as 1 W + 0.1 W multiplied by the number of active input channels. Backplane current consumption is 135 mA at 5 VDC and 160 mA at 24 VDC. Field Installation Guidelines Verify the PLC rack power budget before installing multiple high-density input modules. Connect field wiring using the specified HE-10 connector with correct pin assignment. Route digital input cables separately from high-power AC conductors to minimize electrical interference. Terminate cable shielding according to the plant grounding practice and avoid multiple shield grounding points unless required by the control system design. Confirm field voltage remains within the specified 19 to 30 VDC sensor supply range before commissioning. Maintain the enclosure environment within the specified IP20 operating conditions and ambient temperature limits.
$200.00 $100.00
-

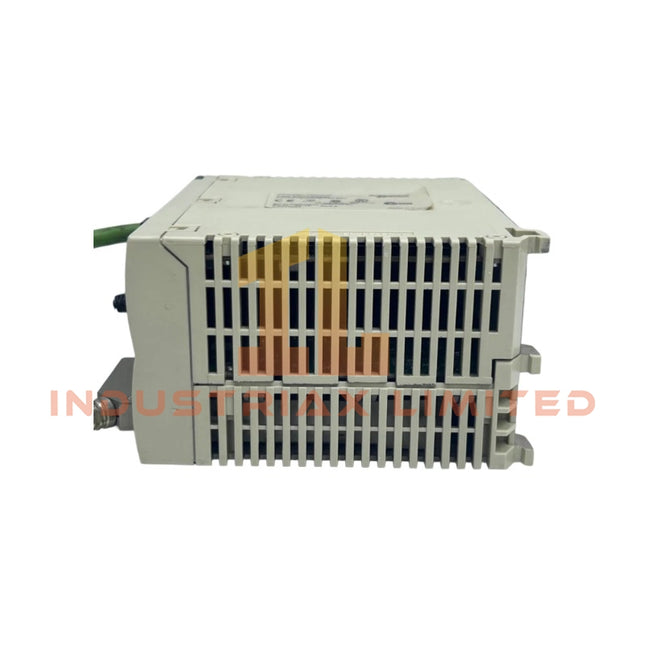

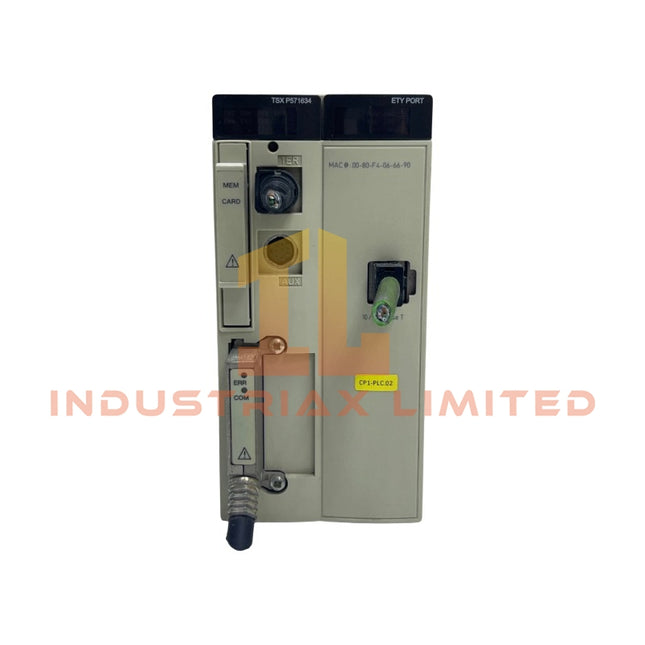

Schneider Electric TSXP571634M Unity Processor | Schneider Electric
Schneider Electric TSXP571634M Unity Processor The Schneider Electric TSXP571634M, also cataloged as the TSXP571634M Unity processor, operates as a dedicated hardware component for PLC program execution, I/O processing, and industrial Ethernet communication within the Modicon Premium Automation platform. Hardware Specifications Parameter Specification Model TSXP571634M Brand Schneider Electric Product Type Unity Processor Series Modicon Premium Automation Platform Origin Not specified Software Unity Pro Rack Capacity 2 x 12-slot racks or 4 x 4/6/8-slot racks Maximum Slots 24 (2 x 12-slot), 16 or 32 (4 x 4/6/8-slot configuration) Discrete I/O Capacity 512 I/O Analog I/O Capacity 24 I/O Application-Specific Channels 8 Communication Ports 2 x RS485 serial (Mini DIN, 19.2 kbit/s), 1 x Ethernet TCP/IP RJ45 Ethernet Port 10BASE-T/100BASE-TX Communication Module Capacity Up to 2 modules Internal Memory (with PCMCIA) 224 kB program, 96 kB data Internal Memory (without PCMCIA) 96 kB shared program and data Additional Storage 256 kB PCMCIA card Task Structure 1 master task, 1 fast task, 32 event tasks Power Consumption 1650 mA at 5 VDC Module Format Double-width Weight 0.74 kg Operating Temp 0 to 60 degC Storage Temp -25 to 70 degC Relative Humidity 10 % to 95 % non-condensing (operation) Operating Altitude 0 to 2000 m Protection Rating IP20 Pollution Degree 2 Protective Treatment TC Certifications GL, RMRS, LR, ABS, DNV, RINA, BV Compliance Standards IEC 61131-2, UL 508, CSA C22.2, 89/336/EEC, 73/23/EEC, 92/31/EEC, 93/68/EEC Backplane Bus Communication and Firmware Compatibility The TSXP571634M exchanges application data and I/O information through the Modicon Premium backplane while supporting Unity Pro engineering software. The processor provides integrated Ethernet TCP/IP communication together with dual RS485 serial interfaces for controller-level data exchange. Program and data memory expansion is available through a PCMCIA memory card, allowing firmware-supported application storage without modifying the processor hardware. Frequently Asked Questions Q: Does the processor support memory expansion? A: Yes. A PCMCIA memory card provides an additional 256 kB data storage area while increasing available application memory according to the specified memory configuration. Q: What communication interfaces are integrated on the processor? A: The processor includes one Ethernet TCP/IP RJ45 interface supporting 10BASE-T/100BASE-TX and two non-isolated RS485 serial ports using Mini DIN connectors operating at 19.2 kbit/s. Q: What should be considered when installing expansion racks? A: The rack configuration should remain within the supported combinations specified for the processor. Power supply sizing must include the processor backplane current consumption of 1650 mA at 5 VDC together with all installed I/O and communication modules. Field Installation Guidelines Disconnect system power before installing or removing the processor. Verify that the selected rack configuration matches the supported slot combinations. Ensure the available backplane power supply capacity exceeds the combined current requirement of all installed modules. Route Ethernet and serial communication cables separately from high-voltage power wiring to minimize electrical interference. Connect cable shields according to the control cabinet grounding practice to reduce conducted noise. Confirm environmental conditions remain within the specified operating temperature, humidity, altitude, and pollution limits before commissioning.
$200.00 $100.00
-

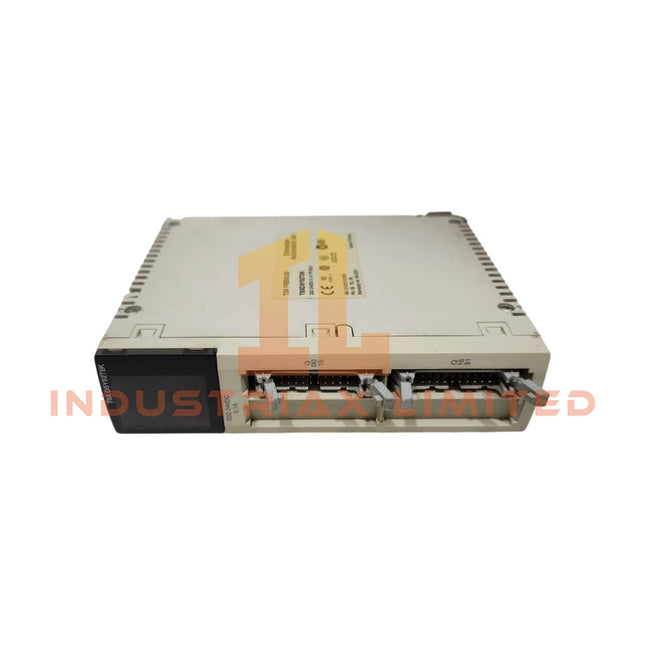

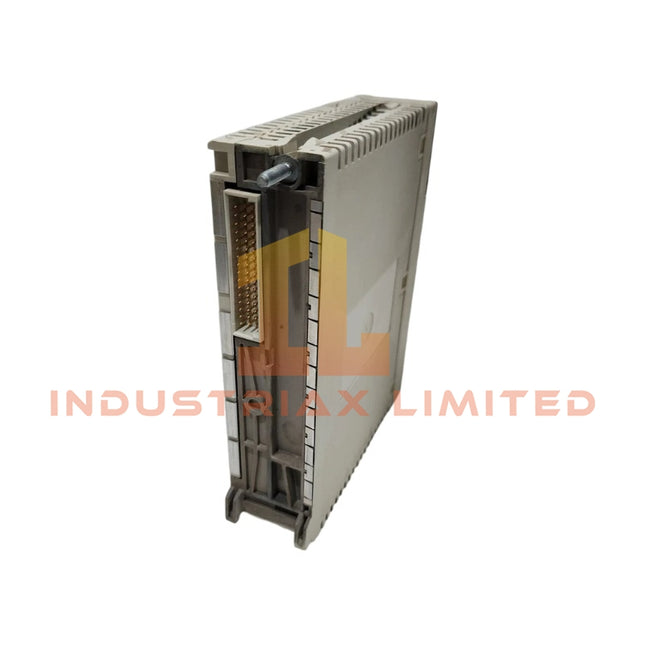

Schneider Electric Schneider Electric Modicon Premium Discrete Output Module
Schneider Electric Modicon Premium Discrete Output Module Configured for discrete 24 VDC output switching in the Modicon Premium Automation Platform, the Schneider Electric Discrete Output Module (Modicon Premium Discrete Output Module) provides direct physical electrical execution through 32 protected solid-state output channels. Hardware Specifications Parameter Specification Model Modicon Premium Discrete Output Module Brand Schneider Electric Origin France Product Type Discrete Output Module Output Type 32 solid-state protected outputs Output Voltage 24 VDC positive conforming to EN/IEC 61131-2 (19 to 30 VDC) Current per Channel 0.1 A Maximum Current per Module 3.2 A Maximum Leakage Current 0.1 mA at 30 V Maximum Tungsten Load 1.2 W Residual Voltage 1.5 V Response Time 1.2 ms Output Paralleling Up to 3 outputs Overvoltage Protection Transil diode Reverse Polarity Protection Reverse-mounted diode Overload Protection Automatic trip Short-Circuit Protection Automatic trip Minimum Load Impedance 220 Ohm at state 1 Insulation Resistance Greater than 10 MOhm at 500 V Dielectric Strength 1500 VAC, 50/60 Hz, 60 s Electrical Connection 2 HE-10 connectors Backplane Current Consumption 140 mA at 5 VDC Power Consumption 1.6 W + (0.1 W x active outputs) Module Format Standard Weight 0.3 kg Package Dimensions 26.0 x 18.0 x 5.5 cm Operating Temp 0 to 60 degC Storage Temp -25 to 70 degC Operating Humidity 10 to 95 % RH, non-condensing Storage Humidity 5 to 95 % RH, non-condensing Operating Altitude 0 to 2000 m Protection Rating IP20 Pollution Degree 2 Protective Treatment TC Product Compatibility Dial and Power Standards IEC 61131-2, UL 508, CSA C22.2, CE Directives Certifications ABS, BV, DNV, GL, LR, RINA, RMRS Backplane Communication and I/O Density The module interfaces with the Modicon Premium backplane through a standard module format and draws 140 mA from the 5 VDC backplane supply. Thirty-two protected transistor outputs provide high I/O density while maintaining individual channel protection through automatic overload and short-circuit trip functions. The module supports output paralleling for up to three channels where application current distribution permits. Frequently Asked Questions Q: Does the module include individual output protection?A: Yes. Each output incorporates automatic overload protection, automatic short-circuit protection, reverse-polarity protection using a reverse-mounted diode, and overvoltage suppression using a transil diode. Q: Can multiple outputs be connected in parallel?A: Yes. The specification permits paralleling of up to three outputs. Q: What electrical interface is required for field wiring?A: The module uses two HE-10 connectors for field connections and operates with 24 VDC positive logic outputs. Field Installation Guidelines Verify that the PLC rack power supply has sufficient 5 VDC backplane current capacity before module installation. Isolate field power before connecting or disconnecting HE-10 connectors. Route output wiring separately from high-voltage or high-frequency cables to reduce conducted electrical interference. Connect protective earth according to the control cabinet grounding practice. Confirm field loads remain within the specified channel and module current limits before energizing the system. Install the module only within the specified ambient temperature, humidity, and altitude limits.
$200.00 $100.00
-

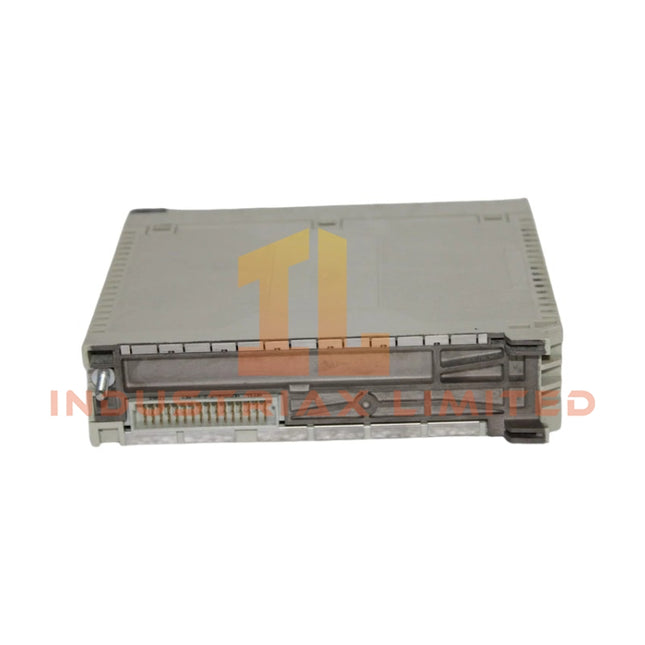

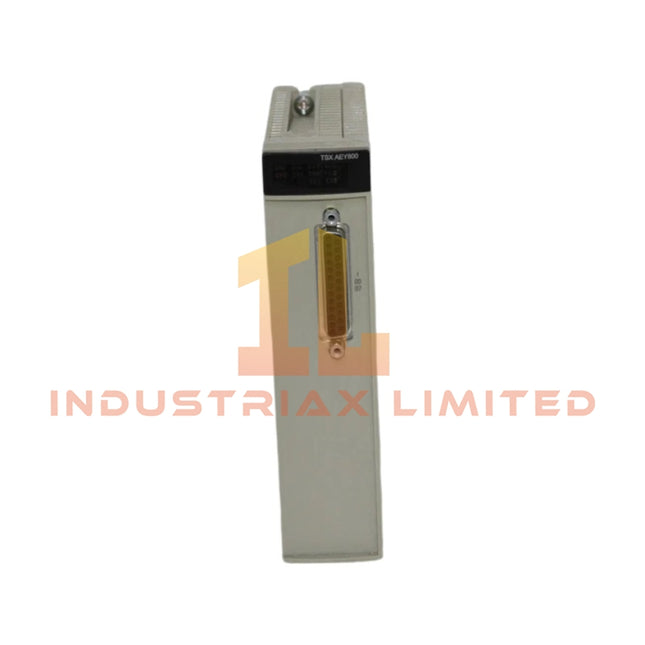

Schneider Electric Analog Input Module TSXAEY800 Modicon Premium Schneider Electric
Schneider Electric TSXAEY800 Modicon Premium Analog Input Module Configured for high-level signal acquisition in the Modicon Premium Automation platform, the Schneider Electric TSXAEY800 (base model: TSXAEY800) provides direct physical/electrical execution of analog data conversion tasks. Hardware Specifications Parameter Specification Brand Schneider Electric Series Modicon Premium Model TSXAEY800 Origin France (FR) Weight 0.31 kg (0.68 lb) Dimensions Standard Module Format Operating Temp 0...60 degC (32...140 degF) Storage Temp -25...70 degC (-13...158 degF) Power Consumption 270 mA @ 5 V DC Analog Inputs 8 Channels Input Types 0...20 mA, 4...20 mA, +/-10 V, 0...10 V, 0...5 V, 1...5 V Resolution 12 bits Electrical Connection 1 x SUB-D 25 Connector Protection Rating IP20 Backplane Bus Communication and Configuration The module interfaces with the Modicon Premium backplane via the XBP bus. It requires specific firmware compatibility checks when integrated with Unity Pro software versions prior to V3.1. Channel density scaling is fixed; no jumper configuration is required for range selection, which is executed via software parameters. The module does not support hot-swapping; power must be removed from the rack before insertion or removal. Frequently Asked Questions Q: What is the maximum overcurrent tolerance for the module's internal protection? A: The module features overcurrent protection rated at -30...30 mA at state 1 with an input impedance of 250 kOhm. Exceeding this limit may damage the input circuitry. Q: Is channel-to-channel isolation present on the TSXAEY800? A: No. This module has no common mode isolation between channels. External isolation barriers must be used if galvanic isolation is required between field devices. Q: What are the input voltage limits to prevent damage? A: Permanent damage can occur if input voltage exceeds -15...15 V at state 0 or -30...30 V at state 1 (250 Ohm load). Ensure field wiring does not exceed these limits. Field Installation Guidelines Install the module on a standard 35 mm DIN rail or directly into the TSX Rack backplane. Ensure proper torque application on terminal screws (typically 0.5 Nm). Shielded twisted pair cables are mandatory for analog signal runs. Ground the shield drain wire at a single point to the chassis ground (PE) to prevent ground loops. Maintain separation between high-voltage power wiring and low-level analog signal wiring (minimum 10 cm spacing) to avoid electromagnetic interference.
$200.00 $100.00
-

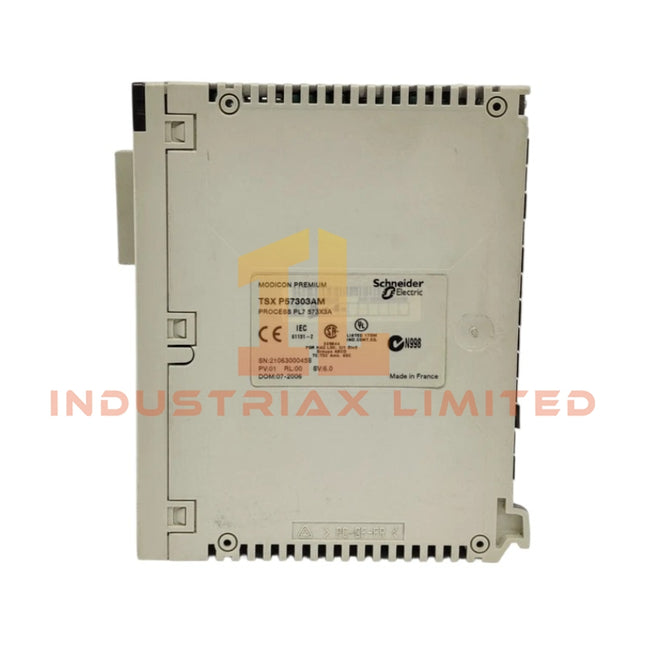

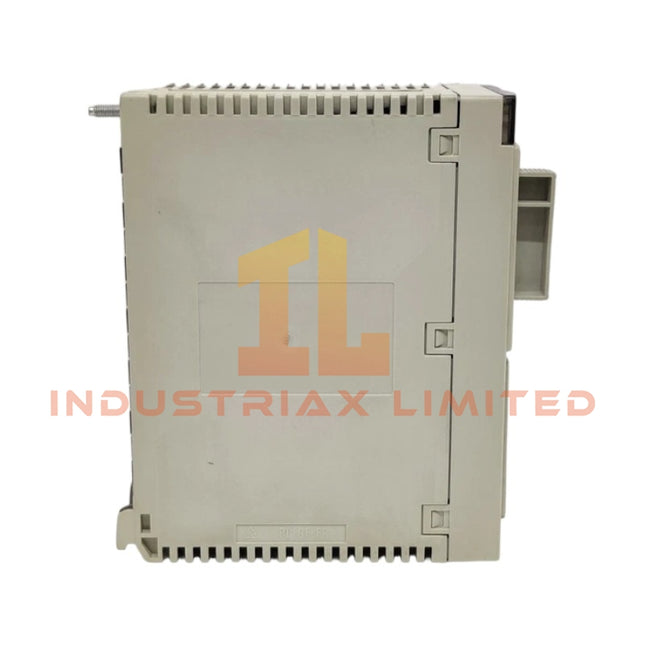

Schneider Electric Double-Format PL7 Processor TSXP57303AM Schneider Electric
Schneider Electric TSXP57303AM Double-Format PL7 Processor Configured for deterministic logic execution in the Modicon Premium Automation platform, the Schneider Electric TSXP57303AM, also referenced as the TSXP57 double-format PL7 processor, provides direct physical backplane communication and discrete/analog I/O processing. Hardware Specifications Parameter Specification Brand Schneider Electric Model TSXP57303AM Origin France Weight 0.52 kg Dimensions 95 mm x 180 mm x 260 mm Operating Temp 0 to 60 degC Power Consumption 1000 mA @ 5 V DC Discrete I/O Capacity 1024 points Analog I/O Capacity 128 points Process Control Channels 15 to 45 simple loops Serial Link Non-isolated, 19.2/115 kbit/s, female mini DIN System Overhead 0.29 ms fast task, 1.15 ms master task Pollution Degree 2 Protection Rating IP20 Backplane Bus Communication and Firmware Flash Compatibility The TSXP57303AM utilizes the Modicon Premium backplane bus architecture for deterministic data exchange between processor and I/O modules. Firmware revisions must match the installed PL7 software version; mismatched flash loads will prevent task scheduling. The processor supports up to 8 AS-Interface bus modules and 3 network modules concurrently, with reduced fieldbus capacity when CANopen is active. Frequently Asked Questions Q: Can the TSXP57303AM be hot-swapped while the rack remains powered? A: No. The module must be inserted or removed only after removing 5 V DC backplane power to avoid corruption of volatile memory and I/O mapping tables. Q: What is the maximum analog input loading per rack with this processor? A: The processor supports up to 128 analog I/O points distributed across all connected racks, regardless of slot population density. Q: Does firmware downgrade require reconfiguration of application logic? A: Downgrading may cause incompatibility with certain process control function blocks; verify PL7 software compatibility before flashing older firmware. Field Installation Guidelines Mount the TSXP57303AM into a grounded, metallic DIN rail assembly within an IP20-rated enclosure. Maintain clearance for heat dissipation—minimum 50 mm above and below the module. Use shielded twisted-pair cabling for serial links and connect shield drains directly to the rack ground bar. Avoid routing signal wiring parallel to high-current AC feeders to minimize inductive coupling. Verify backplane seating by checking RUN LED status after power-up.
$200.00 $100.00
-

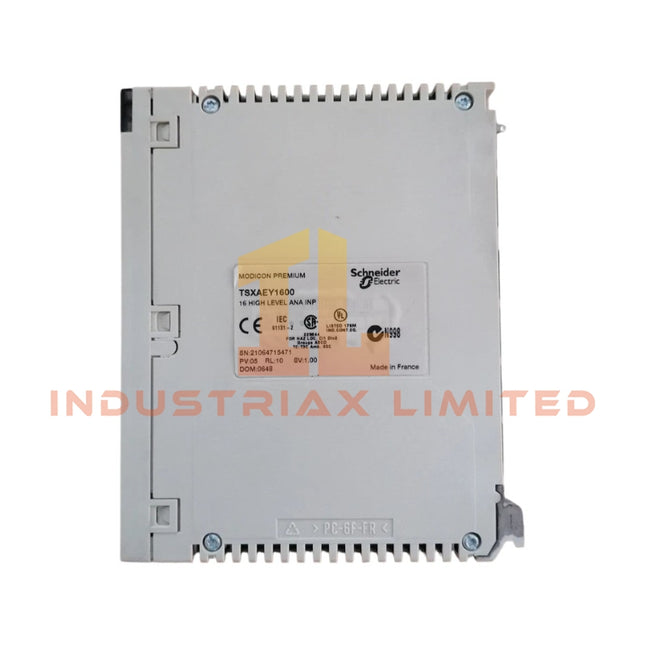

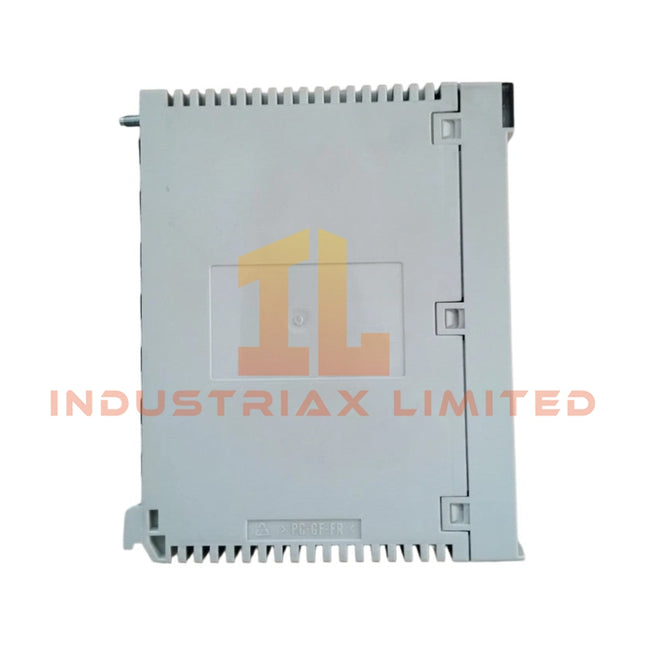

Schneider Electric Analog Input Module TSXAEY1600 Schneider Electric Modicon Premium
Schneider Electric TSXAEY1600 Analog Input Module The TSXAEY1600, also cataloged as the TSX Micro analog input module, operates as a dedicated hardware component for multirange signal acquisition within Modicon Premium automation platforms. Suffix Breakdown & Model Matrix Code Definition TSX Schneider Electric TSX Micro / Premium Series Prefix A Analog I/O Category EY High-Level Input Module Type 1600 16-Channel Configuration Hardware Specifications Parameter Specification Model Brand Schneider Electric Origin France Weight 0.45 kg Dimensions Standard TSX Micro Format Operating Temp 0 to 60 degC Storage Temp -25 to 70 degC Power Consumption 270 mA at 5 V DC Analog Input Channels 16 High-Level Inputs Input Types Current 0...20 mA, 4...20 mA; Voltage +/- 10 V, 0...10 V, 0...5 V, 1...5 V Resolution 12 bits Isolation 1000 Vrms (Channel-Bus, Channel-Ground) Electrical Connection 2 x SUB-D 25 Connectors Relative Humidity 10% to 95% (Non-condensing) Backplane Bus Communication and Firmware Flash Compatibility The module interfaces with the Modicon Premium backplane via a parallel data bus, executing deterministic scan cycles. The nominal read cycle time is fixed at 51 ms for all 16 channels, while the fast read cycle executes in 3 ms plus 3 ms per active channel. Firmware compatibility is strictly tied to the specific CPU processor generation; mixing TSX Micro modules with later-generation Magelis or M340 platforms requires explicit firmware validation to prevent addressing errors on the bus coupler. Frequently Asked Questions Q: What is the measurement error tolerance for this module at ambient temperature? A: The measurement error is specified at 0.1% of full scale at 25 degC. Field accuracy may drift according to the thermal coefficient specified in the general catalog for temperatures outside this range. Q: Can the TSXAEY1600 be hot-swapped on a live rack? A: No. The module is not rated for live insertion. Power must be removed from the rack before installation or removal to prevent backplane bus faults and potential damage to the I/O circuitry. Q: Is individual channel isolation provided? A: No. While the module provides 1000 Vrms isolation between the channel group and the bus/ground, there is no isolation between individual input channels. Common mode voltage limits must be observed. Field Installation Guidelines Mount the module into the TSX Micro rack ensuring the bus connector is fully engaged. Use shielded twisted pair cabling for all analog inputs. Terminate the shield drain wire to the designated ground point on the DIN rail or mounting plate; do not connect the shield at the module end to avoid ground loops. Verify that the input overvoltage protection limits (-15 to 15 V at state 0, -30 to 30 V at state 1) are not exceeded by field wiring during power-up sequences.
$200.00 $100.00
-

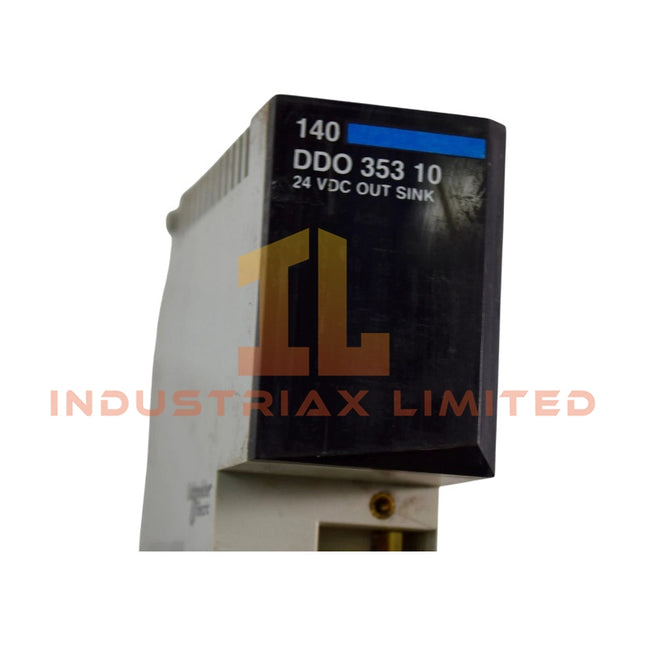

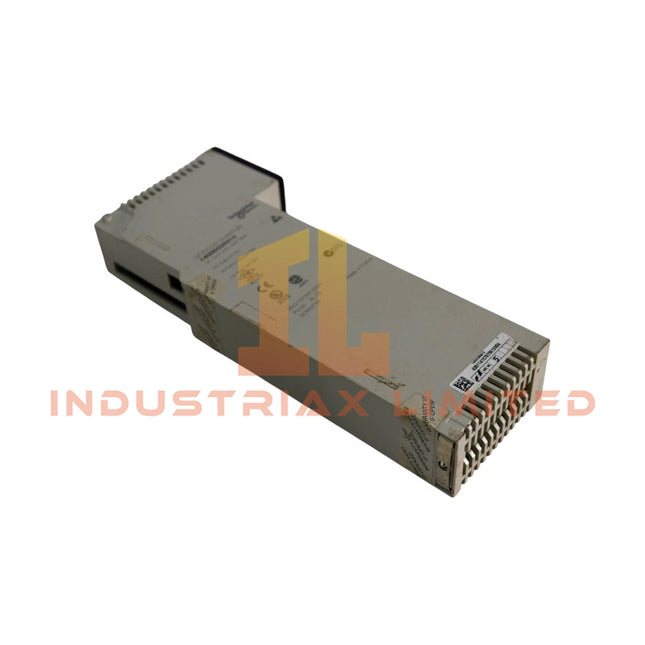

Schneider Electric Schneider Electric 140DDO35310 Modicon Quantum Discrete Output Module
Schneider Electric 140DDO35310 Modicon Quantum Discrete Output Module Configured for high-density negative logic switching in the Modicon Quantum automation platform, the Schneider Electric 140DDO35310, also cataloged as the 140DDO35310 Discrete DC Output Module, provides direct physical execution of 32 sink-type output circuits operating at 24 V DC with deterministic response behavior. Suffix Breakdown & Model Matrix Code Segment Definition 140 Modicon Quantum Series Prefix DDO Discrete Digital Output 35 24 V DC Negative Logic (Sink) 310 32-Point High Density Configuration Hardware Specifications Parameter Specification Brand Schneider Electric Origin France Weight 0.45 kg Dimensions Standard Quantum Module Format Operating Temp 0 to 60 degC Storage Temp -40 to 85 degC Power Consumption 2.0 W + (0.4 V x Total Load Current) Bus Current Requirement <= 330 mA Output Channels 32 (4 Groups of 8) Output Voltage 24 V DC (Limits: 19.2–30 V) Absolute Max Voltage 50 V for 1 s decaying pulse Voltage Drop 0.4 V @ 0.5 A Max Load Current 16 A per module / 4 A per group Surge Current <= 5 A for 1 ms Response Time <= 1 ms (0->1), <= 1 ms (1->0) Leakage Current 0.4 mA @ 30 V Isolation (Channel-Bus) 1780 Vrms DC for 1 min Isolation (Group-Group) 500 Vrms DC for 1 min Protection Internal 5 A fuse per group Indicators 1 Green Active LED, 1 Red Fault LED, 32 Green Output Status LEDs Certifications UL 508, CSA C22.2 No 142, FM Class 1 Div 2, C-Tick, GOST, RINA, RMRS Backplane Bus Communication Velocity Licensing This module utilizes the Quantum backplane architecture to execute deterministic output updates synchronized with the PLC scan cycle. The 140DDO35310 requires allocation of 2 output words in the processor memory map. Channel state transitions are executed via direct backplane transactions without protocol translation latency. Firmware flash compatibility is bound to specific Quantum processor generations; mismatched firmware revisions may result in I/O disable states during power-up diagnostics. Frequently Asked Questions Q: Can this module be hot-swapped while backplane power is applied? A: No. The 140DDO35310 must be inserted or removed only when the rack power supply is de-energized to prevent arcing on the backplane connectors and avoid transient overcurrent conditions on the internal fuses. Q: What is the maximum permissible cable length for each output circuit? A: For 24 V DC negative logic outputs, total conductor length should be limited to 300 meters to minimize voltage drop and inductive ringing effects under high-speed switching loads. Q: Does the module support individual channel replacement without disturbing adjacent modules? A: No. Removal requires extraction from the Quantum rack; however, adjacent modules remain operational provided their own power budgets are maintained. Field Installation Guidelines Mount the module on a standard Quantum backplane using the integrated locking mechanism. Ensure all DIN rail or chassis grounds are bonded to a single-point earth ground reference to suppress common-mode noise. Output wiring must use individually shielded twisted pair conductors with the shield terminated at the module end only. Fuse ratings must not exceed 3 A per point or 5 A per group. Verify absence of external field power before performing any terminal block connections.
$200.00 $100.00
-

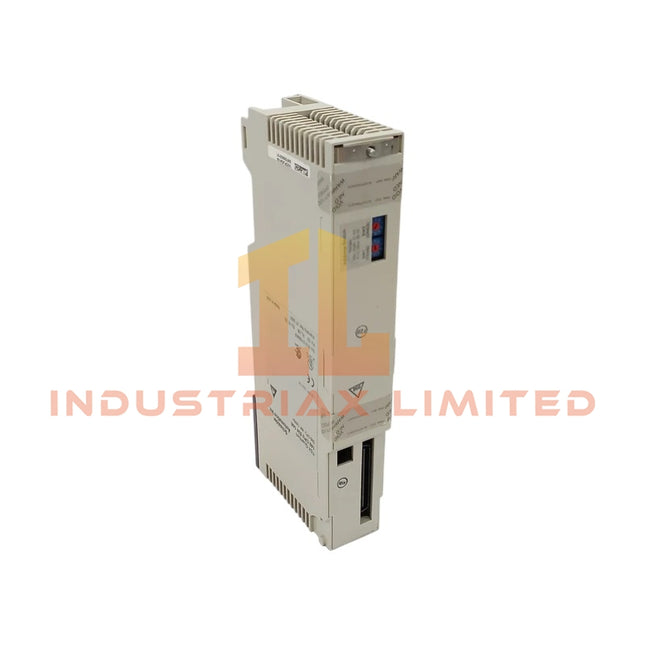

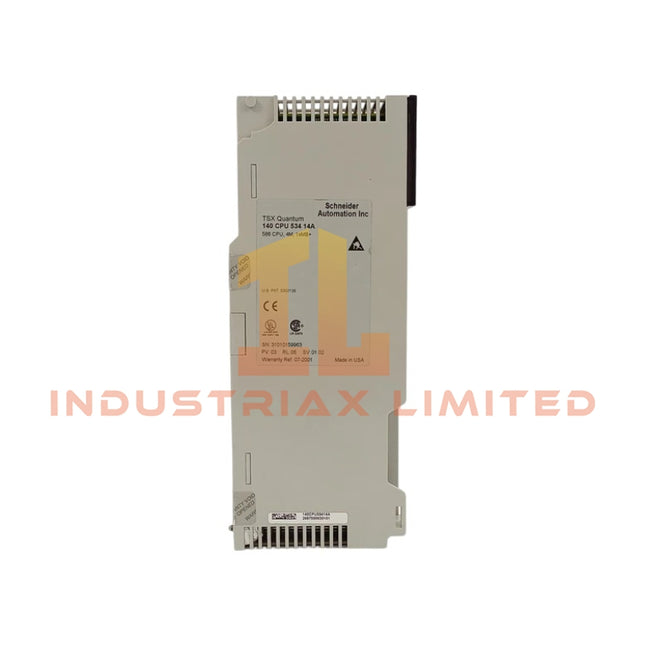

Schneider Electric Schneider Electric 140CPU53414A Modicon Quantum Processor Unit
Schneider Electric 140CPU53414A Modicon Quantum Processor Unit The Schneider Electric 140CPU53414A, also cataloged as the 140CPU53414 Processor Unit, operates as a dedicated hardware component for central processing and logic execution within Modicon Quantum automation platforms. Hardware Specifications Parameter Specification Model 140CPU53414A Brand Schneider Electric Origin France Weight 0.91 kg (2.00 lbs) Dimensions 5.3 cm x 16.8 cm x 31.7 cm Operating Temp 0 degC to 60 degC Storage Temp -40 degC to 85 degC Power Consumption Not Specified Processor Type 80586 Processor Clock Frequency 133 MHz Internal Memory 2.7 MB Math Coprocessor Included Modules Supported 6 modules Communication Ports RS-232, RS-485 Key Switch Included Battery Type 3V lithium battery (1200 mAh) Battery Shelf Life 10 years Backplane Bus Communication and Firmware Compatibility The module regulates local backplane bus communication velocity across the rack assembly, managing deterministic data exchanges with up to 6 supported modules. Internal flash memory architecture dictates strict firmware flash compatibility parameters; any system update requires alignment with corresponding engineering software revision matrices to maintain precise execution timing and prevent initialization faults. Frequently Asked Questions Q: What is the functional purpose of the integrated key switch on the front panel? A: The key switch provides physical hardware security, allowing users to lock memory configurations, restrict remote program modifications, and manually select the processor operating state. Q: How does the unit manage internal memory retention during a primary power interruption? A: Memory content and real-time clock tracking are sustained via an onboard 3V lithium battery with a 1200 mAh capacity, protecting volatile data registers when backplane power is lost. Field Installation Guidelines Verify that all backplane power sources are completely disconnected before inserting or removing the processor module from the slot. Ensure the 3V lithium backup battery is properly oriented and fully engaged within its designated compartment prior to system commissioning. Ground all RS-232 and RS-485 communication cable shields to the local functional earth terminal to suppress transient electromagnetic noise. Maintain clear clearance profiles around the module chassis to ensure natural convection cooling stays within the defined 0 degC to 60 degC operating envelope.
$200.00 $100.00
-

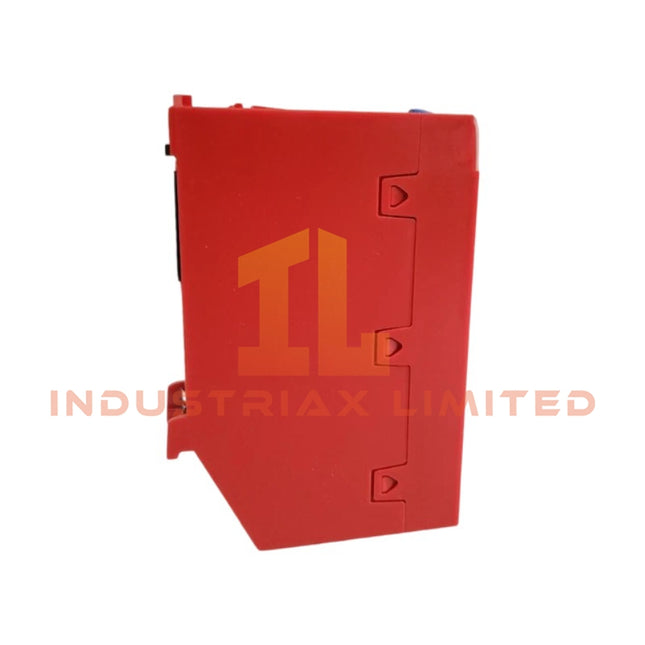

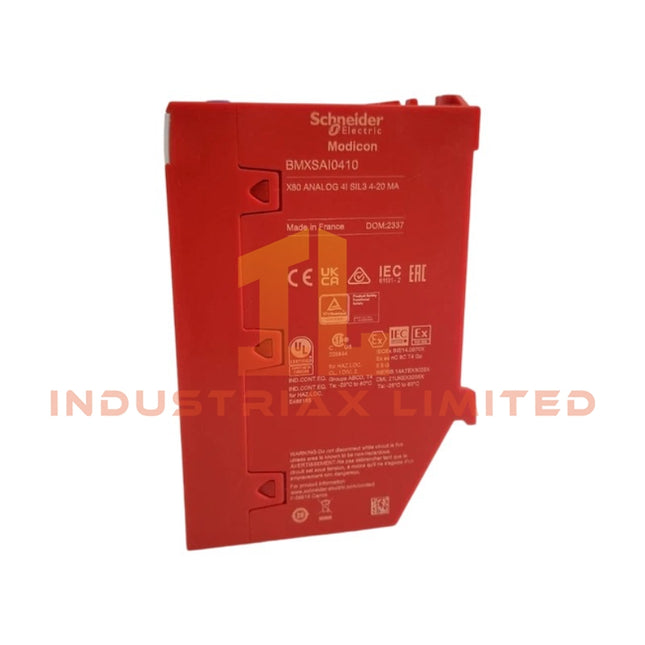

Schneider Electric BMXSAI0410 Safety Analog Input Module | Schneider Electric
Schneider Electric BMXSAI0410 Safety Analog Input Module Configured for high-integrity signal acquisition in Safety Instrumented Systems (SIS), the Schneider Electric BMXSAI0410 (BMXSAI Safety Analog Input Module) provides direct physical/electrical execution of 4-20 mA current loops into deterministic digital data via the X80 backplane. Hardware Specifications Parameter Specification Model Brand Schneider Electric BMXSAI0410 Origin France Weight 340 g Dimensions 25.8 cm x 17.9 cm x 5.4 cm Operating Temp -25 to 60 degC Power Consumption 1.5 W typical (via backplane) Analog Input Number 4 isolated channels Input Type Current 4...20 mA Conversion Resolution 16 bits Measurement Resolution 2 uA Isolation Voltage 500 V DC (Channel-Ch) / 1500 V DC (Ch-GND/Bus) Nominal Read Cycle 6 ms for 4 channels TMR Architecture and Fail-Safe Execution The module supports integration into SIL3-rated architectures utilizing triple modular redundancy principles. It executes fail-safe state transitions upon detection of open-circuit or over-range conditions exceeding 25 mA. Channel-to-channel galvanic isolation is maintained at 500 V DC to prevent ground loop interference and ensure data integrity during partial system faults. Frequently Asked Questions Q: Does the BMXSAI0410 support hot-swap removal under load? A: No. The module must be de-energized prior to removal or insertion to prevent arcing on the 20-way connector and to maintain the integrity of the safety checksum. Q: What is the default scaling for the raw digital value? A: The default user scale is +/- 10000 counts. Recalibration and scaling to +/- 32000 counts must be configured via the control system programming software. Q: How is crosstalk suppressed between adjacent channels? A: Crosstalk attenuation is maintained at a minimum of 120 dB through independent conversion resistors and second-order digital filtering per channel. Field Installation Guidelines Install the module onto a standard 35 mm DIN rail within the X80 rack. Ensure the shield of the analog input cables is terminated at the cable gland or terminal block to maintain EMC compliance. Torque the connector screws to 0.5 Nm. Verify the gap voltage and loop continuity before applying power to the safety controller.
$200.00 $100.00
-

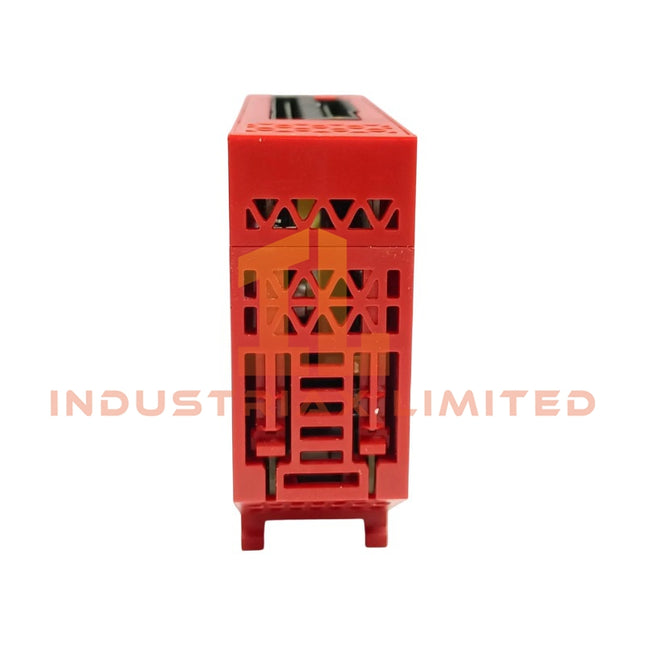

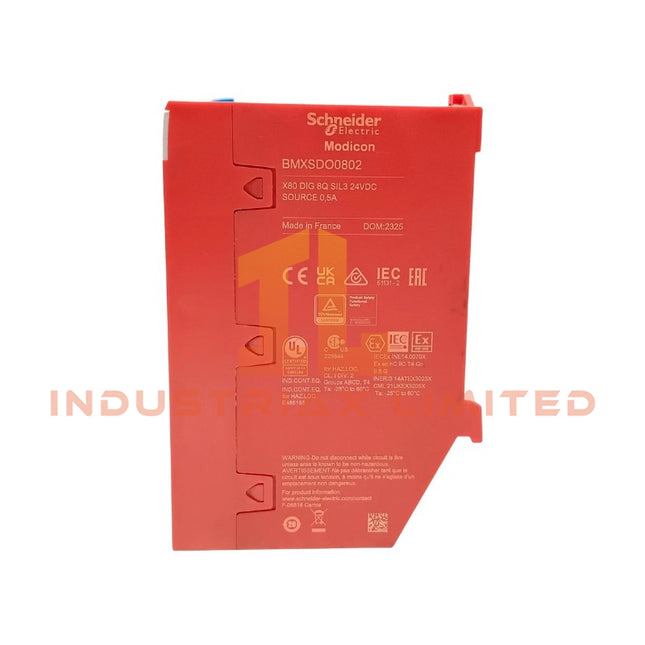

Schneider Electric BMXSDO0802 Modicon X80 Discrete Output Module | Schneider Electric
Schneider Electric BMXSDO0802 Modicon X80 Discrete Output Module The Schneider Electric BMXSDO0802, also cataloged as the Modicon X80 discrete output module, operates as a dedicated hardware component for solid-state positive safety logic switching within Modicon automation controller platforms. Hardware Specifications Parameter Specification Model BMXSDO0802 Brand Schneider Electric Origin France Weight 0.12 kg Dimensions Not specified OperatingTemp Not specified PowerConsumption 4.4 W maximum power dissipation Discrete Output Number 8 Discrete Output Type Solid state (Not isolated) Discrete Output Logic Positive Discrete Output Voltage 24 V DC (19...30 V DC) Discrete Output Current 0.5 A nominal Current per Channel 0.625 A Maximum Current per Module 10 A Maximum Leakage Current 0.5 mA at state 0 Maximum Voltage Drop <1.2 V at state 1 Insulation Resistance > 10 MOhm at 500 V DC Response Time on Output 1.2 ms Paralleling of Outputs Yes (2 maximum) Typical Current Consumption 264 mA at 3.3 V DC, 15 mA at 24 V DC MTBF Reliability 401208 H Output Overload Protection Current limiter and electronic circuit breaker (1.5 In < Id < 2 In) Output Overvoltage Protection Transil diode Output Short-Circuit Protection External 2 A fuse required Reverse Polarity Protection Reverse mounted diode Voltage Detection Threshold < 14 V DC (sensor fault), > 18 V DC (sensor OK) Maximum Tungsten Load 6 W Switching Frequency 0.5/LI^2 Hz Load Impedance Ohmic <= 48 Ohm Status LED Indicators 1 LED green (RUN), 1 LED green per channel (diagnostic), 1 LED red (ERR), 1 LED red (I/O) Backplane Bus Communication Velocity The module interfaces directly with the Modicon X80 backplane, utilizing high-speed bus communication synchronization to update the status of the 8 solid-state outputs. This deterministic bus integration minimizes internal propagation latency and ensures synchronous logic execution matching the main processor scan cycle. Frequently Asked Questions Q: What is the maximum configuration allowed when paralleling outputs on this module? A: A maximum of 2 outputs can be connected in parallel to handle higher current loads, provided that the total current draw does not exceed the overall module limit of 10 A. Q: What mechanisms handle overcurrent and short-circuit faults on the channels? A: The module utilizes an internal current limiter and an electronic circuit breaker calibrated between 1.5 In and 2 In for overload states. Short-circuit conditions require the installation of an external 2 A fuse per specified guidelines. Field Installation Guidelines Install a mandatory 2 A external fast-acting fuse in series with the output channels to ensure proper short-circuit protection and prevent physical damage to the solid-state circuitry. Route all 24 V DC field wiring away from high-voltage AC cables to minimize cross-talk and electromagnetic interference on the non-isolated positive logic channels. Verify that the total current load across all 8 channels does not exceed the 10 A maximum rating under peak operational conditions to prevent thermal overstress.
$200.00 $100.00
-

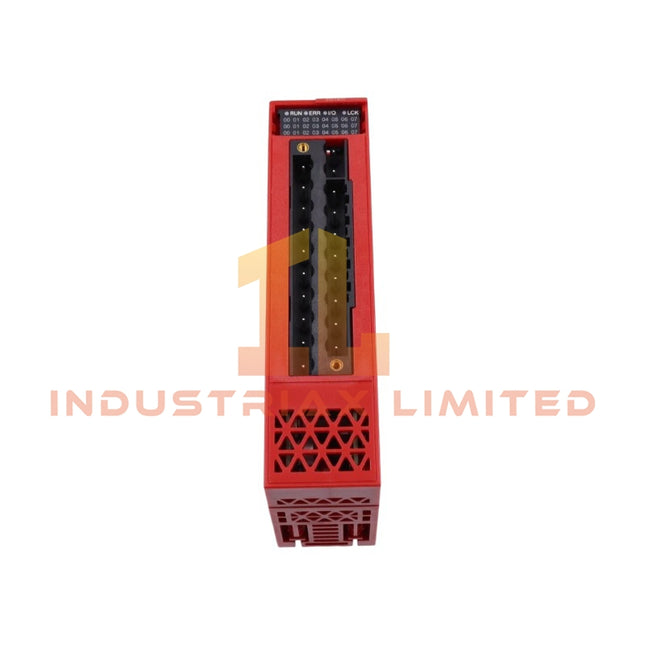

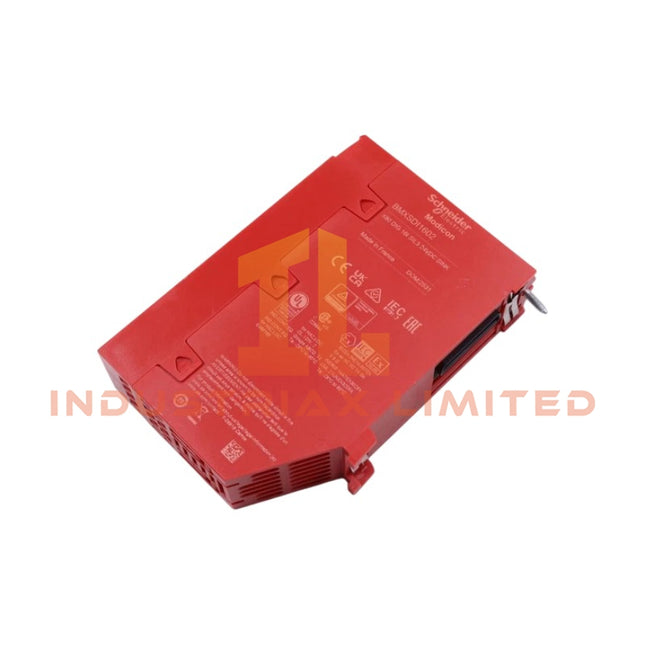

Schneider Electric Schneider Electric BMXSDI1602 Modicon X80 Discrete Input Module
Schneider Electric BMXSDI1602 Modicon X80 Discrete Input Module The Schneider Electric BMXSDI1602, also cataloged as the BMXSDI1602 Discrete Input Module, operates as a dedicated hardware component for safe discrete signal acquisition within Modicon X80 automation platforms. Hardware Specifications Parameter Specification Model BMXSDI1602 Brand Schneider Electric Origin France Weight 0.115 kg Discrete Input Number 16 Discrete Input Type Not isolated, current sink (logic positive) Discrete Input Voltage 24 V DC Discrete Input Current 3.2 mA Sensor Power Supply 19...30 V Voltage State 1 Guaranteed >= 11 V Current State 1 Guaranteed >= 2 mA Voltage State 0 Guaranteed <= 5 V Current State 0 Guaranteed <= 1.5 mA Input Impedance 7500 Ohm Insulation Resistance > 10 MOhm 500 V DC Maximum Power Dissipation 3.57 W DC Typical Filtering Time 6 ms DC Maximum Filtering Time 6 ms Paralleling of Inputs Yes Typical Current Consumption 256 mA at 3.3 V DC, 100 mA at 24 V MTBF Reliability 275940 H Protection Type Reverse polarity protection External Overload Protection 0.5 A fast blow Voltage Detection Threshold < 14 V DC sensor fault, > 18 V DC sensor OK IP Degree of Protection IP20 Product Certifications ATEX, EAC, CSA, TÜV, Merchant Navy, UL, RCM Standards EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201 Dielectric Strength 1500 V AC at 50/60 Hz 1 minute, primary/secondary Vibration Resistance 3 gn Shock Resistance 15 gn Operating Temp -25...60 degC Storage Temp -40...85 degC Relative Humidity 5...95 % at 55 degC without condensation Backplane Bus Communication Velocity and Density Scaling This module interfaces directly with the Modicon X80 backplane, utilizing high-velocity bus communication protocol execution to ensure deterministic state transfers of the 16 input channels. The hardware topology implements structured I/O density scaling inside a single-slot form factor, maximizing rack space optimization without degrading thermal dissipation profiles. Channel scan synchronization matches the deterministic network cycle rates, ensuring safety-related digital input processing maintains high fidelity across the backplane bus architecture. Frequently Asked Questions Q: What is the specific functional application of the sensor fault thresholds on this module? A: The module monitors external line conditions using embedded voltage detection thresholds. A sensor supply voltage drop below 14 V DC registers as a sensor fault condition, while a voltage stabilization above 18 V DC reports the sensor status as functional (OK). Q: Does the module require separate fusing for individual input channels? A: No, the module requires a centralized external overload protection device, specifically a 0.5 A fast-blow fuse, to protect the collective internal circuitry against overcurrent anomalies. Q: Are the 16 input channels electrically isolated from one another? A: No, the 16 discrete input channels are not isolated from each other. However, the module provides 1500 V AC primary-to-secondary dielectric insulation between the internal bus electronics and the field-side circuits. Field Installation Guidelines Terminal Block Routing: Keep the 24 V DC discrete input signal wiring separated from high-voltage AC power cables and inductive drive wiring to minimize electromagnetic interference coupling. Grounding Protocols: The Modicon X80 rack must be connected to a low-impedance functional earth ground plate prior to module insertion. Field sensor shields must terminate at the specified ground bar inside the enclosure. Fuse Insertion: Ensure the mandatory 0.5 A fast-blow fuse is installed on the sensor distribution loop before powering up the field-side supply to mitigate damage from accidental wiring shorts.
$200.00 $100.00
-

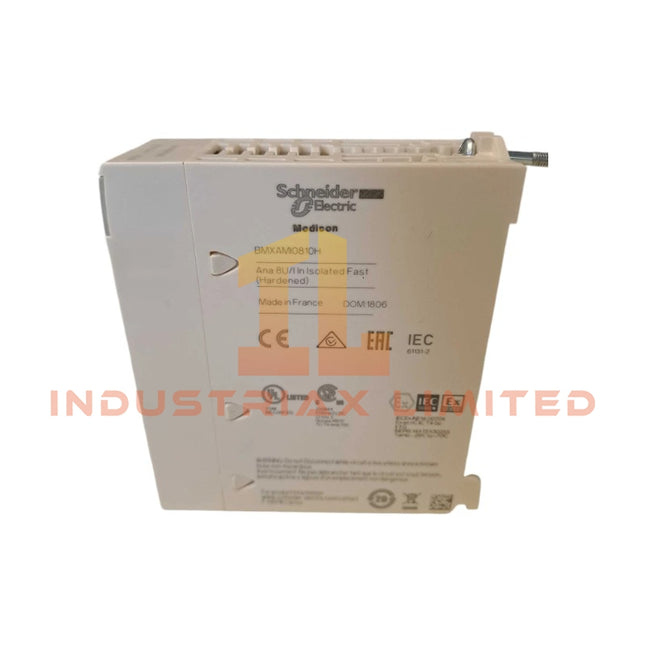

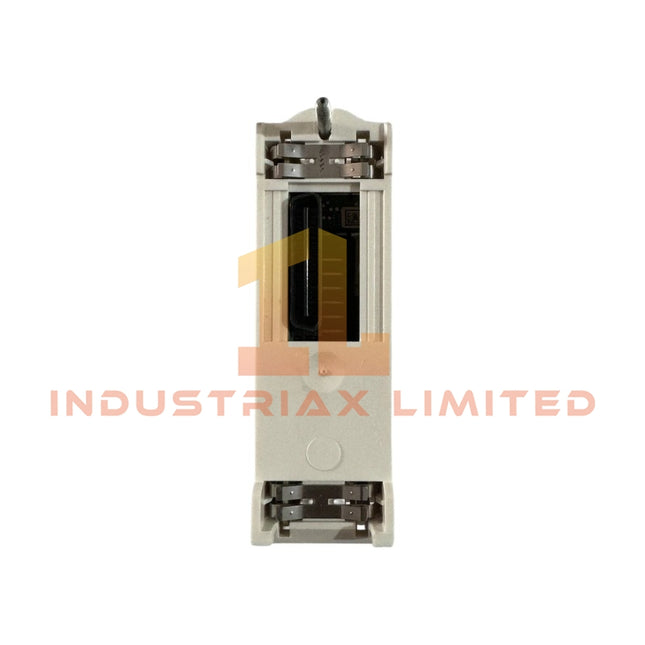

Schneider Electric BMXAMI0810H Schneider Electric Modicon X80 Isolated Analog Input Module
Schneider Electric BMXAMI0810H Modicon X80 Isolated Analog Input Module Configured for high-level isolated analog signal acquisition in Modicon X80 platforms, the Schneider Electric BMXAMI0810H (BMXAMI0810 Analog Input Module) provides direct physical/electrical execution. Hardware Specifications Parameter Specification Model/Brand Schneider Electric BMXAMI0810H Origin Factory Standard Production Weight 0.175 kg Dimensions Factory Standard Modicon X80 Profile OperatingTemp -25...70 degC PowerConsumption 150 mA at 3.3 V DC / 45 mA at 24 V DC Analogue Input Number 8 isolated channels Input Ranges (Current) +/- 20 mA, 0...20 mA, 4...20 mA Input Ranges (Voltage) +/- 10 V, +/- 5 V, 0...10 V, 0...5 V, 1...5 V Analog/Digital Conversion 16 bits Analogue Input Resolution 15 bits + sign Input Impedance 10 MOhm Permitted Overload (Current) +/- 30 mA Permitted Overload (Voltage) +/- 30 V Internal Conversion Resistor 250 Ohm (Precision: 0.1 %, Drift: -15 ppm/degC) Filter Type First order digital filtering Nominal Read Cycle Time 9 ms for 8 channels (1 ms + 1 ms x number of channels used) Electrical Connection 1 connector 28 ways Vibration / Shock Resistance 3 gn / 30 gn Storage Temperature -40...85 degC Relative Humidity 5...95 % at 55 degC without condensation Schneider Electric Core Technical Characteristics The module executes data exchange through the Modicon X80 backplane bus interface. The system architecture relies on optimized backplane bus communication velocity to deliver deterministic input scanning cycles independent of CPU loading. Within high-density scaling topologies, this module maintains 16-bit analog-to-digital conversion precision across all 8 isolated channels, outputting filtered data directly into the processor register map over standard backplane network backbones. Frequently Asked Questions Q: How is the total read cycle time calculated when fewer than 8 channels are used? A: The fast read cycle time follows the formula: 1 ms + (1 ms x number of active channels). For example, if 4 channels are configured, the read cycle time is 5 ms. Q: What happens if an input signal exceeds the nominal range limits? A: The module tolerates a continuous overload up to +/- 30 mA for current inputs and +/- 30 V for voltage inputs without damaging the internal conversion circuitry or affecting adjacent channels. Field Installation Guidelines Electrical Termination: Secure connections using the standard 1 connector 28-ways terminal block. Ensure all wiring cross-sections conform to the designated terminal specifications. Shield Grounding: Terminate analog cable shielding directly at the grounding bar of the rack enclosure. Single-point grounding must be maintained to prevent ground loops across isolated channels. Environmental Constraints: The unit is rated for severe environments operating between -25 degC and 70 degC. Maintain relative humidity below 95 % at 55 degC and prevent fluid condensation inside the enclosure.
$200.00 $100.00
-

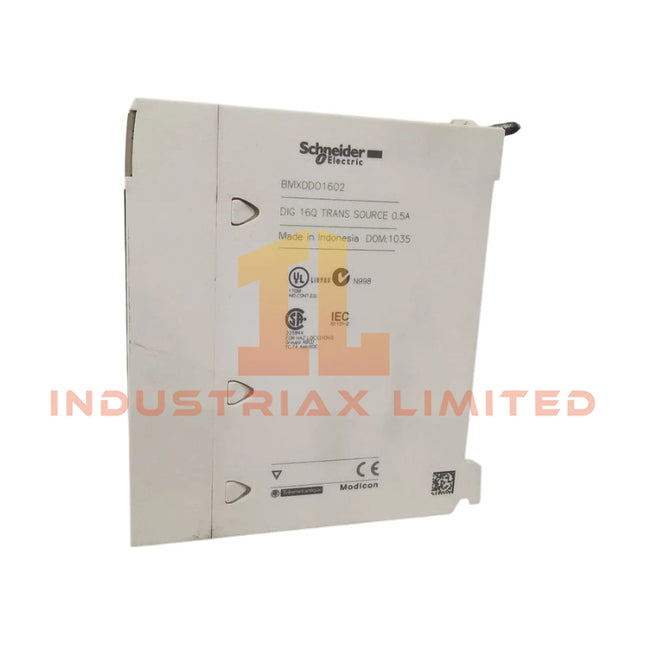

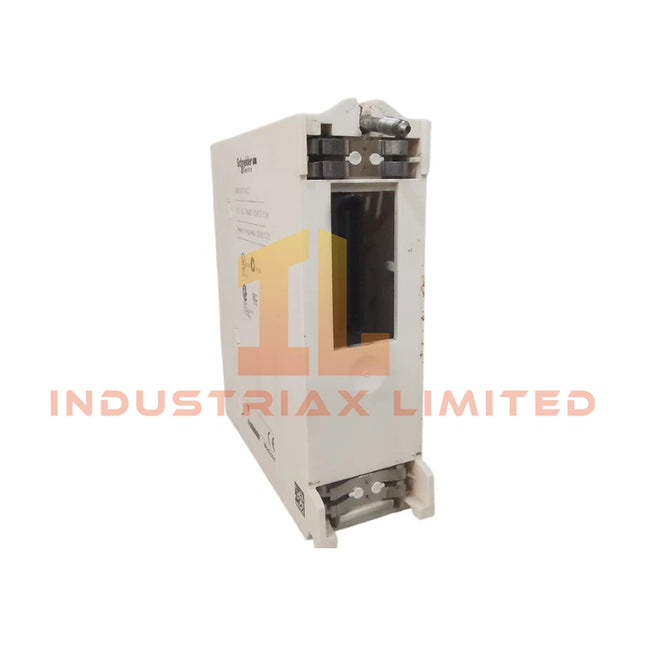

Schneider Electric BMXDDO1602 Schneider Electric Modicon X80 Discrete Output Module
Schneider Electric BMXDDO1602 Modicon X80 Discrete Output Module Configured for solid-state digital signal routing in Modicon X80 automation platforms, the Schneider Electric BMXDDO1602 (BMXDDO1602 Discrete Output Module) provides direct physical/electrical execution. This module commands 16 discrete channels using positive source logic to interface directly with actuators, relays, and field contactors without intermediate mechanical degradation. Hardware Specifications Parameter Specification Model Brand Schneider Electric Origin Standard factory profile Weight 0.12 kg net weight (145 g gross package weight) Dimensions 5.600 cm x 11.000 cm x 12.000 cm Operating Temp 0...60 degC Storage Temp -40...85 degC Power Consumption 4 W maximum power dissipation Typical Current Consumption 79 mA at 3.3 V DC backplane power Discrete Output Number 16 conforming to IEC 61131-2 Discrete Output Type Solid state Discrete Output Logic Positive (Source) Discrete Output Voltage 24 V DC (operational range 19...30 V DC) Discrete Output Current 0.5 A per channel nominal (0.625 A maximum per channel) Maximum Current per Module 10 A Maximum Leakage Current 0.5 mA at state 0 Maximum Voltage Drop <1.2 V at state 1 Response Time on Output 1.2 ms Paralleling of Outputs Supported, 2 outputs maximum Overload Protection Electronic circuit breaker 1.5 In < Id < 2 In, with current limiter Short-Circuit Protection External 2 A fast-blow fuse required per channel/group Overvoltage Protection Integrated transil diode Reverse Polarity Protection Integrated reverse mounted diode Voltage Detection Threshold <14 V DC (preactuator fault), >18 V DC (state 0 preactuator) Maximum Tungsten Load 6 W Load Impedance Ohmic >48 Ohm Insulation Resistance >10 MOhm at 500 V DC Dielectric Strength 1500 V AC at 50/60 Hz for 1 minute (output/ground & output/internal logic) IP Degree of Protection IP20 Industrial Control and Backplane Integration The module features deterministic backplane bus communication velocity sync, which correlates data refresh cycles directly with the Modicon X80 controller task cycle. Bus clock synchronization guarantees low-latency execution of logic transitions across high-density physical topologies. This hardware structure utilizes specialized firmware flash compatibility paths to support online configuration changes without interrupting the broader deterministic industrial network runtime or dropping physical channel statuses during processing updates. Frequently Asked Questions Q: What happens when the electronic circuit breaker trips due to an output overload? A: The module activates its internal electronic circuit breaker when the current demands reach 1.5 to 2 times the nominal value. The current limiter restricts the fault current until the threshold triggers an output shutdown. A preactuator fault is flagged via the internal register when voltage falls below 14 V DC under active state demands. Q: Can multiple outputs be wired in parallel to drive higher current loads? A: Yes. Paralleling of outputs is permitted up to a maximum of 2 channels. This arrangement allows the handling of inductive or resistive loads requiring steady-state capacities above the single-channel 0.625 A threshold, provided that total module current does not exceed the absolute 10 A upper physical limit. Q: What external protection is mandatory for short-circuit mitigation? A: While internal transil diodes handle overvoltage and electronic limiters manage overloads, a fast-acting 2 A external fuse must be installed in series with the external power distribution line to guarantee complete short-circuit isolation and prevent permanent trace damage. Field Installation Guidelines Mounting and Grounding: Insert the module firmly into the Modicon X80 backplane slot until the mechanical locking lever clicks into place. Ensure the backplane rack is bonded to the central functional earth (FE) busbar using a minimum 4 mm2 copper conductor to maintain the 1500 V AC isolation barrier performance. Wiring Limitations: Use shielded twisted pair (STP) cabling for routing paths exceeding 30 meters or when routed through high electromagnetic noise zones. Keep 24 V DC signal lines physically separated from high-voltage AC motor drives or power infrastructure lines by a minimum distance of 100 mm. Fuse Installation: Install an individual 2 A fast-blow external fuse on the 24 V DC supply path powering the actuator circuits to prevent cascading overcurrent faults during direct terminal short circuits.
$200.00 $100.00
-

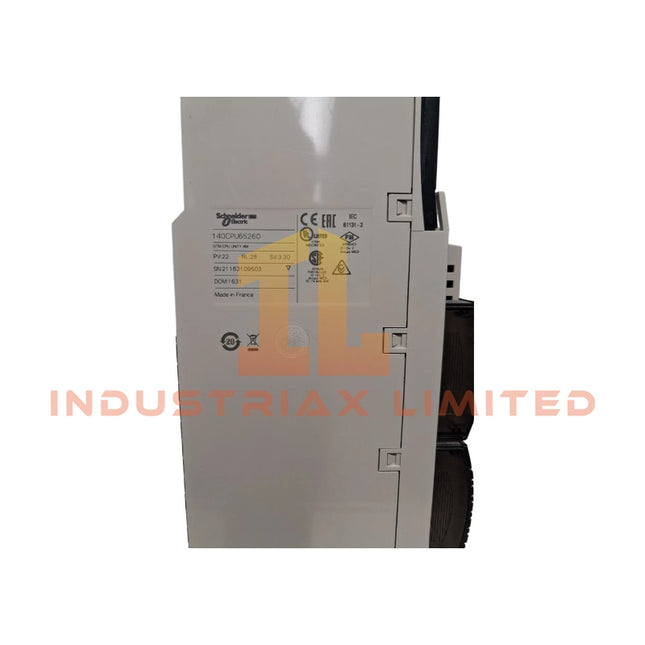

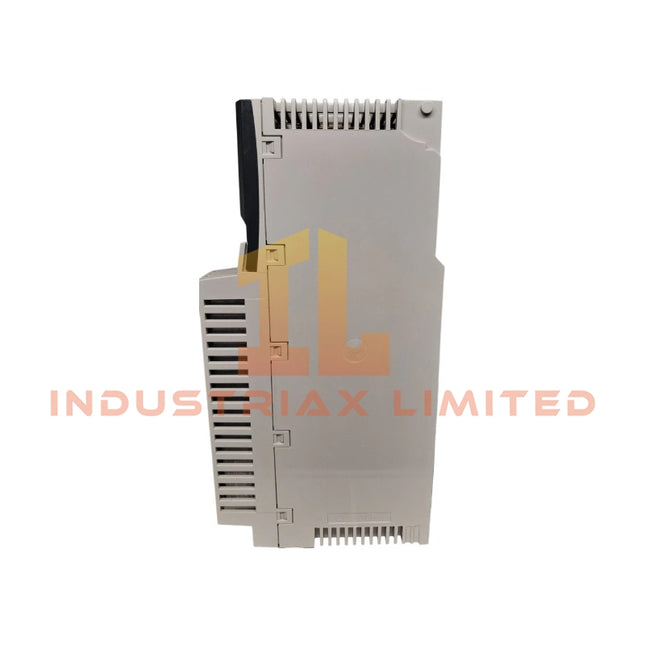

Schneider Electric 140CPU65260 Schneider Electric Modicon Quantum Unity Processor
Schneider Electric 140CPU65260 Modicon Quantum Unity Processor The Schneider Electric 140CPU65260, also cataloged as the 140CPU65260 Unity processor, operates as a dedicated hardware component for process control and deterministic industrial automation within Modicon Quantum network platforms. Hardware Specifications Parameter Specification Model Brand Schneider Electric Origin France Weight 1.2 kg Dimensions Standard Quantum module width (1 slot) Operating Temp 0...60 degC Power Consumption Bus current requirement: 2760 mA Clock Frequency 266 MHz Memory Capacity 3072 kB Execution Time (Boolean) 0.0525...0.075 us Execution Time (Floating Point) 0.4...0.5 us Execution Time (Word/Fixed-Point) 0.045...0.06 us Distributed I/O Capacity 63 stations - 1 rack - 1 distributed network Remote I/O Capacity 31 stations - 2 remote racks Discrete I/O Scaling Distributed: 8000 inputs, 8000 outputs per network; Remote: 31744 inputs, 31744 outputs; Local: Unlimited (26 slots max) Analogue I/O Scaling Distributed: 500 inputs, 500 outputs per network; Remote: 1984 inputs, 1984 outputs; Local: Unlimited (26 slots max) Integrated Interfaces 1 Ethernet TCP/IP, 1 Modbus, 1 Modbus Plus, 1 USB, 1 MT-RJ (Fiber Optic) for Hot Standby Local Signalling 1 red LED (Ethernet collision), 1 green LED (Ethernet activity) Backplane Bus Communication Velocity and Deterministic Networks The 140CPU65260 leverages high-density backplane bus communication velocity to manage extensive I/O structures without degrading cyclic execution times. When integrated into Ethernet TCP/IP deterministic networks, the controller enforces exact system overhead limitations, allocating 1 ms for the master task and 0.2 ms for the fast task loops. The embedded MT-RJ fiber optic port provides specialized point-to-point synchronization velocity, facilitating instant data replication between primary and secondary processors in hot standby architectures to mitigate failover latency. Frequently Asked Questions Q: What is the mechanical limitation for local rack expansion when utilizing this processor? A: The processor allows an unlimited number of local I/O modules, bounded physically by a maximum rack size constraint of 26 slots per local configuration. Q: How does the module handle communication collisions on the integrated Ethernet interface? A: The processor features a dedicated local signalling network layout that includes a physical red LED directly tied to the internal transceiver to indicate real-time Ethernet collisions. Q: What are the physical connector specifications for the communication ports? A: The Modbus Plus port utilizes a female SUB-D 9 connector, the Modbus and Ethernet ports utilize standard RJ45 connectors, and the Hot Standby sync interface uses an MT-RJ fiber optic connector. Field Installation Guidelines Backplane Power Allocation: Ensure the total current draw from the selected Modicon Quantum backplane power supply can accommodate the 2760 mA current load required by this CPU prior to insertion. Fiber Optic Handling: When connecting the primary and secondary units via the MT-RJ port, maintain a bend radius greater than the minimum specified fiber physical limits to prevent signal attenuation. Shielding and Grounding: The SUB-D 9 and RJ45 communication cables must feature braided shields terminated directly to the connector shells to establish low-impedance paths to the chassis ground.
$200.00 $100.00
-

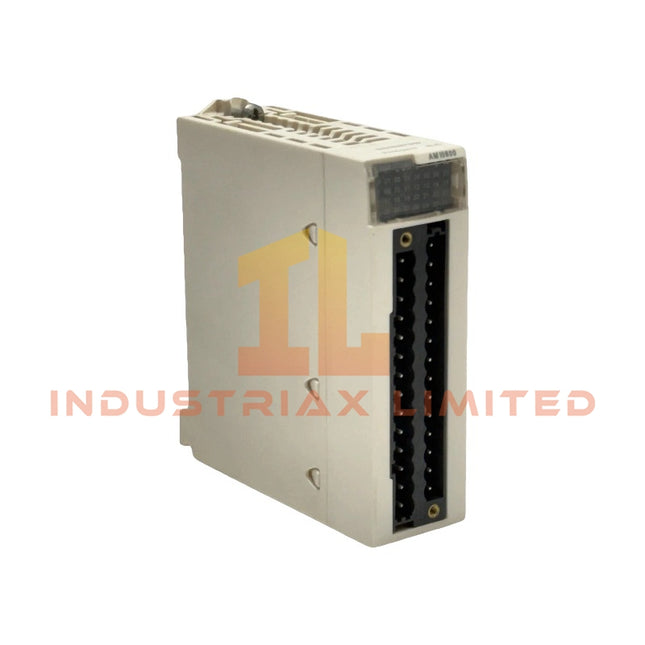

Schneider Electric BMXAMI0800 Schneider Electric Modicon X80 Analog Input Module
Schneider Electric BMXAMI0800 Modicon X80 Analog Input Module The Schneider Electric BMXAMI0800 serves as the primary BMXAMI0800 Analog Input Module utilized to execute high-level multi-channel analog-to-digital signal conversion across Modicon X80 platform networks. Hardware Specifications Parameter Specification Model BMXAMI0800 Brand Schneider Electric Operating Temp 0...60 degC (32...140 degF) Power Consumption Not specified Number of Channels 8 Input Level High level Analog Input Types Current: +/- 20 mA, 0...20 mA, 4...20 mA Voltage: +/- 10 V, +/- 5 V, 0...10 V, 0...5 V, 1...5 V Analog/Digital Conversion 16 bits Analog Input Resolution 15 bits + sign Input Impedance 10 MOhm Internal Conversion Resistor 250 Ohm (Precision: 0.1 %, Drift: -15 ppm/degC) Filter Type First order digital filtering Read Cycle Time Fast: 1 ms + 1 ms x number of channels used Nominal: 9 ms for 8 channels Voltage Measurement Error <= 0.08 % of full scale at 25 degC <= 0.1 % of full scale within 0...60 degC Current Measurement Error <= 0.15 % of full scale at 25 degC <= 0.3 % of full scale within 0...60 degC Isolation Voltage 1400 V DC between channels and ground 1400 V DC between channels and bus Isolation Status Non-isolated between channels Digital Value Format +/- 10000 (default), +/- 32000 (user scale) Mechanical Resistance Vibration: 3 gn Shock: 30 gn IP Degree of Protection IP20 Backplane Bus Communication and I/O Density Scaling The module interfaces directly with the Modicon X80 backplane bus, utilizing high-velocity backplane communication loops to maintain deterministic data transmission. By providing 8 high-level analog channels within a single slot, the hardware optimizes I/O density scaling for multi-channel instrumentation topographies without requiring extra rack space. This bus integration ensures synchronous acquisition cycles across all active channels, matching the firmware processing execution speed required by the host central processing unit. Frequently Asked Questions Q: Does the module support channel-to-channel isolation? A: No, the module inputs are non-isolated from each other. However, the hardware provides 1400 V DC galvanic isolation between the internal channels and the backplane bus, as well as between the channels and the chassis ground. Q: How is the conversion of current inputs managed internally? A: The module contains an internal 250 Ohm conversion resistor with a precision rating of 0.1 % and a low temperature drift of -15 ppm/degC to transform incoming current loops into readable voltage steps for the 16-bit analog-to-digital converter. Field Installation Guidelines Wiring Connection: Terminate all external signal wiring through the dedicated 28-way single connector. Ensure that current and voltage inputs conform strictly to the assigned terminal mapping. Shielding Regulations: Utilize twisted shielded pairs for all low-level signal lines. Connect the cable shields directly to the functional ground bar of the rack enclosure to minimize electromagnetic interference. Environmental Clearances: Maintain standard spacing requirements around the Modicon X80 rack to allow natural thermal dissipation, ensuring ambient temperatures inside the cabinet do not exceed 60 degC. Overload Protection Constraints: Do not apply signals exceeding the permitted overload thresholds (+/- 30 mA for current loops and +/- 30 V for voltage ranges) to prevent permanent deterioration of the internal measurement circuitry.
$200.00 $100.00
-
Schneider Electric Line Terminator Schneider Electric TSX Micro PLCs ASMBKT185
Schneider Electric ASMBKT185 Line Terminator Configured for signal line impedance termination in Modbus Plus communication topology within Modicon Momentum automation platform, the Schneider Electric ASMBKT185 (AS-MBKT-185 Line Terminator) provides direct physical termination of trunk and junction box segments in Modbus Plus network structures. Hardware Specifications Parameter Specification ModelBrand Schneider Electric ASMBKT185 Origin France Weight 0.03 kg Dimensions 3.74 in x 2.76 in x 0.67 in OperatingTemp Not specified PowerConsumption Passive device, no power supply required Core Function Modbus Plus line termination for junction box network ends Network Type Modbus Plus Modbus Plus industrial communication protocol Compatibility 990NAD23000 interface module Protection Degree IP20 Industrial Control Network Termination Behavior Within Schneider Electric PLC architectures, Modbus Plus network segments rely on controlled impedance matching to prevent signal reflections across multidrop trunk lines. The ASMBKT185 implements fixed passive termination at junction box endpoints, ensuring deterministic backplane-adjacent communication stability across distributed nodes. In systems such as Modicon Momentum automation platform, Modicon Premium automation platform, and Modicon Quantum automation platform, the termination element operates as a non-powered impedance matching node integrated into the Modbus Plus segment topology. The device does not participate in backplane bus arbitration but enforces electrical boundary conditions at segment extremities. From a deterministic network standpoint, Modbus Plus frames require consistent reflection suppression to maintain token-passing integrity. The ASMBKT185 provides fixed termination resistance characteristics intended to stabilize differential signal amplitude across junction box transitions. Frequently Asked Questions (FAQ) Q: Does ASMBKT185 require external power supply?A: No. The unit is a passive termination element with no electrical consumption or active circuitry. Q: Can ASMBKT185 be hot-swapped during Modbus Plus operation?A: Physical removal during active communication is not recommended, as termination loss may introduce signal reflection and token instability on the segment. Q: Is polarity or orientation critical for installation?A: The device functions as a resistive termination block; however, correct junction box terminal alignment is required to maintain proper network impedance matching. Field Installation Guidelines ASMBKT185 shall be installed at the physical end of Modbus Plus trunk segments or designated junction box termination points. Shield continuity must be maintained across all network segments, ensuring consistent reference grounding between nodes. Termination should only be applied at segment endpoints; dual termination within a single segment may degrade signal integrity. Cable routing must minimize loop formation and maintain standard twisted-pair shielding practices consistent with industrial fieldbus installation rules. Mechanical mounting inside IP20 junction enclosures must ensure stable contact seating to avoid intermittent termination resistance variations under vibration.
$200.00 $100.00
-
Schneider Electric Redundant Processor Module Schneider Electric BMEH586040
Schneider Electric BMEH586040 Redundant Processor Module The Schneider Electric BMEH586040 also cataloged as the BMEH586040 redundant processor module operates as a dedicated hardware component for high-availability control execution and synchronized redundancy management within the Modicon M580 automation system. It provides hardware-level support for dual processor synchronization through HSBY architecture and Ethernet-based system communication. Suffix Breakdown & Model Matrix No validated manufacturer-provided suffix decomposition is available for BMEH586040. The model is treated as a single ordering reference within the Modicon M580 redundant processor family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMEH586040 Origin France Weight 900 g (package) Dimensions 9 cm x 17.5 cm x 25 cm (package) OperatingTemp 0 to 60 degC PowerConsumption 295 mA at 24 VDC Redundancy Architecture HSBY redundant processor synchronization Communication Interfaces 2 x Ethernet TCP/IP (device network), 1 x Ethernet service port, 1 x Ethernet HSBY port, USB mini-B System Capacity Up to 31 remote I/O stations, 64 distributed equipment nodes Memory 64 MB RAM program/data, 4 MB HSBY data, 4 GB expandable flash Schneider Electric PLC Redundancy & Ethernet Control Characteristics The BMEH586040 implements dual-processor HSBY synchronization through dedicated Ethernet interconnect, maintaining state alignment between primary and standby CPUs. The HSBY channel operates independently of standard device network traffic, isolating redundancy exchange frames from RIO scanner and DIO scanner communication paths. Ethernet TCP/IP segmentation supports separation between service-level access and deterministic control traffic. The backplane architecture maintains cyclic task execution consistency under redundant switchover conditions, ensuring memory image coherency across fast and master cyclic tasks. Frequently Asked Questions Q: Does the module support hot standby switchover without task interruption?A: The HSBY architecture maintains synchronized memory and process image replication. Switchover behavior depends on task cycle phase alignment and redundancy configuration state. Q: What is the function of the dedicated HSBY Ethernet port?A: It is used exclusively for redundancy synchronization traffic between primary and standby processors, isolated from standard TCP/IP device network communication. Q: Can remote I/O scanning continue during processor transition?A: RIO scanning is maintained through configured Ethernet I/O architecture, with continuity dependent on network topology and redundancy configuration state retention. Field Installation Guidelines The module shall be installed in a Modicon M580-compatible rack with correct backplane seating alignment. Ensure power is isolated at 24 VDC before insertion or removal. HSBY Ethernet cabling must be routed separately from high-noise power conductors to maintain signal integrity of redundancy synchronization traffic. Shield termination should be implemented at designated grounding points only, avoiding multiple earth loops across rack assemblies.
$200.00 $100.00
-
Schneider Electric 140CPU65160 Unity Processor Module | Schneider Electri Modicon Quantum
Schneider Electric 140CPU65160 Modicon Quantum Unity Processor Module Configured for real time deterministic control execution in Modicon Quantum automation networks, the Schneider Electric 140CPU65160 (140CPU65160 Unity Processor Module) provides direct physical/electrical execution for cyclic logic processing, distributed I/O handling, and industrial network communication across Modicon Quantum platforms. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU65160 Origin France Weight 0.91kg Dimensions Not specified OperatingTemp Not specified (industrial PLC standard class) PowerConsumption 2760 mA bus current requirement CPU Clock Frequency 266 MHz Internal Memory 1024 kB RAM Program Expansion Up to 7168 kB via PCMCIA File Storage Up to 8 MB via PCMCIA Local Rack Support Up to 2 racks Distributed I/O Capacity 8000 inputs / 8000 outputs per network Remote I/O Capacity 31744 inputs / 31744 outputs Slot Capacity Up to 26 slots (local I/O) Communication Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Network Connections Ethernet TCP/IP, Modbus Plus (SUB-D 9), Modbus RJ45 Execution Time 0.0525 to 0.075 us (Boolean), 0.045 to 0.06 us (word ops) PLC Backplane Bus Deterministic Execution Characteristics The Modicon Quantum backplane architecture of the 140CPU65160 implements high speed deterministic data exchange between CPU and local I/O modules using a synchronized rack-level bus cycle. The backplane communication velocity is aligned with cyclic master task scheduling, supporting fast task interrupt segmentation (0.2 ms) and master task overhead control (1 ms). Ethernet TCP/IP and Modbus Plus stacks operate concurrently, enabling mixed deterministic and non-deterministic traffic separation across control and supervisory layers. Firmware flash operations via PCMCIA memory modules maintain execution continuity while preserving program and file storage segmentation without halting core scan cycles. Suffix Breakdown & Model Matrix No validated suffix segmentation or internal model matrix breakdown is defined for 140CPU65160 within the provided technical dataset. The module is treated as a single fixed Unity processor configuration. Frequently Asked Questions Q: Can the 140CPU65160 support hot swap of CPU module during operationA: The CPU is not designed for live hot swap. Removal of the processor interrupts backplane communication and halts task execution cycles. Q: What is the impact of Ethernet and Modbus Plus simultaneous operation on cycle timeA: Both protocols operate on independent communication stacks. CPU scan time remains governed by cyclic and fast task scheduling, with network load influencing communication refresh rather than logic execution time. Q: How is firmware and application memory expandedA: Expansion is performed via PCMCIA card interface, supporting up to 7168 kB program memory and 8 MB file storage without modifying base CPU hardware. Field Installation Guidelines The module shall be installed into a Modicon Quantum rack ensuring proper alignment with backplane connectors and full seating of the CPU into designated slot positions. Shielded communication cabling is required for Modbus Plus SUB-D 9 and Ethernet RJ45 ports, with shield termination at chassis ground potential on one end only to avoid ground loop formation. USB service interface must be used exclusively for maintenance access under controlled conditions. Ensure rack power is isolated prior to insertion or removal to prevent backplane transient bus disturbance. Maintain separation between high noise motor drive wiring and communication lines to preserve signal integrity.
$200.00 $100.00
-
Schneider Electric Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module
Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module Configured for discrete signal acquisition in Modicon X80 backplane I/O systems, the Schneider Electric BMXDDI1602H (BMXDDI1602H Discrete Input Module) provides direct physical/electrical execution within Schneider Electric Modicon X80 architectures. The module implements 16-channel 24 V DC current sink (positive logic) input acquisition with isolated channel structure for field signal interfacing. Suffix Breakdown & Model Matrix No explicit manufacturer-defined suffix segmentation for BMXDDI1602H is provided in the supplied technical dataset. Model interpretation is limited to catalog identifier level only. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXDDI1602H Origin France Weight 0.115 kg Dimensions Not specified OperatingTemp Not specified (sensor supply referenced up to 60 degC / 70 degC conditions) PowerConsumption 2.5 W Input Channels 16 discrete inputs Input Type Isolated current sink (logic positive) Input Voltage 24 V DC Input Current 3.5 mA Response Time 4 ms typical / 7 ms max Input Compatibility IEC 60947-5-2, IEC 61131-2 Type 3 proximity sensors Insulation Resistance > 10 MOhm at 500 V DC Backplane Consumption 76 mA at 3.3 V DC Backplane Deterministic I/O Handling and Firmware Integration Within Modicon X80 systems, the BMXDDI1602H integrates into the backplane communication layer through deterministic I/O refresh cycles synchronized with PLC scan execution. Channel state acquisition is executed through fixed-latency sampling windows (4 ms typical), enabling predictable input mapping to process image tables. Firmware compatibility is aligned with Schneider Electric X80 platform I/O modules, supporting consistent module identification and hot module detection at rack level without requiring reconfiguration of I/O addressing tables. Signal conditioning is internally optimized for 24 V DC current sink topology, ensuring stable logic interpretation under standard IEC 61131-2 Type 3 sensor electrical behavior. Frequently Asked Questions (FAQ) Q: Does the module support hot-swap insertion on an energized backplane?A: The module is designed for rack-based X80 installation. Hot insertion behavior depends on system backplane configuration and PLC rack power management rules. Q: What is the effect of backplane load on input scan timing?A: Input scan timing is determined by PLC task cycle and backplane update mechanism; the module itself maintains fixed internal response time independent of channel count utilization. Q: Can inputs be paralleled for signal redundancy?A: Paralleling of inputs is supported electrically, but signal interpretation remains dependent on external wiring topology and PLC logic configuration. Field Installation Guidelines The BMXDDI1602H shall be installed on a grounded X80 rack backplane following standard DIN rail mechanical alignment procedures. Ensure that field wiring for 24 V DC inputs is segregated from high-voltage conductors to reduce electromagnetic coupling. Shielded cable termination should be referenced to a single-point ground to prevent ground loop current through input common terminals. Maintain torque specifications for terminal blocks according to rack-level installation documentation. Do not exceed specified sensor supply voltage range during commissioning. Verify channel LED status indicators after power-up before enabling PLC scan execution.
$200.00 $100.00
-
Schneider Electric Schneider Electric TSXP572634M Modicon Premium Unity Processor
Schneider Electric TSXP572634M PLC Processor Module Configured for deterministic PLC task execution in Modicon Premium Automation platform, the Schneider Electric TSXP572634M (TSXP572634M processor module) provides direct physical/electrical execution for rack-based I/O processing and Ethernet/RS485 communication handling. The module supports up to 8 racks (12-slot) or 16 racks (4/6/8-slot), integrates 5 V DC backplane supply at 1650 mA, and manages up to 1024 discrete I/O points with 80 analog I/O channels. Internal architecture supports fast, master, and event tasks under Unity Pro environment. Suffix Breakdown & Model Matrix No validated manufacturer-published suffix decomposition is provided in the supplied dataset for TSXP572634M. The identifier is treated as a single-order processor module designation within the Modicon Premium range. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXP572634M Origin France Weight 1.5KG Dimensions N/S OperatingTemp 0 to 60 degC (operation), -25 to 70 degC (storage) PowerConsumption 5 V DC, 1650 mA backplane supply Rack Capacity 8 racks (12-slot) / 16 racks (4/6/8-slot) Max I/O Capacity 1024 discrete I/O, 80 analog I/O Memory 160 kB base RAM, up to 768 kB with PCMCIA Communication Interfaces Ethernet 10BASE-T/100BASE-TX, RS485 serial Task Structure 1 fast task, 1 master task, 64 event tasks Instruction Execution 0.19 to 2.6 microseconds depending on operation type Backplane Bus and Deterministic Control Architecture (Schneider Electric PLC Systems) The TSXP572634M processor executes cyclic and event-driven logic over a shared Modicon Premium backplane, where I/O scanning and task scheduling are synchronized through deterministic scan cycles. Backplane communication supports high-density I/O mapping up to 1024 points with controlled latency across multi-rack configurations. Ethernet TCP/IP interface (10/100BASE-TX) is used for supervisory communication and Unity Pro engineering access, while RS485 serial link supports legacy device integration at 19.2 kbit/s. Firmware and application execution consistency depends on internal task scheduler prioritization between fast and master tasks, ensuring predictable scan timing under mixed Boolean and fixed-point arithmetic loads. Firmware flash compatibility and application download behavior are governed through PCMCIA-based memory expansion, enabling separation of program and data domains for deterministic runtime behavior. Frequently Asked Questions Q1: Does TSXP572634M support hot-swap of processor modules?A1: No. The processor is not designed for hot-swap operation. Power-down is required before rack insertion or removal to avoid backplane instability. Q2: How is backplane load distributed across multi-rack configurations?A2: Backplane load is distributed via the 5 V DC internal supply at 1650 mA. Each rack contributes to total current draw depending on installed I/O modules. Q3: Can firmware be updated without PCMCIA memory expansion?A3: Yes, but internal RAM is reduced in configuration. PCMCIA enables expanded program memory and improved application storage separation. Field Installation Guidelines Install the processor in a grounded Modicon Premium rack with verified backplane continuity. Maintain segregation between Ethernet/RS485 wiring and power conductors to reduce signal coupling on communication lines. Ensure 5 V DC backplane supply stability prior to slot insertion. All shielded cables shall be terminated at a single-point earth reference to maintain signal integrity across multi-rack configurations. Avoid installation in environments exceeding IP20 protection boundaries without enclosure. Maintain airflow clearance for thermal dissipation across stacked rack assemblies.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140SAI94000S Analogue Safety Input Module
Schneider Electric 140SAI94000S Analogue Safety Input Module The Schneider Electric 140SAI94000S, also cataloged as the 140SAI94000S Analogue Safety Input Module, operates as a dedicated hardware component for analog signal acquisition within Modicon Quantum automation platform. Configured for safety-oriented analog current acquisition in Modicon Quantum systems, the Schneider Electric 140SAI94000S (140SAI94000S Analogue Safety Input Module) provides direct electrical conversion of field 0...25 mA signals into 16-bit process data via backplane communication. Suffix Breakdown & Model Matrix No validated manufacturer-specified suffix decomposition is available for 140SAI94000S. The identifier is treated as a single ordering and functional module code within the Modicon Quantum catalog structure. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140SAI94000S PowerConsumption 3.5 W Analog Input Channels 8 Input Signal Range 0...25 mA Resolution 16 bit Update Time 15 ms Input Impedance 287 Ohm Absolute Max Input 35 mA Isolation Channel to Bus 1500 VAC for 60 s Isolation Channel to Channel 500 VAC for 60 s Linearity Error +/- 2 uA max (0...60 degC) Accuracy +/- 0.35 % FS (max), +/- 0.3 % Filter Type Single pole low pass, 3 dB at 15 Hz Common Mode Rejection -70 dB @ 50 Hz, -65 dB @ 60 Hz Diagnostic Indication LED status per channel and system Backplane Signal Processing and Quantum Bus Behavior The 140SAI94000S integrates into the Modicon Quantum backplane architecture, where analog sampling results are transferred as 13 input words per module addressing structure. Channel acquisition is multiplexed with deterministic scan alignment to the rack bus cycle. Electrical isolation design separates field input circuitry from system backplane logic, supporting channel-level fault containment through galvanic isolation barriers. Frequently Asked Questions Q: Does the module support hot-swap replacement during system operation?A: Hot-swap capability depends on Quantum rack configuration. Electrically, channel isolation is maintained; however backplane synchronization reinitialization is required after insertion. Q: What is the effect of overrange input beyond 25 mA?A: Inputs above nominal range trigger overflow detection and diagnostic fault indication. Absolute maximum withstand is 35 mA without guaranteed measurement linearity. Q: How is channel fault isolation implemented?A: Each channel is independently isolated at 500 VAC, with full module-to-backplane isolation at 1500 VAC, limiting fault propagation across measurement paths. Field Installation Guidelines Install the module only into compatible Modicon Quantum rack backplane slots. Maintain separation between analog input wiring and high-voltage conductors to preserve CMRR performance. Shielded twisted pair cables are required for 0...25 mA loop integrity, with single-point shield grounding at the cabinet earth reference. Ensure torque compliance on terminal blocks according to rack hardware specification. Avoid routing input wiring parallel to switching power conductors or inverter output lines.
$200.00 $100.00
-
Schneider Electric 140CPU21304 Modicon Quantum CPU Controller Schneider Electric
Schneider Electric 140CPU21304 Modicon Quantum CPU Controller Configured for deterministic control execution in Modicon Quantum backplane systems, the Schneider Electric 140CPU21304 (140CPU21304 CPU Controller) provides direct processing and communication handling within rack-based PLC architectures. The unit integrates a 20 MHz math processor and 768 kB memory for program execution, data handling, and Modbus Plus network interfacing. Suffix Breakdown & Model Matrix The part number 140CPU21304 is a fixed-order identifier within the Modicon Quantum CPU family. No validated manufacturer-published suffix segmentation or functional encoding breakdown is defined for this model string. Functional behavior is determined by firmware configuration and installed system modules rather than suffix interpretation. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU21304 Origin France Weight 2.00 lbs (0.91 kg) Dimensions Not specified OperatingTemp 0 degC to 60 degC StorageTemp -40 degC to 85 degC Memory 768 kB Processor Type Math Processor Clock Frequency 20 MHz Power Consumption 250 mA max Input Voltage 24 VDC Bus Current 200 mA Communication Modbus Plus Backplane Bus Communication and Firmware Execution Behavior Within the Modicon Quantum architecture, CPU-to-backplane interaction is handled through deterministic rack-level bus scheduling, where Schneider Electric Modicon Quantum CPU modules coordinate I/O refresh cycles and memory mapping over a shared backplane communication structure. Firmware flash compatibility defines instruction set execution consistency across CPU revisions, while network determinism is maintained through synchronized scan cycles between Modbus Plus communication stacks and internal task scheduling. Backplane throughput is constrained by rack configuration and module density scaling, directly influencing I/O update latency and system-level cycle time. Frequently Asked Questions Q: Can the 140CPU21304 be hot-swapped during system operation?A: No. CPU replacement requires system power-down due to backplane bus state dependency and memory retention behavior. Q: Does the module support firmware updates via Modbus Plus network?A: Firmware transfer is not executed via Modbus Plus. Updates require dedicated programming interface access through supported Schneider Electric configuration tools. Q: How is backplane current consumption distributed across the rack?A: The CPU contributes up to 200 mA to the rack backplane load, shared across installed Quantum modules based on slot configuration. Field Installation Guidelines Install the CPU into the designated Modicon Quantum rack slot with verified backplane alignment. Ensure 24 VDC supply stability prior to insertion. Maintain proper grounding of the rack chassis to reduce electrical noise coupling across the backplane bus. All communication cabling for Modbus Plus must follow shielded twisted-pair routing with single-point shield termination. Avoid live insertion or removal of the CPU module during active process execution. Verify firmware compatibility with installed I/O and communication modules prior to commissioning.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140ACO02000 Analog Output Module
Schneider Electric 140ACO02000 Analog Output Module Configured for 4-20 mA analog current generation in Modicon Quantum backplane environments, the Schneider Electric 140ACO02000 (140ACO02000 Analog Output Module) provides direct electrical signal conversion across four isolated output channels for process interfacing and actuator drive. The module is integrated within the Modicon Quantum architecture and executes D/A conversion for current-loop control without embedded control logic or fieldbus protocol termination. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ACO02000 Origin France Weight 0.91 kg (2.00 lbs) OperatingTemp 0 to 60 degC PowerConsumption Not specified Output Channels 4 Output Type 4-20 mA current loop Resolution 12-bit bipolar current conversion External Loop Voltage 12 to 30 VDC Mounting DIN rail or panel mount Indicators LED status indication Backplane Bus Communication and Firmware Interface Behavior Within the Modicon Quantum PLC rack architecture, the 140ACO02000 exchanges process data through the backplane communication bus, where output words are mapped cyclically from CPU memory to DAC registers. Deterministic update timing is governed by system scan rate and rack arbitration logic. Firmware compatibility is tied to Quantum series base controllers, with module recognition handled via rack ID enumeration. No field firmware upgrade mechanism is exposed at module level; updates are executed through system-level firmware management tools. Backplane density and channel refresh rate remain dependent on CPU task scheduling and I/O scan configuration. Suffix Breakdown & Model Matrix 140ACO02000 is a fixed catalog number without documented suffix segmentation or functional sub-code structure. No validated decoding of embedded function blocks or hardware option fields is defined in manufacturer documentation. Frequently Asked Questions Q: Does the module support hot-swap insertion under power?A: Hot-swap capability is dependent on Quantum rack configuration and backplane design. Electrical insertion under load must follow rack-level isolation procedures to prevent transient backplane disturbance. Q: What is the output update mechanism for the 4-20 mA channels?A: Output values are updated through cyclic backplane data exchange, where DAC registers are refreshed according to PLC scan cycle timing. Q: Is channel-to-channel electrical isolation implemented internally?A: Channel isolation behavior is defined at module hardware design level; field wiring must maintain loop isolation per system grounding scheme to avoid ground loop current interference. Field Installation Guidelines Install module only in de-energized Quantum rack slots unless system supports verified hot insertion procedure. Maintain separation between analog output wiring and high-frequency switching conductors to reduce inductive coupling. Use shielded twisted pair wiring for 4-20 mA loops, with shield termination at single-point ground reference. Ensure loop supply voltage remains within 12 to 30 VDC under full load conditions. Verify backplane connector seating alignment to avoid partial pin engagement during insertion.
$200.00 $100.00
-
Schneider Electric Relay Discrete Output Module Schneider Electric 140DRA84000
Schneider Electric 140DRA84000 Relay Discrete Output Module TheSchneider Electric 140DRA84000also cataloged asthe140DRA84000Relay Discrete Output Module, operates as a dedicated hardware component for electrical load switching within Modicon Quantum backplane I/O execution architecture. It provides 16 independent relay outputs for direct actuation of AC/DC field loads via isolated Form A contacts. Suffix Breakdown & Model Matrix No structured suffix decomposition is defined in the provided technical data. The module is treated as a single-order hardware identifier: 140DRA84000. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140DRA84000 Origin France Weight 0.41 kg PowerConsumption 5.5 W + (0.5 x points ON) Output Type Relay, Form A (1 NO per channel) Output Channels 16 Rated Voltage 5 to 30 VDC, 20 to 250 VAC, 30 to 150 VDC Max Load Current 1 A per channel (AC/DC) Switching Capacity 500 VA resistive Schneider Electric Backplane I/O Deterministic Execution Layer Within the Modicon Quantum architecture, the 140DRA84000 interfaces through backplane bus communication where output command frames are mapped to a 16-bit output word. Schneider Electric PLC systems typically implement deterministic scan-based execution, ensuring synchronized output refresh aligned with CPU cycle timing. The relay stage provides galvanic isolation between logic domain and field power domain, supporting mixed AC/DC load environments without shared reference coupling. Backplane current consumption of 1100 mA must be accounted for during chassis power budget allocation. Frequently Asked Questions Q: Can the module outputs be hot-swapped under load?A: No. Relay output hardware is not designed for live field load insertion or removal. Backplane power should be removed before module extraction. Q: What is the isolation rating between channels?A: Channel-to-channel and bus isolation is specified at 1780 Vrms for 1 minute, providing separation between output groups and logic backplane. Q: Does each channel support inductive load switching directly?A: Inductive loads require external suppression. Internal protection is limited to varistor clamping at 275 V. Field Installation Guidelines The module shall be installed in a Modicon Quantum chassis slot with backplane connector fully seated to ensure signal integrity across the I/O bus. Field wiring must follow segregation rules between AC and DC circuits to prevent cross-coupling. Relay output wiring should maintain minimum creepage distances in accordance with system voltage class. Shielding is not required at the relay contact level but is recommended for adjacent analog or communication cabling. All terminal torque values must follow cabinet-level electrical standards defined by system integrator practices.
$200.00 $100.00
You have seen 96 out of 2248 products
