PLC systems and modules deliver flexible automation for industries worldwide. Our inventory includes controllers, input/output modules, and communication units from Allen-Bradley, Siemens, GE, and other leading brands.
PLC Systems & Modules
-
Bently Nevada ASSY79748-01 82366-01 XDCR I/O Assembly Module | Bently Nevada
Bently Nevada 82366-01 XDCR I/O Assembly Module The Bently Nevada 82366-01, also cataloged as the 79748-01 XDCR I/O assembly module, operates as a dedicated hardware component for transducer signal termination, alarm relay routing, and recorder output distribution within Bently Nevada 3300 Series monitoring architectures. Electrical interfacing is implemented through rack backplane integration and field terminal routing. Suffix Breakdown & Model Matrix No official manufacturer-defined suffix decomposition is published for 82366-01 / ASSY 79748-01. The identifier is treated as a complete assembly-level part number tied to a fixed XDCR I/O configuration. Hardware Specifications Parameter Specification Model 82366-01 / ASSY 79748-01 Brand Bently Nevada Origin USA Weight 0.4 kg Dimensions 22.9 cm x 5.1 cm x 10.2 cm Operating Temp Not specified (system dependent) Power Consumption Powered via rack backplane (no standalone rating specified) Module Type Transducer I/O and Record Terminal Assembly Output Interfaces Alarm relay outputs, analog recorder outputs Connection Method Screw terminal / plug-in termination blocks System Integration Bently Nevada 3300 Series monitoring rack Bently Nevada Rotor Dynamics and Signal Integrity Handling The module interfaces with eddy-current proximity probe circuits and conditioned vibration channels used in rotor dynamic measurement chains. Signal scaling is typically referenced to probe gap voltage transfer characteristics, including validation ranges centered around negative DC bias levels used in displacement measurement architectures. Channel routing is arranged to minimize cross-talk between adjacent vibration and keyphasor signal paths, maintaining separation between raw transducer inputs and buffered recorder outputs within the rack backplane domain. Frequently Asked Questions (FAQ) Q: Does the 82366-01 support hot-swap replacement within an energized rack?A: The module is designed for insertion into compatible 3300 Series racks, but hot-swap capability is dependent on system configuration and backplane design. Electrical isolation should be verified before removal. Q: What is the backplane power dependency of this module?A: The assembly does not use an independent power input. All operating power is sourced through the system rack backplane distribution. Q: Are alarm relay outputs electrically isolated per channel?A: Relay outputs are implemented as discrete dry-contact interfaces. Channel isolation is defined by the rack-level architecture rather than the terminal assembly itself. Field Installation Guidelines Ensure rack power is isolated prior to installation or removal of the module. Verify correct seating alignment with 3300 Series backplane connectors to avoid bent pin conditions. Maintain separation between low-level transducer wiring and high-noise relay or power conductors within the cabinet. Use shielded cable termination practices for proximity probe and vibration signal inputs, with single-point grounding at the designated cabinet earth reference. Do not exceed manufacturer-specified terminal torque limits for screw connections to avoid conductor deformation. Confirm correct channel mapping before energizing system-level alarm logic.
$200.00 $100.00
-
Bently Nevada Bently Nevada 133827-02 RTD/TC Temperature I/O Module
Bently Nevada 133827-02 RTD/TC Temperature I/O Module The Bently Nevada 133827-02, also cataloged as the 133827-02 RTD/TC Temperature I/O Module, serves as the primary temperature input/output module utilized to execute multi-channel RTD and thermocouple signal acquisition across 3500 Series 3500/61 Temperature Monitor platforms. The module provides direct electrical conditioning of up to six temperature sensor inputs for alarm, trip, and continuous monitoring functions within rack-based machinery protection systems. Hardware Specifications Parameter Specification Model 133827-02 Brand Bently Nevada Weight 0.46 kg Dimensions 2.5 x 24.1 x 10.2 cm Operating Temp -30 deg C to +65 deg C Storage Temperature -40 deg C to +85 deg C Power Consumption ~9 W (via 3500 rack backplane) Channels Up to 6 configurable inputs Sensor Types RTD (Pt100, Pt1000, Ni120, Cu10), TC (J, K, E, T, B, R, S, N) Isolation Non-isolated Accuracy ±0.5 deg C (RTD), ±1.0 deg C (TC) Resolution 0.1 deg C Rack Compatibility 3500/05, 3500/15, 3500/22M Bently Nevada RTD/TC Signal Conditioning and Channel Behavior The 133827-02 module performs multi-sensor temperature acquisition through direct termination of RTD and thermocouple inputs via external screw terminals. Signal conditioning is executed at the 3500 rack processing level, with analog conversion referenced to backplane power distribution. As a non-isolated architecture, all six input channels share a common electrical reference, requiring strict grounding discipline to prevent measurement offset caused by common-mode interference. Thermocouple inputs rely on stable reference junction compensation handled within the monitoring chain, while RTD channels depend on lead resistance stability for accurate conversion. Channel multiplexing supports configurable input mapping, allowing mixed RTD and thermocouple configurations within a single module slot. Diagnostic routines detect open-circuit, short-circuit, and out-of-range conditions at the input stage before alarm propagation. Frequently Asked Questions (FAQ) Q: Does the 133827-02 provide galvanic isolation between input channels?A: No. The module is non-isolated, and all input channels share a common reference within the 3500 backplane architecture. Q: Can RTD and thermocouple inputs operate simultaneously on different channels?A: Yes. Each channel is independently configurable for RTD or thermocouple measurement types. Q: What happens if a thermocouple wire becomes open circuit?A: The module detects open-circuit conditions through diagnostic thresholds and reports an out-of-range temperature fault to the monitoring system. Field Installation Guidelines The module must be installed into a compatible Bently Nevada 3500 rack slot with full backplane engagement verified prior to energization. Proper seating is required to ensure stable power distribution and signal referencing. Field wiring for RTD and thermocouple inputs shall be routed using shielded twisted pairs. For thermocouples, correct polarity must be maintained at screw terminal interfaces. Shield termination must be implemented at a single grounding point within the control cabinet to minimize ground loop formation. Due to non-isolated channel architecture, routing of sensor wiring must be physically separated from high-voltage and switching conductors to avoid induced measurement error.
$200.00 $100.00
-

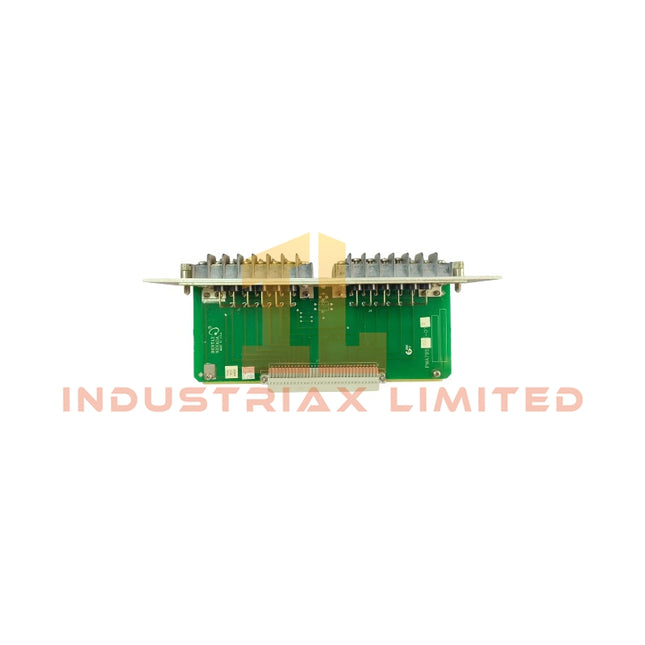

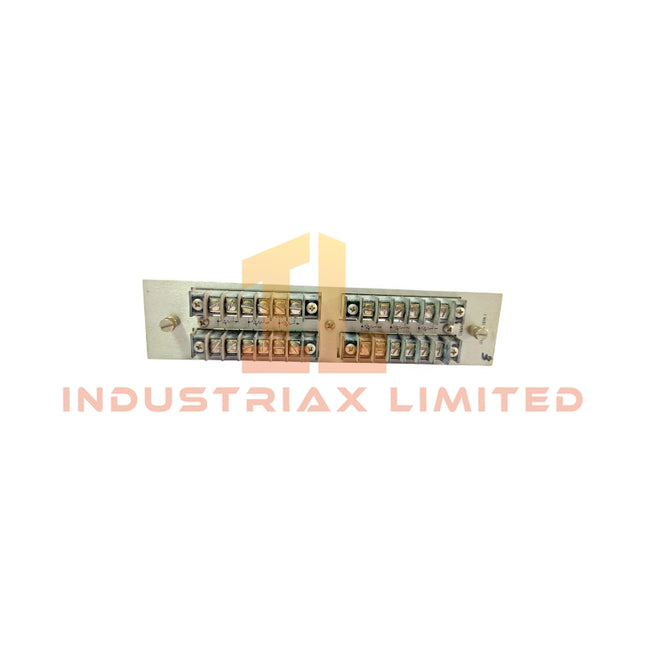

Bently Nevada 79532-01 RTD Input Terminal Module | Bently Nevada
Bently Nevada 79532-01 RTD Input Terminal Module Configured for RTD signal termination and electrical conditioning in Bently Nevada 3300 Series Machinery Monitoring Systems, the Bently Nevada 79532-01 (79532-01 RTD Input Terminal Module) provides direct physical/electrical execution for resistance temperature detector interface within 3300/35 RTD monitoring architectures. Hardware Specifications Parameter Specification Model 79532-01 (PWA 82369-01) Brand Bently Nevada (Baker Hughes) Origin USA Weight Approx. 0.4 kg to 1.5 kg (configuration dependent) Dimensions Not specified (rack-mounted terminal assembly dependent) Operating Temp -40 deg C to +85 deg C Power Consumption Passive module, not separately powered (system dependent) Channels 6 independent RTD input channels Sensor Types 3-wire / 4-wire RTD (Pt100, Ni120 supported via system) System Compatibility Bently Nevada 3300 Series (3300/35 RTD Monitor) TSI Signal Conditioning and Channel Integrity Behavior (Bently Nevada Class) The module interfaces with machinery protection measurement chains where RTD resistance conversion stability is maintained through controlled terminal impedance and structured wiring topology. Within Bently Nevada TSI architectures, channel separation and lead resistance compensation are handled at the monitor level, while the terminal assembly ensures stable mechanical termination for multi-wire RTD loops. In systems where eddy-current probe scaling and gap voltage validation (-10 VDC reference structures in proximity measurement chains) coexist with temperature inputs, the RTD terminal assembly contributes to overall channel-to-channel isolation integrity by maintaining consistent wiring geometry and minimizing cross-coupling between adjacent sensor loops. Frequently Asked Questions (FAQ) Q: Does the 79532-01 support hot-swap replacement within a live 3300 rack system?A: Hot-swap capability is determined by the host 3300 rack configuration. The terminal module itself is passive and does not contain active circuitry. Q: What is the backplane power requirement for the 79532-01 module?A: The module does not consume dedicated power. Electrical loading is defined by the connected 3300/35 monitor module, not the terminal assembly. Q: Can 3-wire and 4-wire RTD configurations be mixed on the same module?A: Yes. Each channel supports independent wiring configuration, subject to the input requirements of the connected monitoring module. Field Installation Guidelines RTD wiring shall be executed using twisted, shielded conductors routed away from high-energy switching lines and vibration signal cables. Shield termination should be implemented at a single grounded reference point to avoid ground loop formation. For 3-wire configurations, lead resistance balancing must follow the monitoring system compensation method defined at the 3300/35 input stage. For 4-wire configurations, ensure Kelvin connection integrity at the sensor interface. Terminal screws must be mechanically secured to maintain stable contact resistance under vibration conditions. Cable routing shall avoid sharp bends and maintain separation from high EMI sources such as VFD output conductors.
$200.00 $100.00
-

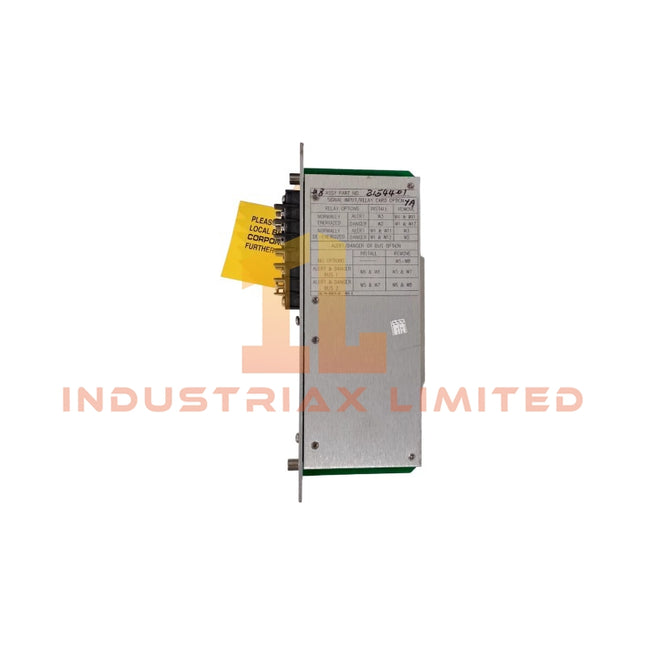

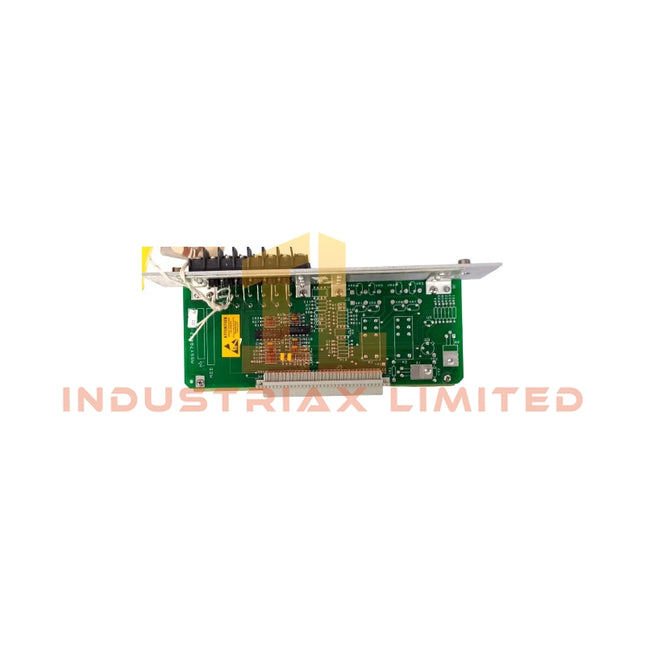

Bently Nevada Bently Nevada 78462-02 | 81544-01 Signal Input / Alarm Output Transducer Module
Bently Nevada 81544-01 Signal Input / Alarm Output Transducer Module Configured for signal input and alarm output handling in Bently Nevada machinery monitoring architectures, the Bently Nevada 81544-01 (78462-02 Signal Input / Alarm Output Transducer Module) provides direct physical/electrical execution within Bently Nevada protection and monitoring systems. The module is identified as a dual differential expansion monitor terminal board with XDUCR I/O and record terminals supporting 2 channels and is marked as discontinued by manufacturer. Suffix Breakdown & Model Matrix No validated segmentation or functional decoding of suffix structure is available from provided documentation. Model is treated as a single fixed ordering identifier: 81544-01. Hardware Specifications Parameter Specification Model 81544-01 Brand Bently Nevada Origin Not specified Weight 0.26 kg Dimensions 5 x 9.8 x 22.8 cm Channels 2 Functional Type Signal Input / Alarm Output Transducer Module Assembly Type Terminal Board / XDUCR I/O Record Terminals Status Discontinued by Manufacturer Eddy-Current Signal Conditioning and Gap Voltage Scaling Characteristics The module interfaces with eddy-current proximity probe chains typical of Bently Nevada mechanical monitoring platforms. Signal conditioning pathways are structured to maintain linear scaling of probe gap voltage response, typically referenced against negative DC bias regions used in proximity transducer systems. The architecture supports differential expansion measurement processing where channel-to-channel signal integrity is maintained through localized termination and isolation at the terminal board level. Cross-talk suppression is achieved through physical channel separation and controlled impedance routing across I/O terminals, ensuring stable rotor dynamic signal acquisition under multi-probe configurations. Frequently Asked Questions (FAQ) Q: Does the 81544-01 support hot-swap insertion in an energized rack system?A: No validated hot-swap capability is defined for this terminal board. Installation is typically performed under de-energized backplane conditions to prevent transient signal corruption. Q: What is the backplane loading behavior of this module?A: Backplane current consumption and loading characteristics are not specified in available documentation. System-level constraints are determined by the host monitoring rack architecture. Q: Can the two channels operate independently for differential measurement tasks?A: Yes, the 2-channel structure is designed for independent signal routing, typically used for differential expansion or dual-point vibration/position measurement configurations. Field Installation Guidelines The module shall be installed on a compatible Bently Nevada monitoring rack with verified mechanical keying alignment. Ensure terminal wiring follows shield grounding practices at a single-point earth reference to reduce induced noise on low-level transducer signals. Signal cables from proximity probes should be routed away from high-voltage conductors and switching devices to prevent electromagnetic coupling. All terminal screws must be torqued according to rack assembly specifications to maintain stable contact resistance across I/O points. Verification of channel continuity and zero-gap voltage baseline should be performed after installation prior to system commissioning.
$200.00 $100.00
-

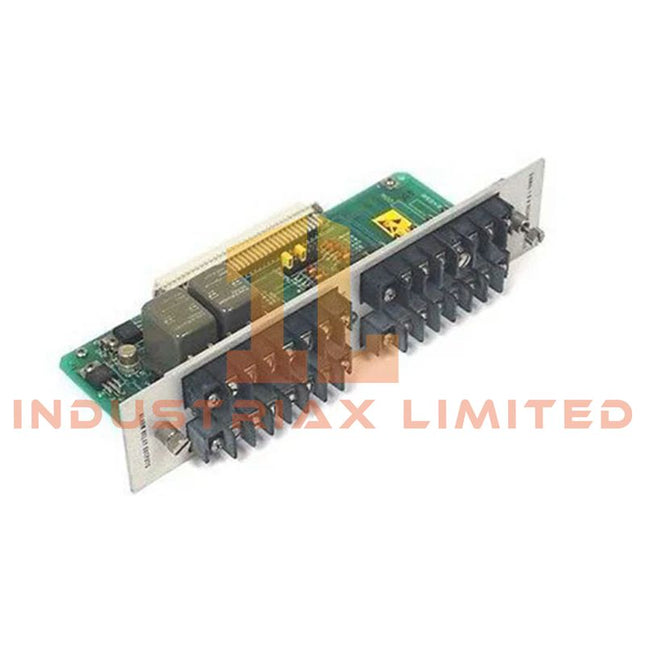

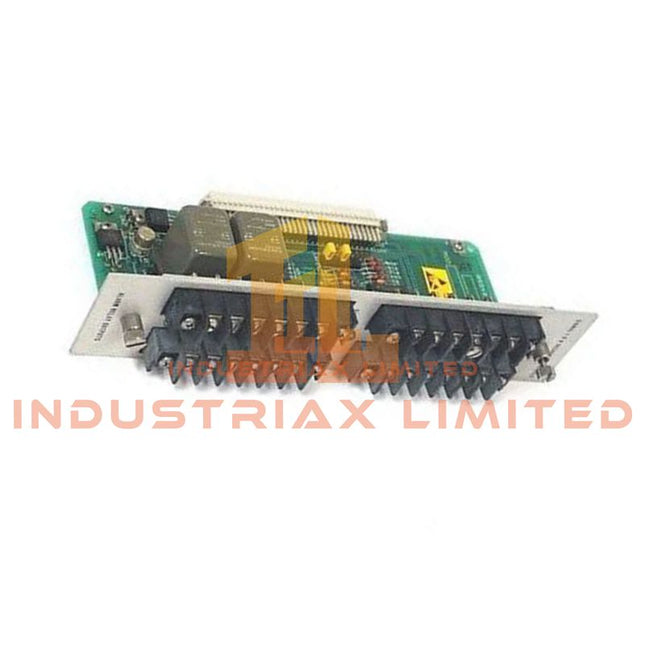

Bently Nevada Bently Nevada 122407-01 RTD Input and Record Terminal Module
Bently Nevada 122407-01 RTD Input and Record Terminal Module Configured for sensor termination and alarm signal routing in the 3300 Series Monitoring System, the Bently Nevada 122407-01 (122407-01 RTD Input and Record Terminal Module) provides direct physical/electrical execution of RTD interface wiring, recorder output routing, and alarm relay terminal aggregation across rack-mounted machinery protection architectures. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined for model 122407-01. The identifier represents a fixed 3300 Series terminal module configuration. Hardware Specifications Parameter Specification Model 122407-01 Brand Bently Nevada Origin USA Weight 0.6 kg Operating Temp -30 deg C to +65 deg C Power Consumption Passive (loop powered via monitor) Inputs RTD sensors, pressure transducers, vibration sensors Outputs Alarm relay outputs, recorder outputs Monitoring Functions Temperature, pressure, overspeed, vibration, position Storage Temperature -40 deg C to +85 deg C Humidity 5–95% RH non-condensing Design Rack-mounted modular terminal interface Bently Nevada RTD Lead Resistance Compensation and Signal Integrity Behavior The 122407-01 module is positioned at the termination layer of RTD measurement chains within 3300 Series racks. RTD input wiring is routed through shielded conductors to minimize lead-wire resistance influence on temperature conversion accuracy. The module does not perform active signal conditioning; compensation is handled at the monitoring module level. In multi-channel measurement topologies, separation of RTD and relay wiring paths reduces induced coupling from adjacent alarm output switching events. Shield termination practices are required to maintain stable resistance-to-temperature conversion under variable EMI/RFI field conditions. Improper grounding introduces offset drift due to common-mode interference across long RTD lead runs. Frequently Asked Questions (FAQ) Q: Does the 122407-01 provide internal signal conditioning for RTD inputs?A: No. It functions as a passive termination interface. RTD excitation and linearization are performed in the associated 3300 Series monitor module. Q: Can alarm relay outputs share the same wiring harness as RTD inputs?A: No. Relay outputs generate switching transients that can induce noise into low-level RTD measurement circuits. Separate routing is required. Q: Is the module compatible with 3500 Series systems?A: No. The electrical and mechanical interface is designed specifically for 3300 Series rack architecture. Field Installation Guidelines The module must be installed in a compatible 3300 Series rack slot with verified mechanical seating across all backplane contacts before energization. RTD wiring should use twisted, shielded pairs with single-point grounding at the control cabinet reference plane. Relay output wiring must be segregated from low-level sensor wiring to avoid inductive coupling during switching events. Shield continuity should be maintained across cable glands and terminated according to standard industrial grounding topology practices.
$200.00 $100.00
-

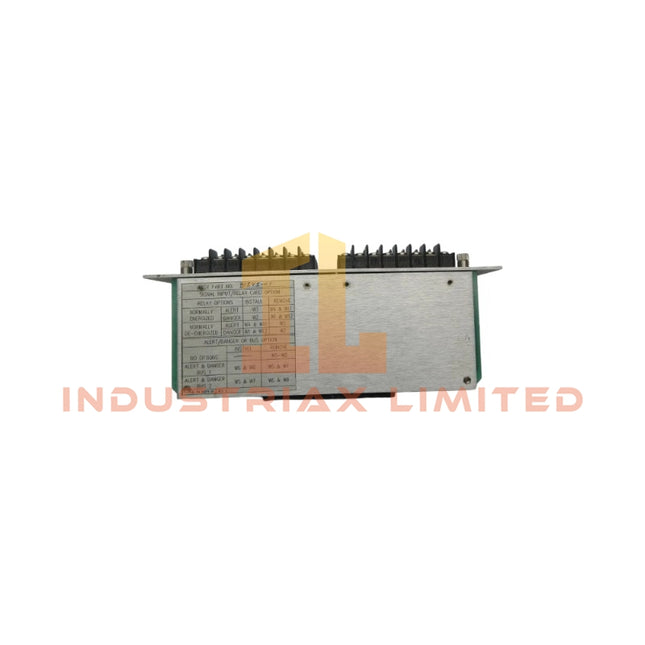

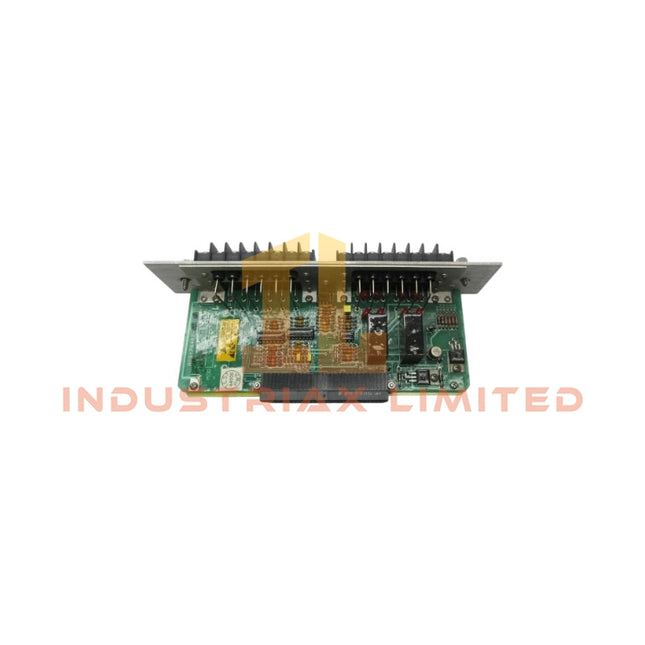

Bently Nevada Bently Nevada ASSY78462-01 84140-01 Relay Output Modules
Bently Nevada ASSY78462-01 84140-01 I/O & Record Terminal Alert Relay Output Module Configured for discrete signal handling and alarm relay execution in XUDCR I/O & Record Terminals Alert Relay Outputs, the Bently Nevada ASSY78462-01 84140-01 (84140-01 I/O & Record Terminal Alert Relay Outputs module) provides direct electrical switching and signal interfacing within condition monitoring rack architectures. The module operates as a rack-integrated I/O termination interface, routing input record signals and driving alert relay outputs under TSI system logic control. Signal paths are aligned with Bently Nevada machinery protection processing, where relay actuation is derived from processed vibration and displacement channel states. Hardware Specifications Parameter Specification Model ASSY78462-01 84140-01 Brand Bently Nevada Origin USA Dimensions 5.1 x 10.2 x 22.9 cm Weight 0.35 kg Operating Temp Not specified (industrial rack environment assumed) Power Consumption Not specified Product Type I/O & Record Terminal / Alert Relay Output Module Signal Interface Rack-based I/O termination and relay output routing Backplane Interface Proprietary Bently Nevada rack backplane connection Eddy-Current Probe Scaling and Rotor Dynamics Interface Layer Within Bently Nevada TSI architectures, input conditioning for eddy-current transducers is processed through scaling networks that map probe gap response into calibrated displacement or vibration amplitude channels. The module participates in relay decision pathways where threshold crossing events are derived from processed gap voltage representations, typically centered around negative DC bias ranges used in proximity transducer systems. Rotor dynamic behavior analysis is executed upstream in the monitoring processor, while this module functions as the deterministic output stage for alarm annunciation and shutdown logic signaling. Cross-channel isolation within the rack backplane reduces signal coupling between adjacent I/O termination points during high-density slot operation. Frequently Asked Questions (FAQ) Q: Does the module support hot-swap insertion under live backplane conditions?A: Hot-swap behavior is dependent on rack controller configuration. In standard TSI racks, insertion is managed under controlled power sequencing to prevent backplane transient propagation. Q: What is the relay output behavior under loss of input signal from the monitoring processor?A: Relay outputs default to configured fail-safe states defined at the system logic layer, typically de-energized unless overridden by system hold conditions. Q: Is channel-to-channel isolation maintained at the termination level?A: Isolation is implemented through rack-level architecture and relay driver separation, limiting direct electrical coupling between adjacent termination channels. Field Installation Guidelines The module shall be installed only in compatible Bently Nevada rack assemblies supporting the 84140 series backplane interface. Ensure all chassis power rails are discharged prior to insertion or removal. Backplane connectors must be aligned without mechanical force to avoid pin deformation. Shield termination for field wiring should be referenced to rack ground at a single-point earth to reduce circulating current loops. Relay output wiring must maintain separation from high-noise conductors such as motor drive outputs and switching power lines. Minimum routing distance should follow site-specific EMI control standards for condition monitoring systems. Slot assignment must correspond to system configuration mapping defined in the host monitoring processor to ensure correct alarm channel correlation.
$200.00 $100.00
-

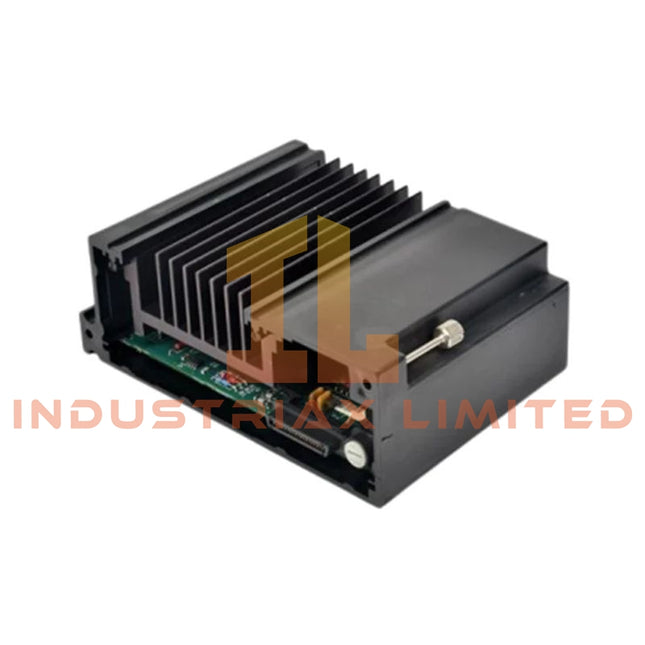

Bently Nevada Bently Nevada 141380-01 FieldMonitor Isolated Input Terminal Base
Bently Nevada 141380-01 FieldMonitor Isolated Input Terminal Base The Bently Nevada 141380-01, also cataloged as the 141380-01 FieldMonitor Isolated Input Terminal Base (ITB), operates as a dedicated hardware component for electrical isolation and sensor termination within FieldMonitor 1701 series vibration monitoring architectures. The module implements channel-separated input routing for vibration transducers, maintaining galvanic separation between field wiring and downstream monitoring electronics. It provides direct physical termination and isolation for multi-channel sensor acquisition without active signal conditioning circuitry. Hardware Specifications Parameter Specification Model 141380-01 Brand Bently Nevada Weight 1.6 kg Dimensions 127 x 203 x 508 mm Operating Temp -40 deg C to +70 deg C Power Consumption Passive (no active draw) Isolation Voltage 250 VAC continuous, 1500 VAC test Channels 6 isolated input channels Connections Screw terminals, 12–22 AWG Mounting DIN rail Storage Temperature -40 deg C to +85 deg C Humidity 5%–95% RH non-condensing Housing Material Thermoplastic Bently Nevada Mechanical Monitoring Interface Behavior The 141380-01 ITB is positioned within Bently Nevada FieldMonitor systems to support signal segregation for vibration and proximity transducers. In typical TSI signal chains, eddy-current probe scaling is preserved by maintaining low leakage paths across isolated channels, ensuring stable gap voltage reference integrity (commonly validated around negative DC bias regions such as -10 VDC measurement envelopes in compatible proximitor architectures). Within rotor dynamics monitoring loops, channel-to-channel isolation reduces cross-talk propagation between adjacent sensor lines during high vibration amplitude conditions. This preserves phase-referenced waveform fidelity used in shaft orbit analysis and synchronous extraction. The terminal base does not perform signal conditioning; therefore, waveform integrity is fully dependent on upstream probe calibration and correct termination practices. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined for model 141380-01. The designation is treated as a fixed-order identifier within the FieldMonitor ITB hardware family. Frequently Asked Questions (FAQ) Q: Does the 141380-01 support hot-swap replacement under energized FieldMonitor systems?A: The ITB is a passive termination base; replacement under energized conditions is dependent on system-level FieldMonitor 1701 series configuration and wiring isolation procedures rather than internal electronics behavior. Q: What is the impact of channel isolation on back-to-back vibration signal acquisition?A: Each of the 6 channels is galvanically isolated, reducing inter-channel leakage paths and minimizing measurement interference during simultaneous multi-probe vibration sampling. Q: Is any backplane current required for operation?A: No. The module operates passively and does not draw backplane or external supply current. Field Installation Guidelines DIN rail mounting must ensure continuous mechanical fixation across the full 508 mm housing length to prevent micro-movement under vibration environments. Signal wiring should follow separated routing paths for low-level transducer signals, avoiding parallel alignment with high-voltage conductors. Screw terminal connections should be torqued according to standard industrial control cabinet practices for 12–22 AWG conductors, ensuring stable contact resistance. Shielded cable drains should be terminated at a single-point ground reference to avoid ground loop formation across isolated channels. Isolation integrity should be verified after installation using dielectric test procedures consistent with the specified 1500 VAC test rating.
$200.00 $100.00
-

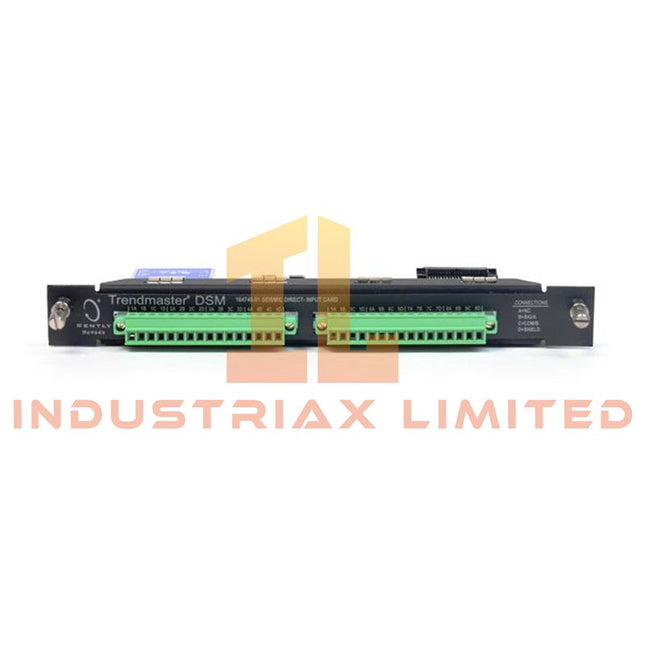

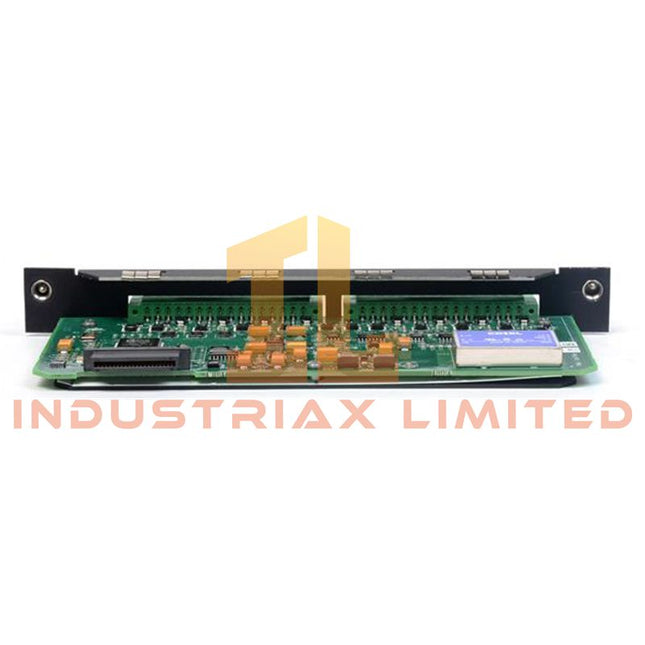

Bently Nevada Bently Nevada 164746-01 Seismic Direct Input Card
Bently Nevada 164746-01 Seismic Direct Input Card Configured for high-resolution vibration signal acquisition in Trendmaster DSM architecture, the Bently Nevada 164746-01 (Seismic Direct Input Card) provides direct physical/electrical execution of seismic sensor current-loop signal digitization and conditioned waveform capture across multi-channel machinery monitoring networks. Suffix Breakdown & Model Matrix No validated manufacturer-defined suffix segmentation is provided for 164746-01. The identifier represents a fixed-form seismic input card assembly within the Trendmaster Dynamic Scanning Module (DSM) system. Hardware Specifications Parameter Specification Model 164746-01 Brand Bently Nevada Origin USA Weight 0.3 kg Dimensions 2.4 × 11 × 24 cm A/D Resolution 16-bit Input Bandwidth Up to 24 kHz Input Channels Up to 8 seismic inputs Transducer Type 2-wire constant current mode sensors Transducer Supply +24 VDC (±5%) with 3.3 mA bias current Processing Modes Synchronous / Asynchronous System Integration Trendmaster Pro DSM architecture Signal Functions RMS, peak-to-peak, 1X / 2X amplitude calculation Protection Conformal coating for moisture resistance Bently Nevada Seismic Signal Digitization & Cross-Channel Sampling Behavior Within the Trendmaster DSM architecture, the 164746-01 card performs synchronized multi-channel acquisition of seismic vibration signals originating from 2-wire constant current accelerometers. The input stage maintains stable bias excitation at 3.3 mA while preserving amplitude linearity across the full bandwidth up to 24 kHz. The onboard acquisition pipeline executes 16-bit digitization followed by real-time computation of RMS and harmonic-related amplitude components (1X / 2X). These processed values are time-aligned across DSM nodes to support distributed machinery condition monitoring. Cross-channel synchronization ensures phase-consistent waveform reconstruction for rotating equipment diagnostic interpretation. Signal integrity is maintained through isolation of sensor excitation loops and digital processing domains, reducing susceptibility to electrical interference during high-density channel operation within multi-DSM deployments. Frequently Asked Questions (FAQ) Q: Does the 164746-01 support voltage-output seismic sensors?A: No. The card is electrically designed for 2-wire constant current mode sensors only and does not support voltage-output transducers. Q: What happens if sensor current exceeds bias specification?A: Input channels may saturate or produce invalid digitized values, as the excitation circuit is fixed at +24 VDC with 3.3 mA bias current. Q: Can all 8 channels operate simultaneously at full bandwidth?A: Yes. All channels support concurrent acquisition, but total DSM system capacity must be considered for large-scale deployments. Field Installation Guidelines Install the card only within compatible Trendmaster DSM chassis slots. Ensure full connector seating to maintain proper backplane signal alignment. Maintain shielded cabling for all seismic sensor inputs and terminate cable shields at a single-point ground reference to reduce ground loop interference. Route sensor wiring away from high-voltage and switching conductors to minimize electromagnetic coupling. Verify correct 2-wire constant current sensor compatibility prior to commissioning. Avoid mechanical stress on input connectors during installation or maintenance to preserve channel integrity.
$200.00 $100.00
-

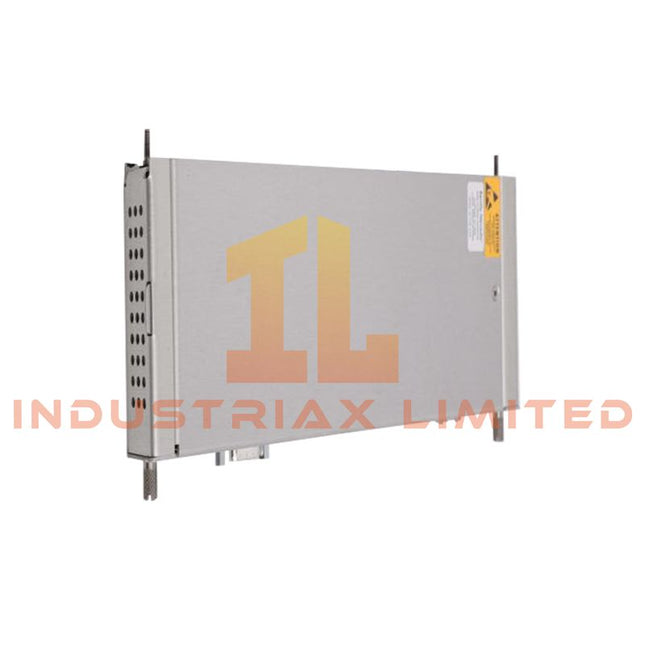

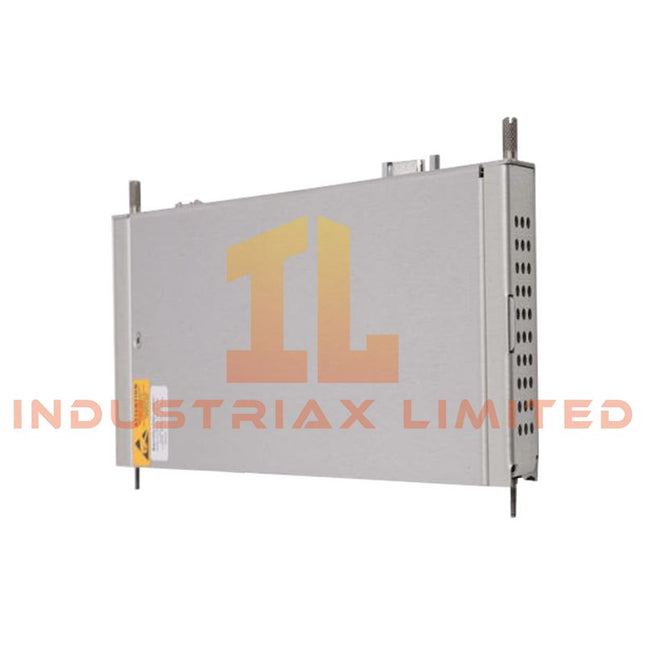

Bently Nevada Bently Nevada 161216-01 3500/91 Ethernet I/O Module
Bently Nevada 161216-01 3500/91 Ethernet I/O Module The Bently Nevada 161216-01, also cataloged as the 3500/91 Ethernet 10BASE-T/100BASE-TX I/O Module, operates as a dedicated hardware communication interface for transferring 3500 rack diagnostic and machinery protection data into supervisory control networks within the 3500/91 communication architecture. Suffix Breakdown & Model Matrix No manufacturer-published functional suffix decomposition is defined for 161216-01. The part number represents a fixed Ethernet I/O module assembly within the 3500/91 gateway family. Hardware Specifications Parameter Specification Model 161216-01 Brand Bently Nevada Origin USA Weight 0.39 kg Dimensions 241.3 × 24.4 × 99.1 mm Operating Temp -30 deg C to +65 deg C Power Consumption ~7.4 W typical Communication Interface Ethernet 10BASE-T / 100BASE-TX (RJ-45) Protocol Support Industrial Ethernet, Modbus, EGD producer/consumer Operating Voltage 220 V AC variant Storage Temperature -40 deg C to +85 deg C Humidity Up to 95 percent non-condensing Indicators OK, TX/RX LED status indicators Bently Nevada 3500 Rack Ethernet Data Exchange Behavior Within the 3500 system architecture, the 161216-01 module operates as a deterministic Ethernet I/O endpoint interfacing directly with backplane-acquired condition monitoring variables. It supports cyclic publication of processed data originating from vibration, position, and machinery protection channels into external supervisory networks using EGD and Modbus communication frames. The module does not perform signal conditioning or scaling transformation. Instead, it preserves calibrated engineering units generated by upstream 3500 monitors and encapsulates them into structured Ethernet payloads. Timing synchronization is maintained at rack level to ensure consistent update cycles between internal measurement blocks and external PLC/DCS consumers. From a network integration perspective, the module functions as a protocol translation boundary between deterministic backplane acquisition and non-deterministic Ethernet transport layers, maintaining data integrity under industrial communication load variation conditions. Frequently Asked Questions (FAQ) Q: Does the 161216-01 process raw sensor signals directly?A: No. All signal conditioning is executed by upstream 3500 monitor modules. The I/O module only transmits processed rack data. Q: Can this module operate during hot-swap replacement?A: Yes. The module supports hot-swappable insertion and removal. Communication is temporarily interrupted during reseating and reinitialization. Q: Does Ethernet interface selection affect protocol behavior?A: No. 10BASE-T and 100BASE-TX interfaces share the same logical protocol stack; only physical layer characteristics differ. Field Installation Guidelines Install the module into the designated 3500 rack slot ensuring full engagement with both backplane connectors. Verify mechanical alignment before applying Ethernet cabling to avoid link initialization faults. Use shielded twisted-pair cabling for RJ-45 connections and maintain a single-point grounding strategy at the rack chassis. Route Ethernet wiring away from high-power conductors to minimize electromagnetic coupling. Avoid excessive bending or mechanical stress on connectors. Confirm network addressing consistency and protocol configuration (EGD or Modbus mapping) before system commissioning to ensure correct data exchange behavior.
$200.00 $100.00
-
Schneider Electric Schneider Electric TSXP57104M Unity Processor Module
Schneider Electric TSXP57104M Unity Processor Module Configured for execution of PLC scan cycles and system task scheduling in Modicon Premium Automation platform, the Schneider Electric TSXP57104M (TSXP57104M Unity processor) provides direct physical/electrical execution for multi-rack I/O processing and Unity Pro application runtime handling. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXP57104M Origin FR Weight 0.38 kg Dimensions 5.5 cm x 18 cm x 26 cm (package) OperatingTemp 0 degC to 60 degC PowerConsumption 850 mA at 5 V DC PLC Platform Modicon Premium Automation Platform Program Memory 224 kB (with PCMCIA), 96 kB data I/O Capacity 512 discrete I/O, 24 analog I/O Rack Support 2 x 12-slot or 4 x 4/6/8-slot racks Task Structure 1 master task, 1 fast task, up to 32 event tasks Serial Communication RS485 (19.2 kbit/s, non-isolated mini DIN) Industrial Control Backplane Bus and Deterministic Execution Behavior The Schneider Electric TSXP57104M operates within Modicon Premium backplane architecture, where deterministic scan execution is synchronized across distributed rack modules via internal system bus arbitration. Backplane communication velocity is optimized for cyclic task scheduling, supporting mixed Boolean and arithmetic instruction execution with fixed scan timing behavior under Unity Pro runtime. Firmware execution supports structured application segmentation (master, fast, and event tasks), enabling predictable I/O refresh alignment across multi-rack configurations. PCMCIA expansion impacts execution timing profiles, particularly for floating-point instruction cycles and data block handling, requiring deterministic memory arbitration during high-load scan conditions. Frequently Asked Questions Q: Does TSXP57104M support hot-swap of CPU module during runtime?A: No hot-swap capability is defined for the processor module. Removal requires system power down due to backplane arbitration and memory state dependency. Q: How does PCMCIA memory affect execution timing?A: When PCMCIA is installed, instruction execution time increases for Boolean and arithmetic operations due to external memory access latency and address mapping overhead. Q: What is the backplane load behavior under maximum I/O configuration?A: Backplane current draw is constrained by 850 mA at 5 V DC processor consumption, with additional load distributed across rack-mounted I/O modules via system power rails. Field Installation Guidelines Processor shall be mounted on Modicon Premium compatible rack backplane ensuring full mechanical engagement of connector interface. Maintain separation between RS485 serial wiring and high-noise power conductors to minimize signal coupling. Shielding for communication lines shall be grounded at single-point earth reference. Ensure rack power supply stability at 5 V DC system rail before processor insertion. Avoid insertion or removal under energized conditions. Backplane connectors must be free of dust and oxidation prior to installation. Torque and mechanical locking should follow rack manufacturer specification for module retention integrity.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140CPU53414 CPU Module
Schneider Electric 140CPU53414 CPU Module Configured for PLC scan execution and distributed I/O management in Modicon Quantum backplane system, the Schneider Electric 140CPU53414 (140CPU53414 CPU Module) provides direct physical/electrical execution for cyclic control processing, backplane communication handling, and module-level I/O coordination within Quantum PLC architectures. Suffix Breakdown & Model Matrix The 140CPU53414 is a fixed-order CPU module identifier within the Modicon Quantum family. No structured suffix segmentation or configurable model matrix is defined for this part number. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU53414 Origin Not specified Weight 0.54 kg Dimensions Not specified OperatingTemp 0 degC to 60 degC PowerConsumption Not specified Processor Type 586K CPU architecture Processor Speed 200 MHz Memory 4 MB SRAM Max I/O Capacity Up to 8000 I/O points Communication Port 1 x MB+ port Backplane Modicon Quantum compatible backplane Backplane Bus Communication & Deterministic Control Behavior The module executes deterministic scan cycles over the Modicon Quantum backplane, synchronizing CPU task execution with I/O module refresh cycles. MB+ (Modbus Plus) communication handling is implemented for peer-level data exchange across the control network. Backplane throughput is optimized for cyclic polling and interrupt-driven task handling typical of PLC scan architectures. Firmware execution is aligned with fixed-cycle control logic, ensuring consistent execution timing under mixed I/O loads up to the defined system capacity. Frequently Asked Questions Q: Can the 140CPU53414 support hot-swap replacement in an energized rack?A: Hot-swap behavior is dependent on Quantum rack configuration. CPU removal typically requires system shutdown to maintain backplane integrity and prevent task interruption. Q: What is the backplane communication role of this CPU?A: It manages scan synchronization, I/O image table updates, and module communication across the Quantum backplane bus. Q: Does MB+ communication operate independently from CPU scan execution?A: MB+ communication is processed in parallel with scan execution but remains scheduled within CPU cycle time allocation. Field Installation Guidelines Ensure the Quantum backplane is de-energized before CPU insertion. Align module edge connectors precisely with the rack guide rails to avoid backplane pin damage. Maintain proper grounding of the rack assembly to reduce signal noise on MB+ communication lines. Verify firmware compatibility with existing rack modules prior to commissioning. Avoid excessive bending of backplane assemblies during installation to preserve connector alignment integrity.
$200.00 $100.00
-
Schneider Electric Relay Discrete Output Module Schneider Electric 140DRC83000
Schneider Electric 140DRC83000 Modicon Quantum Relay Discrete Output Module The Schneider Electric 140DRC83000, also cataloged as the 140DRC83000 Relay Discrete Output Module, operates as a dedicated hardware component for relay-based field output switching within the Modicon Quantum automation platform. Suffix Breakdown & Model Matrix The supplied documentation identifies a single catalog number only. No official suffix or ordering code breakdown is specified. Hardware Specifications Parameter Specification Model 140DRC83000 Brand Schneider Electric Series Modicon Quantum Product Type Relay Discrete Output Module Origin Not specified Discrete Outputs 8 relay outputs Contact Configuration 1 NO/NC, Form C Addressing Requirement 0.5 output word Output Voltage 20 - 250 VAC, 30 - 150 VDC, 5 - 30 VDC Maximum Load Current 5 A resistive at 250 VAC or 30 VDC (60 degC), 3 A general load, 2 A tungsten load Surge Current <= 20 A for 10 ms (capacitive) Switching Frequency 30 Hz resistive Switching Capacity 1250 VA resistive Response Time <= 10 ms OFF to ON, <= 20 ms ON to OFF Mechanical Durability 10,000,000 cycles Electrical Durability Up to 200,000 cycles depending on load type Output Protection Internal 275 V varistor Channel Isolation 1780 Vrms AC for 1 minute Bus Isolation 1780 Vrms AC and 2500 VDC for 1 minute Bus Current Requirement 560 mA Power Consumption 2.75 W + (0.5 W x active output points) Status Indicators Active LED, Fault LED, 8 output status LEDs Weight 0.3 kg Module Format Standard Operating Temp 0 - 60 degC Storage Temp -40 - 85 degC Relative Humidity 95 % non-condensing Operating Altitude <= 5000 m Certifications ABS, DNV, FM Class 1 Div 2, GL, GOST, RINA, RMRS, C-Tick, CE Standards CSA C22.2 No. 142, UL 508 Backplane Communication and I/O Integration As a member of the Modicon Quantum platform, the module exchanges output data through the Quantum backplane while occupying one standard module slot. Output addressing requires 0.5 output word for eight relay channels. The module reports operational status using dedicated Active, Fault, and per-channel output LEDs. Bus current consumption is specified as 560 mA and should be included during rack power budget calculations. Frequently Asked Questions Q: Does the module provide electrical isolation between relay channels? A: Yes. The relay channels provide 1780 Vrms AC isolation for 1 minute between channels, and the same isolation level between the channels and the backplane bus. Bus isolation is additionally rated at 2500 VDC for 1 minute. Q: Can inductive loads be connected directly to the relay outputs? A: Yes. Inductive loads are supported within the published switching specifications. The integrated 275 V varistor provides output overvoltage suppression during switching events. Q: What should be considered when calculating rack power requirements? A: Include the module bus current requirement of 560 mA together with the power dissipation specification of 2.75 W plus 0.5 W for each energized output point when evaluating enclosure thermal loading and power supply capacity. Field Installation Guidelines Verify the module catalog number before installation to ensure compatibility with the Modicon Quantum rack. De-energize the system before inserting or removing the module unless the controller documentation explicitly permits the maintenance procedure. Separate relay output wiring from low-level analog and communication cables to reduce conducted electrical interference. Connect field wiring according to the specified voltage and current ratings for each relay contact. Maintain protective earth grounding for the control cabinet and terminate cable shields in accordance with the site's grounding practice. Confirm the total backplane current and enclosure thermal limits before commissioning additional I/O modules.
$200.00 $100.00
-
Schneider Electric Unity Processor Schneider Electric TSXP573634M Modicon Premium
Schneider Electric TSXP573634M Modicon Premium Unity Processor The Schneider Electric TSXP573634M, also cataloged as the TSXP573634M Unity Processor, operates as a dedicated hardware component for logic execution, I/O processing, and industrial Ethernet communication within the Modicon Premium Automation Platform. The processor integrates application execution, backplane communication, serial connectivity, and Ethernet TCP/IP networking for distributed PLC architectures. Suffix Breakdown & Model Matrix The supplied documentation identifies TSXP573634M as a single fixed catalog reference. No official suffix decoding or model matrix is provided in the available manufacturer data; therefore, no suffix interpretation is included. Hardware Specifications Parameter Specification Model TSXP573634M Brand Schneider Electric Product Series Modicon Premium Automation Platform Product Type Unity Processor (CPU) Software Unity Pro Origin Not specified Module Format Double Weight 0.60 kg Dimensions Not specified Operating Temp Not specified Power Consumption 1900 mA at 5 VDC Rack Capacity 16 racks (4/6/8-slot) or 8 racks (12-slot) Maximum Slots 128 / 96 / 64 depending on rack configuration Discrete I/O Capacity 1024 I/O Analog I/O Capacity 128 I/O Application-Specific Channels 32 Process Control Channels 15 process channels, up to 45 simple loops Ethernet Interface RJ45, 10BASE-T/100BASE-TX Serial Interface 2 x Female Mini-DIN RS-485, non-isolated, 19.2 kbps or 115 kbps Communication Module Capacity 1, 2, 3, or 8 modules (configuration dependent) Internal Memory (without PCMCIA) 192 kB program and data Internal Memory (with PCMCIA) 1792 kB program, 192 kB data Additional Storage PCMCIA card up to 16384 kB Application Structure 1 master task, 1 fast task, 64 event tasks Boolean Instruction Time 0.12 us without PCMCIA Transparent Ready Supported Backplane Communication and Firmware Compatibility The TSXP573634M exchanges data across the Modicon Premium backplane while simultaneously supporting integrated Ethernet TCP/IP and RS-485 communication. Program expansion is available through a PCMCIA memory card without altering the processor hardware configuration. Firmware updates and application downloads should be performed using Unity Pro software versions compatible with the installed processor firmware to maintain project consistency and hardware recognition. Frequently Asked Questions Q: Does the processor require a PCMCIA memory card for normal PLC operation?A: No. The processor operates using its internal RAM. A PCMCIA card expands available program and data storage but is not required for standard execution. Q: Is hot replacement of the processor specified?A: The supplied technical documentation does not specify hot-swap capability. Processor replacement should be performed with the rack de-energized and according to Schneider Electric maintenance procedures. Q: What communication interfaces are integrated on the processor?A: The processor includes one Ethernet TCP/IP RJ45 interface (10BASE-T/100BASE-TX) and two non-isolated RS-485 serial interfaces using female Mini-DIN connectors supporting 19.2 kbps and 115 kbps communication. Field Installation Guidelines Verify that the selected rack configuration does not exceed the supported rack and slot limits before processor installation. Ensure the cumulative backplane power consumption remains within the rack power supply rating. Mount the processor completely into the backplane connector before applying system power. Route Ethernet and serial communication cables separately from high-voltage power wiring to reduce conducted electrical interference. Connect cable shields using the site's grounding practice to minimize communication noise. Confirm Unity Pro project compatibility with the installed firmware before downloading the application. Disconnect system power before installing or removing the processor or optional PCMCIA memory card.
$200.00 $100.00
-
Schneider Electric 140DAO85300 Modicon Quantum AC Discrete Output Module Schneider Electric
Schneider Electric 140DAO85300 Modicon Quantum AC Discrete Output Module Configured for AC discrete output switching in the Modicon Quantum automation platform, the Schneider Electric 140DAO85300 (140DAO85300 AC Discrete Output Module) provides direct physical electrical execution. The 140DAO85300 supports 32 AC output channels arranged in four groups of eight channels with an operating output range of 20 to 253 VAC and two output word addressing. Suffix Breakdown & Model Matrix The supplied documentation identifies 140DAO85300 as a fixed catalog number. No official suffix or ordering code decomposition is specified by the manufacturer; therefore, no suffix interpretation is provided. Hardware Specifications Parameter Specification Model 140DAO85300 Brand Schneider Electric Product Series Modicon Quantum Automation Platform Product Type AC Discrete Output Module Origin Not specified Output Channels 32 AC outputs Channel Groups 4 groups of 8 channels Output Voltage 20 to 253 VAC Supply Frequency 47 to 63 Hz Voltage Drop 1.5 V Addressing Requirement 2 output words Maximum Output Withstand 400 Vrms for 1 cycle AC; 300 Vrms for 10 s AC Minimum Load 10 A Output Current Rating 4 A rms (20 to 132 VAC) per output; 3 A rms (170 to 253 VAC) per output Module Current Limit 16 A rms per module Surge Current 15 A for 2 cycles; 12 A for 1 cycle; 8 A for 3 cycles per point Off-State Leakage 1 mA rms at 24 VAC; 1 mA rms at 48 VAC; 2 mA rms at 115 VAC; 2.5 mA rms at 230 VAC Response Time <= 0.5 ms ON to OFF; <= 0.5 ms OFF to ON Protection Internal RC filter; internal 4 A fuse per output dV/dt 400 V/ms Bus Current Requirement 320 mA Power Consumption Power dissipation = 1.60 + (1.0 V x total module load current) Local Indicators 32 green output LEDs, 1 green Active LED, 1 red Fault LED Module Format Standard Weight 0.45 kg Operating Temp 0 to 60 degC Storage Temp -40 to 85 degC Relative Humidity 95 % non-condensing Operating Altitude Up to 5000 m Certifications CE, cUL, FM Class 1 Division 2 Standards CSA C22.2 No. 142, UL 508 EMC Immunity 8 kV air ESD, 4 kV contact ESD, 10 V/m RF immunity Backplane Communication and I/O Density Characteristics Within the Modicon Quantum platform, the module exchanges output image data through the system backplane using two output words. The 32-channel density enables centralized AC load switching while maintaining grouped output organization. The module requires 320 mA from the backplane and provides local LED diagnostics for channel status, communication status, and external fault indication. Frequently Asked Questions Q: Does the module support hot replacement while the rack is energized?A: The supplied documentation does not specify hot-swap capability. Installation and replacement should follow the controller and rack maintenance procedures defined for the Modicon Quantum platform. Q: How many output data words are required by the PLC configuration?A: The module requires two output words for addressing. Q: What output protection is integrated into the hardware?A: Each output includes an internal RC filter for transient suppression and internal 4 A fuse protection. Field Installation Guidelines Verify the AC load voltage is within the specified 20 to 253 VAC operating range before energizing the module. Observe the module current limit and individual channel loading limits when distributing field loads. Separate AC output wiring from low-level analog and communication cables to reduce electrical interference. Tighten field terminal connections according to the applicable installation manual and inspect periodically for loose conductors. Ensure protective earth grounding of the control cabinet complies with local electrical standards before commissioning. Confirm module LED indications after startup to verify communication status and output operation.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140DDO15310 Modicon Quantum TTL Discrete Output Module
Schneider Electric 140DDO15310 Modicon Quantum TTL Discrete Output Module The Schneider Electric 140DDO15310, also cataloged as the 140DDO15310 TTL Discrete Output Module, operates as a dedicated hardware component for 5 VDC TTL discrete output switching within the Modicon Quantum automation platform. The module provides 32 positive (sink) TTL output channels organized into four isolated groups for direct field signal execution through the Quantum backplane. Hardware Specifications Parameter Specification Model 140DDO15310 Brand Schneider Electric Product Series Modicon Quantum Product Type TTL Discrete Output Module Origin Not specified Discrete Outputs 32 TTL outputs Output Grouping 4 groups of 8 channels Output Type Positive (sink), TTL Rated Output Voltage 5 V DC Supply Voltage 4 to 5.5 V DC Voltage State 1 <= 0.2 V guaranteed Addressing Requirement 2 output words Maximum Load Current <= 75 mA per point; <= 600 mA per group; <= 2.4 A per module Internal Pull-up Resistor 440 Ohm Response Time <= 250 us (0 to 1 and 1 to 0, resistive load) Absolute Maximum Output 15 V DC decaying pulse for 0.0013 s Surge Current 750 A, 0.5 ms between each point Protection Internal fuse, transient voltage suppression Fault Indication Blown fuse, loss of field power Local Indicators 32 green output LEDs, 1 red fault LED, 1 green Active LED Isolation 500 Vrms between groups for 1 minute Bus Current Requirement 350 mA Supply Current 0.4 A Current Consumption 2800 mA at 5 V DC Power Consumption 4 W Dimensions Not specified Weight 0.45 kg Operating Temp 0 to 60 degC Storage Temp -40 to 85 degC Relative Humidity 95 % non-condensing Operating Altitude <= 5000 m Certifications CE, C-Tick, FM Class 1 Division 2, GOST, RMRS Standards CSA C22.2 No. 142, UL 508 Backplane Communication and I/O Density The module exchanges output data through the Modicon Quantum backplane using a two-output-word addressing structure. Thirty-two TTL output channels are integrated within a standard Quantum module format while maintaining group isolation of 500 Vrms. Status reporting is provided through dedicated output LEDs together with Active and Fault indicators for module diagnostics. Frequently Asked Questions Q: Does the module support hot swapping during operation?A: The supplied technical data does not specify hot-swap capability. Installation and removal should follow the procedures defined for the Modicon Quantum platform and system maintenance practices. Q: How are the output channels electrically organized?A: The module contains 32 TTL sink outputs divided into four independent groups of eight channels, with isolation rated at 500 Vrms between groups for one minute. Q: What protection mechanisms are integrated on the outputs?A: Each module incorporates internal fuse protection, transient voltage suppression, and diagnostic indication for blown fuse and field power loss. Field Installation Guidelines Verify that the system supply voltage remains within 4 to 5.5 V DC before energizing the module. Observe the specified current limits for each output point, group, and the complete module to prevent overload. Separate field output wiring from high-energy power conductors to minimize electrical interference. Ensure the protective earth and cabinet grounding system are correctly connected before commissioning. Confirm correct seating of the module in the Quantum backplane and verify Active and output status LEDs during startup. Replace blown fuses only after the source of the overload or wiring fault has been identified and corrected.
$200.00 $100.00
-
Schneider Electric Multifunction Input Module Schneider Electric 140ERT85410
Schneider Electric 140ERT85410 Multifunction Input Module The Schneider Electric 140ERT85410 also cataloged as the 140ERT85410 Multifunction Input Module, operates as a dedicated hardware component for discrete signal acquisition, event stamping, and clock synchronization within the Modicon Quantum automation platform I/O system. The module executes 32-channel digital input scanning combined with DCF77 time synchronization and event logging via backplane communication under Unity Pro configuration environments. Hardware Specifications Parameter Specification ModelBrand 140ERT85410 / Schneider Electric Origin France Weight 0.45 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption <= 7.5 W (process input) Input Channels 32 discrete inputs + 1 clock input Input Voltage Range 24 VDC to 125 VDC Counting Function Up to 500 Hz status logging Time Sync DCF77 protocol Isolation Optocoupler channel and group isolation Backplane Current 300 mA at 5 VDC bus Schneider Electric PLC Backplane Communication Characteristics The module integrates into the Quantum backplane architecture with deterministic scan exchange across distributed I/O groups. Input state acquisition is executed via cyclic bus polling with timestamp embedding at signal transition level. Channel groups are electrically isolated using optocoupler stages to reduce cross-channel coupling under high-density 32-point configurations. Backplane communication timing is synchronized with CPU task scheduling under Unity Pro runtime, enabling consistent event correlation between discrete transitions and DCF77-based time reference frames. The module supports configurable debounce filtering (0 to 255 ms) to stabilize high-frequency input edges in noisy industrial wiring environments. Signal integrity is maintained through differential internal bus arbitration and isolated group referencing. Frequently Asked Questions Q: Can the module be hot-swapped during operation?A: The module is designed for rack-mounted installation; removal under energized backplane conditions may disrupt I/O scanning and should be performed only after system shutdown or controlled maintenance procedure. Q: Does the 140ERT85410 support firmware upgrades via Unity Pro?A: Configuration and parameterization are handled through Modicon Quantum automation platform engineering tools; firmware compatibility is dependent on CPU and backplane revision level. Q: What is the effect of backplane loading with multiple multifunction modules?A: Each module draws 300 mA at 5 VDC bus; total rack loading must remain within Quantum power supply limits to maintain stable scan cycles and avoid bus arbitration delays. Field Installation Guidelines Ensure the rack is de-energized before inserting or removing the module. Install the module into a standard Quantum slot with full backplane connector engagement to guarantee signal integrity and grounding continuity. Use shielded cables for long-distance input wiring where electromagnetic interference is present, maintaining shield termination at a single earth reference point. Keep unshielded runs within 400 m and shielded runs within 600 m as specified. Maintain separation between high-voltage switching lines and low-level digital input wiring to reduce induced noise on fast counting channels (500 Hz capability). Configure input debounce filtering according to mechanical contact characteristics prior to commissioning.
$200.00 $100.00
-
Schneider Electric Relay Output Module Modicon X80 Schneider Electric BMXDRA1605
Schneider Electric BMXDRA1605 Modicon X80 Relay Output Module The Schneider Electric BMXDRA1605 serves as the primary BMXDRA1605 discrete output module utilized to execute relay-based digital switching of field loads across Modicon X80 platform backplane architectures. Configured for deterministic ON/OFF signal actuation in rack-based PLC systems, the module provides 16 independent relay outputs supporting both DC and AC load switching via electromechanical contacts. Suffix Breakdown & Model Matrix BMXDRA1605 is a fixed-order identifier within the Modicon X80 discrete output relay family. No additional functional suffix segmentation is defined by manufacturer documentation for this part number. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXDRA1605 Origin France OperatingTemp 0 to 60 degC PowerConsumption 3 W (module dissipation), 79 mA at 3.3 VDC Output Channels 16 relay outputs Output Types Relay (Form A contact behavior) DC Voltage Range 24 VDC (19 to 30 VDC) AC Voltage Range 24 to 240 VAC (19 to 264 VAC) Rated Thermal Current 2 A per channel (free air) Response Time <= 8 ms ON, <= 10 ms OFF Insulation Resistance > 10 MOhm at 500 VDC Schneider Electric Backplane Relay Switching Characteristics Within the Modicon X80 rack architecture, the BMXDRA1605 relay matrix interfaces through backplane-controlled digital command frames, where output state transitions are executed via deterministic bus refresh cycles. Relay actuation introduces mechanical switching latency defined by coil energization and contact settling time, making the module suitable for discrete actuator control rather than high-frequency PWM or analog modulation tasks. The channel architecture supports independent galvanic isolation per relay contact path, ensuring separation between field wiring domains and PLC logic circuitry. Output protection design requires external suppression components: flyback diode networks for DC inductive loads and RC or ZnO surge suppression for AC switching environments. This external dependency defines the module as a passive switching stage within the control chain rather than a protected power driver. Frequently Asked Questions Q: Can BMXDRA1605 outputs be hot-swapped under load conditions?A: Hot-swap is not supported for energized field loads. Output de-energization and backplane removal must occur under controlled power-down conditions to avoid contact arcing and backplane disturbance. Q: What is the effect of inductive loads on relay lifetime?A: Inductive loads without external suppression (diode or RC snubber) generate contact erosion due to arc discharge during opening transitions, reducing mechanical endurance of relay contacts. Q: Does the module require internal short-circuit protection per channel?A: No internal per-channel electronic protection is implemented. External fast-blow fusing per channel or grouped outputs is required to limit fault current propagation. Field Installation Guidelines Install module only in Modicon X80 compliant rack backplanes with verified grounding continuity. Maintain separation between AC switching wiring and low-voltage DC logic cabling to reduce electromagnetic coupling. Use shielded conductors for long field runs where relay outputs control inductive actuators. Apply external suppression elements directly at load terminals for both AC and DC circuits. Ensure all wiring torque specifications follow terminal block mechanical limits defined by cabinet assembly standards. Verify isolation integrity before energizing system, especially in mixed-voltage (AC/DC) output configurations.
$200.00 $100.00
-
Schneider Electric Processor Module Schneider Electric BMXP342020
Schneider Electric BMXP342020 Processor Module Configured for deterministic I/O processing and multi-rack data exchange in Modicon M340 automation architecture, the Schneider Electric BMXP342020 (BMXP342020 processor module) provides direct physical execution of discrete and analog signal handling across distributed rack backplane networks. The module supports centralized application logic execution with integrated Modbus and Ethernet communication interfaces, enabling synchronized control of up to 1024 discrete I/O points in multi-rack topology. Suffix Breakdown & Model Matrix No validated sub-suffix segmentation or variant decoding data is defined for BMXP342020 in the provided technical dataset. The model is treated as a single-order processor module identifier within the Modicon M340 family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXP342020 Origin France Weight 0.205 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption Not specified Discrete I/O Capacity Up to 1024 I/O (multi-rack), 704 I/O (single rack) Analog I/O Capacity Up to 256 I/O (multi-rack), 66 I/O (single rack) Rack Support 4 racks Slot Capacity 11 slots per rack Communication Modbus, Ethernet Protection Class IP20 Backplane Bus Communication and Deterministic Control Layer Within the Modicon M340 platform, the processor module executes cyclic I/O scheduling through a backplane communication structure optimized for deterministic scan exchange. The Schneider Electric PLC architecture supports I/O density scaling across multi-rack configurations, where memory mapping and bus arbitration are synchronized to minimize jitter in discrete signal propagation. Firmware execution is aligned with Ethernet-based diagnostics and Modbus event counters for runtime supervision and channel-level monitoring consistency. Frequently Asked Questions Q: Does the BMXP342020 support hot-swap of I/O modules during operation?A: The processor module supports system-level configuration recognition; however, hot-swap behavior depends on rack backplane design and connected I/O module class, not the CPU module alone. Q: What is the backplane communication dependency of multi-rack expansion?A: Multi-rack operation relies on synchronized backplane bus linking, where rack addressing and slot mapping are maintained through centralized processor scheduling. Q: Can firmware upgrades affect running I/O mapping?A: Firmware updates must be aligned with configuration retention rules; changes in firmware revision can require revalidation of I/O addressing tables. Field Installation Guidelines Install module in IP20-rated cabinet environment only Maintain separation between power cabling and communication backplane wiring Ensure rack grounding is bonded to a single-point earth reference Verify slot alignment before insertion into Modicon M340 rack backplane Avoid mechanical stress on Ethernet and Modbus ports during wiring Maintain ambient temperature range within 0 to 60 degC during operation
$200.00 $100.00
-
Schneider Electric BMXDAO1615 Modicon X80 Discrete Output Module Schneider Electric
Schneider Electric BMXDAO1615 Modicon X80 Discrete Output Module Configured for discrete electrical switching in Modicon X80 backplane systems, the Schneider Electric BMXDAO1615 (BMXDAO1615 Discrete Output Module) provides direct physical execution of 16 channel triac-based AC output control across distributed PLC I/O architectures. The module interfaces industrial field loads via isolated solid-state outputs designed for 24 to 240 V AC switching with backplane-controlled command updates and channel-level diagnostics. Suffix Breakdown & Model Matrix No formal suffix segmentation is defined for BMXDAO1615 within the provided documentation. The model is treated as a single fixed-order identifier within the Modicon X80 discrete output module family. Hardware Specifications Parameter Specification Model Brand Schneider Electric Origin France Weight 0.264 kg Dimensions Not specified Operating Temp Not specified Power Consumption 1.45 W Product Series Modicon X80 Output Type Triac Output Channels 16 Output Voltage 24 to 240 V AC (20 to 264 V AC range) Output Current 3 A per channel (derated with temperature) Max Module Current 10 A at 40 degC, 4 A at 60 degC Response Time <= 10 ms resistive on/off Isolation > 10 MOhm at 500 V DC Backplane Bus and Deterministic Output Synchronization The Modicon X80 architecture integrates backplane bus communication with cyclic deterministic update cycles for discrete output modules. BMXDAO1615 channel states are mapped into PLC scan-driven memory exchanges, ensuring synchronized output refresh across distributed racks. Electrical isolation between field triac stages and logic-level backplane domains reduces channel cross-interference during high-density switching. Firmware-level I/O image consistency is maintained through cyclic bus refresh aligned with Schneider Electric PLC execution tasks, supporting stable output state retention during transient scan transitions. Frequently Asked Questions Q: Does the BMXDAO1615 support hot-swap replacement under load conditions?A: The module is designed for rack-based insertion; replacement under energized field load requires adherence to system shutdown or validated hot-swap procedures defined by the Modicon X80 backplane architecture. Q: What is the effect of channel leakage current on off-state loads?A: Each triac output exhibits off-state leakage up to the specified milliampere range depending on applied voltage level, which may require external bleed resistors for sensitive loads. Q: Can outputs be paralleled for higher current capacity?A: Paralleling outputs is not supported as each channel is individually current-limited and thermally derated within the module design. Field Installation Guidelines Ensure rack power is isolated before inserting or removing the module unless the system design explicitly supports controlled hot-swap. Maintain separation between AC field wiring and backplane communication wiring to avoid capacitive coupling. Use fast-blow external fusing per channel common ratings. Keep output wiring within specified voltage class insulation standards up to 240 V AC. Ground DIN rail and cabinet according to PLC system grounding topology to reduce triac switching noise coupling.
$200.00 $100.00
-
Schneider Electric BMXART0814 Modicon X80 Schneider Electric Analog Input Module
Schneider Electric BMXART0814 Modicon X80 Analog Input Module The Schneider Electric BMXART0814, also cataloged as the BMXART0814 Analog Input Module, operates as a dedicated hardware component for low-level temperature signal acquisition within the Modicon X80 automation platform. The module provides eight isolated analog input channels supporting thermocouple and temperature probe measurement with sigma-delta conversion and integrated diagnostic indication. Hardware Specifications Parameter Specification Model BMXART0814 Brand Schneider Electric Series Modicon X80 Product Type Analog Input Module Analog Inputs 8 isolated channels Input Level Low level Electrical Connection Two 40-pin connectors Analog/Digital Conversion Sigma-delta, 16-bit Analog Resolution 15 bits + sign Supported Measurements Thermocouple, temperature probe Cold Junction Compensation External Pt100 probe Digital Filter First-order digital filtering Nominal Read Cycle 200 ms (thermocouple); 400 ms (temperature probe) Permitted Input Overload +/- 7.5 V with specified measurement ranges Common Mode Rejection 120 dB at 50/60 Hz Differential Mode Rejection 60 dB at 50/60 Hz Status Indicators RUN, channel diagnostic, ERR, I/O LEDs Isolation Channel-to-channel isolated Operating Altitude 0 to 2000 m; up to 5000 m with derating Operating Temp 0 to 60 degC Storage Temp -40 to 85 degC Relative Humidity 5% to 95% at 55 degC, non-condensing IP Rating IP20 Vibration Resistance 3 gn Shock Resistance 30 gn Certifications CE, UL, CSA, EAC, RCM, Merchant Navy Standards EN 61131-2, EN 61000-6-2, EN 61000-6-4, EN 61010-2-201 Environmental Classification IEC 60721-3-3 Class 3C3, 3C4 Weight 0.165 kg Dimensions Not specified Power Consumption Not specified Origin Not specified PLC Backplane Communication and I/O Density The BMXART0814 exchanges measurement data through the Modicon X80 backplane architecture. Eight isolated input channels allow temperature acquisition without increasing signal interaction between adjacent channels. Sigma-delta conversion and first-order digital filtering are implemented to process low-level analog inputs before transmission to the controller over the backplane bus. Frequently Asked Questions Q: Does the module provide channel isolation? A: Yes. Each of the eight analog input channels is electrically isolated, reducing interference between measurement circuits. Q: Is cold junction compensation integrated into the module? A: The module performs cold junction compensation using an external Pt100 probe connected according to the application requirements. Q: Can the module measure both thermocouples and temperature probes? A: Yes. The specified nominal conversion cycle is 200 ms for thermocouple measurement and 400 ms for temperature probe measurement. Field Installation Guidelines Install the module only in a compatible Modicon X80 rack with power removed before insertion or removal unless the system documentation explicitly permits online replacement. Route thermocouple and low-level analog wiring separately from power and motor cables to minimize induced electrical noise. Connect cable shields according to the plant grounding practice and avoid multiple shield grounding points unless specified by the control system design. Install the external Pt100 sensor for cold junction compensation as specified by the wiring documentation. Maintain adequate enclosure ventilation so the ambient operating temperature remains within the specified 0 to 60 degC range.
$200.00 $100.00
-
Schneider Electric 140CPU67160S Schneider Electric Unity Safety Processor
Schneider Electric 140CPU67160S Unity Safety Processor Configured for Hot Standby safety control in the Modicon Quantum automation platform, the Schneider Electric 140CPU67160S (140CPU67160 Unity Safety Processor) provides direct physical and communication execution for redundant PLC architectures. The module integrates CPU processing, memory management, Ethernet connectivity, Modbus communication, and Hot Standby synchronization for deterministic controller operation. Suffix Breakdown & Model Matrix The supplied documentation identifies 140CPU67160S as the complete ordering reference and 140CPU67160 as the base processor model. No official suffix definition or ordering matrix is provided in the available technical data. Hardware Specifications Parameter Specification Model 140CPU67160S Brand Schneider Electric Product Type Unity Safety Processor Series Modicon Quantum Automation Platform Software Unity Pro XL Safety Processor Frequency 266 MHz User Memory 1024 kB Internal RAM (512 kB Data Memory) Backup Battery 3 VDC Lithium Battery (990XCP98000) Battery Capacity 1200 Ah Battery Service Life Up to 10 years Number of Local Racks 1 Supported Rack Sizes 2, 3, 4, 6, 10, 16 slots Remote I/O Stations Up to 31 Maximum Remote Discrete I/O 31,744 Inputs / 31,744 Outputs Maximum Remote Analog I/O 1,984 Inputs / 1,984 Outputs Optional Ethernet Modules Up to 6 x 140NOE77111 Integrated Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Ethernet Connections 1 Local Ethernet TCP/IP, 1 Hot Standby Ethernet Modbus Connections 1 Local Modbus, 1 RS232/485 Modbus ASCII USB Connections 1 USB Type B Display LCD, 2 x 16 Characters Execution Time (Word) 0.09 to 0.12 us Execution Time (Boolean) 0.105 to 0.15 us Fixed-Point Arithmetic 0.96 to 1.02 us 1 K Instruction Execution 5.03 us (65 % Boolean, 35 % Numerical); 5.14 us (100 % Boolean) System Overhead 1.5 ms Master Task Bus Current Requirement 2500 mA Supply Voltage 3 VDC (Lithium Battery) Switch Function Key Switch, Memory Port On/Off Local Indicators Ethernet COM LED, Ethernet ERR LED Electrical Connections USB Type B, Dual RJ45, 9-pin Sub-D Modbus Plus Certifications CE, CSA, C-Tick, TÜV Rheinland SIL3 Power Consumption Bus Current 2500 mA Backplane Communication and Firmware Compatibility The processor exchanges controller data through the Modicon Quantum backplane while supporting Hot Standby synchronization using dedicated Ethernet communication with the 140NOE77111 module. Firmware compatibility should be maintained between redundant CPUs and associated communication modules before commissioning or processor replacement. During maintenance, processor firmware revisions should be verified to avoid synchronization mismatches within redundant controller pairs. Frequently Asked Questions Q: Can local I/O modules be used in a Hot Standby application? A: The supplied specifications state that local discrete and analog I/O expansion is not permitted for Hot Standby applications. Remote I/O architecture is intended for redundant operation. Q: Does the processor include integrated communication interfaces? A: Yes. The processor provides integrated Ethernet TCP/IP, Modbus, Modbus Plus, and USB interfaces. Additional Ethernet capability can be expanded with up to six 140NOE77111 communication modules. Q: Is processor memory retained during power removal? A: Internal memory retention is supported by the specified 3 VDC lithium backup battery. Battery condition should be checked during scheduled maintenance to maintain memory retention. Field Installation Guidelines Install the processor only after confirming compatibility with the Modicon Quantum rack and power supply. Verify the key switch position before downloading or modifying the application program. Use shielded communication cables where specified by the installation manual, and terminate cable shields according to the site grounding standard. Ensure Hot Standby processor pairs operate with matching firmware revisions before enabling redundancy. Confirm adequate backplane current capacity when adding communication modules to the rack. Replace the lithium backup battery only in accordance with the manufacturer's maintenance procedure to prevent unintended memory loss.
$200.00 $100.00
-

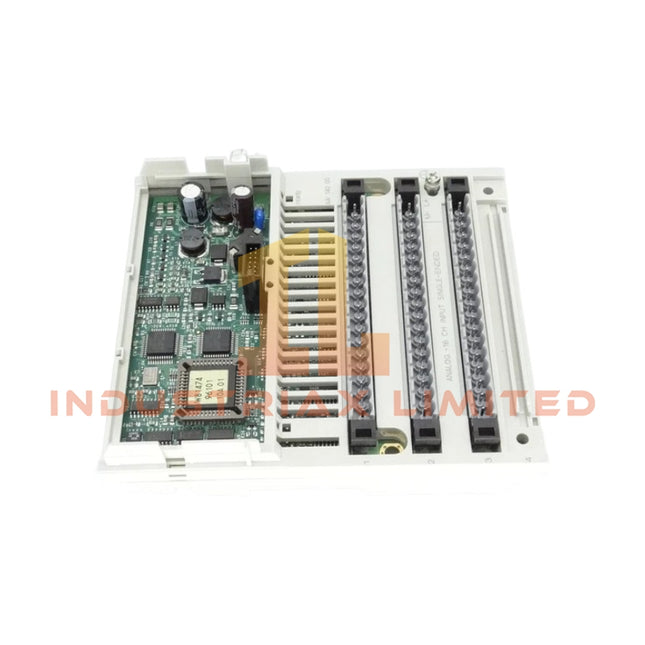

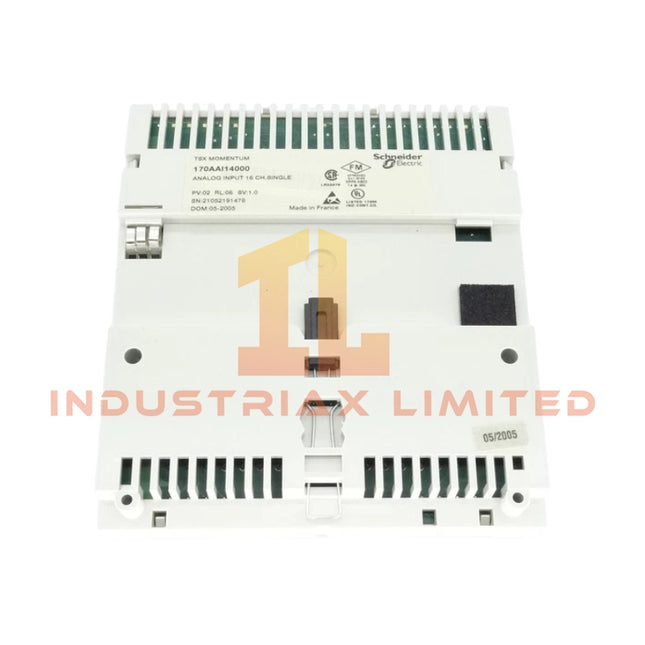

Schneider Electric 170AAI14000 Modicon Momentum Schneider Electric Analog Input Base
Schneider Electric 170AAI14000 Modicon Momentum Analog Input Base The Schneider Electric 170AAI14000, also cataloged as the 170AAI14000 Analog Input Base, operates as a dedicated hardware component for analog signal acquisition within the Modicon Momentum automation platform. It accepts voltage and current process signals, converts them into 16-bit signed data, and transfers measurement values to the controller through the Momentum I/O architecture. Hardware Specifications Parameter Specification Model 170AAI14000 Brand Schneider Electric Series Modicon Momentum Product Type Analog Input Base Analog Input Channels 16, single-ended Input Ranges 4-20 mA, +/- 5 V, +/- 10 V Resolution 12-bit conversion, 16-bit signed data format Input Impedance > 2200 kOhm (voltage inputs), < 0.25 Ohm (4-20 mA) Input Filter Low-pass, 10 kHz Full Scale 16 mA (4-20 mA), 5 V (+/- 5 V), 10 V (+/- 10 V) Update Time 25 ms Absolute Accuracy +/- 0.15 % FS at 25 degC (voltage), +/- 0.25 % FS at 25 degC (current) Temperature Drift 30 ppm FS/degC (voltage), 60 ppm FS/degC (current) Channel-to-Ground Isolation 1780 VAC for 1 minute Supply-to-Ground Isolation 500 V for 1 minute Permissible Common Mode Voltage 250 VAC, 47-63 Hz; 100 VDC External Power Requirement +/- 30 VDC Power Consumption 305 mA at 24 VDC Maximum Power Dissipation 5.55 W Reverse Polarity Protection Internal Internal Protection 2 A slow-blow Associated Fuse 500 mA fast-blow Local Indicators 16 channel status LEDs Electrical Connection Two removable terminal block connectors Dimensions 141.5 x 125 x 47.5 mm Weight 0.215 kg Operating Temp 0 to 60 degC Storage Temp -40 to 85 degC Relative Humidity 95 % non-condensing Operating Altitude Up to 5000 m Certifications CE, UL, CSA, FM Class 1 Division 2 Protective Treatment TC Origin Schneider Electric manufacturing location not specified in the supplied data PLC Backplane Communication and I/O Density The 170AAI14000 is designed for the Modicon Momentum distributed I/O platform, where analog measurement data is transferred through the Momentum backplane interface to the controller. Sixteen single-ended analog input channels provide high I/O density for distributed acquisition while maintaining independent channel status indication through front-panel LEDs. The module delivers a fixed 25 ms update period for cyclic analog data acquisition. Frequently Asked Questions Q: Does the module support both voltage and current analog inputs? A: Yes. The module supports +/- 5 V, +/- 10 V, and 4-20 mA analog input ranges. Input type selection is determined during system configuration. Q: Is channel isolation provided? A: The module provides 1780 VAC isolation between input channels and ground for 1 minute, and 500 V isolation between the supply and ground. The supplied specification does not indicate channel-to-channel isolation. Q: Can field wiring be connected through removable terminals? A: Yes. The module uses two removable terminal block connectors to simplify field wiring and module replacement. Field Installation Guidelines Verify that the configured input range matches the connected field instrument before applying power. Route analog signal cables separately from motor power and high-current conductors to minimize electrical interference. Connect cable shields according to the plant grounding standard and avoid multiple shield grounding points unless specified by the control system design. Confirm that the external supply meets the specified +/- 30 VDC requirement before energizing the module. Install the specified external 500 mA fast-blow fuse and observe the internal protection limits during maintenance. Maintain ambient operating conditions within the specified temperature and humidity limits.
$200.00 $100.00
-

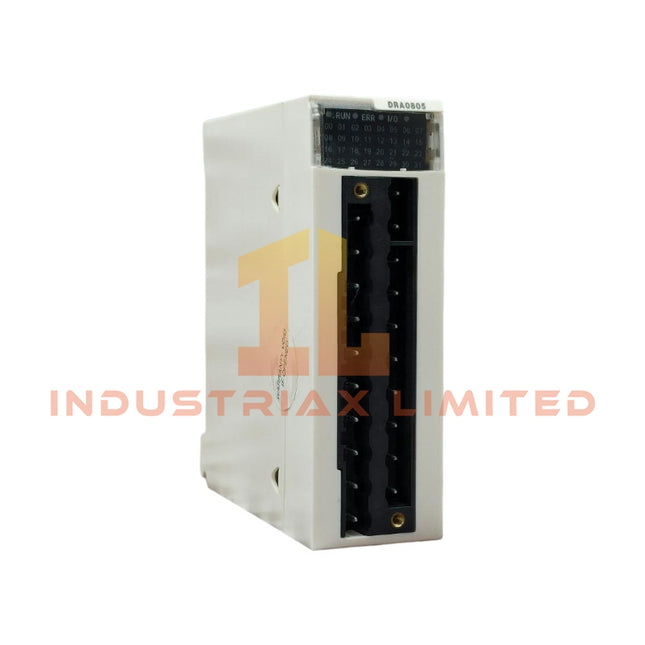

Schneider Electric BMXDRA0805 Modicon X80 Discrete Output Module Schneider Electric
Schneider Electric BMXDRA0805 Modicon X80 Discrete Output Module The Schneider Electric BMXDRA0805, also cataloged as the BMXDRA0805 Discrete Output Module, operates as a dedicated hardware component for relay-based discrete output switching within the Modicon X80 automation platform. The module provides eight relay outputs supporting both AC and DC loads with electrical isolation through mechanical relay contacts. Suffix Breakdown & Model Matrix The supplied documentation identifies BMXDRA0805 as a fixed catalog number. No official suffix breakdown or ordering matrix is specified. Hardware Specifications Parameter Specification Model BMXDRA0805 Brand Schneider Electric Series Modicon X80 Product Type Discrete Output Module Output Channels 8 relay outputs Output Standard EN/IEC 61131-2 Output Voltage 12 to 24 VDC (10 to 34 VDC), 24 to 240 VAC (10 to 264 VAC) Output Type Relay Conventional Thermal Current 3 A Minimum Switching Current 1 mA at 5 VDC Response Time <= 10 ms ON, <= 8 ms OFF Typical Current Consumption 100 mA at 3.3 VDC Power Consumption Power dissipation <= 2.7 W Insulation Resistance > 10 MOhm at 500 VDC MTBF 1,573,341 h Electrical Durability 1,000,000 cycles (AC-12, DC-12, DC-13), 2,000,000 cycles (AC-15) under specified loads Protection External overload protection, external short-circuit protection, inductive AC/DC overvoltage protection Recommended Output Protection Fast-blow fuse per channel or channel group; discharge diode for DC loads; RC circuit or ZnO surge limiter for AC loads Dielectric Strength 2000 VAC, 50/60 Hz, 1 min IP Rating IP20 Operating Temp 0 to 60 degC Storage Temp -40 to 85 degC Relative Humidity 5 % to 95 % non-condensing at 55 degC Operating Altitude 0 to 2000 m, derating required up to 5000 m Vibration Resistance 3 gn Shock Resistance 30 gn Dimensions Not specified in the supplied documentation Weight Not specified in the supplied documentation Certifications CE, CSA, UL, RCM, Merchant Navy, EAC Backplane Communication Integration The BMXDRA0805 interfaces with the Modicon X80 backplane through the platform bus, where output command data and module diagnostics are exchanged between the controller and the I/O module. Relay switching is executed locally by the module while logic execution remains in the PLC CPU. Firmware compatibility should be verified against the controller and rack configuration before system commissioning. Frequently Asked Questions Q: Does the module include internal short-circuit protection? A: No. The documentation specifies external short-circuit protection using one fast-blow fuse per channel or per channel group. Q: What suppression devices should be installed for inductive loads? A: Schneider Electric specifies a discharge diode for DC loads and either an RC suppression circuit or a ZnO surge limiter for AC loads to reduce switching transients. Q: Can the module switch both AC and DC loads? A: Yes. The relay outputs support DC loads from 12 to 24 VDC (10 to 34 VDC allowable) and AC loads from 24 to 240 VAC (10 to 264 VAC allowable). Field Installation Guidelines Verify rack compatibility with the Modicon X80 platform before module installation. Isolate all field wiring before connecting output circuits. Install the specified external fast-blow fuse for each protected output channel or channel group. Route output wiring separately from low-level signal cables to reduce electrical interference. Apply the recommended suppression device directly across inductive field loads. Maintain protective earth continuity for the control cabinet and follow applicable local electrical installation standards.
$200.00 $100.00
-

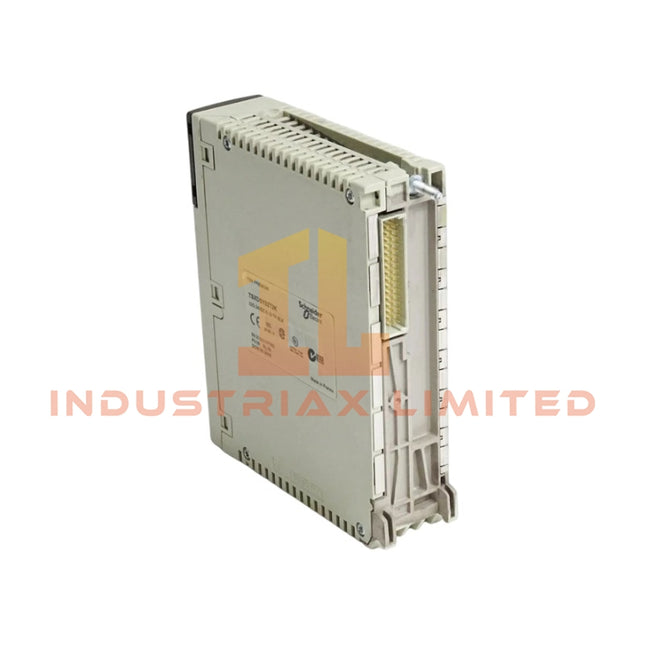

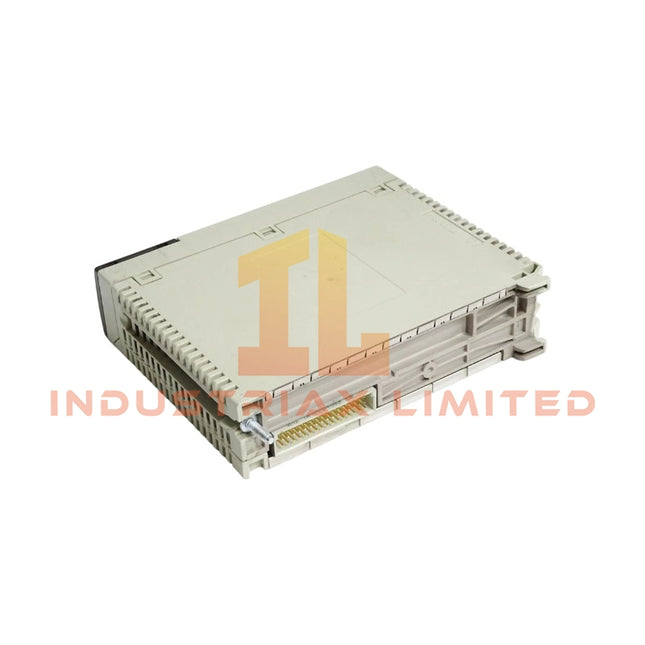

Schneider Electric TSXDSZ32T2 TSX Micro Discrete Output Module Schneider Electric
Schneider Electric TSXDSZ32T2 TSX Micro Discrete Output Module Configured for 24 VDC positive discrete output switching in Modicon TSX Micro automation platforms, the Schneider Electric TSXDSZ32T2 (TSXDSZ32 Discrete Output Module) provides direct electrical execution through 32 transistor output channels. The module is designed for DC load control using positive logic with integrated output protection and backplane communication. Suffix Breakdown & Model Matrix The available technical information identifies TSXDSZ32T2 as a fixed catalog number. No official suffix decoding or ordering matrix is specified in the provided documentation. Hardware Specifications Parameter Specification Model TSXDSZ32T2 Brand Schneider Electric Product Series Modicon TSX Micro Product Type Discrete Output Module Origin Not specified Discrete Outputs 32 Output Connection Screw terminal block Output Type Positive logic transistor outputs Rated Output Voltage 24 VDC Output Voltage Limits 19 to 30 VDC Output Current 0.5 A per channel Maximum Current Limit 0.625 A Leakage Current (OFF State) <= 0.5 mA Residual Voltage <= 0.3 V Minimum Load Impedance 48 Ohm Response Time < 0.5 ms ON, < 0.5 ms OFF Switching Frequency < 0.6 / LI^2 Hz Overvoltage Protection Zener diode Short-Circuit Protection Current limiter and thermal circuit breaker Reverse Polarity Protection Reverse diode on power supply Output Paralleling Up to 2 outputs Current Consumption 94 mA Power Consumption 3.2 W per module Power Dissipation 0.15 W per channel Isolation Voltage 1500 VAC for 1 s Weight 0.42 kg Dimensions Not specified Operating Temp Not specified Backplane Communication and I/O Density Within the Modicon TSX Micro PLC architecture, the TSXDSZ32T2 exchanges output data through the system backplane while providing 32 DC output channels in a single module. The output density allows multiple field devices to be controlled from one hardware position without altering the module's electrical characteristics. Compatibility with the platform depends on the PLC rack configuration and supported TSX Micro hardware. Frequently Asked Questions Q: Does the module support hot swapping during PLC operation? A: The supplied technical documentation does not specify hot-swap capability. Module replacement should follow the controller maintenance procedure with power removed unless the PLC platform documentation explicitly permits energized replacement. Q: What protection mechanisms are integrated into each output stage? A: The module includes Zener diode overvoltage protection, current limiting, thermal circuit breaker protection, and reverse polarity protection through a reverse diode on the power supply. Q: Can output channels be connected in parallel? A: Yes. The documentation specifies that a maximum of two output channels may be connected in parallel. Field Installation Guidelines Verify that the external DC supply remains within the specified 19 to 30 VDC operating range before energizing field wiring. Tighten screw terminal connections according to the applicable Schneider Electric installation procedure. Route output wiring separately from high-power AC conductors to minimize electrical interference. Connect field cable shields according to the system grounding practice to reduce conducted electrical noise. Confirm output load current does not exceed the specified channel rating before commissioning. Perform insulation and continuity checks before applying field power after installation or maintenance.
$200.00 $100.00
