Bently Nevada 3701 Series

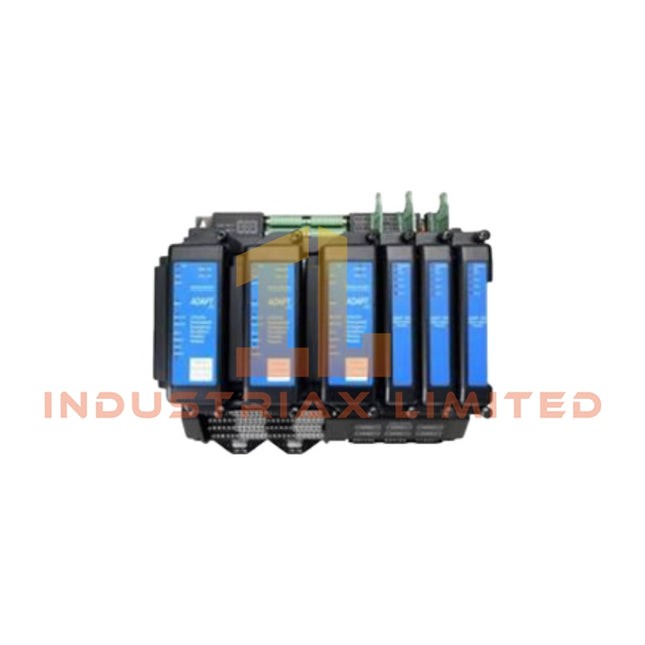

Bently Nevada 177896-05 3701/40 Processor Module The Bently Nevada 177896-05, also cataloged as the 177896-05 Processor Module, operates as a dedicated hardware component for signal processing, protection logic execution, and Ethernet data communication within the ADAPT 3701/40 Machinery Dynamics Monitor platform. Hardware Specifications Parameter Specification Model 177896-05 Brand Bently Nevada Product Type Processor Module System Platform ADAPT 3701/40 Machinery Dynamics Monitor Origin USA Dimensions Compact modular form factor; exact dimensions not specified Power Consumption Powered through single or dual-redundant +24 VDC external supply via terminal base Processor Function Central processing unit for data acquisition, DSP, alarm evaluation, and protection logic A/D Conversion 24-bit resolution Dynamic Range 110 dB Signal Bandwidth Up to 40 kHz Sampling Mode Synchronized parallel sampling across all input channels Spectral Analysis Configurable synchronous and asynchronous spectrums up to 3200 lines Ethernet Interface 2 x 10Base-T/100Base-TX auto-sensing RJ45 ports Communication Protocols Modbus TCP, Ethernet Global Data (EGD) Discrete Inputs 6 dry contact inputs per terminal base Configuration Protection Hardware configuration lock switch for Run Mode protection Software Configuration Bently Nevada Monitor Configuration (BNMC) software Compliance CE, North America General Safety, RoHS Eddy-Current Measurement and Rotor Dynamics Processing The 177896-05 Processor Module processes vibration and position signals from Bently Nevada input modules, including eddy-current proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and Keyphasor speed inputs. Furthermore, the processor executes digital signal processing algorithms for rotor dynamics evaluation, including synchronous and asynchronous spectral analysis. The module supports eddy-current probe scaling functions by processing calibrated displacement signals and maintaining measurement accuracy through sensor input conditioning. In addition, the system evaluates gap voltage conditions, including the typical -10 VDC target range used for proximity probe operation verification. Therefore, the processor provides direct monitoring of shaft displacement, vibration behavior, and machine dynamic response. Frequently Asked Questions Q: Does the 177896-05 support redundant processor operation?A: Yes. When installed in a Duplex terminal base, two identical 177896-05 Processor Modules can operate in a redundant configuration. The system uses dual processors to maintain monitoring availability if one processor module becomes unavailable. Q: What communication interfaces are available on the processor module?A: The module provides two auto-sensing Ethernet ports with 10Base-T and 100Base-TX support. It communicates through Modbus TCP and Ethernet Global Data (EGD) protocols. Q: Which sensor signals can the processor module analyze?A: The processor accepts processed signals from compatible ADAPT 3701/40 input boards, including proximity probes, accelerometers, velomitors, seismoprobes, dynamic pressure sensors, and magnetic speed pickup signals. Field Installation Guidelines Install the 177896-05 Processor Module in the designated ADAPT 3701/40 terminal base slot according to the system hardware configuration requirements. Verify that the terminal base provides the required +24 VDC supply connection before module insertion. Maintain proper cable separation between Ethernet communication wiring and high-current power conductors to reduce electrical interference. Use shielded sensor wiring where required and connect cable shields according to plant grounding standards. Before commissioning, confirm that the proximity probe input scaling, gap voltage status, channel configuration, and alarm parameters match the installed field sensors. Keep the hardware configuration lock in the required operating position after completing commissioning changes. Use BNMC software to verify module communication status, input channel operation, alarm logic settings, and network communication parameters before placing the monitoring system into service.

Read more less

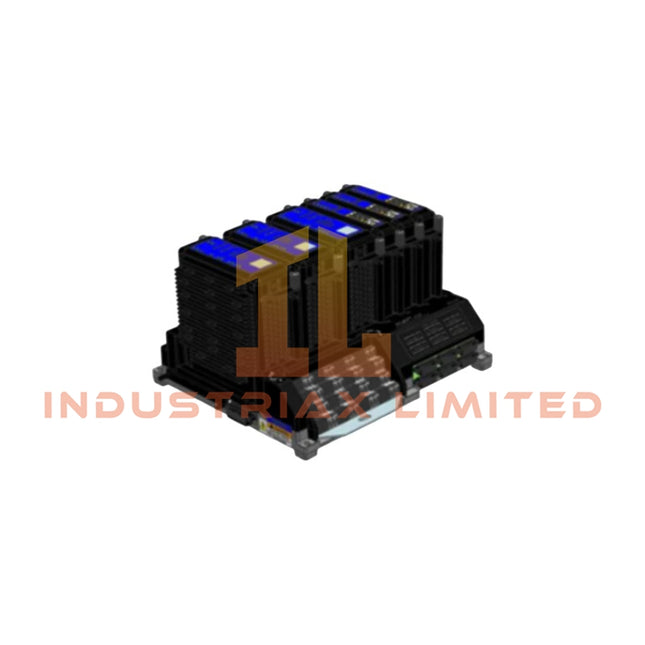

Bently Nevada 177988-01 Prox/Accel/Seismic Input/Output Module The Bently Nevada 177988-01, also cataloged as the 177988-01 Prox/Accel/Seismic Input/Output Module, operates as a dedicated hardware component for vibration signal acquisition and conditioning within the Bently Nevada ADAPT 3701/40 Machinery Dynamics Monitor platform. Hardware Specifications Parameter Specification Model 177988-01 Brand Bently Nevada Product Type Prox/Accel/Seismic Input/Output Module System Compatibility ADAPT 3701/40 and 3701/44 Machinery Dynamics Monitor Systems Origin USA Weight Approximately 2.0 kg to 4.5 kg depending on enclosure configuration Operating Temp -30 deg C to +65 deg C Power Consumption Not specified in available technical documentation Sensor Inputs Proximity probes, accelerometers, seismic transducers, IEPE sensors, dynamic pressure sensors Channel Configuration 6 vibration input channels and 1 Keyphasor / speed input Signal Conditioning Integrated filtering, analog-to-digital conversion, and sensor excitation functions Signal Processing Real-time DSP processing for vibration, position, and dynamic monitoring signals Environmental Protection G3 conformal coating for moisture and chemical resistance Mounting Type ADAPT system baseplate compatible field installation Hazardous Area Compatibility CSA, ATEX, and IECEx compliant configurations Rotor Dynamics Signal Processing and Gap Voltage Validation The Bently Nevada 177988-01 module processes vibration signals from eddy-current proximity probes, accelerometers, and seismic sensors through dedicated conditioning circuits. The module supports shaft-relative measurement functions by applying probe scaling characteristics and maintaining signal accuracy during displacement monitoring. Furthermore, the module supports gap voltage validation procedures for eddy-current probe systems. Technicians typically verify probe operating conditions against the -10 VDC gap voltage target used in Bently Nevada proximity measurement systems. Therefore, the module maintains accurate shaft position and vibration data for rotor dynamics evaluation. The internal DSP functions analyze radial vibration, thrust position, casing vibration, and related machine behavior parameters. Additionally, the signal architecture reduces measurement interference through controlled signal conditioning and channel processing. Frequently Asked Questions Q: What sensor types can the Bently Nevada 177988-01 interface with?A: The module supports proximity probes, accelerometers, seismic velocity transducers, IEPE sensors, and dynamic pressure sensors through configured input channels. Q: Does the 177988-01 module perform vibration signal conversion internally?A: Yes. The module integrates signal conditioning circuits, filtering functions, and analog-to-digital conversion for processed machinery monitoring data. Q: Is the 177988-01 designed for hazardous area installations?A: The module supports ADAPT system installations with applicable CSA, ATEX, and IECEx certified configurations when used within approved system assemblies. Field Installation Guidelines Install the 177988-01 module on the designated ADAPT system baseplate according to the equipment mounting procedure. Connect proximity probe cables using proper shield termination methods to reduce electromagnetic interference. Separate vibration signal wiring from high-voltage power cables and switching circuits. Verify sensor wiring polarity before applying system power. Confirm eddy-current probe gap voltage readings before commissioning vibration channels. Use approved grounding practices for cable shields and enclosure connections. Check channel configuration settings before integrating measurement data into monitoring software.

Read more less

Overview The 3701/55 323174-01 CPU Module by Bently Nevada serves as a core component in the ADAPT Emergency Shutdown Device (ESD) system. It processes real-time sensor data—such as vibration, temperature, and pressure—to detect anomalies and initiate rapid shutdowns, protecting turbines, compressors, and other high-value rotating equipment. Technical Specifications Specification Details Model Number 3701/55 323174-01 Manufacturer Bently Nevada Module Type CPU / Vibration Monitoring Module System Compatibility ADAPT ESD System / 3500 Series Channels 4 vibration monitoring channels Sensor Inputs Vibration, temperature, pressure Functionality Emergency shutdown, real-time analysis Dimensions 102 × 152 × 203 mm Weight 1.5 kg Origin USA Condition Brand New Lead Time 3–30 days (stock/futures) HS Code 8537101190 MOQ 1 Features 3701/55 323174-01 supports quad-channel vibration monitoring for high-precision diagnostics. Real-time processing enables fast response to abnormal conditions. Designed for integration into Bently Nevada’s 3500/62 and ADAPT ESD systems. Compact and rugged design ensures reliable operation in harsh industrial environments. Supports predictive maintenance and asset protection strategies.

Read more less
