Bently Nevada 177988-01 Prox/Accel/Seismic Input/Output Module The Bently Nevada 177988-01, also cataloged as the 177988-01 Prox/Accel/Seismic Input/Output Module, operates as...
Read more

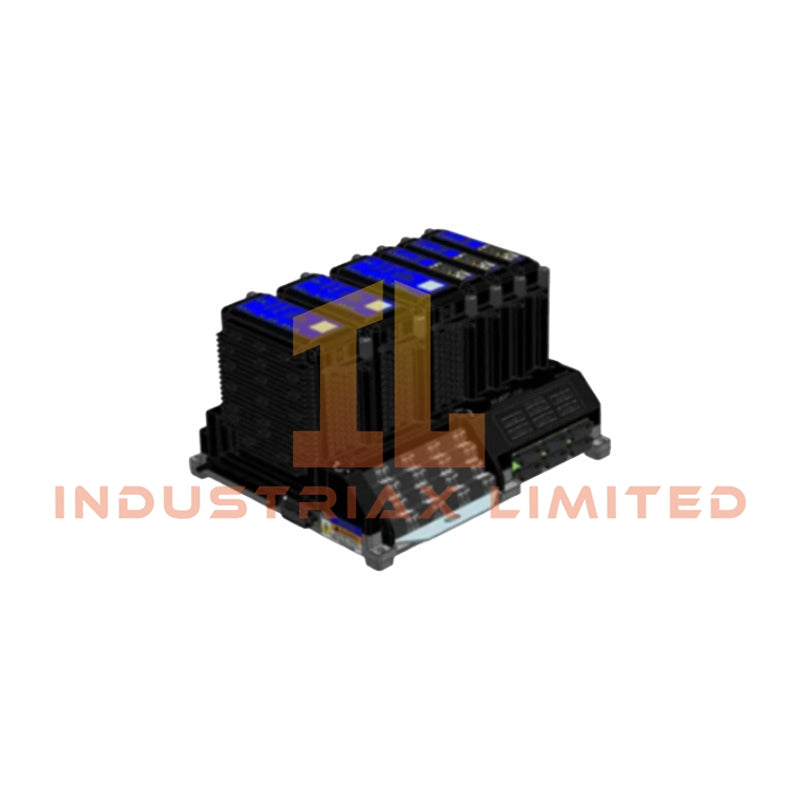

The Bently Nevada 177988-01, also cataloged as the 177988-01 Prox/Accel/Seismic Input/Output Module, operates as a dedicated hardware component for vibration signal acquisition and conditioning within the Bently Nevada ADAPT 3701/40 Machinery Dynamics Monitor platform.
Hardware Specifications
Parameter
Specification
Model
177988-01
Brand
Bently Nevada
Product Type
Prox/Accel/Seismic Input/Output Module
System Compatibility
ADAPT 3701/40 and 3701/44 Machinery Dynamics Monitor Systems
Origin
USA
Weight
Approximately 2.0 kg to 4.5 kg depending on enclosure configuration
Operating Temp
-30 deg C to +65 deg C
Power Consumption
Not specified in available technical documentation
6 vibration input channels and 1 Keyphasor / speed input
Signal Conditioning
Integrated filtering, analog-to-digital conversion, and sensor excitation functions
Signal Processing
Real-time DSP processing for vibration, position, and dynamic monitoring signals
Environmental Protection
G3 conformal coating for moisture and chemical resistance
Mounting Type
ADAPT system baseplate compatible field installation
Hazardous Area Compatibility
CSA, ATEX, and IECEx compliant configurations
Rotor Dynamics Signal Processing and Gap Voltage Validation
The Bently Nevada 177988-01 module processes vibration signals from eddy-current proximity probes, accelerometers, and seismic sensors through dedicated conditioning circuits. The module supports shaft-relative measurement functions by applying probe scaling characteristics and maintaining signal accuracy during displacement monitoring.
Furthermore, the module supports gap voltage validation procedures for eddy-current probe systems. Technicians typically verify probe operating conditions against the -10 VDC gap voltage target used in Bently Nevada proximity measurement systems. Therefore, the module maintains accurate shaft position and vibration data for rotor dynamics evaluation.
The internal DSP functions analyze radial vibration, thrust position, casing vibration, and related machine behavior parameters. Additionally, the signal architecture reduces measurement interference through controlled signal conditioning and channel processing.
Frequently Asked Questions
Q: What sensor types can the Bently Nevada 177988-01 interface with? A: The module supports proximity probes, accelerometers, seismic velocity transducers, IEPE sensors, and dynamic pressure sensors through configured input channels.
Q: Does the 177988-01 module perform vibration signal conversion internally? A: Yes. The module integrates signal conditioning circuits, filtering functions, and analog-to-digital conversion for processed machinery monitoring data.
Q: Is the 177988-01 designed for hazardous area installations? A: The module supports ADAPT system installations with applicable CSA, ATEX, and IECEx certified configurations when used within approved system assemblies.
Field Installation Guidelines
Install the 177988-01 module on the designated ADAPT system baseplate according to the equipment mounting procedure.
Connect proximity probe cables using proper shield termination methods to reduce electromagnetic interference.
Separate vibration signal wiring from high-voltage power cables and switching circuits.
Verify sensor wiring polarity before applying system power.
Confirm eddy-current probe gap voltage readings before commissioning vibration channels.
Use approved grounding practices for cable shields and enclosure connections.
Check channel configuration settings before integrating measurement data into monitoring software.
