تراقب أنظمة TSI (أجهزة مراقبة الآلات التوربينية) المعدات الدوارة وتحميها. نوفر وحدات وأجهزة استشعار وقطع غيار لدعم الطرازات الجديدة والمتوقفة. تساعد حلولنا في تقليل فترات التوقف وحماية الأصول الحيوية.
أنظمة مراقبة TSI
-
Bently Nevada 144464-01 3500/05 Mini-Rack Backplane | Bently Nevada
Bently Nevada 144464-01 3500/05 Mini-Rack Backplane Configured for module interconnection and power distribution in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 144464-01 (144464-01 3500/05 Mini-Rack Backplane) provides direct physical and electrical execution for rack-level hardware integration. Hardware Specifications Parameter Specification Model 144464-01 Brand Bently Nevada Product Type 3500/05 Mini-Rack Backplane System Series 3500 Machinery Protection System Function Rack module interconnection and internal power distribution Module Capacity Supports up to 7 monitoring modules Mounting Type 3500 rack mounting assembly Communication Interface Internal 3500 rack bus communication Power Supply 24 VDC rack power distribution path Power Consumption Passive backplane assembly, power consumed by installed modules Dimensions Approx. 24.3 cm x 4.6 cm x 15.5 cm Weight Approx. 1.0 kg to 2.8 kg depending on configuration Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Humidity 5% to 95% RH, non-condensing Origin USA Eddy-Current Signal Interface and Rack Communication Characteristics The 144464-01 backplane provides the physical connection structure required for Bently Nevada 3500 monitoring modules. It distributes rack power and maintains internal communication paths between monitoring, communication, and I/O modules. For machinery protection applications, the backplane supports the module architecture used for eddy-current probe signal processing, including probe scaling functions, gap voltage validation, rotor dynamics monitoring, and vibration measurement signal transmission. The rack design maintains defined electrical routing between installed modules to reduce signal interference and improve cross-talk suppression within the monitoring assembly. Frequently Asked Questions Q: Does the 144464-01 provide measurement functions directly?A: No. The 144464-01 is a passive rack backplane component. Measurement processing is performed by installed 3500 monitoring modules. Q: What type of modules can be installed on the 144464-01 backplane?A: The backplane supports compatible Bently Nevada 3500 series monitoring modules, communication modules, and I/O modules according to rack configuration requirements. Q: Does the backplane require separate field signal wiring?A: No. Field signal connections are made through the installed monitoring modules. The backplane provides internal module interconnection and power distribution paths. Field Installation Guidelines Install the backplane inside the specified Bently Nevada 3500 rack enclosure. Verify mechanical alignment before inserting monitoring modules into rack connectors. Ensure rack grounding and shielding practices comply with the machinery monitoring system installation requirements. Keep field signal cables separated from high-voltage power wiring to reduce electrical interference. Confirm module seating, rack addressing, and system configuration after installation.
$200.00 $100.00
-
Bently Nevada 285592-01 | Proximitor Sensor | Bently Nevada
Bently Nevada 285592-01 Proximitor Sensor The Bently Nevada 285592-01, also cataloged as the 285592-01 Proximitor Sensor, operates as a dedicated hardware component for eddy-current displacement signal conditioning within Bently Nevada 3300 XL proximity monitoring systems. Hardware Specifications Parameter Specification Model 285592-01 Brand Bently Nevada Product Type Proximitor Sensor Origin USA Weight Approx. 91 g to 200 g Dimensions Not specified in available technical data Operating Temp -51 deg C to +100 deg C Power Consumption Not specified; operates from -24 VDC supply input Series Compatibility 3300 XL Series proximity monitoring system Input Voltage -24 VDC Output Voltage -18 VDC to -24 VDC Frequency Response 0 to 10 kHz Cable Length 9 m (30 ft) Measurement Function Shaft displacement and vibration monitoring Eddy-Current Probe Signal Processing and Rotor Dynamics The 285592-01 Proximitor Sensor processes eddy-current probe signals by converting probe gap variation into proportional electrical output signals. The sensor performs probe scaling based on the relationship between target surface distance and gap voltage response. Bently Nevada proximity systems use gap voltage validation methods to verify probe operating conditions. Standard commissioning procedures include checking probe bias conditions and confirming expected gap voltage values, with -10 VDC commonly used as a reference target for probe positioning verification. The sensor supports rotor dynamics analysis by providing vibration and shaft position signals for machinery protection channels. Signal conditioning functions reduce measurement interference and support stable transmission of dynamic vibration data. Cross-talk suppression techniques are applied within proximity measurement systems to minimize unwanted interaction between adjacent sensing channels. Frequently Asked Questions Q: What measurement principle does the 285592-01 Proximitor Sensor use?A: The sensor uses eddy-current measurement technology to process non-contact displacement signals from compatible proximity probes. Q: What type of signals does the 285592-01 provide?A: The device provides conditioned electrical signals representing shaft displacement and vibration information for machinery monitoring systems. Q: What power supply is required for the 285592-01?A: The sensor operates with a -24 VDC supply input according to the available technical specifications. Field Installation Guidelines Install the Proximitor Sensor in a suitable monitoring cabinet location with protection from excessive vibration and contamination. Verify compatibility between the probe, extension cable, and Proximitor Sensor before system commissioning. Confirm correct -24 VDC power polarity before applying electrical power. Perform gap voltage verification during installation to confirm proper probe positioning. Route proximity signal cables separately from high-current power cables to reduce electromagnetic interference. Maintain proper cable shielding and grounding practices according to industrial instrumentation installation standards.
$200.00 $100.00
-
Bently Nevada Bently Nevada 190214-01 3500/94M VGA I/O Module
Bently Nevada 190214-01 3500/94M VGA I/O Module The Bently Nevada 190214-01, also cataloged as the 3500/94M VGA I/O Module, operates as a dedicated hardware component for displaying machinery protection system data within the Bently Nevada 3500 monitoring platform. Hardware Specifications Parameter Specification Model 190214-01 Brand Bently Nevada Product Type VGA I/O Module Series 3500 System Compatibility Bently Nevada 3500 Machinery Protection System Origin United States (USA) Weight 0.38 kg Dimensions 2.4 x 11 x 24.1 cm (shipping size) Display Interface VGA display interface with touch screen support Maximum Custom Screens Up to 9 custom screens Display Distance Up to 6 m using standard cables Extended Distance Support Up to 10 km using supported KVM Extender systems Rotor Monitoring Interface and Display Data Processing The 190214-01 VGA I/O Module provides the display interface function for Bently Nevada 3500 machinery protection systems. It transfers configured monitoring information from the rack system to external VGA display equipment. The module supports custom screen configuration through the 3500 Rack Configuration Software. Operators can organize system information into multiple pages and create machine train display groups based on configured screen layouts. The 3500/94M system configuration consists of the VGA module, I/O module, and a 10 inch or 15 inch VGA touch screen display. The module maintains communication between the 3500 rack monitoring hardware and the external visualization interface. Frequently Asked Questions Q: What display devices are compatible with the 190214-01 module?A: The 190214-01 is designed for use with VGA display equipment within the 3500/94M configuration, including supported 10 inch and 15 inch VGA touch screen displays. Q: Can the VGA display be installed away from the 3500 rack?A: Yes. The module supports VGA display installation up to 6 m from the 3500 rack using standard cables. Longer distances require compatible KVM Extender equipment. Q: Is the KVM Extender installation suitable for hazardous areas?A: Only approved receiver configurations may be used in specific hazardous area installations. The transmitter and unsupported extender equipment must be installed in safe areas or suitable approved enclosures. Field Installation Guidelines Install the 190214-01 module according to the Bently Nevada 3500 rack hardware configuration requirements. Verify VGA cable routing before installation to prevent excessive cable length and signal degradation. Keep display communication cables separated from high-voltage power wiring and high-current motor circuits. Use proper grounding practices for connected display equipment and rack assemblies. Confirm KVM Extender environmental approvals before installation in classified areas. Ensure all external display devices are mounted in locations that maintain cable protection and service accessibility.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/93 135799-02 Display Interface Module
Bently Nevada 3500/93 135799-02 Display Interface Module Configured for system display data processing in the Bently Nevada 3500 Monitoring System, the Bently Nevada 3500/93 135799-02 (3500/93 Display Interface Module) provides direct physical and electrical execution for event and measurement data presentation. Hardware Specifications Parameter Specification Model 3500/93 135799-02 Brand Bently Nevada Product Type Display Interface Module Series 3500 Machinery Protection System Origin USA Weight 0.82 kg Dimensions 2.5 x 25 x 24 cm (estimated shipping size) Operating Temp -30 deg C to +65 deg C (-22 deg F to +150 deg F) Storage Temp -40 deg C to +85 deg C (-40 deg F to +185 deg F) Humidity 95%, noncondensing Compatible Options A05 through A08 display options Interface Function System event list, alarm event list, channel and module data display Rotor Monitoring Data Display Interface The 3500/93 Display Interface Module provides the hardware interface for presenting monitoring information collected by the 3500 system rack. It processes display data associated with system events, alarm events, channel measurements, and module status information. The module supports visualization of data from monitored channels, monitor modules, relay modules, Keyphasor modules, and tachometer modules. The interface structure allows operators to access vibration monitoring information generated by the Bently Nevada TSI architecture. The module operates with Bently Nevada signal processing functions, including eddy-current probe scaling verification, gap voltage monitoring reference handling, rotor dynamics data presentation, and vibration channel status display. These functions support interpretation of machinery condition parameters generated by connected monitoring modules. Frequently Asked Questions Q: What data sources can the 3500/93 135799-02 display?A: The module displays system event lists, alarm event lists, channel data, monitor module information, relay module status, Keyphasor module data, and tachometer module data. Q: Is the 3500/93 135799-02 a vibration input acquisition module?A: No. The module functions as a display interface component. Vibration signal acquisition and processing are performed by dedicated monitoring modules installed in the 3500 rack. Q: What installation options are supported by this module?A: The 135799-02 version is specified for use with A05 through A08 display options within the Bently Nevada 3500 system configuration. Field Installation Guidelines Verify that the 3500 rack configuration supports the 3500/93 Display Interface Module before installation. Install the module according to the designated rack slot assignment and system configuration documentation. Maintain proper grounding practices for the rack enclosure and connected monitoring equipment. Separate signal wiring from high-voltage power cables to reduce electrical interference. Confirm connector seating and mechanical locking features before system startup. Check display communication status after installation through the 3500 system interface.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/46M 176449-06 Hydro Monitor
Bently Nevada 3500/46M 176449-06 Hydro Monitor Configured for hydro turbine shaft position and vibration signal monitoring in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 3500/46M 176449-06 (176449-06 Hydro Monitor) provides direct physical/electrical execution for hydro machinery monitoring channels. Hardware Specifications Parameter Specification Model 3500/46M 176449-06 Brand Bently Nevada Product Type Hydro Monitor Origin USA Weight 0.8 kg Dimensions 2.6 cm x 25.8 cm x 24 cm Operating Temp -40 deg C to +85 deg C Humidity 0-95% RH, non-condensing Power Consumption 7.7 watts, typical Input Signal 4-20 mA, 0-10 VDC pressure transmitters Contact Rating 5 A @ 30 VDC / 250 VAC Rotor Speed Range 25 to 1,500 cpm Multimode Positive Input Impedance 50 kOhm Direct Filter Range 0.104 Hz to 500 Hz Direct Filter -3 dB Point 1.2 Hz Gap Filter -3 dB Point 0.05 Hz Rotor Dynamics and Probe Signal Processing The 3500/46M Hydro Monitor processes input signals associated with hydro machinery position and vibration measurements. The module supports Bently Nevada TSI monitoring principles by applying signal conditioning methods for rotating equipment analysis. The module can interface with displacement and process measurement signals while maintaining measurement stability through configured filtering functions. Eddy-current probe scaling and gap voltage validation methods support accurate shaft position evaluation when compatible transducer systems are installed. The monitor design considers rotor dynamics parameters, including rotational speed range and low-frequency measurement behavior. Signal processing paths include filtering functions to reduce unwanted vibration components and improve channel measurement consistency. Frequently Asked Questions Q: What input signal types does the 3500/46M 176449-06 accept?A: The module accepts 4-20 mA and 0-10 VDC transmitter inputs for hydro monitoring measurement applications. Q: What filtering functions are available in this Hydro Monitor?A: The module provides direct filtering from 0.104 Hz to 500 Hz and includes a gap filter with a -3 dB point at 0.05 Hz. Q: What operating conditions are specified for this module?A: The module operates from -40 deg C to +85 deg C and supports 0-95% RH non-condensing humidity conditions. Field Installation Guidelines Install the 3500/46M module in the designated Bently Nevada 3500 rack slot according to system configuration requirements. Verify field wiring polarity before connecting pressure transmitters or voltage signal sources. Use shielded cables for low-level measurement signals and connect cable shields according to the site grounding practice to reduce electrical interference. Keep measurement signal wiring separated from high-voltage power cables and switching circuits. Confirm configured channel parameters, filter settings, and input scaling before placing the monitoring channel into service.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/62 133811-03 Process Variable Monitor
Bently Nevada 3500/62 133811-03 Process Variable Monitor The Bently Nevada 3500/62 133811-03, also cataloged as the 133811-03 Process Variable Monitor, operates as a dedicated hardware component for process signal measurement within the Bently Nevada 3500 Monitoring System. It accepts voltage and current input signals and processes analog process variables for machinery protection applications. Hardware Specifications Parameter Specification Model 3500/62 133811-03 Brand Bently Nevada Product Type Process Variable Monitor Origin USA Weight 1.26 kg Dimensions 5.5 x 29 x 23 cm Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 95%, noncondensing Input Type +/-10 VDC I/O, -10 VDC to +10 VDC; 4-20 mA Barrier I/O Voltage Compliance 13.66 V Isolation 500 Volts Power Consumption 7.0 Watts typical Accuracy Within +/-0.33% of full scale typical, +/-1% maximum Monitoring Platform Bently Nevada 3500 Series Eddy-Current Signal Processing and Gap Voltage Validation The 3500/62 133811-03 Process Variable Monitor processes analog signals through defined input ranges for integration with the 3500 rack architecture. The module supports voltage and current input measurement, including +/-10 VDC signals and 4-20 mA barrier inputs. For applications involving eddy-current measurement systems, signal scaling and gap voltage validation methods are applied to maintain correct transducer measurement conditions. The module supports monitoring configurations where rotor displacement and machine process variables require consistent electrical signal conversion. Moreover, the module architecture provides 500 Volt isolation between signal circuits, reducing interference from external electrical sources. This isolation supports stable data acquisition in machinery monitoring environments where signal integrity is required. Frequently Asked Questions Q: What input signal types does the 3500/62 133811-03 support?A: The module supports +/-10 VDC analog inputs and 4-20 mA DC barrier inputs for process variable monitoring applications. Q: What is the typical power consumption of this Process Variable Monitor?A: The module consumes approximately 7.0 Watts under typical operating conditions. Q: Does the module provide electrical isolation?A: Yes. The 3500/62 133811-03 provides 500 Volt isolation for signal circuit separation. Field Installation Guidelines Install the module in a compatible Bently Nevada 3500 rack configuration. Verify rack power availability before module insertion or removal. Connect field wiring according to the specified voltage and current input requirements. Use appropriate shielded signal cables for analog measurement circuits. Ground cable shields according to site electrical grounding practices to reduce electromagnetic interference. Separate low-level analog signal wiring from high-voltage power cables during installation. Confirm input polarity and signal range configuration before commissioning.
$200.00 $100.00
-
Bently Nevada Bently Nevada 128228-01 Proximitor Seismic I/O Module
Bently Nevada 128228-01 Proximitor Seismic I/O Module The Bently Nevada 128228-01, also cataloged as the 128228-01 Proximitor Seismic I/O Module, operates as a dedicated hardware component for vibration signal acquisition and conditioning within Bently Nevada machinery monitoring platforms. Hardware Specifications Parameter Specification Model 128228-01 Brand Bently Nevada Product Type Proximitor Seismic I/O Module Origin USA System Compatibility Bently Nevada rack-based monitoring system Input Signal Type Proximitor and seismic transducer signals Signal Processing Sensor signal conditioning and vibration data acquisition Communication Interface System backplane communication Input Range -10 VDC to +10 VDC Weight 0.20 kg Dimensions 241.3 mm x 24.4 mm x 99.1 mm Operating Temp -30 deg C to +65 deg C Power Consumption 10.5 W Mounting Type Rack module installation Eddy-Current Signal Scaling and Rotor Dynamics Processing The 128228-01 module processes displacement and seismic measurement inputs from compatible Bently Nevada sensors. The module supports eddy-current probe scaling functions by conditioning probe signals before system-level vibration analysis. The input processing path maintains signal accuracy for shaft displacement monitoring and seismic vibration measurement. Moreover, the module supports gap voltage validation using standard -10 VDC target references for eddy-current probe operation verification. The module architecture supports rotor dynamics monitoring requirements by transferring conditioned vibration data through the rack backplane. Signal processing functions are designed to maintain measurement consistency and reduce interference effects in multi-channel machinery monitoring installations. Frequently Asked Questions Q: What sensor signals can the Bently Nevada 128228-01 process?A: The module processes compatible Proximitor and seismic transducer signals for displacement and vibration monitoring applications. Q: Does the 128228-01 support rack backplane communication?A: Yes. The module communicates with the compatible Bently Nevada monitoring system through the rack backplane interface. Q: What installation requirements should be checked before operation?A: Verify module slot compatibility, sensor wiring polarity, signal shielding, and grounding conditions before commissioning. Field Installation Guidelines Install the module into the assigned rack position according to the monitoring system hardware configuration. Confirm sensor cable routing and maintain separation from high-voltage power wiring to reduce electrical interference. Connect cable shields according to the system grounding practice before applying power. Verify Proximitor and seismic input wiring before enabling vibration measurement channels. Confirm backplane communication status after module installation. Perform signal verification and sensor calibration through the configured monitoring software before machine operation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 176449-07 3500/77M Reciprocating Cylinder Pressure Monitor
Bently Nevada 176449-07 3500/77M Reciprocating Cylinder Pressure Monitor The Bently Nevada 176449-07, also cataloged as the 176449-07 3500/77M Reciprocating Cylinder Pressure Monitor, operates as a dedicated hardware component for cylinder pressure measurement within Bently Nevada 3500 monitoring systems. It processes pressure transducer inputs to calculate compressor cylinder parameters, including peak pressure, minimum pressure, and compression ratio values. Hardware Specifications Parameter Specification Model 176449-07 Brand Bently Nevada Product Type 3500/77M Reciprocating Cylinder Pressure Monitor System Platform Bently Nevada 3500 Series Monitoring System Application Reciprocating compressor cylinder pressure monitoring Input Type Piezoelectric pressure transducer input Number of Channels 4 pressure measurement channels Measurement Functions Suction pressure, discharge pressure, peak pressure, minimum pressure, compression ratio Mechanical Calculations Peak rod compression, peak rod tension, rod reversal detection Output Signal 4-20 mA Communication Interface Modbus / Ethernet Power Supply 24 VDC Power Consumption 25 W Operating Temp -20 deg C to +70 deg C Humidity Up to 95% RH, non-condensing Dimensions Approx. 241.3 mm x 24.4 mm x 99.1 mm Weight Approx. 0.20 kg Origin USA Eddy-Current and Pressure Signal Processing Features The 3500/77M monitor receives dynamic cylinder pressure signals from approved Bently Nevada pressure transducers and performs signal conditioning before measurement calculation. Moreover, the module applies TSI-oriented monitoring methods by validating sensor signal behavior and maintaining measurement accuracy for rotating machinery analysis. The module supports compressor mechanical evaluation through pressure waveform processing. Therefore, it can calculate rod load related parameters, including peak compression, peak tension, and rod reversal conditions. The signal processing architecture is designed for separation of pressure measurement channels and suppression of measurement interference during machine operation. Frequently Asked Questions Q: How many pressure measurement channels are available on the 176449-07?A: The module provides four independent pressure measurement channels for reciprocating compressor cylinder monitoring. Q: What type of pressure sensors can connect to this monitor?A: The module accepts approved piezoelectric pressure transducers designed for Bently Nevada reciprocating compressor monitoring applications. Q: Does the module support communication with external control systems?A: The module supports Modbus and Ethernet communication interfaces for integration with compatible monitoring and control networks. Field Installation Guidelines Install the 176449-07 module in a compatible Bently Nevada 3500 rack configuration. Verify rack power availability and confirm the 24 VDC supply connection before commissioning. Use shielded cables for pressure transducer wiring and connect cable shields according to site grounding practices. Separate sensor signal wiring from high-voltage power cables to reduce electrical interference. Configure pressure measurement parameters and alarm thresholds according to the compressor operating requirements. Verify input signals and calculated pressure values after installation.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3701/60A Wind Turbine Monitor
Bently Nevada 3701/60A Wind Turbine Monitor Configured for wind turbine vibration and condition monitoring signal acquisition, the Bently Nevada 3701/60A (3701/60A Wind Turbine Monitor) provides direct physical and electrical execution for analog input processing, relay control, and industrial communication interfaces. Hardware Specifications Parameter Specification Model 3701/60A Brand Bently Nevada Product Type Wind Turbine Monitor Origin USA Weight 0.86 kg Dimensions 48.1 x 27.3 x 26.5 cm (shipping size) Operating Temp -40 deg C to +70 deg C Humidity 0-100% RH Vibration Resistance 5g (10-500 Hz) Input Power 24 VDC (+/-10%) or 100-240 VAC Power Consumption <20 W typical Analog Inputs 4-20 mA, +/-10 V, IEPE (2-wire) Relay Outputs 4 x SPDT, 5 A at 250 VAC Communication Ethernet, Modbus TCP/RTU Tariff Code 8537101190 Eddy-Current Monitoring and Rotor Dynamic Signal Processing The Bently Nevada 3701/60A applies mechanical monitoring functions for wind turbine equipment by processing vibration-related analog signals from connected field sensors. The monitor supports IEPE sensor inputs and voltage/current signal measurement for condition monitoring applications. The device architecture supports signal validation functions associated with rotating machinery monitoring, including sensor scaling and measurement verification. Eddy-current monitoring systems typically evaluate displacement behavior, shaft movement, and rotor dynamic conditions through calibrated input signals. The monitor design also considers signal integrity requirements for rotating equipment environments, where proper sensor installation and cable routing help reduce electrical interference and cross-talk effects between measurement channels. Frequently Asked Questions Q: What input signal types can the 3701/60A process?A: The monitor accepts 4-20 mA, +/-10 V, and IEPE (2-wire) analog input signals for connected monitoring sensors. Q: What communication interfaces are available on the 3701/60A?A: The device provides Ethernet communication and supports Modbus TCP/RTU protocols for system integration. Q: What power supply options are supported by the monitor?A: The 3701/60A supports 24 VDC (+/-10%) and 100-240 VAC input power configurations. Field Installation Guidelines Install the monitor in a protected industrial enclosure suitable for the specified operating temperature range. Connect signal cables using proper shielding and grounding practices to reduce electrical noise interference. Separate analog sensor wiring from high-voltage power cables to minimize induced signal distortion. Verify sensor polarity, input configuration, and communication wiring before applying operating power. Confirm relay output wiring matches the connected control circuit voltage and current requirements.
$200.00 $100.00
-
Bently Nevada Bently Nevada 124240-01 3500/42M I/O Module
Bently Nevada 124240-01 3500/42M I/O Module Configured for proximity and seismic signal acquisition in the 3500 machinery protection system, the Bently Nevada 124240-01 (124240-01 3500/42M I/O Module) provides direct sensor interface execution for four-channel vibration monitoring applications. Hardware Specifications Parameter Specification Model 124240-01 Brand Bently Nevada Product Type 3500/42M I/O Module System Compatibility 3500/42M Proximity/Seismic Monitor System Origin USA Weight Approx. 0.20 kg (0.44 lbs) Dimensions 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) Operating Temp -40 deg C to +85 deg C (version dependent) Power Consumption Maximum 10 W Channel Quantity 4 input channels Input Signal Type Proximity sensors and seismic sensors Output Signal 4-20 mA loop output Mounting Configuration 3500 rack internal I/O module installation Eddy-Current Probe Scaling and Rotor Dynamics Processing The 124240-01 module interfaces with proximity and seismic sensors through the 3500/42M monitoring architecture. It processes vibration-related signals generated by rotating equipment measurement circuits. The module supports eddy-current probe scaling functions for displacement measurement applications. Signal conditioning maintains sensor measurement conversion between probe output characteristics and machinery vibration parameters. Moreover, Bently Nevada TSI hardware design includes gap voltage validation functions based on probe operating conditions. Eddy-current systems commonly reference -10 VDC gap voltage targets for confirming proper probe positioning and measurement range. The module architecture supports rotor dynamics monitoring requirements by maintaining vibration channel acquisition for shaft displacement and machine protection calculations. Channel processing design also considers cross-talk suppression requirements between adjacent monitoring inputs. Frequently Asked Questions Q: What type of sensors can be connected to the 124240-01 module?A: The module supports proximity sensors and seismic sensors connected through the 3500/42M monitoring system input interface. Q: Does the 124240-01 provide direct 4-20 mA output signals?A: Yes. The module provides 4-20 mA loop output signals for integration with external monitoring or control systems. Q: Can the module operate outside standard temperature conditions?A: The operating temperature range is specified as -40 deg C to +85 deg C depending on the module version and installation configuration. Field Installation Guidelines Install the 124240-01 module in the designated slot of a compatible Bently Nevada 3500 rack assembly. Connect proximity probe and seismic sensor wiring according to the approved 3500 system wiring documentation. Use shielded instrumentation cables for vibration signal circuits and maintain proper cable separation from high-voltage power conductors. Verify sensor polarity, signal grounding, and cable shield termination before system commissioning. Confirm probe gap conditions and input signal quality during startup procedures. Avoid mechanical stress on terminal connections and ensure the module remains properly seated in the rack backplane interface.
$200.00 $100.00
-
Bently Nevada Bently Nevada 135183-01 3500 Temperature Monitor Module
Bently Nevada 135183-01 3500 Temperature Monitor Module The Bently Nevada 135183-01, also cataloged as the 135183-01 3500 Temperature Monitor Module, operates as a dedicated hardware component for RTD temperature signal acquisition and monitoring within the Bently Nevada 3500 Machinery Protection System. Hardware Specifications Parameter Specification Model 135183-01 Brand Bently Nevada Product Type Temperature Monitor Module System Platform 3500 Machinery Protection System Origin USA Weight Approx. 0.24 kg Dimensions 241.3 mm x 24.4 mm x 99.1 mm Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Less than 4.0 W Input Channels 16 independent RTD input channels Sensor Compatibility Pt100, Pt1000, Ni120 RTD sensors Input Wiring 2-wire, 3-wire, and 4-wire RTD configurations Excitation Current 1 mA nominal Input Impedance Greater than 1 MOhm Temperature Range -200 deg C to +600 deg C depending on RTD type Measurement Accuracy Typical +/-0.5 deg C with 3-wire or 4-wire RTD Alarm Configuration Dual programmable Alert and Danger alarms per channel Alarm Function Latching alarm operation with reset requirement Configuration Tool 3500 Rack Configuration Software Eddy-Current Signal Processing and Temperature Monitoring Integration The 135183-01 module processes RTD temperature inputs through the 3500 system backplane and provides channel-based monitoring logic for machinery temperature protection. The module supports independent alarm configuration for each measurement channel and transfers temperature status data to the rack controller. For Bently Nevada monitoring architectures, temperature measurement is coordinated with machinery protection functions including rotor dynamics analysis and condition monitoring. The module operates alongside vibration and position monitoring hardware where temperature changes can affect bearing clearance, lubrication conditions, and mechanical operating parameters. The 3500 platform maintains signal integrity through controlled input processing and channel isolation techniques. System configuration allows engineers to define alarm thresholds, measurement ranges, and monitoring logic according to the installed RTD sensor characteristics. Frequently Asked Questions Q: What type of temperature sensors can be connected to the Bently Nevada 135183-01?A: The module accepts RTD temperature sensors including Pt100, Pt1000, and Ni120 types with 2-wire, 3-wire, or 4-wire connection methods. Q: Does the 135183-01 provide independent alarm settings for each input channel?A: Yes. Each of the 16 RTD input channels supports separate programmable Alert and Danger alarm thresholds through 3500 configuration software. Q: Is the 135183-01 configured through the 3500 rack software environment?A: Yes. Module parameters, alarm limits, and monitoring settings are configured through the standard 3500 Rack Configuration Software. Field Installation Guidelines Install the 135183-01 module in an available slot of the Bently Nevada 3500 rack following the approved rack configuration procedure. RTD field wiring should use suitable shielded instrumentation cables where required by the installation environment. Cable routing should avoid high-current power lines and electromagnetic interference sources. For 3-wire and 4-wire RTD connections, maintain correct terminal identification to prevent lead resistance compensation errors. Verify sensor polarity, cable continuity, and grounding conditions before system commissioning. After installation, confirm module communication status through the 3500 configuration software and verify temperature input values against the connected RTD sensor characteristics.
$200.00 $100.00
-
Bently Nevada Bently Nevada 84134-01 Dual Velocity Monitor Module
Bently Nevada 84134-01 Dual Velocity Monitor Module The Bently Nevada 84134-01, also cataloged as the 84134-01 Dual Velocity Monitor Module, operates as a dedicated hardware component for vibration velocity signal processing within Bently Nevada 3300 Series Machinery Protection System platforms. Hardware Specifications Parameter Specification Model 84134-01 Brand Bently Nevada Product Type Dual Velocity Monitor Module System Compatibility Bently Nevada 3300 Series Machinery Protection System Origin USA Weight Approx. 530 g Dimensions 241 x 24 x 99 mm Operating Temp -40 deg C to +85 deg C Power Consumption Not specified by available documentation Input Channels 2 independent vibration velocity monitoring channels Measurement Type Vibration velocity signal measurement Mounting Type Rack-mounted module Alarm Output Configurable relay alarm outputs Application Interface Rotating machinery vibration protection monitoring Compliance Designed for API 670 machinery protection applications Rotor Dynamics and Vibration Signal Processing The 84134-01 module processes velocity vibration inputs for continuous monitoring of rotating equipment mechanical behavior. The dual-channel architecture allows independent acquisition and evaluation of vibration signals from compatible monitoring sensors. The module operates within the Bently Nevada 3300 monitoring rack environment and supports machinery protection logic through configurable alarm functions. Signal conditioning is performed for vibration velocity measurement applications, providing processed data for operator indication and protective actions. For rotating machinery analysis, the module supports vibration evaluation related to rotor dynamics behavior, including mechanical imbalance, misalignment, and abnormal vibration response conditions. The monitoring design maintains channel separation to reduce signal interaction during dual-channel operation. Frequently Asked Questions Q: How many monitoring channels are available on the 84134-01 module?A: The 84134-01 provides two independent vibration velocity monitoring channels for separate signal measurement. Q: Which monitoring platform accepts the 84134-01 module?A: The module is designed for installation in Bently Nevada 3300 Series Machinery Protection System racks. Q: Does the module require specific installation considerations for vibration signal wiring?A: Installation requires correct sensor wiring polarity, proper cable routing, and suitable grounding practices to maintain signal integrity. Field Installation Guidelines Install the module in a compatible Bently Nevada 3300 rack position according to system configuration requirements. Verify vibration sensor connections, signal polarity, and terminal assignments before energizing the monitoring system. Route vibration signal cables separately from high-voltage power wiring to reduce electrical interference. Apply appropriate cable shielding and grounding methods according to plant instrumentation standards. Confirm alarm configuration parameters and perform functional verification after installation. Maintain cabinet ventilation to keep the module within the specified operating temperature range.
$200.00 $100.00
-
General Electric GE IS200VGENH1B Generator Monitor and Trip Board
GE IS200VGENH1B Generator Monitor and Trip Board The GE IS200VGENH1B, also cataloged as the IS200VGENH1B Generator Monitor and Trip Board, operates as a dedicated hardware component for generator voltage feedback processing and excitation control within the GE Mark VI Speedtronic Control System. Hardware Specifications Parameter Specification Model IS200VGENH1B Brand GE Origin United States Product Type Generator Monitor and Trip Board Series Mark VI Speedtronic Control System Board Type VME-based Generator Control Board Mounting VME rack slot Inputs Generator voltage/current feedback and exciter signals Outputs Control signals to excitation system and DSPX boards Communication Interface ISBus / Ethernet depending on configuration Number of Channels 8 Input Span 0.3532 to 4.054 V Technology Surface mount PCB Weight 1 lbs Operating Temp -30 deg C to +65 deg C Power Consumption Not specified Firmware Flash Compatibility and VME Control Integration The IS200VGENH1B is designed for integration within the Mark VI VME control architecture. The board processes generator feedback signals and exchanges control data with associated turbine control modules through the rack communication interface. Surface mount construction supports compact circuit implementation, while firmware compatibility depends on the installed Mark VI hardware configuration and application software revision. The board supports generator monitoring functions through voltage signal acquisition, excitation feedback processing, and trip-related signal handling. Signal conditioning circuits convert incoming analog feedback values into control data used by DSPX, EMIO, and related control assemblies. Frequently Asked Questions Q: What type of signals are processed by the IS200VGENH1B?A: The board processes generator voltage/current feedback signals and exciter-related signals for voltage regulation, monitoring, and protection functions. Q: How is the IS200VGENH1B installed in the Mark VI system?A: The board is installed in a VME rack slot and interfaces with other Mark VI control modules through the system backplane and communication interfaces. Q: Does the IS200VGENH1B support channel-based monitoring?A: Yes. The board specification indicates 8 monitoring channels for generator-related signal processing. Field Installation Guidelines Install the IS200VGENH1B in the designated Mark VI VME rack position with the rack power removed during insertion or removal procedures. Verify connector alignment before seating the board to prevent mechanical damage. Route generator feedback wiring separately from high-current excitation conductors to reduce electrical noise coupling. Maintain proper cable shielding practices with shield termination according to the site grounding standard. Confirm that field signal polarity, voltage range, and connector assignments match the control system configuration before energizing the rack. Inspect the PCB surface and connectors for contamination, mechanical damage, or moisture exposure during maintenance activities.
$200.00 $100.00
-
Bently Nevada Bently Nevada 82362-01 3300/20 Dual Thrust Position Monitor Module
Bently Nevada 82362-01 3300/20 Dual Thrust Position Monitor Module The Bently Nevada 82362-01, also cataloged as the 82362-01 Dual Thrust Position Monitor Module, operates as a dedicated hardware component for axial shaft displacement monitoring within the Bently Nevada 3300/03 Machinery Protection System. Hardware Specifications Parameter Specification Model 82362-01 Brand Bently Nevada Origin USA Product Type Dual Thrust Position Monitor Module Series 3300/20 System Compatibility Bently Nevada 3300/03 Machinery Protection System Monitoring Function Dual-channel axial thrust position measurement Input Type Eddy-current proximity probe signal input Compatible Transducer 3300 XL Proximity Probes and 7200 Series 14 mm HTPS Proximitor systems Full-Scale Range +/- 25 mils (25-0-25 mils) Input Sensitivity 100 mV/mil (3.94 V/mm) Output Signal Proportional analog voltage output Alarm Function Integral Alert/Danger alarm relays Channel Isolation Independent electrical isolation between channels Power Supply Supplied through 3300 system rack backplane Operating Temp -40 deg C to +85 deg C Dimensions Approx. 241 x 24 x 99 mm Weight Approx. 0.5 kg Power Consumption Supplied by 3300 rack internal power bus Eddy-Current Probe Scaling and Rotor Dynamics Signal Processing The 82362-01 module processes displacement signals generated by eddy-current proximity probe systems. The module applies probe scaling characteristics to convert gap variations between the probe tip and rotor surface into proportional electrical displacement values. The monitoring circuit evaluates axial rotor movement relative to the thrust bearing position. Signal conditioning is configured for thrust position applications, including gap voltage validation and stable measurement behavior within the proximity transducer operating range. The module architecture supports rotor dynamics analysis by providing continuous axial position feedback for machinery protection logic. Frequently Asked Questions Q: What type of transducer input is supported by the 82362-01 module?A: The module accepts eddy-current proximity probe signals from compatible Bently Nevada proximity systems, including 3300 XL and 7200 series Proximitor configurations. Q: Does the 82362-01 provide independent monitoring channels?A: Yes. The module contains two independent thrust position monitoring channels with separate signal paths and electrical isolation. Q: Is the 82362-01 installed as a standalone device?A: No. The module is installed within the Bently Nevada 3300 rack system and receives operating power through the system backplane. Field Installation Guidelines Install the module only in the designated 3300 system rack slot and verify rack power compatibility before insertion. Connect proximity probe wiring using shielded instrumentation cable suitable for low-level displacement signals. Maintain separation between probe signal wiring and high-current power cables to reduce electrical interference. Ground cable shields according to site instrumentation grounding practices and avoid creating unintended ground loops. Verify probe gap voltage and signal polarity before commissioning the thrust position monitoring channel. Confirm alarm relay wiring and external shutdown logic connections before placing the protection system into service. Follow Bently Nevada 3300 system installation procedures for rack configuration, module addressing, and maintenance access.
$200.00 $100.00
-
Bently Nevada Bently Nevada 184139-10 Proximitor I/O Module
Bently Nevada 184139-10 Proximitor I/O Module The Bently Nevada 184139-10, also cataloged as the 184139-10 Proximitor I/O Module, operates as a dedicated hardware component for interfacing proximity transducer signals within the Bently Nevada machinery monitoring system. Hardware Specifications Parameter Specification Model 184139-10 Brand Bently Nevada Module Type Proximitor I/O Module System Platform Bently Nevada Machinery Monitoring System Signal Type Proximity transducer interface signals Function Input/output interface for Proximitor measurement channels Origin USA Electrical Interface Proximity probe signal conditioning interface Application Vibration and rotor position monitoring hardware interface Eddy-Current Probe Signal Conditioning and Rotor Dynamics Interface The Bently Nevada 184139-10 Proximitor I/O Module is designed for connection between proximity measurement hardware and the monitoring platform. The module supports signal routing and conditioning functions associated with eddy-current probe systems used for shaft displacement and vibration measurement. The module architecture is intended to maintain measurement signal integrity for rotor dynamics analysis, including shaft vibration trends, radial displacement monitoring, and proximity probe feedback processing. Proper probe installation requires verification of probe polarity, cable continuity, and gap voltage conditions. Bently Nevada proximity systems commonly validate probe operation through gap voltage measurement, with typical target conditions around -10 VDC for correctly biased eddy-current probes. Signal separation and grounding practices are required to minimize cross-talk suppression issues between adjacent measurement channels, especially in multi-channel vibration monitoring installations. Frequently Asked Questions Q: Is the 184139-10 a standalone vibration monitor?A: No. The 184139-10 is an I/O interface module used with a Bently Nevada monitoring system. It performs signal interface functions and requires integration with compatible monitoring hardware. Q: Does the module directly provide eddy-current probe excitation?A: The module is associated with Proximitor signal interfacing. The complete probe excitation and measurement chain depends on the installed Bently Nevada system configuration and connected Proximitor hardware. Q: What installation factors affect measurement accuracy?A: Accurate operation requires correct field wiring, proper cable shielding, grounding practices, and verification of proximity probe connections to prevent electrical noise and signal interference. Field Installation Guidelines Install the module in the designated Bently Nevada system rack or interface assembly according to the applicable hardware configuration. Verify all proximity probe wiring before system power application, including signal conductor identification and cable continuity. Maintain separation between vibration signal wiring and high-voltage or high-current power cables to reduce electromagnetic interference. Connect cable shields according to the monitoring system grounding requirements and avoid unintended ground loops. Confirm proximity probe gap voltage and signal polarity during commissioning before enabling machinery protection functions. Inspect connector seating and mechanical mounting condition during installation and maintenance procedures.
$200.00 $100.00
-
Bently Nevada Bently Nevada 136751-02 3500 Series Isolated I/O Module
Bently Nevada 136751-02 3500 Series Isolated I/O Module The Bently Nevada 136751-02, also cataloged as the 136751-02 Isolated I/O Module, operates as a dedicated hardware component for signal isolation and sensor interface processing within the Bently Nevada 3500 Machinery Protection System. Hardware Specifications Parameter Specification Model 136751-02 Brand Bently Nevada (Baker Hughes) Origin USA Weight Approx. 1.0 kg Dimensions Approx. 190 mm x 128 mm x 20 mm Operating Temp -20 deg C to +60 deg C Power Consumption Rack supplied power; value not specified Product Type Isolated I/O Module with Internal Barriers Function Galvanic signal isolation and field sensor interfacing System Platform Bently Nevada 3500 Machinery Protection System Isolation Method Electrical isolation between field wiring and monitoring rack circuits Application Signals Proximity probe, vibration, thrust position, and displacement monitoring signals Eddy-Current Probe Signal Isolation and TSI Interface The 136751-02 module is designed for use with machinery monitoring signal paths where proximity probe inputs require separation from rack-level monitoring electronics. The internal barrier architecture reduces the effects of ground loops, electrical interference, and transient disturbances on eddy-current probe measurement circuits. Within TSI (Turbine Supervisory Instrumentation) applications, signal integrity depends on correct probe scaling, gap voltage validation, and stable transmission of dynamic shaft displacement data. Bently Nevada monitoring systems commonly use -10 VDC probe gap voltage targets as a reference condition for eddy-current probe installation verification. The isolated I/O module supports signal conditioning paths used for rotor dynamics analysis, including radial vibration, axial position, and mechanical displacement measurements. Frequently Asked Questions Q: Does the 136751-02 provide direct sensor excitation for all connected field devices?A: The module functions as an isolated interface component. Sensor excitation capability depends on the connected Bently Nevada monitoring module and system configuration. Q: Can the 136751-02 eliminate all electrical interference in a machinery monitoring circuit?A: The module provides galvanic isolation to reduce ground loop effects and electrical noise coupling. Proper shielding, grounding, and field wiring practices remain required. Q: Is the 136751-02 compatible with non-Bently Nevada monitoring racks?A: The module is designed for integration within the Bently Nevada 3500 system architecture. Compatibility with other platforms requires verification of mechanical, electrical, and communication interfaces. Field Installation Guidelines Install the module in the designated Bently Nevada 3500 rack position according to system configuration requirements. Verify field wiring polarity and terminal assignments before applying power. Maintain separation between low-level sensor signal wiring and high-voltage or high-current conductors. Connect cable shields according to the machinery monitoring system grounding design to reduce noise coupling. Confirm proximity probe wiring integrity and verify probe gap voltage before commissioning. Inspect module seating, rack connectors, and retention hardware during installation. Follow the applicable Bently Nevada 3500 system manual for rack configuration and commissioning procedures.
$200.00 $100.00
-

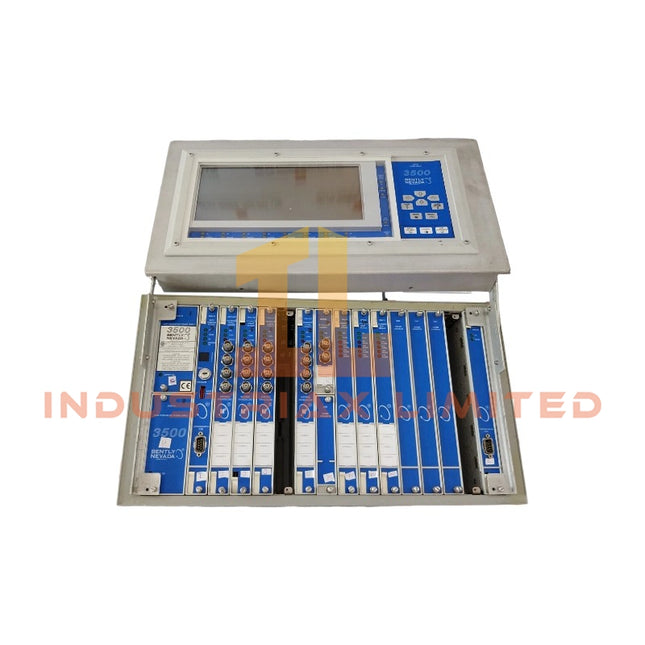

Bently Nevada Bently Nevada 136751-01 3500 Dual Velocity Monitor Module
Bently Nevada 136751-01 3500 Dual Velocity Monitor Module The Bently Nevada 136751-01, also cataloged as the 136751-01 Dual Velocity Monitor Module, operates as a dedicated hardware component for velocity signal acquisition and vibration monitoring within the Bently Nevada 3500 Machinery Protection System. Hardware Specifications Parameter Specification Model 136751-01 Brand Bently Nevada (Baker Hughes) Product Type Dual Velocity Monitor Module / I/O Interface System Compatibility Bently Nevada 3500 Machinery Protection System Channel Configuration Dual-channel velocity monitoring Input Signal Velocity transducer input signals Signal Processing Velocity signal conditioning and filtering Mounting 3500 rack-mounted module Origin USA Weight Approx. 0.20 kg to 0.45 kg (assembly dependent) Dimensions 3500 Series rack module format Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity Up to 95% RH, non-condensing Power Consumption Low-power operation within 3500 rack power budget Primary Function Dual-channel machinery velocity monitoring and protection signal processing Eddy-Current Signal Scaling and Rotor Dynamics Monitoring The 136751-01 module operates within the Bently Nevada machinery monitoring architecture where accurate vibration measurement depends on validated sensor scaling, signal conditioning, and dynamic response processing. The module interface is designed for integration with vibration monitoring loops requiring stable velocity measurement and diagnostic data acquisition. For Bently Nevada 3500 system applications, sensor signal integrity depends on correct transducer configuration, cable shielding, and input calibration. Machinery protection engineering practices include verification of probe scaling factors, signal polarity, and measurement channel behavior before placing the monitoring loop into service. Rotor dynamics evaluation requires consistent vibration signal processing to identify mechanical conditions such as imbalance, misalignment, and bearing-related vibration changes. The module supports continuous channel monitoring within the configured 3500 rack architecture. Frequently Asked Questions Q: Can the 136751-01 be installed in any Bently Nevada 3500 rack slot?A: Installation must follow the 3500 rack configuration rules and approved module placement defined by the system engineering documentation. Slot assignment depends on rack design and system configuration. Q: Does the 136751-01 provide independent measurement channels?A: Yes. The module is configured as a dual-channel velocity monitoring device, allowing two separate vibration measurement inputs to be processed within the monitoring system. Q: Are field wiring and grounding requirements important for this module?A: Yes. Shield termination, cable routing separation, and proper grounding practices are required to minimize electrical noise interference and maintain measurement accuracy. Field Installation Guidelines Verify the module part number and rack configuration before installation or replacement. Install the module only in a compatible Bently Nevada 3500 system rack. Confirm field wiring matches the approved terminal assignment and engineering drawings. Maintain separation between vibration signal cables and high-current power wiring. Connect cable shields according to plant grounding standards to reduce electromagnetic interference. Perform channel verification and system configuration checks after module installation. Follow approved maintenance procedures before removing or inserting modules in an operating rack.
$200.00 $100.00
-

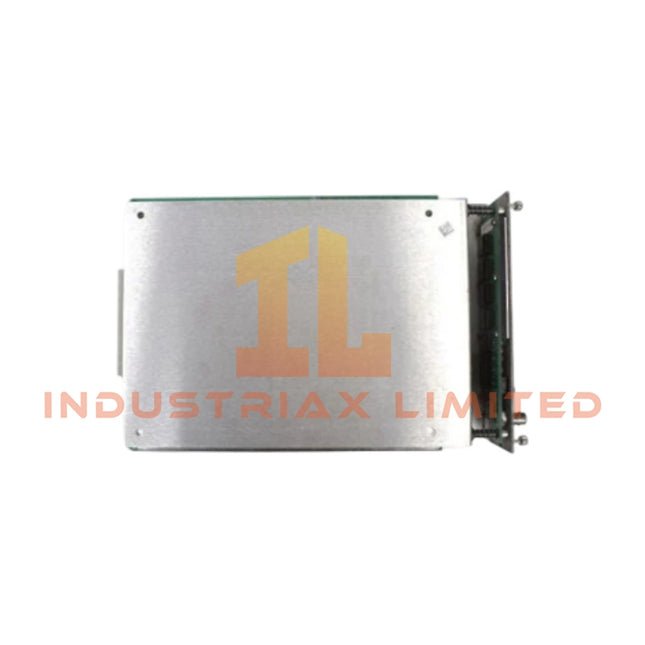

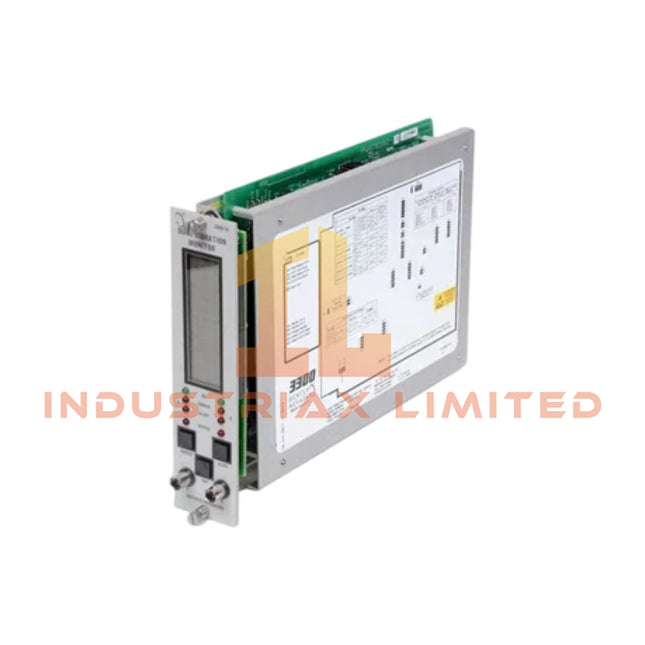

Bently Nevada Bently Nevada 135321-01 3300/16 Dual Vibration Monitor Module
Bently Nevada 135321-01 3300/16 Dual Vibration Monitor Module The Bently Nevada 135321-01, also cataloged as the 3300/16 Dual Vibration Monitor Processor Board, operates as a dedicated hardware component for radial vibration and average shaft position signal processing within the Bently Nevada 3300 Machinery Protection System. Hardware Specifications Parameter Specification Model 135321-01 Brand Bently Nevada (Baker Hughes) Origin USA Weight Approx. 1000 g (packaged unit) Dimensions Not specified Operating Temp Industrial operating range, not specified Power Consumption Not specified Associated System 3300 Machinery Protection System Module Type Dual Vibration Monitor Processor Board Monitoring Channels 2 independent vibration channels Measurement Function Radial vibration and average shaft position (gap) monitoring Input Interface Bently Nevada Proximitor proximity probe signals Frequency Range 1 Hz to 600 Hz (60 to 36,000 cpm) Measurement Accuracy Typically within +/-0.33% of full-scale Output Functions Alarm relay interface and buffered transducer signal output Eddy-Current Probe Signal Scaling and Rotor Dynamics Processing The 135321-01 processor board performs signal conditioning for eddy-current proximity probe inputs connected through the Bently Nevada 3300/16 monitoring architecture. The processing path maintains probe scaling characteristics required for vibration amplitude calculation and shaft position gap measurement. The module supports rotor dynamics monitoring functions by converting displacement signals into processed vibration values suitable for machinery protection logic. Signal validation includes verification of probe operating conditions and gap voltage behavior, with typical proximity systems using -10 VDC target gap voltage references for proper probe positioning. Internal processing is designed to minimize measurement errors caused by signal interference, including cross-talk suppression between monitoring channels and controlled handling of dynamic shaft displacement signals. Frequently Asked Questions Q: Can the 135321-01 operate as a standalone vibration monitor without the 3300/16 system chassis?A: No. The 135321-01 is a processor board component designed for integration within the Bently Nevada 3300/16 Dual Vibration Monitor assembly and requires the associated system hardware. Q: What type of sensors are compatible with the 135321-01 input interface?A: The module is designed for use with Bently Nevada Proximitor systems and non-contacting eddy-current proximity probe sensor circuits. Q: Does the module provide direct vibration analysis outputs?A: The board processes vibration and gap measurement signals and provides system-level outputs through the configured 3300/16 monitoring hardware, including buffered transducer signal access. Field Installation Guidelines Install the 135321-01 only within the designated Bently Nevada 3300/16 monitor assembly location. Verify proximity probe wiring polarity and signal shielding before energizing the monitoring rack. Route eddy-current probe cables separately from high-voltage power conductors to reduce electrical interference. Connect cable shields according to the machinery protection system grounding practice and avoid multiple-point shield grounding where it may introduce ground loops. Confirm probe gap voltage and sensor circuit operation before placing the vibration channel into service. Perform channel verification after installation to confirm correct vibration amplitude scaling and shaft position measurement response.
$200.00 $100.00
-

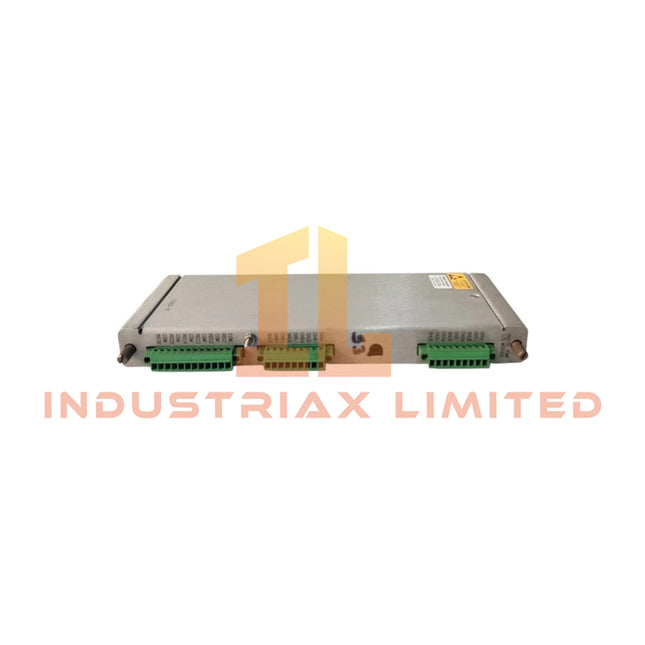

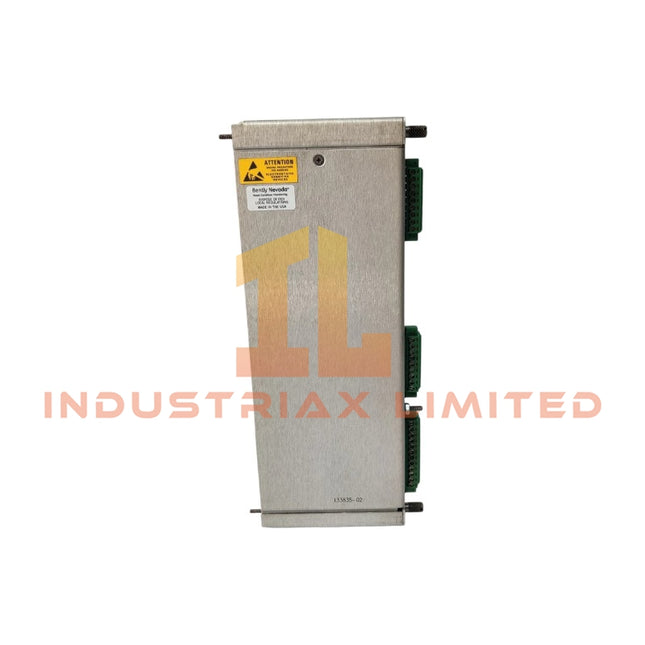

Bently Nevada Bently Nevada 133835-02 3500 Series TC Isolated I/O Module
Bently Nevada 133835-02 3500 Series TC Isolated I/O Module The Bently Nevada 133835-02, also cataloged as the 133835-02 TC Isolated I/O Module, operates as a dedicated hardware component for thermocouple signal acquisition and conditioning within the Bently Nevada 3500 Series Machinery Protection System. Hardware Specifications Parameter Specification Model 133835-02 Brand Bently Nevada Product Type TC Isolated I/O Module with Internal Terminations Associated Monitor 3500/61 and 3500/60 Temperature Monitor Modules Origin USA Weight Approx. 0.45 kg Dimensions 241.3 mm x 24.4 mm x 99.1 mm Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 95% non-condensing Power Consumption Supplied through 3500 rack backplane Input Channels 6 thermocouple input channels Isolation Voltage 250 VDC channel-to-channel galvanic isolation Termination Type Internal terminal block connections Supported Sensors Type J, Type K, Type E, Type T thermocouples Rack Installation One full-height rear I/O slot in 3500 chassis Eddy-Current Signal Integrity and Temperature Monitoring Interface The Bently Nevada 3500 platform is designed for machinery condition monitoring applications where accurate sensor input processing is required. The 133835-02 provides isolated thermocouple signal paths to the 3500/61 Temperature Monitor, maintaining separation between measurement channels and reducing electrical interference from industrial field wiring. The isolated input architecture supports stable temperature acquisition in environments with potential ground potential differences. Channel-to-channel isolation prevents unwanted signal interaction between thermocouple circuits and supports consistent cold junction compensation processing through the associated temperature monitor module. Frequently Asked Questions Q: Is the 133835-02 a standalone temperature monitor?A: No. The 133835-02 is a rear I/O module and requires installation with a compatible Bently Nevada 3500/60 or 3500/61 Temperature Monitor module for signal processing and alarm functions. Q: How are thermocouple field wires connected to this module?A: The module uses internal terminations. Field thermocouple wiring connects directly to the terminal strip located on the I/O module. Q: Does the module provide electrical isolation between thermocouple channels?A: Yes. The 133835-02 provides 250 VDC channel-to-channel galvanic isolation for the thermocouple input circuits. Field Installation Guidelines Install the 133835-02 in the designated rear I/O position of a Bently Nevada 3500 rack configured with a compatible temperature monitoring module. Field thermocouple wiring should be routed separately from high-voltage power cables and high-current switching circuits to minimize electrical noise coupling. Use appropriate shield termination practices according to the plant grounding standard. Verify thermocouple polarity before connection. Incorrect polarity may result in reversed temperature indications or abnormal measurement behavior. Confirm rack configuration settings match the installed thermocouple type, including sensor type selection and channel configuration, before placing the monitoring system into service.
$200.00 $100.00
-

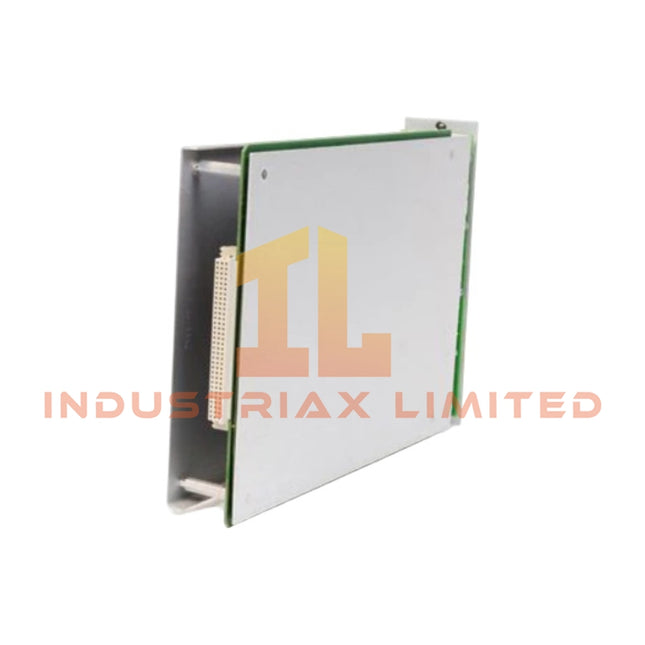

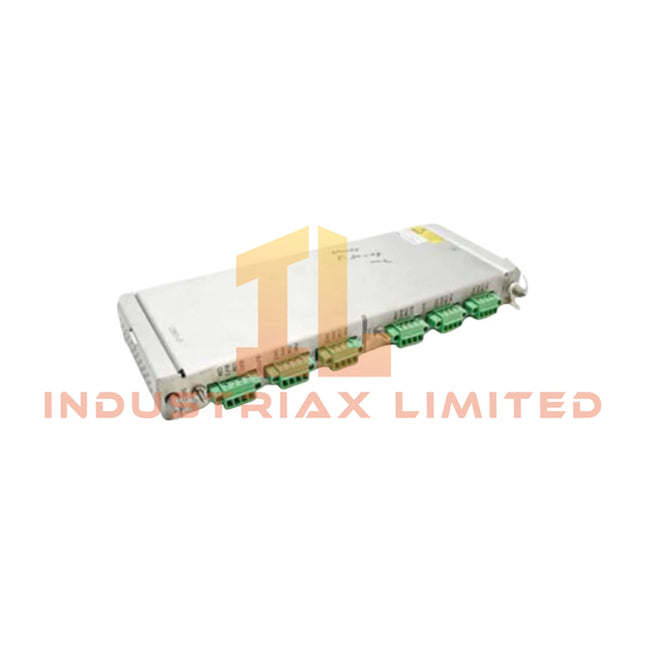

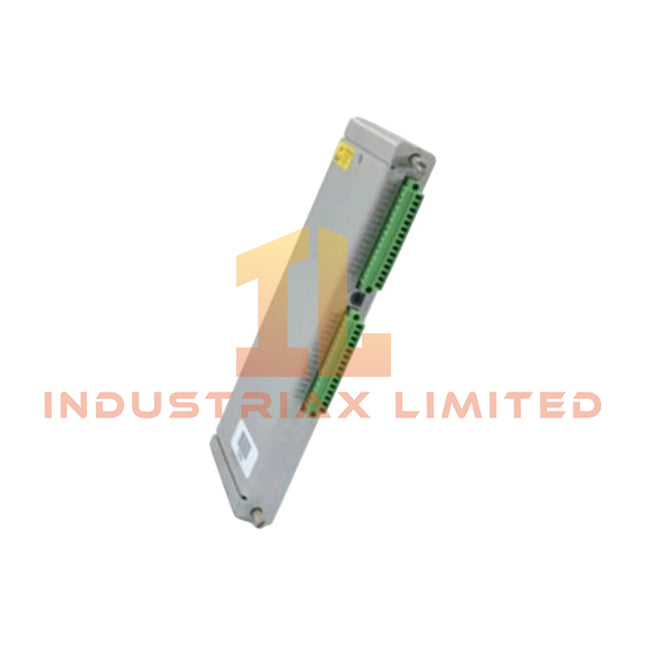

Bently Nevada Bently Nevada 128329-01 Proximitor Seismic I/O Module
Bently Nevada 128329-01 Proximitor Seismic I/O Module The Bently Nevada 128329-01, also cataloged as the 128329-01 Proximitor Seismic I/O Module, operates as a dedicated hardware component for signal termination and routing of proximity and seismic sensor inputs within the Bently Nevada 3500 Series Machinery Protection System. The module provides the physical interface between field transducers and the 3500/42M Proximitor Seismic Monitor. Hardware Specifications Parameter Specification Model 128329-01 Brand Bently Nevada Module Type Proximitor Seismic I/O Module with Internal Terminations System Compatibility Bently Nevada 3500 Series, 3500/42M Proximitor Seismic Monitor Supported Channels 4-channel input interface Supported Signal Types Radial vibration, thrust position, eccentricity, velocity, acceleration, differential expansion Input Signal Range -10 VDC to +10 VDC Termination Type Internal terminal blocks Weight Approx. 0.80 kg Dimensions Not specified Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 95% non-condensing Power Consumption Not specified Origin Not specified Eddy-Current Probe Scaling and Rotor Dynamics Signal Handling The 128329-01 module is configured for machinery monitoring applications requiring direct sensor signal routing to the 3500/42M monitor. The interface supports proximity transducer inputs associated with eddy-current probe measurement systems, where signal scaling and gap voltage validation are processed by the monitoring channel electronics. For proximity measurement circuits, the standard -10 VDC gap voltage target is used as a reference condition for probe operation verification. The module design supports controlled signal transfer for rotor dynamics monitoring functions, including vibration displacement analysis and machine shaft movement evaluation. The internal termination arrangement reduces additional field wiring interfaces and supports consistent sensor connection between the machinery protection rack and external transducers. Signal routing is designed to maintain channel separation and minimize cross-talk effects between vibration measurement circuits. Frequently Asked Questions Q: Is the 128329-01 a standalone vibration monitor? A: No. The 128329-01 is an I/O interface module installed in a Bently Nevada 3500 Series rack. It provides field signal termination and routing to compatible monitor modules such as the 3500/42M. Q: Does the module provide internal field terminations? A: Yes. The 128329-01 includes internal terminal blocks for direct field wiring connection at the rear of the 3500 rack. Q: Can the module process vibration signals independently? A: No. The module performs signal interface functions. Signal conditioning, alarm processing, and monitoring functions are executed by the installed 3500 monitor module. Field Installation Guidelines Install the 128329-01 in the designated rear I/O position of a compatible Bently Nevada 3500 Series rack. Connect field sensor wiring according to the approved system wiring diagram. Maintain proper separation between sensor signal cables and high voltage power conductors to reduce electrical interference. Use shielded instrumentation cables where required by the machinery protection system design. Connect cable shields according to the site grounding standard and avoid creating unwanted ground loops. Verify proximity probe connections, sensor polarity, and gap voltage conditions before placing the monitoring channel into service. Confirm that the installed monitor module configuration matches the connected transducer type and measurement function.
$200.00 $100.00
-
Bently Nevada Bently Nevada 128329-01 Proximitor Seismic I/O Module
Bently Nevada 128329-01 Proximitor Seismic I/O Module The Bently Nevada 128329-01, also cataloged as the 128329-01 Proximitor Seismic I/O Module, operates as a dedicated hardware component for signal termination and routing of proximity and seismic sensor inputs within the Bently Nevada 3500 Series Machinery Protection System. The module provides the physical interface between field transducers and the 3500/42M Proximitor Seismic Monitor. Hardware Specifications Parameter Specification Model 128329-01 Brand Bently Nevada Module Type Proximitor Seismic I/O Module with Internal Terminations System Compatibility Bently Nevada 3500 Series, 3500/42M Proximitor Seismic Monitor Supported Channels 4-channel input interface Supported Signal Types Radial vibration, thrust position, eccentricity, velocity, acceleration, differential expansion Input Signal Range -10 VDC to +10 VDC Termination Type Internal terminal blocks Weight Approx. 0.80 kg Dimensions Not specified Operating Temp -30 deg C to +65 deg C Storage Temp -40 deg C to +85 deg C Humidity 95% non-condensing Power Consumption Not specified Origin Not specified Eddy-Current Probe Scaling and Rotor Dynamics Signal Handling The 128329-01 module is configured for machinery monitoring applications requiring direct sensor signal routing to the 3500/42M monitor. The interface supports proximity transducer inputs associated with eddy-current probe measurement systems, where signal scaling and gap voltage validation are processed by the monitoring channel electronics. For proximity measurement circuits, the standard -10 VDC gap voltage target is used as a reference condition for probe operation verification. The module design supports controlled signal transfer for rotor dynamics monitoring functions, including vibration displacement analysis and machine shaft movement evaluation. The internal termination arrangement reduces additional field wiring interfaces and supports consistent sensor connection between the machinery protection rack and external transducers. Signal routing is designed to maintain channel separation and minimize cross-talk effects between vibration measurement circuits. Frequently Asked Questions Q: Is the 128329-01 a standalone vibration monitor? A: No. The 128329-01 is an I/O interface module installed in a Bently Nevada 3500 Series rack. It provides field signal termination and routing to compatible monitor modules such as the 3500/42M. Q: Does the module provide internal field terminations? A: Yes. The 128329-01 includes internal terminal blocks for direct field wiring connection at the rear of the 3500 rack. Q: Can the module process vibration signals independently? A: No. The module performs signal interface functions. Signal conditioning, alarm processing, and monitoring functions are executed by the installed 3500 monitor module. Field Installation Guidelines Install the 128329-01 in the designated rear I/O position of a compatible Bently Nevada 3500 Series rack. Connect field sensor wiring according to the approved system wiring diagram. Maintain proper separation between sensor signal cables and high voltage power conductors to reduce electrical interference. Use shielded instrumentation cables where required by the machinery protection system design. Connect cable shields according to the site grounding standard and avoid creating unwanted ground loops. Verify proximity probe connections, sensor polarity, and gap voltage conditions before placing the monitoring channel into service. Confirm that the installed monitor module configuration matches the connected transducer type and measurement function.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3701/55 323073-01 Relay Output Module
Bently Nevada 3701/55 323073-01 Relay Output Module The Bently Nevada 3701/55 323073-01, also cataloged as the 3701/55 Relay Output Module, operates as a dedicated hardware component for relay contact execution within the Bently Nevada ADAPT ESD system. Hardware Specifications Parameter Specification Model 3701/55 323073-01 Brand Bently Nevada Product Type Relay Output Module System Platform ADAPT ESD System Module Function Relay contact output execution for shutdown and annunciation circuits Relay Contacts 5 relay contacts per module Relay Configuration 2 independent CPU-driven relays, 2 configurable relays, 1 system relay Voting Architecture Supports 2oo3 relay voting configuration Logic Execution Time 2 ms nominal Relay Toggle Time 8 ms System Response Time Less than 10 ms Operating Voltage 18 to 36 VDC Power Consumption 24 W typical, 35 W maximum Operating Temp -30 deg C to +65 deg C Storage Temp -45 deg C to +85 deg C Relative Humidity 0% to 95%, non-condensing Vibration Resistance IEC 60068-1 compliant, 3 g at 3-57 Hz, 5 g at 57-500 Hz Weight Approx. 1.5 kg Dimensions Not specified Housing Material Cast aluminum module housing with industrial protective coating Certifications SIL 3 (IEC 61508), API 670, API 612, ATEX, IECEx, cULus, CE Eddy-Current Signal Processing and Machinery Protection Interface The Bently Nevada 3701/55 platform is designed for machinery protection applications where relay outputs are driven by processed vibration, speed, and shutdown logic signals. The ADAPT ESD architecture supports integration with rotating equipment monitoring functions, including overspeed detection and emergency shutdown execution. The system design supports verification of proximity probe input conditions, including eddy-current probe scaling and gap voltage validation. The typical proximity measurement reference uses -10 VDC gap voltage targets for probe operating range verification. Signal processing functions are configured to maintain rotor dynamics monitoring accuracy and reduce measurement errors caused by cross-talk between adjacent sensing channels. Frequently Asked Questions Q: Does the 323073-01 Relay Output Module support redundant relay operation?A: Yes. The module supports configurable relay arrangements, including 2oo3 voting logic when integrated within the TMR architecture of the ADAPT ESD system. Q: What is the maximum electrical response time of the relay output function?A: The nominal logic execution time is 2 ms, the relay toggle time is 8 ms, and the combined system response time is less than 10 ms. Q: Can the relay output module operate independently without the ADAPT ESD system controller?A: No. The 323073-01 is designed as a system component and requires integration with the ADAPT ESD platform for logic processing and relay control. Field Installation Guidelines Install the relay output module inside an enclosure that meets the required environmental protection level for the application. Verify correct module orientation and mechanical mounting before applying system power. Route relay output wiring separately from high-voltage power cables and high-frequency switching conductors to minimize electrical interference. Use appropriate shield grounding practices for connected machinery protection signal circuits. Confirm relay contact assignments and safety logic configuration before commissioning. Verify proximity monitoring channels, shutdown logic, and relay actuation paths during functional testing. Follow the applicable API 670 machinery protection installation requirements when integrating with rotating equipment systems.
$200.00 $100.00
-
Bently Nevada Bently Nevada 1900/65 167707-01 General Purpose Equipment Monitor
Bently Nevada 1900/65 167707-01 General Purpose Equipment Monitor The Bently Nevada 1900/65 167707-01, also cataloged as the 1900/65 General Purpose Equipment Monitor, operates as a dedicated hardware component for vibration and speed signal monitoring within industrial machinery protection and condition monitoring systems. Hardware Specifications Parameter Specification Model 1900/65 167707-01 Brand Bently Nevada Product Type General Purpose Equipment Monitor Origin USA Weight 1.32 kg Dimensions 19.8 x 15 x 11 cm (shipping size) Operating Temp Not specified Power Consumption Not specified Vibration Variables Accuracy: +/-1% of full-scale range Speed Variables Accuracy: +/-0.5 RPM + 0.015% of reading Speed Measurement Range 100 - 100,000 rpm Speed Measurement Channels Up to 4 speed measurements Voltage Mode Input 3-wire voltage mode, 10 kOhm input impedance Bias Filter 0.09 Hz, 1-pole low-pass filter OK Filter 2.4 kHz, 1-pole low-pass filter Bias Voltage -24 V Eddy-Current Probe Scaling and Rotor Dynamics Signal Processing The 1900/65 monitor processes machinery condition signals associated with vibration and rotational speed measurements. The vibration input architecture supports voltage-based monitoring channels with defined filtering characteristics for dynamic machinery signals. The monitor can be integrated with eddy-current probe measurement systems where probe scaling and gap voltage validation are required for shaft displacement monitoring. The proximity measurement interface requires verification of probe operating conditions, including gap voltage targets commonly referenced around -10 VDC for eddy-current probe systems. Proper probe scaling configuration allows accurate interpretation of shaft movement signals related to rotor dynamics, including vibration amplitude and rotational behavior. The input filtering design provides separation between low-frequency bias components and higher-frequency vibration signals, supporting measurement stability in rotating equipment monitoring applications. Frequently Asked Questions Q: How many speed signals can the 1900/65 167707-01 monitor simultaneously?A: The monitor supports up to 4 speed measurements. The specified speed measurement range is 100 - 100,000 rpm. Q: What type of vibration input signal does the 1900/65 167707-01 support?A: The monitor supports 3-wire voltage mode inputs with a 10 kOhm input impedance. The vibration measurement accuracy is specified as +/-1% of full-scale range. Q: Does the 1900/65 provide probe gap voltage monitoring?A: The monitor supports signal processing associated with proximity measurement systems. Probe installation requires correct gap voltage validation and sensor configuration according to the connected eddy-current probe specifications. Field Installation Guidelines Install the monitor in an enclosure or rack system that provides mechanical protection and appropriate environmental control. Use shielded instrumentation wiring for vibration and speed signal connections to reduce electrical interference. Connect cable shields according to the site grounding practice to minimize signal noise and measurement instability. Separate low-level vibration signal wiring from high-current power cables and switching circuits. Verify sensor wiring polarity, excitation requirements, and signal scaling before commissioning. Confirm proximity probe installation conditions, including mechanical clearance and electrical signal response, before enabling machinery monitoring functions. Ensure all terminal connections are secured and inspected before system startup.
$200.00 $100.00
-
Bently Nevada Bently Nevada 3500/94 VGA Display Module Cable Assembly
Bently Nevada 3500/94 VGA Display Module Cable Assembly Configured for signal transmission and rack-to-display interfacing in the 3500 Machinery Protection System, the Bently Nevada 3500/94 161264-01 (3500/94 VGA Display Module Cable) provides direct physical/electrical execution of video output routing, communication linking, and shielded signal continuity between rack-resident display electronics and external operator visualization devices. Hardware Specifications Parameter Specification Model 3500/94 161264-01 Brand Bently Nevada Weight 0.3 kg Operating Temp -20 deg C to +65 deg C Power Consumption 0 W (passive cable assembly) Cable Type VGA shielded industrial cable Length Options 3 m / 5 m / 10 m Connectors VGA 15-pin + rack interface connector Eddy Current Signal Integrity and EMI Suppression Path The cable assembly maintains controlled impedance pathways for VGA video transmission between rack display electronics and external monitoring terminals. Shielding layers are implemented as continuous EMI/RFI barriers to reduce electromagnetic coupling from adjacent backplane power conductors and high-frequency monitoring channels. In environments with high-density vibration monitoring modules, the cable shielding geometry reduces induced noise currents that may otherwise propagate into display synchronization lines. This maintains stable raster timing and prevents signal distortion under variable electromagnetic field conditions generated by rotating machinery instrumentation systems. Frequently Asked Questions (FAQ) Q: Does the cable carry power for the 3500/94 module?A: No. The cable is used for signal transmission only. Power distribution is handled internally via the 3500 backplane architecture. Q: Can non-shielded VGA cables be substituted?A: No. Non-shielded cables introduce susceptibility to EMI coupling and may result in degraded display synchronization and signal instability. Q: Does cable length affect signal integrity in all configurations?A: Yes. Increasing cable length increases attenuation and susceptibility to external electromagnetic interference, especially in high-noise cabinet environments. Field Installation Guidelines Route VGA cable separately from high-current backplane and power distribution wiring Maintain minimum bend radius to avoid conductor deformation and impedance variation Ensure continuous shield termination at both rack and display end grounding points Avoid cable routing near high-frequency switching modules or relay outputs Secure cable mechanically to prevent vibration-induced connector loosening Verify connector seating alignment before energizing display interface system
$200.00 $100.00
لقد شاهدت 96 من أصل 899 منتجًا
