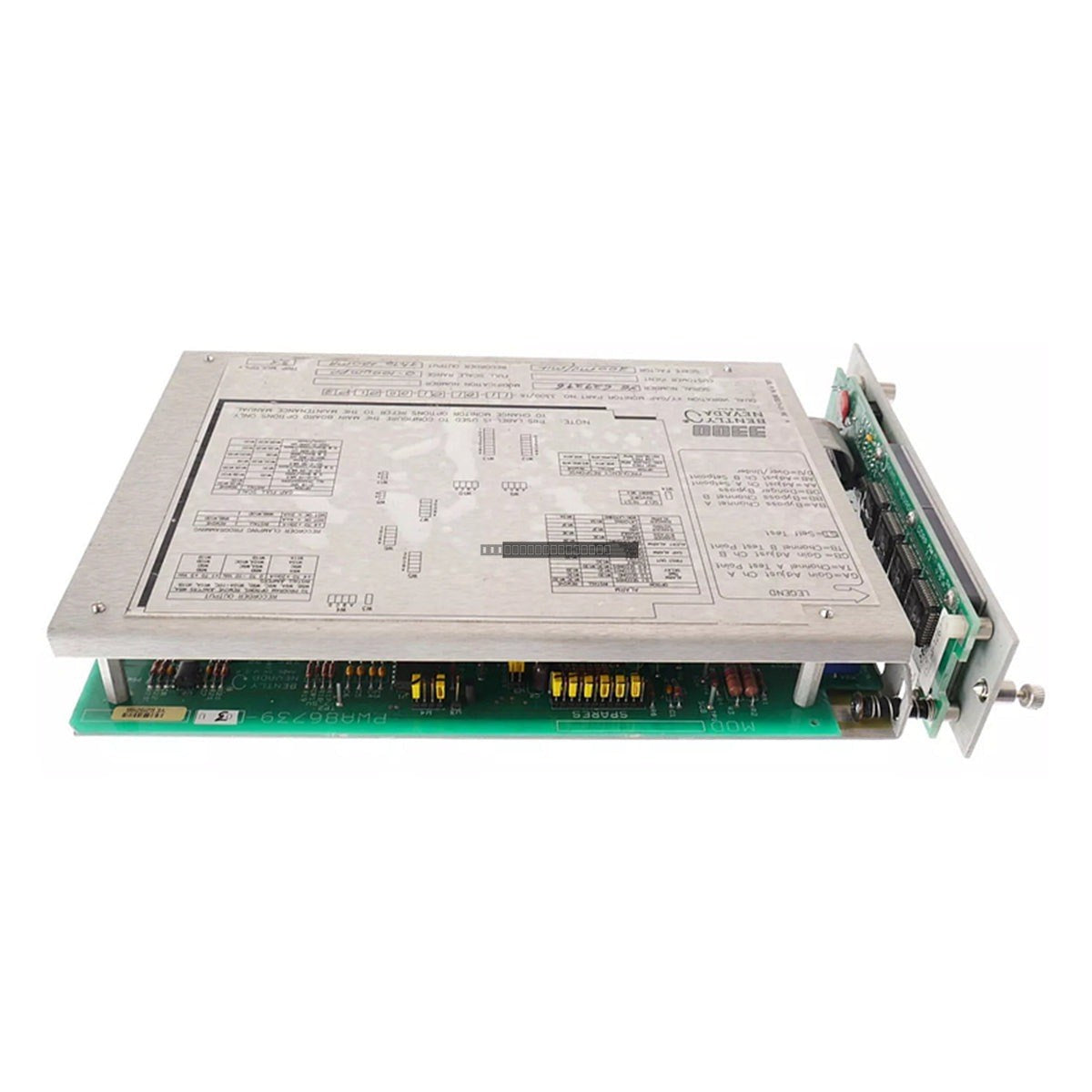

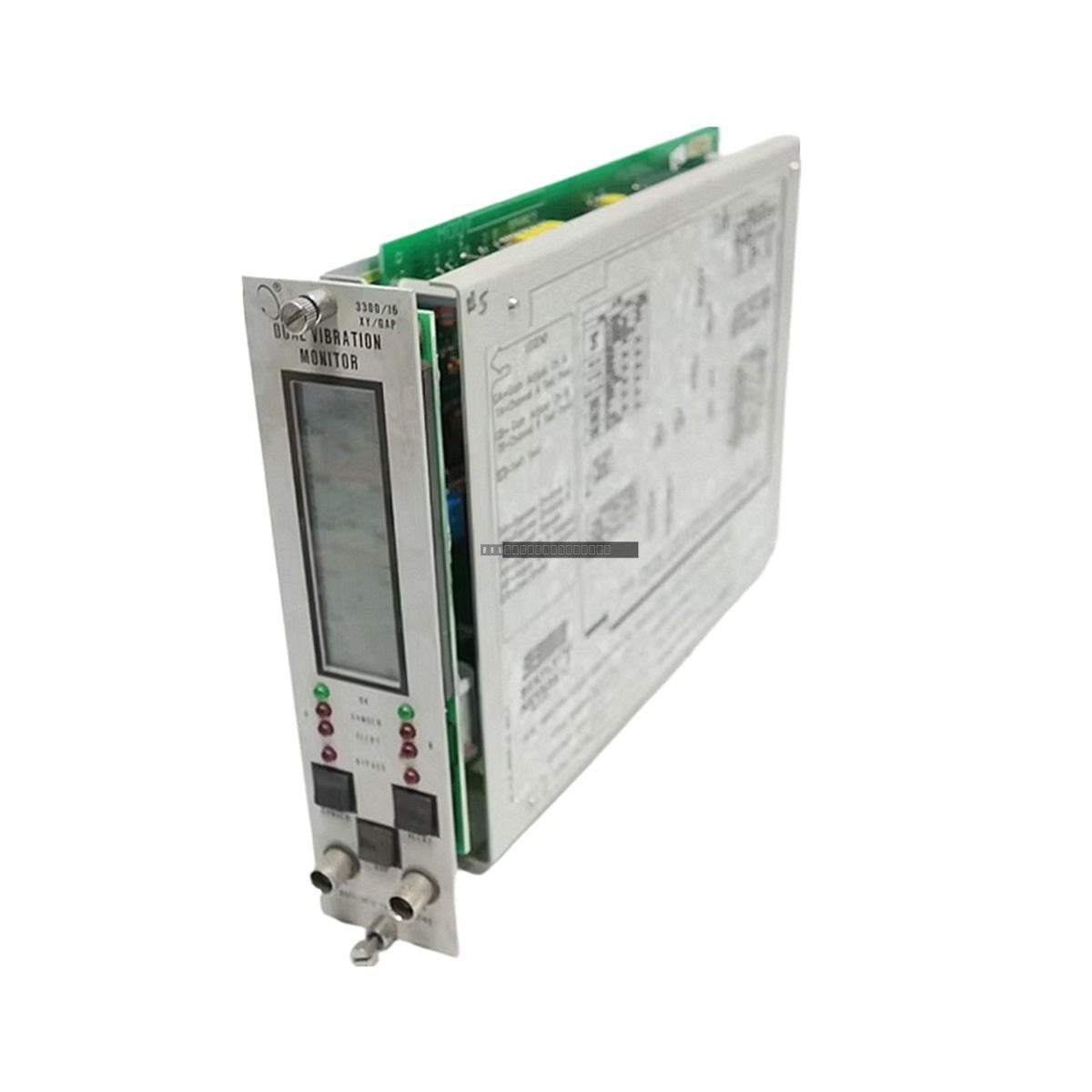

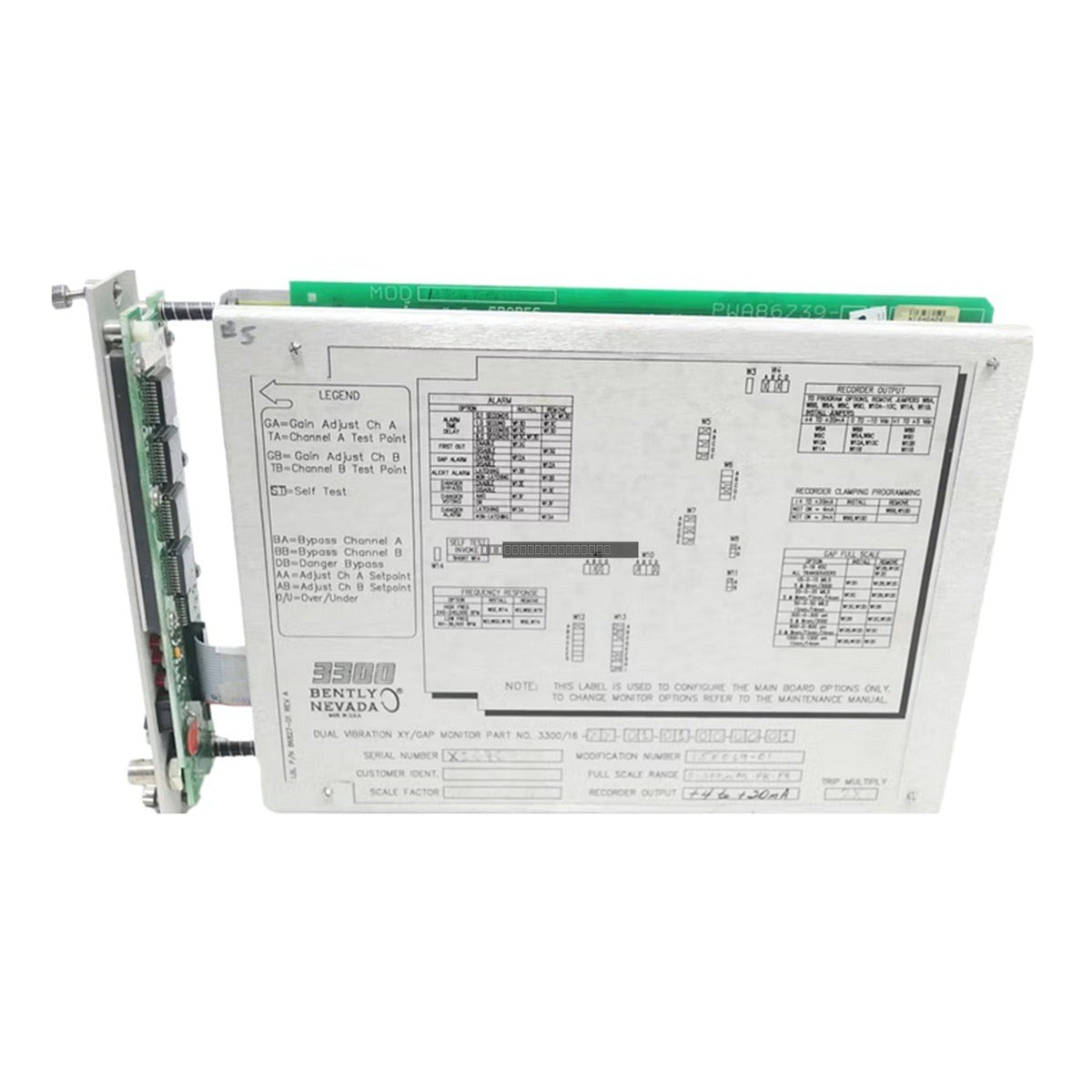

The Bently Nevada 3300/16 Dual Vibration XY/Gap Monitor is a rack-mounted module engineered to provide simultaneous measurement of radial shaft vibration and probe gap voltage. Designed for the 3300 monitoring system, this module continuously evaluates input signals against defined alarm setpoints to ensure the integrity of critical rotating machinery, such as turbines and compressors.

Features

• Dual-channel monitoring for integrated vibration and gap voltage analysis.
• Continuous signal processing with dedicated Alert and Danger alarm setpoints.
• Front-panel LED indicators for system status, including OK, Bypass, Alert, and Danger conditions.
• Compatible with standard proximity probe systems and Proximitor sensors.
• Configurable output signals for integration with external control or data acquisition systems.

Applications

• Radial shaft vibration monitoring for large rotating equipment.
• Proximity probe gap voltage monitoring for machinery health diagnostics.
• Predictive maintenance and protection systems in power generation and petrochemical facilities.

Technical Specifications

Model	3300/16-13-01-00-00-00-00
Brand	Bently Nevada
Series	3300
Operating Temperature	0 to 60 deg C
Power Consumption	1.5 W typical
Signal Accuracy	+/- 0.33% typical, +/- 1% max at 25 deg C
Output Signals	+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC

Installation Guidelines

• Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the rack slot and the front-panel connectors are secured.
• Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the 3300 rack system per site safety standards.
• Handle the module using standard ESD (Electrostatic Discharge) protection practices.

FAQ

What is the primary function of the 3300/16 monitor?

The 3300/16 is designed to monitor radial vibration and probe gap voltage, providing essential data for machinery protection and identifying potential mechanical faults before they lead to failure.

Is this module compatible with existing 3300 racks?

Yes, this module is designed specifically for the Bently Nevada 3300 rack system. Ensure your rack configuration supports the specific power and signal requirements of this module.
