Description

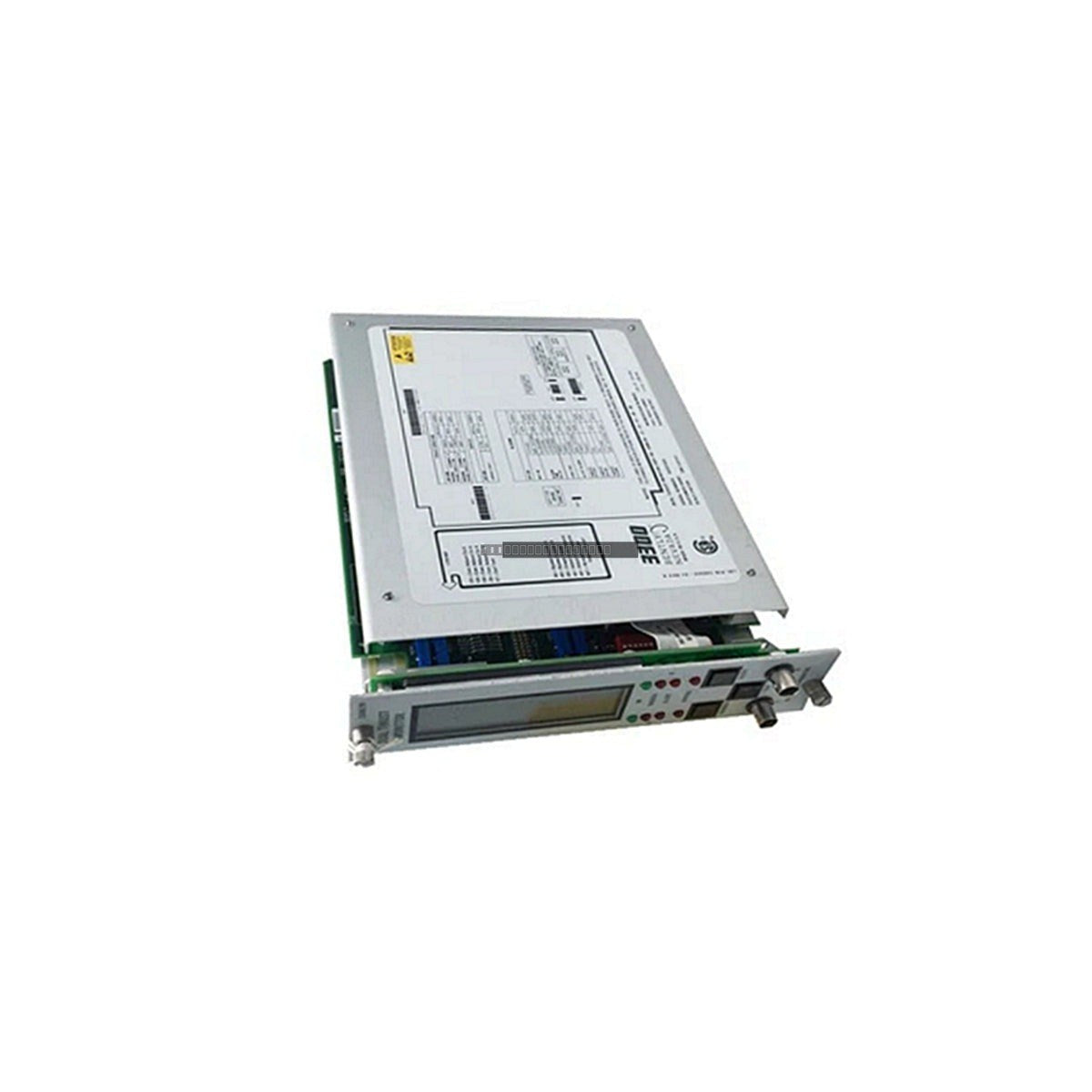

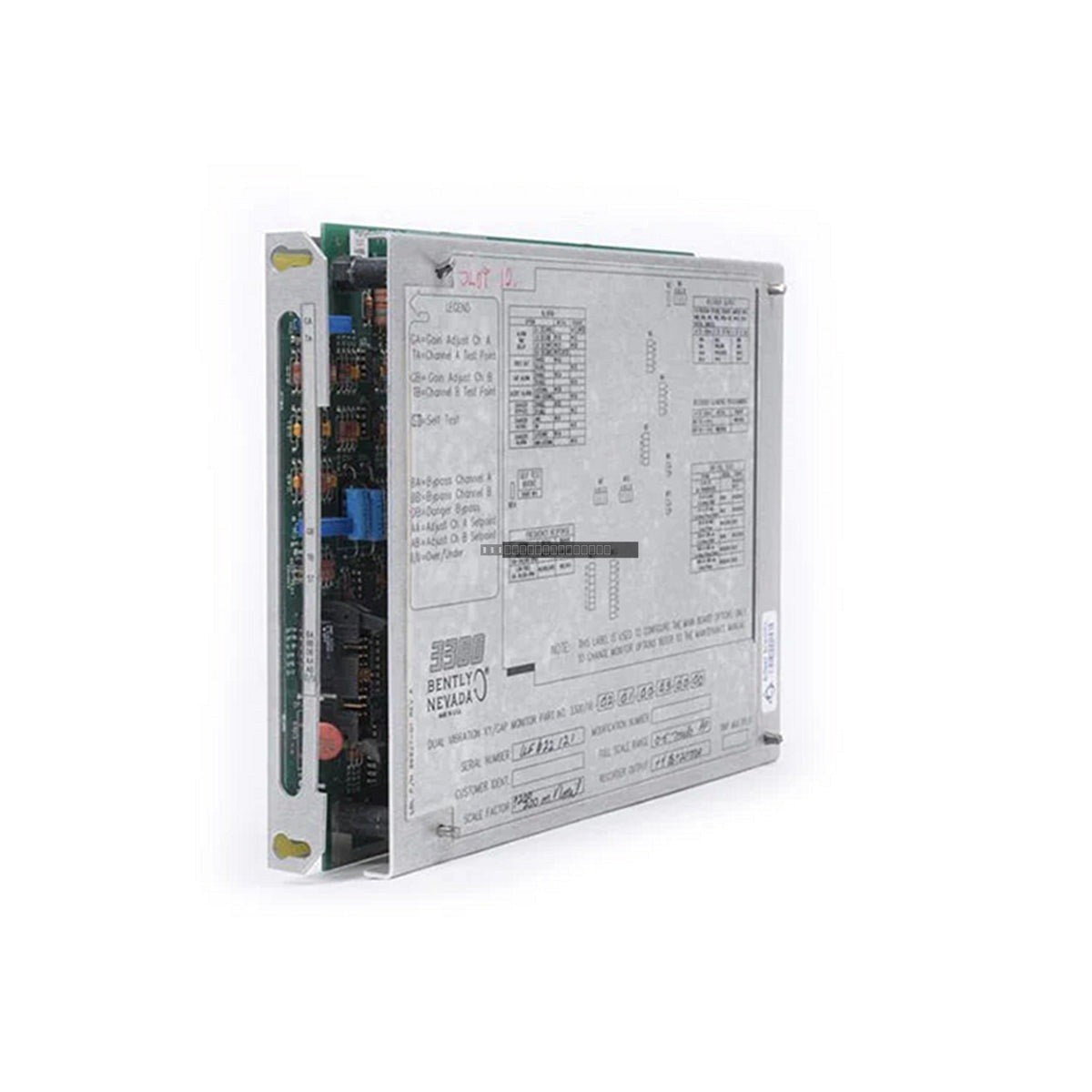

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module within the 3300 Series system, engineered to provide continuous monitoring of radial shaft vibration across two independent channels. This specific configuration, 3300/16-03-01-01-00-00-00, is designed for critical machinery protection in industrial environments such as turbines, compressors, and pumps. It continuously processes vibration signals from proximity probes, comparing them against user-defined alarm setpoints to detect mechanical faults like imbalance, misalignment, or bearing wear.
Features
- Dual-channel monitoring for radial shaft vibration.
- Compatible with standard Proximitor sensors.
- Provides proportional 4-20 mA outputs for integration with external control systems.
- Integrated relay outputs for Alert and Danger alarm conditions.

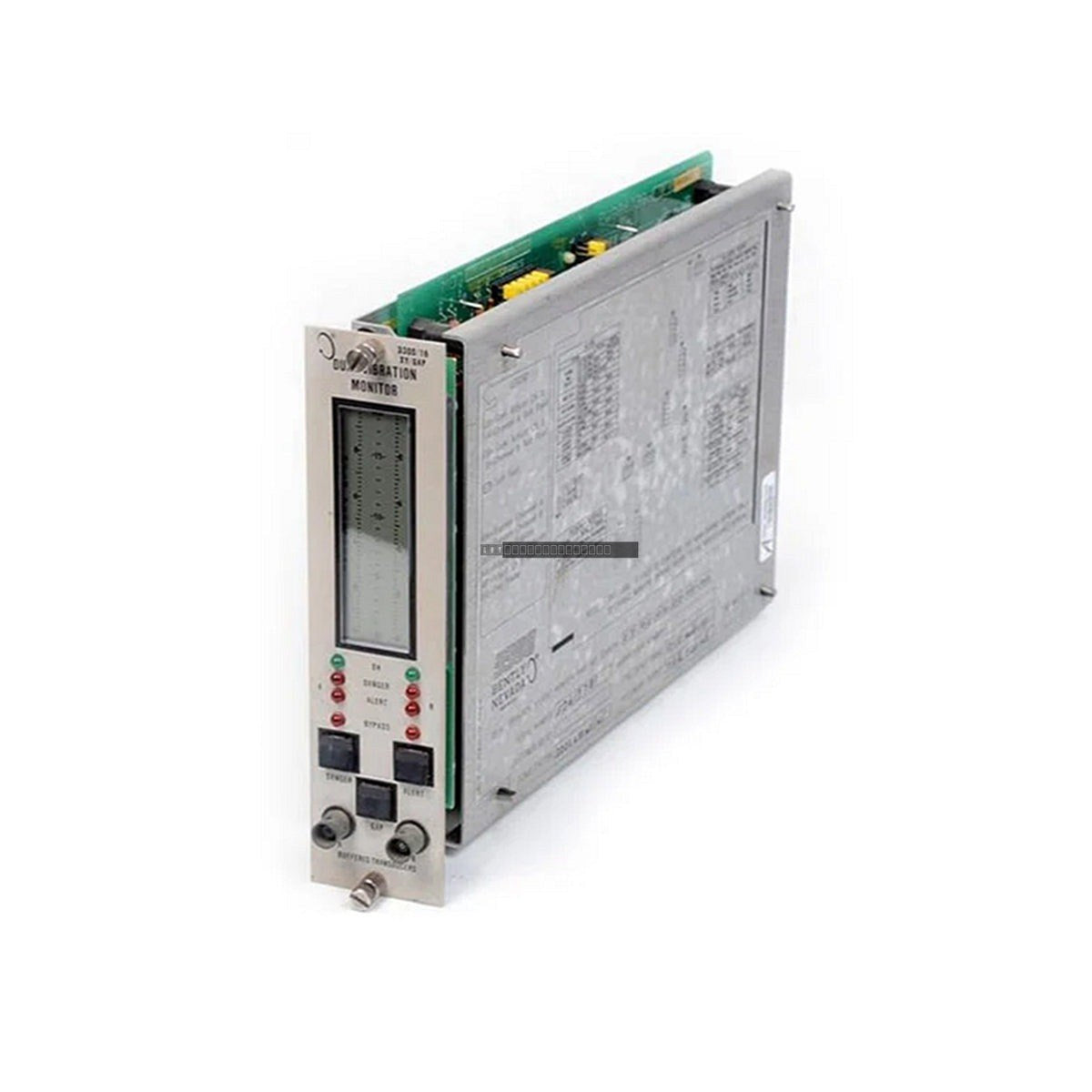

- Front-panel LED indicators for status monitoring (OK, Bypass, Alert, and Danger).
- Continuous signal processing for real-time machinery protection.
Applications
This monitor is primarily utilized in the protection of rotating machinery, including:
- Steam and gas turbines
- Centrifugal compressors
- Large industrial pumps
- Motors and gearboxes
Technical Specifications
| Model |
3300/16-03-01-01-00-00-00 |
| Brand |
Bently Nevada |
| Series |
3300 |
| Inputs |
Two independent proximity probe channels |
| Outputs |
Dynamic vibration, 4-20 mA, Relay (Alert/Danger) |
| Operating Temperature |
-30 degC to +65 degC |
| Power Consumption |
6 W (typical) |
Installation Guidelines
- Ensure the 3300 rack is properly grounded according to site electrical standards.
- Handle with care to prevent electrostatic discharge (ESD) damage to internal circuitry.
- Verify that the module is fully seated in the rack slot before applying power.
- Use shielded cabling for transducer inputs to minimize electromagnetic interference (EMI).
- Maintain adequate ventilation around the rack to ensure operating temperatures remain within the specified -30 degC to +65 degC range.
- Always power down the rack before inserting or removing the monitor module.
FAQ
What does the 3300/16-03-01-01-00-00-00 model code indicate?
The code specifies a dual vibration monitor with standard industrial approvals, configured for proximity probe inputs, standard relay outputs, and a standard measurement range with no custom modifications.
Can this module be used for XY vibration monitoring?
Yes, the 3300/16 is designed to monitor two independent channels, making it suitable for XY vibration measurement configurations on rotating shafts.
