توفر سلسلة GE Mark VIe تحكمًا متقدمًا للتوربينات والآلات الحيوية. تتميز هذه الأنظمة بدقة التنظيم، وموثوقية عالية، وسهولة التكامل مع حلول الأتمتة الصناعية، مما يساعد على الحفاظ على استقرار العمليات وحماية الأصول.
جي إي مارك 6
-

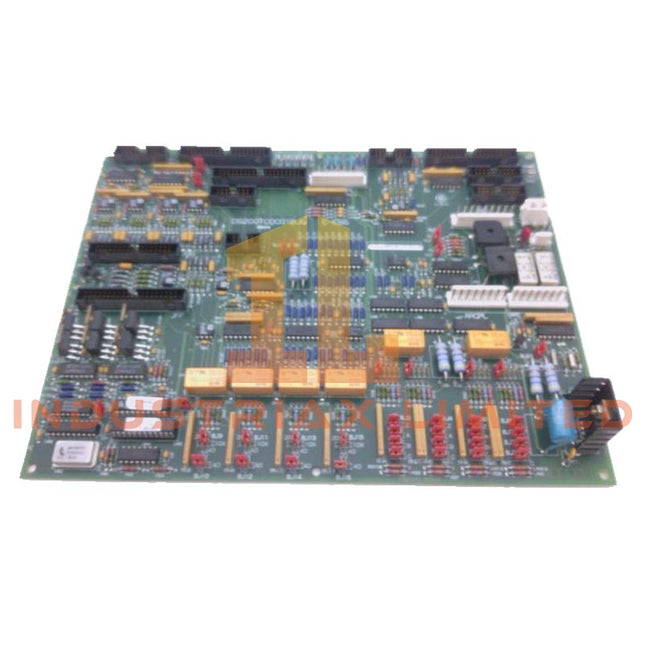

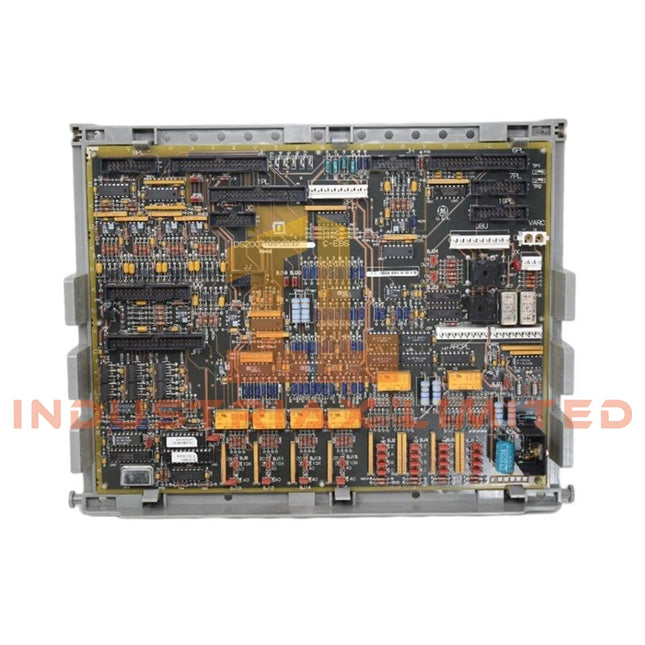

General Electric GE DS200TCQBG1BCB Analog I/O Board
GE DS200TCQBG1BCB Analog I/O Board The GE DS200TCQBG1BCB, also cataloged as the DS200TCQB Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition, conditioning, and output execution within GE Mark V Speedtronic turbine control systems. Hardware Specifications Parameter Specification Model DS200TCQBG1BCB Brand GE Origin United States Weight 1.0 kg Dimensions 280 x 200 x 30 mm Operating Temp -30 to +65 deg C Power Consumption +5 VDC, 6 A Product Type Analog I/O Boards Series Mark V Functional Acronym TCQB Functional Description RST Extended Analog I/O Board Analog Inputs 8 channels, configurable for 4-20 mA or 0-10 V Analog Outputs 4 channels, +/-10 V or 4-20 mA Resolution 12-16 bit ADC/DAC depending on revision Accuracy +/-0.5% FS Relay Channels 12 channels Field Power Supply 28 VDC Isolation 2500 VAC field-to-logic isolation Connectors Ribbon cable connectors and field terminal blocks GE Mark V Analog Signal Processing and Network Integration The DS200TCQBG1BCB performs analog input acquisition and analog output generation within the GE Mark V control architecture. The board processes field sensor and actuator signals through onboard signal conditioning circuits before exchanging data with Mark V processor modules. The TCQB board supports GE industrial control requirements through I/O density scaling and backplane communication between control modules. Analog channels are configured for current and voltage signal types, allowing connection to turbine instrumentation and control devices. Firmware and hardware compatibility must match the installed Mark V system configuration. Board revision identifiers define supported hardware behavior, including backwards compatibility with earlier TCQB revisions. Frequently Asked Questions Q: What analog signal types are supported by the GE DS200TCQBG1BCB?A: The board supports configurable analog inputs including 4-20 mA and 0-10 V signals, with analog outputs available in +/-10 V and 4-20 mA formats. Q: What power supply rails are required for the DS200TCQBG1BCB?A: The board requires +5 VDC logic power at 6 A and uses analog supply rails for signal processing functions. Q: Is the DS200TCQBG1BCB compatible with non-GE control systems?A: No. The board is designed for GE Mark V Speedtronic systems and requires the corresponding rack, processor modules, and communication interfaces. Field Installation Guidelines Install the DS200TCQBG1BCB according to the GE Mark V rack and wiring configuration requirements. Verify terminal assignments before connecting analog field devices. Use shielded instrumentation cables for low-level analog signals where required. Connect cable shields according to the site grounding standard to reduce electromagnetic interference. Maintain separation between analog signal wiring and high-current power conductors. Before installation, inspect ribbon connectors, terminal blocks, and PCB surfaces for damage or contamination. Apply ESD protection when handling the board. Confirm board revision compatibility and verify analog channel operation after installation and system initialization.
$200.00 $100.00
-

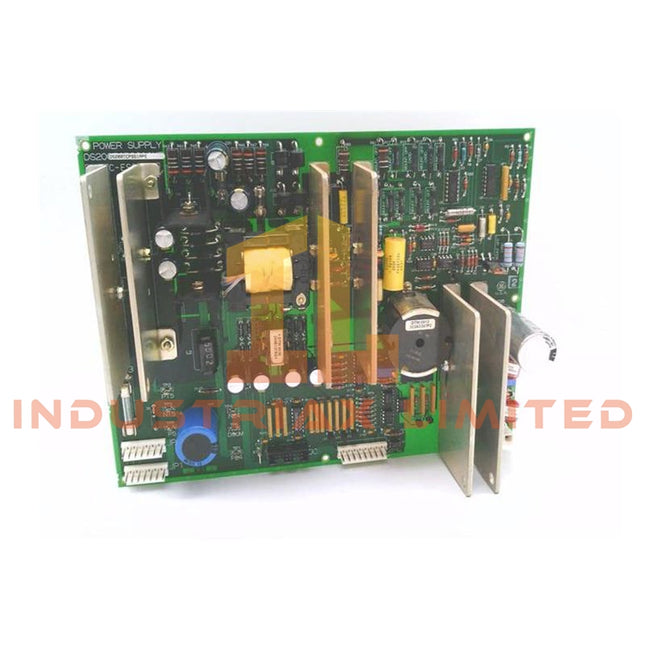

General Electric GE DS200TCPSG1APE Power Supply Board
GE DS200TCPSG1APE Power Supply Board The GE DS200TCPSG1APE, also cataloged as the DS200TCPS Power Supply Board, operates as a dedicated hardware component for regulated DC power conversion and voltage rail distribution within GE Mark V Speedtronic turbine control systems. Hardware Specifications Parameter Specification Model DS200TCPSG1APE Brand GE Origin United States Weight 2.60 lbs Dimensions 280 x 200 x 30 mm Operating Temp -30 to +65 deg C Product Type Power Supply Boards Functional Acronym TCPS Functional Description DC Power Supply Input Board Input Voltage 115/230 VAC, 50/60 Hz DC Outputs +5 VDC @ 15 A, +15 VDC @ 2 A, -15 VDC @ 2 A, +24 VDC @ 1 A Regulation Accuracy +/-2% Ripple and Noise <50 mV RMS Isolation 2500 VAC input-to-output isolation Protection Functions Overvoltage, overcurrent, and thermal shutdown Connectors Backplane edge connector and terminal blocks Cooling Method Convection cooling with optional forced air PCB Coating Normal coating Assembly Type Normal Assembly GE Mark V Power Distribution and Firmware Compatibility The DS200TCPSG1APE provides regulated DC voltage rails for GE Mark V processor and I/O control boards. The board converts incoming AC power into controlled DC outputs required by system modules, including logic and analog supply rails. The power architecture supports GE industrial control platforms through backplane power distribution. Voltage rail monitoring is provided through onboard LED indicators for status verification of the generated supplies. For GE Mark V systems, firmware and hardware revision compatibility must be verified before replacement. The DS200TCPSG1APE includes revision identifiers that define board configuration and compatibility with installed Mark V assemblies. Frequently Asked Questions Q: What DC voltage outputs are generated by the GE DS200TCPSG1APE?A: The board provides regulated +5 VDC, +15 VDC, -15 VDC, and +24 VDC output rails for Mark V control modules. Q: What protection functions are integrated into the DS200TCPSG1APE power supply board?A: The board includes overvoltage protection, overcurrent protection, and thermal shutdown functions for power circuit protection. Q: Can the DS200TCPSG1APE be installed in systems other than GE Mark V?A: No. The board is designed for GE Mark V Speedtronic control systems and requires compatible rack hardware and power distribution connections. Field Installation Guidelines Install the DS200TCPSG1APE in the designated GE Mark V rack position and verify backplane connector alignment before energizing the system. Disconnect input power before board replacement. Inspect terminal blocks, edge connectors, and PCB surfaces for contamination or mechanical damage before installation. Maintain separation between AC input wiring and low-level control signal cables to reduce electrical interference. Follow site grounding procedures for protective earth and shield termination. Use ESD protection when handling the board to prevent damage to power control and monitoring circuits. Confirm voltage rail output measurements and board revision compatibility before returning the Mark V control system to operation.
$200.00 $100.00
-
General Electric GE DS200STBAG1ACB Signal Terminal Board
GE DS200STBAG1ACB Signal Terminal Board Configured for field signal termination and electrical interfacing in GE Mark V Speedtronic turbine control systems, the GE DS200STBAG1ACB (DS200STBA Signal Terminal Board) provides direct physical connection between analog, digital, and drive-related field wiring circuits and processor control modules. Suffix Breakdown & Model Matrix Segment Description DS200 GE Mark V Speedtronic control board family STBA Signal Terminal Board functional acronym G1 Board group / hardware configuration identifier A Functional revision 1 C Functional revision 2 B Artwork revision Hardware Specifications Parameter Specification Model DS200STBAG1ACB Brand GE Origin United States Weight 0.73 lbs Dimensions 280 x 200 x 30 mm Operating Temp -30 to +65 deg C Power Consumption Not specified; powered from Mark V control rack supply Product Type Signal Terminal Boards Functional Acronym STBA Application Platform GE Mark V Speedtronic turbine control system Signal Inputs Analog 4-20 mA, 0-10 V signals and digital 24 VDC signals Signal Outputs Relay and analog output termination interfaces Terminal Interface Field wiring terminal blocks and ribbon cable connectors Isolation 2500 VAC field-to-logic isolation Power Supply +5 VDC logic and +/-15 VDC analog supply rails PCB Coating Normal coating Indicators LED signal activity indicators GE Mark V Signal Interface and Network Integration The DS200STBAG1ACB functions as a field termination interface within GE Mark V control architecture. It provides terminal access for multi-input and multi-output signal circuits, including analog measurement channels, digital status signals, and drive-related wiring connections. The board supports GE industrial control integration through dedicated terminal connections and processor board interfaces. The terminal design separates field wiring from internal control electronics, while the 2500 VAC field-to-logic isolation specification defines the electrical separation between external circuits and controller logic domains. For GE Mark V systems, firmware and hardware compatibility must match the installed control configuration. Board revision identifiers, including functional revision and artwork revision, define the applicable hardware configuration. Frequently Asked Questions Q: What type of signals can the GE DS200STBAG1ACB terminate?A: The DS200STBAG1ACB provides termination interfaces for analog signals such as 4-20 mA and 0-10 V, as well as digital 24 VDC field signals. Q: Does the DS200STBAG1ACB provide electrical isolation between field wiring and control logic?A: Yes. The board specification includes 2500 VAC field-to-logic isolation between external signal circuits and internal control electronics. Q: Is the DS200STBAG1ACB compatible with non-GE control platforms?A: No. The board is designed for GE Mark V Speedtronic turbine control systems and requires the corresponding GE rack, processor modules, and wiring configuration. Field Installation Guidelines Install the DS200STBAG1ACB in the designated GE Mark V rack assembly and verify terminal block assignments before connecting field wiring. Separate low-level analog signal cables from high-current power conductors to reduce electrical noise coupling. Use shielded instrumentation cables where required, with cable shields terminated according to site grounding practices. Inspect terminal contacts, ribbon cable connectors, and PCB surfaces before installation. Handle the board using ESD protection procedures to prevent damage to logic components. Confirm board revision compatibility with the existing Mark V hardware configuration before system startup.
$200.00 $100.00
-
General Electric DS200SDCIG1AFB GE Drive Control Card
GE DS200SDCIG1AFB Drive Control Card The GE DS200SDCIG1AFB, also cataloged as the DS200SDCI Drive Control Card, operates as a dedicated hardware component for drive control processing, signal conditioning, and module communication within GE Mark V Speedtronic turbine control systems. Hardware Specifications Parameter Specification Model DS200SDCIG1AFB Brand GE Origin United States Weight 1.2 kg Operating Temp -30 to +65 deg C Product Type Drive Control Card / Processor Board Processor 16-bit Motorola MC68xxx series CPU Memory EPROM firmware storage and RAM runtime memory I/O Interface Analog and digital signal interfaces through daughter boards Communication Ports RS-232 / RS-485 serial communication interfaces Bus Interface GE Mark V backplane connection Power Input +5 VDC logic and +/-15 VDC analog supply rails Isolation 2500 VAC field-to-logic isolation PCB Protection Conformal coating for dust and moisture resistance Diagnostic Interface On-board LED status and fault indicators GE Mark V Drive Control and Communication Architecture The DS200SDCIG1AFB provides processor-based execution for GE Mark V turbine control drive functions. The board performs signal processing operations, executes stored control firmware, and exchanges data with other Mark V control modules through the rack backplane interface. The board architecture includes EPROM-based firmware storage and RAM memory for runtime calculations. Serial communication channels support diagnostic access and configuration functions through RS-232 and RS-485 interfaces. For GE industrial control platforms, firmware flash and memory compatibility must match the installed Mark V system configuration. Incorrect firmware revision matching can affect board initialization and module communication behavior. Frequently Asked Questions Q: What processor architecture is used on the GE DS200SDCIG1AFB?A: The DS200SDCIG1AFB uses a 16-bit Motorola MC68xxx series processor for drive control execution and signal processing tasks. Q: What power supply rails are required by this control card?A: The board operates from Mark V rack power rails, including +5 VDC logic supply and +/-15 VDC analog supply rails. Q: Can the DS200SDCIG1AFB operate outside a GE Mark V rack system?A: No. The card is designed for integration within GE Mark V Speedtronic control racks and requires compatible backplane communication and firmware configuration. Field Installation Guidelines Install the DS200SDCIG1AFB only in the designated GE Mark V rack slot with the correct mechanical alignment and backplane connection. Before handling the board, apply ESD protection procedures to prevent damage to processor, memory, and communication circuits. Verify that the EPROM firmware version matches the target control system configuration before replacement. Route signal wiring separately from high-current power conductors to reduce electrical interference. Maintain proper cable shielding practices, with shield termination connected according to the site grounding standard. Ensure connectors are fully seated and inspect the card edge contacts for contamination before system startup.
$200.00 $100.00
-
General Electric GE DS200SIOBG1AAA Serial I/O Board
GE DS200SIOBG1AAA Serial I/O Board Configured for field signal acquisition and serial communication in GE Mark V Speedtronic turbine control systems, the GE DS200SIOBG1AAA (DS200SIOB Serial I/O Board) provides direct physical/electrical execution for digital I/O, analog signal conversion, and RS-232/RS-485 data exchange between field devices and control processors. Hardware Specifications Parameter Specification Model DS200SIOBG1AAA Brand GE General Electric Origin United States Weight 0.58 kg Dimensions 250 x 180 x 30 mm Operating Temp -30 to +65 deg C Power Consumption 0.3 A @ 5 VDC logic supply Product Type Serial I/O Board Series Mark V Speedtronic Digital Inputs 16 channels, 24 VDC, 3.3 kOhm input impedance Digital Outputs 8 channels, 24 VDC, 0.5 A maximum Analog Inputs 4 channels, 4-20 mA or 0-10 V Analog Outputs 2 channels, 4-20 mA Serial Communication Ports 2 x RS-232/RS-485 ports Serial Baud Rate 300-38,400 bps Processor 16-bit CPU with ADC/DAC signal processing Memory 128 KB flash configuration memory Isolation Voltage 2500 VAC field-to-logic isolation External Power Supply 24 VDC Indicators 8 LED indicators for power, run, fault, and I/O status Storage Temp -40 to +85 deg C PCB Protection Standard coating, conformal coating optional Compliance UL, CSA certified GE Mark V Industrial Control Interface Characteristics The DS200SIOBG1AAA integrates digital and analog signal handling with serial communication functions within GE Mark V control architectures. The board provides 16 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs for connection to field sensors, actuators, and auxiliary control circuits. The embedded 16-bit processor performs signal processing through integrated ADC and DAC functions. The dual RS-232/RS-485 interfaces support serial device communication with configurable baud rates, allowing data exchange between connected control components. Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling As part of the GE Mark V industrial control platform, the DS200SIOBG1AAA follows structured I/O density scaling through combined discrete, analog, and serial interfaces. The board architecture provides centralized field signal collection while maintaining electrical isolation between external wiring and control logic. The 2500 VAC field-to-logic isolation separates external devices from internal processing circuits. Connectorized board integration supports cabinet-based installation and structured signal routing within turbine control systems. Frequently Asked Questions Q: What communication interfaces are available on the DS200SIOBG1AAA?A: The board provides two independent RS-232/RS-485 serial communication ports with configurable baud rates from 300 to 38,400 bps. Q: What types of field signals can the DS200SIOBG1AAA process?A: The board supports 24 VDC digital inputs, 24 VDC digital outputs, 4-20 mA or 0-10 V analog inputs, and 4-20 mA analog outputs. Q: Does the DS200SIOBG1AAA provide electrical isolation?A: Yes. The board provides 2500 VAC field-to-logic isolation between external signal circuits and internal control electronics. Field Installation Guidelines Install the DS200SIOBG1AAA in the designated GE Mark V control cabinet position and verify board orientation before connection. Confirm all field wiring assignments for digital inputs, outputs, and analog channels according to the applicable system drawings. Use shielded cables for low-level analog signals where required. Route communication wiring separately from high-current power cables to reduce electromagnetic interference. Connect cable shields according to the cabinet grounding design. Before board replacement, document existing connector locations and signal assignments. After installation, verify LED status indicators, serial communication parameters, and I/O signal operation through the Mark V diagnostic interface.
$200.00 $100.00
-
General Electric GE DS200TCRAG1ACC Relay Output Board
GE DS200TCRAG1ACC Relay Output Board The GE DS200TCRAG1ACC, also cataloged as the DS200TCRA Relay Output Board, operates as a dedicated hardware component for relay signal switching and field device control within GE Mark V Speedtronic turbine control systems. It provides isolated relay outputs for actuators, solenoids, alarms, and auxiliary equipment interfaces. Hardware Specifications Parameter Specification Model DS200TCRAG1ACC Brand GE General Electric Origin United States Weight 0.85 kg Dimensions 259 x 191 x 30 mm Operating Temp -40 to +65 deg C Power Consumption Not specified Product Type Relay Output Board Series Mark V Speedtronic Functional Acronym TCRA Relay Channels 16-30 relay outputs depending on revision Relay Type SPDT Form C mechanical relays Contact Rating 5 A @ 250 VAC / 30 VDC Isolation Protection 2.5-5 kV RMS Relay Contacts Gold-plated contacts Contact Life 500,000+ operations Response Time <10 ms Indicators LED status indication per relay channel Power Supply 24 V DC relay coil supply; backplane +5 VDC and +/-15 VDC Connectors 4 x 34-pin connectors, 4 x 12-pin connectors, 34-pin terminal block PCB Coating Normal coating Storage Temp -40 to +85 deg C Humidity Range 10-95% non-condensing Compliance UL, CSA, SIL2 GE Mark V Relay Output Switching Characteristics The DS200TCRAG1ACC provides relay-based discrete output switching between Mark V control logic and external field circuits. The board uses isolated mechanical relay channels with gold-plated contacts to control external actuators, alarm circuits, and auxiliary equipment. The relay output architecture supports industrial control applications requiring electrical separation between control electronics and field loads. Channel status LEDs provide local indication of relay activation states for maintenance diagnostics. For GE Mark V system integration, the board operates through backplane communication and connector interfaces associated with Group 1 control assemblies. The DS200TCRAG1ACC supports firmware and hardware compatibility within defined Mark V module configurations. Deterministic Relay Control and I/O Interface The DS200TCRAG1ACC applies relay output switching logic within GE industrial control architectures. The isolated relay channels provide separation between low-level control signals and external electrical loads. The board supports discrete I/O density scaling through multiple relay channels, allowing turbine control systems to manage multiple field devices from a single terminal board assembly. Connectorized field wiring supports structured cabinet installation and signal distribution. Frequently Asked Questions Q: What type of outputs are provided by the DS200TCRAG1ACC?A: The board provides mechanical SPDT Form C relay outputs for switching external field devices such as actuators, solenoids, alarms, and auxiliary equipment. Q: Does the DS200TCRAG1ACC provide electrical isolation between control and field circuits?A: Yes. The relay output channels provide galvanic separation between Mark V control electronics and connected field circuits. Q: What diagnostic functions are available on the relay output board?A: Each relay channel includes an LED indicator for local relay status monitoring during operation and maintenance procedures. Field Installation Guidelines Install the DS200TCRAG1ACC within the designated GE Mark V control cabinet slot and verify connector orientation before insertion. Confirm all relay output wiring assignments against system drawings before energizing external field circuits. Maintain separation between relay output wiring and sensitive analog signal cables to reduce electrical interference. Ground cable shields according to cabinet grounding practices where shielded field wiring is applied. Before replacing the board, record existing connector positions and relay channel assignments. After installation, verify LED status indications and confirm correct field device activation through the Mark V control interface.
$200.00 $100.00
-
General Electric GE DS200QTBAG1ADC Analog I/O Terminal Board
GE DS200QTBAG1ADC Analog I/O Terminal Board The GE DS200QTBAG1ADC, also cataloged as the DS200QTBA Analog I/O Terminal Board, operates as a dedicated hardware component for analog signal termination and conditioning within GE Mark V Speedtronic turbine control systems. It interfaces with LVDT feedback, servo valve outputs, magnetic pulse inputs, and generator power signals through field wiring connections. Hardware Specifications Parameter Specification Model DS200QTBAG1ADC Brand GE Energy Origin United States Weight 0.40 kg Dimensions 25.9 x 16.0 x 6.4 cm Operating Temp -40 to +85 deg C Power Consumption Not specified Product Type Analog I/O Terminal Board Series Mark V Speedtronic / EX2000 Configuration Signal Inputs 6 magnetic pulse frequency inputs, 0-10 kHz LVDT Channels 6 channels with 5 kHz / 10 VAC excitation Servo Outputs 8 channels, 4-20 mA / +/-10 V outputs Resolution 16-bit analog resolution Analog Accuracy +/-0.5% Servo Output Accuracy +/-0.05% Response Time <=5 ms Isolation Voltage 1000 V AC continuous Surge Protection 130 V AC MOV protection per channel Connectors 2 terminal blocks with 72 signals each, 1 x 40-pin JFF connector Communication Interface RS-232 / RS-485 diagnostic port PCB Protection Conformal coating with EMI resistance Hot-Swap Capability Supported Diagnostics LED signal status indicators GE Mark V Analog Signal Interface Characteristics The DS200QTBAG1ADC terminal board provides signal routing and conditioning functions between field devices and GE Mark V control modules. The board processes analog feedback loops including LVDT actuator position signals, servo valve command outputs, turbine speed pulse signals, and generator measurement inputs. The analog channels support 16-bit conversion resolution for turbine control signal processing. LVDT interface circuits provide excitation and feedback demodulation functions for actuator position measurement. Servo output channels support electro-hydraulic valve command transmission with fast signal response characteristics. The board architecture supports deterministic signal handling within Mark V turbine control configurations. Terminal connections provide field wiring termination, while the JFF connector provides internal control system interface connections. Frequently Asked Questions Q: What field signals can the DS200QTBAG1ADC process?A: The board supports LVDT feedback channels, magnetic pulse frequency inputs, servo valve analog outputs, and generator power transmitter signals within Mark V control configurations. Q: Does the DS200QTBAG1ADC support hot swapping?A: The board supports hot-swap capability. Field replacement procedures must follow GE Mark V system maintenance requirements to avoid signal calibration or wiring errors. Q: What type of diagnostic interface is available on this terminal board?A: The board provides LED status indicators and RS-232/RS-485 serial communication connections for diagnostic monitoring. Field Installation Guidelines Install the DS200QTBAG1ADC according to GE Mark V cabinet wiring procedures. Verify terminal block assignments before connecting field devices, especially for LVDT excitation, servo outputs, and pulse input circuits. Use shielded cables for analog signal wiring where required. Connect cable shields according to the cabinet grounding scheme to reduce electromagnetic interference on low-level feedback signals. Separate analog signal cables from high-current power conductors and switching circuits. Confirm connector seating, terminal torque, and board alignment before system energization. During replacement operations, record existing wiring positions and verify signal calibration after installation.
$200.00 $100.00
-
General Electric GE DS200PTBAG1BBA Terminal Board
GE DS200PTBAG1BBA Terminal Board The GE DS200PTBAG1BBA, also cataloged as the DS200PTBA Terminal Board, operates as a dedicated hardware component for field signal termination and protection circuit routing within the GE Mark V Speedtronic turbine control system. The board provides physical wiring interfaces for turbine sensors, actuators, and auxiliary devices connected to processor boards. Hardware Specifications Parameter Specification Model DS200PTBAG1BBA Brand GE Origin USA Weight 0.50 kg Dimensions 280 x 200 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption Passive terminal interface board, no dedicated power consumption Board Type Terminal Board Functional Acronym PTBA System Platform GE Mark V Speedtronic Turbine Control System Product Series Mark V Speedtronic Functional Description Protection Termination Module Supported Signals Analog signals and discrete input/output circuits Terminal Interface Multiple screw-type field wiring terminals Isolation Galvanic isolation between field and logic interfaces Mounting Type Panel-mounted in Mark V cabinet Assembly Type Normal Assembly PCB Protection Conformal coating I/O Density Scaling and Protection Signal Routing The DS200PTBAG1BBA provides the termination layer for protection-related field circuits in the GE Mark V architecture. The board organizes external wiring connections from sensors, actuators, and auxiliary devices before signal transfer to control processing modules such as TCRA, TCCB, and TCDA. The PTBA terminal interface supports I/O density scaling by providing structured connection points for multiple turbine control circuits. The passive wiring design maintains signal separation and allows integration with different Mark V processor boards through defined terminal assignments. Frequently Asked Questions Q: Is the DS200PTBAG1BBA a signal processing module?A: No. The PTBA is a passive protection termination module used for field wiring connection and signal routing. Q: What type of field devices can be connected through the terminal board?A: The board supports wiring connections for turbine sensors, actuators, auxiliary devices, and analog/discrete I/O circuits according to the Mark V cabinet configuration. Q: Does the DS200PTBAG1BBA require firmware configuration?A: No. The terminal board does not contain a processor or firmware storage and functions as a hardware termination interface. Field Installation Guidelines Install the DS200PTBAG1BBA at the specified GE Mark V cabinet mounting location and verify terminal identification before connecting field wiring. Confirm screw terminal connections are tightened according to approved cabinet wiring procedures. Route field signal cables separately from high-current power conductors and switching circuits to reduce electromagnetic interference. Use shielded instrumentation wiring where required and connect cable shields according to the cabinet grounding arrangement. Before replacement or maintenance, isolate system power and verify field circuits are de-energized. Confirm terminal assignments, connector references, and revision compatibility before returning the control system to operation.
$200.00 $100.00
-
General Electric GE DS200TBQBG1ACB Terminal Board
GE DS200TBQBG1ACB Terminal Board The GE DS200TBQBG1ACB, also cataloged as the DS200TBQB Terminal Board, operates as a dedicated hardware component for field signal termination and I/O routing within the GE Mark V Speedtronic turbine control system. The board provides physical connection points for analog and discrete signals between field devices and control electronics. Hardware Specifications Parameter Specification Model DS200TBQBG1ACB Brand GE Origin USA Weight 0.48 kg Dimensions 280 x 200 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption Passive terminal interface board, no dedicated power consumption Board Type Terminal Board Functional Acronym TBQB System Platform GE Mark V Speedtronic Turbine Control System Product Type Input Termination Module Supported Signals Discrete inputs/outputs and analog signals Terminal Interface Multiple screw-type field wiring terminals Isolation Galvanic isolation between field and logic interfaces Mounting Panel-mounted in Mark V cabinet PCB Protection Conformal coating I/O Density Scaling and Field Signal Routing The DS200TBQBG1ACB provides the field termination layer for GE Mark V turbine control I/O circuits. The terminal board routes analog and discrete signals from external sensors, switches, and actuators to processor interface boards including TCRA and TCCB modules. The board supports I/O density scaling within the Mark V cabinet by organizing multiple field circuits into structured terminal connections. Its passive signal routing design maintains wiring separation and simplifies connection between field devices and control processing hardware. Frequently Asked Questions Q: Is the DS200TBQBG1ACB responsible for signal processing?A: No. The board is a passive terminal interface module used for field wiring termination and signal routing. Q: What types of signals can be connected through the TBQB terminal board?A: The board supports discrete input/output signals and analog field signals according to the Mark V cabinet configuration. Q: Does the terminal board require an external power supply?A: No. The DS200TBQBG1ACB does not contain active processing circuits and does not require an independent power connection. Field Installation Guidelines Install the DS200TBQBG1ACB in the designated Mark V cabinet mounting location and verify terminal identification before field wiring connection. Confirm all screw terminals are properly tightened to maintain stable electrical contact. Route analog signal cables separately from high-current power conductors and switching circuits to minimize electromagnetic interference. Use shielded cables where required, and terminate shields according to the turbine control cabinet grounding practice. Before installation or maintenance, isolate system power and verify field circuits are de-energized. Check terminal assignments, signal polarity, and connection references against the approved Mark V wiring documentation before system startup.
$200.00 $100.00
-
General Electric GE DS200TBCAG1AAA Terminal Board
GE DS200TBCAG1AAA Terminal Board Configured for field signal termination and analog/discrete wiring connection in the GE Mark V Speedtronic turbine control system, the GE DS200TBCAG1AAA (DS200TBCA Terminal Board) provides direct physical/electrical execution for routing field device signals between external wiring and Mark V control modules. Hardware Specifications Parameter Specification Model DS200TBCAG1AAA Brand GE Origin USA Weight 0.45 kg Dimensions 280 x 200 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption Passive terminal interface board, no dedicated power consumption Board Type Terminal Board Functional Acronym TBCA System Platform GE Mark V Speedtronic Turbine Control System Mounting Location R5 Core Communication Connector 3PL Input Signal Types 4-20 mA and discrete field signals Output Signal Type 4-20 mA Output Connector JAA Terminal Interface Screw-type field wiring terminals Isolation Galvanic isolation between field and logic interfaces PCB Protection Conformal coating Board Function Field wiring termination and signal routing I/O Density Scaling and Field Signal Integration The DS200TBCAG1AAA provides the physical termination layer between turbine field devices and GE Mark V control electronics. The terminal board supports organized connection of analog and discrete signals from sensors, switches, and actuators to processor interface boards such as TCCA and TCCB. Within the Mark V architecture, the terminal interface supports I/O density scaling by allowing multiple field circuits to be routed through structured terminal points before reaching control processing modules. The board maintains signal separation and wiring organization for analog current loops and discrete control circuits. Frequently Asked Questions Q: Is the DS200TBCAG1AAA an active processing module?A: No. The board is a passive terminal interface component used for field wiring termination and signal routing to Mark V control electronics. Q: What field signal types can be connected through this terminal board?A: The board supports analog 4-20 mA signals and discrete field device connections according to the Mark V cabinet configuration. Q: Does the DS200TBCAG1AAA require a separate power supply connection?A: No. The board functions as a passive wiring interface and does not contain an independent power conversion circuit. Field Installation Guidelines Install the DS200TBCAG1AAA at the specified Mark V cabinet mounting position and verify terminal identification before connecting field wiring. Ensure screw terminals are properly secured to maintain stable electrical contact. Route analog signal cables separately from high-current conductors and switching circuits to reduce electromagnetic interference. Use shielded instrumentation wiring where required, with cable shield termination following the cabinet grounding design. Before servicing or rewiring, remove applicable system power sources and confirm signal isolation. Verify terminal assignments, polarity, and connector references against the approved Mark V wiring documentation before system startup.
$200.00 $100.00
-
General Electric GE DS200SLCCG3AGH LAN Communication Board
GE DS200SLCCG3AGH LAN Communication Board Configured for Ethernet and ARCnet data communication in the GE Mark V Speedtronic turbine control system, the GE DS200SLCCG3AGH (DS200SLCC LAN Communication Board) provides direct physical/electrical execution for controller network interfacing, protocol processing, and diagnostic data exchange between turbine control processors and external systems. Suffix Breakdown & Model Matrix Model Element Description DS200 GE Mark V DS200 hardware series designation SLCC LAN Communication Board functional acronym G3 Board hardware configuration identifier AGH Functional revision and artwork revision designation Functional Revision 1 A Functional Revision 2 G Artwork Revision H Hardware Specifications Parameter Specification Model DS200SLCCG3AGH Brand GE Origin USA Weight 0.55 kg Dimensions 200 x 150 x 25 mm Operating Temp -30 deg C to +65 deg C Power Consumption 24 VDC, 250 mA max Board Type LAN Communication Board Functional Acronym SLCC System Platform GE Mark V Speedtronic Turbine Control System Network Interface 10Base-T Ethernet (RJ45) Additional Network Interface ARCnet communication Supported Protocols TCP/IP, Modbus TCP, GE SRTP, ARCnet Processor 32-bit CPU with integrated Ethernet controller Firmware Memory 512 KB flash SRAM Memory 256 KB Data Retention 0.22 F super capacitor, approx. 72 hours Isolation 1500 V RMS Ethernet-to-backplane isolation Connectors RJ45, 9-pin SUB-D debug port, terminal block Indicators Power, Link, Activity, Fault LEDs PCB Protection Normal coating Deterministic Network Communication The DS200SLCCG3AGH manages communication between Mark V controller cores and plant-level control networks through Ethernet and ARCnet interfaces. The onboard communication processor handles protocol conversion, packet processing, and network diagnostics without direct loading of the turbine control processor. The board supports industrial network integration through TCP/IP, Modbus TCP, and GE SRTP communication methods. Ethernet communication paths provide deterministic data transfer between controller racks, HMI interfaces, and distributed control system connections. Frequently Asked Questions Q: What network interfaces are available on the DS200SLCCG3AGH?A: The board provides a 10Base-T Ethernet RJ45 interface and ARCnet communication capability for Mark V turbine control network connections. Q: What diagnostic information can be monitored from the board?A: Four front-panel LEDs indicate power status, network link condition, communication activity, and fault conditions. Q: Does the board isolate Ethernet signals from the control backplane?A: Yes. The communication interface provides 1500 V RMS isolation between Ethernet circuitry and the Mark V backplane. Field Installation Guidelines Install the DS200SLCCG3AGH in the designated GE Mark V <C> core rack position and verify connector orientation before insertion. Follow approved cabinet procedures for module removal and installation. Use shielded Ethernet cabling where required by the cabinet network design. Route communication cables separately from high-current power wiring and switching circuits to reduce electromagnetic interference. Verify Ethernet connections, terminal wiring, and communication configuration settings before startup. Confirm DIP switch settings, network parameters, and protocol assignments according to the approved Mark V system configuration. After power application, observe the Power, Link, Activity, and Fault LEDs to confirm communication initialization and network status.
$200.00 $100.00
-
General Electric GE DS200TCCBG1BED Common Extended Analog I/O Board
GE DS200TCCBG1BED Common Extended Analog I/O Board The GE DS200TCCBG1BED, also cataloged as the DS200TCCB Common Extended Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition and conversion within the GE Speedtronic Mark V turbine control system. The board processes RTD, thermocouple, transmitter, and voltage input signals through integrated A/D conversion and analog output channels. Hardware Specifications Parameter Specification Model DS200TCCBG1BED Brand GE Origin USA Weight 2.00 lbs Dimensions 230 x 170 x 30 mm Operating Temp 0 deg C to +50 deg C typical; extended tolerance -30 deg C to +65 deg C Power Consumption Approx. 8 W Board Type Common Extended Analog I/O Board Functional Acronym TCCB System Platform GE Speedtronic Mark V Turbine Control System Analog Inputs 8 differential channels Supported Inputs RTD, thermocouple, 4-20 mA, +/-10 V Analog Outputs 4 channels, 0-10 V or 4-20 mA Input Resolution 12-bit A/D conversion Output Resolution 12-bit DAC conversion Input Accuracy +/-0.05% FS Output Accuracy +/-0.1% FS Sampling Rate Approx. 200 Hz per channel Isolation Voltage 1500 V field-to-logic Power Supply 24 VDC +/-10% and +5 VDC logic rail Connectors JCC/JDD RTD inputs, JEE auxiliary, 3PL I/O engine interface Processor Intel 80196 microcontroller Firmware Storage Socketed EPROMs PCB Protection Normal coating PCB Layers 6-layer noise-hardened design I/O Density Scaling and Analog Processing The DS200TCCBG1BED extends the analog processing capacity of the GE Mark V platform through additional RTD, thermocouple, current, and voltage measurement channels. The onboard signal conditioning circuitry performs local conversion of field analog signals before transferring processed data through the control architecture. The board uses GE industrial control I/O density scaling methods to increase sensor channel availability while maintaining compatibility with Mark V control racks. The onboard Intel 80196 microcontroller manages local scanning, conversion handling, and diagnostic processing. Frequently Asked Questions Q: What types of field signals can be connected to the DS200TCCBG1BED analog inputs?A: The board supports differential analog inputs for RTD, thermocouple, 4-20 mA transmitter signals, and +/-10 V voltage inputs. Q: Does the DS200TCCBG1BED provide isolation between field wiring and control electronics?A: Yes. The board provides 1500 V field-to-logic isolation for separation between external analog signals and internal control circuits. Q: Is firmware stored directly on the board hardware?A: Yes. The board uses socketed EPROM devices for firmware storage and calibration data management. Field Installation Guidelines Install the DS200TCCBG1BED in the designated GE Speedtronic Mark V rack location and verify connector identification before applying power. Confirm that JCC, JDD, JEE, and 3PL connections match the approved wiring documentation. Analog signal cables should be routed separately from high-voltage and high-current conductors to reduce electromagnetic interference. Shielded instrumentation cables should be used where required, with cable shields terminated according to the control cabinet grounding design. After installation, verify field input polarity, RTD and thermocouple wiring configuration, and analog channel assignments. Perform the required calibration procedure using the onboard reference points before returning the turbine control system to service.
$200.00 $100.00
-
General Electric DS200TCDAH1BHJE GE Mark V Digital I/O Board
GE DS200TCDAH1BHJE Digital I/O Board Configured for discrete signal acquisition and output execution in the GE Speedtronic Mark V turbine control system, the GE DS200TCDAH1BHJE (DS200TCDA Digital I/O Board) provides direct physical/electrical execution through optically isolated digital input and output channels. The board transfers field contact, trip switch, sensor, and actuator signals through the IONET backplane interface. Hardware Specifications Parameter Specification Model DS200TCDAH1BHJE Brand GE Origin USA Weight 0.8 kg Dimensions 178 x 101 x 30 mm Operating Temp -20 deg C to +60 deg C Power Consumption Powered from 5 VDC, 24 VDC, and 125 VDC system rails Board Type Digital Input/Output Processor Board System Platform GE Speedtronic Mark V Turbine Control System Digital Inputs 16 optically isolated channels Digital Outputs 16 optically isolated channels Isolation Method Optocoupler-based galvanic isolation Communication Interface IONET proprietary backplane communication Connectors Dual 50-pin headers and 2 x 3-pin plugs Configuration 8 jumper blocks (JP1-JP8) Diagnostics 10-LED diagnostic array and CR9 side LED PCB Protection Full conformal coating IONET Backplane and Digital Signal Processing The DS200TCDAH1BHJE integrates GE Mark V digital I/O processing functions through the IONET backplane communication network. The onboard microcontroller performs local I/O scanning and signal handling, reducing direct processing load on the turbine control processor. The board supports deterministic digital data exchange between field devices and the Mark V control core. Input channels accept discrete signals from limit switches and sensors, while output channels provide control signals for relay interfaces, solenoid drivers, and annunciator circuits through compatible relay driver boards. Frequently Asked Questions Q: Does the DS200TCDAH1BHJE provide electrical isolation between field signals and the control system?A: Yes. The board uses optocoupler-based galvanic isolation for its digital input and output channels to separate field wiring from internal control electronics. Q: What communication method is used for data exchange with the Mark V system?A: The board communicates through the proprietary GE IONET backplane interface for digital signal transfer between I/O hardware and the turbine control processor. Q: What diagnostic functions are available on the board?A: The board includes a 10-LED diagnostic array for channel status indication and a CR9 LED for board power and processing activity monitoring. Field Installation Guidelines Install the DS200TCDAH1BHJE in the designated GE Speedtronic Mark V rack position and verify connector alignment before insertion. Ensure that dual 50-pin headers and auxiliary plugs are fully seated to maintain correct field signal routing. Field wiring should be separated from high-current power conductors and high-noise switching circuits. Use appropriate cable shielding practices, with shield termination following the grounding requirements of the turbine control cabinet design. Verify supply rail connections for 5 VDC, 24 VDC, and 125 VDC sources before energizing the module. Maintain clean cabinet conditions to preserve the conformal coating protection and prevent contamination from moisture, dust, or conductive particles. Confirm jumper block settings match the approved control configuration before system operation.
$200.00 $100.00
-
General Electric GE DS200TCDAH1BHE Digital to Analog Converter Board
GE DS200TCDAH1BHE Digital to Analog Converter Board Configured for digital signal conversion in the GE Mark V turbine control system, the GE DS200TCDAH1BHE (DS200TCDA Digital to Analog Converter Board) provides direct electrical conversion from processor-generated digital data to analog output signals for turbine control interfaces. Hardware Specifications Parameter Specification Model DS200TCDAH1BHE Brand GE General Electric Origin United States Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Supplied through +5 VDC and +/-15 VDC backplane power Product Type Digital I/O Boards Series Mark V Functional Acronym TCDA Input Voltage +5 VDC, +/-15 VDC from backplane Digital Input Interface 16-bit parallel bus from CPCA/SDCC boards Analog Output Range +/-10 VDC, 4-20 mA DAC Resolution 12-bit Isolation Rating 2500 Vrms Response Time < 5 ms signal conversion Diagnostics Front-panel LEDs: Run, Fail, Output Status Redundancy Support Dual/triple modular redundancy compatible Mounting Type Rack mount, single-slot Deterministic Network and I/O Density Characteristics The DS200TCDAH1BHE operates as an analog interface expansion board within the GE Mark V control architecture. The module receives digital control values through the processor board interface and performs digital-to-analog conversion for connected field devices. I/O density scaling is achieved through dedicated conversion channels supporting multiple analog output requirements within the rack system. The board interfaces with CPCA and SDCC processor modules through the Mark V backplane structure. Firmware flash compatibility and processor configuration must match the installed control system revision to maintain correct signal mapping and output execution. Frequently Asked Questions Q: What type of signals does the DS200TCDAH1BHE convert?A: The board converts 16-bit digital control data from processor boards into analog output signals including +/-10 VDC and 4-20 mA. Q: Does the DS200TCDAH1BHE contain independent control processing?A: No. The board performs digital-to-analog conversion functions and relies on connected Mark V processor boards for control logic execution. Q: Which processor boards interface with the TCDA board?A: The module interfaces with CPCA and SDCC processor boards within the GE Mark V control system. Field Installation Guidelines Install the DS200TCDAH1BHE in the designated Mark V rack slot and verify proper backplane connector alignment before energizing the system. Confirm that analog output wiring matches the approved terminal configuration and signal requirements. Route analog signal cables separately from high-power conductors to reduce electrical noise coupling. Cable shielding should be grounded according to the site grounding standard. Verify polarity, terminal tightness, and processor board compatibility before commissioning.
$200.00 $100.00
-
General Electric GE DS200SDCCG5AHD Drive Control Card
GE DS200SDCCG5AHD Drive Control Card The GE DS200SDCCG5AHD, also cataloged as the DS200SDCC Drive Control Card, operates as a dedicated hardware component for executing drive control algorithms and managing processor-based I/O functions within the GE Mark V control system. It provides CPU processing, communication interfaces, and deterministic control execution. Hardware Specifications Parameter Specification Model DS200SDCCG5AHD Brand GE General Electric Origin United States Weight 0.9 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Supplied through +5 VDC and +/-15 VDC backplane power Product Type Drive Control Cards Series Mark V Functional Acronym SDCC Processor Motorola 68020 32-bit CPU Clock Speed 20 MHz Memory 2 MB DRAM, 512 KB SRAM, 1 MB EPROM Non-Volatile Storage EEPROM configuration storage Communication Interfaces VMEbus, RS-232, Ethernet 10 Mbps Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Diagnostics Front-panel LEDs: Run, Fail, Comm, Watchdog Mounting Type VME rack mount, single-slot Redundancy Support Dual and TMR compatible architecture Deterministic Network and Firmware Interface Characteristics The DS200SDCCG5AHD operates as a processor and communication node within the Mark V control architecture. The board manages backplane bus communication velocity through VMEbus interaction and coordinates data exchange between control logic, connected I/O assemblies, and external communication ports. Firmware flash compatibility and configuration data storage are managed through onboard memory devices including EEPROM and EPROM. Correct firmware matching is required for initialization and communication with the Mark V system. The processor executes control routines with defined timing for turbine and drive control applications. Frequently Asked Questions Q: What processor architecture is used on the DS200SDCCG5AHD?A: The board uses a Motorola 68020 32-bit CPU operating at 20 MHz for control algorithm execution and system processing. Q: Which communication interfaces are available on this control card?A: The DS200SDCCG5AHD provides VMEbus, RS-232, and Ethernet communication interfaces for system integration and diagnostics. Q: Does the SDCC board support redundant control configurations?A: The provided specifications indicate compatibility with dual and triple modular redundancy (TMR) configurations within the Mark V control architecture. Field Installation Guidelines Install the DS200SDCCG5AHD into the assigned Mark V VME rack slot with the correct mechanical alignment. Verify backplane connector engagement before applying system power. Ensure that firmware configuration matches the installed Mark V control system version. Route communication and signal cables separately from high-voltage conductors to reduce electromagnetic interference. Maintain proper grounding practices for rack assemblies and cable shields according to site electrical standards. Confirm airflow paths remain unobstructed to maintain the specified operating temperature range.
$200.00 $100.00
-
General Electric GE DS200TCQCG1BKG Digital I/O Termination Board
GE DS200TCQCG1BKG Digital I/O Termination Board The GE DS200TCQCG1BKG, also cataloged as the DS200TCQC Digital I/O Termination Board, operates as a dedicated hardware component for digital signal termination and field wiring interface within the GE Mark V turbine control system. It provides physical connections for digital input, output, and trip circuit signals between field devices and control processor boards. Hardware Specifications Parameter Specification Model DS200TCQCG1BKG Brand GE General Electric Origin United States Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Passive termination board; powered through connected control system interfaces Product Type Digital I/O Termination Board Series Mark V Functional Acronym TCQC Signal Types Supported Digital inputs, digital outputs, trip solenoid signals Input Voltage 125 VDC nominal field supply Digital Signal Level 24 VDC Terminal Type Multi-level screw terminals Isolation Rating 2500 Vrms Response Time < 10 ms signal transfer Mounting Type Rack mount, single-slot Diagnostics Passive board monitoring through connected CPCA/LDCC boards Redundancy Supports dual/triple wiring redundancy EtherNet/IP and I/O Density Interface Characteristics The DS200TCQCG1BKG is configured as a passive field termination interface within the Mark V control architecture. The board provides organized signal routing between external digital devices and processor modules without onboard signal execution. Digital I/O density scaling is achieved through the termination arrangement, allowing multiple field circuits to be connected within the rack-based control structure. Signal integrity depends on correct terminal assignment, cable routing, and interface compatibility with connected control boards. Frequently Asked Questions Q: Does the DS200TCQCG1BKG perform signal processing internally?A: No. The board is a passive termination assembly. Signal monitoring and processing are performed by connected Mark V processor and I/O control boards. Q: What field signals can be connected to this termination board?A: The board supports digital input signals, digital output signals, and trip solenoid related circuits using field wiring connections. Q: Is the board compatible with redundant wiring configurations?A: The supplied data indicates support for dual and triple wiring redundancy arrangements within the Mark V control system architecture. Field Installation Guidelines Install the DS200TCQCG1BKG in the designated Mark V rack slot and verify mechanical alignment before securing the board. Field wiring should be terminated according to the approved terminal assignment documentation. Maintain separation between low-level signal wiring and high-energy conductors to reduce electrical interference. Cable shields should be connected according to the system grounding standard, with attention to avoiding ground loops. Verify terminal tightness, insulation condition, and polarity before energizing the control system. Confirm compatibility with connected CPCA, LDCC, and related Mark V control modules before operation.
$200.00 $100.00
-
General Electric GE DS200TBQCG1ABB Terminal Board Assembly
GE DS200TBQCG1ABB Terminal Board Assembly The GE DS200TBQCG1ABB, also cataloged as the DS200TBQC Terminal Board Assembly, operates as a dedicated hardware component for analog and digital field signal termination within the GE Mark V LM turbine control system. It provides physical wiring interfaces for I/O signals, actuator circuits, and sensor connections. Hardware Specifications Parameter Specification Model DS200TBQCG1ABB Brand GE General Electric Origin United States Product Type Analog Input Milliamp I/O Termination Module Series Mark V LM Functional Acronym TBQC Number of Channels 12 Signal Types Supported Analog input signals, digital signals, trip circuit signals Analog Output Current 0-20 mA Common Mode Voltage Range +5 VDC Maximum Lead Resistance 15 ohm Terminal Type Multi-level screw terminals Isolation Rating 2500 Vrms Weight 0.8 kg Operating Temp -30 to +55 deg C Power Consumption Passive termination board, no onboard processing Frequency 50 or 60 Hz Deterministic I/O Interface and Signal Conditioning The DS200TBQCG1ABB is a passive termination assembly within the GE Mark V LM control platform. It provides structured field wiring connections for analog milliamp signals, digital inputs, and turbine auxiliary circuits. The board transfers field signals to controller and I/O processing modules without executing application logic. The terminal module supports analog signal interface functions including: 12-channel analog termination capability 0-20 mA signal routing Field device connection through screw terminals Signal transfer between external instruments and Mark V controller electronics Compatibility with connected processor and I/O modules Industrial Control Network and I/O Density Scaling As a GE industrial control component, the TBQC module operates as part of the Mark V LM I/O architecture. The module supports I/O density scaling through organized termination of multiple field channels while maintaining defined wiring separation between signal groups. The terminal interface does not provide Ethernet, VMEbus, or independent communication processing. Data acquisition and control execution are performed by connected Mark V controller modules. Proper firmware and I/O configuration compatibility are required at the controller level for correct channel operation. Frequently Asked Questions Q: Does the DS200TBQCG1ABB contain a processor or configurable firmware?A: No. The DS200TBQCG1ABB is a passive terminal board. Processing functions are performed by connected Mark V controller and I/O modules. Q: What type of signals can be connected through the TBQC module?A: The module supports analog milliamp signals, digital field connections, and turbine control related wiring interfaces according to the Mark V LM configuration. Q: Does the terminal board require independent power input?A: No. The board functions as a passive signal termination interface and does not contain independent power conversion circuitry. Field Installation Guidelines Install the DS200TBQCG1ABB in the designated Mark V LM rack position and verify correct mechanical seating before connecting field wiring. Route analog signal cables separately from high-current power conductors and trip circuit wiring to reduce electromagnetic interference. Maintain proper cable identification and terminal labeling during installation. Connect cable shields according to the system grounding design. Check screw terminal tightness and inspect wiring condition during commissioning and maintenance activities. Verify channel assignments, controller configuration, and connected I/O module compatibility before applying field signals.
$200.00 $100.00
-
General Electric GE DS200DTBAG1AAA Terminal Board Assembly
GE DS200DTBAG1AAA Terminal Board Assembly The GE DS200DTBAG1AAA, also cataloged as the DS200DTBA Terminal Board Assembly, operates as a dedicated hardware component for field signal termination and electrical interfacing within the GE Mark V turbine control system. It provides physical connections for analog, digital, and trip circuit wiring between external devices and control rack electronics. Hardware Specifications Parameter Specification Model DS200DTBAG1AAA Brand GE General Electric Origin United States Product Type Terminal Board Assembly Series Mark V Speedtronic Functional Acronym DTBA Signal Types Supported Analog signals, digital 24 VDC signals, trip solenoid signals Input Voltage 125 VDC nominal field supply Terminal Type Screw-type terminals, 2-level Isolation Rating 2500 Vrms Weight 0.8 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Passive board, no onboard power processing Industrial Control Interface and Signal Distribution The DS200DTBAG1AAA is a passive terminal interface board within the GE Mark V control architecture. It provides termination points for field wiring connected to turbine sensors, actuators, trip circuits, and protection devices. Signal routing is performed through terminal connections to associated processor and power interface boards. For GE Mark V systems, the terminal interface supports structured I/O wiring arrangements and connection compatibility with processor cards such as CPCA and power/control boards such as LDCC. The board does not execute control logic and depends on connected controller hardware for signal processing and diagnostics. The terminal assembly supports industrial control requirements including: Field signal termination and routing Analog and digital I/O connection Trip circuit wiring interface Connection between external devices and Mark V rack electronics Compatibility with redundant wiring configurations Profinet / EtherNet-IP Network and I/O Interface Considerations The DS200DTBAG1AAA does not provide direct network communication functions. Its role is limited to physical signal termination and electrical distribution. In Mark V systems, communication processing and deterministic data exchange are handled by controller and communication modules. The terminal board supports I/O density expansion through organized field wiring interfaces. Proper terminal assignment, cable segregation, and grounding practices are required to maintain signal integrity between field devices and control electronics. Frequently Asked Questions Q: Does the DS200DTBAG1AAA contain onboard processing or firmware?A: No. The DS200DTBAG1AAA is a passive terminal board assembly. Signal monitoring and diagnostics are performed by connected Mark V processor and control boards. Q: What signal types can be connected to this terminal board?A: The board supports analog signals, digital 24 VDC signals, and trip solenoid related field connections according to the Mark V system wiring configuration. Q: Does the board provide Ethernet or serial communication interfaces?A: No. The DS200DTBAG1AAA provides physical terminal connections only. Communication functions are managed by separate Mark V controller and communication modules. Field Installation Guidelines Install the DS200DTBAG1AAA in the designated GE Mark V rack position and verify mechanical alignment before securing the board. Field wiring should be installed according to the Mark V wiring documentation. Separate low-level analog signal cables from high-current power and trip circuit wiring to reduce electrical interference. Terminate cable shields according to the system grounding design. Ensure terminal screws are properly secured and verify wire identification before applying field power. Inspect terminal connections during maintenance activities for loose conductors, oxidation, or mechanical damage. Confirm compatibility with connected CPCA, LDCC, and other Mark V interface boards before replacement installation.
$200.00 $100.00
-
General Electric GE DS200CPCAG1ABB Contactor Pilot Card
GE DS200CPCAG1ABB Contactor Pilot Card Configured for contactor pilot control, processor execution, and communication functions in the GE Mark V turbine control system, the GE DS200CPCAG1ABB (DS200CPCAG1ABB Contactor Pilot Card) provides direct physical/electrical execution for turbine control logic and connected contactor circuits. Hardware Specifications Parameter Specification Model DS200CPCAG1ABB Brand GE Origin United States of America Product Type Contactor Pilot Card Functional Acronym CPCA System Series Mark V Speedtronic Processor Motorola 68020, 32-bit CPU Clock Speed 20 MHz Memory 2 MB DRAM, 512 KB SRAM, 1 MB EPROM Non-Volatile Storage EEPROM for configuration data Communication Interfaces VMEbus, RS-232, Ethernet 10 Mbps Operating Voltage +5 VDC, +/-15 VDC from backplane Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms control loop execution PCB Coating Normal Coating Functional Revision 1 A Functional Revision 2 B Artwork Revision B Mounting Type Single-slot VME rack mount Firmware Compatibility and Mark V Control Processing The DS200CPCAG1ABB operates within the GE Mark V control architecture as a CPCA board responsible for contactor pilot functions and control signal processing. The module manages processor execution, memory operations, and communication paths between the controller rack and connected turbine control hardware. Firmware flash compatibility is required for proper board initialization. The installed firmware revision must match the Mark V hardware configuration to maintain correct execution of control routines and diagnostic functions. Frequently Asked Questions Q: What is the functional role of the DS200CPCAG1ABB in the Mark V system?A: The DS200CPCAG1ABB functions as a Contactor Pilot Card, providing control processing and interface functions for contactor-related circuits within the Mark V turbine control system. Q: What communication interfaces are supported by the CPCA board?A: The board supports VMEbus, RS-232, and Ethernet 10 Mbps communication interfaces for system data exchange and diagnostics. Q: What backplane power requirements apply to this card?A: The DS200CPCAG1ABB receives operating power from the Mark V rack backplane through +5 VDC and +/-15 VDC supply rails. Field Installation Guidelines Install the DS200CPCAG1ABB in the designated GE Mark V VME rack slot and verify that the card connector is fully engaged before system power application. Confirm PCB revision information and hardware configuration settings before replacement or commissioning. Route communication cables separately from high-current switching conductors to reduce electromagnetic interference. Maintain proper chassis grounding and shield termination for connected wiring. After installation, verify processor status indicators, communication activity, and watchdog diagnostics through the Mark V control interface.
$200.00 $100.00
-
General Electric GE DS200LDCCH1AGA Drive Control/LAN Communications Board
GE DS200LDCCH1AGA Drive Control/LAN Communications Board Configured for DC power distribution, signal conditioning, and control communication functions in the GE Mark V turbine control system, the GE DS200LDCCH1AGA (DS200LDCCH1AGA Drive Control/LAN Communications Board) provides direct physical/electrical execution for turbine control electronics and protection circuits. Hardware Specifications Parameter Specification Model DS200LDCCH1AGA Brand GE Origin United States of America Product Type Drive Control/LAN Communications Board Functional Acronym LDCC System Series Mark V Speedtronic Input Voltage 125 VDC nominal Output Voltages +5 VDC, +/-15 VDC, +24 VDC Control Power Function Regulated supply distribution for logic and trip circuits Signal Conditioning Analog and digital signal processing for turbine monitoring Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms control loop execution Mounting Type Single-slot rack mount Jumpers 14 configuration jumpers Deterministic Control Communication and I/O Signal Processing The DS200LDCCH1AGA integrates Mark V control functions through regulated DC power conversion, signal conditioning, and communication interfaces. The LDCC board manages electrical signal paths between turbine control electronics, monitoring circuits, and protection-related devices. GE Mark V architecture uses dedicated board-level communication and control pathways. The DS200LDCCH1AGA supports configured firmware compatibility and jumper-based hardware settings to match the installed control rack configuration. Frequently Asked Questions Q: What power outputs are provided by the DS200LDCCH1AGA board?A: The board provides regulated +5 VDC, +/-15 VDC, and +24 VDC outputs for Mark V control electronics and connected circuits. Q: What configuration elements are available on this board?A: The DS200LDCCH1AGA includes 14 hardware configuration jumpers used for board setup according to the Mark V system configuration. Q: What rack installation type is required for the DS200LDCCH1AGA?A: The board is installed as a single-slot rack-mounted module within the GE Mark V control system. Field Installation Guidelines Install the DS200LDCCH1AGA in the designated Mark V rack position and verify correct alignment of the board edge connector before energizing the system. Check jumper configuration against the approved control system documentation before operation. Ensure power input wiring polarity is verified and that DC supply conductors are separated from low-level signal wiring where applicable. Maintain proper chassis grounding and shield termination practices for connected signal cables. Verify communication status, power indicators, and diagnostic LEDs after installation.
$200.00 $100.00
-
General Electric GE IS200VCMIH2BE VME Communication Interface Board
GE IS200VCMIH2BE VME Communication Interface Board Configured for deterministic data transfer between controller and I/O modules in the GE Mark VI turbine control system, the GE IS200VCMIH2BE (IS200VCMIH2BE VME Communication Interface Board) provides direct physical/electrical execution through VMEbus and serial communication paths. Hardware Specifications Parameter Specification Model IS200VCMIH2BE Brand GE Origin United States of America Product Type VME Communication Interface Board System Series Mark VI Speedtronic Processor Motorola MPC860 PowerPC, 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces VMEbus, Ethernet 10/100 Mbps, RS-232 Fiber-Optic Links 2 high-speed serial channels for I/O communication Operating Voltage +5 VDC, +/-12 VDC from backplane Isolation Rating 2500 Vrms Operating Temp -30 to +65 deg C Storage Temperature -40 to +85 deg C Humidity Range 5% to 95% RH, non-condensing Dimensions 233 mm x 160 mm x 25 mm Weight 0.9 kg Response Time Less than 10 ms communication cycle Mounting Type Single-slot VME rack mount Deterministic Network Communication and Firmware Compatibility The IS200VCMIH2BE manages communication synchronization between Mark VI controller processors and distributed I/O boards through VMEbus and fiber-optic serial channels. The module supports deterministic network timing by coordinating data exchange cycles between connected control components. Firmware flash compatibility is required for proper initialization with the Mark VI control platform. The installed firmware revision must correspond with the controller configuration and ToolboxST engineering environment. Frequently Asked Questions Q: What communication interfaces are available on the IS200VCMIH2BE?A: The board provides VMEbus communication, Ethernet 10/100 Mbps, RS-232 interface, and two high-speed fiber-optic serial channels for I/O communication. Q: What backplane power connections are required for this module?A: The board receives power from the VME backplane through +5 VDC and +/-12 VDC supply rails. Q: Can the IS200VCMIH2BE operate in redundant Mark VI configurations?A: The module supports Mark VI redundant architectures including TMR-based system configurations when installed with compatible controller and I/O hardware. Field Installation Guidelines Install the IS200VCMIH2BE in the designated Mark VI VME rack slot and verify correct mechanical seating before applying power. Confirm that the backplane connector is fully engaged and free from contamination. Route fiber-optic communication cables separately from high-current power conductors to reduce electromagnetic interference exposure. Maintain proper cable bend radius according to fiber cable specifications. Use appropriate grounding practices for the VME rack chassis. Verify shield termination and cable routing before system startup. Confirm firmware compatibility and communication status through controller diagnostics and front-panel indicators.
$200.00 $100.00
-
General Electric GE IS215UCVDH5AN VME Universal Controller Module
GE IS215UCVDH5AN VME Universal Controller Module Configured for turbine control algorithm execution in GE Mark VI Speedtronic systems, the GE IS215UCVDH5AN (IS215UCVDH5A Universal Controller Module) provides direct physical and electrical execution for processor-based control, I/O management, and VMEbus communication functions. Hardware Specifications Parameter Specification Model IS215UCVDH5AN Brand GE Origin United States of America Weight 0.9 kg Dimensions 16.51 cm high x 17.8 cm Operating Temp 0 to +60 deg C Power Consumption +5 VDC, 6 A Product Type Processor Controller Boards Series GE Mark VI Board Type Double-Slot Processor Controller Board Processor AMD-K6 300 MHz Memory 16 MB DRAM Operating System QNX Programming Boolean 16-bit signed Communication Interfaces VMEbus, Ethernet 10BaseT twisted pair RJ-45, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Analog Voltage Inputs 6 I/O Capability Analog and digital I/O management through connected modules Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Mounting Type VME rack mount, double-slot Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Mark VI Controller Processing The IS215UCVDH5AN provides processor-based control execution within GE Mark VI turbine control architectures. The AMD-K6 300 MHz processor runs QNX operating system software to execute turbine control logic, manage I/O data processing, and coordinate communication with other Mark VI boards. The module uses VMEbus communication for deterministic backplane data exchange and supports Ethernet 10BaseT connectivity through an RJ-45 interface. Firmware flash compatibility and controller software matching are required for correct Mark VI system initialization. The processor controller architecture supports I/O density scaling through connected analog and digital interface modules. Six analog voltage inputs provide dedicated signal acquisition capability for turbine control applications. Frequently Asked Questions Q: What processor is installed on the IS215UCVDH5AN controller board?A: The module uses an AMD-K6 300 MHz microprocessor with 16 MB DRAM memory. Q: Which operating system is used by this controller?A: The IS215UCVDH5AN operates with the QNX operating system environment. Q: What communication interfaces are available on the board?A: The controller provides VMEbus communication, Ethernet 10BaseT through RJ-45, and RS-232 interfaces. Field Installation Guidelines Install the IS215UCVDH5AN in the assigned GE Mark VI VME rack position and verify mechanical alignment before applying power. Confirm the +5 VDC power supply connection and backplane voltage rails according to cabinet wiring documentation. Keep Ethernet, RS-232, and signal wiring separated from high-current conductors to reduce electromagnetic interference. Maintain proper grounding and shielding practices for analog input wiring. Verify VME backplane connectors are clean and fully engaged before system startup. Confirm QNX operating software and controller firmware compatibility with the installed Mark VI configuration. Ensure sufficient airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-
General Electric GE IS200EMCSG1A Exciter Main Control and Signal Board
GE IS200EMCSG1A Exciter Main Control and Signal Board The GE IS200EMCSG1A, also cataloged as the IS200EMCSG1A Exciter Main Control and Signal Board, operates as a dedicated hardware component for excitation signal processing, control execution, and sensor interface management within GE Mark VI/Mark VIe excitation system platforms. Hardware Specifications Parameter Specification Model IS200EMCSG1A Brand GE Origin United States of America Weight 1 lbs Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Exciter Main Control and Signal Boards Series GE Mark VI Board Description Multibridge Connector Sensor Card Control Power Supply 125 VDC nominal Backplane Input Voltage +5 VDC, +/-15 VDC, +24 VDC Processor Motorola MPC860 PowerPC 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces Fiber-optic serial, RS-232, Ethernet 10/100 Mbps Signal Conditioning Inputs Analog inputs +/-10 V, digital inputs 24 VDC, current transformer inputs Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Mounting Type VME rack mount, single-slot Connector Quantity Six plugs for power supply Conduction Sensor Quantity Four sensors, E1-E4 Diagnostics Run, Fail, Comm, Fault front-panel LEDs Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Excitation Control and I/O Signal Processing The IS200EMCSG1A provides excitation control processing within GE Mark VI/Mark VIe EX2100 excitation architectures. The board executes generator field regulation functions, processes analog and digital feedback signals, and manages communication between excitation control components. The hardware uses Motorola MPC860 PowerPC processing with VME rack integration for deterministic control execution. Fiber-optic serial, RS-232, and Ethernet interfaces provide communication paths for controller data exchange and system diagnostics. The board architecture supports industrial control I/O density scaling through multiple sensor and signal conditioning interfaces. The four conduction sensor inputs (E1-E4) and multibridge connector structure provide dedicated monitoring paths for excitation system feedback signals. Frequently Asked Questions Q: What type of sensor connections are available on the IS200EMCSG1A?A: The board provides four conduction sensor connections identified as E1-E4 through the multibridge connector structure. Q: Which communication interfaces are supported by this board?A: The IS200EMCSG1A supports fiber-optic serial communication, RS-232, and Ethernet 10/100 Mbps interfaces. Q: What backplane voltages are required for board operation?A: The board operates from GE Mark VI backplane supplies of +5 VDC, +/-15 VDC, and +24 VDC, with 125 VDC nominal control power. Field Installation Guidelines Install the IS200EMCSG1A in the assigned GE Mark VI VME rack position and verify connector seating before energizing the excitation cabinet. Confirm the 125 VDC control supply wiring and backplane voltage connections according to the cabinet electrical drawings. Keep sensor and communication wiring separated from high-current excitation conductors. Maintain proper shielding and grounding for analog signal inputs and communication cables. Verify that the six power supply connectors are fully engaged before system startup. Check firmware compatibility with the installed Mark VI/Mark VIe configuration. Ensure sufficient cabinet airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-
General Electric GE IS200VTURH2BAB Turbine Protection Circuit Board
GE IS200VTURH2BAB Turbine Protection Circuit Board The GE IS200VTURH2BAB, also cataloged as the IS200VTURH2B Turbine Protection Circuit Board, operates as a dedicated hardware component for overspeed trip execution, speed signal processing, and shaft electrical monitoring within GE Mark VI Speedtronic turbine control platforms. Hardware Specifications Parameter Specification Model IS200VTURH2BAB Brand GE Origin United States of America Weight 0.23 kg Dimensions 12 cm x 6 cm x 3.5 cm Operating Temp 0 to +60 deg C Power Consumption Not specified Product Type Turbine Protection Circuit Boards Series GE Mark VI Functional Acronym VTUR Model Type Turbine Protection Circuit Board Power Supply 125 VDC MPU Pulse Rate Range 2 Hz to 20 kHz MPU Pulse Rate Accuracy +/-0.05% of reading MPU Input Circuit Sensitivity 27 mV peak Trip Solenoid Control 3 primary overspeed trip solenoids Speed Inputs 4 passive pulse rate device interfaces Application Specific I/Os Shaft voltage/current monitoring, trip system, synchronizing, speed rate inputs Communication Port 1 x J5 Isolation Rating 2500 Vrms Compatible Boards TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, DTUR Deterministic Mark VI Turbine Protection Processing The IS200VTURH2BAB provides turbine-specific protection functions through GE Mark VI control architecture. The board processes MPU pulse signals, controls overspeed trip solenoids, and manages synchronization-related signals through dedicated hardware interfaces. The VTUR board uses deterministic signal processing for turbine speed monitoring with MPU pulse inputs ranging from 2 Hz to 20 kHz. The module integrates with Mark VI protection boards through the turbine control backplane, supporting coordinated operation with TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, and DTUR modules. The hardware configuration supports industrial control signal management through dedicated I/O channels for shaft voltage and current monitoring. Firmware flash compatibility and controller configuration matching are required for proper Mark VI system initialization. Frequently Asked Questions Q: What type of speed input signals are supported by the IS200VTURH2BAB?A: The board processes MPU pulse rate signals from 2 Hz to 20 kHz with an input circuit sensitivity of 27 mV peak. Q: How many overspeed trip solenoids can the VTUR board control?A: The board controls three primary overspeed trip solenoids for turbine protection functions. Q: Which Mark VI boards interface with the IS200VTURH2BAB?A: The board is designed for integration with TTUR, TRPG, TRPS, TRPL, DRLY, DTRT, and DTUR modules. Field Installation Guidelines Install the IS200VTURH2BAB in the designated GE Mark VI rack location and verify connector engagement before applying power. Confirm the 125 VDC supply wiring polarity and grounding connections according to the cabinet wiring documentation. Route MPU pulse signal cables separately from high-current power conductors to reduce electrical interference. Maintain shielding continuity for speed sensor and shaft monitoring wiring. Verify terminal connections for trip solenoid circuits and synchronizing signals before system startup. Check environmental conditions against the specified operating temperature range. Confirm board compatibility with the installed Mark VI hardware configuration and firmware before initialization.
$200.00 $100.00
