General Electric GE DS200SLCCG3ADC LAN Communication Card
GE DS200SLCCG3ADC LAN Communication Card The GE DS200SLCCG3ADC, also cataloged as the DS200SLCCG3ADC LAN Communication Card, operates as a dedicated hardware component for LAN and serial communication processing within GE Mark V DS200 Speedtronic turbine control system platforms. The card manages interface signals, communication protocols, and diagnostic data exchange between control boards and external devices. Hardware Specifications Parameter Specification Model DS200SLCCG3ADC Brand GE Origin United States Weight 1 lb Dimensions Standard GE Mark V DS200 board form factor Operating Temp 0 deg C to 60 deg C Power Consumption Not specified Product Type LAN Communication Card Series Mark V DS200 Functional Acronym SLCC Communication Ports RS-232, RS-485, LAN interface Supported Protocols Modbus, Ethernet/IP depending on firmware Processor Embedded microcontroller Memory EPROM and RAM for communication logic Indicators Diagnostic LEDs for Power, TX, RX, Fault Operating Voltage 24 VDC Connector Interface 2PL connector with 9 pins Mounting Plug-in rack assembly GE Mark V Communication Network Processing The DS200SLCCG3ADC supports industrial control communication through LAN and serial interface management within GE Mark V DS200 architectures. The board processes communication signals between turbine control boards and connected external devices while providing diagnostic feedback through onboard status indicators. For GE industrial control platforms, the communication design includes firmware flash compatibility management to maintain correct operation between hardware revision levels and Mark V control configurations. The G3ADC revision defines a specific hardware and firmware configuration for system integration. Frequently Asked Questions Q: What communication interfaces are supported by the DS200SLCCG3ADC?A: The card supports LAN communication together with RS-232 and RS-485 serial interfaces for data exchange within compatible Mark V control configurations. Q: Is the DS200SLCCG3ADC compatible with hot-swap installation?A: Hot-swap capability is not specified for this communication card. Board replacement should be performed after power isolation according to GE Mark V maintenance procedures. Q: What is the function of the 2PL connector on this board?A: The 2PL connector provides the physical pin interface required for board-level connection within the GE Mark V DS200 rack assembly. Field Installation Guidelines Install the DS200SLCCG3ADC into the designated Mark V DS200 rack position with system power removed. Verify the connector alignment before seating the board and confirm that the card is fully engaged in the rack assembly. Maintain separation between communication cables and high-current power wiring to reduce electromagnetic interference. Use shielded communication cables where required and connect cable shields according to industrial grounding practices. After installation, verify diagnostic LED operation, communication link status, and firmware compatibility with the existing Mark V control configuration.
$200.00 $100.00
-

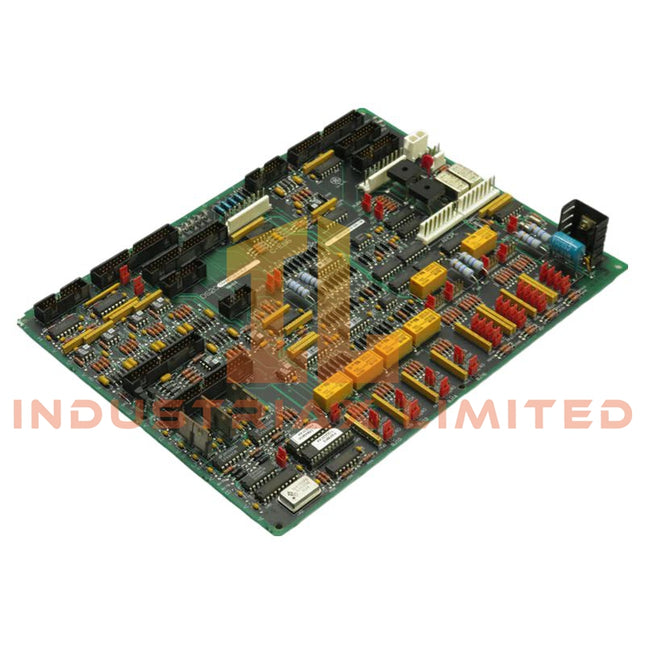

General Electric GE DS200SLCCG1AHH LAN Communication Card
GE DS200SLCCG1AHH LAN Communication Card Configured for LAN data exchange and serial interface execution in GE Mark V Speedtronic turbine control system platforms, the GE DS200SLCCG1AHH (DS200SLCCG1AHH LAN Communication Card) provides direct physical/electrical communication processing between control boards and external devices. The module manages communication protocols, interface signals, and diagnostic functions within the Mark V control architecture. Hardware Specifications Parameter Specification Model DS200SLCCG1AHH Brand GE Origin United States Weight 0.5 kg Dimensions Standard GE Mark V board size Operating Temp 0 deg C to 60 deg C Product Type LAN Communication Card Series Mark V Speedtronic Functional Acronym SLCC Assembly Type Normal Assembly Communication Ports RS-232, RS-485, LAN interface Supported Protocols Modbus, Ethernet/IP depending on firmware Processor Embedded microcontroller Memory EPROM and RAM for communication logic Indicators Diagnostic LEDs for Power, TX, RX, Fault Operating Voltage 24 VDC Mounting Plug-in rack assembly Revision G1AHH GE Mark V Industrial Communication Processing The DS200SLCCG1AHH is designed for GE Mark V control systems requiring communication path management between turbine control boards and connected external equipment. The board processes LAN and serial communication signals through embedded communication logic and provides diagnostic status feedback through onboard indicators. The module supports industrial network integration through RS-232, RS-485, and LAN interfaces. Firmware flash compatibility and revision management define communication behavior within the Mark V Speedtronic platform. Proper firmware matching is required when replacing communication boards in existing configurations. Frequently Asked Questions Q: What communication interfaces are available on the DS200SLCCG1AHH?A: The board provides RS-232, RS-485, and LAN communication interfaces for data exchange between Mark V control components and external devices. Q: Can the DS200SLCCG1AHH be installed while the Mark V rack is powered?A: Hot-swap capability is not specified for this board. Installation and removal should be performed with the rack power isolated according to GE maintenance procedures. Q: What diagnostic information is provided by the communication card?A: The module includes diagnostic LEDs for power status, transmit activity, receive activity, and fault indication. Field Installation Guidelines Install the DS200SLCCG1AHH in the assigned GE Mark V rack position with power removed before handling the board. Confirm connector alignment and ensure the module is fully seated in the rack assembly. Maintain separation between communication wiring and high-voltage power cables to reduce electrical interference. Use shielded communication cables where required and terminate cable shields according to site grounding practices. Verify RS-232 and RS-485 wiring polarity before system startup. After installation, check diagnostic LED status and confirm communication operation with the existing Mark V control configuration.
$200.00 $100.00
-
General Electric GE DS200SLCCG3AFG LAN Communication Card
GE DS200SLCCG3AFG LAN Communication Card The GE DS200SLCCG3AFG, also cataloged as the DS200SLCCG3AFG LAN Communication Card, operates as a dedicated hardware component for communication interface execution within GE Mark V Speedtronic turbine control system platforms. The board provides LAN and serial communication paths between control modules and external devices, supporting data exchange, diagnostics, and interface signal processing. Hardware Specifications Parameter Specification Model DS200SLCCG3AFG Brand GE Origin United States Operating Temp 0 deg C to 60 deg C Power Consumption Not specified Product Type LAN Communication Card System Compatibility GE Mark V Speedtronic turbine control system Communication Interfaces RS-232, RS-485, LAN interface Supported Protocols Modbus, Ethernet/IP depending on firmware configuration Processor Embedded microcontroller Memory EPROM and RAM for communication logic Indicators Diagnostic LEDs for Power, TX, RX, Fault Mounting Type Plug-in rack assembly Operating Voltage 24 VDC GE Mark V Communication Interface and Network Processing The DS200SLCCG3AFG is configured for GE Mark V Speedtronic control architectures requiring communication between turbine control boards and external monitoring or control devices. The board manages serial and LAN interface signals, processes communication data through embedded logic, and provides diagnostic indication through onboard status LEDs. The communication architecture supports industrial control network integration through interface signal conditioning and firmware-defined protocol handling. The board revision G3AFG includes hardware and firmware compatibility updates for Mark V platform operation. Frequently Asked Questions Q: What communication interfaces are available on the DS200SLCCG3AFG?A: The board provides RS-232, RS-485, and LAN communication interfaces for connection with compatible GE Mark V control components and external devices. Q: Is the DS200SLCCG3AFG designed for hot-swapping in a Mark V rack?A: Hot-swap operation is not specified for this board. Installation or replacement should follow GE Mark V rack power isolation and maintenance procedures. Q: What diagnostic functions are available on this communication card?A: The board provides onboard diagnostic LEDs indicating power status, transmit activity, receive activity, and fault conditions. Field Installation Guidelines Install the DS200SLCCG3AFG in the designated GE Mark V rack slot with system power removed before board insertion or removal. Verify connector alignment and ensure the board is fully seated in the rack assembly. Route LAN and serial communication cables separately from high-voltage power wiring to reduce electromagnetic interference. Use appropriate cable shielding and connect shields according to site grounding practices. Confirm RS-232 and RS-485 polarity before energizing the communication network. After installation, verify LED status indicators, communication link activity, and firmware compatibility with the existing Mark V control configuration.
$200.00 $100.00
-

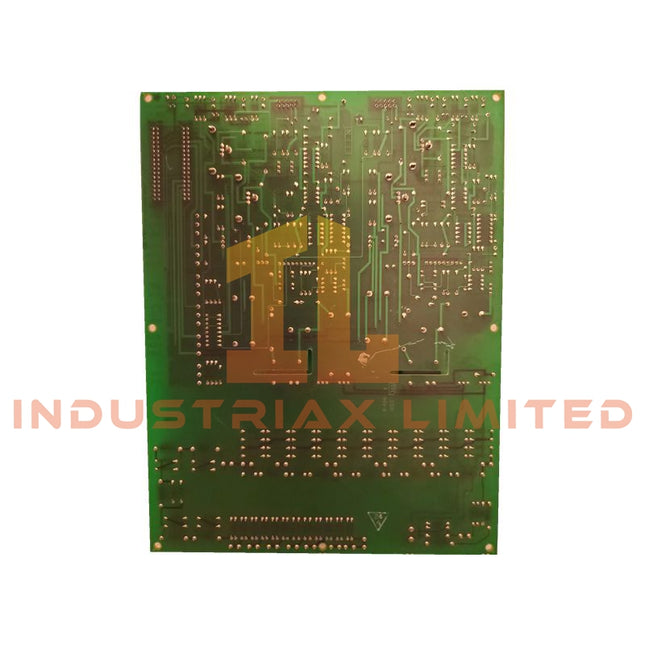

General Electric GE DS200EXPSG1ABB Mark V Exciter Power Supply Board
GE DS200EXPSG1ABB Mark V Exciter Power Supply Board Configured for regulated DC power conversion in GE Mark V Speedtronic excitation control systems, the GE DS200EXPSG1ABB (DS200EXPSG1 Power Supply Board) provides direct electrical execution for exciter control circuits. The board supplies regulated DC outputs, monitors protection states, and communicates through the Mark V backplane interface. Suffix Breakdown & Model Matrix The DS200EXPSG1ABB ordering code identifies a GE Mark V EX2000 series Exciter Power Supply Board with specific revision identifiers. Model Element Specification Base Model DS200EXPSG1 Series EX2000 Functional Board Type Exciter Power Supply Board Revision Identifier ABB Platform GE Mark V Speedtronic Configuration Type Mark V plug-in power supply assembly Hardware Specifications Parameter Specification Model DS200EXPSG1ABB Brand GE (General Electric) Origin United States Product Type Power Supply Board System Compatibility GE Mark V Speedtronic Series EX2000 Input Voltage 24 VDC or 115/230 VAC depending on configuration Output Voltage +5 VDC, +15 VDC, -15 VDC regulated outputs Output Current Up to 5 A combined Protection Over-voltage, over-current, thermal shutdown Communication Mark V backplane bus interface Indicators Diagnostic LEDs: Power, Fault, Status Form Factor Standard Mark V board size Mounting Plug-in rack assembly Operating Temp 0 deg C to 60 deg C Power Consumption Not specified GE EX2000 Power Conversion and Control Bus Interface The DS200EXPSG1ABB operates as an EX2000 series power supply module within the GE Mark V control architecture. The board converts incoming power sources into regulated DC rails used by exciter control electronics and related protection circuits. The GE industrial control platform uses structured backplane communication for board coordination. The DS200EXPSG1ABB supports power distribution requirements for excitation control assemblies while maintaining electrical protection through over-voltage, over-current, and thermal shutdown monitoring functions. Frequently Asked Questions Q: What DC outputs are provided by the DS200EXPSG1ABB?A: The board provides regulated +5 VDC, +15 VDC, and -15 VDC outputs for exciter control electronics. Q: What protection functions are integrated into the DS200EXPSG1ABB?A: The board includes over-voltage protection, over-current protection, and thermal shutdown monitoring. Q: How is the DS200EXPSG1ABB installed in a Mark V system?A: The board is installed as a plug-in rack assembly within the GE Mark V Speedtronic control cabinet. Field Installation Guidelines Install the DS200EXPSG1ABB in the designated Mark V rack position with correct connector alignment. Verify input power wiring, polarity, and grounding connections before energizing the system. Route power wiring separately from low-level control and communication cables. Apply cable shielding and grounding methods according to site electrical practices to reduce electromagnetic interference. Before replacement, record existing board identification, wiring references, and system configuration information. After installation, verify Power, Fault, and Status LED indications and confirm proper communication with connected Mark V modules.
$200.00 $100.00
-
General Electric GE DS200TCQCG1BGK Mark V Control Sequencer Board
GE DS200TCQCG1BGK Mark V Control Sequencer Board The GE DS200TCQCG1BGK, also cataloged as the DS200TCQCG1 Control Sequencer Board, operates as a dedicated hardware component for turbine sequencing, protection logic execution, and control communication within GE Mark V Speedtronic systems. The board processes analog and digital signals, controls relay and actuator outputs, and exchanges data through the Mark V control network. Hardware Specifications Parameter Specification Model DS200TCQCG1BGK Brand GE (General Electric) Origin United States Product Type Control Sequencer Board System Compatibility GE Mark V Speedtronic Functions Sequencing, protection, communication Processor Embedded microcontroller Memory EPROM and RAM for logic storage Inputs Multiple analog and digital sensor signals Outputs Control signals to actuators and relays Communication Backplane bus, RS-232, RS-485 Operating Voltage 24 VDC Indicators Diagnostic LEDs: Power, Run, Fault, Comm Form Factor Standard Mark V board size Operating Temp 0 deg C to 60 deg C GE Mark V Industrial Control Communication and Firmware Compatibility The DS200TCQCG1BGK is designed for GE Mark V Speedtronic control architectures requiring coordinated sequence execution, protection monitoring, and board-level communication. The board manages signal exchange between field inputs, control logic, and output devices through the Mark V backplane structure. The GE Mark V platform uses deterministic control communication paths for turbine control processing. The DS200TCQCG1BGK supports firmware logic storage through EPROM and RAM components and provides I/O density scaling through multiple analog and digital signal channels. Revision BGK identifies a specific hardware and firmware configuration for Mark V system compatibility. Frequently Asked Questions Q: What functions are performed by the DS200TCQCG1BGK Control Sequencer Board?A: The board executes turbine sequencing logic, protection processing, and communication tasks between Mark V control modules. Q: Which communication interfaces are available on the DS200TCQCG1BGK?A: The board supports Mark V backplane communication and serial interfaces including RS-232 and RS-485. Q: How is the DS200TCQCG1BGK installed in the Mark V system?A: The board is installed as a plug-in rack assembly within the GE Mark V Speedtronic control cabinet. Field Installation Guidelines Install the DS200TCQCG1BGK in the assigned Mark V rack position with correct connector alignment. Verify the 24 VDC power wiring and inspect board edge connectors before system startup. Route signal cables separately from high-current conductors to reduce electromagnetic interference. Apply cable shielding and grounding methods according to site electrical standards. Confirm diagnostic LED status after installation and verify communication exchange with connected Mark V boards. Before replacement, record the installed board identification, firmware information, and connection references. Maintain original hardware configuration settings during commissioning.
$200.00 $100.00
-
General Electric GE DS200TCQCG1BHF Mark V Control Sequencer Board
GE DS200TCQCG1BHF Mark V Control Sequencer Board Configured for turbine sequencing, protection logic processing, and control communication in GE Mark V Speedtronic systems, the GE DS200TCQCG1BHF (DS200TCQCG1BHF Control Sequencer Board) provides direct physical and electrical execution. The board processes analog and digital input signals, generates actuator and relay outputs, and exchanges control data through the Mark V backplane network. Suffix Breakdown & Model Matrix The DS200TCQCG1BHF ordering code identifies a GE Mark V Control Sequencer Board with defined hardware revision fields. Model Element Specification Base Model DS200TCQCG1 Assembly Type Normal Assembly Series Mark V Speedtronic Protective Coating Style Normal Coating 1st Functional Revision B 2nd Functional Revision H Artwork Revision F Hardware Specifications Parameter Specification Model DS200TCQCG1BHF Brand GE (General Electric) Origin United States Product Type Control Sequencer Board System Compatibility GE Mark V Speedtronic Functions Sequencing, protection, communication Processor Embedded microcontroller Memory EPROM and RAM for logic storage Inputs Multiple analog and digital sensor signals Outputs Control signals to actuators and relays Communication Backplane bus, RS-232, RS-485 Operating Voltage 24 VDC Indicators Diagnostic LEDs for Power, Run, Fault, Comm Form Factor Standard Mark V board size Mounting Plug-in rack assembly Operating Temp 0 deg C to 60 deg C Power Consumption Not specified GE Mark V Deterministic Control Communication The DS200TCQCG1BHF operates within the GE Mark V Speedtronic control architecture for sequence execution, protection handling, and board-to-board communication. The board manages control logic exchange through the Mark V backplane bus and supports serial communication interfaces for system integration. The Mark V platform uses structured firmware execution and board-level communication timing. The DS200TCQCG1BHF provides I/O density scaling through multiple analog and digital signal paths and maintains firmware logic storage through EPROM and RAM memory components. Frequently Asked Questions Q: What control functions are executed by the DS200TCQCG1BHF?A: The board executes turbine sequencing functions, protection logic processing, and communication tasks between Mark V control modules. Q: What type of mounting method is used for the DS200TCQCG1BHF?A: The board uses a plug-in rack assembly format within the GE Mark V Speedtronic control cabinet. Q: Which communication connections are supported by the DS200TCQCG1BHF?A: The board supports Mark V backplane bus communication and serial interfaces including RS-232 and RS-485. Field Installation Guidelines Install the DS200TCQCG1BHF in the assigned Mark V rack position with correct connector alignment. Verify the 24 VDC power connection and inspect the board edge connectors before system energization. Maintain separation between low-level signal wiring and high-current power conductors. Apply cable shielding and grounding methods according to site electrical practices to reduce electromagnetic interference. Before board replacement, document existing firmware identification, wiring references, and hardware configuration information. After installation, verify diagnostic LED states and confirm communication with connected Mark V modules.
$200.00 $100.00
-
General Electric GE DS200TCQAG1BFD Mark V Control Board Assembly
GE DS200TCQAG1BFD Mark V Control Board Assembly Configured for turbine sequencing, protection logic execution, and board-level communication in GE Mark V Speedtronic systems, the GE DS200TCQAG1BFD (DS200TCQAG1BFD Control Board Assembly) provides direct signal processing and control interface functions. The board manages analog and digital input signals, actuator control outputs, and communication exchange through the Mark V control architecture. Suffix Breakdown & Model Matrix The DS200TCQAG1BFD is identified as a GE Mark V control board assembly. The available model information indicates the following configuration elements: Model Element Specification Base Model DS200TCQAG1 Functional Board Type TCQA Control Board Assembly Revision Identifier BFD Platform GE Mark V Speedtronic Installation Type Plug-in rack assembly No additional manufacturer-defined suffix matrix information is provided for the DS200TCQAG1BFD ordering code. Hardware Specifications Parameter Specification Model DS200TCQAG1BFD Brand GE (General Electric) Origin United States Product Type Control Board Assembly System Compatibility GE Mark V Speedtronic Functions Sequencing, protection, communication Processor Embedded microcontroller Memory EPROM and RAM for logic storage Inputs Multiple analog and digital sensor signals Outputs Control signals to actuators and relays Communication Backplane bus, RS-232, RS-485 Operating Voltage 24 VDC Indicators Diagnostic LEDs for power, run, fault Form Factor Standard Mark V board size Mounting Plug-in rack assembly Dimensions Standard Mark V board format, dimensions not specified Operating Temp 0 deg C to 60 deg C GE Mark V Industrial Control Communication and Logic Processing The DS200TCQAG1BFD operates as a Mark V control interface board responsible for sequencing execution, protection logic handling, and communication coordination between control modules. The board exchanges field input information and generated control commands through the Speedtronic backplane structure. The GE Mark V platform uses deterministic board-level communication paths for coordinated turbine control. The DS200TCQAG1BFD supports industrial control integration through backplane communication and serial interfaces. Firmware and logic storage functions are maintained through EPROM and RAM memory components. Frequently Asked Questions Q: What type of signals does the DS200TCQAG1BFD process?A: The board processes multiple analog and digital sensor input signals and provides control outputs to connected actuators and relay circuits. Q: How is the DS200TCQAG1BFD installed in a Mark V system?A: The board is installed as a plug-in rack assembly within the GE Mark V Speedtronic control hardware structure. Q: Which communication interfaces are available on the DS200TCQAG1BFD?A: The board supports Mark V backplane communication and serial communication interfaces including RS-232 and RS-485. Field Installation Guidelines Install the DS200TCQAG1BFD into the designated GE Mark V rack slot while maintaining correct board alignment and connector engagement. Verify the 24 VDC supply connections and inspect all backplane contacts before system startup. Route signal wiring separately from high-current conductors to reduce electromagnetic interference. Use appropriate cable shielding and grounding methods according to site electrical standards. Confirm diagnostic LED status after installation and verify communication exchange with connected Mark V control boards. Before replacing an existing board, record jumper positions, firmware identification, and connected signal references to maintain configuration consistency during commissioning.
$200.00 $100.00
-

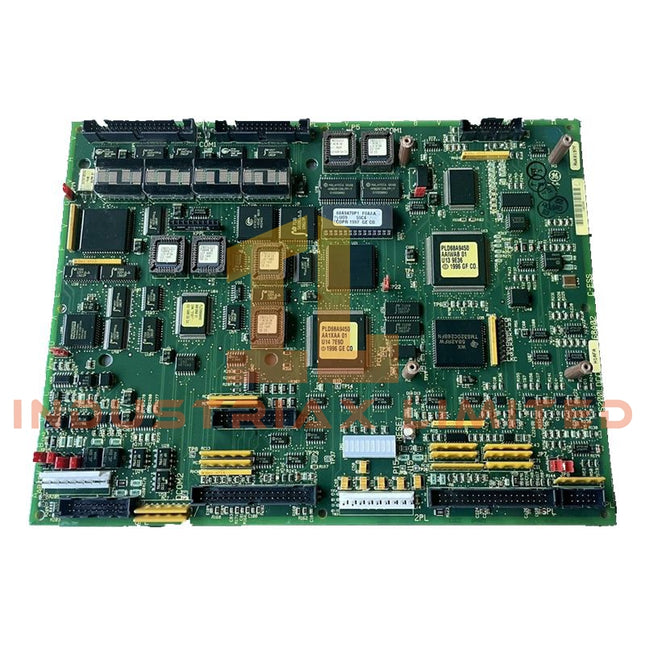

General Electric GE DS200LDCCH1AMA Mark V LDCC Drive Control and LAN Communications Board
GE DS200LDCCH1AMA Mark V LDCC Drive Control and LAN Communications Board Configured for turbine control execution and LAN communication processing in GE Mark V Speedtronic systems, the GE DS200LDCCH1AMA (DS200LDCCH1A LDCC Drive Control and LAN Communications Board) provides direct physical and electrical control interface functions. The board contains a 32-bit microcontroller operating at 66 MHz, flash program storage, battery-backed RAM, and Ethernet/serial communication interfaces. Hardware Specifications Parameter Specification Model DS200LDCCH1AMA Brand GE (General Electric) Origin United States Product Type Turbine Control Board System Compatibility GE Mark V Speedtronic Functional Abbreviation LDCC (Drive Control and LAN Communications) Processor 32-bit microcontroller, 66 MHz Execution Speed 0.2 ms per 1K logic instructions Program Memory 2 MB Flash PROM Data Memory 1 MB battery-backed RAM Communication Ports 2 x Ethernet RJ-45, 1 x RS-232, 1 x RS-485 Supported Protocols Ethernet/IP, MODBUS TCP Power Supply 24 VDC external supply Current Consumption Approximately 320 mA PCB Construction 6-layer PCB Components Approximately 150 components, 22 ICs Status Indicators 6 LEDs: PWR, RUN, TX, RX, LINK, FLT Test Points 10 gold-plated test points Energy Storage Lithium battery for RAM retention, approximately 3 years service life Weight 1.36 kg Dimensions 26 cm x 18 cm x 2 cm Operating Temp 0 deg C to 55 deg C Mounting 4 x M4 screw holes Power Consumption Approximately 7.7 W at nominal 24 VDC operation EtherNet/IP and Mark V Control Communication Functions The DS200LDCCH1AMA operates as an LDCC control interface within the GE Mark V Speedtronic architecture. The board manages drive control logic execution, LAN communication processing, and turbine regulation signal exchange. The communication hardware includes dual Ethernet ports and serial interfaces for integration with industrial control networks. Firmware functions support configurable Flash PROM programming through PC connection. Hardware jumpers use Berg-type manually adjustable configurations for board setup and service operations. Frequently Asked Questions Q: What type of memory retention function is provided by the DS200LDCCH1AMA?A: The board uses battery-backed RAM to retain stored data during loss of external power. The lithium battery supports approximately 3 years of retention service. Q: Which communication interfaces are available on the DS200LDCCH1AMA?A: The board provides two Ethernet RJ-45 ports, one RS-232 interface, and one RS-485 interface for industrial communication connections. Q: Can the Flash PROM configuration be modified during maintenance?A: Yes. The configurable Flash PROMs can be programmed through a PC connection when performing authorized maintenance procedures. Field Installation Guidelines Install the DS200LDCCH1AMA in the designated GE Mark V Speedtronic control rack position using the specified mounting hardware. Verify the 24 VDC supply polarity before connection and confirm that communication cables are routed separately from high-current power conductors. Use shielded communication cables for Ethernet and serial interfaces where required by the installation environment. Connect cable shields according to plant grounding standards to reduce electromagnetic interference. Inspect board connectors, jumper positions, and seating alignment before system energization. During replacement procedures, record existing jumper configurations and firmware information before removing the installed board. Confirm communication status through diagnostic LEDs after installation.
$200.00 $100.00
-
General Electric DS200LRPBG1AAA GE Mark V Resolver Board
GE DS200LRPBG1AAA Resolver Board The GE DS200LRPBG1AAA, also cataloged as the DS200LRPB Resolver Board, operates as a dedicated signal conditioning hardware component for low-range analog acquisition within the GE Mark V Speedtronic turbine control system. The board performs precision amplification, buffering, and isolation for sensor input circuits including thermocouple, RTD, and transmitter signals through VME backplane integration. Hardware Specifications Parameter Specification Model DS200LRPBG1AAA Brand GE General Electric Origin United States Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type Resolver Board / Low-Range Precision Amplifier & Buffer System Compatibility GE Mark V Speedtronic Functional Acronym LRPB Assembly Type Normal Assembly Interface VME Backplane Analog Inputs 8 isolated low-range inputs, +/-10 mV to +/-10 V or 4-20 mA Amplifier Outputs 4 precision amplified outputs, 0-10 V or 4-20 mA Buffer Outputs 4 isolated buffered outputs, 0-10 V or 4-20 mA Digital Inputs 8 optically isolated inputs, 24-250 V DC/AC Digital Outputs 8 optically isolated outputs, 24-250 V DC/AC Analog Resolution 18-bit input resolution Accuracy +/-0.01% of reading Communication Ports RS-232/RS-485, Ethernet 10/100 Protection Conformal coating, EMI shielding, ESD protection MTBF >100,000 hours Mark V Speedtronic Signal Conditioning Characteristics The DS200LRPBG1AAA provides isolated analog signal processing within the GE Mark V Speedtronic control architecture. Its input circuits support low-level sensor signals requiring amplification and buffering before distribution to turbine control processing channels. The board integrates isolated input and output paths to reduce signal interaction between field devices and control electronics. The VME interface provides backplane communication with the Mark V control rack for data exchange and diagnostic handling. The LRPB board design supports deterministic analog processing through precision amplification circuits, buffered output stages, and EMI protection methods. The hardware configuration is compatible with Mark V simplex and TMR-based control arrangements where signal conditioning consistency is required. Frequently Asked Questions Q: What type of signals can the DS200LRPBG1AAA process?A: The board processes low-range analog signals including thermocouple, RTD, and transmitter inputs. The specified input range supports +/-10 mV to +/-10 V and 4-20 mA signal types. Q: How is the DS200LRPBG1AAA connected to the Mark V system?A: The board uses a 6U VME backplane interface for integration with GE Mark V Speedtronic control racks. Q: Does the board provide electrical isolation for field signals?A: Yes. The design includes isolated analog inputs, buffered outputs, and optically isolated digital I/O channels for signal separation. Field Installation Guidelines Install the DS200LRPBG1AAA only in compatible GE Mark V VME rack positions. Verify rack power removal before insertion or removal to prevent backplane damage. Maintain proper grounding practices for shielded signal cables. Connect cable shields according to the turbine control cabinet grounding design and avoid routing low-level analog wiring together with high-current switching conductors. Inspect VME connectors and board edge contacts before installation. Ensure the module is fully seated in the rack guide system and that retaining hardware is secured according to cabinet assembly requirements. For analog signal wiring, maintain separation between sensor cables, power conductors, and relay circuits to reduce electromagnetic interference. Confirm field signal polarity, isolation requirements, and I/O termination assignments before commissioning.
$200.00 $100.00
-
General Electric GE DS200TBQFG1BBB Analog I/O Board
GE DS200TBQFG1BBB Analog I/O Board Configured for mixed analog and digital signal acquisition in GE Mark V Speedtronic systems, the GE DS200TBQFG1BBB (DS200TBQFG1BBB Analog I/O Board) provides direct physical/electrical execution for signal conditioning, input processing, and output control functions. Hardware Specifications Parameter Specification Model DS200TBQFG1BBB Brand GE Origin United States Weight 1.5 lbs Dimensions Compact GE Mark V board form factor Operating Temp -40 deg C to +85 deg C Product Type Analog I/O Board System Compatibility GE Mark V Speedtronic control system Input Voltage Range -10 to +110 VDC Input Current Range 0 to 22 mA Output Voltage Range 0 to 10 VDC Output Current Range 0 to 20 mA Signal Function Analog and digital signal conditioning interface Vibration Resistance 5 to 500 Hz Profinet / EtherNet-IP Deterministic Network Compatibility The DS200TBQFG1BBB is designed as a GE Mark V Speedtronic signal interface board, providing mixed-signal processing between field devices and turbine control logic. The board manages analog input acquisition, signal conditioning, and analog output generation through the Mark V control architecture. GE control platforms use defined communication and I/O synchronization methods to maintain deterministic signal handling between control boards. The DS200TBQFG1BBB operates within the Mark V hardware environment and is not configured as a standalone Profinet or EtherNet/IP communication module. The analog circuitry supports transmitter and actuator signal interfaces, allowing conversion and processing of field-level electrical signals for control execution. Proper grounding and signal separation are required to reduce electrical noise influence on analog measurement accuracy. Frequently Asked Questions Q: What signal ranges are supported by the DS200TBQFG1BBB?A: The board supports analog input signals from -10 to +110 VDC and 0 to 22 mA, with analog outputs of 0 to 10 VDC and 0 to 20 mA. Q: Is the DS200TBQFG1BBB compatible with GE Mark VIe systems?A: No. The board is designed specifically for GE Mark V Speedtronic control systems and is not interchangeable with Mark VIe hardware platforms. Q: What installation factors affect analog signal performance?A: Proper cabinet grounding, shield termination, and separation of analog wiring from high-current switching circuits are required for stable signal acquisition. Field Installation Guidelines Install the DS200TBQFG1BBB in the designated GE Mark V control rack position and verify correct board seating before energizing the system. Inspect connectors and terminal interfaces for contamination, mechanical damage, or improper engagement. Route analog signal wiring separately from power conductors and high-frequency switching circuits. Maintain cable shielding continuity and connect shields according to the cabinet grounding design to reduce electromagnetic interference. Confirm that connected field devices match the supported voltage and current input/output ranges before commissioning. Verify Mark V system compatibility before replacing or exchanging the board.
$200.00 $100.00
-
General Electric GE DS200LDCCH1ANA-W01 Drive Control CPU Board
GE DS200LDCCH1ANA-W01 Drive Control CPU Board The GE DS200LDCCH1ANA-W01, also cataloged as the DS200LDCCH1ANA Drive Control CPU Board, operates as a dedicated hardware component for drive processing, SCR firing control, and real-time motor coordination within GE Mark IV LCI control systems. Hardware Specifications Parameter Specification Model DS200LDCCH1ANA-W01 Brand GE Origin United States Dimensions Standard GE Mark IV form factor Operating Temp 0 deg C to 50 deg C Power Consumption Approximately 15 W at 24 VDC Product Type Drive Control CPU Board System Platform GE Mark IV LCI static starter system Processor Dedicated drive control CPU Memory NVRAM with battery backup Input Voltage 24 VDC nominal (18-32 VDC range) Communication Interface QDII bus board-to-board communication Bus Architecture MARK IV / QDII bus protocol Battery Backup 3.6 V lithium thionyl chloride replaceable battery Diagnostic Interface Power, Run, Fault, and Communication LEDs Firmware Update GE proprietary loader via QDII bus Firmware Flash Compatibility and QDII Bus Control The DS200LDCCH1ANA-W01 integrates a dedicated processor environment for GE Mark IV LCI control functions. The board executes motor control calculations, SCR firing angle management, and drive sequence coordination through the QDII communication bus. Firmware compatibility is revision dependent, and the W01 suffix identifies a specific hardware and firmware configuration for supported Mark IV LCI installations. The onboard NVRAM retains configured parameters during power interruption through a battery-backed memory circuit. The diagnostic LED indicators provide direct hardware status feedback for processor operation, fault conditions, and communication activity. Frequently Asked Questions Q: What communication method is used by the DS200LDCCH1ANA-W01?A: The board communicates through the GE MARK IV QDII bus architecture for board-to-board data exchange within LCI control assemblies. Q: Does the board retain configuration data after power loss?A: Yes. The DS200LDCCH1ANA-W01 uses NVRAM with a replaceable 3.6 V lithium thionyl chloride battery backup to maintain stored parameters. Q: What power supply is required for this CPU board?A: The board operates from a 24 VDC supply input with an operating range of 18-32 VDC. Field Installation Guidelines Install the DS200LDCCH1ANA-W01 in the designated GE Mark IV LCI rack position with the correct backplane alignment before applying power. Verify connector engagement and inspect the board edge contacts for contamination or mechanical damage. Use proper cabinet grounding practices to reduce communication interference. Signal and communication wiring should be routed separately from high-current SCR power conductors. Shielded communication cables should maintain continuous shield bonding according to cabinet grounding standards. Before firmware loading or board replacement, confirm revision compatibility between the CPU board, control cabinet configuration, and installed application firmware. Maintain battery condition to preserve NVRAM parameter storage.
$200.00 $100.00
-

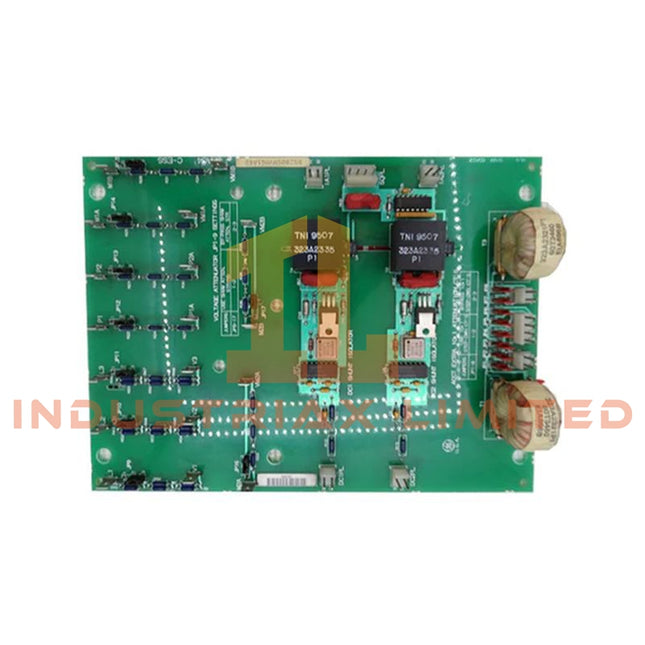

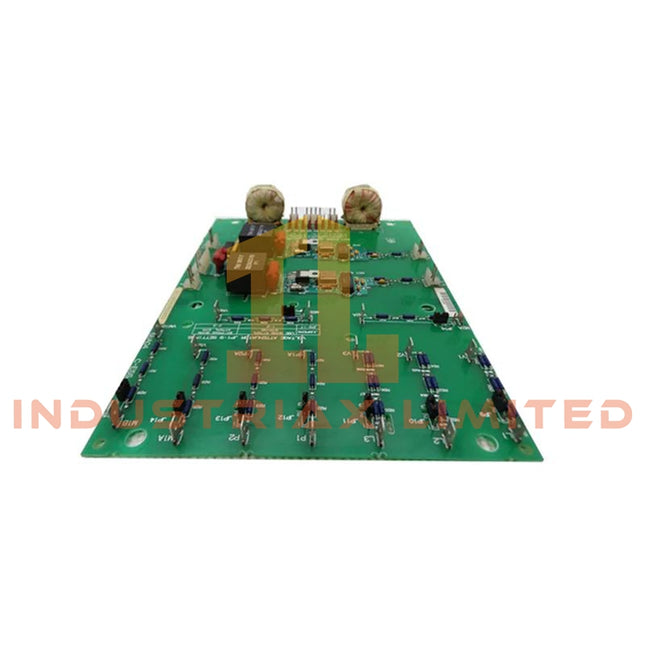

General Electric GE DS200SHVMG1AGE High Voltage M-Frame Interface Board
GE DS200SHVMG1AGE High Voltage M-Frame Interface Board Configured for high-voltage signal interfacing in the Mark V Speedtronic turbine control system, the GE DS200SHVMG1AGE (DS200SHVMG1AGE High Voltage M-Frame Interface Board) provides direct electrical execution for signal conditioning, isolation, and monitoring between exciter/drive circuits and controller assemblies. Hardware Specifications Parameter Specification Model DS200SHVMG1AGE Brand GE Origin United States Weight 0.5 kg Operating Temp 0 deg C to +55 deg C Power Consumption Supplied through Mark V backplane: +5 VDC, +/-15 VDC Series Mark V Speedtronic turbine control system Product Type SCR High Voltage M-Frame Interface Board Functional Acronym SHVM Voltage Handling High-voltage signal interfacing, typically >600 V Connectors Eight plug connectors, edge connectors, multi-pin signal connectors Signal Processing Voltage dividers, isolation transformers, filtering components Protection Components Fuses with LED indicators Diagnostics LED status indicators, RESET button, test points PCB Coating Conformal coating Industrial Control and Drive Interface Processing The DS200SHVMG1AGE is designed for GE Mark V drive and exciter interface applications. The board processes high-voltage feedback and control signals through isolation components, voltage scaling circuits, and filtering networks before communication with the controller backplane. The interface architecture supports deterministic signal transfer within the Mark V control rack. Voltage isolation and signal conditioning circuits provide electrical separation between high-voltage field circuits and low-voltage controller electronics. The board follows GE industrial control revision management practices, requiring firmware and hardware compatibility verification when integrated into existing Mark V assemblies. Backplane communication and I/O density scaling depend on the installed controller configuration and associated interface boards. Frequently Asked Questions Q: What type of signals does the DS200SHVMG1AGE process?A: The board processes high-voltage interface signals associated with GE Mark V exciter and drive subsystems, using isolation and scaling circuits for controller monitoring. Q: What protection components are installed on the SHVM board?A: The board includes protective fuses, LED indicators, voltage isolation components, and filtering elements for high-voltage interface circuits. Q: How is the board connected to the Mark V system?A: The module connects through Mark V rack backplane edge connectors and dedicated multi-pin connectors for high-voltage signal interfaces. Field Installation Guidelines Install the DS200SHVMG1AGE only in the designated Mark V rack position with the correct connector orientation. Verify that high-voltage circuits are de-energized before removing or installing the board. Route high-voltage signal wiring separately from low-level control and communication wiring to reduce electrical interference. Connect cable shields according to cabinet grounding practices and maintain proper separation between field power circuits and controller signal paths. Inspect plug connectors, fuse indicators, and PCB surfaces before installation. Apply standard ESD protection procedures when handling the circuit board.
$200.00 $100.00
-

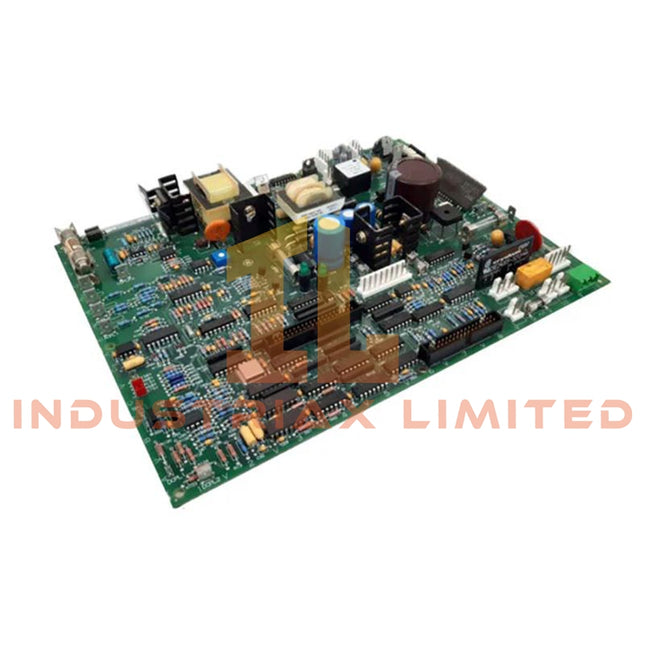

General Electric GE DS200IMCPG1CCB I/O Motor Control Processor Board
GE DS200IMCPG1CCB I/O Motor Control Processor Board The GE DS200IMCPG1CCB, also cataloged as the DS200IMCPG1CCB I/O Motor Control Processor Board, operates as a dedicated hardware component for motor control logic execution and I/O signal coordination within the Mark V Speedtronic turbine control system. The board processes drive-related control data through onboard processors, memory devices, and backplane interfaces. Hardware Specifications Parameter Specification Model DS200IMCPG1CCB Brand GE Origin United States Weight 0.4 kg Operating Temp 0 deg C to +55 deg C Power Consumption Supplied through Mark V backplane: +5 VDC, +/-15 VDC Series Mark V Speedtronic turbine control system Product Type I/O Motor Control Processor Board Functional Abbreviation IMCP Microprocessors Motor Control Processor (MCP) and Co-Motor Processor (CMP) Memory PROM firmware storage and EEPROM configuration storage Connectors Mark V rack edge connectors and multi-pin I/O connectors Diagnostics LED status indicators, RESET button, and test points PCB Coating Conformal coating Industrial Control and Drive Interface Processing The DS200IMCPG1CCB is configured for GE Mark V control architecture and manages motor control execution through dedicated MCP and CMP processing units. The board exchanges control information through the Mark V backplane and handles analog/digital I/O signal processing associated with turbine drive and exciter subsystems. The module supports industrial control firmware storage through PROM devices and retains configurable field parameters through EEPROM memory. Firmware flash compatibility and revision control must match the applicable Mark V controller configuration. The board architecture supports deterministic controller communication within the Mark V rack structure, allowing coordinated processing between control boards, drive interfaces, and exciter-related assemblies. Frequently Asked Questions Q: What backplane power inputs are required for the DS200IMCPG1CCB?A: The board receives control power through the Mark V backplane, including +5 VDC and +/-15 VDC supply rails. Q: What processors are integrated on this IMCP board?A: The module contains a Motor Control Processor (MCP) and a Co-Motor Processor (CMP) for motor control and supporting processing functions. Q: What diagnostic functions are available on the board?A: Diagnostic functions include LED status indicators, a manual RESET button, and onboard test points for troubleshooting. Field Installation Guidelines Install the DS200IMCPG1CCB into the designated Mark V rack slot with the edge connector fully seated into the backplane interface. Verify connector alignment before applying power. Maintain separation between control wiring and high-current drive wiring to reduce electrical interference. Signal cable shields should be terminated according to the cabinet grounding practice. Confirm that the board revision is compatible with the installed Mark V hardware configuration before replacement. Handle the PCB using standard ESD protection procedures. Inspect connectors, mounting surfaces, and backplane contacts before installation.
$200.00 $100.00
-

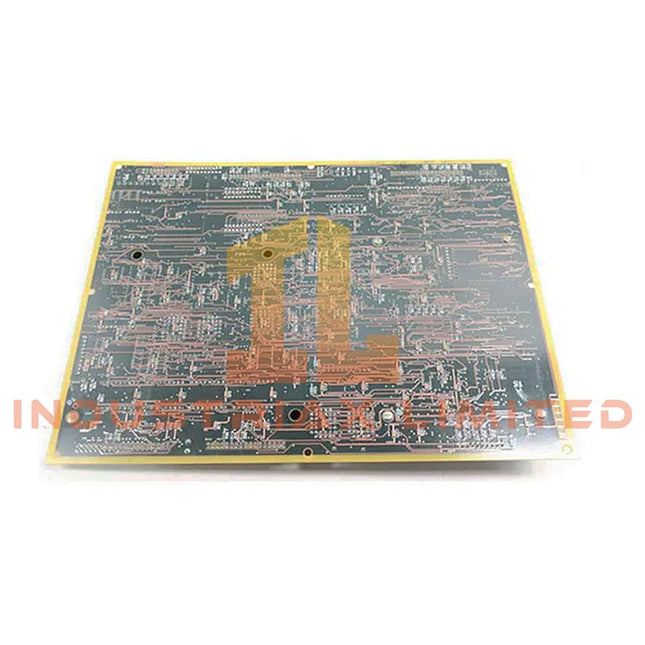

General Electric GE DS200PCCRG1ACB Power Connect Card
GE DS200PCCRG1ACB Power Connect Card Configured for regulated power distribution and signal interfacing in the GE Mark V Speedtronic turbine control system, the GE DS200PCCRG1ACB (DS200PCCRG1ACB Power Connect Card) provides direct physical/electrical execution for exciter and drive subsystem power routing. Hardware Specifications Parameter Specification Model DS200PCCRG1ACB Brand GE Origin United States Weight 0.4 kg Operating Temp 0 deg C to +55 deg C Product Type Power Connect Cards Series Mark V Speedtronic turbine control system Power Supply +5 VDC, +/-15 VDC via backplane Connectors Rack backplane edge connectors and multi-pin I/O connectors Isolation Components Transformers for voltage isolation Protection Components Fuses with LED status indicators, filtering capacitors and resistors Diagnostics LED indicators, RESET button, test points PCB Coating Conformal coating Industrial Control Power Distribution and Signal Interface The DS200PCCRG1ACB provides power routing and signal interface functions between Mark V controller assemblies and turbine exciter or drive subsystems. The board incorporates transformer-based isolation, filtering components, and fuse monitoring circuits for control-level electrical distribution. Within the GE industrial control architecture, the Power Connect Card supports backplane bus communication paths and maintains defined electrical interfaces between control boards. The board design supports firmware compatibility within the Mark V hardware platform through the associated controller configuration. Frequently Asked Questions Q: What power inputs are provided to the DS200PCCRG1ACB?A: The card receives +5 VDC and +/-15 VDC power through the Mark V rack backplane interface. Q: What protection components are installed on the Power Connect Card?A: The board includes fuses with LED indicators, transformers for isolation, and passive filtering components for electrical conditioning. Q: What diagnostic functions are available for maintenance checks?A: The card provides LED status indication, a RESET button, and test points for electrical troubleshooting. Field Installation Guidelines Install the DS200PCCRG1ACB in the assigned Mark V rack position and verify correct edge connector engagement before energizing the system. Remove rack power before board replacement or inspection. Maintain proper cabinet grounding and terminate cable shields according to the control system wiring practice. Route signal cables separately from high-current conductors to minimize electrical interference. Check connector condition, fuse status indicators, and mounting alignment during installation verification. Confirm board compatibility with the existing Mark V controller configuration before applying system power.
$200.00 $100.00
-
General Electric GE DS200IMCPG1CCA I/O Motor Control Processor Board
GE DS200IMCPG1CCA I/O Motor Control Processor Board The GE DS200IMCPG1CCA, also cataloged as the DS200IMCPG1CCA I/O Motor Control Processor Board, operates as a dedicated hardware component for motor control execution, I/O signal processing, and subsystem communication within the GE Mark V Speedtronic turbine control system. Hardware Specifications Parameter Specification Model DS200IMCPG1CCA Brand GE Origin United States Weight 0.4 kg Operating Temp 0 deg C to +55 deg C Product Type I/O Motor Control Processor Board Series Mark V Speedtronic turbine control system Power Supply +5 VDC, +/-15 VDC via backplane Processor Configuration Motor Control Processor (MCP) and Co-Motor Processor (CMP) Memory PROM firmware storage and EEPROM configuration storage Connectors Mark V rack edge connectors and multi-pin I/O connectors Diagnostics LED indicators, RESET button, built-in test points PCB Coating Conformal coating Deterministic Control and Communication Processing The DS200IMCPG1CCA integrates processor resources for execution of motor control routines, analog and digital I/O signal handling, and communication exchange with other Mark V control boards. The board receives power through the rack backplane and uses onboard firmware storage for control logic configuration. The GE industrial control architecture uses defined backplane communication paths for board-to-board data exchange. The IMCP module supports I/O density scaling through dedicated processor handling of motor-related signals and subsystem communication tasks. Frequently Asked Questions Q: What power interface does the DS200IMCPG1CCA use?A: The board receives +5 VDC and +/-15 VDC power through the Mark V rack backplane connection. Q: What processors are installed on the IMCP board?A: The DS200IMCPG1CCA contains a Motor Control Processor (MCP) and a Co-Motor Processor (CMP) for control execution and additional processing functions. Q: What diagnostic functions are available on this board?A: The board provides LED status indicators, a RESET button, and built-in test points for troubleshooting processor and communication conditions. Field Installation Guidelines Install the DS200IMCPG1CCA in the designated Mark V rack slot and verify correct backplane alignment before insertion. Confirm that rack power is removed before replacing or servicing the board. Use appropriate grounding practices for the control cabinet. Maintain separation between low-level signal wiring and high-current power conductors to reduce electrical interference. Verify connector seating, cable routing, and shielding termination before system startup. Firmware compatibility should be checked against the existing Mark V controller configuration before board replacement or maintenance activity.
$200.00 $100.00
-

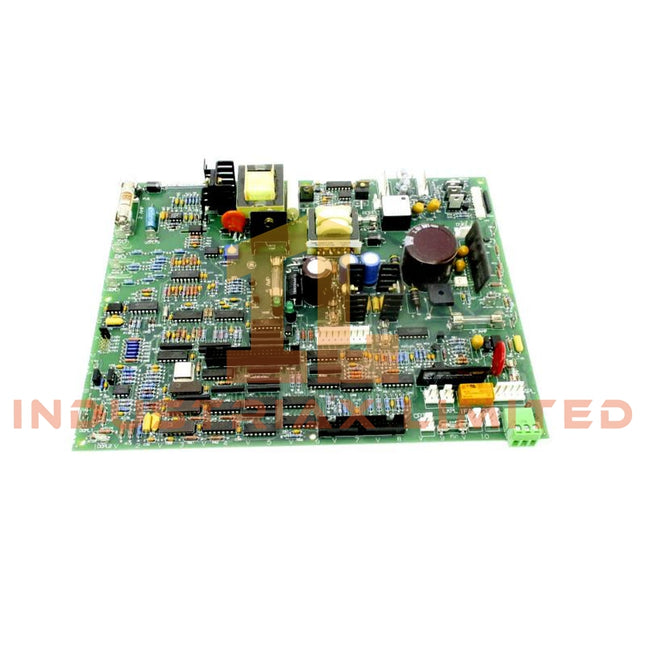

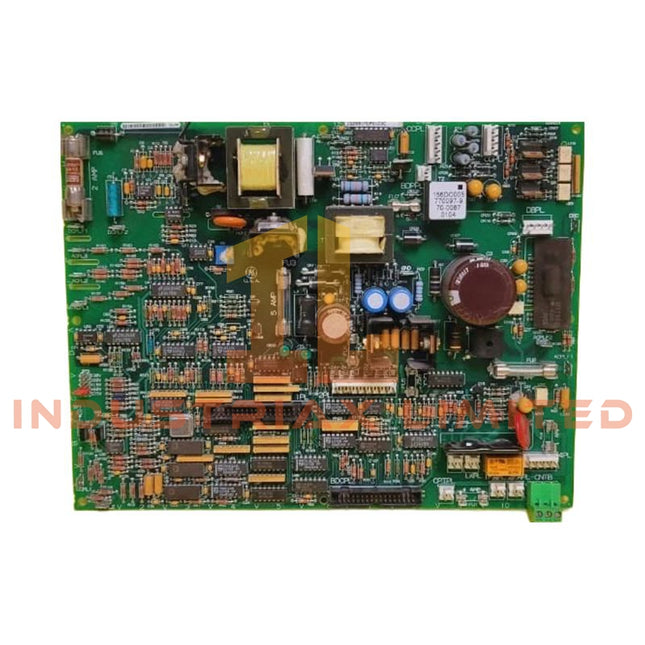

General Electric GE DS200IMCPG1CGC I/O Motor Control Processor Board
GE DS200IMCPG1CGC I/O Motor Control Processor Board The GE DS200IMCPG1CGC, also cataloged as the DS200IMCP I/O Motor Control Processor Board, operates as a dedicated hardware component for motor control execution and I/O signal processing within the GE Mark V Speedtronic turbine control system. It processes drive-related control logic and communicates with turbine exciter and subsystem boards. Hardware Specifications Parameter Specification Model DS200IMCPG1CGC Brand GE Origin USA Weight 0.7 kg Operating Temp 0 deg C to +55 deg C Power Consumption Not specified; supplied through Mark V backplane (+5 VDC, +/-15 VDC) Product Type I/O Motor Control Processor Boards Series Mark V Speedtronic turbine control system Functional Acronym IMCP Functional Description IGBT Power Supply Board Processor Configuration Motor Control Processor (MCP) and Co-Motor Processor (CMP) Memory PROM firmware storage and EEPROM configuration storage PCB Coating Normal Coating Functional Revision C / G Artwork Revision C Firmware and Deterministic Control Processing The DS200IMCPG1CGC integrates processor resources for execution of motor control algorithms, I/O signal handling, and communication exchange with Mark V controller modules. The board uses PROM-based firmware and EEPROM parameter storage to maintain control configuration data. Within GE industrial control architectures, processor-to-backplane communication timing and firmware compatibility are defined by the installed Mark V configuration. The board supports I/O density scaling through dedicated motor processing functions and manages analog/digital signal interaction between drive-related subsystems. Frequently Asked Questions Q: What processor functions are provided by the DS200IMCPG1CGC?A: The board contains a Motor Control Processor (MCP) for motor control logic execution and a Co-Motor Processor (CMP) for additional processing support. Q: How is the DS200IMCPG1CGC connected to the Mark V system?A: The board connects through edge connectors to the Mark V rack backplane and uses multi-pin I/O connectors for subsystem signal interfaces. Q: What diagnostic functions are available on this board?A: Diagnostic functions include LED status indicators, a RESET button, and onboard test points for troubleshooting processor and communication conditions. Field Installation Guidelines Install the DS200IMCPG1CGC with system power removed and confirm the correct Mark V rack slot assignment before insertion. Inspect the edge connector and backplane interface for contamination or mechanical damage. Maintain proper separation between control signal wiring and high-voltage conductors. Use shielded cables where required by the system design and terminate cable shields according to the cabinet grounding scheme. After installation, verify processor status indicators, backplane communication, and I/O signal operation through the Mark V diagnostic interface before returning the control system to service.
$200.00 $100.00
-

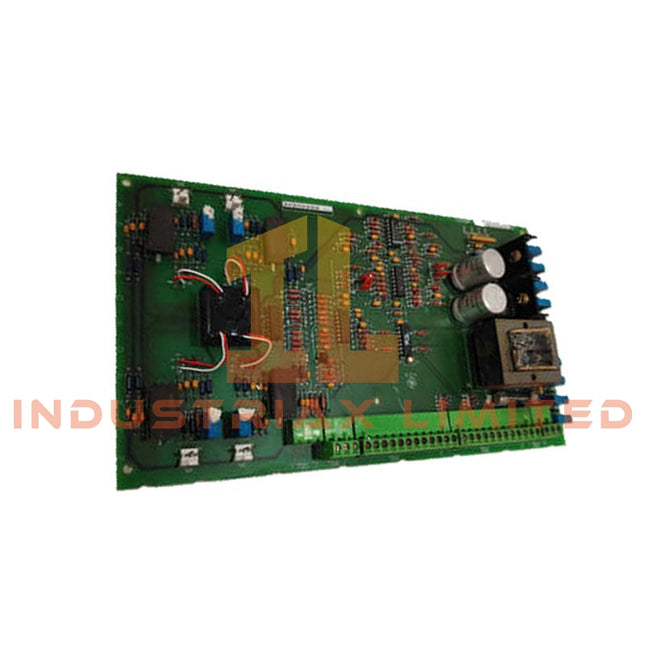

General Electric GE DS200SIOCG1AEA Serial Input/Output Control Board
GE DS200SIOCG1AEA Serial Input/Output Control Board The GE DS200SIOCG1AEA, also cataloged as the DS200SIOC Serial Input/Output Control Board, operates as a dedicated hardware component for serial data exchange and control signal routing within the GE Mark V Speedtronic turbine control system. It manages RS-232, RS-485, and optional fiber communication interfaces between controllers and external subsystems. Hardware Specifications Parameter Specification Model DS200SIOCG1AEA Brand GE Origin USA Weight 0.4 kg Operating Temp 0 deg C to +55 deg C Power Consumption Not specified; powered through Mark V backplane (+5 VDC, +/-15 VDC) Product Type Serial Input/Output Control Board Series Mark V Speedtronic turbine control system Communication Interfaces RS-232, RS-485, optional fiber-optic links depending on revision Processor Dedicated communication processor Memory PROM firmware storage and EEPROM configuration storage Assembly Type Normal Assembly Revision Quantity 3 revisions Firmware Compatibility and Industrial Network Processing The DS200SIOCG1AEA uses a dedicated communication processor to handle serial protocol execution, data transfer, and controller-to-device interface functions. Within the Mark V platform, the board manages serial communication paths through RS-232 and RS-485 interfaces while supporting revision-dependent fiber-optic communication options. The GE Mark V architecture requires firmware and hardware revision matching for proper backplane operation. PROM-based firmware storage and EEPROM parameter retention provide configuration support for communication functions. Diagnostic LEDs, processor reset control, and onboard test points provide local status verification. Frequently Asked Questions Q: What communication interfaces are supported by the DS200SIOCG1AEA?A: The board supports RS-232 and RS-485 serial communication interfaces. Fiber-optic communication capability depends on the specific hardware revision. Q: How is the DS200SIOCG1AEA powered inside the Mark V system?A: The board receives operating power through the Mark V backplane, including +5 VDC and +/-15 VDC supply rails. Q: Can the board revision be changed without system verification?A: No. Hardware revision and firmware compatibility must be checked against the installed Mark V controller configuration before replacement. Field Installation Guidelines Install the DS200SIOCG1AEA in the designated Mark V rack backplane slot with power removed from the control cabinet. Verify edge connector alignment before insertion to prevent mechanical damage. Route serial communication cables separately from high-voltage power conductors to reduce electrical interference. Apply proper cable shielding practices, with shield termination following the system grounding design. Confirm RS-232 and RS-485 wiring polarity before energizing the system. After installation, verify backplane seating, communication status LEDs, and controller recognition through standard Mark V diagnostic procedures.
$200.00 $100.00
-

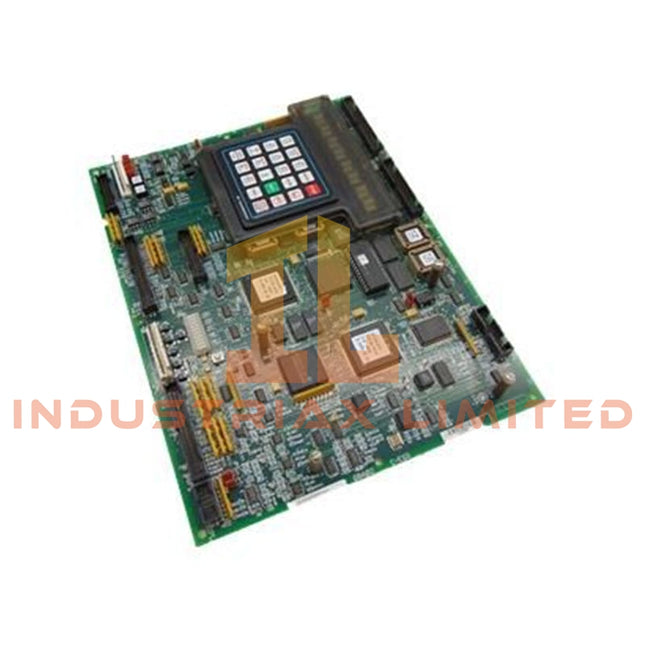

General Electric GE DS200LDCCG1AAA LAN Drive Control Card
GE DS200LDCCG1AAA LAN Drive Control Card The GE DS200LDCCG1AAA, also cataloged as the DS200LDCC LAN Drive Control Card, operates as a dedicated hardware component for LAN communication and drive control processing within GE Mark V Speedtronic turbine control system platforms. It manages controller data exchange, motor processing, and drive interface operations through integrated processor circuits. Suffix Breakdown & Model Matrix Segment Description DS200 GE Mark V board family designation LDCC LAN Drive Control Card functional acronym G1 Hardware configuration identifier A Functional revision 1 A Functional revision 2 A Artwork revision Hardware Specifications Parameter Specification Model DS200LDCCG1AAA Brand GE Origin United States Weight 0.8 kg Operating Temp -10 to +60 deg C Power Consumption 20 W Product Type Drive Control LAN Communication Boards Series Mark V Speedtronic Functional Acronym LDCC Functional Description Drive Control/LAN Communications Board Power Supply +5 VDC, +/-15 VDC via backplane Operating Voltage 24 VDC Power Requirements +5 VDC, 7 A Input Voltage 90-264 VAC Output Voltage 0-10 VDC Frequency 50/60 Hz Isolation Voltage 1500 VAC Current Rating (Exciter Control) 10 A to 30 A Microprocessors LCP, DCP, MCP, CMP Memory 6 PROMs and EEPROM Connectors Mark V rack backplane edge connector Diagnostics RESET button, LED keypad display, bar graph LEDs PCB Coating Conformal coating GE Mark V Processor Communication and Drive Control Interface The DS200LDCCG1AAA integrates multiple processor units for distributed drive control and LAN communication tasks. The LAN Control Processor (LCP) manages communication exchange and bus conversion, while the Drive Control Processor (DCP) handles peripheral I/O processing and analog/digital conversion functions. The Motor Control Processor (MCP) and Co-Motor Processor (CMP) provide additional processing paths for motor control circuits and interface operations. This architecture supports deterministic data exchange between GE Mark V controller modules, exciter systems, and drive assemblies. Firmware Flash Compatibility and I/O Processing Architecture The DS200LDCCG1AAA uses PROM-based configuration storage and EEPROM parameter retention for field-adjustable settings. Firmware compatibility is dependent on the installed GE Mark V controller revision and drive configuration. The LDCC board supports I/O density scaling through dedicated processor functions rather than direct field-level control logic. Revision matching between hardware and firmware is required for correct communication behavior within the Mark V rack. Frequently Asked Questions Q: What processor functions are included on the DS200LDCCG1AAA?A: The board contains LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), and Co-Motor Processor (CMP) functions. Q: What diagnostic hardware is available on the DS200LDCCG1AAA?A: The board includes a RESET button, LED keypad display, and bar graph LED indicators for status monitoring and troubleshooting. Q: Can the DS200LDCCG1AAA operate independently from a GE Mark V rack?A: No. The board requires integration with the GE Mark V backplane and associated controller assemblies for communication and control operation. Field Installation Guidelines Install the DS200LDCCG1AAA into the designated GE Mark V rack slot and verify the edge connector is correctly seated before applying system power. Confirm board revision, firmware compatibility, and configuration parameters before replacement or commissioning. Maintain proper grounding between the control rack, cabinet structure, and connected drive equipment. Route LAN communication, feedback, and control wiring separately from high-current power cables. Apply suitable shielding and grounding methods to reduce electrical interference. Inspect connectors, PCB coating condition, and mounting points during installation and maintenance procedures.
$200.00 $100.00
-
General Electric GE DS200LDCCG1ADA LAN Drive Control Card
GE DS200LDCCG1ADA LAN Drive Control Card The GE DS200LDCCG1ADA, also cataloged as the DS200LDCC LAN Drive Control Card, operates as a dedicated hardware component for LAN communication and drive control processing within GE Mark V Speedtronic turbine control system platforms. It executes controller data exchange, motor interface processing, and drive-related signal handling through integrated processors. Hardware Specifications Parameter Specification Model DS200LDCCG1ADA Brand GE Origin United States Weight 0.8 kg Operating Temp -10 to +60 deg C Power Consumption 20 W Product Type Drive Control LAN Communication Boards Series Mark V Speedtronic Functional Acronym LDCC Functional Description Drive Control/LAN Communications Board Power Supply +5 VDC, +/-15 VDC via backplane Additional Supply 24 VDC Current Rating (Exciter Control) 10 A to 30 A Input Voltage 90-264 VAC Output Voltage 0-10 VDC Frequency 50/60 Hz Isolation Voltage 1500 VAC Microprocessors LCP, DCP, MCP, CMP Memory 6 PROMs and EEPROM Diagnostics RESET button, LED keypad display, bar graph LEDs PCB Coating Normal coating Mounting Type GE Mark V rack backplane installation GE Mark V Processor Communication and Drive Interface The DS200LDCCG1ADA integrates multiple processor sections for GE Mark V drive control and LAN communication tasks. The LAN Control Processor (LCP) manages communication exchange and bus conversion, while the Drive Control Processor (DCP), Motor Control Processor (MCP), and Co-Motor Processor (CMP) handle I/O processing, motor control functions, and subsystem data operations. The board supports deterministic controller communication through the Mark V backplane architecture. Its processor-based design enables coordinated handling of drive reset functions, operator interface processing, and exciter control communication. Firmware Flash Compatibility and Backplane Communication The DS200LDCCG1ADA uses programmable memory devices including PROM storage for configuration and EEPROM storage for field parameters. Firmware compatibility depends on the installed GE Mark V controller revision and drive system configuration. The LDCC hardware supports I/O density scaling through distributed processor handling rather than direct field Ethernet control. Revision identifiers A, D, and A define functional, hardware, and artwork configuration states for system matching. Frequently Asked Questions Q: What processor functions are included on the DS200LDCCG1ADA?A: The board contains LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), and Co-Motor Processor (CMP) sections. Q: What power connections are required for the DS200LDCCG1ADA?A: The board receives controller power through GE Mark V interfaces including +5 VDC, +/-15 VDC, and 24 VDC supply circuits depending on system configuration. Q: Does the DS200LDCCG1ADA provide onboard diagnostics?A: Yes. The board includes a RESET button, LED keypad display, and status indication LEDs for hardware monitoring. Field Installation Guidelines Install the DS200LDCCG1ADA into the assigned GE Mark V rack position and verify the backplane connector is fully seated before energizing the system. Confirm that firmware revision, board configuration, and memory settings match the installed drive control architecture. Maintain correct grounding between the rack assembly and cabinet structure. Route LAN, control, and feedback wiring separately from high-current power conductors. Apply proper cable shielding and grounding practices to reduce electrical interference. Inspect connectors, PCB surfaces, and mounting points during installation and maintenance procedures.
$200.00 $100.00
-

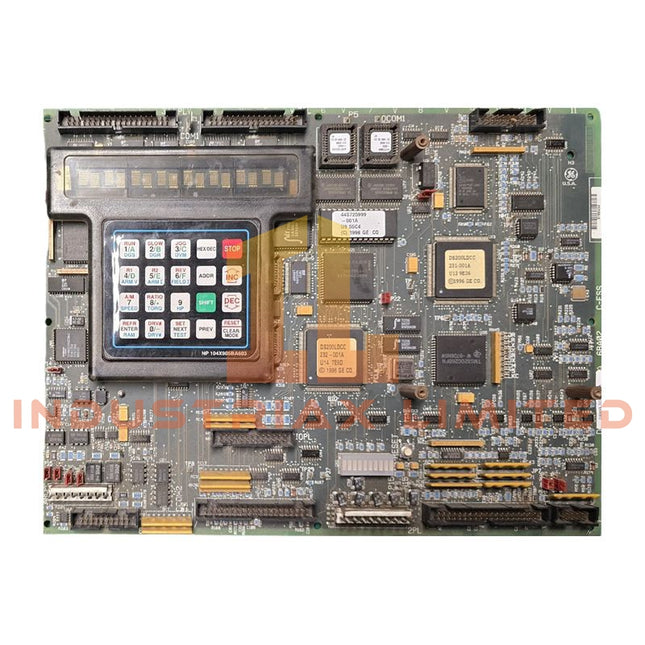

General Electric GE DS200LDCCH1AKA LAN Communication Drive Control Board
GE DS200LDCCH1AKA LAN Communication Drive Control Board The GE DS200LDCCH1AKA, also cataloged as the DS200LDCC LAN Communication Drive Control Board, operates as a dedicated hardware component for LAN data exchange and drive control processing within GE Mark V Speedtronic turbine control system platforms. It executes communication handling, motor processing, and controller interface functions through onboard processors. Suffix Breakdown & Model Matrix Segment Description DS200 GE Mark V board family designation LDCC LAN Communication / Drive Control functional acronym H1 Hardware configuration identifier A Functional revision 1 K Functional revision 2 A Artwork revision Hardware Specifications Parameter Specification Model DS200LDCCH1AKA Brand GE Origin United States Weight 0.5 kg Operating Temp 0 to +55 deg C Power Consumption Not specified Product Type LAN Communication Drive Control Boards Series Mark V Speedtronic Functional Acronym LDCC Functional Description Drive Control/LAN Communications Board Power Supply +5 VDC, +/-15 VDC via backplane Communication Interfaces LAN interface, RJ45 Ethernet, DB9 RS-232 depending on revision Processors LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), Co-Motor Processor (CMP) Memory 6 PROMs for configuration and EEPROM for field parameters Diagnostics RESET button, alphanumeric keypad, LED indicators PCB Coating Conformal coating Mounting Type Mark V rack backplane installation GE Mark V Processor Communication and Drive Control Interface The DS200LDCCH1AKA integrates multiple embedded processors to manage communication exchange and drive control processing within GE Mark V turbine control architectures. The LAN Control Processor handles communication conversion, while the Drive Control Processor and Motor Control Processor execute peripheral I/O handling, analog/digital conversion, and motor control data processing. The board supports deterministic backplane communication between controller modules and connected drive or exciter systems. Its processor-based architecture provides distributed handling of LAN communication tasks, operator interface functions, and drive-related control operations. Firmware Flash Compatibility and Processor Memory Management The DS200LDCCH1AKA uses programmable memory components including PROM devices and EEPROM storage for configuration parameters. Firmware compatibility depends on installed Mark V system revisions and processor configuration requirements. The board revision identifiers A, K, and A represent functional and artwork configuration states. Replacement boards require matching firmware and hardware revision compatibility to maintain controller communication and drive operation. Frequently Asked Questions Q: What processors are integrated into the DS200LDCCH1AKA?A: The board contains four processing sections: LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), and Co-Motor Processor (CMP). Q: Does the DS200LDCCH1AKA communicate directly with external Ethernet networks?A: The board provides LAN communication functions through GE Mark V system interfaces. External connector availability depends on board revision configuration. Q: What diagnostic functions are available on the board?A: The board includes a RESET button, onboard alphanumeric keypad, LED indicators, and diagnostic display functions for troubleshooting. Field Installation Guidelines Install the DS200LDCCH1AKA into the assigned GE Mark V rack slot and verify edge connector engagement before system power application. Confirm processor firmware compatibility, memory configuration, and board revision before installation. Maintain proper grounding between the rack assembly and cabinet structure. Route communication and control wiring separately from high-current power conductors. Use appropriate shielding and grounding practices for communication cables to reduce electrical interference. Inspect RJ45, serial connectors, and backplane contacts for mechanical damage or contamination during maintenance procedures.
$200.00 $100.00
-

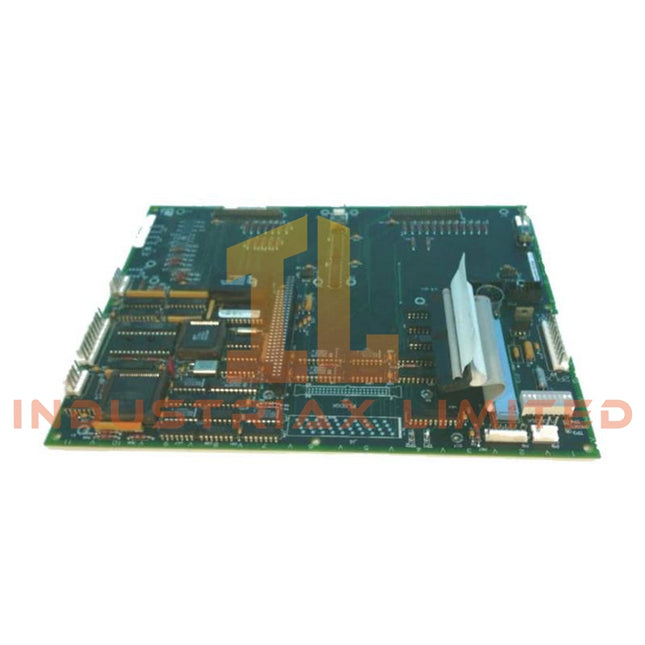

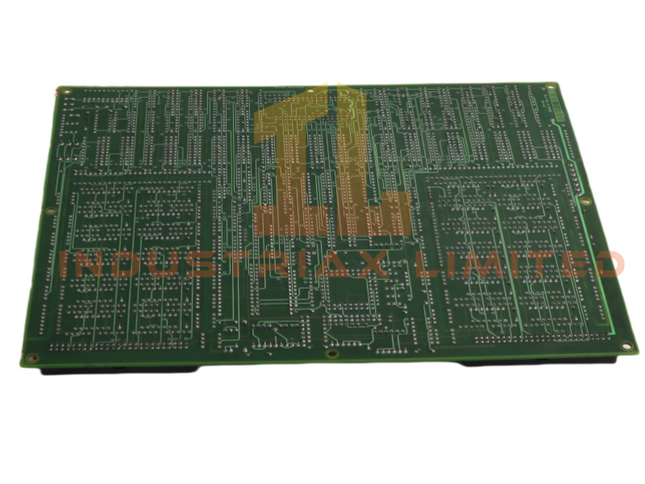

General Electric GE DS215TCQAG1BZZ01A TCQA Analog I/O Board
GE DS215TCQAG1BZZ01A TCQA Analog I/O Board The GE DS215TCQAG1BZZ01A, also cataloged as the DS215TCQA Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition and output execution within GE Mark V Speedtronic turbine control system platforms. It processes temperature, pressure, flow, and vibration signals through onboard conversion and conditioning circuits. Suffix Breakdown & Model Matrix Segment Description DS215 GE Mark V board family designation TCQA TCQA analog I/O functional acronym G1 Hardware configuration identifier B Functional revision 1 ZZ Functional revision 2 designation 01A Artwork revision identifier Hardware Specifications Parameter Specification Model DS215TCQAG1BZZ01A Brand GE Origin United States Weight 0.39 kg Dimensions 262 x 185 x 39 mm Operating Temp -40 to +70 deg C Product Type Analog I/O Boards Series Mark V LM Functional Acronym TCQA Functional Description Circuit Board and Firmware Power Supply 24 VDC Input Signals Temperature, pressure, flow, vibration, and analog process signals Output Signals Analog control signals for turbine subsystems Communication Interfaces RS-485, CAN, Modbus TCP/IP depending on revision Signal Processing Analog-to-digital conversion and analog output control PCB Coating Normal coating Mounting Type Mark V rack/backplane installation GE Mark V Analog I/O Processing and Deterministic Control Interface The DS215TCQAG1BZZ01A provides analog input acquisition and output control functions within the GE Mark V LM control platform. The board converts field sensor signals into processed data values and transfers control information through the turbine controller backplane architecture. The TCQA board supports I/O density scaling within Mark V turbine control configurations by handling multiple analog channels through high-density connectors. Signal conditioning circuits perform input stabilization, conversion, and diagnostic verification for connected field devices. GE Mark V Firmware and Backplane Compatibility The DS215TCQAG1BZZ01A includes board-level firmware support for Mark V R/S/T core compatibility. The revision identifiers B and Z define functional modifications and firmware/artwork configuration states that must match the installed control rack requirements. The board uses GE Mark V deterministic communication architecture rather than modern Ethernet field networks. Backplane communication timing is controlled by the associated processor modules for synchronized turbine monitoring and control operations. Frequently Asked Questions Q: Does the DS215TCQAG1BZZ01A operate as a standalone controller?A: No. The TCQA board functions as an analog I/O interface module and requires integration with GE Mark V processor and rack assemblies. Q: What field signals can be connected to the DS215TCQAG1BZZ01A?A: The board processes analog signals including temperature, pressure, flow, vibration, and other turbine monitoring inputs. Q: Are firmware and revision compatibility required for replacement installation?A: Yes. Functional revision and firmware configuration must match the installed Mark V system architecture. Field Installation Guidelines Install the DS215TCQAG1BZZ01A into the designated GE Mark V rack slot and verify backplane connector alignment before applying power. Connect analog field wiring according to cabinet documentation. Use shielded instrumentation cables where required and terminate shields according to grounding practices to reduce noise coupling. Separate analog signal wiring from high-current power conductors. Confirm board revision, firmware compatibility, and connector seating before commissioning the turbine control system.
$200.00 $100.00
-

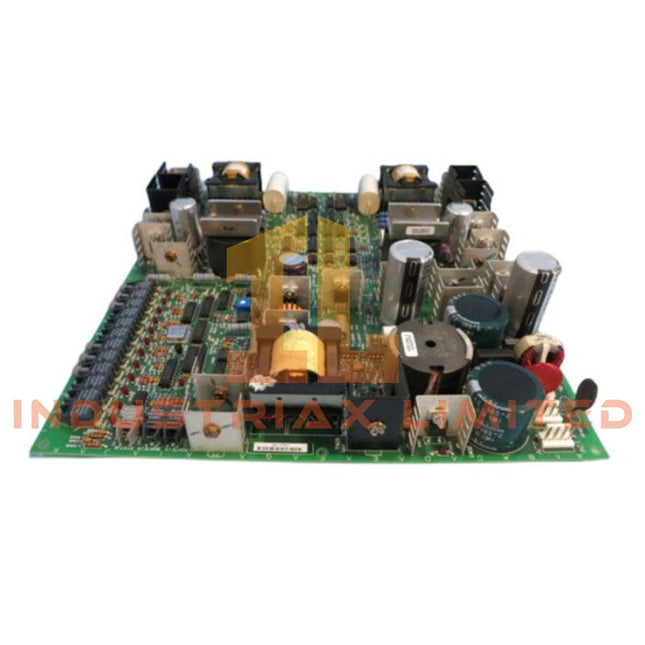

General Electric GE DS200FSAAG1ABA Flame Safeguard Amplifier Card
GE DS200FSAAG1ABA Flame Safeguard Amplifier Card Configured for flame scanner signal conditioning in GE Mark V Speedtronic turbine control system platforms, the GE DS200FSAAG1ABA (DS200FSAA Flame Safeguard Amplifier Card) provides direct physical/electrical execution of UV/IR flame input processing, logic conversion, and analog output generation for combustion monitoring interfaces. Hardware Specifications Parameter Specification Model DS200FSAAG1ABA Brand GE Origin United States Weight 0.5 kg Operating Temp -30 to +65 deg C Product Type Flame Safeguard Amplifier Cards Series Mark V Speedtronic Functional Acronym FSAA Functional Description Field Supply Amplifier Input Signal Type UV/IR flame scanner signals Logic Supply Voltage 24 VDC nominal Output Signals TTL logic and 4-20 mA scaled output Communication Interface DLAN / serial link to VME backplane PCB Coating Style Normal coating Mounting Type Eurocard / VME backplane slot GE Mark V Flame Signal Processing and Control Interface The DS200FSAAG1ABA processes ultraviolet and infrared flame scanner signals and converts scanner output characteristics into turbine controller-compatible logic states. The card provides flame presence evaluation through signal conditioning circuits and generates TTL logic outputs with 4-20 mA analog scaling for monitoring interfaces. The FSAA board integrates into GE Mark V combustion monitoring architectures through the VME backplane communication structure. The hardware design includes field signal amplification circuits, input conditioning paths, and interface electronics for flame detection feedback. Profinet / EtherNet-IP Deterministic Control Network Compatibility The DS200FSAAG1ABA is part of the GE Mark V industrial control hardware platform and communicates through the DLAN / VME control architecture rather than Ethernet-based field networks. Its deterministic backplane interface supports fixed-cycle signal exchange between turbine control processor assemblies and combustion monitoring hardware. The board revision structure identifies functional and artwork modifications through the A, B, and A suffix configuration. Hardware replacement requires matching revision compatibility with the installed Mark V control rack configuration. Frequently Asked Questions Q: What type of input signal does the DS200FSAAG1ABA process?A: The board accepts UV or IR flame scanner signals and converts them into processed logic and analog monitoring outputs. Q: Does the DS200FSAAG1ABA communicate through Ethernet networks?A: No. The board uses the GE Mark V DLAN / VME backplane communication structure for controller integration. Q: What installation factors affect flame signal accuracy?A: Proper grounding, shield termination, scanner wiring separation, and correct rack installation affect flame signal integrity and prevent unwanted signal interference. Field Installation Guidelines Install the DS200FSAAG1ABA in the designated GE Mark V VME rack slot and confirm connector engagement before applying system power. Verify flame scanner wiring polarity, shielding connections, and cable routing practices according to the turbine control cabinet documentation. Keep flame signal wiring separated from high-current switching circuits to reduce electrical noise coupling. Confirm board revision compatibility, configuration settings, and grounding connections before commissioning. Inspect the conformal-coated PCB surface and connectors for contamination or mechanical damage during maintenance procedures.
$200.00 $100.00
-
General Electric GE DS200DCFBG2BNC DC Feedback Power Supply Boar
GE DS200DCFBG2BNC DC Feedback Power Supply Board The GE DS200DCFBG2BNC, also cataloged as the DS200DCFB DC Feedback Power Supply Board, operates as a dedicated hardware component for regulated DC power distribution and feedback signal processing within GE Mark V Speedtronic turbine control system platforms. It provides control-level voltage regulation, feedback monitoring, and protection circuit execution for drive control interfaces. Hardware Specifications Parameter Specification Model DS200DCFBG2BNC Brand GE Origin United States Weight 0.75 kg Power Consumption Powered from GE Mark V control system supply circuits Product Type DC Feedback Power Supply Boards Series Mark V Speedtronic Assembly Type PCB assembly with conformal coating Connectors 18 plug connectors and 9 stab connectors Configuration Components 7 DIP switches and 12 jumpers Protection Circuits Short-circuit protection, thermal monitoring, fuse indication Fuse Configuration 3 protective fuses with LED/neon status indicators Feedback Functions Voltage and current feedback monitoring GE Mark V DC Power Feedback and Control Interface The DS200DCFBG2BNC integrates DC power regulation and feedback processing functions for GE Mark V turbine control architectures. The board contains voltage/current feedback circuits, protection components, transformers, relays, and switching elements used for controlled power conversion and monitoring. The DS200DCFB board family supports industrial control hardware configuration through DIP switch selections and jumper settings. These configuration elements allow adjustment of AC line voltage selection and DC bridge or motor voltage feedback VCO circuits according to system requirements. Industrial Control Bus and Hardware Configuration The DS200DCFBG2BNC follows GE Speedtronic Mark V hardware design practices for rack-based controller integration. The board revision structure includes functional, hardware, and artwork modifications identified by the B, N, and C revision identifiers. Compatibility with earlier DS200DCFBG2 assemblies allows integration into existing control rack configurations. Frequently Asked Questions Q: Does the DS200DCFBG2BNC contain independent application firmware?A: No. The board operates as a hardware power supply and feedback interface module. Control logic and system diagnostics are executed by connected GE Mark V processor assemblies. Q: What protection functions are integrated into the board?A: The board includes short-circuit protection, thermal monitoring circuits, fuse protection, and LED/neon indicators for fuse status observation. Q: What configuration elements are available on the board?A: The DS200DCFBG2BNC provides DIP switches and jumper points for hardware configuration, including voltage selection and feedback circuit settings. Field Installation Guidelines Install the DS200DCFBG2BNC into the designated GE Mark V rack position and verify all plug and stab connector alignment before applying power. Inspect connector contacts, fuse indicators, and board mounting points during installation. Maintain proper separation between power wiring and low-level feedback signal wiring to reduce electrical noise coupling. Connect grounding and shielding according to GE cabinet wiring practices. Confirm jumper and DIP switch positions match the required turbine control configuration before system startup.
$200.00 $100.00
-

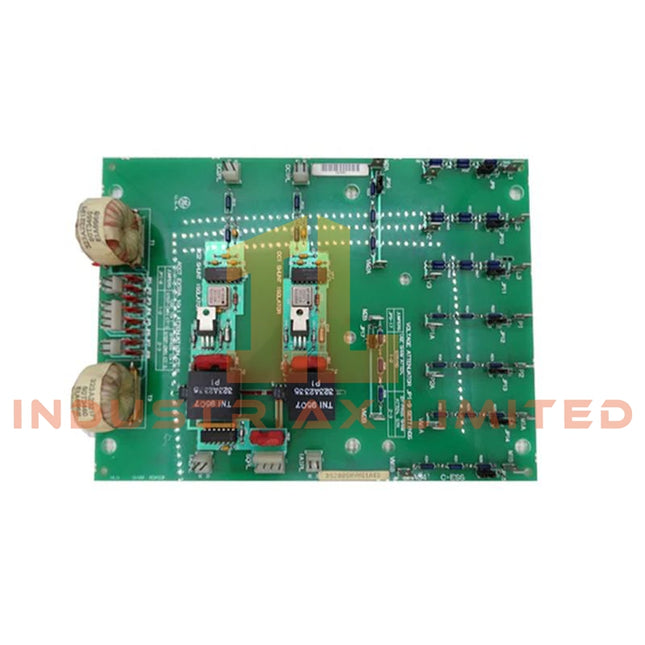

General Electric DS200SVAAG1A GE Voltage Attenuator Board
GE DS200SVAAG1A Voltage Attenuator Board The GE DS200SVAAG1A, also cataloged as the DS200SVAA Voltage Attenuator Board, operates as a dedicated signal conditioning hardware component for analog voltage attenuation within GE Mark V Speedtronic turbine control system platforms. It provides isolated scaling of field voltage inputs into controller-compatible analog levels through passive attenuation circuits and electrical isolation paths. Hardware Specifications Parameter Specification Model DS200SVAAG1A Brand GE Origin United States Weight 0.5 kg Operating Temp -30 to +65 deg C Power Consumption Passive board design; powered by 28 VDC system supply Product Type Voltage Attenuator Board Series Drive Control System Compatibility GE Mark V Speedtronic turbine control system Input Voltage Range Up to +/-200 VAC/VDC depending on configuration Output Voltage Range +/-10 VDC conditioned signal Channels Multiple isolated analog input channels Accuracy +/-0.1% FS Isolation Rating 2500 Vrms channel-to-ground Response Time <5 ms Mounting Type Rack-mount, single-slot Technology Surface mount electronics GE Mark V Analog Signal Attenuation and Isolation The DS200SVAAG1A performs analog voltage scaling between field-level signals and GE Mark V controller input circuits. The board attenuates higher amplitude voltage signals into a +/-10 VDC output range suitable for turbine control processing. Channel isolation supports separation between input circuits and control electronics, reducing ground loop effects and electrical interference. The board architecture follows GE industrial control hardware practices, using surface mount components and rack-based installation within Speedtronic control cabinets. Signal conditioning functions include voltage reduction, analog stabilization, and electrical interface adaptation. Firmware and I/O Interface Characteristics The DS200SVAAG1A operates as a hardware-level interface board without independent firmware execution. Diagnostic information is handled through connected GE Mark V processor and controller boards. The analog interface design supports deterministic signal transfer within turbine control I/O architectures. Frequently Asked Questions Q: Does the DS200SVAAG1A execute application firmware independently?A: No. The board is a passive voltage attenuation and signal conditioning module. Monitoring and control functions are performed by connected GE Mark V processor boards. Q: What signal conversion function does the DS200SVAAG1A provide?A: The board attenuates incoming high-level analog voltage signals and provides conditioned +/-10 VDC outputs for controller processing. Q: What installation factors affect analog signal performance?A: Shielding, grounding practices, cable routing, and separation from high-current conductors affect analog signal integrity. Field Installation Guidelines Install the DS200SVAAG1A in the designated GE Mark V rack slot with the correct backplane connection. Verify board alignment before insertion to prevent connector damage. Use shielded instrumentation wiring for analog signal connections where required. Terminate cable shields according to cabinet grounding practices and avoid routing analog signal cables parallel to high-voltage or high-current wiring. Confirm that field voltage inputs remain within the specified board configuration range before energizing the system. Inspect connectors, terminal points, and rack seating during commissioning procedures.
$200.00 $100.00
