نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

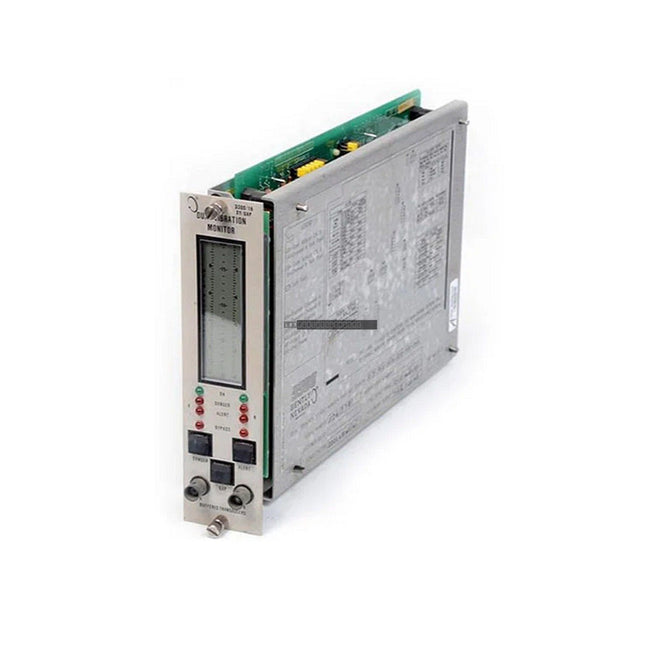

DescriptionThe Bently Nevada 3300/55 Dual Velocity Monitor is a specialized rack-mount module designed for the 3300 Series machinery protection system. This unit provides continuous monitoring of casing vibration velocity by utilizing Velomitor piezo-velocity sensors. It features two independent channels that process vibration signals to ensure critical machinery protection through real-time comparison against user-defined alarm setpoints.Features
Dual independent velocity monitoring channels for comprehensive casing vibration analysis.
Integrated relay outputs configured for Alert and Danger alarm conditions to facilitate automated machinery shutdown or operator notification.
Proportional 4-20 mA outputs provide direct interface capability with external data acquisition or control systems.
Front-panel LED indicators display operational status, including OK, Bypass, Alert, and Danger states for rapid diagnostic assessment.
Configured with intrinsic safety barrier support for reliable operation in hazardous industrial environments.
ApplicationsThis module is typically deployed in power generation, petrochemical, and heavy industrial facilities where casing vibration monitoring is essential for predictive maintenance and asset protection. It is designed to interface directly with rotating equipment sensors to detect mechanical instability before failure occurs.Technical Specifications
Model
3300/55-01-04-02-02-03-00-05-00
Series
3300
Input Compatibility
Velomitor Piezo-Velocity Sensors
Operating Temperature
0 degC to 60 degC
Power Consumption
1.5 W (typical)
Output Signals
4-20 mA, Dynamic Vibration, Relay
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack backplane to ensure reliable signal and power connection.
Use shielded cabling for all sensor inputs to minimize electromagnetic interference (EMI) and signal noise.
Follow local hazardous area regulations when installing modules equipped with intrinsic safety barriers.
Maintain proper ventilation within the rack cabinet to ensure the module operates within its specified temperature range.
FAQWhat does the 3300/55-01-04-02-02-03-00-05-00 model code indicate?This specific order code defines the factory configuration, including the dual-channel velocity measurement, agency approval for safety, Velomitor sensor input compatibility, relay output logic, and intrinsic safety barrier integration.Can this module be used in hazardous locations?Yes, this specific configuration includes barrier options for hazardous area installations. Always verify the specific certification labels on your unit against your facility's safety requirements.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

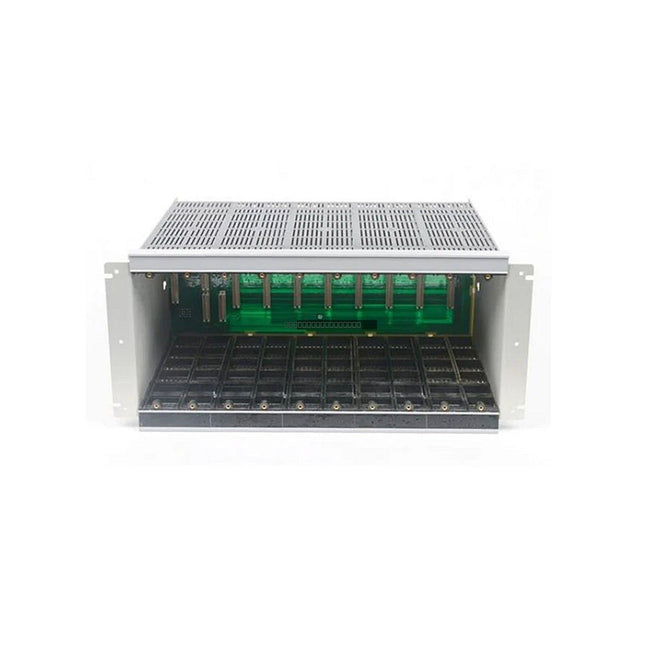

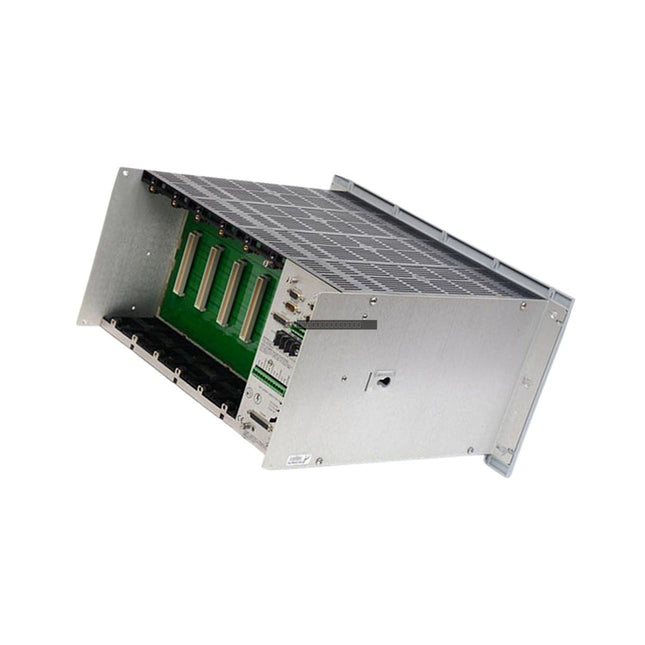

DescriptionThe Bently Nevada 3300/05-26-00-00 is a robust 12-slot rack chassis designed to serve as the primary mechanical and electrical foundation for the 3300 Monitoring System. This chassis provides the necessary backplane infrastructure to house, power, and facilitate communication between various 3300 series monitoring modules, including vibration, thrust, eccentricity, and temperature monitors. By ensuring precise module alignment and secure mechanical mounting, this rack system is essential for maintaining the integrity of industrial machinery protection installations.Features
Designed for the 3300 series monitoring architecture.
12-slot capacity for high-density monitoring applications.
Integrated backplane for reliable power distribution and inter-module signal communication.
Standard mechanical mounting profile for quick integration into existing control cabinets.
Optimized for industrial environments requiring continuous machinery protection.
Ordering Information
Model Code
Description
3300/05
Base Rack System
26
12-Slot Chassis Configuration
00
Standard Mounting Hardware
00
Standard Agency Approval
Technical Specifications
Model
3300/05-26-00-00
Brand
Bently Nevada
Series
3300
Product Type
12-Slot Rack Chassis
Operating Temperature
0 to 60 degC
Compatibility
Supports 3300/12 Power Supply Modules
Installation Guidelines
Ensure the rack is mounted in a clean, dry environment within the specified operating temperature range.
Verify that the chassis is securely fastened to the panel or rack frame to prevent vibration-induced mechanical stress.
Always power down the system before inserting or removing any monitoring modules to prevent electrical arcing or component damage.
Ensure proper grounding of the chassis to the cabinet earth to minimize EMI/RFI noise interference.
Maintain adequate clearance around the chassis to allow for proper airflow and heat dissipation.
FAQIs this chassis compatible with all 3300 series modules?Yes, the 3300/05-26-00-00 is designed to house standard 3300 series monitoring modules, including power supplies, I/O, and specialized vibration monitoring cards.Does this rack include power supplies?No, this listing is for the chassis only. Power supply modules such as the 3300/12 must be ordered separately or installed from your existing inventory.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

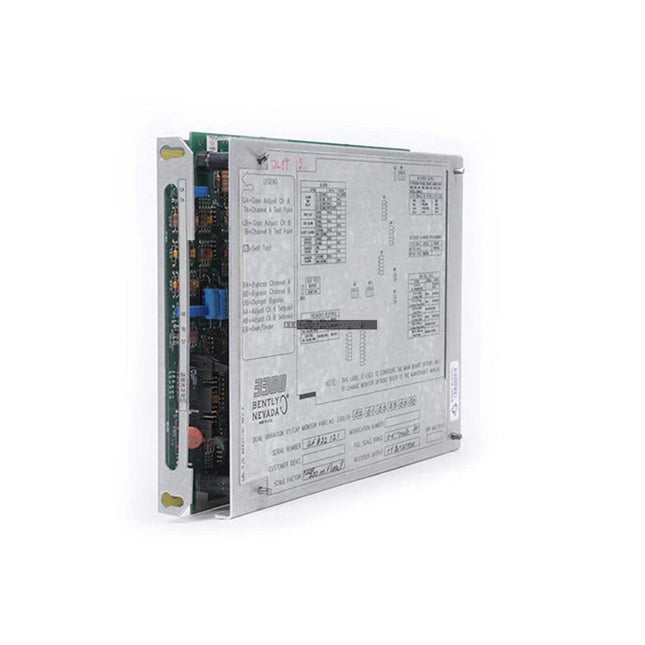

The Bently Nevada 3300/55 Dual Velocity Monitor is a specialized rack-based module engineered for the 3300 Series monitoring system. It is designed to provide continuous casing vibration velocity monitoring using Velomitor piezo-velocity sensors. By processing two independent channels, the module ensures reliable detection of vibration levels, allowing for integration with plant protection systems to safeguard critical rotating machinery such as turbines, large motors, pumps, and centrifugal compressors.Features
Dual-channel architecture for independent velocity measurement.
Compatibility with Velomitor piezo-velocity transducers.
Integrated alarm logic for Alert and Danger setpoints.
Proportional 4–20 mA outputs for integration with external control systems (DCS/PLC).
Front-panel LED indicators providing real-time status for OK, Bypass, Alert, and Danger conditions.
Configurable relay outputs to facilitate machine shutdown or operator notification.
ApplicationsThis monitor is primarily deployed in industrial environments requiring rigorous vibration protection. Typical applications include monitoring the casing vibration of balance-of-plant equipment, high-speed compressors, and large-scale industrial pumping systems where velocity-based vibration monitoring is critical to preventing mechanical failure.Technical Specifications
Model
3300/55-01-04-02-02-00-00-05-00
Series
3300 System
Sensor Input
Velomitor Piezo-Velocity
Channels
2
Operating Temperature
0 degC to +60 degC
Power Consumption
1.5 W (typical)
Alarm Outputs
Dual relay (Alert/Danger)
Analog Outputs
4–20 mA proportional
Installation Guidelines
Ensure the 3300 series rack is properly grounded before inserting or removing any monitor modules.
The module is designed for slide-in installation into a standard Bently Nevada 3300 rack; ensure the backplane connector is fully seated.
Verify that wiring for the Velomitor sensors is shielded and routed away from high-voltage AC lines to minimize electromagnetic interference.
Power down the rack or place the specific slot into 'Bypass' mode before performing maintenance or configuration changes to avoid false trips.
Maintain adequate airflow within the cabinet to ensure the module operates within its 0 to 60 degC temperature range.
FAQWhat sensors are compatible with this module?This specific unit (suffix 02 for transducer input) is configured for use with Bently Nevada Velomitor piezo-velocity sensors.Does this module include intrinsic safety barriers?No, this model (suffix 00 for barrier option) is configured without internal intrinsic safety barriers.How are the alarm setpoints managed?The 3300/55 monitor compares incoming vibration signals against user-defined Alert and Danger setpoints, triggering the internal relay logic when thresholds are exceeded.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

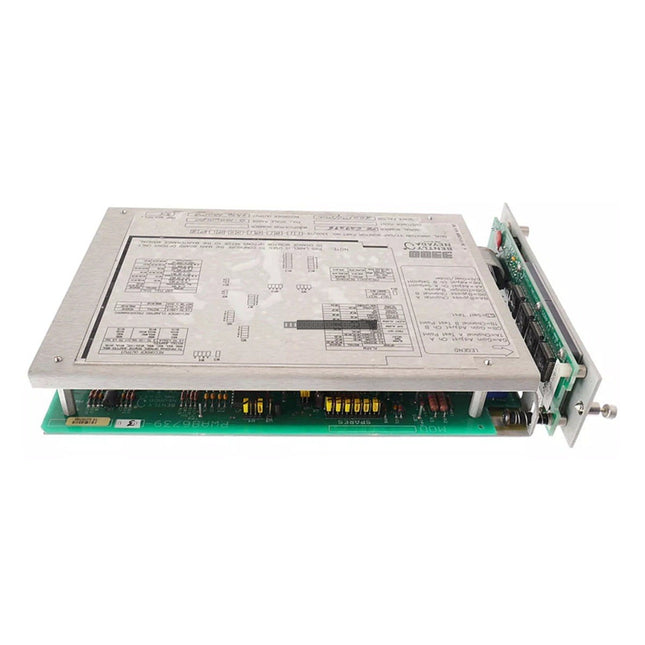

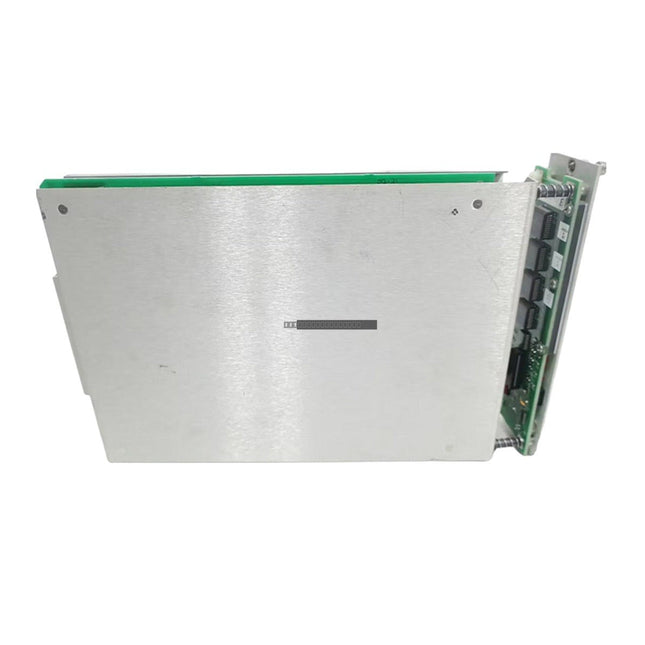

DescriptionThe Bently Nevada 3300/16 XY/Gap Dual Vibration Monitor serves as a critical component within the 3300 Series monitoring architecture. This module is engineered to provide simultaneous monitoring of radial shaft vibration and probe gap voltage, offering essential protection for rotating machinery including compressors, turbines, and large industrial pumps. By tracking XY channel vibration and gap status, the unit facilitates the early identification of mechanical faults such as bearing degradation, shaft misalignment, or rotor rubs.Features
Dual-channel configuration optimized for simultaneous XY vibration and gap measurement.
Integrated alarm logic providing Alert and Danger status outputs.
Direct interface with Proximitor sensors for high-accuracy proximity sensing.
Front-panel LED status indicators for monitoring OK, Bypass, Alert, and Danger conditions.
Proportional 4-20 mA outputs for integration with external DCS or PLC systems.
Continuous signal processing for real-time machinery protection.
ApplicationsThis monitor is widely utilized in industrial environments for the continuous protection of critical turbomachinery. It is specifically suited for applications requiring high-reliability monitoring of shaft dynamics and proximity probe health in power generation, petrochemical, and oil and gas facilities.Technical Specifications
Model
3300/16-02-01-02-01-00-00
Brand
Bently Nevada
Series
3300
Inputs
2 x Proximity Probe Channels
Outputs
Dynamic vibration signals, 4-20 mA, Relay (Alert/Danger)
Operating Temp
-30 degC to +65 degC
Power Consumption
6 W (typical)
Installation Guidelines
Ensure the rack is powered down before inserting or removing the module to prevent damage to the backplane connectors.
Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI) in high-noise environments.
Verify that the module is fully seated in the 3300 rack and that the front-panel locking mechanisms are engaged.
Follow standard ESD (electrostatic discharge) precautions during handling to protect internal circuitry.
Ensure proper grounding of the 3300 rack system to maintain signal integrity and safety compliance.
FAQWhat is the primary function of the 3300/16 module?The 3300/16 is designed to monitor radial shaft vibration (XY) and proximity probe gap voltage simultaneously to ensure the mechanical integrity of rotating machinery.Can this module be used with any proximity probe?This specific order code is configured for use with Bently Nevada Proximitor sensors. Please ensure your probe type matches the transducer input configuration specified in the model code.Does this module include intrinsic safety barriers?No, the 00 code in the barrier position indicates that this unit is configured for standard input without integrated intrinsic safety barriers.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

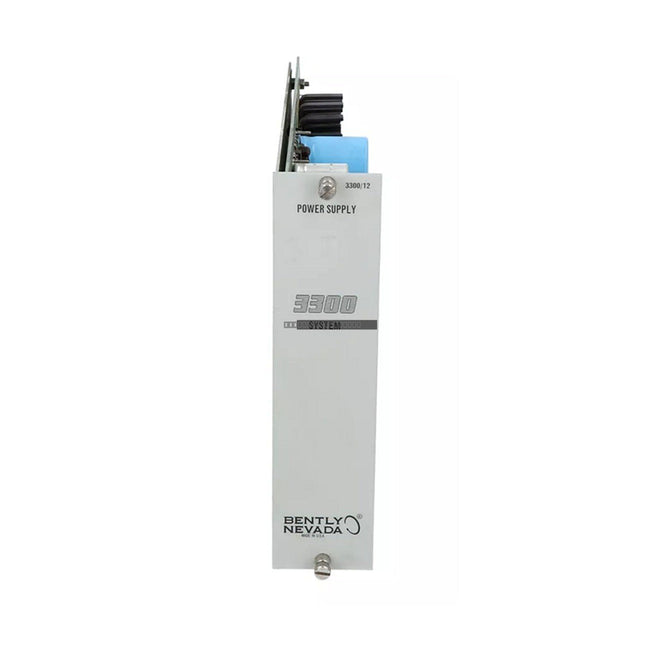

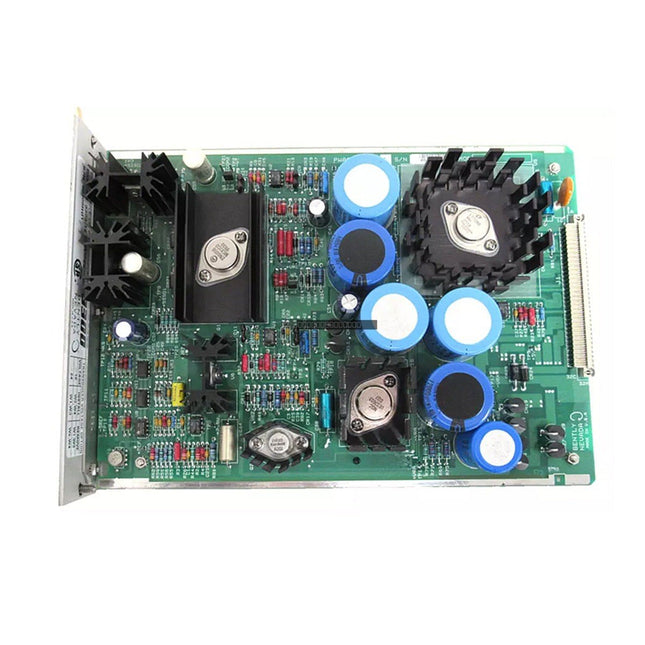

DescriptionThe Bently Nevada 3300/12-01-20-00 is a dedicated Power Supply Module designed for integration within the 3300 Series machinery protection system. This rack-mounted unit is engineered to convert incoming AC power into the stable, regulated DC voltage required by the rack's monitoring modules, including those for vibration, thrust, eccentricity, and temperature analysis. By providing a clean and consistent power source, this module ensures the continuous, high-availability operation of critical machinery protection instrumentation.Features
Rack-Wide Power Distribution: Supplies regulated DC power to all installed monitoring modules within the 3300 rack.
System Status Monitoring: Includes an integrated OK relay to provide real-time power status feedback to the system.
Reliability: Designed specifically for the 3300 Series architecture to ensure consistent performance in demanding industrial environments.
Configuration: This specific unit (3300/12-01-20-00) is configured for high-voltage AC input (220/240 VAC) and standard agency approval.
Technical Specifications
Model
3300/12-01-20-00
Brand
Bently Nevada
Product Type
Power Supply Module
Series
3300
Input Voltage
220/240 VAC
Power Capacity
Approx. 150 W rack capacity
Operating Temperature
0 to 60 degC
Installation Guidelines
Ensure the rack is powered down before inserting or removing the 3300/12 module to prevent electrical damage.
Verify that the AC input voltage matches the 220/240 VAC configuration of this specific model before connection.
Maintain proper ventilation in the cabinet to ensure the module operates within its 0 to 60 degC temperature range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or circuit boards.
Ensure the module is fully seated and the front-panel captive screws are tightened to maintain a solid ground connection to the rack chassis.
FAQDoes this module support redundant power configurations?The 3300/12 is designed to provide power to the rack; please refer to your specific 3300 rack configuration manual to determine if your system is set up for dual-redundant power supply operation.What does the 20 suffix indicate in the model number?The 20 suffix denotes the input voltage configuration, which in this model is set for 220/240 VAC operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

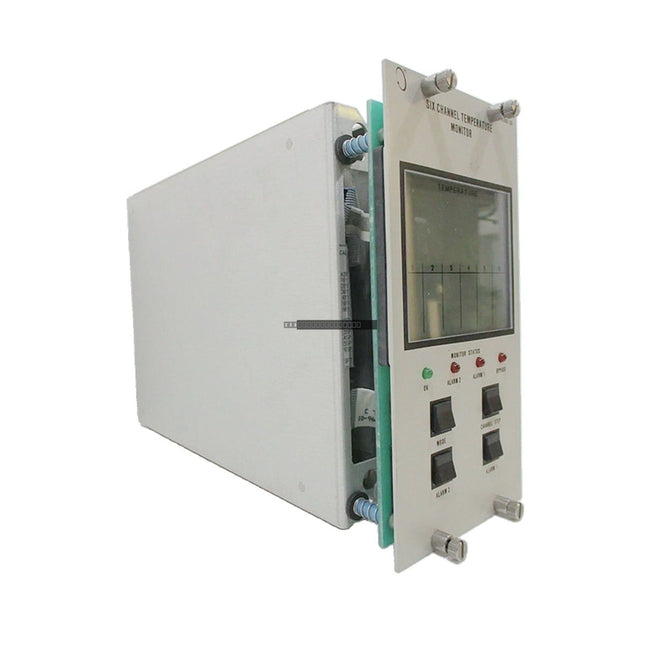

The Bently Nevada 3300/35-13-01-01-00-00 is a dedicated 6-channel temperature monitor module designed for the 3300 series machinery protection system. This unit provides continuous monitoring and alarming capabilities for temperature-critical assets in industrial environments, ensuring reliable data acquisition and system safety.Features
Six independent channels for comprehensive temperature monitoring.
Engineered for integration within the Bently Nevada 3300 series rack architecture.
Supports standard temperature transducer inputs for precise thermal tracking.
Robust construction designed for continuous operation in demanding industrial conditions.
Technical Specifications
Model Number
3300/35-13-01-01-00-00
Function
6 Channel Temperature Monitor
Operating Temperature
0 degC to +65 degC (+32 degF to +150 degF)
Storage Temperature
-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity
Up to 95%, noncondensing
Weight
2.1 kg
Installation Guidelines
Ensure the 3300 series rack is powered down before installing or removing the module to prevent electrical damage.
Verify that the module is fully seated in the designated rack slot to ensure proper backplane communication.
Use appropriate shielded cabling for all sensor inputs to minimize electromagnetic interference (EMI).
Maintain adequate airflow around the rack to ensure the module operates within its specified temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQWhat is the primary function of the 3300/35 module?This module is a 6-channel temperature monitor designed to interface with temperature transducers to provide real-time thermal data and protection for rotating machinery.Can this unit be used as a replacement for other 3300/35 models?The 3300/35-13-01-01-00-00 is a specific configuration. Always verify that the full order code matches your existing system requirements before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

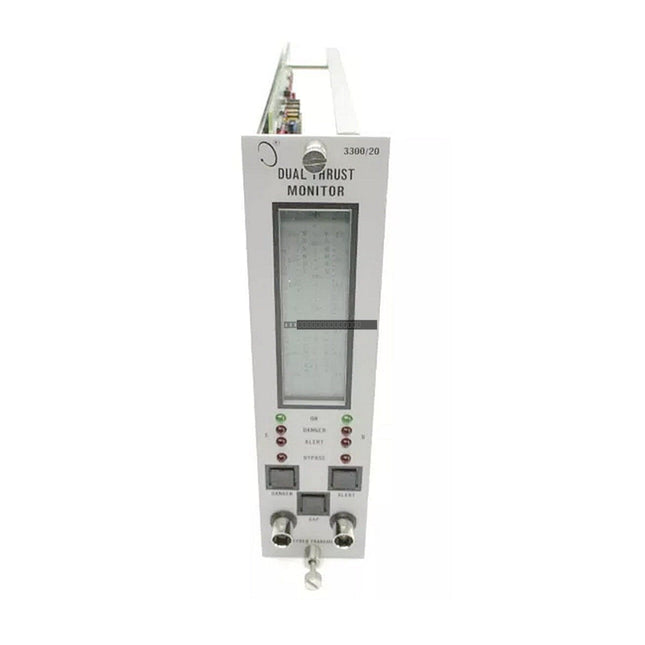

The Bently Nevada 3300/20-11-01-01-00-02 is a rack-based Dual Thrust Monitor module engineered for critical axial position measurement in rotating machinery such as large turbines and compressors. This module continuously tracks axial displacement, providing essential data for detecting bearing wear and preventing catastrophic failure. The 11-01-01-00-02 configuration provides a specialized setup for dual-channel monitoring, incorporating specific relay and barrier options for hazardous area compatibility.Features
Dual-channel axial thrust monitoring for high-reliability machine protection.
Programmable alarm setpoints for both Alert and Danger conditions.
Integrated LED status indicators for monitoring OK, Bypass, Alert, and Danger states.
Configured for seamless integration with standard proximity probes and Proximitor sensors.
Includes dedicated input barrier options to support hazardous area installations.
ApplicationsThis module is primarily deployed within Bently Nevada 3300 monitoring systems to protect rotating equipment. Typical applications include monitoring axial rotor position in steam turbines, gas turbines, centrifugal compressors, and large industrial pumps to ensure operational safety and facilitate predictive maintenance scheduling.Technical Specifications
Model
3300/20-11-01-01-00-02
Series
3300
Operating Temperature
0 to 60 degC
Power Consumption
~1.5 W
Signal Accuracy
+/- 0.33% typical
Sensitivity
User-programmable (200 mV/mil or 100 mV/mil)
Output Signals
4-20 mA, 1-5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the monitor module.
Handle modules using proper ESD (Electrostatic Discharge) safety practices to prevent damage to internal circuitry.
Verify that signal cabling is properly shielded and routed away from high-EMI (Electromagnetic Interference) sources.
Ensure the module is fully seated in the rack backplane to establish secure power and signal connections.
Check that all transducer inputs are correctly wired to the corresponding I/O modules before applying power.
FAQWhat does the 02 suffix represent in the model code?The 02 suffix indicates the inclusion of specific input barrier options designed for hazardous area compliance.Is this module compatible with standard proximity probes?Yes, this monitor is configured to accept signals from standard proximity probes paired with Bently Nevada Proximitor sensors.Can I replace this module while the system is running?The 3300 series modules are designed for rack mounting, but it is standard industry practice to de-energize the specific slot or system before performing hardware installation or removal to prevent electrical faults.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/25 Dual Accelerometer Monitor is a high-performance, rack-mounted module engineered for the 3300 Series monitoring system. This unit provides two independent channels specifically designed for tracking casing vibration using accelerometer inputs. By continuously monitoring vibration levels against pre-configured alarm setpoints, it ensures the protection of critical rotating machinery such as turbines, compressors, motors, and pumps.Features
Dual-channel configuration for independent monitoring and redundancy.
Continuous vibration signal processing with real-time comparison to Alert and Danger setpoints.
Integrated status LEDs for visual monitoring of OK, Bypass, Alert, and Danger conditions.
Provides dynamic vibration signal output and proportional 4-20 mA signals for integration into external control systems.
Standard relay outputs facilitate automated shutdown or warning sequences during abnormal operation.
ApplicationsThis monitor is primarily utilized in industrial environments for the protection of critical assets, including large industrial pumps, centrifugal compressors, fans, and steam or gas turbines where casing vibration monitoring is essential for predictive and preventative maintenance.Technical Specifications
Model
3300/25-01-03-03-00-00-03-00
Brand
Bently Nevada
Series
3300
Product Type
Dual Accelerometer Monitor
Operating Temperature
-30 degC to +65 degC
Power Consumption
6 W (typical)
Inputs
2 x Accelerometer channels
Outputs
Dynamic signals, 4-20 mA, Relay (Alert/Danger)
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
Verify that the module is correctly seated in the rack slot and that all rear-panel connections are secure.
Use shielded cables for all transducer inputs to minimize electromagnetic interference (EMI) in industrial environments.
Adhere to proper grounding practices for the 3300 system to ensure signal integrity and safety compliance.
Ensure adequate ventilation around the rack to maintain operating temperatures within the specified -30 degC to +65 degC range.
FAQWhat is the primary function of the 3300/25 monitor?It is designed to measure and monitor casing vibration using accelerometer sensors to protect rotating machinery from damage.Does this module include intrinsic safety barriers?No, the 00 suffix for the barrier option indicates this specific configuration does not include internal intrinsic safety barriers.What do the LED indicators represent?The LEDs provide immediate visual feedback regarding the module's health (OK), current relay status (Alert/Danger), and maintenance state (Bypass).
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 3300/16-12-01-00-00 is a dual-channel vibration monitoring module designed for the 3300 Series machinery protection system. This unit provides continuous, reliable monitoring of radial shaft vibration, specifically configured for XY channel applications. It is engineered to protect critical rotating assets such as industrial turbines, large compressors, and centrifugal pumps by detecting vibration anomalies and triggering protective responses.Features
Dual-channel input architecture optimized for proximity probe (Proximitor) sensor arrays.
Integrated signal processing for real-time radial shaft vibration measurement.
Dedicated alarm logic with Alert and Danger setpoint comparison.
Front-panel LED status indicators for rapid diagnostics (OK, Bypass, Alert, and Danger).
Proportional 4-20 mA outputs for integration with external control systems or data acquisition platforms.
Standard relay outputs for machine trip and alarm signaling.
Technical Specifications
Model
3300/16-12-01-00-00
Brand
Bently Nevada
Series
3300
Inputs
2 x Proximity Probe Channels
Outputs
4-20 mA, Dynamic Signal, Relay (Alert/Danger)
Operating Temperature
-30 degC to +65 degC
Power Consumption
6 W (typical)
Installation Guidelines
Ensure the 3300 Series rack is de-energized before inserting or removing the module to prevent electrical damage.
Verify that all proximity probes are correctly calibrated and connected to the module's input terminals.
Maintain proper grounding practices for the 3300 rack to minimize EMI/RFI interference on sensitive vibration signals.
Ensure adequate airflow within the cabinet to maintain operating temperatures within the specified -30 degC to +65 degC range.
Use shielded cabling for all I/O connections to maintain signal integrity in high-noise industrial environments.
FAQWhat is the primary function of the 3300/16-12-01-00-00?This module is a dual-channel vibration monitor used to measure and analyze radial shaft vibration in rotating machinery, providing essential alarm and trip functionality for protection systems.Is this module compatible with standard proximity sensors?Yes, the 00 configuration for the transducer input option is specifically designed for use with standard Bently Nevada Proximitor sensors.What do the status LEDs on the front panel indicate?The LEDs provide visual confirmation of the module's health and the machine's status, including OK (sensor/module health), Bypass, Alert, and Danger alarm states.
The Bently Nevada 3300/48 Case Expansion Monitor is a specialized rack-based module engineered to track the thermal growth of turbine casings in relation to their mounting foundation. This monitoring is essential for steam turbines and heavy rotating equipment, where excessive or uneven casing expansion can lead to critical mechanical interference and hardware damage. By continuously monitoring expansion metrics against pre-configured alarm thresholds, this module provides the necessary data for predictive maintenance and operational safety.Features
Designed for the 3300 monitoring system architecture.
Supports proximity probe and LVDT input configurations for versatile sensing.
Provides continuous signal processing with integrated Alert and Danger alarm setpoints.
Includes front-panel LED indicators for quick visual verification of OK, Bypass, Alert, and Danger status.
Standard relay outputs for direct integration with plant trip and alarm systems.
Standard input barrier configuration for reliable signal processing.
Technical Specifications
Model
3300/48-01-01-00-00
Operating Temperature
0 to 60 deg C
Power Consumption
1.5 W (typical)
Input Compatibility
Proximity probe or LVDT via Proximitor sensors
Signal Accuracy
+/- 0.33% (typical) at 25 deg C
Output Signals
4 to 20 mA, 1 to 5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack slot to ensure proper backplane connection.
Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI) in industrial environments.
Maintain proper ventilation in the cabinet to ensure the module operates within the 0 to 60 deg C temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal components.
FAQWhat is the primary function of the 3300/48 module?The 3300/48 is designed to measure the thermal expansion of turbine casings relative to the machine foundation, helping to identify potential mechanical issues before they cause damage.What types of sensors can be connected to this monitor?This specific model (3300/48-01-01-00-00) is configured to accept inputs from proximity probes or Linear Variable Differential Transformers (LVDTs).Does this module provide alarm outputs?Yes, it features standard relay outputs that trigger based on programmed Alert and Danger setpoints to support plant protection systems.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 143488-01 is a Proximitor Monitor module designed for the 3500 series machinery protection system. This four-channel module is engineered to receive and condition input signals from proximity transducers, providing critical vibration and position measurements. By comparing these inputs against user-defined alarm thresholds, the module facilitates reliable machinery protection and diagnostic monitoring for industrial assets such as turbines and centrifugal compressors.Features
Four independent monitoring channels for high-density sensor integration.
Direct compatibility with Bently Nevada proximity probe transducer systems.
User-configurable alarm and danger setpoints for each channel to ensure precise machine protection.
Full integration with the 3500 rack backplane for power and communication.
Buffered transducer signal outputs provided via front-panel coaxial connectors for external diagnostic access.
Supports a wide range of measurements including shaft vibration, thrust position, eccentricity, and REBAM.
ApplicationsThis monitor is specifically designed for critical rotating machinery protection. It is commonly deployed in power generation and petrochemical facilities to monitor:
Radial shaft vibration
Thrust bearing position
Differential expansion
Eccentricity and REBAM measurements
Technical Specifications
Model
143488-01
Series
3500/40
Operating Temperature
-30 to +65 degC
Storage Temperature
-40 to +85 degC
Relative Humidity
95%, non-condensing
Typical Power Consumption
7.7 W
Input Impedance
10 kOhm
Installation Guidelines
Ensure the 3500 rack is powered down before inserting or removing the module to prevent electrical damage.
The module should be installed in a clean, dry environment within the specified temperature range.
Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI).
Ensure the module is fully seated in the rack slot and the front-panel captive screws are tightened to maintain a secure ground connection.
Verify that the Rack Configuration Software settings match the physical transducer scaling and alarm logic requirements.
FAQIs this module compatible with older 3500 series racks?Yes, the 143488-01 is designed for standard 3500 rack systems. Ensure your rack firmware and configuration software are updated to support the specific module version.Does this module include the required I/O module?This listing is for the monitor module itself. Please verify if your specific installation requires a matching I/O module for field wiring termination.How are the buffered outputs protected?The front-panel coaxial connectors are short-circuit protected, allowing for safe connection to portable data collectors or oscilloscopes during operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 3300/10-01-01-00-00 is a rack-integrated Power Supply Module engineered to provide stable, regulated DC voltage to all monitoring modules within the 3300 series system. As a critical component for machinery protection, this unit ensures the continuous and reliable operation of vibration, thrust, eccentricity, and tachometer monitoring instrumentation by delivering clean power across the backplane.Features
Provides regulated DC output to support full rack capacity.
Integrated rack-wide OK status monitoring to signal power health.
Designed for standard 115/230 VAC input configurations.
Robust construction for industrial rack-mount environments.
Ensures consistent signal integrity for sensitive vibration monitoring sensors.
ApplicationsThis power supply module is fundamental to the 3300 Monitoring System, commonly used in critical rotating machinery protection applications such as steam turbines, gas turbines, compressors, and large motors. It is designed for use in environments where consistent power delivery is required to maintain accurate monitoring of machine health parameters.Technical Specifications
Model
3300/10-01-01-00-00
Brand
Bently Nevada
Series
3300
Input Voltage
115/230 VAC
Operating Temperature
0 to 60 degC
Rack Compatibility
3300 System Rack
Output
Regulated DC for rack modules
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the AC input voltage matches the module configuration before applying power.
Slide the module into the designated rack slot, ensuring proper alignment with the backplane connectors.
Secure the front panel screws to ensure a solid ground connection and physical stability.
Maintain adequate ventilation around the rack to prevent internal component overheating during operation.
Handle with standard ESD precautions to protect internal circuitry.
FAQDoes this module support dual power inputs?The 3300/10 module is designed for standard AC input. Please verify your specific site power requirements against the 01-01 suffix configuration to ensure compatibility with your existing rack setup.Is this module compatible with other Bently Nevada systems?This module is specifically designed for the 3300 System. It is not interchangeable with 3500 series or other Bently Nevada rack architectures.What does the OK status relay indicate?The OK relay provides a diagnostic signal indicating that the internal DC power rails are within specified operating limits. If the relay trips, it signifies a failure or loss of power regulation within the rack.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/16 Dual Vibration Monitor is a specialized rack-mounted module within the 3300 system architecture, engineered for the precise monitoring of radial shaft vibration. This specific unit, identified by order code 3300/16-02-01-00-00-00-0, provides two independent channels of vibration data, making it an essential component for the protection of critical rotating machinery such as industrial compressors, turbines, and large pumps. By continuously processing input signals from proximity sensors, the module identifies mechanical anomalies like shaft misalignment, imbalance, and bearing degradation, triggering alarms before equipment failure occurs.Features
Dual-channel input architecture supporting two independent proximity probe signals.
Proportional 4-20 mA output signals for integration with external control or monitoring systems.
Integrated Alarm logic with dedicated Alert and Danger relay outputs.
Visual status monitoring via front-panel LEDs for OK, Bypass, Alert, and Danger states.
Standardized configuration for seamless integration into existing 3300 series racks.
ApplicationsThis module is designed for deployment in high-reliability industrial environments where continuous vibration monitoring is mandatory. Typical applications include:
Monitoring radial shaft vibration in hydro and steam turbines.
Protection of centrifugal compressors and blowers.
Vibration analysis for large-scale industrial motors and pumps.
Integration into plant-wide machinery protection systems (MPS).
Technical Specifications
Model
3300/16-02-01-00-00-00-0
Brand
Bently Nevada
System Series
3300
Inputs
2 x Proximity Probe Channels
Outputs
4-20 mA Proportional, Relay (Alert/Danger), Dynamic Signal
Operating Temp
-30 degC to +65 degC
Power Consumption
6 W (typical)
Weight
0.5 kg
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the 3300/16 module to prevent electrical damage.
Verify that all proximity probes are correctly calibrated and connected to the appropriate channel inputs on the rear terminal block.
Maintain proper grounding of the 3300 series rack to minimize electrical noise interference on sensitive vibration signals.
Use shielded cabling for all transducer inputs to comply with EMI/RFI immunity standards.
Ensure adequate airflow within the cabinet to maintain operating temperatures within the specified -30 degC to +65 degC range.
FAQWhat does the 3300/16-02-01-00-00-00-0 code signify?This order code represents the factory-configured version of the dual vibration monitor, including standard agency approvals, proximity probe compatibility, and default relay/range settings for general industrial use.Does this module require external power?The module receives operating power directly from the 3300 series rack backplane. It typically consumes 6 W during normal operation.Can this monitor be used for non-contact proximity probes?Yes, this model is specifically configured to interface with Proximitor sensors, which are the standard for radial shaft vibration measurements in the 3300 series.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 3300/05-24-00-00 is a foundational 10-slot rack chassis engineered to house and support the 3300 series monitoring system. This chassis serves as the mechanical and electrical backbone of the machinery protection system, providing the necessary backplane connectivity and structural alignment for various monitoring modules, including vibration, thrust, eccentricity, and temperature monitors.Features
Designed for 3300 series module compatibility, ensuring seamless integration of monitoring and power supply components.
10-slot capacity allows for scalable system architecture in critical machinery protection.
Robust construction provides high mechanical stability in industrial environments.
Integrated backplane facilitates electrical continuity and communication between installed modules.
Standard mounting interface for simplified installation into existing control panels or equipment racks.
ApplicationsThis chassis is primarily deployed in industrial facilities for the continuous monitoring of rotating machinery. It is suitable for protecting assets such as turbines, compressors, pumps, and motors by facilitating the installation of specialized Bently Nevada 3300 monitoring modules.Technical Specifications
Model
3300/05-24-00-00
Brand
Bently Nevada
System Series
3300
Rack Capacity
10 Slots
Operating Temperature
0 to 60 degC
Power Support
Compatible with 3300/12 Power Supply Modules
Installation Guidelines
Ensure the rack is mounted in a clean, dry, and vibration-dampened environment to maintain system integrity.
Verify that the chassis is securely fastened to the panel or rack structure to prevent mechanical stress on the backplane.
Always power down the system before inserting or removing any monitoring modules to prevent electrical damage.
Ensure proper grounding of the chassis to the system common to minimize EMI and noise interference.
Maintain adequate clearance around the chassis to allow for proper airflow and heat dissipation.
FAQWhat does the 3300/05-24-00-00 model designation represent?The 3300/05 is the base rack system, the 24 indicates the 10-slot chassis configuration, and the trailing 00-00 codes denote standard mounting hardware and standard agency approval configurations.Is this chassis compatible with all 3300 series components?Yes, this chassis is specifically designed to house standard 3300 series monitoring modules and 3300/12 power supply modules, ensuring full hardware compatibility within the Bently Nevada 3300 ecosystem.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/55 Dual Velocity Monitor is a high-reliability, rack-mounted module engineered for the 3300 Series monitoring system. It is specifically designed to process casing vibration velocity signals from Velomitor piezo-velocity sensors. By providing two independent monitoring channels, the unit ensures continuous surveillance and protection of critical rotating machinery, including industrial turbines, centrifugal compressors, motors, and pumps.Features
Dual-channel velocity measurement for comprehensive casing vibration monitoring.
Direct compatibility with Velomitor piezo-velocity sensors.
Integrated alarm logic providing Alert and Danger status outputs.
Proportional 4-20 mA outputs for integration with external PLC or DCS systems.
Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger states.
High-density rack-mount architecture for efficient panel space utilization.
ApplicationsThis monitor is essential for machinery protection in heavy industrial environments, particularly where casing vibration velocity is a key indicator of machine health. It is frequently deployed in power generation, petrochemical processing, and oil and gas facilities to prevent catastrophic failures through automated alarm and trip sequences.Technical Specifications
Model
3300/55-01-04-12-12-00-00-05-01
Brand
Bently Nevada
Series
3300
Input Channels
2 independent Velomitor channels
Operating Temperature
0 degC to 60 degC
Power Consumption
1.5 W (typical)
Outputs
4-20 mA proportional, Relay (Alert/Danger)
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack slot and the front-panel captive screws are tightened to maintain ground continuity.
Use shielded twisted-pair cabling for sensor inputs to minimize EMI interference in high-noise industrial environments.
Ensure proper grounding of the rack system according to Bently Nevada standard practices to maintain signal integrity.
Avoid locating the monitoring rack in areas with extreme temperature fluctuations or excessive moisture.
FAQWhat is the primary function of the 3300/55 module?The 3300/55 is a Dual Velocity Monitor designed to measure casing vibration velocity using piezo-velocity sensors. It compares these signals against preset alarm levels to trigger machine protection alerts or shutdowns.Can this module be used with sensors other than Velomitor?This specific configuration (suffix 12) is factory-configured for Velomitor piezo-velocity sensors. Consult the Bently Nevada 3300 system manual for compatibility with other sensor types before installation.What do the LED indicators represent on the front panel?The LEDs provide visual feedback for the status of each channel, including OK (sensor/module health), Bypass (maintenance mode), Alert (warning threshold reached), and Danger (trip threshold reached).
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/16 Dual Vibration Monitor is a specialized rack-mounted module engineered for the 3300 Series monitoring system. This unit provides precise, continuous measurement of radial shaft vibration using two independent input channels. The 3300/16-14-01-01-00-00-00 configuration is specifically calibrated for critical machinery protection, including turbines, centrifugal compressors, and industrial pumps, allowing for real-time monitoring of mechanical health to identify potential issues like shaft misalignment, imbalance, or bearing degradation before they lead to failure.Features
Dual-channel input architecture optimized for proximity probe (Proximitor) sensor integration.
Continuous signal processing with automated comparison against user-defined Alert and Danger alarm setpoints.
Integrated relay outputs for direct interface with machine shutdown or alarm systems.
Proportional 4–20 mA outputs for integration with external PLC or DCS monitoring systems.
Front-panel LED indicators providing immediate visual status for OK, Bypass, Alert, and Danger conditions.
ApplicationsThis module is deployed in industrial environments where high-speed rotating equipment requires constant vibration oversight. It is typically used in power generation, petrochemical processing, and oil and gas facilities to protect critical assets from catastrophic mechanical damage.Technical Specifications
Model
3300/16-14-01-01-00-00-00
Brand
Bently Nevada
Series
3300
Inputs
2 x Proximity Probe Channels
Outputs
Dynamic signals, 4-20 mA, Relay (Alert/Danger)
Power Consumption
~6 W
Operating Temperature
-30 degC to +65 degC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack slot and the front-panel connectors are secured.
Use shielded cabling for all transducer inputs to minimize interference from high-EMI industrial environments.
Ensure proper grounding of the 3300 rack system per the manufacturer's installation manual to maintain signal integrity.
Follow ESD best practices when handling the module to prevent damage to internal circuitry.
FAQWhat does the 3300/16-14-01-01-00-00-00 code signify?This specific part number denotes the base 3300/16 monitor with a dual vibration configuration, standard industrial agency approvals, proximity probe transducer compatibility, and standard relay/barrier/range settings.Is this module compatible with existing 3300 rack systems?Yes, this is a standard 3300 Series module designed for integration into existing Bently Nevada 3300 racks.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Bently Nevada 3300/40 Eccentricity Monitor Module is a specialized instrumentation component designed for the 3300 series rack system. It provides critical monitoring of shaft eccentricity in large rotating machinery, such as steam turbines and centrifugal compressors. By analyzing displacement signals from proximity probes, the module detects shaft bow or misalignment during slow-roll startup and shutdown sequences. It features integrated alarm setpoints to trigger Alert and Danger status, facilitating proactive maintenance and protecting assets from mechanical failure.
Features
Engineered for integration into standard Bently Nevada 3300 monitoring racks.
Supports shaft eccentricity measurement and bow detection during slow-roll operations.
Provides continuous signal conditioning for proximity probe inputs.
Includes dedicated relay outputs for Alert and Danger alarm conditions.
Integrated LED status indicators for system health, including OK, Bypass, Alert, and Danger states.
Technical Specifications
Model
3300/40-12-01-01-00-00
Brand
Bently Nevada
Series
3300
Operating Temperature
0 to 60 degC
Power Consumption
1.5 W (approx.)
Signal Sensitivity
200 mV/mil or 100 mV/mil (programmable)
Accuracy (Signal Conditioning)
+/- 0.33% typical
Output Options
+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
Verify that the module is correctly seated in the designated rack slot and that the front panel is secured.
Use shielded, twisted-pair cabling for all transducer inputs to minimize electromagnetic interference (EMI).
Maintain adequate ventilation within the cabinet to keep the ambient temperature within the 0 to 60 degC operating range.
Always follow proper ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connector pins.
FAQ
What is the primary function of the 3300/40 monitor?
This module is specifically designed to monitor shaft eccentricity and detect shaft bow, particularly during the slow-roll conditions common during turbine startup and shutdown.
Does this module require external power?
The module receives power directly from the 3300 rack backplane once installed; it consumes approximately 1.5 watts during operation.
How are the alarm setpoints managed?
The module continuously compares processed input signals against user-configured Alert and Danger setpoints, triggering internal relays and front-panel LED indicators when thresholds are exceeded.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/35-02-01-01-00-00 is a dedicated 6-channel temperature monitoring module engineered for the 3300 Series rack-based machinery protection system. This unit provides high-reliability, continuous thermal monitoring for critical rotating assets such as large industrial turbines, compressors, and motors, facilitating early detection of thermal degradation and supporting robust predictive maintenance strategies.Features
Six independent input channels capable of processing signals from RTDs (Pt100, Pt1000) and common thermocouple types (J, K, T).
Integrated alarm management with dedicated Alert and Danger setpoints for each channel.
Standard relay outputs for direct integration with plant safety and shutdown systems.
Proportional signal outputs including +4 to +20 mA and +1 to +5 VDC for external data logging or DCS integration.
Comprehensive diagnostic LED indicators for real-time status monitoring, including OK, Bypass, Alert, and Danger states.
ApplicationsThis module is typically deployed in critical industrial environments where precise temperature tracking of bearings, stator windings, and machine casings is required to prevent catastrophic failure. It serves as a primary component in machinery protection systems where rapid response to temperature excursions is necessary for safe operation.Technical Specifications
Model
3300/35-02-01-01-00-00
Series
3300
Channels
6 Independent
Supported Inputs
RTD (Pt100, Pt1000), Thermocouple (J, K, T)
Outputs
4-20 mA, 1-5 VDC, Relay (Alert/Danger)
Power Consumption
~2 W
Operating Temperature
-35 degC to +65 degC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
Verify that the module is fully seated in the rack slot to ensure proper backplane communication.
Use shielded twisted-pair cabling for sensor inputs to minimize noise interference in high-EMI industrial environments.
Maintain proper grounding practices for the 3300 rack system to ensure signal integrity and electrical safety.
Ensure adequate ventilation around the rack to maintain ambient operating temperatures within the specified -35 degC to +65 degC range.
FAQWhat types of sensors are compatible with this monitor?The 3300/35-02-01-01-00-00 is compatible with standard RTDs (Pt100 and Pt1000) as well as J, K, and T type thermocouples.Does this module support relay logic?Yes, this unit includes standard relay outputs configured for Alert and Danger alarm conditions, allowing it to trigger external equipment or shutdown sequences based on user-defined setpoints.Can this module be used in a standard 3300 rack?Yes, this module is designed specifically for the Bently Nevada 3300 Series rack system and adheres to the standard mechanical profile for this series.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/47 Differential Expansion Monitor is a specialized rack-mounted module engineered to track the relative thermal expansion between a turbine rotor and its casing. By precisely monitoring this mechanical growth, the system helps prevent catastrophic interference within steam turbines and other high-speed rotating assets. This module provides continuous, real-time analysis, comparing measured expansion data against user-defined thresholds to trigger protective alarms.Features
Designed for the 3300 Series monitoring platform.
Integrates with proximity probe systems via Proximitor sensors.
Features dual relay outputs for independent Alert and Danger alarm logic.
Provides visual status updates via front-panel LEDs for OK, Bypass, Alert, and Danger conditions.
Supports multiple analog output formats for integration with external control or data acquisition systems.
ApplicationsThis monitor is primarily deployed in power generation and heavy industrial environments. It is essential for protecting large steam turbines, gas turbines, and compressors where thermal expansion differentials must be strictly managed to maintain mechanical integrity during startup, operation, and shutdown cycles.Technical Specifications
Model
3300/47-XX-03-01-00
Brand
Bently Nevada
Series
3300
Operating Temperature
0 to 60 degC
Power Consumption
1.5 W (nominal)
Sensitivity
200 mV/mil or 100 mV/mil (probe dependent)
Signal Accuracy
±0.33% typical (at 25 degC)
Analog Outputs
+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is properly seated in the backplane to ensure reliable signal transmission.
Use shielded cabling for all proximity probe inputs to minimize EMI/RFI interference in the industrial environment.
Maintain proper ventilation around the 3300 rack to ensure ambient temperatures remain within the 0 to 60 degC operating range.
Follow standard ESD (electrostatic discharge) protection procedures when handling the module circuitry.
FAQWhat does the XX represent in the model number? The XX denotes the specific measurement range configuration for the differential expansion, which must be selected based on the physical requirements of your turbine application.Does this module require external power? It is powered directly through the 3300 series rack backplane. The module consumes approximately 1.5 W during standard operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3300/26 Dual Accelerometer RMS Monitor is a specialized vibration monitoring module designed to provide reliable signal processing for accelerometer-based measurements. This unit converts raw accelerometer inputs into proportional 4-20 mA outputs, facilitating seamless integration with existing DCS, PLC, or SCADA systems for machinery protection and condition monitoring.Features
Dual-channel input capability for simultaneous accelerometer monitoring.
Standard 4-20 mA output for integration with process control instrumentation.
Robust signal processing for RMS vibration measurement.
Engineered for industrial environments with high reliability and durability.
Technical Specifications
Model
3300/26-XX-XX-XX-00-00-01-00
Sensitivity
100 mV/g (10 mV per m/s2)
Output Impedance
100 Ohm
Frequency Range (No Filter)
2.7 Hz to 90 kHz (-3 dB nominal)
Frequency Range (w/ Integration)
10 Hz to 90 kHz
Operating Temperature
0 degC to +65 degC (+32 degF to +150 degF)
Storage Temperature
-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity
Up to 95%, non-condensing
Installation Guidelines
Ensure power is disconnected before installing or removing the module from the rack.
Use shielded cabling for all signal inputs to minimize electromagnetic interference (EMI).
Maintain proper grounding practices to ensure signal integrity and protection against surges.
Ensure the installation environment meets the specified temperature and humidity ranges to prevent premature component failure.
Verify that all terminal connections are secure and properly seated within the 3300 rack system.
FAQWhat is the primary function of the 3300/26 module?The 3300/26 is designed to monitor accelerometer inputs and provide an RMS vibration output in the form of a 4-20 mA signal for industrial monitoring applications.Is this module compatible with other 3300 series components?Yes, this monitor is designed for use within the Bently Nevada 3300 series rack system architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 84157-01 Signal Relay Board is a critical component designed for integration within Bently Nevada monitoring racks. This board facilitates the reliable transmission of Alert and Danger status signals from internal monitoring modules to external protection, control, or annunciation equipment. By serving as an interface between the monitoring system and external logic, such as DCS or PLC inputs, it ensures that machinery conditions are accurately communicated to shutdown circuits and alarm systems.Features
Provides dedicated relay outputs for Alert and Danger alarm conditions.
Designed for seamless integration with Bently Nevada monitoring system architectures.
Enables reliable interface between vibration, thrust, or temperature monitors and external protection logic.
Supports fail-safe alarm signaling to maintain integrity during abnormal machinery operation.
Optimized for use in high-availability, critical machinery protection environments.
Applications
Machinery protection and condition monitoring systems.
Automated shutdown logic and emergency trip circuits.
Alarm annunciation and status monitoring for industrial rotating equipment.
Signal integration between Bently Nevada racks and plant-wide DCS or PLC platforms.
Technical Specifications
Manufacturer
Bently Nevada
Part Number
84157-01
Product Type
Signal Relay Board
Output Type
Electromechanical Dry Contact
Operating Temperature
0 to 60 degC
System Compatibility
3300 / 3500 Series Racks
Installation Guidelines
Ensure the rack is powered down before the insertion or removal of the relay board to prevent electrical arcing or damage to backplane pins.
Handle the module using standard ESD (Electrostatic Discharge) safety practices to protect sensitive internal circuitry.
Verify that the relay board is fully seated within the designated rack slot to ensure proper backplane communication.
Ensure all external wiring to the relay terminals is properly shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
Confirm that the relay contact ratings are compatible with the connected field loads to prevent premature wear or failure of the electromechanical components.
FAQWhat is the primary purpose of the 84157-01 board?This board acts as a signal interface, converting internal monitor alarms into physical relay contact closures that can trigger external shutdown systems, sirens, or status indicators.Is this board compatible with all Bently Nevada racks?The 84157-01 is specifically designed for compatibility with Bently Nevada 3300 and 3500 series monitoring systems. Please verify your specific rack configuration and module requirements before installation.Does this board require external power?It typically derives power from the host rack backplane. Ensure that your rack power supply is sized correctly to accommodate the current draw of all installed modules and relay boards.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 149716-01 is a specialized I/O module engineered for the 3500/40 Proximitor Monitor system. This module is specifically configured for Triple Modular Redundant (TMR) applications, providing a robust interface for proximity transducer signals. It is an essential component for machinery protection systems where high availability and fault tolerance are required to monitor rotating assets such as large turbines, pumps, and compressors.Features
Designed for integration with the Bently Nevada 3500 Series machinery protection rack.
Supports TMR (Triple Modular Redundant) architecture to ensure continuous monitoring and system integrity.
Facilitates precise signal conditioning for proximity probe inputs to track vibration and shaft position.
Enhanced diagnostic capabilities to minimize false trips and improve operational uptime.
Engineered for deployment in harsh industrial settings including power generation and petrochemical facilities.
ApplicationsThis I/O module is deployed in critical infrastructure environments where monitoring of shaft vibration, axial position, and speed is mandatory. It is typically utilized in:
Steam and gas turbine protection systems.
Large-scale centrifugal compressor monitoring.
Hydraulic and industrial pump vibration analysis.
Critical rotating equipment in power plants and refineries.
Technical Specifications
Model
149716-01
Series
3500/40
Module Type
TMR Proximitor I/O
Operating Temperature
-40 to +85 deg C
Power Requirements
24 VDC (via 3500 rack backplane)
Compatibility
Bently Nevada 3500 Rack System
Installation Guidelines
Ensure the 3500 rack is powered down before inserting or removing any I/O module to prevent electrical damage or system faults.
The module should be seated firmly into the designated rack slot to ensure proper backplane connection.
Verify that all field wiring is properly shielded and routed away from high-voltage cables to mitigate electromagnetic interference (EMI).
Maintain proper ventilation within the cabinet to stay within the specified operating temperature range.
Always follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQIs this module compatible with non-TMR 3500 systems?The 149716-01 is specifically designed for TMR configurations. Please consult your 3500 system documentation to ensure your monitor and backplane configuration support TMR operation.What is the primary function of this I/O module?This module acts as the interface between the field-mounted proximity probes and the 3500/40 monitor, providing the necessary signal conditioning and routing for vibration and position data.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 990-08-XX-01-00 is a specialized vibration transmitter designed for continuous monitoring of machinery vibration in industrial environments. This unit provides a reliable interface for converting transducer signals into a standard 4-20 mA output, facilitating integration with PLC, DCS, or SCADA control systems.Features
Designed for integration with 35 mm DIN rail mounting systems.
Supports a wide power supply range of +12 to +35 Vdc at the transmitter terminal.
Maximum loop resistance capability of 1,000 ohms when operating at 35 Vdc.
Integrated current limiting feature set to 23 mA typical for circuit protection.
Certified for use in ATEX Zone 2 hazardous locations and includes ABS maritime approval for marine-grade reliability.
ApplicationsThis transmitter is primarily utilized in industrial rotating machinery monitoring, including pumps, fans, compressors, and motors. It is well-suited for applications where direct vibration data transmission to a control system is required without the need for a full-scale rack-based monitoring system.Technical Specifications
Product Model
990-08-XX-01-00
Device Type
Vibration Transmitter
Power Supply
+12 to +35 Vdc
Max Loop Resistance
1,000 Ohm
Current Limiting
23 mA
Certifications
ATEX Zone 2, ABS Maritime
Weight
0.44 kg
Installation Guidelines
Ensure the device is mounted securely on a standard 35 mm DIN rail.
Verify that the power supply voltage is within the specified +12 to +35 Vdc range at the terminals before energizing.
Maintain proper shielding on signal cables to minimize EMI interference in industrial environments.
Always power down the system before performing wiring changes or module removal to prevent electrical damage.
Ensure the installation environment complies with relevant safety standards for ATEX Zone 2 areas.
FAQWhat is the primary function of the 990-08-XX-01-00? It acts as a signal converter that takes raw vibration input and outputs a 4-20 mA current loop signal for control system monitoring.Does this unit require specific mounting hardware? It is designed for standard 35 mm DIN rail mounting, which is included with this specific configuration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 3500/45 Position Monitor (176449-04) is a high-performance, 4-channel monitoring module designed for the 3500 Machinery Protection System. This module is engineered to provide continuous, reliable position measurement for critical rotating machinery, ensuring operational safety through real-time parameter comparison and alarm management.Features
Four independent channels for versatile monitoring configurations.
Broad sensor compatibility, including proximity transducers, Rotary Position Transducers (RPTs), AC/DC Linear Variable Differential Transformers (LVDTs), and rotary potentiometers.
Programmable alarm setpoints for proactive machinery protection.
Essential data acquisition for both predictive maintenance and operational diagnostics.
ApplicationsThis module is frequently utilized in large-scale industrial environments to monitor critical assets, including:
Power Generation: Steam turbine generator sets and high-pressure feedwater pumps.
Oil & Gas: Gas turbines and natural gas pipeline compression units.
Petrochemical: Ethylene cracking gas compressors and hydrogenation plant high-pressure units.
Metallurgy: Blast furnace blowers and high-temperature blast furnace gas recovery (TRT) systems.
Technical Specifications
Product Model
3500/45 176449-04
Module Type
Position Monitor
Channels
4
Operating Temperature
-30 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
95% (Non-condensing)
Installation Guidelines
Ensure the 3500 rack is powered down before inserting or removing the 176449-04 module to prevent electrical damage.
Handle the module using proper ESD (Electrostatic Discharge) mitigation practices.
Verify that the module is fully seated in the rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
Route signal cables away from high-power conduits or high-EMI sources to maintain measurement integrity.
Confirm proper configuration of alarm setpoints via the 3500 Rack Configuration Software before placing the machine into service.
FAQWhat is the primary function of the 3500/45 module?The 3500/45 is designed to monitor machine position by conditioning input signals from various transducers and comparing them against user-defined alarm setpoints to trigger alerts or machine shutdowns.Which sensor types are supported by this monitor?The module supports proximity transducers, RPTs, AC and DC LVDTs, and rotary potentiometers.Can this module be used in legacy 3500 systems?Yes, the 3500/45 is a standard component of the Bently Nevada 3500 series and is compatible with existing 3500 rack architectures.
