Description

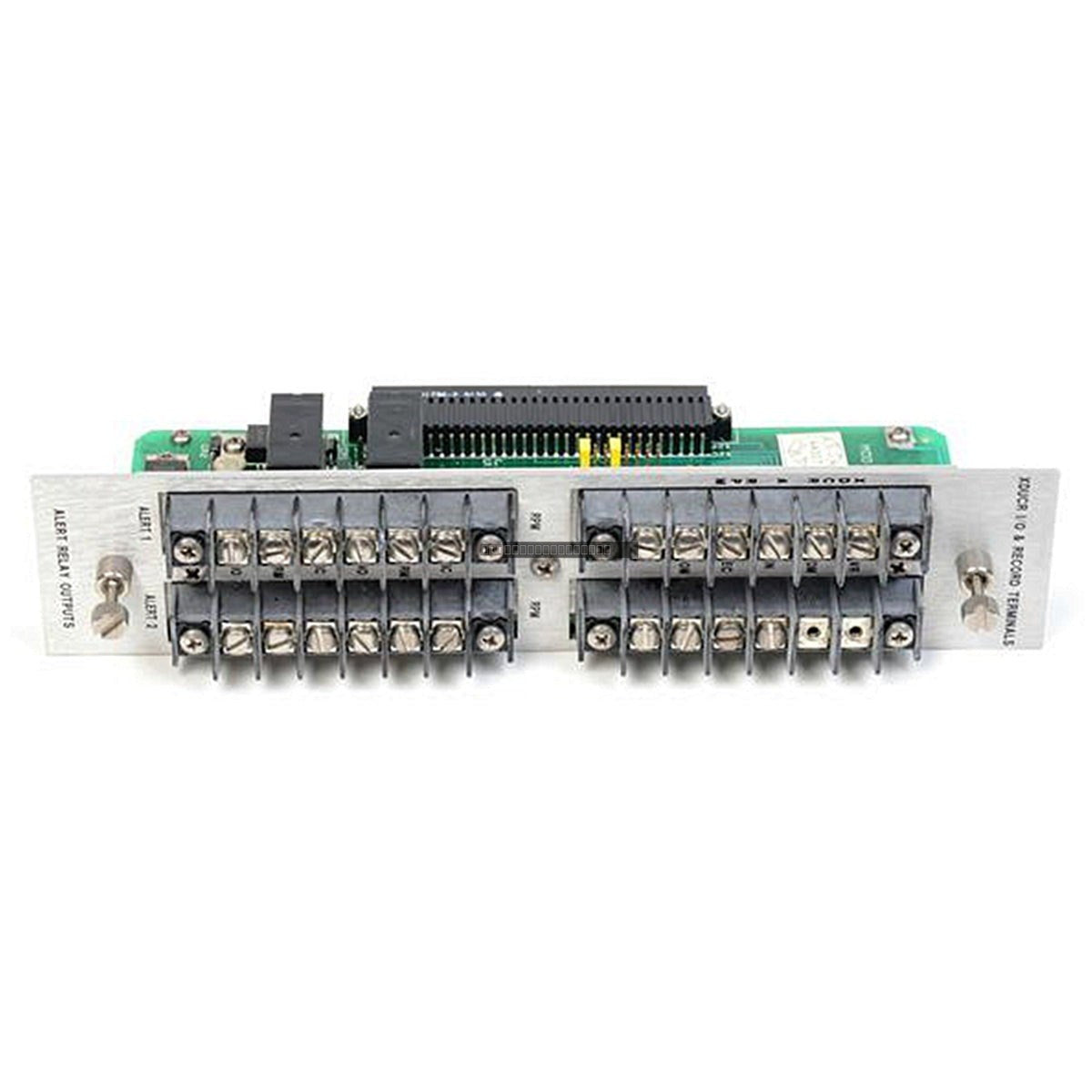

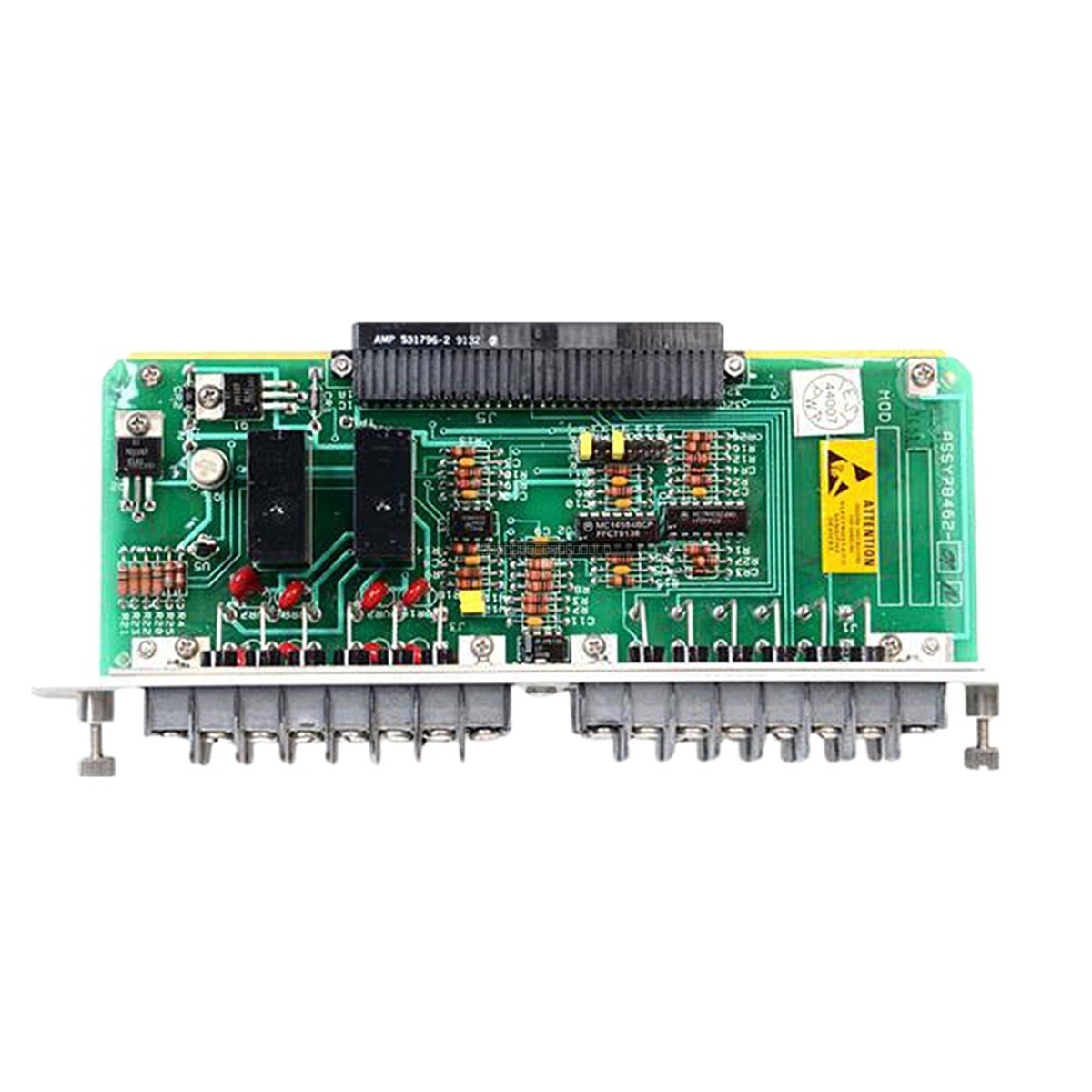

The Bently Nevada 84157-01 Signal Relay Board is a critical component designed for integration within Bently Nevada monitoring racks. This board facilitates the reliable transmission of Alert and Danger status signals from internal monitoring modules to external protection, control, or annunciation equipment. By serving as an interface between the monitoring system and external logic, such as DCS or PLC inputs, it ensures that machinery conditions are accurately communicated to shutdown circuits and alarm systems.
Features
- Provides dedicated relay outputs for Alert and Danger alarm conditions.
- Designed for seamless integration with Bently Nevada monitoring system architectures.
- Enables reliable interface between vibration, thrust, or temperature monitors and external protection logic.
- Supports fail-safe alarm signaling to maintain integrity during abnormal machinery operation.
- Optimized for use in high-availability, critical machinery protection environments.
Applications
- Machinery protection and condition monitoring systems.
- Automated shutdown logic and emergency trip circuits.
- Alarm annunciation and status monitoring for industrial rotating equipment.
- Signal integration between Bently Nevada racks and plant-wide DCS or PLC platforms.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
84157-01 |
| Product Type |
Signal Relay Board |
| Output Type |
Electromechanical Dry Contact |
| Operating Temperature |
0 to 60 degC |
| System Compatibility |
3300 / 3500 Series Racks |
Installation Guidelines
- Ensure the rack is powered down before the insertion or removal of the relay board to prevent electrical arcing or damage to backplane pins.
- Handle the module using standard ESD (Electrostatic Discharge) safety practices to protect sensitive internal circuitry.
- Verify that the relay board is fully seated within the designated rack slot to ensure proper backplane communication.
- Ensure all external wiring to the relay terminals is properly shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
- Confirm that the relay contact ratings are compatible with the connected field loads to prevent premature wear or failure of the electromechanical components.
FAQ
What is the primary purpose of the 84157-01 board?
This board acts as a signal interface, converting internal monitor alarms into physical relay contact closures that can trigger external shutdown systems, sirens, or status indicators.
Is this board compatible with all Bently Nevada racks?
The 84157-01 is specifically designed for compatibility with Bently Nevada 3300 and 3500 series monitoring systems. Please verify your specific rack configuration and module requirements before installation.
Does this board require external power?
It typically derives power from the host rack backplane. Ensure that your rack power supply is sized correctly to accommodate the current draw of all installed modules and relay boards.
