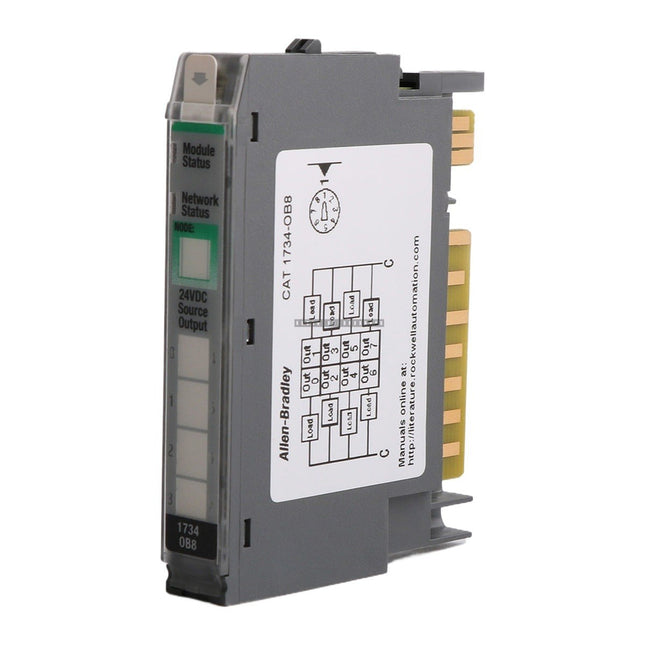

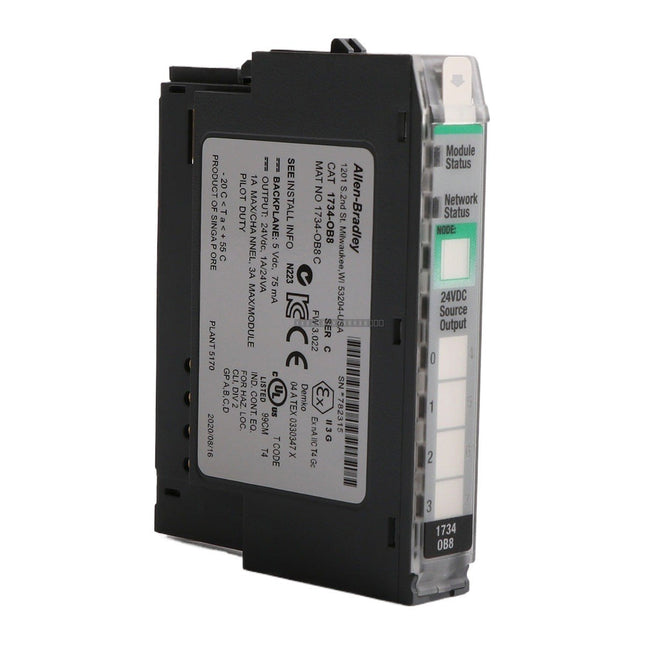

The Allen-Bradley 1734-OB8 is a high-density digital DC sourcing output module designed for the POINT I/O platform. It provides eight output channels capable of driving various 24V DC loads, making it suitable for distributed I/O applications in industrial automation environments.Features
8-point digital DC sourcing output configuration.
Electronically protected outputs for enhanced reliability.
Integrated module and network status indicators (green/red).
Dedicated logic-side status indicators (yellow) for each output channel.
Compact design optimized for space-constrained control cabinets.
Seamless integration with the POINTBus backplane.
Technical Specifications
Module Type
Digital DC Sourcing Output
Number of Outputs
8
Output Voltage Range
10-28.8V DC
Output Current
3 Amps per module
Power Dissipation
2.0 Watts / 6.8 BTU/hour
POINTBus Current
75 mA
Operating Temperature
Refer to system manual
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the POINT I/O base.
Mount the module on a standard DIN rail, ensuring it is securely seated in the base unit.
Verify that the module is compatible with the existing POINTBus backplane configuration.
Use appropriate shielded cabling for output signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the DIN rail system to maintain signal integrity and safety.
Maintain adequate clearance around the module to allow for proper thermal dissipation.
FAQWhat is the primary function of the 1734-OB8?The 1734-OB8 is a digital output module used to control 24V DC field devices such as solenoids, relays, or indicators within an Allen-Bradley POINT I/O system.Are the outputs protected?Yes, the 1734-OB8 features electronic protection to safeguard the module against short circuits or overcurrent conditions on the output channels.How do I monitor the status of the outputs?The module includes 8 yellow status indicators on the logic side, which provide visual confirmation of the state of each individual output channel.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 2711E-T14C15 is a robust, large-format industrial human-machine interface (HMI) terminal designed for high-capacity process visualization within the legacy PanelView 1400e platform. Operating on an 180 to 264 VAC input, this terminal provides centralized control and monitoring, consolidating complex plant telemetry from multiple remote nodes into a single touch-driven graphic workspace.Features
Large 14-inch color display for detailed plant layouts and historical trend visualization.
Analog resistive touchscreen matrix for precise operator input, compatible with standard industrial gloves.
Dedicated ControlNet communication port for deterministic, high-speed data exchange.
RS-232 serial interface for auxiliary connectivity.
256 KB of onboard nonvolatile flash memory for application graphics and alarm tags.
Replaceable 6189-NL2 backlight module for extended operational life.
ApplicationsThis terminal is suitable for demanding automation environments, including automotive manufacturing, chemical batching, water treatment facilities, and primary metal processing. It is designed to integrate seamlessly with Allen-Bradley PLC-5, SLC 500, and ControlLogix processor families.Technical Specifications
Model
2711E-T14C15
Input Voltage
180 to 264 VAC
Line Frequency
47 to 63 Hz
Display Size
14.0 inches
Memory
256 KB Flash
Communication
ControlNet, RS-232
Backlight
6189-NL2 (Replaceable)
Installation Guidelines
Ensure the terminal is flush-mounted within a sealed, NEMA-rated industrial enclosure to protect against environmental contaminants.
Verify that the power source is within the 180-264 VAC range before connection.
Maintain proper clearance around the unit to ensure adequate ventilation and prevent thermal stress.
Use shielded communication cables for ControlNet and RS-232 connections to minimize EMI interference.
Always power down the unit before performing maintenance, such as replacing the 6189-NL2 backlight module.
Handle the touchscreen surface with care to avoid scratching or damage to the resistive overlay.
FAQIs this unit still in production? No, the 2711E-T14C15 is part of the legacy PanelView 1400e series and is classified as discontinued/obsolete.What controllers are compatible with this HMI? This terminal is designed for integration with Allen-Bradley PLC-5, SLC 500, and ControlLogix systems via the ControlNet network.Can the backlight be replaced? Yes, the display illumination is provided by a replaceable 6189-NL2 backlight module.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe General Electric IC660EBD024 is a Genius I/O electronics assembly designed for industrial automation applications. As part of the GE Genius I/O product line, this module provides reliable signal processing and communication capabilities within a distributed control architecture. It is engineered to support robust I/O operations in demanding industrial environments, offering high levels of electrical isolation and diagnostic feedback.Features
Integrated block-to-block isolation rated at 850 V for enhanced system protection.
Comprehensive output diagnostics, including switch fault detection.
Flexible operating voltage range of 10 to 30 V DC.
Designed for high-reliability performance with a typical DC power requirement of 150 mA.
Wide operating temperature range suitable for standard industrial control cabinets.
Technical Specifications
Model
IC660EBD024
Product Line
Genius I/O
Operating Voltage
10 to 30 V DC
Block to Block Isolation
850 V
Max Output Current
0.5 A per circuit
Min Heat Dissipation
11 Watts (with 8 inputs)
Max Heat Dissipation
18 Watts (with 32 outputs)
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 100 degC
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the control system is powered down before installing or removing the electronics assembly to prevent electrical damage.
Mount the module in a clean, dry, and well-ventilated enclosure to maintain the specified operating temperature range.
Use appropriate shielded cabling for I/O signals to minimize electromagnetic interference (EMI).
Verify that all terminal connections are secure and that the module is properly seated in the Genius I/O block housing.
Maintain proper grounding practices to ensure the integrity of the 850 V isolation barrier.
FAQWhat is the primary function of the IC660EBD024?The IC660EBD024 serves as an electronics assembly for the Genius I/O system, facilitating the interface between field devices and the controller via the Genius I/O communication network.What are the power requirements for this module?The module operates on a DC voltage range of 10 to 30 V. It typically draws 150 mA of current, with a maximum requirement of 300 mA under load.Does this module provide diagnostic capabilities?Yes, the IC660EBD024 includes built-in output diagnostics, specifically designed to detect switch faults, which assists in troubleshooting and maintaining system uptime.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 2711-K5A5 is a compact HMI operator terminal belonging to the PanelView 550 Standard series. Engineered for real-time process monitoring and machine control, this terminal integrates with various controller platforms, including Allen-Bradley PLC-5, SLC 500, CompactLogix, MicroLogix, and ControlLogix systems. Its small form factor and robust performance make it suitable for localized control stations in discrete manufacturing and small-scale automation environments.Features
5.5-inch blue-mode monochrome LCD display with 256 x 128 pixel resolution.
Keypad interface featuring 10 configurable function keys (F1-F10) for precise command execution.
Integrated RS-232 serial communication port supporting the DH-485 protocol.
Field-replaceable LED backlight for extended operational lifespan.
Supports up to 16 user-generated passwords per application for enhanced security.
ApplicationsThis terminal is designed for industrial environments requiring reliable operator-to-machine interaction. Typical applications include machine status monitoring, alarm management, and setpoint adjustment in small-to-medium scale automation systems.Technical Specifications
Model
2711-K5A5
Display Type
Monochrome Transflective LCD
Display Size
5.5 inches
Resolution
256 x 128 pixels
Input Voltage
85 to 264 VAC
Input Frequency
47 to 63 Hz
Communication
RS-232 (DH-485)
Memory
170 KB runtime; 240 KB non-volatile
Enclosure Rating
NEMA 12/13, 4X (Indoor), IP54, IP65
Operating Temperature
0 to 55 degC
Installation Guidelines
Ensure the unit is flush-mounted in a suitable enclosure to maintain NEMA/IP ratings.
Verify that the power supply voltage matches the 85-264 VAC input range before connection.
Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
Use shielded communication cables for RS-232 connections to minimize EMI interference.
Power down the unit before performing any maintenance or replacing the backlight assembly.
FAQWhat controllers are compatible with the 2711-K5A5?The terminal is compatible with Allen-Bradley PLC-5, SLC 500, CompactLogix, MicroLogix, and ControlLogix systems via the DH-485 protocol.Can the backlight be replaced in the field?Yes, the 2711-K5A5 is designed with a field-replaceable LED backlight to ensure long-term operational availability.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

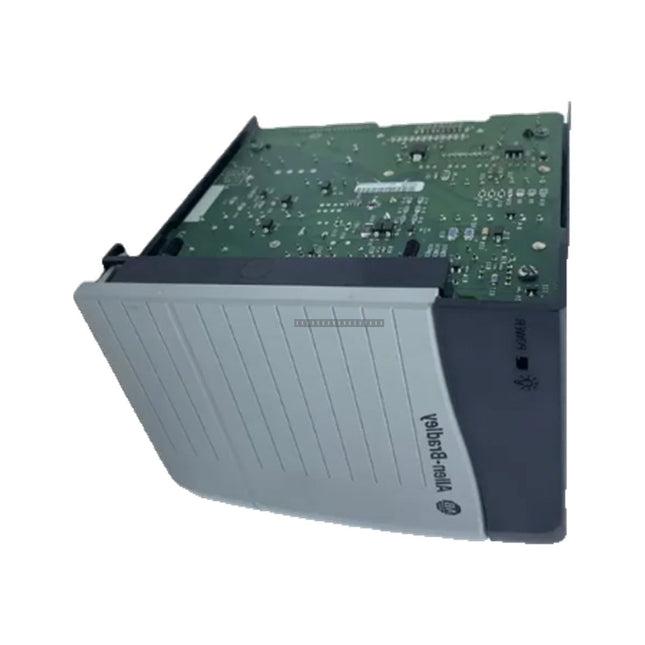

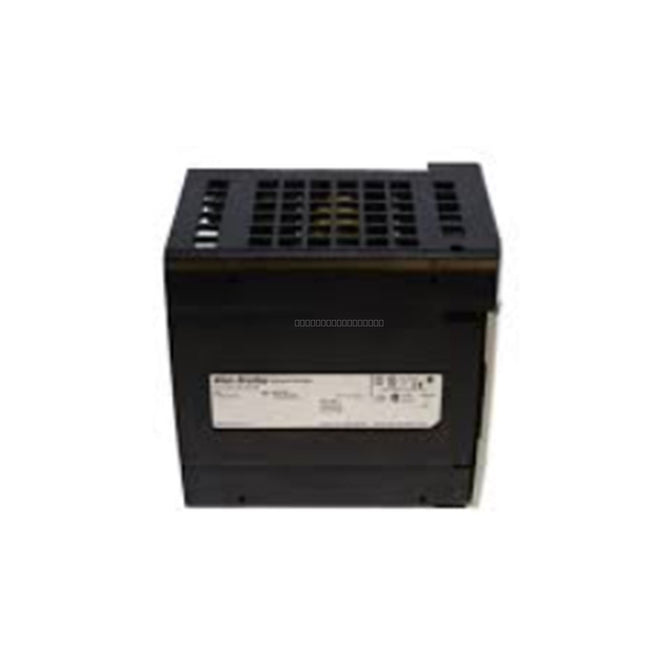

The 1756-PA75 is a standard AC power supply module designed for the Allen-Bradley ControlLogix automation platform. It provides regulated DC power to the chassis backplane, ensuring reliable operation for all modules installed within the ControlLogix system.Features
75W total output power capacity
Wide input voltage range: 85-265V AC (47-63 Hz)
Supports nominal 120V/240V AC input
Provides multiple DC outputs: 1.2V, 3.3V, 5.1V, and 24V DC
Integrated electronic crowbar circuit for over/under voltage and current protection
Convection cooling design
Applications
Automotive manufacturing assembly lines
Oil and gas pipeline control and pump station monitoring
Food and beverage automated packaging and filling systems
Water treatment and power generation logic control
Technical Specifications
Model
1756-PA75
Input Voltage
85-265V AC (Nominal 120/240V AC)
Input Frequency
47-63 Hz
Max Output Power
75W (at 0 to 60 degC)
Output 1.2V DC
1.5A
Output 3.3V DC
4A
Output 5.1V DC
13A
Output 24V DC
2.8A
Operating Temp
0 to 60 degC (32 to 140 degF)
Storage Temp
-40 to 85 degC (-40 to 185 degF)
Isolation Voltage
250V (continuous)
Installation Guidelines
The 1756-PA75 must be installed in the dedicated power supply slot located at the far left side of the ControlLogix chassis.
Ensure the system is powered down before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
The module is designed for convection cooling; ensure adequate clearance above and below the chassis for proper airflow.
Use a 15A time-delay type fuse in all ungrounded power connections for external overcurrent protection.
Ensure the module is used in Pollution Level 2 industrial environments and Category II applications as per IEC 60664-1.
FAQWhat is the 1756-PA75?The 1756-PA75 is a standard AC power supply module for the ControlLogix system, providing regulated DC power to the chassis backplane.What is the difference between 1756-PA75 and 1756-PB75?The 1756-PA75 is designed for AC input (85–264V AC), whereas the 1756-PB75 is designed for DC input (18–32V DC).Does the module require an external fuse?Yes, it is recommended to use a 15A time-delay type fuse in all ungrounded power connections for external overcurrent protection.What is the hold-up time during power interruption?The module provides a hold-up time of 2 cycles at 85V AC (60 Hz), 6 cycles at 120V AC (60 Hz), and 20 cycles at 220V AC (60 Hz).
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 2711-NL5 is a PanelView 600 series terminal designed for operator interface and control in industrial automation applications. This unit features a 5-inch backlit display and provides essential visualization capabilities for monitoring PLC and SLC controller data. As a legacy component, it is widely utilized for maintaining existing control systems and minimizing downtime in established manufacturing environments.Features
5-inch backlit display utilizing Cold Cathode Fluorescent Lamp (CCFL) technology.
Integrated communication ports including RS-232 (DH-485) and dedicated RS-232 printer support.
Robust enclosure design meeting NEMA Type 12, 13, 4X (indoor) and IEC IP54/IP65 standards for protection against dust and moisture.
Wide input power range of 18 to 32 VDC.
Compatible with a broad range of PanelView 600 series hardware revisions.
Technical Specifications
Manufacturer
Allen-Bradley
Product Line
PanelView 600
Part Number
2711-NL5
Input Power
18 to 32 VDC
Memory
240 KB
Communication
RS-232 (DH-485), RS-232 Printer
Operating Temperature
0 to 55 degC (32 to 131 degF)
Storage Temperature
-20 to 85 degC (-4 to 185 degF)
Enclosure Rating
NEMA 12, 13, 4X; IP54, IP65
Vibration Resistance
2 g at 2000 Hz
Installation Guidelines
Ensure the terminal is mounted in an enclosure that meets the specified NEMA/IP ratings to maintain environmental protection.
Verify that the power supply provides a stable 18-32 VDC input before connection.
Maintain proper clearance around the unit to allow for adequate ventilation and heat dissipation.
Use appropriate shielded communication cables (e.g., 2711-NC14) to minimize EMI interference in industrial environments.
Always disconnect power before performing any wiring, maintenance, or module replacement to prevent electrical damage.
FAQIs the 2711-NL5 still supported by the manufacturer?The 2711-NL5 is classified as a discontinued or obsolete product by Allen-Bradley. It is primarily sourced for the maintenance and repair of legacy systems.What type of backlight does this terminal use?This unit utilizes Cold Cathode Fluorescent Lamp (CCFL) technology for screen illumination.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

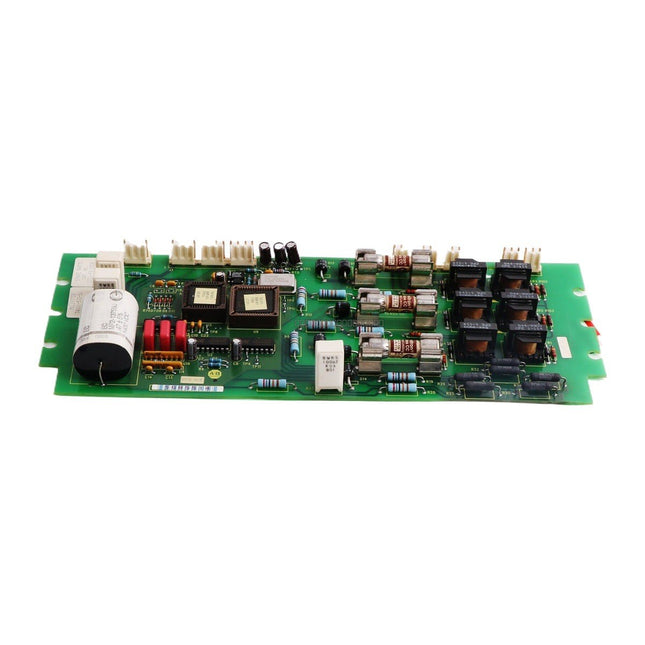

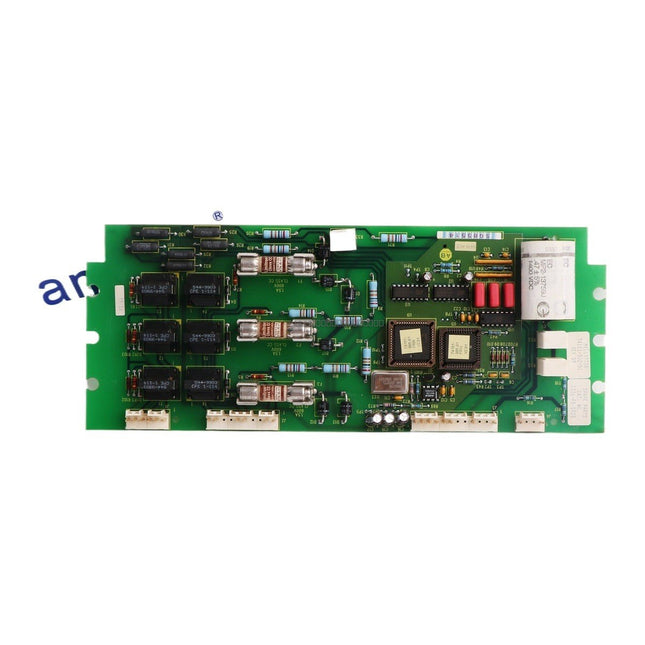

The Allen-Bradley 1336-PB-SP2B is a precharge printed circuit board designed for use within the 1336 series drive systems. This component is essential for managing the initial inrush current during the power-up sequence of the drive, protecting sensitive internal electronics from voltage spikes and surge currents.Features
Original Allen-Bradley component for 1336 series drives
Manages DC bus precharge sequence
Protects drive power components from high inrush current
Direct replacement for specified 1336 drive configurations
Technical Specifications
Manufacturer
Allen-Bradley
Model Number
1336-PB-SP2B
Spare Part Number
74101-502-51
Component Type
Precharge PC Board
Weight
0.3 kg
Installation Guidelines
Ensure the drive is completely disconnected from the main power supply and that the DC bus capacitors have been fully discharged before attempting to access or replace the board.
Observe standard electrostatic discharge (ESD) precautions when handling the circuit board to prevent damage to integrated components.
Verify that the replacement board matches the original part number and revision level required by your specific drive model.
Ensure all ribbon cables and terminal connections are securely seated and free of debris or oxidation before restoring power.
Inspect the surrounding drive environment for signs of heat damage or debris that may have contributed to the failure of the previous board.
FAQIs the 1336-PB-SP2B still in production?No, this model has been discontinued by the manufacturer. We provide high-quality spare parts to support legacy systems.What is the function of this board?The precharge board limits the current flowing into the drive's DC bus capacitors during the initial power-up phase to prevent damage to the rectifier and contactor components.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

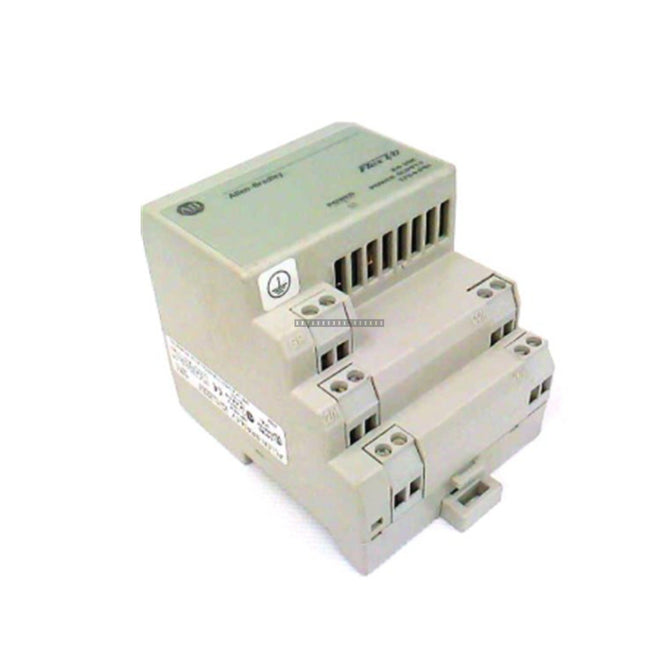

The Allen-Bradley 1794-PS13 is a robust, industrial-grade power supply module designed for the FLEX I/O distributed system. It converts standard AC line power into a regulated 24V DC output, providing essential power to FLEX I/O communication adapters and field-side circuitry. By delivering a stabilized power source, this module helps protect sensitive digital and analog signals from external power fluctuations within the I/O rack.Features
Wide AC input voltage range (85-264V AC) for global compatibility.
Space-saving design for standard 35mm DIN rail mounting.
Integrated over-voltage and over-current protection.
Status diagnostic indicator for quick troubleshooting.
Designed specifically for the FLEX I/O platform.
Applications
Automotive assembly stations for pneumatic valves and sensors.
Packaging and bottling lines requiring reliable power for conveyors and sorting gates.
Material handling systems including palletizers and automated storage systems.
Machine tool control, including coolant pumps and interlocks.
Industrial HVAC control skids for dampers and fans.
Technical Specifications
Model
1794-PS13
Input Voltage Range
85-264V AC
Input Frequency
47-63 Hz
Output Voltage
24V DC
Output Current
1.3 A
Output Power
31.2 W
Max Input Current
0.7 A
Overcurrent Protection
1.4 A
Power Dissipation (Max)
7 W
Installation Guidelines
Mounting: Hook the module onto a 35mm DIN rail and rotate it down until the locking tab snaps securely into place.
AC Input Wiring: Connect 120/230V AC to the input terminals (A, B, C).
DC Output Wiring: Connect the 24V DC output to the FLEX I/O adapter (Terminal G: +24V DC, Terminal H: 24V DC common).
Daisy-Chaining: Use terminals D, E, and F to daisy-chain AC power to additional power supply modules if required.
Ensure power is disconnected before installing or removing the module to prevent electrical shock or equipment damage.
FAQWhat is the 1794-PS13 power supply?The 1794-PS13 is a 24V DC field power supply module within the Allen-Bradley FLEX I/O product family. It provides power to input/output devices connected to the terminal bases.How many adapter modules can the 1794-PS13 power?It provides sufficient 24V DC power to operate up to 4 adapter modules, though it is not designed to power an entire large FLEX I/O system.What is the output power and current?It has a nominal output of 24V DC, a maximum output current of 1.3 A, and an output power of 31.2 Watts.What is the input voltage range of the 1794-PS13?This module accepts a wide input voltage range of 85–264V AC, 47–63 Hz, suitable for global applications.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-CNB is a ControlLogix ControlNet Communication Bridge module designed to facilitate high-speed data exchange between a ControlLogix controller and a ControlNet network. As a critical component in the ControlLogix architecture, this module manages the transfer of I/O data and messaging across the network, supporting up to 99 nodes and 64 connections. It provides a reliable interface for distributed control systems requiring deterministic communication performance.Features
Supports ControlNet communication at a rate of 5 Mbps.
Provides a single ControlNet port for network connectivity.
Designed for seamless integration into the ControlLogix chassis.
Supports up to 99 nodes and 64 connections for scalable network configurations.
Efficient power management with low thermal dissipation.
Technical Specifications
Product Model
1756-CNB
Module Type
ControlNet Bridge Module
Communication Rate
5 Mbps
Maximum Nodes
99
Maximum Connections
64
Input Current
970 mA at 5.1 VDC; 1.7 mA at 24 VDC
Power Dissipation
5.1 Watts
Thermal Dissipation
17.4 BTU/hr
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Slide the module into the designated slot in the chassis and ensure it is fully seated before tightening the mounting screws.
Use appropriate ControlNet cabling and ensure proper termination at both ends of the network segment to maintain signal integrity.
Maintain adequate clearance around the chassis to ensure proper airflow and cooling.
Avoid routing communication cables near high-voltage lines or sources of electromagnetic interference (EMI).
Follow standard ESD (Electrostatic Discharge) precautions when handling the module.
FAQWhat is the primary function of the 1756-CNB?The 1756-CNB acts as a bridge between the ControlLogix backplane and the ControlNet network, allowing the controller to communicate with remote I/O and other controllers on the network.Does this module require external power?No, the 1756-CNB draws its required power directly from the ControlLogix chassis backplane.What is the maximum data rate for this module?The 1756-CNB supports a fixed ControlNet communication rate of 5 Mbps.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-OF8I is a high-performance isolated analog output module designed for the ControlLogix platform. This module provides eight channels of isolated analog output, supporting both current and voltage signals to meet diverse industrial control requirements. It is engineered to provide precise control for actuators, valves, and variable speed drives in demanding automation environments.Features
Eight (8) isolated analog output channels.
Supports configurable current ranges (0-20 mA, 4-20 mA) and voltage ranges (-10 to 10V, 0 to 10V, 0 to 5V).
16-bit resolution for high-accuracy signal output.
Integrated open-circuit detection for current outputs and short-circuit detection for voltage outputs.
Overvoltage protection up to +/-30V DC.
Compatible with 1756-TBCH and 1756-TBS6H Removable Terminal Blocks (RTB).
ApplicationsThe 1756-OF8I is widely utilized in industrial process control systems, including water treatment, chemical processing, and manufacturing automation. It is ideal for applications requiring galvanic isolation to prevent ground loops and ensure signal integrity between the controller and field devices.Technical Specifications
Module Type
Isolated Analog Output
Number of Outputs
8
Current Draw (24V DC)
400 mA
Power Dissipation
6.5 Watts
Isolation Voltage
50V Continuous
Conversion Method
R-Ladder DAC
Resolution
16-bit
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Use appropriate 1756-TBCH or 1756-TBS6H terminal blocks for secure wiring connections.
Maintain proper grounding practices to minimize electrical noise and EMI interference.
Route signal cables away from high-voltage power lines to prevent signal degradation.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent component damage.
FAQWhat is the primary function of the 1756-OF8I?The 1756-OF8I is an isolated analog output module for the ControlLogix system, used to send precise analog control signals to field equipment like valves or drives.Does this module support both voltage and current outputs?Yes, the module is capable of outputting both voltage (-10 to 10V, 0 to 10V, 0 to 5V) and current (0-20 mA, 4-20 mA) signals.What terminal blocks are compatible with this module?The module is compatible with the 1756-TBCH and 1756-TBS6H removable terminal blocks.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-L75 is a high-performance Logix5575 controller from the ControlLogix series. Designed for demanding industrial automation environments, this processor provides robust control, communication, and data processing capabilities. It features 32 MB of user memory and 0.98 MB of I/O memory, supporting complex logic, motion control, and high-speed data handling requirements in large-scale manufacturing systems.Features
32 MB user memory for complex application logic and data storage.
Integrated USB port for local programming, configuration, and diagnostics.
4-character alpha/numeric display for status monitoring and troubleshooting.
Supports up to 500 controller connections for extensive network integration.
Designed for seamless integration into the ControlLogix 1756 chassis system.
Technical Specifications
Product Model
1756-L75
Controller Type
Logix5575 Processor
User Memory
32 MB
I/O Memory
0.98 MB
Current Draw @ 1.2VDC
5 mA
Current Draw @ 5.1VDC
800 mA
Display
4-character alpha/numeric
Communication Port
USB
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-L75 module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and the locking tab is engaged to ensure proper backplane connection.
Follow standard ESD (Electrostatic Discharge) protection practices when handling the module to avoid damage to sensitive internal components.
Ensure adequate ventilation around the chassis to maintain operating temperatures within the manufacturer's specified range.
Use shielded communication cables for USB connections in high-EMI industrial environments to maintain signal integrity.
FAQWhat is the primary function of the 1756-L75?The 1756-L75 is a central processing unit for the ControlLogix platform, responsible for executing user-defined control logic, managing I/O data, and facilitating communication across industrial networks.Can this module be hot-swapped?ControlLogix modules are generally designed for Removal and Insertion Under Power (RIUP), but it is recommended to follow your specific plant safety protocols and verify system status before performing any maintenance on a live rack.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1734-IB8 is a high-density digital input module designed for the POINT I/O platform. This module provides 8 sinking digital inputs, operating at a nominal 24V DC. It is engineered for space-constrained industrial environments, offering reliable signal monitoring and integration within Rockwell Automation control systems.Features
8-point sinking digital input configuration.
Compact design suitable for distributed I/O applications.
Integrated status indicators for both module health and individual input status.
Compatible with 1734-TB or 1734-TBS wiring base assemblies.
Low power dissipation of 1.6 Watts.
Technical Specifications
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Digital DC Sinking Input
Input Voltage
24V DC (Range: 10-28.8V DC)
Number of Inputs
8
Nominal Input Current
4mA @ 24V DC
POINTBus Current
75 mA
Power Dissipation
1.6 Watt / 5.5 BTU/hour
Keyswitch Position
1
Enclosure Rating
Open-style
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the POINTBus.
The 1734-IB8 must be mounted on a compatible 1734-TB or 1734-TBS wiring base assembly.
Verify the keyswitch position is set to 1 to ensure proper mechanical alignment and protection.
Maintain proper grounding and shielding practices for input signal wiring to minimize EMI interference.
Ensure adequate ventilation within the control cabinet to maintain operating temperatures within specified limits.
FAQWhat is the input type for this module?The 1734-IB8 is a sinking digital input module, meaning it is designed to accept inputs that sink current to the common return.Which wiring bases are compatible with the 1734-IB8?This module is designed to be installed on 1734-TB or 1734-TBS wiring base assemblies.What does the status indicator on the module signify?The module features a bi-color (green/red) status indicator on the logic side for module health, and 8 yellow indicators to monitor the status of each individual input channel.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 2711-K5A15 is a robust industrial Human-Machine Interface (HMI) from the PanelView Standard series, engineered for reliable process monitoring and control in demanding plant-floor environments. This terminal features a 5.5-inch monochrome blue-mode transflective LCD, providing high-contrast visibility for real-time diagnostics, alarm management, and system parameter adjustments. Designed for integration into heavy industrial sectors such as water treatment, chemical processing, and automated logistics, the 2711-K5A15 ensures consistent operational oversight and efficient workflow management.Features
Display Technology: 5.5-inch monochrome blue-mode transflective LCD with a 256 x 128 pixel resolution.
Long-Life Illumination: Integrated LED backlight rated for 100,000 hours of service.
Tactile Interface: Rugged mechanical keypad featuring dedicated function keys (F1-F10), a numeric keypad, and navigation arrows for precise operator input.
Communication Connectivity: Equipped with a ControlNet communication node for deterministic data exchange with Allen-Bradley PLCs, plus an RS-232 serial port for printer connectivity.
Memory Capacity: Includes 170 KB of application runtime memory and 240 KB of nonvolatile memory for storing bitmaps, text, and application objects.
Environmental Protection: Rated for NEMA 12/13 and 4X (indoor) and IP54/IP65, ensuring resistance to dust and moisture ingress.
ApplicationsThe 2711-K5A15 is ideal for applications requiring direct, high-visibility interaction with automation control systems. Typical use cases include monitoring pump stations, managing conveyor routing, tracking machine-level diagnostic logs, and providing local operator control for PLC-based manufacturing cells.Technical Specifications
Model
2711-K5A15
Brand
Allen-Bradley / Rockwell Automation
Display Size
5.5 inch
Input Voltage
85 to 264 VAC (120 VAC Nominal)
Input Frequency
47 to 63 Hz
Operating Temperature
0 to 55 deg C
Storage Temperature
-25 to 70 deg C
Humidity
5 to 95% Non-condensing
Enclosure Rating
NEMA 12/13, 4X, IP54, IP65
Installation Guidelines
Mounting: Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the integrity of the NEMA/IP seal.
Power Wiring: Verify the supply voltage is within the 85-264 VAC range before connection. Ensure proper grounding of the chassis to prevent EMI-related logic interference.
ESD Precautions: Handle the terminal with standard electrostatic discharge (ESD) precautions to protect internal circuitry.
Environment: Install in an area free from excessive vibration and direct exposure to corrosive chemicals. Ensure adequate ventilation to maintain operating temperatures below 55 deg C.
Maintenance: Power down the unit before performing any maintenance or cable connections to the ControlNet or RS-232 ports.
FAQWhat is the primary communication protocol for this terminal? The 2711-K5A15 utilizes a ControlNet communication node for deterministic messaging with supported Allen-Bradley controllers.Can this unit be used outdoors? No, while the unit carries NEMA 4X ratings, it is designed for indoor use only.What is the purpose of the RS-232 port? The RS-232 port on this model is dedicated to printer connectivity for generating hardcopy alarm summaries and diagnostic reports.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1336-BDB-SP34D is a replacement gate drive printed circuit board (PCB) designed for use within the 1336STG series variable frequency drive systems. This component is specifically rated for 575V applications with a power capacity of 125HP. As a critical control component, this gate drive board manages the switching signals for the drive's power semiconductors, ensuring precise motor control and operational stability in industrial environments.Features
Engineered for 1336STG series drive compatibility
Supports 575V AC input/output configurations
Rated for 125HP motor drive applications
Direct replacement for specified Allen-Bradley drive hardware
Robust PCB construction for industrial reliability
Technical Specifications
Manufacturer
Allen-Bradley
Model Number
1336-BDB-SP34D
Spare Model / Ref
74101-169-64
Component Type
Gate Drive PCB
Drive Series Compatibility
1336STG
Voltage Rating
575V
Power Rating
125HP
Weight
1.22 kg
Installation Guidelines
Safety First: Ensure all power to the 1336STG drive is completely disconnected and locked out before attempting to access or replace the gate drive board.
ESD Protection: Use an anti-static wrist strap and grounded work surface when handling the PCB to prevent damage to sensitive electronic components from electrostatic discharge.
Inspection: Before installation, verify that the replacement board is free of debris and that all pins are straight and undamaged.
Seating: Ensure the board is firmly seated in its designated slot within the drive chassis. Verify that all ribbon cables and connectors are securely locked into place.
Verification: After installation, perform a visual inspection of all connections before reapplying power. Follow the manufacturer's startup procedure for the 1336STG drive to ensure the new board is recognized and operating within parameters.
FAQIs this board compatible with other 1336 series drives?This gate drive board is specifically designed for the 1336STG series at the 575V/125HP rating. It is not recommended for use in other 1336 series drives unless explicitly specified by Allen-Bradley documentation, as gate drive timing and signal requirements vary by drive model and power rating.What should I do if the drive displays a fault after installation?If a fault persists, verify that all internal connectors are fully seated and that no pins were bent during installation. Ensure the drive firmware settings match the hardware configuration. If the fault remains, consult the 1336STG technical manual for specific error code diagnostics.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1794-IB32 is a high-density digital input module designed for the FLEX I/O system. This module provides 32 points of 24V DC sinking input, allowing for efficient monitoring of field devices in space-constrained industrial control panels. It is engineered to integrate seamlessly with the FLEX I/O communication adapters, providing reliable signal processing for PLC-based automation systems.Features
32-point sinking input configuration
24V DC nominal input voltage range
Integrated status indicators for each input channel
Compact footprint for high-density I/O requirements
Compatible with standard FLEX I/O terminal bases
Technical Specifications
Product Model
1794-IB32
Input Type
24V DC Sink
Number of Inputs
32
ON-State Voltage (Min)
10V DC
ON-State Voltage (Max)
31.2V DC
OFF-State Voltage (Max)
5V DC
Indicators
32 Yellow status LEDs
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the FLEX I/O terminal base is securely mounted to a standard 35mm DIN rail before installing the module.
Always disconnect power from the system before inserting or removing the module to prevent electrical damage or unexpected system behavior.
Verify that the module is fully seated in the terminal base to ensure proper backplane communication.
Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Ensure proper grounding of the terminal base assembly to the cabinet chassis to maintain signal integrity.
FAQWhat is the input type for the 1794-IB32?The 1794-IB32 is a sinking input module, meaning it requires a common positive voltage to be switched to the input terminals to register an ON state.Does this module require a specific terminal base?Yes, this module is designed to be used with compatible FLEX I/O terminal bases (e.g., 1794-TB3, 1794-TB3S) that support the 32-point density requirements.Are the status indicators on the front of the module?Yes, the module features 32 yellow LED indicators on the front panel, providing visual confirmation of the ON/OFF status for each individual input channel.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Allen-Bradley 1794-TB62DS is an ultra-high-density, 62-pin D-Shell terminal base unit designed for the Flex I/O 1794 modular platform. Unlike standard terminal bases that rely on individual screw or spring-clamp terminals, this unit features a high-density DB-62 D-Sub female connector interface. It serves as the mechanical and electrical foundation for multi-point discrete and analog Flex I/O modules, facilitating rapid deployment and simplified maintenance.
By consolidating field wiring into a single pre-fabricated cable harness, the 1794-TB62DS significantly reduces cabinet assembly time and minimizes wiring errors. It is an ideal solution for high-density I/O applications where space is constrained and rapid module replacement is required.
Features
High-Density Interface: Equipped with a 62-pin D-Shell (DB-62) female connector for streamlined multi-core cable connectivity.
Dual Power Zones: Supports independent V1 and V2 power routing, allowing for flexible voltage source management within a single base.
FlexBus Integration: Features an integrated backplane rail to pass system data and logic power horizontally across the rack.
Mechanical Interlock: Includes a rotatable keyswitch guide to ensure correct module alignment and prevent improper installation.
Robust Construction: Rated for a 10 A aggregate current capacity with a 5 A per-pin threshold.
Applications
The 1794-TB62DS is widely utilized in industrial automation environments requiring high-density signal termination, such as:
Remote I/O marshalling panels.
Automated assembly lines and material handling systems.
Complex process control skids requiring rapid I/O reconfiguration.
Control cabinets with limited space for traditional terminal blocks.
Technical Specifications
Parameter
Specification
Model
1794-TB62DS
Connection Type
62-Pin D-Sub Female
Max Current (Aggregate)
10 A
Max Current (Per Pin)
5 A
Nominal Voltage
24 V DC
Mounting
35 mm DIN-Rail
Operating Temperature
0 to 55 degC
Weight
0.17 kg
Installation Guidelines
Mounting: Snap the base unit directly onto a standard 35 x 7.5 mm Top-Hat DIN-rail. Ensure the unit is securely seated.
ESD Precautions: Always handle the module using proper electrostatic discharge (ESD) prevention techniques to protect internal circuitry.
Power: Ensure all system power is disconnected before installing or removing modules from the base.
Wiring: When connecting the D-Shell cable, ensure the connector is fully seated and the mounting screws are tightened to a torque of 0.6 Nm (5 lb-in) to maintain a gas-tight connection.
Keyswitch: Verify the mechanical keyswitch is set to the position corresponding to the intended I/O module before mating.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 2711-K5A16L3 functions as a highly specialized industrial visualization station within the Allen-Bradley PanelView Standard 550 operator interface series. This terminal delivers deterministic, real-time peripheral control and machine-level diagnostics when integrated with a programmable logic controller. Purpose-built for high-availability industrial configurations—such as waste management facilities, material handling distribution centers, and secondary chemical processing loops—the hardware replaces mechanical pilot lights and control switches. By executing graphic rendering matrices and local alarm banner generation on its dedicated processor, the terminal limits backplane bus load and significantly reduces network-induced system downtime.Data Links and Communications LayoutThe internal communication layer leverages a dual-channel RS-232 serial architecture to handle concurrent control link monitoring and printing processes. The primary RS-232 serial interface utilizes native Allen-Bradley DF1 point-to-point protocol layers, ensuring a low-latency, noise-immune pipeline for active register mapping and instruction updates. The secondary RS-232 configuration provides an isolated channel dedicated to hardcopy printing utilities or application firmware transfers via an external PC link. Memory storage limits are flexible through an onboard PCMCIA slot, accommodating standard memory flash cards from 2 MB to 32 MB to handle recipe storage, text font tables, and complex automation graphics.Features
Rugged membrane keypad with 10 assignable function keys (F1-F10), numeric, and navigation panels.
Monochrome transflective LCD blue mode display with solid-state LED backlight.
Field-serviceable backlight (Part 2711-NL1) with 100,000-hour rating.
Integrated battery-backed real-time clock (RTC) for sequence-of-events logging.
Dual RS-232 serial ports for DF1 communication and printing/firmware updates.
PCMCIA slot for expandable memory storage.
Technical Specifications
Model
2711-K5A16L3
Display Size
5.5 inch diagonal
Resolution
256 x 128 Pixels
Input Voltage
85 to 264 VAC
Line Frequency
47 to 63 Hz
Application RAM
170 KB
Non-volatile Storage
240 KB
Enclosure Rating
NEMA 12, 13, 4X, IP54, IP65
Installation Guidelines
Ensure the panel cutout is clean and free of debris before mounting the terminal.
Use the provided mounting clips to secure the unit to the enclosure, ensuring an even seal to maintain NEMA/IP ratings.
Verify that the input power supply is within the 85-264 VAC range before applying power.
Route communication cables away from high-voltage power lines to prevent EMI interference.
Power down the unit before inserting or removing PCMCIA memory cards.
Ensure adequate ventilation around the rear of the unit to maintain operating temperature limits.
FAQWhat is the primary communication protocol for this HMI?The 2711-K5A16L3 primarily utilizes the Allen-Bradley DF1 point-to-point protocol via its RS-232 serial interface.Is the backlight replaceable?Yes, the LED backlight is field-serviceable and can be replaced using the 2711-NL1 replacement part.What is the purpose of the PCMCIA slot?The PCMCIA slot allows for the use of flash memory cards (2 MB to 32 MB) to store application recipes, custom text fonts, and complex graphic files.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1734-IB4 is a 4-channel digital input module designed for the POINT I/O system. This compact module is engineered to interface with 24V DC field devices, providing reliable signal acquisition for industrial control applications. As part of the POINT I/O platform, it offers a space-saving solution for distributed I/O architectures, allowing for flexible configuration and easy integration into larger automation networks.Features
4-channel digital input configuration.
Designed for 24V DC operation.
Compact, modular design for high-density I/O requirements.
Supports DIN-rail mounting for efficient cabinet space utilization.
Seamless integration with the Allen-Bradley POINT I/O communication adapters.
Technical Specifications
Product Model
1734-IB4
Input Type
Digital (DC)
Number of Channels
4
Voltage Rating
24V DC
Mounting Style
DIN Rail
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the power is disconnected from the I/O base and the communication adapter before installing or removing the module.
Mount the module onto a standard 35mm DIN rail by aligning it with the POINT I/O base unit.
Ensure the module is securely locked into the base unit to maintain proper electrical contact with the backplane.
Use shielded cables for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
FAQWhat is the primary function of the 1734-IB4?The 1734-IB4 is a digital input module used to detect the status of 24V DC field devices and transmit that data to a PLC or controller via the POINT I/O network.Is this module compatible with other POINT I/O components?Yes, the 1734-IB4 is designed to be used with standard POINT I/O communication adapters and terminal bases within the same product family.What type of mounting does this module require?This module is designed for standard 35mm DIN-rail mounting, typically installed on a POINT I/O terminal base.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-IA16I is a 16-channel digital input module designed for the ControlLogix platform. It is specifically engineered to monitor 120V AC field signals in industrial environments. The module features individual channel isolation, which allows each input to operate independently without sharing a common reference. This design is critical for applications where field devices are powered by different sources or where electrical isolation is required to prevent ground loops and improve signal integrity.Features
16 individually isolated input channels for enhanced noise immunity.
Wide operating voltage range: 79 to 132V AC (47 to 63 Hz).
Supports producer/consumer communication model for efficient data sharing across the ControlLogix backplane.
Configurable Requested Packet Interval (RPI) and Change-of-State reporting.
Input timestamping capability with approximately ±200 microseconds accuracy for event-driven applications.
Compatible with standard 36-pin Removable Terminal Blocks (RTB).
Applications
Heavy Manufacturing: Monitoring safety switches, gate interlocks, and proximity sensors.
Oil, Gas, and Chemical: Interfacing with 120V AC E-stops, valve limit switches, and motor control centers.
Power Distribution: Reading status feedback from high-voltage circuit breakers and switchgear indicators.
Water/Wastewater: Controlling pumps and filtration systems with isolated sensor returns.
Technical Specifications
Parameter
Specification
Input Voltage
120V AC
Operating Voltage Range
79 to 132V AC (47-63 Hz)
Number of Channels
16 (Isolated)
Backplane Current (5V)
125 mA
Backplane Current (24V)
2 mA
Power Dissipation (Max)
4.9 W at 60 degC
Off-State Current (Max)
2.5 mA
On-State Current
5 mA (min) to 15 mA (max)
Operating Temperature
0 to 60 degC
Installation Guidelines
Chassis Mounting: Install only into an approved ControlLogix 1756 chassis.
ESD Protection: Always wear an approved grounding wrist strap when handling the module to prevent electrostatic discharge damage.
Power Safety: While the ControlLogix platform supports Removal and Insertion Under Power (RIUP), ensure the area is free of hazardous gases before performing maintenance.
Wiring: Use a 36-pin Removable Terminal Block (RTB) such as the 1756-TBNH (cage-clamp) or 1756-TBSH (spring-clamp). RTBs are sold separately.
Environment: Mount the system inside a tool-secured enclosure with a 5VA flame-retardant rating.
Compliance and CertificationsThe 1756-IA16I is designed for industrial use and carries certifications including UL, c-UL-us, CE, C-Tick, EAC, and KC. It also holds marine certifications from ABS, BV, DNV, GL, and LR.FAQsWhat is the 1756-IA16I?The Allen-Bradley 1756-IA16I is a 16-channel, individually isolated AC digital input module belonging to the ControlLogix platform.Can this module be hot-swapped?Yes. The ControlLogix chassis platform supports Removal and Insertion Under Power (RIUP).Which Removable Terminal Block (RTB) should I use?The module requires a 36-pin RTB. You can use either the cage-clamp style (1756-TBNH) or the spring-clamp style (1756-TBSH). Note: RTBs are sold separately.Can this module be placed in a remote I/O rack?Yes, it can be mounted in a local controller chassis or placed in a remote I/O chassis communicating via EtherNet/IP or ControlNet networks.
DescriptionThe Allen-Bradley 1746sc-NO8i is a high-density analog output module, engineered by Spectrum Controls as a Rockwell Automation Encompass Partner product for the SLC 500 platform. This module features eight (8) isolated current output channels, providing double the channel density of standard SLC 500 output modules while occupying only a single slot in the chassis. It is specifically designed for high-precision control of modulating field devices, including variable frequency drives (VFDs), control valves, and actuators, as well as for signal retransmission to data acquisition systems.Features
Eight (8) independent current output channels.
High-resolution 16-bit digital-to-analog conversion for precise process control.
Single-slot footprint for efficient chassis space utilization.
Supports standard industrial output ranges of 0–20 mA and 4–20 mA.
Compatible with standard SLC 500 backplane power requirements.
ApplicationsThis module is ideal for industrial automation environments requiring high-density analog control, such as chemical processing, water treatment, and manufacturing assembly lines. It is commonly used to interface with field actuators and to provide feedback signals to recorders or secondary control systems.Technical Specifications
Manufacturer
Spectrum Controls
Product Line
SLC 500
Module Type
Analog Current Output
Number of Outputs
8 Channels
Resolution
16-bit
Output Signals
0–20 mA, 4–20 mA
Backplane Current (5V DC)
120 mA
Backplane Current (24V DC)
240 mA
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to 85 degC (-40 to 185 degF)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before inserting or removing the module to prevent electrical damage.
The module should be installed in a standard SLC 500 I/O slot; ensure the module is fully seated and the retaining screws are tightened.
Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference.
Terminal screw torque should be maintained between 7–9 lb-in.
Maximum wire size for terminal connections is 14 AWG.
Maintain adequate ventilation within the enclosure to ensure the ambient temperature remains within the 0 to 60 degC operating range.
FAQIs the 1746sc-NO8i compatible with standard SLC 500 chassis?Yes, this module is designed to be a direct fit for the SLC 500 backplane architecture, allowing for easy integration into existing systems.Does this module require external power?The module draws its power from the SLC 500 backplane (5V DC and 24V DC). Ensure your power supply can accommodate the additional load of 120 mA at 5V and 240 mA at 24V.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-QS is a specialized motion control module engineered for the SLC 500 programmable logic controller platform. It is designed to provide high-performance Synchronized Axis Control, particularly for closed-loop servo positioning applications. This module is frequently deployed in demanding hydraulic systems where precise movement and synchronized timing across multiple axes are required for operational efficiency. The 1746-QS manages up to four independent or synchronized axes, delivering high-speed updates to maintain exact positioning even during high-velocity motion cycles.Features
Supports control for up to 4 independent or synchronized axes.
High-speed 2 ms update time for drive outputs to ensure precise motion tracking.
Supports S-curve acceleration and deceleration profiles to minimize mechanical stress and prevent pressure spikes in hydraulic actuators.
Allows for dynamic adjustment of motion parameters while the axis is in active motion.
Compatible with Linear Displacement Transducers (LDTs) for accurate position feedback.
ApplicationsThe 1746-QS is primarily utilized in industrial automation environments requiring sophisticated motion control, such as hydraulic presses, injection molding machines, material handling systems, and synchronized multi-axis positioning rigs within the SLC 500 ecosystem.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
Synchronized Axis Control
Number of Axes
4
Inputs
4 x Linear Displacement Transducers (LDT)
Outputs
4 x Analog Outputs (-10 to +10V DC @ 5 mA)
Output Resolution
12 bits
Update Time
2 ms
Backplane Current (5V DC)
1.0 A
Backplane Current (24V DC)
0.200 A
Operating Temperature
0 to 60 degC (32 to 140 degF)
Relative Humidity
5% to 95% (non-condensing)
Installation Guidelines
Ensure the SLC 500 chassis is powered down before inserting or removing the 1746-QS module to prevent electrical damage.
The module should be installed in a slot within the SLC 500 rack; ensure the backplane connector is fully seated.
Use shielded cabling for LDT inputs and analog outputs to minimize electromagnetic interference (EMI) from high-voltage lines or variable frequency drives.
Maintain proper ventilation in the control cabinet to ensure the module operates within the specified 0 to 60 degC temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.
FAQWhat type of feedback device does the 1746-QS support?The module is designed to interface with Linear Displacement Transducers (LDTs) to provide real-time position feedback for the controlled axes.Can the motion parameters be changed during operation?Yes, the 1746-QS allows for the dynamic adjustment of motion parameters while the axis is in motion, facilitating flexible process control.What is the primary power source for this module?The module draws its power from the SLC 500 backplane, requiring 1.0 A at 5V DC and 0.200 A at 24V DC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-OW8 is a high-performance discrete output module designed for the SLC 500 programmable logic controller system. This module features eight (8) normally open (N.O.) electromechanical relay contacts, providing robust "dry contact" switching capabilities. By utilizing mechanical relays, the 1746-OW8 allows for the control of both AC and DC loads within a single module, making it an essential interface component for applications requiring the integration of disparate voltage levels, such as 120V AC motor starters and 24V DC pilot lights.Features
Eight (8) normally open (N.O.) relay output points.
Organized into two (2) isolated groups of four outputs each, allowing for independent power source selection per group.
Zero off-state leakage current, ideal for high-impedance loads sensitive to leakage.
Compatible with a wide range of AC and DC operating voltages.
Designed for seamless integration into the SLC 500 chassis backplane.
ApplicationsThis module is widely utilized in industrial automation environments for interfacing the SLC 500 controller with field devices. Common applications include controlling motor starters, solenoid valves, contactors, and indicating lamps where galvanic isolation or the ability to switch mixed voltage types is required.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
Digital Relay Output (Normally Open)
Number of Outputs
8 (2 groups of 4)
Operating Voltage (AC)
5 to 265V AC (47 to 63 Hz)
Operating Voltage (DC)
5 to 125V DC
Backplane Current (5V DC)
85 mA
Backplane Current (24V DC)
90 mA
Signal Delay (On/Off)
10.0 ms (max resistive load)
Total Heat Dissipation
3.7 Watts
Heat Dissipation per Point
0.138 Watts
Installation Guidelines
Ensure the SLC 500 system power is disconnected before inserting or removing the module from the chassis.
The module should be seated firmly into the chassis slot to ensure proper backplane connection.
Use appropriate wire gauges and ensure all terminal screws are tightened to the specified torque to prevent loose connections.
Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines.
Ensure the environment is within the specified temperature and humidity ratings for the SLC 500 system.
Handle with care to prevent electrostatic discharge (ESD) damage to the module circuitry.
FAQDoes the 1746-OW8 allow for mixing AC and DC loads?Yes, because the module is organized into two isolated groups of four outputs, you can connect different voltage sources to each group, allowing for the simultaneous control of AC and DC loads.Is there any leakage current with this module?No, the 1746-OW8 uses electromechanical relays, which provide a physical air gap when open, resulting in zero off-state leakage current.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-OV32 is a 32-point digital DC output module designed for use with the SLC 500 programmable controller system. As a current-sinking output module, it provides reliable switching for various industrial control applications. This module is engineered to handle a wide range of DC voltages, making it a versatile component for managing field devices such as solenoids, relays, and indicators within an automated control environment.Features
32-point digital output density for high-capacity I/O requirements.
Current-sinking configuration for standard DC load compatibility.
Wide operating voltage range from 5 to 50 VDC.
Optimized for seamless integration into the SLC 500 chassis backplane.
Compact modular design for efficient panel space utilization.
Technical Specifications
Product Model
1746-OV32
Manufacturer
Allen-Bradley
Module Type
Digital DC Output Module
Number of Outputs
32
Output Type
Current Sinking
Nominal Voltage
24 VDC
Operating Voltage Range
5 - 50 VDC
Current Rating
0.25 A to 0.5 A per output
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Verify that the module is fully seated in the chassis slot and secured with the provided mounting screws to ensure proper backplane connection.
Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
Maintain proper clearance around the module to allow for adequate ventilation and cooling.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the 1746-OV32?The 1746-OV32 is a digital output module for the SLC 500 platform, used to control external DC-powered devices by sinking current to the common return.Is this module compatible with all SLC 500 processors?Yes, the 1746-OV32 is designed for the standard SLC 500 I/O chassis and is compatible with the SLC 500 processor family, provided the power supply can support the total current draw of the system.What does current-sinking mean for this module?Current-sinking means the module provides the path to common (DC negative) for the load. The load is typically connected between the positive voltage source and the module output terminal.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-NO8V is a high-performance analog voltage output module designed for the SLC 500 programmable logic controller system. This module provides eight channels of voltage output, allowing for precise control of external devices such as variable frequency drives, actuators, and analog instrumentation. It is a rack-mounted module that integrates directly into the SLC 500 chassis, providing reliable signal conversion for industrial automation applications.Features
Eight isolated analog voltage output channels.
Designed for seamless integration with the Allen-Bradley SLC 500 platform.
Rack-mount form factor for efficient panel space utilization.
Supports standard industrial voltage output ranges.
Robust construction suitable for demanding industrial environments.
ApplicationsThis module is typically used in process control and manufacturing systems where precise voltage-based control signals are required. Common applications include controlling process valves, setting speed references for motor drives, and driving analog panel meters or chart recorders within an SLC 500 control architecture.Technical Specifications
Product Model
1746-NO8V
Module Type
Analog Voltage Output
Number of Channels
8
System Compatibility
SLC 500
Operating Voltage
24 VDC
Mounting Type
Rack Mount
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Slide the module into an available slot in the SLC 500 chassis, ensuring the backplane connector is properly aligned and seated.
Secure the module using the integrated mounting screws to ensure a stable connection and proper grounding.
Use shielded twisted-pair cabling for all analog output signals to minimize electromagnetic interference (EMI).
Route signal wiring away from high-voltage power cables and inductive loads.
Verify that the output voltage range is correctly configured in the PLC software to match the requirements of the connected field device.
FAQWhat is the primary function of the 1746-NO8V?The 1746-NO8V is an analog output module that converts digital data from the SLC 500 processor into analog voltage signals to control external field devices.Is this module compatible with all SLC 500 chassis?Yes, the 1746-NO8V is designed to be compatible with standard SLC 500 I/O chassis; however, ensure your processor and power supply can support the additional load of the module.Does this module require external power?The module operates on 24 VDC power, which is typically supplied via the SLC 500 backplane or an external power source depending on the specific system configuration.
