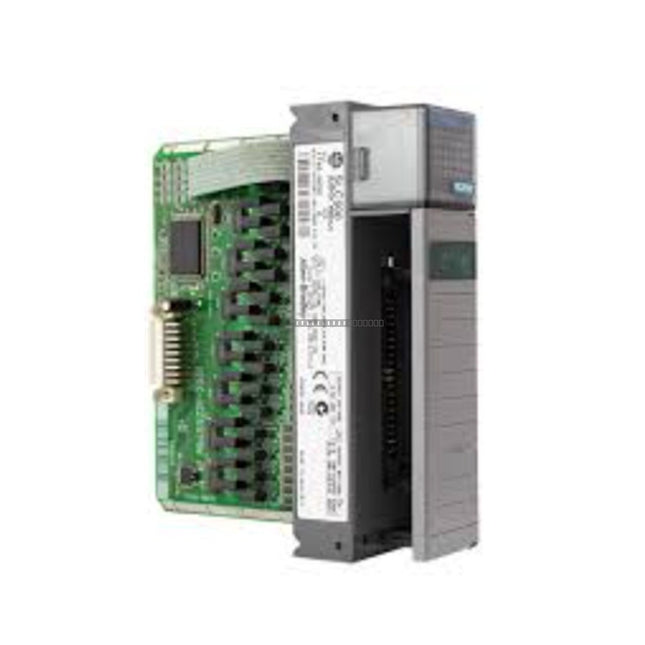

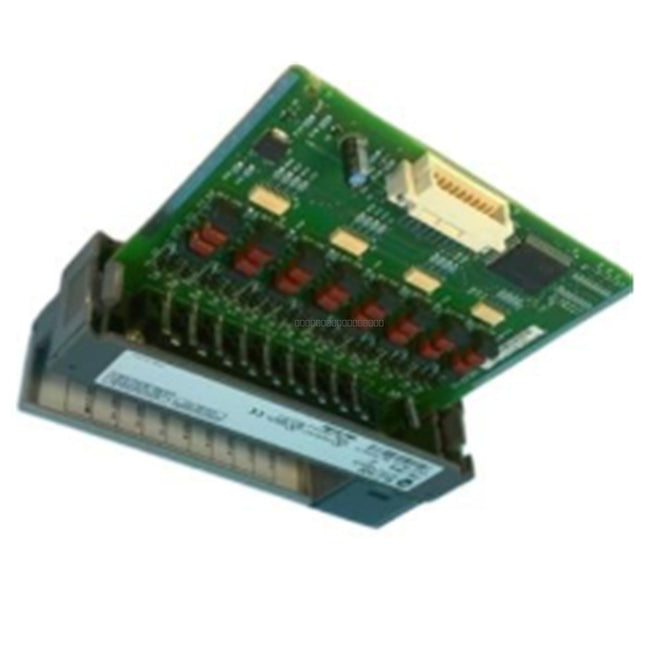

DescriptionThe Allen-Bradley 1746-NI16I is a high-density analog input module designed for the SLC 500 programmable logic controller (PLC) system. This module provides 16 single-ended, backplane-isolated input channels with 16-bit resolution, making it suitable for high-precision monitoring of current-based process signals. It is engineered to support a variety of current ranges, including 0 to 20 mA, 4 to 20 mA, and +/- 20 mA, facilitating integration into diverse industrial control environments.Features
16-channel analog current input module for SLC 500 systems.
16-bit resolution for high-accuracy signal conversion.
Supports multiple input signal types: 0-20 mA, 4-20 mA, +/- 20 mA, and 0-1 mA.
Integrated open-circuit detection for rapid identification of sensor or wiring faults.
Individual channel-to-channel isolation for enhanced noise immunity and signal integrity.
Compact single-slot module design for efficient chassis space utilization.
25-pin D-shell connector interface for reliable field wiring.
Applications
Oilfield water injection automation systems (pressure monitoring).
Wastewater treatment plants (aeration tank DO and pH monitoring).
Power station auxiliary control (transformer and bearing temperature monitoring).
Hydraulic system monitoring for large-scale presses and rolling machines.
Technical Specifications
Model
1746-NI16I
Input Channels
16
Resolution
16-bit
Input Signal Types
0-20 mA, 4-20 mA, +/- 20 mA, 0-1 mA
Backplane Current (5V DC)
125 mA
Backplane Current (24V DC)
75 mA
Thermal Dissipation
2.43 Watts
Input Impedance
249 Ohms
Operating Temperature
-25 to 60 degC (-13 to 140 degF)
Relative Humidity
5% to 95% (non-condensing)
Connector Type
25-pin D-shell
Installation Guidelines
Ensure the PLC chassis is powered down before inserting or removing the module to prevent electrical damage.
The module is designed for standard SLC 500 chassis mounting; ensure it is fully seated and the retaining screws are tightened.
Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference.
Maintain proper grounding practices for the analog common terminal to ensure signal stability.
Keep the module clear of high-voltage power lines and high-EMI sources within the control cabinet.
If removing the terminal block, use the provided labeling to ensure correct re-wiring of input channels.
FAQsWhat is the 1746-NI16I?The Allen-Bradley 1746-NI16I is a 16-channel, high-resolution analog current input module designed for the SLC 500 platform.How do I configure the 1746-NI16I module?Configuration is performed in RSLogix 500 (offline or online) via the I/O configuration screen. It is a multi-class module, with Class 3 recommended for optimal performance.What are the 1746-NI16I power requirements?The module draws 125 mA at 5V DC and 75 mA at 24V DC from the SLC 500 backplane.How can I detect a sensor disconnection?The 1746-NI16I features built-in open-circuit detection, which allows the controller to report a fault condition if a sensor loop is broken.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

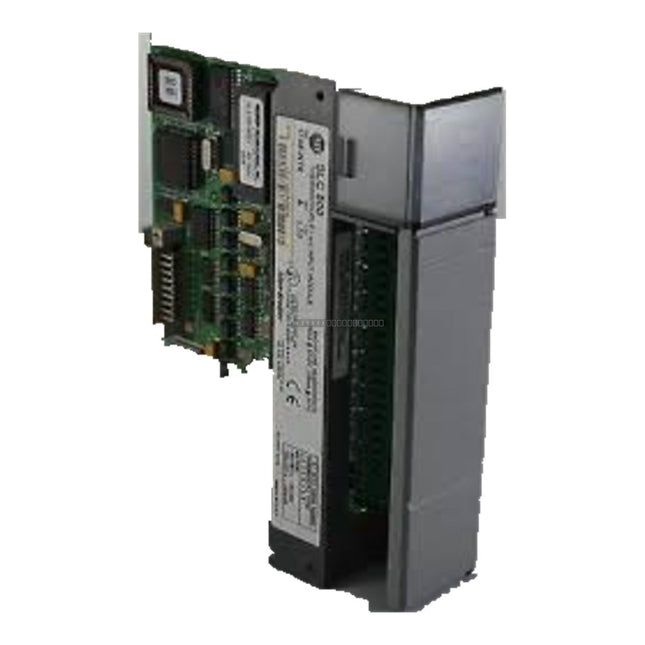

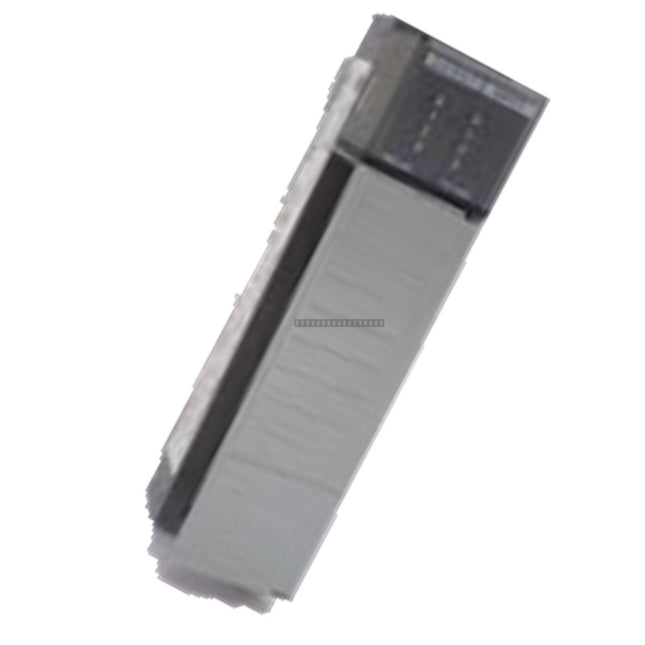

DescriptionThe Allen-Bradley 1746-IV8 is a high-performance discrete DC input module engineered for the SLC 500 programmable controller series. This module provides eight (8) current-sourcing input channels, designed to interface seamlessly with sinking (NPN) field devices such as proximity sensors, limit switches, and pushbuttons. It serves as a critical bridge between industrial field signals and the SLC 500 processor, ensuring reliable data acquisition in demanding automation environments.Features
Eight (8) independent current-sourcing input channels.
Nominal operating voltage of 24V DC, compatible with a wide 10-30V DC range.
Integrated status LEDs for each channel, providing real-time visual diagnostics.
Standard 8 ms signal delay for both ON and OFF transitions to mitigate signal noise and contact bounce.
Compact, modular design specifically for SLC 500 I/O chassis mounting.
ApplicationsThe 1746-IV8 is widely utilized in factory automation, process control, and machine monitoring systems. It is ideal for applications requiring the integration of multiple DC-powered field devices into a centralized control architecture, including conveyor control, assembly line monitoring, and safety-interlocked machine operation.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
Digital DC Input (Sourcing)
Number of Inputs
8 (1 group of 8)
Nominal Voltage
24V DC
Operating Range
10-30V DC
Max Off-State Voltage
5.0V DC
Max Off-State Current
1 mA
Nominal Input Current
8 mA @ 24V DC
Backplane Current (5V)
50 mA
Signal Delay
8 ms (ON/OFF)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Align the module carefully with the chassis slot guides to prevent damage to the backplane connector.
Secure the module using the top and bottom retaining screws to ensure proper grounding and mechanical stability.
Route signal wiring away from high-voltage AC lines and high-EMI sources to prevent signal interference.
Use shielded cabling for long runs to maintain signal integrity.
Verify that field device polarity matches the sourcing configuration of the module (NPN/sinking devices).
FAQWhat is the primary function of the 1746-IV8?The 1746-IV8 is a digital input module that detects 24V DC signals from field devices and converts them into logic levels for the SLC 500 PLC processor.Is this module compatible with sinking field devices?Yes, the 1746-IV8 is a current-sourcing module, which means it is designed to work with sinking (NPN) field devices.What does the 8 ms signal delay do?The 8 ms delay acts as a hardware filter, preventing the PLC from registering false triggers caused by electrical noise or mechanical contact bounce in field switches.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

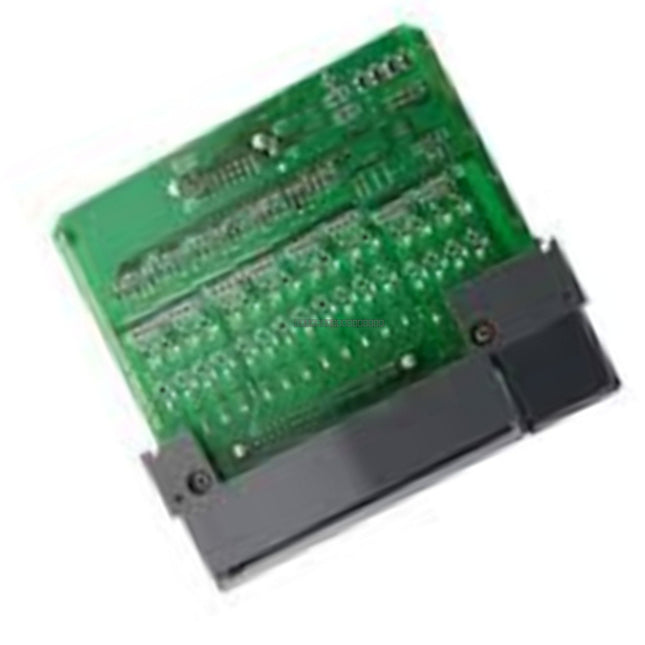

Description
The Allen-Bradley 1746-IM4 is a high-performance discrete AC input module designed for integration with the SLC 500 programmable logic controller (PLC) platform. This module features four (4) independent input channels rated for 200/240V AC operation. It is specifically engineered to interface high-voltage field devices, such as limit switches, pushbuttons, and motor starter contacts, directly into the SLC 500 system, making it an ideal solution for industrial environments utilizing 230V or 240V control standards.
Features
Four discrete AC input channels for high-voltage monitoring.
Electro-optical isolation rated at 1500V AC to protect the backplane and processor from field-side surges.
Hardware-based signal filtering with 35 ms (ON) and 45 ms (OFF) delays to mitigate electrical noise and mechanical contact bounce.
Low backplane power consumption (35 mA at 5V DC).
Robust design suitable for operation in temperatures ranging from 0 to 60 degC.
Applications
The 1746-IM4 is widely used in industrial automation systems where high-voltage AC signals must be monitored by a PLC. Common applications include machine control, conveyor systems, and process monitoring where 240V AC field devices are standard.
Technical Specifications
Parameter
Specification
Number of Inputs
4
Voltage Category
200/240V AC
Operating Voltage Range
170–265V AC (47–63 Hz)
Nominal Input Current
12 mA @ 240V AC
Max. Off-State Voltage
50V AC
Max. Off-State Current
2 mA
Max. Inrush Current
1.6 Amps (500 us duration)
Backplane Current (5V DC)
0.035 Amps
Total Heat Dissipation
1.6W
Operating Temperature
0 to 60 degC
Installation Guidelines
Power Down: Always remove power from the SLC 500 chassis before inserting or removing the module to prevent electrical damage.
Slot Placement: The module can be installed in any I/O slot of an SLC 500 chassis.
Wiring: Use appropriate wire gauges and ensure all terminal connections are secure. Route high-voltage AC wiring away from low-voltage DC or communication cables to minimize EMI.
Grounding: Ensure the chassis is properly grounded in accordance with local electrical codes and Allen-Bradley installation manuals.
Environment: Maintain adequate ventilation within the enclosure to ensure ambient temperature remains within the 0 to 60 degC range.
FAQ
What is the primary function of the 1746-IM4?
The 1746-IM4 serves as an interface module that converts 240V AC field signals into logic-level signals compatible with the SLC 500 PLC processor.
Does this module require 24V DC power from the backplane?
No, the 1746-IM4 draws 0 mA from the 24V DC backplane supply; it only requires 35 mA from the 5V DC supply.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

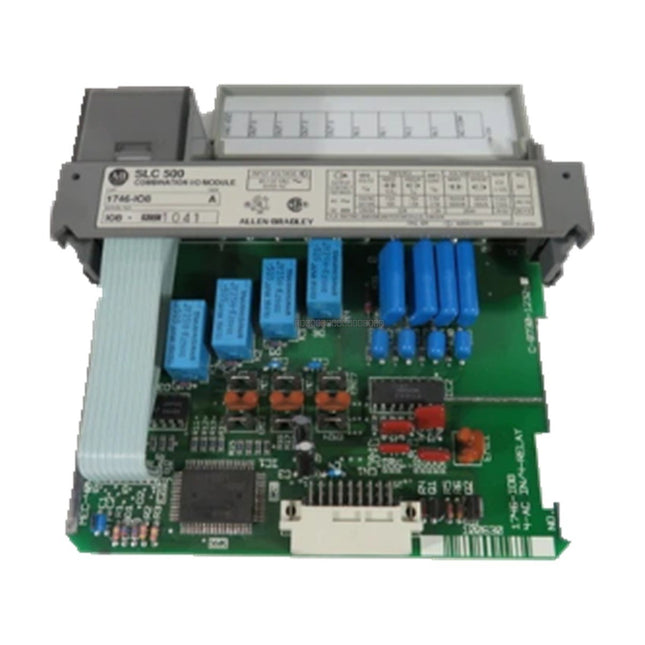

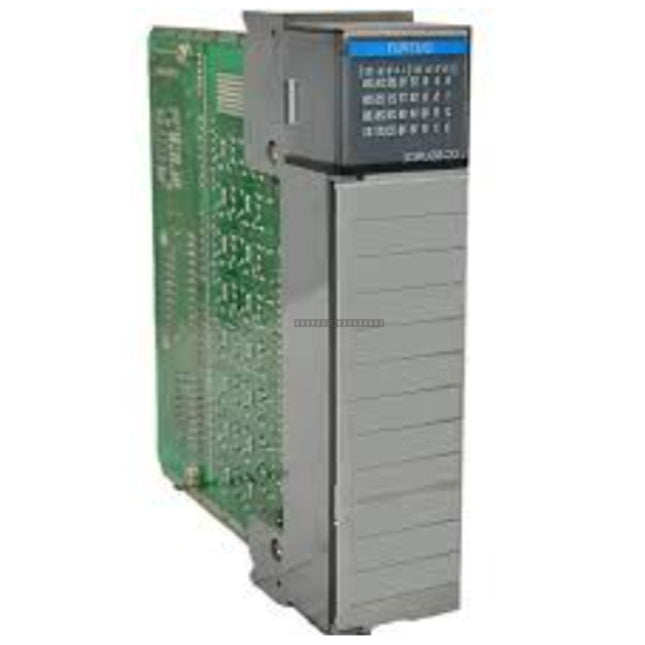

DescriptionThe Allen-Bradley 1746-IB16 is a high-density discrete input module engineered for the SLC 500 programmable controller platform. It provides sixteen (16) current-sinking input channels, operating at a nominal 24V DC. This module is designed to interface a wide range of field devices, including proximity sensors, limit switches, and photoelectric sensors, into a single-slot footprint within an SLC 500 chassis.Features
Sixteen (16) current-sinking input channels for high-density I/O configurations.
Nominal operating voltage of 24V DC with an operating range of 10–30V DC.
Low power consumption, drawing only 50 mA from the 5V DC backplane.
Integrated input filtering with an 8 ms signal delay for both ON and OFF transitions to mitigate electrical noise and contact bounce.
Includes a removable terminal block for simplified wiring and maintenance.
ApplicationsThe 1746-IB16 is widely used in industrial automation environments requiring high-density digital input monitoring. Typical applications include machine control, process monitoring, and assembly line automation where multiple DC-powered sensors must be integrated into a single SLC 500 rack.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
Digital DC Input Module
Number of Inputs
16 (Current Sinking)
Voltage Category
24V DC
Operating Voltage Range
10–30V DC
Signal Delay (ON/OFF)
8 ms
Backplane Current (5V DC)
0.05 A
Total Heat Dissipation
3.6 W
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Align the module with the chassis guide rails and seat it firmly into the backplane connector.
Secure the module using the top and bottom retaining screws to ensure proper grounding and mechanical stability.
Use shielded cabling for input signals to minimize EMI, especially in high-noise industrial environments.
Ensure that the input voltage does not exceed the 10–30V DC range to prevent damage to the input circuitry.
Maintain adequate ventilation around the chassis to ensure heat dissipation remains within specified limits.
FAQWhat is the input type for the 1746-IB16?The 1746-IB16 is a current-sinking input module, meaning it requires the field device to switch the positive voltage to the input terminal.Does this module include the terminal block?Yes, the 1746-IB16 comes with a removable terminal block to facilitate easier field wiring and module replacement.What is the signal delay for this module?The module features a hardware-based signal delay of 8 ms for both ON and OFF transitions to help filter out mechanical switch chatter and electrical noise.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-HS is a specialized Motion Controller Module designed for the SLC 500 programmable controller platform. Known as the IMC 110, this module provides high-speed motion control capabilities, enabling precise positioning and velocity control for industrial automation applications. Although now discontinued by the manufacturer, it remains a critical component for maintaining legacy SLC 500 control systems.Features
High-speed motion control for SLC 500 systems.
Integrated IMC 110 functionality for motion profiling and positioning.
Supports 24 VDC input signals with frequencies up to 300 kHz.
Isolated user-side power outputs for flexible interface configurations.
Designed for direct integration into the SLC 500 I/O chassis backplane.
ApplicationsThis module is typically utilized in industrial environments requiring precise motion control, such as packaging machinery, assembly lines, material handling systems, and specialized manufacturing equipment where the SLC 500 platform serves as the primary controller.Technical Specifications
Product Model
1746-HS
Module Type
IMC 110 Motion Controller
Backplane Current (5 VDC)
0.300 A
Backplane Current (24 VDC)
0.104 A
Isolated User Side (5 VDC)
0.150 A
Isolated User Side (15 VDC)
0.030 A / 0.20 A
Input Voltage
24 VDC
Max Input Frequency
300 kHz
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before inserting or removing the 1746-HS module.
Handle the module using proper ESD (Electrostatic Discharge) prevention measures to avoid damaging sensitive internal circuitry.
Verify that the module is fully seated in the chassis slot and that the retaining screws are tightened to ensure a secure connection to the backplane.
Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Ensure adequate ventilation within the enclosure to prevent overheating during operation.
FAQIs the 1746-HS still supported by Allen-Bradley?No, the 1746-HS has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished inventory for maintenance of existing systems.What is the primary function of the 1746-HS?The 1746-HS is an IMC 110 motion controller module that allows the SLC 500 PLC to manage motion control tasks, such as high-speed pulse outputs and position tracking.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

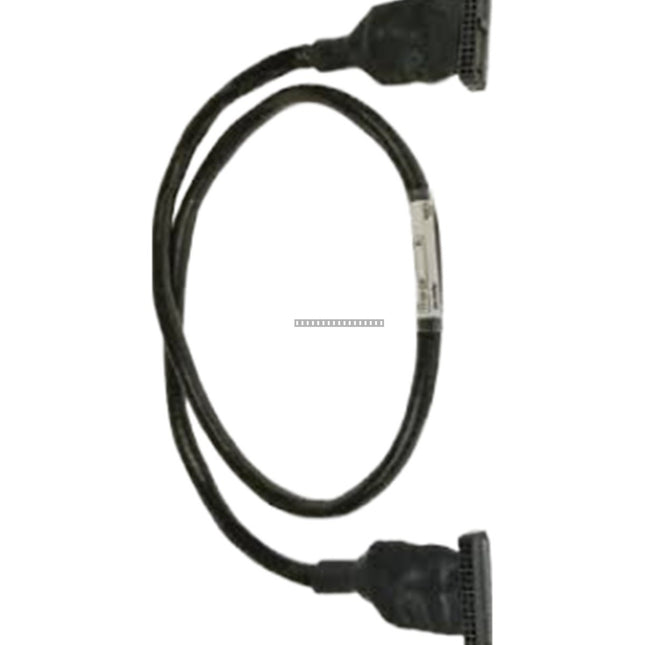

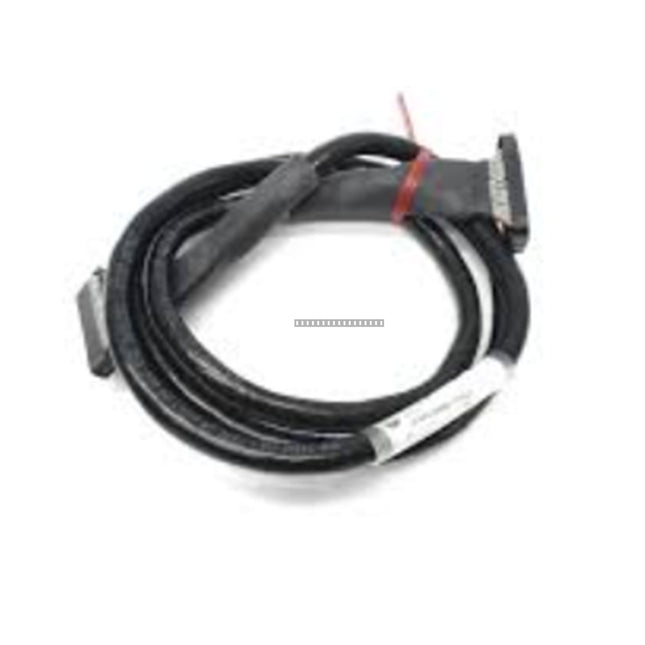

DescriptionThe Allen-Bradley 1746-C16 is a specialized ribbon cable designed for multi-chassis configurations within the SLC 500 modular control system. Measuring 1.22 meters (4 feet / 50 inches), this cable provides the necessary reach to connect a primary processor chassis to expansion chassis within the same industrial enclosure. It ensures reliable backplane communication, allowing the SLC 500 processor to manage I/O modules located in secondary racks.Features
System Compatibility: Specifically designed for Allen-Bradley SLC 500 modular chassis systems.
Extended Reach: Longest available interconnect cable for the SLC 500 platform at 1.22 meters.
Robust Construction: Rigid ribbon cable design featuring integrated strain relief for industrial durability.
Keyed Connectors: Engineered with physical keys to ensure correct orientation and prevent improper backplane connection.
ApplicationsThis cable is essential for expanding SLC 500 systems beyond a single rack. It is typically used in control cabinets where I/O requirements exceed the capacity of a single chassis, allowing for vertical or side-by-side expansion of the PLC architecture.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Hardware Type
Chassis Interconnect Cable
Cable Length
1.22 meters (50 inches / 4 feet)
Max Linked Chassis
3 total (including primary)
Bend Radius Clearance
101.6 mm (4 inches)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Power Status: Always ensure the system power supply is disconnected before installing or removing the interconnect cable.
Orientation: The connector with the key on the top must be inserted into the right-hand socket of the exit chassis. The connector with the key on the inside must be inserted into the left-hand socket of the expansion chassis.
Clearance: Ensure a minimum bend radius clearance of 101.6 mm (4 inches) to prevent cable damage and signal interference.
Sequence: It is recommended to route and connect the cable before installing power supplies to ensure sufficient physical space and clearance.
FAQIs the 1746-C16 compatible with all SLC 500 chassis?Yes, the 1746-C16 is designed for use with standard SLC 500 modular chassis to facilitate multi-rack communication.Can I use this cable to connect more than three chassis?No, the SLC 500 system architecture typically supports a maximum of three total chassis (one primary and two expansion) when using these interconnect cables.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

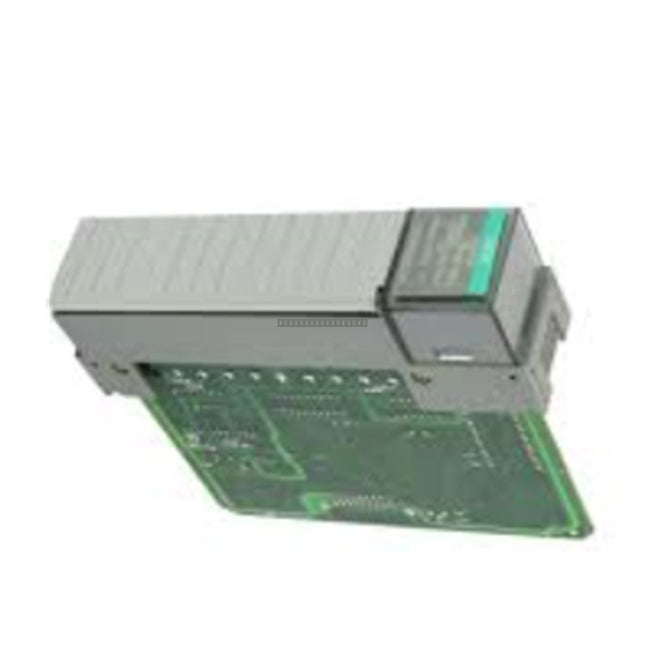

DescriptionThe Allen-Bradley 1746-NI04I is a high-resolution combination analog I/O module designed for the SLC 500 programmable logic controller system. This module provides a versatile interface for industrial control applications, featuring two analog input channels and two analog output channels. It is engineered to handle precise signal processing for both voltage and current loops, making it suitable for a variety of instrumentation and control tasks.Features
Combination I/O: Features 2 analog input channels and 2 analog output channels in a single-slot module.
High Resolution: Designed for high-precision signal conversion to ensure accurate process control.
Input Versatility: Supports configurable input ranges including +/-10V DC or +/-20mA.
Output Capability: Provides 2 analog current outputs with a range of 0-20mA.
System Compatibility: Fully integrated with the Allen-Bradley SLC 500 chassis-based architecture.
ApplicationsThis module is commonly used in industrial automation environments for monitoring and controlling process variables such as pressure, flow, temperature, and valve positioning. It is ideal for applications requiring a mix of analog sensing and control signal generation within a compact footprint.Technical Specifications
Manufacturer
Allen-Bradley
Model Number
1746-NI04I
Module Type
Analog Input/Output Combination
Input Channels
2
Output Channels
2
Input Signal Range
+/-10V DC or +/-20mA
Output Signal Range
0-20mA
Operating Voltage
24V DC
Weight
0.3 kg
Installation Guidelines
Power Down: Always disconnect power from the SLC 500 chassis before installing or removing any I/O module to prevent electrical damage or system faults.
Slot Placement: The module can be installed in any available slot in the SLC 500 chassis. Ensure the module is properly seated in the backplane connector.
Wiring: Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI). Ground the shield at one end only to prevent ground loops.
Environment: Ensure the installation location is free from excessive dust, moisture, and corrosive gases. Maintain adequate clearance for airflow to prevent overheating.
ESD Handling: Handle the module by the edges and avoid touching the backplane pins to prevent electrostatic discharge damage.
FAQIs the 1746-NI04I still in production?No, the 1746-NI04I was discontinued by the manufacturer in 2018. We provide high-quality surplus and refurbished units to support legacy systems.Can this module be used for both voltage and current inputs?Yes, the input channels are configurable to support either +/-10V DC or +/-20mA signals, providing flexibility for different sensor types.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

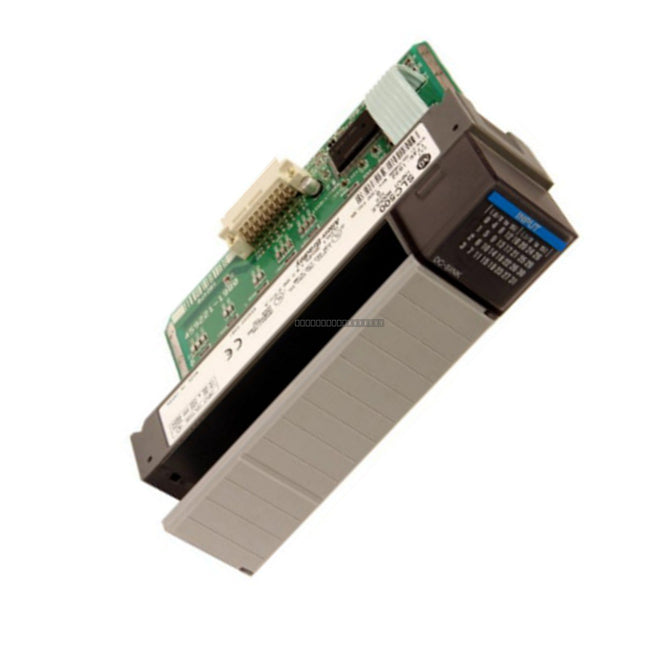

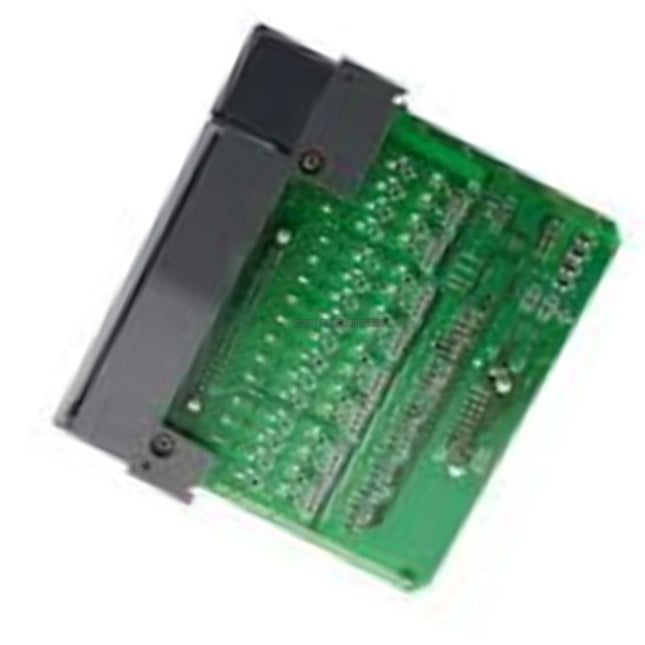

DescriptionThe Allen-Bradley 1746-OG16 is a 16-point TTL (Transistor-Transistor Logic) current sinking output module designed for the SLC 500 programmable logic controller system. This module provides a high-speed interface for applications requiring 5 VDC logic-level signaling, allowing the SLC 500 controller to communicate with external TTL-compatible devices.Features
16 discrete output channels
Current sinking configuration for TTL logic compatibility
Voltage range: 4.5 to 5.5 VDC
Designed for standard SLC 500 chassis mounting
Backplane current consumption: 180 mA at 5 VDC
Technical Specifications
Product Model
1746-OG16
Module Type
TTL Current Sinking Output
Number of Outputs
16
Voltage Range
4.5 - 5.5 VDC
Current per Output
0.024 A
Current per Module
0.384 A
Backplane Current (5V)
180 mA
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the SLC 500 system power is disconnected before installing or removing the module from the chassis.
The module must be seated firmly in the I/O slot and secured using the top and bottom retaining screws to ensure proper backplane connection and vibration resistance.
Use appropriate shielded cabling for TTL signal lines to minimize electromagnetic interference (EMI) in industrial environments.
Maintain adequate clearance around the chassis for proper ventilation and cooling.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
FAQIs the 1746-OG16 still in production?No, the 1746-OG16 was discontinued by the manufacturer on December 31, 2014. It is currently available primarily through surplus or secondary market channels.What does TTL mean in the context of this module?TTL stands for Transistor-Transistor Logic. This module is specifically designed to output 5 VDC logic signals, which are standard for many digital electronic components and microcontrollers, as opposed to the standard 24 VDC outputs typically used in industrial PLC applications.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

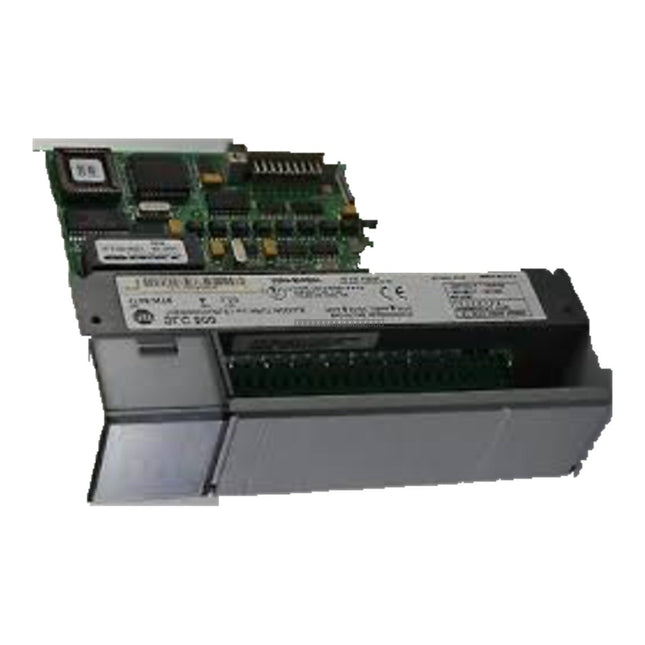

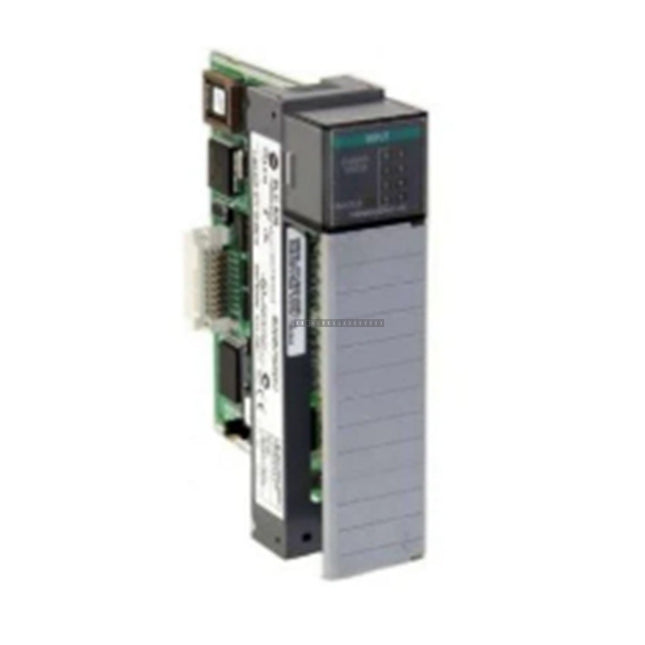

DescriptionThe 1746SC-INO4I is a high-performance, four-channel analog output module engineered by Spectrum Controls for the Allen-Bradley SLC 500 platform. This module is specifically designed for current-only applications (0-20 mA or 4-20 mA) where electrical noise, ground loops, or differing potentials between field devices could compromise signal accuracy. The 'I' designation confirms individual channel-to-channel isolation, ensuring that a fault or noise on one loop does not propagate to other outputs or the backplane.Features
Individual Channel Isolation: Provides 500V AC continuous isolation between each channel and the backplane, preventing ground loops.
High Precision: Features 16-bit resolution for accurate control of VFDs, proportional valves, and other current-driven actuators.
Current Output: Supports 0-20 mA, 4-20 mA, and 0-21 mA sourcing ranges.
Fast Response: 1 ms step response time to 95% of full scale.
Flexible Powering: Supports external 24V DC power to minimize backplane current draw.
ApplicationsThis module is ideal for industrial control environments requiring high signal integrity, such as:
Variable Frequency Drive (VFD) speed control.
Proportional valve positioning.
Process control loops where electrical isolation is required to prevent cross-channel interference.
Systems with high electromagnetic interference (EMI) or common-mode voltage challenges.
Technical Specifications
Model
1746SC-INO4I
Manufacturer
Spectrum Controls (for SLC 500)
Number of Outputs
4
Output Type
Current Only (Sourcing)
Current Ranges
0-20 mA, 4-20 mA, 0-21 mA
Resolution
16-bit
Step Response
1 ms (to 95% of full scale)
Backplane Current
120 mA @ 5V DC / 250 mA @ 24V DC
Isolation Voltage
500V AC continuous
Thermal Dissipation
5.0 Watts (Max)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
ESD Precautions: Always handle the module by the edges and use a grounded wrist strap to prevent electrostatic discharge damage to internal components.
Power Down: Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Wiring: Use shielded twisted-pair cable for all analog signals to minimize noise. Ground the shield at one end only, typically at the signal source or the module common, depending on system requirements.
Isolation: Ensure that external power supplies used for the 24V DC loop power are properly rated and isolated to maintain the integrity of the channel isolation.
Ventilation: Maintain adequate clearance around the SLC 500 chassis to ensure proper airflow and heat dissipation within the specified operating temperature range.
FAQDoes this module require external power?The 1746SC-INO4I can be powered via the backplane, but it supports external 24V DC power to reduce the load on the SLC 500 chassis power supply.Is this module compatible with standard SLC 500 racks?Yes, it is designed as a drop-in replacement or addition for the Allen-Bradley SLC 500 I/O platform, utilizing the standard 1746 backplane interface.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

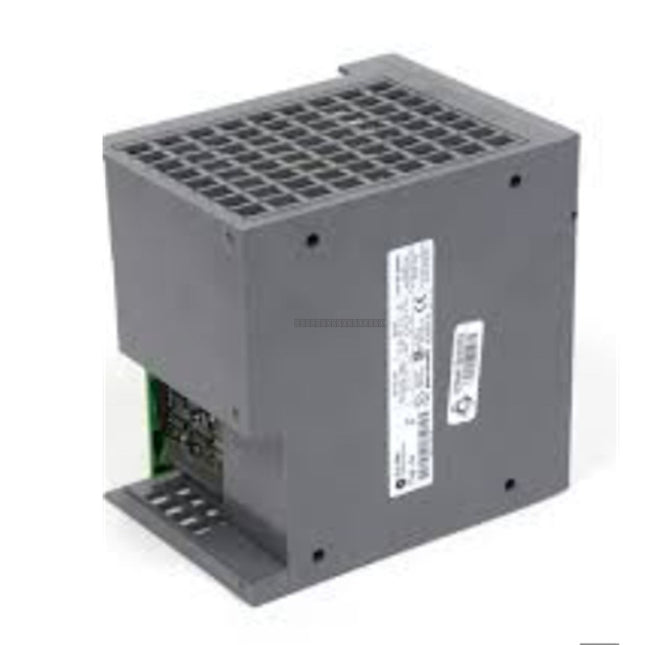

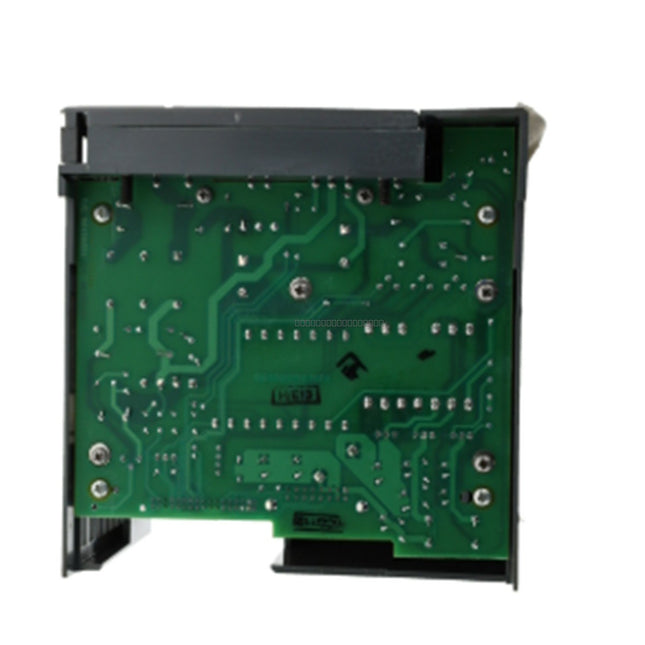

DescriptionThe Allen-Bradley 1746-P1 is a dedicated power supply module designed for use within the SLC 500 programmable logic controller system. This rack-mounted unit provides the necessary DC power to the backplane, supporting the CPU and various I/O modules installed in the chassis. It is engineered to operate across a wide range of AC line voltages, ensuring compatibility with diverse industrial power environments.Features
Wide input voltage range: 85-132 VAC or 170-265 VAC (auto-switching/selectable).
Robust power output: Provides 2A at 5 VDC and 0.46A at 24 VDC to the backplane.
Integrated 24 VDC user power output for field devices.
High-reliability design with 1800V AC RMS isolation for 1 second.
CPU hold-up time of 20 ms at full load to ensure stable operation during brief power interruptions.
Rack-mount form factor for seamless integration into standard SLC 500 chassis.
Technical Specifications
Parameter
Specification
Input Voltage
85-132 / 170-265 VAC
Frequency
47-63 Hz
Internal Current Capacity
2A at 5 VDC, 0.46A at 24 VDC
User Power Output
200 mA at 24 VDC
Max Inrush Current
20A
Power Requirement
135 VA
Operating Temperature
0 degC to 60 degC
Fuse Protection
1746-F1 or equivalent
Installation Guidelines
Ensure the power supply is installed in the leftmost slot of the SLC 500 chassis.
Always disconnect main power before inserting or removing the module from the rack to prevent electrical arcing or damage to the backplane connectors.
Verify that the AC input voltage selector switch (if applicable) matches your local power source before applying power.
Maintain adequate clearance around the module to allow for proper airflow and cooling, as the unit dissipates heat during operation.
Use shielded cables for I/O connections to minimize EMI interference, and ensure the chassis is properly grounded to a common earth point.
FAQWhat is the primary function of the 1746-P1?The 1746-P1 acts as the main power source for the SLC 500 rack, converting incoming AC line voltage into the regulated DC voltages required by the processor and I/O modules.Can this module provide power to external sensors?Yes, the module provides a 24 VDC user power output with a capacity of 200 mA, which can be used to power compatible field devices or sensors.What should I do if the power supply fails?First, check the input voltage and the status of the external fuse. If the module remains unresponsive, it may require replacement. Always ensure the replacement unit is a genuine Allen-Bradley 1746-P1 to maintain system integrity.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

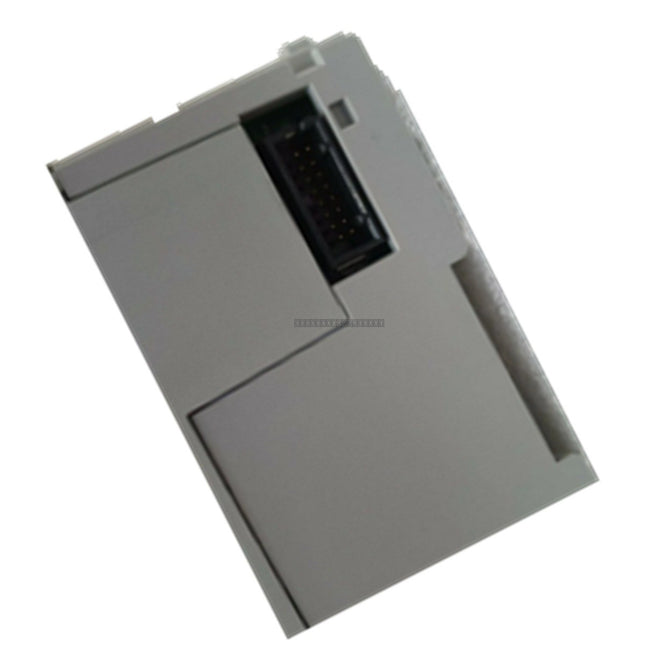

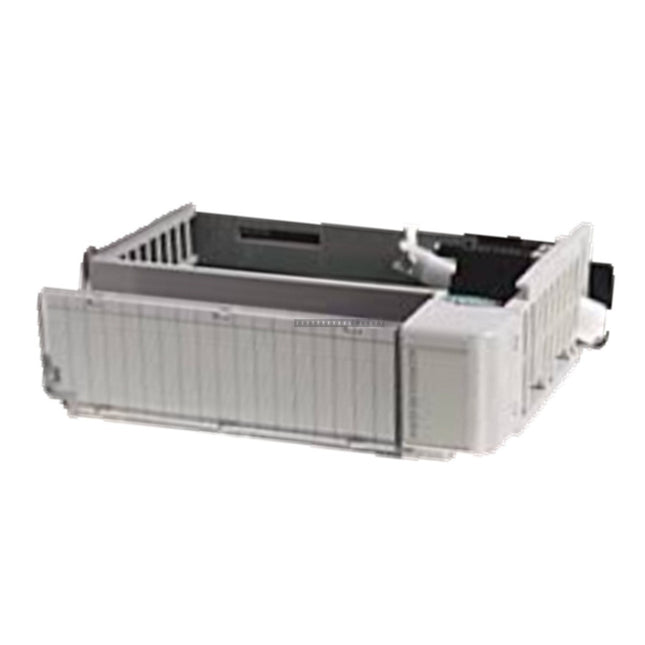

DescriptionThe Allen-Bradley 1769-IF4I is a high-performance analog input module designed for the CompactLogix controller platform. This module provides four channels of analog input, supporting both current and voltage signals. Each channel is individually isolated, ensuring high signal integrity and protection against ground loops in industrial control environments. It features 14-bit resolution, providing precise data acquisition for critical process control applications.Features
4-channel analog input configuration
Individually isolated channels for enhanced noise immunity
Supports both current (0-20 mA) and voltage signal ranges
14-bit resolution for high-precision measurement
Designed for seamless integration with CompactLogix systems
24 VDC operation
ApplicationsThis module is engineered for industrial automation tasks requiring analog data monitoring, such as pressure, flow, temperature, or level sensing. It is suitable for use in manufacturing, water treatment, and process control systems where signal isolation is required to prevent interference between field devices and the PLC backplane.Technical Specifications
Product Model
1769-IF4I
Manufacturer
Allen-Bradley
Module Type
Analog Input Module
Channel Count
4
Input Types
Voltage / Current
Current Range
0-20 mA
Resolution
14-bit
Isolation
Individually Isolated
Operating Voltage
24 VDC
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module.
Mount the module on a standard DIN rail or panel mount as per CompactLogix system requirements.
Use shielded twisted-pair cabling for all analog inputs to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the system ground bus to maintain signal integrity.
Verify that the module is firmly seated in the I/O rack and that the bus connector is fully engaged.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent internal component damage.
FAQIs the 1769-IF4I compatible with all CompactLogix controllers?The 1769-IF4I is designed for the 1769 Compact I/O platform. Please verify your specific controller's compatibility with 1769-series I/O modules in your system documentation.Does this module require external power?Yes, the module requires a 24 VDC power supply for operation. Refer to the module wiring diagram for correct polarity and connection points.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

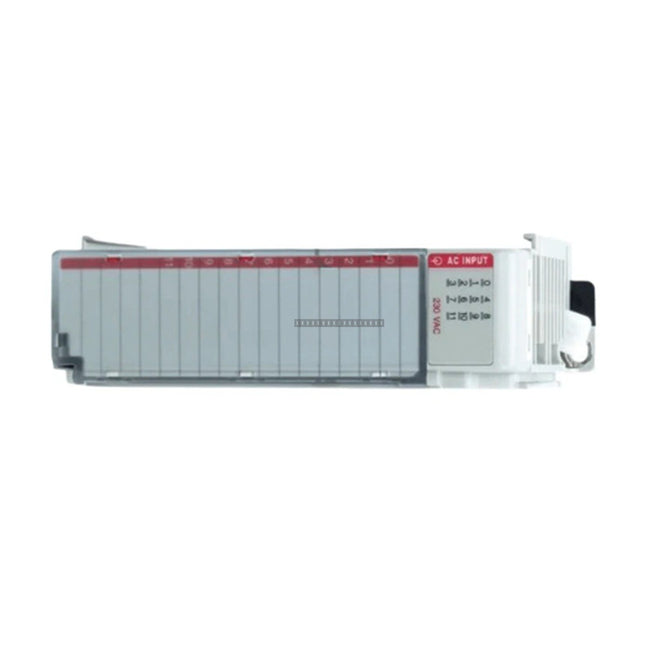

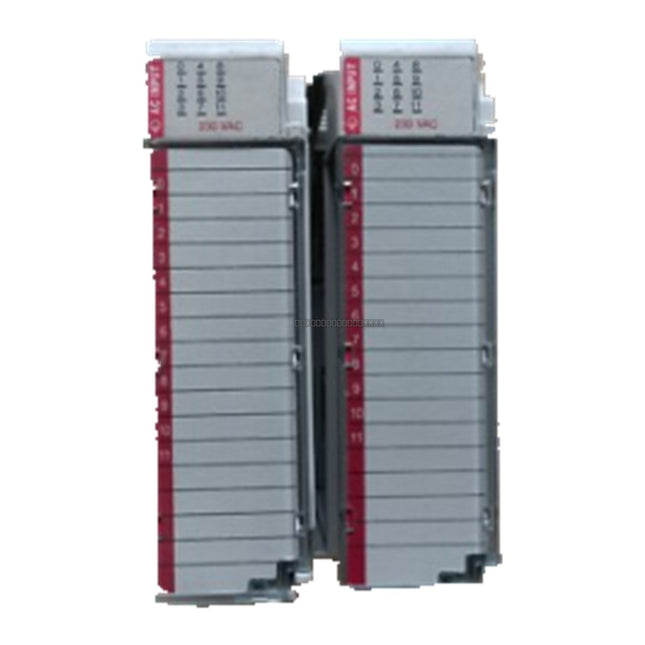

DescriptionThe Allen-Bradley 1769-OW8 is a high-performance discrete output module designed for the CompactLogix controller platform. This module provides eight (8) relay output points, allowing for the control of a wide variety of industrial devices. It is engineered to bridge the gap between low-voltage controller logic and higher-voltage field devices, supporting an operating voltage range of 5 to 265V AC or 5 to 125V DC.Features
Eight (8) independent relay output channels for flexible control applications.
Wide operating voltage range compatible with both AC and DC field circuits.
Compact form factor designed for seamless integration into CompactLogix I/O systems.
Low bus current draw of 125 mA at 5.1V.
Supports standard copper wiring (90 degrees Celsius rating).
Technical Specifications
Product Model
1769-OW8
Product Line
CompactLogix
Module Type
Relay Output Module
Number of Outputs
8
Operating Voltage Range
5 to 265V AC / 5 to 125V DC
Signal Delay (On)
10 ms
Bus Current Draw (5.1V)
125 mA
Power Supply Distance Rating
8
Wire Size (Solid)
22 to 14 AWG
Wire Size (Stranded)
22 to 16 AWG
Wire Type
Copper-90 degC
Installation Guidelines
Ensure the controller and I/O power are disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
Mount the module on a standard DIN rail or panel mount as per CompactLogix system requirements.
Use appropriate wire gauges (22-14 AWG solid or 22-16 AWG stranded) and ensure all connections are tightened to the manufacturer's torque specifications.
Maintain proper clearance for ventilation to prevent overheating, as the module relies on passive cooling.
Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to ensure signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQWhat is the primary function of the 1769-OW8 module?The 1769-OW8 is a relay output module used to interface a CompactLogix controller with field devices. It provides isolated relay contacts that can switch AC or DC loads, making it suitable for driving actuators, contactors, or other control elements.Can this module be used with both AC and DC voltages?Yes, the 1769-OW8 is versatile and supports an operating range of 5 to 265V AC and 5 to 125V DC, allowing it to be used in diverse industrial environments.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

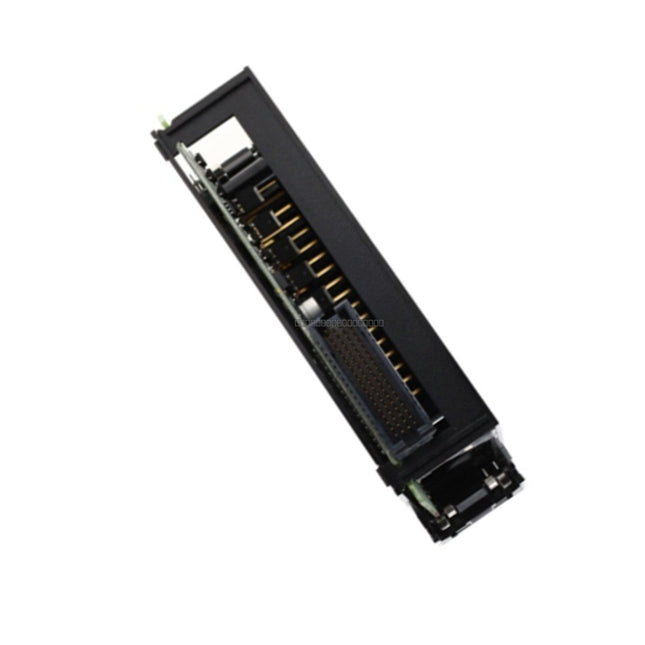

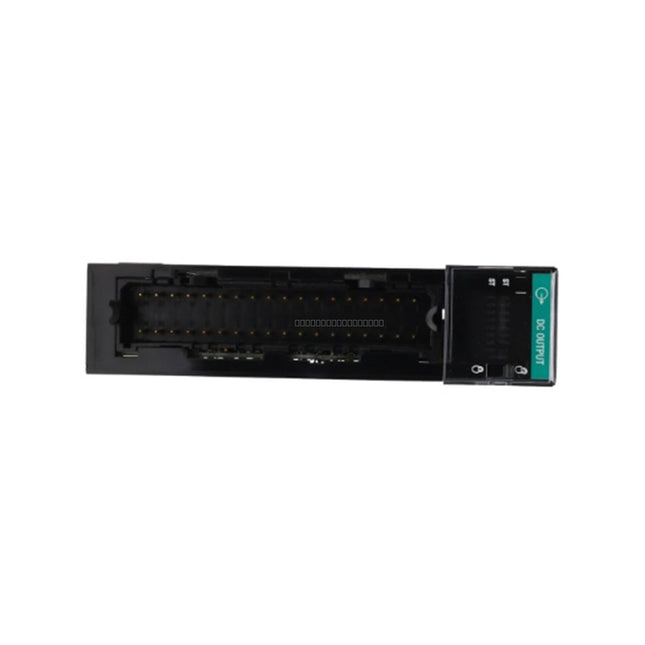

DescriptionThe 1756-OB16S is a high-reliability digital DC sourcing output module designed for the Allen-Bradley ControlLogix 1756 chassis platform. This module provides 16 electronically fused output channels, enabling precise control of external DC field loads. It is engineered for demanding industrial environments, including petrochemical, power generation, and mining applications, where it provides robust short-circuit protection and dual-isolated point-group architecture to ensure system uptime and minimize maintenance downtime.Features
16 electronically fused digital DC sourcing output points.
Two independent output groups (8 channels per group) for improved circuit isolation.
Integrated electronic fusing provides per-point monitoring and protection against short-circuits and inductive kickbacks.
Direct backplane communication for real-time status, fault diagnostics, and module inhibition.
Standard single-slot chassis installation.
Compatible with standard ControlLogix removable terminal blocks (RTB).
ApplicationsThis module is suitable for use in critical automation systems requiring reliable DC load switching, such as:
Petrochemical refining and processing.
Thermal and renewable power generation plants.
Mining and material handling operations.
Wastewater treatment and municipal infrastructure.
Technical Specifications
Model
1756-OB16S
Outputs
16 Points (Electronically Fused)
Channel Configuration
2 Groups of 8
Voltage Range
10 to 31.2 VDC
Max Current per Point
1 Amp @ 60 deg C
Max Current per Module
8 Amps @ 60 deg C
Backplane Current (5.1V)
250 mA
Backplane Current (24V)
2 mA
Power Dissipation
4.1 Watts @ 60 deg C
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical arcing or system faults.
Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
Ensure the module is fully seated in the chassis slot and the locking latch is engaged.
Use appropriate shielded cabling for field wiring to minimize EMI interference in high-noise industrial environments.
Verify that the removable terminal block (RTB) is correctly wired and securely attached to the module front.
Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
FAQWhat is the primary function of the 1756-OB16S?The 1756-OB16S is a digital sourcing output module used to drive DC field loads from a ControlLogix controller, featuring integrated electronic fusing for enhanced circuit protection.Does this module require a specific terminal block?Yes, this module requires a compatible ControlLogix removable terminal block (RTB) for field wiring connections. Ensure the RTB is properly keyed to the module.Can this module be used in a standard ControlLogix chassis?Yes, it is designed for standard 1756 chassis and occupies one single slot.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe 1756-L71/B (1756L71B) is a high-performance programmable automation controller designed for the Allen-Bradley ControlLogix platform. This Series B logic module is engineered to execute complex discrete automation, multi-axis motion control, and high-speed process tasks across distributed industrial networks. It provides deterministic processing for demanding environments, including automotive manufacturing, petroleum refining, and municipal infrastructure. The module utilizes advanced energy storage technology, eliminating the need for traditional internal batteries and reducing long-term maintenance requirements.Features
High-speed processing architecture supporting up to 32 independent controller tasks.
Integrated USB 2.0 port on the front faceplate for local configuration, diagnostics, and firmware updates.
Scalable connectivity supporting up to 500 concurrent controller connections.
Seamless integration with EtherNet/IP, ControlNet, DeviceNet, and Data Highway Plus via the backplane.
Optimized for low power consumption and high thermal efficiency in rack-mounted configurations.
ApplicationsThis controller is suitable for large-scale industrial automation, including:
Automated assembly and manufacturing lines.
Process control in water and wastewater treatment facilities.
Complex motion control and high-speed discrete logic applications.
Distributed control systems requiring high network connectivity.
Technical Specifications
Model
1756-L71/B
Series
B
Controller Tasks
32
Max Connections
500
Communication Port
1 x USB 2.0
Current Draw (1.2V DC)
5 mA
Current Draw (5.1V DC)
800 mA
Power Dissipation
2.5 W
Thermal Dissipation
8.5 BTU/hr
Isolation Voltage
30V Continuous
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the ControlLogix chassis is properly grounded before installing the module.
Power down the chassis before inserting or removing the controller to prevent electrical arcing or damage to the backplane pins.
Ensure adequate airflow within the cabinet; maintain clearance around the module to prevent overheating.
Use shielded cables for communication interfaces to minimize EMI in high-noise industrial environments.
Handle with care to prevent electrostatic discharge (ESD) damage to internal components.
FAQDoes this module require a battery?No, the 1756-L71/B utilizes advanced energy storage technology, which eliminates the maintenance requirements associated with traditional internal batteries.Can this controller be used for motion control?Yes, the 1756-L71/B is capable of handling multi-axis motion trajectories as part of its multi-discipline programming capabilities.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

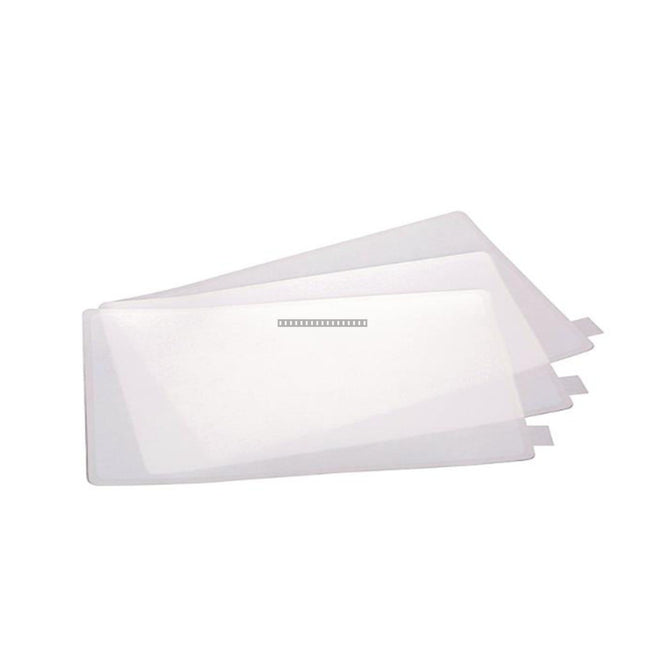

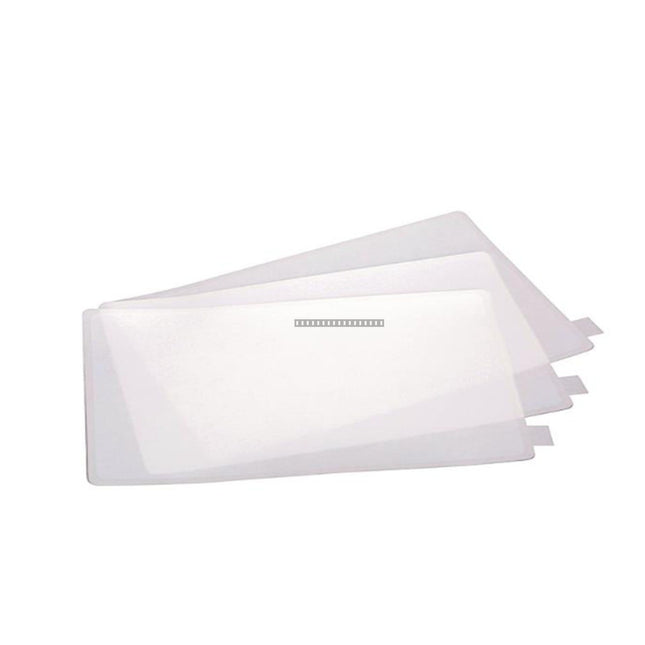

The Allen-Bradley 2711-NV4T is an antiglare overlay accessory designed specifically for PanelView 550 and 600 touch-only terminals. This protective film is engineered to minimize screen reflections and mitigate the impact of ambient light in industrial control environments, ensuring consistent optical clarity and reducing operator fatigue during system monitoring.Features
Precision-cut polymer film tailored for PanelView 550 and 600 touch-only display surfaces.
Reduces glare and reflections to enhance screen readability in high-light environments.
Provides a protective barrier against dust, scratches, and minor abrasions.
Maintains full touch sensitivity and interface responsiveness for the HMI terminal.
Passive mechanical component requiring no external power or electrical connection.
ApplicationsThis overlay is intended for use in industrial HMI/OIT applications where PanelView 550 or 600 touch terminals are deployed in environments with significant ambient lighting, such as factory floors, control rooms, or outdoor-facing enclosures where glare may impede operator visibility.Technical Specifications
Model
2711-NV4T
Brand
Allen-Bradley / Rockwell Automation
Accessory Type
Antiglare Overlay
Compatibility
PanelView 550 and 600 Touch-Only Terminals
Operating Temperature
0 to 50 deg C
Power Consumption
Passive Component
Installation Guidelines
Ensure the display surface of the PanelView terminal is clean, dry, and free of oils or debris before application.
Carefully peel the backing from the overlay and align it with the edges of the HMI screen.
Apply gentle, even pressure from the center outward to ensure proper adhesion and to prevent air bubbles.
Do not use sharp tools to smooth the overlay, as this may damage the film or the underlying touch screen.
Power down the terminal if necessary to prevent accidental input activation during the cleaning and installation process.
FAQIs this overlay compatible with PanelView 550/600 Keypad versions?No, this specific overlay is designed exclusively for the touch-only versions of the PanelView 550 and 600 terminals.Does this overlay affect the touch sensitivity of the screen?No, the material is engineered to maintain full touch sensitivity and interface responsiveness when applied correctly.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

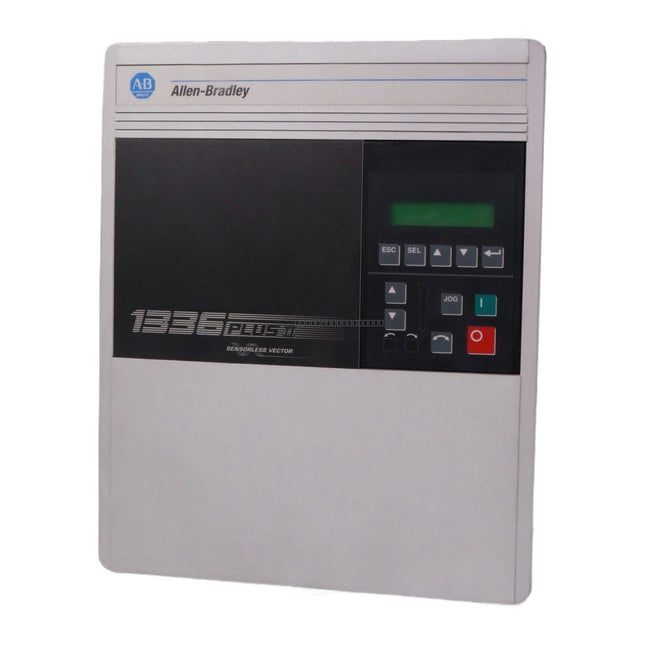

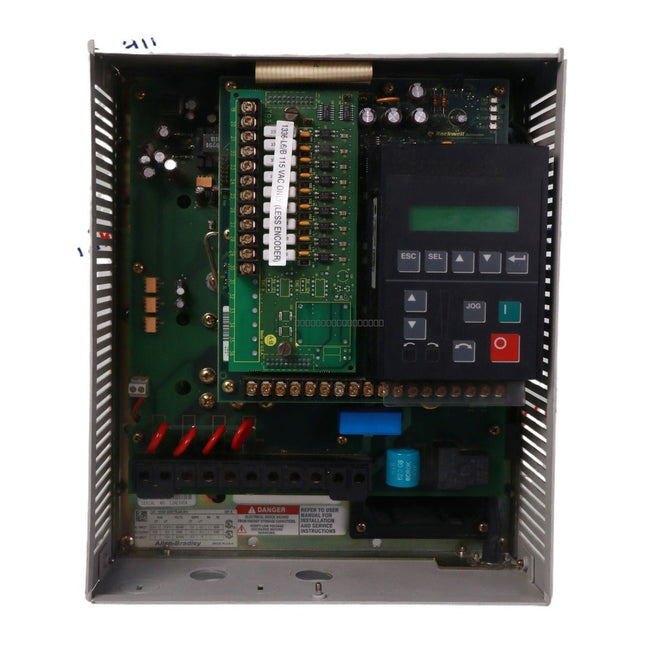

The Allen-Bradley 1336F-BRF75-AA-EN is a member of the 1336 PLUS II series of adjustable frequency AC drives. Designed for precise motor control in industrial environments, this unit provides reliable performance for a wide range of variable speed applications. Please note that this product has been discontinued by the manufacturer.Features
Adjustable frequency control for optimized motor performance
Input voltage range: 380-480V AC or 513-620V DC
Power rating: 5.5 kW / 7.5 HP
Enclosure rating: IP20 / NEMA 1
Frame size: A4
Technical Specifications
Manufacturer
Allen-Bradley
Series
1336 PLUS II
Model Number
1336F-BRF75-AA-EN
Power Rating
5.5 kW / 7.5 HP
Input Voltage
380-480V AC / 513-620V DC
Enclosure Type
IP20 / NEMA 1
Frame Size
A4
Installation Guidelines
Ensure the drive is mounted in a vertical position to allow for proper heat dissipation.
Maintain adequate clearance around the unit for airflow; refer to the user manual for specific spacing requirements.
Verify that the input power supply matches the voltage specifications of the drive before connection.
Ensure all wiring is properly shielded and grounded to minimize electromagnetic interference (EMI).
Always disconnect and lock out power before performing any installation, wiring, or maintenance tasks.
Handle the unit with care to avoid damage to internal components; use ESD-safe practices when handling the drive electronics.
FAQIs the 1336F-BRF75-AA-EN still in production? No, this model has been discontinued by Allen-Bradley. We provide refurbished or surplus units to support legacy systems.What is the enclosure rating for this drive? This unit features an IP20 / NEMA 1 enclosure, suitable for indoor use in controlled environments.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

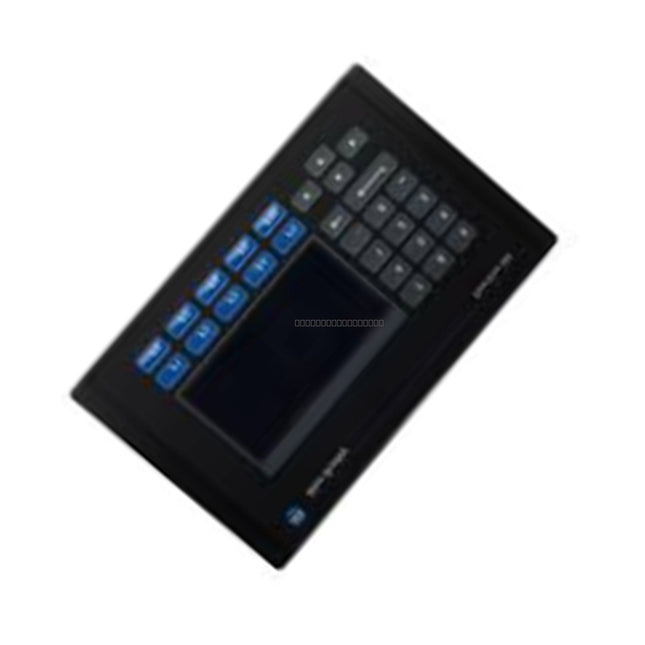

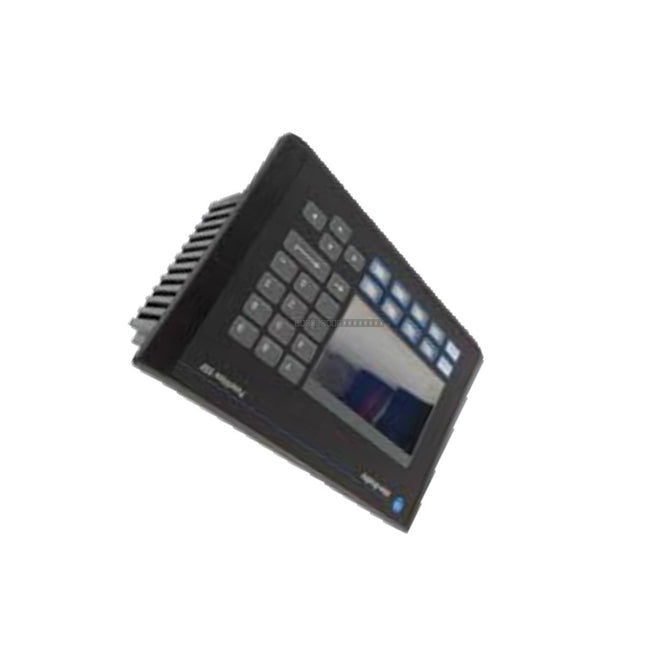

The Allen-Bradley 2711-B5A5 is a PanelView 550 operator terminal designed for high-performance human-machine interface (HMI) applications. This AC-powered control module facilitates real-time process monitoring, industrial alarm data management, and manual input command execution within automated systems. Engineered for continuous operation in demanding industrial environments, including oil and gas, chemical processing, and water management, this terminal replaces complex physical pushbutton arrays with an integrated electronic interface, helping to reduce unscheduled downtime and improve operational efficiency.Features
Hybrid input interface featuring both an analog resistive touchscreen and a 10-key mechanical function keypad (F1 to F10) for reliable operation in high-vibration environments.
5.5-inch monochrome blue-mode LCD display with 256 x 128 pixel resolution and a long-life 100,000-hour LED backlight.
Integrated RS-232 communication port supporting DH-485 and DF1 protocols for controller communication and data logging.
Dual-allocation memory architecture with 170 KB for application runtime and 240 KB for nonvolatile storage.
Touchscreen grid rated for 1 million press actuations across 128 active cells.
ApplicationsThe 2711-B5A5 is suitable for diverse industrial automation tasks, including:
Automated packaging and assembly lines.
Chemical and petrochemical manufacturing process control.
Water and wastewater management infrastructure.
General-purpose machine monitoring and operator control.
Technical Specifications
Model
2711-B5A5
Brand
Allen-Bradley
Product Line
PanelView 550
Display Size
5.5 inches
Display Type
Monochrome LCD (Blue Mode)
Resolution
256 x 128 pixels
Input Method
Keypad and Touchscreen
Memory
170 KB Runtime / 240 KB Nonvolatile
Communication
RS-232 (DH-485 / DF1)
Input Voltage
85-264 VAC (47-63 Hz)
Operating Temp
0 to 55 deg C
Installation Guidelines
Ensure the terminal is mounted in a suitable NEMA-rated enclosure to maintain environmental protection ratings.
Verify that the power supply meets the 85-264 VAC requirement; ensure proper grounding to the chassis to prevent electrical noise interference.
Use shielded communication cables (such as the 2711-NC13) and route them away from high-voltage power lines to minimize EMI.
Power down the system before connecting or disconnecting any communication cables or power leads.
Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating during operation.
FAQIs the 2711-B5A5 still in production?No, this model is classified as discontinued/obsolete by the manufacturer. We provide high-quality surplus units to support legacy system maintenance.What communication protocols are supported?The unit features an RS-232 port that supports DH-485 and DF1 protocols for connectivity with Allen-Bradley controllers.Can I use this terminal in high-vibration areas?Yes, the hybrid design includes 10 mechanical function keys, which provide a reliable input method when touchscreen operation is difficult due to vibration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

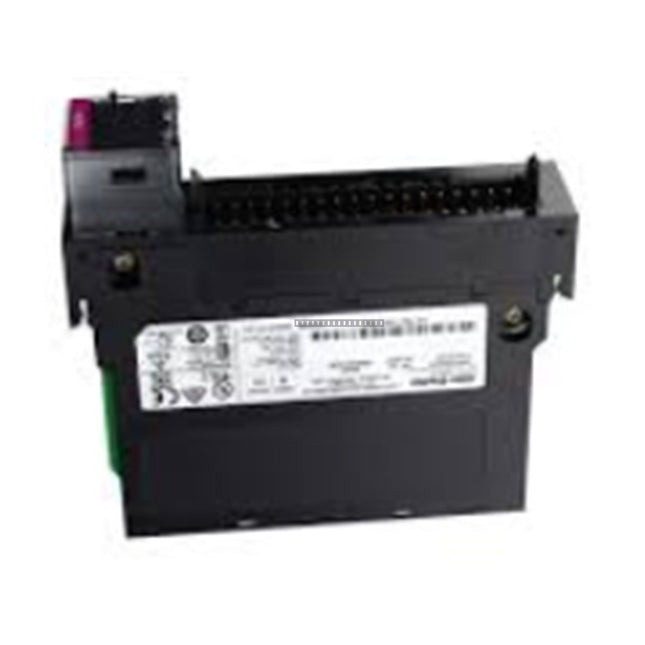

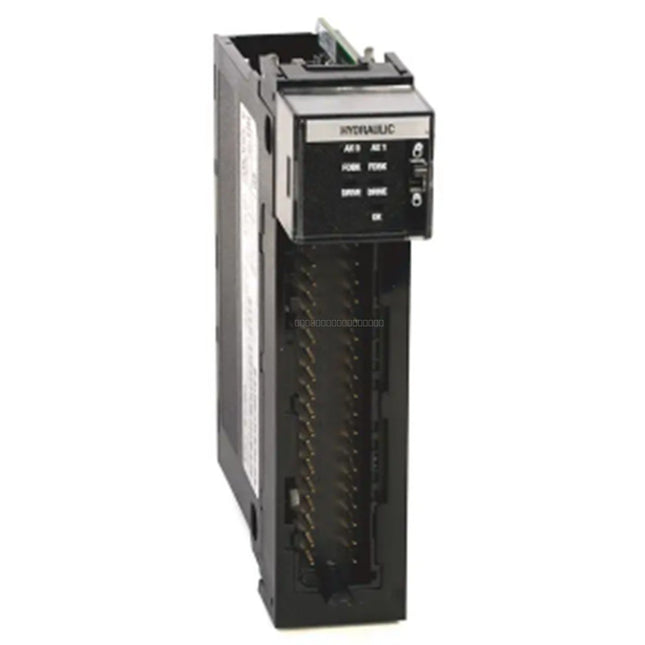

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This module supports two axes per module and is compatible with the ControlLogix platform, allowing for up to 32 axes per controller.Features
Supports 2 axes per module.
Integrated motion control with 32-bit floating-point gain resolution.
Analog voltage servo output with a range of +/- 10V DC.
16-bit analog output resolution for precise control.
Includes solid-state isolated relay contacts for discrete outputs.
Discrete output operating voltage: 24V DC nominal.
ApplicationsThis module is typically used in complex motion control systems requiring high-speed, synchronized axis management, such as packaging machinery, material handling, and precision assembly lines within the ControlLogix architecture.Technical Specifications
Product Model
1756-M02AS
Axes per Module
2
Axes per Controller
32
Servo Output Type
Analog Voltage
Voltage Range
+/- 10V DC
Analog Output Resolution
16 bits
Gain Resolution
32-bit floating point
Backplane Current (5V)
700 mA
Backplane Current (24V)
2.5 mA
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
The module is designed for standard ControlLogix backplane mounting.
Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the chassis to a common earth ground to maintain signal integrity.
Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.
FAQWhat is the primary function of the 1756-M02AS?It is a motion control module that interfaces with servo drives using analog voltage signals to control axis movement within a ControlLogix system.How many axes can this module control?The 1756-M02AS supports 2 axes per module.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

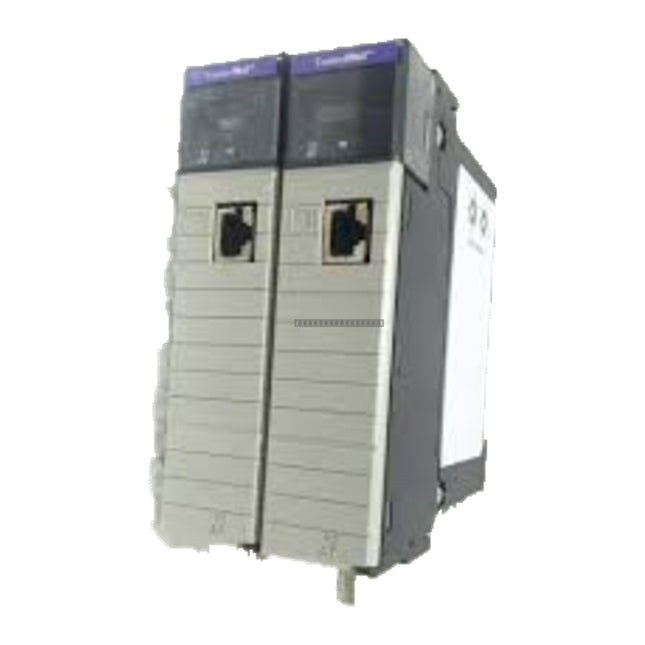

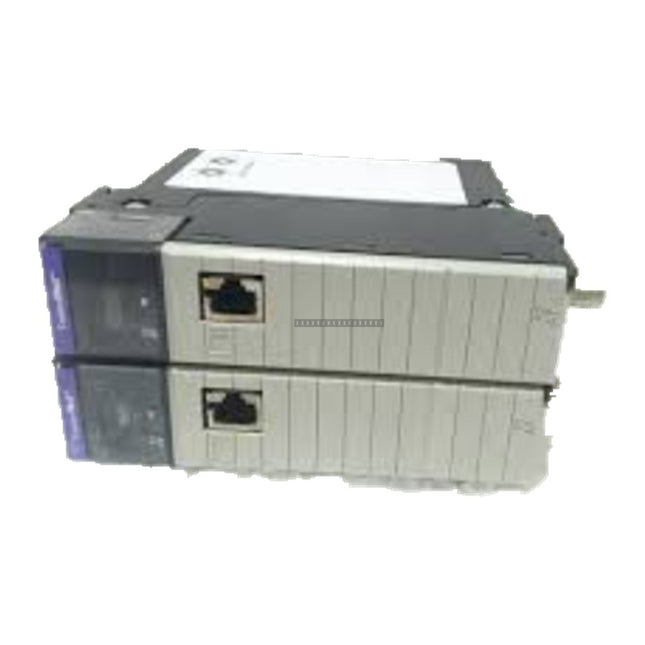

DescriptionThe Allen-Bradley 1756-CNB/E is a ControlLogix ControlNet communication bridge module designed to facilitate high-speed data exchange between ControlLogix controllers and other devices on a ControlNet network. This module acts as a bridge, allowing for efficient communication and control across distributed I/O, peer-to-peer messaging, and controller-to-controller data transfer.Features
Supports up to 99 nodes on a single ControlNet network.
Provides up to 64 communication connections.
Standard ControlNet communication rate of 5 Mbps.
Designed for seamless integration within the ControlLogix chassis environment.
Optimized for deterministic, high-speed industrial communication.
Technical Specifications
Product Model
1756-CNB/E
Series
ControlLogix
Module Type
ControlNet Bridge Module
Communication Rate
5 Mbps
Max Nodes
99
Max Connections
64
Input Current (5.1V DC)
970 mA
Input Current (24V DC)
1.7 mA
Thermal Dissipation
17.4 BTU/hr
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Slide the module into the designated chassis slot and secure it using the top and bottom latches.
Ensure proper grounding of the ControlLogix chassis to a common ground point to minimize EMI interference.
Use shielded ControlNet cabling and appropriate tap connectors to maintain network integrity.
Verify that the module is firmly seated and the backplane connector is fully engaged.
FAQWhat is the primary function of the 1756-CNB/E?The 1756-CNB/E serves as a communication bridge that allows ControlLogix controllers to communicate over the ControlNet network, supporting I/O control and messaging.Can this module be hot-swapped?Yes, the ControlLogix system supports Removal and Insertion Under Power (RIUP), allowing you to replace the module without powering down the entire chassis, provided the environment is not hazardous.What is the communication speed of this module?The module operates at a fixed ControlNet communication rate of 5 megabits per second.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

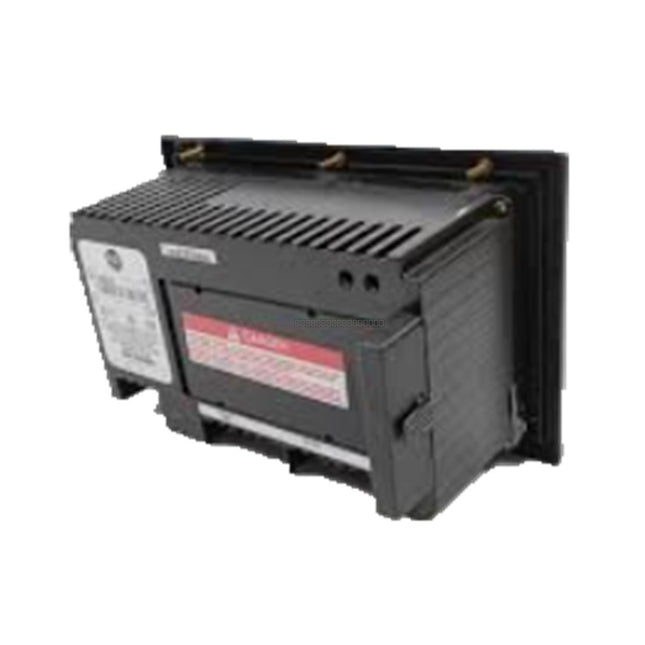

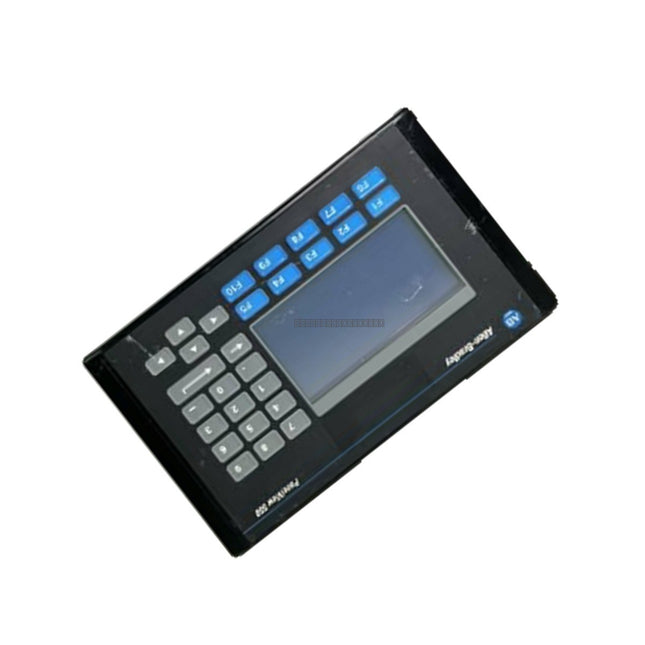

The Allen-Bradley 2711-K6C1L1 is a standard operator interface terminal designed for high-performance industrial monitoring and control. Engineered for critical environments such as manufacturing automation lines and material handling systems, this human-machine interface (HMI) provides reliable visualization of process data and supports robust tactile input for consistent operational control.Features
Tactile stainless-steel domed membrane keypad for reliable operator input.
Color active-matrix TFT display for clear process visualization.
Integrated Remote I/O communication port for direct connectivity with legacy controllers, including PLC-5 and SLC 500 systems.
Dedicated RS-232 port for peripheral printer connectivity.
Internal nonvolatile RAM for efficient storage of runtime application objects, text, and bitmaps without the need for external flash cards.
ApplicationsThis operator terminal is suitable for a wide range of industrial applications, including machine-level control, process monitoring, and data logging in manufacturing, packaging, and material handling systems where legacy Remote I/O integration is required.Technical Specifications
Model
2711-K6C1L1
Display Size
5.7 in
Display Resolution
320 x 234 pixels
Input Type
Keypad
Input Voltage
18-32 VDC (24 VDC nominal)
Power Consumption
34 W max
Memory
240 KB nonvolatile
Communication
Remote I/O, RS-232 Printer
Operating Temp
0 to 50 degC
Installation Guidelines
Ensure the unit is mounted in a panel or enclosure that provides adequate protection against environmental contaminants.
Maintain proper clearance around the unit to allow for adequate ventilation and cooling.
Use shielded communication cables for Remote I/O and RS-232 connections to minimize electromagnetic interference (EMI).
Verify that the power supply is within the 18-32 VDC range before applying power to the terminal.
Always disconnect power before installing or removing the module to prevent electrical damage.
Ensure the terminal is properly grounded according to local electrical codes and Allen-Bradley installation standards.
FAQDoes this unit require external memory cards? No, the 2711-K6C1L1 features internal nonvolatile RAM sufficient for storing runtime application objects, text, and bitmaps.What controllers are compatible with this terminal? This model is designed for direct Remote I/O communication, making it compatible with legacy Allen-Bradley controllers such as the PLC-5 and SLC 500 series.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

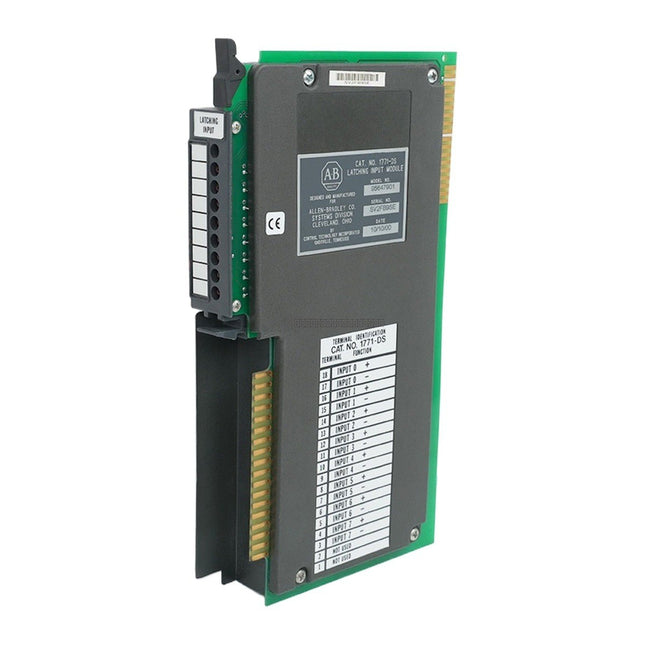

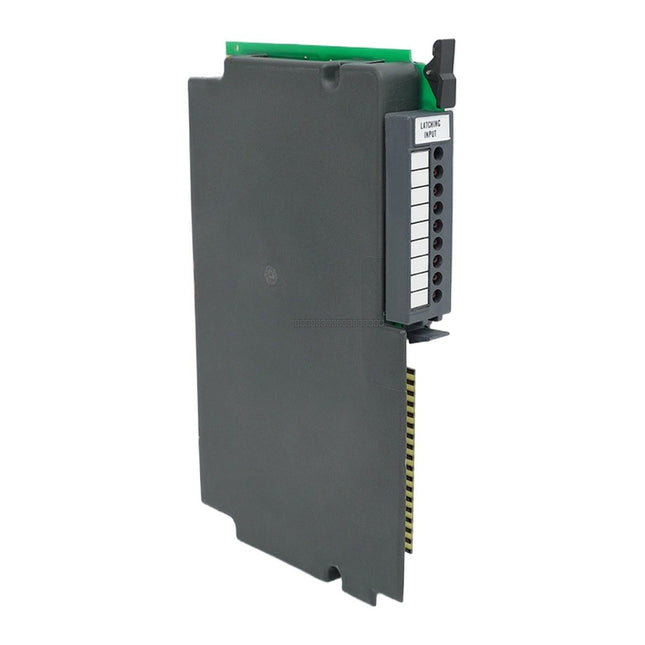

The Allen-Bradley 1771-DS is a specialized 8-input Latching Input Module designed for the PLC-5 system. It is engineered to detect and latch high-speed pulses that occur too rapidly for a standard PLC-5 scan rate to capture. When a pulse is detected at an input terminal, the module sets a corresponding bit in the input image table during the next I/O scan.Features
8-input latching capability for high-speed signal capture.
Selectable pulse capture times: 0.1, 0.5, 1.0, 2.5, or 5.0 ms.
Opto-electrical isolation of 1500V for signal integrity.
Supports both master reset (all inputs) and individual input reset modes.
Compatible with sensors featuring isolated pulse or gate outputs.
Applications
High-speed signal capture for processes exceeding standard PLC-5 scan rates.
Material handling systems requiring precise position or product presence detection.
Packaging equipment and pick-and-place machinery.
Custom machine tool manufacturing and textile assembly lines.
Technical Specifications
Model
1771-DS
Inputs
8
Input Voltage (Logic 1)
10 to 27V DC
Input Voltage (Logic 0)
0 to 5V DC
Nominal Input Current
20mA @ 27V DC
Max Off-State Current
1mA @ 4V DC
Backplane Current
375mA typical
Isolation
1500V Opto-electrical
Operating Temperature
0 to 60 degC
Installation Guidelines
Slot Placement: The module can be installed in any I/O slot of a 1771 chassis, excluding the far-left slot reserved for the processor or adapter.
Keying: To prevent incorrect module insertion, install keying bands on the backplane connector between pins 2 and 4, and between pins 18 and 20.
Wiring: Connect field wiring to the appropriate field wiring arm (e.g., 1771-WH) before seating the module into the chassis.
Handling: Always power down the I/O chassis before inserting or removing the module to prevent electrical damage or unexpected system behavior.
FAQsWhat is the 1771-DS Module?The 1771-DS is a Latching Input Module designed by Allen-Bradley for the PLC-5 system. It is an 8-input, rack-mountable module that operates within a 1771 I/O chassis, commonly used to capture fast pulses.What are the input voltage levels?Logic 1 is 10-27V DC, and Logic 0 is 0-5V DC.What sensors are compatible?It is designed for optical sensors with isolated pulse or gate outputs. The off-state leakage current of the sensors must not exceed 1mA @ 4V DC.What is the modern replacement?When upgrading from PLC-5 to ControlLogix (1756), users often replace it with high-speed modules like the 1756-IB16IF (Fast DC Input) or the 1756-IB16ISOE (Sequence of Events) to maintain fast response times.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

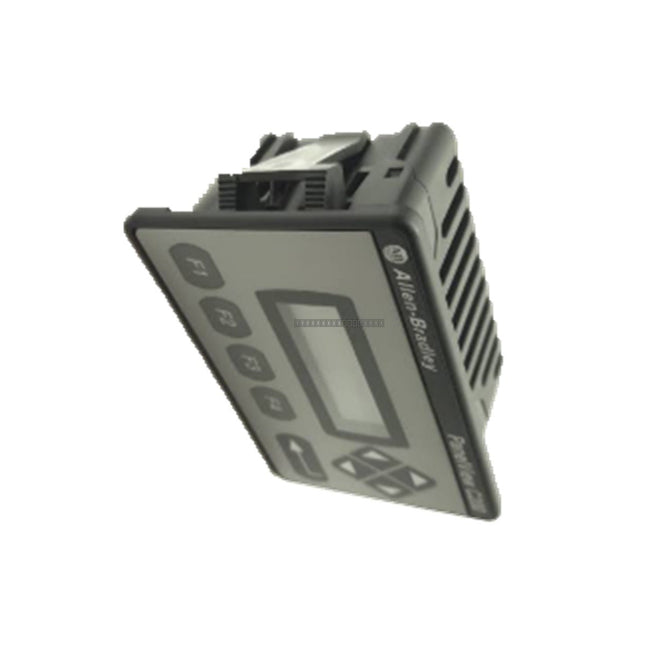

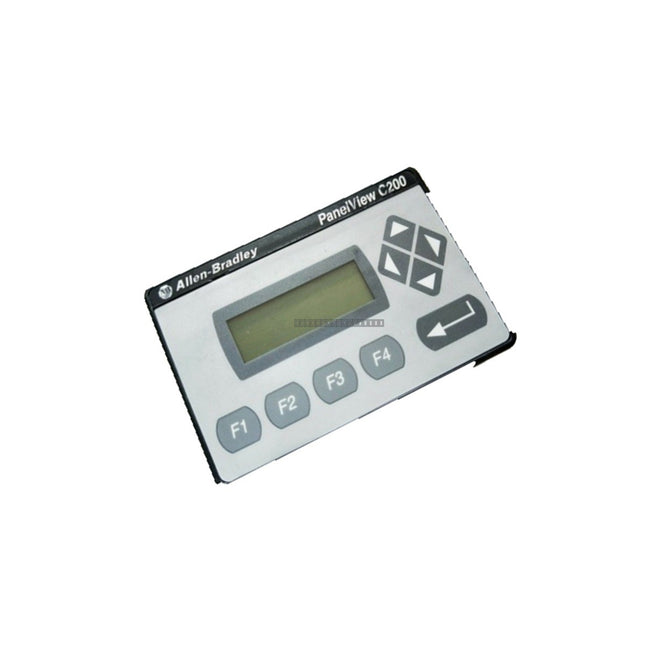

The Allen-Bradley 2711C-RG2F is an industrial-grade protective anti-glare screen overlay specifically engineered for PanelView Component graphic operator terminals. This maintenance accessory provides a robust physical barrier that shields the terminal's integrated display window and touch membrane against environmental hazards, surface scratching, and fluid ingress. By neutralizing harsh overhead reflections and diffusing intense light, the overlay ensures consistent visual clarity for operators in demanding industrial environments.Features
Precision-cut design tailored for PanelView Component C200 and C300 micro-terminal platforms.
Advanced textured matte finish reduces glare and improves readability under high-intensity lighting or direct sunlight.
Durable polymer construction resistant to standard industrial cleaning agents, oils, and airborne debris.
Maintains full touch sensitivity and actuation profiles for both capacitive and resistive screen types.
Flush-mount adhesive perimeter ensures a secure fit without air pockets or optical distortion.
ApplicationsThis overlay is suitable for use in diverse automation sectors, including chemical processing, metal machining, food and beverage production, and outdoor pump station control panels. It is ideal for environments where screen protection and glare reduction are critical for operational safety and equipment longevity.Technical Specifications
Model
2711C-RG2F
Brand
Allen-Bradley
Compatibility
PanelView Component C200, C300
Surface Finish
High-diffusion matte anti-glare
Operating Temperature
0 to 50 deg C
Storage Temperature
-25 to 70 deg C
Mounting Method
Pressure-sensitive adhesive
Installation Guidelines
Ensure the terminal display surface is clean, dry, and free of dust or grease before application.
Use a lint-free cloth and mild industrial cleaner to prepare the bezel area.
Carefully align the overlay with the terminal screen edges before applying pressure to the adhesive perimeter.
Smooth the overlay from the center outward to ensure a bubble-free seal.
Power down the HMI terminal during installation to prevent accidental touch inputs or screen activation.
FAQDoes this overlay affect the touch screen sensitivity?No, the 2711C-RG2F is designed to maintain 100% actuation retention for both tactile keypad and touch-cell matrix inputs, ensuring no loss of responsiveness.Is this overlay compatible with all PanelView models?This specific model is designed for the PanelView Component C200 and C300 series. Please verify your terminal model number before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

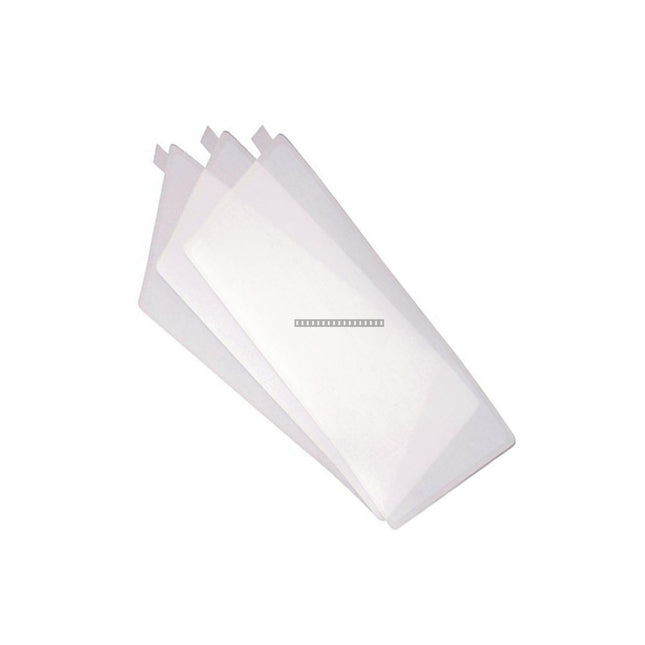

The Allen-Bradley 2711-NV5 is a specialized antiglare overlay accessory engineered for use with PanelView 600 keypad and keypad-and-touch operator terminals. This protective film is designed to minimize ambient light reflections and screen glare, providing enhanced optical clarity in demanding industrial environments while reducing operator eye strain.Features
Reduces screen glare and reflections for improved visibility in high-ambient-light conditions.
Precision-cut polymer construction ensures a seamless fit for PanelView 600 display surfaces.
Protects the underlying display from dust, scratches, and minor surface abrasions.
Maintains full touch sensitivity and keypad operational integrity.
Passive mechanical component requiring no electrical power or configuration.
ApplicationsThis overlay is intended for use in industrial control panels where HMI visibility is critical. It is suitable for manufacturing floors, control rooms, and machine-level operator stations where glare from overhead lighting or windows may impede screen readability.Technical Specifications
Model
2711-NV5
Brand
Allen-Bradley / Rockwell Automation
Accessory Type
Antiglare Overlay
Compatibility
PanelView 600 (Keypad or Keypad & Touch)
Operating Temperature
0 to 50 deg C
Power Consumption
Passive (None)
Installation Guidelines
Ensure the PanelView 600 display surface is clean, dry, and free of oils or debris before application.
Handle the overlay by the edges to prevent fingerprints or contaminants on the adhesive side.
Align the overlay carefully with the display perimeter before applying firm, even pressure to ensure a bubble-free bond.
Avoid using abrasive cleaners on the overlay surface; clean only with a soft, lint-free cloth and mild, non-abrasive cleaning agents.
FAQDoes this overlay affect the touch screen responsiveness of the PanelView 600?No, the 2711-NV5 is specifically designed to be thin enough to maintain full touch sensitivity and keypad functionality when installed correctly.Is this overlay compatible with all PanelView 600 models?The 2711-NV5 is compatible with PanelView 600 terminals featuring keypad or keypad and touch interfaces. Please verify your specific terminal model number before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

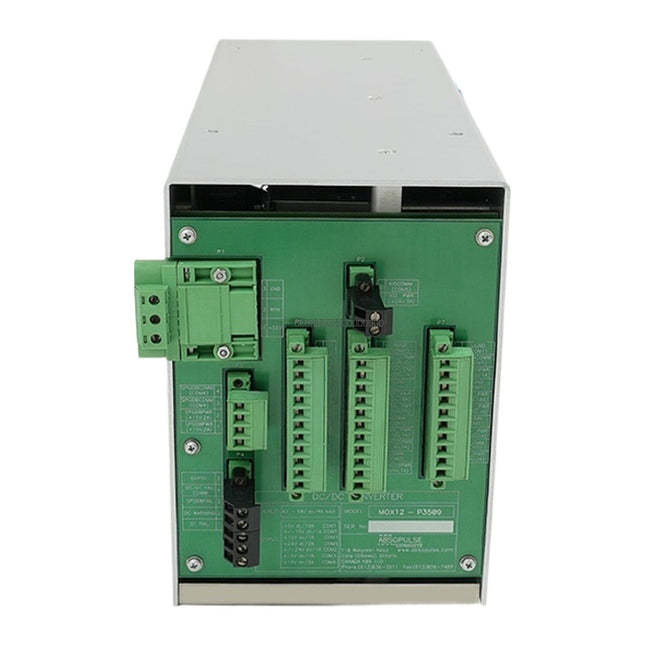

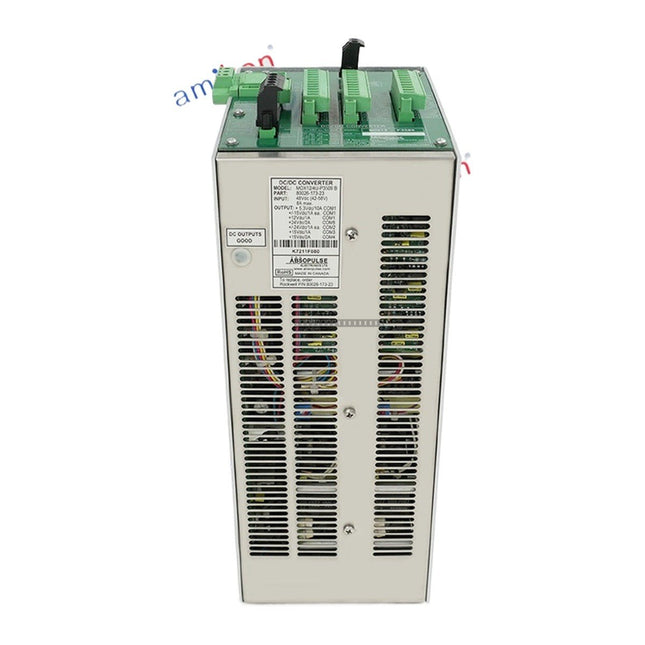

DescriptionThe Allen-Bradley MOX12/4U-P3509B (Order Code: 80026-173-23) is a high-reliability DC/DC power supply module designed for demanding industrial automation and safety-critical environments. Housed in a robust metal enclosure, this unit provides stable, regulated power output to sensitive control electronics. It is engineered to maintain performance in harsh conditions, featuring conformal coating on internal circuit boards to resist moisture, dust, and atmospheric contaminants.Features
Robust metal enclosure for enhanced durability and EMI shielding
Conformal coated circuit boards for environmental protection
High efficiency operation (up to 90%) to minimize thermal dissipation
Integrated LED status indicators for local diagnostics
Built-in protection against overcurrent, overload, and short-circuit conditions
Chassis-mount design for secure installation in control cabinets
Applications
Safety Instrumented Systems (SIS) and critical control loops
Oil & Gas pipeline pumping stations and gas compression control
Power generation facilities (ID/FD fan control systems)
Municipal water and wastewater treatment pump control
Petrochemical processing equipment including mixers and extruders
Technical Specifications
Model
MOX12/4U-P3509B (80026-173-23)
Input Voltage
100-240V AC (50/60Hz)
Output Power
350W
Efficiency
>85% (up to 90%)
Operating Temperature
-25 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Humidity
5-95% RH (Non-condensing)
Mounting
Chassis Mount
Installation Guidelines
Ensure the power supply is disconnected from the AC source before performing any wiring or installation.
Mount the module in a well-ventilated area to allow for natural convection cooling; maintain adequate clearance around the enclosure.
Use appropriate wire gauges for input and output connections to prevent voltage drop and overheating.
Ensure a solid chassis ground connection to the metal enclosure to maintain EMI/EMC compliance.
Verify that the input voltage matches the module's rated range (100-240V AC) before energizing.
Handle with care to avoid damage to the conformal coating; observe standard ESD precautions when handling the module.
FAQsWhat is the primary application of the 80026-173-23?This module is a specialized power supply unit often utilized in safety-critical systems, including Triconex-based architectures, to provide regulated DC power to controllers and I/O modules.Does this unit require external cooling?The module is designed for operation in standard industrial control cabinets. While it is highly efficient, ensure that the cabinet provides sufficient airflow to stay within the specified operating temperature range of -25 degC to +70 degC.What protection features are included?The unit features integrated automatic overload, overcurrent, and short-circuit protection to safeguard both the power supply and the connected downstream equipment.
