Description

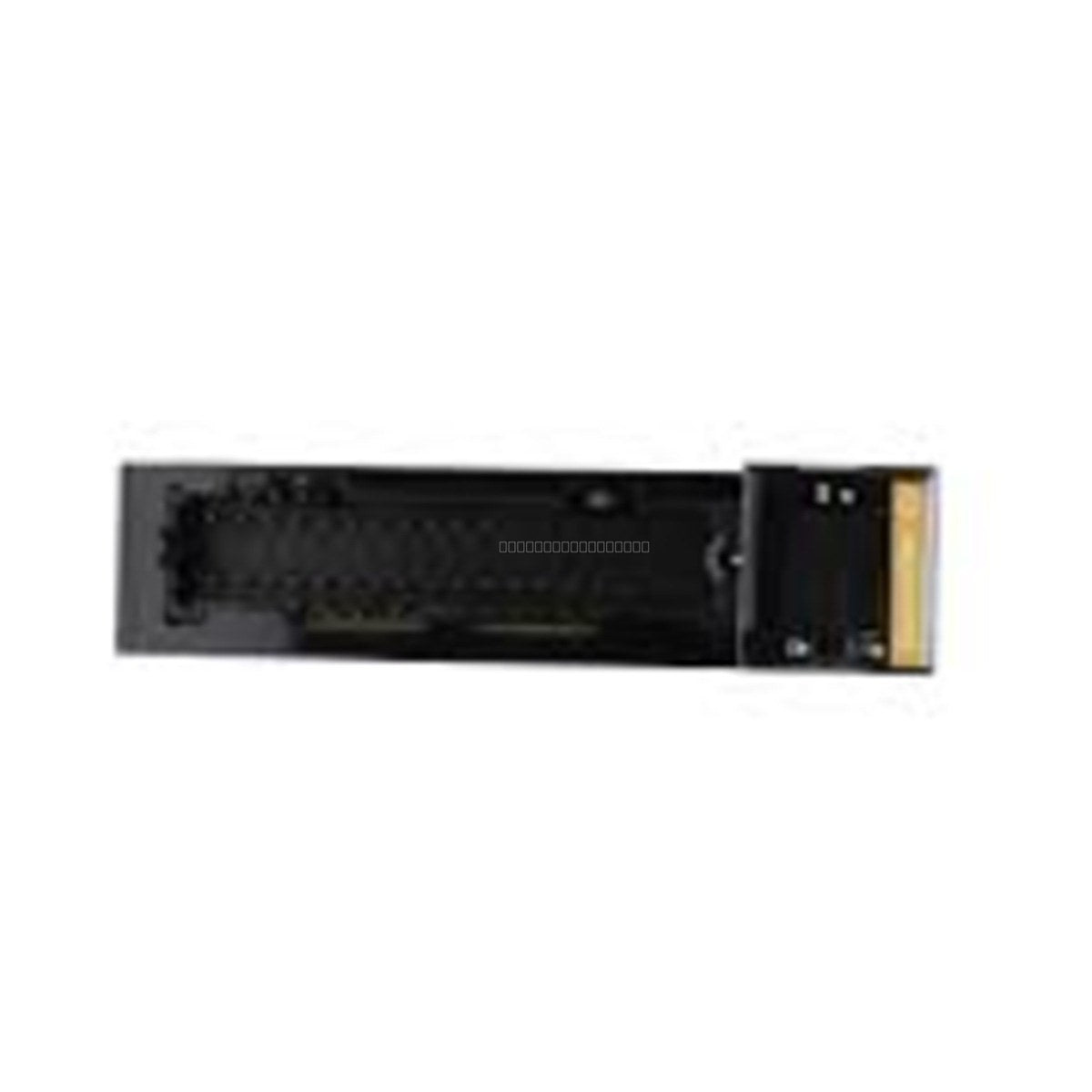

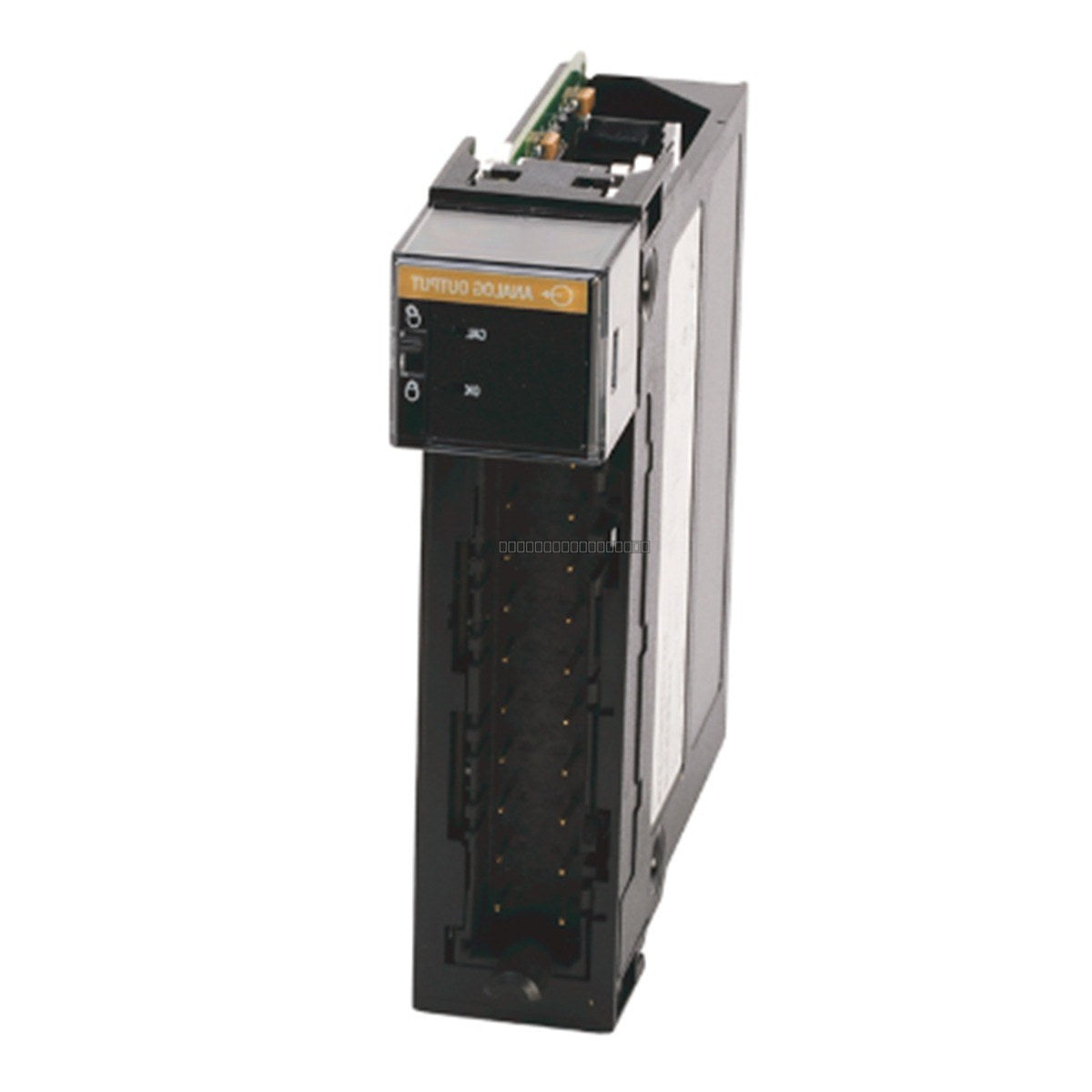

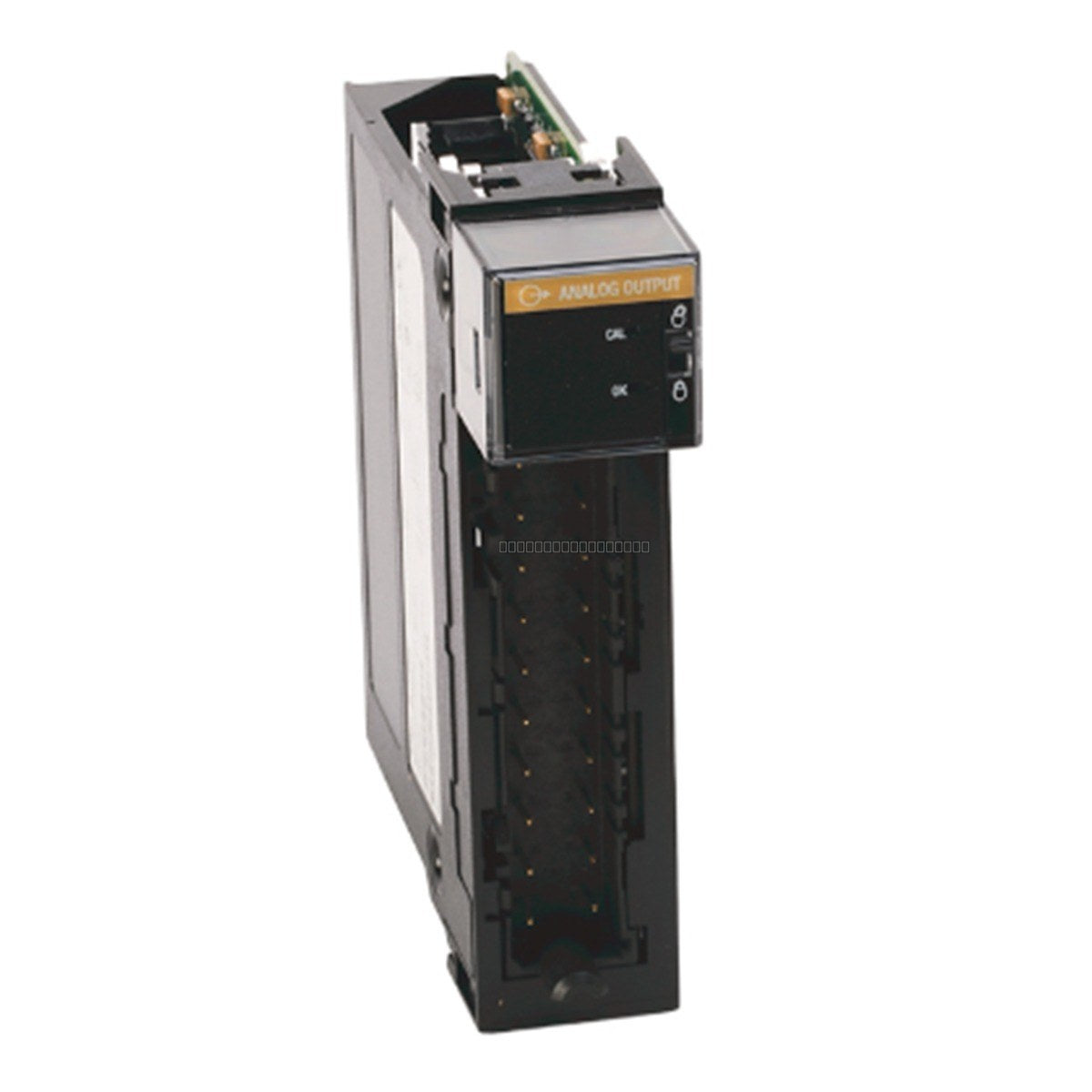

The Allen-Bradley 1756-OF8I is a high-performance isolated analog output module designed for the ControlLogix platform. This module provides eight channels of isolated analog output, supporting both current and voltage signals to meet diverse industrial control requirements. It is engineered to provide precise control for actuators, valves, and variable speed drives in demanding automation environments.
Features
- Eight (8) isolated analog output channels.
- Supports configurable current ranges (0-20 mA, 4-20 mA) and voltage ranges (-10 to 10V, 0 to 10V, 0 to 5V).
- 16-bit resolution for high-accuracy signal output.
- Integrated open-circuit detection for current outputs and short-circuit detection for voltage outputs.
- Overvoltage protection up to +/-30V DC.
- Compatible with 1756-TBCH and 1756-TBS6H Removable Terminal Blocks (RTB).
Applications
The 1756-OF8I is widely utilized in industrial process control systems, including water treatment, chemical processing, and manufacturing automation. It is ideal for applications requiring galvanic isolation to prevent ground loops and ensure signal integrity between the controller and field devices.
Technical Specifications
| Module Type |
Isolated Analog Output |
| Number of Outputs |
8 |
| Current Draw (24V DC) |
400 mA |
| Power Dissipation |
6.5 Watts |
| Isolation Voltage |
50V Continuous |
| Conversion Method |
R-Ladder DAC |
| Resolution |
16-bit |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module.
- Use appropriate 1756-TBCH or 1756-TBS6H terminal blocks for secure wiring connections.
- Maintain proper grounding practices to minimize electrical noise and EMI interference.
- Route signal cables away from high-voltage power lines to prevent signal degradation.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent component damage.
FAQ
What is the primary function of the 1756-OF8I?
The 1756-OF8I is an isolated analog output module for the ControlLogix system, used to send precise analog control signals to field equipment like valves or drives.
Does this module support both voltage and current outputs?
Yes, the module is capable of outputting both voltage (-10 to 10V, 0 to 10V, 0 to 5V) and current (0-20 mA, 4-20 mA) signals.
What terminal blocks are compatible with this module?
The module is compatible with the 1756-TBCH and 1756-TBS6H removable terminal blocks.
