The Allen-Bradley 1756-DNB is a high-performance communication module designed for the ControlLogix platform, serving as a dedicated DeviceNet scanner. It enables seamless integration between ControlLogix processors and a wide array of DeviceNet-compatible field devices, including motor starters, drives, sensors, actuators, and distributed I/O systems.Features
Functions as a DeviceNet scanner for ControlLogix chassis environments.
Supports communication with up to 64 DeviceNet nodes (addresses 00-63).
Configurable communication rates: 125 Kbps, 250 Kbps, and 500 Kbps with automatic baud rate detection.
Integrated network diagnostics and status monitoring via front-panel indicators.
Backplane-powered operation with support for remote rack mounting via bridging modules.
Supports Automatic Device Replacement (ADR) for simplified maintenance.
Applications
Automotive Production: Weld cells, assembly sensors, and conveyor control.
Oil & Gas: Telemetry, valve manifold control, and field instrumentation.
Metals & Mining: High-vibration machinery, sorters, and heavy-duty processing gear.
Water & Wastewater: Pump control, flow metering, and remote processing instruments.
Warehouse & Fulfillment: AGV routing, sortation systems, and conveyor networks.
Technical Specifications
Model
1756-DNB
Series
ControlLogix
Manufacturer
Allen-Bradley
Backplane Current (5.1V DC)
350 mA - 400 mA
Backplane Current (24V DC)
210 mA
Max Thermal Dissipation
19.8 BTU/hr (approx. 5.8 Watts)
Isolation Voltage
30V
Max Network Distance (125 Kbps)
500 meters
Max Network Distance (250 Kbps)
250 meters
Max Network Distance (500 Kbps)
100 meters
Installation Guidelines
ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage.
Hot-Swapping: ControlLogix modules support RIUP (Removal and Insertion Under Power). However, you must disconnect the DeviceNet plug before removing the module to prevent electrical transients from affecting the network.
Termination: The DeviceNet trunk line requires two 121-ohm termination resistors at the extreme ends of the network.
Grounding: The network shield must be grounded at a single point only, typically at the DeviceNet power supply, to prevent ground loops.
Configuration: Use RSNetWorx for DeviceNet to map I/O parameters and configure device settings.
FAQWhat is the primary function of the 1756-DNB?The 1756-DNB acts as a bridge and scanner, allowing a ControlLogix controller to exchange data with distributed field devices over a DeviceNet network.Can this module be used in a remote chassis?Yes, the module can operate in a remote rack without a local CPU, provided there is a communication bridge (such as an EtherNet/IP or ControlNet module) in the same chassis to route data to the master controller.How do I set the baud rate?The module features Autobaud functionality to detect the network speed, or it can be manually configured via the front-panel buttons or through the RSLogix 5000 / Studio 5000 software environment.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric 140DDO36400 is a high-density DC output module designed for the Modicon Quantum automation platform. This module provides reliable switching capabilities for industrial control applications, featuring 96 discrete output channels configured as source outputs. It is engineered to operate within a 24VDC control environment, ensuring seamless integration into existing Quantum I/O racks and distributed control architectures.Features
96 discrete DC output channels for high-density I/O requirements.
Source output configuration suitable for standard industrial load switching.
Designed for 24VDC nominal voltage operation.
Compatible with the Modicon Quantum backplane for rapid installation and modular expansion.
Robust construction for demanding industrial environments.
ApplicationsThis output module is primarily utilized in large-scale industrial automation systems, including manufacturing process control, material handling systems, and power distribution monitoring. It is ideal for driving actuators, relays, and indicators that require a 24VDC source signal within a Quantum-based PLC architecture.Technical Specifications
Product Model
140DDO36400
Alternative Part Number
140-DDO-364-00
Manufacturer
Schneider Electric
Series
Modicon Quantum
Output Type
DC Source
Number of Channels
96
Voltage Rating
24VDC
Installation Guidelines
Ensure the Quantum rack is powered down before inserting or removing the module to prevent electrical damage or backplane faults.
Verify that the module is fully seated in the rack slot and secured with the integrated locking mechanisms.
Use appropriate shielded cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate ventilation around the rack to prevent thermal buildup, adhering to standard clearance requirements for the Quantum series.
Always verify polarity of the 24VDC supply before connecting field wiring to the terminal blocks.
FAQIs the 140DDO36400 compatible with all Quantum processors?Yes, this module is designed for use within the standard Modicon Quantum I/O rack system and is compatible with the Quantum processor family.What is the output configuration of this module?The 140DDO36400 is a source-type output module, meaning it provides the positive voltage to the load.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 2711P-B15C15A7 is a high-performance operator interface terminal from the PanelView Plus 1500 series. Designed for demanding industrial environments, this unit features a 15-inch color TFT display with a 1024 x 768 resolution, providing clear visualization of system telemetry and control parameters. The terminal supports dual-input functionality, allowing operators to interact via both a physical keypad and a touch-screen interface, ensuring reliable control in diverse operational settings.Features
15-inch color TFT display for high-visibility process monitoring.
Dual-mode input: Integrated keypad and analog resistive touch screen.
Windows CE-based logic module for robust FactoryTalk View Machine Edition application support.
Integrated ControlNet communication port for deterministic network integration.
10/100 Base-T Ethernet port and RS-232 serial connectivity for versatile plant-floor networking.
USB host port for peripheral support and firmware updates.
Internal 100-240 VAC power supply for global compatibility.
ApplicationsThis operator terminal is widely utilized in sectors such as automotive assembly, water treatment, chemical processing, and discrete manufacturing. It serves as a central HMI node for managing complex automation systems, alarm monitoring, and real-time operational control.Technical Specifications
Model
2711P-B15C15A7
Display Size
15 in
Display Type
Color TFT LCD
Resolution
1024 x 768 pixels
Input Method
Keypad and Touch screen
Flash Memory
256 MB
Input Voltage
100-240 VAC
Frequency
50/60 Hz
Power Consumption
160 VA max
Operating Temperature
0 to 55 deg C
Storage Temperature
-25 to 70 deg C
Humidity
5 to 95 % non-condensing
Installation Guidelines
Ensure adequate clearance around the unit for proper ventilation and cooling.
Mount the terminal in a suitable NEMA/IP-rated enclosure to protect against dust and moisture.
Verify that the AC power source is stable and within the specified 100-240 VAC range.
Use shielded communication cables for Ethernet and ControlNet connections to minimize EMI interference.
Power down the unit before performing any maintenance, wiring changes, or memory card insertions.
Observe standard ESD precautions when handling the module to prevent damage to internal components.
FAQWhat communication protocols are supported by this model?The 2711P-B15C15A7 supports Ethernet (10/100 Base-T), RS-232 serial communication, and ControlNet networking.Can this unit be used in high-temperature environments?The operating temperature range is 0 to 55 deg C. Ensure the installation environment does not exceed these limits to maintain system reliability.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens Simatic TP27 (6AV3627-6QL00-0BC0) is a robust operator interface terminal engineered for integration with legacy Simatic S5 control systems. This 10.4-inch color touch panel provides a centralized visualization point for monitoring and controlling industrial processes. By replacing traditional hardwired controls with a digital interface, it facilitates efficient diagnostic tracking, rapid fault identification, and improved operator oversight in demanding manufacturing environments.Features
10.4-inch color TFT display with integrated resistive touch screen for reliable operator input.
1 MB Flash-EPROM memory for non-volatile storage of project configurations and recipes.
Designed for compatibility with Simatic S5 architectures using standard AS511 communication protocols.
Integrated TTY (20 mA current loop) and RS232/RS422 serial interfaces.
Passive cooling design eliminates the need for mechanical fans, reducing maintenance requirements.
IP65-rated front panel protection to withstand dust and low-pressure water jets in industrial settings.
ApplicationsThis operator panel is primarily utilized in legacy automation environments where Simatic S5 controllers are active. Typical applications include automotive assembly lines, chemical processing plants, and power generation facilities requiring reliable, localized process visualization and control.Technical Specifications
Model
6AV3627-6QL00-0BC0
Display Size
10.4 inches
Display Type
Color TFT LCD
Memory
1 MB Flash-EPROM
Input Voltage
24 VDC
Operating Temperature
0 to 50 deg C
Storage Temperature
-20 to 60 deg C
Relative Humidity
85 percent non-condensing
Enclosure Rating
IP65 (Front)
Installation Guidelines
Ensure the panel is mounted in a clean, dry location with adequate clearance for airflow behind the unit.
Use the provided mounting hardware to secure the front bezel against the enclosure cutout to maintain the IP65 seal.
Verify that the 24 VDC power supply is stable and properly grounded to prevent electrical noise interference.
Route communication cables (TTY/RS232/RS422) away from high-voltage power lines and variable frequency drive (VFD) cabling to minimize EMI.
Always power down the system before connecting or disconnecting communication cables to protect the interface ports.
FAQIs this unit compatible with modern S7 controllers? The TP27 is specifically designed for the Simatic S5 series and utilizes the AS511 protocol. It is not natively compatible with S7-series controllers without specific protocol conversion hardware.Does the unit require a fan for cooling? No, the TP27 uses a passive cooling design, which increases reliability in dusty environments by avoiding the intake of airborne contaminants.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe General Electric IC693ALG391F is a high-performance analog output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides two independent output channels, enabling precise control of external analog devices such as actuators, valves, and variable frequency drives. It is engineered to deliver reliable signal conversion with a 12-bit digital resolution, ensuring accurate process control in industrial automation environments.Features
Two independent analog output channels.
Supports configurable ranges of 4-20 mA and 0-20 mA.
Fast channel update rate of 5 ms for real-time responsiveness.
Robust 1500 VAC isolation between field and logic circuitry.
Compatible with standard 24 VDC external supply voltage (20-30 VDC range).
Integrated diagnostics for monitoring output status.
Technical Specifications
Model Number
IC693ALG391F
Number of Channels
2
Resolution
12-bit
Output Ranges
4-20 mA, 0-20 mA
Update Rate
5 ms
Isolation
1500 VAC (Field to Logic)
Current Draw (5 VDC)
30 mA
Current Draw (24 VDC)
215 mA
Compliance Voltage
25 V (Max)
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module.
Verify that the module is fully seated in the backplane slot and secured with the provided mounting screws.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Ensure the external 24 VDC power supply is properly grounded and within the specified 20-30 VDC range.
Maintain adequate clearance around the module to allow for proper heat dissipation and airflow within the enclosure.
Avoid routing analog signal cables alongside high-voltage AC power lines.
FAQWhat is the primary function of the IC693ALG391F module?This module serves as an analog output interface for the GE Series 90-30 PLC, converting digital data from the controller into analog current signals to drive external process equipment.Can this module be powered by the backplane?The module requires both +5 VDC from the backplane and an external +24 VDC supply. The 24 VDC can be sourced from the backplane (if supported by the power supply) or provided by an external user-supplied source.What is the resolution of the output signals?The module features a 12-bit digital resolution, providing 4 microamps resolution for the 4-20 mA range and 5 microamps for the 0-20 mA range.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe General Electric IC755CSS06RDA is a high-performance HMI unit from the PACSystems QuickPanel+ series. This industrial operator interface is engineered to provide seamless integration, control, and data historian capabilities within complex automation environments. Featuring a responsive interface and robust processing power, it serves as a centralized visualization and control node for plant-floor operations.Features
Integrated HMI, control, and data historian functionality.
Multi-touch interface for enhanced operator responsiveness and process visualization.
Built-in web browser with multimedia support for advanced diagnostic and reporting tasks.
Configurable email and text alert system for real-time process monitoring.
Open architecture supporting compatibility with a wide range of third-party industrial components.
Remote diagnostic capabilities to simplify maintenance and troubleshooting.
Technical Specifications
Product Model
IC755CSS06RDA
Manufacturer
General Electric
Processor
Freescale i.MX535 (1 GHz ARM Cortex A8)
Operating System
Microsoft Windows Embedded Compact 7
RAM
512 MB DDR3 SDRAM
Touch Panel Type
Analog Resistive Single Touch
Serial I/O
1x RS-232 COM Port (5-Pin Connector)
Storage
1x SD/SDHC Card Slot
Power Requirements
+24VDC +/- 20%
Installation Guidelines
Ensure the device is mounted in an enclosure that provides adequate ventilation to maintain operating temperature limits.
Verify that the power supply is stable and within the +24VDC +/- 20% range before connection.
Use shielded communication cables for RS-232 connections to minimize electromagnetic interference (EMI).
Handle the unit with care to avoid damage to the analog resistive touch surface.
Ensure proper grounding of the HMI chassis to the control panel common ground to prevent ground loops and electrical noise.
Always disconnect power before inserting or removing SD memory cards or connecting peripheral cables.
FAQWhat is the primary operating system for the IC755CSS06RDA?This unit runs on Microsoft Windows Embedded Compact 7, providing a stable and reliable platform for industrial HMI applications.Does this model support external storage?Yes, the unit is equipped with an integrated SD/SDHC card slot for data logging, project storage, or firmware updates.What type of touch interface does this HMI use?The IC755CSS06RDA utilizes an analog resistive single-touch panel designed for durability in industrial environments.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Emerson 8515-BI-PN-07 is a high-performance Network Interface Module designed for seamless integration within the PAC8000 I/O system. This module functions as a PROFINET slave, facilitating reliable communication between the field I/O and the host controller. Engineered for demanding industrial environments, it ensures robust data exchange and system stability in distributed control applications.Features
PROFINET slave interface for PAC8000 I/O systems
Designed for high-reliability industrial networking
Wide operating temperature range for harsh environments
Galvanic isolation to protect sensitive control circuitry
Compact form factor for efficient cabinet space utilization
Technical Specifications
Model
8515-BI-PN-07
Function
Network Interface Module
Protocol
PROFINET (Slave)
System Power Consumption
460mA @ 12VDC
Operating Voltage
19.2 - 30 V DC
Isolation
500 V AC
Operating Temperature
-40 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Humidity
5-95% RH (non-condensing)
Installation Guidelines
Ensure the module is installed in a clean, dry environment protected from excessive vibration and corrosive gases.
Verify that the power supply is disconnected before inserting or removing the module from the rack to prevent electrical damage.
Maintain proper grounding practices to minimize EMI/RFI interference in the communication lines.
Ensure adequate ventilation around the module to maintain operating temperatures within the specified range.
Use shielded cables for PROFINET connections to ensure signal integrity in high-noise industrial areas.
FAQWhat is the primary function of the 8515-BI-PN-07?This module acts as a PROFINET slave interface, allowing the PAC8000 I/O system to communicate effectively with a PROFINET controller.Can this module operate in extreme temperatures?Yes, the unit is rated for an operating temperature range of -40 degC to +70 degC, making it suitable for a variety of industrial climate conditions.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 330180-X1-CN MOD:145004-13 is a high-precision 3300 XL Proximitor Sensor engineered for non-contact vibration and position monitoring in industrial rotating machinery. As a critical component of the 3300 XL 8 mm Proximity Transducer System, this unit converts probe tip proximity to a conductive surface into a proportional output voltage, enabling accurate measurement of both static and dynamic machine parameters.Features
Designed for fluid-film bearing machines, compression systems, and speed measurement applications.
Provides complete interchangeability of probes, extension cables, and sensors, eliminating the need for individual bench calibration.
Backwards compatible with legacy 3300 series transducer system components.
Extended temperature range performance for demanding industrial environments.
Includes hazardous area approvals (ATEX, IECEx, and NEPSI) for safe operation in explosive atmospheres.
Applications
Oil & Gas: Monitoring critical centrifugal compressors and pumps in refineries and offshore platforms.
Power Generation: Protecting steam and gas turbines, and hydro generators.
Petrochemical Processing: Tracking equipment health in high-risk areas where flammable gases are present.
Water & Wastewater: Ensuring long-term reliability in large-scale pumping systems.
Technical Specifications
Model
330180-X1-CN MOD:145004-13
System Compatibility
3300 XL 8mm Proximity Transducer System
Linear Range
2 mm (80 mils)
Output Resistance
50 Ohm
Frequency Response
0 to 10 kHz (+0, -3 dB)
Extension Cable Capacitance
69.9 pF/m (21.3 pF/ft) typical
Operating Voltage
-17.5 to -26 Vdc
Agency Approvals
CSA, ATEX, IECEx, NEPSI
Installation Guidelines
Mounting: Install the sensor in a protective enclosure or on a DIN rail within a control cabinet.
Isolation: The mounting base provides electrical isolation from the DIN rail; no additional isolator plates are required.
Spacing: To prevent cross-talk, maintain a minimum separation of 40 mm (1.6 in) for axial measurements or 74 mm (2.9 in) for radial measurements when installing multiple sensors.
Handling: Ensure the system is powered down before connecting or disconnecting cables to prevent electrical damage.
FAQWhat is the primary function of the 330180-X1-CN?It is a Proximitor sensor that processes signals from a proximity probe to provide a voltage output proportional to the distance between the probe tip and a conductive target, used primarily for vibration and position monitoring.What does the -CN suffix indicate?The -CN suffix denotes that the unit is configured with agency approvals specifically for the Chinese market, including compliance with NEPSI standards alongside standard ATEX/IECEx hazardous area markings.Is this sensor compatible with older 3300 series probes?Yes, the 3300 XL system is designed to be backwards compatible with non-XL 3300 series 5 mm probes, though system-wide performance is optimized when using the full 3300 XL component set.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1771-OAN is a 32-point digital output module designed for use within the PLC-5 programmable controller system. This module provides high-density output control for industrial applications requiring AC voltage switching. Although this specific model has been discontinued by the manufacturer, it remains a critical component for maintaining legacy automation infrastructure.Features
32-point digital output configuration for high-density I/O requirements.
Supports an operating voltage range of 80-265 VAC at 50/60 Hz.
Designed for seamless integration with the Allen-Bradley 1771 I/O chassis.
Robust construction suitable for standard industrial control environments.
Technical Specifications
Model
1771-OAN
Module Type
Digital Output Module
Point Count
32 Points
Voltage Range
80-265 VAC
Frequency
50/60 Hz
Current Rating
8.0 Amp
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the PLC-5 chassis power is disconnected before installing or removing the module to prevent electrical damage or injury.
Verify that the module is fully seated in the appropriate I/O chassis slot and that the locking tabs are engaged.
Use appropriate shielded cabling for output connections to minimize electromagnetic interference (EMI) in high-noise environments.
Adhere to proper grounding practices for the 1771 chassis to ensure system stability and safety.
Maintain adequate clearance around the module to allow for proper airflow and cooling within the cabinet.
FAQIs the 1771-OAN still in production?No, this module has been discontinued by the manufacturer. We provide high-quality surplus units to support your existing PLC-5 systems.What is the voltage range for this module?The 1771-OAN operates within an 80-265 VAC range at 50/60 Hz.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB RDO86-16L is a specialized relay unit designed for industrial control and signal switching applications. As part of the ABB/Stromberg product line, this module provides reliable relay-based output control for automation systems. Please note that this specific model has been discontinued by the manufacturer, making it a critical component for maintenance and legacy system support.Features
Robust relay output architecture for industrial signal management.
Designed for integration into standard control panels and automation racks.
Engineered for high-reliability switching in demanding electrical environments.
Compact form factor suitable for space-constrained cabinet installations.
Technical Specifications
Manufacturer
ABB
Model
RDO86-16L
Product Type
Relay Unit
Weight
0.72 kg
Country of Origin
Finland
Installation Guidelines
Ensure the control system power is fully disconnected before installing or removing the RDO86-16L module to prevent electrical damage.
Mount the unit in a clean, dry, and vibration-free environment to ensure long-term operational stability.
Verify that all terminal connections are secure and that wiring conforms to local electrical codes for industrial control equipment.
Maintain adequate spacing around the module to allow for proper airflow and heat dissipation.
Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.
FAQIs the ABB RDO86-16L still in production?No, this model has been discontinued by the manufacturer. We provide these units to support legacy systems requiring exact replacements.What is the primary function of this module?The RDO86-16L functions as a relay unit, providing isolated switching capabilities for industrial automation signals.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The ABB NPBA-12 is a dedicated Profibus adapter module designed to facilitate seamless communication between ABB drives and Profibus DP fieldbus networks. This module allows for efficient integration of drive control and monitoring into larger industrial automation systems, supporting standardized data exchange protocols.Features
Enables Profibus DP connectivity for compatible ABB drive units.
Configuration and settings are managed directly via the drive interface control panel.
Compact plastic enclosure suitable for standard industrial environments.
Designed for straightforward mounting onto standard DIN-style mounting rails.
Low power consumption profile of 70 mA at 24 V DC.
Technical Specifications
Product Model
NPBA-12
Function
Profibus Adapter Module
Current Consumption
70 mA at 24 V DC
Enclosure Material
Plastic
Mounting
Standard mounting rail
EMC Compliance
EN 50081-2, EN 50082-2
Material Approval
UL/CSA approved materials
Installation Guidelines
Ensure the drive is fully powered down before attempting to install or remove the NPBA-12 module.
Mount the module securely onto the designated rail within the drive cabinet, ensuring proper alignment with the internal communication port.
Verify that the module is firmly seated to prevent intermittent connection issues caused by vibration.
Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Follow standard ESD (electrostatic discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the NPBA-12?The NPBA-12 acts as a communication gateway, allowing an ABB drive to function as a slave device on a Profibus DP fieldbus network.How is the module configured?Configuration is performed through the drive's local control panel interface, which allows for the setup of communication parameters and network addresses.Does this module require external power?The module is powered via the drive's internal supply, consuming approximately 70 mA at 24 V DC during operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB 3AXD50000439638 is a professional-grade IGBT Assembly Kit engineered for maintenance and repair of ABB industrial drive and power conversion systems. This kit provides the necessary components to service the power semiconductor stage, specifically for R8i frame size inverter modules. It is a critical spare for restoring high-speed switching functionality in variable frequency drives (VFDs) and regenerative braking systems.Features
Designed for ABB R8i frame size inverter modules.
Supports 2-IGBT configuration for power stage restoration.
Maintains original equipment thermal and electrical performance.
Suitable for high-current industrial applications ranging from 200 A to 400 A.
Enables rapid field repair without requiring complete module replacement.
Applications
Variable Frequency Drives (VFDs) and Inverter Systems.
Mining and Mineral Processing (conveyors, crushers, and grinders).
Metal and Steel Manufacturing (rolling mills and furnace blowers).
Marine Propulsion and Frequency Converters.
Large-scale industrial motor control and power conversion.
Technical Specifications
Model
3AXD50000439638
Spare Model
R8i 500V 2 IGBT
Rated Current Range
200 – 400 A
Gate Drive Voltage
+/- 15 V DC
Insulation Voltage
>= 2500 V
Operating Temperature
-20 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% (non-condensing)
Installation Guidelines
Power Isolation: Disconnect all AC and DC power sources. Perform Lock-Out/Tag-Out (LOTO) procedures on the main breaker before starting work.
Capacitor Discharge: Allow a minimum of 15 to 20 minutes for internal DC busbar capacitors to fully discharge.
Voltage Verification: Always use a calibrated multimeter to confirm zero voltage on the DC busbars before contact.
ESD Precautions: Use a grounded anti-static wrist strap. Internal gate driver boards are highly sensitive to electrostatic discharge.
Mounting: Ensure the assembly is correctly seated within the drive module housing to maintain proper thermal contact and alignment.
FAQWhat is the 3AXD50000439638?The 3AXD50000439638 is an IGBT Assembly Kit (R8i 500V 2 IGBT type) used for the maintenance of ABB ACS800 series frequency inverter drives.Which drive frame sizes are compatible?This kit is specifically engineered for the R8i frame size within ABB modular drive systems, including models like the ACS800-104.Can this be used in 3-IGBT systems?No. This kit is for 2-IGBT configurations. If your system requires a 3-IGBT module, please verify the correct part number (e.g., 3AXD50000439706) for your specific hardware.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5355-3UA11 is a specialized dual-purpose memory module designed for the SIMATIC S5-115 programmable logic controller (PLC) series. This hybrid unit serves as a critical component for legacy automation systems, offering both volatile RAM for active program development and testing, and non-volatile EPROM storage for permanent, deployment-ready control logic. By facilitating seamless transitions between development and production environments, this module supports efficient maintenance and reliable operation of S5-based industrial control systems.Features
Hybrid memory architecture supporting both RAM and EPROM storage modes.
Optimized for direct integration with the Siemens SIMATIC S5-115 backplane bus.
Provides non-volatile program retention to protect against data loss during power cycles.
Engineered for high signal integrity in demanding industrial environments.
Essential for legacy system recovery and program backup management.
ApplicationsThis memory module is widely utilized in legacy Siemens S5-115 automation environments across various sectors, including automated manufacturing, water treatment facilities, and logistics systems. It is primarily used by maintenance engineers to store, update, and secure PLC control programs in systems where long-term operational stability is required.Technical Specifications
Model
6ES5355-3UA11
Manufacturer
Siemens
Memory Type
Hybrid RAM / EPROM
Compatibility
SIMATIC S5-115 Series
Operating Temperature
0 to 60 deg C
Status
Discontinued
Installation Guidelines
Ensure the PLC rack power is fully disconnected before inserting or removing the memory module to prevent electrical damage.
Handle the module using standard ESD (electrostatic discharge) protection protocols to protect internal memory components.
Verify that the module is firmly seated into the designated S5-115 backplane slot to ensure reliable bus communication.
Avoid exposure to high-EMI sources or extreme environmental conditions that exceed the specified operating temperature range.
Confirm that the CPU is in the correct mode (STOP/RUN) as required by the specific S5 programming procedure when switching between RAM and EPROM memory sources.
FAQIs this module compatible with other S5 series controllers?The 6ES5355-3UA11 is specifically engineered for the S5-115 series. Compatibility with other S5 families is not guaranteed and should be verified against the specific CPU hardware manual.What is the primary advantage of a hybrid RAM/EPROM module?The hybrid design allows for rapid program modification and debugging in RAM, while providing a secure, permanent storage path in EPROM once the control logic is finalized and verified.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

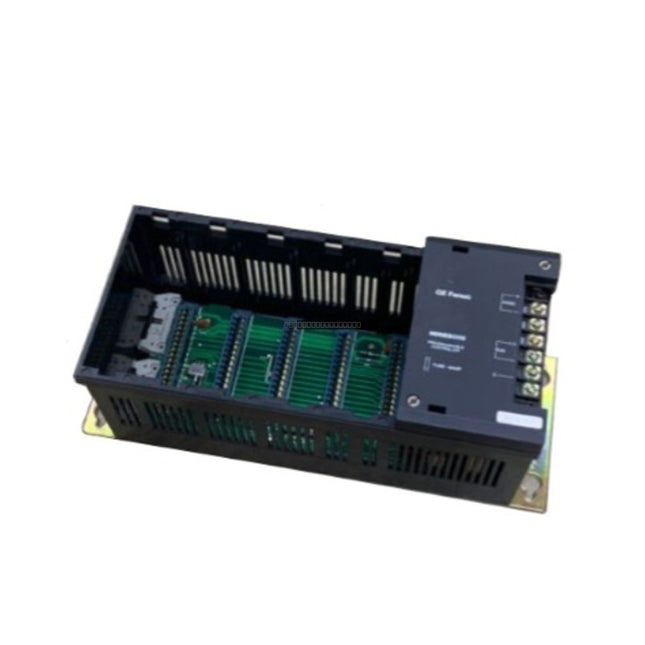

DescriptionThe GE Fanuc IC610CHS114 is a 5-slot rack assembly designed specifically for the Series One PLC family. This chassis serves as the primary mounting and communication backplane for the system, facilitating the integration of a CPU module and up to four I/O modules. It is engineered to provide a stable electrical foundation for industrial automation tasks, including machine control and assembly line management. By utilizing this rack, users benefit from a modular design that simplifies maintenance, allows for rapid module swapping, and supports efficient system expansion.Features
5-slot configuration: Supports one CPU module and four additional I/O modules.
Integrated power distribution: Designed for 24 VDC operation with dedicated terminals for power input.
System monitoring: Includes two dedicated RUN relay terminals for operational status feedback.
Scalable architecture: Features an expansion rack terminal to allow for system growth and increased I/O capacity.
Integrated control: Equipped with a 2-position switch for operational mode management.
Robust construction: Designed for reliable signal propagation and secure module seating in industrial environments.
ApplicationsThis rack is widely utilized in legacy GE Fanuc Series One automation systems. It is suitable for applications requiring modular PLC control, such as automated manufacturing, material handling, and small-to-medium scale machine tool automation.Technical Specifications
Model
IC610CHS114
Brand
GE Fanuc
Product Line
Series One
Slot Capacity
5 Slots (1 CPU, 4 I/O)
Voltage Rating
24 VDC
Status Monitoring
2 x RUN relay terminals
Expansion
Dedicated expansion terminal
Weight
0.91 kg
Installation Guidelines
Ensure the rack is mounted securely in a clean, dry, and vibration-dampened industrial enclosure.
Verify that the power source is disconnected before inserting or removing any CPU or I/O modules to prevent electrical damage.
Ensure proper grounding of the chassis to the enclosure backplane to minimize electromagnetic interference (EMI).
Maintain adequate clearance around the rack to allow for proper airflow and heat dissipation.
Verify that all wiring to the power and relay terminals is properly terminated and secured to prevent intermittent connections.
FAQWhat is the primary function of the IC610CHS114 rack?The IC610CHS114 acts as the backplane for the Series One PLC, providing the necessary electrical connections and mechanical mounting for the CPU and I/O modules.Can this rack be expanded?Yes, the unit includes a dedicated expansion rack terminal, which allows for the connection of additional racks to increase the total I/O capacity of the system.What is the power requirement for this rack?This model is designed to operate on a 24 VDC power supply.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

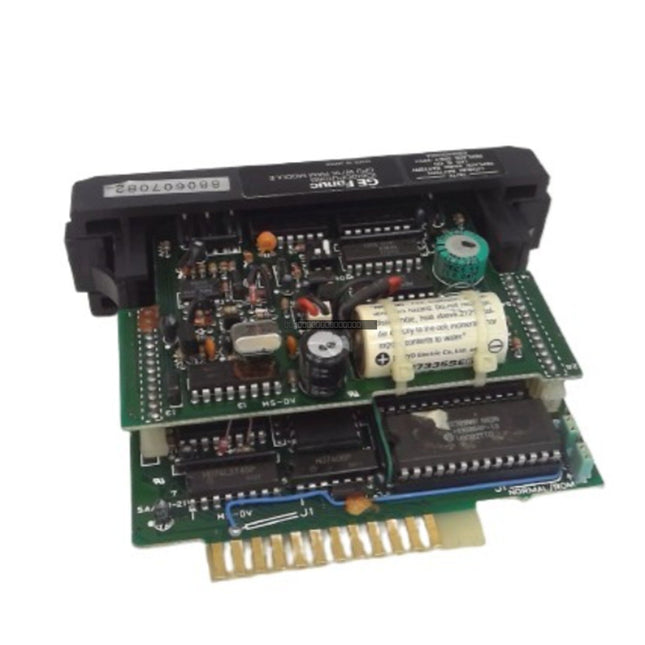

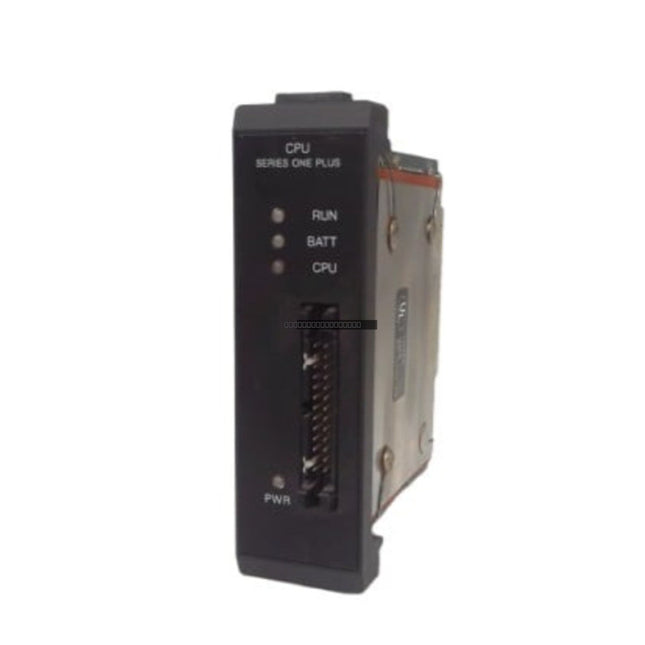

DescriptionThe GE Fanuc IC610CPU105 is a core central processing unit (CPU) module engineered for the Series One programmable logic controller (PLC) system. This module is designed to handle fundamental automation tasks, including machine sequencing, basic process control, and material handling operations. It provides reliable logic execution for small-scale industrial applications, ensuring consistent performance and operational stability within the Series One architecture.Features
Integrated 1K RAM for efficient program execution.
700 words of primary memory capacity, expandable to 1.7K words for larger application requirements.
Lithium battery-backed memory system to prevent data loss during power interruptions.
Designed for seamless integration with the Series One PLC backplane.
Robust construction suitable for standard industrial manufacturing environments.
ApplicationsThe IC610CPU105 is typically deployed in small-scale automation systems, such as standalone machine control, conveyor systems, and basic process monitoring where compact, reliable logic processing is required.Technical Specifications
Model
IC610CPU105
Brand
GE Fanuc
Product Line
Series One
RAM
1K
Primary Memory
700 Words
Expanded Memory
1.7K Words
Battery Backup
Integrated Lithium Battery
Operating Temperature
0 to 60 degC
Storage Temperature
-20 to 70 degC
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the PLC system is powered down before inserting or removing the CPU module from the backplane.
Verify that the module is correctly seated in the designated Series One backplane slot to ensure proper electrical contact.
Maintain adequate ventilation around the PLC rack to keep operating temperatures within the specified 0 to 60 degC range.
Handle the module with care to avoid electrostatic discharge (ESD) damage to internal components.
Periodically inspect the lithium battery backup status to ensure data integrity during power loss events.
FAQWhat is the primary function of the IC610CPU105?The IC610CPU105 acts as the central processor for the GE Fanuc Series One PLC, managing logic execution and data processing for industrial automation tasks.Can the memory of this module be expanded?Yes, the primary memory capacity of 700 words can be expanded to 1.7K words to support more complex control logic.How does the module protect data during power loss?The module features an integrated lithium battery-backed memory system, which preserves user programs and data tables when main power is unavailable.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756-RM2 is an Enhanced Redundancy Module designed for the ControlLogix platform. This module facilitates seamless controller redundancy, ensuring high availability and system reliability in critical industrial automation environments. It utilizes fiber-optic communication to maintain synchronization between redundant controller pairs.Features
Supports high-speed redundancy synchronization at up to 1000 Mbps.
Single-channel configuration featuring dedicated transmit and receive fiber ports.
Extended distance capability, supporting communication links up to 10 km.
Compatible with ControlLogix SIL2 safety application requirements.
Utilizes 8.5/125 micron single-mode fiber-optic cabling for robust data transmission.
ApplicationsThis module is engineered for mission-critical processes where controller downtime must be minimized. It is commonly deployed in large-scale manufacturing, power generation, and petrochemical processing systems where ControlLogix redundancy is required to maintain continuous operation.Technical Specifications
Model
1756-RM2
Module Type
Enhanced Redundancy Module
Data Rate
1000 Mbps
Transmission Medium
Single-mode fiber-optic (8.5/125 micron)
Maximum Distance
10 km
Wavelength
1310 nm
Safety Rating
SIL2 capable
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-RM2 module to prevent electrical damage.
Handle the fiber-optic connectors with care; ensure they are clean and free of dust or debris before insertion.
Route fiber-optic cables away from high-voltage power lines and sources of significant electromagnetic interference (EMI).
Maintain proper bend radii for fiber-optic cables to prevent signal attenuation or fiber breakage.
Verify that the module is fully seated in the chassis slot and the locking tabs are engaged.
FAQWhat type of fiber cable is required for the 1756-RM2?The module requires 8.5/125 micron single-mode fiber-optic cable with a 1310 nm wavelength.Can this module be used in SIL2 applications?Yes, the 1756-RM2 is designed to be used within ControlLogix SIL2 safety-rated systems.What is the maximum transmission distance?The module supports communication distances of up to 10 km depending on the fiber installation quality.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric ASBDEP217 is a high-density digital input module designed for the Modicon 800 Series control architecture. This module provides reliable discrete state sensing for industrial applications, including thermal power generation, hydrocarbon processing, and heavy-duty mining. It is engineered to monitor up to 16 independent 24 VDC field input loops, ensuring deterministic signal tracking and high immunity to electromagnetic interference in demanding environments.Features
16-channel discrete input capacity for high-density signal monitoring.
Galvanic isolation via optocoupler arrays to protect internal backplane circuitry from field-side surges.
Integrated signal debounce filtering to eliminate contact chatter and prevent false state transitions.
Front-mounted LED status indicators for real-time visual monitoring of input states.
Robust design suitable for operation in harsh industrial temperature ranges.
ApplicationsThis module is typically deployed in large-scale automation systems requiring precise monitoring of discrete field devices such as limit switches, proximity sensors, and relay contacts. It is well-suited for use in process control environments where signal integrity is critical to preventing production downtime.Technical Specifications
Model
ASBDEP217
Input Channels
16
Nominal Input Voltage
24 VDC
Input Voltage Range
20 to 30 VDC
ON-State Threshold
> 15 VDC
OFF-State Threshold
< 5 VDC
Input Impedance
3.3 kOhm
Isolation
1500 VAC (Channel-to-Bus)
Power Consumption
200 mA @ 5 VDC (from backplane)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the rack.
Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise environments.
Verify that the terminal block is securely seated to ensure proper electrical contact.
Maintain adequate ventilation around the chassis to ensure the module operates within its specified temperature range.
Handle with standard ESD precautions to prevent damage to sensitive internal components.
FAQWhat is the primary function of the ASBDEP217?The ASBDEP217 is a digital input module used to interface 16 discrete 24 VDC field signals into the Modicon 800 Series controller bus.Does this module require external power for the inputs?The module monitors 24 VDC field signals; the internal logic is powered by the 5 VDC supply provided by the chassis backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 7400166-380 is a specialized terminal panel module engineered for secure, reliable field wiring termination within Triconex safety-critical control systems. This interface component acts as a robust bridge between field instrumentation and the safety controller, ensuring signal integrity in demanding industrial environments. By providing a structured and organized termination point, the module facilitates efficient I/O signal distribution, which is essential for maintaining the high availability required in safety-instrumented systems.Features
Designed for high-density field wiring in safety-critical applications.
Provides secure, low-resistance contact points for consistent signal transmission.
Optimized layout to simplify point-to-point wiring verification and troubleshooting.
Built to withstand thermal cycling and vibration common in industrial facilities.
Streamlines installation and maintenance, reducing potential for wiring errors.
ApplicationsThis terminal panel module is typically utilized in safety-instrumented systems (SIS) across various high-stakes industries, including:
Chemical and petrochemical processing plants.
Offshore drilling and production platforms.
Integrated pipeline monitoring and control stations.
Critical infrastructure safety management systems.
Technical Specifications
Model
7400166-380
Brand
Triconex
Module Type
Terminal Panel Module
Operating Temperature
0 to 60 degC
Installation Guidelines
Ensure the system is powered down before performing any wiring or module installation.
Verify that all field wiring is properly labeled and secured to the terminal blocks to prevent intermittent connections.
Maintain proper cable routing practices to minimize electromagnetic interference (EMI) and ensure signal separation.
Handle the module with care to avoid damage to the connector pins or the terminal structure.
Ensure the environment is within the specified operating temperature range of 0 to 60 degC to maintain long-term reliability.
FAQWhat is the primary function of the 7400166-380?This module serves as a terminal interface panel for Triconex safety systems, providing a structured physical connection point for field-side wiring to ensure reliable signal distribution.Is this module suitable for high-vibration environments?Yes, the 7400166-380 is designed for robust performance in industrial settings, including those subject to vibration, such as offshore platforms and processing facilities.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 3300/40 Eccentricity Monitor is a specialized rack-mounted module engineered for the continuous monitoring of shaft eccentricity in critical rotating machinery, such as large steam turbines and compressors. This module detects rotor bow and misalignment by measuring shaft displacement during slow-roll conditions. By providing real-time data and alarm setpoint comparisons, it serves as a vital component in predictive maintenance programs, helping to prevent catastrophic equipment failure and minimize unplanned downtime.Features
Designed for integration within the Bently Nevada 3300 series monitoring rack.
Provides continuous monitoring of shaft eccentricity and slow-roll displacement.
Features user-programmable sensitivity settings (200 mV/mil or 100 mV/mil).
Includes integrated relay outputs for Alert and Danger alarm conditions.
Equipped with front-panel LED indicators for rapid status identification, including OK, Bypass, Alert, and Danger states.
Supports standard proximity probe and Proximitor sensor inputs.
ApplicationsThis module is primarily utilized in power generation and heavy industrial environments where large rotating equipment requires precise shaft position monitoring. It is essential for detecting thermal bow or mechanical misalignment during turbine start-up, shut-down, and steady-state operation.Technical Specifications
Model
3300/40-13-01-01-00-00
Brand
Bently Nevada
Series
3300
Operating Temperature
0 to 60 deg C
Power Consumption
~1.5 W
Signal Accuracy
±0.33% typical, ±1% max at 25 deg C
Output Signals
+4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC
Installation Guidelines
Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect internal circuitry.
Verify that the proximity probe and Proximitor sensor wiring is shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
Ensure the module is fully seated in the rack slot and the front-panel screws are tightened to maintain proper grounding and mechanical stability.
Confirm that the configuration settings (sensitivity and alarm setpoints) match the specific machine requirements before commissioning.
FAQWhat is the primary function of the 3300/40 module?The 3300/40 module monitors shaft eccentricity, which is the displacement of the shaft centerline from the center of rotation, typically during slow-roll conditions to detect rotor bow.Does this module require external power?The module is powered directly through the 3300 series rack backplane; it consumes approximately 1.5 W of power during operation.What type of sensors does this module support?This specific model (3300/40-13-01-01-00-00) is configured for use with standard Bently Nevada proximity probes and Proximitor sensors.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The 2711P-B12C15D7 is a high-performance PanelView Plus 1250 operator interface terminal, designed to provide robust visualization and control for industrial automation systems. Operating on a Windows CE platform with an Intel Celeron 650 MHz processor, this unit facilitates reliable interaction between operators and PLC-controlled machinery. It is suitable for diverse industrial environments, including automotive assembly, water treatment, and chemical processing, where deterministic communication and clear process monitoring are essential.Features
Hybrid Input Interface: Combines a 12.1-inch analog resistive touchscreen with a 40-key stainless steel domed membrane keypad for versatile operation, even when wearing gloves.
Advanced Connectivity: Supports integrated ControlNet and Ethernet networking, alongside RS-232 serial communication for flexible integration into existing control architectures.
High-Visibility Display: Features an 18-bit color active-matrix TFT display with 800 x 600 resolution and a 300 cd/m2 luminance rating.
Reliable Memory: Equipped with 256 MB of Flash memory and 256 MB of RAM to handle complex HMI applications and data logging.
Industrial Durability: Rated for NEMA 12, 13, 4X, IP54, and IP65, ensuring protection against dust, water, and environmental contaminants.
Technical Specifications
Model
2711P-B12C15D7
Display Size
12.1 inches
Resolution
800 x 600 pixels
Processor
Intel Celeron 650 MHz
Memory
256 MB Flash / 256 MB RAM
Input Voltage
18-32 VDC (24 VDC nominal)
Power Consumption
70 W max
Operating Temperature
0 to 55 deg C
Storage Temperature
-25 to 70 deg C
Installation Guidelines
Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA/IP enclosure rating.
Use the provided mounting clips to secure the terminal firmly to the enclosure door.
Verify that the power supply provides a stable 24 VDC nominal input within the 18-32 VDC range.
Route communication cables (Ethernet/ControlNet) away from high-voltage power lines to minimize electromagnetic interference (EMI).
Ensure adequate ventilation around the rear of the unit to prevent overheating during continuous operation.
Always power down the system before performing any wiring or maintenance on the terminal.
FAQQ: What operating system does this terminal use?A: The 2711P-B12C15D7 runs on the Windows CE operating system.Q: Can the backlight be replaced?A: Yes, the unit features a field-replaceable backlight rated for approximately 50,000 hours of service life.Q: What is the primary communication method for this model?A: This unit supports ControlNet and Ethernet as its primary fieldbus communication protocols.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Schneider Electric ATV71HU55N4 is a high-performance variable speed drive from the Altivar 71 series, engineered for precise motor control in demanding industrial environments. This unit is designed to manage complex applications, providing robust torque control and energy efficiency for 3-phase motor systems.Features
Power rating: 22 kW (30 HP) for 3-phase applications.
Input voltage range: 380-480V (-15% to +10%).
Enclosure rating: IP20, suitable for installation within a control cabinet.
Integrated EMC filtering for improved electromagnetic compatibility.
Designed for demanding industrial processes, including pumping and ventilation machinery.
Note: This unit is supplied without a graphic terminal.
ApplicationsThe Altivar 71 series is optimized for high-performance applications requiring advanced motor control, including:
Industrial pumping systems and fluid management.
HVAC and ventilation systems.
Material handling and conveyor systems.
Complex machinery requiring precise speed and torque regulation.
Technical Specifications
Model
ATV71HU55N4
Series
Altivar 71
Power Rating
22 kW / 30 HP
Supply Voltage
380...480 V (3-phase)
Protection Rating
IP20
Tariff Code
8537101190
Weight
5.6 kg
Installation Guidelines
Ensure the drive is mounted vertically in a clean, dry environment within an IP20-rated enclosure or better.
Maintain adequate clearance around the unit to allow for proper heat dissipation and airflow.
Always disconnect power and wait for the internal capacitors to discharge before performing any wiring or maintenance.
Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the drive chassis to a common earth point to prevent ground loops and ensure safety.
Verify that the incoming supply voltage matches the drive's rated input range before energizing.
FAQDoes this unit include a graphic terminal? No, the ATV71HU55N4 is supplied without a graphic terminal.What is the primary application for this drive? This model is specifically designed for industrial pumping and ventilation machinery, though it is suitable for a wide range of variable speed motor control tasks.What is the IP rating of this device? This drive features an IP20 protection rating, meaning it is intended for mounting inside a protective electrical cabinet.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1745-E102 is an expansion unit designed for use with the SLC 100 and SLC 150 series of programmable logic controllers. This unit serves to extend the I/O capacity of the base controller, allowing for more complex automation configurations in legacy industrial control systems. Please note that this product was officially discontinued by the manufacturer on April 16, 2014.Features
Compatible with Allen-Bradley SLC 100 and SLC 150 PLC systems
Designed for seamless expansion of controller I/O capabilities
Rugged industrial construction suitable for control cabinet environments
Reliable interface for legacy automation architectures
ApplicationsThis expansion unit is primarily utilized in industrial environments where existing SLC 100 or SLC 150 systems require additional I/O points to support expanded machinery or process control requirements. It is a critical component for maintaining and extending the service life of legacy Allen-Bradley control platforms.Technical Specifications
Manufacturer
Allen-Bradley
Model Number
1745-E102
Product Type
Expansion Unit
System Compatibility
SLC 100 / SLC 150
Weight
1.9 kg
Tariff Code
8538903000
Installation Guidelines
Ensure the PLC system is powered down before installing or removing the expansion unit to prevent electrical damage.
Mount the unit securely within a suitable industrial enclosure, ensuring adequate clearance for ventilation and cable routing.
Verify that all interconnecting cables between the base controller and the expansion unit are properly seated and secured.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
Ensure the environment is free from excessive vibration, moisture, and corrosive gases to maintain long-term reliability.
FAQIs the 1745-E102 still in production?No, the 1745-E102 was discontinued by the manufacturer on April 16, 2014. It is currently available primarily through surplus or refurbished inventory channels.What systems is this expansion unit compatible with?This unit is specifically designed for use with the Allen-Bradley SLC 100 and SLC 150 programmable controller series.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The ABB DATX100 (3ASC25H208) is a pulse transformer board designed for integration within ABB robotic control systems. This component provides critical signal isolation and pulse transformation, ensuring reliable communication and power distribution within the robot's internal control architecture.Features
Optimized for high-frequency pulse applications within the 1–50 kHz range.
Robust isolation voltage rating of typically 4 kV or greater.
Designed for standard primary voltage inputs ranging from 5 V to 24 V DC.
Capable of handling peak currents between 2 A and 5 A.
Engineered for precise signal integrity in demanding industrial environments.
Technical Specifications
Product Model
DATX100 3ASC25H208
Spare Part Number
3ASC25H208
Component Type
Pulse Transformer Board
Manufacturer
ABB
Isolation Voltage
>= 4 kV
Frequency Range
1 - 50 kHz
Primary Voltage
5 - 24 V DC
Peak Current
2 - 5 A
Tariff Code
8537101190
Installation GuidelinesInstallation of the DATX100 board should be performed by qualified personnel familiar with ABB robotic control hardware. Ensure the following practices are observed:
Always disconnect the main power supply to the robot controller before attempting to install or remove the board.
Observe standard ESD (Electrostatic Discharge) precautions when handling the PCB to prevent damage to sensitive components.
Ensure the board is securely seated in its designated slot and that all connectors are fully engaged.
Verify that the environment is free from excessive vibration, moisture, and conductive dust.
Check that all wiring connections are tight and routed away from high-power EMI sources to maintain signal integrity.
FAQWhat is the primary function of the DATX100 board?The DATX100 is a pulse transformer board used in ABB robotic systems to provide electrical isolation and signal transformation for control pulses.Is this part compatible with all ABB robots?This board is specific to systems requiring the DATX100 / 3ASC25H208 configuration. Please verify your existing part number or consult your robot's technical manual to ensure compatibility.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB GD C806 B01 (3BHE036290R0001) is a high-performance Gate Drive Board designed for use in ABB medium-voltage drives, specifically the ACS2000 series. This module serves as the critical physical interface between the low-voltage control electronics and the high-power semiconductor switches (IGBTs or IGCTs). By amplifying control signals into precise gate-drive pulses, it ensures reliable switching at high frequencies within power conversion systems.The board is engineered for signal integrity in electrically noisy environments. It utilizes advanced isolation techniques, including fiber optic communication for firing commands, which eliminates ground loops and prevents false triggering caused by electromagnetic interference from high-voltage busbars.Features
Designed specifically for ABB ACS2000 medium-voltage drive systems.
Provides channel-wise electrical isolation for enhanced system safety.
Utilizes fiber optic signal transmission to ensure immunity against electromagnetic interference (EMI).
Facilitates high-frequency switching of power semiconductors.
Robust construction suitable for demanding industrial environments.
Applications
Medium-voltage AC (MVAC) drive control systems.
Industrial motor management and high-performance torque control.
Power conversion and energy management systems.
Marine propulsion and heavy-duty process industry automation.
Automated material handling and conveyor drive systems.
Technical Specifications
Manufacturer
ABB
Model
GD C806 B01
Order Code
3BHE036290R0001
Input Voltage
24 VDC
Operating Temperature
-20 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% (non-condensing)
Tariff Code
8537101190
Installation Guidelines
Safety First: Perform a complete Lockout/Tagout (LOTO) procedure before beginning installation. Ensure all power sources are disconnected.
Capacitor Discharge: Wait at least 5 minutes after power disconnection to allow intermediate circuit capacitors to fully discharge.
ESD Protection: Always use an antistatic wrist strap and handle the board by its edges to prevent damage from electrostatic discharge.
Environment: Ensure the installation area is clean. Vacuum the area around the drive to prevent cooling fans from pulling dust or debris into the new board during start-up.
Compatibility: Verify the revision level against your drive's serial number and spare parts catalog to ensure hardware and firmware compatibility.
FAQWhat is the primary function of the 3BHE036290R0001?This module acts as a Gate Drive Unit, responsible for driving power components within the ACS2000 drive control system.Can I substitute the GD C806 B01 with a B02 revision?The GD C806 B02 (3BHE039017R0101) is a later revision. You must consult the specific ACS2000 Spare Parts Catalog for your drive's serial number to confirm compatibility before attempting a substitution.How does the board handle electrical noise?The board uses fiber optic communication for firing commands, which provides galvanic isolation and prevents false triggering from high-frequency electromagnetic fields.
