Description

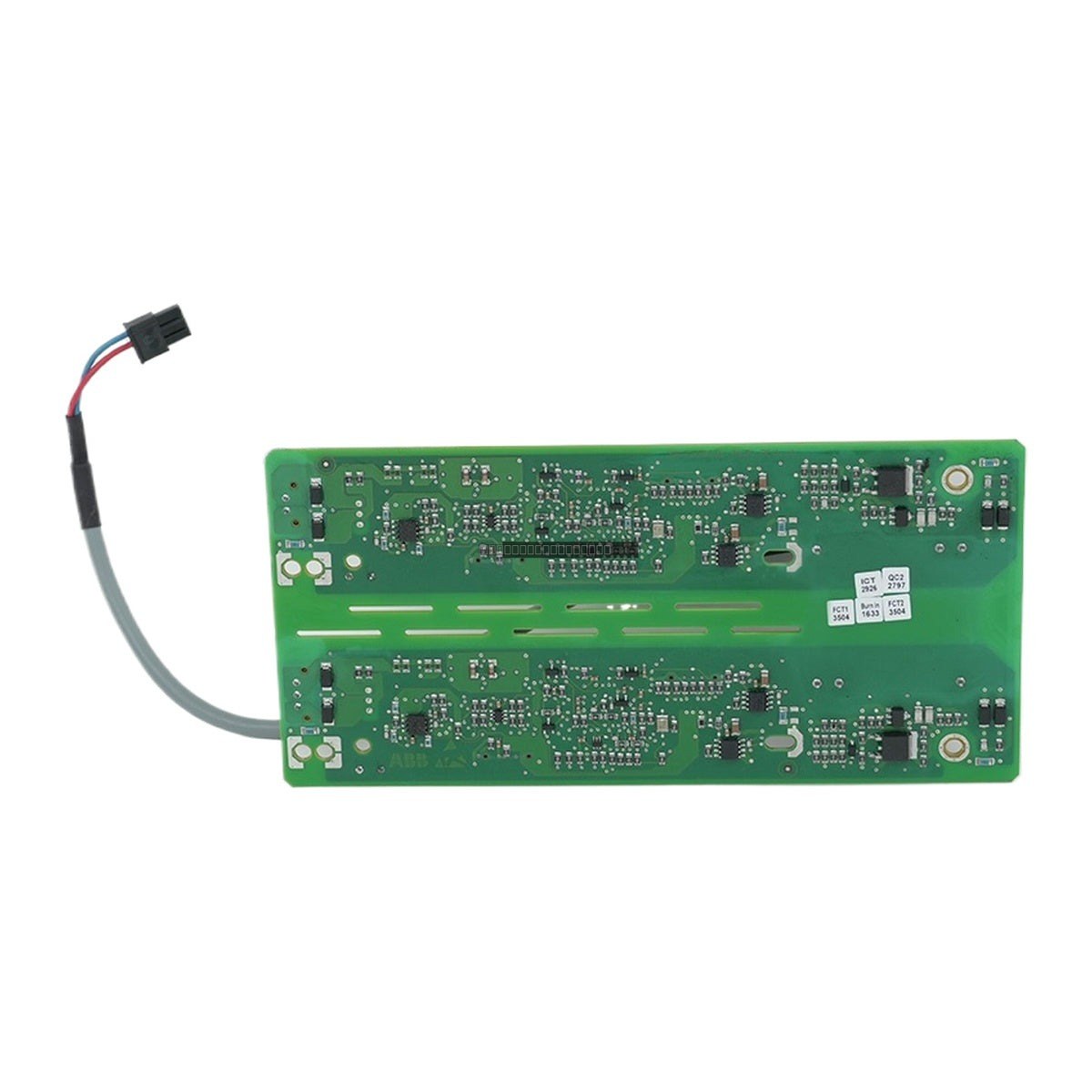

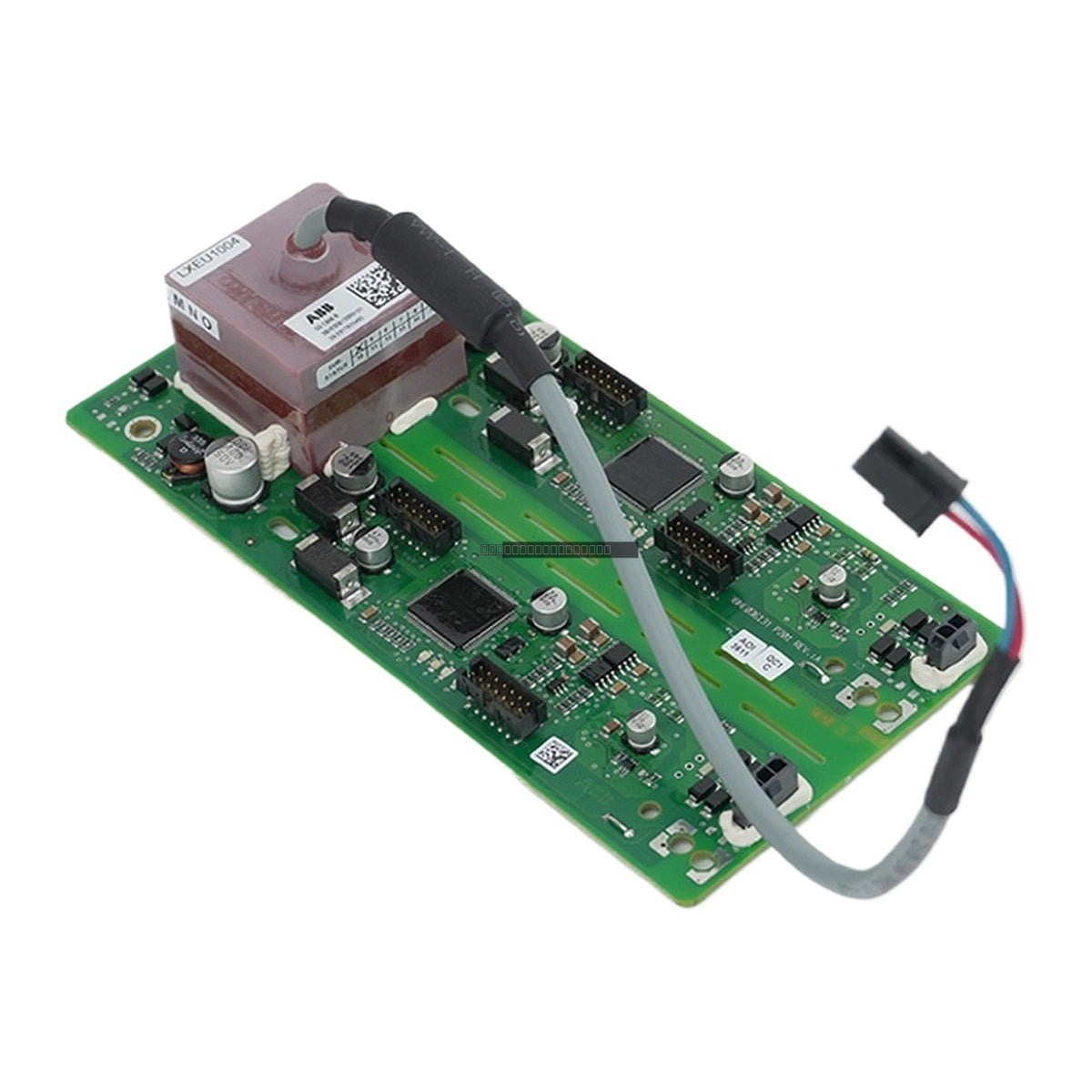

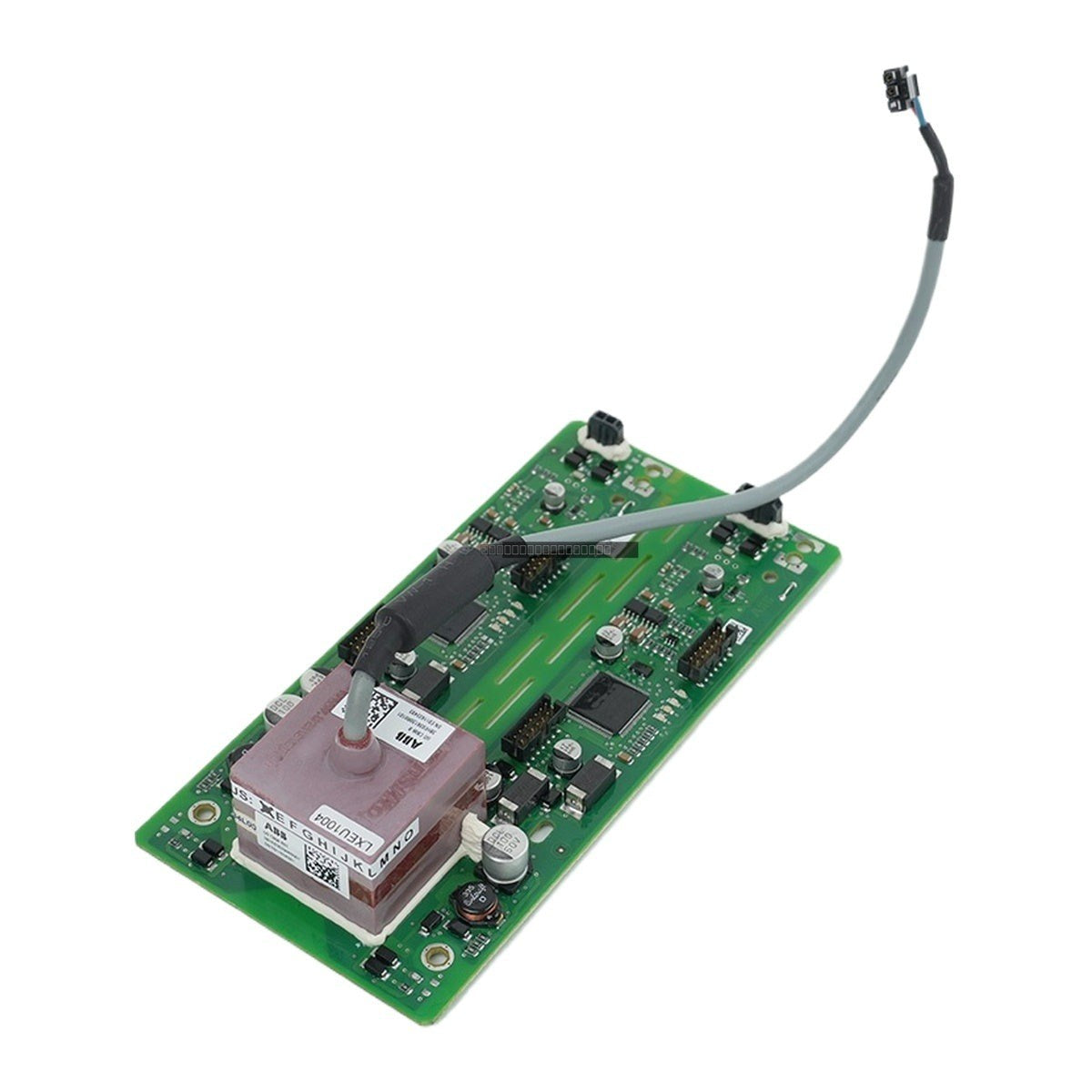

The ABB GD C806 B01 (3BHE036290R0001) is a high-performance Gate Drive Board designed for use in ABB medium-voltage drives, specifically the ACS2000 series. This module serves as the critical physical interface between the low-voltage control electronics and the high-power semiconductor switches (IGBTs or IGCTs). By amplifying control signals into precise gate-drive pulses, it ensures reliable switching at high frequencies within power conversion systems.
The board is engineered for signal integrity in electrically noisy environments. It utilizes advanced isolation techniques, including fiber optic communication for firing commands, which eliminates ground loops and prevents false triggering caused by electromagnetic interference from high-voltage busbars.
Features
- Designed specifically for ABB ACS2000 medium-voltage drive systems.
- Provides channel-wise electrical isolation for enhanced system safety.
- Utilizes fiber optic signal transmission to ensure immunity against electromagnetic interference (EMI).
- Facilitates high-frequency switching of power semiconductors.
- Robust construction suitable for demanding industrial environments.
Applications
- Medium-voltage AC (MVAC) drive control systems.
- Industrial motor management and high-performance torque control.
- Power conversion and energy management systems.
- Marine propulsion and heavy-duty process industry automation.
- Automated material handling and conveyor drive systems.
Technical Specifications
| Manufacturer |
ABB |
| Model |
GD C806 B01 |
| Order Code |
3BHE036290R0001 |
| Input Voltage |
24 VDC |
| Operating Temperature |
-20 degC to +70 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5% to 95% (non-condensing) |
| Tariff Code |
8537101190 |
Installation Guidelines
-
Safety First: Perform a complete Lockout/Tagout (LOTO) procedure before beginning installation. Ensure all power sources are disconnected.
-
Capacitor Discharge: Wait at least 5 minutes after power disconnection to allow intermediate circuit capacitors to fully discharge.
-
ESD Protection: Always use an antistatic wrist strap and handle the board by its edges to prevent damage from electrostatic discharge.
-
Environment: Ensure the installation area is clean. Vacuum the area around the drive to prevent cooling fans from pulling dust or debris into the new board during start-up.
-
Compatibility: Verify the revision level against your drive's serial number and spare parts catalog to ensure hardware and firmware compatibility.
FAQ
What is the primary function of the 3BHE036290R0001?
This module acts as a Gate Drive Unit, responsible for driving power components within the ACS2000 drive control system.
Can I substitute the GD C806 B01 with a B02 revision?
The GD C806 B02 (3BHE039017R0101) is a later revision. You must consult the specific ACS2000 Spare Parts Catalog for your drive's serial number to confirm compatibility before attempting a substitution.
How does the board handle electrical noise?
The board uses fiber optic communication for firing commands, which provides galvanic isolation and prevents false triggering from high-frequency electromagnetic fields.
