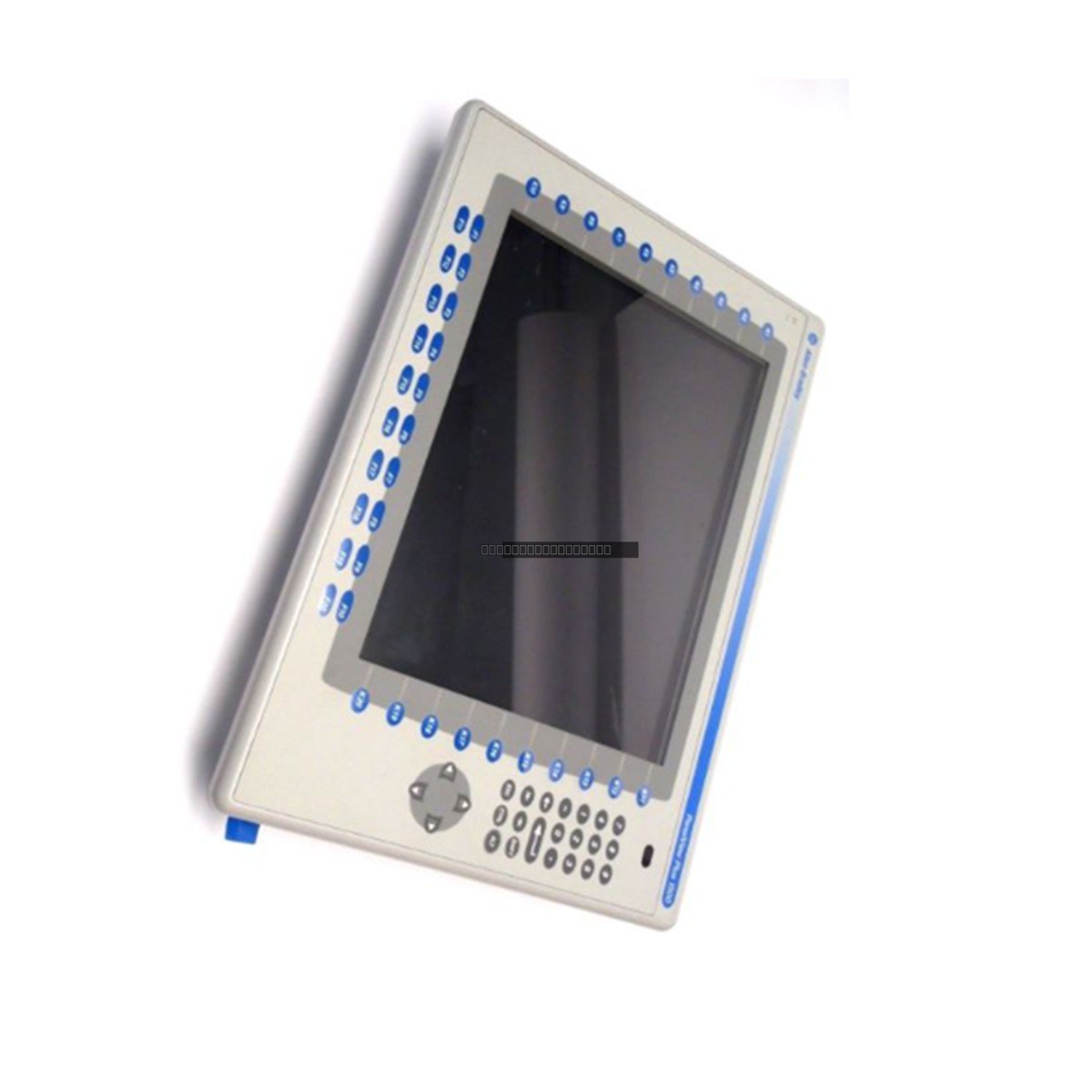

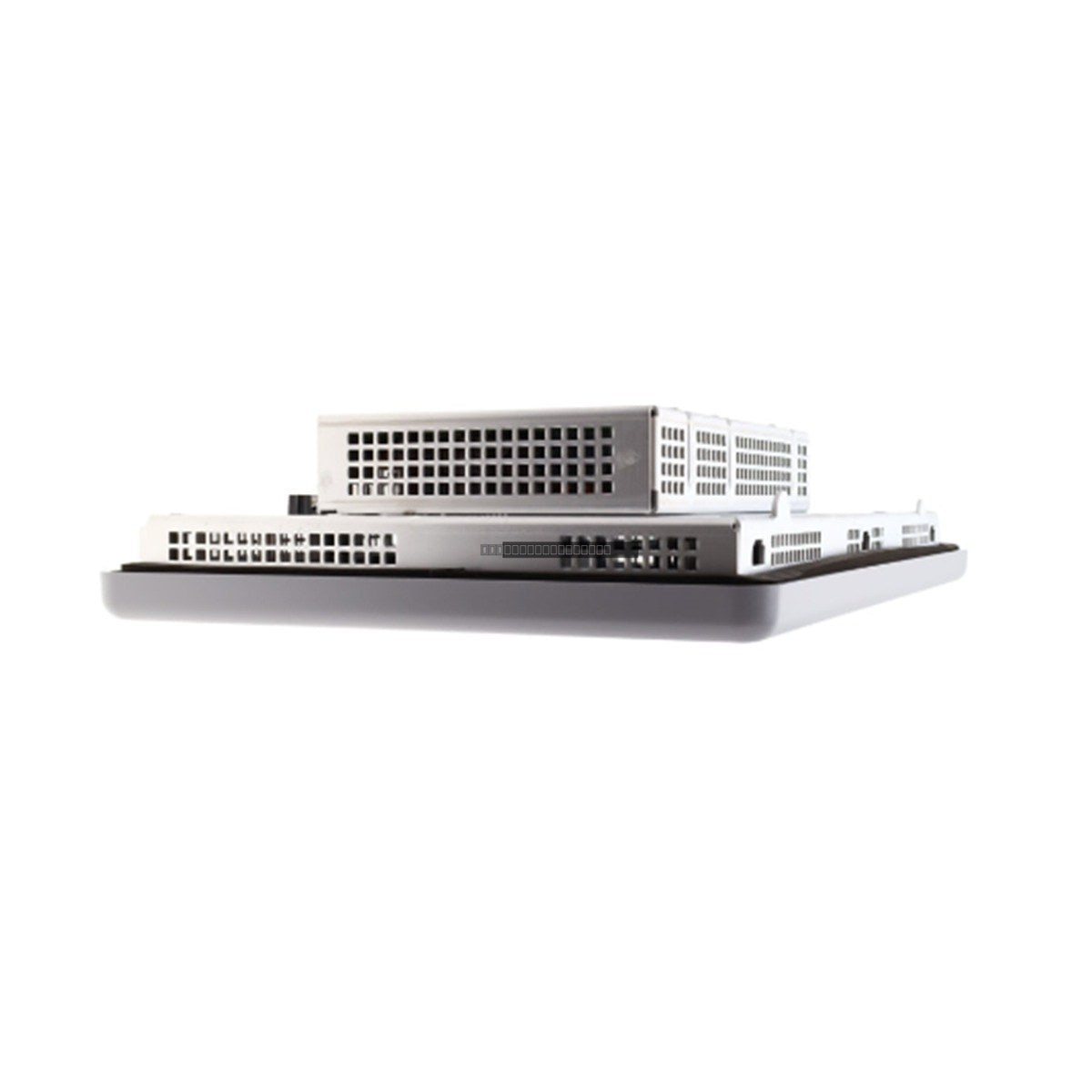

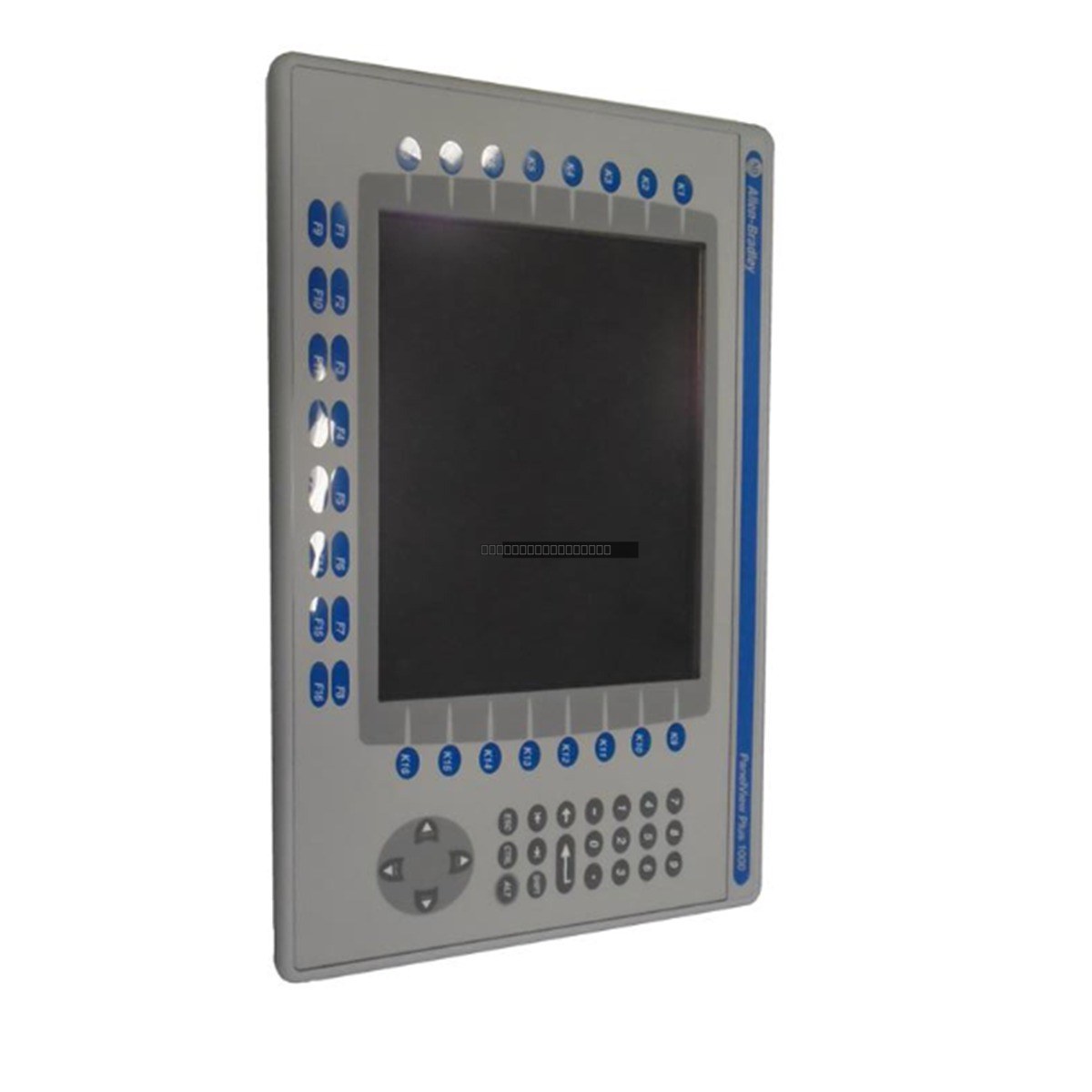

The Allen-Bradley 2711P-B15C15A7 is a high-performance operator interface terminal from the PanelView Plus 1500 series. Designed for demanding industrial environments, this unit features a 15-inch color TFT display with a 1024 x 768 resolution, providing clear visualization of system telemetry and control parameters. The terminal supports dual-input functionality, allowing operators to interact via both a physical keypad and a touch-screen interface, ensuring reliable control in diverse operational settings.
Features
- 15-inch color TFT display for high-visibility process monitoring.
- Dual-mode input: Integrated keypad and analog resistive touch screen.
- Windows CE-based logic module for robust FactoryTalk View Machine Edition application support.
- Integrated ControlNet communication port for deterministic network integration.
- 10/100 Base-T Ethernet port and RS-232 serial connectivity for versatile plant-floor networking.
- USB host port for peripheral support and firmware updates.
- Internal 100-240 VAC power supply for global compatibility.
Applications
This operator terminal is widely utilized in sectors such as automotive assembly, water treatment, chemical processing, and discrete manufacturing. It serves as a central HMI node for managing complex automation systems, alarm monitoring, and real-time operational control.
Technical Specifications
| Model |
2711P-B15C15A7 |
| Display Size |
15 in |
| Display Type |
Color TFT LCD |
| Resolution |
1024 x 768 pixels |
| Input Method |
Keypad and Touch screen |
| Flash Memory |
256 MB |
| Input Voltage |
100-240 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
160 VA max |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Humidity |
5 to 95 % non-condensing |
Installation Guidelines
- Ensure adequate clearance around the unit for proper ventilation and cooling.
- Mount the terminal in a suitable NEMA/IP-rated enclosure to protect against dust and moisture.
- Verify that the AC power source is stable and within the specified 100-240 VAC range.
- Use shielded communication cables for Ethernet and ControlNet connections to minimize EMI interference.
- Power down the unit before performing any maintenance, wiring changes, or memory card insertions.
- Observe standard ESD precautions when handling the module to prevent damage to internal components.
FAQ
What communication protocols are supported by this model?
The 2711P-B15C15A7 supports Ethernet (10/100 Base-T), RS-232 serial communication, and ControlNet networking.
Can this unit be used in high-temperature environments?
The operating temperature range is 0 to 55 deg C. Ensure the installation environment does not exceed these limits to maintain system reliability.
